Abstract
The invention discloses intelligent modular water treatment equipment, which comprises a solid-liquid separation device and a biochemical water purification device; the solid-liquid separation device comprises a liquid accumulation box, a solid-liquid separation module and a solid conveying belt; the solid-liquid separation module comprises a solid matter separation module and a pressure separation module; the solid object separation module comprises a shell, a conical screen, a dirt guide pipe and a first driving motor, wherein the first driving motor is axially connected with the conical screen; the pressure separation module comprises at least one pressure separation unit, and the pressure separation unit comprises a second driving motor, a driving wheel, a driven wheel, a first roller and a filter screen conveying belt. The invention adopts intelligent modular design, can flexibly set the sewage treatment capacity, and can carry out graded filtration treatment on the sewage, thereby greatly improving the filtration and purification effects.
Description
Technical Field
The invention relates to the technical field of environment-friendly treatment equipment, in particular to intelligent modular water treatment equipment.
Background
The sewage is generally discharged water from life and production, which is polluted to a certain extent, the sewage mainly comprises domestic sewage, industrial wastewater and initial rainwater, the main pollutants of the sewage comprise pathogen pollutants, oxygen-consuming pollutants, plant nutrients, toxic pollutants and the like, and the sewage treatment is a process for purifying the sewage so as to meet the water quality requirement of discharging the sewage into a certain water body or reusing the sewage. Sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people. The sewage usually contains less dense source floes, as well as heavier suspended matter and large clumps of dirt. However, the treatment capacity of the existing sewage treatment equipment is already limited when the equipment is delivered from a factory, and once the treatment capacity needs to be increased or reduced, the equipment needs to be purchased again, so that the investment cost is increased; in addition, most of the existing sewage treatment modes are solid-liquid separation by standing after a flocculating agent is added, the arrangement is too simple, the sewage cannot be subjected to relatively thorough solid-liquid separation in the sewage treatment process, the condition of incomplete sewage purification is easily generated, and the environment-friendly treatment effect is influenced.
Disclosure of Invention
The main object of the present invention is to provide an intelligent modular water treatment device, which addresses the above problems.
In order to achieve the purpose, the intelligent modular water treatment equipment provided by the invention comprises a solid-liquid separation device and a biochemical water purification device;
the solid-liquid separation device comprises a liquid accumulation box, a plurality of solid-liquid separation modules and a plurality of solid conveying belts, wherein the solid-liquid separation modules are arranged in an array, and the solid-liquid separation modules and the solid conveying belts are respectively arranged above the liquid accumulation box; the solid-liquid separation module comprises a solid separation module and a pressure separation module, and the solid separation module is arranged above the pressure separation module;
the solid object separation module comprises a shell, a conical screen, a dirt guide pipe and a first driving motor, wherein the first driving motor is arranged outside the shell and is axially connected with the conical screen, the cross section size of the conical screen is gradually increased from the direction far away from the first driving motor, one end of the conical screen, which faces towards the first driving motor, is arranged in the shell, one end of the conical screen, which faces away from the first driving motor, extends out of the shell, and one end of the dirt guide pipe is arranged in the conical screen;
the pressure separation module comprises at least one pressure separation unit, the pressure separation unit comprises a second driving motor, a driving wheel, a driven wheel, a first roller and a filter screen conveyer belt, the second driving motor is connected with the driving wheel, the driven wheel is connected with the driving wheel through the filter screen conveyer belt, and the first roller is arranged right above the driving wheel and clamps the filter screen conveyer belt;
the biochemical water purifying device comprises a plurality of sedimentation tanks, and each sedimentation tank is respectively connected with the liquid accumulating box through a conveying pipe.
Preferably, one end of the conical screen facing the first driving motor is a closed end, and one end of the conical screen facing away from the first driving motor is an open end.
Preferably, a first solid guide groove is arranged below the open end of the conical screen.
Preferably, the pressure separation unit further includes an auxiliary wheel disposed between the driving wheel and the driven wheel.
Preferably, the pressure separation unit further comprises a second roller, and the second roller is arranged right above the auxiliary wheel and clamps the filter screen conveyer belt.
Preferably, both ends of the first roller, both ends of the second roller and both ends of the auxiliary wheel are respectively connected with the adjustable bearing support.
Preferably, the second driving motor is connected with the driving wheel through gear transmission.
Preferably, a pneumatic cleaning module is further arranged between the upper layer and the lower layer of the filter screen conveying belt.
Preferably, a solid-liquid diversion trench is further arranged between the upper layer and the lower layer of the filter screen conveying belt.
Preferably, one side of the driving wheel is further provided with a second solid guide groove, and the solid conveying belt is arranged below the second solid guide groove.
In the technical scheme of the invention, the intelligent modular water treatment equipment comprises a solid-liquid separation device and a biochemical water purification device; the solid-liquid separation device comprises a liquid accumulation box, a plurality of solid-liquid separation modules and a plurality of solid conveying belts, wherein the solid-liquid separation modules are arranged in an array manner, and the solid-liquid separation modules and the solid conveying belts are respectively arranged above the liquid accumulation box; the solid-liquid separation module comprises a solid matter separation module and a pressure separation module, and the solid matter separation module is arranged above the pressure separation module; the solid object separation module comprises a shell, a conical screen, a dirt guide pipe and a first driving motor, wherein the first driving motor is arranged outside the shell and is axially connected with the conical screen; the pressure separation module comprises at least one pressure separation unit, the pressure separation unit comprises a second driving motor, a driving wheel, a driven wheel, a first roller and a filter screen conveyer belt, the second driving motor is connected with the driving wheel, the driven wheel is connected with the driving wheel through the filter screen conveyer belt, and the first roller is arranged right above the driving wheel and clamps the filter screen conveyer belt; the biochemical water purifying device comprises a plurality of sedimentation tanks, and each sedimentation tank is respectively connected with the liquid accumulating box through a conveying pipe. Intelligent module ization water treatment facilities is at the during operation, earlier great solid particle separates out in with the pollutant by the solid-state thing separation module among the solid-liquid separation device, the pressure separation unit in the pressure separation module carries out the layer upon layer to the pollutant and squeezes the dehydration, filter, it continues to make the pollutant dehydration separate out solid particle to squeeze the in-process, and then the sewage that obtains the solid particle less collects in the hydrops case, finally carry out innoxious processing and reach emission standard in sewage inflow biochemical purifier's sedimentation tank, whole processing procedure automation degree is higher, the filtration purification effect has been improved greatly, and simultaneously, the water treatment capacity of the nimble change equipment of quantity that can increase and decrease the solid-liquid separation module, the equipment acquisition cost has been reduced.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the structures shown in the drawings without creative efforts.

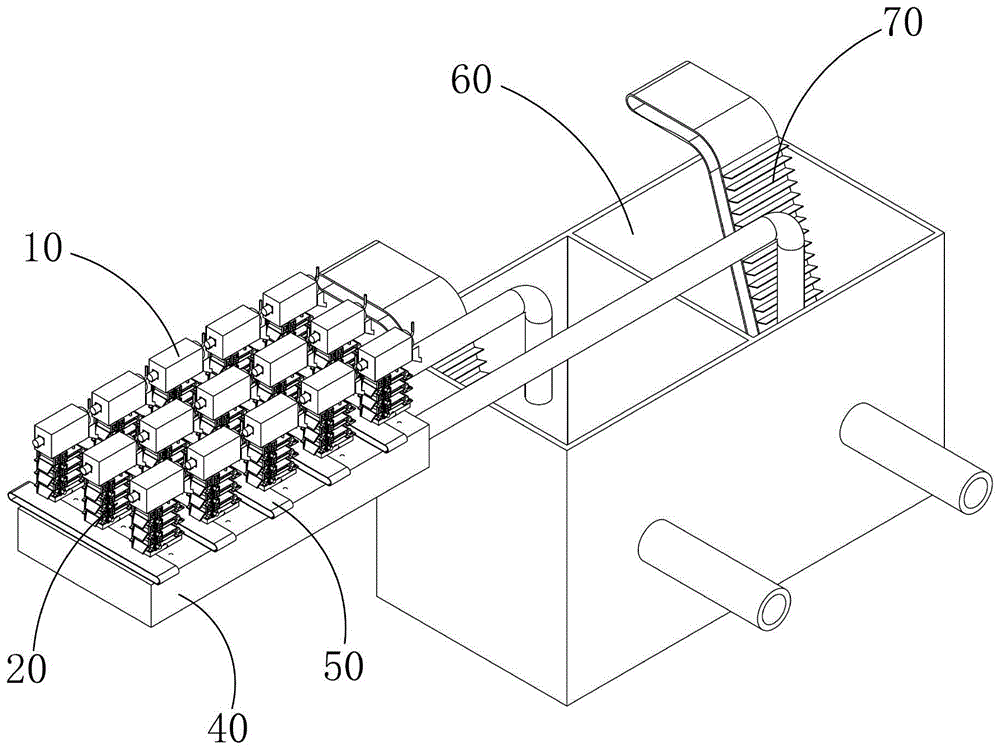

FIG. 1 is a schematic structural diagram of an intelligent modular water treatment apparatus of the present invention;
FIG. 2 is a schematic structural diagram of a solid-liquid separation module according to the present invention;
FIG. 3 is a schematic structural diagram of a solid-liquid separation module according to the present invention;
FIG. 4 is a schematic structural diagram of a pressure separation unit of the solid-liquid separation module according to the present invention.
The reference numbers illustrate:
the implementation, functional features and advantages of the objects of the present invention will be further explained with reference to the accompanying drawings.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
It should be noted that all the directional indicators (such as up, down, left, right, front, and rear … …) in the embodiment of the present invention are only used to explain the relative position relationship between the components, the movement situation, etc. in a specific posture (as shown in the drawing), and if the specific posture is changed, the directional indicator is changed accordingly.
In addition, the descriptions related to "first", "second", etc. in the present invention are only for descriptive purposes and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In the description of the present invention, "a plurality" means at least two, e.g., two, three, etc., unless specifically limited otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "connected," "secured," and the like are to be construed broadly, and for example, "secured" may be a fixed connection, a removable connection, or an integral part; can be mechanically or electrically connected; they may be directly connected or indirectly connected through intervening media, or they may be connected internally or in any other suitable relationship, unless expressly stated otherwise. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.
In addition, the technical solutions in the embodiments of the present invention may be combined with each other, but it must be based on the realization of those skilled in the art, and when the technical solutions are contradictory or cannot be realized, such a combination of technical solutions should not be considered to exist, and is not within the protection scope of the present invention.
The invention provides a solid-liquid separation device.
Referring to fig. 1 to 3, in an embodiment of the present invention, the solid-liquid separation device and the biochemical water purification device are provided; the solid-liquid separation device comprises a liquid accumulation box, a plurality of solid-liquid separation modules and a plurality of solid conveying belts, wherein the solid-liquid separation modules are arranged in an array, and the solid-liquid separation modules and the solid conveying belts are respectively arranged above the liquid accumulation box; the solid-liquid separation module comprises a solid separation module and a pressure separation module, and the solid separation module is arranged above the pressure separation module; the solid matter separation module 10 comprises a shell 11, a conical screen 12, a dirt guide pipe 13 and a first driving motor 14, wherein the first driving motor 14 is arranged outside the shell 11 and is axially connected with the conical screen 12, the cross section size of the conical screen 12 is gradually increased from the direction far away from the first driving motor 14, one end of the conical screen 12, facing the first driving motor 14, is arranged in the shell 11, one end of the conical screen 12, facing away from the first driving motor 14, extends out of the shell 11, and one end of the dirt guide pipe 13 is arranged in the conical screen 12; pressure separation module 20 includes at least one pressure separation unit 20a, pressure separation unit 20a includes second driving motor 21, action wheel 22, follows driving wheel 22a, first roll 24 and filter screen conveyer belt 25, second driving motor 21 connects action wheel 22, follow driving wheel 22a and pass through filter screen conveyer belt 25 connects action wheel 22, first roll 24 set up in centre gripping directly over action wheel 22 filter screen conveyer belt 25. The biochemical water purifying device comprises a plurality of sedimentation tanks 60, and each sedimentation tank 60 is respectively connected with the liquid accumulating box 40 through a conveying pipe.
In the embodiment, the solid-liquid separation device is mainly used for carrying out solid-liquid separation on pollutants to obtain sewage with extremely small solid particles, the sewage is gathered in the effusion box 40, then the sewage is led into the sedimentation tank 60 of the biochemical water purification device through the effusion box 40, biological/chemical agents are added into the sedimentation tank 60 to carry out relatively thorough purification treatment on the sewage, and the sewage is discharged into the ecological system after reaching the national discharge standard.
Specifically, the preliminary water treatment work is performed by a plurality of solid-liquid separation modules arranged in an array. The number of the solid-liquid separation modules can be flexibly set according to actual needs, the whole solid-liquid separation device completely realizes modular configuration, the water treatment capacity of the equipment can be increased or reduced only by slightly changing the device, new equipment does not need to be redesigned or purchased, and therefore the equipment purchase cost can be greatly reduced. Meanwhile, the solid conveyor belt 50 is mainly used for collecting and conveying the separated solid particles, and as shown in fig. 1, one conveyor belt may be arranged in each row of solid-liquid separation modules, or one conveyor belt may be arranged in each row of solid-liquid separation modules.
As shown in fig. 2, in a single solid-liquid separation module, the solid-liquid separation module 10 and the pressure separation module 20 filter sewage in two steps:
first, as shown in fig. 3, the solid-liquid separation module 10 can perform preliminary solid-liquid separation on sewage, the external sewage is introduced into the conical screen 12 through the sewage guide pipe 13, and the opening of the sewage guide pipe 13 is close to the tip of the conical screen 12. The end of the conical screen 12 facing the first driving motor 14 is a closed end, and the end of the conical screen 12 facing away from the first driving motor 14 is an open end. As can be seen from the foregoing, the cross-sectional size of the conical screen 12 gradually increases from the direction away from the first driving motor 14, i.e. the tip of the conical screen 12 is connected to the first driving motor 14, and the bottom end thereof partially extends out of the housing 11. By adopting the conical screen 12 with the structure, solid particles with larger sizes in the sewage introduced by the sewage guide pipe 13 are firstly filtered out by the conical screen 12, and meanwhile, the separated solid particles can slide out of the screen under the action of gravity along the inclined inner net surface of the conical screen 12 so as not to block the sieve holes on the screen and influence the filtering effect. The conical screen 12 is rotated by the first drive motor 14 to avoid the accumulation of solid particles on the screen surface. In addition, in order to facilitate the collection of the slipped solid particles, a first solid guide slot 15 is provided below the open end of the conical screen 12, and these solid particles removed in this embodiment can fall through the first solid guide slot 15 onto the solid conveyor 50 below, be transported away and be accumulated in other collection containers.
Furthermore, the sewage primarily filtered by the solid separation module 10 is secondarily filtered by the pressure separation module 20. That is, the solid-liquid mixed pollutant introduced by the pollutant guide pipe 13 is separated from the large particles in the pollutant after flowing through the conical screen 12, and the pollutant after primary filtration flows out of the screen holes of the conical screen 12 and falls on the bottom of the shell 11 to be collected, and then flows into the pressure separation module 20 through the holes at the bottom of the shell 11. The pressure separation module 20 is composed of one or more pressure separation units 20a, and accordingly, a module structure composed of a plurality of pressure separation units 20a is more complicated and has a better filtering effect. The driving wheel 22 and the driven wheel 22a of the pressure separation unit 20a support the filter screen conveyer belt 25 at both ends, the driving wheel 22 is driven by the second driving motor 21 to rotate, and the second driving motor 21 is directly connected with or connected with the driving wheel 22 through gear transmission. The mixed attitude pollutant of solid-liquid after the primary filtration falls on filter screen conveyer belt 25 after being flowed out by solid-state thing separation module 10, and filter screen conveyer belt 25's direction of transfer is by following driving wheel 22a to action wheel 22, and on filter screen conveyer belt 25 can be stayed to great solid particle in this in-process pollutant, the liquid part can be worn the sieve mesh on filter screen conveyer belt 25 and stay next grade to sewage after all solid-liquid separation module handles finally is all assembled in the hydrops case 40 of below. Meanwhile, when the solid particles remaining on the screen conveyer belt 25 are conveyed to the driving wheel 22, the solid particles are dewatered by the driving wheel 22 and the first roller 24 above the driving wheel, the residual liquid part in the solid particles is squeezed out, and the dewatered solid particles are discharged from the end of the driving wheel 22 and collected for subsequent treatment. In order to enhance the collecting effect, a second solid guide groove 26 can be added on one side of the driving wheel 22, so that the solid particles can fall onto a solid conveying belt 50 below through the first solid guide groove 26, and are conveyed and accumulated in other collecting containers after being sorted and collected; and set up an elastic doctor-bar in the one end that second solid guide way 26 and filter screen conveyer belt 25 are close to, can scrape the solid particle who glues on filter screen conveyer belt 25 after squeezing, reduce the clearance work load in later stage.
As mentioned above, the wastewater in the effusion box 40 is guided into the sedimentation tank 60 for further biochemical treatment. As shown in fig. 1, the sewage flows into two settling tanks 60 through two pipes, and a biochemical reagent is added from the settling tanks 60 to perform a harmless treatment. It should be noted that, since the biochemical reagent in the sedimentation tank 60 requires a certain reaction time when purifying the sewage, the two delivery pipes are opened alternately to ensure the continuity of the water purification treatment. It can be understood that, the electromagnetic valve is arranged in the delivery pipe, and is opened and closed under the action of the intelligent control device, meanwhile, the liquid level sensor is arranged in the sedimentation tank 60, when the current sewage in the sedimentation tank 60 reaches the preset volume, the electromagnetic valve of the delivery pipe connected with the sedimentation tank 60 is closed, and at the moment, the biochemical preparation is put into the sedimentation tank to start purification; at this time, the intelligent control device opens the electromagnetic valve in the other delivery pipe, so that the sewage flows into the other sedimentation tank 60, and the operation is repeated in this way, thereby ensuring the continuous operation of sewage treatment. Of course, it is understood that the number of the sedimentation tanks 60 in the biochemical water purification device can be flexibly set, and may be two as shown in fig. 1, or three, four or more, and is not limited herein. The sewage is biochemically reacted in the sedimentation tank 60 to produce sediment, which can be removed by a sludge pump or a scraper belt 70 as shown in fig. 1.
In addition, only one pressure separation unit 20a is operated in this embodiment, but of course, in order to enhance the filtering effect, three pressure separation units 20a may be used in the pressure separation module 20 as shown in fig. 1 to perform the classification filtering, and a plurality of stages of pressure separation units 20a may be flexibly arranged according to actual conditions to achieve the filtering effect. It can be understood that sieve holes are formed in the conical screen 12 and the filter screen conveyer belt 25, and the sizes of the sieve holes are gradually reduced from large to small, so that classified filtration is realized; the mesh size of the screen conveyer belt 25 of the pressure separation unit 20a of each stage in one pressure separation module 20 is also from large to small.
As a preferred embodiment, as shown in fig. 4, the pressure separation unit 20a further includes an auxiliary wheel 27 disposed between the driving wheel 22 and the driven wheel 22 a; the pressure separation unit 20a further includes a second roller 28, and the second roller 28 is disposed right above the auxiliary wheel 27 to clamp the screen conveyer belt 25. The press filtering effect of the pressure separation unit 20a can be further improved by providing the auxiliary wheel 27 and the second roll 28 between the driving wheel 22 and the driven wheel 22 a.
As a preferred embodiment, as shown in fig. 4, both ends of the first roller 24, both ends of the second roller 28 and both ends of the auxiliary wheel 27 are respectively connected with the adjustable bearing supports 29, so that the gap between the first roller 24 and the driving wheel 22 and the gap between the second roller 28 and the auxiliary wheel 27 can be adjusted, and can be adjusted according to the size of the solid particles, thereby enhancing the filtering effect.
As a preferred embodiment, as shown in fig. 4, a pneumatic cleaning module 30 is further disposed between the upper layer and the lower layer of the screen conveyer belt 25, and the pneumatic cleaning module 30 can blow air upwards and downwards to blow out solid particles stuck in the screen holes on the screen conveyer belt 25, thereby improving the continuous filtering capability of the screen conveyer belt 25.
As a preferred embodiment, as shown in fig. 4, a solid-liquid diversion trench 23 is further disposed between the upper layer and the lower layer of the screen conveyer belt 25, and the filtered liquid is collected and discharged to the next stage of filtering unit, so as to prevent the liquid from splashing and polluting the workplace.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the scope of the present invention, and all modifications and equivalents of the present invention, which are made by the contents of the present specification and the accompanying drawings, or directly/indirectly applied to other related technical fields, are included in the scope of the present invention.
Claims (10)
1. An intelligent modular water treatment device is characterized by comprising a solid-liquid separation device and a biochemical water purification device;
the solid-liquid separation device comprises a liquid accumulation box, a plurality of solid-liquid separation modules and a plurality of solid conveying belts, wherein the solid-liquid separation modules are arranged in an array, and the solid-liquid separation modules and the solid conveying belts are respectively arranged above the liquid accumulation box; the solid-liquid separation module comprises a solid separation module and a pressure separation module, and the solid separation module is arranged above the pressure separation module;
the solid object separation module comprises a shell, a conical screen, a dirt guide pipe and a first driving motor, wherein the first driving motor is arranged outside the shell and is axially connected with the conical screen, the cross section size of the conical screen is gradually increased from the direction far away from the first driving motor, one end of the conical screen, which faces towards the first driving motor, is arranged in the shell, one end of the conical screen, which faces away from the first driving motor, extends out of the shell, and one end of the dirt guide pipe is arranged in the conical screen;
the pressure separation module comprises at least one pressure separation unit, the pressure separation unit comprises a second driving motor, a driving wheel, a driven wheel, a first roller and a filter screen conveyer belt, the second driving motor is connected with the driving wheel, the driven wheel is connected with the driving wheel through the filter screen conveyer belt, and the first roller is arranged right above the driving wheel and clamps the filter screen conveyer belt;
the biochemical water purifying device comprises a plurality of sedimentation tanks, and each sedimentation tank is respectively connected with the liquid accumulating box through a conveying pipe.
2. The intelligent modular water treatment apparatus of claim 1, wherein an end of the conical screen facing the first drive motor is a closed end and an end of the conical screen facing away from the first drive motor is an open end.
3. The intelligent modular water treatment apparatus of claim 2, wherein a first solids guide channel is disposed below the open end of the conical screen.
4. The intelligent modular water treatment apparatus of claim 1 wherein the pressure separation unit further comprises an auxiliary wheel disposed between the drive wheel and the driven wheel.
5. The intelligent modular water treatment apparatus of claim 4 wherein the pressure separator unit further comprises a second roller disposed directly above the auxiliary wheel that grips the screen belt.
6. The intelligent modular water treatment apparatus of claim 5 wherein the ends of the first roller, the ends of the second roller and the ends of the auxiliary wheel are each connected to the adjustable bearing support.
7. The intelligent modular water treatment apparatus of any one of claims 1-6 wherein the second drive motor is coupled to the drive wheel via a gear drive.
8. The intelligent modular water treatment apparatus according to any one of claims 1-6, wherein a pneumatic cleaning module is further disposed between the upper and lower layers of the screen conveyor belt.
9. The intelligent modular water treatment device as claimed in any one of claims 1 to 6, wherein a solid-liquid diversion trench is further disposed between the upper and lower layers of the screen conveyer belt.
10. The intelligent modular water treatment apparatus according to any one of claims 1-6, wherein one side of the driving wheel is further provided with a second solid guide groove, and the solid conveyor belt is arranged below the second solid guide groove.
