Abstract
The application discloses frock clamp for engine cover, set up a pair of riser on the bottom plate including bottom plate and symmetry, all be equipped with clamping device on a pair of riser terminal surface in opposite directions, clamping device includes the diaphragm, the connecting plate, baffle and lead screw, the diaphragm is connected with the riser is perpendicular, be equipped with rectangular shape logical groove on the diaphragm, lead to the front and back terminal surface that the groove runs through the diaphragm, both ends are equipped with the lug around the connecting plate bottom, the connecting plate is articulated with the diaphragm through the bolt that runs through lug and logical groove, the port department of bolt is equipped with first lock nut, be equipped with the through-hole that runs through terminal surface about it on the connecting plate, the lead screw runs through behind the through-hole with baffle fixed connection, the lead screw is not. This frock clamp passes through structural adjustment, is applicable to the shroud of many specifications size, and adaptability is wider, and is with low costs, does benefit to the popularization, and the lateral wall of only centre gripping shroud reduces the area of contact with the shroud simultaneously to make things convenient for die-casting, improve die-casting efficiency.
Description
Technical Field
The application relates to the field of engines, in particular to a tool clamp for an engine cover.
Background
The engine shroud covers the housing on the engine cylinder body, prevent external impurity etc. to get into the engine, prevent that inside machine oil from revealing, oil mist separation, crankcase pressure adjustment, isolation structure transmission noise, and the effect of the erection support of doing other spare parts, need carry out the die-casting nut technology in the locating hole in the shroud course of working, make things convenient for the fixed mounting of shroud, nevertheless in carrying out processing orientation process to it, place the housing and carry out the die-casting in the backup pad usually, because the area of contact of housing and backup pad is great, inconvenient die-casting technology, need the removal housing position that does not stop.
Disclosure of Invention
The invention aims to provide a tooling clamp for an engine cover so as to overcome the defects in the prior art.
In order to achieve the purpose, the invention provides the following technical scheme:
the embodiment of the application discloses frock clamp for engine bonnet, its characterized in that: set up a pair of riser on the bottom plate including bottom plate and symmetry, it is a pair of all be equipped with clamping device, two on riser terminal surface in opposite directions clamping device sets up in opposite directions, clamping device includes diaphragm, connecting plate, baffle and lead screw, the diaphragm is connected with the riser is perpendicular, be equipped with rectangular shape logical groove on the diaphragm, lead to the groove and run through the front and back terminal surface of diaphragm, both ends are equipped with the lug around the connecting plate bottom, the connecting plate is articulated with the diaphragm through the bolt that runs through lug and logical groove, the port department of bolt is equipped with first lock nut, be equipped with the through-hole that runs through terminal surface about it on the connecting plate, the lead screw run through behind the through-hole with baffle fixed connection, the lead screw is not equipped with complex second lock nut.
Preferably, in the above tooling fixture for an engine cover, the projection is integrally formed with the connecting plate.
Preferably, in the above tooling fixture for the engine hood, a groove is formed in the bottom plate, and a cooling device is arranged in the groove.
Preferably, in the above tooling jig for an engine cover, the cooling device is a fan.
Preferably, in the above tooling fixture for the engine hood, a filter screen is arranged at an opening of the groove.
Compared with the prior art, the invention has the advantages that:
1. this frock clamp passes through the clearance between baffle and the connecting plate and realizes engine cover lateral wall centre gripping to thereby adjust this clearance size through first lock nut and be fit for the shroud of different lateral wall thickness, articulated connecting plate and diaphragm can adjust the distance between two clamping device through leading to the groove simultaneously, thereby be fit for not unidimensional shroud, and the angle in clearance can be adjusted to articulated mode, thereby be fit for the lateral wall that the centre gripping becomes different angles, adaptability is wider, and with low costs, do benefit to the popularization.
2. This frock clamp passes through the clearance realization between baffle and the connecting plate and to the centre gripping of engine shroud lateral wall, only centre gripping shroud's lateral wall, reduces the area of contact with the shroud to make things convenient for die-casting, improve die-casting efficiency.
Drawings
In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments described in the present application, and it is obvious for those skilled in the art to obtain other drawings based on the drawings without creative efforts.

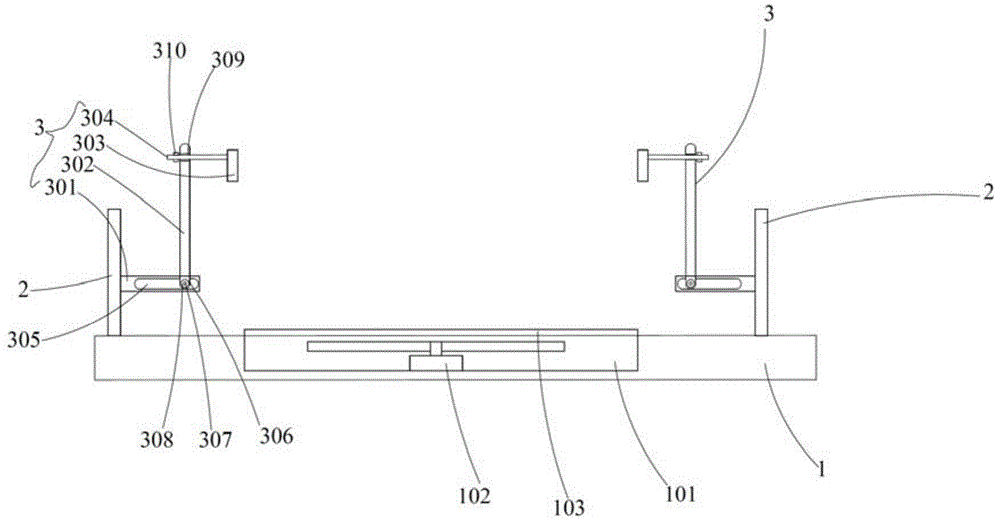

Fig. 1 is a schematic structural view of a tooling fixture for an engine hood according to an embodiment of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described in detail below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments. All other embodiments, which can be obtained by a person skilled in the art without any inventive step based on the embodiments of the present invention, are within the scope of the present invention.
Referring to fig. 1, the tooling clamp for the engine cover in the embodiment includes a bottom plate 1 and a pair of vertical plates 2 symmetrically arranged on the bottom plate 1, wherein clamping devices 3 are respectively arranged on opposite end surfaces of the pair of vertical plates 2, the two clamping devices 3 are oppositely arranged, each clamping device 3 includes a transverse plate 301 and a connecting plate 302, baffle 303 and lead screw 304, diaphragm 301 is connected with riser 2 is perpendicular, be equipped with rectangular shape through groove 305 on diaphragm 301, through groove 305 runs through diaphragm 301's front and back terminal surface, both ends are equipped with lug 306 around connecting plate 302 bottom, connecting plate 302 is articulated with diaphragm 301 through the bolt 307 that runs through lug 306 and through groove 305, the port department of bolt 307 is equipped with first lock nut 308, be equipped with the through-hole 309 that runs through its left and right sides terminal surface on the connecting plate 302, lead screw 304 runs through behind the through-hole 309 with baffle 303 fixed connection, the one end that lead screw 304 is not connected with baffle 303 is equipped with complex second lock nut 310.
Further, the protrusion 306 is integrally formed with the connection plate 302.
In the technical scheme, the tool clamp clamps the side wall of the engine hood through the gap between the baffle and the connecting plate, the size of the gap is adjusted through the first locking nut so as to be suitable for hoods with different side wall thicknesses, meanwhile, the distance between the two clamping devices can be adjusted through the connecting plate and the transverse plate which are hinged through the through groove so as to be suitable for hoods with different sizes, the angle of the gap can be adjusted through the hinged mode so as to be suitable for clamping the side wall with different angles, the adaptability is wider, the cost is low, and the popularization is facilitated; only the side wall of the cover cap is clamped, and the contact area between the side wall and the cover cap is reduced, so that die casting is facilitated, and die casting efficiency is improved.
In one embodiment, the bottom plate 1 is provided with a groove 101, and the groove 101 is provided with a cooling device 102.
Further, the cooling device 102 is a fan.
Further, a filter screen 103 is arranged at the opening of the groove 102.
In this technical scheme, the housing after die-casting is cooled down through the fan, conveniently in time changes the housing and carries out the die-casting to in the effectual debris that prevents of filter screen gets into the recess, improve the life-span of fan.
The specific implementation principle is as follows:
the side walls at the two ends of the cover cap are respectively clamped between the connecting plate and the baffle of the two clamping devices, the connecting plate is locked through the second locking nut, and the position of the connecting plate and the hinged angle of the connecting plate and the transverse plate are fixed through the first locking nut, so that the die-casting is facilitated.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The foregoing is merely a detailed description of the present application, and it should be noted that modifications and embellishments could be made by those skilled in the art without departing from the principle of the present application, and these should also be considered as the protection scope of the present application.
Claims (5)
1. The utility model provides a frock clamp for engine bonnet which characterized in that: set up a pair of riser on the bottom plate including bottom plate and symmetry, it is a pair of all be equipped with clamping device, two on riser terminal surface in opposite directions clamping device sets up in opposite directions, clamping device includes diaphragm, connecting plate, baffle and lead screw, the diaphragm is connected with the riser is perpendicular, be equipped with rectangular shape logical groove on the diaphragm, lead to the groove and run through the front and back terminal surface of diaphragm, both ends are equipped with the lug around the connecting plate bottom, the connecting plate is articulated with the diaphragm through the bolt that runs through lug and logical groove, the port department of bolt is equipped with first lock nut, be equipped with the through-hole that runs through terminal surface about it on the connecting plate, the lead screw run through behind the through-hole with baffle fixed connection, the lead screw is not equipped with complex second lock nut.
2. A tooling fixture for an engine cover according to claim 1, wherein: the lug and the connecting plate are integrally formed.
3. A tooling fixture for an engine cover according to claim 1, wherein: the bottom plate is provided with a groove, and a cooling device is arranged in the groove.
4. A tooling fixture for an engine cover according to claim 3, wherein: the cooling device is a fan.
5. A tooling fixture for an engine cover according to claim 3, wherein: and a filter screen is arranged at the opening of the groove.
