CN110775434B - Anti-deformation device for pipe orifice of pipeline - Google Patents
Anti-deformation device for pipe orifice of pipeline Download PDFInfo
- Publication number
- CN110775434B CN110775434B CN201910923305.2A CN201910923305A CN110775434B CN 110775434 B CN110775434 B CN 110775434B CN 201910923305 A CN201910923305 A CN 201910923305A CN 110775434 B CN110775434 B CN 110775434B
- Authority
- CN
- China
- Prior art keywords
- ring sleeve
- pipe
- pipeline
- pipe orifice
- ring
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65D—CONTAINERS FOR STORAGE OR TRANSPORT OF ARTICLES OR MATERIALS, e.g. BAGS, BARRELS, BOTTLES, BOXES, CANS, CARTONS, CRATES, DRUMS, JARS, TANKS, HOPPERS, FORWARDING CONTAINERS; ACCESSORIES, CLOSURES, OR FITTINGS THEREFOR; PACKAGING ELEMENTS; PACKAGES
- B65D59/00—Plugs, sleeves, caps, or like rigid or semi-rigid elements for protecting parts of articles or for bundling articles, e.g. protectors for screw-threads, end caps for tubes or for bundling rod-shaped articles
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B65—CONVEYING; PACKING; STORING; HANDLING THIN OR FILAMENTARY MATERIAL
- B65D—CONTAINERS FOR STORAGE OR TRANSPORT OF ARTICLES OR MATERIALS, e.g. BAGS, BARRELS, BOTTLES, BOXES, CANS, CARTONS, CRATES, DRUMS, JARS, TANKS, HOPPERS, FORWARDING CONTAINERS; ACCESSORIES, CLOSURES, OR FITTINGS THEREFOR; PACKAGING ELEMENTS; PACKAGES
- B65D85/00—Containers, packaging elements or packages, specially adapted for particular articles or materials
- B65D85/20—Containers, packaging elements or packages, specially adapted for particular articles or materials for incompressible or rigid rod-shaped or tubular articles
Landscapes
- Engineering & Computer Science (AREA)
- Mechanical Engineering (AREA)
- Joints Allowing Movement (AREA)
Abstract
The application provides a pipeline mouth of pipe anti-deformation device belongs to piping installation technical field. The pipe orifice anti-deformation device comprises: the ring sleeve is used for being sleeved at the pipe orifice of the pipeline, and an opening is formed in the ring sleeve; the connecting piece is connected to the opening of the ring sleeve and used for fastening the ring sleeve; and the jacking device is arranged in the ring sleeve on the pipe orifice, is jacked on the inner wall of the ring sleeve, and has adjustable length in the radial direction of the ring sleeve. The utility model provides a pipeline mouth of pipe anti-deformation device can overlap on the mouth of pipe of pipeline through the ring cover, plays the effect of maintaining the shape to the pipeline mouth of pipe to and play and avoid receiving the damage that causes of colliding with. The supporting device can be adjustably supported on the inner wall surface of the ring sleeve, and the effect of preventing the pipeline from deforming when the pipeline is extruded can be ensured. Therefore, the butt joint of pipe orifices without damage is reduced, the pipeline construction efficiency is improved, and the butt joint welding quality of pipelines is ensured.
Description
Technical Field
The invention belongs to the technical field of pipeline equipment, and particularly relates to a large-diameter pipeline orifice deformation prevention protection device.
Background
The heavy-calibre pipeline closes thinly, and pipeline transport and stack in-process can cause the deformation of lower part pipeline because of upper portion pipeline weight is heavier, takes place in the mouth of pipe department of pipeline moreover more, leads to the pipeline can't assemble the butt joint, need carry out secondary treatment, serious then need scrap and can't use. The waste of engineering working hours and personnel is caused, and the welding quality of the butt joint of the pipelines is also influenced.
Disclosure of Invention
In view of the above, the present invention provides a pipe orifice deformation prevention device for a pipeline, so as to solve or overcome the technical problem that a pipe orifice of a large-diameter pipeline is easily damaged and deformed during transportation and storage of the pipeline.
The application provides a pipeline mouth of pipe anti-deformation device includes:
the ring sleeve is used for being sleeved at the pipe orifice of the pipeline and is provided with an opening;
the connecting piece is connected to the opening of the ring sleeve and used for fastening the ring sleeve;
and the jacking device is arranged in the ring sleeve on the pipe orifice, is jacked on the inner wall of the ring sleeve, and has adjustable length in the radial direction of the ring sleeve.
Preferably, the ring sleeve is of a double-layer annular structure, one axial end of the double-layer annular structure is connected with one another, the other end of the double-layer annular structure and the inside of the ring sleeve are provided with annular cavities which are communicated with one another, and the annular cavities are used for installing pipe orifices of the pipelines.
Preferably, the loop is a structural member made of a steel plate and formed by bending.
Preferably, the two ends of the opening of the ring sleeve are respectively connected with a right-handed nut and a left-handed nut, and the thread turning directions of the right-handed nut and the left-handed nut are opposite.
Preferably, the connecting piece is a stud bolt, and a hexagonal bolt head is connected to the axial middle part of the stud bolt.
Preferably, the jacking device comprises:
the outer wall of the ring pipe is connected with at least three nuts, and the nuts are uniformly distributed along the circumferential direction of the ring pipe;
the first end of each supporting rod is provided with an external thread part, the external thread part of each supporting rod is in threaded connection with each nut on the ring pipe, and the supporting rods are tightly propped against the inner wall of the ring sleeve by screwing the supporting rods, so that the supporting rods support the pipe orifice of the pipeline.
Preferably, the outer wall of the ring pipe is uniformly connected with four nuts, and the four nuts are all communicated with the inner wall of the ring pipe.
Preferably, each of the nuts is welded to the collar.
Preferably, the second end of each support rod is provided with an internal thread, and the internal thread extends along the axial direction of the support rod.
Preferably, each of the support rods further includes a tightening bolt, the tightening bolt is connected to the corresponding second end of the support rod through a thread, and an end of the tightening bolt is used for abutting against an inner wall surface of the ring sleeve.
The application has the following beneficial effects:
the utility model provides a pipeline mouth of pipe anti-deformation device can overlap on the mouth of pipe of pipeline through the ring cover, plays the effect of maintaining the shape to the pipeline mouth of pipe to and play and avoid receiving the damage that causes of colliding with. The supporting device can be adjustably supported on the inner wall surface of the ring sleeve, and the effect of preventing the pipeline from deforming when the pipeline is extruded can be ensured. Therefore, the butt joint of pipe orifices without damage is reduced, the pipeline construction efficiency is improved, and the butt joint welding quality of pipelines is ensured.
Drawings
The above and other objects, features and advantages of the present invention will become more apparent from the following description of the embodiments of the present invention with reference to the accompanying drawings.

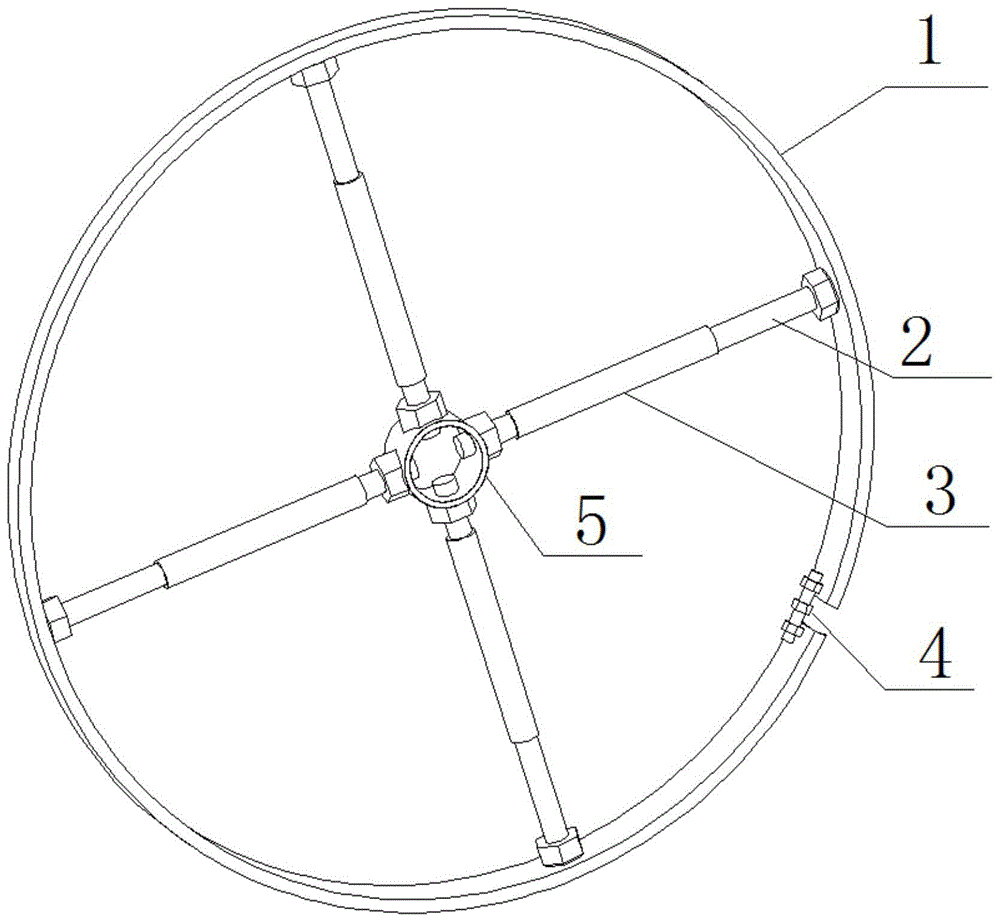

Fig. 1 is a structural view of a pipe orifice deformation prevention device provided in accordance with an embodiment of the present invention;
fig. 2 is a diagram illustrating the effects of the pipe orifice deformation prevention device according to the embodiment of the present invention.
Wherein, 1-ring sleeve, 2-tightening bolt, 3-support bar, 4-connecting piece, 5-ring pipe and 6-pipeline.
Detailed Description
Various embodiments of the present invention will be described in more detail below with reference to the accompanying drawings. Like elements in the various figures are denoted by the same or similar reference numerals. For purposes of clarity, the various features in the drawings are not necessarily drawn to scale.
As shown in fig. 1 and 2, the present application provides a pipe orifice deformation prevention device, comprising: the ring sleeve 1 is used for being sleeved at the pipe orifice of the pipeline 6, and an opening is formed in the ring sleeve 1; the connecting piece 4 is connected to the opening of the ring sleeve 1 and used for fastening the ring sleeve 1; the top support device is arranged on the pipe orifice and in the ring sleeve 1, the top is contacted on the inner wall of the ring sleeve 1, and the length of the top support device in the radial direction of the ring sleeve 1 is adjustable.
The utility model provides a pipeline mouth of pipe anti-deformation device's theory of operation is: the pipe orifice of the pipeline 6 is fixed and formed through the ring sleeve 1, and the pipe orifice of the pipeline 6 is supported towards the outside in the ring sleeve 1 by using a jacking device, so that the problem that the pipe orifice deforms under the action of external force is prevented.
In this embodiment, the ring sleeve 1 is a double-layer ring structure, axial ends of the double-layer ring structure are connected to each other, and the other end of the double-layer ring structure and the inside of the ring sleeve 1 are provided with mutually communicated ring cavities for installing the pipe orifices of the pipelines 6. When the ring sleeve 1 is installed, one end of the pipe orifice of the pipeline 6 can be coaxially inserted into the ring cavity of the ring sleeve 1, and then the ring sleeve 1 is fastened through the connecting piece 4 on the ring sleeve 1 to prevent the ring sleeve 1 from being separated from the pipe orifice of the pipeline 6.
In this embodiment, the ring sleeve 1 is a structural member made of a steel plate and formed by bending, and the bending forming operation is simple, so that the number of connecting parts is reduced, and the structure is more stable. It will be appreciated that it is also possible to add stiffening ribs to the outer wall of the collar 1 to increase the structural strength of the collar 1.
In this embodiment, the two ends of the opening of the ring sleeve 1 are respectively connected with a right-handed nut and a left-handed nut, and the thread turning directions of the right-handed nut and the left-handed nut are opposite. The connecting piece 4 is a stud bolt, and a hexagonal bolt head is connected to the axial middle part of the stud bolt. The stud is arranged between the right-hand nut and the left-hand nut and is respectively in threaded connection with the right-hand nut and the left-hand nut. It should be understood that the hexagonal bolt head provided at the center of the stud bolt facilitates the screwing of the stud bolt, and that the stud bolt is screwed in the same direction, and since the screw threads of the right-hand nut and the left-hand nut are opposite, the right-hand nut and the left-hand nut are moved toward or away from each other when the stud bolt is screwed, thereby fastening the collar 1 and loosening the collar 1.
In this embodiment, the jacking device includes: the outer wall of the ring pipe 5 is connected with at least three nuts, and the nuts are uniformly distributed along the circumferential direction of the ring pipe 5; the first end of each support rod 3 is provided with an external thread part, the external thread part of each support rod 3 is in threaded connection with each nut on the ring pipe 5, and the support rods 3 are screwed to enable the support rods 3 to be tightly pressed against the inner wall of the ring sleeve 1, so that the support rods 3 support the pipe openings of the pipelines 6.
As shown in fig. 1, by screwing each support rod 3, a relative displacement in the axial direction is generated between each nut on the ring pipe 5 and its corresponding support rod 3, because each nut and its corresponding support rod 3 are uniformly distributed in the circumferential direction of the ring pipe 5, when the rotation angles of each support rod 3 are consistent, the force received by the ring pipe 5 is uniform and acts on the ring sleeve 1, respectively, thereby realizing that the support rods 3 are pressed against the inner wall of the ring sleeve 1 by screwing the support rods 3, and ensuring the shape of the ring sleeve 1, i.e. the shape of the orifice of the pipeline 6.
In this embodiment, the outer wall of the ring pipe 5 is uniformly connected with four nuts, and the four nuts are all communicated with the inner wall of the ring pipe 5. The four nuts are arranged, namely, each nut is connected with one supporting rod 3 respectively, so that the supporting distribution of each supporting rod 3 to the ring sleeve 1 is more uniform, and the shape of the ring sleeve 1 is protected more effectively. It can be understood that the ring sleeve 1 not only maintains the shape of the pipe orifice of the pipeline 6, but also ensures that the pipe orifice of the pipeline 6 is damaged by the support rods 3.
5, 6 or 8 nuts can be uniformly distributed on the outer wall of the ring pipe 5, and each nut is correspondingly connected with one support rod 3.
In this embodiment, each nut is welded to the collar 5, so that the welding is more stable.
In the present embodiment, the second end of each support rod 3 is provided with an internal thread, and the internal thread extends along the axial direction of the support rod 3.
In this embodiment, each of the support rods 3 further includes a tightening bolt 2, the tightening bolt 2 is screwed to the second end of the corresponding support rod 3, and the end of the tightening bolt 2 is used for contacting the inner wall of the ring sleeve 1. Through the puller bolt 2 that sets up, can increase the length that 3 axials of bracing piece extend, increased and twisted the variable of length soon, one of them variable is the threaded connection between bracing piece 3 and the nut, and the second variable is the threaded connection between bracing piece 3 and the puller bolt 2.
In an optional embodiment of the present application, four nuts are uniformly welded on the inner wall surface of the ring sleeve 1 along the circumferential direction thereof, and the four nuts can be simultaneously screwed with the tightening bolts 2, so that the tightening bolts 2 are respectively screwed with the nuts on the inner wall surface of the ring sleeve 1 and the second end of the support rod 3, thereby realizing the limitation of the ring sleeve 1 in the radial direction and more effectively avoiding the deformation of the pipe orifice of the pipeline 6.
The application provides a pipeline mouth of pipe anti-deformation device can overlap on the mouth of pipe of pipeline 6 through ring cover 1, plays the effect of maintaining the shape to the 6 mouths of pipe of pipeline to and play and avoid receiving the damage that collides with and cause. The supporting device can be adjustably supported on the inner wall surface of the ring sleeve 1, so that the pipeline 6 is prevented from deforming when being extruded. Thereby reduced 6 mouths of pipe's not damaged butt joints of pipeline, improved 6 efficiency of construction of pipeline, guaranteed the welding quality of 6 butt joints of pipeline.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Finally, it should be noted that: it should be understood that the above examples are only for clearly illustrating the present invention and are not intended to limit the embodiments. Other variations and modifications will be apparent to persons skilled in the art in light of the above description. And are neither required nor exhaustive of all embodiments. And obvious variations or modifications of the invention may be made without departing from the scope of the invention.
Claims (9)
1. The utility model provides a pipeline mouth of pipe anti-deformation device which characterized in that includes:
the ring sleeve is used for being sleeved at the pipe orifice of the pipeline and is provided with an opening;
the connecting piece is connected to the opening of the ring sleeve and used for fastening the ring sleeve;
the jacking device is arranged in the ring sleeve on the pipe orifice, is jacked on the inner wall of the ring sleeve, and has adjustable length in the radial direction of the ring sleeve;
the ring sleeve is of a double-layer annular structure, one axial end of the double-layer annular structure is connected with one another, the other end of the double-layer annular structure and the inside of the ring sleeve are provided with annular cavities which are communicated with one another, and the annular cavities are used for installing pipe orifices of pipelines.
2. The apparatus as claimed in claim 1, wherein the collar is a bent structure made of a steel plate.
3. The pipe orifice deformation preventing device according to claim 2, wherein a right-handed nut and a left-handed nut are respectively connected to two ends of the opening of the ring sleeve, and the thread directions of the right-handed nut and the left-handed nut are opposite.
4. The pipe orifice deformation preventing device according to claim 3, wherein the connecting member is a stud bolt having a hexagonal bolt head connected to an axially middle portion thereof.
5. The pipe orifice deformation preventing device according to claim 1, wherein the jacking device comprises:
the outer wall of the ring pipe is connected with at least three nuts, and the nuts are uniformly distributed along the circumferential direction of the ring pipe;
the first end of each supporting rod is provided with an external thread part, the external thread part of each supporting rod is in threaded connection with each nut on the ring pipe, and the supporting rods are tightly propped against the inner wall of the ring sleeve by screwing the supporting rods, so that the supporting rods support the pipe orifice of the pipeline.
6. The pipe orifice deformation preventing device of claim 5, wherein four nuts are uniformly connected to the outer wall of the circular pipe, and all four nuts are communicated with the inner wall of the circular pipe.
7. The pipe orifice deformation prevention device according to claim 6, wherein each of the nuts is welded to the collar.
8. The pipe orifice deformation prevention device of claim 7, wherein the second end of each support rod is provided with an internal thread, and the internal thread extends in the axial direction of the support rod.
9. The apparatus as claimed in claim 8, wherein each of the support rods further comprises a tightening bolt, the tightening bolt is threadedly connected to the second end of the corresponding support rod, and the end of the tightening bolt is adapted to be pressed against the inner wall of the collar.
