Abstract

The utility model provides an assembled freight train frame assembly, includes the left side longeron, the right side longeron, the supporting seat before the driver's cabin, anterior assembly crossbeam, first assembly crossbeam, second assembly crossbeam, third assembly crossbeam, fourth assembly crossbeam, afterbody assembly crossbeam, the crashproof tail boom that supports, the license plate mounting panel, back bumper shock absorber support, reserve mount pad, support leaf spring lug support, gearbox suspension support, supporting seat behind the driver's cabin, preceding bumper shock absorber support, crashproof front beam and diagonal brace of supporting. Through the through holes formed in the left longitudinal beam, the right longitudinal beam, the second assembly cross beam, the third assembly cross beam and the fourth assembly cross beam, the parts can be conveniently assembled and connected, the convenience of installation and operation is improved, and the production efficiency is improved; the cross beam of the assembly is designed into an arch shape to enhance the bending resistance, and the application of 450L-550L-level girder steel and 500L-650L-level girder steel can improve the torsion resistance, ensure the safety of the fabricated truck, enhance the service performance and the universality of the vehicle and reduce the development cycle of the frame assembly.

Description

Assembled freight train frame assembly
Technical Field
The invention belongs to the technical field of frame assemblies, and particularly relates to an assembled type truck frame assembly.
Background
Most modern automobiles have a frame as a full vehicle skeleton. Most components and assemblies of the vehicle are secured by the frame, such as the engine, drive train, suspension, steering system, cab, cargo box and associated operating mechanisms. The frame plays a role in supporting and connecting various parts of the automobile and bears various loads from the inside and the outside of the automobile.
A truck (Wagon) is a commercial vehicle designed and equipped primarily for carrying cargo, whether or not it can tow a trailer.
Cargo vehicles, commonly referred to as trucks, also known as lorries, refer to vehicles primarily used for transporting cargo, and sometimes to vehicles that can tow other vehicles, and are a category of commercial vehicles. Generally, the vehicle can be divided into a heavy vehicle and a light vehicle according to the weight of the vehicle. Most trucks use a diesel engine as a power source, but some light trucks use gasoline, petroleum gas, or natural gas.
The frame is designed to meet the requirements of the overall arrangement of the motor vehicle. During complex driving of the automobile, interference between assemblies and components fixed on the automobile frame should not occur. When the automobile runs on a rugged road, the frame may generate torsional deformation and bending deformation in a longitudinal plane under the action of load; the entire frame may also twist into a diamond shape when one of the wheels encounters an obstacle. These deformations will change the relative position of the components mounted on the frame and thus affect its proper operation. Therefore, the frame should also have sufficient strength and appropriate rigidity. In order to improve the light weight level of the whole automobile, the mass of the frame is required to be as small as possible. In addition, the frame should be arranged close to the ground, so that the center of gravity of the automobile is lowered, and the driving stability of the automobile is improved. This is particularly important for trucks.
In addition, chinese patent publication No. CN202163496U provides a novel truck frame assembly, comprising: the left longitudinal beam, the right longitudinal beam, the front cross beam, the transmission cross beam, the reinforcing cross beam, the left upper reinforcing plate, the right lower reinforcing plate, the left lower reinforcing plate, the balance shaft cross beam, the tail cross beam, the right extending beam and the left extending beam; the frame longitudinal beam and the cross beam are connected through a bolt, and a lining beam is not arranged in the middle of the longitudinal beam. But the current assembled freight train frame assembly still has and has leaded to production efficiency lower with part assembly connection difficulty, and bending resistance is relatively poor and the antitorque nature is relatively weak leads to influencing the performance of vehicle, has the problem of great potential safety hazard simultaneously.
In view of the above, it is desirable to provide a fabricated truck frame assembly.
Disclosure of Invention
In order to solve the technical problems, the invention provides an assembly type truck frame assembly to solve the problems that the existing assembly type truck frame assembly is low in production efficiency due to difficult assembly and connection of parts, poor in bending resistance and poor in torsion resistance, the use performance of a vehicle is affected, and meanwhile, great potential safety hazards exist. An assembled truck frame assembly comprises a left side longitudinal beam, a right side longitudinal beam, a cab front support seat, a front assembly cross beam, a first assembly cross beam, a second assembly cross beam, a third assembly cross beam, a fourth assembly cross beam, a tail assembly cross beam, an anti-collision support tail beam, a license plate mounting plate, a rear shock absorber support, a standby mounting seat, a support plate spring lifting lug support, a gearbox suspension support, a cab rear support seat, a front shock absorber support, an anti-collision support front beam and an inclined strut, wherein the cab front support seat is respectively bolted at the lower positions of the outer sides of the left side longitudinal beam and the right side longitudinal beam; the front assembly cross beam is connected to the front parts of the left side longitudinal beam and the right side longitudinal beam through bolts; the first assembly cross beam, the second assembly cross beam, the third assembly cross beam and the fourth assembly cross beam are sequentially connected between the left side longitudinal beam and the right side longitudinal beam through bolts from front to back; the tail assembly cross beam is connected to the rear ends of the left side longitudinal beam and the right side longitudinal beam through bolts; the anti-collision supporting tail beam is connected to the rear side positions of the upper parts of the left side longitudinal beam and the right side longitudinal beam through bolts; the license plate mounting plate is arranged at the rear side of the lower parts of the left side longitudinal beam and the right side longitudinal beam; the rear shock absorber support is respectively welded at the upper right side position of the left side longitudinal beam and the right side longitudinal beam; the spare mounting seat is arranged on the left side of the rear shock absorber support and is connected with the left side longitudinal beam and the right side longitudinal beam through bolts; the supporting plate spring lifting lug support is respectively bolted at the middle positions of the upper parts of the left side longitudinal beam and the right side longitudinal beam; the gearbox suspension support is connected to the right side of the upper surface of the front assembly beam through a bolt; the rear supporting seat of the cab is respectively bolted at the upper left positions of the left side longitudinal beam and the right side longitudinal beam; the front shock absorber support is positioned on the right side of the rear support seat of the cab and is respectively connected with the left longitudinal beam and the right longitudinal beam through bolts; the front anti-collision support beam is respectively bolted at the front ends of the left side longitudinal beam and the right side longitudinal beam; and one end of the inclined strut is respectively bolted at the right side positions of the lower surfaces of the left side longitudinal beam and the right side longitudinal beam, and the other end of the inclined strut is bolted at the lower side position of the rear part of the license plate mounting plate.
Preferably, the front assembly beam is a stainless steel plate beam in a shape like a Chinese character 'ji'; the horizontal section of the front assembly beam is provided with a circular through hole and a strip-shaped through hole.
Preferably, the cross section height of the left side longitudinal beam and the right side longitudinal beam is 200-300mm respectively, the thickness is 5-10mm, and the strength is 500L-650L grade girder steel.
Preferably, the distance between the front assembly beam and the first assembly beam is 50-90 cm.
Preferably, the cross sections of the front assembly cross beam, the first assembly cross beam, the second assembly cross beam, the third assembly cross beam, the fourth assembly cross beam, the tail assembly cross beam and the anti-collision supporting tail beam are respectively 100-250mm in height, 5-10mm in thickness and 450-550L-level in strength.
Preferably, the width of the frame airfoil is 60-80 mm.
Preferably, the second assembly beam, the third assembly beam and the fourth assembly beam are respectively provided with a circular through hole and a strip-shaped through hole inside.
Preferably, the first assembly beam, the second assembly beam, the third assembly beam and the fourth assembly beam are respectively of an arched design.
Preferably, the horizontal section of the front supporting seat of the cab is provided with a circular through hole.
Preferably, the upper parts of the left side longitudinal beam and the right side longitudinal beam are respectively provided with a circular positioning hole.
Preferably, the width between the left side longitudinal beam and the right side longitudinal beam is narrowed from front to back; the widening surface narrows from 28mm in front of the central line of the front shaft, and the length of the widening surface is 625-880 mm.
Compared with the prior art, the invention has the beneficial effects that: through holes formed in the left longitudinal beam, the right longitudinal beam, the second assembly cross beam, the third assembly cross beam and the fourth assembly cross beam facilitate assembly and connection of parts, convenience in installation and operation is improved, and production efficiency is improved; the first assembly beam, the second assembly beam, the third assembly beam and the fourth assembly beam are respectively designed into an arch shape to enhance the bending resistance, and the application of 450L-550L-level girder steel and 500L-650L-level girder steel can improve the torsion resistance, ensure the safety of the fabricated truck and enhance the service performance of the vehicle; the connection part is mostly welded or bolted, so that the convenience in maintenance is improved, the weight can be reduced, the production cost is reduced, and the weight of the frame assembly is reduced by about 3.5 percent compared with the weight of the conventional similar product through calculation; the girder steel plate forms a rectangular section beam through bending and welding, the forming process is simple, the equipment investment is less, and the production efficiency is improved by at least 60% compared with the existing plate punching and welding; through the arrangement, the integral bearing capacity of the vehicle is improved, the universality of the frame assembly is improved, and the development period of the frame assembly is shortened.
Drawings
FIG. 1 is a schematic view of a viewing structure of the present invention;

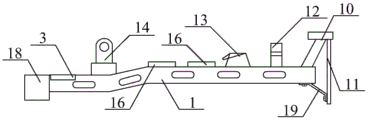

FIG. 2 is a schematic diagram of a side view configuration of the present invention;

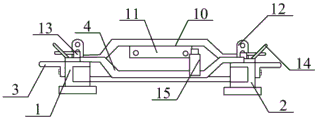

FIG. 3 is a schematic illustration of a front view configuration of the present invention;
FIG. 4 is a schematic view of a rear view configuration of the present invention;
FIG. 5 is a schematic structural view of a front assembly cross member of the present invention;
FIG. 6 is a schematic structural view of the assembled beam of the present invention;
FIG. 7 is a schematic structural view of a backup mount of the present invention;
fig. 8 is a schematic structural view of a front support seat of a cab of the present invention.
In the figure:
1. a left side stringer; 2. a right side stringer; 3. a cab front support; 4. a front assembly cross member; 5. a first assembly beam; 6. a second assembly beam; 7. a third assembly beam; 8. A fourth assembly beam; 9. a tail assembly beam; 10. an anti-collision support tail beam; 11. a license plate mounting plate; 12. a rear shock absorber support; 13. a standby mounting seat; 14. a support for a plate spring lifting lug; 15. a gearbox suspension support; 16. a cab rear support base; 17. a front shock absorber support; 18. an anti-collision support front beam; 19. a diagonal brace.
Detailed Description
The invention is further described below with reference to the accompanying drawings:
example (b):
as shown in fig. 1 to 4, the invention provides an assembled truck frame assembly, which comprises a left side longitudinal beam 1, a right side longitudinal beam 2, a cab front support seat 3, a front assembly cross beam 4, a first assembly cross beam 5, a second assembly cross beam 6, a third assembly cross beam 7, a fourth assembly cross beam 8, a tail assembly cross beam 9, an anti-collision support tail beam 10, a license plate mounting plate 11, a rear shock absorber support 12, a spare mounting seat 13, a support plate spring lifting lug support 14, a gearbox suspension support 15, a cab rear support seat 16, a front shock absorber support 17, an anti-collision support front beam 18 and an inclined strut 19, wherein the cab front support seat 3 is respectively bolted at the lower positions of the outer sides of the left side longitudinal beam 1 and the right side longitudinal beam 2; the front assembly cross beam 4 is connected with the front parts of the left side longitudinal beam 1 and the right side longitudinal beam 2 through bolts; the first assembly cross beam 5, the second assembly cross beam 6, the third assembly cross beam 7 and the fourth assembly cross beam 8 are sequentially bolted between the left side longitudinal beam 1 and the right side longitudinal beam 2 from front to back; the tail assembly cross beam 9 is connected to the rear ends of the left side longitudinal beam 1 and the right side longitudinal beam 2 through bolts; the anti-collision supporting tail beam 10 is in bolted connection with the upper rear side positions of the left side longitudinal beam 1 and the right side longitudinal beam 2; the license plate mounting plate 11 is arranged at the rear side of the lower parts of the left side longitudinal beam 1 and the right side longitudinal beam 2; the rear shock absorber support 12 is respectively welded at the upper right side positions of the left side longitudinal beam 1 and the right side longitudinal beam 2; the spare mounting seat 13 is arranged on the left side of the rear shock absorber support 12 and is connected with the left side longitudinal beam 1 and the right side longitudinal beam 2 through bolts; the supporting plate spring lifting lug support 14 is respectively bolted at the middle positions of the upper parts of the left side longitudinal beam 1 and the right side longitudinal beam 2; the gearbox suspension support 15 is connected to the right side of the upper surface of the front assembly beam 4 through a bolt; the rear cab supporting seat 16 is respectively bolted at the upper left positions of the left side longitudinal beam 1 and the right side longitudinal beam 2; the front shock absorber support 17 is positioned on the right side of the rear support base 16 of the cab and is respectively connected with the left side longitudinal beam 1 and the right side longitudinal beam 2 through bolts; the front anti-collision support beam 18 is respectively bolted at the front ends of the left side longitudinal beam 1 and the right side longitudinal beam 2; one end of the inclined stay bar 19 is respectively bolted at the right side position of the lower surfaces of the left side longitudinal beam 1 and the right side longitudinal beam 2, and the other end of the inclined stay bar is bolted at the lower side position of the rear part of the license plate mounting plate 11.
As shown in fig. 5, in the present embodiment, specifically, the front assembly cross beam 4 is a stainless steel plate beam in a shape of a Chinese character 'ji'; the horizontal section of the front assembly beam 4 is provided with a circular through hole and a strip-shaped through hole.
In the embodiment, specifically, the cross-sectional heights of the left side longitudinal beam 1 and the right side longitudinal beam 2 are respectively 200-300mm, the thicknesses are 5-10mm, and the strength is 500L-650L grade girder steel.
In the present embodiment, specifically, the distance between the front assembly beam 4 and the first assembly beam 5 is set to 50-90 cm.
In this embodiment, specifically, the cross-sectional heights of the front assembly beam 4, the first assembly beam 5, the second assembly beam 6, the third assembly beam 7, the fourth assembly beam 8, the tail assembly beam 9 and the anti-collision support tail beam 10 are respectively 100-250mm, the thickness is 5-10mm, and the strength is 450L-550L-level girder steel.
In this embodiment, specifically, the width of the frame airfoil is 60-80 mm.
As shown in fig. 6, in the present embodiment, specifically, a circular through hole and a strip-shaped through hole are respectively formed inside the second assembly beam 6, the third assembly beam 7 and the fourth assembly beam 8.
In this embodiment, specifically, the first assembly beam 5, the second assembly beam 6, the third assembly beam 7 and the fourth assembly beam 8 are respectively designed to be arched.
As shown in fig. 8, in the present embodiment, specifically, a circular through hole is formed in the horizontal section of the front support seat 3 of the cab.
In this embodiment, specifically, the upper portions of the left side longitudinal beam 1 and the right side longitudinal beam 2 are respectively provided with a circular positioning hole.
In the embodiment, specifically, the width between the left side longitudinal beam 1 and the right side longitudinal beam 2 is narrowed from front to back; the widening surface narrows from 28mm in front of the central line of the front shaft, and the length of the widening surface is 625-880 mm.
When the assembling and connecting device is used, through holes formed in the left longitudinal beam 1, the right longitudinal beam 2, the second assembly cross beam 6, the third assembly cross beam 7 and the fourth assembly cross beam 8 facilitate assembly and connection of parts, convenience in installation and operation is improved, and production efficiency is improved; the first assembly cross beam 5, the second assembly cross beam 6, the third assembly cross beam 7 and the fourth assembly cross beam 8 are designed into an arch shape to enhance the bending resistance, and the application of 450L-550L-level girder steel and 500L-650L-level girder steel can improve the torsion resistance, ensure the safety of the fabricated truck and enhance the use performance of the vehicle; the connection part is mostly welded or bolted, so that the convenience in maintenance is improved, the weight can be reduced, the production cost is reduced, and the weight of the frame assembly is reduced by about 3.5 percent compared with the weight of the conventional similar product through calculation; the girder steel plate forms a rectangular section beam through bending and welding, the forming process is simple, the equipment investment is less, and the production efficiency is improved by at least 60% compared with the existing plate punching and welding; through the arrangement, the integral bearing capacity of the vehicle is improved, the universality of the frame assembly is improved, and the development period of the frame assembly is shortened.
The technical solutions of the present invention or similar technical solutions designed by those skilled in the art based on the teachings of the technical solutions of the present invention are all within the scope of the present invention.

Claims (10)

1. An assembled truck frame assembly is characterized by comprising a left side longitudinal beam (1), a right side longitudinal beam (2), a cab front support seat (3), a front assembly beam (4), a first assembly beam (5), a second assembly beam (6), a third assembly beam (7), a fourth assembly beam (8), a tail assembly beam (9), an anti-collision support tail beam (10), a license plate mounting plate (11), a rear shock absorber support (12), a standby mounting seat (13), a support plate spring lifting lug support (14), a gearbox suspension support (15), a cab rear support seat (16), a front shock absorber support (17), an anti-collision support front beam (18) and an inclined strut (19), the front supporting seat (3) of the cab is respectively bolted at the lower positions of the outer sides of the left side longitudinal beam (1) and the right side longitudinal beam (2); the front assembly cross beam (4) is connected to the front parts of the left side longitudinal beam (1) and the right side longitudinal beam (2) through bolts; the first assembly cross beam (5), the second assembly cross beam (6), the third assembly cross beam (7) and the fourth assembly cross beam (8) are sequentially bolted between the left side longitudinal beam (1) and the right side longitudinal beam (2) from front to back; the tail assembly cross beam (9) is connected to the rear ends of the left side longitudinal beam (1) and the right side longitudinal beam (2) through bolts; the anti-collision supporting tail beam (10) is connected to the rear side positions of the upper parts of the left side longitudinal beam (1) and the right side longitudinal beam (2) through bolts; the license plate mounting plate (11) is arranged at the rear side of the lower parts of the left side longitudinal beam (1) and the right side longitudinal beam (2); the rear shock absorber support (12) is respectively welded at the upper right side position of the left side longitudinal beam (1) and the right side longitudinal beam (2); the spare mounting seat (13) is arranged on the left side of the rear shock absorber support (12) and is in bolted connection with the left side longitudinal beam (1) and the right side longitudinal beam (2); the supporting plate spring lifting lug support (14) is respectively bolted at the middle position of the upper parts of the left side longitudinal beam (1) and the right side longitudinal beam (2); the gearbox suspension support (15) is connected to the right side of the upper surface of the front assembly beam (4) through a bolt; the rear supporting seat (16) of the cab is respectively bolted at the left side positions of the upper parts of the left side longitudinal beam (1) and the right side longitudinal beam (2); the front shock absorber support (17) is positioned on the right side of the rear support seat (16) of the cab and is respectively connected with the left side longitudinal beam (1) and the right side longitudinal beam (2) through bolts; the anti-collision support front beam (18) is respectively bolted at the front ends of the left side longitudinal beam (1) and the right side longitudinal beam (2); one end of the inclined strut (19) is respectively bolted at the right side position of the lower surfaces of the left side longitudinal beam (1) and the right side longitudinal beam (2), and the other end of the inclined strut is bolted at the lower side position of the rear part of the license plate mounting plate (11).
2. A fabricated truck frame assembly according to claim 1, characterized in that said front assembly cross member (4) is embodied by a stainless steel plate member in a shape of a Chinese character 'ji'; the horizontal section of the front assembly beam (4) is provided with a circular through hole and a strip-shaped through hole.
3. A fabricated freight car frame assembly as defined in claim 1, wherein the cross-sectional heights of the left side member (1) and the right side member (2) are respectively 200-300mm, the thickness is 5-10mm, and the strength is 500L-650L class girder steel.
4. A fabricated truck frame assembly according to claim 1, characterized in that the distance between the front assembly cross member (4) and the first assembly cross member (5) is arranged between 50-90 cm.
5. A fabricated truck frame assembly according to claim 1, characterized in that the cross-sectional heights of the front assembly cross-beam (4), the first assembly cross-beam (5), the second assembly cross-beam (6), the third assembly cross-beam (7), the fourth assembly cross-beam (8), the rear assembly cross-beam (9) and the crash support tail-beam (10) are respectively 100-250mm, the thickness is 5-10mm, and the strength is 450L-550L class girder steel.
6. An assembled wagon frame assembly as defined in claim 1, wherein the second assembly cross member (6), the third assembly cross member (7) and the fourth assembly cross member (8) are provided with circular through holes and strip-shaped through holes, respectively, therein.
7. A fabricated vehicle frame assembly according to claim 1, wherein said first assembly cross member (5), said second assembly cross member (6), said third assembly cross member (7) and said fourth assembly cross member (8) are each of an arcuate design.
8. A fabricated truck frame assembly according to claim 1, characterized in that the horizontal section of the cab front support (3) is provided with a circular through hole.
9. An assembled wagon frame assembly as defined in claim 1, wherein the upper parts of the left side longitudinal beam (1) and the right side longitudinal beam (2) are respectively provided with circular positioning holes.
10. A fabricated wagon frame assembly as defined in claim 1, wherein the width between the left side rail (1) and the right side rail (2) narrows from front to rear; the widening surface narrows from 28mm in front of the central line of the front shaft, and the length of the widening surface is 625-880 mm.
