Abstract

本发明涉及一种融雪车及其融雪罩装置，以解决现有技术中存在的因蒸汽外溢影响行车视线及融后的水横流导致二次结冰进而影响行车安全的问题。该融雪车包括车体和安装在车体底部的融雪罩装置，所述融雪罩装置包括融雪罩，所述融雪罩具有融雪腔室，所述融雪罩于融雪腔室的左右两侧还分别设有吸污腔室。该融雪车在进行融雪作业时可对外溢至吸污腔室的热蒸汽和雪水吸收，从而阻止蒸汽继续外溢影响行车视线，还阻止了融化的雪水横流进而再次结冰，保护了行车安全。

Figure 201810780148

The invention relates to a snow-melting vehicle and a snow-melting cover device to solve the problems existing in the prior art that the steam overflow affects the driving line of sight and the cross-flow of the melted water causes secondary icing and thus affects the driving safety. The snow melting vehicle includes a vehicle body and a snow melting cover device installed at the bottom of the vehicle body, the snow melting cover device includes a snow melting cover, the snow melting cover has a snow melting chamber, and the snow melting cover is further provided on the left and right sides of the snow melting chamber. There is a suction chamber. The snow melting truck can absorb the hot steam and snow water overflowing to the sewage suction chamber during the snow melting operation, thereby preventing the steam from continuing to overflow and affecting the driving sight, and also preventing the melted snow water from flowing crosswise and then freezing again, thus protecting the driving safety. .

Figure 201810780148

Description

一种融雪车及其融雪罩装置A snow melting vehicle and its snow melting cover device

技术领域technical field

本发明涉及一种融雪车及其融雪罩装置。The invention relates to a snow melting vehicle and a snow melting cover device thereof.

背景技术Background technique

融雪车包括车体和在车体上安装的抽吸风机、污水箱、清水箱、蒸汽锅炉、融雪装置、吸污装置，其依靠蒸汽锅炉产生大量热蒸汽，通过融雪装置将热蒸汽喷射到路面冰雪上、将冰雪融化，再经吸污装置将融化的雪水吸入到车上的污水箱内。现有技术中在融雪车工作时融雪装置与路面存在缝隙，热蒸汽会通过缝隙外溢形成雾气影响行车视线，同时冰雪融化后的水从缝隙横流、而后再次结冰，影响行车安全。The snow melting truck includes a car body and a suction fan, a sewage tank, a clean water tank, a steam boiler, a snow melting device, and a sewage suction device installed on the car body. On the ice and snow, melt the ice and snow, and then suck the melted snow water into the sewage tank of the car through the sewage suction device. In the prior art, there is a gap between the snow melting device and the road surface when the snow melting vehicle is in operation. Hot steam will overflow through the gap to form mist and affect the driving line of sight. At the same time, the water after melting ice and snow flows through the gap and then freezes again, affecting the driving safety.

发明内容SUMMARY OF THE INVENTION

本发明的目的在于提供一种融雪车用融雪罩装置，以解决现有技术中存在的因蒸汽外溢影响行车视线及融后的水横流导致二次结冰进而影响行车安全的问题；本发明还提供了安装该融雪罩装置的融雪车。The purpose of the present invention is to provide a snow-melting cover device for a snow-melting vehicle, so as to solve the problem in the prior art that the steam overflow affects the driving line of sight and the cross-flow of the melted water causes secondary icing and thus affects the driving safety; the present invention also further A snow melting vehicle with the snow melting cover device installed is provided.

为了实现以上目的，本发明融雪车用融雪罩装置提供的技术方案是：In order to achieve the above purpose, the technical scheme provided by the snow melting cover device for a snow melting vehicle of the present invention is:

融雪车用融雪罩装置的方案一：一种融雪车用融雪罩装置，包括融雪罩，所述融雪罩具有融雪腔室，所述融雪罩于融雪腔室的左右两侧还分别设有吸污腔室。该装置在融雪车作业时可对外溢至吸污腔室的热蒸汽和雪水进行吸收，从而阻止蒸汽继续外溢影响行车视线，还阻止了融化的雪水横流进而再次结冰，保护了行车安全。Scheme 1 of a snow-melting hood device for a snow-melting vehicle: a snow-melting hood device for a snow-melting vehicle, comprising a snow-melting hood, the snow-melting hood has a snow-melting chamber, and the snow-melting hood is also provided with a dirt suction on the left and right sides of the snow-melting chamber. Chamber. The device can absorb the hot steam and snow water overflowing to the sewage suction chamber during the operation of the snow melting vehicle, thereby preventing the steam from continuing to overflow and affecting the driving sight, and also preventing the melted snow water from flowing across and then freezing again, thus protecting the driving safety. .

融雪车用融雪罩装置的方案二：在方案一的基础上，所述吸污腔室前后方向上的长度与融雪腔室前后方向上的长度相等。该装置采用吸污腔室和融雪腔室前后方向上等长的结构，在装置结构最优化的前提下可对融雪腔室外溢出的蒸汽和雪水全面吸收。Solution 2 of the snow-melting cover device for a snow-melting vehicle: On the basis of solution 1, the length in the front-rear direction of the sewage suction chamber is equal to the length in the front-rear direction of the snow-melting chamber. The device adopts a structure of equal length in the front and rear directions of the sewage suction chamber and the snow melting chamber, and can fully absorb the steam and snow water overflowing from the snow melting chamber under the premise of optimizing the structure of the device.

融雪车用融雪罩装置的方案三：在方案一或二的基础上，所述吸污腔室内纵向上的高度大于融雪腔室内纵向上的高度。该装置采用吸污腔室纵深大于融雪腔室纵深的结构，在充分保证吸污腔室足够容积的前提下，可尽可能减小融雪罩的宽度。Solution 3 of the snow-melting hood device for a snow-melting vehicle: On the basis of solution 1 or 2, the height in the longitudinal direction of the sewage suction chamber is greater than the height in the longitudinal direction of the snow-melting chamber. The device adopts a structure in which the depth of the sewage suction chamber is greater than that of the snow melting chamber, and the width of the snow melting cover can be reduced as much as possible on the premise of fully ensuring the sufficient volume of the sewage suction chamber.

融雪车用融雪罩装置的方案四：在方案一或二的基础上，所述吸污腔室上接有前后方向上均布的至少两个导气管，所述导气管用于吸收融雪腔室外溢的蒸汽和雪水。该装置采用多个吸污导气管前后方向上均布的结构，可充分保证吸污腔室内的吸力充足，足够全面地将吸污腔室内蒸汽和雪水吸收干净。Solution 4 of the snow-melting hood device for a snow-melting vehicle: On the basis of solution 1 or 2, at least two air ducts evenly distributed in the front-rear direction are connected to the sewage suction chamber, and the air ducts are used to absorb the snow-melting chamber. Spilling steam and snow. The device adopts a structure in which a plurality of sewage suction ducts are evenly distributed in the front and rear directions, which can fully ensure sufficient suction in the sewage suction chamber and fully absorb the steam and snow water in the sewage suction chamber.

融雪车用融雪罩装置的方案五：在方案三的基础上，所述吸污腔室上接有前后方向上均布的至少两个导气管，所述导气管用于吸收融雪腔室外溢的蒸汽和雪水。该装置采用多个吸污导气管前后方向上均布的结构，可充分保证吸污腔室内的吸力充足，足够全面地将吸污腔室内蒸汽和雪水吸收干净。Solution 5 of the snow-melting hood device for a snow-melting vehicle: On the basis of solution 3, at least two air ducts evenly distributed in the front and rear directions are connected to the sewage suction chamber, and the air ducts are used to absorb the overflowing air from the snow-melting chamber. Steam and snow water. The device adopts a structure in which a plurality of sewage suction ducts are evenly distributed in the front and rear directions, which can fully ensure sufficient suction in the sewage suction chamber and fully absorb the steam and snow water in the sewage suction chamber.

融雪车的方案一：一种融雪车，包括车体和安装在车体底部的融雪罩装置，所述融雪罩装置包括融雪罩，所述融雪罩具有融雪腔室，所述融雪罩于融雪腔室的左右两侧还分别设有吸污腔室。Solution 1 of a snow melting vehicle: A snow melting vehicle includes a vehicle body and a snow melting cover device installed at the bottom of the vehicle body, the snow melting cover device includes a snow melting cover, the snow melting cover has a snow melting chamber, and the snow melting cover is located in the snow melting chamber The left and right sides of the chamber are also provided with sewage suction chambers respectively.

融雪车的方案二：在方案一的基础上，所述吸污腔室前后方向上的长度与融雪腔室前后方向上的长度相等。Solution 2 of the snow melting vehicle: On the basis of solution 1, the length in the front-rear direction of the sewage suction chamber is equal to the length in the front-rear direction of the snow-melting chamber.

融雪车的方案三：在方案一或二的基础上，所述吸污腔室内纵向上的高度大于融雪腔室内纵向上的高度。Solution 3 of the snow melting vehicle: On the basis of solution 1 or 2, the height in the longitudinal direction of the sewage suction chamber is greater than the height in the longitudinal direction of the snow melting chamber.

融雪车的方案四：在方案一或二的基础上，所述吸污腔室上接有前后方向上均布的至少两个导气管，所述导气管用于吸收融雪腔室外溢的蒸汽和雪水。Solution 4 of the snow melting vehicle: On the basis of solution 1 or 2, the sewage suction chamber is connected with at least two air ducts evenly distributed in the front and rear directions, and the air ducts are used to absorb the steam and air overflowing from the snow melting chamber. snow water.

融雪车的方案五：在方案三的基础上，所述吸污腔室上接有前后方向上均布的至少两个导气管，所述导气管用于吸收融雪腔室外溢的蒸汽和雪水。Solution 5 of the snow melting vehicle: On the basis of solution 3, the sewage suction chamber is connected with at least two air ducts evenly distributed in the front and rear directions, and the air ducts are used to absorb the steam and snow water overflowing from the snow melting chamber. .

本发明融雪车的发明点与上述融雪车用融雪罩装置的发明点相同，达到的技术效果一致，故此处不再做重复赘述。The invention of the snow melting vehicle of the present invention is the same as the invention of the above-mentioned snow melting cover device for a snow melting vehicle, and the technical effects achieved are the same, so the repeated description will not be repeated here.

附图说明Description of drawings

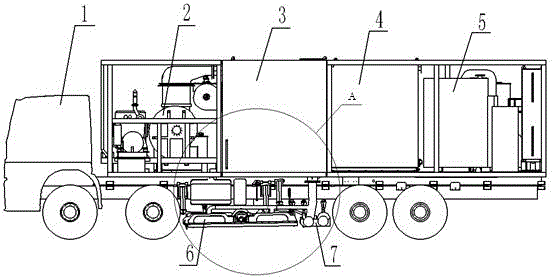

图1是融雪车具体实施例一的结构示意图。FIG. 1 is a schematic structural diagram of a specific embodiment 1 of a snow melting vehicle.

图2是图1中A处的放大图。FIG. 2 is an enlarged view of A in FIG. 1 .

图3是融雪车具体实施例一中融雪车用融雪罩装置的三维俯视图。FIG. 3 is a three-dimensional top view of the snow melting cover device for the snow melting vehicle in the first embodiment of the snow melting vehicle.

图4是融雪车具体实施例一中融雪车用融雪罩装置底部的三维示意图。FIG. 4 is a three-dimensional schematic diagram of the bottom of the snow-melting cover device for the snow-melting vehicle in the first embodiment of the snow-melting vehicle.

附图标记说明：1、车体；2、抽吸风机；3、污水箱；4、清水箱；5、蒸汽锅炉；6、融雪装置；7、吸污装置；8、连杆机构；9、顶板；10、封板焊合；11、封板；12、第一导气管；13、卡箍；14、软管；15、第二导气管；16、压条；17、第一外侧密封胶条；18、第一内侧密封胶条；19、第二内侧密封胶条；20第二外侧密封胶条；21、吸污管；22、第一吸污腔室；23融雪腔室；24、第二吸污腔室。Description of reference numerals: 1. Vehicle body; 2. Suction fan; 3. Sewage tank; 4. Clean water tank; 5. Steam boiler; 6. Snow melting device; 7. Sewage suction device; 8. Link mechanism; 9. Top plate; 10. Welding of sealing plate; 11. Sealing plate; 12. First air duct; 13. Clamp; 14. Hose; 15, Second air duct; ; 18, the first inner sealing strip; 19, the second inner sealing strip; 20, the second outer sealing strip; 21, the sewage suction pipe; 22, the first sewage suction chamber; 23 the snow melting chamber; 24, the first Two suction chambers.

具体实施方式Detailed ways

下面结合附图对本发明的实施方式作进一步说明。The embodiments of the present invention will be further described below with reference to the accompanying drawings.

本发明融雪车的具体实施例一：如图1所示，该融雪车包括车体1，车体1内从前到后依次安装有抽吸风机2、污水箱3、清水箱4和蒸汽锅炉5，在车体1的底部安装有融雪装置6和吸污装置7。如图3所示，融雪装置6包括连杆机构8和融雪罩装置，融雪罩装置包括融雪罩，融雪罩包括融雪腔室23和在融雪腔室23左、右两侧分别设有的第一吸污腔室22和第二吸污腔室24。该融雪车在融雪作业时可对外溢至吸污腔室的热蒸汽和雪水进行吸收，从而阻止蒸汽继续外溢影响行车视线，还阻止了融化的雪水横流进而再次结冰，保护了行车安全。The specific embodiment 1 of the snow melting vehicle of the present invention: as shown in FIG. 1 , the snow melting vehicle includes a vehicle body 1, and a suction fan 2, a sewage tank 3, a clean water tank 4 and a steam boiler 5 are sequentially installed in the vehicle body 1 from front to back. , a snow melting device 6 and a sewage suction device 7 are installed at the bottom of the vehicle body 1 . As shown in FIG. 3 , the snow melting device 6 includes a link mechanism 8 and a snow melting cover device. The snow melting cover device includes a snow melting cover, and the snow melting cover includes a snow melting chamber 23 and first and second snow melting chambers 23 on the left and right sides of the snow melting chamber 23 respectively. The sewage suction chamber 22 and the second sewage suction chamber 24 . The snow melting truck can absorb the hot steam and snow water overflowing to the sewage suction chamber during the snow melting operation, so as to prevent the steam from continuing to overflow and affect the driving sight, and also prevent the melted snow water from flowing across and then freezing again, thus protecting the driving safety. .

在本实施例中所述的融雪腔室由第一内侧密封胶条18、第二内侧密封胶条19和顶板9围成，所述吸污腔室由封板焊合10、封板11、第一外侧密封胶条17和第二外侧密封胶条20围成，封板焊合10焊接在融雪腔室23的两侧侧板上，封板11通过标准螺栓、螺母装在封板焊合10上；采用标准螺栓、螺母及压条16将第一外侧密封胶条17安装在封板焊合10的底部，第二外侧密封胶条20安装在第二内侧密封胶条19的外围，这种安装方式结构简单、可靠，易于安装、便于拆卸；同样此处的吸污腔室也可由其他的部件或结构围成，只要围成的吸污腔室能够实现对从融雪腔室23外溢蒸汽和横流雪水吸收的功能即可。在本实施例中所述吸污腔室前后方向上的长度与融雪腔室23前后方向上的长度相等；该装置采用吸污腔室和融雪腔室23前后方向上等长的结构，在装置结构最优化的前提下可对融雪腔室23外溢出的蒸汽和雪水全面吸收。此外，在本实施例中所述吸污腔室内纵向上的高度大于融雪腔室23内纵向上的高度；该装置采用吸污腔室纵深大于融雪腔室23纵深的结构，在充分保证吸污腔室足够容积的前提下，可尽可能减小融雪罩的宽度，便于车体结构空间上的整体布局。In this embodiment, the snow melting chamber is surrounded by the first inner sealing strip 18, the second inner sealing strip 19 and the top plate 9, and the dirt suction chamber is welded by the sealing plate 10, the sealing plate 11, The first outer sealing strip 17 and the second outer sealing strip 20 are enclosed, the sealing plate welding 10 is welded to the side plates on both sides of the snow melting chamber 23, and the sealing plate 11 is mounted on the sealing plate by standard bolts and nuts. 10; use standard bolts, nuts and bead 16 to install the first outer sealing strip 17 on the bottom of the sealing plate welding 10, and the second outer sealing strip 20 is installed on the periphery of the second inner sealing strip 19. The installation method is simple and reliable in structure, easy to install, and easy to disassemble; also, the sewage suction chamber here can also be enclosed by other components or structures, as long as the enclosed sewage suction chamber can realize the protection of the steam overflowing from the snow melting chamber 23 and the air. The function of absorbing cross-flow snow water is enough. In this embodiment, the length of the sewage suction chamber in the front-rear direction is equal to the length of the snow-melting chamber 23 in the front-rear direction; Under the premise of optimizing the structure, the steam and snow water overflowing from the snow melting chamber 23 can be fully absorbed. In addition, in this embodiment, the longitudinal height of the sewage suction chamber is greater than the longitudinal height of the snow melting chamber 23; the device adopts a structure in which the depth of the sewage suction chamber is greater than the depth of the snow melting chamber 23, so as to fully ensure the sewage suction On the premise that the chamber has a sufficient volume, the width of the snow melting cover can be reduced as much as possible, so as to facilitate the overall layout of the vehicle body structure space.

在本实施例中所述第一吸污腔室22和第二吸污腔室24上分别接有前后方向上均布的两个导气管，所述导气管通过卡箍13和软管14与吸污装置7的吸污管相连，用于吸收融雪腔室23外溢的蒸汽和雪水；同样此处也可采用其他部件或结构使导气管与吸污管相连，如将软管14替换成同样能调整长度的伸缩管，也能起到在连通的同时升降融雪装置6的效果；此外，该装置采用两个吸污导气管前后方向上均布的结构，可充分保证吸污腔室内的吸力充足，足够全面地将吸污腔室内蒸汽和雪水吸收干净。此处也可采用三个或更多数量上的导气管前后均布分布的结构，同样能够起到吸污腔室内吸力充足的效果，可将外溢蒸汽和横流雪水充分吸收，从而保证路面不会结冰、车辆能够安全行驶。最后，通过连杆机构8将融雪装置6安装在车体1的大梁上，完成安装。In this embodiment, the first sewage suction chamber 22 and the second sewage suction chamber 24 are respectively connected with two air pipes evenly distributed in the front and rear directions. The sewage suction pipe of the sewage suction device 7 is connected to absorb the steam and snow water overflowing from the snow melting chamber 23; also other components or structures can be used here to connect the air duct to the sewage suction pipe, such as replacing the hose 14 with The telescopic tube that can also adjust the length can also have the effect of raising and lowering the snow-melting device 6 while being connected; in addition, the device adopts a structure in which two sewage suction ducts are evenly distributed in the front and rear directions, which can fully ensure the sewage suction chamber. The suction is sufficient to fully absorb the steam and snow water in the suction chamber. Here, a structure in which three or more air ducts are evenly distributed in the front and rear can also be used, which can also have the effect of sufficient suction in the sewage suction chamber, and can fully absorb the overflowing steam and cross-flow snow water, so as to ensure that the road surface is not damaged. Ice will form and the vehicle will be able to drive safely. Finally, the snow melting device 6 is installed on the frame of the vehicle body 1 through the link mechanism 8 to complete the installation.

本发明融雪车的作业过程如下：如图4所示，在融雪车工作时，蒸汽锅炉5产生的热蒸汽通至紧贴路面的融雪装置6中，融雪装置6通过融雪罩装置与路面形成三个腔室，即融雪腔室23和两个吸污腔室，吸污腔室可对融雪腔室23进行封闭保护。第一内侧密封胶条18、第二内侧密封胶条19与顶板9围成的融雪腔室23紧压路面，对融雪腔室23下部的积雪融化；第一外侧密封胶条17和第二外侧密封胶条20紧压路面，使吸污腔室对外溢的蒸汽和横流的融化雪水通过导气管吸收；同时吸污装置7工作，将吸污腔室内的蒸汽及雪水通过第一导气管12、第二导气管15、软管14和吸污管21抽走，使吸污腔室内形成负压，阻止吸污腔室内的蒸汽继续外溢及横流的雪水继续横流，以利于紧挨其后的吸污装置7将地面雪水抽吸干净，从而保证路面不会结冰，车辆能够安全行驶。该融雪罩装置能够有效的阻止融雪装置6融雪时融雪腔室23内的蒸汽通过融雪装置6与路面的缝隙外溢形成雾气、影响行车视线，同时还能阻止融化的雪水通过缝隙横流、造成二次结冰，影响行车安全。通过该种结构，能够达到清除冰雪、清洁路面的效果，且该装置具有结构简单、易于操作的特点。The operation process of the snow melting vehicle of the present invention is as follows: As shown in FIG. 4 , when the snow melting vehicle is in operation, the hot steam generated by the steam boiler 5 is passed to the snow melting device 6 close to the road surface, and the snow melting device 6 forms a three-dimensional structure with the road surface through the snow melting cover device. There are two chambers, namely a snow melting chamber 23 and two dirt suction chambers, and the dirt suction chambers can seal and protect the snow melting chamber 23 . The first inner sealing strip 18, the second inner sealing strip 19 and the snow-melting chamber 23 enclosed by the top plate 9 press down the road surface to melt the snow in the lower part of the snow-melting chamber 23; the first outer sealing strip 17 and the second The outer sealing strip 20 presses the road surface, so that the steam overflowing from the sewage suction chamber and the melted snow water in the cross flow are absorbed through the air duct; at the same time, the sewage suction device 7 works, and the steam and snow water in the sewage suction chamber pass through the first guide pipe. The air pipe 12, the second air guide pipe 15, the hose 14 and the sewage suction pipe 21 are drawn away to form a negative pressure in the sewage suction chamber, preventing the steam in the sewage suction chamber from continuing to overflow and the cross-flowing snow water continuing to cross flow, so as to facilitate the close proximity of the sewage. The subsequent sewage suction device 7 sucks the snow water on the ground clean, so as to ensure that the road surface will not freeze and the vehicle can drive safely. The snow-melting cover device can effectively prevent the steam in the snow-melting chamber 23 from overflowing through the gap between the snow-melting device 6 and the road surface when the snow-melting device 6 melts to form mist, which affects the driving line of sight, and also prevents the melted snow from flowing through the gap. ice, which affects driving safety. With this structure, the effects of removing ice and snow and cleaning the road surface can be achieved, and the device has the characteristics of simple structure and easy operation.

Claims (10)

1. A snow melting cover device for a snow melting vehicle, comprising a snow melting cover having a snow melting chamber, characterized in that: the snow melting cover is also provided with dirt absorbing chambers on the left side and the right side of the snow melting chamber respectively.
2. A snow-melting cover apparatus for a snow-melting vehicle according to claim 1, characterized in that: the length of the dirt suction chamber in the front-back direction is equal to the length of the snow melting chamber in the front-back direction.
3. A snow-melting cover apparatus for a snow-melting vehicle according to claim 1 or 2, characterized in that: the height in the longitudinal direction in the dirt absorbing chamber is larger than the height in the longitudinal direction in the snow melting chamber.
4. A snow-melting cover apparatus for a snow-melting vehicle according to claim 1 or 2, characterized in that: the dirt absorbing cavity is connected with at least two air ducts which are uniformly distributed in the front-back direction, and the air ducts are used for absorbing steam and snow water overflowing from the snow melting cavity.
5. A snow melting cover apparatus for a snow melting vehicle according to claim 3, characterized in that: the dirt absorbing cavity is connected with at least two air ducts which are uniformly distributed in the front-back direction, and the air ducts are used for absorbing steam and snow water overflowing from the snow melting cavity.
6. The utility model provides a snow melting vehicle, includes the automobile body and installs the snow melting cover device in the automobile body bottom, the snow melting cover device is including melting the snow cover, the snow melting cover has snow melting cavity, its characterized in that: the snow melting cover is also provided with dirt absorbing chambers on the left side and the right side of the snow melting chamber respectively.
7. The snow melting vehicle of claim 6, wherein: the length of the dirt suction chamber in the front-back direction is equal to the length of the snow melting chamber in the front-back direction.
8. The snow melting vehicle of claim 6 or 7, wherein: the height in the longitudinal direction in the dirt absorbing chamber is larger than the height in the longitudinal direction in the snow melting chamber.
9. The snow melting vehicle of claim 6 or 7, wherein: the dirt absorbing cavity is connected with at least two air ducts which are uniformly distributed in the front-back direction, and the air ducts are used for absorbing steam and snow water overflowing from the snow melting cavity.
10. The snow melting vehicle of claim 8, wherein: the dirt absorbing cavity is connected with at least two air ducts which are uniformly distributed in the front-back direction, and the air ducts are used for absorbing steam and snow water overflowing from the snow melting cavity.
