CN110685048A - Warping equipment for chemical fiber filaments - Google Patents
Warping equipment for chemical fiber filaments Download PDFInfo
- Publication number
- CN110685048A CN110685048A CN201910942847.4A CN201910942847A CN110685048A CN 110685048 A CN110685048 A CN 110685048A CN 201910942847 A CN201910942847 A CN 201910942847A CN 110685048 A CN110685048 A CN 110685048A
- Authority
- CN
- China
- Prior art keywords
- drafting
- yarn
- yarn storage
- collecting
- roller
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- D—TEXTILES; PAPER
- D02—YARNS; MECHANICAL FINISHING OF YARNS OR ROPES; WARPING OR BEAMING
- D02H—WARPING, BEAMING OR LEASING
- D02H3/00—Warping machines
-
- D—TEXTILES; PAPER
- D02—YARNS; MECHANICAL FINISHING OF YARNS OR ROPES; WARPING OR BEAMING
- D02H—WARPING, BEAMING OR LEASING
- D02H13/00—Details of machines of the preceding groups
- D02H13/22—Tensioning devices
- D02H13/26—Tensioning devices for threads in warp form
Landscapes
- Engineering & Computer Science (AREA)
- Textile Engineering (AREA)
- Yarns And Mechanical Finishing Of Yarns Or Ropes (AREA)
Abstract
The invention provides warping equipment for chemical fiber filaments, and belongs to the technical field of chemical fiber filament processing. It is including collection silk device, drafting arrangement, store up the yarn device, collection silk device is including fixed collection silk subassembly, activity collection silk subassembly, collection silk roller assembly, activity collection silk yarn grinding ring is installed on the activity collection silk hole of activity collection silk board, drafting arrangement includes the drafting mechanism, the drafting guiding mechanism, the drafting mechanism is including fixed drafting guiding assembly, activity drafting assembly, it includes stores up yarn mechanism to store up the yarn device, store up yarn mechanism down, it includes and stores up the yarn slider to store up yarn mechanism, on store up yarn pressure spring subassembly, on store up yarn subassembly, it includes down stores up the yarn slider to store up yarn mechanism down, store up yarn pressure spring subassembly down, store up yarn subassembly down. The invention can quickly realize the warping processing of the chemical fiber filaments, not only utilizes the movable filament collecting plate to realize the cleaning of hairiness of the chemical fiber filaments, but also can realize yarn storage after the chemical fiber filaments are drafted, thereby ensuring good tension of the chemical fiber filaments and greatly improving the warping effect.
Description
Technical Field
The invention relates to the technical field of chemical fiber filament processing, in particular to warping equipment for chemical fiber filaments.
Background
The chemical fiber is prepared from natural high molecular compound or artificial high molecular compound as raw material through preparing spinning solution, spinning and post-treatment, etc. the chemical fiber is divided into ① artificial fiber, chemical fiber prepared from natural high molecular compound (such as cellulose), such as viscose fiber, acetate fiber, ② synthetic fiber, chemical fiber prepared from artificial high molecular compound as raw material, such as polyester fiber, polyamide fiber, polyacrylonitrile fiber, etc. the chemical fiber has the advantages of high strength, wear resistance, low density, good elasticity, no mildew, no worries, easy washing and quick drying, etc. but has the disadvantages of poor dyeing property, high static electricity, poor filament light and weather resistance, poor water absorption.
Disclosure of Invention
The invention aims to provide warping equipment for chemical fiber filaments, which can quickly realize warping processing of the chemical fiber filaments, not only utilizes a movable filament collecting plate to realize cleaning of hairiness of the chemical fiber filaments, but also can realize yarn storage after the chemical fiber filaments are drafted, ensures good tension of the chemical fiber filaments and greatly improves warping effect.
The technical scheme adopted by the invention for solving the technical problems is as follows:
the utility model provides a warping equipment of chemical fibre long filament, includes creel, warper, collection silk device, guider, receipts silk device, the creel sets up the one side at the warper, the equipartition is provided with the chemical fibre long filament book on the creel, and it still includes draft device, stores up the yarn device, collection silk device is including collection creel, fixed collection silk subassembly, activity collection silk subassembly, collection silk roller subassembly, collection creel is installed in one side of warper to collection creel is located between creel and the warper, activity collection silk subassembly sets up between fixed collection silk subassembly and collection silk roller subassembly, fixed collection silk subassembly includes fixed collection silk board, fixed collection silk board support is installed on collection creel, fixed collection silk board is installed on fixed collection silk board support, the equipartition is provided with fixed collection silk hole on the fixed collection silk board, activity collection silk subassembly is including activity collection silk board, fixed collection silk, The movable yarn collecting plate comprises a movable yarn collecting plate support, a movable yarn collecting slide block, a movable yarn collecting guide rail, a movable yarn collecting rack, a movable yarn collecting gear, a movable yarn collecting motor, a movable yarn collecting yarn grinding ring, a humidifying nozzle and a humidifying support, wherein the movable yarn collecting guide rail is arranged on a yarn collecting frame, the movable yarn collecting slide block is slidably arranged on the movable yarn collecting guide rail, the movable yarn collecting rack is arranged at the lower end of the movable yarn collecting slide block, the movable yarn collecting motor is arranged on the yarn collecting frame and coaxially connected with the movable yarn collecting gear, the movable yarn collecting gear is meshed with the movable yarn collecting rack, the movable yarn collecting plate support is arranged on the movable yarn collecting slide block, the movable yarn collecting plate is arranged on the movable yarn collecting plate support, the movable yarn collecting holes are uniformly distributed on the movable yarn collecting plate, the number of the movable yarn collecting holes is the same as that of the fixed yarn collecting holes, and the movable yarn collecting yarn grinding ring is arranged on the movable yarn collecting holes of the movable yarn collecting plate, the two ends of the movable yarn collecting and grinding ring are arranged to be in an opening expanding shape, the number of the humidifying supports is two, the humidifying supports are symmetrically arranged on two sides of the movable yarn collecting plate support, the humidifying nozzles are arranged on the humidifying supports, the yarn collecting roller component comprises a yarn collecting roller support, an upper yarn collecting roller and a lower yarn collecting roller, the number of the yarn collecting roller support is two, the two yarn collecting roller supports are arranged on the warping frame, the upper yarn collecting roller and the lower yarn collecting roller are rotatably arranged on the yarn collecting roller support, the upper yarn collecting roller is positioned right above the lower yarn collecting roller, the drafting device comprises a drafting mechanism and a drafting guide mechanism, the drafting mechanism is arranged on one side of the yarn collecting roller component and comprises a drafting ring support, a motor, a drafting support shaft, a drafting cam, a fixed drafting guide component and a movable drafting component, and the number of the drafting ring support is two, two drafting ring supporting brackets are arranged on a warping frame, the drafting ring is supported and fixed on the two drafting ring supporting brackets, a hollow supporting cavity is arranged in the middle of the drafting ring supporting bracket, the drafting fulcrum shafts can be rotatably arranged on the two drafting ring supporting brackets, the drafting motor is arranged on one of the drafting ring supporting brackets, the drafting motor and the drafting fulcrum shafts are coaxially connected, the drafting cam is arranged on the drafting fulcrum shafts, the drafting cam and the drafting fulcrum shafts are both positioned in the hollow supporting cavity of the drafting ring supporting bracket, the number of the fixed drafting guide components is two, the two fixed drafting guide components are symmetrically arranged on two sides of the drafting ring supporting bracket, each fixed drafting guide component comprises a fixed drafting guide roller and a fixed drafting guide roller bracket, the fixed drafting guide roller brackets are arranged on the drafting ring supporting bracket, and the fixed drafting guide roller can be rotatably arranged at the outer ends of the fixed drafting guide roller brackets, the number of the movable drafting assemblies is three, the three movable drafting assemblies are uniformly distributed between the two fixed drafting guide assemblies, three drafting chutes are arranged on the drafting ring support, each movable drafting assembly comprises a movable drafting roller, a movable drafting roller support, a cam roller and a cam roller support, the movable drafting roller support can be arranged on the drafting chute of the drafting ring support in a sliding manner along the radial direction, the movable drafting roller can be rotatably arranged at the outer end of the movable drafting roller support, the cam roller support is arranged at the inner end of the movable drafting roller support, the cam roller can be rotatably arranged on the cam roller support, the drafting guide mechanism is arranged at one side of the drafting mechanism, the drafting guide mechanism comprises a drafting guide support, a drafting guide top plate, a drafting guide roller and a drafting guide compression roller assembly, and the number of the drafting guide support is two, two drafting guide supports are arranged on a warping frame, a drafting guide top plate is arranged at the upper sides of the two drafting guide supports, the drafting guide roller can be rotatably arranged on the drafting guide support, a drafting guide compression roller assembly is arranged at one side of the drafting guide roller, the drafting guide compression roller assembly comprises a drafting guide compression roller, a drafting guide compression roller support, a drafting guide sliding rod limiting block and a drafting guide compression spring, the drafting guide sliding rod can be arranged on the drafting guide top plate in a vertical sliding manner, the upper end of the drafting guide sliding rod is provided with the drafting guide sliding rod limiting block, the drafting guide compression roller support is arranged at the lower end of the drafting guide sliding rod, the drafting guide compression roller can be rotatably arranged on the drafting guide compression roller support, the drafting guide compression spring and the drafting guide sliding rod are coaxially arranged, and the upper end of the drafting guide compression spring, the lower end of the drafting guide pressure spring is attached to the drafting guide compression roller support, the yarn storage device is arranged on one side of the drafting guide mechanism and comprises a yarn storage support, an upper yarn storage mechanism and a lower yarn storage mechanism, the yarn storage support comprises a yarn storage lower support, a yarn storage side support and a yarn storage upper support, the yarn storage lower support is arranged on a warping frame, the yarn storage upper support is connected with the yarn storage lower support through the yarn storage side support, a yarn storage guide rail is arranged on the yarn storage side support, the upper yarn storage mechanism comprises an upper yarn storage sliding block, an upper yarn storage pressure spring assembly and an upper yarn storage assembly, the upper yarn storage sliding block can be arranged on the yarn storage guide rail in a vertical sliding mode, the number of the upper yarn storage assemblies is more than two, the upper yarn storage assemblies are arranged on the lower side of the upper yarn storage sliding block at equal intervals, the upper yarn storage assembly comprises an upper yarn storage roller and an upper yarn storage roller support, the upper yarn storage roller support is arranged on the lower side of the upper yarn storage sliding block, the upper yarn storage roller is rotatably arranged on an upper yarn storage roller support, the upper yarn storage pressure spring assembly is equidistantly arranged between an upper yarn storage support and an upper yarn storage sliding block, the upper yarn storage pressure spring assembly comprises an upper yarn storage pressure spring, an upper yarn storage pressure spring upper support and an upper yarn storage pressure spring lower support, the upper yarn storage pressure spring upper support is arranged on the upper yarn storage support, the upper yarn storage pressure spring lower support is arranged on the upper yarn storage sliding block, the upper end and the lower end of the upper yarn storage pressure spring are respectively embedded into the upper yarn storage pressure spring upper support and the upper yarn storage pressure spring lower support, the lower yarn storage mechanism comprises a lower yarn storage sliding block, a lower yarn storage pressure spring assembly and a lower yarn storage assembly, the lower yarn storage sliding block can be arranged on a yarn storage guide rail in a vertical sliding mode, the number of the lower yarn storage assemblies is one more than that of the upper yarn storage assemblies, the lower yarn storage assemblies are arranged on the upper side of the lower yarn storage sliding block at equal intervals, and the lower yarn storage assembly comprises a lower yarn storage roller, The yarn storage device comprises a lower yarn storage roller bracket, wherein the lower yarn storage roller bracket is arranged at the upper side of a lower yarn storage sliding block, the lower yarn storage roller is rotatably arranged on the lower yarn storage roller bracket, the upper yarn storage roller and the lower yarn storage roller are arranged in a staggered manner, lower yarn storage pressure spring assemblies are arranged between the lower yarn storage bracket and the lower yarn storage sliding block at equal intervals, each lower yarn storage pressure spring assembly comprises a lower yarn storage pressure spring, an upper yarn storage pressure spring supporting frame and a lower yarn storage pressure spring supporting frame, the upper yarn storage pressure spring supporting frame is arranged on the lower yarn storage sliding block, the lower yarn storage pressure spring supporting frame is arranged on the lower yarn storage bracket, the upper end and the lower end of the lower yarn storage pressure spring are respectively embedded into the upper yarn storage pressure spring supporting frame and the lower yarn storage pressure spring supporting frame, a guide device is arranged at one side of the yarn storage device, the guide device comprises two guide brackets, a guide roller and a guide press roller, and the number of the two guide brackets is two, two guide brackets are arranged on the warping frame, the guide roller is rotatably arranged on the guide brackets, the number of the guide compression rollers is two, the guide compression rollers are rotatably arranged on the guide brackets, the two guide compression rollers are respectively positioned above two sides of the guide roller, the yarn collecting device is arranged on one side of the guide device, the yarn collecting device comprises a yarn collecting bracket, a yarn collecting fulcrum shaft, a yarn collecting rolling frame, a yarn collecting motor support, a first yarn collecting chain wheel, a second yarn collecting chain wheel and a yarn collecting chain, the yarn collecting bracket is arranged on the warping frame, the yarn collecting fulcrum shaft is rotatably arranged on the yarn collecting bracket, the yarn collecting rolling frame is coaxially arranged on the yarn collecting fulcrum shaft, the second yarn collecting chain wheel is coaxially arranged on one side of the yarn collecting fulcrum shaft, the yarn collecting motor support is arranged on the yarn collecting bracket, the yarn collecting motor is arranged on the yarn collecting motor support, the yarn collecting motor is coaxially connected with the first yarn collecting chain wheel, the first wire winding chain wheel and the second wire winding chain wheel are connected through a wire winding chain.
Furthermore, the movable filament-collecting yarn-grinding ring is a ceramic yarn-grinding ring.
Further, the movable wire collecting motor is a servo motor.
Furthermore, the fixed drafting guide roller and the movable drafting roller are both metal rollers with concave drafting rings.
Further, the upper yarn storage roller and the lower yarn storage roller are both rubber yarn storage rollers.
Further, the guide compression roller is a rubber compression roller.
Compared with the prior art, the invention has the following advantages and effects: the yarn winding motor acts, the yarn winding fulcrum shaft is driven to rotate anticlockwise through the first yarn winding chain wheel, the yarn winding chain and the second yarn winding chain wheel, and the yarn winding roll frame mounted on the yarn winding fulcrum shaft achieves yarn winding. The chemical fiber filament on the creel is gradually unwound, the chemical fiber filament sequentially passes through a fixed filament collecting hole of a fixed filament collecting plate, a movable filament collecting yarn grinding ring of a movable filament collecting plate, a filament collecting roller assembly, a drafting mechanism, a drafting guide mechanism, a yarn storage device and a guide device, and finally the filament is collected on the filament collecting reel frame. In the process that chemical fiber filaments pass through a fixed filament collecting plate and a filament collecting roller assembly, a movable filament collecting motor acts to drive a movable filament collecting gear to rotate in a reciprocating mode, the movable filament collecting gear drives a movable filament collecting sliding block to slide in a reciprocating mode left and right along a movable filament collecting guide rail through a movable filament collecting rack, the chemical fiber filaments are tensioned on the fixed filament collecting plate and the filament collecting roller assembly, hairiness on the chemical fiber filaments can be effectively eliminated through a movable filament collecting yarn grinding ring installed on the movable filament collecting plate, the movable filament collecting motor is a servo motor, the rotating speed is adjustable, the rotating angle is very accurate, and accurate control over the left and right reciprocating positions of the movable filament collecting plate is facilitated. The two ends of the movable filament collecting yarn grinding ring are arranged into flaring shapes, so that the guide and yarn grinding of the chemical fiber filaments are facilitated, and the chemical fiber filaments are prevented from being blocked in the yarn grinding process, so that yarn breakage is formed. The movable filament collecting yarn grinding ring is a ceramic yarn grinding ring, the reciprocating action of the movable filament collecting yarn grinding ring can realize the removal of the hairiness of the chemical fiber filament, the hairiness removal effect is good, the structure is simple, and the cost is low. The humidifying nozzle has a humidifying function, can humidify the chemical fiber filaments, is beneficial to cleaning hairiness, avoids filament breakage and is beneficial to subsequent drafting. Then chemical fiber filament passes through the draft mechanism, chemical fiber filament at first gets into from the fixed draft guide roll on right side, then passes through three movable draft roller, go out from left fixed draft guide roll at last, because chemical fiber filament has tensile, so the cam gyro wheel laminates with the draft cam all the time, the action of draft motor, drive the draft cam through the draft fulcrum shaft and rotate, the draft cam passes through the cam gyro wheel and drives movable draft roller support and slide along the draft spout that the draft ring supported, install the movable draft roller in movable draft roller support outer end and realize the draft to chemical fiber filament. The fixed drafting guide roller and the movable drafting roller are both metal rollers with concave drafting rings, so that not only is the drafting effect good, but also the chemical fiber filaments are effectively prevented from sliding off in the drafting process, and the drafting stability is good. The chemical fiber filament after the draft passes through the draft guide roller, and under the effect of draft direction pressure spring, the draft guide slide bar slides down, and draft direction compression roller and the laminating of chemical fiber filament have guaranteed the tension and the stability of draft direction. Then chemical filament yarn is through storing up the yarn device, stores up the yarn pressure spring under the combined action of storing up the yarn pressure spring under with, stores up the yarn slider and draws close each other with storing up the yarn slider down on, because store up the yarn roller and store up the yarn roller crisscross each other down on, store up the yarn roller and store up the yarn roller with chemical filament yarn tensioning down, realize storing up the yarn. Go up and store up the yarn roller with storing up the yarn roller down and be rubber and store up the yarn roller, rubber stores up the yarn roller and has certain elasticity, stores up the yarn pressure spring and stores up the combined action of yarn pressure spring down at last, and rubber stores up the yarn roller and can realize the storage yarn to chemical filament to in-process at the storage yarn avoids causing the damage to chemical filament. Then the chemical fiber filament passes through the guide compression roller, the guide roller and the guide compression roller, and the two guide compression rollers and the guide roller are arranged in a vertically staggered manner, so that the guide and the conveying of the chemical fiber filament are facilitated. The guide compression roller is a rubber compression roller, so that the tensioning guide of the chemical fiber filaments can be realized, the chemical fiber filaments can be prevented from being damaged, and the filament collecting of the chemical fiber filaments is facilitated. And finally, winding the chemical fiber filaments on a filament winding frame. The invention can quickly realize the warping processing of the chemical fiber filaments, not only utilizes the movable filament collecting plate to realize the cleaning of hairiness of the chemical fiber filaments, but also can realize yarn storage after the chemical fiber filaments are drafted, thereby ensuring good tension of the chemical fiber filaments and greatly improving the warping effect.
Drawings

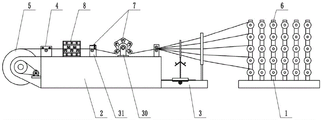

FIG. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural view of the filament collecting device of the present invention.
FIG. 3 is a schematic structural view of the fixed filament collecting plate of the present invention.
Fig. 4 is a schematic structural view of the movable filament collecting plate of the present invention.
Fig. 5 is a cross-sectional view of a movable filament collecting plate of the present invention.
Fig. 6 is a schematic structural view of the drafting mechanism of the present invention.
Figure 7 is a cross-sectional view of a drafting mechanism of the present invention.
Fig. 8 is a schematic structural view of the draft guiding mechanism of the present invention.
FIG. 9 is a schematic structural view of a yarn storage device of the present invention.
Fig. 10 is a schematic structural view of the guide device of the present invention.
Fig. 11 is a schematic structural view of the filament winding device of the present invention.
In the figure: 1. a creel, 2, a warping frame, 3, a yarn collecting device, 4, a guiding device, 5, a yarn collecting device, 6, a chemical fiber filament coil, 7, a drafting device, 8, a yarn storing device, 9, a yarn collecting frame, 10, a fixed yarn collecting component, 11, a movable yarn collecting component, 12, a yarn collecting roller component, 13, a fixed yarn collecting plate, 14, a fixed yarn collecting plate bracket, 15, a fixed yarn collecting hole, 16, a movable yarn collecting plate, 17, a movable yarn collecting plate bracket, 18, a movable yarn collecting slide block, 19, a movable yarn collecting guide rail, 20, a movable yarn collecting rack, 21, a movable yarn collecting gear, 22, a movable yarn collecting motor, 23, a movable yarn collecting grinding ring, 24, a humidifying nozzle, 25, 26, a movable yarn collecting hole, 27, a yarn collecting roller bracket, 28, an upper yarn collecting roller, 29, a lower yarn collecting roller, 30, a drafting mechanism, 31, a drafting mechanism, 32, a drafting ring support and a drafting ring support, 34. a drafting motor 35, a drafting fulcrum shaft 36, a drafting cam 37, a fixed drafting guide assembly 38, a movable drafting assembly 39, a hollow supporting cavity 40, a fixed drafting guide roller 41, a fixed drafting guide roller bracket 42, a drafting chute 43, a movable drafting roller 44, a movable drafting roller bracket 45, a cam roller 46, a cam roller bracket 47, a drafting guide bracket 48, a drafting guide top plate 49, a drafting guide roller 50, a drafting guide pressure roller assembly 51, a drafting guide pressure roller 52, a drafting guide pressure roller bracket 53, a drafting guide slide bar 54, a drafting guide slide bar limiting block 55, a drafting guide pressure spring 56, a yarn storage bracket 57, an upper yarn storage mechanism 58, a lower yarn storage mechanism 59, a lower yarn storage bracket 60, a yarn storage side bracket 61, an upper yarn storage bracket 62, a yarn storage guide rail 63, an upper yarn storage slider 63, 64. the yarn collecting device comprises an upper yarn storage pressure spring assembly, 65 parts of an upper yarn storage assembly, 66 parts of an upper yarn storage roller, 67 parts of an upper yarn storage roller support, 68 parts of an upper yarn storage pressure spring, 69 parts of an upper yarn storage pressure spring support, 70 parts of an upper yarn storage pressure spring lower support, 71 parts of a lower yarn storage sliding block, 72 parts of a lower yarn storage pressure spring assembly, 73 parts of a lower yarn storage assembly, 74 parts of a lower yarn storage roller, 75 parts of a lower yarn storage roller support, 76 parts of a lower yarn storage pressure spring, 77 parts of a lower yarn storage pressure spring upper support, 78 parts of a lower yarn storage pressure spring lower support, 79 parts of a guide support, 80 parts of a guide roller, 81 parts of a guide compression roller, 82 parts of a yarn collecting support, 83 parts of a yarn collecting support shaft, 84 parts of a yarn collecting roll support, 85 parts of a yarn collecting motor, 86 parts of a yarn collecting motor support, 87 parts of a first yarn collecting chain wheel, 88 parts of a second yarn collecting.
Detailed Description
The present invention will be described in further detail below by way of examples with reference to the accompanying drawings, which are illustrative of the present invention and are not to be construed as limiting the present invention.
As shown in fig. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 and 11, a warping device for chemical fiber filaments comprises a creel 1, a warping frame 2, a filament collecting device 3, a guiding device 4 and a filament collecting device 5, wherein the creel 1 is arranged at one side of the warping frame 2, chemical fiber filament rolls 6 are uniformly distributed on the creel 1, the warping device further comprises a drafting device 7 and a yarn storing device 8, the filament collecting device 3 comprises a filament collecting frame 9, a fixed filament collecting component 10, a movable filament collecting component 11 and a filament collecting roller component 12, the filament collecting frame 9 is arranged at one side of the warping frame 2, the filament collecting frame 9 is arranged between the creel 1 and the warping frame 2, the movable filament collecting component 11 is arranged between the fixed filament collecting component 10 and the filament collecting roller component 12, the fixed filament collecting component 10 comprises a fixed filament collecting plate 13 and a fixed filament collecting plate support 14, the fixed filament collecting plate support 14 is arranged on the filament collecting frame 2, the fixed silk collecting plate 13 is arranged on a fixed silk collecting plate support 14, fixed silk collecting holes 15 are uniformly distributed on the fixed silk collecting plate 13, the movable silk collecting component 11 comprises a movable silk collecting plate 16, a movable silk collecting plate support 17, a movable silk collecting slide block 18, a movable silk collecting guide rail 19, a movable silk collecting rack 20, a movable silk collecting gear 21, a movable silk collecting motor 22, a movable silk collecting yarn grinding ring 23, a humidifying nozzle 24 and a humidifying support 25, the movable silk collecting guide rail 19 is arranged on a silk collecting frame 9, the movable silk collecting slide block 18 is arranged on the movable silk collecting guide rail 19 in a sliding mode, the movable silk collecting rack 20 is arranged at the lower end of the movable silk collecting slide block 18, the movable silk collecting motor 22 is arranged on the silk collecting frame 9, the movable silk collecting motor 22 is coaxially connected with the movable silk collecting gear 21, the movable silk collecting motor 22 is a servo motor, the rotating speed is adjustable, the rotating angle is very accurate, the accurate control of the left and right reciprocating positions of the movable filament collecting plate 16 is facilitated. The movable filament collecting gear 21 and the movable filament collecting rack 20 are meshed with each other, the movable filament collecting plate support 17 is mounted on the movable filament collecting slide block 18, the movable filament collecting plate 16 is mounted on the movable filament collecting plate support 17, movable filament collecting holes 26 are uniformly distributed in the movable filament collecting plate 16, the number of the movable filament collecting holes 26 is the same as that of the fixed filament collecting holes 15, the movable filament collecting yarn grinding ring 23 is mounted on the movable filament collecting holes 26 of the movable filament collecting plate 16, two ends of the movable filament collecting yarn grinding ring 23 are in an opening expanding type, the movable filament collecting yarn grinding ring 23 is a ceramic yarn grinding ring, the movable filament collecting yarn grinding ring 23 can achieve the removal of the hairiness of the filaments through reciprocating motion, the removal effect of the hairiness of the chemical fiber is good, the structure is simple, and the cost is low. The number of the humidifying support 25 is two, the humidifying support is symmetrically arranged on two sides of the movable filament collecting plate support 17, the humidifying nozzle 24 is arranged on the humidifying support 25, the filament collecting roller assembly 12 comprises a filament collecting roller support 27, an upper filament collecting roller 28 and a lower filament collecting roller 29, the number of the filament collecting roller support 27 is two, the two filament collecting roller supports 27 are arranged on the warping frame 2, the upper filament collecting roller 28 and the lower filament collecting roller 29 are both rotatably arranged on the filament collecting roller support 27, the upper filament collecting roller 28 is positioned right above the lower filament collecting roller 29, the drafting device 7 comprises a drafting mechanism 30 and a drafting guide mechanism 31, the drafting mechanism 30 is arranged on one side of the filament collecting roller assembly 12, the drafting mechanism 30 comprises a drafting ring support 32, a drafting ring support 33, a drafting motor 34, a drafting fulcrum shaft 35, a drafting cam 36, a fixed drafting guide assembly 37 and a movable drafting assembly 38, the number of the drafting ring supporting brackets 33 is two, two drafting ring supporting brackets 33 are installed on the warping frame 2, the drafting ring support 32 is fixed on the two drafting ring supporting brackets 33, a hollow supporting cavity 39 is arranged in the middle of the drafting ring support 32, the drafting fulcrum shaft 35 is rotatably arranged on the two drafting ring supporting brackets 33, the drafting motor 34 is installed on one drafting ring supporting bracket 33, the drafting motor 34 and the drafting fulcrum shaft 35 are coaxially connected, the drafting cam 36 is installed on the drafting fulcrum shaft 35, the drafting cam 36 and the drafting fulcrum shaft 35 are both positioned in the hollow supporting cavity 39 of the drafting ring support 32, the number of the fixed drafting guide assemblies 37 is two, the two fixed drafting guide assemblies 37 are symmetrically installed on two sides of the drafting ring support 32, and each fixed drafting guide assembly 37 comprises a fixed drafting guide roller 40, a fixed drafting guide roller 35, A fixed drafting guide roller bracket 41, the fixed drafting guide roller bracket 41 is installed on the drafting ring support 32, the fixed drafting guide roller 40 is rotatably arranged at the outer end of the fixed drafting guide roller bracket 41, the number of the movable drafting assemblies 38 is three, and three movable drafting assemblies 38 are uniformly distributed between two fixed drafting guide assemblies 37, three drafting chutes 42 are arranged on the drafting ring support 32, each movable drafting assembly 38 comprises a movable drafting roller 43, a movable drafting roller bracket 44, a cam roller 45 and a cam roller support 46, the movable drafting roller bracket 44 is slidably arranged on the drafting chute 42 of the drafting ring support 32 in the radial direction, the movable drafting roller 43 is rotatably arranged at the outer end of the movable drafting roller bracket 44, the cam roller support 46 is installed at the inner end of the movable drafting roller bracket 44, the cam roller 45 is rotatably arranged on the cam roller support 46, the fixed drafting guide roller 40 and the movable drafting roller 43 are both metal rollers with concave drafting rings, so that not only is the drafting effect good, but also the chemical fiber filaments are effectively prevented from sliding off in the drafting process, and the drafting stability is good. The draft guiding mechanism 31 is arranged on one side of the draft mechanism 30, the draft guiding mechanism 31 comprises a draft guiding support 47, a draft guiding top plate 48, two draft guiding rollers 49 and a draft guiding press roller assembly 50, the number of the draft guiding support 47 is two, the two draft guiding support 47 are both arranged on the warping frame 2, the draft guiding top plate 48 is arranged on the upper side of the two draft guiding support 47, the draft guiding rollers 49 are rotatably arranged on the draft guiding support 47, the draft guiding press roller assembly 50 is arranged on one side of the draft guiding rollers 49, the draft guiding press roller assembly 50 comprises a draft guiding press roller 51, a draft guiding press roller support 52, a draft guiding slide bar 53, a draft guiding slide bar limit block 54 and a draft guiding press spring 55, the draft guiding slide bar 53 can be arranged on the draft guiding top plate 48 in a vertical sliding manner, the upper end of the draft guiding slide bar 53 is provided with a draft guiding slide bar limit block 54, the lower extreme at draft guide slide bar 53 is installed to draft direction compression roller support 52, the rotatable setting of draft direction compression roller 51 is on draft direction compression roller support 52, draft direction pressure spring 55 and draft direction slide bar 53 set up with the axle center, the upper end and the laminating of draft direction roof 48 of draft direction pressure spring 55, the lower extreme and the laminating of draft direction compression roller support 52 of draft direction pressure spring 55, store up yarn device 8 and set up the one side at draft guiding mechanism 31, store up yarn device 8 and include storing up yarn support 56, last yarn mechanism 57, store up yarn mechanism 58 down, store up yarn support 56 and include storing up yarn lower carriage 59, store up yarn side support 60, store up yarn upper bracket 61, store up yarn lower carriage 59 and install on warping frame 2, store up yarn upper bracket 61 and store up yarn lower carriage 59 through storing up yarn side support 60 and connecting, be provided with storing up yarn guide rail 62 on the yarn side support 60, the upper yarn storage mechanism 57 comprises an upper yarn storage sliding block 63, upper yarn storage pressure spring assemblies 64 and upper yarn storage assemblies 65, the upper yarn storage sliding block 63 can be arranged on the yarn storage guide rail 62 in a vertical sliding mode, the number of the upper yarn storage assemblies 65 is more than two, the upper yarn storage assemblies 65 are arranged on the lower side of the upper yarn storage sliding block 63 at equal intervals, each upper yarn storage assembly 65 comprises an upper yarn storage roller 66 and an upper yarn storage roller support 67, the upper yarn storage roller support 67 is arranged on the lower side of the upper yarn storage sliding block 63, the upper yarn storage rollers 66 are rotatably arranged on the upper yarn storage roller support 67, the upper yarn storage pressure spring assemblies 64 are arranged between the upper yarn storage support 61 and the upper yarn storage sliding block 63 at equal intervals, each upper yarn storage pressure spring assembly 64 comprises an upper yarn storage pressure spring 68, an upper yarn storage pressure spring upper support 69 and an upper yarn storage pressure spring lower support 70, the upper yarn storage pressure spring support 69 is arranged on the upper yarn storage support 61, the upper yarn storage pressure spring lower supporting frame 70 is arranged on the upper yarn storage sliding block 63, the upper end and the lower end of the upper yarn storage pressure spring 68 are respectively embedded into the upper yarn storage pressure spring upper supporting frame 69 and the upper yarn storage pressure spring lower supporting frame 70, the lower yarn storage mechanism 58 comprises a lower yarn storage sliding block 71, a lower yarn storage pressure spring assembly 72 and a lower yarn storage assembly 73, the lower yarn storage sliding block 71 can be arranged on the yarn storage guide rail 62 in a vertical sliding mode, the number of the lower yarn storage assemblies 73 is one more than that of the upper yarn storage assemblies 65, the lower yarn storage assemblies 73 are arranged on the upper side of the lower yarn storage sliding block 71 at equal intervals, the lower yarn storage assemblies 73 comprise lower yarn storage rollers 74 and lower yarn storage roller brackets 75, the lower yarn storage roller brackets 75 are arranged on the upper side of the lower yarn storage sliding block 71, the lower yarn storage rollers 74 are arranged on the lower yarn storage roller brackets 75 in a rotating mode, the upper yarn storage rollers 66 and the lower yarn storage rollers 74 are arranged in a staggered mode, the lower yarn storage pressure spring assemblies 72 are arranged between the lower yarn storage sliding block 71 and the lower yarn, the lower yarn storage pressure spring assembly 72 comprises a lower yarn storage pressure spring 76, an upper support frame 77 of the lower yarn storage pressure spring and a lower support frame 78 of the lower yarn storage pressure spring, the upper support frame 77 of the lower yarn storage pressure spring is mounted on the lower yarn storage sliding block 71, the lower support frame 78 of the upper yarn storage pressure spring is mounted on the lower yarn storage support frame 59, the upper end and the lower end of the lower yarn storage pressure spring 76 are respectively embedded into the upper support frame 77 of the lower yarn storage pressure spring and the lower support frame 78 of the lower yarn storage pressure spring, the upper yarn storage roller 66 and the lower yarn storage roller 74 are rubber yarn storage rollers, the rubber yarn storage rollers have certain elasticity, under the combined action of the upper yarn storage pressure spring 68 and the lower yarn storage pressure spring 76, the rubber yarn storage rollers can realize the yarn storage of chemical fiber filaments, and the chemical fiber filaments are prevented from being damaged in the yarn storage process. Guide device 4 sets up in one side of storing up yarn device 8, guide device 4 includes guide support 79, guide roll 80, direction compression roller 81, the quantity of guide support 79 is two, and two guide support 79 all install on warping frame 2, the rotatable setting of guide roll 80 is on guide support 79, the quantity of direction compression roller 81 is two, all rotatable setting on guide support 79, and two direction compression rollers 81 are located the both sides top of guide roll 80 respectively, direction compression roller 81 is the rubber compression roller, not only can realize the tight direction of stretching tightly to chemical fiber filament, can avoid causing the damage to chemical fiber filament moreover, is favorable to chemical fiber filament's receipts silk. Receive silk device 5 and set up the one side at guider 4, receive silk device 5 including receive a support 82, receive a counter shaft 83, receive a book frame 84, receive a motor 85, receive a motor support 86, first receipts silk sprocket 87, second receipts silk sprocket 88, receive a chain 89, receive a support 82 and install on warping frame 2, receive a counter shaft 83 rotatable setting on receiving a support 82, receive a book frame 84 and install on receiving a counter shaft 83 with the axle center, second receipts silk sprocket 88 sets up the one side at receiving a counter shaft 83 with the axle center, receive a motor support 86 and install on receiving a support 82, receive a motor 85 and install on receiving a motor support 86, receive a motor 85 and first receipts silk sprocket 87 coaxial coupling, first receipts silk sprocket 87 and second receive a chain sprocket 88 and connect through receiving a chain 89.
Through the technical scheme, when the warping device for the chemical fiber filaments is used, the filament collecting motor 85 acts, the first filament collecting chain wheel 87, the filament collecting chain 89 and the second filament collecting chain wheel 88 drive the filament collecting fulcrum shaft 83 to rotate anticlockwise, and the filament collecting rolling frame 84 arranged on the filament collecting fulcrum shaft 83 realizes filament collection. The chemical fiber filament roll 6 on the creel 1 gradually unwinds, the chemical fiber filament passes through the fixed filament collecting hole 15 of the fixed filament collecting plate 13, the movable filament collecting yarn grinding ring 23 of the movable filament collecting plate 16, the filament collecting roller assembly 12, the drafting mechanism 30, the drafting guide mechanism 31, the yarn storage device 8 and the guide device 4 in sequence, and finally the filament collection is realized on the filament collecting roll rack 84. In the process that chemical fiber filaments pass through the fixed filament collecting plate 13 and the filament collecting roller assembly 12, the movable filament collecting motor 22 acts to drive the movable filament collecting gear 21 to rotate in a reciprocating manner, the movable filament collecting gear 21 drives the movable filament collecting sliding block 18 to slide in a reciprocating manner along the movable filament collecting guide rail 19 through the movable filament collecting rack 20, because the chemical fiber filaments are tensioned on the fixed filament collecting plate 13 and the filament collecting roller assembly 12, hairiness on the chemical fiber filaments can be effectively removed through the movable filament collecting yarn grinding ring 23 arranged on the movable filament collecting plate 16, two ends of the movable filament collecting yarn grinding ring 23 are arranged to be in an opening expanding type, the guiding and the yarn grinding of the chemical fiber filaments are facilitated, the chemical fiber filaments are prevented from being jammed in the yarn grinding process, and accordingly, the filament breakage is formed. The humidifying nozzle 24 has a humidifying function, can humidify the chemical fiber filaments, is beneficial to cleaning hairiness, avoids filament breakage and is beneficial to subsequent drafting. Then the chemical fiber filament passes through the drafting mechanism 30, the chemical fiber filament firstly enters from the right fixed drafting guide roller 40, then passes through the three movable drafting rollers 43, and finally goes out from the left fixed drafting guide roller 40, because the chemical fiber filament has tension, the cam roller 45 is always attached to the drafting cam 36, the drafting motor 34 acts, the drafting cam 36 is driven to rotate by the drafting fulcrum shaft 35, the drafting cam 36 drives the movable drafting roller bracket 44 to slide along the drafting chute 42 of the drafting ring support 32 through the cam roller 45, and the movable drafting rollers 43 arranged at the outer end of the movable drafting roller bracket 44 realize the drafting of the chemical fiber filament. The drafted chemical fiber filament passes through the drafting guide roller 49, the drafting guide slide rod 53 slides downwards under the action of the drafting guide pressure spring 55, and the drafting guide pressure roller 51 is attached to the chemical fiber filament, so that the tension and the stability of drafting guide are ensured. Then the chemical fiber filament passes through the yarn storage device 8, under the combined action of the upper yarn storage pressure spring 68 and the lower yarn storage pressure spring 76, the upper yarn storage sliding block 63 and the lower yarn storage sliding block 71 are close to each other, because the upper yarn storage roller 66 and the lower yarn storage roller 74 are staggered with each other, the chemical fiber filament is tensioned by the upper yarn storage roller 66 and the lower yarn storage roller 74, and yarn storage is realized. Then the chemical fiber filament passes through the guide compression roller 81, the guide roller 80 and the guide compression roller 81, and the two guide compression rollers 81 and the guide roller 80 are arranged in a vertically staggered manner, so that the guide and the conveying of the chemical fiber filament are facilitated. Finally, the chemical fiber filaments are wound on the winding frame 84. The invention can quickly realize the warping processing of the chemical fiber filament, not only utilizes the movable filament collecting plate 16 to realize the cleaning of the hairiness of the chemical fiber filament, but also can realize the yarn storage after the chemical fiber filament is drafted, thereby ensuring the good tension of the chemical fiber filament and greatly improving the warping effect.
The above description of the present invention is intended to be illustrative. Various modifications, additions and substitutions for the specific embodiments described may be made by those skilled in the art without departing from the scope of the invention as defined in the accompanying claims.
Claims (6)
1. The utility model provides a chemical fibre filament's warping equipment, includes creel, warping frame, collection silk device, guider, receipts silk device, the creel sets up the one side at the warping frame, the equipartition is provided with chemical fibre filament book, its characterized in that on the creel: the yarn collecting device comprises a yarn collecting frame, a fixed yarn collecting assembly, a movable yarn collecting assembly and a yarn collecting roller assembly, wherein the yarn collecting frame is arranged on one side of the warping frame and is positioned between the yarn frame and the warping frame, the movable yarn collecting assembly is arranged between the fixed yarn collecting assembly and the yarn collecting roller assembly, the fixed yarn collecting assembly comprises a fixed yarn collecting plate and a fixed yarn collecting plate support, the fixed yarn collecting plate support is arranged on the yarn collecting frame, the fixed yarn collecting plate is arranged on the fixed yarn collecting plate support, fixed yarn collecting holes are uniformly distributed in the fixed yarn collecting plate, the movable yarn collecting assembly comprises a movable yarn collecting plate, a movable yarn collecting plate support, a movable yarn collecting slide block, a movable yarn collecting guide rail, a movable yarn collecting rack, a movable yarn collecting gear, a movable yarn collecting motor, a movable yarn collecting yarn grinding ring, a humidifying nozzle and a humidifying support, the movable silk collecting guide rail is arranged on the silk collecting frame, the movable silk collecting sliding block is arranged on the movable silk collecting guide rail in a sliding mode, the movable silk collecting rack is arranged at the lower end of the movable silk collecting sliding block, the movable silk collecting motor is arranged on the silk collecting frame, the movable silk collecting motor is coaxially connected with the movable silk collecting gear, the movable silk collecting gear is meshed with the movable silk collecting rack, the movable silk collecting plate support is arranged on the movable silk collecting sliding block, the movable silk collecting plate is arranged on the movable silk collecting plate support, movable silk collecting holes are uniformly distributed in the movable silk collecting plate, the number of the movable silk collecting holes is equal to that of the fixed silk collecting holes, the movable silk collecting yarn grinding rings are arranged in the movable silk collecting holes of the movable silk collecting plate, two ends of the movable silk collecting yarn grinding rings are arranged in an opening expanding mode, the number of the humidifying support seats is two, and the humidifying support seats are symmetrically arranged on two sides of the movable silk collecting plate support, the humidifying nozzle is arranged on the humidifying support, the yarn collecting roller component comprises two yarn collecting roller supports, an upper yarn collecting roller and a lower yarn collecting roller, the number of the yarn collecting roller supports is two, the two yarn collecting roller supports are arranged on the warping frame, the upper yarn collecting roller and the lower yarn collecting roller are both rotatably arranged on the yarn collecting roller supports, the upper yarn collecting roller is positioned right above the lower yarn collecting roller, the drafting device comprises a drafting mechanism and a drafting guide mechanism, the drafting mechanism is arranged on one side of the yarn collecting roller component, the drafting mechanism comprises a drafting ring support, a drafting ring support, a drafting motor, a drafting fulcrum shaft, a drafting cam, a fixed drafting guide component and a movable drafting component, the number of the drafting ring support supports is two, the two drafting ring support supports are arranged on the warping frame, the drafting ring support is fixed on the two drafting ring support supports, a hollow support cavity is arranged in the middle of the drafting ring support, the drafting fulcrum shafts are rotatably arranged on two drafting ring supporting brackets, the drafting motor is arranged on one drafting ring supporting bracket, the drafting motor is coaxially connected with the drafting fulcrum shafts, the drafting cam is arranged on the drafting fulcrum shafts, the drafting cam and the drafting fulcrum shafts are both positioned in a hollow supporting cavity of the drafting ring supporting, the number of the fixed drafting guide assemblies is two, the two fixed drafting guide assemblies are symmetrically arranged at two sides of the drafting ring supporting, each fixed drafting guide assembly comprises a fixed drafting guide roller and a fixed drafting guide roller bracket, the fixed drafting guide roller bracket is arranged on the drafting ring supporting, the fixed drafting guide rollers are rotatably arranged at the outer ends of the fixed drafting guide roller brackets, the number of the movable drafting assemblies is three, and the three movable drafting assemblies are uniformly distributed between the two fixed drafting guide assemblies, the three drafting chutes are arranged on the drafting ring support, the movable drafting assembly comprises a movable drafting roller, a movable drafting roller support, a cam roller and a cam roller support, the movable drafting roller support can be arranged on the drafting chute of the drafting ring support along the radial direction in a sliding manner, the movable drafting roller can be rotatably arranged at the outer end of the movable drafting roller support, the cam roller support is arranged at the inner end of the movable drafting roller support, the cam roller can be rotatably arranged on the cam roller support, the drafting guide mechanism is arranged at one side of the drafting mechanism, the drafting guide mechanism comprises two drafting guide supports, a drafting guide top plate, a drafting guide roller and a drafting guide compression roller assembly, the number of the drafting guide supports is two, the two drafting guide supports are arranged on the warping frame, and the drafting guide top plate is arranged at the upper sides of the two drafting guide supports, the draft guide roller is rotatably arranged on the draft guide support, the draft guide compression roller assembly is arranged on one side of the draft guide roller and comprises a draft guide compression roller, a draft guide compression roller support, a draft guide sliding rod limiting block and a draft guide compression spring, the draft guide sliding rod can be arranged on the draft guide top plate in a vertical sliding mode, the draft guide sliding rod limiting block is arranged at the upper end of the draft guide sliding rod, the draft guide compression roller support is arranged at the lower end of the draft guide sliding rod, the draft guide compression roller is rotatably arranged on the draft guide compression roller support, the draft guide compression spring and the draft guide sliding rod are coaxially arranged, the upper end of the draft guide compression spring is attached to the draft guide top plate, the lower end of the draft guide compression spring is attached to the draft guide compression roller support, the yarn storage device is arranged on one side of the draft guide, the yarn storage device comprises a yarn storage support, an upper yarn storage mechanism and a lower yarn storage mechanism, the yarn storage support comprises a lower yarn storage support, a side yarn storage support and an upper yarn storage support, the lower yarn storage support is mounted on a warping frame, the upper yarn storage support is connected with the lower yarn storage support through the side yarn storage support, yarn storage guide rails are arranged on the side yarn storage support, the upper yarn storage mechanism comprises an upper yarn storage sliding block, an upper yarn storage pressure spring assembly and an upper yarn storage assembly, the upper yarn storage sliding block can be arranged on the yarn storage guide rails in a vertical sliding mode, the number of the upper yarn storage assemblies is more than two, the upper yarn storage assemblies are equidistantly mounted on the lower side of the upper yarn storage sliding block, the upper yarn storage assembly comprises an upper yarn storage roller and an upper yarn storage roller support, the upper yarn storage roller support is mounted on the lower side of the upper yarn storage sliding block, the upper yarn storage roller is rotatably arranged on the upper yarn storage roller support, the upper yarn storage pressure spring assembly is equidistantly arranged between the upper yarn storage support and the upper yarn storage sliding block, the upper yarn storage pressure spring component comprises an upper yarn storage pressure spring, an upper yarn storage pressure spring support frame and an upper yarn storage pressure spring lower support frame, the upper yarn storage pressure spring upper support frame is arranged on the upper yarn storage support frame, the upper yarn storage pressure spring lower support frame is arranged on the upper yarn storage sliding block, the upper end and the lower end of the upper yarn storage pressure spring are respectively embedded into the upper yarn storage pressure spring support frame and the upper yarn storage pressure spring lower support frame, the lower yarn storage mechanism comprises a lower yarn storage sliding block, a lower yarn storage pressure spring component and a lower yarn storage component, the lower yarn storage sliding block can be arranged on the yarn storage guide rail in a vertical sliding mode, the number of the lower yarn storage components is one more than that of the upper yarn storage components, the lower yarn storage components are arranged on the upper side of the lower yarn storage sliding block at equal intervals, the lower yarn storage components comprise a lower yarn storage roller and a lower yarn storage roller support frame, the lower yarn storage roller support frame is arranged on the upper side of the lower yarn storage sliding block, and the lower yarn storage roller is arranged on the, the upper yarn storage roller and the lower yarn storage roller are arranged in a staggered manner, the lower yarn storage pressure spring assembly is arranged between the lower yarn storage bracket and the lower yarn storage sliding block at equal intervals, the lower yarn storage pressure spring assembly comprises a lower yarn storage pressure spring, an upper lower yarn storage pressure spring supporting frame and a lower yarn storage pressure spring supporting frame, the upper yarn storage pressure spring supporting frame is installed on the lower yarn storage sliding block, the lower yarn storage pressure spring supporting frame is installed on the lower yarn storage bracket, the upper end and the lower end of the lower yarn storage pressure spring are respectively embedded into the upper yarn storage pressure spring supporting frame and the lower yarn storage pressure spring supporting frame, the guiding device is arranged on one side of the yarn storage device and comprises two guiding brackets, two guiding rollers and two guiding press rollers, the two guiding brackets are installed on the warping frame, the guiding rollers are rotatably arranged on the guiding brackets, the two guiding press rollers are rotatably arranged on the guiding brackets and are both rotatably arranged on the guiding brackets, two direction compression rollers are located the both sides top of guide roll respectively, receive the silk device and set up the one side at guider, receive the silk device including receiving a support, receiving a counter roll, receiving a roll frame, receiving a motor support, first receipts silk sprocket, second receipts silk sprocket, receive a chain, receive a support mounting on the warping frame, receive a rotatable setting of counter roll on receiving a support, receive a roll frame and install on receiving a counter roll with the axle center, the second is received a sprocket and is set up in one side of receiving a counter roll with the axle center, receive a motor support mounting on receiving a support, receive a motor and install on receiving a motor support, receive a motor and first receipts silk sprocket coaxial coupling, first receipts silk sprocket and second receive a chain wheel and pass through receiving a chain and connect.
2. The warping apparatus for chemical fiber filaments according to claim 1, wherein: the movable filament-collecting yarn-grinding ring is a ceramic yarn-grinding ring.
3. The warping apparatus for chemical fiber filaments according to claim 1, wherein: the movable wire collecting motor is a servo motor.
4. The warping apparatus for chemical fiber filaments according to claim 1, wherein: the fixed drafting guide roller and the movable drafting roller are both metal rollers with concave drafting rings.
5. The warping apparatus for chemical fiber filaments according to claim 1, wherein: the upper yarn storage roller and the lower yarn storage roller are both rubber yarn storage rollers.
6. The warping apparatus for chemical fiber filaments according to claim 1, wherein: the guide compression roller is a rubber compression roller.
