CN110353690B

CN110353690B - Novel skin disease and venereal disease examination device

Info

Publication number: CN110353690B
Application number: CN201910719757.9A
Authority: CN
Inventors: 陈晋广; 范华宇; 王渟
Original assignee: Taizhou Central Hospital Taizhou University Hospital
Current assignee: Taizhou Central Hospital Taizhou University Hospital
Priority date: 2019-08-06
Filing date: 2019-08-06
Publication date: 2022-05-10
Anticipated expiration: 2039-08-06
Also published as: CN110353690A

Abstract

The invention discloses a novel skin disease examination device, which comprises a holding mechanism and an electronic mechanism, wherein the electronic mechanism is arranged on the holding mechanism, the novel skin disease examination device also comprises a measuring mechanism capable of measuring the length of a wound, a sampling mechanism for absorbing collecting liquid and an adjusting mechanism capable of adjusting the angle and the direction of the measuring mechanism, the adjusting mechanism is arranged at the lower end of the holding mechanism, the measuring mechanism is arranged at the lower end of the adjusting mechanism, and the sampling mechanism is connected with the adjusting mechanism. The automatic liquid collecting device is reasonable in structure, the automatic liquid collecting mode is adopted, the sampling working efficiency is improved, the length of the wound can be conveniently measured and the position of the wound can be conveniently marked by using the roller, the rubber ring and the electromagnetic valve, and the later-stage treatment is convenient.

Description

Novel venereal disease inspection of dermatosis device

Technical Field

The invention relates to the field of skin disease detection, in particular to a novel skin disease detection device.

Background

The skin diseases are chronic diseases, the most commonly used medical instruments for clinically diagnosing and treating the symptoms of the skin diseases generally comprise a magnifying glass, a curette, a ruler and the like, and the three types of medical instruments are generally split at present.

The doctor treats the in-process and needs often to change medical instrument, and the operation is very loaded down with trivial details, wastes time and energy, brings very big work degree of difficulty for medical staff, wastes a large amount of time and causes and diagnose and treat inefficiency to when the mark wound, it is also very inconvenient to use the ruler measurement alone, thereby influences the efficiency of diagnosing and treating.

Disclosure of Invention

The present invention has been made to solve the above problems, and an object of the present invention is to provide a novel dermatological disease examination device.

The invention realizes the purpose through the following technical scheme:

the utility model provides a novel skin disease nature disease inspection device, is including gripping mechanism, electronic mechanism sets up grip in the mechanism, still including the measuring mechanism that can measure wound length and the sampling mechanism who absorbs the collecting fluid, and can adjust the adjustment mechanism of measuring mechanism angle and direction, adjustment mechanism sets up grip the mechanism lower extreme, measuring mechanism sets up the adjustment mechanism lower extreme, sampling mechanism connects adjustment mechanism.

Preferably: the gripping mechanism comprises a handle, a cap, a non-slip mat and a groove, the upper end of the handle is connected with the cap, the groove is formed in the handle, the groove is connected to the outer portion of the handle, and the non-slip mat is connected to the outer side of the handle.

So set up, through setting up the handle with the block, convenient dismantlement, convenient to use.

Preferably: the electronic mechanism comprises a control button, a display screen, a storage battery and a single chip microcomputer, wherein the control button is embedded and connected with the handle outside of the holding mechanism, the display screen is embedded and connected with the cap upper end of the holding mechanism, the storage battery is connected with the holding mechanism through a buckle and inside the handle, and the single chip microcomputer is connected with the lower end of the storage battery.

So set up control button can make things convenient for controlgear ground operating condition.

Preferably: the adjusting mechanism comprises an adjusting seat, a rotating rack, a gear and a motor, the adjusting seat is connected with the handle of the holding mechanism, the rotating rack is arranged between the adjusting seat and the handle of the holding mechanism, the gear is connected to one side of the rotating rack, and the motor is connected to the gear.

So set up, through setting up the regulation seat can conveniently be adjusted measurement mechanism's direction and operating condition.

Preferably: the measuring mechanism comprises a roller, a rubber ring, an encoder and an electromagnetic valve, the roller is connected to the adjusting mechanism, the adjusting seat is arranged on the adjusting seat, the rubber ring is connected to the outside of the roller, the encoder is connected to one side of the roller, the electromagnetic valve is connected to the upper side of the roller, one end of the electromagnetic valve is connected with a conduit, and one end of the conduit is connected with an ink bag.

So set up, the gyro wheel can measure and mark the wound, improves treatment.

Preferably: sampling mechanism includes suction head, straw, gasbag, flow valve, the suction head is connected adjustment mechanism adjust on the seat, the straw is connected the suction head upper end, the gasbag outside is connected with the mount, the gasbag upper end is connected with the flow valve, the flow valve upper end is connected with the air pump.

According to the arrangement, the suction head, the suction pipe and the air bag can be arranged, so that liquid can be conveniently sucked, and later-stage treatment is facilitated.

Preferably: the handle is connected to the cap through threads, the non-slip mat is connected with the handle through gluing, and the groove and the handle are integrally formed.

So set up, through threaded connection convenient to detach.

Preferably: the rotary rack is connected with the adjusting seat through welding, the gear is meshed with the rotary rack, and the gear is connected with the motor in a key-type mode.

So set up, can guarantee through the welding adjust the stability and the rotatory effect of seat.

Preferably: the rubber ring is connected with the roller through gluing, the encoder is in key connection with the rubber ring, and the electromagnetic valve is in threaded connection with the conduit.

So set up, the rubber ring has improved the rotation efficiency of gyro wheel has guaranteed the connection effect through adhesive bonding.

Preferably: the suction head the straw gasbag integrated into one piece, the flow valve pass through the buckle connect in the gasbag, the mount with gasbag transition fit.

So set up, guaranteed the leakproofness through integrated into one piece.

Compared with the prior art, the invention has the following beneficial effects:

1. the device has reasonable structure, adopts the mode of automatically sucking and collecting liquid, and improves the working efficiency of sampling;

2. the length of the wound and the position of the marked wound can be conveniently measured by utilizing the roller, the rubber ring and the electromagnetic valve, and later-stage treatment is facilitated.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

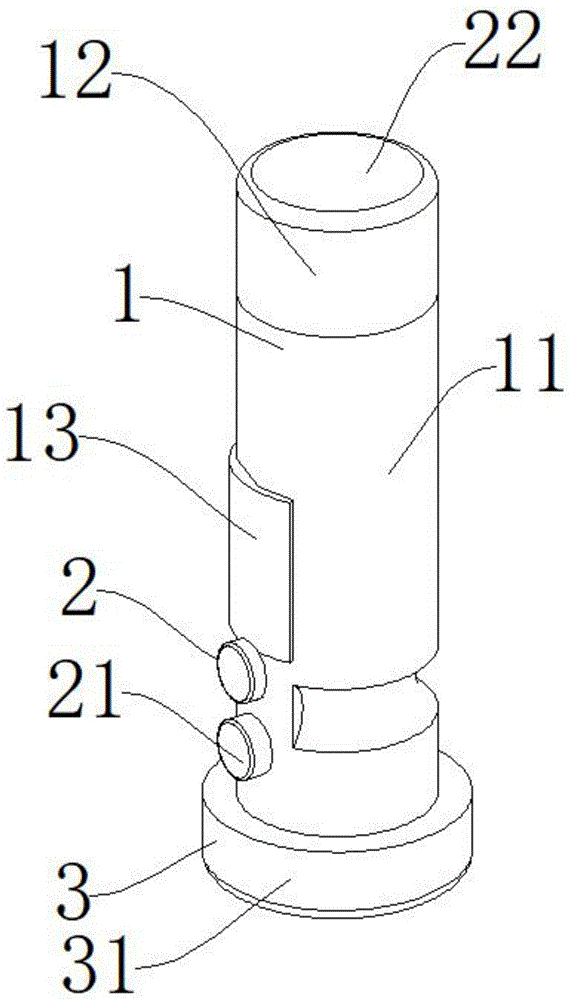

FIG. 1 is a schematic view showing a first construction of a novel dermatological examination apparatus according to the present invention;

FIG. 2 is a second schematic diagram of the novel dermatological examination device of the present invention;

FIG. 3 is a schematic view of the structure of a holding mechanism of the novel device for examining skin diseases;

FIG. 4 is a schematic view of the internal structure of the holding mechanism of the novel device for examining skin diseases;

FIG. 5 is a schematic view of the structure of the cap of the novel device for examining skin diseases;

FIG. 6 is a schematic view of the main measuring mechanism of the novel device for examining skin diseases;

fig. 7 is a block diagram of the circuit structure of the novel dermatological disease examination device of the present invention.

The reference numerals are explained below:

1. a holding mechanism; 2. an electronic mechanism; 3. an adjustment mechanism; 4. a measuring mechanism; 5. a sampling mechanism; 11. a handle; 12. capping; 13. a non-slip mat; 14. a groove; 21. a control button; 22. a display screen; 23. a storage battery; 24. a single chip microcomputer; 31. an adjusting seat; 32. rotating the rack; 33. a gear; 34. a motor; 41. a roller; 42. a rubber ring; 43. an encoder; 44. an electromagnetic valve; 45. a conduit; 46. an ink bag; 51. a suction head; 52. a straw; 53. an air bag; 54. a flow valve; 55. an air pump; 56. a fixing frame.

Detailed Description

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are used only for convenience in describing the present invention and for simplicity in description, and do not indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention. Furthermore, the terms "first", "second", etc. are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first," "second," etc. may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.

In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.

The invention will be further described with reference to the accompanying drawings in which:

the utility model provides a novel skin disease nature disease inspection device, including gripping mechanism 1, electronic mechanism 2 sets up on gripping mechanism 1, and electronic mechanism 2 plays the control preparation usefulness, and gripping mechanism 1 plays the auxiliary action, still includes measuring mechanism 4 that can measure wound length and the sampling mechanism 5 of absorption collecting fluid to and can adjust the adjustment mechanism 3 of 4 angles of measuring mechanism and direction, and adjustment mechanism 3 sets up and is gripping 1 lower extreme of mechanism, and measuring mechanism 4 sets up at the 3 lower extremes of adjustment mechanism, and sampling mechanism 5 connects at adjustment mechanism 3.

The singlechip 24 is connected with the control button 21, the display screen 22, the storage battery 23, the motor 34, the encoder 43, the electromagnetic valve 44, the flow valve 54 and the air pump 55 through leads, and has the singlechip model of 80C52 and the encoder model of RM 08.

Examples

As shown in fig. 1-7, the holding mechanism 1 comprises a handle 11, a cap 12, a non-slip mat 13, and a groove 14, wherein the cap 12 is connected to the upper end of the handle 11, the groove 14 is formed in the handle 11, the groove 14 is connected to the outer portion of the handle 11, the non-slip mat 13 is connected to the outer side of the handle 11, and the handle 11 and the cap 12 are arranged to facilitate disassembly and use; the electronic mechanism 2 comprises a control button 21, a display screen 22, a storage battery 23 and a single chip microcomputer 24, the control button 21 is connected to the outer side of the handle 11 of the holding mechanism 1 in an embedded mode, the display screen 22 is connected to the upper end of the cover cap 12 of the holding mechanism 1 in an embedded mode, the storage battery 23 is connected to the inner portion of the handle 11 of the holding mechanism 1 through a buckle, the single chip microcomputer 24 is connected to the lower end of the storage battery 23, and the control button 21 is arranged to control the working state of equipment conveniently; the adjusting mechanism 3 comprises an adjusting seat 31, a rotating rack 32, a gear 33 and a motor 34, the adjusting seat 31 is connected with the handle 11 of the holding mechanism 1, the rotating rack 32 is arranged between the adjusting seat 31 and the handle 11 of the holding mechanism 1, the gear 33 is connected with one side of the rotating rack 32, the motor 34 is connected with the gear 33, and the direction and the working state of the measuring mechanism 4 can be conveniently adjusted by arranging the adjusting seat 31; the measuring mechanism 4 comprises a roller 41, a rubber ring 42, an encoder 43 and an electromagnetic valve 44, the roller 41 is connected to the adjusting seat 31 of the adjusting mechanism 3, the rubber ring 42 is connected to the outside of the roller 41, the encoder 43 is connected to one side of the roller 41, the electromagnetic valve 44 is connected to the upper side of the roller 41, one end of the electromagnetic valve 44 is connected with a conduit 45, one end of the conduit 45 is connected with an ink sac 46, the roller 41 can measure and mark wounds, and the treatment effect is improved; the sampling mechanism 5 comprises a suction head 51, a suction pipe 52, an air bag 53 and a flow valve 54, the suction head 51 is connected to the adjusting seat 31 of the adjusting mechanism 3, the suction pipe 52 is connected to the upper end of the suction head 51, the outer side of the air bag 53 is connected with a fixing frame 56, the upper end of the air bag 53 is connected with the flow valve 54, the upper end of the flow valve 54 is connected with an air pump 55, and liquid can be conveniently sucked and collected by arranging the suction head 51, the suction pipe 52 and the air bag 53, so that later treatment is facilitated; the handle 11 is connected with the cap 12 through threads, the anti-skid pad 13 is connected with the handle 11 through gluing, the groove 14 and the handle 11 are integrally formed, and the disassembly is convenient through threaded connection; the rotary rack 32 is connected with the adjusting seat 31 through welding, the gear 33 is meshed with the rotary rack 32, the gear 33 is connected with the motor 34 in a key mode, and the stability and the rotating effect of the adjusting seat 31 can be guaranteed through welding; the rubber ring 42 is connected with the roller 41 through gluing, the encoder 43 is connected with the rubber ring 42 in a key mode, the electromagnetic valve 44 is connected with the guide pipe 45 through threads, the rubber ring 42 improves the rotating efficiency of the roller 41, and the connecting effect is guaranteed through gluing connection; the suction head 51, the suction pipe 52 and the air bag 53 are integrally formed, the flow valve 54 is connected to the air bag 53 through a buckle, the fixing frame 56 and the air bag 53 are in transition fit, and the sealing performance is guaranteed through the integral forming.

The working principle is as follows: when the position of a wound needs to be measured and the wound needs to be marked, the handle 11 is held by hand, the starting device of the control button 21 is pressed, the roller 41 is attached to the outer side of the wound, the pushing device is arranged, the rubber ring 42 receives friction force to drive the roller 41 to rotate, the encoder 43 detects the rotating length so as to display the length on the display screen 22, when the wound needs to be marked, the control button 21 is pressed, the electromagnetic valve 44 is opened, ink in the ink bag 46 reaches the rubber ring 42 through the conduit 45 and the electromagnetic valve 44, so that the wound is marked, when collecting liquid needs to be sucked, the air pump 55 is started to pump the inner part of the air bag 53 into low pressure, so that collected liquid at the bottom can be pressed into the suction pipe 52, and collection is completed.

The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the invention as claimed.

Claims

1. The utility model provides a novel skin disease nature disease inspection device, includes grips mechanism (1), electronic mechanism (2) set up grip on the mechanism (1), its characterized in that: the wound dressing machine further comprises a measuring mechanism (4) capable of measuring the length of a wound, a sampling mechanism (5) for sucking and collecting liquid, and an adjusting mechanism (3) capable of adjusting the angle and direction of the measuring mechanism (4), wherein the adjusting mechanism (3) is arranged at the lower end of the holding mechanism (1), the measuring mechanism (4) is arranged at the lower end of the adjusting mechanism (3), and the sampling mechanism (5) is connected to the adjusting mechanism (3);

the adjusting mechanism (3) comprises an adjusting seat (31), a rotating rack (32), a gear (33) and a motor (34), the adjusting seat (31) is connected with the holding mechanism (1), the rotating rack (32) is arranged between the adjusting seat (31) and the holding mechanism (1), the gear (33) is connected to one side of the rotating rack (32), and the motor (34) is connected to the gear (33);

measuring mechanism (4) includes gyro wheel (41), rubber ring (42), encoder (43), solenoid valve (44), gyro wheel (41) are connected adjustment mechanism (3) are last, rubber ring (42) are connected gyro wheel (41) are outside, encoder (43) are connected gyro wheel (41) one side, solenoid valve (44) are connected gyro wheel (41) upside, solenoid valve (44) one end is connected with pipe (45), pipe (45) one end is connected with ink sac (46).

2. The novel dermatological examination apparatus of claim 1, wherein: the gripping mechanism (1) comprises a handle (11), a cap (12), a non-slip mat (13) and a groove (14), the cap (12) is connected to the upper end of the handle (11), the groove (14) is formed in the handle (11), the groove (14) is connected to the outer portion of the handle (11), and the non-slip mat (13) is connected to the outer side of the handle (11).

3. The novel dermatological examination apparatus of claim 1, wherein: electronic mechanism (2) are including control button (21), display screen (22), battery (23), singlechip (24), control button (21) are connected the mechanism (1) outside grips, display screen (22) are connected the mechanism (1) upper end grips, battery (23) are connected grip inside the mechanism (1), singlechip (24) are connected battery (23) lower extreme.

4. The novel dermatological examination apparatus of claim 1, wherein: sampling mechanism (5) are including suction head (51), straw (52), gasbag (53), flow valve (54), suction head (51) are connected adjustment mechanism (3) are last, straw (52) are connected suction head (51) upper end, gasbag (53) outside is connected with mount (56), gasbag (53) upper end is connected with flow valve (54), flow valve (54) upper end is connected with air pump (55).

5. The novel dermatological examination device of claim 2, wherein: the handle (11) is connected to the cap (12) through threads, the anti-skid pad (13) is connected with the handle (11) through gluing, and the groove (14) and the handle (11) are integrally formed.

6. The novel dermatological examination apparatus of claim 1, wherein: the rotating rack (32) is connected with the adjusting seat (31) through welding, the gear (33) is meshed with the rotating rack (32), and the gear (33) is connected with the motor (34) in a key mode.

7. The novel dermatological examination device of claim 1, wherein: the rubber ring (42) is connected with the roller (41) through gluing, the encoder (43) is connected with the rubber ring (42) in a key mode, and the electromagnetic valve (44) is connected with the guide pipe (45) through threads.

8. The novel dermatological examination device of claim 4, wherein: the suction head (51), the suction pipe (52) and the air bag (53) are integrally formed, the flow valve (54) is connected to the air bag (53) through a buckle, and the fixing frame (56) and the air bag (53) are in transition fit.
