The invention provides a construction device and a construction method of a movable expansion type openable canopy, wherein the device comprises: middle roof truss system, expansion roof truss system, middle track system and free moving system, wherein: the middle roof truss system is supported by the middle track system and moves along a middle track in the middle track system along with the middle track system; the expansion roof truss system is fixed on the free moving system, is lapped on the middle roof truss system and moves telescopically along the middle roof truss system; the method is based on the device, the movable and openable canopy equipment can be built on a construction site through the device, the influence of high temperature in summer on the construction progress can be reduced, the influence of rainwater on the foundation pit and constructors and equipment on two sides of the foundation pit can be reduced, convenience can be provided for gantry crane hoisting equipment by controlling the opening of the canopy, the problem that gantry crane operation is influenced after the canopy is installed is solved, the efficiency is improved, and the construction period is shortened.
Description
Technical Field
The invention relates to a construction device and a construction method in the technical field of constructional engineering, in particular to a construction device and a construction method of a movable expandable openable canopy.
Background
In the process of developing the urban underground space, construction operations such as excavation of a foundation pit and the like are generally required. The open cut method is gradually one of the most commonly used methods in excavation of foundation pits due to the advantages of low construction cost, mature technology and the like. Since the excavation of the foundation pit by the open cut method is usually carried out outdoors, the influence of factors such as weather is obvious. In areas with abundant rainfall, such as the east south coast, the annual rainfall is usually over 1000mm, the duration of a rainy season is long, and water accumulation in the pit is easy to cause, so that the safety of the foundation pit is influenced. In addition, the open cut foundation pit is exposed to burning sun in summer due to high temperature weather, so that the operation time is obviously influenced, and the construction efficiency is reduced. Therefore, a canopy is erected above the open cut foundation pit for preventing rain and shading sun, and the construction environment can be effectively improved. However, the erection of the canopy affects the operation of the gantry crane, so that in order to ensure safe and efficient implementation of foundation pit excavation, equipment which is suitable for specific difficulties in the excavation process needs to be developed.
Through the search of the prior art documents, the Chinese patent numbers are as follows: 201620580731.2, patent publication number: 205713167U, with patent names: the utility model provides a movable rainshelter for subway station major structure construction, this patent is from stating: "a movable rainshelter for subway station major structure construction to reduce the influence of external environment to the engineering construction operation, ensure the shield and construct the condition node time limit for a project of starting. It includes rainshelter and track, the rainshelter includes at least one interior rainshelter and outer rainshelter that comprises steel truss and top rainshelter, the track is including fixed inboard track, the outside track that sets up the parallel at foundation ditch both sides reinforced concrete crown beam, and interior rainshelter, outer rainshelter steel truss both sides lower extreme are fixed set up respectively with inboard track, the corresponding gyro wheel of outside track. Although the shortcoming that traditional canopy can't be removed has been solved to above-mentioned patent, has saved the cost of canopy equipment and removal, the construction site of foundation ditch both sides still need build extra canopy when having the requirement of keeping off the rain or sunshade separately, wastes time and energy, can cause the trouble when large-scale machinery passes through portal crane business turn over foundation ditch moreover.
Disclosure of Invention
Aiming at the defects in the prior art, the invention aims to provide a construction device and a construction method for shading sunlight and shielding rain by utilizing a movable extended open type canopy without influencing the operation of a gantry crane.
According to one aspect of the present invention there is provided a construction apparatus for a movable expandable canopy, the construction apparatus comprising: the roof truss system comprises a middle roof truss system, an expanded roof truss system, a middle track system and a free moving system, wherein the middle roof truss system is supported by the middle track system and moves along a middle track in the middle track system along with the middle track system; the expandable roof truss system is fixed on the free moving system and is lapped on the middle roof truss system, and the expandable roof truss system moves telescopically along the middle roof truss system through the free moving system;
the middle roof truss system consists of steel upright posts, fixed roof roofs and movable roof roofs, the expanded roof truss system consists of inner side steel upright posts, outer side steel upright posts and expanded trusses, the middle track system consists of middle tracks, middle track beams and middle track wheels, and the free moving system consists of expanded track beams, expanded track wheels and sliding supports; wherein:
the lower end of a steel upright post of the middle roof truss system is fixedly connected with a middle track wheel of the middle track system, the upper end of the steel upright post is fixedly welded with the fixed roof, and the movable roof is arranged on the fixed roof and can move in the direction parallel to the fixed roof, so that the opening or closing of the canopy is realized;
the lower end of an inner steel upright post of the expansion roof truss system is fixedly connected with the expansion track wheel, the lower end of the outer steel upright post is fixedly welded with a sliding support of the free movement system, and two ends of the expansion truss are respectively fixedly welded to the upper ends of the inner steel upright post and the outer steel upright post;
the middle rail wheel of the middle rail system is in meshed contact with the middle rail, and the middle rail is fixed on the middle rail beam;
the expansion track beam of the free moving system is characterized in that two ends of the expansion track beam are welded to the middle positions of two steel stand columns, the expansion track wheels are meshed and contacted with the expansion track beam, the expansion track wheels at the lower ends of the inner steel stand columns are matched with the sliding supports at the lower ends of the outer steel stand columns so as to realize the horizontal and vertical movements of the expansion truss, and meanwhile, the sliding supports at the lower ends of the outer steel stand columns are matched with the middle track wheels at the lower ends of the steel stand columns so as to realize the horizontal movement of the whole construction device.
Preferably, in the intermediate roof truss system: the fixed roof consists of a fixed transverse canopy steel frame beam, a driving part, a driving gear, a transmission chain and a fixed roof panel, and the movable roof consists of a follow-up gear, a movable steel frame beam and a movable roof panel; wherein:
the driving part is arranged at the upper end of the fixed transverse canopy steel frame beam and has a locking function; the driving gear is hinged with the driving part; the driving gear is meshed and contacted with the transmission chain; the transmission gear is hinged to the lower end of the fixed transverse canopy steel frame beam and is meshed and contacted with the transmission chain; the fixed roof board is fixed on the fixed transverse canopy steel frame beam; the follow-up gears are mounted at the upper end and the lower end of the movable steel frame beam in a hinged mode and are in meshed connection with the transmission chain; the movable roof panel is arranged on the upper side of the movable steel frame beam;
the driving component drives the driving gear, the driving gear drives the transmission gear through the transmission chain, the transmission gear drives the follow-up gear through the transmission chain, and then the movable steel frame beam and the movable roof panel are driven, and the opening/closing of the canopy is achieved.
Preferably, in the intermediate roof truss system: the steel upright post selects the bracket post with the same size, and a bracket post platform is welded at the equal height of the steel upright post at the inner side of the expanded roof truss system and is used for welding the expanded track beam.
More preferably, the cow leg column is provided with a hook for pulling the cable.
Preferably, in the intermediate roof truss system: the top end of the upper steel pipe for fixing the transverse canopy steel frame beam is welded with a support for installing a driving part, and the bottom end of the transverse canopy steel frame beam is welded with a support and a bearing for installing a transmission gear.
Preferably, in each said set of intermediate roof truss systems: the whole fixed roof is in a herringbone shape, two branches of the herringbone shape are respectively in an angle of 2-5 degrees with the ground, and the horizontal span of the fixed roof is adapted to the distance between the top beams of the foundation pit.
Preferably, in the expandable roof truss system: the expansion truss and the ground form an angle of 2-5 degrees, and the length of the expansion truss is less than half of the span of the fixed transverse canopy steel frame beam; the expansion truss is parallel to the branch of the adjacent fixed roof.
Preferably, in the expandable roof truss system: the expanded track beam is made of galvanized high-carbon steel, and the length of the expanded track beam is the same as the span of the fixed transverse canopy steel frame beam.
Preferably, in the intermediate rail system: the middle rail wheel is provided with a brake locking mechanism.
Preferably, the free movement system is composed of a sliding support on the outer steel column, an expanded track beam erected on the middle roof truss, and an expanded track wheel, wherein:
the sliding support is used as a base for expanding a roof truss system in a mode of combining a plurality of universal wheels and a flat plate, wherein: the flat plate is a square steel thick plate with the length dimension of 200-400 mm, and the thickness of the flat plate is 20-40 mm.
More preferably, a small universal wheel which meets the bearing and moving requirements and is provided with a locking mechanism is welded and fixed at four corners and each corner of the bottom of the flat plate.
Preferably, the middle rail beam is a crown beam in the open cut foundation pit, the middle rail is a heavy steel rail, the lower side of the middle rail is anchored on the rail beam to serve as a base, and the upper side of the middle rail is connected with the matched rail wheel.
Preferably, a group of roof truss system and moving system are integrated, namely the expanding roof truss system, the middle roof truss system, the free moving system and the middle track system are integrated, the distance between each group is 3000-6000 mm, and multiple groups are adopted.
The working principle of the construction device is as follows:
the middle rail system is arranged on the middle rail beam foundation to support the middle roof truss system and provide a rail required by the movement of the middle roof truss system; the middle rail wheel is arranged on the middle steel upright post and connected with the middle rail, so that the middle roof truss system and the whole construction device are fixed to move on the rail, and a traction cable in engineering pulls the whole construction device to move under the condition that the truss is extended to be collected into the fixed roof; the expansion track wheels are meshed and contacted with the expansion track beams, the expansion track wheels at the lower end of the inner steel upright post are matched with the sliding supports at the lower end of the outer steel upright post so as to realize the horizontal and vertical movements of the expansion truss, meanwhile, the sliding supports at the lower end of the outer steel upright post are matched with the middle track wheel at the lower end of the steel upright post so as to realize the horizontal movement of the whole construction device, and after the expansion track system reaches a specified construction position, the expansion track system is pushed to the specified construction position; the movable roof is enabled to move in the parallel direction of the fixed transverse canopy steel frame beam by controlling the driving part on the fixed transverse canopy steel frame beam, so that large-scale equipment can be conveniently hoisted in and out by using the gantry crane, and the whole construction device is driven by machinery on engineering.
According to another aspect of the invention, a construction method based on the device is provided, the method defaults to expanding the roof truss system and enabling the movable roof to be in a closed state, and the driving part is in a locked state;
the construction method comprises the following steps:
the method comprises the following steps of firstly, moving a middle roof truss system and an expansion roof truss system of the canopy to a construction position, specifically:
1) opening a brake locking mechanism of the sliding support;
2) pushing the expansion roof truss system to the innermost side of the middle roof truss system to enable the expansion truss and the fixed roof to be overlapped;
3) mounting a cable rope driven by an engineering machine on a hook of the cow leg column;
4) opening a brake locking mechanism of the middle rail wheel;
5) the adjusting cable is parallel to the middle rail so as to ensure that the whole construction device translates in the direction parallel to the middle rail;
6) the cow leg column is pulled by the cable parallel to the middle rail, so that the whole construction device moves along the middle rail;
7) after the track wheel reaches a designated position, a cable connected with the bracket column is released, and a brake locking mechanism of the middle track wheel is locked;
secondly, adjusting the expansion roof truss system to a specified position, specifically:
1) when the rainfall is less than 10mm/24h and the air temperature is lower than 30 ℃, and external equipment does not need to be hoisted out or into by using a gantry crane, moving the expansion truss to the innermost side of the middle roof truss system, and then locking a brake locking mechanism of the sliding support;
2) when the rainfall is more than 10mm/24h or the air temperature is more than 30 ℃, and the expanding roof truss system has the requirement of rain shielding or summer heat shielding, the expanding truss is pulled outwards to the outermost side where the expanding track wheels can reach, and finally the brake locking mechanism of the sliding support is locked;
3) when external equipment is hoisted in or out, the expanded roof truss system is pulled outwards to the outermost side, and the brake locking mechanism of the sliding support is locked;
4) when the expanded roof truss system needs to pass through vehicles and does not need to be hoisted in and out by a gantry crane, the expanded roof truss system is pushed to the innermost side, and a brake locking mechanism of the sliding support is locked;
thirdly, adjusting the movable roof to a specified position, specifically:
1) when external equipment needs to be hoisted in and out through a gantry crane, firstly moving the expansion truss to the position 3) in the second step, starting the driving part, respectively enabling the left movable roof and the right movable roof to move downwards in parallel and cover the fixed roof by controlling the rotating directions of the two driving parts on the transverse canopy steel frame beam, and locking the driving part and stopping the driving part when the movable roof completely covers the fixed roof;
2) when the rainfall is more than 10mm/24h or the air temperature is more than 30 ℃ and the external equipment does not need to be hung in or out, the rotating direction of the driving part is firstly adjusted to be the reverse direction of the third step 1), the motor is locked and released, the driving part is opened, the left and the right movable roofs are respectively enabled to move upwards and cover the initial positions of the movable roofs, and the driving part is locked and stopped.
Compared with the prior art, the invention has the following beneficial effects:
the movable expansion type canopy is manufactured aiming at the characteristics of long outdoor construction time, high requirement on construction period and large influence of weather, the canopy which is not required to be assembled and disassembled is constructed on a continuous working section, the main construction area is covered, the expansion area can be covered, vehicles can be collected under the middle roof truss when passing, and space can be provided for hanging in and hanging out large-scale equipment through the movement of the roof panel.
The invention also provides sunshade for constructors in outdoor projects such as foundation pits and expansion areas thereof, reduces the influence of rainfall on the constructors and equipment in the construction process, reduces the construction time for loading and unloading the canopy, facilitates the hoisting in and out of equipment, reduces potential safety hazards, improves the production efficiency, meets the requirements of engineering construction and vehicle transportation, meets the requirements of construction sites on construction equipment, and has good engineering application prospect.
Drawings
Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

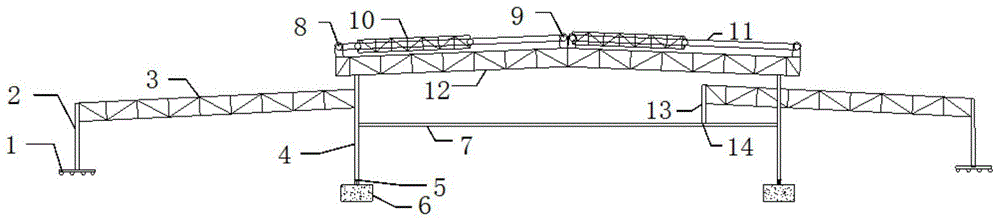

FIG. 1 is a front view of the overall structure of a movable expandable open-type canopy according to a preferred embodiment of the present invention;
FIG. 2 is an elevation view of the fixed roof and the movable roof of the intermediate roof truss system in accordance with a preferred embodiment of the present invention;
FIG. 3 is a top view of a fixed roof and a movable roof according to a preferred embodiment of the present invention;
FIG. 4 is a schematic structural view of an expanded track beam and an expanded track wheel according to a preferred embodiment of the present invention;
FIG. 5 is a schematic view of a sliding support of the free-moving system according to a preferred embodiment of the present invention
In the figure:
the device comprises a sliding support 1, an outer steel upright post 2, an expanding truss 3, a bracket 4, a middle rail wheel and a middle rail 5, a middle rail beam 6, an expanding rail beam 7, a transmission gear 8, a motor 9, a movable roof 10, a transmission chain 11, a fixed roof 12, an inner steel upright post 13, a one-way sliding support 14, a follow-up gear 15, a transverse canopy steel frame beam 16, a movable roof 17, a driving gear 18, a roof panel of the fixed roof 19 and a rail wheel on the one-way sliding support 20.
Detailed Description
The present invention will be described in detail with reference to specific examples. The following examples will assist those skilled in the art in further understanding the invention, but are not intended to limit the invention in any way. It should be noted that variations and modifications can be made by persons skilled in the art without departing from the spirit of the invention. All falling within the scope of the present invention.
As shown in fig. 1 to 5, a construction device for a movable expandable openable canopy includes: the movable roof structure comprises a sliding support 1, an outer steel upright post 2, an expanding truss 3, a corbel column 4, a middle rail wheel, a middle rail 5, a middle rail beam 6, an expanding rail beam 7, a transmission gear 8, a motor 9, a movable roof 10, a transmission chain 11, a fixed roof 12, an inner steel upright post 13, a one-way sliding support 14, a follow-up gear 15, a transverse canopy steel frame beam 16, a movable roof 17, a driving gear 18, a roof panel 19 of the fixed roof, and a rail wheel 20 on the one-way sliding support; the link relationship is as follows:
the sliding support 1 is welded at the lower end of the outer steel upright post 2; two ends of the expansion truss 3 are respectively welded on the outer side steel upright post 2 and the inner side steel upright post 13; the lower end of the cow leg column 4 is welded on the middle rail wheel, and the middle rail wheel is occluded on the middle rail; the middle rail is arranged on the middle rail beam 6 through a spike; two ends of the expanded track beam 7 are respectively fixed on the two cow leg columns 4 through bolts; the one-way sliding support 14 is welded at the lower end of the inner steel upright 13 and is in meshed contact with the expanded track beam 7 through a track wheel 20 on the one-way sliding support; the fixed roof 12 is welded and connected with the upper end of the cow leg column 5; the transmission gear 8 and the motor 9 are fixed on the fixed roof 12 through screws; the movable roof 10 is connected with a transmission chain 11 through a follow-up gear 15, the transmission chain 11 is in meshed contact with a transmission gear 8 and a driving gear 18, and the driving gear 18 is fixed with a motor 9.
As a preferred embodiment, in each group of the intermediate roof truss systems, the fixed roof 12 forming the top of the roof truss is in a herringbone shape as a whole, two branches of the herringbone form an angle of 3 degrees with the ground respectively, and the horizontal span of the fixed roof 12 is 8000 mm; i-steel corbel columns 4 with the same size are selected as vertical steel upright columns of the middle roof truss system, the length of the lower end upright column of each corbel column 4 is 3000mm, the width of the lower end upright column is 450mm, and a right-angle trapezoidal corbel column platform with the width of 100mm and the width equal to the width of each corbel column 4 is welded at the equal height of the inner steel upright column 13 of the expanded roof truss system; the expansion track beam 7 made of galvanized high-carbon steel is welded on the bracket column platform, the length of the expansion track beam 7 is the same as the span of the fixed roof 12, the width of the expansion track beam is 30mm, the upper portion of the bracket column 4 is made of I-shaped steel with the length of 1200mm and the width of the same as that of the lower end, the upper end and the lower end of the expansion track beam are connected through welding, the total height of the bracket column 4 is 4500mm, steel plate reinforcement is carried out on the bracket column 4 in the height direction every 300mm, and a hook for installing a traction cable rope is arranged at the position of the bracket column 4 on the outermost side of the whole roof truss, which.
In a preferred embodiment, the upper and lower parts of the transverse canopy steel frame beam 16 are made of steel pipes with a diameter of 70mm to form a framework for fixing the upper and lower parts of the roof, wherein: the top of the upper portion of the transverse canopy steel frame beam 16 is welded with a support provided with a motor 9, the bottom of the lower portion of the transverse canopy steel frame beam 16 is welded with a support provided with a transmission gear 8 and a bearing, the middle of the transverse canopy steel frame beam 16 is provided with a longitudinal steel pipe with the diameter of 40mm and the length of 100mm and an oblique steel pipe with the diameter of 40mm and the length of 200mm, each oblique steel pipe corresponds to one longitudinal steel pipe, the two oblique steel pipes and one longitudinal steel pipe form an isosceles triangle with the longitudinal steel pipe as a central line, and the combination forms a web plate of the transverse canopy steel frame beam 16.
As a preferred embodiment, the power of the motor 9 is above 2200kw, and it can regulate the speed and the rotation direction, it can lock;
the motor 9 is welded on a support which is used for installing the motor 9 and is arranged at the top end of the upper part of the transverse canopy steel frame beam 16.
In a preferred embodiment, the driving gear 18 is a gear with a radius of 60mm, and the tooth number specification of the gear is adapted to the transmission chain 11.
In a preferred embodiment, the radius and the number of teeth of the transmission gear 8 are consistent with those of the driving gear 18.
As a preferred embodiment, the roof plate 19 of the fixed roof is a color steel plate roof plate with the thickness of 12mm, and the middle of the roof plate is reinforced by a galvanized high-carbon steel crimping channel steel purline with the thickness of 400 mm; the roof plate 19 of the fixed roof covers half the length of the transverse canopy steel frame beam 16.
As a preferred embodiment, the movable steel frame beam of the movable roof 10 is parallel to the transverse canopy steel frame beam 16 of the fixed roof 12 and is mounted above the fixed roof 12; the removable roof 10 is identical in form to the transverse canopy steel frame beam 16 and is half the size of the transverse canopy steel frame beam 16.
As a preferred embodiment, the movable roof panel 17 is a color steel plate roof, and the thickness of the movable roof panel is 10 mm;
the middle of the movable roof panel 17 is reinforced by a galvanized high-carbon steel crimping channel steel purline with the length of 400 mm; the upper end and the lower end of the side surface of the movable roof panel 17 are respectively provided with a follow-up gear 15.
In a preferred embodiment, the radius and number of teeth of the follower gear 15 are identical to those of the drive gear 18.
As a preferred embodiment, 4 groups of roof truss systems and moving system bodies, namely the expanding roof truss systems, the middle roof truss systems, the free moving systems and the middle track system bodies are arranged at intervals of 6000 mm.
As a preferred embodiment, the extension truss 3 is at an angle of 3 degrees with the ground and parallel to the herringbone branch of the adjacent fixed roof 12, the length of the extension truss 3 is less than half of the span of the transverse canopy steel frame beam 16, and the specific length L is related to the farthest horizontal distance S between the sliding support 1 and the intermediate track beam 6 on the adjacent side and the inclination angle θ as follows:
in a preferred embodiment, the inner steel column 13 is a cylindrical steel tube with a diameter of 20mm and a length of 1300 mm.
In a preferred embodiment, the outer steel upright 2 is a hollow round tube with a diameter of 150mm and a height of 3500 mm.
In a preferred embodiment, the expansion girders are in the form of transverse canopy steel frame beams 16.
As a preferred embodiment, the middle track beam 6 is a crown beam in an open cut foundation pit as a track beam, the middle track is made of heavy steel, the lower side of the middle track is anchored on the middle track beam 6 to serve as a base, the upper side of the middle track is connected with a matched middle track wheel, and the middle track wheel can be locked.
As a preferred embodiment, the free moving system consists of a sliding support 1 on an outer steel upright post 2, an expanded track beam 7 erected on a corbel post 4 in a middle roof truss system, and a one-way sliding support 14; wherein:
the sliding support 1 adopts a mode of combining a plurality of universal wheels and a flat plate as a base of an expansion part, the flat plate is a square metal thick plate with the length dimension of 200mm, and the thickness of the flat plate is 30 mm; at four corners of the bottom of the flat plate, each corner is welded and fixed with a small universal wheel meeting the requirements;
the expanded track beam 7 is a galvanized high-carbon steel slide rail, the length of the expanded track beam is the same as the span of the transverse canopy steel frame beam 16, and the width of the expanded track beam is 20-30 mm;
the one-way sliding support 14 is welded at the lower end of the inner steel upright post 13, the track wheels 20 on the one-way sliding support are formed into an expanded track wheel by four groups, the diameter of each track wheel 20 is 15mm, each track wheel 20 is provided with a rubber tread, the expanded track wheel bears more than 400kg, and the expanded track wheel is provided with a locking device.
Further, the construction method adopting the construction device comprises the following steps:
(default is expansion roof truss system open and movable roof in closed state, motor in lock state)
When a certain section of construction is finished, the construction device is moved to the next construction position,
the first step, let the middle roof truss system of canopy and extend the roof truss system and remove the construction position, specifically:
1) opening a brake locking mechanism of the sliding support 1;
2) the expanded roof truss system is pushed to be overlapped with the middle roof truss system by manpower;
3) mounting a cable rope driven by an engineering machine on a hook of the cow leg column 4;
4) opening a brake locking mechanism of the middle rail wheel;
5) the adjusting cable is parallel to the middle rail 5, so that the whole device can move horizontally in the parallel direction of the middle rail 5;
6) the bracket post 4 of the middle roof truss is pulled by a cable parallel to the middle track 5, so that the whole device moves along the middle track 5;
7) after reaching the designated position, the cable connected with the bracket post 4 is released, and the brake of the middle rail wheel is locked;
secondly, adjusting the expansion roof truss system to a specified position, specifically:
1) when the rainfall is less than 10mm/24h and the air temperature is lower than 30 ℃, and the gantry crane is not needed to be used for lifting in and out of the device, the brake locking mechanism of the sliding support 1 is locked;
2) when the rainfall is more than 10mm/24h or the air temperature is more than 30 ℃, the expansion truss 3 has the requirement of rain shielding or summer heat shielding, the expansion truss 3 is pushed to a proper position through manpower, and finally the brake locking mechanism of the sliding support 1 is locked;
3) when the lifting device is lifted, the expansion truss 3 is adjusted to the outermost side, and the brake of the sliding support 1 is locked;
4) when the expansion truss 3 needs to pass through a vehicle and a gantry crane is not needed to hoist in and out, the expansion truss 3 is pushed to the innermost side, and a brake locking mechanism of the sliding support 1 is locked;
thirdly, adjusting the movable roof panel 17 to a specified position, specifically:
1) when equipment required is hoisted in and out through a gantry crane, firstly moving the expansion truss 3 to the position 3) in the second step, starting the motor 9, respectively enabling the left and right movable roofs 10 to move downwards in parallel and cover the roof panels 19 of the fixed roofs by controlling the rotating directions of the two motors 9 on the transverse canopy steel frame beam 16, and locking the motors 9 and stopping the motors 9 when the movable roofs 10 completely cover the roof panels 19 of the fixed roofs;
2) when the rainfall is more than 10mm/24h or the air temperature is more than 30 ℃ and the lifting device is not required to be lifted, the rotating direction of the motor 9 is adjusted to be the reverse direction of the third step 1), the motor 9 is locked and contacted, the motor 9 is started, the left and right movable roofs 10 are respectively enabled to move upwards and cover the initial positions of the movable roofs, the motor 9 is locked, and the motor 9 is stopped.
The working principle of the invention is as follows:
the middle rail system is arranged on the basis of the middle rail beam 6, supports the middle roof truss system and provides a rail required by the movement of the middle roof truss system, the middle rail wheel is arranged on the middle bracket column 4 and connected with the middle rail 5, and plays a role in fixing the middle roof truss system and the whole construction device to move on the middle rail 5; after the appointed construction position is reached, the expanding truss 3 is pushed to the appointed construction position; by controlling the motor 9 on the transverse canopy steel frame beam 16, the movable roof panel 17 moves in the direction parallel to the transverse canopy steel frame beam 16, so that large-scale equipment can be conveniently hoisted in and out, and the whole construction device is driven by engineering machinery.
The movable expansion type canopy is manufactured aiming at the characteristics of long outdoor construction time, high requirement on construction period and large influence of weather, the canopy which is not required to be assembled and disassembled is constructed on a continuous working section, the main construction area is covered, the expansion area can be covered, vehicles can be collected under the middle roof truss when passing, and space can be provided for hanging in and hanging out large-scale equipment through the movement of the roof panel. This patent is simultaneously for in outdoor project like the foundation ditch rather than expanding regional constructor's sunshade, has reduced the influence of rainfall to constructor and equipment in the work progress, has reduced the used engineering time of canopy loading and unloading, has made things convenient for hanging into of equipment and has hung out, has reduced the potential safety hazard, has improved production efficiency, satisfies the needs of engineering construction and vehicle transportation, accords with the requirement of job site to construction equipment, has fine engineering application prospect.
All the drawings of the above embodiments are only for convenience of explaining technical contents of the present invention; the numbers, positions of the components, interrelationships between the components, and dimensions of the components used to construct the preferred embodiment do not limit the technical solution itself, but extend to the entire area covered by the technical field.
The above description is directed to specific embodiments of the present invention. It is to be understood that the present invention is not limited to the specific embodiments described above, and that various changes and modifications may be made by one skilled in the art within the scope of the appended claims without departing from the spirit of the invention.
Claims (9)
1. The utility model provides a construction equipment of canopy can be opened to portable expansion, its characterized in that, construction equipment includes: the roof truss system comprises a middle roof truss system, an expanded roof truss system, a middle track system and a free moving system, wherein the middle roof truss system is supported by the middle track system and moves along a middle track in the middle track system along with the middle track system; the expandable roof truss system is fixed on the free moving system and is lapped on the middle roof truss system, and the expandable roof truss system moves telescopically along the middle roof truss system through the free moving system;
the middle roof truss system consists of steel upright posts, fixed roof roofs and movable roof roofs, the expanded roof truss system consists of inner side steel upright posts, outer side steel upright posts and expanded trusses, the middle track system consists of middle tracks, middle track beams and middle track wheels, and the free moving system consists of expanded track beams, expanded track wheels and sliding supports; wherein:
the lower end of a steel upright post of the middle roof truss system is fixedly connected with a middle track wheel of the middle track system, the upper end of the steel upright post is fixedly welded with the fixed roof, and the movable roof is arranged on the fixed roof and can move in the direction parallel to the fixed roof, so that the opening or closing of the canopy is realized;
the lower end of an inner steel upright post of the expansion roof truss system is fixedly connected with the expansion track wheel, the lower end of the outer steel upright post is fixedly welded with a sliding support of the free movement system, and two ends of the expansion truss are respectively fixedly welded to the upper ends of the inner steel upright post and the outer steel upright post; the sliding support is provided with a brake locking mechanism;
the middle rail wheel of the middle rail system is in meshed contact with the middle rail, and the middle rail is fixed on the middle rail beam; the middle rail wheel is provided with a brake locking mechanism;
the two ends of an expanded track beam of the free moving system are welded at the middle positions of two steel stand columns, expanded track wheels are meshed and contacted with the expanded track beam, the expanded track wheels at the lower ends of the inner steel stand columns are matched with sliding supports at the lower ends of the outer steel stand columns so as to realize the horizontal and vertical movements of the expanded truss, and meanwhile, the sliding supports at the lower ends of the outer steel stand columns are matched with middle track wheels at the lower ends of the steel stand columns so as to realize the horizontal movement of the whole construction device;
the free moving system comprises an extended track beam and an extended track wheel, wherein the extended track beam and the extended track wheel are erected on a sliding support on an outer steel upright post and a middle roof truss, and the free moving system comprises: the sliding support is used as a base for expanding a roof truss system in a mode of combining a plurality of universal wheels and a flat plate, and the four corners of the bottom of the flat plate are respectively welded with a small universal wheel which meets the bearing and moving requirements and is provided with a locking mechanism.
2. A mobile expandable weather shelter construction apparatus as claimed in claim 1 wherein in the intermediate roof truss system: the fixed roof consists of a fixed transverse canopy steel frame beam, a driving part, a driving gear, a transmission chain and a fixed roof panel, and the movable roof consists of a follow-up gear, a movable steel frame beam and a movable roof panel; wherein:
the driving part is arranged at the upper end of the fixed transverse canopy steel frame beam and has a locking function; the driving gear is hinged with the driving part; the driving gear is meshed and contacted with the transmission chain; the transmission gear is hinged to the lower end of the fixed transverse canopy steel frame beam and is meshed and contacted with the transmission chain; the fixed roof board is fixed on the fixed transverse canopy steel frame beam; the follow-up gears are mounted at the upper end and the lower end of the movable steel frame beam in a hinged mode and are in meshed connection with the transmission chain; the movable roof panel is arranged on the upper side of the movable steel frame beam;
the driving component drives the driving gear, the driving gear drives the transmission gear through the transmission chain, the transmission gear drives the follow-up gear through the transmission chain, and then the movable steel frame beam and the movable roof panel are driven, and the opening/closing of the canopy is achieved.
3. A mobile expandable weather shelter construction apparatus as claimed in claim 1 wherein in the intermediate roof truss system: the steel upright posts are bracket posts with the same size, and bracket post platforms are welded at the equal heights of the steel upright posts on the inner side of the expansion roof truss system and used for welding expansion track beams; and the cow leg column is provided with a hook for pulling a cable.
4. A mobile expandable weather shelter construction apparatus as claimed in claim 1 wherein in the intermediate roof truss system: the top end of the upper steel pipe for fixing the transverse canopy steel frame beam is welded with a support for installing a driving part, and the bottom end of the transverse canopy steel frame beam is welded with a support and a bearing for installing a transmission gear.
5. A mobile expandable weather shelter as claimed in any one of claims 1 to 4, wherein each of the intermediate roof truss systems is: the whole fixed roof is in a herringbone shape, two branches of the herringbone shape are respectively in an angle of 2-5 degrees with the ground, and the horizontal span of the fixed roof is adapted to the distance between the top beams of the foundation pit.
6. A movable expandable canopy construction device as claimed in claim 5, wherein in the expandable roof truss system: the expansion truss and the ground form an angle of 2-5 degrees, and the length of the expansion truss is less than half of the span of the fixed transverse canopy steel frame beam; the expansion truss is parallel to the branch of the adjacent fixed roof.
7. A mobile expandable canopy construction device as claimed in any one of claims 1 to 4 wherein in the expandable roof truss system: the expanded track beam is made of galvanized high-carbon steel, and the length of the expanded track beam is the same as the span of the fixed transverse canopy steel frame beam.
8. A construction equipment of movable expandable weather shed according to claim 1, wherein the sliding support is a base of an expandable roof truss system by a plurality of universal wheels and flat plate combinations, wherein: the flat plate is made of a square steel thick plate, and the thickness of the flat plate is 20 mm-40 mm.
9. A method of constructing a movable expandable openable canopy using the construction apparatus as claimed in any one of claims 1 to 8, wherein the method defaults to an expanded roof truss system expanded with the movable roof in a closed state and the driving means in a locked state;
the method comprises the following steps:
the method comprises the following steps of firstly, moving a middle roof truss system and an expansion roof truss system of the canopy to a construction position, specifically:
1) opening a brake locking mechanism of the sliding support;
2) pushing the expansion roof truss system to the innermost side of the middle roof truss system to enable the expansion truss and the fixed roof to be overlapped;
3) mounting a cable rope driven by an engineering machine on a hook of the cow leg column;
4) opening a brake locking mechanism of the middle rail wheel;
5) the adjusting cable is parallel to the middle rail so as to ensure that the whole construction device translates in the direction parallel to the middle rail;
6) the cow leg column is pulled by the cable parallel to the middle rail, so that the whole construction device moves along the middle rail;
7) after the track wheel reaches a designated position, a cable connected with the bracket column is released, and a brake locking mechanism of the middle track wheel is locked;
secondly, adjusting the expansion roof truss system to a specified position, specifically:
1) when the rainfall is less than 10mm/24h and the air temperature is lower than 30 ℃, and external equipment does not need to be hoisted out or into by using a gantry crane, moving the expansion truss to the innermost side of the middle roof truss system, and then locking a brake locking mechanism of the sliding support;
2) when the rainfall is more than 10mm/24h or the air temperature is more than 30 ℃, and the expanding roof truss system has the requirement of rain shielding or summer heat shielding, the expanding truss is pulled outwards to the outermost side where the expanding track wheels can reach, and finally the brake locking mechanism of the sliding support is locked;
3) when external equipment is hoisted in or out, the expanded roof truss system is pulled outwards to the outermost side, and the brake locking mechanism of the sliding support is locked;
4) when the expanded roof truss system needs to pass through vehicles and does not need to be hoisted in and out by a gantry crane, the expanded roof truss system is pushed to the innermost side, and a brake locking mechanism of the sliding support is locked;
thirdly, adjusting the movable roof to a specified position, specifically:
1) when external equipment needs to be hoisted in and out through a gantry crane, firstly moving the expansion truss to the position 3) in the second step, starting the driving part, respectively enabling the left movable roof and the right movable roof to move downwards in parallel and cover the fixed roof by controlling the rotating directions of the two driving parts on the transverse canopy steel frame beam, and locking the driving part and stopping the driving part when the movable roof completely covers the fixed roof;
2) when the rainfall is more than 10mm/24h or the air temperature is more than 30 ℃ and the external equipment does not need to be hung in or out, the rotating direction of the driving part is firstly adjusted to be the reverse direction of the third step 1), the motor is locked and released, the driving part is opened, the left and the right movable roofs are respectively enabled to move upwards and cover the initial positions of the movable roofs, and the driving part is locked and stopped.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201810924745.5A CN109025388B (en) | 2018-08-14 | 2018-08-14 | Construction device and construction method of movable expanded openable canopy |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201810924745.5A CN109025388B (en) | 2018-08-14 | 2018-08-14 | Construction device and construction method of movable expanded openable canopy |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN109025388A CN109025388A (en) | 2018-12-18 |
| CN109025388B true CN109025388B (en) | 2020-03-10 |
Family
ID=64630945
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201810924745.5A Active CN109025388B (en) | 2018-08-14 | 2018-08-14 | Construction device and construction method of movable expanded openable canopy |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN109025388B (en) |
Families Citing this family (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN109555024B (en) * | 2018-12-24 | 2024-02-06 | 镇江蓝舶科技股份有限公司 | Modularized self-propelled wind and rain shed width adjusting mechanism for all-weather construction of steel bridge deck engineering |
| CN111236520B (en) * | 2020-01-10 | 2021-04-20 | 中国人民解放军63921部队 | Single-drive push-pull turnover device |
| CN112282435A (en) * | 2020-11-02 | 2021-01-29 | 台州学院 | Variable roof rainproof shed |
| CN113648444B (en) * | 2021-07-07 | 2022-10-25 | 威海市妇幼保健院（威海市立第二医院、威海市妇女儿童医院） | Remove shelter biological laboratory |
| CN115445141B (en) * | 2022-09-13 | 2024-04-02 | 江苏苏体运动科技有限公司 | Rail mounted machine of strolling that keeps off rain |
Family Cites Families (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20140157685A1 (en) * | 2012-05-09 | 2014-06-12 | Mark Fagan | Automatically deployable energy efficient mobile structure |
| CN202669596U (en) * | 2012-07-26 | 2013-01-16 | 南京特种汽车制配厂 | Cover-type closed anti-dust device for soft canopy of truck |
| CN202899384U (en) * | 2012-10-26 | 2013-04-24 | 天津大学 | Suspended roof structural system for slide construction and opening and closing |
| CN205713167U (en) * | 2016-06-15 | 2016-11-23 | 中国电建集团铁路建设有限公司 | A kind of packaged type rain shade for main structure of subway station construction |
| FR3055021B1 (en) * | 2016-08-09 | 2018-09-07 | Cjb Revolution | REPLIABLE SHELTER COMPRISING A TRACKED SLOPE STORE FOR THE STORAGE OF ROOF ELEMENTS OF THE SHELTER. |
| CN108278003A (en) * | 2017-11-24 | 2018-07-13 | 浙江交工集团股份有限公司 | A kind of double-layered roof system health preserving room of self-propelled |
| CN108193816B (en) * | 2017-12-15 | 2023-12-05 | 浙江精工钢结构集团有限公司 | Translational folding membrane structure opening and closing roof and opening and closing method |
| CN207660157U (en) * | 2017-12-29 | 2018-07-27 | 中铁隆工程集团有限公司 | A kind of movable type roof system |
-
2018
- 2018-08-14 CN CN201810924745.5A patent/CN109025388B/en active Active
Also Published As
| Publication number | Publication date |
|---|---|
| CN109025388A (en) | 2018-12-18 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN109025388B (en) | Construction device and construction method of movable expanded openable canopy | |
| CN109538238B (en) | Tunnel arch prefabricated segment construction device and control method | |
| US20160344330A1 (en) | Portable Solar Power System with Prefabricated Solar Racking | |
| CN214832708U (en) | Full-automatic movable subway foundation pit protection greenhouse | |
| CN104060860B (en) | A kind of sectional telescopic rain-proof shelter for precast concrete T-beam and using method | |
| CN108266004B (en) | Drawer type walking construction shed and construction method thereof | |
| CN115095269B (en) | Novel insulating operation platform | |
| CN207847164U (en) | A kind of drawer type walking construction shed | |
| KR101720243B1 (en) | All weather covering structure for construction with gang form building and removing device | |
| CN110172923B (en) | Environment-friendly type descending self-propelled steel trestle structure | |
| CN204186097U (en) | A kind of sectional telescopic rain-proof shelter for precast concrete T-beam | |
| CN110593606A (en) | Totally-enclosed combined multifunctional movable work shed system | |
| CN207228069U (en) | Rectangle aqueduct construction telescoping steel form | |
| CN207376821U (en) | A kind of electronic rain shade suitable on Metro station excavation | |
| CN111636667A (en) | High-altitude operation platform construction method and operation platform applied to large-span plant | |
| CN209976054U (en) | Folding type automatic telescopic awning for closed subway | |
| JP3212233B2 (en) | Power plant construction method using overhead crane | |
| CN211621969U (en) | Improved multifunctional canopy | |
| CN110359697A (en) | The modular aerial sliding concatenation platform in high-altitude | |
| CN215171938U (en) | Automatic driving device for dustproof awning | |
| CN108590318B (en) | Construction method of crossing protective equipment and method for crossing construction protection above line | |
| JP2004324065A (en) | Movable curing apparatus | |
| CN208815947U (en) | A kind of removable expansion type awning | |
| CN216340989U (en) | A rain-proof water board for making building machine top layer | |
| CN112681372B (en) | Truss vehicle for reconstruction and extension construction of existing overhead operation subway station |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
