CN108158552B - Gastroenterology is with gastroscope device that can atomize and spout medicine - Google Patents
Gastroenterology is with gastroscope device that can atomize and spout medicine Download PDFInfo
- Publication number
- CN108158552B CN108158552B CN201810150091.5A CN201810150091A CN108158552B CN 108158552 B CN108158552 B CN 108158552B CN 201810150091 A CN201810150091 A CN 201810150091A CN 108158552 B CN108158552 B CN 108158552B
- Authority
- CN
- China
- Prior art keywords
- medicine
- spraying
- cavity
- liquid medicine
- transmission
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000003814 drug Substances 0.000 title claims abstract description 174
- 239000007788 liquid Substances 0.000 claims abstract description 77
- 210000002784 stomach Anatomy 0.000 claims abstract description 44
- 238000003756 stirring Methods 0.000 claims abstract description 41
- 239000007921 spray Substances 0.000 claims abstract description 39
- 208000008918 voyeurism Diseases 0.000 claims abstract description 33
- 238000000889 atomisation Methods 0.000 claims abstract description 22
- 238000005485 electric heating Methods 0.000 claims abstract description 19
- 238000000605 extraction Methods 0.000 claims abstract description 19
- 230000002496 gastric effect Effects 0.000 claims abstract description 7
- 238000005507 spraying Methods 0.000 claims description 103
- 230000005540 biological transmission Effects 0.000 claims description 63
- 230000007246 mechanism Effects 0.000 claims description 41
- 239000003595 mist Substances 0.000 claims description 30
- 244000144985 peep Species 0.000 claims description 10
- 238000002844 melting Methods 0.000 claims description 6
- 230000008018 melting Effects 0.000 claims description 6
- 230000035515 penetration Effects 0.000 claims description 6
- 238000006748 scratching Methods 0.000 claims description 6
- 238000000034 method Methods 0.000 claims description 3
- 230000000241 respiratory effect Effects 0.000 claims 1
- 230000000694 effects Effects 0.000 abstract description 5
- 230000008859 change Effects 0.000 abstract description 2
- 230000000149 penetrating effect Effects 0.000 abstract description 2
- 230000008447 perception Effects 0.000 abstract description 2
- 238000007689 inspection Methods 0.000 description 6
- 238000007599 discharging Methods 0.000 description 5
- 230000003444 anaesthetic effect Effects 0.000 description 4
- 229910001220 stainless steel Inorganic materials 0.000 description 4
- 239000010935 stainless steel Substances 0.000 description 4
- 208000007107 Stomach Ulcer Diseases 0.000 description 3
- 201000010099 disease Diseases 0.000 description 3
- 208000037265 diseases, disorders, signs and symptoms Diseases 0.000 description 3
- 201000005917 gastric ulcer Diseases 0.000 description 3
- 238000002575 gastroscopy Methods 0.000 description 3
- 238000002347 injection Methods 0.000 description 3
- 239000007924 injection Substances 0.000 description 3
- 238000009688 liquid atomisation Methods 0.000 description 3
- 230000001105 regulatory effect Effects 0.000 description 3
- 208000012895 Gastric disease Diseases 0.000 description 2
- 230000009471 action Effects 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 2
- 238000005260 corrosion Methods 0.000 description 2
- 230000007797 corrosion Effects 0.000 description 2
- 238000010586 diagram Methods 0.000 description 2
- WABPQHHGFIMREM-UHFFFAOYSA-N lead(0) Chemical compound [Pb] WABPQHHGFIMREM-UHFFFAOYSA-N 0.000 description 2
- 230000008569 process Effects 0.000 description 2
- 230000033764 rhythmic process Effects 0.000 description 2
- 230000003068 static effect Effects 0.000 description 2
- 208000018556 stomach disease Diseases 0.000 description 2
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 description 2
- 206010028813 Nausea Diseases 0.000 description 1
- KCZFLPPCFOHPNI-UHFFFAOYSA-N alumane;iron Chemical compound [AlH3].[Fe] KCZFLPPCFOHPNI-UHFFFAOYSA-N 0.000 description 1
- 230000007547 defect Effects 0.000 description 1
- 238000001514 detection method Methods 0.000 description 1
- 238000003745 diagnosis Methods 0.000 description 1
- 210000001198 duodenum Anatomy 0.000 description 1
- 230000005611 electricity Effects 0.000 description 1
- 210000003238 esophagus Anatomy 0.000 description 1
- 239000000463 material Substances 0.000 description 1
- 239000000203 mixture Substances 0.000 description 1
- 210000004400 mucous membrane Anatomy 0.000 description 1
- 230000008693 nausea Effects 0.000 description 1
- 238000011084 recovery Methods 0.000 description 1
- 210000002345 respiratory system Anatomy 0.000 description 1
- 208000024891 symptom Diseases 0.000 description 1
Images
Classifications
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61B—DIAGNOSIS; SURGERY; IDENTIFICATION
- A61B1/00—Instruments for performing medical examinations of the interior of cavities or tubes of the body by visual or photographical inspection, e.g. endoscopes; Illuminating arrangements therefor
- A61B1/273—Instruments for performing medical examinations of the interior of cavities or tubes of the body by visual or photographical inspection, e.g. endoscopes; Illuminating arrangements therefor for the upper alimentary canal, e.g. oesophagoscopes, gastroscopes
- A61B1/2736—Gastroscopes
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61B—DIAGNOSIS; SURGERY; IDENTIFICATION
- A61B1/00—Instruments for performing medical examinations of the interior of cavities or tubes of the body by visual or photographical inspection, e.g. endoscopes; Illuminating arrangements therefor
- A61B1/012—Instruments for performing medical examinations of the interior of cavities or tubes of the body by visual or photographical inspection, e.g. endoscopes; Illuminating arrangements therefor characterised by internal passages or accessories therefor
- A61B1/015—Control of fluid supply or evacuation
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61M—DEVICES FOR INTRODUCING MEDIA INTO, OR ONTO, THE BODY; DEVICES FOR TRANSDUCING BODY MEDIA OR FOR TAKING MEDIA FROM THE BODY; DEVICES FOR PRODUCING OR ENDING SLEEP OR STUPOR
- A61M11/00—Sprayers or atomisers specially adapted for therapeutic purposes
- A61M11/006—Sprayers or atomisers specially adapted for therapeutic purposes operated by applying mechanical pressure to the liquid to be sprayed or atomised
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61M—DEVICES FOR INTRODUCING MEDIA INTO, OR ONTO, THE BODY; DEVICES FOR TRANSDUCING BODY MEDIA OR FOR TAKING MEDIA FROM THE BODY; DEVICES FOR PRODUCING OR ENDING SLEEP OR STUPOR
- A61M31/00—Devices for introducing or retaining media, e.g. remedies, in cavities of the body
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61M—DEVICES FOR INTRODUCING MEDIA INTO, OR ONTO, THE BODY; DEVICES FOR TRANSDUCING BODY MEDIA OR FOR TAKING MEDIA FROM THE BODY; DEVICES FOR PRODUCING OR ENDING SLEEP OR STUPOR
- A61M2202/00—Special media to be introduced, removed or treated
- A61M2202/04—Liquids
- A61M2202/0468—Liquids non-physiological
- A61M2202/048—Anaesthetics
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61M—DEVICES FOR INTRODUCING MEDIA INTO, OR ONTO, THE BODY; DEVICES FOR TRANSDUCING BODY MEDIA OR FOR TAKING MEDIA FROM THE BODY; DEVICES FOR PRODUCING OR ENDING SLEEP OR STUPOR
- A61M2205/00—General characteristics of the apparatus
- A61M2205/36—General characteristics of the apparatus related to heating or cooling
- A61M2205/3653—General characteristics of the apparatus related to heating or cooling by Joule effect, i.e. electric resistance
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61M—DEVICES FOR INTRODUCING MEDIA INTO, OR ONTO, THE BODY; DEVICES FOR TRANSDUCING BODY MEDIA OR FOR TAKING MEDIA FROM THE BODY; DEVICES FOR PRODUCING OR ENDING SLEEP OR STUPOR
- A61M2210/00—Anatomical parts of the body
- A61M2210/10—Trunk
- A61M2210/1025—Respiratory system
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61M—DEVICES FOR INTRODUCING MEDIA INTO, OR ONTO, THE BODY; DEVICES FOR TRANSDUCING BODY MEDIA OR FOR TAKING MEDIA FROM THE BODY; DEVICES FOR PRODUCING OR ENDING SLEEP OR STUPOR
- A61M2210/00—Anatomical parts of the body
- A61M2210/10—Trunk
- A61M2210/1042—Alimentary tract
- A61M2210/1053—Stomach
Landscapes
- Health & Medical Sciences (AREA)
- Life Sciences & Earth Sciences (AREA)
- Engineering & Computer Science (AREA)
- Biomedical Technology (AREA)
- Veterinary Medicine (AREA)
- Public Health (AREA)
- General Health & Medical Sciences (AREA)
- Animal Behavior & Ethology (AREA)
- Heart & Thoracic Surgery (AREA)
- Surgery (AREA)
- Medical Informatics (AREA)
- Biophysics (AREA)
- Physics & Mathematics (AREA)
- Molecular Biology (AREA)
- Pathology (AREA)
- Optics & Photonics (AREA)
- Nuclear Medicine, Radiotherapy & Molecular Imaging (AREA)
- Radiology & Medical Imaging (AREA)
- Hematology (AREA)
- Anesthesiology (AREA)
- Gastroenterology & Hepatology (AREA)
- Mechanical Engineering (AREA)
- Medicinal Preparation (AREA)
- Nozzles (AREA)
Abstract
本发明公开了一种消化内科用可雾化喷药的胃镜装置，其结构包括喷雾腔体、出药喷管、药剂瓶、药液抽取腔、药液雾化腔、雾气喷射腔、胃部窥视装置，所述胃部窥视装置设有胃部窥视目镜、电子连接导线、电子调节装置、胃部窥视管、胃道穿入管、喷雾窥视一体镜头，使设备在进行使用时，能够通过药瓶连接头进行快速换药，同时通过药液抽取泵快速导药，再经过电加热丝和底部搅动桨快速雾化，能够通过快速雾化的作用进行快速上药，雾化上药也能够在最低感知的影响下进行上药，降低患者在上药时造成的不适感，同时本发明体积小，构造简单，上药迅速，能够在医护人员在检查出病因后直接对症下药。
The invention discloses a gastroscope device for gastroenterology that can be atomized and sprayed. Peeping device, the stomach peeping device is provided with a stomach peeping eyepiece, an electronic connecting wire, an electronic adjustment device, a stomach peeping tube, a gastric penetrating tube, and a spray peeping integrated lens, so that the device can pass through the medicine bottle when it is in use. The connector is used for quick dressing change, and at the same time, the medicine is quickly guided by the liquid extraction pump, and then quickly atomized by the electric heating wire and the bottom stirring paddle, which can quickly apply the medicine through the effect of rapid atomization, and the atomization and application of the medicine can also be carried out at the lowest level. The medicine is applied under the influence of perception, which reduces the discomfort caused by the patient when the medicine is applied. At the same time, the present invention is small in size, simple in structure, and fast in applying the medicine, and can directly prescribe the right medicine after the medical staff checks the cause.
Description
Technical Field
The invention discloses a gastroscope device capable of spraying medicine in an atomizing mode for department of gastroenterology, and belongs to the field of gastroscope devices.
Background
Along with modern economy rapid development, people's standard of living is improving, but the rhythm of life is accelerating also, will have bad food and drink law, the food and drink rhythm is disturbed completely, makes the people suffer from the disease in the aspect of the gastroenterology easily, in case suffer from the disease, just will arrive the hospital and carry out the cooperation treatment, often will use the gastroscope to inspect in this aspect, can be in order through the gastroscope, clearly observe esophagus, stomach, the mucous membrane state of the duodenum ball portion even descending portion, carrying out medicine cooperation treatment, the gastroscope inspection diagnosis is reliable, the security is high.
In the process of gastroscopy, the anesthetic is swallowed for a patient firstly, however, the action effect of the anesthetic is different for people with different physiques, when the dosage of the anesthetic is insufficient, nausea and pain of the patient can be caused in the process of gastroscopy detection, cooperation between doctors and patients is not facilitated, and inconvenience is brought to the examination.
During the prior art uses, because when spouting the ma yao, be difficult to spray to the stomach wall on, consequently the patient still can feel uncomfortable when carrying out the gastroscope inspection, influences the inspection progress, is accomplishing the inspection back simultaneously, when carrying out the treatment of gastric ulcer to the patient, is difficult to accomplish to the pertinence ground medicine, can only pass through the oral, but the oral is unfavorable for making the quick recovery of stomach disease patient.
Disclosure of Invention
Aiming at the defects in the prior art, the invention aims to provide a gastroscope device capable of spraying a medicine in an atomizing mode for the department of gastroenterology, and the gastroscope device is used for solving the problems that when the gastroscope device is used in the prior art, a patient still feels uncomfortable during gastroscope examination due to the fact that the gastroscope device is difficult to spray the anesthetic on the stomach wall, the examination progress is influenced, and after the examination is completed, when the patient is treated for gastric ulcer, targeted medicine is difficult to achieve, only oral administration can be conducted, but the oral administration is not beneficial to rapid rehabilitation of the patient suffering from gastropathy.
In order to achieve the purpose, the invention is realized by the following technical scheme: the utility model provides a gastroscope device of medicine is spouted with atomizing to gastroenterology, its structure includes spraying cavity, play medicine spray tube, medicament bottle, liquid medicine extraction chamber, liquid medicine atomizing chamber, fog spray chamber, stomach peep the device, the spraying cavity passes through thread engagement and connects in a medicine spray tube below, it connects in spraying cavity top through thread engagement to go out the medicine spray tube, the medicament bottle passes through thread engagement and connects in spraying cavity bottom, liquid medicine extraction chamber inlays on spraying cavity inside bottom surface, liquid medicine atomizing chamber inlays and locates between liquid medicine extraction chamber and the fog spray chamber, fog spray chamber inlays and locates above the liquid medicine atomizing chamber, stomach peep the device and connects on spraying cavity side surface through thread engagement, the spraying cavity is equipped with starting switch, battery compartment, medicine bottle connector, liquid medicine extraction pipe, starting switch inlays and locates above the battery compartment, the battery bin is embedded on the side surface of the spraying cavity, the medicine bottle connector is connected to the bottom of the spraying cavity through hot melting, and the liquid medicine extraction pipe is connected to the lower part of the medicine bottle connector through hot melting; the medicine discharging spray pipe is provided with an atomizing nozzle and an anti-scratching bent nozzle, the atomizing nozzle is connected to the top end of the medicine discharging spray pipe in a threaded engagement mode, and the anti-scratching bent nozzle is embedded in the top end of the atomizing nozzle; the liquid medicine extracting cavity is provided with a threaded medicine guide pipe, a liquid medicine extracting pump and a battery, the threaded medicine guide pipe is connected between the liquid medicine extracting pipe and the liquid medicine atomizing cavity, the liquid medicine extracting pump is embedded below the battery bin, and the battery is embedded inside the battery bin; the mist spraying cavity is provided with a spraying outlet and a top stirring paddle, the spraying outlet is uniformly embedded at the bottom of the mist spraying cavity at equal intervals, and the top stirring paddle is riveted and connected to the inner wall of the spraying cavity through a bolt; the device is peeied at to stomach is equipped with the integrative camera lens of stomach peep eyepiece, electron connecting wire, electronic regulating apparatus, stomach peep the pipe, stomach way and penetrates the pipe, spraying, the eyepiece is peeied at to stomach through thread engagement and is connected in stomach peep the tub bottom, the electron connecting wire passes through the electricity and connects on the electronic regulating apparatus side, electronic regulating apparatus passes through thread engagement and connects on stomach peep tub surface, stomach peep the pipe and pass through thread engagement and connect on the spraying cavity side surface, stomach way penetrates the pipe and passes through thread engagement and connect between the integrative camera lens of stomach peep pipe and spraying, spraying is peeied at integrative camera lens and passes through thread engagement and connect in stomach way and penetrate the pipe top.
Further, the liquid medicine atomizing chamber is equipped with electric heating wire, atomizing actuating mechanism, bottom stirring oar, filter screen, drive mechanism, liquid medicine atomizing chamber inlays and locates between liquid medicine extraction chamber and the fog injection chamber.
Further, electric heating wire inlays and locates the atomizing actuating mechanism below, atomizing actuating mechanism inlays and locates inside the water proof stop, the bottom is stirred the oar and is passed through the bolt riveting and connect on spraying cavity inner wall, the filter screen inlays and locates the drive mechanism below, drive mechanism passes through the bolt riveting and connects on spraying cavity inner wall.
Furthermore, the atomization starting mechanism is provided with a micro-motion pressing rod, a reset spring, a waterproof baffle, an electrified contact block and an electrified lead, and the atomization starting mechanism is embedded inside the waterproof baffle.
Furthermore, the micro-motion press rod is embedded at the bottom of the starting switch, the reset spring is connected to the bottom of the micro-motion press rod, the waterproof baffle is welded on the inner wall of the spray cavity, the power-on contact blocks are respectively connected between the reset spring and the power-on lead, and the power-on lead is connected between the power-on contact blocks and the electric heating wire.
Further, the bottom is stirred the oar and is equipped with and stirs blade, rotation support shaft, stir the even equidistance of blade and inlay and locate on rotation support shaft, rotation support shaft passes through the thread engagement and connects on spraying cavity inner wall.
Furthermore, the transmission mechanism is provided with a transmission pinion, a transmission gear wheel, a transmission fixing shaft and a conveyor belt, and the transmission mechanism is connected between the filter screen and the mist spraying cavity in a riveting mode through bolts.
Furthermore, the transmission pinion is connected to the transmission fixing shaft through threaded engagement, the transmission gearwheel is connected to the transmission fixing shaft through threaded engagement, the transmission fixing shaft is connected to the inner wall of the spraying cavity through bolts in a riveting mode, and the conveyor belt is connected between the transmission pinion and the transmission gearwheel.
Further, the fog sprays the chamber and is equipped with the spraying export, the spraying export is the bucket shape structure, spraying export top is the flat structure of rectangle, the even equidistance of spraying export inlays and locates fog and sprays the chamber bottom.
Advantageous effects
When the gastroscope device capable of atomizing and spraying medicine for the gastroenterology works, the gastroscope device is provided with the medicine bottle connector, the medicine bottle connector is connected between the threaded medicine guide pipe and the medicine liquid extraction pipe, the medicine bottle can be fixedly connected onto the spraying cavity through the medicine bottle connector, and then the medicine liquid is extracted and atomized through the medicine liquid extraction pump; the liquid medicine extracting cavity is provided with the threaded medicine guide pipe, the liquid medicine extracting pump and the battery, the liquid medicine extracting pump is connected with the threaded medicine guide pipe and can assist in extracting liquid medicine in the medicine bottle into the liquid medicine atomizing cavity, the liquid medicine extracting speed is increased, and accordingly the atomizing speed is increased; the liquid medicine atomization cavity is provided with the electric heating wire, the atomization starting mechanism, the bottom stirring paddle, the filter screen and the transmission mechanism, liquefied air flow can be stirred by the bottom stirring paddle, liquid moving at high speed forms mist through the rotational flow of the stirring blades, and then the mist is guided into the mist injection cavity through the mist outlet; when a starting switch is pressed down, the micro pressing rod is pressed down to drive the reset spring to move downwards, the electrified contact blocks are contacted with each other, a circuit is communicated, an electric heating wire is started, and liquid medicine in the liquid medicine atomization cavity is heated through the electric heating wire, so that atomization is accelerated; the transmission mechanism is provided with a transmission pinion, a transmission gear wheel, a transmission fixing shaft and a conveyor belt, and the transmission pinion of the transmission mechanism is matched with the transmission gear wheel to drive the bottom stirring paddle and the top stirring paddle to rotate at high speed; the mist spraying cavity is provided with the mist spraying outlet and the top stirring paddle, mist is quickly filled into the medicine discharging spray pipe through the high-speed movement of the top stirring paddle and then enters the respiratory tract of a patient, the medicine feeding speed is increased, and discomfort of the patient is avoided; through the mutually supporting of above device, can change dressings fast through the medicine bottle connector, lead the medicine fast through the liquid medicine extraction pump simultaneously, mix the oar fast atomization with the bottom through electric heating wire again, can carry out quick medicine feeding through quick atomizing effect, the atomizing medicine feeding also can be carried out the medicine feeding under the influence of minimum perception, reduce the uncomfortable sense that the patient caused when the medicine feeding, simultaneously the invention is small, simple structure, the medicine feeding is rapid, can be directly to the symptom medicine feeding after examining out the cause of disease at medical personnel.
Drawings
Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

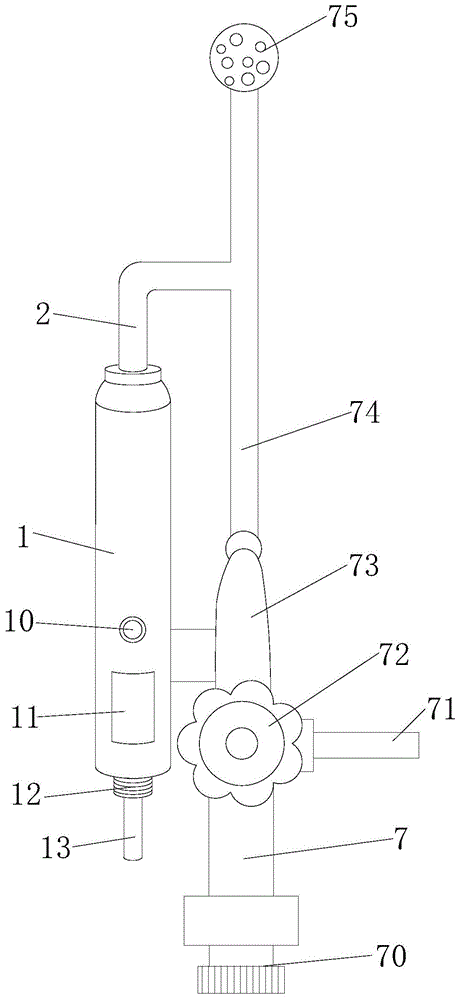

fig. 1 is a schematic structural diagram of a gastroscope device capable of spraying atomized medicine for the department of gastroenterology.
Fig. 2 is a schematic diagram of the internal structure of the spray chamber of the present invention in a static state.
Fig. 3 is a schematic view of the internal structure of the spray chamber of the present invention in an operating state.
Fig. 4 is a schematic structural view of the atomization starting mechanism in a static state.
Fig. 5 is a schematic structural view of the atomizing starting mechanism in a working state.
Fig. 6 is a side view of a bottom agitator paddle according to the present invention.
Fig. 7 is a schematic top view of the transmission mechanism of the present invention.
In the figure: a spraying cavity-1, a medicine outlet nozzle-2, a medicine bottle-3, a medicine liquid extracting cavity-4, a medicine liquid atomizing cavity-5, a mist spraying cavity-6, a stomach peeping device-7, a starting switch-10, a battery bin-11, a medicine bottle connector-12, a medicine liquid extracting pipe-13, an atomizing nozzle-20, an anti-scratch bent nozzle-21, a threaded medicine guide pipe-40, a medicine liquid extracting pump-41, a battery-42, an electric heating wire-50, an atomizing starting mechanism-51, a micro-motion pressing rod-510, a reset spring-511, a waterproof baffle-512, an electrified contact block-513, an electrified lead-514, a bottom stirring paddle-52, a stirring blade-520, a rotating supporting shaft-521, a filter screen-53, a transmission mechanism-54, a water-oxygen-free water-gas-oxygen-free water, A transmission pinion-540, a transmission gearwheel-541, a transmission fixed shaft-542, a conveyor belt-543, a spray outlet-60, a top stirring paddle-61, a stomach peeping eyepiece-70, an electronic connecting lead-71, an electronic adjusting device-72, a stomach peeping tube-73, a stomach duct penetrating tube-74 and a spray peeping integrated lens-75.
Detailed Description
In order to make the technical means, the creation characteristics, the achievement purposes and the effects of the invention easy to understand, the invention is further described with the specific embodiments.
Referring to fig. 1-7, the present invention provides a gastroscope device with atomized medicine spraying for gastroenterology, which comprises: the structure of the device comprises a spraying cavity 1, a medicine outlet spray pipe 2, a medicine bottle 3, a medicine liquid extraction cavity 4, a medicine liquid atomization cavity 5, a mist spraying cavity 6 and a stomach peeping device 7, wherein the spraying cavity 1 is connected below the medicine outlet spray pipe 2 through thread engagement, the medicine outlet spray pipe 2 is connected at the top of the spraying cavity 1 through thread engagement, the medicine bottle 3 is connected at the bottom of the spraying cavity 1 through thread engagement, the medicine liquid extraction cavity 4 is embedded on the bottom surface inside the spraying cavity 1, the medicine liquid atomization cavity 5 is embedded between the medicine liquid extraction cavity 4 and the mist spraying cavity 6, the mist spraying cavity 6 is embedded above the medicine liquid atomization cavity 5, the stomach peeping device 7 is connected on the side surface of the spraying cavity 1 through thread engagement, the spraying cavity 1 is provided with a starting switch 10, a battery bin 11, a medicine bottle connector 12 and a medicine liquid extraction pipe 13, the starting switch 10 is embedded above the battery bin 11, the battery bin 11 is embedded on the side surface of the spraying cavity 1, the medicine bottle connector 12 is connected to the bottom of the spraying cavity 1 through hot melting, and the liquid medicine extraction pipe 13 is connected below the medicine bottle connector 12 through hot melting; the medicine discharging spray pipe 2 is provided with an atomizing nozzle 20 and an anti-scratching bent nozzle 21, the atomizing nozzle 20 is connected to the top end of the medicine discharging spray pipe 2 through threaded engagement, and the anti-scratching bent nozzle 21 is embedded at the top end of the atomizing nozzle 20; the liquid medicine extracting cavity 4 is provided with a threaded medicine guide pipe 40, a liquid medicine extracting pump 41 and a battery 42, the threaded medicine guide pipe 40 is connected between the liquid medicine extracting pipe 13 and the liquid medicine atomizing cavity 5, the liquid medicine extracting pump 41 is embedded below the battery compartment 11, and the battery 42 is embedded inside the battery compartment 11; the mist spraying cavity 6 is provided with a spraying outlet 60 and a top stirring paddle 61, the spraying outlet 60 is uniformly embedded at the bottom of the mist spraying cavity 6 at equal intervals, and the top stirring paddle 61 is riveted on the inner wall of the spraying cavity 1 through a bolt; the stomach peeping device 7 is provided with a stomach peeping eyepiece 70, an electronic connecting wire 71, an electronic adjusting device 72, a stomach peeping tube 73, a gastric canal penetration tube 74 and a spraying and peeping integrated lens 75, the stomach peeping eyepiece 70 is connected to the bottom end of the stomach peeping tube 73 through thread engagement, the electronic connecting wire 71 is electrically connected to the side surface of the electronic adjusting device 72, the electronic adjusting device 72 is connected to the outer surface of the stomach peeping tube 73 through thread engagement, the stomach peeping tube 73 is connected to the side surface of the spraying cavity 1 through thread engagement, the gastric canal penetration tube 74 is connected between the stomach peeping tube 73 and the spraying and peeping integrated lens 75 through thread engagement, the spraying and peeping integrated lens 75 is connected to the top end of the gastric canal penetration tube 74 through thread engagement, the liquid medicine atomizing cavity 5 is provided with an electric heating wire 50, an atomizing starting mechanism 51, an electric heating wire, the bottom stirring paddle 52, the filter screen 53 and the transmission mechanism 54, the liquid medicine atomization chamber 5 is embedded between the liquid medicine extraction chamber 4 and the mist injection chamber 6, the electric heating wire 50 is embedded below the atomization starting mechanism 51, the atomization starting mechanism 51 is embedded inside the waterproof baffle 512, the bottom stirring paddle 52 is riveted on the inner wall of the spray chamber 1 through a bolt, the filter screen 53 is embedded below the transmission mechanism 54, the transmission mechanism 54 is riveted on the inner wall of the spray chamber 1 through a bolt, the atomization starting mechanism 51 is provided with a micro-motion pressing rod 510, a reset spring 511, a waterproof baffle 512, a power-on contact block 513 and a power-on lead 514, the atomization starting mechanism 51 is embedded inside the waterproof baffle 512, the micro-motion pressing rod 510 is embedded at the bottom of the starting switch 10, the reset spring 511 is connected at the bottom of the micro-motion pressing rod 510, the waterproof baffle 512 is welded on the inner wall of the spray chamber 1, the electrified contact block 513 is respectively connected between the reset spring 511 and the electrified lead wire 514, the electrified lead wire 514 is connected between the electrified contact block 513 and the electric heating wire 50, the bottom stirring paddle 52 is provided with stirring blades 520 and a rotating support shaft 521, the stirring blades 520 are uniformly embedded on the rotating support shaft 521 at equal intervals, the rotating support shaft 521 is connected on the inner wall of the spraying cavity 1 through threaded engagement, the transmission mechanism 54 is provided with a transmission pinion 540, a transmission gearwheel 541, a transmission fixing shaft 542 and a conveyor belt 543, the transmission mechanism 54 is connected between the filter screen 53 and the mist spraying cavity 6 through bolts in a riveting manner, the transmission pinion 540 is connected on the transmission fixing shaft 542 through threaded engagement, the transmission gearwheel is connected on the transmission fixing shaft 542 through threaded engagement, and the transmission fixing shaft 542 is connected on the inner wall of the spraying cavity 1 through bolts in a riveting manner, the conveyer belt 543 is connected between the transmission pinion 540 and the transmission gear 541, the mist spraying chamber 6 is provided with a spraying outlet 60, the spraying outlet 60 is of a bucket-shaped structure, the top of the spraying outlet 60 is of a rectangular flat structure, and the spraying outlet 60 is embedded at the bottom of the mist spraying chamber 6 at equal intervals.
When the user uses the equipment to apply the medicine, the patient can carry out medicine application treatment by himself, and the medicine can be applied by fast atomization and spraying, so that the discomfort of the patient is reduced, and the workload of medical care personnel is reduced.
The reset spring is of a spring structure which deforms under the action of external force and can be restored after the external force is removed.
The invention solves the problems that in the prior art, when the traditional Chinese medicine is used, the traditional Chinese medicine is difficult to spray on the stomach wall when the traditional Chinese medicine is sprayed, so that a patient still feels uncomfortable during gastroscopy, the inspection progress is influenced, and after the inspection is finished, when the traditional Chinese medicine is used for treating gastric ulcer of the patient, the traditional Chinese medicine is difficult to be used on the ground in a targeted manner, and only can be taken orally, but the traditional Chinese medicine is not beneficial to quickly recovering the patient with the gastric disease by the oral administration. Can be directly used for symptomatic medicine administration after the medical care personnel inspects the etiology.
| Stirring blade material | Stainless steel | Aluminium | Iron |
| Corrosion resistance | Height of | In | Is low in |
| Toughness and toughness | High strength | In | Weak (weak) |
In summary, the following steps: when the stirring blade is made of stainless steel, the stirring blade is made of the stainless steel with the strongest toughness and the best corrosion resistance, so that the stainless steel is the best choice for the stirring blade.
While there have been shown and described what are at present considered the fundamental principles and essential features of the invention and its advantages, it will be apparent to those skilled in the art that the invention is not limited to the details of the foregoing exemplary embodiments, but is capable of other specific forms without departing from the spirit or essential characteristics thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (1)
1. The utility model provides a gastroenterology is with gastroscope device that medicine was spouted in atomizing, its structure includes spraying cavity (1), goes out medicine spray tube (2), medicine bottle (3), liquid medicine extraction chamber (4), liquid medicine atomizing chamber (5), fog spray chamber (6), stomach peep device (7), spraying cavity (1) is connected in a medicine spray tube (2) below through thread engagement, it connects in spraying cavity (1) top to go out medicine spray tube (2) through thread engagement, medicine bottle (3) are connected in spraying cavity (1) bottom through thread engagement, liquid medicine extraction chamber (4) inlays and locates on spraying cavity (1) inside bottom surface, liquid medicine atomizing chamber (5) inlays and locates between liquid medicine extraction chamber (4) and the fog spray chamber (6), fog spray chamber (6) inlays and locates liquid medicine atomizing chamber (5) top, stomach peep device (7) through thread engagement and connects on spraying cavity (1) side surface, the method is characterized in that:
the spraying cavity (1) is provided with a starting switch (10), a battery bin (11), a medicine bottle connector (12) and a medicine liquid extracting pipe (13), the starting switch (10) is embedded above the battery bin (11), the battery bin (11) is embedded on the side surface of the spraying cavity (1), the medicine bottle connector (12) is connected to the bottom of the spraying cavity (1) through hot melting, and the medicine liquid extracting pipe (13) is connected to the lower part of the medicine bottle connector (12) through hot melting;
the medicine outlet spray pipe (2) is provided with an atomizing nozzle (20) and an anti-scratching bent nozzle (21), the atomizing nozzle (20) is connected to the top end of the medicine outlet spray pipe (2) through threaded engagement, and the anti-scratching bent nozzle (21) is embedded in the top end of the atomizing nozzle (20);
the liquid medicine extracting cavity (4) is provided with a threaded medicine guide pipe (40), a liquid medicine extracting pump (41) and a battery (42), the threaded medicine guide pipe (40) is connected between the liquid medicine extracting pipe (13) and the liquid medicine atomizing cavity (5), the liquid medicine extracting pump (41) is embedded below the battery bin (11), and the battery (42) is embedded inside the battery bin (11);
the mist spraying cavity (6) is provided with a spraying outlet (60) and top stirring paddles (61), the spraying outlet (60) is uniformly embedded at the bottom of the mist spraying cavity (6) at equal intervals, and the top stirring paddles (61) are riveted on the inner wall of the spraying cavity (1) through bolts;
the stomach peeping device (7) is provided with a stomach peeping eyepiece (70), an electronic connecting lead (71), an electronic adjusting device (72), a stomach peeping tube (73), a stomach duct penetration tube (74) and a spraying and peeping integrated lens (75), the stomach peeping eyepiece (70) is connected with the bottom end of a stomach peeping tube (73) through thread engagement, the electronic connecting lead (71) is electrically connected to the side surface of the electronic adjusting device (72), the electronic adjusting device (72) is connected on the outer surface of the stomach peeping tube (73) through threaded engagement, the stomach peeping tube (73) is connected to the side surface of the spraying cavity body (1) through threaded engagement, the gastric canal penetration tube (74) is engaged and connected between the gastric peeping tube (73) and the spraying peeping integrated lens (75) through threads, the spraying and peeping integrated lens (75) is connected to the top end of the gastric canal penetration tube (74) through threaded engagement;
the liquid medicine atomizing cavity (5) is provided with an electric heating wire (50), an atomizing starting mechanism (51), a bottom stirring paddle (52), a filter screen (53) and a transmission mechanism (54), and the liquid medicine atomizing cavity (5) is embedded between the liquid medicine extracting cavity (4) and the mist spraying cavity (6);
the electric heating wire (50) is embedded below the atomization starting mechanism (51), the atomization starting mechanism (51) is embedded inside the waterproof baffle (512), the bottom stirring paddle (52) is connected to the inner wall of the spraying cavity (1) in a riveting mode through bolts, the filter screen (53) is embedded below the transmission mechanism (54), and the transmission mechanism (54) is connected to the inner wall of the spraying cavity (1) in a riveting mode through bolts; the atomization starting mechanism (51) is provided with a micro pressing rod (510), a return spring (511), a waterproof baffle (512), an electrified contact block (513) and an electrified lead (514), and the atomization starting mechanism (51) is embedded in the waterproof baffle (512);
the micro-motion pressing rod (510) is embedded at the bottom of the starting switch (10), the return spring (511) is connected to the bottom of the micro-motion pressing rod (510), the waterproof baffle (512) is welded on the inner wall of the spraying cavity (1), the electrifying contact blocks (513) are respectively connected between the return spring (511) and the electrifying lead (514), and the electrifying lead (514) is connected between the electrifying contact blocks (513) and the electric heating wire (50);
the bottom stirring paddle (52) is provided with stirring blades (520) and a rotating support shaft (521), the stirring blades (520) are uniformly embedded on the rotating support shaft (521) at equal intervals, and the rotating support shaft (521) is meshed with the inner wall of the spraying cavity (1) through threads;
the transmission mechanism (54) is provided with a transmission pinion (540), a transmission gearwheel (541), a transmission fixed shaft (542) and a conveyor belt (543), and the transmission mechanism (54) is connected between the filter screen (53) and the mist spraying cavity (6) in a riveting mode through bolts;
the transmission small gear (540) is connected to the transmission fixing shaft (542) in a threaded engagement mode, the transmission large gear (541) is connected to the transmission fixing shaft (542) in a threaded engagement mode, the transmission fixing shaft (542) is connected to the inner wall of the spraying cavity (1) in a riveting mode through bolts, and the conveyor belt (543) is connected between the transmission small gear (540) and the transmission large gear (541);
the mist spraying cavity (6) is provided with a spraying outlet (60), the spraying outlet (60) is of a bucket-shaped structure, the top of the spraying outlet (60) is of a rectangular flat structure, and the spraying outlets (60) are uniformly embedded at the bottom of the mist spraying cavity (6) at equal intervals;
when the sprayer works, the medicine bottle connector is arranged and connected between the threaded medicine guide pipe and the liquid medicine extracting pipe, the medicine bottle is fixedly connected to the spraying cavity through the medicine bottle connector, and liquid medicine is extracted and atomized through the liquid medicine extracting pump; the liquid medicine extracting cavity is provided with the threaded medicine guide pipe, the liquid medicine extracting pump and the battery, the liquid medicine extracting pump is connected with the threaded medicine guide pipe and is used for extracting liquid medicine in the medicine bottle into the liquid medicine atomizing cavity in an auxiliary mode, the liquid medicine extracting speed is increased, and accordingly the atomizing speed is increased; the liquid medicine atomizing cavity is provided with the electric heating wire, the atomizing starting mechanism, the bottom stirring paddle, the filter screen and the transmission mechanism, liquefied air flow is stirred by the bottom stirring paddle, high-speed moving liquid forms mist through the rotational flow of the stirring blades, and the mist is guided into the mist spraying cavity through the mist spraying outlet; when a starting switch is pressed down, the micro pressing rod is pressed down to drive the reset spring to move downwards, the electrified contact blocks are contacted with each other, a circuit is communicated, an electric heating wire is started, and liquid medicine in the liquid medicine atomization cavity is heated through the electric heating wire, so that atomization is accelerated; the transmission mechanism is provided with a transmission pinion, a transmission gear wheel, a transmission fixing shaft and a conveyor belt, and the transmission pinion of the transmission mechanism is matched with the transmission gear wheel to drive the bottom stirring paddle and the top stirring paddle to rotate at high speed; through being equipped with a fog and spraying the chamber, the fog sprays the chamber and is equipped with spray outlet, top stirring oar, and the high-speed motion of stirring the oar through the top pours into out the medicine spray tube into the fog fast, reentrants patient's respiratory track for the speed of adding medicine, avoid causing patient's discomfort.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201810150091.5A CN108158552B (en) | 2018-02-13 | 2018-02-13 | Gastroenterology is with gastroscope device that can atomize and spout medicine |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201810150091.5A CN108158552B (en) | 2018-02-13 | 2018-02-13 | Gastroenterology is with gastroscope device that can atomize and spout medicine |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN108158552A CN108158552A (en) | 2018-06-15 |
| CN108158552B true CN108158552B (en) | 2020-04-03 |
Family
ID=62514046
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201810150091.5A Expired - Fee Related CN108158552B (en) | 2018-02-13 | 2018-02-13 | Gastroenterology is with gastroscope device that can atomize and spout medicine |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN108158552B (en) |
Families Citing this family (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN109044256A (en) * | 2018-08-31 | 2018-12-21 | 青岛大学附属医院 | A kind of Gastroenterology dept.'s gastric ulcer drug treatment intelligent apparatus |
| CN111297307B (en) * | 2020-02-26 | 2021-01-29 | 吉林大学 | Gastrointestinal endoscope water injection device for endoscope center |
| CN114557733B (en) * | 2022-02-28 | 2023-03-21 | 常州市久虹医疗器械有限公司 | Biopsy valve for endoscope |
Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN206621625U (en) * | 2016-12-16 | 2017-11-10 | 陈小霞 | A kind of medicine sprayer for respiratory medical department |
| CN206852911U (en) * | 2017-01-18 | 2018-01-09 | 西安交通大学医学院第一附属医院 | Division of respiratory disease nursing chemical sprayer |
| CN107648727A (en) * | 2017-11-10 | 2018-02-02 | 安徽金思源生物科技有限公司 | Throat medicine feeding device |
-
2018
- 2018-02-13 CN CN201810150091.5A patent/CN108158552B/en not_active Expired - Fee Related
Patent Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN206621625U (en) * | 2016-12-16 | 2017-11-10 | 陈小霞 | A kind of medicine sprayer for respiratory medical department |
| CN206852911U (en) * | 2017-01-18 | 2018-01-09 | 西安交通大学医学院第一附属医院 | Division of respiratory disease nursing chemical sprayer |
| CN107648727A (en) * | 2017-11-10 | 2018-02-02 | 安徽金思源生物科技有限公司 | Throat medicine feeding device |
Also Published As
| Publication number | Publication date |
|---|---|
| CN108158552A (en) | 2018-06-15 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN108158552B (en) | Gastroenterology is with gastroscope device that can atomize and spout medicine | |
| CN205379288U (en) | Gastroenterology gastroscope liquid medicine spraying device | |
| CN205108324U (en) | Fumigator used for rhinitis treatment | |
| CN107929892A (en) | A kind of solid tablet is milled atomising device | |
| CN109806148A (en) | A kind of naked joint fumigating nursing device of foot convenient for adjusting adjustable height | |
| CN107823780A (en) | A kind of Respiratory Medicine pesticide spraying system | |
| CN103495187B (en) | Type-B ultrasonic traditional Chinese medicinal gastroenterography assistant and method for preparing same | |
| CN109224269A (en) | A kind of gastroenterology esophagus feeding device | |
| CN206852911U (en) | Division of respiratory disease nursing chemical sprayer | |
| CN107376070A (en) | A kind of portable atomization therapeutic device quantitatively discharged | |
| CN209422433U (en) | A kind of Chinese herbal fumigation and washing equipment | |
| CN108464925A (en) | A kind of Chinese medicinal fumigating treatment device that section being immunized for rheumatism | |
| CN205994858U (en) | A kind of Digestive System Department esophagus applicator | |
| CN211584713U (en) | Breathe internal medicine with solid tablet atomizing device that mills | |
| CN108126254A (en) | A kind of medical treatment internal medicine stomach cleaning device | |
| CN103768539A (en) | Traditional Chinese medicine resuscitation-inducing and sore throat-relieving bar for treating deglutition function obstacle after stroke | |
| CN212282489U (en) | Visual endotracheal intubation rigid endoscope for airway surface anesthesia | |
| CN104258369A (en) | Traditional Chinese medicine composition for treating epigastric pain | |
| CN209270273U (en) | A kind of gastroenterology abdominal distension adjuvant therapy device | |
| CN208049023U (en) | Cream machine is received in concentration | |
| CN114504474B (en) | Nutritional Aid Digestion Massager | |
| CN210955773U (en) | Multifunctional transparent gastric lavage training model | |
| CN219126284U (en) | Atomized medicine spraying mechanism for gastroscopy | |
| CN208770364U (en) | A kind of Chinese medicinal fumigating treatment device that section being immunized for rheumatism | |
| CN108815684B (en) | Oral care method |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| CB03 | Change of inventor or designer information | ||
| CB03 | Change of inventor or designer information |
Inventor after: Lu Yanyan Inventor after: Liu Fuguo Inventor after: Sun Xueguo Inventor after: Li Zhiqiang Inventor before: Li Zhiqiang |
|
| TA01 | Transfer of patent application right | ||
| TA01 | Transfer of patent application right |
Effective date of registration: 20200304 Address after: 266000 Jiangsu Road, Shandong, China, No. 16, No. Applicant after: THE AFFILIATED HOSPITAL OF QINGDAO University Address before: No. 1195 Fuxing Middle Road, Xuhui District, Shanghai Applicant before: Li Zhiqiang |
|
| GR01 | Patent grant | ||
| GR01 | Patent grant | ||
| CF01 | Termination of patent right due to non-payment of annual fee | ||
| CF01 | Termination of patent right due to non-payment of annual fee |
Granted publication date: 20200403 Termination date: 20220213 |
