Abstract
The invention discloses a shaving sorting device, which comprises a base, a mounting platform, a mounting bracket, a first sorting device, a storage cavity, a motor, a second sorting device and an electromagnetic vibrator, wherein the mounting platform is mounted on the base through the bracket, the mounting platform is provided with the first sorting device, the side wall of the first sorting device is provided with an air blower, the storage cavity is arranged above the first sorting device, the lower wall of the storage cavity is provided with a discharge chute, the discharge chute is matched with a dispersing device, a first discharge hopper and a second discharge hopper are arranged below the first sorting device, the second sorting device is arranged below the first discharge hopper, the second sorting device is fixed on the base through the mounting bracket, the electromagnetic vibrator is mounted below the second sorting device, and high-quality wood shavings can be separated from knots, knots and impurities, the obtained pure wood shavings are beneficial to the subsequent production and processing of the mould pressing tray, so that the quality of the tray is ensured.
Description
[ technical field ] A method for producing a semiconductor device
The invention relates to the technical field of mould pressing tray auxiliary equipment, in particular to the technical field of a shaving sorting device.
[ background of the invention ]
The pallet is a carrier for stacking goods and is a tool for mechanical loading, unloading and carrying. The pallet integrates scattered small goods and containers according to a certain quantity, and the small goods and the containers are transported in a unit form and form a transportation system of a container unit together with a forklift, so that the pallet becomes an indispensable important appliance of a modern logistics system and is generally adopted by all countries in the world. Need turn into wood crushed aggregates into the wood shavings in the mould pressing tray production process, with wood shavings and the hot pressing of glue mixture, the wood shavings machine can have oversize wood chip and fine powder in the in-process of production, influences the subsequent processing of tray, in order to guarantee the quality of tray, needs to filter the wood shavings, carries out the classification for fine with the wood shavings and selects separately, and separate processing so need propose a wood shavings sorting unit.
[ summary of the invention ]
The invention aims to solve the problems in the prior art and provides a wood shaving sorting device which can separate high-quality wood shavings from knots, knots and impurities to obtain pure shavings, is beneficial to subsequent production and processing of a molded tray, ensures the quality of the tray and improves the production efficiency.
In order to achieve the purpose, the invention provides a shaving sorting device, which comprises a base, a mounting platform, a mounting bracket, a first sorting device, a storage cavity, a motor, a second sorting device and an electromagnetic vibrator, wherein the mounting platform is mounted on the base through the bracket, the mounting platform is provided with the first sorting device, the side wall of the first sorting device is provided with an air blower, the air blower is connected with the motor, the storage cavity is arranged above the first sorting device, a feeding funnel is arranged above the storage cavity, the lower wall of the storage cavity is provided with a discharge chute, the discharge chute is matched with the sorting device, a first discharge hopper and a second discharge hopper are arranged below the first sorting device, a first waste collecting box is arranged below the second discharge hopper, the second sorting device is arranged below the first discharge hopper, and a recovery plate is fixed on the second sorting device through a connecting plate, the finished product collecting box is arranged at the right lower part of the second sorting device, the second waste collecting box is arranged at the right lower part of the recovery plate, the base is provided with a plurality of mounting brackets, the mounting brackets are fixed in the support through springs, the second sorting device is fixed on the base through the mounting brackets, and the electromagnetic vibrator is arranged below the second sorting device.
Preferably, the dispersing device comprises a rotary disc, a driving disc and a driving shaft, the rotary disc is mounted below the discharge chute through a bearing, the driving shaft is matched with the driving disc, the driving shaft is connected with a motor, and the rotary disc rotates under the driving of the driving disc.
Preferably, the turntable comprises a first driving tooth, a blanking groove and a baffle, the section of the turntable is circular, the blanking groove is fan-shaped, the blanking groove and the discharge groove are identical in shape and size, a second driving tooth is arranged on the driving disc, ventilation openings are further formed in the side walls of the second driving tooth and the first driving tooth, the ventilation openings and the air blower are located on the same horizontal line, a screen is arranged on the ventilation openings, and the second discharge hopper is located on the rear side of the first discharge hopper.
Preferably, the second sorting device is provided with a screen, the included angle between the second sorting device and the horizontal plane is 15-20 degrees, the recovery plate is parallel to the second sorting device, and the second sorting device vibrates under the driving of the electromagnetic vibrator.
Preferably, the number of the mounting brackets is 6, and the mounting brackets are uniformly and symmetrically distributed.
The invention has the beneficial effects that: according to the invention, the first sorting device, the material storage cavity, the motor, the second sorting device, the electromagnetic vibrator and the like are combined together for use, the dispersing device can ensure that the wood shavings are dispersed in the falling process, so that the screening of the blower is thorough, the first sorting device screens out large-size wood chips, the second sorting device screens out fine powder, pure wood shavings can be obtained, the subsequent production and processing of the molded tray are facilitated, the quality of the tray is ensured, and the production efficiency is improved.
The features and advantages of the present invention will be described in detail by embodiments in conjunction with the accompanying drawings.
[ description of the drawings ]

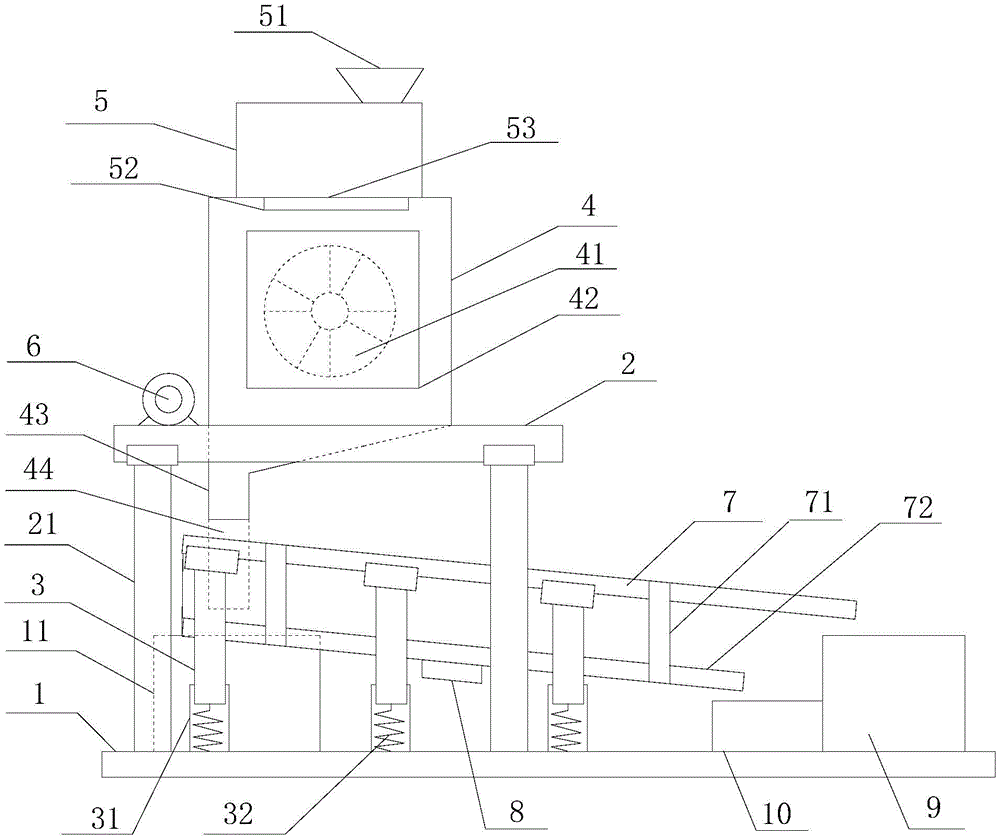

FIG. 1 is a schematic view of a wood chip sorting apparatus according to the present invention;
FIG. 2 is a left side view of a wood chip sorting apparatus of the present invention;
fig. 3 is a schematic view of a dispersing device of the wood shaving sorting device according to the present invention.
1-a base, 2-a mounting table, 3-a mounting bracket, 4-a first sorting device, 5-a material storage cavity, 6-a motor, 7-a second sorting device, 8-an electromagnetic vibrator, 9-a finished product collecting box, 10-a second waste collecting box, 11-a first waste collecting box, 21-a bracket, 31-a support, 32-a spring and 41-a blower, 42-ventilation opening, 43-first discharge hopper, 44-second discharge hopper, 51-feeding hopper, 52-dispersing device, 53-discharge chute, 521-rotary table, 522-driving disc, 523-driving shaft, 5211-first driving tooth, 5212-blanking chute, 5213-baffle, 5221-second driving tooth, 71-connecting plate and 72-recovery plate.
[ detailed description ] embodiments
Referring to fig. 1, 2 and 3, the shaving sorting device of the present invention comprises a base 1, a mounting table 2, a mounting bracket 3, a first sorting device 4, a storage chamber 5, a motor 6, a second sorting device 7 and an electromagnetic vibrator 8, wherein the mounting table 2 is mounted on the base 1 through a bracket 21, the mounting table 2 is provided with the first sorting device 4, the side wall of the first sorting device 4 is provided with an air blower 41, the air blower 41 is connected with the motor 6, the storage chamber 5 is arranged above the first sorting device 4, the storage chamber 5 is provided with a feeding funnel 51 above, the lower wall of the storage chamber 5 is provided with a discharge chute 53, the discharge chute 53 is matched with a dispersing device 52, a first discharge hopper 43 and a second discharge hopper 44 are arranged below the first sorting device 4, a first waste collecting box 11 is arranged below the second discharge hopper 44, the second sorting device 7 is arranged below the first discharge hopper 43, the recycling plate 72 is fixed on the second sorting device 7 through a connecting plate 71, a finished product collecting box 9 is arranged at the lower right of the second sorting device 7, a second waste collecting box 10 is arranged at the lower right of the recycling plate 72, a plurality of mounting brackets 3 are arranged on the base 1, the mounting brackets 3 are fixed in the support 31 through springs 32, the second sorting device 7 is fixed on the base 1 through the mounting brackets 3, and an electromagnetic vibrator 8 is arranged below the second sorting device 7.
The dispersing device 52 comprises a rotary disc 521, a driving disc 522 and a driving shaft 523, wherein the rotary disc 521 is mounted below the discharge chute 53 through a bearing, the driving shaft 523 is matched with the driving disc 522, the driving shaft 523 is connected with the motor 8, and the rotary disc 521 rotates under the driving of the driving disc 522. The rotary disc 521 comprises a first driving tooth 5211, a blanking groove 5212 and a baffle 5213, the cross section of the rotary disc 521 is circular, the blanking groove 5212 is fan-shaped, the blanking groove 5212 and the discharge groove 53 are identical in shape and size, a second driving tooth 5221 is arranged on the driving disc 522, and the second driving tooth 5221 is matched with the first driving tooth 5211. The side wall of the first sorting device 4 is further provided with a vent 42, the vent 42 and the blower 41 are located on the same horizontal line, the vent 42 is provided with a screen, and the second discharging hopper 44 is located on the rear side of the first discharging hopper 43. The second sorting device 7 is provided with a screen, an included angle between the second sorting device 7 and the horizontal plane is 15-20 degrees, the recovery plate 72 is parallel to the second sorting device 7, and the second sorting device 7 vibrates under the driving of the electromagnetic vibrator 8. The number of the mounting brackets 3 is 6, and the mounting brackets 3 are uniformly distributed.
The working process of the invention is as follows:
in the working process of the wood shaving sorting device, wood shavings to be sorted are put into a feeding hopper 51, a rotary disc 521 is driven by a motor 6 to rotate, when a blanking groove 5212 is coincided with a discharging groove 53, the wood shavings fall down, the wood shavings in a discharging cavity 5 are scattered and fall down under the action of a scattering device 52, an air blower 41 is aligned with the wood shavings, when large-sized wood chips pass through the air blower 41, the wood shavings fall down under the action of gravity and fall into a first waste collecting box 10 through a second discharging hole 44, the rest of the wood shavings fall into a second sorting device 7 through a first discharging hole 43, and under the action of an electromagnetic vibrator 8, the small-sized wood shavings fall onto a recovery plate 72 through a screen of the second sorting device 7, are poured into a second waste collecting box 10 through the recovery plate 72, and the rest of the wood shavings fall into a finished product collecting box 9, so that the sorting work of the wood shavings can be completed, and the good-quality wood shavings, The tree sections and the impurities are separated to obtain pure wood shavings, so that the subsequent production and processing of the molded tray are facilitated, the quality of the tray is guaranteed, and the production efficiency is improved.
The above embodiments are illustrative of the present invention, and are not intended to limit the present invention, and any simple modifications of the present invention are within the scope of the present invention.
Claims (4)
1. The utility model provides a wood shavings sorting unit which characterized in that: comprises a base (1), a mounting platform (2), a mounting bracket (3), a first sorting device (4), a storage cavity (5), a motor (6), a second sorting device (7) and an electromagnetic vibrator (8), wherein the mounting platform (2) is mounted on the base (1) through a bracket (21), the mounting platform (2) is provided with the first sorting device (4), the side wall of the first sorting device (4) is provided with an air blower (41), the air blower (41) is connected with the motor (6), the storage cavity (5) is arranged above the first sorting device (4), a feeding funnel (51) is arranged above the storage cavity (5), the lower wall of the storage cavity (5) is provided with a discharge chute (53), the discharge chute (53) is matched with a dispersing device (52), and a first discharge hopper (43) and a second discharge hopper (44) are arranged below the first sorting device (4), a first waste collecting box (11) is arranged below the second discharging hopper (44), a second sorting device (7) is arranged below the first discharging hopper (43), a recovery plate (72) fixed through a connecting plate (71) is arranged on the second sorting device (7), a finished product collecting box (9) is arranged at the lower right of the second sorting device (7), a second waste collecting box (10) is arranged at the lower right of the recovery plate (72), a plurality of mounting brackets (3) are arranged on the base (1), the mounting brackets (3) are fixed in the support (31) through springs (32), the second sorting device (7) is fixed on the base (1) through the mounting brackets (3), and an electromagnetic vibrator (8) is arranged below the second sorting device (7); the dispersing device (52) comprises a rotary disc (521), a driving disc (522) and a driving shaft (523), the rotary disc (521) is mounted below the discharge chute (53) through a bearing, the driving shaft (523) is matched with the driving disc (522), the driving shaft (523) is connected with a motor (6), and the rotary disc (521) rotates under the driving of the driving disc (522); the rotary table (521) comprises a first driving tooth (5211), a blanking groove (5212) and a baffle (5213), the cross section of the rotary table (521) is circular, the blanking groove (5212) is fan-shaped, the blanking groove (5212) and the discharge groove (53) are identical in shape and size, a second driving tooth (5221) is arranged on the driving disc (522), and the second driving tooth (5221) is matched with the first driving tooth (5211).
2. A wood wool sorting device as defined in claim 1, wherein: still be equipped with vent (42) on first sorter (4) lateral wall, vent (42) and air-blower (41) are located same water flat line, be equipped with the screen cloth on vent (42), second play hopper (44) are located the rear side of first play hopper (43).
3. A wood wool sorting device as defined in claim 1, wherein: the screen cloth is arranged on the second sorting device (7), an included angle between the second sorting device (7) and the horizontal plane is 15-20 degrees, the recovery plate (72) is parallel to the second sorting device (7), and the second sorting device (7) vibrates under the driving of the electromagnetic vibrator (8).
4. A wood wool sorting device as defined in claim 1, wherein: the number of the mounting brackets (3) is 6, and the mounting brackets (3) are uniformly and symmetrically distributed.
