本发明的目的是提供一种型材专用装卸架，包括支架，所述支架上设置有放置架，放置架上设置有转轴，支架下方还设置有支撑架，转轴的下方设置有横梁。通过在支架上设置转轴，将型材放在转轴上，再从型材后方推动型材，将型材推上货车，提高长条型材的装卸效率，并且保护型材的外表，避免在工人搬运型材时对型材外表造成伤害，通过在横梁上放置长条木板，可提高装载高多，结构简单，操作方便。

Figure 201310523105

The purpose of the present invention is to provide a special loading and unloading rack for profiles, including a bracket, a placing frame is arranged on the bracket, a rotating shaft is arranged on the placing rack, a supporting frame is arranged under the bracket, and a beam is arranged under the rotating shaft. By setting the rotating shaft on the bracket, putting the profile on the rotating shaft, pushing the profile from the rear of the profile, and pushing the profile onto the truck, the loading and unloading efficiency of the long profile is improved, and the appearance of the profile is protected to avoid damage to the profile when the workers carry the profile. To cause damage, by placing long strips of wood on the beam, the loading height can be increased, the structure is simple, and the operation is convenient.

Figure 201310523105

Description

型材专用装卸架Special loading and unloading rack for profiles

技术领域 technical field

本发明涉及一种装卸工装，尤其涉及一种用于长条型材装卸的专用装卸架。 The invention relates to a loading and unloading tool, in particular to a special loading and unloading rack for loading and unloading long profiles.

背景技术 Background technique

目前在输送长条型材时，需要将型材装车，而由于长条型材长度过长，装车工人在装车或者卸车时，会将型材放在车厢边缘推上去，造成型材外表损坏，并且工作效率极低，装卸货物速度慢，造成成本的提升。因此，解决长条型材装卸车困难的问题就显得尤为重要了。 At present, when transporting long profiles, the profiles need to be loaded into the vehicle, and because the length of the long profiles is too long, the loading workers will push the profiles on the edge of the carriage when loading or unloading the vehicle, causing the appearance of the profiles to be damaged, and the work The efficiency is extremely low, and the loading and unloading speed is slow, resulting in an increase in cost. Therefore, it is particularly important to solve the difficult problem of loading and unloading long strip profiles.

发明内容 Contents of the invention

本发明提供一种用于长条型材装卸的专用装卸架，通过支架和转轴，将型材放在转轴上，推上车厢，解决了长条型材装卸车困难的问题。 The invention provides a special loading and unloading rack for long profile loading and unloading. Through the bracket and the rotating shaft, the profile is placed on the rotating shaft and pushed onto the compartment, which solves the problem of difficulty in loading and unloading the long profile.

本发明的目的是提供一种型材专用装卸架，包括支架，所述支架上设置有放置架，放置架上设置有转轴，支架下方还设置有支撑架，转轴的下方设置有横梁。 The purpose of the present invention is to provide a special loading and unloading rack for profiles, including a bracket, a placing frame is arranged on the bracket, a rotating shaft is arranged on the placing rack, a supporting frame is arranged under the bracket, and a beam is arranged under the rotating shaft.

进一步改进在于：所述放置架的数量至少为两个，且每个放置架上都设置有转轴，所述转轴之间的距离至少为50cm。 A further improvement is that: there are at least two placing shelves, and each placing shelf is provided with a rotating shaft, and the distance between the rotating shafts is at least 50 cm.

进一步改进在于：所述支撑架上设置有加强筋，加强筋的一端连接在支架上，另一端连接在支撑架上。 A further improvement is: the supporting frame is provided with reinforcing ribs, one end of the reinforcing rib is connected to the bracket, and the other end is connected to the supporting frame.

进一步改进在于：所述支架顶端安装有雨棚。 A further improvement is that: a canopy is installed on the top of the support.

本发明的有益效果：通过在支架上设置转轴，将型材放在转轴上，再从型材后方推动型材，将型材推上货车，提高长条型材的装卸效率，并且保护型材的外表，避免在工人搬运型材时对型材外表造成伤害，通过在横梁上放置长条木板，可提高装载高多，结构简单，操作方便。 Beneficial effects of the present invention: by setting the rotating shaft on the bracket, placing the profile on the rotating shaft, pushing the profile from the rear of the profile, pushing the profile onto the truck, improving the loading and unloading efficiency of the long profile, and protecting the appearance of the profile, avoiding the The appearance of the profile will be damaged when the profile is transported. By placing a long board on the beam, the loading height can be increased, the structure is simple, and the operation is convenient.

附图说明 Description of drawings

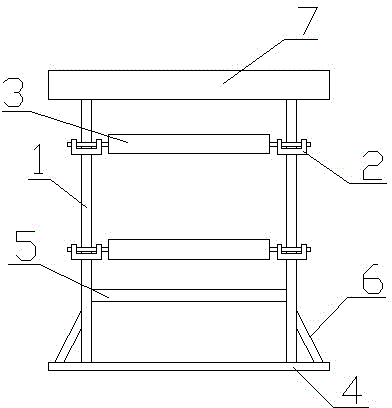

图１是本发明的结构示意图。 Fig. 1 is a structural schematic diagram of the present invention.

其中：1-支架，2-放置架，3-转轴，4-支撑架，5-横梁，6-加强筋，7-雨棚。 Among them: 1-bracket, 2-placement frame, 3-rotating shaft, 4-support frame, 5-beam, 6-reinforcing rib, 7-canopy.

具体实施方式 Detailed ways

为了加深对本发明的理解，下面将结合实施例对本发明作进一步详述，该实施例仅用于解释本发明，并不构成对本发明保护范围的限定。 In order to deepen the understanding of the present invention, the present invention will be further described below in conjunction with examples, which are only used to explain the present invention and do not constitute a limitation to the protection scope of the present invention.

如图1所示，本实施例提供了一种型材专用装卸架，包括支架1，所述支架1上设置有放置架2，放置架2上设置有转轴3，支架1下方还设置有支撑架4，转轴3的下方设置有横梁5。所述放置架2的数量为两个，且每个放置架2上都设置有转轴3，所述转轴3之间的距离为50cm。所述支撑架4上设置有加强筋6，加强筋6的一端连接在支架1上，另一端连接在支撑架4上。所述支架1顶端安装有雨棚7。通过在支架1上设置转轴3，将型材放在转轴3上，再从型材后方推动型材，将型材推上货车，提高长条型材的装卸效率，并且保护型材的外表，避免在工人搬运型材时对型材外表造成伤害，通过在横梁5上放置长条木板，可提高装载高多，结构简单，操作方便。 As shown in Figure 1, this embodiment provides a special loading and unloading rack for profiles, including a bracket 1, a placement rack 2 is arranged on the bracket 1, a rotating shaft 3 is arranged on the placement rack 2, and a support frame is also arranged under the bracket 1 4. A crossbeam 5 is provided below the rotating shaft 3 . The number of the placing racks 2 is two, and each placing rack 2 is provided with a rotating shaft 3, and the distance between the rotating shafts 3 is 50 cm. The supporting frame 4 is provided with a reinforcing rib 6 , one end of the reinforcing rib 6 is connected to the bracket 1 , and the other end is connected to the supporting frame 4 . A canopy 7 is installed on the top of the support 1 . By setting the rotating shaft 3 on the bracket 1, placing the profile on the rotating shaft 3, and then pushing the profile from the rear of the profile, and pushing the profile onto the truck, the loading and unloading efficiency of the long profile is improved, and the appearance of the profile is protected, so that it is avoided when workers carry the profile. To cause damage to the profile appearance, the loading height can be improved by placing long planks on the beam 5, the structure is simple, and the operation is convenient.
