CN103586131A - Device and method for purifying indoor air through electrostatic atomization - Google Patents

Abstract

The invention discloses an electrostatic atomization indoor air purification device, which comprises a filter screen (1), a corona electrode (2), a metal dust collection net (3), a water collection tank (4), and a photocatalyst filter screen (5) , LED light source (6), negative ion generator (7), drainage fan (8), and the purification device also includes an electrostatic atomizer (9) forming an electrostatic spray field (12). The invention adopts the method of combining electrostatic dust removal and purification with electrostatic atomization water washing and purification. The air first passes through the strong electric field area formed by the filter screen and high-voltage corona, and the harmful gas is decomposed by the strong electric field, and then passes through the charged water mist area formed by electrostatic atomization to further dissolve the harmful gas, absorb dust particles, and then pass through the photocatalyst filter. The net is deeply purified, combined with negative ion generation and airflow guidance, to achieve the purpose of efficient purification of indoor air circulation.

Description

Device and method for purifying indoor air by electrostatic atomization

technical field

The invention relates to the field of air purification treatment, in particular to a novel air purification device and method using electrostatic spraying indoors.

Background technique

Indoor air contains gases such as dust, bacteria, dust mites and formaldehyde. Air pollution reduces the air quality after natural convection ventilation in the room and increases the number of inhalable particles. Most of the existing air purifiers use negative ions after filtering dust to eliminate odors and harmful gases, or after multiple filtrations, activated carbon adsorption is used in the filter layer to remove odors, which often increases the wind resistance of air flow and energy consumption. This method cannot completely remove the toxic and harmful substances in the air, and cannot achieve satisfactory results.

Contents of the invention

In order to solve the problem that the toxic and harmful substances in the air cannot be completely removed in the prior art, the present invention proposes a new electrostatic spray air purification device and method that combines electrostatic dust removal purification with electrostatic atomization water washing purification.

An electrostatic atomization indoor air purification device, which includes a filter screen 1, a corona electrode 2, a metal dust collection screen 3, a water collection tank 4, a photocatalyst filter screen 5, an LED light source 6, an anion generating device 7, and a Drainage fan 8, electrostatic atomizer 9 forming an electrostatic spray field 12, water tank 10, high-voltage electrostatic generator 11, the positive pole of the high-voltage electrostatic generator 11 is connected to the corona electrode 2, and the negative pole of the high-voltage generator 11 is connected to the electrostatic atomization device 9 and metal dust suction board.

The electrostatic atomizer 9 is connected to the water tank 10 , and the capillary 13 is distributed at the bottom of the electrostatic atomizer 9 .

Said device arranges filter screen 1, corona electrode 2, metal dust-absorbing net 3, electrostatic spray field 12 formed by electrostatic atomization device 9, photocatalyst filter screen 5, LED light source 6, negative ion generating device sequentially along the airflow passing direction 7 and drainage fan 8.

The metal dust-absorbing net 3 and the photocatalyst filter net 5 are respectively arranged at the front and rear positions of the electrostatic spray field 12 in the direction in which the airflow passes.

The purification method of electrostatic atomization indoor air is:

The air first passes through the filter screen 1 for preliminary filtration;

Then, through the strong electric field area formed by the corona electrode 2, the fine particles are charged, and at the same time, the strong electric field formed by the corona ionizes part of the air, and the formed high-energy free radicals decompose harmful gases such as formaldehyde and have the effect of sterilizing and removing mites;

Metal vacuum net 3 captures charged dust and bacteria particles;

Through the electrostatic atomization zone 12 composed of charged liquid droplets generated by capillary electrostatic atomization, the charged liquid droplets formed by electrostatic atomization further adsorb fine particles with opposite charges and dissolve harmful gases;

The photocatalyst filter screen 5 is arranged at the rear of the electrostatic spray area 12 to block the water mist and filter the fine particles;

LED light source irradiation, further sterilization;

The drainage fan (8) sends the cleaned and sterilized air into the room for efficient forced air exchange;

Mix the negative ions generated by the negative ion generator to remove odors, further decompose residual harmful gases, and make the indoor air circulate fresh. the

The invention adopts the method of combining electrostatic dust removal and purification with electrostatic atomization water washing and purification. The air first passes through the strong electric field area formed by the filter screen and high-voltage corona, and the harmful gas is decomposed by the strong electric field, and then passes through the charged water mist area formed by electrostatic atomization to further dissolve the harmful gas, absorb dust particles, and then pass through the photocatalyst filter. The net is deeply purified, combined with negative ion generation and airflow guidance, to achieve the purpose of efficient purification of indoor air circulation.

Description of drawings

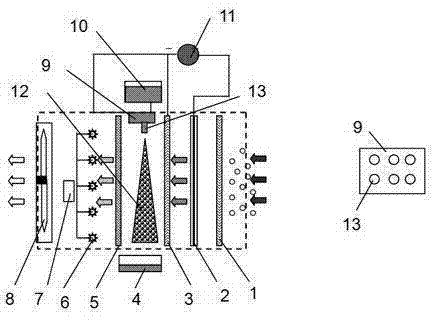

Fig. 1 is a structural schematic diagram of an electrostatic atomization indoor air purification device of the present invention.

Detailed ways

A specific embodiment of the present invention will be further described below in conjunction with the accompanying drawings.

As shown in Figure 1, the device for realizing this technology includes a filter screen 1, a corona electrode 2, a metal dust collection net 3, a water collection tank 4, a photocatalyst filter screen 5, an LED light source 6, an anion generating device 7, a drainage fan 8, and an electrostatic fog Transformer 9, water tank 10, high-voltage electrostatic generator 11, etc.

The device arranges the filter screen 1, the corona electrode 2, the metal vacuum net 3, the electrostatic spray field 12 formed by the electrostatic atomization device 9, the photocatalyst filter screen 5, the LED light source 6, the anion generating device 7 and the drainage in sequence along the airflow passing direction. The fan 8, wherein the metal dust-absorbing net 3 and the photocatalyst net 5 are respectively arranged at the front and rear positions of the electrostatic spray field 12 in the direction in which the airflow passes. The electrostatic atomization device 9 is connected to the water tank 10 , the negative pole of the high voltage generator 11 is connected to the electrostatic atomization device and the metal dust collector, and the positive pole of the high voltage electrostatic generator 11 is connected to the corona electrode 2 . Capillary tubes 13 are distributed at the bottom of the electrostatic atomization device 9 .

The air containing dust and harmful gases first passes through the filter screen 1 to filter large particles of dust and pet hair, and then passes through the strong electric field area formed by the corona electrode 2 to charge the fine particles, and at the same time, the strong electric field formed by the corona makes part of the air Ionization, the formed high-energy free radicals decompose harmful gases such as formaldehyde and have the effect of sterilizing and removing mites. Charged dust and bacterial particles are easily captured by the metal vacuum net. Through the electrostatic atomization area 12, the atomization area is composed of charged liquid droplets produced by electrostatic atomization of capillary pipettes. The capillary tubes distributed at the bottom of the electrostatic atomization device will generate micron-sized fine water mist when high-voltage static electricity is passed through. It has the advantage of low atomization energy consumption. The charged droplets formed by electrostatic atomization further adsorb the oppositely charged fine particles, especially PM2.5, the removal efficiency is significantly improved, and harmful gases such as formaldehyde are dissolved at the same time, and the air quality after washing can be significantly improved; the photocatalyst net is arranged in the electrostatic spray area The front part of 12 can block water mist and filter fine particles at the same time, and play the role of sterilization through the irradiation of LED light source. The air that has been cleaned and sterilized is sent into the room through the drainage fan, and the air is forced to change efficiently, and the negative ions generated by the negative ion generator are mixed to remove peculiar smells, further decompose residual harmful gases, and make the indoor air circulate fresh.

Claims (6)

1. the purifier of an electrostatic atomization room air, it comprises filter screen (1), corona electrode (2), metal dust-collecting net (3), water leg (4), photo-catalytic filtering screen (5), LED light source (6), negative ion generating device (7), drainage blower fan (8), it is characterized in that: described purifier also comprises the electrostatic atomiser (9) that forms electrostatic spray field (12).

2. the purifier of electrostatic atomization room air according to claim 1, is characterized in that: described electrostatic atomiser (9) is connected with water tank (10), and described capillary (13) is distributed in the bottom of electrostatic atomization apparatus (9).

3. the purifier of electrostatic atomization room air according to claim 1, is characterized in that: described corona electrode (2) connects with the positive pole of HV generator (11); The negative pole of described high pressure generator (11) connects electrostatic atomization apparatus (9) and metal dust suction plate.

4. the purifier of electrostatic atomization room air according to claim 1, is characterized in that: this device is arranged filter screen (1), corona electrode (2), metal dust suction net (3), the electrostatic spray field (12) being formed by electrostatic atomization apparatus (9), photo-catalytic filtering screen (5), LED light source (6), negative ion generating device (7) and drainage blower fan (8) along air-flow successively by direction.

5. the purifier of electrostatic atomization room air according to claim 4, is characterized in that: metal dust suction net (3), photo-catalytic filtering screen (5) are arranged in the front and back position place of the direction of passing through at air-flow electrostatic spray field (12).

6. a purification method for electrostatic atomization room air, is characterized in that:

Air, by filter screen (1), tentatively filters; The forceful electric power place forming by corona electrode (2) afterwards, makes fine particle charged, and the highfield that corona forms simultaneously, makes part air ionization, and the pernicious gases such as the high energy free radical decomposing formaldehyde of formation also have the effect of disinfecting mite-removing; Metal dust suction net (3) catches charged dust and band bacteria particles thing; By the electrostatic atomization district (12) that has the charged drop of capillary syring electrostatic atomization generation to form, the fine particle of the further adsorption band charges of different polarity of charged drop that electrostatic atomization forms, dissolving pernicious gas; Photo-catalytic filtering screen (5) is arranged in the rear portion of electrostatic fog-zone (12), to block water smoke, filters fine particle simultaneously; LED light source irradiates, further sterilization; Drainage blower fan (8) is sent into the air after cleaning degerming indoor, the high effect forced wind that changes; The anion that mixing is produced by anion generator, removes peculiar smell, further decomposes remaining pernicious gas, makes indoor air circulation pure and fresh.
