Abstract
本实用新型公开了一种静电雾化室内空气的净化装置，其包括滤网（1）、电晕电极（2）、金属集尘网（3）、集水槽（4）、光触媒过滤网（5）、LED光源（6）、负离子发生装置（7）、引流风机（8），所述净化装置还包括形成静电喷雾场（12）的静电雾化器（9）。本实用新型采用静电除尘净化与静电雾化水洗净化相结合的方法。空气首先经过过滤网和高压电晕形成的强电场区，有害气体被强电场分解，然后通过由静电雾化形成的荷电水雾区，进一步溶解有害气体，吸附尘粒，再经光触媒滤网得到深度净化，结合负离子发生和气流引导，达到室内空气循环高效净化的目的。
The utility model discloses an electrostatic atomization indoor air purification device, which comprises a filter screen (1), a corona electrode (2), a metal dust collection net (3), a water collection tank (4), a photocatalyst filter screen (5 ), LED light source (6), negative ion generating device (7), drainage fan (8), and the purification device also includes an electrostatic atomizer (9) forming an electrostatic spray field (12). The utility model adopts a combined method of electrostatic dust removal purification and electrostatic atomization water washing purification. The air first passes through the strong electric field area formed by the filter screen and high-voltage corona, and the harmful gas is decomposed by the strong electric field, and then passes through the charged water mist area formed by electrostatic atomization to further dissolve the harmful gas, absorb dust particles, and then pass through the photocatalyst filter. The net is deeply purified, combined with negative ion generation and airflow guidance, to achieve the purpose of efficient purification of indoor air circulation.
Description
Technical field
The utility model relates to the air cleaning process field, particularly a kind of novel air purifier of indoor employing electrostatic spray.
Background technology
Contain the gases such as dust, bacterium, dirt mite and formaldehyde in the room air, atmosphere pollution descends the air quality after the room free convection ventilation, and pellet increases.The mixing anion was eliminated peculiar smell and pernicious gas after existing air purifier mostly adopted and filters dust, perhaps through multi-filtering, adopt the mode of charcoal absorption to eliminate the unusual smell in the filter course, the windage of Air Flow is increased, energy consumption increases, single method can't thoroughly be removed airborne poisonous and harmful substance, can not reach gratifying effect.
The utility model content
Problem for the airborne poisonous and harmful substance that exists in the solution prior art can't thoroughly be removed the utility model proposes the novel air purifier that a kind of electrostatic precipitation purifies the electrostatic spray that combines with the electrostatic atomization water washing cleaning.
A kind of purifier of electrostatic atomization room air, it comprises filter screen 1, corona electrode 2, metal dust-collecting net 3, water leg 4, photo-catalytic filtering screen 5, led light source 6, negative ion generating device 7, drainage blower fan 8 that can substitution gas, form electrostatic atomiser 9, water tank 10, the HV generator 11 of electrostatic spray field 12, the positive pole of HV generator 11 is connected with corona electrode 2, and the negative pole of high pressure generator 11 connects electrostatic atomization apparatus 9 and metal dust suction plate.
Described electrostatic atomiser 9 links to each other with water tank 10, and described capillary 13 is distributed in the bottom of electrostatic atomization apparatus 9.
Metal dust suction net 3, photo-catalytic filtering screen 5 are arranged in the front and back position place of the direction of passing through at air-flow electrostatic spray field 12.
The purification method of electrostatic atomization room air is:
Air at first by filter screen 1, tentatively filters;
The pernicious gases such as the forceful electric power place that then forms by corona electrode 2 afterwards makes fine particle charged, and the highfield that forms of corona makes the part air ionization simultaneously, the high energy free radical decomposing formaldehyde of formation also have the effect of disinfecting mite-removing;
Metal dust suction net 3 catches charged dust and band bacteria particles thing;
By the electrostatic atomization district 12 that the charged drop that has the capillary syring electrostatic atomization to produce consists of, the fine particle of the further adsorption band charges of different polarity of charged drop that electrostatic atomization forms, dissolving pernicious gas;
Photo-catalytic filtering screen 5 is arranged in the rear portion of electrostatic fog-zone 12, filters simultaneously fine particle to block water smoke;
The led light source irradiation, further sterilization;
Drainage blower fan (8) will clean air after the degerming send into indoor, the high effect forced wind that changes;
The anion that mixing is produced by anion generator is removed peculiar smell, is further decomposed remaining pernicious gas, makes indoor air circulation pure and fresh.
The utility model adopts electrostatic precipitation to purify the method that combines with the electrostatic atomization water washing cleaning.Air at first passes through the forceful electric power place that screen pack and high-voltage corona form, pernicious gas is decomposed by highfield, then the charged water spray district by being formed by electrostatic atomization, further dissolve pernicious gas, the absorption grit, obtain deep purifying through photocatalyst filtering net again, occur and the air-flow guiding in conjunction with anion, reach the purpose of indoor air circulation high-efficient purification.
Description of drawings

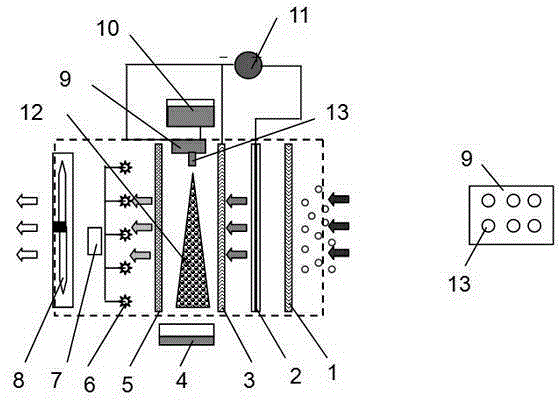

Fig. 1 is the structural representation of the purifier of a kind of electrostatic atomization room air of the utility model.
The specific embodiment
Below in conjunction with accompanying drawing a specific embodiment of the present utility model is further described.
The device of realizing as shown in Figure 1 this technology comprises filter screen 1, corona electrode 2, metal dust-collecting net 3, water leg 4, photo-catalytic filtering screen 5, led light source 6, negative ion generating device 7, drainage blower fan 8, electrostatic atomiser 9, water tank 10, HV generator 11 etc.
Contain the air of dust and pernicious gas at first by filter screen 1; filter bulky grain dust and pet hair etc.; then the forceful electric power place that forms by corona electrode 2; make fine particle charged; the highfield of simultaneously corona formation; make the part air ionization, the pernicious gas such as high energy free radical decomposing formaldehyde of formation also has the effect of disinfecting mite-removing.Charged dust and band bacteria particles thing etc. are caught by the metal dust suction net easily.By electrostatic atomization district 12, this range of atomization is that the charged drop that has the capillary syring electrostatic atomization to produce consists of, and is distributed in the capillary of electrostatic atomization apparatus bottom, will produce micron-sized thin water smoke when passing to high-pressure electrostatic, has the low advantage of atomizing energy consumption.The fine particle of the further adsorption band charges of different polarity of charged drop that electrostatic atomization forms is PM2.5 especially, removes efficient and significantly improves, and dissolves simultaneously the pernicious gases such as formaldehyde, and the air quality after the washing can obviously be improved; Photocatalyst net is arranged in the front portion of electrostatic fog-zone 12, can block water smoke and can filter fine particle simultaneously, through the led light source irradiation, plays the effect of sterilization.Air after the drainage blower fan will clean degerming is sent into indoor, the high effect forced wind that changes, and mix the anion that is produced by anion generator, and remove peculiar smell, further decompose remaining pernicious gas, make indoor air circulation pure and fresh.
Claims (5)
1. the purifier of an electrostatic atomization room air, it comprises filter screen (1), corona electrode (2), metal dust-collecting net (3), water leg (4), photo-catalytic filtering screen (5), led light source (6), negative ion generating device (7), drainage blower fan (8), it is characterized in that: described purifier also comprises the electrostatic atomiser (9) that forms electrostatic spray field (12).
2. the purifier of electrostatic atomization room air according to claim 1, it is characterized in that: described electrostatic atomiser (9) links to each other with water tank (10), and described capillary (13) is distributed in the bottom of electrostatic atomization apparatus (9).
3. the purifier of electrostatic atomization room air according to claim 1 is characterized in that: the positive pole company of described corona electrode (2) and HV generator (11); The negative pole of described high pressure generator (11) connects electrostatic atomization apparatus (9) and metal dust suction plate.
4. the purifier of electrostatic atomization room air according to claim 1 is characterized in that: electrostatic spray field (12), photo-catalytic filtering screen (5), led light source (6), negative ion generating device (7) and drainage blower fan (8) that this device is arranged successively filter screen (1), corona electrode (2), metal dust suction net (3), formed by electrostatic atomization apparatus (9) by direction along air-flow.
5. the purifier of electrostatic atomization room air according to claim 4 is characterized in that: metal dust suction net (3), photo-catalytic filtering screen (5) are arranged in the front and back position place of the direction of passing through at air-flow electrostatic spray field (12).
