CN103406603A - Elastic locating and locking device for milled teeth of bevel gear shaft - Google Patents
Elastic locating and locking device for milled teeth of bevel gear shaft Download PDFInfo
- Publication number
- CN103406603A CN103406603A CN2013102020999A CN201310202099A CN103406603A CN 103406603 A CN103406603 A CN 103406603A CN 2013102020999 A CN2013102020999 A CN 2013102020999A CN 201310202099 A CN201310202099 A CN 201310202099A CN 103406603 A CN103406603 A CN 103406603A
- Authority
- CN
- China
- Prior art keywords
- spring cover
- sleeve
- locking spring
- bevel gear
- mill teeth
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Abstract
The invention relates to the technical field of machining of bevel gear shafts, in particular to an elastic locating and locking device for milled teeth of a bevel gear shaft. A traditional machining method comprises the steps that a workpiece is directly installed in a milled tooth mould, then pulled tightly through a pull rod and machined, the clamping mode can not ensure fit clearance between the workpiece and the milled tooth mould, and the machining quality of products is poor. The elastic locating and locking device for the milled teeth of the bevel gear shaft is composed of a milled tooth mould, a sleeve, a locking spring pocket, a screwed plug and a locating spring pocket. The right end of the milled tooth mould is connected with the left half portion of the sleeve in a threaded matching mode; the locking spring pocket with an open groove is placed inside the sleeve, one section of the front portion of the locking spring pocket makes clearance fit contact with one section of the front portion of the sleeve, one section of the rear portion of the locking spring pocket makes clearance fit contact with one section of the rear portion of the sleeve, the left end of the sleeve is matched with the conical surface of the left end of the locking spring pocket, and the outer conical surface of the left end of the locking spring pocket can axially move along the inner conical surface of the left end of the sleeve; one end of the screwed plug is connected with the locking spring pocket in a threaded matching mode; the front end of the milled tooth mould is provided with the locating spring pocket with an open groove. The elastic locating and locking device for the milled teeth of the bevel gear shaft is high in locating precision, easy to operate and convenient to use.
Description
Technical field
The present invention relates to the bevel gear shaft processing technique field, specifically a kind of bevel gear shaft mill teeth elasticity positioning and locking device.
Background technology
At present, in the prior art, the Gear Milling of bevel gear shaft, adopt traditional processing method many, traditional processing method is to adopt workpiece directly to pack in the mill teeth tire, then with pull bar, will after the workpiece tension, process, workpiece and mill teeth tire are matched in clearance, due to the disadvantage that matched in clearance exists, the large part processing precision of fit clearance does not guarantee, the bad loading and unloading of fit clearance small workpiece.So this processing method can not meet present high quality of products designing requirement far away, machining accuracy is poor, production efficiency ground, and inconvenient operation.
Summary of the invention
In order to solve the problem of above-mentioned existence, the invention provides a kind of product orientation precision high, bevel gear shaft mill teeth elasticity positioning clamping device simple to operate, easy to use.
The technical solution adopted for the present invention to solve the technical problems is: bevel gear shaft mill teeth elasticity positioning and locking device is comprised of mill teeth carcass 1, sleeve 2, locking spring cover 3, plug 4, retainer spring cover 5.Mill teeth carcass 1 right-hand member and sleeve 2 left sides are that threaded engagement is linked together; Locking spring cover 3 with open slot is put into sleeve 2, locking spring cover 3 and sleeve 2 front and back respectively have one section to be made as matched in clearance and to contact, sleeve 2 left ends and locking spring cover 3 left end cone match, and locking spring cover 3 left end male cone (strobilus masculinus)s can move axially along sleeve 2 left end inner conical surfaces; Plug 4 one ends and locking spring cover 3 are linked together for threaded engagement; Mill teeth carcass 1 front end is equipped with the retainer spring cover 5 with open slot, and mill teeth carcass 1 front end hole taper is consistent with retainer spring cover 5 external conicities, adopts match grinding processing; Bevel gear shaft 6 is packed in mill teeth carcass 1 endoporus, and mill teeth carcass 1 is fixed by bolts on the machine tool chief axis end face; Plug 4 other ends connect with the machine tool oil pressure system.
The invention has the beneficial effects as follows, because the retainer spring cover can not produce friction with workpiece, so easy to loading and unloading.And positioning precision is high, simple to operate, easy to use, this device can be realized positioning and clamping and the processing of workpiece fast.Especially applicable batch production.
The accompanying drawing explanation

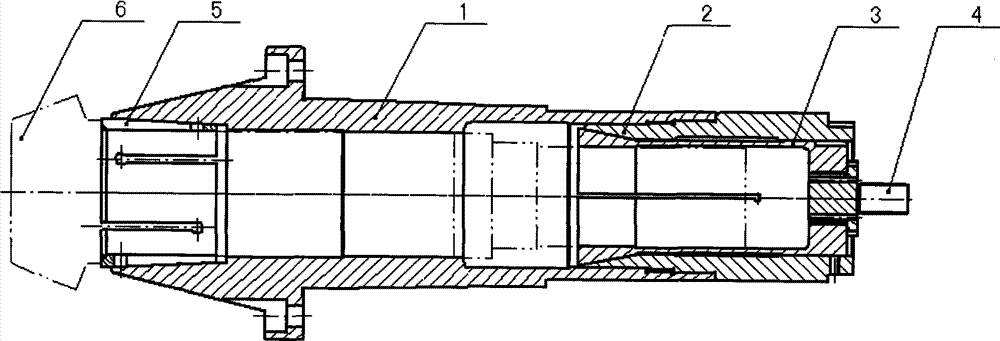

Fig. 1 is the structure chart of bevel gear shaft mill teeth elasticity positioning and locking device of the present invention.
The specific embodiment:
As shown in Figure 1, bevel gear shaft mill teeth elasticity positioning and locking device is comprised of mill teeth carcass 1, sleeve 2, locking spring cover 3, plug 4, retainer spring cover 5.Mill teeth carcass 1 right-hand member and sleeve 2 left sides are that threaded engagement is linked together; Locking spring cover 3 with open slot is put into sleeve 2, locking spring cover 3 and sleeve 2 front and back respectively have one section to be made as matched in clearance and to contact, sleeve 2 left ends and locking spring cover 3 left end cone match, and locking spring cover 3 left end male cone (strobilus masculinus)s can move axially along sleeve 2 left end inner conical surfaces; Plug 4 one ends and locking spring cover 3 are linked together for threaded engagement; Mill teeth carcass 1 front end is equipped with the retainer spring cover 5 with open slot, and mill teeth carcass 1 front end hole taper is consistent with retainer spring cover 5 external conicities, adopts match grinding processing; Bevel gear shaft 6 is packed in mill teeth carcass 1 endoporus, and mill teeth carcass 1 is fixed by bolts on the machine tool chief axis end face; Plug 4 other ends connect with the machine tool oil pressure system.
During work, first mill teeth carcass 1 is fixed by bolts on the machine tool chief axis end face, plug 4 other ends connect with the machine tool oil pressure system.Workpiece 6 wiped clean are packed in retainer spring cover 5 endoporus gently, plug 4 drive locking spring covers 3 move right when lathe provides oil pressure, because sleeve 2 is fixed, locking spring cover 3 makes open slot shrink under ramp effect, first by the workpiece auto lock, rear drive workpiece 6 moves right together, workpiece 6 moves right retainer spring cover 5 is compressed to spreading, mill teeth carcass 1 and retainer spring cover 5 have been eliminated, gap between workpiece 6 and retainer spring cover 5, play accurate positioning action, now can carry out the processing of workpiece 6, after workpiece is processed into, unclamp oil pressure, plug 4 loses external force simultaneously with locking spring cover 3, workpiece is unclamped, it is ineffective that workpiece unclamps rear retainer spring cover 5, just workpiece can be taken out.
Should be appreciated that the above detailed description of technical scheme of the present invention being carried out by preferred embodiment is illustrative and not restrictive.Those of ordinary skill in the art is reading on the basis of specification of the present invention and can modify to the technical scheme that embodiment puts down in writing, or part technical characterictic wherein is equal to replacement; And these modifications or replacement do not make the essence of appropriate technical solution break away from the spirit and scope of embodiment of the present invention technical scheme.
Claims (4)
1. a bevel gear shaft mill teeth elasticity positioning and locking device, is characterized in that: be comprised of mill teeth carcass (1), sleeve (2), locking spring cover (3), plug (4), retainer spring cover (5); Mill teeth carcass (1) right-hand member and sleeve (2) left side are that threaded engagement is linked together; Locking spring cover (3) with open slot is put into sleeve (2), before and after locking spring cover (3) and sleeve (2), respectively there is one section to be made as matched in clearance and to contact, sleeve (2) left end and locking spring cover (3) left end cone match, and locking spring cover (3) left end male cone (strobilus masculinus) can move axially along sleeve (2) left end inner conical surface; Plug (4) one ends and locking spring cover (3) are linked together for threaded engagement; Mill teeth carcass (1) front end is equipped with the retainer spring cover (5) with open slot, and mill teeth carcass (1) front end hole taper is consistent with retainer spring cover (5) external conicity, adopts match grinding processing; Bevel gear shaft (6) is packed in mill teeth carcass (1) endoporus, and mill teeth carcass (1) is fixed by bolts on the machine tool chief axis end face; Plug (4) other end connects with the machine tool oil pressure system.
2. according to the described bevel gear shaft mill teeth of right 1 elasticity positioning and locking device, it is characterized in that: it is 2.5～3.5 degree that described mill teeth carcass (1) front end endoporus and retainer spring cover (5) cylindrical adopt the tapering of match grinding processing.
3. according to the described bevel gear shaft mill teeth of right 1 elasticity positioning and locking device, it is characterized in that: described locking spring cover (3) open slot is 6, be evenly distributed on locking spring cover (3) left end, open slot length is 4/5 of locking spring cover (3) length.
4. according to the described bevel gear shaft mill teeth of right 1 elasticity positioning and locking device, it is characterized in that: described retainer spring cover (5) open slot is 6, intersect and be evenly distributed on retainer spring cover (5) two ends, left and right, open slot length is 4/5 of retainer spring cover (5) length.
