CN103363867A - Detector for outside rear-view mirror side wall of saloon car - Google Patents
Detector for outside rear-view mirror side wall of saloon car Download PDFInfo
- Publication number
- CN103363867A CN103363867A CN2013101210731A CN201310121073A CN103363867A CN 103363867 A CN103363867 A CN 103363867A CN 2013101210731 A CN2013101210731 A CN 2013101210731A CN 201310121073 A CN201310121073 A CN 201310121073A CN 103363867 A CN103363867 A CN 103363867A
- Authority
- CN
- China
- Prior art keywords
- gusset
- view mirror
- outside rear
- detection
- detection platform
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Landscapes
- Rear-View Mirror Devices That Are Mounted On The Exterior Of The Vehicle (AREA)
Abstract
The invention discloses a detector for an outside rear-view mirror side wall of a saloon car. The detector comprises a detection platform and a simulation seat fixedly arranged on the detection platform. The simulation seat is provided with an accommodating cavity used for containing the outside rear-view mirror side wall; the periphery of the simulation seat is provided with a plurality of clamps; pressers of the clamps are fitted and are compressed on the surface of the outside rear-view mirror side wall; the bottom part of the accommodating cavity is provided with a plurality of detection pins; and a detection bolt is arranged in the detection pins. According to the detector for the outside rear-view mirror side wall of the saloon car disclosed by the invention, the mounting position of the outside rear-view mirror side wall on a car body is simulated by the simulation seat, and thus, the mounting pitch deviation and the gap of an angle rib cover of the outside rear-view mirror side wall can be conveniently detected. The detection bolt not only can be used as a detection tool for mounting pitches but also can be used as a fastener of the side wall.
Description
Technical field
The present invention relates to a kind of pick-up unit, refer more particularly to easily car outside rear-view mirror gusset pick-up unit of a kind of check.
Background technology
During existing Automotive is made, the outside rear-view mirror assembly of car is generally provided by the third party, in total process of assembling, the outside rear-view mirror assembling only is packaging technology (erection bolt and rearview mirror base), but the installation double-screw bolt spacing that has outside the fraction rearview mirror in the rearview mirror assembly finished product is inconsistent or the injection moulding shape size has certain deviation, and incoming test only checks the assembly quality by simple range estimation, very easily cause the inflow of substandard product, the pitch-row deviation occurs after making general assembly to the vehicle body and cause the assembling difficulty or reprocess, also easily cause simultaneously the gap of angle rib lid and rearview mirror base inhomogeneous, have a strong impact on product aesthetics and customer satisfaction.
Summary of the invention
The present invention mainly solves outside rear-view mirror assembly warehouse-in and adopts visualize easily to cause inaccurate or consistance is poor and the technical matters that causes the general assembly difficulty or reprocess; Easily car outside rear-view mirror gusset pick-up unit of a kind of check is provided.
In order to solve the technical matters of above-mentioned existence, the present invention adopts following technical proposals:
A kind of car outside rear-view mirror gusset pick-up unit of the present invention, total packing quality for detection of car outside rear-view mirror gusset, described outside rear-view mirror gusset medial surface is provided with some fixation kits, mounting hole on the corresponding vehicle body of described fixation kit difference, pick-up unit comprises detection platform and the simulation seat that is used for simulation vehicle body installation position that is fixedly arranged on the detection platform, described simulation seat is provided with the accommodating cavity of opening, the shape kissing of the shape of described accommodating cavity and described outside rear-view mirror gusset merges can accommodating outside rear-view mirror gusset, simulation seat periphery is provided with some clamps, described clamp all is installed on the detection platform, the compressing tablet of clamp is fitted and is pressed outside rear-view mirror gusset surface, the accommodating cavity bottom is provided with several and the detection pin of simulating seat integrative-structure and hollow, detect pin central authorities and be provided with the through hole that extends and connect the accommodating cavity bottom, described via top is corresponding described fixation kit respectively, described detection platform is provided with the perforate that connects detection platform and match with through hole, be provided with the detection latch in the through hole, the detection latch passes from the back side of detection platform by perforate and is connected with fixation kit along through hole, the simulation seat can be simulated the installation site of outside rear-view mirror gusset on vehicle body, be placed in the simulation seat also fastening by the outside rear-view mirror gusset that external coordination is made, can detect the assembling quality of outside rear-view mirror gusset, the gap of the fixation kit pitch-row deviation of outside rear-view mirror gusset and angle rib lid all meets corresponding requirements when guaranteeing general assembly, and the detection latch both can be used as the testing tool of fixation kit pitch-row, can be used as again the securing member of outside rear-view mirror gusset, make things convenient for the detection in next step angle rib lid gap.
As preferably, described detection platform is tabular and vertical the setting, and the bottom of detection platform is provided with feet, and vertically disposed detection platform makes things convenient for the fixing of outside rear-view mirror gusset and detects, and the bottom of feet also can arrange roller, makes things convenient for the movement of detection platform.
As preferably, the sidewall height of described simulation seat bottom is greater than the sidewall height on top, accommodating cavity end face and described detection platform consist of an angle, described detection pin favours detection platform surface and perpendicular to described outside rear-view mirror gusset, the outside rear-view mirror gusset is inclined on the detection platform, can make things convenient for the fixing of outside rear-view mirror gusset and detect the raising detection efficiency.
As preferably, described outside rear-view mirror gusset comprises gusset I and gusset II, the medial surface of described gusset I is provided with two fixation kits, the medial surface of described gusset II is provided with three fixation kits, the corresponding mounting hole on the corresponding vehicle body of described fixation kit difference, described clamp is two, and the compressing tablet of clamp is fitted and is pressed on the surface of described gusset I.
As preferably, in the middle of comprising, described fixation kit is provided with the double threaded screw and the location deck that is fixedly arranged on the screw rod of boss, one end screw rod of described double threaded screw is threaded with the fabrication hole of described outside rear-view mirror gusset medial surface and is fastened on the outside rear-view mirror gusset, described location deck is threadedly connected to the other end screw rod of double threaded screw and fits with described boss, fixation kit connects respectively outside rear-view mirror gusset and vehicle body, and fixed form is simple and reliable.
As preferably, the variable cross section right cylinder that described detection pin is hollow, the lower cylindrical body bottom of larger cross-section is located at described accommodating cavity bottom surface, the through hole of lower cylindrical body and described test pin external diameter match, the through hole of upper cylinder and described location deck match, the location deck can insert the mounting hole on the vehicle body in total process of assembling, can be used as the location of fixation kit.
As preferably, the top of described detection latch is provided with projection, the hollow cavity of described projection diameter and described upper cylinder matches, the central authorities of projection are provided with screw, described screw matches with described double threaded screw, the detection latch is connected and fixed assembly and rotation tension outside rear-view mirror gusset by the boss screw, and the top planes of detection latch can be used as the locating surface use.
As preferably, the afterbody of described test pin is provided with handle, is convenient to be affectedly bashful and convenient fastening.
The invention has the beneficial effects as follows: the simulation seat can be simulated the installation site of outside rear-view mirror gusset on vehicle body, be placed in the simulation seat also fastening by the outside rear-view mirror gusset that external coordination is made, can detect the assembling quality of outside rear-view mirror gusset, the gap of the pitch-row deviation of outside rear-view mirror gusset fixation kit and angle rib lid all meets corresponding requirements when guaranteeing general assembly, and the detection latch both can be used as the testing tool of fixation kit pitch-row, can be used as again the securing member of outside rear-view mirror gusset, make things convenient for the detection in next step angle rib lid gap.
Description of drawings

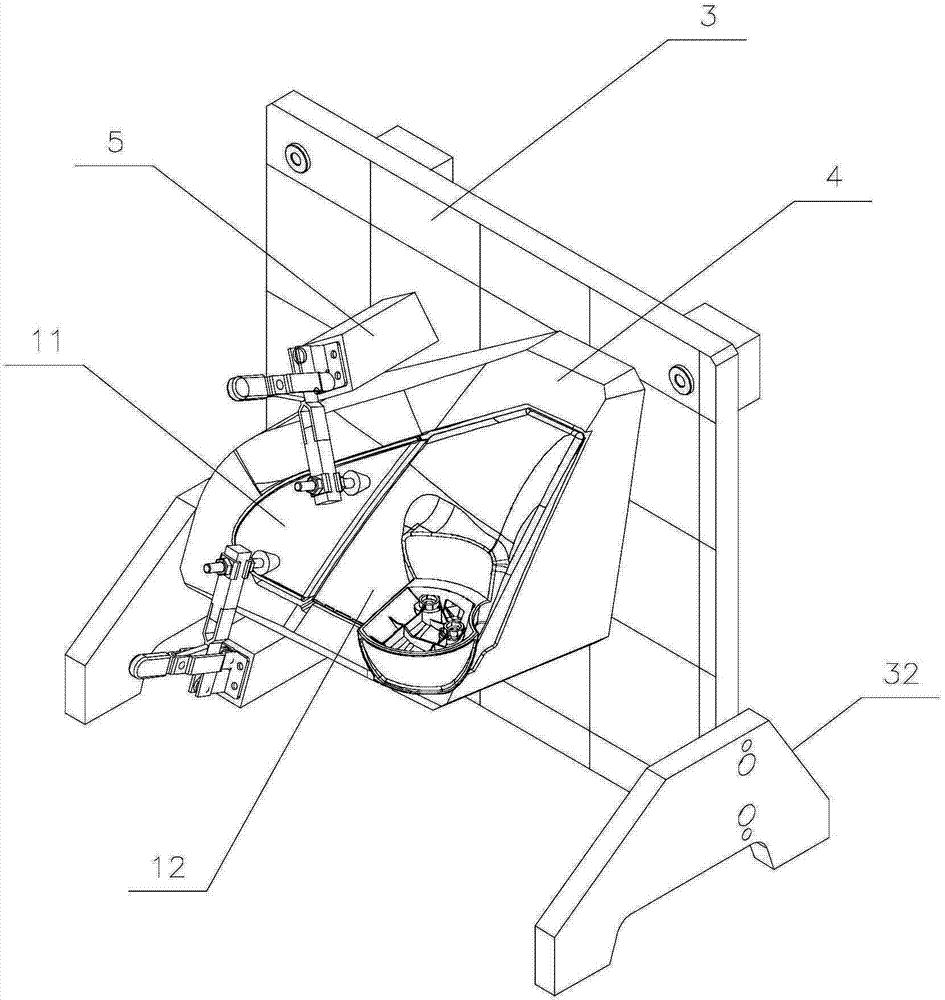

Fig. 1 is a kind of structural representation of the present invention.
Fig. 2 is the front elevational schematic of Fig. 1.
Fig. 3 is the A-A cross-sectional schematic among Fig. 2.
1. outside rear-view mirror gussets among the figure, 11. gusset I, 12. gusset II, 2. fixation kit, 21. double threaded screws, 22. location decks, 3. detection platform, 31. perforates, 32. feets, 4. simulation seat, 41. accommodating cavities, 42. the detection pin, 5. clamp 6. detects latch, 61. projections, 62. handles.
Embodiment
Below by embodiment, and by reference to the accompanying drawings, technical scheme of the present invention is described in further detail.
Embodiment: a kind of car outside rear-view mirror gusset pick-up unit of present embodiment, total packing quality for detection of car outside rear-view mirror gusset 1, the outside rear-view mirror gusset comprises gusset I 11 and gusset II 12, the medial surface of gusset I and gusset II all is designed with fixation kit 2, mounting hole on the corresponding vehicle body of fixation kit difference, in the middle of comprising, fixation kit is provided with the double threaded screw 21 and the location deck 22 that is fixedly arranged on the screw rod of boss, one end screw rod of double threaded screw is threaded with the fabrication hole of outside rear-view mirror gusset inboard and is fastened on the rearview mirror gusset, the location deck is threadedly connected to the other end screw rod of double threaded screw and fits with boss, the location deck can be installed in the mounting hole on the vehicle body, pick-up unit comprises detection platform 3 and the simulation seat 4 that is used for simulation vehicle body installation position that is fixedly arranged on the detection platform, detection platform is tabular and vertical the setting, and the bottom of detection platform is designed with feet 32; Be designed with the accommodating cavity 41 of opening at the simulation seat, the shape kissing of the shape of accommodating cavity and rearview mirror gusset merges can accommodating rearview mirror gusset, the height of simulation seat lower sidewalls is greater than the height of top sidewall, the surface of accommodating cavity end face and detection platform consists of an angle, make the outside rear-view mirror gusset surface tilt that is placed on the simulation seat in detection platform, simulation seat periphery is designed with two bench clamps 5, and clamp all is fixed on the detection platform, and the compressing tablet of clamp is fitted and pressed on the surface of gusset I; The accommodating cavity bottom design has the detection pin 42 of three inclinations, detecting pin is the variable cross section right cylinder of hollow, the lower cylindrical body bottom of larger cross-section is installed in the accommodating cavity bottom surface, the through hole of lower cylindrical body is corresponding with the detection latch, the through hole of upper cylinder is corresponding with the location deck, detect pin central authorities and have the through hole that extends and connect the accommodating cavity bottom, the fixation kit on the corresponding gusset II medial surface of through hole difference also is designed with the perforate 31 that matches with through hole on the detection platform; In through hole, be fitted with and detect latch 6, the detection latch passes from the back side of detection platform by perforate and is connected with fixation kit along through hole, can corresponding tension and fixing gusset II, top planes at test pin is designed with projection 61, the external diameter of projection and the through hole of upper cylinder match, and the afterbody that detects latch is provided with handle 62.
When beginning to detect, open clamp, outside rear-view mirror gusset to be detected is placed in the simulation seat, adjusting clamp makes the compressing tablet of clamp be pressed on the surface of gusset I, the gusset I is fixed on the simulation seat, then the gusset II is placed on the simulation seat, adjust the position, guarantee that gusset II bottom and simulation seated connection touch good, to detect latch inserts in the detection pin from the back side of detection platform, as detect the fixation kit screw rod that latch all can insert and connect gusset I or gusset II, then the fixation kit pitch-row of outside rear-view mirror gusset meets the requirements, and tightens successively the detection latch, make and detect be threaded fixation kit screw rod and strain the gusset II of latch, and then the gap and both faces that detect successively gusset I and gusset II and simulation seat edge are poor, according to the assembling quality of quality standard judgement outside rear-view mirror gusset, finish the detection operation.
More than explanation is not that the present invention has been done restriction; the present invention also is not limited only to giving an example of above-mentioned explanation; the variation that those skilled in the art make in essential scope of the present invention, retrofit, increase or replace, all should be considered as protection scope of the present invention.
Claims (8)
1. car outside rear-view mirror gusset pick-up unit, total packing quality for detection of car outside rear-view mirror gusset (1), described outside rear-view mirror gusset medial surface is provided with some fixation kits (2), mounting hole on the corresponding vehicle body of described fixation kit difference, it is characterized in that: pick-up unit comprises detection platform (3) and is fixedly arranged on the simulation seat (4) that is used for simulation vehicle body installation position on the detection platform, described simulation seat is provided with the accommodating cavity (41) of opening, the shape kissing of the shape of described accommodating cavity and described outside rear-view mirror gusset merges can accommodating outside rear-view mirror gusset, simulation seat periphery is provided with some clamps (5), described clamp all is installed on the detection platform, the compressing tablet of clamp is fitted and is pressed outside rear-view mirror gusset surface, the accommodating cavity bottom is provided with several and the detection pin (42) of simulating seat integrative-structure and hollow, detect pin central authorities and be provided with the through hole that extends perforation accommodating cavity bottom, described through hole is corresponding described fixation kit respectively, described detection platform is provided with the perforate (31) that connects detection platform and match with through hole, be provided with in the through hole and detect latch (6), the detection latch passes from the back side of detection platform by perforate and is connected with fixation kit along through hole.
2. according to claim 1, it is characterized in that: described detection platform (3) is tabular and vertical the setting, and the bottom of detection platform is provided with feet (32).
3. a kind of car outside rear-view mirror gusset pick-up unit according to claim 2, it is characterized in that: the sidewall height of described simulation seat (4) bottom is greater than the sidewall height on top, accommodating cavity end face and described detection platform (3) consist of an angle, and described detection pin (42) favours the detection platform surface and perpendicular to described outside rear-view mirror gusset (1).
4. according to claim 1 and 2 or 3 described a kind of car outside rear-view mirror gusset pick-up units, it is characterized in that: described outside rear-view mirror gusset (1) comprises gusset I (11) and gusset II (12), the medial surface of described gusset I is provided with two fixation kits, the medial surface of described gusset II is provided with three fixation kits, the corresponding mounting hole on the corresponding vehicle body of described fixation kit difference, described clamp (5) is two, and the compressing tablet of clamp is fitted and is pressed on the surface of described gusset I.
5. a kind of car outside rear-view mirror gusset pick-up unit according to claim 4, it is characterized in that: described fixation kit (2) is provided with the double threaded screw (21) of boss in the middle of comprising and is fixedly arranged on location deck (22) on the screw rod, one end screw rod of described double threaded screw is threaded with the fabrication hole of described outside rear-view mirror gusset (1) medial surface and is fastened on the outside rear-view mirror gusset, and described location deck is threadedly connected to the other end screw rod of double threaded screw and fits with described boss.
6. a kind of car outside rear-view mirror gusset pick-up unit according to claim 1, it is characterized in that: described detection pin (42) is the variable cross section right cylinder of hollow, the lower cylindrical body bottom of larger cross-section is located at described accommodating cavity (41) bottom surface, the through hole of lower cylindrical body and described detection latch (6) external diameter match, and the through hole of upper cylinder and described location deck (22) match.
7. a kind of car outside rear-view mirror gusset pick-up unit according to claim 6, it is characterized in that: the top of described detection latch (6) is provided with projection (61), the upper cylinder hollow cavity of described projection diameter and described detection pin (42) matches, the central authorities of projection are provided with screw, and described screw matches with described double threaded screw (21).
8. according to claim 1 or 7 described a kind of car outside rear-view mirror gusset pick-up units, it is characterized in that: the afterbody of described detection latch (6) is provided with handle (62).
