Abstract

The invention relates to a warp knitting machine which is convenient for tension control, comprising a warp knitting machine host, an adjustable yarn passing rod device and a tension compensation device, and the number of regulating blocks in each group of regulating block assemblies of the adjustable yarn passing rod device is two The adjustment blocks in each group of adjustment block assemblies are connected in series through the yarn passing rods passing through the two adjacent yarn passing rod installation holes at the same time; one end of the tension swing arm of the tension compensation device is installed on the warp knitting machine. On the tension rod, the tension swing arms on different tension rods are connected and driven by the swing arm synchronous link, one of the tension swing arms is connected to the eccentric wheel that drives the tension swing arm through the pull rod, and the main shaft is driven by the eccentric drive mechanism Eccentric wheel. The beneficial effect of the present invention is that: the combination of the adjustable yarn passing device and the tension compensation device can better realize the tension compensation of the yarn and make the tension of each yarn uniform.

Description

A Warp Knitting Machine Convenient for Tension Control

technical field

The invention relates to a textile machine, in particular to a warp knitting machine which is convenient for tension control.

Background technique

The existing warp knitting machine yarn tension compensation device is relatively traditional, because the jacquard comb plays a jacquard effect in weaving, so the warp let-off amount of the yarn is different, so the warp let-off is adopted on the creel, so the tension of each yarn is all different.

As shown in Figure 1, the traditional tension device is mainly composed of fan-shaped sprocket 1-7, return spring 1-5, fixed bolt 1-1 fixed on the left and right wall panels, a rotatable tension rod installed on the machine, and a fixed installation The tension sheet 1-9 on the tension rod constitutes; wherein, the sector sprocket 1-7 and the return spring 1-5 are connected by a chain 1-6, and the other end of the return spring 1-5 passes through the hook 1-3, The clamping block 1-2 and the fixing bolt 1-1 are fixed on the wallboard, and the compensation device makes the tension plate 1-9 reciprocate through the elastic force of the return spring 1-5, so as to achieve stable tension of the yarn. When the warp knitting machine is working, every time the main shaft rotates a circle, the loop forming mechanism performs a reciprocating motion. When forming a loop, the tension of the yarn drives the tension sheet 1-9 when the knitting needle pads and presses the yarn each time, and The return spring 1-5 is driven by the sector sprocket 1-7, and the pulling force of the return spring 1-5 is used to ensure that the tension plate 1-9 swings up and down once, so as to compensate the yarn tension. When the existing warp knitting machine is working, the yarn is woven from the creel through the yarn passing rod, the yarn guide rod, the tension sheet 1-9, and then knitting, and the yarn tension is compensated by the above method, so as to ensure the knitting motion However, the yarn has the following disadvantages when weaving with this tension compensation device. Since the knitting is only done in reciprocating motion during weaving, the corresponding tension on the yarn is the stage of lapping and pressing. This device can be used to complete the tension control of the yarn. The tension compensation required by the yarn during the knitting motion is not only at these two times, but also needs to be compensated in time when the yarn is moving and knitting. The tension on the knitting needle is relatively large when it is formed into a loop, and when the knitting needle is about to come out of the loop when it is swinging to the final position, the yarn tension cannot be compensated in time, resulting in excessive yarn tension on the knitting needle and deformation, which often leads to machine failure. Missing needle phenomenon occurs, which affects the working speed of the machine.

At the same time, the existing tension compensation device can only control all other yarns through the over-tight yarn, and cannot control the tension of each yarn, let alone guarantee the uniformity of the tension of each yarn, so that the production The distance between the warp lines of the cloth surface is not uniform, which affects the smoothness of the cloth surface.

Contents of the invention

The technical problem to be solved by the present invention is to provide a warp knitting machine which is convenient for tension control and can ensure the constant tension knitting of the yarn during the knitting process.

The technical solution adopted by the present invention to solve the technical problem is: a warp knitting machine that is convenient for tension control, including a warp knitting machine host, a mounting frame, a yarn delivery frame, an adjustable yarn passing rod device and a tension compensation device, which can be adjusted The yarn passing rod device includes a yarn passing rod, adjusting block assemblies and mounting seats respectively located on both sides of the yarn passing rod. The yarn passing rod is installed through the adjusting block assemblies respectively located on both sides of the yarn passing rod. The number of blocks is two or more, and the two ends of the adjustment blocks are respectively provided with installation holes for yarn passing rods, and the adjustment blocks in each set of adjustment block assemblies pass through the yarn passing rods that pass through the two adjacent yarn passing rod installation holes at the same time. Connected in series, on the adjustment block there is a positioning screw that enters the yarn rod installation hole to position the adjustment block, one of the adjustment blocks in the adjustment block assembly is fixedly installed on the mounting base, and the mounting base is mounted on the mounting frame; the tension compensation device The tension rod is arranged above the main machine of the warp knitting machine, and the adjustable yarn passing rod device is arranged between the tension rod and the yarn conveying frame of the tension compensation device through the installation frame. The tension of each yarn is different when the creel is let-off, and the yarn tension is controlled by the yarn passing device during let-off, so as to better realize the tension compensation of the yarn and make the tension of each yarn uniform.

The tension compensation device includes a tension swing arm, a swing arm synchronous link, an eccentric wheel, an eccentric wheel drive mechanism and the main shaft of the warp knitting machine host. One end of the tension swing arm is installed on the tension rod of the warp knitting machine. The tension on different tension rods The swing arms are connected and driven by the swing arm synchronous link, one of the tension swing arms is connected and transmitted to the eccentric wheel that drives the tension swing arm to swing through the pull rod, and the main shaft drives the eccentric wheel through the eccentric wheel drive mechanism. Since the knitting motion of the warp knitting machine is controlled by the main shaft, and the up and down swing of the tension plate is also controlled by the main shaft, the two are synchronized, which can better control the yarn tension during warp let-off and better realize the tension compensation of the yarn. .

Each yarn passing rod installation hole of the adjustment block is equipped with two positioning screws.

One of the adjusting blocks in the adjusting block assembly is installed on the mounting base through mounting bolts.

Specifically, the eccentric wheel drive mechanism includes a main shaft synchronous wheel, an eccentric synchronous wheel, an intermediate transmission shaft, a synchronous belt, and a compensation seat. The eccentric wheel and the eccentric synchronous wheel are coaxially installed on the intermediate transmission shaft, and the intermediate transmission shaft is installed on the compensation seat. The compensation seat is installed on the equipment wallboard, the main shaft synchronous wheel is installed on the main shaft, and the main shaft synchronous wheel and the eccentric synchronous wheel are connected by a synchronous belt.

Specifically, the tension swing arm has a swing arm swing adjustment groove, and the pull rod is connected and driven with the tension swing arm through the swing arm swing adjustment groove.

It is further defined that the synchronous connecting rod of the swing arm is connected and driven with the tension swing arm through the swing arm swing adjustment groove.

The beneficial effect of the present invention is: the combination of the adjustable yarn passing rod device and the tension compensation device can better realize the tension compensation of the yarn, and make the tension of each yarn uniform.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the present invention is further described;

Fig. 1 is the structural representation of the tension compensation device of traditional warp knitting machine;

Fig. 2 is the structural representation of warp knitting machine tension compensation device of the present invention;

Fig. 3 is the structural representation of the warp knitting machine with tension compensation device of the present invention;

Fig. 4 is a schematic diagram of the connection transmission structure of the pull hook and the tension swing arm of the present invention;

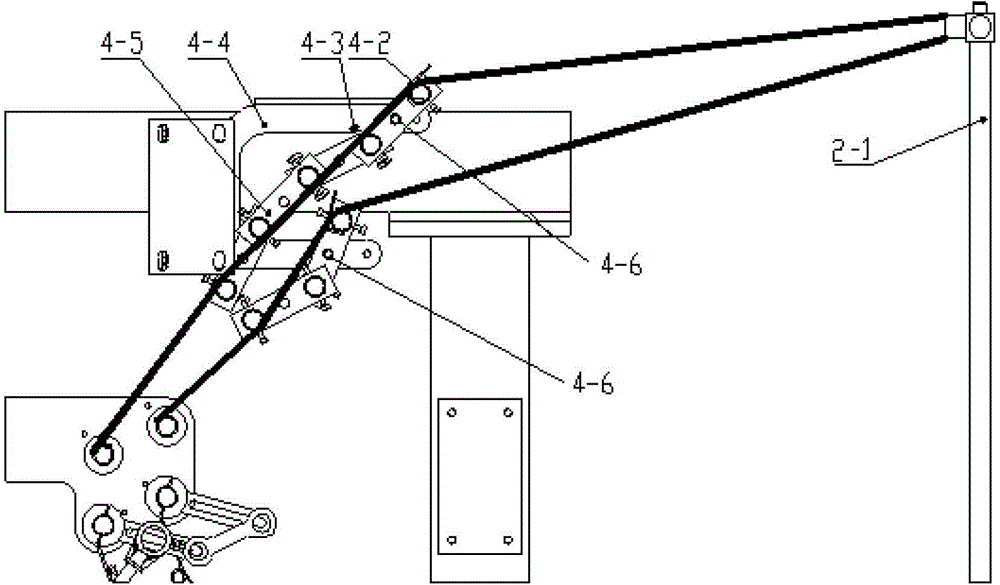

Fig. 5 is a structural schematic diagram of the adjustable yarn passing rod device of the present invention;

In the figure, 1-1. Fixing bolt, 1-2. Clamping block, 1-3. Hook, 1-5. Return spring, 1-6. Chain, 1-7. Sector sprocket, 1-8. Tension sheet, 2-1. Creel, 2-2. Warp knitting machine host, 2-3. Mounting frame, 2-4. Adjustable yarn passing device, 3-1. Main shaft, 3-2. Main shaft synchronous wheel , 3-3. Intermediate transmission shaft, 3-4. Eccentric wheel, 3-5. Compensation seat, 3-6. Pull rod, 3-8. Swing arm synchronous link, 3-9. Tension swing arm, 3-10 . Tension rod.

Detailed ways

As shown in Figures 2, 3, 4 and 5, a warp knitting machine that is convenient for tension control includes a warp knitting machine host 2-2, a mounting frame 2-3, a yarn delivery frame, and an adjustable yarn passing rod device 2- 4 and the tension compensation device, the yarn delivery frame is the creel 2-1, and the yarn enters the warp knitting machine main frame 2-2 through the adjustable yarn rod device 2-4 and the tension compensation device from the creel 2-1. circle device.

The adjustable yarn passing rod device 2-4 includes a yarn passing rod 4-2, an adjustment block assembly and a mounting seat 4-4 positioned at both sides of the yarn passing rod 4-2, and the yarn passing rod 4-2 passes through the yarn passing rod 4-2 respectively. 4-2 The adjustment block assemblies on both sides are installed, the number of adjustment blocks 4-5 in each set of adjustment block assemblies is two or more, and the two ends of the adjustment blocks 4-5 have yarn rod installation holes The adjustment blocks 4-5 in each group of adjustment block assemblies are connected in series by passing through the yarn passing rods 4-2 of two adjacent yarn passing rod installation holes at the same time, and the adjustment blocks 4-5 have access to the yarn rod installation holes to adjust The positioning screw 4-3 for the positioning of the block 4-5, one of the adjusting block 4-5 in the adjusting block assembly is fixedly installed on the mounting seat 4-4, and the mounting seat 4-4 is installed on the mounting frame 2-3. By adjusting the angle between the adjustment blocks 4-5, the tension of the yarn passing through the yarn rod can be adjusted.

Tension compensation device comprises tension swing arm 3-9, swing arm synchronous link 3-8, eccentric wheel 3-4, eccentric wheel driving mechanism and the main shaft 3-1 of warp knitting machine main frame 2-2, tension swing arm 3-9 One end of one end is installed on the tension bar 3-10 of warp knitting machine, and the tension swing arm 3-9 on different tension bar 3-10 is connected transmission by swing arm synchronous connecting rod 3-8, and one of tension swing arm 3 -9 is connected to the eccentric wheel 3-4 that drives the tension swing arm 3-9 to swing through the pull rod 3-6, and the main shaft 3-1 drives the eccentric wheel 3-4 through the eccentric wheel drive mechanism. After simulation optimization, the best eccentric distance is 6mm.

The tension compensation device is arranged on the top of the warp knitting machine main frame 2-2, and the adjustable yarn passing rod device is arranged between the tension rod 3-10 of the tension compensation device and the creel 2-1 through the installation frame 2-3.

The eccentric wheel driving mechanism includes a main shaft synchronous wheel 3-2, an eccentric synchronous wheel, an intermediate transmission shaft 3-3, a synchronous belt and a compensation seat 3-5, and the eccentric wheel 3-4 and the eccentric synchronous wheel are on the intermediate transmission shaft 3-3. Shaft installation, the intermediate transmission shaft 3-3 is installed on the compensation seat 3-5, the compensation seat 3-5 is installed on the equipment wallboard, the main shaft synchronous wheel 3-2 is installed on the main shaft 3-1, the main shaft synchronous wheel 3-2 It is connected with the eccentric synchronous wheel through a synchronous belt.

The tension swing arm 3-9 has a swing arm swing adjustment groove, and the pull rod 3-6 is connected and driven with the tension swing arm 3-9 through the swing arm swing adjustment groove.

The swing arm synchronous connecting rod 3-8 is connected and driven with the tension swing arm 3-9 through the swing arm swing adjustment groove.

The working process of the tension compensation device is as follows: the main shaft 3-1 drives the main shaft synchronous wheel 3-2 fixed on it to rotate, the main shaft synchronous wheel 3-2 drives the eccentric synchronous wheel to rotate through the synchronous belt, and the eccentric synchronous wheel drives the eccentric wheel 3-4 Rotate, the eccentric wheel 3-4 drives the tension bar 3-10 to reciprocate through the pull rod 3-6, and the tension swing arm 3-9 swings back and forth. By adjusting the angle of the main shaft 3-1 and the eccentric wheel 3-4, the constant tension and tension of the yarn are realized. Synchronization is achieved between the rod 3-10 and the tension rod 3-10 through the swing arm synchronization link 3-8. As shown in FIG. 4 , in order to improve the swing range of the tension sheet, the distance between the connecting head of the tie rod 3-6 and the tension rod 3-10 can be adjusted to meet different requirements.

Claims (7)

1. be convenient to the warp knitting machine that tension force is controlled for one kind, it is characterized in that: comprise warp knitting machine main frame (2-2), installing rack (2-3), yarn carriage, can regulate yarn passing rod device and tension compensating mechanism,

Can regulate the yarn passing rod device and comprise yarn passing rod (4-2), lay respectively at regulating block assembly and the mount pad (4-4) of yarn passing rod (4-2) both sides, yarn passing rod (4-2) is installed by the regulating block assembly that lays respectively at yarn passing rod (4-2) both sides, the quantity of the regulating block (4-5) in every group of regulating block assembly has more than two and two, the two ends of regulating block (4-5) have the yarn passing rod installing hole respectively, regulating block (4-5) in every group of regulating block assembly is connected in series by the yarn passing rod (4-2) that passes adjacent two yarn passing rod installing holes simultaneously, have at regulating block (4-5) and to enter the dog screw (4-3) that yarn bar installing hole positions regulating block (4-5), one of them regulating block (4-5) in the regulating block assembly is fixedly mounted on the mount pad (4-4), mount pad (4-4) is installed on the installing rack (2-3)

The tension rail of tension compensating mechanism (3-10) is arranged on the top of warp knitting machine main frame (2-2), can regulate the yarn passing rod device and be arranged between the tension rail and yarn carriage of tension compensating mechanism by installing rack (2-3).

2. the warp knitting machine of being convenient to tension force control according to claim 1, it is characterized in that: described tension compensating mechanism comprises tension force swing arm (3-9), swing arm synchronising (connecting) rod (3-8), eccentric wheel (3-4), the main shaft (3-1) of eccentric wheel driving mechanism and warp knitting machine main frame (2-2), one end of tension force swing arm (3-9) is installed on the tension rail (3-10) of warp knitting machine, connect transmission by swing arm synchronising (connecting) rod (3-8) between the tension force swing arm (3-9) on the differential tension bar (3-10), one of them tension force swing arm (3-9) by pull bar (3-6) with drive tension force swing arm (3-9) swingingly eccentric wheel (3-4) is connected transmission, main shaft (3-1) passes through eccentric wheel driving mechanism driving eccentric wheel (3-4).

3. the warp knitting machine of being convenient to tension force control according to claim 1 is characterized in that: each yarn passing rod installing hole outfit two dog screw (4-3) of described regulating block (4-5).

4. the warp knitting machine of being convenient to tension force control according to claim 1, it is characterized in that: one of them regulating block (4-5) in the described regulating block assembly is installed on the mount pad (4-4) by construction bolt (4-6).

5. the warp knitting machine of being convenient to tension force control according to claim 2, it is characterized in that: described eccentric wheel driving mechanism comprises main shaft synchronizing wheel (3-2), eccentric synchronizing wheel, intermediate propeller shaft (3-3), band and compensation (3-5) synchronously, eccentric wheel (3-4) and eccentric synchronizing wheel are gone up coaxial installation at intermediate propeller shaft (3-3), intermediate propeller shaft (3-3) is installed on the compensation seat (3-5), compensation seat (3-5) is installed on the equipment wallboard, main shaft synchronizing wheel (3-2) is installed on the main shaft (3-1), connects by being with synchronously between main shaft synchronizing wheel (3-2) and the eccentric synchronizing wheel.

6. the warp knitting machine of being convenient to tension force control according to claim 2, it is characterized in that: have swing arm amplitude of oscillation regulating tank in the described tension force swing arm (3-9), pull bar (3-6) is connected transmission by swing arm amplitude of oscillation regulating tank with tension force swing arm (3-9).

7. the warp knitting machine of being convenient to tension force control according to claim 6, it is characterized in that: described swing arm synchronising (connecting) rod (3-8) is connected transmission by swing arm amplitude of oscillation regulating tank with tension force swing arm (3-9).
