Abstract
The invention discloses a highway tunnel lighting intelligent control system, which comprises a lighting circuit intelligent controller (4), a radar transmitting induction device (3), tunnel illumination (5) and a light intensity inductor (2). The highway tunnel lighting intelligent control system is characterized in that the radar transmitting induction device (3) senses the running condition of an automobile (1) through transmitting radar waves (6), and the illumination in a tunnel is intelligently controlled through the lighting circuit intelligent controller (4); the light intensity inductor (2) is used for sensing day brightness and weather light intensity outside the tunnel, detecting the running condition and position of the automobile (1) in the tunnel by being combined with the radar transmitting induction device (3), and transmitting light intensity parameter data and running information of the automobile (1) to the lighting circuit intelligent controller (4) so as to adjust segmented illumination and the intensity of the tunnel illumination (5) and achieve the goal of reducing energy consumption. With the adoption of the intelligent control system disclosed by the invention, the problems of serious waste of electric energy and insufficient use of illumination in the tunnel caused by light traffic in the highway tunnel are effectively solved. The highway tunnel lighting intelligent control system is simple in structure, agile in performance, reliable, and sufficiently energy-saving.
Description
Technical field
The present invention relates to a kind of highway tunnel illumination intelligence control system, the vcehicular tunnel that particularly, length of tunnel less for the western mountainous areas magnitude of traffic flow is long, the tunnel illumination power consumption is big, to reach the purpose of energy-saving and emission-reduction, realize the highway tunnel illumination Based Intelligent Control by intelligence control tunnel of the present invention illumination and tunnel intraoral illumination light power.
Background technology
Whether in the real life, in the vcehicular tunnel, no matter have car current, the illumination in the tunnel all is to be in opening.For this type of situation, under the less situation of the magnitude of traffic flow, the long-term unlatching of tunnel illumination system has caused great waste to the consumption of electric energy.If in existing illuminator, introduce intelligence control system, can throwing light on to the tunnel illumination system according to vehicle travel situations and position in the light power outside the tunnel and the tunnel, power is regulated and the Based Intelligent Control of segmented illumination, saves energy in a large number improves the service efficiency of tunnel illumination system.Significant to energy-saving and emission-reduction, still there is not this type of device at present.
Summary of the invention
Technical problem to be solved by this invention provide a kind of can be in the operation of the less vcehicular tunnel of the magnitude of traffic flow effective saves energy, improve the highway tunnel illumination intelligence control system of the service efficiency of tunnel illumination.
In order to solve the problems of the technologies described above, lighting circuit intelligence controlling device (4), radar emission induction installation (3), tunnel illumination (5) and the light intensity inductor (2) of comprising provided by the invention, it is characterized in that: described radar emission induction installation (3) passes to lighting circuit intelligence controlling device (4) by launching quantity and the traveling-position that radar wave (6) detects automobile (1) with its data-signal; Brightness in daytime and the strong and weak situation of weather light form data-signal with it and pass to lighting circuit intelligence controlling device (4) outside described light intensity inductor (2) the induction tunnel.
The data-signal that described lighting circuit intelligence controlling device (4) transmits according to light intensity inductor (2) and radar emission induction installation (3), and in conjunction with the travel situations of automobile and brightness in daytime and the strong and weak situation of weather light, control switch and the brightness of illumination power of tunnel illumination (5) light.When the vehicle of finding to sail into and travel in the tunnel, unlatching by lighting circuit intelligence controlling device (4) control tunnel illumination (5) light provides illumination for automobile travelling in the tunnel, during the vehicle that in automobile rolls tunnel and tunnel away from, do not travel again closure of a tunnel illumination (5) to save the illumination electric energy.
In the described tunnel illumination (5), according to the intensity of illumination outside the hole, day mode, night mode are arranged in section illumination in hole.Wherein day mode can be carried out classification to the brightness of tunnel intraoral illumination according to the bright degree in the external world and intensity of illumination again, by controlling unlatching tunnel illumination (5) light fixture quantity and houselights power to adjust the brightness of illumination in the tunnel.
, the magnitude of traffic flow less vcehicular tunnel long for tunnel, can adopt 200m ~ 300m length is that an illumination stage is carried out segmented illumination.Namely be divided into independently intelligent lighting control section to every section, by the particular location of radar emission induction installation (3) by radar wave (6) induction automobile, open running car section and leading portion houselights with lighting circuit intelligence controlling device (a 4) control, other sections houselights can be closed.Adopt such scheme can save and utilize electric energy to a greater extent, cut down the consumption of energy.
In sum, the present invention is that a kind of little highway tunnel illumination of the magnitude of traffic flow that can effectively reduce utilizes the tunnel illumination intelligence control system insufficient, that waste of energy is serious.Its system configuration is simple, performance sensitive, reliable, and is energy-conservation abundant.Be specially adapted to the remote mountain areas, the magnitude of traffic flow is less, and the tunnel is many and long, the situation that the tunnel illumination energy consumption is big.
Description of drawings

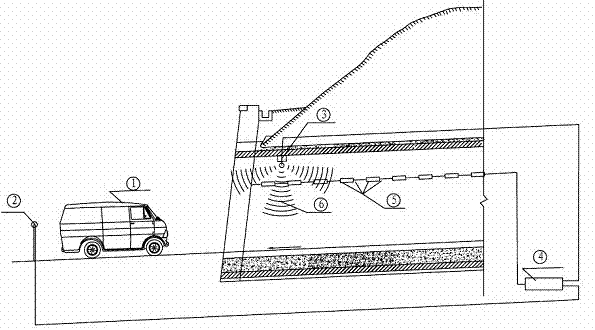

Fig. 1 is highway tunnel illumination intelligence control system generalized section.
Fig. 2 is highway tunnel illumination intelligence control system schematic cross-sectional view.
Embodiment
The invention will be further described below in conjunction with accompanying drawing.
Referring to Fig. 1 and Fig. 2, by at tunnel portal and the inner radar emission induction installation (3) of laying, can detect travel conditions and the position of vehicle.By being laid in the light intensity inductor of locating near the hole outside the tunnel (2), with induction tunnel situation in extraneous daytime and light intensity, the light data are passed to lighting circuit intelligence controlling device (4), open light fixture quantity and houselights power by control and adjust brightness of illumination in the tunnel.
Can carry out segmented illumination for long tunnel.Described tunnel segment illumination, be, the magnitude of traffic flow less vcehicular tunnel long for tunnel, can adopt 200m ~ 300m length is that an illumination stage is carried out segmented illumination, namely each illumination stage is intelligent lighting control section independently, by the particular location of radar emission induction installation (3) by radar wave (6) induction automobile, open running car section and leading portion houselights with lighting circuit intelligence controlling device (a 4) control, other sections houselights can be closed.Adopt such scheme can save and utilize electric energy to a greater extent, cut down the consumption of energy.
Claims (3)
1. the invention discloses a kind of highway tunnel illumination intelligence control system, comprise lighting circuit intelligence controlling device (4), radar emission induction installation (3), tunnel illumination (5) and light intensity inductor (2), it is characterized in that: travel conditions and position that described radar emission induction installation (3) is sensed automobile (1) by emission radar wave (6), automobile (1) driving information is passed to lighting circuit intelligence controlling device (4), provide illumination by its unlatching of controlling tunnel illumination (5) light for automobile travelling in the tunnel; Roll away from when not having vehicle that other travel in tunnel and the tunnel when radar emission induction installation (3) detects automobile (1), by lighting circuit intelligence controlling device (4) closure of a tunnel illumination (5) to save the illumination electric energy.
2. highway tunnel illumination intelligence control system according to claim 1, it is characterized in that: described light intensity inductor (2) is laid in the opening on the outer highway of tunnel portal, regulates the power of tunnel internal illumination to reach the purpose that cuts down the consumption of energy by the strong and weak situation of brightness in daytime and weather light outside the induction tunnel.
3. highway tunnel illumination intelligence control system according to claim 1 and 2, it is characterized in that: for long tunnel, described tunnel illumination (5) can carry out segmentation control by 200m ~ 300m, radar emission induction installation (3) is by the particular location of radar wave (6) induction automobile, give lighting circuit intelligence controlling device (4) with data information transfer such as automobile (1) travel situations and positions, unlatching by its Based Intelligent Control running car section and leading portion tunnel illumination (5) light, other sections houselights can close to reach segmented illumination, and purpose cuts down the consumption of energy.
