A microwave water heater is formed by a shell, a controller, a microwave generator, a waveguide tube, a wave-transparent sealing body and a heating chamber. Water in a water tank can enter into the heating chamber through a shielding net which is covered on the heating chamber to be heated by microwaves and the microwaves cannot enter into the water tank through the shielding net, so that the microwaves cause no harm to users. The water heated by the microwaves rises and other part of lower temperature water in the water tank is added to the hearting chamber due to hot ascending and cold descending and cycling is performed until the water temperature meets the preset requirements. The microwave water heater not only can be applied to open environment to heat water but also can be applied to water heaters to heat the water. The shell of the microwave water heater can be made of non-metal materials, so that a shielding device is not needed to be installed on a water inlet and a water outlet.
Description
Technical field
The present invention relates to a kind of microwave water heater, belong to microwave in the application technology in water heating field.
Background technology
In bathtub, bathing pool, sink and other some open environment, can't directly heat wherein water with microwave at present.In addition, the application of microwave on water heater normally utilizes tank shell as the electromagnetic shielding seal, also needs respectively to install a screening arrangement at intake-outlet, and all needs ground connection, and structure is relative complex also, and tank shell need adopt metal material to make.
Therefore, need to seek a kind of microwave water heater, not only can in open environment, heat water, can also be applied on the water heater, the shell of water heater can be made of nonmetallic materials, also need screening arrangement be installed at intake-outlet.
Summary of the invention
The purpose of this invention is to provide a kind of microwave water heater, not only can in open environment, heat water, can also be applied on the water heater, the shell of water heater can be made of nonmetallic materials, also need screening arrangement be installed at intake-outlet.
[0005]Technical scheme of the present invention is: a kind of microwave water heater, formed by shell 1, controller 2, microwave generator 3, waveguide 4, saturating ripple seal 5, heating chamber 6, shell 1 is made up of the water tank 11 that is positioned at the top and the electrical store 12 that is positioned at the below, and controller 2, microwave generator 3, waveguide 4 orders are installed in the electrical store 12; Have wave hole on water tank 11 diapires or the sidewall, saturating ripple seal 5 is placed on the wave hole, makes water not enter waveguide 4 from saturating wave hole, and the end that saturating wave hole is positioned at electrical store 12 is connected with the port of export of waveguide 4, heating chamber 6 is positioned at water tank 11, is fixed on the wave hole; The hollow cavity that described heating chamber 6 covers for gauze screen, microwave can not be from heating chamber 6 to external radiation; Microwave passes ripple seal 5 from waveguide 4 and enters heating chamber 6, and the water that enters heating chamber 6 from gauze screen is heated.
Saturating ripple seal 5 adopts nonmetallic materials to make.
The upper opening of water tank 11.
Beneficial effect
1, the water in the water tank can enter in the heating chamber by heating using microwave by the gauze screen that covers on the heating chamber, and microwave can not enter water tank by gauze screen, therefore, microwave can not damage the user, and because heat rises cold falling, by heating using microwave water can rise, in the water tank other partly the lower water of temperature can add to heating chamber, so move in circles, reach predefined requirement until water temperature.
2, not only can be applied to open environment water is heated, can also be applied on the water heater water is heated, and the shell of water heater can make of nonmetallic materials, also need screening arrangement be installed at intake-outlet.
Description of drawings

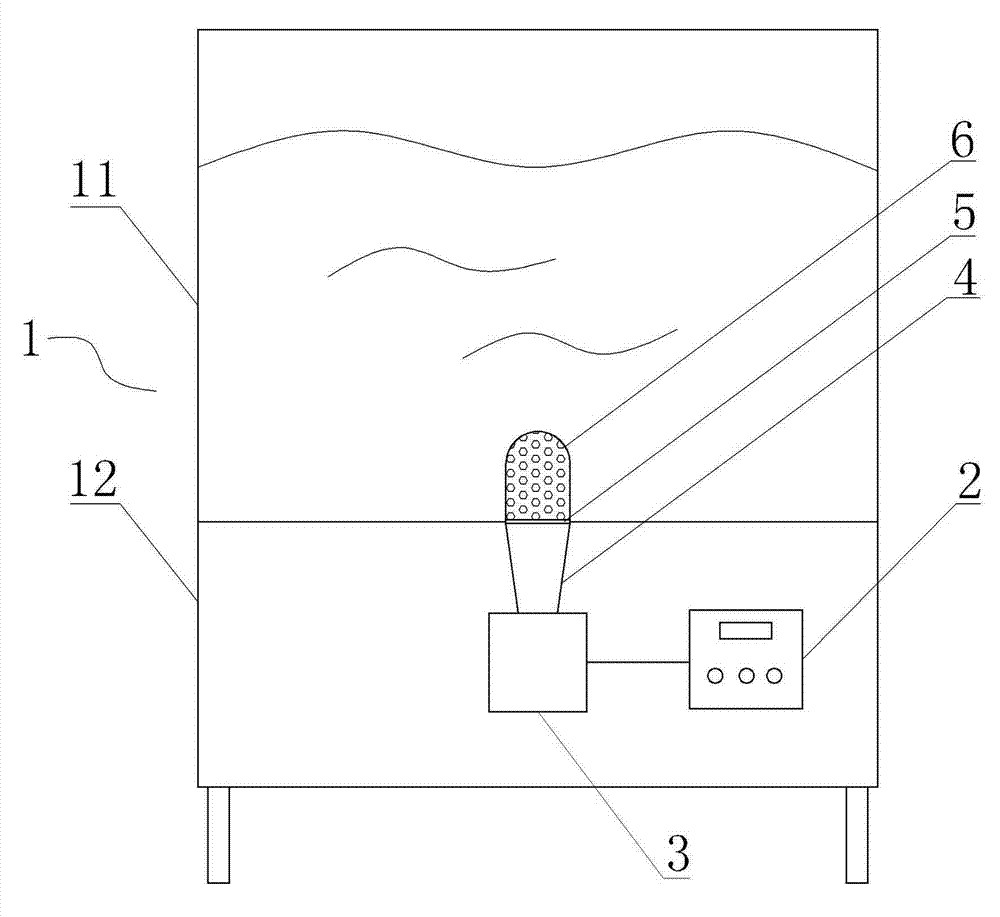

Fig. 1 is structural representation of the present invention.
The specific embodiment
As shown in Figure 1, a kind of microwave water heater, formed by shell 1, controller 2, microwave generator 3, waveguide 4, saturating ripple seal 5, heating chamber 6, shell 1 is made up of the water tank 11 that is positioned at the top and the electrical store 12 that is positioned at the below, and controller 2, microwave generator 3, waveguide 4 orders are installed in the electrical store 12; Have wave hole on water tank 11 diapires or the sidewall, saturating ripple seal 5 is placed on the wave hole, makes water not enter waveguide 4 from saturating wave hole, and the end that saturating wave hole is positioned at electrical store 12 is connected with the port of export of waveguide 4, heating chamber 6 is positioned at water tank 11, is fixed on the wave hole; The hollow cavity that described heating chamber 6 covers for gauze screen, microwave can not be from heating chamber 6 to external radiation; Microwave passes ripple seal 5 from waveguide 4 and enters heating chamber 6, and the water that enters heating chamber 6 from gauze screen is heated.
Saturating ripple seal 5 adopts nonmetallic materials to make, and enters in the heating chamber so that microwave can pass the ripple seal from waveguide, and the water in the heating chamber is heated.
The upper opening of water tank 11 is in order to put into the article that need heating.
The hollow cavity that described heating chamber 6 covers for gauze screen.Water enters in the heating chamber from gauze screen, microwave enters heating chamber 6 by saturating ripple seal 5, wherein water is heated, after water temperature raises, rise cold principle of falling according to heat, the water that temperature is high can rise, the low water of other part temperature can flow to heating chamber 6 interior continuation heating in the water tank, rising again after temperature raises, and the low water of other part temperature flows into and is heated in the water tank, so move in circles, just can reach the purpose that the water in the water tank is heated.
The present invention is applied on the water heater, just need screening arrangement be set at intake-outlet, the shell of water heater can also select for use nonmetallic materials to make except can selecting the metal material making for use, because the heating chamber 6 outer gauze screens that microwave has been arranged in the water tank have shielded.
When using in open environment, because the grid of gauze screen is less, in daily use, people's finger or other healths partly can't enter in the grid, therefore, can not damage human body.
For the sake of security, can also add one in the outside of gauze screen again and ensure net.
Adopt and to send out the microwave water heater of the present invention, water in the water tank can enter in the heating chamber by heating using microwave by the gauze screen that covers on the heating chamber, and microwave can not enter water tank by gauze screen, therefore, microwave can not damage the user, and because heat rises cold falling, by heating using microwave water can rise, the lower water of other part temperature can add to heating chamber in the water tank, so moves in circles, and reaches predefined requirement until water temperature.
Adopt microwave heating, installed power is low, and efficient height, firing rate are fast, and clean hygiene heats the water class I liquid I by heating chamber, can also reach the purpose that the article in the liquid are heated.
Above-described embodiment only is interpretation purposes of the present invention, and is not to be limitation of the present invention, and those skilled in the art in essential scope of the present invention, make a variety of changes or substitute, and also should belong to protection category of the present invention.
Claims (3)
1. microwave water heater, by shell (1), controller (2), microwave generator (3), waveguide (4), saturating ripple seal (5), heating chamber (6) is formed, shell (1) by be positioned at the top water tank (11) and be positioned at below electrical store (12) form, controller (2), microwave generator (3), waveguide (4) order is installed in the electrical store (12), it is characterized in that: have wave hole on water tank (11) diapire or the sidewall, saturating ripple seal (5) is placed on the wave hole, make water not enter waveguide (4) from saturating wave hole, the end that saturating wave hole is positioned at electrical store (12) is connected with the port of export of waveguide (4); Heating chamber (6) is positioned at water tank (11), is fixed on the wave hole, and the hollow cavity that described heating chamber (6) covers for gauze screen, microwave can not be from heating chamber (6) to external radiation; Microwave passes ripple seal (5) from waveguide (4) and enters heating chamber (6), and the water that enters heating chamber (6) from gauze screen is heated.
2. microwave water heater according to claim 1 is characterized in that: the making of saturating ripple seal (5) employing nonmetallic materials.
3. microwave water heater according to claim 1 is characterized in that: the upper opening of water tank (11).
