Abstract
An interchangeable multipurpose injection mould for processing plastic chairs comprises a fixed die plate and a movable die plate. A fixed die is arranged below the fixed die plate. A moving die and a guide pillar are installed on the movable die plate. Two sides of the moving die are respectively provided with a fixed block. The moving die is provided with a mold cavity. An injection molded plastic chair is arranged between the mold cavity and the fixed die. Two sides of the mold cavity are respectively provided with a hoist cylinder. Each hoist cylinder piston rod is connected with each fixed block. A liftout plate is arranged in front of the mold cavity. A liftout rod is mounted on one side of the liftout plate and a liftout rack is installed on the other side of the liftout plate. The liftout rack is provided with a liftout cylinder, a piston rod of which is connected with the mold cavity. The liftout rod is driven by the liftout cylinder, and the head part of the liftout rod is contacted with the injection molded plastic chair. The interchangeable multipurpose injection mould is characterized in that a chair back position of the moving die is provided with a chair back insert block; chair armrest positions at two sides of the moving die are respectively provided with a plugging block which is driven by a piston rod of a plugging block cylinder; and each plugging block fits with a glue inlet at each armrest position of the moving die.
Description
Technical field
The present invention relates to the injection mold of processing plastic chair, the interchangeable that particularly relates to the processing plastic chair is used injection mold more.
Background technology
Plastic chair generally all is by the mould of plastics single injection-molded, and it is fast to have a process velocity, and cost is low, characteristics such as can reclaim, and is widely used in restaurant, tourist attraction, meeting room and family etc.The injection mold of existing Plastic chair, the secondary mould of one generally can only be made a kind of chair of pattern, if will make chair product diversification, profile enrich, satisfy different clients' demand, then need to develop how secondary mould, mould manufacturing expense height like this, it is big to produce input cost.
Summary of the invention
The objective of the invention is provides a kind of mould input cost low in order to overcome the shortcoming that prior art exists, the chair variation that produces, and the interchangeable of the processing plastic chair that profile is abundant is used injection mold more.
How the interchangeable of processing plastic chair of the present invention with the technical scheme of injection mold is: comprise solid plate and moving platen, installation cover half under the solid plate, dynamic model and guide pillar are installed on the moving platen, install and fix piece in the dynamic model both sides, die cavity is set on the dynamic model, the Plastic chair that injection mo(u)lding is arranged between die cavity and the cover half, hoist cylinder is installed in the die cavity both sides, the piston rod of hoist cylinder is connected with fixed block, there is liftout plate the die cavity front, liftout plate one side is installed knock-pin, the liftout plate opposite side is installed and is ejected support, ejects to install on the support to eject oil cylinder, and the piston rod that ejects oil cylinder is connected with die cavity, knock-pin drives by ejecting oil cylinder, the head of knock-pin contacts with the Plastic chair of injection mo(u)lding, it is characterized in that: described dynamic model is positioned at the seat-back position installation chair back to be inserted, and the dynamic model both sides are positioned at the armrests position sprue is set, sprue is driven by the piston rod of sprue oil cylinder, and sprue matches with dynamic model arm rest glue-feeder.
The interchangeable that the invention discloses a kind of processing plastic chair is used injection mold more, after the Plastic chair injection mo(u)lding, driving dynamic model by moving platen moves down, dynamic model drives die cavity and moves down, the mould die sinking, and the piston rod by hoist cylinder withstands on the fixed block of dynamic model then, driving die cavity by hoist cylinder moves up along guide pillar, drive and to eject support and liftout plate by ejecting oil cylinder at last, liftout plate drives knock-pin, by knock-pin the Plastic chair of injection mo(u)lding is ejected the die cavity demoulding.The principal character of this programme is to be positioned at the seat-back position installation chair back at dynamic model to insert, the chair back is inserted and can in the time will making the Plastic chair of the different pattern chair back, be inserted as long as change the chair back by manually pulling down, need not to develop again different moulds, reduce the mould development cost; And be positioned at the armrests position sprue oil cylinder is installed in the dynamic model both sides, the piston rod of sprue oil cylinder connects sprue, sprue matches with dynamic model arm rest glue-feeder, in the time will making the Plastic chair that does not have handrail, drive sprue by the sprue oil cylinder and block the arm rest glue-feeder, sizing material can't be flowed into, Plastic chair after the moulding does not just have handrail, in the time will making armed Plastic chair, move laterally as long as drive sprue by the sprue oil cylinder, make it not block the arm rest glue-feeder, sizing material just can flow into the arm rest die cavity, thereby the Plastic chair of injection mo(u)lding just has handrail, makes very convenient.
The interchangeable of processing plastic chair of the present invention is used injection mold more, and the described chair back is inserted toply is light face or horizontal stripe convex tendon face or grid convex tendon face or vertical bar convex tendon face or circular convex tendon face.Can change the chair back according to client's needs and insert, make the Plastic chair of the difformity chair back.
Description of drawings

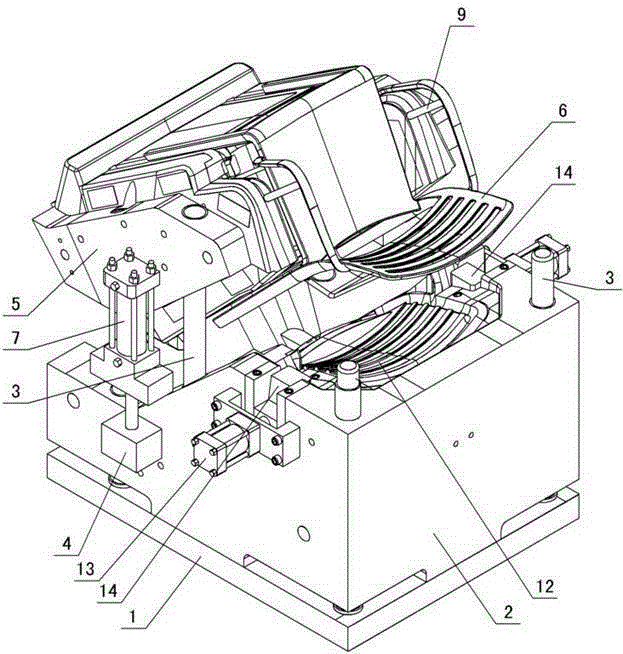

Fig. 1 is the schematic perspective view that the interchangeable of processing plastic chair is used injection mold more;
Fig. 2 be the interchangeable of processing plastic chair use more injection mold another to schematic perspective view;
Fig. 3 moves on the die cavity with Plastic chair to eject the state schematic perspective view;
Fig. 4 moves on the die cavity with Plastic chair to eject the state schematic side view;
Fig. 5 is the schematic perspective view that is shaped on hyphen bar convex tendon on the chair back is inserted.
The specific embodiment
The interchangeable that the present invention relates to a kind of processing plastic chair is used injection mold more, show as Fig. 1-Fig. 5, comprise solid plate and moving platen, installation cover half under the solid plate, dynamic model 2 and guide pillar 3 are installed on the moving platen 1, install and fix piece 4 in the dynamic model both sides, die cavity 5 is set on the dynamic model, the Plastic chair 6 that injection mo(u)lding is arranged between die cavity and the cover half, in the die cavity both sides hoist cylinder 7 is installed, the piston rod of hoist cylinder is connected with fixed block 4, and there is liftout plate 8 the die cavity front, liftout plate one side is installed knock-pin 9, the liftout plate opposite side is installed and is ejected support 10, ejects to install on the support to eject oil cylinder 11, and the piston rod that ejects oil cylinder is connected with die cavity 5, knock-pin drives by ejecting oil cylinder 11, the head of knock-pin 9 contacts with the Plastic chair of injection mo(u)lding 6, it is characterized in that: described dynamic model 2 is positioned at the seat-back position installation chair back and inserts 12, and the dynamic model both sides are positioned at the armrests position sprue 14 is set, sprue is driven by the piston rod of sprue oil cylinder 13, and sprue matches with dynamic model 5 arm rest glue-feeders.After Plastic chair 6 injection mo(u)ldings, driving dynamic model 2 by moving platen 1 moves down, dynamic model drives die cavity 5 and moves down, the mould die sinking, piston rod by hoist cylinder 7 withstands on the fixed block 4 of dynamic model 2 then, drives die cavity 5 by hoist cylinder 7 and moves up along guide pillar 3, ejects support 10 and liftout plate 8 by ejecting oil cylinder 7 drives at last, liftout plate drives knock-pin 9, by knock-pin the Plastic chair 6 of injection mo(u)lding is ejected die cavity 5 demouldings.The principal character of this programme is to be positioned at the seat-back position installation chair back at dynamic model 2 to insert 12, the chair back is inserted and can in the time will making the Plastic chair 6 of the different pattern chair back, be inserted 12 as long as change the chair back by manually pulling down, need not to develop again different moulds, reduce the mould development cost; And be positioned at the armrests position sprue oil cylinder 13 is installed in dynamic model 2 both sides, the piston rod of sprue oil cylinder connects sprue 14, sprue matches with dynamic model 2 arm rest glue-feeders, in the time will making the Plastic chair 6 that does not have handrail, drive sprue 14 by sprue oil cylinder 13 and block the arm rest glue-feeder, sizing material can't be flowed into, Plastic chair after the moulding does not just have handrail, in the time will making armed Plastic chair 6, move laterally as long as drive sprue 14 by sprue oil cylinder 13, make it not block the arm rest glue-feeder, sizing material just can flow into arm rest die cavity 5, thereby the Plastic chair of injection mo(u)lding 6 just has handrail, makes very convenient.The described chair back insert 12 top for light face or horizontal stripe convex tendon face or grid convex tendon face or vertical bar convex tendon face or circular convex tendon face.Can change the chair back according to client's needs and insert 12, make the Plastic chair of the difformity chair back.
Claims (2)
1. the interchangeable of processing plastic chair is used injection mold more, comprise solid plate and moving platen, installation cover half under the solid plate, moving platen (1) is gone up dynamic model (2) and guide pillar (3) is installed, install and fix piece (4) in the dynamic model both sides, die cavity (5) is set on the dynamic model, the Plastic chair (6) that injection mo(u)lding is arranged between die cavity and the cover half, hoist cylinder (7) is installed in the die cavity both sides, the piston rod of hoist cylinder is connected with fixed block (4), there is liftout plate (8) the die cavity front, liftout plate one side is installed knock-pin (9), the liftout plate opposite side is installed and is ejected support (10), eject to install on the support and eject oil cylinder (11), the piston rod that ejects oil cylinder is connected with die cavity (5), knock-pin drives by ejecting oil cylinder (11), the head of knock-pin (9) contacts with the Plastic chair (6) of injection mo(u)lding, it is characterized in that: described dynamic model (2) is positioned at seat-back position the chair back insert (12) is installed, the dynamic model both sides are positioned at the armrests position sprue (14) are set, sprue is driven by the piston rod of sprue oil cylinder (13), and sprue matches with dynamic model (5) arm rest glue-feeder.
2. the interchangeable of processing plastic chair as claimed in claim 1 is used injection mold more, it is characterized in that: the described chair back the top for light face or horizontal stripe convex tendon face or grid convex tendon face or vertical bar convex tendon face or circular convex tendon face of (12) of inserting.
