CN102817703A - Adjustment system with post-pressure of air compressor as control pressure - Google Patents
Adjustment system with post-pressure of air compressor as control pressure Download PDFInfo
- Publication number
- CN102817703A CN102817703A CN2012102998441A CN201210299844A CN102817703A CN 102817703 A CN102817703 A CN 102817703A CN 2012102998441 A CN2012102998441 A CN 2012102998441A CN 201210299844 A CN201210299844 A CN 201210299844A CN 102817703 A CN102817703 A CN 102817703A
- Authority
- CN
- China
- Prior art keywords
- cavity volume
- pipe
- connecting tube
- moving body
- engine
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02T—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO TRANSPORTATION
- Y02T10/00—Road transport of goods or passengers
- Y02T10/10—Internal combustion engine [ICE] based vehicles
- Y02T10/12—Improving ICE efficiencies
Landscapes
- Supercharger (AREA)
Abstract
The invention provides an adjustment system with the post-pressure of an air compressor as control pressure in the technical field of an internal combustion engine, comprising an air compressor, a turbo, an engine, connection pipes, a volume chamber, a moving body, a penetration pipe and an elastic part, wherein two ends of the first connection pipe are communicated with an exhaust pipe and the upper wall face of the volume chamber respectively; two ends of the third connection pipe are communicated with the right wall face of the volume chamber and the air inlet pipe of the engine respectively; and the penetration pipe penetrates through the upper wall and the lower wall of the moving body. During the working process of the engine, the moving body can move left and right in the volume chamber; under the low speed working condition, since the pressure on the right side of the moving body is lower, the moving body moves rightward; the first connection pipe and the second connection pipe cannot be communicated; the air inflow of the engine is relatively increased; and the power rises. Under the high speed working condition, since the pressure on the right side of the moving body is higher, the moving body moves leftward; the first connection pipe and the second connection pipe are communicated with each other; the air input of the engine is relatively decreased; and the explosive pressure of each cylinder is decreased. The adjustment system with the post-pressure of the air compressor as the control pressure is rational in design, simple in structure and applicable for a turbo charging system of the engine.
Description
Technical field
What the present invention relates to is a kind of vent systems of field of internal combustion engine, particularly behind the supercharged engine gas compressor pressure as the regulating system of pilot pressure.
Background technique
Along with development of modern society, people require increasingly high to the power character and the Economy of motor.Under the certain situation of discharge capacity, want to improve the output power of motor, effective method just provides more fuel and burns.Provide more fuel to be easy to accomplish through oil nozzle to cylinder, yet the air quantity that is complementary with the fuel quantity that increases will be provided simultaneously, but do not accomplish so easily; Fuel burns under the prerequisite of air quantity deficiency, and firing effect is relatively poor.Certain when fuel injection quantity, when cylinder intake air quantity was big, then burning was better, and oil consumption is lower with discharging.The degree of vacuum that traditional naturally aspirated engine forms in cylinder when relying on piston to move downward fully sucks air, and the air that this traditional mode is difficult to q.s is provided is to support the perfect combustion of fuel.Therefore, the burning that is intended for motor provides enough air, makes the power character and the better economy of motor, and turbocharging technology is being played the part of very important role.But existing turbo charge system all can not be taken into account the low speed operating mode and the high-speed working condition of motor preferably.
Retrieval through to the existing technology document is found; Chinese patent ZL200410050996.3; Patent name: the variable modular pulse converter supercharging device of a kind of turbo-charged diesel; This patented technology provides the device of the shared volume continuous variable of exhaust in a kind of outlet pipe, can take into account the high-speed working condition and the low speed operating mode of motor preferably; But the variation of exhaust institute volume is to realize through moving up and down of movement rod in its outlet pipe; This just needs to increase the special control mechanism of a cover and controls moving of movement rod; Thereby the more complicated that the pressurization system structure is become, and the sealing of its exhaust piping is also relatively poor under high-temperature condition.
Summary of the invention
The present invention is directed to the deficiency of above-mentioned existing technology, provide behind a kind of gas compressor pressure can take into account the high-speed working condition and the low speed operating mode of motor preferably as the regulating system of pilot pressure.
The present invention realizes through following technological scheme; The present invention includes: compressor air inlet machine pipe, gas compressor, engine air inlet tube, coupling shaft, engine exhaust pipe, turbine, turbine steam outlet pipe, motor, first connecting tube, second connecting tube, the 3rd connecting tube, cavity volume, cavity volume upper wall surface, cavity volume lower wall surface, cavity volume left side wall, cavity volume right wall, cavity volume front face, cavity volume rear surface, moving body, run through pipe and elastic member; Gas compressor links to each other through coupling shaft is coaxial with turbine; The air inlet/outlet of gas compressor is connected with the air outlet of compressor air inlet machine pipe, the suction port of engine air inlet tube respectively; The air inlet/outlet of turbine is connected with the air outlet of engine exhaust pipe, the suction port of turbine steam outlet pipe respectively; The air inlet/outlet of motor is connected with the air outlet of engine air inlet tube, the suction port of engine exhaust pipe respectively; The cross section of cavity volume is a rectangular; Cavity volume upper wall surface, cavity volume lower wall surface, cavity volume left side wall, cavity volume right wall, cavity volume front face, the cavity volume rear surface is fixed is one; Moving body is installed in the cavity volume and with the internal face sealing of cavity volume and contacts, and the two ends of first connecting tube are connected with engine exhaust pipe, cavity volume upper wall surface respectively, and an end of second connecting tube is connected with the cavity volume lower wall surface; The other end of second connecting tube leads to atmosphere; The two ends of the 3rd connecting tube are connected with the right wall of cavity volume, engine air inlet tube respectively, run through two walls up and down that pipe runs through moving body, and the right wall of moving body is connected through the right wall of elastic member and cavity volume.
Further; In the present invention, elastic member is a spring, first connecting tube, second connecting tube, run through the pipe be straight pipe and internal diameter identical; The dead in line of the axis of first connecting tube and second connecting tube, the axis of first connecting tube and the axis that runs through pipe are at grade.
In working procedure of the present invention, moving body can be in cavity volume move left and right, an end of second connecting tube leads to atmosphere.In the low speed operating mode, the cavity volume internal pressure on moving body right side is lower, under the effect of elastic member; Moving body moves right; First connecting tube and second connecting tube can not be connected, and the exhaust behind the motor all flows into turbine, and the acting ability of turbine strengthens; Thereby air input of engine by air is increased relatively, and power rises; At high-speed working condition; The cavity volume internal pressure on moving body right side is higher, and moving body is moved to the left and the tensile elasticity parts, and first connecting tube and second connecting tube are connected; Some flows into atmosphere exhaust behind the motor; The acting ability of turbine weakens, thereby air input of engine by air is reduced relatively, and each cylinder detonation pressure reduces.
Compared with prior art, the present invention has following beneficial effect: the present invention can make motor charge flow rate when the low speed operating mode increase relatively, and power rises; When high-speed working condition, charge flow rate reduces relatively, and each cylinder detonation pressure reduces; And the volume cavity temperature is lower, and the sealing problem between shifting board and the cavity volume also solves easily.
Description of drawings

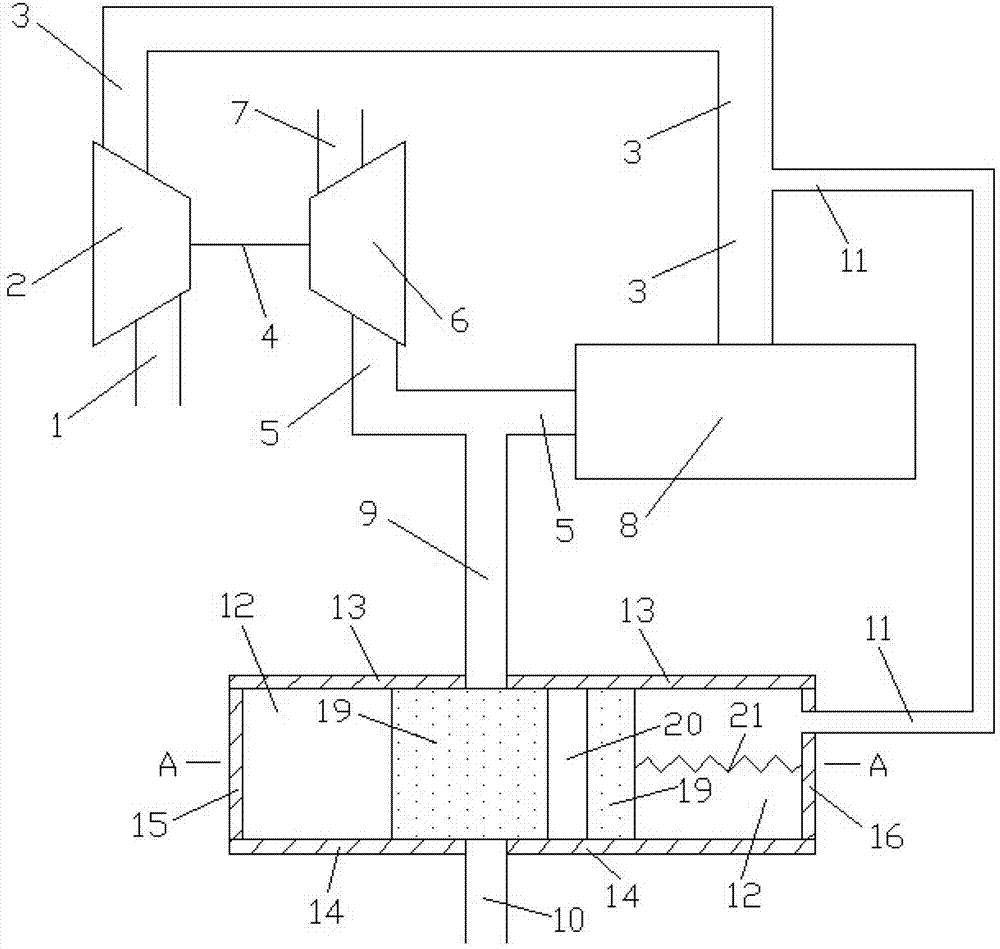

Fig. 1 is the structural representation of pressure behind the gas compressor of the present invention as the regulating system of pilot pressure;
Fig. 2 is the structural representation of A-A section among Fig. 1;
Wherein: 1, compressor air inlet machine pipe, 2, gas compressor, 3, engine air inlet tube, 4, coupling shaft, 5, engine exhaust pipe, 6, turbine; 7, turbine steam outlet pipe, 8, motor, 9, first connecting tube, 10, second connecting tube, the 11, the 3rd connecting tube; 12, cavity volume, 13, the cavity volume upper wall surface, 14, the cavity volume lower wall surface, 15, cavity volume left side wall, 16, the right wall of cavity volume; 17, cavity volume front face, 18, the cavity volume rear surface, 19, moving body, 20, run through pipe, 21, elastic member.
Embodiment
Below in conjunction with accompanying drawing embodiments of the invention are elaborated, present embodiment is a prerequisite with technological scheme of the present invention, provided detailed mode of execution and concrete operating process, but protection scope of the present invention is not limited to following embodiment.
Embodiment
As depicted in figs. 1 and 2; The present invention includes: comprise compressor air inlet machine pipe 1, gas compressor 2, engine air inlet tube 3, coupling shaft 4, engine exhaust pipe 5, turbine 6, turbine steam outlet pipe 7, motor 8, first connecting tube 9, second connecting tube 10, the 3rd connecting tube 11, cavity volume 12, cavity volume upper wall surface 13, cavity volume lower wall surface 14, cavity volume left side wall 15, cavity volume right wall 16, cavity volume front face 17, cavity volume rear surface 18, moving body 19, run through pipe 20 and elastic member 21; Gas compressor 2 and turbine 6 are through 4 coaxial linking to each other of coupling shaft; The air inlet/outlet of gas compressor 2 is connected with the air outlet of compressor air inlet machine pipe 1, the suction port of engine air inlet tube 3 respectively; The air inlet/outlet of turbine 6 is connected with the air outlet of engine exhaust pipe 5, the suction port of turbine steam outlet pipe 7 respectively; The air inlet/outlet of motor 8 is connected with the air outlet of engine air inlet tube 3, the suction port of engine exhaust pipe 5 respectively; The cross section of cavity volume 12 is a rectangular; Cavity volume upper wall surface 13, cavity volume lower wall surface 14, cavity volume left side wall 15, the right wall 16 of cavity volume, cavity volume front face 17, cavity volume rear surface 18 are fixed to be one; Moving body 19 is installed in the cavity volume 12 and with the internal face sealing of cavity volume 12 and contacts, and the two ends of first connecting tube 9 are connected with engine exhaust pipe 5, cavity volume upper wall surface 13 respectively, and an end of second connecting tube 10 is connected with cavity volume lower wall surface 14; The other end of second connecting tube 10 leads to atmosphere; The two ends of the 3rd connecting tube 11 are connected with the right wall 16 of cavity volume, engine air inlet tube 3 respectively, run through two walls up and down that pipe 20 runs through moving body 19, and the right wall of moving body 19 is connected through the right wall 16 of elastic member 21 and cavity volume; Elastic member 21 is a spring; First connecting tube 9, second connecting tube 10, run through that pipe 20 is straight pipe and internal diameter is identical, the dead in line of the axis of first connecting tube 9 and second connecting tube 10, the axis of first connecting tube 9 is managed 20 axis at grade with running through.
In working procedure of the present invention, moving body 19 can be in cavity volume 12 move left and right, an end of second connecting tube 10 leads to atmosphere.In the low speed operating mode, the cavity volume internal pressure on moving body 12 right sides is lower, under the effect of elastic member 21; Moving body 12 moves right; First connecting tube 9 and second connecting tube 10 can not be connected, and the exhaust behind the motor all flows into turbine 6, and the acting ability of turbine 6 strengthens; Thereby motor 8 air inflows are increased relatively, and power rises; At high-speed working condition; The cavity volume internal pressure on moving body 12 right sides is higher, and moving body 12 is moved to the left and tensile elasticity parts 21, the first connecting tubes 9 and second connecting tube 10 are connected; Some flows into atmosphere exhaust behind the motor; The acting ability of turbine 6 weakens, thereby motor 8 air inflows are reduced relatively, and each cylinder detonation pressure reduces.Therefore, the present invention can take into account the low speed operating mode and the high-speed working condition of motor preferably.
Claims (2)
- Behind the gas compressor pressure as the regulating system of pilot pressure; Comprise compressor air inlet machine pipe (1), gas compressor (2), engine air inlet tube (3), coupling shaft (4), engine exhaust pipe (5), turbine (6), turbine steam outlet pipe (7) and motor (8); Gas compressor (2) and turbine (6) are through coaxial linking to each other of coupling shaft (4); The air inlet/outlet of gas compressor (2) is connected with the air outlet of compressor air inlet machine pipe (1), the suction port of engine air inlet tube (3) respectively; The air inlet/outlet of turbine (6) is connected with the air outlet of engine exhaust pipe (5), the suction port of turbine steam outlet pipe (7) respectively; The air inlet/outlet of motor (8) is connected with the air outlet of engine air inlet tube (3), the suction port of engine exhaust pipe (5) respectively; It is characterized in that also comprising first connecting tube (9), second connecting tube (10), the 3rd connecting tube (11), cavity volume (12), cavity volume upper wall surface (13), cavity volume lower wall surface (14), cavity volume left side wall (15), cavity volume right wall (16), cavity volume front face (17), cavity volume rear surface (18), moving body (19), run through pipe (20) and elastic member (21); The cross section of cavity volume (12) is a rectangular; Cavity volume upper wall surface (13), cavity volume lower wall surface (14), cavity volume left side wall (15), cavity volume right wall (16), cavity volume front face (17), cavity volume rear surface (18) is fixed is one; Moving body (19) is installed in the cavity volume (12) and with the internal face sealing of cavity volume (12) and contacts; The two ends of first connecting tube (9) are connected with engine exhaust pipe (5), cavity volume upper wall surface (13) respectively; One end of second connecting tube (10) is connected with cavity volume lower wall surface (14); The other end of second connecting tube (10) leads to atmosphere; The two ends of the 3rd connecting tube (11) are connected with the right wall (16) of cavity volume, engine air inlet tube (3) respectively, run through two walls up and down that pipe (20) runs through moving body (19), and the right wall of moving body (19) is connected with the right wall of cavity volume (16) through elastic member (21).
- 2. pressure is as the regulating system of pilot pressure behind the gas compressor according to claim 1; It is characterized in that said elastic member (21) is a spring; Said first connecting tube (9), second connecting tube (10), run through that pipe (20) is straight pipe and internal diameter is identical; The dead in line of the axis of first connecting tube (9) and second connecting tube (10), the axis of first connecting tube (9) and the axis that runs through pipe (20) are at grade.
