CN102319738A - Method for slitting titanium and titanium alloy strip coil - Google Patents
Method for slitting titanium and titanium alloy strip coil Download PDFInfo
- Publication number
- CN102319738A CN102319738A CN201110183784A CN201110183784A CN102319738A CN 102319738 A CN102319738 A CN 102319738A CN 201110183784 A CN201110183784 A CN 201110183784A CN 201110183784 A CN201110183784 A CN 201110183784A CN 102319738 A CN102319738 A CN 102319738A
- Authority
- CN
- China
- Prior art keywords
- titanium
- narrow
- slitting
- volume
- band
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Abstract
The invention provides a method for slitting a titanium and titanium alloy strip coil. The method is characterized in that: uncoiled titanium and titanium alloy strips are treated by adopting a routing method of gripping, slitting, directional separating, clamping, uncoiling, coiling, coil striping and packaging. The method has the advantages that: an opened titanium and titanium alloy strip coil with length of over thousands of meters can be split by adopting the method provided by the invention, the ragged part on the edge of the titanium strip can be slit, and a broad titanium strip can be slit into a plurality of narrow titanium strips in different widths according to user requirements; and the titanium strip can only be trimmed by adopting the method, so that the breadth of the titanium strip can be maintained.
Description
Technical field
The invention belongs to the method and technology field of titanium or titanium alloy roll coil of strip slitting itemize.
Background technology
Existing titanium or titanium alloy sheet material all is with the rolling form production of veneer.Because the length of titanium plate length and width both direction all short (long limit is no more than only 2 meters of 6 meters, minor face) therefore is cut into fillet to the titanium plate and is prone to realize, promptly is cut into littler titanium plate to monoblock titanium plate through shearing several times.This mode, the one, can not realize longitudinal shear to the titanium band of opening km on the length, the 2nd, can not realize cutting into wide cut titanium band simultaneously the band of titanium in a narrow margin of many same widths or different in width, the 3rd, can not realize continuous production.
Summary of the invention
The objective of the invention is in order to solve the longitudinal shear of titanium band, itemize and to receive the problem of wrapping up in rolling.
The objective of the invention is to realize through following technical scheme:
A kind of titanium or titanium alloy roll coil of strip slitting itemize method, the present invention will adopt through the titanium band of uncoiling: the processing line path method that pinches-slitting-directed sub-material-pressing plate-bundling-rolling-unload volume-packing is handled; Wherein:
Pinch to adopting a pair of rubber faced roll the titanium band to be sent into the longitudinal shear machine on the titanium band that moves with the mode of clamping;
Slitting for the titanium band of operation through one group of disk scissors that is arranged on a pair of horizontal beaming roller, become many narrow titanium bands of different in width along titanium strip length direction slitting; Simultaneously, the uneven whole branch excision of titanium band edge portion, the limit silk of excision is received through the collection wheel disc that is arranged in the circle shear side and is wrapped up in the Cheng Biansi volume through outermost two pairs of circle shears;
Directed sub-material for narrow titanium band that slitting is told through being arranged in the guiding of the distribution disc feeder on a pair of horizontal rubber faced roll, keep identical gap fitly to get into the pressing plate platform between adjacent fillet;
Pressing plate is for to be guided winder with the narrow titanium band behind the itemize through pinching of pressing plate platform;
Bundling will be for will be cut into the volume of different length through the titanium band of cross cut shears after the slitting itemize as required;
Rolling is the guiding with the one group directed distribution disc feeder of narrow titanium band through being arranged in winder mandrel top, on same rolling mandrel, is wrapped up in to be rolled into a plurality of narrow titaniums volumes;
Unload volume for after all receipts are wrapped up in rolling with narrow titanium band; Fortune volume dolly is held the titanium volume from the below; Winder shrinks the footpath piece that rises and unclamps ring volume core in the titanium volume, ties up narrow titanium strip coil with Bundling strap fasteningly through manual work, rotates then and is arranged in unloading of winder side and rolls up and turn to platform to connect narrow titanium strip coil from the winder mandrel to draw; Rotation is unloaded volume and is turned to platform again, is transported to narrow titanium strip coil and wraps up in paper, packing on the package post.
The invention has the beneficial effects as follows, adopt method of the present invention to carry out slitting, cut the uneven whole branch of titanium band edge portion, be divided into the titanium band of wide cut by the customer requirements slitting the narrow titanium band of many different in width opening the titanium or titanium alloy roll coil of strip that length reaches km; Also can only cut edge, keep titanium band fabric width the titanium band.
Further set forth content of the present invention below in conjunction with embodiment.
Description of drawings

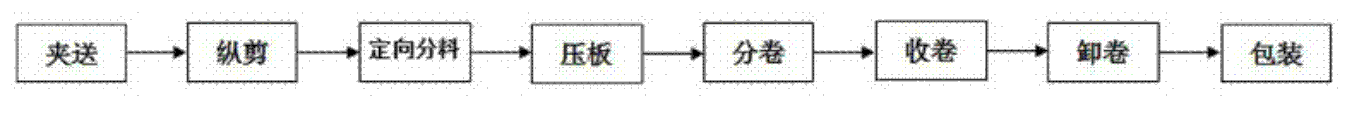

Fig. 1 is a process flow diagram of the present invention.
The specific embodiment
A kind of titanium or titanium alloy roll coil of strip slitting itemize method, the present invention will adopt through the titanium band of uncoiling: the processing line path method that pinches-slitting-directed sub-material-pressing plate-bundling-rolling-unload volume-packing is handled; Wherein:
Pinch to adopting a pair of rubber faced roll the titanium band to be sent into the longitudinal shear machine on the titanium band that moves with the mode of clamping;
Slitting for the titanium band of operation through one group of disk scissors that is arranged on a pair of horizontal beaming roller, become many narrow titanium bands of different in width along titanium strip length direction slitting; Simultaneously, the uneven whole branch excision of titanium band edge portion, the limit silk of excision is received through the collection wheel disc that is arranged in the circle shear side and is wrapped up in the Cheng Biansi volume through outermost two pairs of circle shears;
Directed sub-material for narrow titanium band that slitting is told through being arranged in the guiding of the distribution disc feeder on a pair of horizontal rubber faced roll, keep identical gap fitly to get into the pressing plate platform between adjacent fillet;
Pressing plate is for to be guided winder with the narrow titanium band behind the itemize through pinching of pressing plate platform;
Bundling will be for will be cut into the volume of different length through the titanium band of cross cut shears after the slitting itemize as required;
Rolling is the guiding with the one group directed distribution disc feeder of narrow titanium band through being arranged in winder mandrel top, on same rolling mandrel, is wrapped up in to be rolled into a plurality of narrow titaniums volumes;
Unload volume for after all receipts are wrapped up in rolling with narrow titanium band; Fortune volume dolly is held the titanium volume from the below; Winder shrinks the footpath piece that rises and unclamps ring volume core in the titanium volume, ties up narrow titanium strip coil with Bundling strap fasteningly through manual work, rotates then and is arranged in unloading of winder side and rolls up and turn to platform to connect narrow titanium strip coil from the winder mandrel to draw; Rotation is unloaded volume and is turned to platform again, is transported to narrow titanium strip coil and wraps up in paper, packing on the package post.
The longitudinal shear machine of above-mentioned elaboration, disk scissors, winder are the existing device in the existing steel band rolling mill practice.
Claims (1)
1. a titanium or titanium alloy roll coil of strip slitting itemize method is characterized in that, will adopt through the titanium or titanium alloy band of uncoiling: the processing line path method that pinches-slitting-directed sub-material-pressing plate-bundling-rolling-unload volume-packing is handled; Wherein: pinch to adopting a pair of rubber faced roll the titanium band to be sent into the longitudinal shear machine on the titanium band that moves with the mode of clamping; Slitting for the titanium band of operation through one group of disk scissors that is arranged on a pair of horizontal beaming roller, become many narrow titanium bands of different in width along titanium strip length direction slitting; Simultaneously, the uneven whole branch excision of titanium band edge portion, the limit silk of excision is received through the collection wheel disc that is arranged in the circle shear side and is wrapped up in the Cheng Biansi volume through outermost two pairs of circle shears; Directed sub-material for narrow titanium band that slitting is told through being arranged in the guiding of the distribution disc feeder on a pair of horizontal rubber faced roll, keep identical gap fitly to get into the pressing plate platform between adjacent fillet; Pressing plate is for to be guided winder with the narrow titanium band behind the itemize through pinching of pressing plate platform; Bundling will be for will be cut into the volume of different length through the titanium band of cross cut shears after the slitting itemize as required; Rolling is the guiding with the one group directed distribution disc feeder of narrow titanium band through being arranged in winder mandrel top, on same rolling mandrel, is wrapped up in to be rolled into a plurality of narrow titaniums volumes; Unload volume for after all receipts are wrapped up in rolling with narrow titanium band; Fortune volume dolly is held the titanium volume from the below; Winder shrinks the footpath piece that rises and unclamps ring volume core in the titanium volume, ties up narrow titanium strip coil with Bundling strap fasteningly through manual work, rotates then and is arranged in unloading of winder side and rolls up and turn to platform to connect narrow titanium strip coil from the winder mandrel to draw; Rotation is unloaded volume and is turned to platform again, is transported to narrow titanium strip coil and wraps up in paper, packing on the package post.
