Abstract
The invention relates to a solar power generating and combining device of an iron tower for power transmission, which comprises the solar power generating and combining device on the iron tower for the power transmission, and is characterized in that a solar-cell array unit is arranged at the lower part of the iron tower for the power transmission and comprises a plurality of solar-cell packs, and a ventilated gap is designed between the solar-cell packs; the combining device is arranged on the iron tower and comprises a combining inverter and a combining step-up transformer, the combining inverter is used for converting direct current generated by solar cells into alternating current, and the combining step-up transformer is used for transforming alternating voltages with low numerical values to alternating voltages with the same frequency and higher numerical values; and the solar-cell packs in the solar-cell array unit are respectively connected with respective protected diodes and then connected with the combining inverter, the output of the combining converter is connected with the primary level of the combining step-up transformer, and the secondary level of the combining step-up transformer is connected with tower-bearing alternating current lines.
Description
Technical field
The present invention relates to electric power electric energy field, relating in particular to solar energy converting is the electric energy field, particularly a kind of solar power generation and and road device.
Background technology
As everyone knows, solar radiant energy is the energy that a kind of resource is unlimited, cleaning is clean.By solar cell solar radiant energy is converted to photovoltaic (PV) Blast Furnace Top Gas Recovery Turbine Unit (TRT) of electric energy, in the existing numerous application of China, for example: the new shop of Metropolitan Museum has been built up one, and " area of non-crystal silicon solar cell film is 500m
2, energy output is 300KW " solar energy photovoltaic generator (list of references 1: Feng Duo give birth to etc., " solar power generation principle and application ", People's Telecon Publishing House, 2007).
And be accompanied by Chinese economic development, demand to electric energy strengthens day by day, for satisfying the transmission of electric power, built up the huge transmission line of quantity, only 220KV transmission line has just built up 120000km (list of references 2: Huang Zhiming, " 21 century China's transmission line Prospect of Development " by in July, 1999, the 3rd of electric minute transmission line special commission of special commission of CSEE transmission of electricity second time academic nd Annual Meeting collection, 1999 (07): 403-409).
What be closely related therewith is, the electric power pylon of enormous amount is arranged in these transmission lines, and described electric power pylon is in " circuit corridor ", and " exhaling height " 24m at least, and sunlight seldom is blocked.Present present situation is: the electric power pylon of the moving units up to a million of these single seat costs (list of references 3: four times tower transmission lines designs altogether of .220kV such as Liu Yu. the electric .2009 of petrochemical industry January), only be used as the single effect of carrying transmission pressure, and the solar energy resources that enriches that it has is not exploited.
The objective of the invention is to solve solar power generation and incorporate the technical problem that has the huge industry blank that exists between the electric power transfer now into.
The process that the electric energy that sun the subject of knowledge and the object of knowledge of the present invention produces is incorporated in the transmission line abbreviates " and road " as and makes following agreement: being called for short " transmission line that electric power pylon is contained " is " tower carries transmission line ", tower carries transmission line and exchanges, and then is called for short " tower carries the alternating current circuit "; Equally, it is direct current that tower carries transmission line, then is called for short " tower carries DC line "; The transmission line of not indicating direct current, interchange all can be regarded as the transmission line of alternation current, and for example above-mentioned " 220KV transmission line " can be regarded as " exchanging the 220KV transmission line ".
Summary of the invention
The objective of the invention is: utilize the huge huge solar energy resources that electric power pylon had of existing quantity as generating, and the power transmission characteristics of utilizing electric power pylon on existing power transmission line, to be had, the electricity of being sent out is incorporated in the contained transmission line of electric power pylon nearby, thereby the power expansion in the realization transmission line, improve supply of electric power quantity, loss in the compensates electric transmission reduces the power consumption of per kilowatt electric energy.
The present invention realizes that the technical scheme of above-mentioned purpose is: a kind of electric power pylon solar power generation with and the road device, comprise electric power pylon, solar cell array unit and road inverter and road step-up transformer, and the road rectifier, it is characterized in that: described solar cell array cell distribution designs the gap that ventilates between bottom, battery block and the battery block of described electric power pylon sunny slope, a nethermost row is provided with mass; The solar cell array unit with and the road inverter is connected and the output of road inverter and road step-up transformer also elementary is connected and two kinds of modes of secondary usefulness of road step-up transformer are carried transmission line with tower respectively and are connected: exchange way, A line, B line, C line that secondary direct and tower described and the road step-up transformer carries the alternating current circuit are connected; The direct current mode, described and road step-up transformer secondary and the described and road rectifier is connected and the output of road rectifier carries DC line with tower again and is connected.
Use the present invention, can obtain following beneficial effect:
1, technical scheme of the present invention can produce huge economic benefit and social effect.
Elaborate below:
(1), by list of references 1 as can be known: " area of non-crystal silicon solar cell film is 500m
2, energy output is 300KW ".
Be the efficient ξ=300KW/500m of solar cell
2=0.6kw/m
2, the solar cell array unit of every square meter can produce the 0.6kw electrical power.
(2) as can be known: " China has built up numerous transmission lines, and only 220KV transmission line has just built up 120000km by in July, 1999 " by list of references 2.
If the iron tower spacing is pressed 300m and calculated, this 120000km transmission line needs 400000 iron towers.
(3) can be calculated by list of references 3: the iron tower " sunny slope " that the 220KV transmission line is commonly used can be used for installing the area S ≈ 165m of " solar cell array unit "
2(apart from the trapezoidal faces that faces south of a body of the tower below the above 15m of ground 0.5m).Consider the ventilation of iron tower, this " body of the tower face south trapezoidal faces " goes up the area S of " the solar cell array unit " installed
oPress S * 60% and calculate, be i.e. S
o=0.6S=99m
2
On the basis of above calculating, can learn the generated output P=S of single seat " 220KV electric power pylon solar power generation and and road device "
oξ=99m
2* 0.6kw/m
2=59.4kw.
Ten thousand kilowatts of the generating total amount P ∑s of 400000 iron towers in the described 120000km transmission line=400000 * 59.4=2376.
This P ∑=2,376 ten thousand kilowatt are surprising data, and the generating capacity in 12 years consuming time build up, world's generating capacity first hydroelectric stations---hydroelectric station, the Yangtze River Gorges only is 2,250 ten thousand kilowatts.
And electric energy P ∑=2,376 ten thousand kilowatt these data of utilizing the solution of the present invention to produce also have following characteristics:
(a), these data of 120000km mileage of 220KV transmission line, be the data of list of references 2 in July, 1999 statistics, to the time in 2011 existing 12 years, these data had big growth, and can estimate, in a very long time in future, will grow continuously and fast.
(b), the electric energy of P ∑=2,376 ten thousand kilowatt, only be the data that 220KV transmission line has utilized the solar power generation that is produced after the technical scheme of the present invention, also exist for example multiple transmission lines such as AC10KV, AC35Kv, AC110KV, AC330KV, AC500KV, AC750KV, DC700KV of other kinds, all can adopt technical scheme of the present invention, thereby the realization solar power generation is incorporated the existing power transmission network into.
Therefore, implement in full technical scheme of the present invention, the economic benefit that is produced is equivalent to build hydroelectric station, several the Yangtze River Gorges, and without any need for energy consumption, the social benefit of corresponding generation is then self-evident.
2, electrical energy production of the present invention peak is corresponding with existing power consumption peak
Known to analyzing with the power requirement of doing the cycle in consecutive days and year, utility network 10:00～15:00 every day is the peak of power consumption time; It when turn on the aircondition summer peak times of power consumption.
Technical scheme of the present invention has adopted the technical scheme of solar power generation, and the technical scheme of solar energy is pairing, and the sunlight at noon of consecutive days is the strongest, and the solar power generation ability is the strongest; If year to do the cycle, then the sunlight in summer is the strongest.
Can clearly learn thus, the electrical energy production peak of technical solution of the present invention is just in time corresponding with the peak of power consumption of utility network, therefore, carry transmission line by tower the electric energy that the present invention sent out is input in the utility network, can solve the problem of power supply shortage to a great extent.
3, the declination angle of the vertical tilt angle of electric power pylon and the sun about equally, what can make solar cell in the technical scheme of the present invention effectively utilizes solar energy and simple installation.
4, the electric energy of conversion of solar energy is imported tower nearby and is carried in the transmission line, not only make solar power generation of the present invention and also manufacturing cost reduction, the loss minimizing of road device, and, electric power pylon, transmission line, solar power generation and and the road device belong to a department together, make planning, build and administrative examination and approval such as road and manage summary.
5, device standardization ground such as solar cell array unit and road inverter and road step-up transformer and road rectifier are produced in enormous quantities, thereby be promoted the fast development of solar power generation industry.
6, during the similar accident of experience and Fukushima, Japan nuclear leakage, solar power generation of the present invention with and the road device can be used as emergency power supply and use.
7, Chang Gui device of solar generating must be installed lightning protection system, and the lightning arrester of dual-purpose transmission line of the present invention need not be established lightning protection system in addition.
8, can make expensive electric power pylon (maximum is building iron tower up to more than 4000 ton of 300m, consumptive material in the 220KV transmission line in Ningbo to Zhoushan) realize transmission of electricity, generating dual-purpose, every electric power pylon is all become one does not have energy consumption, free of contamination power plant.
9, the city need be migrated, be moved to the conventional power plant construction, and the present invention does not need extra land occupation with regard to the exportable electric energy that is several times as much as hydroelectric station, the Yangtze River Gorges, to the demand of land resource cost further reduced.
10, reduced the center of gravity of described iron tower, improved resistance to plucking, anti-performance, made it more firm.
A kind of solar power generation that is used for electric power pylon and and the road device, comprise the solar power generation that is arranged on the electric power pylon with and the road device, it is characterized in that:
Be arranged at the solar cell array unit of electric power pylon bottom, be made up of polylith solar cell piece, design has the gap of ventilation between battery block and the battery block;
Be arranged on the iron tower and the road device, by and road inverter and road step-up transformer form, wherein:
And the direct current that the road inverter is used for that solar cell is produced is converted to alternating current, can as required direct current be converted to the alternating current of desired voltage and frequency;
Step-up transformer is used for the alternating voltage of low numerical value is transformed to another high value alternating voltage of same frequency;
Solar cell piece in the solar cell array unit is with after protection diode separately is connected, again with and the road inverter be connected, and the circuit that the output of road inverter and road step-up transformer also elementary is connected and the secondary and tower of road step-up transformer carries the alternating current circuit is connected;
The solar cell piece that is distributed in the solar cell array unit of described electric power pylon bottom will be by the direct current of conversion of solar energy; can be through input of protection diode and road inverter separately; and the road inverter with this direct current energy inversion be AC energy import again and the road step-up transformer in; and the road step-up transformer earlier rises to tower with alternating voltage and carries the desired voltage in alternating current circuit, this alternating voltage input tower carried in the circuit of alternating current circuit again.
Described be arranged on the iron tower and the road device in comprise also and the road rectifier that it is connected in and the road step-up transformer carries between the DC line with tower, will be converted to high voltage direct current through the High Level AC Voltage behind the road step-up transformer also, incorporate in the DC line that tower carries.
And frequency, the phase place of the AC energy of road inverter output can not be subjected to tower to carry the restriction of transmission line, and the road inverter can omit complicated and the frequency of transmission line, phase locked control section, and the frequency of road inverter output can be incorporated into when tower carries the alternating current circuit and raises.
Solar cell piece in the described solar cell array unit adopts connected mode in parallel with protection diode separately.
Solar cell piece in the described solar cell array unit adopts the connected mode of connecting with protection diode separately.
Solar cell piece in the described solar cell array unit adopts the connected mode in parallel of connecting earlier again with protection diode separately.
Solar cell piece bottom in the described solar cell array unit is provided with mass.
In the described and road device and the road inverter can also be provided with the module of function with remote-control romote-sensing, realize remote control and telemetry function.
Description of drawings
Fig. 1 is a solar cell array cell schematics of the present invention,
Fig. 2 is the distribution schematic diagram of solar cell array unit at body of the tower,
Fig. 3 is counterweight wind resistance mechanical analysis figure,
Fig. 4 is the circuit theory diagrams of embodiment 1,
Fig. 5 is the circuit theory diagrams of embodiment 2,
Fig. 6 is the circuit theory diagrams of embodiment 3.
Embodiment
Below in conjunction with accompanying drawing, the present invention is further illustrated.
In conjunction with Fig. 1, Fig. 2: solar cell array unit shown in Figure 1 is distributed in the bottom of described electric power pylon sunny slope by shown in Figure 2, and design has the gap of ventilation between battery block and the battery block; A nethermost row is provided with mass G.Among Fig. 2: 1 represents the solar cell array unit; G represents mass.
Solar cell of the present invention can adopt in the prior art comparatively ripe thin-film type solar cell, the perhaps solar cell of other types, and its structure and correlation technique are open in the prior art, quote in the lump at this.
The solar cell of this technical scheme is provided with and is this kind structure, can realize following technique effect:
1, reducing the center of gravity of described electric power pylon, make it more firm---the effect that push down the tripod bottom with weight, tripod is not toppled is identical.
2, offset the windage effect of solar cell array unit.
The principle of offsetting windage effect can be in conjunction with Fig. 3 analysis: among Fig. 3, Fg represents the gravity that solar cell array unit all on the electric power pylon and all mass G produce; F1 represents the component of gravity Fg along iron tower member direction, and it has " drawing " to live the beneficial effect of iron tower, is tensile force f 1 hereinafter to be referred as it; Fn represents the resistance sum (wind direction difference, the direction of Fn also thereupon different, now with the resistance of horizontal wind represent) of each solar cell array unit to wind; F2 represents the component of Fn along iron tower member direction, and it has " pulling out " to turn over the illeffects of iron tower, is pull out force F2 hereinafter to be referred as it.
Reserve the gap of ventilation between the piece of solar cell array unit and the piece, purpose is exactly to reduce the resistance Fn of solar cell array unit to wind, thereby reduces pull out force F2;
When calm, pull out force F2=0, tensile force f 1 is held iron tower, and iron tower is just more firm;
When wind-force was the strongest, less than tensile force f 1, then iron tower was still firm as if pull out force F2;
If pull out force F2 is during greater than tensile force f 1, the firm power of ground that F1 and iron tower self are had has also increased the steadiness of iron tower with joint efforts greatly.
And when disaster such as earthquake occurring, because the effect of tensile force f 1, the ability of iron tower anti-disaster will strengthen.
In sum, because the solar cell array unit places the bottom of iron tower, the iron tower center of gravity is reduced; Simultaneously, suitably disposed mass G, offset the windage effect of solar cell array unit, therefore, the solar panel plan of establishment of the present invention also played fall the floor iron tower weight heart, strengthen the iron tower steadiness and improve the iron tower resistance to plucking, anti-ly fall, the effect of anti-disaster ability.

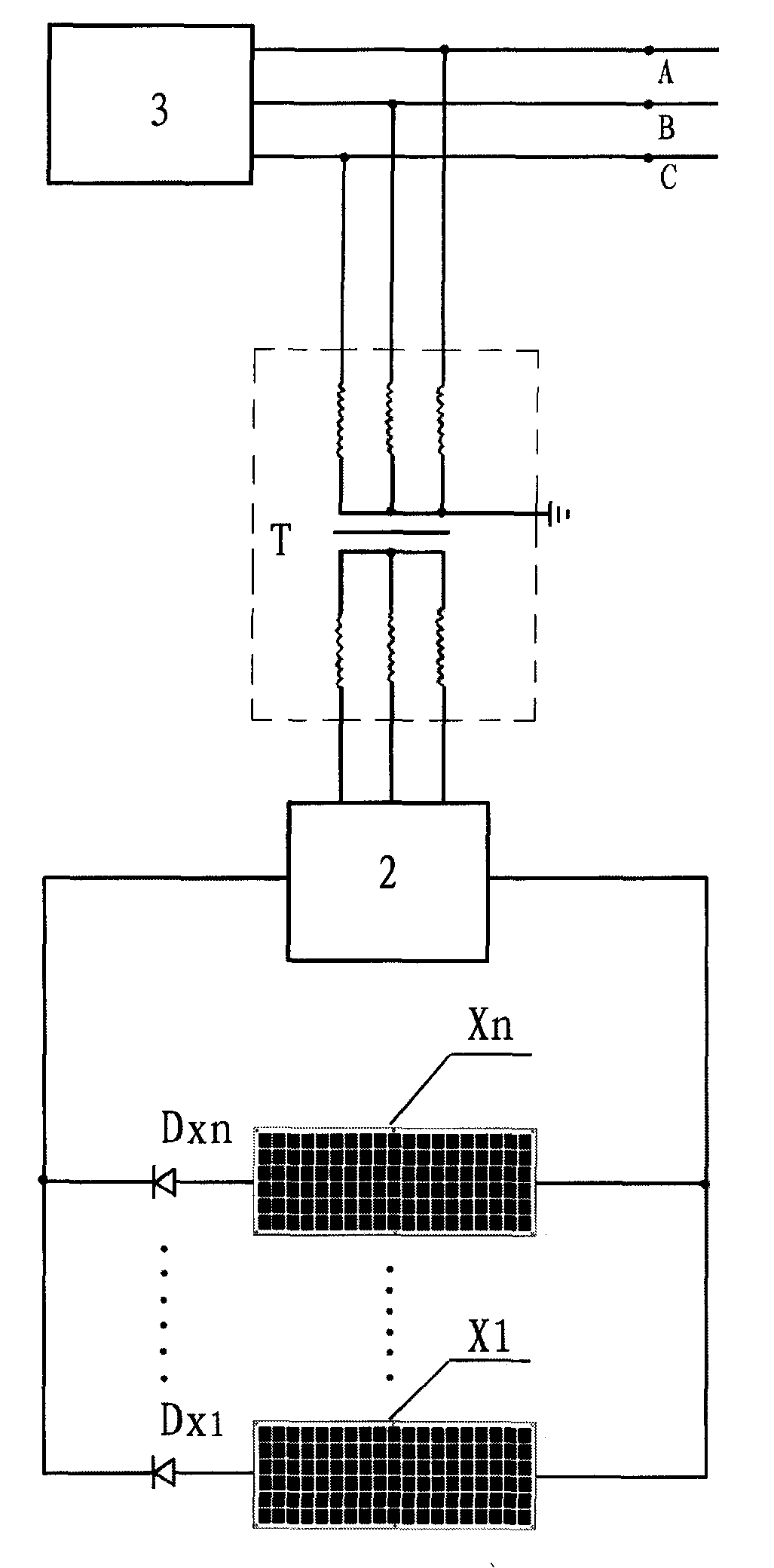

Fig. 4 is the circuit theory diagrams of the embodiment of the invention 1, and among the figure: 2 for also road inverter, T are for also road step-up transformer, 3 is for tower carries the alternating current circuit, and X1～Xn is the solar cell array unit, and Dx1～Dxn is the protection diode.
After polylith solar cell array unit X1～Xn in parallel and the protection diode Dx1 separately～Dxn series connection again with and road inverter 2 be connected, and the output of road inverter 2 and road step-up transformer T also elementary is connected and the secondary of road step-up transformer T is connected with A line, B line, the C line that tower carries alternating current circuit 3 respectively.
Solar cell absorbs solar radiation, produce direct current, and the direct current that the road inverter is used for that solar cell is produced is converted to alternating current, as known in the field, it is said by inverter bridge, control logic and filter circuit and forms, and can as required direct current be converted to the alternating current of desired voltage and frequency, the alternating current of 220V50HZ for example, perhaps corresponding other possible voltage or frequencies, and the road inverter structure is as the inverter described in known, be incorporated herein, repeat no more.
Inverter produced the alternating current of the voltage that requires and frequency, after step-up transformer carries out transformation, incorporate tower again into and carry the alternating current circuit, wherein step-up transformer is used for the alternating voltage of low numerical value is transformed to another high value alternating voltage of same frequency, its structure is open in the prior art, quotes in the lump at this.
The course of work of present embodiment 1 is: the polylith solar cell array unit X1～Xn that is distributed in the bottom of described electric power pylon sunny slope; will be through protection diode Dx1～Dxn separately by the direct current energy input and the road inverter 2 of conversion of solar energy; and road inverter 2 AC energy that is 50Hz or 60Hz with this direct current energy inversion is imported again and road step-up transformer T in; and road step-up transformer T earlier rises to tower with alternating voltage and carries for example AC10KV of alternating current circuit 3 desired voltages; AC35Kv; AC110KV; AC330KV; AC500KV; AC750KV etc. import the A line that tower carries alternating current circuit 3 respectively with this AC voltage again; the B line; the C line.
In the present embodiment 1: protection diode Dx1～Dxn plays two kinds of effects, the first prevents that described solar cell array unit polarity from connecing instead, it two is when described a certain solar cell array unit breaks down for example short circuit, has had the effect of described protection diode just can not influence the operate as normal of other solar cell array unit; And road inverter 2 is critical components, and it not only can export all synchronous all the time AC voltage, the AC electric current of phase place, frequency that carries alternating current circuit 3 with described tower expeditiously, but also has the function of remote-control romote-sensing.Because of it has this remote-control romote-sensing function, so the present invention's operation automatically " unattended operation ".
Fig. 5 is the circuit theory diagrams of the embodiment of the invention 2, among the figure: and road inverter 2 and road step-up transformer T, tower to carry the function of alternating current circuit 3 identical with embodiment 1, its course of work is also identical with embodiment 1.Different is: polylith solar cell array unit X1～Xn changes this routine tandem-type connection into by the parallel connection method of embodiment 1; Protection diode D in this example mainly act as: the polarity of the solar cell array unit after preventing to connect connects to be damaged and road inverter 2 on the contrary.
Fig. 6 is the circuit theory diagrams of the embodiment of the invention 3, among the figure, 2 for and road inverter, T for and road step-up transformer, 5 for tower carries DC line, X1～Xn is the solar cell array unit, D1～Dy be a road rectifier also for protection diode, 4.
The course of work of present embodiment is substantially the same manner as Example 1, and part inequality is:
(1), because also the transmission line on road is that tower carries DC line 5, so and road step-up transformer T and tower carry and set up between the DC line 5 and road rectifier 4, that is: described and road step-up transformer T secondary and described and road rectifier 4 is connected and the output of road rectifier 4 carries DC line 5 with tower and is connected.Its course of work is: the direct current energy that polylith solar cell array unit produces is through also 2 inversions of road inverter and road step-up transformer T boost, change high pressure AC electric energy into, through also road rectifier 4 rectifications, become the DC high pressure again, finally incorporate tower into and carry in the DC line 5.
The advantage of this kind mode of operation is: (a), because and frequency, the phase place of the AC energy of road inverter 2 output can not be subjected to tower to carry the restriction (because tower carry DC line 5 transmission be direct current energy) of transmission line, therefore, described and road inverter 2 can omit complicated and the frequency of transmission line, phase locked controlling unit, makes it become simple relatively; (b) and the frequency of road inverter 2 output incorporate into when tower carries the alternating current circuit and raise, for example rise to more than the 20kHz, like this, and the volume of road step-up transformer T just can reduce widely; Simultaneously, since the frequency rising, the easy filtering of high order harmonic component, and therefore, high order harmonic component also can alleviate widely to the harm that tower carries transmission line.
(2), the solar cell array unit changes series connection back method of attachment in parallel earlier into.
So far, the method for attachment of solar cell array unit is existing three kinds: one for being connected in parallel of embodiment 1, it two is being connected in series of embodiment 2, its three back of series connection earlier connection in parallel for embodiment 3.Do not say and instruct, those skilled in the art also can adopt other for example method of attachment of back series connection in parallel earlier of method of attachment.
More than set forth technical scheme of the present invention, all technology that do not break away from technical scheme essence of the present invention substitute, all should be at claim scope Inner of the present invention.
Claims (8)
- A solar power generation that is used for electric power pylon and and the road device, comprise the solar power generation that is arranged on the electric power pylon with and the road device, it is characterized in that:Be arranged at the solar cell array unit of electric power pylon bottom, be made up of polylith solar cell piece, design has the gap of ventilation between battery block and the battery block;Be arranged on the iron tower and the road device, by and road inverter and road step-up transformer form, wherein:And the direct current that the road inverter is used for that solar cell is produced is converted to alternating current, can as required direct current be converted to the alternating current of desired voltage and frequency;Step-up transformer is used for the alternating voltage of low numerical value is transformed to another high value alternating voltage of same frequency;Solar cell piece in the solar cell array unit is with after protection diode separately is connected, again with and the road inverter be connected, and the circuit that the output of road inverter and road step-up transformer also elementary is connected and the secondary and tower of road step-up transformer carries the alternating current circuit is connected;The solar cell piece that is distributed in the solar cell array unit of described electric power pylon bottom will be by the direct current of conversion of solar energy; can be through input of protection diode and road inverter separately; and the road inverter with this direct current energy inversion be AC energy import again and the road step-up transformer in; and the road step-up transformer earlier rises to tower with alternating voltage and carries the desired voltage in alternating current circuit, this alternating voltage input tower carried in the circuit of alternating current circuit again.
- 2. the solar power generation that is used for electric power pylon as claimed in claim 1 reaches and the road device, it is characterized in that:Described be arranged on the iron tower and the road device in comprise also and the road rectifier that it is connected in and the road step-up transformer carries between the DC line with tower, will be converted to high voltage direct current through the High Level AC Voltage behind the road step-up transformer also, incorporate in the DC line that tower carries.
- 3. the solar power generation that is used for electric power pylon as claimed in claim 2 reaches and the road device, it is characterized in that:And frequency, the phase place of the AC energy of road inverter output can not be subjected to tower to carry the restriction of transmission line, and the road inverter can omit complicated and the frequency of transmission line, phase locked control section, and the frequency of road inverter output can be incorporated into when tower carries the alternating current circuit and raises.
- 4. the solar power generation that is used for electric power pylon as claimed in claim 1 reaches and the road device, it is characterized in that:Solar cell piece in the described solar cell array unit adopts connected mode in parallel with protection diode separately.
- 5. the solar power generation that is used for electric power pylon as claimed in claim 1 reaches and the road device, it is characterized in that:Solar cell piece in the described solar cell array unit adopts the connected mode of connecting with protection diode separately.
- 6. the solar power generation that is used for electric power pylon as claimed in claim 2 reaches and the road device, it is characterized in that:Solar cell piece in the described solar cell array unit adopts the connected mode in parallel of connecting earlier again with protection diode separately.
- 7. the solar power generation that is used for electric power pylon as claimed in claim 1 reaches and the road device, it is characterized in that:Solar cell piece bottom in the described solar cell array unit is provided with mass.
- 8. the solar power generation that is used for electric power pylon as claimed in claim 1 reaches and the road device, it is characterized in that:In the described and road device and the road inverter can also be provided with the module of function with remote-control romote-sensing, realize remote control and telemetry function.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2011101362171A CN102158133B (en) | 2011-05-25 | 2011-05-25 | Solar power generating and combining device of iron tower for power transmission |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2011101362171A CN102158133B (en) | 2011-05-25 | 2011-05-25 | Solar power generating and combining device of iron tower for power transmission |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN102158133A true CN102158133A (en) | 2011-08-17 |
| CN102158133B CN102158133B (en) | 2013-02-27 |
Family
ID=44439370
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN2011101362171A Expired - Fee Related CN102158133B (en) | 2011-05-25 | 2011-05-25 | Solar power generating and combining device of iron tower for power transmission |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN102158133B (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN103490703A (en) * | 2013-08-29 | 2014-01-01 | 洛阳市环城供电局 | Solar power generating system of transmission line tower |
Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101291123A (en) * | 2007-04-19 | 2008-10-22 | Daulenc株式会社 | Photovoltaic system |
| CN101494428A (en) * | 2008-12-09 | 2009-07-29 | 北京中电飞华通信股份有限公司 | Apparatus for mounting high-voltage transmission line pole tower equipment |
| CN202111641U (en) * | 2011-05-31 | 2012-01-11 | 宁波市镇海华泰电器厂 | Solar energy generating and circuit-connecting apparatus for power transmission iron tower |
-
2011
- 2011-05-25 CN CN2011101362171A patent/CN102158133B/en not_active Expired - Fee Related
Patent Citations (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN101291123A (en) * | 2007-04-19 | 2008-10-22 | Daulenc株式会社 | Photovoltaic system |
| CN101494428A (en) * | 2008-12-09 | 2009-07-29 | 北京中电飞华通信股份有限公司 | Apparatus for mounting high-voltage transmission line pole tower equipment |
| CN202111641U (en) * | 2011-05-31 | 2012-01-11 | 宁波市镇海华泰电器厂 | Solar energy generating and circuit-connecting apparatus for power transmission iron tower |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN103490703A (en) * | 2013-08-29 | 2014-01-01 | 洛阳市环城供电局 | Solar power generating system of transmission line tower |
Also Published As
| Publication number | Publication date |
|---|---|
| CN102158133B (en) | 2013-02-27 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| Badwawi et al. | A review of hybrid solar PV and wind energy system | |
| Hu et al. | An overview on analysis and control of micro-grid system | |
| Ambia et al. | An analysis & design on micro generation of a domestic solar-wind hybrid energy system for rural & remote areas-perspective Bangladesh | |
| Bayindir et al. | Microgrid facility at European union | |
| Mohanty et al. | Optimal planning and design of Distributed Generation based micro-grids | |
| CN106972529A (en) | Highway sector distribution is provided multiple forms of energy to complement each other energy micro-grid system | |
| Kumar et al. | A hybrid micro grid for remote village in Himalayas | |
| Chen et al. | Scheduling strategy of hybrid wind-photovoltaic-hydro power generation system | |
| Liu et al. | Building a New-Type Power System to Promote Carbon Peaking and Carbon Neutrality in the Power Industry in China | |
| CN202111641U (en) | Solar energy generating and circuit-connecting apparatus for power transmission iron tower | |
| Yankson et al. | Resilience-Enabling Load Flexibility and Resource Adequacy Investment in Microgrids | |
| CN102158133B (en) | Solar power generating and combining device of iron tower for power transmission | |
| Cai et al. | Regional smart grid of island in China with multifold renewable energy | |
| Ganesan et al. | Dynamic and intelligent load servicing strategy for a stand-alone solar PV-based microgrid | |
| CN203466579U (en) | Grid-connected offline direct-current micro-grid system | |
| CN110768306A (en) | Power supply capacity configuration method for improving emergency capacity of micro-grid in bottom-protected power grid | |
| CN203386769U (en) | Photovoltaic component integrated board with built-in wiring channels | |
| Ogbikaya et al. | Design and sizing of a microgrid system for a University community in Nigeria | |
| Thapa et al. | Paper Modeling of Wind-Solar Hybrid Power System for Off-Grid in Nepal and a Case Study. | |
| Qian et al. | Optimal configuration of energy storage in off-grid micro grid with practical principle | |
| Gaud et al. | Optimization of renewable energy sources for DC microgrid | |
| Kazem et al. | Design of stand-alone photovoltaic for rural area in Oman | |
| Daw et al. | Sustainable Power Source for Off-grid Domestic load Modelling and Simulation using Matlab software | |
| He et al. | Application of AC/DC Hybrid System in Industrial Park Scenario | |
| Güllü et al. | Efficiency Analysis in Solar Panel Energy Systems: AC-DC Conversion Cost and DC-DC Energy Use |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| C06 | Publication | ||
| PB01 | Publication | ||
| C10 | Entry into substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| C14 | Grant of patent or utility model | ||
| GR01 | Patent grant | ||
| ASS | Succession or assignment of patent right |
Owner name: KAIFENG POWER SUPPLY COMPANY STATE GRID HENAN ELE Effective date: 20150902 Owner name: STATE GRID CORPORATION OF CHINA Free format text: FORMER OWNER: NINGBO ZHENHAI HUATAI ELECTRIC FACTORY Effective date: 20150902 |
|
| C41 | Transfer of patent application or patent right or utility model | ||
| C53 | Correction of patent of invention or patent application | ||
| CB03 | Change of inventor or designer information |
Inventor after: Wang Xiaojun Inventor after: Chen Yanwei Inventor after: Zhu Yehui Inventor after: Hao Jing Inventor after: Wang Hongyang Inventor before: Wang Mengjin |
|
| COR | Change of bibliographic data |
Free format text: CORRECT: INVENTOR; FROM: WANG MENGJIN TO: WANG XIAOJUN CHEN YANWEI ZHU YEHUI HAO JING WANG HONGYANG |
|
| TR01 | Transfer of patent right |
Effective date of registration: 20150902 Address after: 100031 Xicheng District West Chang'an Avenue, No. 86, Beijing Patentee after: State Grid Corporation of China Patentee after: KAIFENG POWER SUPPLY COMPANY, STATE GRID HENAN ELECTRIC POWER CO., LTD. Address before: 315200 Zhejiang province Zhenhai District of Ningbo City Jiao Chuan Ying Shi Qiao Zhu No. 74 Patentee before: Ningbo Zhenhai Huatai Electric Factory |
|
| CF01 | Termination of patent right due to non-payment of annual fee |
Granted publication date: 20130227 Termination date: 20160525 |
|
| CF01 | Termination of patent right due to non-payment of annual fee |
