Abstract
本发明涉及双水箱双致热效应热水系统，包括外壳、水箱和加热装置，水箱包括设有隔层的生活水箱和供暖水箱，两水箱分别设有加热装置和换热器，供暖水箱的换热器连接太阳能集热器；外壳与水箱之间设有保温层，外壳上设有供暖回水口、供暖出水口以及生活补水口、生活热水出口。相对现有技术，本发明具有以下优点：1、采用“胆中胆”双水箱设计，将生活用热水与采暖用热水分开，可以同时提供不同水温或不同水质的热水；2、在外水箱内设置生活热水预热盘管，生活用水从该盘管经预热后进入内胆，内水箱内设置太阳能换热盘管；3、水箱隔层设为圆柱形凸体，提高热交换效率，能快速满足用户用水需求，使用方便，更加节能。
The present invention relates to a double-tank double-thermal effect hot water system, comprising a shell, a water tank and a heating device, wherein the water tank comprises a domestic water tank and a heating water tank provided with an interlayer, the two water tanks are provided with a heating device and a heat exchanger respectively, and the heat exchanger of the heating water tank is connected to a solar collector; an insulation layer is provided between the shell and the water tank, and a heating return water port, a heating water outlet, a domestic water replenishment port, and a domestic hot water outlet are provided on the shell. Compared with the prior art, the present invention has the following advantages: 1. The "tank in a tank" double water tank design is adopted to separate domestic hot water from heating hot water, and hot water of different water temperatures or different water qualities can be provided at the same time; 2. A domestic hot water preheating coil is provided in the outer water tank, and domestic water enters the inner tank after being preheated from the coil, and a solar heat exchange coil is provided in the inner water tank; 3. The water tank interlayer is provided as a cylindrical convex body, which improves the heat exchange efficiency, can quickly meet the user's water demand, is easy to use, and is more energy-saving.
Description
Technical field
The present invention relates to heating plant, especially a kind ofly be provided with built-in pair of water tank, the dual-thermal effect water heating system of two kinds of different purposes hot water can be provided simultaneously.
Background technology
Existing hot water heating or heating system generally comprise water tank, heater and control device, water tank is provided with water inlet pipe and outlet pipe, tank inlet pipe connects the water source, outlet pipe is mounted in the room or underfloor heating radiator, can also connect life hot water apparatus, for example drinking water or bath water device.At present, the life of existing hot-water heating system is lumped together usually with hot water and heating hot water, when water, need heat whole box water, and firing rate is slower, and efficient is lower, can not satisfy the demand of user's water fast.If adopt electric heater unit to reach the purpose that hot water is provided fast, not only increased equipment cost, and the power consumption increase, energy-conservation inadequately.
Summary of the invention
At the deficiency of above existing hot-water heating system, the purpose of this invention is to provide a kind of easy to usely, more energy-conservation, be provided with built-in pair of water tank, the dual-thermal effect water heating system of two kinds of different purposes hot water can be provided simultaneously.
The objective of the invention is by realizing by the following technical solutions:
Double-tank hot-water system with double thermal effects, comprise water tank, heater and control device, water tank is provided with water inlet pipe and outlet pipe, and described water tank comprises separate domestic water water tank and heating water tank, and two water tanks are respectively equipped with heater and water inlet pipe and outlet pipe;
Be provided with heat exchanger in the described heating water tank, this heat exchanger is communicated with the equipment that hot water is provided by pipeline.
As the preferred technical solution of the present invention, described domestic water water tank is located at an end of heating water tank, is provided with insulating course between the two;
Perhaps, the domestic water water tank is located in the heating water tank;
Described domestic water water tank and heating water tank all are located in the shell, are provided with heat-insulation layer between shell and domestic water water tank and the heating water tank, and heating water tank is communicated with expansion drum by tube connector;
Be respectively equipped with heating water return mouth, heating delivery port and domestic water water supplement port, domestic hot-water's outlet on the described shell.
As the preferred technical solution of the present invention, described heater comprises electric heater;
The described equipment of hot water that provides comprises boiler, Teat pump boiler or solar thermal collector.
As the preferred technical solution of the present invention, the water inlet pipe of described domestic water water tank connects the domestic water water supplement port by the heat exchanger that is located in the heating water tank.
As the preferred technical solution of the present invention, also be provided with heat exchanger in the described domestic water water tank, this heat exchanger is connected solar thermal collector by pipeline with heat exchanger inlet and outlet on being located at shell, and the pipeline between solar thermal collector and the heat exchanger is provided with circulating pump.
As the preferred technical solution of the present invention, the insulating course between described domestic water water tank and the heating water tank is made as cylindrical convex body, and this convex body stretches in the heating water tank, is arranged with heat exchanger coils around the convex body.
As the preferred technical solution of the present invention, described domestic water water tank is located at the upper end of heating water tank, and the lower end of heating water tank is provided with blowoff valve.
As the preferred technical solution of the present invention, described Teat pump boiler comprises compressor and evaporimeter, and the pipeline between Teat pump boiler and the heating water tank heat exchanger is provided with cross valve and choke valve.
As the preferred technical solution of the present invention, also be provided with mixed water valve between heating water return mouth that described shell is provided with and the heating delivery port, mix water valve and connect circulating pump.
As the preferred technical solution of the present invention, described domestic water water supplement port is connected with check valve.
The invention has the beneficial effects as follows: with respect to prior art, the present invention has the following advantages:
1, the present invention adopts " courage in the courage " two waterbox design, will live and separate with hot water is strict with hot water and heating, and the double thermal effects hot water of different water temperatures or different quality can be provided simultaneously.
2, one group of domestic hot-water's preheat coil is set in heating water tank, domestic water enters inner bag from this coil pipe after preheating, and one group of solar heat-exchange coil pipe can also be set in inner water tank, can satisfy user's water demand fast, and is easy to use, more energy-conservation.
3, the interlayer of domestic water water tank is made as the cylindrical convex body that stretches in the heating water tank, has increased heat exchange area, has improved heat exchanger effectiveness; Be arranged with heat exchanger coils around the cylindrical convex body, can the interior water of Fast Heating domestic water water tank.
Description of drawings
The invention will be further described below in conjunction with accompanying drawing and specific embodiment:

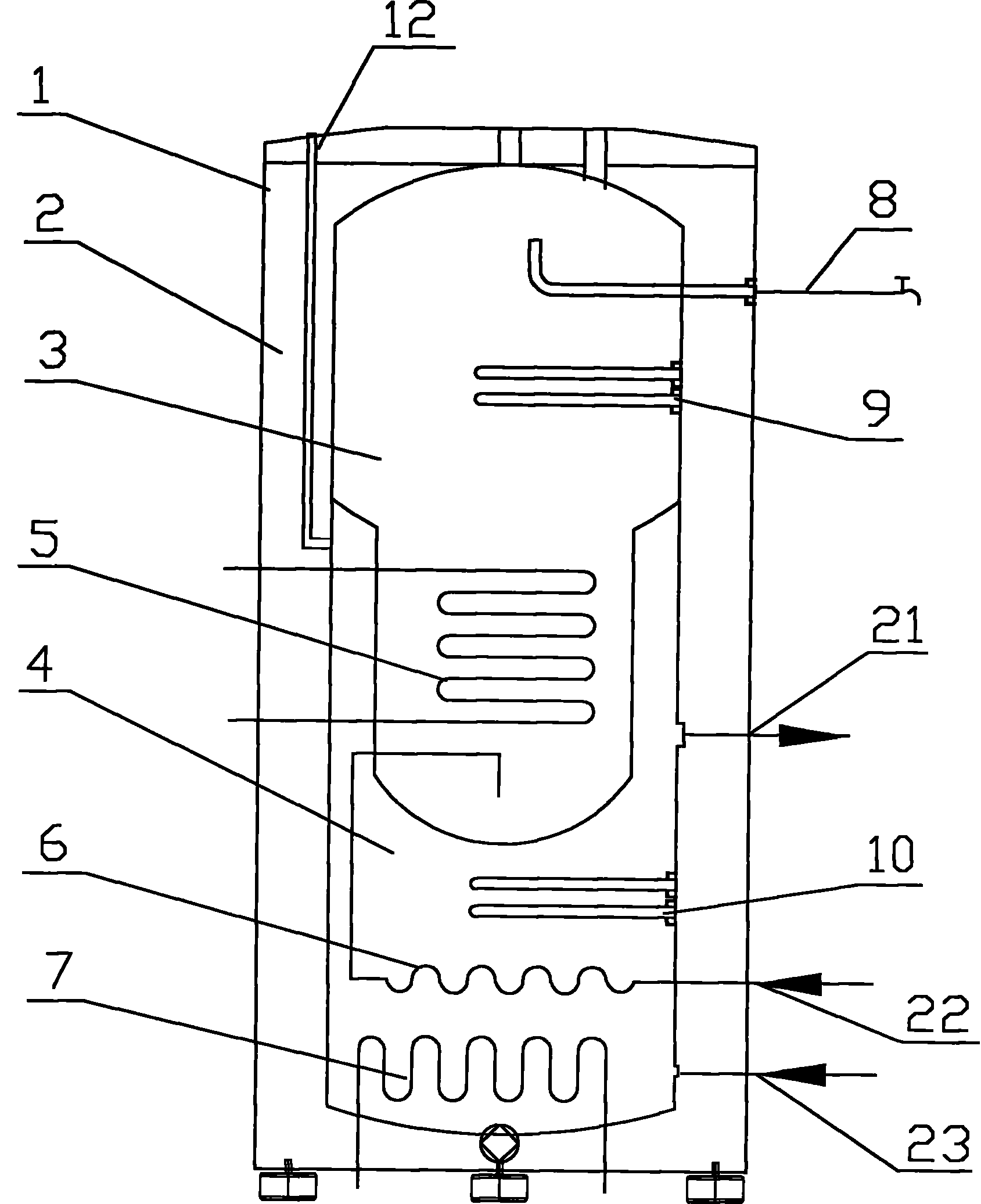

Fig. 1 is a structural representation of the present invention;
Fig. 2 is the structural representation of the embodiment of the invention one;
Fig. 3 is the structural representation of the embodiment of the invention two.
The specific embodiment
Embodiment one
As depicted in figs. 1 and 2, double-tank hot-water system with double thermal effects, comprise water tank, heater and controller, water tank is provided with water inlet pipe and outlet pipe, described water tank comprises that separate domestic water water tank 3 and 4, two water tanks of heating water tank are respectively equipped with heater and water inlet pipe and outlet pipe; Be provided with heat exchanger 7 in the described heating water tank 4, this heat exchanger 7 is communicated with the equipment 13 that hot water is provided by pipeline.Described domestic water water tank 3 and heating water tank 4 all are located in the shell 1, are provided with heat-insulation layer 2 between shell 1 and domestic water water tank 3 and the heating water tank 4, and heating water tank 4 is communicated with expansion drum by tube connector 12.
The described domestic water water tank 3 of present embodiment is located at the upper end of heating water tank 4, is provided with insulating course between the two, and this insulating course is made as cylindrical convex body, and this convex body stretches in the heating water tank 4, is arranged with heat exchanger coils 7 around the convex body.Be respectively equipped with heating water return mouth 23, heating delivery port 21 and domestic water water supplement port 22, domestic hot-water on the described shell 1 and export 8.The water inlet pipe of described domestic water water tank 3 connects domestic water water supplement port 22 by the heat exchanger 6 that is located in the heating water tank 4, and domestic water water supplement port 22 is connected with check valve 11.
Described heater comprises the electric heater 9 that is located in the domestic water water tank 3, and is located at the electric heater 10 in the heating water tank 4; The described equipment 13 of hot water that provides comprises boiler, Teat pump boiler or solar thermal collector 20.
The lower end of the described heating water tank 4 of present embodiment is provided with blowoff valve, and described Teat pump boiler comprises compressor 21 and evaporimeter 17, and the pipeline in Teat pump boiler and the heating water tank 4 between the heat exchanger 7 is provided with cross valve 16 and choke valve 18.Also be provided with between described heating water return mouth 23 and the heating delivery port 21 and mix water valve 14, mix water valve 14 and connect circulating pump 15.
Embodiment two
As shown in figures 1 and 3, be provided with heat exchanger 5 in the described domestic water water tank 3 of present embodiment, this heat exchanger 5 is connected solar thermal collector 20 by pipeline with heat exchanger inlet and outlet on being located at shell 1, pipeline between solar thermal collector 20 and the heat exchanger 5 is provided with circulating pump 19, in time be delivered to heat exchanger 5 so that will be located at the heat of outdoor solar thermal collector 20 generations, and by the water in the heat exchanger 5 heating domestic water water tanks 3.Other embodiment is identical with embodiment one.
Water in the heating water tank 4 of the present invention is after use is filled with first, the circulation heating is used between heating water tank 4 and hot duct, heating radiator always, when described controller is sensed ambient temperature and is reached design temperature by temperature transducer, automatically close heating water outlet and back-water valve (BWV), stop heating, to reduce heat-energy losses, the water of the direct heating of 13 need of firing equipment in the water tank 4, thereby the saving energy.Heating water tank 4 is provided with the water compensating valve (not shown), and when the water level in the heating water tank 4 was lower than setting value, water compensating valve was opened moisturizing automatically.
Claims (10)
1. double-tank hot-water system with double thermal effects, comprise water tank, heater and control device, water tank is provided with water inlet pipe and outlet pipe, it is characterized in that: described water tank comprises separate domestic water water tank and heating water tank, and two water tanks are respectively equipped with heater and water inlet pipe and outlet pipe;
Be provided with heat exchanger in the described heating water tank, this heat exchanger is communicated with the equipment that hot water is provided by pipeline.
2. double-tank hot-water system with double thermal effects according to claim 1 is characterized in that: described domestic water water tank is located at an end of heating water tank, is provided with insulating course between the two;
Perhaps, the domestic water water tank is located in the heating water tank;
Described domestic water water tank and heating water tank all are located in the shell, are provided with heat-insulation layer between shell and domestic water water tank and the heating water tank, and heating water tank is communicated with expansion drum by tube connector;
Be respectively equipped with heating water return mouth, heating delivery port and domestic water water supplement port, domestic hot-water's outlet on the described shell.
3. double-tank hot-water system with double thermal effects according to claim 1 and 2 is characterized in that: described heater comprises electric heater;
The described equipment of hot water that provides comprises boiler, Teat pump boiler or solar thermal collector.
4. double-tank hot-water system with double thermal effects according to claim 1 and 2 is characterized in that: the water inlet pipe of described domestic water water tank connects the domestic water water supplement port by the heat exchanger that is located in the heating water tank.
5. double-tank hot-water system with double thermal effects according to claim 4, it is characterized in that: also be provided with heat exchanger in the described domestic water water tank, this heat exchanger is connected solar thermal collector by pipeline with heat exchanger inlet and outlet on being located at shell, and the pipeline between solar thermal collector and the heat exchanger is provided with circulating pump.
6. double-tank hot-water system with double thermal effects according to claim 2, it is characterized in that: the insulating course between described domestic water water tank and the heating water tank is made as cylindrical convex body, this convex body stretches in the heating water tank, is arranged with heat exchanger coils around the convex body.
7. double-tank hot-water system with double thermal effects according to claim 6 is characterized in that: described domestic water water tank is located at the upper end of heating water tank, and the lower end of heating water tank is provided with blowoff valve.
8. double-tank hot-water system with double thermal effects according to claim 3 is characterized in that: described Teat pump boiler comprises compressor and evaporimeter, and the pipeline between Teat pump boiler and the heating water tank heat exchanger is provided with cross valve and choke valve.
9. double-tank hot-water system with double thermal effects according to claim 2 is characterized in that: also be provided with mixed water valve between heating water return mouth that described shell is provided with and the heating delivery port, mix water valve and connect circulating pump.
10. double-tank hot-water system with double thermal effects according to claim 4 is characterized in that: described domestic water water supplement port is connected with check valve.
