Abstract

The utility model discloses a multifunctional insulating water tank, which comprises a tank body, wherein a water inlet and a water outlet are arranged on the tank body, at least two sets of independent heat exchange coils are arranged in the tank body, and two ends of each heat exchange coil extends out of the tank body. The insulating water tank has more functions and higher adaptability.

Description

The multifunctional heat insulating water tank
Technical field
The utility model relates to a kind of multifunctional heat insulating water tank.
Background technology
What the insulation casing was a large amount of applies to field of air conditioning and field of water heaters, its function is that insulation is stored and realized to a certain extent to hot water, and the application of insulation casing can make water temperature constant of hot water pipe net, avoid the hot water water temperature sharply to change, also can improve the stability of flow rate of hot water; So be used widely in field of air conditioning, field of water heaters, but it is simple in structure for existing insulation casing, function singleness, as having occurred the floor heat exchanging system now, floor heat exchanging system, water heater and air conditioner heating system etc. to be made up, then existing insulation casing can not be suitable for, need be further improved it.
Summary of the invention
The purpose of this utility model is to provide a kind of insulation casing, and insulation casing function of the present utility model is more, has wider applicability.
The utility model is achieved through the following technical solutions:
A kind of multifunctional heat insulating water tank comprises casing, is provided with water inlet and delivery port on casing, is provided with at least two and overlaps independently heat exchange coil in this casing, and two ports of each heat exchange coil all stretch out outside the casing.
Owing in casing, be provided with at least two heat exchange coils, during use, can in heat exchange coil, feed water or cold-producing medium, the water of in casing, packing into, can make the water in the interior water of each heat exchange coil or cold-producing medium and the casing carry out heat exchange, this multifunctional heat insulating water tank can be connected with floor heat exchanging system, air-conditioning system, hot water supply system etc. and to connect, and the function of this attemperater is more.
Further structure of the present utility model is:
Described heat exchange coil is at least three.
On described casing, also be provided with the electric heater reserved opening.
In the described heat exchange coil, one of them is a hot water heat exchange coil, and one of them is the cold-producing medium heat exchange coil; Hot water heat exchange coil can be connected with domestic hot-water's pipeline, geothermal heating pipeline or solar heat-exchange pipeline or other heat exchanging pipe.
Described cold-producing medium heat exchange coil is at least two sections and space, is provided with along the vertical direction in described casing, is communicated with tube connector between each section cold-producing medium heat exchange coil.
Described tube connector is a straight tube.
At the copper pipe of described heat exchange coil for fin outside being with.
In view of the lamination of water in the casing, it can be connected use with end-equipment, floor heat exchanging system or other heat transmission equipments such as air-conditioning draught fan coil pipes.
The utlity model has following advantage:
1, this attemperater not only has the heat accumulation of adding water and heat insulation function, because heat exchange coil is set in casing, casing or the heat exchange coil in it can be connected with floor heat exchanging system, air conditioner heating system, hot water supply system, make the function of insulation casing more, have wider applicability;
2, when heat exchange coil is connected with hot-water heating system with life, the hot water in the casing can not enter life with in the hot-water heating system, i.e. life can have its relatively independent pipe network with hot-water heating system, can better avoid living and use the water pollution of hot-water heating system, uses much cleaner;
3, the cold-producing medium heat exchange coil is at least two sections, when feeding cold-producing medium in this heat exchange coil, can make the water temperature in the casing be the step distribution, when this insulation casing is connected with Teat pump boiler, can make the Teat pump boiler operation more reliable, and the water temperature that can obtain suiting;
3, realized the energy-saving effect of air source hot pump water heater than common electrical water heater power saving 3/4ths, in sun-drenched season, cooperated the solar heat-exchange system to use, energy-saving effect is better.
Description of drawings

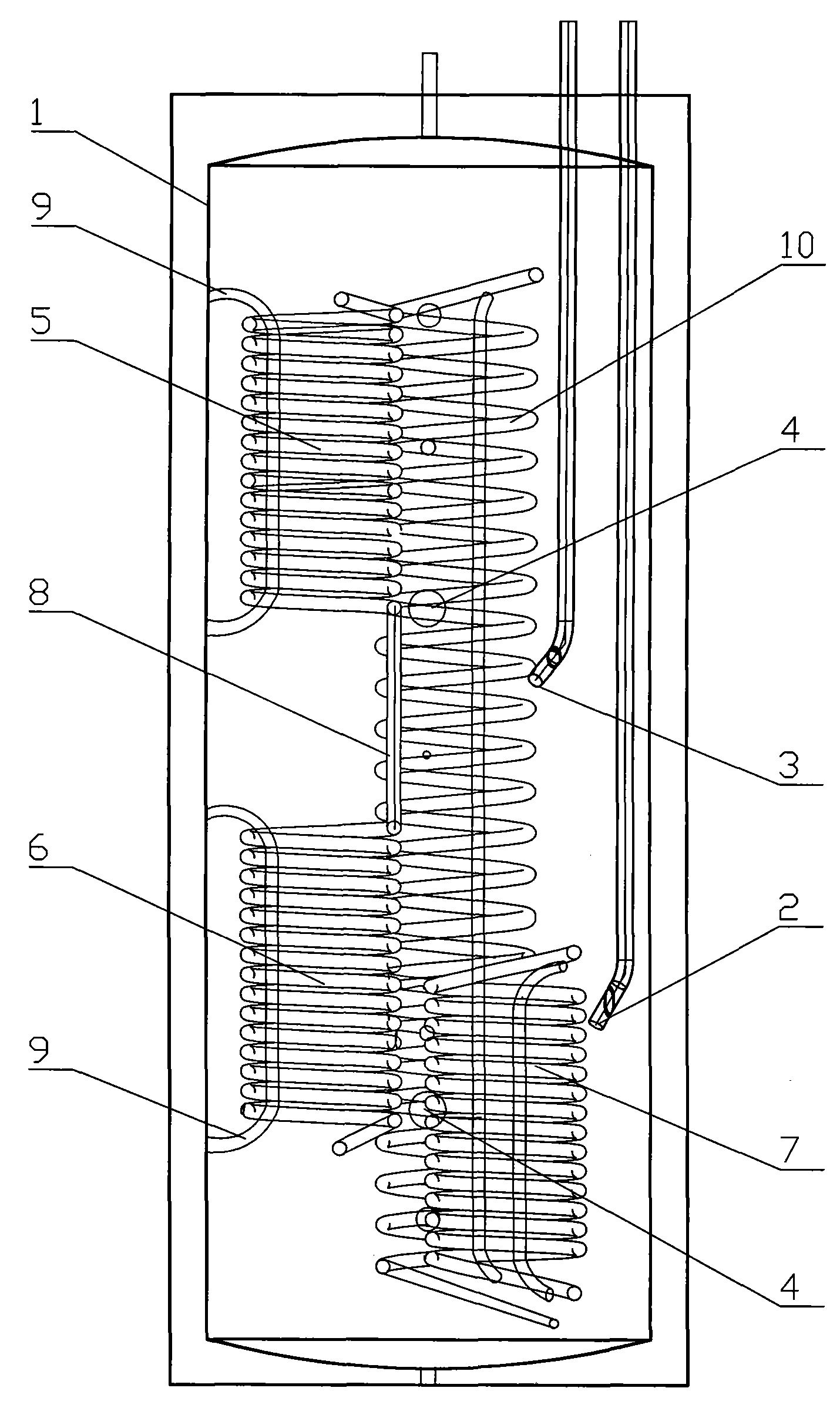

Fig. 1 is a structure chart of the present utility model;
Fig. 2 is among Fig. 1, the partial sectional view of casing;
Fig. 3 is the vertical view of Fig. 1;
Description of reference numerals:
1, casing, 2, water inlet, 3, delivery port, 4, the electric heater reserved opening, 5, cold-producing medium heat exchange coil epimere, 6, cold-producing medium heat exchange coil hypomere, 7, hot water heat exchange coil, 8, connect straight tube, 9, fixing steel cable, 10, hot water heat exchange coil.
The specific embodiment
As shown in Figure 1 to Figure 3, a kind of multifunctional heat insulating water tank comprises casing 1, is provided with water inlet 2 and delivery port 3 on casing 1, is provided with at least two and overlaps independently heat exchange coil in this casing 1, and two ports of each heat exchange coil all stretch out outside the casing 1.
Described heat exchange coil is three covers, wherein hot water heat exchange coil is two, hot water heat exchange coil 7 and hot water heat exchange coil 10, another is the cold-producing medium heat exchange coil, the cold-producing medium heat exchange coil comprises cold-producing medium heat exchange coil epimere 5 and the cold-producing medium heat exchange coil hypomere 6 that keeps at a certain distance away, be communicated with connecting straight tube 8 between the two, on casing 1, also be provided with electric heater reserved opening 4; Three heat exchange coils are fixedlyed connected with casing 1 by fixing steel cable 9.
The cold-producing medium heat exchange coil is divided into two cover coil pipes, lay respectively at casing 1 top and bottom, come out high-temperature high-pressure refrigerant liquid successively through cold-producing medium heat exchange coil epimere 5, cold-producing medium heat exchange coil hypomere 6 from air source hot pump water heater, return air source hot pump water heater, the abundant heat exchange of water in cold-producing medium and the casing 1 is also heated to it, why this refrigerant loop has used two cover coil pipes, is in order to increase heat exchange area, to make heat exchange more complete; Water temperature is the layering trend that reduces gradually from top to bottom in casing 1 simultaneously, and the temperature difference of the highest water temperature and minimum water temperature can reach about 20 ℃, such Temperature Distribution situation, make condensing pressure be unlikely to the water temperature that the higher position can obtain preference temperature, the reliability of air source hot pump water heater has been had assurance very big.
Heat exchange coil 10 can directly link to each other with water-supply systems, and the water supply that is used for the daily life water enters this heat exchange coil by the water post bake of casing 1, is less than about finally that the highest water temperature discharges for 5 ℃ in the casing, is used for the daily life water; Why this circulation domestic water loop enters from casing 1 bottom, come out from top again, it is lamination in view of water temperature in the casing 1, the water that temperature is lower is introduced into the lower casing of water temperature 1 bottom, come out to obtain the water outlet of preference temperature after the heat exchange again from the higher top of water temperature, such arrangement not only makes evenly heat exchange fully of recirculated water, in the shortest time, improve leaving water temperature, and be different from the water of directly taking in the casing 1, can access the domestic water of clean hygiene, and domestic water and charging equipment are isolated fully, and the user uses safety and reliability.
Heat exchange coil 7 can with the solar heat-exchange circuit communication, in sun-drenched season, can be by the water in this cover coil pipe heating casing 1, because this cover heat exchanger tube is positioned at casing 1 middle and lower part, mainly be in order to heat in the casing 1 temperature than the water of lower part, thereby accelerate the speed that water temperature raises, reach purpose of energy saving more, this cover coil pipe can select whether needs increase according to client's concrete operating position.
Electrical heating reserved opening 4 on the casing 1 can be used for electric heating function, lay respectively at the middle and upper part and the middle and lower part of casing 1, the user can select to open one or two electric heating system, to guarantee can normally providing hot water under the adverse circumstances of low temperature according to the difference of outdoor environment temperature.
The domestic water loop of water in the casing 1 in being used as post bake heat exchange coil 10, phenomenon in view of its water temperature delamination, can be connected use with air conditioner end equipment such as fan coil or floor heat exchanging system or other heating heat transmission equipments, reach heating purpose with the room air heat exchange; The water at casing 1 middle part enters the heating of house heat transmission equipment through the delivery port 3 on its top, through after the heat exchange, the backwater that temperature reduces is got back to casing 1 through water inlet 2 again, wherein the water level of delivery port 3 is in casing 1 middle and upper part, water temperature is lower than the highest water temperature and domestic water leaving water temperature in the casing 1 herein, be used as the water of heating of house heat exchange, can allow the user feel the comfortable warm of space.
Present embodiment has the following advantages:
1, casing 1 or the heat exchange coil in it can be connected with floor heat exchanging system, air conditioner heating system, water heater etc., make the function of insulation casing more, have wider applicability;
2, when heat exchange coil is connected with water heater, the hot water in the casing 1 can not enter in the water heater, and the instant heating hydrophone can have its relatively independent pipe network, can better avoid the water pollution of water heater, uses much cleaner;
3, the cold-producing medium heat exchange coil is two sections, when feeding cold-producing medium in this heat exchange coil, can make water temperature in the casing 1 be step and distribute, and when this insulation casing 1 was connected with Teat pump boiler, it is more reliable that Teat pump boiler is moved, and the water temperature that can obtain suiting;
3, realized the energy-saving effect of air source hot pump water heater than common electrical water heater power saving 3/4ths, in sun-drenched season, cooperated the solar heat-exchange system to use, energy-saving effect is better.

Claims (7)

1, a kind of multifunctional heat insulating water tank comprises casing, is provided with water inlet and delivery port on casing, it is characterized in that, is provided with at least two and overlaps independently heat exchange coil in this casing, and two ports of each heat exchange coil all stretch out outside the casing.
2, multifunctional heat insulating water tank according to claim 1 is characterized in that described heat exchange coil is at least three.
3, multifunctional heat insulating water tank according to claim 1 is characterized in that, also is provided with the electric heater reserved opening on described casing.
4, as multifunctional heat insulating water tank as described in each in the claim 1 to 3, it is characterized in that in the described heat exchange coil, one of them be a hot water heat exchange coil, one of them is individual to be the cold-producing medium heat exchange coil.
5, as multifunctional heat insulating water tank as described in the claim 4, it is characterized in that described cold-producing medium heat exchange coil is at least two sections and space, in described casing, be provided with along the vertical direction, be communicated with tube connector between each section cold-producing medium heat exchange coil.
6, as multifunctional heat insulating water tank as described in the claim 5, it is characterized in that described tube connector is a straight tube.
7, as multifunctional heat insulating water tank as described in each in the claim 1 to 3, it is characterized in that, described heat exchange coil for band outside the copper pipe of fin.
