The invention discloses a vehicle ultrasonic fuel atomization device which is provided with an ultrasonic atomizer. The vehicle ultrasonic fuel atomization device is characterized in that the ultrasonic atomizer (4) is arranged beside an oil inlet pipe (1) of an engine (2); one end of the ultrasonic fuel atomization device is communicated with the oil inlet pipe of the engine through a multi-hole interface (3), while the other end is communicated with an oil supply pipe (5.1) and an oil return pipe (5.2); the ultrasonic atomizer comprises an ultrasonic generator (4.1), an ultrasonic oscillator (4.2), a fuel controller (4.3) and a power converter (4.4) for providing power; and the ultrasonic generator, the ultrasonic oscillator and the fuel controller are sequentially arranged for controlling that a proper quantity of fuels enter the oil inlet pipe of the engine through the ultrasonic fuel atomization device. The ultrasonic fuel atomization device is suitable to be arranged on a vehicle, has the effects of fuel saving and environmental protection, has perfect structure and can more obviously improve the burning efficiency of the vehicle.
Description
Technical field
The invention belongs to a kind of motor car engine fuel feeding burning auxiliary device, is a kind of oil inlet pipe that is used for fuel oil is got into through ultrasonic atomization earlier again motor, improves the device of combustion efficiency.
Background technique
Automobile improves combustion efficiency, and improving fuel-economizing and environment protection effect is the target that people constantly pursue.Now people have proposed much to improve about automobile the technology of oil inflame efficient, and fuel magnetization, catalysis and heat etc. mostly have certain characteristics and effect.The technology that also has some to use ultrasound that fuel oil is atomized in advance, but it still need improve.
Summary of the invention
The objective of the invention is to propose a kind of vehicle ultrasonic fuel atomization device in order to solve the problems of the technologies described above, this apparatus structure is comparatively perfect, can further improve the combustion efficiency of vehicle fuel, the fuel-saving environmental protection better effects if.
The objective of the invention is to realize: vehicle ultrasonic fuel atomization device through following technological scheme; Be provided with ultrasonic ultrasonic delay line memory; It is characterized in that: this ultrasonic ultrasonic delay line memory is arranged on by the engine inlets; This ultrasonic fuel atomization device one end is communicated with engine inlets through porous interface, and the other end is communicated with fuel supply line and return tube; Said supersonic atomizer is made up of the power supply changeover device of ultrasonic generator, ultrasonic oscillator, fuel-control unit and power supply; Ultrasonic generator, ultrasonic oscillator and fuel-control unit are provided with in regular turn, and fuel-control unit and ultrasonic generator, ultrasonic oscillator and fuel supply line are controlled an amount of fuel oil gets into the motor oil inlet pipe after ultrasonic generator and oscillator atomizing control connection.
The intake duct of said motor is the intake duct that is connected with the nozzle of each cylinder of motor.
It is perfect that the present invention has structure, makes the combustion efficiency of vehicle fuel high, more energy-conservation, more the advantage of environmental protection.
Description of drawings

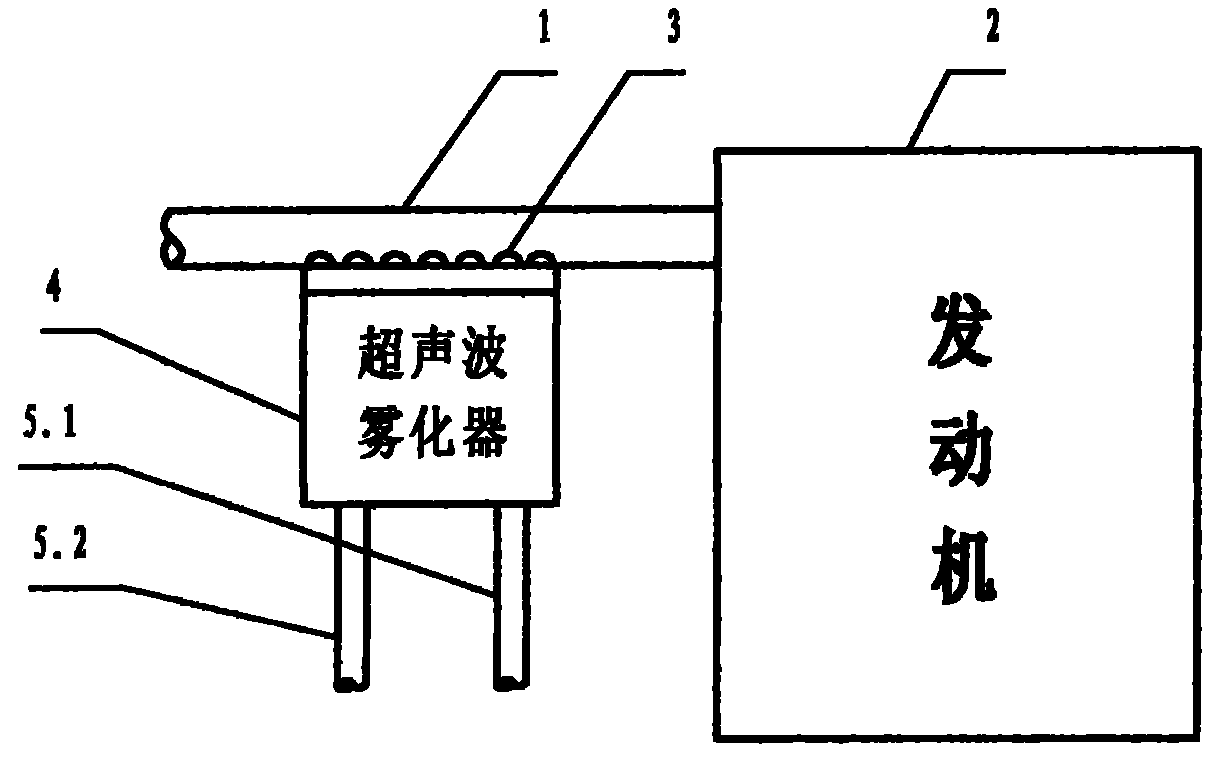

Fig. 1 is a structural representation of the present invention;
Fig. 2 is electrical connection of the present invention and operating structure schematic representation.
Embodiment
Below in conjunction with accompanying drawing and embodiment the present invention is further described: embodiment: referring to accompanying drawing; Vehicle ultrasonic fuel atomization device; Be provided with ultrasonic ultrasonic delay line memory; It is characterized in that: this ultrasonic ultrasonic delay line memory 4 is arranged on motor 2 intake ducts 1 side, and this ultrasonic fuel atomization device one end is communicated with engine inlets through porous interface 3, and the other end is communicated with fuel supply line 5.1 and return tube 5.2; Said ultrasonic ultrasonic delay line memory is made up of the power supply changeover device of ultrasonic generator, ultrasonic oscillator, fuel-control unit and power supply; Ultrasonic generator, ultrasonic oscillator and fuel-control unit are provided with in regular turn, and fuel-control unit and ultrasonic generator, ultrasonic oscillator and fuel supply line are controlled an amount of fuel oil gets into the motor oil inlet pipe after ultrasonic generator and oscillator atomizing control connection.Motor in the present embodiment is provided with four cylinders, and the intake duct of said motor is the intake duct that is connected with the nozzle of four cylinders of motor.Said ultrasonic fuel atomization device one end is communicated with through the intake duct of four cylinders of four porous interfaces and motors.
Present embodiment is very good through trial effect, and test data on probation is following:
Vehicle on probation: Buick-Avon 3.0
Measuring distance: Urumqi City---Yining City, 750 kilometers
When being unkitted vehicle ultrasonic fuel atomization device of the present invention, go that one case gasoline of 60L uses up 450 kilometers the time, added 40 liters again and finished 750 kilometers, used 100L gasoline altogether.
After vehicle ultrasonic fuel atomization device of the present invention was installed, one case gasoline of 60L has just been used fuel tank, and to refuel beacon bright, and each system's operation such as motor car engine is normal.
Claims (1)
1. vehicle ultrasonic fuel atomization device; Be provided with ultrasonic ultrasonic delay line memory; It is characterized in that: it is other that this ultrasonic ultrasonic delay line memory (4) is arranged on motor (2) intake duct (1); This ultrasonic fuel atomization device one end is communicated with engine inlets through porous interface (3), and the other end is communicated with fuel supply line (5.1) and return tube (5.2); Said ultrasonic ultrasonic delay line memory is made up of the power supply changeover device (4.4) of ultrasonic generator (4.1), ultrasonic oscillator (4.2), fuel-control unit (4.3) and power supply; Ultrasonic generator, ultrasonic oscillator and fuel-control unit are provided with in regular turn; Fuel-control unit and ultrasonic generator, ultrasonic oscillator and fuel supply line carry out control connection, and control mode is: control an amount of fuel oil and after ultrasonic generator and oscillator atomizing, get into the motor oil inlet pipe; The intake duct of said motor is the intake duct that is connected with the nozzle of each cylinder of motor.
