CN101555721A - Multi-chamber type steel tube concrete special-shaped column - Google Patents
Multi-chamber type steel tube concrete special-shaped column Download PDFInfo
- Publication number
- CN101555721A CN101555721A CNA2009100834727A CN200910083472A CN101555721A CN 101555721 A CN101555721 A CN 101555721A CN A2009100834727 A CNA2009100834727 A CN A2009100834727A CN 200910083472 A CN200910083472 A CN 200910083472A CN 101555721 A CN101555721 A CN 101555721A
- Authority
- CN
- China
- Prior art keywords
- steel
- shaped
- concrete
- rectangular
- section
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Landscapes
- Rod-Shaped Construction Members (AREA)
- Joining Of Building Structures In Genera (AREA)
Abstract
本发明公开了一种多室式钢管混凝土异形柱，由U形钢、矩形钢管和浇注其内的混凝土组成，U形钢和矩形钢管相互焊接在一起，组成不同截面的异形柱，整个截面由U形钢和矩形钢管分隔成多室，再向其中填充混凝土，U形钢由钢板弯折或焊接而成，矩形钢管由钢板直接焊接或先弯折后焊接而成。本发明将截面分成多室能增强钢材和混凝土的相互作用，降低了钢板的宽厚比，利于材料性能的充分发挥和截面性能的提高；U形钢和矩形钢管直接受力，减小了截面尺寸，消除了90度的负角，提高了异形柱的承载力，改善了的抗震性能；本发明制作简单，保证了混凝土的振捣、浇注质量，便于施工制作，经济效益较好。
The invention discloses a multi-chamber concrete-filled steel pipe special-shaped column, which is composed of U-shaped steel, rectangular steel pipes and concrete poured into it. The U-shaped steel and rectangular steel pipes are welded together to form special-shaped columns with different cross-sections. The entire cross-section consists of U-shaped steel and rectangular steel pipes are divided into multiple chambers, and then filled with concrete, U-shaped steel is made by bending or welding steel plates, and rectangular steel pipes are made by directly welding or bending and then welding steel plates. The invention divides the section into multiple chambers, which can enhance the interaction between steel and concrete, reduce the width-to-thickness ratio of the steel plate, and facilitate the full play of material properties and the improvement of section performance; U-shaped steel and rectangular steel pipes are directly stressed, reducing the size of the section , eliminates the negative angle of 90 degrees, improves the bearing capacity of special-shaped columns, and improves the anti-seismic performance; the invention is simple to manufacture, ensures the vibrating and pouring quality of concrete, is convenient for construction and production, and has good economic benefits.
Description
Technical field
The invention belongs to building engineering field, be specifically related to a kind of multi-chamber type steel tube concrete special-shaped column.
Background technology
Along with improving constantly of China's output of steel, constant development of economy, to the continuous requirement of environmental type building, steel house has obtained developing rapidly in China.Consider that China is populous, the land resources relative deficiency should develop multilayer and little high-rise steel structure dwelling house.These steel houses adopt framework-support system or framework-concrete shear force wall (core tube) system more, and pillar can adopt steel column, steel core concrete column and combined steel and concrete column, and back two kinds is coupled column.In small sized multiple story building, coupled column is economized steel than steel column, and then also just can reduce construction costs, but therefore the construction of combined steel and concrete column has many steel core concrete columns that adopted in the steel house of having built at present than the steel core concrete column complexity.Although yet the sectional dimension of steel core concrete column compare greatly with reinforced concrete post and reduce, the problem that pillar protrudes metope still exists.In reinforced concrete structure, adopt hetermorphiscal column to make this problem obtain solution, therefore, the notion of hetermorphiscal column in recent years concrete filled steel tube has also been proposed, be that corner post adopts L shaped cross section, side column to adopt T section, center pillar to adopt star section, form by direct fluid concrete in steel pipe.Steel pipe concrete profiled pile not only can avoid pillar to protrude metope, is convenient to space utilization, can also give full play to steel and concrete material property.
At present, the researcher has proposed the section form of multiple steel pipe concrete profiled pile, what propose the earliest is the common steel tube concrete profiled pile, as shown in Figure 1, being welded into chapped pipe by steel plate constitutes to fluid concrete wherein again, but have the negative angle of 90 degree on this cross section, weakened steel and concrete interaction, its composite behaviour is relatively poor.On this basis, researchers proposed some construction measures as be provided with stiffening rib as shown in Figure 2, binding bar is set as shown in Figure 3, or the welding pin waits as shown in Figure 4 and better realizes steel and concrete co-operation.These measures have remedied the defective of common steel tube concrete profiled pile to a certain extent, the cripling that suppresses or slow down steel plate, but above-mentioned construction measure has also increased the construction making and the design difficulty of hetermorphiscal column, is not easy to use.The researcher who also has has proposed to be welded into the concrete filled steel tube combined special-shaped column with two or three rectangular steel pipes, and this cross-sectional configuration is simple, is convenient to construction, but has the bigger limit of flakiness ratio on the cross section, and easily too early flexing has reduced the overall performance of member.In addition, this sectional dimension also has been subjected to the restriction of steel pipe specification, has limited its further application.
Summary of the invention
The objective of the invention is in order to overcome the deficiency of existing steel pipe concrete profiled pile section form, take all factors into consideration each side factors such as mechanical property, construction making, joint structure, design difficulty and economic benefit, a kind of multi-chamber type steel tube concrete special-shaped column is provided, its multiple-chamber type cross section can effectively strengthen steel and concrete interaction, bearing of component and ductility have been improved, be convenient to construction and make, design also simple relatively.
The present invention is a kind of multi-chamber type steel tube concrete special-shaped column, form by U-shaped steel, rectangular steel pipe and the cast concrete in it, the U-shaped steel is welded to each other with rectangular steel pipe is in the same place, the hetermorphiscal column of forming different cross section, whole hetermorphiscal column cross section is separated into multicell by U-shaped steel and rectangular steel pipe, fill concrete in U-shaped steel and the rectangular steel pipe.
Described U-shaped steel is welded by steel plate bending or by steel plate, and described rectangular steel pipe is bent earlier by steel plate and afterwards welds or directly be welded by steel plate.
The invention has the advantages that:
(1) cross section of hetermorphiscal column is divided into multicell and can effectively strengthens steel and concrete interaction, and U-shaped steel and rectangular steel pipe are directly stressed, have reduced sectional dimension, have reduced the flakiness ratio of steel plate, is beneficial to the raising with the cross section performance given full play to of material property;
(2) compare with the common steel tube concrete profiled pile, 90 negative angles of spending have been eliminated after being divided into multicell in the cross section, have improved the bearing capacity of hetermorphiscal column, have improved the anti-seismic performance of hetermorphiscal column;
(3) the present invention is simpler relatively than the steel pipe concrete profiled pile construction making that construction measures such as stiffening rib are set, and has guaranteed concrete vibration, casting quality, is convenient to construction and makes better economic benefit;
(4) compare with the concrete filled steel tube combined special-shaped column, steel do not have overlapping part on the multiple-chamber type cross section, economize steel than the former; The steel plate that width is bigger on the cross section is difficult for too early flexing because of being divided into several sections, makes the compatibility of deformation of concrete and steel, and stress performance is just more reasonable.
Description of drawings
Fig. 1 is a common steel tube concrete profiled pile schematic cross-section in the background technology of the present invention;
Fig. 2 is the common steel tube concrete profiled pile schematic cross-section that stiffening rib is set in the background technology of the present invention;
Fig. 3 is the common steel tube concrete profiled pile schematic cross-section that pull bar is set in the background technology of the present invention;
Fig. 4 is the common steel tube concrete profiled pile schematic cross-section of welding pin in the background technology of the present invention;
Fig. 5 a is a U-shaped steel schematic diagram of the present invention;
Fig. 5 b is a rectangular steel pipe schematic diagram of the present invention;
Fig. 6 a is that the present invention forms the multi-chamber type steel tube concrete special-shaped column schematic cross-section of cross section for " T " font by two U-shaped steel and a rectangular steel pipe;
Fig. 6 b is that the present invention forms the multi-chamber type steel tube concrete special-shaped column schematic cross-section of cross section for " L " font by two U-shaped steel and a rectangular steel pipe;
Fig. 6 c is that the present invention forms the multi-chamber type steel tube concrete special-shaped column schematic cross-section of cross section for " ten " font by two U-shaped steel and a rectangular steel pipe;
Among the figure:
1-U shape steel 2-rectangular steel pipe 3-concrete
The specific embodiment
The present invention is described in further detail below in conjunction with accompanying drawing.
The present invention is a kind of multi-chamber type steel tube concrete special-shaped column, form by U-shaped steel 1, rectangular steel pipe 2 and the concrete 3 poured into a mould in it, U-shaped steel 1 is welded to each other with rectangular steel pipe 2 is in the same place, form different cross section hetermorphiscal column, whole hetermorphiscal column cross section is separated into multicell by U-shaped steel 1 and rectangular steel pipe 2, again fill concrete 3 in U-shaped steel 1 and rectangular steel pipe 2.
Shown in Fig. 5 a, described U-shaped steel 1 is welded by steel plate bending or by steel plate, and shown in Fig. 5 b, described rectangular steel pipe 2 is bent earlier by steel plate and afterwards welds or directly be welded by steel plate.
Hetermorphiscal column described in the present invention, the section form that is meant multi-chamber type steel tube concrete special-shaped column changes along with the body of wall change of shape, needed different shape in the time of can being arranged in the body of wall according to multi-chamber type steel tube concrete special-shaped column, and change the formed shape in its cross section, be example specifically with cross, T font and L font.
Shown in Fig. 6 a, two U-shaped steel 1 and a rectangular steel pipe 2 are welded into the hetermorphiscal column that the cross section is the T font, described two U-shaped steel 1 are welded on rectangular steel pipe 2 relative edges' top respectively, fluid concrete 3 in U-shaped steel 1 and rectangular steel pipe 2 again, make two U-shaped steel 1, rectangular steel pipe 2 and concrete 3 constitute an integral body, can constitute the multi-chamber type steel tube concrete special-shaped column that the cross section is the T font.

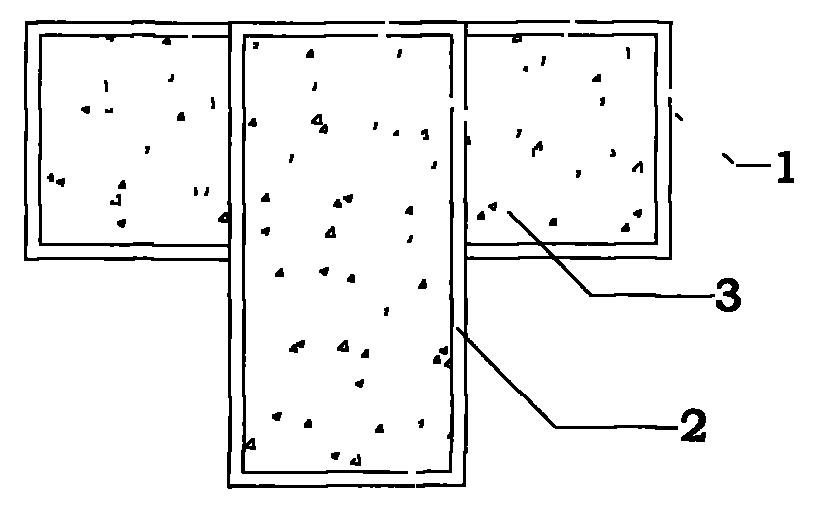

Shown in Fig. 6 b, two U-shaped steel 1 and a rectangular steel pipe 2 are welded into the hetermorphiscal column that the cross section is the L font, described two U-shaped steel 1 are welded on the adjacent edge of rectangular steel pipe 2 respectively, fluid concrete 3 in U-shaped steel 1 and rectangular steel pipe 2 again, make two U-shaped steel 1, rectangular steel pipe 2 and concrete 3 constitute an integral body, can constitute the multi-chamber type steel tube concrete special-shaped column that the cross section is the L font.
Shown in Fig. 6 c, it is criss-cross hetermorphiscal column that two U-shaped steel 1 and a rectangular steel pipe 2 are welded into the cross section, described two U-shaped steel 1 are welded on rectangular steel pipe 2 relative edges' centre respectively, fluid concrete 3 in U-shaped steel 1 and rectangular steel pipe 2 again, make two U-shaped steel 1, rectangular steel pipe 2 and concrete 3 constitute an integral body, can constitute the cross section is criss-cross multi-chamber type steel tube concrete special-shaped column.
The described concrete that is used to pour into a mould can adopt common or high-strength concrete, in order to improve vibrate quality and water velocity, can adopt pumping, jacking pouring method.Weld seam should be abideed by " Code for design of steel structures " and (GBJ50017-2003) be designed, and can adopt fillet weld or butt weld, and guarantees weldquality.
Claims (6)
1, multi-chamber type steel tube concrete special-shaped column, it is characterized in that: form by U-shaped steel, rectangular steel pipe and the cast concrete in it, the U-shaped steel is welded to each other with rectangular steel pipe is in the same place, the hetermorphiscal column of forming different cross section, whole hetermorphiscal column cross section is separated into multicell by U-shaped steel and rectangular steel pipe, fill concrete in U-shaped steel and the rectangular steel pipe.
2, multi-chamber type steel tube concrete special-shaped column according to claim 1, it is characterized in that: described hetermorphiscal column is that two U-shaped steel and a rectangular steel pipe are welded into the hetermorphiscal column that the cross section is the T font, described two U-shaped steel openends are welded on the top on the long relatively limit of rectangular steel pipe, fluid concrete in U-shaped steel and the rectangular steel pipe respectively.
3, multi-chamber type steel tube concrete special-shaped column according to claim 1, it is characterized in that: described hetermorphiscal column is that two U-shaped steel and a rectangular steel pipe are welded into the hetermorphiscal column that the cross section is the L font, described two U-shaped steel openends are welded on the adjacent edge of rectangular steel pipe respectively, fluid concrete in U-shaped steel and the rectangular steel pipe.
4, multi-chamber type steel tube concrete special-shaped column according to claim 1, it is characterized in that: described hetermorphiscal column is that to be welded into the cross section be criss-cross hetermorphiscal column for two U-shaped steel and a rectangular steel pipe, described two U-shaped steel openends are welded on rectangular steel pipe relative edge's centre, fluid concrete in U-shaped steel and the rectangular steel pipe.
5, multi-chamber type steel tube concrete special-shaped column according to claim 1 is characterized in that: described U-shaped steel is formed by the steel plate bending or is welded by steel plate.
6, multi-chamber type steel tube concrete special-shaped column according to claim 1 is characterized in that: described rectangular steel pipe is bent earlier by steel plate and afterwards is welded or directly is welded by steel plate.
