Abstract

The invention provides a combined polar line heat radiating high power LED electronic lamp, which is composed of a LED luminous tube, a reflector, a heat radiating sheet, a circuit board and a matrix lamp socket. The heat radiating sheet is as the anode electric conductor of the LED luminous tube. The insulation circuit board is taken as a cathode electric conductor of the LED luminous tube and embedded on the upper surface of the heat radiating sheet. The heat radiating sheet are arranged on the matrix lamp socket at parallel and are provided with anode jack splicing the LED luminous tube anode pin and a cathode tap hole. The anode pin and cathode pin are respectively inserted in the anode jack and the cathode jack of the heat radiating sheet. The upper surface of the heat radiating sheet is provided with an insulation circuit board slot. A jack is arranged on the insulation circuit board for connecting the cathode pin. The cathode pin of the LED luminous tube is inserted in the cathode jack of the insulation circuit board. The jack on the insulation circuit board for connecting the cathode pin is arranged in the middle of the cathode tap hole of the heat radiating sheet. The reflector is arranged at the periphery of the LED luminous tube.

Description

The high power LED electronic lamp of combined type polar heat radiation
Technical field
The present invention relates to a kind of lighting apparatus, specifically a kind of high power LED electronic lamp of combined type polar heat radiation.
Background technology
The world at current energy scarcity, people seek alternative energy source or exploitation energy-conserving product in every field, eliminated first generation light source incandescent lamp the field of illuminating lamps people, generally adopt energy-conservation fluorescent lamp and glow lamp, but the energy-saving lamp of fluorescent lamp and glow lamp series still be unable to do without heat filament and ballast, exist maximum deficiency to be to use the life-span short, reflect generally after the user uses that economize on electricity does not save money.Further in short supply along with world energy sources, people's power consumption that begins one's study is littler, the LED luminous tube of longer service life is as emerging lighting source, the velocitron of high-power light-emitting pipe has begun to be applied at some lighting fields, indicator lamp such as automobile, flashlight also has the street lamp or the warning lamp of the power of some, but the power of the LED luminous tube of prior art does not far reach the requirement of big occasion illumination, large-power lamp is all combined by many luminous tube arrays and reaches power demand and illumination generally speaking, but the heat that many luminous tube array combination backs of prior art produce directly has influence on the luminous efficiency and the service life of light fixture.Therefore, manage to reduce the caloric value of pipe and the heat that will produce as early as possible dissipates, just will make light fixture reach the biggest problem that thermal balance has become this application technology being no more than under the prerequisite that pipe allows junction temperature.
Many luminous tube array combinations are to be combined into little unit with two kinds of forms of serial or parallel connection earlier, connect according to the unit parallel connection of a plurality of series connection of big young pathbreaker of power demand again or with the unit of a plurality of parallel connections then, these two kinds group modes in theory all are fine again.
But, because internal resistance and some parameter of every luminous tube are not quite similar, the voltage drop of the unit of series connection form on every pipe after the energising is different, power difference when so just having caused every pipe work and then temperature rise difference, the luminous tube mode that is connected in series has caused very big difficulty for the heat radiation of pipe on manufacturing process, have to use nonmetal Heat Conduction Material and realize heat radiation, but the low heat conductivity of nonmetallic materials greatly reduces the radiating efficiency of pipe again, because heat dissipation problem really is not resolved, the operating current of LED luminous tube can't reach optimum state, it is the highest that lamp illuminance just can't reach, the work down of big electric current, the heat of LED luminous tube inside can increase the resistance of LED luminous tube, the increase of resistance can strengthen the heating of LED luminous tube conversely again and then cause the LED luminous tube to burn out, thereby, also there is not the real sub-lamp of desirable electric consumption on lighting to be applied at present.
Summary of the invention
The invention provides the high power LED electronic lamp of combined type polar heat radiation a kind of simple in structure, with low cost.
Velocitron of the present invention is realized in the following manner, the structure of this electronics is by the LED luminous tube, reflection shield, fin, circuit board and matrix lamp socket, fin is as the cathode conductor of LED luminous tube, insulating circuit board is as the negative pole electric conductor of LED luminous tube, insulating circuit board is embedded in the upper surface of fin, fin is side by side parallel or form hexagonal configuration and be arranged on the matrix lamp socket, have the anodal jack and the negative pole small opening of the anodal pin of grafting LED luminous tube on the fin, the positive pole of LED luminous tube and negative pole are inserted in respectively among the anodal jack and negative pole small opening of fin, the upper surface of fin is provided with the insulating circuit board slot, have the jack that connects negative pole on the insulating circuit board, the negative pole pin of LED luminous tube is inserted among the jack of insulating circuit board, the jack that connects negative pole on the insulating circuit board is positioned at the centre of fin negative pole small opening, and reflection shield is arranged on the periphery of LED luminous tube.
The invention has the beneficial effects as follows: reasonable in design, good heat dissipation effect, can make the operating current of LED luminous tube in the light fixture adjust to optimum state, thereby improved the illumination of LED luminous tube greatly, in order further to improve the illumination of LED luminous tube, also the periphery at each LED luminous tube is provided with reflection shield, with whole scatterings and reflex in the scope of regulation because of intersection causes the visible light of loss to concentrate, make secondary light-distribution more become reasonable.Reflection shield with reasonable cooperation of fin improved radiating effect greatly, improved the service life of light fixture simultaneously.Make energy-conservation LED luminous tube matrix light fixture replace the higher light fixture of existing power consumption to become a reality.From then on start a global lighting great revolution.
Description of drawings

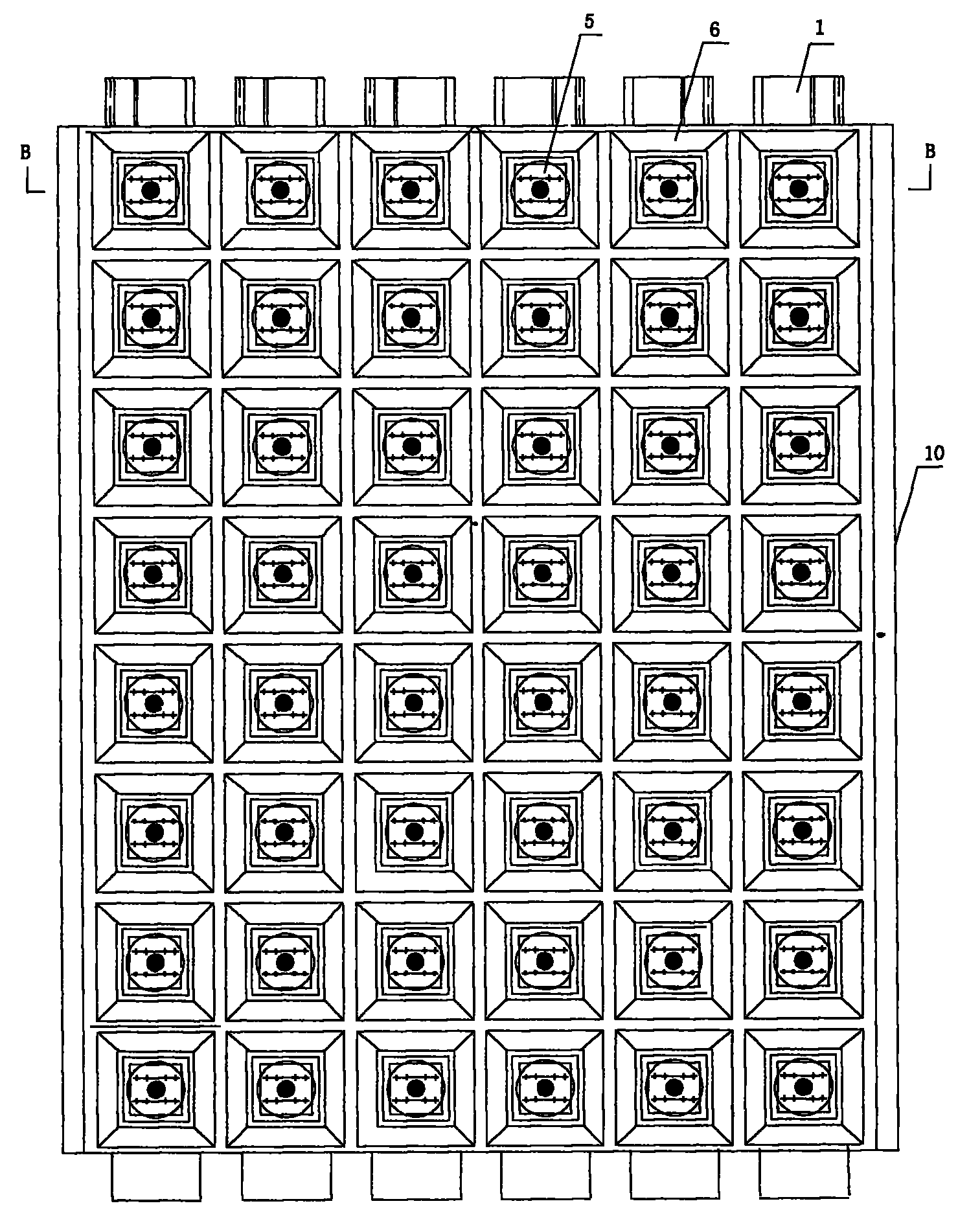

Accompanying drawing 1 is the high power LED electronic lamp plan structure schematic diagram of combined type polar heat radiation;
Accompanying drawing 2 is that the B-B of Fig. 1 is to the section structure schematic diagram;
Accompanying drawing 3 is combining structure schematic diagrames of single LED luminous tube and fin, reflection shield;
Accompanying drawing 4 is main TV structure schematic diagrames of single LED luminous tube;
Accompanying drawing 5 is the structural representations of looking up of single LED luminous tube;
Accompanying drawing 6 is plan structure schematic diagrames of fin;
Accompanying drawing 7 is that the A-A of Fig. 6 is to the section structure schematic diagram.
Description of reference numerals: fin 1, negative pole small opening 2, anodal jack 3, radiating fin 4, LED luminous tube, reflection shield 6, anodal pin 7, negative pole pin 8, insulating circuit board 9, matrix lamp socket 10, insulating circuit board slot 11.
The specific embodiment
With reference to Figure of description the high power LED electronic lamp of combined type polar heat radiation of the present invention is done following detailed explanation.
Shown in accompanying drawing 1-5, the high power LED electronic lamp of combined type polar heat radiation of the present invention, its structure is by LED luminous tube 5, reflection shield 6, fin 1, insulating circuit board 9 and matrix lamp socket 10 are formed, fin 1 is as the cathode conductor of LED luminous tube 5, insulating circuit board 9 is as the negative pole electric conductor of LED luminous tube 5, insulating circuit board 9 is embedded in the upper surface of fin 1, fin 1 slivering is arranged on the matrix lamp socket 10, have the negative pole small opening 2 of grafting LED luminous tube negative pole pin 8 and the anodal jack 3 of anodal pin 7 on the fin 1, the anodal pin 7 of LED luminous tube 5 and negative pole pin 8 are inserted in respectively among the anodal jack 3 negative pole small openings 2 of fin 1, the upper surface of fin 1 is provided with insulating circuit board slot 11, have the jack that connects negative pole pin 8 on the insulating circuit board 9, the negative pole pin 8 of LED luminous tube 5 is inserted among the jack of insulating circuit board 9, the jack that connects negative pole pin 8 on the insulating circuit board 9 is positioned at the centre of fin 1 negative pole small opening 2, and reflection shield 6 is arranged on the periphery of LED luminous tube 5.
The vertical cross section of reflection shield 6 is in the shape of the letter V, and upper opening is rectangle or circle, and the upper surface that its underpart is provided with horizontal flange and fin 1 is connected and fixed.
The bottom of fin 1 is provided with radiating fin 4.
Matrix lamp socket 10 is provided with the fin slot, and fin 1 is formed LED luminous tube matrix electronic lamp among being inserted in the slot of matrix lamp socket 10.
Fin 1 is bar shaped, rectangle, circle or annular, and the arrangement of LED luminous tube 5 on fin 1 is single row or multiple rows.
The pin of LED luminous tube 5 is that anodal pin 7 quantity are greater than negative pole pin 8 quantity.
Embodiment
The high power LED electronic lamp of combined type polar heat radiation of the present invention, the having eight and draw pin of employed LED luminous tube, shown in accompanying drawing 3-5, wherein six roots of sensation pin is that anodal leading foot, two pins are the negative pole leading foot.Both positive and negative polarity needed link together with lead respectively when prior art was n pipe parallel connection, and needed mutual insulating between both positive and negative polarity.Velocitron of the present invention is the radiator shape that the connection wire producing of positive pole is become aluminium matter, shown in accompanying drawing 3,6,7, radiator just above punching press the position that six anodal pin jacks are arranged that equidistantly distributes of n group.A groove that can insert for the insulator chain lath of connection negative pole pin is arranged above radiator longitudinally on one side, and there is an oblong hollow out below that is positioned at each luminous tube negative pole pin in the groove, is to prevent that luminous tube from inserting short circuit between the both positive and negative polarity pin of back.
The negative pole insulating circuit board is the printed substrate made from two-sided copper clad plate, and the dual-side of insulating circuit board vertically erodes the limit of certain width, forms insulation between both positive and negative polarity behind the groove of insertion radiator.Have respectively for the hole that connects lead-in wire in order to be connected or external power supply at both positive and negative polarity conductive plate two ends with other unit in parallel.
After positive/negative plate and luminous tube installed, the mount pad of plastics was buckled at two ends, promptly was a complete unit, and available some unit are assembled into the matrix light fixture of different capacity.
The tailor-made processing of 1:LED luminous tube;
2: the radiator mould is rolling;
3: printed substrate is processed outward;
4: light fixture assembles by production line;
5: reflector adopts the aluminium alloy sheet punching press to make, and also can use the molding vacuum coating process to make.
This product distinguishing feature is energy-conservation, and the light fixture that utilizes this technology to produce is present the most energy-conservation lighting in the world, can make lighting source in different occasions and use.

Claims (6)

1. the high power LED electronic lamp of combined type polar heat radiation, it is characterized in that comprising the LED luminous tube, reflection shield, fin, circuit board and matrix lamp socket, fin is as the cathode conductor of LED luminous tube, insulating circuit board is as the negative pole electric conductor of LED luminous tube, insulating circuit board is embedded in the upper surface of fin, fin is arranged on the matrix lamp socket, have the anodal jack of the anodal pin of grafting LED luminous tube and the negative pole small opening of negative pole pin on the fin, the anodal pin of LED luminous tube and negative pole pin are inserted in respectively among the anodal jack and negative pole small opening of fin, the upper surface of fin is provided with the insulating circuit board slot, have the negative pole pin jack that connects the negative pole pin on the insulating circuit board, the negative pole pin of LED luminous tube is inserted among the negative pole pin jack of insulating circuit board, the negative pole pin jack that connects the negative pole pin on the insulating circuit board is positioned at the centre of fin negative pole small opening, and reflection shield is arranged on the periphery of LED luminous tube.
2. the high power LED electronic lamp of combined type polar heat radiation according to claim 1 is characterized in that, the vertical cross section of reflection shield is in the shape of the letter V, and upper opening is rectangle or circle, and the upper surface that its underpart is provided with horizontal flange and fin is connected and fixed.
3. the high power LED electronic lamp of combined type polar heat radiation according to claim 1 is characterized in that the bottom of fin is provided with radiating fin.
4. the high power LED electronic lamp of combined type polar heat radiation according to claim 1 is characterized in that the matrix lamp socket is provided with the fin slot, and fin is formed LED luminous tube matrix electronic lamp among being inserted in the slot of matrix lamp socket.
5. the high power LED electronic lamp of combined type polar heat radiation according to claim 1 is characterized in that fin is rectangle, circle or annular, and the arrangement of LED luminous tube on fin is single row or multiple rows.
6. the high power LED electronic lamp of combined type polar heat radiation according to claim 1, the pin that it is characterized in that the LED luminous tube is that anodal number of pin is greater than the negative pole number of pin.
