Abstract
The invention discloses a sliding cover linkage magnetic control energy-saving oil and smoke exhauster, which comprises a pulley slideway support cover erected on a cooker; a counterbalancing elevating transparent sliding cover hung on the pulley slideway support cover; an oil and smoke exhauster arranged inside the pulley slideway support cover; a linkage magnetic control dust-proof device arranged at the air outlet of the oil and smoke exhauster and an air outlet hose arranged above the linkage magnetic control dust-proof device. When the cooking is not done, a blower fan can be switched off; the counterbalancing elevated transparent sliding cover is slided down; the neutral position in front of the cooker is turned down; the linkage magnetic control dust-proof device is switched on through counterbalancing linkage and magnetic control, the exhaust oil, smoke and the exhaust gas can be exhausted. The invention facilitates handy operation through the counterbalancing linkage and magnetic control design. The neutral space in front of the hearth can be adjusted freely according to the characteristics and the requirements of the cooking method to realize energy conservation and environmental protection.
Description
Technical field
Patent of the present invention relates to a kind of cooking stove oily fume exhauster, particularly a kind of sliding closure linkage magnetic controlled energy-saving cooking fume exhauster.
Background technology
Along with going from bad to worse and energy scarcity of earth environment, energy-saving and emission-reduction have become the human important issue that must pay attention to and advocate.
The size of the general all unadjustable stokehold of the smoke exhaust neutral of domestic households kitchen range use at present.As long as cooking stove is lighted, and though be strong fire fast the top spoon turn over a pot quick-fried, still moderate heat is fried at a slow speed, still little fiery high cooking decocts, or the slow fire that reaches a few hours is stewed slowly, must start blower fan and can get rid of oil smoke and waste gas.Some user is for power saving, or be impatient at long fan noise, decoct in long-time little fiery boiling, or the slow fire that reaches a few hours is stewed slowly, do not produce and fry in shallow oil when frying the oil smoke of frying, think by mistake and need not open smoke exhaust, blower fan cuts out, but the harm that the harm that the harmful gas after this moment burning causes human body oil smoke volatile matter in the pot causes human body.
Though some has taked the stokehold to block measure, the mist extractor problem when not solving not electricity consumption.Though some blocks measure by having taked the stokehold, solved under the specific condition that the high smokejack of strong suction is arranged, the problem of not electricity consumption mist extractor does not but have to solve under the condition less than the high smokejack of strong suction, and the mist extractor problem when needing the culinary art of big operating space.
The patent of invention content
The purpose of patent of the present invention is problem and the defective that exists at prior art, designs a kind of device of kitchen mist extractor waste gas of energy-conserving and environment-protective.
The technical scheme of patent of the present invention is: a kind of sliding closure linkage magnetic controlled energy-saving cooking fume exhauster is characterized in that: it is erected on the kitchen range top (1), with cooking stove (2), fry in shallow oil frying pan (3), digester (4) covers on wherein.It comprises the pulley slideway support cover (5) that is erected on the kitchen range top, be suspended on counterweight lifting transparent slip lid (6) on the pulley slideway support cover (5), be arranged on smoke exhaust (7) within the pulley slideway support cover (5), be arranged on the linkage magnetic controlled dust guard (8) of smoke exhaust (7) air outlet and be arranged on the air-out flexible pipe (9) of linkage magnetic controlled dust guard (8) top.
Described pulley slideway support cover (5) comprises the bottom framework (10) that is arranged on the bottom, be arranged on the bracket side panel (11) of both sides, be arranged on the cradle back plate (12) of back, be arranged on inner support middle frame (13), be arranged on the middle frame upper end sealing strip (14) on the support middle frame (13), be arranged on the middle frame forward end seal bar (15) of support middle frame (13) front, be arranged on the slideway (16) in bracket side panel (11) forward position, be arranged on the cross tube (17) and the slip lid counterweight pulley (18) of support top, and the top panel (19) that is arranged on the place ahead, top.
Described counterweight lifting transparent slip lid (6) comprises the side lever (32) that is arranged on both sides, be arranged on the top and go up link rod (33), be arranged on the following link rod (34) of below, be arranged on the last travelling wheel (35) on the link rod (33), be arranged on the transparent panel (36) between two side levers (32), be arranged on following slip lid sealing strip (37), be arranged on the chain wheel rope B (38) of top, be arranged on the slip lid counterweight (39) of chain wheel rope B (38) other end and be arranged on down wheel frame (42) and handle (43) on the link rod (34), wheel frame (42) is provided with guide wheel A (40) and guide wheel B (41).
Described smoke exhaust (7) comprises that the blower fan that is arranged on the blower fan main body (20) on the middle frame upper end sealing strip (14) and is arranged on below the pulley slideway support cover (5) draws gauge tap (21).
Described linkage magnetic controlled dust guard (8) comprises the housing (22) that is arranged on smoke exhaust (7) air outlet, be arranged on the axis (23) of housing (22) below, be arranged on dustproof blade (24) hinged within the housing (22) with axis (23), be arranged on the middle cross bar (25) within the housing (22), be arranged on and be subjected to magnetic spare (27) on the dustproof blade (24), be arranged on housing (22) outside and the hinged swing arm (28) of axis (23), be arranged on the magnet (26) on the swing arm (28), be arranged on the swing arm counterweight pulley (29) of top, chain wheel rope A (30) that is connected with swing arm (28) and the swing arm counterweight (31) that connects with chain wheel rope A (30) other end that is connected.
Patent of the present invention compared with prior art has following advantage: the utility model is reasonable in design, according to the needs of different cooking methods, regulates the neutral size of kitchen range top top, the unlatching and the closure of control dust excluding plate.Can be under condition less than the high smokejack of strong suction, oil smoke and waste gas that various cooking methods are produced are discharged to outdoor.Can disable motor when the culinary art that the neutral of kitchen range top top can be turned down, accomplish energy-conserving and environment-protective.By counterweight interlock and magnetic control design, make that operation is light and handy, easy.
Description of drawings

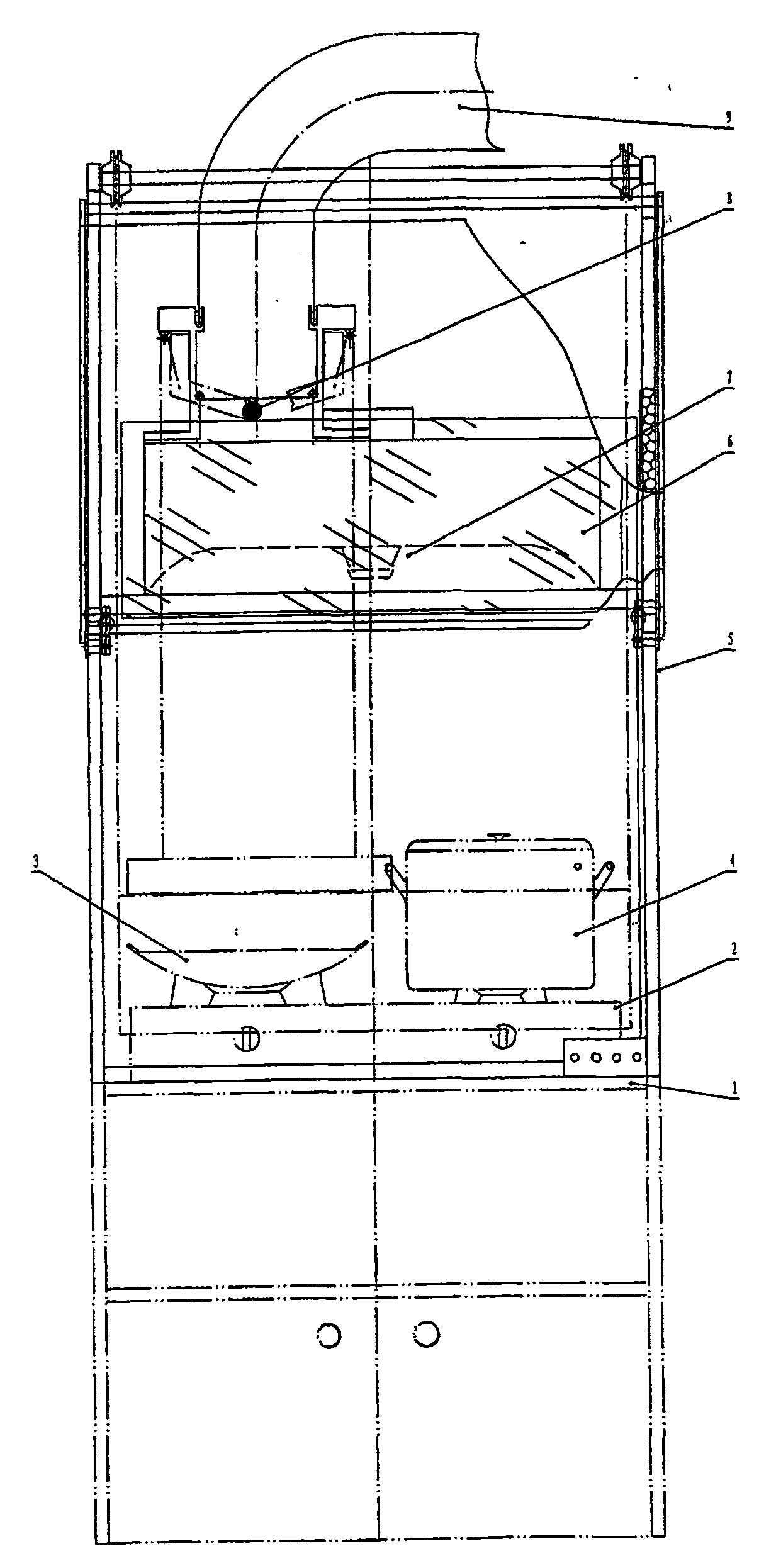

When Fig. 1 did not work for patent of the present invention, counterweight lifting transparent slip lid was upper, and blade closed condition front view prevents dust;
Fig. 2 is the side view of Fig. 1;
When Fig. 3 transferred to the maximum neutral gear work in stokehold for patent of the present invention, the blower fan blade that will prevent dust blew the state front view open;
Fig. 4 is the side view of Fig. 3;
When Fig. 5 transferred to stokehold medium neutral gear work for patent of the present invention, the blower fan blade that will prevent dust blew the state front view open;
Fig. 6 is the side view of Fig. 5;
When Fig. 7 transfers to stokehold less neutral gear work for patent of the present invention, close blower fan, the magnetic control means blade open mode front view that will prevent dust;
Fig. 8 is the side view of Fig. 7;
Fig. 9 is a patent pulley slideway support cover front view of the present invention;
Figure 10 is the side view of Fig. 9;
Figure 11 is a patent counterweight lifting transparent slip lid front view of the present invention.
Figure 12 is the side view of Figure 11;
Figure 13 is the A enlarged drawing of Figure 12;
Figure 14 is the below and the guide wheel A perk of patent counterweight lifting transparent slip lid of the present invention, and the slip lid sealing strip separates with slideway, and guide wheel B contacts with slideway, the counterweight lifting transparent slip lid side view that is in a falling state;
Figure 15 is the B enlarged drawing of Figure 14;
Figure 16 is the below and the guide wheel B perk of patent counterweight lifting transparent slip lid of the present invention, and the slip lid sealing strip separates with slideway, and guide wheel A contacts with slideway, and counterweight lifting transparent slip lid is in the propradation side view;
Figure 17 is the C enlarged drawing of Figure 16;
The fundamental diagram that Figure 18 closes for the dustproof blade of patent of the present invention;
Figure 19 is the D enlarged drawing of Figure 18;
Figure 20 is the side view of Figure 19;
The fundamental diagram that Figure 21 opens for the dustproof blade of patent of the present invention;
Figure 22 is the E enlarged drawing of Figure 21;
Figure 23 is the side view of Figure 21.
Among the figure: 1 is the kitchen range top; 2 is cooking stove; 3 for frying in shallow oil frying pan; 4 is digester; 5 is pulley slideway support cover; 6 is counterweight lifting transparent slip lid; 7 is smoke exhaust; 8 is linkage magnetic controlled dust guard; 9 are the air-out flexible pipe; 10 is bottom framework; 11 is side panel; 12 is backplate; 13 is middle frame; 14 is the middle frame sealing strip; 15 is middle frame forward end seal bar; 16 is slideway; 17 is cross tube; 18 is slip lid counterweight pulley; 19 is top panel; 20 is the blower fan main body; 21 draw gauge tap for blower fan; 22 is housing; 23 is axis; 24 are dustproof blade; 25 is middle cross bar; 26 is magnet; 27 for being subjected to magnetic spare; 28 are the swing arm; 29 are swing arm counterweight pulley; 30 is chain wheel rope A; 31 are swing arm counterweight; 32 is side lever; 33 is last link rod; 34 are following link rod; 35 is last travelling wheel; 36 is transparent panel; 37 is the slip lid sealing strip; 38 is chain wheel rope B; 39 is the slip lid counterweight; 40 is guide wheel A; 41 is guide wheel B; 42 is wheel frame; 43 is handle.
The specific embodiment
Below in conjunction with accompanying drawing patent of the present invention is further described.
Shown in Fig. 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23, patent of the present invention comprises the pulley slideway support cover (5) that is erected on the kitchen range top, be suspended on counterweight lifting transparent slip lid (6) on the pulley slideway support cover (5), be arranged on smoke exhaust (7) within the pulley slideway support cover (5), be arranged on the linkage magnetic controlled dust guard (8) of smoke exhaust (7) air outlet and be arranged on the air-out flexible pipe (9) of linkage magnetic controlled dust guard (8) top.
Described pulley slideway support cover (5) comprises the bottom framework (10) that is arranged on the bottom, be arranged on the bracket side panel (11) of both sides, be arranged on the cradle back plate (12) of back, be arranged on inner support middle frame (13), be arranged on the middle frame upper end sealing strip (14) on the support middle frame (13), be arranged on the middle frame forward end seal bar (15) of support middle frame (13) front, be arranged on the slideway (16) in bracket side panel (11) forward position, be arranged on the cross tube (17) and the slip lid counterweight pulley (18) of support top, and the top panel (19) that is arranged on the place ahead, top.
Described counterweight lifting transparent slip lid (6) comprises the side lever (32) that is arranged on both sides, be arranged on the top and go up link rod (33), be arranged on the following link rod (34) of below, be arranged on the last travelling wheel (35) on the link rod (33), be arranged on the transparent panel (36) between two side levers (32), be arranged on following slip lid sealing strip (37), be arranged on the chain wheel rope B (38) of top, be arranged on the slip lid counterweight (39) of chain wheel rope B (38) other end and be arranged on down wheel frame (42) and handle (43) on the link rod (34), wheel frame (42) is provided with guide wheel A (40) and guide wheel B (41).
Described smoke exhaust (7) comprises that the blower fan that is arranged on the blower fan main body (20) on the middle frame upper end sealing strip (14) and is arranged on below the pulley slideway support cover (5) draws gauge tap (21).
Described linkage magnetic controlled dust guard (8) comprises the housing (22) that is arranged on smoke exhaust (7) air outlet, be arranged on the axis (23) of housing (22) below, be arranged on dustproof blade (24) hinged within the housing (22) with axis (23), be arranged on the middle cross bar (25) within the housing (22), be arranged on and be subjected to magnetic spare (27) on the dustproof blade (24), be arranged on housing (22) outside and the hinged swing arm (28) of axis (23), be arranged on the magnet (26) on the swing arm (28), be arranged on the swing arm counterweight pulley (29) of top, chain wheel rope A (30) that is connected with swing arm (28) and the swing arm counterweight (31) that connects with chain wheel rope A (30) other end that is connected.
Operation principle of the present invention is as follows:
Use patent of the present invention culinary art mist extractor waste gas, when decocting with digester (4) high cooking, or the slow fire that reaches a few hours is stewed slowly, or do not need personnel in pot, to stir-fry and other whens operation, operating personnel can turn off power supply, and smoke exhaust (7) quits work, dustproof blade (24) closure.Pull handle (43) downwards, the below of counterweight lifting transparent slip lid (6) and guide wheel A (40) perk, slip lid sealing strip (37) separates with slideway (16), guide wheel B (41) contacts with slideway (16) with last travelling wheel (35), continue to pull handle (43) downwards, counterweight lifting transparent slip lid (6) can be slided into the below downwards along slideway (16), make the stokehold neutral be transferred to less state.When counterweight lifting transparent slip lid (6) glides, to slide counterweight (39) by chain wheel rope B (38) and counterweight pulley (18) upwards promotes, simultaneously, the swing arm counterweight (31) that slip lid counterweight (39) drives its top upwards promotes, chain wheel rope A (30) is in relaxed state, swing arm (28) is being with magnet (26) to swing to the top from the below, because the effect of magnetic force, be subjected to magnetic spare (27) drive dustproof blade (24) along with magnet (26) by the closed condition swing of below open mode to the top, it is outdoor that oil flue waste gas is discharged to swimmingly.
When using frying pan (3) cooking or need in the less motion action in the kitchen range top (1) top, can handle blower fan draws gauge tap (21) smoke exhaust (7) is opened to small-power shelves runnings, upwards pull handle (43), the below of counterweight lifting transparent slip lid (6) and guide wheel B (41) perk, slip lid sealing strip (37) separates with slideway (16), guide wheel A (40) contacts with slideway (16) with last travelling wheel (35), continue upwards to pull handle (43), counterweight lifting transparent slip lid (6) upwards can be slided into meta along slideway (16), make the stokehold neutral be transferred to moderate state.Counterweight lifting transparent slip lid (6) is gone up when sliding, by chain wheel rope B (38) and slip lid counterweight pulley (18) slip lid counterweight (39) is upwards promoted, simultaneously, slip lid counterweight (39) is landing downwards, the swing arm counterweight (31) of its top is landing downwards thereupon also, swing arm counterweight (31) makes swing arm (28) be with magnet (26) to swing to the below from the top by chain wheel rope A (30) and swing arm counterweight pulley (29), because the wind-force effect of smoke exhaust (7), dustproof blade (24) still can remain on open mode, and it is outdoor that oil flue waste gas is discharged to swimmingly.Middle frame forward end seal bar (15) and slip lid sealing strip (37) can make the top and the both sides sealing of counterweight lifting transparent slip lid (6), and it is indoor that oil flue waste gas can not leaked into.
When operating than big-movement in the kitchen range top (1) top with frying pan (3) cooking or need, can handle blower fan draws gauge tap (21) smoke exhaust (7) is opened to high-power shelves running, upwards pull handle (43), the below of counterweight lifting transparent slip lid (6) and guide wheel B (41) perk, slip lid sealing strip (37) separates with slideway (16), guide wheel A (40) contacts with slideway (16) with last travelling wheel (35), continue upwards to pull handle (43), counterweight lifting transparent slip lid (6) upwards can be slided into upperly along slideway (16), make the stokehold neutral be transferred to big state.Because the wind-force effect of smoke exhaust (7), dustproof blade (24) still can remain on open mode, and it is outdoor that oil flue waste gas is discharged to swimmingly.
Culinary art finishes, close smoke exhaust (7) power supply, remain on counterweight lifting transparent slip lid (6) upper, or slide to upper by the next, meta, by slip lid counterweight (39), swing arm counterweight (31), swing arm (28), magnet (26), be subjected to the interlock of magnetic spare (27) and dustproof blade (24), with the smokejack sealing, prevent that dust, mosquito and muroid are in the smoke discharging pipe inlet chamber.
Patent of the present invention makes operation very light and handy, easy by counterweight, interlock and magnetic control design.Under the condition that is with or without the high smokejack of strong suction, oil flue waste gas is being got rid of under the clean prerequisite, can be according to the characteristics and the needs of various cooking methods, the neutral size in regulated at will kitchen range top the place ahead, and correspondingly regulate the size of power of fan or close blower fan.When the culinary art that need not operate, the stokehold neutral is turned down, also can make dustproof blade stay open the smoke evacuation state when closing blower fan.Finish using and dustproof blade is in close, be in dust protection, mosquito proof and anti-muroid state.
When power failure and electrical fault, taking does not as far as possible need for a long time the neutral of kitchen range top top to be transferred big cooking method, is discharged into indoor to reduce oil flue waste gas to greatest extent.Even if do not having a power failure and motor when intact, want to save electricity charge spending, reduce oil flue waste gas again to greatest extent and be discharged into indoorly, do not need also to take as far as possible for a long time the neutral of kitchen range top top to be transferred big cooking method, reach the effect of saving electric energy, noiselessness and environmental protection.
Claims (6)
1, a kind of sliding closure linkage magnetic controlled energy-saving cooking fume exhauster, it is characterized in that: it is erected on the kitchen range top (1), with cooking stove (2), fry in shallow oil frying pan (3), digester (4) covers on wherein, it comprises the pulley slideway support cover (5) that is erected on the kitchen range top, be suspended on counterweight lifting transparent slip lid (6) on the pulley slideway support cover (5), be arranged on smoke exhaust (7) within the pulley slideway support cover (5), be arranged on the linkage magnetic controlled dust guard (8) of smoke exhaust (7) air outlet and be arranged on the air-out flexible pipe (9) of linkage magnetic controlled dust guard (8) top; Described linkage magnetic controlled dust guard (8) comprises the housing (22) that is arranged on smoke exhaust (7) air outlet, be arranged on the axis (23) of housing (22) below, be arranged on dustproof blade (24) hinged within the housing (22) with axis (23), be arranged on the middle cross bar (25) within the housing (22), be arranged on and be subjected to magnetic spare (27) on the dustproof blade (24), be arranged on housing (22) outside and the hinged swing arm (28) of axis (23), be arranged on the magnet (26) on the swing arm (28), be arranged on the swing arm counterweight pulley (29) of top, chain wheel rope A (30) that is connected with swing arm (28) and the swing arm counterweight (31) that is connected with chain wheel rope A (30) other end; Swing arm counterweight (31) is positioned at slip lid counterweight (39) top of counterweight lifting transparent slip lid.
2, sliding closure linkage magnetic controlled energy-saving cooking fume exhauster according to claim 1, it is characterized in that: described pulley slideway support cover (5) comprises the bottom framework (10) that is arranged on the bottom, be arranged on the bracket side panel (11) of both sides, be arranged on the cradle back plate (12) of back, be arranged on inner support middle frame (13), be arranged on the middle frame upper end sealing strip (14) on the support middle frame (13), be arranged on the middle frame forward end seal bar (15) of support middle frame (13) front, be arranged on the slideway (16) in bracket side panel (11) forward position, be arranged on the cross tube (17) and the slip lid counterweight pulley (18) of support top, and the top panel (19) that is arranged on the place ahead, top.
3, sliding closure linkage magnetic controlled energy-saving cooking fume exhauster according to claim 2, it is characterized in that: described counterweight lifting transparent slip lid (6) comprises the side lever (32) that is arranged on both sides, be arranged on the last link rod (33) of top, be arranged on the following link rod (34) of below, be arranged on the last travelling wheel (35) on the link rod (33), be arranged on the transparent panel (36) between two side levers (32), be arranged on following slip lid sealing strip (37), be arranged on the chain wheel rope B (38) of top, be arranged on the slip lid counterweight (39) of chain wheel rope B (38) other end and be arranged on down wheel frame (42) and handle (43) on the link rod (34), wheel frame (42) is provided with guide wheel A (40) and guide wheel B (41).
4, sliding closure linkage magnetic controlled energy-saving cooking fume exhauster according to claim 3, it is characterized in that: when turning off power supply, smoke exhaust (7) quits work, dustproof blade (24) closure, pull handle (43) downwards, the below of counterweight lifting transparent slip lid (6) and guide wheel A (40) perk, slip lid sealing strip (37) separates with slideway (16), guide wheel B (41) contacts with slideway (16) with last travelling wheel (35), continue to pull handle (43) downwards, counterweight lifting transparent slip lid (6) is slided into the below downwards along slideway (16), make the stokehold neutral be transferred to less state; When counterweight lifting transparent slip lid (6) glides, by chain wheel rope B (38) and slip lid counterweight pulley (18) slip lid counterweight (39) is upwards promoted, simultaneously, the swing arm counterweight (31) that slip lid counterweight (39) drives its top upwards promotes, chain wheel rope A (30) is in relaxed state, swing arm (28) is being with magnet (26) to swing to the top from the below, because the effect of magnetic force, be subjected to magnetic spare (27) drive dustproof blade (24) along with magnet (26) by the closed condition swing of below open mode to the top, it is outdoor that oil flue waste gas is discharged to swimmingly.
5, sliding closure linkage magnetic controlled energy-saving cooking fume exhauster according to claim 3, it is characterized in that: draw gauge tap (21) when the manipulation blower fan smoke exhaust (7) is opened, upwards pull handle (43), the below of counterweight lifting transparent slip lid (6) and guide wheel B (41) perk, slip lid sealing strip (37) separates with slideway (16), guide wheel A (40) contacts with slideway (16) with last travelling wheel (35), continue upwards to pull handle (43), counterweight lifting transparent slip lid (6) is upwards slided into meta or upper along slideway (16), make the stokehold neutral be transferred to moderate or maximum rating; Counterweight lifting transparent slip lid (6) is gone up when sliding, by chain wheel rope B (38) and slip lid counterweight pulley (18) slip lid counterweight (39) is upwards promoted, simultaneously, slip lid counterweight (39) is landing downwards, the swing arm counterweight (31) of its top is landing downwards thereupon also, swing arm counterweight (31) makes swing arm (28) be with magnet (26) to swing to the below from the top by chain wheel rope A (30) and swing arm counterweight pulley (29), because the wind-force effect of smoke exhaust (7), dustproof blade (24) still remains on open mode, it is outdoor that oil flue waste gas is discharged to swimmingly, middle frame forward end seal bar (15) and slip lid sealing strip (37) make the top and the both sides sealing of counterweight lifting transparent slip lid (6), and it is indoor that oil flue waste gas can not leaked into.
6, sliding closure linkage magnetic controlled energy-saving cooking fume exhauster according to claim 1, it is characterized in that: culinary art finishes, close smoke exhaust (7) power supply, remain on counterweight lifting transparent slip lid (6) upper, or slide to upper by the next, meta, by slip lid counterweight (39), swing arm counterweight (31), swing arm (28), magnet (26), be subjected to the interlock of magnetic spare (27) and dustproof blade (24), smokejack is sealed.
