WO2024246232A1 - Process for the selective cleavage of c-scf3 bonds and analogues - Google Patents

Process for the selective cleavage of c-scf3 bonds and analogues Download PDF

Info

Publication number
WO2024246232A1
WO2024246232A1 PCT/EP2024/064950 EP2024064950W WO2024246232A1 WO 2024246232 A1 WO2024246232 A1 WO 2024246232A1 EP 2024064950 W EP2024064950 W EP 2024064950W WO 2024246232 A1 WO2024246232 A1 WO 2024246232A1
Authority
WO
WIPO (PCT)
Prior art keywords
group
alkyl
equiv
mol
mmol
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/EP2024/064950
Other languages
French (fr)
Inventor
Tatiana BESSET
Thomas CASTANHEIRO
Nobile ENZO
Mathieu ARRIBAT
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Centre National de la Recherche Scientifique CNRS
Universite de Rouen
Institut National des Sciences Appliquees de Rouen
Original Assignee
Centre National de la Recherche Scientifique CNRS
Universite de Rouen
Institut National des Sciences Appliquees de Rouen
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Centre National de la Recherche Scientifique CNRS, Universite de Rouen, Institut National des Sciences Appliquees de Rouen filed Critical Centre National de la Recherche Scientifique CNRS
Priority to EP24728258.5A priority Critical patent/EP4720048A1/en
Publication of WO2024246232A1 publication Critical patent/WO2024246232A1/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D277/00—Heterocyclic compounds containing 1,3-thiazole or hydrogenated 1,3-thiazole rings
    • C07D277/60—Heterocyclic compounds containing 1,3-thiazole or hydrogenated 1,3-thiazole rings condensed with carbocyclic rings or ring systems
    • C07D277/62—Benzothiazoles
    • C07D277/68—Benzothiazoles with hetero atoms or with carbon atoms having three bonds to hetero atoms with at the most one bond to halogen, e.g. ester or nitrile radicals, directly attached in position 2
    • C07D277/70—Sulfur atoms
    • C07D277/74—Sulfur atoms substituted by carbon atoms
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D277/00—Heterocyclic compounds containing 1,3-thiazole or hydrogenated 1,3-thiazole rings
    • C07D277/60—Heterocyclic compounds containing 1,3-thiazole or hydrogenated 1,3-thiazole rings condensed with carbocyclic rings or ring systems
    • C07D277/62—Benzothiazoles
    • C07D277/64—Benzothiazoles with only hydrocarbon or substituted hydrocarbon radicals attached in position 2
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D277/00—Heterocyclic compounds containing 1,3-thiazole or hydrogenated 1,3-thiazole rings
    • C07D277/60—Heterocyclic compounds containing 1,3-thiazole or hydrogenated 1,3-thiazole rings condensed with carbocyclic rings or ring systems
    • C07D277/62—Benzothiazoles
    • C07D277/68—Benzothiazoles with hetero atoms or with carbon atoms having three bonds to hetero atoms with at the most one bond to halogen, e.g. ester or nitrile radicals, directly attached in position 2
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D277/00—Heterocyclic compounds containing 1,3-thiazole or hydrogenated 1,3-thiazole rings
    • C07D277/60—Heterocyclic compounds containing 1,3-thiazole or hydrogenated 1,3-thiazole rings condensed with carbocyclic rings or ring systems
    • C07D277/62—Benzothiazoles
    • C07D277/68—Benzothiazoles with hetero atoms or with carbon atoms having three bonds to hetero atoms with at the most one bond to halogen, e.g. ester or nitrile radicals, directly attached in position 2
    • C07D277/82—Nitrogen atoms
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07F—ACYCLIC, CARBOCYCLIC OR HETEROCYCLIC COMPOUNDS CONTAINING ELEMENTS OTHER THAN CARBON, HYDROGEN, HALOGEN, OXYGEN, NITROGEN, SULFUR, SELENIUM OR TELLURIUM
    • C07F9/00—Compounds containing elements of Groups 5 or 15 of the Periodic Table
    • C07F9/02—Phosphorus compounds
    • C07F9/547—Heterocyclic compounds, e.g. containing phosphorus as a ring hetero atom
    • C07F9/6536—Heterocyclic compounds, e.g. containing phosphorus as a ring hetero atom having nitrogen and sulfur atoms with or without oxygen atoms, as the only ring hetero atoms
    • C07F9/6539—Five-membered rings

Definitions

  • the present invention concerns a process for the selective cleavage of C-SCF3 bonds and analogues of such bonds.
  • CFCs chlorofluorocarbons
  • HFCs hydrofluorocarbons
  • PFAs per- and poly-fluoroalkyl substances
  • One aim of the present invention is thus to provide a tool for the de-fluorination of fluorinated compounds.
  • One aim of the present invention is to provide a process for the de-fluorination of fluorinated compounds, for example through the cleavage of C-SCF3 bonds, or analogues of such bonds.
  • the present invention relates to a process for the preparation of a compound having the formula (I):
  • A-X in the presence of a metallic complex comprising nickel, palladium or rhodium(l), a ligand, a nucleophile carrying one group R, and a solvent,
  • R being a hydrocarbon group, optionally including at least one heteroatom such as S, N or O, and/or at least one atom other than C or H, such as Se, Si, B, or P, wherein:
  • - A is selected from the group consisting of:
  • R a and R b being independently from each other H or a (Ci-Ce)alkyl group;
  • R c being a (Ci-Ce)alkyl group;
  • - X is selected from the group consisting of: YCF3, YOCF3, YO2CF3, YCF2SO2PI-1, YOCF2SO2PI-1, YO2CF2SO2PI-1, Y(O) n CF 2 COOR’, Y(O) n CF 2 CONR’ 2 , Y(O) n CF 2 CH 2 OH, Y(O) n CN, Y(O) n CHF 2 , Y(O) n CF 2 H, Y(O)nCF 2 CnF 2 n + i, Y(O) n CF 2 COR’, Y being S or Se, n being 1 or 2, and R’ being (Ci-Ce)alkyl.
  • the present invention relates to a process for the preparation of a compound having the formula (I):
  • A-X in the presence of a metallic complex comprising nickel, a ligand, a nucleophile carrying one group R, and a solvent,
  • R being a hydrocarbon group, optionally including at least one heteroatom such as S, N or O, and/or at least one atom other than C or H, such as Se, Si, B, or P, wherein:
  • - A is selected from the group consisting of:
  • R a and R b being independently from each other H or a (Ci-Ce)alkyl group;
  • R c being a (Ci-Ce)alkyl group;
  • - X is selected from the group consisting of: YCF 3 , YOCF 3 , YC>2CF 3 , YCF2SO2PI-1, YOCF2SO2PI-1, YO2CF2SO2PI-1, Y(O) n CF 2 COOR’, Y(O) n CF 2 CONR’ 2 , Y(O) n CF 2 CH 2 OH, Y(O) n CN, Y(O) n CHF 2 , Y(O) n CF 2 H, Y(O)nCF 2 C n F 2n+ i, Y(O) n CF 2 COR’, Y being S or Se, n being 1 or 2, and R’ being (Ci-Ce)alkyl.
  • X is selected from the group consisting of: SCF 3 , SOCF 3 , SO 2 CF 3 , SCF 2 SO 2 Ph, SOCF 2 SO 2 Ph, SO 2 CF 2 SO 2 Ph, S(O) n CF 2 COOR, S(O) n CF 2 CONR 2 , S(O) n CF 2 CH 2 OH, S(O) n CN, S(O) n CHF 2 , S(O) n CF 2 H, S(O) n CF 2 CnF2n+i, S(O) n CF 2 COR, and all analogues of this list in the selenium series, R and n being as defined above.
  • X is selected from the group consisting of: SCF 3 , SOCF 3 , SO 2 CF 3 , SCF 2 SO 2 Ph, SOCF 2 SO 2 Ph, SO 2 CF 2 SO 2 Ph, S(O) n CF 2 COOR, S(O) n CF 2 CONR 2 , S(O) n CF 2 CH 2 OH, S(O) n CN, S(O) n CHF 2 , S(O)nCF 2 H, S(O)nCF 2 CnF 2 n + i, S(O) n CF 2 COR, and SeCF 3 .
  • X is selected from the group consisting of: SCF3, SOCF3, SO2CF3, SCF2SC>2Ph, SO2CF2SC>2Ph, and SeCFs.
  • Ct-C z means a carbon-based chain which can have from t to z carbon atoms, for example C1-C3 means a carbon-based chain which can have from 1 to 3 carbon atoms.
  • alkyl group means: a linear or branched, saturated, hydrocarbonbased aliphatic group comprising, unless otherwise mentioned, from 1 to 12 carbon atoms.
  • alkyl group means: a linear or branched, saturated, hydrocarbonbased aliphatic group comprising, unless otherwise mentioned, from 1 to 12 carbon atoms.
  • aryl group means: a cyclic aromatic group comprising between 6 and 10 carbon atoms.
  • aryl groups mention may be made of phenyl or naphthyl groups.
  • heteroaryl group means: a 5- to 10-membered aromatic monocyclic or bicyclic group containing from 1 to 4 heteroatoms selected from O, S or N.
  • heteroatoms selected from O, S or N.
  • heteroaryl comprising 5 to 6 atoms, including 1 to 4 nitrogen atoms
  • arylalkyl When an alkyl group is substituted with an aryl group, the term “arylalkyl” or “aralkyl” group is used.
  • the "arylalkyl” or “aralkyl” groups are aryl-alkyl- groups, the aryl and alkyl groups being as defined above.
  • arylalkyl groups mention may in particular be made of the benzyl or phenethyl groups.
  • halogen means: a fluorine, a chlorine, a bromine or an iodine.
  • alkoxy group means: an -O-alkyl group where the alkyl group is as previously defined.
  • alkyl group is as previously defined.
  • -O-(Ci-C4)alkyl groups and in particular the -O-methyl group, the -O-ethyl group, as -O-Csalkyl group, the -O-propyl group, the -O-isopropyl group, and as -O-C4alkyl group, the -O-butyl, - O-isobutyl or -O-tert-butyl group.
  • alkynyl as employed herein includes unsaturated, nonaromatic, hydrocarbon groups having 2 to 6 carbons, and comprising at least one triple bond.
  • the alkynyl group is linear.
  • alkenyl as employed herein includes unsaturated, nonaromatic, hydrocarbon groups having 2 to 6 carbons, and comprising at least one double bond.
  • the alkenyl group is linear.
  • alkyl can be substituted with one or more substituents.
  • substituents mention may be made of the following groups: amino, amide, hydroxyl, thiol, oxo, halogen, alkyl, alkoxy, alkylthio, alkylamino, aryloxy, arylalkoxy, cyano, trifluoromethyl, carboxy or carboxyalkyl.
  • alkylthio means: an -S-alkyl group, the alkyl group being as defined above.
  • alkylamino means: an -NH-alkyl group, the alkyl group being as defined above.
  • aryloxy means: an -O-aryl group, the aryl group being as defined above.
  • arylalkoxy means: an aryl-alkoxy- group, the aryl and alkoxy groups being as defined above.
  • carboxyalkyl means: an HOOC-alkyl- group, the alkyl group being as defined above.
  • carboxyalkyl groups mention may in particular be made of carboxymethyl or carboxyethyl.
  • haloalkyl group means: an alkyl group as defined above, in which one or more of the hydrogen atoms is(are) replaced with a halogen atom.
  • fluoroalkyls in particular CF3 or CHF2.
  • Carboxyl means: a COOH group.
  • hydrocarbon group means a group comprising hydrogen and carbon atoms.
  • R is a group comprising at least one carbon atom and at least one hydrogen atom.
  • This group may also include at least one heteroatom, such as O, N or S, and/or at least one atom other than C or H, such as Se, Si, B or P.
  • the nucleophile is selected from the group consisting of: alkyl amines, cycloalkyl amines, aryl amines, alkyl thiols, thiophenol compounds, aryl selenol compounds, phosphine oxides, Grignard reagents, alcohols, esters and phosphorus derivatives.
  • the alkyl amines, cycloalkyl amines and aryl amines can be either primary or secondary amines.
  • the terms “alkyl”, “cycloalkyl”, and “aryl” are as defined above.
  • R when the nucleophile is a cycloalkyl amine, R can be a cyclo(C3-Cio)alkylamino group as defined above.
  • R when the nucleophile is a thiol, R can be -S-(Ci-Ce)alkyl (“alkylthio” as defined above), the alkyl being optionally substituted as defined above.
  • R can be (Ci-Ce)alkyl, S-cyclo(C3-C )alkyl, O-(Ci-Ci2)alkyl (“alkoxy” as defined above), -X 1 -(Ci-Ci2)alkyl-Ar 1 , X 1 -(Ci-Ci2)alkyl-Het 1 , where -X 1 , Ar 1 and Het 1 are as defined above, and where the alkyl is optionally substituted by at least one substituent as defined above.
  • alkyl alkyl
  • aryl heterocycloalkyl
  • heteroaryl heteroaryl
  • heterocycloalkyl groups comprising at least one nitrogen and/or sulfur atom such as morpholine, aniline groups and derivatives thereof, such as 4-methylaniline
  • H-S-(cyclo)alkyl groups such as CySH
  • H-S-aryl groups such as 4-methylthiophenol
  • the process of the invention as defined above further comprises the use of a hydride compound, such as LiHMDS.
  • a hydride compound such as LiHMDS.
  • the compound having the formula (II) is reacted with the nucleophile in the presence of the metallic complex comprising nickel, palladium or rhodium (I) the ligand, and the solvent, and also with a hydride compound.
  • the nucleophile is in particular a Grignard reactant.
  • the ligand is selected from the group consisting of: 1 ,5-cyclooctadiene (COD), 1 ,2- Bis(dicyclohexylphosphino)ethane (dcype), 1 ,1’-Bis(diphenylphosphino)ferrocene (dppf), 1 ,T-Bis(di-tert-butylphosphino)ferrocene (DTBPF), 4,5- Bis(diphenylphosphino)-9,9-dimethylxanthene (XantPhos), triphenylarsine (AsPhs) and triphenylphosphane (PPhs).
  • ligand refers to a chemical component that is able to bind to the metal of the metallic complex.
  • the initial state of a metallic complex is the state where the metallic complex is used in the reaction medium. In the initial state of the metallic complex, the ligand can be bound to the metal.
  • the ligand can be added to the reaction medium in addition to the metallic complex. In such case, the ligand will bind to the metal in the reaction medium.
  • the ligand is bound to the metal in the initial state of the metallic complex. According to another embodiment of the process, the ligand is added to the reaction medium in addition to the metallic complex.
  • At least one first ligand is bound to the metal in the initial state of the metallic complex and at least one second ligand is added to the reaction medium in addition to the metallic complex, wherein the first and second ligands are identical or different.
  • the metallic complex is a Ni(0) complex such as bis(1 ,5- cyclooctadiene)nickel (Ni[cod]2) or bis(triphenylphosphine)nickel (Ni[PPha]2).
  • Ni(0) complex such as bis(1 ,5- cyclooctadiene)nickel (Ni[cod]2) or bis(triphenylphosphine)nickel (Ni[PPha]2).
  • the metallic complex comprises nickel, palladium or rhodium(l).
  • the metallic complex can be a Pd(0) complex such as tris(dibenzylideneacetone)dipalladium(0) of formula Pd2dbas or tetrakis(triphenylphosphine)palladium(0) of formula Pd(PPh 3 ) 4 .
  • the metallic complex can be a Pd(ll) complex such as, for example, [1 ,3-Bis(2,6- Diisopropylphenyl)imidazol-2-ylidene](3-chloropyridyl)palladium(ll) dichloride (PEPPSI TM -SIPr catalyst, 905459-27-0), palladium ⁇ I) acetate of formula Pd(OAc)2 or allylpalladium(ll) chloride dimer of formula [Pd(TT-allyl)CI]2.
  • Pd(ll) complex such as, for example, [1 ,3-Bis(2,6- Diisopropylphenyl)imidazol-2-ylidene](3-chloropyridyl)palladium(ll) dichloride (PEPPSI TM -SIPr catalyst, 905459-27-0), palladium ⁇ I) acetate of formula Pd(OAc)2 or allylpal
  • the metallic complex can be a Rh(l) complex such as, for example, rhodium carbonyl chloride of formula [Rh(CO)2CI]2 or a hydroxy(cyclooctadiene)rhodium(l) dimer of formula [Rh(OH)COD] 2 .
  • Rh(l) complex such as, for example, rhodium carbonyl chloride of formula [Rh(CO)2CI]2 or a hydroxy(cyclooctadiene)rhodium(l) dimer of formula [Rh(OH)COD] 2 .
  • the solvent used in the process according to the invention is selected from the usual solvents used in the field.
  • the solvent for the process according to the invention is toluene.
  • the reaction is carried out a temperature from 90°C to 140°C.
  • the reaction may be carried out at 90°C, 110°C, 120°C, and 140°C.
  • the present invention also relates to the process as defined above, for the preparation of a compound having the formula (1-1):
  • Xi being selected from the group consisting of: SCF3, SOCF3, SO2CF3, SCF2SO2PI-1, SOCF2SO2PI-1, SO2CF2SO2PI-1, and SeCF 3 .
  • Example 1 Selective cleavage of C-SCF3 bond in the presence of an alkyl amine as a nucleophile
  • Example 2 Selective cleavage of C-SCF3 bond in the presence of an aryl amine as a nucleophile Ni(cod) 2 (5 mol%) dcype (5 mol%) LiHMDS (2.5 equiv.) 4-methylaniline (2 equiv.)
  • Example 3 Selective cleavage of C-SCF3 bond in the presence of an alkyl thiol as a nucleophile
  • Ni(cod) 2 (5 mol%) dcype (5 mol%) LiHMDS (2.5 equiv.) 4-methylthiophenol (2 equiv.) Toluene, 100 °C, 16 h
  • SCF3 moiety was also successfully replaced by a group consisting of a sulfur atom linked to an aryl (SAr group). These results showed that chalcogens are well compatible as class of nucleophiles.
  • Example 5 Selective cleavage of C-SCF3 bond in the presence of an aryl selenol as a nucleophile

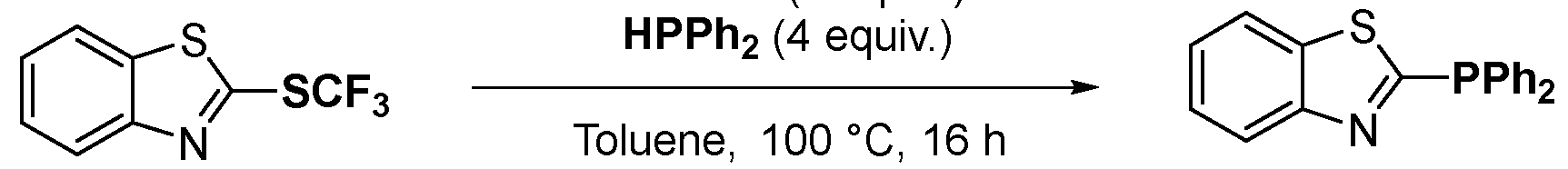

  • Example 6 Selective cleavage of C-SCF3 bond in the presence of a phosphine oxide as nucleophile: Ni(cod) 2 (5 mol%) dcype (5 mol%) ⁇ HMDS (2.5 equiv.)
  • Example 7 Selective cleavage of C-SCF3 bond in the presence of a Grignard reagent as a nucleophile
  • a Grignard reagent is a suitable nucleophile for the replacement of a SCF3 group by an alkyl.
  • Example 9 Selective cleavage of C-SCF2SO2Ph bond Ni(cod) 2 (5 mol%) dcype (5 mol%) morpholine (4 equiv.) LiHMDS (5 equiv.) 1 M in toluene 100 °C, 16 h, Ar
  • Example 10 Selective cleavage of C-SCF3 bond in the presence of various metallic complexes and various ligands
  • Example 11 Selective cleavage of C-SCF3 bond in the presence of a Pd complex PEPPSITM-SIPr catalyst (5 mol%) morpholine (4 equiv.)
  • PEPPSITM-SIPr catalyst (5 mol%) 4-methylaniline (4 equiv.) ⁇ HMDS (5 equiv.) 1 M in toluene 100 °C, 16 h, Ar
  • Example 12 selective cleavage of C-SCF3 bond in the presence of a ligand and a Pd complex
  • PEPPSITM-SIPr catalyst (5 mol%) dcype (5 mol%) 4-methylaniline (4 equiv.) n toluene as
  • Example 13 Selective cleavage of C-SCF3 bond in the presence of a primary amine as a nucleophile Ni(cod) 2 (5 mol%) dcype (5 mol%)
  • Example 14 Selective cleavage of C-SCF3 bond in the presence of a secondary amine as a nucleophile:
  • Scheme 15 Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (X equiv.), secondary amine of formula HNR 1 R 2 (X equiv.), toluene, 100°C, 16 h, under Argon.
  • R 3 and R 4 identical or different, represent an alkyl or an aryl, or are linked together with the nitrogen atom.
  • Example 15 Selective cleavage of C-SCF3 bond in the presence of a thiol as a nucleophile:
  • Example 16 Selective cleavage of C-SCF3 bond in the presence of a phosphorus derivate as a nucleophile
  • Example 17 Selective cleavage of C-SCF3 bond in the presence of an alcohol as a nucleophile
  • Example 18 Selective cleavage of C-SCF3 bond in the presence of an ester as a nucleophile Ni(cod) 2 (5 mol%) dcype (5 mol%)
  • Examples 17, 18 and 19 illustrated the possibility of forming a C-0 bond from the cleavage of 12 using different nucleophiles.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Organic Chemistry (AREA)
  • Health & Medical Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Biochemistry (AREA)
  • General Health & Medical Sciences (AREA)
  • Molecular Biology (AREA)
  • Plural Heterocyclic Compounds (AREA)
  • Organic Low-Molecular-Weight Compounds And Preparation Thereof (AREA)

Abstract

The invention relates to a process for the preparation of a compound A-R, by reacting a compound A-X, in the presence of a metallic complex comprising nickel, palladium or rhodium (I), a ligand, a nucleophile carrying one group R, and a solvent, R being a hydrocarbon group, optionally including at least one heteroatom and/or at least one atom other than C or H, A being selected from the group consisting of: (C6-C10)aryl groups, heteroaryl groups, and a vinyl compound, and X being selected from the group consisting of: YCF3, Y(O)nCF3, YCF2SO2Ph, Y(O)nCF2SO2Ph, Y(O)nCF2COOR, Y(O)nCF2CONR2, Y(O)nCF2CH2OH, Y(O)nCN, Y(O)nCHF2, Y(O)nCF2H, Y(O)nCF2CnF2n+1, Y(O)nCF2COR, Y being S or Se, n being 1 or 2, and R being (C1-C6)alkyl.

Description

PROCESS FOR THE SELECTIVE CLEAVAGE OF C-SCF3 BONDS AND ANALOGUES
The present invention concerns a process for the selective cleavage of C-SCF3 bonds and analogues of such bonds.
In a society concerned about the environment, earth and aquatic systems pollution and circular economy, development of new technologies to meet such objectives is nowadays a real challenge and a hot topic across the whole chemical industry.
The field of organofluorine chemistry is unavoidable and fluorinated compounds are highly represented in many fields such as materials science, pharmaceutical and agrochemical industries. Indeed, the incorporation of a fluorine atom or a fluorinated unit can modify the physico-chemical properties of organic molecules in a significant way explaining the interest of the scientific community regarding this research area. However, the prevalence of these compounds raises the question of their fate and degradation. Recently, there has been a strong awareness from the scientific community and society regarding chlorofluorocarbons (CFCs), hydrofluorocarbons (HFCs) and per- and poly-fluoroalkyl substances (PFAs). It is now important to go even further and to look at the fate of emerging fluorinated groups that have become essential, such as derivatives containing a SCF3 unit (eg. Toltrazuril and Fipronil).
In this context, the development of tools allowing to valorize these fluorinated derivatives, which, once used, are then considered as waste by converting them into compounds with high added value would have an undeniable ecological impact and allow for cost reduction. It is therefore essential to develop innovative tools to meet this challenge and to remove this synthetic lock.
There is currently no technology allowing to selectively cleave C(sp2)-SRf bonds on (hetero)aromatic derivatives or vinyl positions or C(sp3)-SRf bonds and any progress would have a major impact from a scientific and environmental point of view.
N. Barbero et al., Organic Letters, 2012, 14, 796-799 (Supporting Information, S1-S78) relates to catalytic reductive cleavage of unactivated C-SMe bonds. As shown on page 797, left column, last paragraph, the SMe group, namely an electrondonating group on the sulfur atom, was reported as the most efficient in the reductive cleavage of C-S bond. The optimization process reported in Tables 1 to 6 of the supporting information (p. S3 to S5) was carried out for this specific thioether only. Table 7 (p. S5) of this document confirms that SMe group raises the highest yield with respect to cleavage of the C-S bond, while electron-attracting groups, such as Ac and C0NMe2, were inefficient.
Surprisingly, it has now been found that it was possible to selectively cleave C- S bonds and analogues of such bonds on organic molecules in the presence of an electron-attracting fluorinated group, such as CF3 or analogous fluorine-containing groups.
One aim of the present invention is thus to provide a tool for the de-fluorination of fluorinated compounds.
One aim of the present invention is to provide a process for the de-fluorination of fluorinated compounds, for example through the cleavage of C-SCF3 bonds, or analogues of such bonds.
The present invention relates to a process for the preparation of a compound having the formula (I):
A-R by reacting a compound having the formula (II):
A-X in the presence of a metallic complex comprising nickel, palladium or rhodium(l), a ligand, a nucleophile carrying one group R, and a solvent,
R being a hydrocarbon group, optionally including at least one heteroatom such as S, N or O, and/or at least one atom other than C or H, such as Se, Si, B, or P, wherein:
- A is selected from the group consisting of:
. (Ce-Cio)aryl groups, said aryl groups being optionally substituted with at least one substituent preferably selected from the group consisting of: halogen, (Ci-Ce)alkyl, (C1- Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -SiRaRbRc, -BRaRb, (C2-Ce)alkenyl, (C2-C6)alkynyl, -C(=O)-NRaRb, and -C(=O)-O(Ci-C6)alkyl;
Ra and Rb being independently from each other H or a (Ci-Ce)alkyl group; Rc being a (Ci-Ce)alkyl group;
. heteroaryl groups comprising from 5 to 10 atoms and including at least one heteroatom selected from O, N, and S, said heteroaryl groups being optionally substituted with at least one substituent preferably selected from: halogen, (Ci-Ce)alkyl, (Ci-Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -Si(Rc)3, -BRaRb, (C2-Ce)alkenyl, (C2-Ce)alkynyl, -C(=O)-NRaRb, and -C(=0)-0(Ci-C6)alkyl, Ra, Rb and Rc being as defined above; and a vinyl compound having the following formula (III):
Figure imgf000004_0001
R1 being selected from the group consisting of: halogen, (Ci-Ce)alkyl, (C1- Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -Si(Rc)3, -BRaRb, (C2-Ce)alkenyl, (C2- Ce)alkynyl, -C(=O)-NRaRb, and -C(=O)-O(Ci-C6)alkyl, Ra, Rb and Rc being as defined above; and
- X is selected from the group consisting of: YCF3, YOCF3, YO2CF3, YCF2SO2PI-1, YOCF2SO2PI-1, YO2CF2SO2PI-1, Y(O)nCF2COOR’, Y(O)nCF2CONR’2, Y(O)nCF2CH2OH, Y(O)nCN, Y(O)nCHF2, Y(O)nCF2H, Y(O)nCF2CnF2n+i, Y(O)nCF2COR’, Y being S or Se, n being 1 or 2, and R’ being (Ci-Ce)alkyl.
Thus, the present invention relates to a process for the preparation of a compound having the formula (I):
A-R by reacting a compound having the formula (II):
A-X in the presence of a metallic complex comprising nickel, a ligand, a nucleophile carrying one group R, and a solvent,
R being a hydrocarbon group, optionally including at least one heteroatom such as S, N or O, and/or at least one atom other than C or H, such as Se, Si, B, or P, wherein:
- A is selected from the group consisting of:
. (Ce-Cio)aryl groups, said aryl groups being optionally substituted with at least one substituent preferably selected from the group consisting of: halogen, (Ci-Ce)alkyl, (C1- Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -SiRaRbRc, -BRaRb, (C2-C6)alkenyl, (C2-C6)alkynyl, -C(=O)-NRaRb, and -C(=O)-O(Ci-C6)alkyl;
Ra and Rb being independently from each other H or a (Ci-Ce)alkyl group; Rc being a (Ci-Ce)alkyl group;
. heteroaryl groups comprising from 5 to 10 atoms and including at least one heteroatom selected from O, N, and S, said heteroaryl groups being optionally substituted with at least one substituent preferably selected from: halogen, (Ci-Ce)alkyl, (Ci-Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -Si(Rc)3, -BRaRb, (C2-C6)alkenyl, (C2-C6)alkynyl, -C(=O)-NRaRb, and -C(=O)-O(Ci-C6)alkyl, Ra, Rb and Rc being as defined above; and
. a vinyl compound having the following formula (III):
Figure imgf000005_0001
R1 being selected from the group consisting of: halogen, (Ci-Ce)alkyl, (C1- Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -Si(Rc)3, -BRaRb, (C2-C6)alkenyl, (C2- Ce)alkynyl, -C(=O)-NRaRb, and -C(=O)-O(Ci-C6)alkyl, Ra, Rb and Rc being as defined above; and
- X is selected from the group consisting of: YCF3, YOCF3, YC>2CF3, YCF2SO2PI-1, YOCF2SO2PI-1, YO2CF2SO2PI-1, Y(O)nCF2COOR’, Y(O)nCF2CONR’2, Y(O)nCF2CH2OH, Y(O)nCN, Y(O)nCHF2, Y(O)nCF2H, Y(O)nCF2CnF2n+i, Y(O)nCF2COR’, Y being S or Se, n being 1 or 2, and R’ being (Ci-Ce)alkyl.
According to an embodiment, in formula (II) above, X is selected from the group consisting of: SCF3, SOCF3, SO2CF3, SCF2SO2Ph, SOCF2SO2Ph, SO2CF2SO2Ph, S(O)nCF2COOR, S(O)nCF2CONR2, S(O)nCF2CH2OH, S(O)nCN, S(O)nCHF2, S(O)nCF2H, S(O)nCF2CnF2n+i, S(O)nCF2COR, and all analogues of this list in the selenium series, R and n being as defined above.
According to an embodiment, in formula (II) above, X is selected from the group consisting of: SCF3, SOCF3, SO2CF3, SCF2SO2Ph, SOCF2SO2Ph, SO2CF2SO2Ph, S(O)nCF2COOR, S(O)nCF2CONR2, S(O)nCF2CH2OH, S(O)nCN, S(O)nCHF2, S(O)nCF2H, S(O)nCF2CnF2n+i, S(O)nCF2COR, and SeCF3. According to an embodiment, in formula (II) above, X is selected from the group consisting of: SCF3, SOCF3, SO2CF3, SCF2SC>2Ph, SO2CF2SC>2Ph, and SeCFs.
The following definitions are set forth to illustrate and define the meaning and scope of the various terms used to describe the invention herein.
The expression "Ct-Cz" means a carbon-based chain which can have from t to z carbon atoms, for example C1-C3 means a carbon-based chain which can have from 1 to 3 carbon atoms.
The term "alkyl group" means: a linear or branched, saturated, hydrocarbonbased aliphatic group comprising, unless otherwise mentioned, from 1 to 12 carbon atoms. By way of examples, mention may be made of methyl, ethyl, n-propyl, isopropyl, butyl, isobutyl, tert-butyl or pentyl groups.
The term "aryl group" means: a cyclic aromatic group comprising between 6 and 10 carbon atoms. By way of examples of aryl groups, mention may be made of phenyl or naphthyl groups.
The term "heteroaryl group" means: a 5- to 10-membered aromatic monocyclic or bicyclic group containing from 1 to 4 heteroatoms selected from O, S or N. By way of examples, mention may be made of imidazolyl, thiazolyl, oxazolyl, furanyl, thiophenyl, pyrazolyl, oxadiazolyl, tetrazolyl, pyridinyl, pyrazinyl, pyrimidinyl, pyridazinyl, indolyl, benzofuranyl, benzothiophenyl, benzoxazolyl, benzimidazolyl, indazolyl, benzothiazolyl, isobenzothiazolyl, benzotriazolyl, quinolinyl and isoquinolinyl groups.
By way of a heteroaryl comprising 5 to 6 atoms, including 1 to 4 nitrogen atoms, mention may in particular be made of the following representative groups: pyrrolyl, pyrazolyl, 1 ,2,3-triazolyl, 1 ,2,4-triazolyl, tetrazolyl and 1 ,2,3-triazinyl.
Mention may also be made, by way of heteroaryl, of thiophenyl, oxazolyl, furazanyl, 1 ,2,4-thiadiazolyl, naphthyridinyl, quinoxalinyl, phthalazinyl, imidazo[1 ,2- a]pyridine, imidazo[2,1-b]thiazolyl, cinnolinyl, benzofurazanyl, azaindolyl, benzimidazolyl, benzothiophenyl, thienopyridyl, thienopyrimidinyl, pyrrolopyridyl, imidazopyridyl, benzoazaindole, 1 ,2,4-triazinyl, indolizinyl, isoxazolyl, isoquinolinyl, isothiazolyl, purinyl, quinazolinyl, quinolinyl, isoquinolyl, 1 ,3,4-thiadiazolyl, thiazolyl, isothiazolyl, carbazolyl, and also the corresponding groups resulting from their fusion or from fusion with the phenyl nucleus.
When an alkyl group is substituted with an aryl group, the term "arylalkyl" or "aralkyl" group is used. The "arylalkyl" or "aralkyl" groups are aryl-alkyl- groups, the aryl and alkyl groups being as defined above. Among the arylalkyl groups, mention may in particular be made of the benzyl or phenethyl groups.
The term "halogen" means: a fluorine, a chlorine, a bromine or an iodine.
The term "alkoxy group" means: an -O-alkyl group where the alkyl group is as previously defined. By way of examples, mention may be made of -O-(Ci-C4)alkyl groups, and in particular the -O-methyl group, the -O-ethyl group, as -O-Csalkyl group, the -O-propyl group, the -O-isopropyl group, and as -O-C4alkyl group, the -O-butyl, - O-isobutyl or -O-tert-butyl group.
The term "alkynyl" as employed herein includes unsaturated, nonaromatic, hydrocarbon groups having 2 to 6 carbons, and comprising at least one triple bond. Preferably, the alkynyl group is linear. Preferably, the alkynyl group is a -(CH2)m-C=CH group, m being an integer comprised from 1 to 4.
The term "alkenyl" as employed herein includes unsaturated, nonaromatic, hydrocarbon groups having 2 to 6 carbons, and comprising at least one double bond. Preferably, the alkenyl group is linear. Preferably, the alkenyl group is a -(CH2)m- CH=CH2 group, m being an integer comprised from 1 to 4.
The abovementioned "alkyl", "aryl", and "heteroaryl" groups can be substituted with one or more substituents. Among these substituents, mention may be made of the following groups: amino, amide, hydroxyl, thiol, oxo, halogen, alkyl, alkoxy, alkylthio, alkylamino, aryloxy, arylalkoxy, cyano, trifluoromethyl, carboxy or carboxyalkyl.
The term "alkylthio" means: an -S-alkyl group, the alkyl group being as defined above.
The term "alkylamino" means: an -NH-alkyl group, the alkyl group being as defined above.
The term "aryloxy" means: an -O-aryl group, the aryl group being as defined above.
The term "arylalkoxy" means: an aryl-alkoxy- group, the aryl and alkoxy groups being as defined above.
The term "carboxyalkyl" means: an HOOC-alkyl- group, the alkyl group being as defined above. As examples of carboxyalkyl groups, mention may in particular be made of carboxymethyl or carboxyethyl.
The term "haloalkyl group" means: an alkyl group as defined above, in which one or more of the hydrogen atoms is(are) replaced with a halogen atom. By way of example, mention may be made of fluoroalkyls, in particular CF3 or CHF2.
The term "carboxyl" means: a COOH group. The term "oxo" means: "=O".
The term “hydrocarbon group” means a group comprising hydrogen and carbon atoms. As mentioned above, R is a group comprising at least one carbon atom and at least one hydrogen atom. This group may also include at least one heteroatom, such as O, N or S, and/or at least one atom other than C or H, such as Se, Si, B or P.
In one embodiment of the process according to the invention, the nucleophile is selected from the group consisting of: alkyl amines, cycloalkyl amines, aryl amines, alkyl thiols, thiophenol compounds, aryl selenol compounds, phosphine oxides, Grignard reagents, alcohols, esters and phosphorus derivatives. The alkyl amines, cycloalkyl amines and aryl amines can be either primary or secondary amines. The terms “alkyl”, “cycloalkyl”, and “aryl” are as defined above.
Preferably, the nucleophile is a RH group, wherein R is selected from the group consisting of: (Ci-Ce)alkyl, heterocycloalkyl, -S-cyclo(C3-C )alkyl, -O-(Ci-Ci2)alkyl, an optionally substituted heteroaryl, -NR1R2, -P(=O)-R1R2, -X1-Ar1, -X1-(Ci-Ci2)alkyl- Ar1, -X1-Het1, -X1-(Ci-Ci2)alkyl-Het1, X1 being S, Se, NH or N-alkyl, Ar1 being an optionally substituted (Ce-Cio)aryl group, Het1 being an optionally substituted heteroaryl group and R1 and R2 being, independently from each other, a (Ci-Ce)alkyl group or a (Ce-Cio)aryl group.
In particular, when the nucleophile is a cycloalkyl amine, R can be a cyclo(C3-Cio)alkylamino group as defined above.
In particular, when the nucleophile is a thiol, R can be -S-(Ci-Ce)alkyl (“alkylthio” as defined above), the alkyl being optionally substituted as defined above.
In particular, R can be (Ci-Ce)alkyl, S-cyclo(C3-C )alkyl, O-(Ci-Ci2)alkyl (“alkoxy” as defined above), -X1-(Ci-Ci2)alkyl-Ar1, X1-(Ci-Ci2)alkyl-Het1, where -X1, Ar1 and Het1 are as defined above, and where the alkyl is optionally substituted by at least one substituent as defined above.
The terms “alkyl”, “aryl”, “heterocycloalkyl”, heteroaryl” and their optional substituents are as defined above.
Preferably, R is selected from the group consisting of: (Ci-Ce)alkyl, heterocycloalkyl, -S-cyclo(C3-C )alkyl, -P(=O)-R1R2, and -X1-Ar1, X1 being S, Se or NH, and Ar1 being an optionally substituted (Ce-Cio)aryl group, and R1 and R2 being, independently from each other, a (Ci-Ce)alkyl group or a (Ce-Cio)aryl group.
More preferably, the nucleophile is selected from the group consisting of: heterocycloalkyl groups comprising at least one nitrogen and/or sulfur atom such as morpholine, aniline groups and derivatives thereof, such as 4-methylaniline, H-S-(cyclo)alkyl groups, such as CySH, H-S-aryl groups, such as 4-methylthiophenol, H-Se-aryl groups, such as benzene selenol, phosphine oxides such as HP(=O)Ph2, Grignard reagents such as Alk-MgBr, in particular iPrMgBr and phosphorus derivatives such as HPPh2 where Ph is phenyl.
In one embodiment, in formula (I) and in formula (II) as defined above, A is selected from the heteroaryl groups comprising from 5 to 10 atoms and including at least one heteroatom selected from O, N, and S, said heteroaryl groups being optionally substituted with at least one substituent selected from: halogen, (Ci- Ce)alkyl, (Ci-Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -Si(Rc)3, -BRaRb, (C2-Ce)alkenyl, (C2-Ce)alkynyl, -C(=O)-NRaRb, and -C(=O)-O(Ci-C6)alkyl, Ra, Rb and Rc being as defined above.
According to one embodiment, the process of the invention as defined above further comprises the use of a hydride compound, such as LiHMDS. In this embodiment, the compound having the formula (II) is reacted with the nucleophile in the presence of the metallic complex comprising nickel, palladium or rhodium (I) the ligand, and the solvent, and also with a hydride compound.
In this embodiment, the nucleophile is in particular a Grignard reactant.
According to one embodiment, in the process according to the invention, the ligand is selected from the group consisting of: 1 ,5-cyclooctadiene (COD), 1 ,2- Bis(dicyclohexylphosphino)ethane (dcype), 1 ,1’-Bis(diphenylphosphino)ferrocene (dppf), 1 ,T-Bis(di-tert-butylphosphino)ferrocene (DTBPF), 4,5- Bis(diphenylphosphino)-9,9-dimethylxanthene (XantPhos), triphenylarsine (AsPhs) and triphenylphosphane (PPhs).
The term “ligand” refers to a chemical component that is able to bind to the metal of the metallic complex. The initial state of a metallic complex is the state where the metallic complex is used in the reaction medium. In the initial state of the metallic complex, the ligand can be bound to the metal.
Alternatively, the ligand can be added to the reaction medium in addition to the metallic complex. In such case, the ligand will bind to the metal in the reaction medium.
According to an embodiment of the process, the ligand is bound to the metal in the initial state of the metallic complex. According to another embodiment of the process, the ligand is added to the reaction medium in addition to the metallic complex.
According to a further embodiment of the process, at least one first ligand is bound to the metal in the initial state of the metallic complex and at least one second ligand is added to the reaction medium in addition to the metallic complex, wherein the first and second ligands are identical or different.
Preferably, the metallic complex is a Ni(0) complex such as bis(1 ,5- cyclooctadiene)nickel (Ni[cod]2) or bis(triphenylphosphine)nickel (Ni[PPha]2).
According to another embodiment, the metallic complex comprises nickel, palladium or rhodium(l). For example, the metallic complex can be a Pd(0) complex such as tris(dibenzylideneacetone)dipalladium(0) of formula Pd2dbas or tetrakis(triphenylphosphine)palladium(0) of formula Pd(PPh3)4. In particular, the metallic complex can be a Pd(ll) complex such as, for example, [1 ,3-Bis(2,6- Diisopropylphenyl)imidazol-2-ylidene](3-chloropyridyl)palladium(ll) dichloride (PEPPSITM-SIPr catalyst, 905459-27-0), palladium^ I) acetate of formula Pd(OAc)2 or allylpalladium(ll) chloride dimer of formula [Pd(TT-allyl)CI]2. Alternatively, the metallic complex can be a Rh(l) complex such as, for example, rhodium carbonyl chloride of formula [Rh(CO)2CI]2 or a hydroxy(cyclooctadiene)rhodium(l) dimer of formula [Rh(OH)COD]2.
According to one embodiment, the solvent used in the process according to the invention is selected from the usual solvents used in the field. Preferably, the solvent for the process according to the invention is toluene.
According to one embodiment of the process according to the invention, the reaction is carried out a temperature from 90°C to 140°C. Preferably, the reaction may be carried out at 90°C, 110°C, 120°C, and 140°C.
The present invention also relates to the process as defined above, for the preparation of a compound having the formula (1-1):
Figure imgf000010_0001
R being as defined above, from a compound having the formula (11-1):
Figure imgf000011_0001
Xi being selected from the group consisting of: SCF3, SOCF3, SO2CF3, SCF2SO2PI-1, SOCF2SO2PI-1, SO2CF2SO2PI-1, and SeCF3.
EXAMPLES
Example 1 : Selective cleavage of C-SCF3 bond in the presence of an alkyl amine as a nucleophile
Ni(cod)2 (5 mol%) dcype (5 mol%)
□ HMDS (2.5 equiv.) morpholine (2 equiv.)
Figure imgf000011_0003
Toluene, 100 °C, 16 h
Figure imgf000011_0002
12 13a, 60%
Scheme 1 : Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (2.5 equiv.), morpholine (2 equiv.), toluene (0.4M), 100°C, 16 h. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (209 mg, 1.25 mmol, 2.5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), alkyl amine (1.25 mmol, 2 equiv.) and toluene (1.25 mL) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 13a.
The result shows that the cleavage of the C-S bond in the presence of a CF3 group is achieved with a good yield when using an alkylamine as a nucleophile.
Example 2: Selective cleavage of C-SCF3 bond in the presence of an aryl amine as a nucleophile Ni(cod)2 (5 mol%) dcype (5 mol%) LiHMDS (2.5 equiv.) 4-methylaniline (2 equiv.)
Toluene, 100 °C, 16 h
Figure imgf000012_0001
Figure imgf000012_0002
Scheme 2: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (2.5 equiv.), 4-methylaniline (2 equiv.), toluene (0.4M), 100°C, 16 h. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (209 mg, 1.25 mmol, 2.5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), aryl amine (1.25 mmol, 2 equiv.) and toluene (1.25 mL) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to afford the desired product 14a.
The result shows that primary and aromatic amines are suitable nucleophiles in this Ni-catalyzed transformation allowing the cleavage of the C-S bond in the presence of a CF3 group.
Example 3: Selective cleavage of C-SCF3 bond in the presence of an alkyl thiol as a nucleophile
Ni(cod)2 (5 mol%)
Figure imgf000012_0003
, ,
12 15a, 65% Scheme 3: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (2.5 equiv.), CySH (2 equiv.), toluene (0.4M), 100 °C, 16 h. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (209 mg, 1.25 mmol, 2.5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), alkyl thiol (1.25 mmol, 2 equiv.) and toluene (1.25 mL) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to afford the desired product 15a.
The result shows that the SCF3 group was selectively replaced by a group consisting of a sulfur atom linked to an alkyl (SAIkyl group) with a high yield.
Example 4: Selective cleavage of C-SCF3 bond in the presence of a thiophenol derivative as a nucleophile
Ni(cod)2 (5 mol%) dcype (5 mol%) LiHMDS (2.5 equiv.) 4-methylthiophenol (2 equiv.)
Figure imgf000013_0002
Toluene, 100 °C, 16 h
Figure imgf000013_0001
12 16a, 66%
Scheme 4: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (2.5 equiv.), 4-methylthiophenol (2 equiv.), toluene (0.4M), 100°C, 16 h. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (209 mg, 1.25 mmol, 2.5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), aryl thiol (1.25 mmol, 2 equiv.) and toluene (1.25 mL) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSCL and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 16a.
The SCF3 moiety was also successfully replaced by a group consisting of a sulfur atom linked to an aryl (SAr group). These results showed that chalcogens are well compatible as class of nucleophiles.
Example 5: Selective cleavage of C-SCF3 bond in the presence of an aryl selenol as a nucleophile
Ni(cod)2 (5 mol%) dcype (5 mol%)
□ HMDS (2.5 equiv.) benzene selenol (2 equiv.)
Figure imgf000014_0002
Toluene, 100 °C, 16 h
Figure imgf000014_0001
12 17, 49%
Scheme 5: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (2.5 equiv.), benzene selenol (2 equiv.), toluene (0.4M), 100 °C, 16 h. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (209 mg, 1.25 mmol, 2.5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), aryl selenol (1 .25 mmol, 2 equiv.) and toluene (1 .25 mL) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 17.
The results show that an aryl selenol is also a suitable nucleophile.
Example 6: Selective cleavage of C-SCF3 bond in the presence of a phosphine oxide as nucleophile: Ni(cod)2 (5 mol%) dcype (5 mol%) □ HMDS (2.5 equiv.)
Figure imgf000015_0001
12 18, 35%
Scheme 6: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (2.5 equiv.), diphenylphospine oxide (2 equiv.), toluene (0.4M), 100°C, 16 h. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (209 mg, 1.25 mmol, 2.5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), phosphine oxide (1.25 mmol, 2 equiv.) and toluene (1.25 mL) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to afford the desired product 18.
The result shows that phosphine oxides are suitable nucleophiles in this Ni- catalyzed transformation.
Example 7: Selective cleavage of C-SCF3 bond in the presence of a Grignard reagent as a nucleophile
Ni(cod)2 (5 mol%) dcype (5 mol%)
Figure imgf000015_0002
,
Scheme 7: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), iPrMgBr (2 equiv.), toluene (0.4M), 100°C, 16 h. Yield shown is the isolated yield. An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), 2- ((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), Grignard reagent (1.25 mmol, 2 equiv.) and toluene (1.25 mL) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. The residue was concentrated under vacuum and purified by silica gel flash column chromatography to isolate the desired product 19.
The result shows that a Grignard reagent is a suitable nucleophile for the replacement of a SCF3 group by an alkyl.
Example 8: Selective cleavage of C-SOCF3 bond
Ni(cod)2 (5 mol%) dcype (5 mol%) morpholine (4 equiv.) aS / — \
/>-N 0
Figure imgf000016_0001
□ HMDS (5 equiv.) 1 M in toluene N ' 100 °C, 16 h, Ar
20 13a, 58%
Scheme 8: Reaction conditions: 20 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (5 equiv.), morpholine (4 equiv.), toluene, 100°C, 16 h, under Argon. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS in toluene (2.5 mL, 1 M, 418 mg, 2.5 mmol, 5 equiv.), 20 (0.5 mmol, 1 equiv.) and morpholine (2 mmol, 4 equiv.) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1 M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to afford the desired product 13a.
The result shows that when using an aliphatic amine (morpholine) as a nucleophile, the cleavage of the C-S(O)SCF3 bond, where the carbon atom is linked to a sulfoxide, is achieved with a good yield.
Example 9: Selective cleavage of C-SCF2SO2Ph bond Ni(cod)2 (5 mol%) dcype (5 mol%) morpholine (4 equiv.)
Figure imgf000017_0001
LiHMDS (5 equiv.) 1 M in toluene
Figure imgf000017_0002
100 °C, 16 h, Ar
22 13a, 53%
Scheme 9 Reaction conditions: 22 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (5 equiv.), morpholine (4 equiv.), toluene, 100°C, 16 h, under Argon. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (4 mg, 0.015 mmol, 5 mol%), dcype (6 mg, 0.015 mmol, 5 mol%), LiHMDS in toluene (1.5 mL, 1 M, 251 mg, 1.5 mmol, 5 equiv.), 22 (107 mg, 0.3 mmol, 1 equiv.) and morpholine (1.2 mmol, 4 equiv.) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 13a. The product and the corresponding yield are reported in scheme 9.
The result shows that the process according to the invention allows the cleavage of a C-S bond bearing another fluorinated functional group, namely CF2SC>2Ph group, using an amine (morpholine) as a nucleophile.
Example 10: Selective cleavage of C-SCF3 bond in the presence of various metallic complexes and various ligands
Cat (5 mol%) ligand (5 mol%) morpholine (4 equiv.)
LiHMDS (5 equiv.) 1 M in toluene
Figure imgf000017_0003
100 °C, 16 h, Ar
13a
Figure imgf000017_0004
Scheme 10 Reaction conditions: 12 (0.5 mmol, 1 equiv.), Cat (5 mol%), ligand (5 mol%), LiHMDS (5 equiv.), morpholine (4 equiv.), toluene, 100°C, 16 h, under Argon. The yield shown is the isolated yield. “Cat” denotes the metallic complex. For 10-A and 10-C, an oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%) or Ni(PPh3)2 (14.6 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS in toluene (2.5 mL, 1 M, 418 mg, 2.50 mmol, 5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), morpholine (2.5 mmol, 4 equiv.) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum.
In the case of 10-A, the residue was purified by silica gel flash column chromatography to isolate the desired product 13a. For 10-B, 10-C and 10-D, yields were determined by 1H NMR with 1 ,3,5-Trimethoxybenzene as an internal standard. The product obtained and the corresponding yields are reported in scheme 10 and Table 1 , respectively.
The same procedure was followed for 10-B and 10-D except that dcype was not added to the solution.
The metallic complexes, ligands and reaction yields are reported in Table 1.
Table 1
Figure imgf000018_0001
The results show that the reaction was smoothly conducted using the metallic complexes with or without the addition of dcype as a ligand.
Example 11 : Selective cleavage of C-SCF3 bond in the presence of a Pd complex PEPPSI™-SIPr catalyst (5 mol%) morpholine (4 equiv.)
□HMDS (5 equiv.) 1 M in toluene
Figure imgf000019_0001
100 °C, 16 h, Ar 13a, 55%
PEPPSI™-SIPr catalyst (5 mol%) 4-methylaniline (4 equiv.)
Figure imgf000019_0002
□HMDS (5 equiv.) 1 M in toluene 100 °C, 16 h, Ar
12
Figure imgf000019_0003
Scheme 11 Reaction conditions: 12 (0.5 mmol, 1 equiv.), PEPPSITM-SIPr catalyst (5 mol%), LiHMDS (5 equiv.), HNR3R4 (4 equiv.), toluene, 100°C, 16 h, under Argon. The yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with [1 ,3- Bis(2,6-Diisopropylphenyl)imidazol-2-ylidene](3-chloropyridyl)palladium(ll) dichloride (PEPPSITM-SIPr catalyst, 905459-27-0, 17 mg, 0.025 mmol, 5 mol%)) of formula :
Figure imgf000019_0004
with LiHMDS 1 M in Toluene (2.5mL, 418 mg, 2.50 mmol, 5 equiv., 1 M), 2-
((trifluoromethyl)thio)benzo[d]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.) and morpholine or 4-methylaniline (2 mmol, 4 equiv.) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with
EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 13a or 14a. The result shows that the C-SCF3 bond cleavage can be achieved when using a Pd-catalyst in the presence of a secondary aliphatic amine or an aniline derivative.
Example 12: selective cleavage of C-SCF3 bond in the presence of a ligand and a Pd complex
PEPPSI™-SIPr catalyst (5 mol%) dcype (5 mol%) 4-methylaniline (4 equiv.)
Figure imgf000020_0001
n toluene as
NHC6H4Me
□HMDS (5 equiv.) 1 M i N 100 °C, 16 h, Ar
12 14a, 48%
Scheme 12 Reaction conditions: 12 (0.5 mmol, 1 equiv.), PEPPSITM-SIPr catalyst (5 mol%), dcype (5 mol%), LiHMDS (5 equiv.), 4-methylaniline (4 equiv.), toluene, 100°C, 16 h, under Argon. The yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with [1 ,3- Bis(2,6-Diisopropylphenyl)imidazol-2-ylidene](3-chloropyridyl)palladium(ll) dichloride (PEPPSITM-SIPr catalyst, 905459-27-0, 17 mg, 0.025 mmol, 5 mol%)), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS 1 M in toluene (2.5 mL, 418 mg, 2.50 mmol, 5 equiv., 1 M), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.) and 4- methylaniline (2 mmol, 4 equiv.) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic phase were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 14a.
The results show that the C-S bond cleavage of 12 is achieved whether the ligand is bound to the metal in the initial state of the metallic complex) (Example 11) or when the ligand is added to the reaction medium in addition to the metallic complex (Example 12).
Example 13: Selective cleavage of C-SCF3 bond in the presence of a primary amine as a nucleophile Ni(cod)2 (5 mol%) dcype (5 mol%)
LiHMDS (X equiv.)
Figure imgf000021_0001
12 14a-14g
Scheme 13: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (X equiv.), primary amine of formula H2NR (X equiv.), toluene, 100°C, 16 h, under Argon.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (209mg, 1.25mmol, 2.5 equiv.; or 418 mg, 2.5 mmol, 5 equiv.), 2-
((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), primary amine of formula H2NR (2 mmol, 4 equiv.) and toluene under argon. The reaction conditions are reported in Table 2 below. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1 M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to afford the desired products. The products and the corresponding isolated yields are reported in scheme 14 and in Table 2 below.
Figure imgf000021_0002
Scheme 14: Products obtained by the selective cleavage of 12 in the presence of various primary amines. Yield shown is the isolated yield. Table 2
Figure imgf000022_0002
Example 14: Selective cleavage of C-SCF3 bond in the presence of a secondary amine as a nucleophile:
Ni(cod)2 (5 mol%) dcype (5 mol%)
LiHMDS (X equiv.)
Figure imgf000022_0001
, ,
12 13a-13o
Scheme 15: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (X equiv.), secondary amine of formula HNR1R2 (X equiv.), toluene, 100°C, 16 h, under Argon. R3and R4, identical or different, represent an alkyl or an aryl, or are linked together with the nitrogen atom.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (209mg, 1.25mmol, 2.5 equiv.; or 418 mg, 2.5 mmol, 5 equiv.), 2-
((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), secondary amine of formula HNR1R2 (2 mmol, 4 equiv.) and toluene under argon. The reaction conditions are reported in Table 3 below. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1 M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic phase were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired products. The products and the corresponding yields are reported in scheme
16 and in Table 3 below.
Figure imgf000023_0001
Scheme 16: Products obtained by the selective cleavage of 12 in the presence of various secondary amines. Isolated yields are depicted. Table 3
Figure imgf000024_0002
Example 15: Selective cleavage of C-SCF3 bond in the presence of a thiol as a nucleophile:
Ni(cod)2 (5 mol%) dcype (5 mol%) □HMDS (X equiv )
Figure imgf000024_0001
100 °C, 16 h
12 15a-15e
16b-16e
Scheme 17: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (X equiv.), a thiol 15 or 16 of formula HSR (X equiv.), toluene, 100°C, 16 h, under Argon.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (209mg, 1.25mmol, 2.5 equiv.; or 418 mg, 2.5 mmol, 5 equiv.), 2- ((trifluoromethyl)thio)benzo[d]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), a thiol 15 or 16 of formula HSR (2 mmol, 4 equiv.), and toluene under argon. The reaction conditions are reported in Table 4 below. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of
NaOH (1 M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic phase were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to afford the desired products. The products and the corresponding yields are reported in scheme 18 and in Table 4 below.
Figure imgf000025_0001
15a, 75%
Scheme 18: Products obtained by the selective cleavage of 12 in the presence of various thiols as nucleophiles. Yield shown is the isolated yield. Table 4
Figure imgf000026_0002
Example 16: Selective cleavage of C-SCF3 bond in the presence of a phosphorus derivate as a nucleophile
Ni(cod)2 (5 mol%) dcype (5 mol%) □HMDS (5 equiv.)
Figure imgf000026_0001
12 23, 63%
Schema 19: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (5 equiv.), HPPh2 (4 equiv.), toluene, 100°C, 16 h, under Argon. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS (418 mg, 2.5 mmol, 5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), HPPh2 (2 mmol, 4 equiv.), and toluene under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. EtOAc
(10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic phase were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 23.
This result shows that the cleavage of 12 is achieved with a high yield in presence of a phosphorus nucleophile and shows an interesting swap between S- and P-containing groups.
Example 17: Selective cleavage of C-SCF3 bond in the presence of an alcohol as a nucleophile
Ni(cod)2 (5 mol%) dcype (5 mol%) entanol l t 33%
Figure imgf000027_0001
Figure imgf000027_0002
Schema 20: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (5 equiv.), pentanol (4 equiv.), toluene, 100°C, 16 h, under Argon. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS in toluene (2.5 mL, 1M, 418 mg, 2.5 mmol, 5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.) and pentanol as co-solvent (1 .25 mL, 33%) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 24.
This result shows that the cleavage of 12 is achieved with a high yield in presence of an alcohol nucleophile.
Example 18: Selective cleavage of C-SCF3 bond in the presence of an ester as a nucleophile Ni(cod)2 (5 mol%) dcype (5 mol%)
Methyl acetate (co-solvant, 33%)
Figure imgf000028_0001
LiHMDS (5 equiv.) 1 M in toluene
100 °C, 16 h, Ar 25, 55%
Figure imgf000028_0002
Schema 21 : Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (5 equiv.), methyl acetate (4 equiv.), toluene, 100°C, 16 h, under Argon. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS in toluene (2.5 mL, 1M, 418 mg, 2.5 mmol, 5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), and methyl acetate (1.25 mL, 33%) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 25.
Example 19: Selective cleavage of C-SCF3 bond in the presence of an ester as nucleophile
Ni(cod)2 (5 mol%) dcype (5 mol%)
Ethyl acetate (co-solvant, 33%)
Figure imgf000028_0003
LiHMDS (5 equiv.) 1 M in toluene 100 °C, 16 h, Ar 26, 63%
Figure imgf000028_0004
Schema 22: Reaction conditions: 12 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (5 equiv.), ethyl acetate (4 equiv.), toluene, 100°C, 16 h, under Argon. Yield shown is the isolated yield. An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS in toluene (2.5 mL, 1M, 418 mg, 2.5 mmol, 5 equiv.), 2-((trifluoromethyl)thio)benzo[c(]thiazole 12 (118 mg, 0.5 mmol, 1 equiv.), and ethyl acetate (1.25 mL, 33%) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 26.
Examples 17, 18 and 19 illustrated the possibility of forming a C-0 bond from the cleavage of 12 using different nucleophiles.
Example 20: Selective cleavage of C-SeCFs bond
Ni(cod)2 (5 mol%) dcype (5 mol%) morpholine (4 equiv.)
Figure imgf000029_0002
LiHMDS (5 equiv.) 1 M in toluene
Figure imgf000029_0001
100 °C, 16 h, Ar
27 13a, 55%
Scheme 23: Reaction conditions: 27 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS (5 equiv.), morpholine (4 equiv.), toluene, 100°C, 16 h, under Argon. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol%), LiHMDS in toluene (2.5 mL, 1 M, 418 mg, 2.5 mmol, 5 equiv.), 27 (142 mg, 0.5 mmol, 1 equiv.) and morpholine (2 mmol, 4 equiv.) under argon. The resulting solution was stirred at 100 °C for 16 h. The mixture was allowed to cooled down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 13a.
This result shows that the selective cleavage of the C-SeCFs bond is achieved in the presence of an amine as a nucleophile. Example 21 : Selective cleavage of C-SCF3 bond on an aryl group
Ni(cod)2 (5 mol%) dcype (5 mol%) morpholine (4 equiv.)
Figure imgf000030_0001
Ph-N O
Figure imgf000030_0002
□ HMDS (5 equiv.) 1 M in toluene 140 °C, 48 h, Ar
Figure imgf000030_0003
29, 12%
Scheme 24: Reaction conditions: 28 (0.5 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS 1 M solution in toluene (5 equiv.), morpholine (4 equiv.), 140°C, 48 h, under Argon. Yield shown is the isolated yield.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (7 mg, 0.025 mmol, 5 mol%), dcype (11 mg, 0.025 mmol, 5 mol LiHMDS in toluene (2.5 mL, 1 M, 418 mg, 2.5 mmol, 5 equiv), 28 (0.5 mmol, 1 equiv.) and morpholine (2 mmol, 4 equiv.) under argon. The resulting solution was stirred at 140 °C for 48 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1 M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The residue was purified by silica gel flash column chromatography to isolate the desired product 29.
Example 22: Selective cleavage of C-SCF3 bond on a vinyl group
Ni(cod)2 (5 mol%) dcype (5 mol%) morpholine (4 equiv.)
Figure imgf000030_0004
Figure imgf000030_0005
□HMDS (5 equiv.) 1 M in toluene
30 140 °C, 48 h, Ar
31, 38% NMR yield
Scheme 25: Reaction conditions: 30 (0.3 mmol, 1 equiv.), Ni(cod)2 (5 mol%), dcype (5 mol%), LiHMDS 1 M solution in toluene (5 equiv.), morpholine (4 equiv.), 140°C, 48 h, under Argon. Yields were determined by 1H NMR using Nitromethane as an internal standard.
An oven-dried 10 mL tube equipped with a stirring bar was charged with Ni(cod)2 (4 mg, 0.015 mmol, 5 mol%), dcype (6 mg, 0.015 mmol, 5 mol%), LiHMDS in toluene (1.5 mL, 1 M, 251 mg, 1.5 mmol, 5 equiv.), 30 (0.3 mmol, 1 equiv.) and morpholine (1 .2 mmol, 4 equiv.) under argon. The resulting solution was stirred at 140 °C for 48 h. The mixture was allowed to cool down to 21 °C. EtOAc (10 mL) was added in the mixture and the resulting solution was washed with an aqueous solution of NaOH (1M, 10 mL). The aqueous phase was extracted with EtOAc (3 x 20 mL) and the combined organic layers were dried over MgSO4 and concentrated under vacuum. The yield of 31 was determined by 1H NMR using Nitromethane as an internal standard.

Claims

1. A process for the preparation of a compound having the formula (I):
A-R by reacting a compound having the formula (II):
A-X in the presence of a metallic complex comprising nickel, palladium or rhodium(l), a ligand, a nucleophile carrying one group R, and a solvent,
R being a hydrocarbon group, optionally including at least one heteroatom and/or at least one atom other than C or H, wherein:
- A is selected from the group consisting of:
. (Ce-Cio)aryl groups, said aryl groups being optionally substituted with at least one substituent preferably selected from the group consisting of: halogen, (Ci-Ce)alkyl, (Ci- Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -SiRaRbRc, -BRaRb, (C2-Ce)alkenyl, (C2-C6)alkynyl, -C(=O)-NRaRb, and -C(=O)-O(Ci-C6)alkyl;
Ra and Rb being independently from each other H or a (Ci-Ce)alkyl group; Rc being a (Ci-Ce)alkyl group;
. heteroaryl groups comprising from 5 to 10 atoms and including at least one heteroatom selected from O, N, and S, said heteroaryl groups being optionally substituted with at least one substituent preferably selected from: halogen, (Ci-Ce)alkyl, (Ci-Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -Si(Rc)3, -BRaRb, (C2-Ce)alkenyl, (C2-Ce)alkynyl, -C(=O)-NRaRb, and -C(=O)-O(Ci-C6)alkyl, Ra, Rb and Rc being as defined above; and
. a vinyl compound having the following formula (III):
Figure imgf000032_0001
R1 being selected from the group consisting of: halogen, (Ci-Ce)alkyl, (C1- Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -Si(Rc)3, -BRaRb, (C2-Ce)alkenyl, (C2- Ce)alkynyl, -C(=O)-NRaRb, and -C(=0)-0(Ci-C6)alkyl, Ra, Rb and Rc being as defined above; and
- X is selected from the group consisting of: YCF3, YOCF3, YO2CF3, YCF2SO2PI-1, YOCF2SO2PI-1, YO2CF2SO2PI-1, Y(O)nCF2COOR’, Y(O)nCF2CONR’2, Y(O)nCF2CH2OH, Y(O)nCN, Y(O)nCHF2, Y(O)nCF2H, Y(O)nCF2CnF2n+i, Y(O)nCF2COR’, Y being S or Se, n being 1 or 2, and R’ being (Ci-Ce)alkyl.
2. The process of claim 1 , wherein the metallic complex comprises nickel.
3. The process of claim 1 or 2, wherein the ligand is bound to the metal in the initial state of the metallic complex and/or the ligand is added to a reaction medium in addition to the metallic complex.
4. The process of any one of claims 1 to 3, wherein the nucleophile is selected from the group consisting of: alkyl amines, cycloalkyl amines, aryl amines, alkyl thiols, thiophenol compounds, aryl selenol compounds, phosphine oxides, Grignard reagents, alcohols, esters and phosphorus derivatives.
5. The process of any one of claims 1 to 4, wherein the nucleophile is a RH group, wherein R is selected from the group consisting of: (Ci-Ce)alkyl, heterocycloalkyl, -S-cyclo(C3-C )alkyl, -O-(Ci-Ci2)alkyl , an optionally substituted heteroaryl, a cyclo(C3-C )alkylamino group, a -S-(Ci-Ce)alkyl where the alkyl is optionally substituted, -NR1R2, -P(=O)-R1R2, -X1-Ar1, -X1-(Ci-Ci2)alkyl-Ar1, -X1-Het1, - X1-(Ci-Ci2)alkyl-Het1 , X1 being S, Se or NH, Ar1 being an optionally substituted (Ce- Cw)aryl group, Het1 being an optionally substituted heteroaryl group and R1 and R2 being, independently from each other, a (Ci-Ce)alkyl group or a (Ce-Cio)aryl group.
6. The process of any one of claims 1 to 4, wherein the nucleophile is a RH group, wherein R is selected from the group consisting of: (Ci-Ce)alkyl, heterocycloalkyl, -S-cyclo(C3-C )alkyl, -P(=O)-R1R2, and -X1-Ar1, X1 being S, Se or NH, and Ar1 being an optionally substituted (Ce-Cio)aryl group, and R1 and R2 being, independently from each other, a (Ci-Ce)alkyl group or a (Ce-Cio)aryl group.
7. The process of any one of claims 1 to 6, wherein A is selected from the heteroaryl groups comprising from 5 to 10 atoms and including at least one heteroatom selected from O, N, and S, said heteroaryl groups being optionally substituted with at least one substituent selected from: halogen, (Ci-Ce)alkyl, (Ci- Ce)alkoxy, -CN, -CF3, -OCF3, -NRaRb, -Si(Rc)3, -BRaRb, (C2-Ce)alkenyl, (C2-Ce)alkynyl, -C(=O)-NRaRb, and -C(=O)-O(Ci-C6)alkyl, Ra, Rb and Rc being as defined in claim 1.
8. The process of any one of claim 1 to 7, further comprising the use of a hydride compound, such as LiHMDS.
9. The process of any one of claims 1 to 8, wherein the ligand is selected from the group consisting of: 1 ,5-cyclooctadiene (COD), 1 ,2- Bis(dicyclohexylphosphino)ethane (dcype), 1 ,1’-Bis(diphenylphosphino)ferrocene (dppf), 1 ,T-Bis(di-tert-butylphosphino)ferrocene (DTBPF), 4,5- Bis(diphenylphosphino)-9,9-dimethylxanthene (XantPhos), triphenylarsine (AsPh3) and triphenylphosphane (PPh3).
10. The process of any one of claims 1 to 9, wherein the solvent is toluene.
11. The process of any one of claims 1 to 10, wherein the reaction is carried out at a temperature from 90°C to 140°C.
12. The process of any one of the p claims 1 to 11 , wherein the metallic complex is a Ni(0) complex such as bis(1 ,5-cyclooctadiene)nickel.
13. The process of any one of claims 1 to 12, for the preparation of a compound having the formula (1-1):
Figure imgf000034_0001
R being as defined above in any one of claims 1 to 6, from a compound having the formula (11-1):
Figure imgf000035_0001
Xi being selected from the group consisting of: SCF3, SOCF3, SO2CF3, SCF2SO2PI-1, SOCF2SO2PI-1, SO2CF2SO2PI-1, and SeCF3.
5
PCT/EP2024/064950 2023-06-01 2024-05-30 Process for the selective cleavage of c-scf3 bonds and analogues Ceased WO2024246232A1 (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
EP24728258.5A EP4720048A1 (en) 2023-06-01 2024-05-30 Process for the selective cleavage of c-scf3 bonds and analogues

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
EP23305864.3A EP4471015A1 (en) 2023-06-01 2023-06-01 Process for the selective cleavage of c-scf3 bonds and analogues
EP23305864.3 2023-06-01

Publications (1)

Publication Number Publication Date
WO2024246232A1 true WO2024246232A1 (en) 2024-12-05

Family

ID=87047933

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/EP2024/064950 Ceased WO2024246232A1 (en) 2023-06-01 2024-05-30 Process for the selective cleavage of c-scf3 bonds and analogues

Country Status (2)

Country Link
EP (2) EP4471015A1 (en)
WO (1) WO2024246232A1 (en)

Citations (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2004087145A2 (en) * 2003-03-27 2004-10-14 Glaxo Group Limited Antibacterial agents
EP3431462A1 (en) * 2016-03-17 2019-01-23 DIC Corporation Novel compound and semiconductor material containing same

Patent Citations (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2004087145A2 (en) * 2003-03-27 2004-10-14 Glaxo Group Limited Antibacterial agents
EP3431462A1 (en) * 2016-03-17 2019-01-23 DIC Corporation Novel compound and semiconductor material containing same

Non-Patent Citations (6)

* Cited by examiner, † Cited by third party
Title
BOUKOUVALAS JOHN ET AL: "Unified route to asymmetrically substituted butenolide, maleic anhydride, and maleimide constituents ofAntrodia camphorata", TETRAHEDRON, vol. 68, no. 47, 2012, pages 9592 - 9597, XP028945132, ISSN: 0040-4020, DOI: 10.1016/J.TET.2012.09.064 *
CHATELAIN PAUL ET AL: "Suzuki-Miyaura Coupling of (Hetero)Aryl Sulfones: Complementary Reactivity Enables Iterative Polyaryl Synthesis**", 9 December 2019 (2019-12-09), pages S1 - S84, XP093189527, Retrieved from the Internet <URL:https://onlinelibrary.wiley.com/action/downloadSupplement?doi=10.1002%2Fanie.201908336&file=anie201908336-sup-0001-misc_information.pdf> *
FUKUDA JUN-ICHI ET AL: "Cross-Coupling of Aryl Trifluoromethyl Sulfones with Arylboronates by Cooperative Palladium/Rhodium Catalysis", ORGANIC LETTERS, vol. 21, no. 22, 24 October 2019 (2019-10-24), US, pages 8987 - 8991, XP093189403, ISSN: 1523-7060, DOI: 10.1021/acs.orglett.9b03393 *
JUN WEI ET AL: "Transition-Metal-Free Electrophilic Fluoroalkanesulfinylation of Electron-Rich (Het)Arenes with Fluoroalkyl Heteroaryl Sulfones via C(Het)-S and S=O Bond Cleavage", ADVANCED SYNTHESIS AND CATALYSIS, JOHN WILEY & SONS, INC, HOBOKEN, USA, vol. 361, no. 24, 6 November 2019 (2019-11-06), pages 5528 - 5533, XP072359563, ISSN: 1615-4150, DOI: 10.1002/ADSC.201900959 *
N. BARBERO ET AL., ORGANIC LETTERS, vol. 2012, no. 14, pages 796 - 799
PAUL CHATELAIN ET AL: "Suzuki-Miyaura Coupling of (Hetero)Aryl Sulfones: Complementary Reactivity Enables Iterative Polyaryl Synthesis", ANGEWANDTE CHEMIE INTERNATIONAL EDITION, VERLAG CHEMIE, HOBOKEN, USA, vol. 58, no. 42, 12 September 2019 (2019-09-12), pages 14959 - 14963, XP072098524, ISSN: 1433-7851, DOI: 10.1002/ANIE.201908336 *

Also Published As

Publication number Publication date
EP4720048A1 (en) 2026-04-08
EP4471015A1 (en) 2024-12-04

Similar Documents

Publication Publication Date Title
JP6732008B2 (en) Oxalamide Amides and Their Use in Copper-Catalyzed Coupling Reactions of Aryl Halides
Ferry et al. Electrophilic trifluoromethanesulfanylation of indole derivatives
Joseph et al. Copper catalyzed ipso-nitration of iodoarenes, bromoarenes and heterocyclic haloarenes under ligand-free conditions
CN107400073A (en) A kind of 4 isothiocyanos 2（Trifluoromethyl）The synthetic method of benzonitrile
JPH06298731A (en) Production of heterocyclic compound
WO2024246232A1 (en) Process for the selective cleavage of c-scf3 bonds and analogues
US20040073054A1 (en) New fluorous tagging and scavenging reactants and methods of synthesis and use thereof
CN109293491B (en) A kind of method of aryl diazonium salt de-acyl group on diazonium
CN110204481B (en) A kind of polysubstituted nitrogen-containing aromatic heterocyclic compound and its preparation method and application
Cao et al. Metal-free catalytic synthesis of diaryl thioethers under mild conditions
WO2024246241A1 (en) Process for trapping thiocarbonyl fluoride
EP4471011B1 (en) Process for the selective cleavage of c-scf3 bonds and analogues
CN108299340B (en) Method for synthesizing 2-fluoro-N-substituted aryl acetamide compound
CN114605306B (en) Method for synthesizing organic sulfur compound based on alkyl xanthate and application thereof
Zhou Microwave-Assisted, Metal-and Solvent-Free Synthesis of Diaryl Thioethers from Aryl Halides and Carbon Disulfide in the Presence of [DBUH]+[OAc]−
CN111732508B (en) Synthesis method of spiro compound
Haswell et al. Deoxygenative perfluoroalkylthiolation of carboxylic acids with benzothiazolium reagents
CN105130898B (en) One kind is together with difluoro polycyclic compound and preparation method thereof
CN112724055B (en) A method for the synthesis of aromatic monofluoromethylthio compounds by one-pot method
Li et al. Odorless, catalyst-free synthesis of diaryl sulfides using K2S as sulfur source
CN111777478B (en) A kind of synthetic method of pro-acyl anilide sulfonamide compound
JP3593523B2 (en) New process for producing N, N-disubstituted amides
WO2007064869A2 (en) Catalysts for aryl sulfide synthesis and method of producing aryl sulfides
CN114805208A (en) A kind of 4-trifluoromethyl-4,5-dihydropyrazole derivative and preparation method thereof
CN115160206A (en) Method for direct amination of alpha position of heterocyclic aromatic compounds such as pyrrole and benzofuran

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 24728258

Country of ref document: EP

Kind code of ref document: A1

ENP Entry into the national phase

Ref document number: 2025569918

Country of ref document: JP

Kind code of ref document: A

WWE Wipo information: entry into national phase

Ref document number: 2025569918

Country of ref document: JP

WWE Wipo information: entry into national phase

Ref document number: 2024728258

Country of ref document: EP

NENP Non-entry into the national phase

Ref country code: DE

ENP Entry into the national phase

Ref document number: 2024728258

Country of ref document: EP

Effective date: 20260102

ENP Entry into the national phase

Ref document number: 2024728258

Country of ref document: EP

Effective date: 20260102

ENP Entry into the national phase

Ref document number: 2024728258

Country of ref document: EP

Effective date: 20260102

ENP Entry into the national phase

Ref document number: 2024728258

Country of ref document: EP

Effective date: 20260102

ENP Entry into the national phase

Ref document number: 2024728258

Country of ref document: EP

Effective date: 20260102

ENP Entry into the national phase

Ref document number: 2024728258

Country of ref document: EP

Effective date: 20260102

WWP Wipo information: published in national office

Ref document number: 2024728258

Country of ref document: EP
