  • the present invention relates to a calculation result distribution device, a calculation result protection system, and a calculation result distribution method.
  • FPGA field-programmable gate array
  • FPGA field-programmable gate array
  • a service that allows FPGAs to be used via the cloud is known as FaaS (FPGA as a Service).
  • FaaS FPGA as a Service
  • the process of calculating an output value for an input value from an input device is offloaded from a management server such as a cloud server to an FPGA on the cloud.
  • the FPGA calculates an output value for the input value and sends the calculated output value to the management server.
  • Non-Patent Document 1 describes that, as an architecture for increasing security in a FaaS environment, a common key generation process and a signature verification process are performed using an FPGA.
  • FIG. 17 is an explanatory diagram showing the distribution process of the output value D2.
  • the CA Certificate Authority
  • the FPGA 300z transmits encrypted data CK(D2), which is obtained by encrypting the calculated output value D2 using the common key CK, to the input device 10z via the management server 100z.
  • the input device 10z can safely obtain the output value D2 by decrypting the received encrypted data CK(D2) using the common key CK.
  • FIG. 18 is an explanatory diagram when there are multiple destination devices to which the output value D2 is distributed.
  • the input device 10z of FIG. 17 there are a total of three devices to which the output value D2 is distributed: the input device 10z of FIG. 17 and the newly added output destination servers 201z and 202z. Therefore, in addition to the common key CK1 shared with the input device 10z, the FPGA 300z separately prepares a common key CK2 shared with the output destination server 201z and a common key CK3 shared with the output destination server 202z. and its signature must be verified.
  • the FPGA 300z transmits encrypted data CK1(D2), which is obtained by encrypting the calculated output value D2 using the common key CK1, to the input device 10z via the management server 100z.
  • data A to be encrypted and the result of encrypting the data A with key B used for encryption will be expressed in parentheses as B(A).
  • the FPGA 300z transmits encrypted data CK2(D2) obtained by encrypting the output value D2 with the common key CK2 to the output destination server 201z, and transmits encrypted data CK3(D2) obtained by encrypting the output value D2 with the common key CK3. ) is sent to the output destination server 202z.
  • the FPGA300z needs to individually perform the processing of generating common keys CK1 to CK3, verifying the signatures of common keys CK1 to CK3, and encrypting with common keys CK1 to CK3 for each distribution destination device. There is. Since the processing load is placed on the FPGA 300z, the processing efficiency decreases even when the calculation processing of the output value D2 is offloaded to the FPGA 300z.
  • the main objective of the present invention is to reduce the burden when transmitting the same calculation result to multiple destinations in a reliable manner.
  • the calculation result distribution device of the present invention has the following features.
  • the present invention generates a common key shared by multiple distribution destination devices, First encrypted data is generated for each distribution destination device by encrypting the common key using a public key that is paired with a private key that each distribution destination device individually has, and the generated first encryption data is generated for each distribution destination device.
  • a common key distribution unit that causes each of the distribution destination devices to decrypt the common key by distributing data to each of the distribution destination devices; and a data output unit that causes each distribution destination device to decrypt the calculation result by distributing second encrypted data in which the calculation result is encrypted using the common key to each distribution destination device.
  • FIG. 1 is a configuration diagram of a calculation result protection system according to the present embodiment. It is an explanatory diagram showing processing of an input value and an output value concerning this embodiment.
  • FIG. 6 is an explanatory diagram showing a common key distribution process by a common key distribution unit according to the present embodiment.
  • FIG. 6 is an explanatory diagram showing an output value distribution process by a data output unit according to the present embodiment.
  • FIG. 7 is a configuration diagram in a case where a protection area is provided in a device to which output values are distributed as a modification of the calculation result protection system according to the present embodiment.
  • FIG. 6 is an explanatory diagram showing the common key distribution process in the case of FIG. 5 according to the present embodiment.
  • FIG. 6 is an explanatory diagram showing the output value distribution process in the case of FIG.
  • FIG. 3 is a sequence diagram showing a process of confirming in advance that a device to which an output value is distributed is a reliable partner according to the present embodiment.
  • FIG. 2 is a sequence diagram showing common key distribution processing according to the present embodiment.
  • FIG. 3 is a sequence diagram illustrating output value distribution processing according to the present embodiment. It is a table showing a list of certificates issued by a CA as a third party organization related to the present embodiment. It is a table showing a list of reliable communication partners included in the management server according to the present embodiment. It is a table showing a list of communication partners possessed by each device other than the management server, such as an input device, according to the present embodiment.
  • FIG. 3 is a table showing a list of output value distribution destination devices included in the management server according to the present embodiment. It is a table showing a list of common keys possessed by the management server according to the present embodiment.
  • FIG. 2 is a hardware configuration diagram of each device of the calculation result protection system according to the present embodiment.
  • FIG. 3 is an explanatory diagram illustrating output value distribution processing.
  • FIG. 6 is an explanatory diagram when there are multiple destination devices to which output values are distributed.
  • FIG. 5 is an explanatory diagram when an FPGA executes the encryption process instead of the management server as a modification of FIG. 4 related to the present embodiment.
  • FIG. 1 is a configuration diagram of a calculation result protection system 1.
  • an input device 10 a management server (calculation result distribution device) 100, an FPGA (offload destination device) 300, an output destination server 201, and an output destination server 202 are connected via a network. configured.
  • the input device 10 requests the management server 100 to perform a process of calculating an output value D2 (calculation result) from an input value D1 (hereinafter referred to as offload process) as a process of offloading to the FPGA 300. That is, the input device 10 transmits the input value D1 to the management server 100.
  • the offload destination device is not limited to the FPGA 300, and any device as exemplified below may be used.
  • ⁇ GPU Graphics Processing Unit
  • FPU Floating Point Unit
  • DSP Digital Signal Processor
  • the management server 100 offloads the offload processing received from the input device 10 to the FPGA 300.
  • the FPGA 300 returns the output value D2 obtained by executing the accepted offload process to the management server 100.
  • the management server 100 distributes the output value D2 obtained from the FPGA 300 to the distribution destination device.
  • the distribution destination devices are a total of three devices: the input device 10, the output destination server 201, and the output destination server 202.
  • the management server 100 also checks the detailed status of the distribution destination device.
  • the offload process is, for example, a process in which information about a device whose security is to be verified is used as an input value D1, and an output value D2 such as a security reliability score is calculated from the input value D1.
  • an output value D2 such as a security reliability score
  • a signature indicating who performed the calculation is also prepared.
  • a protected area (first protected area) 110 is prepared in the memory within the management server 100.
  • Protected area 110 protects stored data from unauthorized data access.
  • the protected area 110 is an area (enclave) prepared in the memory of the management server 100 in which data access authority is protected, and data can be protected by restricting access authority to some applications.
  • the protected area 110 is prepared for the purpose of preventing software with weaker privileges from being compromised when software with strong privileges is attacked.
  • Software with strong authority includes, for example, the OS (Operating System), drivers, BIOS (Basic Input Output System), and VMM (Virtual Machine Manager).
  • the management server 100 configures a protected area 110 in which programs such as signatures and encryption can be executed while protecting information.
  • the protected area 110 is a place where integrity can be ensured by adding a signature/signature verification program, for example.
  • the protected area 110 is an isolated place with limited access authority, and confidentiality can be ensured by adding an encryption program. It is desirable that all the data inside the protected area 110 is securely protected, but even if it is not completely protected, secret information (such as a private key in public key cryptography) among the internal data can be protected. It can also be used if it is securely protected.
  • the protected area 110 of the management server 100 includes a signature verification section 111, a signature adding section 112, a common key distribution section 113, and a data output section 114, and each of these processing sections Data used for processing is stored in the protected area 110.
  • the signature verification unit 111 refers to the device information of the other device sent from the other device, and determines that the verification has passed if the other device has a protection area (data protection ability). Distribution destination devices that have passed the verification become targets for distribution of the output value D2. This ensures that information sent from the management server 100 to another device is stored in a protected area within the other device, so information leakage from other devices to the distribution destination device can be suppressed before distribution.
  • the device information of the other device is information used in attestation, which is a technique for confirming the capabilities of the protected area, such as address information of the protected area of the other device and information of applications within the protected area.
  • the signature verification unit 111 may confirm the reliability of another device (such as the input device 10 ) with which the management server 100 communicates by verifying its signature. Therefore, the signature verification unit 111 verifies a signature made on at least one of the information exemplified below.
  • CA third party
  • the signature adding unit 112 adds a signature to allow other devices to confirm the reliability of the management server 100 itself. Note that regarding what information to attach a signature to, it is sufficient to use information obtained by replacing each information of the other device verified by the signature verification unit 111 with each information of the management server 100.
  • the common key distribution unit 113 generates a common key shared by a plurality of communication partners, which is used when encrypting the output value (calculation result) of the FPGA 300, and distributes the common key to other devices.
  • the common key distribution unit 113 generates a common key CK that is shared by multiple distribution destination devices (such as the input device 10). Then, the common key distribution unit 113 generates first encrypted data for each distribution destination device by encrypting the common key CK using the public key PK that is paired with the private key SK that each distribution destination device has individually. do. Further, the common key distribution unit 113 distributes the generated first encrypted data to each distribution destination device, thereby causing each distribution destination device to decrypt the common key CK.
  • the data output unit 114 generates second encrypted data by encrypting the output value D2 (calculation result) of the FPGA 300 using the common key CK generated by the common key distribution unit 113 (see FIG. 4 for details). Then, the data output unit 114 distributes the generated second encrypted data to each distribution destination device, thereby causing each distribution destination device to decrypt the output value D2.
  • the common key CK generated by the common key distribution unit 113 may be sent to the FPGA 300, and second encrypted data may be generated by encrypting the output value D2 on the FPGA 300 (see FIG. 19 for details).
  • the FPGA 300 includes a signature verification section 301 and a signature adding section 302.
  • the signature verification unit 301 verifies the management server 100 by verifying the signature assigned by the signature assignment unit 112 of the management server 100 that is the offload source.
  • the signature adding unit 302 adds a signature to the output value of the FPGA 300 to allow other devices to confirm the reliability of the FPGA 300 itself.
  • FIG. 2 is an explanatory diagram showing the processing of the input value D1 and the output value D2.
  • the input device 10 creates a signature s10(D1) for the prepared input value D1 using its own key s10.
  • the input device 10 sends the input value D1 and the signature s10 (D1) to the protected area 110 of the management server 100.
  • the signature verification unit 111 of the protected area 110 verifies the signature s10(D1).
  • the signature attaching unit 112 replaces the signature s10(D1) that has passed the verification by the signature verifying unit 111 with a signature s100(D1) using its own key s100.
  • the signature adding unit 112 requests the FPGA 300 to offload the input value D1 together with the signature s100(D1).
  • FIG. 3 is an explanatory diagram showing the process of distributing the common key CK by the common key distribution unit 113.
  • the common key distribution unit 113 distributes the common key CK to be shared by a plurality of distribution destination devices in the following procedure in order to perform encryption accompanying the distribution process of the output value D2 shown in FIG.
  • Step 1 The common key distribution unit 113 distributes the public key PK10 of the input device 10, the public key PK201 of the output destination server 201, and the public key of the output destination server 202 as verified public keys PK for each distribution destination device. Obtain the PK202 from the CA or distribution destination device in advance.
  • the common key distribution unit 113 generates one common key CK to be shared by multiple distribution destination devices.
  • the common key distribution unit 113 generates a plurality of encrypted data by encrypting the common key CK with the public key PK of each distribution destination device.
  • the encrypted data PK10(CK) for the input device 10 is obtained by encrypting the common key CK with the public key PK10 of the input device 10.
  • the common key distribution unit 113 distributes the generated plurality of encrypted data to each distribution destination device. For example, encrypted data PK10(CK) is distributed to the input device 10, encrypted data PK201(CK) is distributed to the output destination server 201, and encrypted data PK202(CK) is distributed to the output destination server 202.
  • Each distribution destination device obtains the common key CK from step 2 by decrypting the distributed encrypted data using its own private key SK paired with the public key PK from step 1. .
  • the input device 10 obtains the common key CK in step 2 by decrypting the distributed encrypted data PK10(CK) using its own private key SK10.
  • FIG. 4 is an explanatory diagram showing the distribution process of the output value D2 by the data output unit 114.
  • the data output unit 114 can ensure the safety of the output value D2 by encrypting the output value D2 using the common key CK shown in FIG. 3 according to the following procedure and then distributing it.
  • the data output unit 114 receives the output value D2 received from the offload destination FPGA 300 and its signature s300(D2).
  • the entire data obtained by connecting the received output value D2 and its signature s300(D2) will be indicated by the symbol "
  • the data output unit 114 obtains encrypted data CK(D2
  • FIG. 19 is an explanatory diagram when the FPGA 300 performs encryption instead of the management server 100, as a modification of FIG. 4.
  • (Procedure 1) and (Procedure 2) in FIG. 4 are replaced with the following (Procedure 1B) and (Procedure 2B).
  • (procedure 3) and (procedure 4) are executed similarly to FIG. 4.
  • the FPGA 300 obtains encrypted data CK(D2
  • the data output unit 114 receives encrypted data CK(D2
  • FIG. 5 is a configuration diagram of a modification of the calculation result protection system 1 in which a protection area (second protection area) is provided in the device to which the output value D2 is distributed.
  • FIG. 6 is an explanatory diagram showing the distribution process of the common key CK in the case of FIG. 5.
  • the process of decrypting the common key CK in step 5 of FIG. 3 has been changed so that it is performed within the protected area of each device.
  • FIG. 7 is an explanatory diagram showing the distribution process of the output value D2 in the case of FIG.
  • FIGS. 5 to 7 prevent the output value D2 from being accessed illegally from the outside, thereby improving security strength.
  • FIGS. 8 to 16 The details of the processing in FIGS. 2 to 4 will be described below with reference to FIGS. 8 to 16.
  • FIG. 8 is a sequence diagram showing the process of confirming in advance that the device to which the output value D2 is distributed is a reliable partner.
  • each device of the calculation result protection system 1 verifies other devices by challenge and response authentication without directly exchanging secret information such as passwords.
  • the management server 100 confirms the public key PK10 of the input device 10 in S101-S104. Specifically, the management server 100 sends the random number R1 to the input device 10 (S101). The input device 10 uses its own private key SK10 as the random number R1 to generate a signature SK10(R1) (S102). The input device 10 sends its own public key PK10 and signature SK10(R1) to the management server 100 (S103). The signature verification unit 111 of the management server 100 verifies the sent public key PK10 with the signature SK10(R1) (S104). If the confirmation in S104 is successful, the process advances to the next step S111. On the other hand, if the confirmation in S104 fails, an error message is returned to the input device 10 of the communication partner. In each subsequent process, if signature verification fails, an error message is returned to the communication partner.

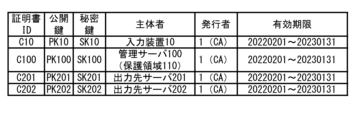

  • FIG. 11 is a table showing a list of certificates issued by a CA serving as a third-party organization.
  • This table contains the certificate ID, the public key included in the certificate, the private key paired with the public key, the entity that manages the private key, and the issuer (CA that issues the certificate). , and the expiration date of the certificate.
  • Each device of the calculation result protection system 1 (for example, the management server 100) can obtain a public key (for example, the public key PK10 of the input device 10) whose reliability is guaranteed within the validity period by a certificate from the CA. Certificates are used in an environment called PKI (Public Key Infrastructure).
  • PKI Public Key Infrastructure
  • PKI uses various encryption technologies such as RSA cryptography and elliptic curve cryptography to perform authentication and attestation of the communication partner based on the guarantee of the certificate issued by a third party (CA).
  • CA third party
  • Each device obtains its own certificate and the private key and public key pair attached to that certificate from the CA in advance.
  • the public key of another device is not obtained from the CA, but is sent to the other device.

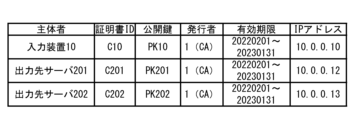

  • FIG. 12 is a table showing a list of reliable communication partners that the management server 100 has.
  • this table also includes the IP address of the subject's device linked to the public key. It is associated as device information.
  • the device information of the other device, the address of the protected area of the other device (not shown), the information of the application in the protected area (not shown), etc. are also searched through the process of S114. This can be confirmed in the process of S134, which will be described later.
  • this table also includes entries for the output destination servers 201 and 202 notified in S120, which will be described later. Note that the state of the table in FIG. 12 is the state after the output destination servers 201 and 202 have been confirmed in steps S131 to S134 described below.
  • the input device 10 confirms the public key PK100 of the management server 100 in S111-S114. Specifically, the input device 10 sends the random number R2 to the management server 100 (S111). The signature adding unit 112 of the management server 100 uses its own private key SK100 as the random number R2 to generate a signature SK100(R2) (S112). The management server 100 sends its own public key PK100 and signature SK100(R2) to the input device 10 (S113). The input device 10 confirms the sent public key PK100 with the signature SK100(R2) (S114). The input device 10 sends information on the output destination servers 201 and 202 that need to be confirmed from now on to the management server 100 (S120).

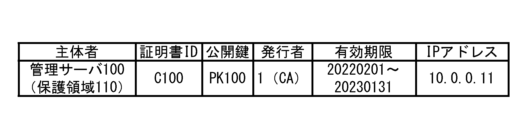

  • FIG. 13 is a table showing a list of communication partners held by each device other than the management server 100, such as the input device 10. This table has the same data format as FIG. 12. Similar to FIG. 12, the entry of the management server 100, which is a reliable partner for the input device 10, is registered in the table of FIG. 13 as a result of S111-S114.
  • the management server 100 confirms the public key PK201 of the output destination server 201 in S131-S134.
  • the management server 100 sends the random number R3 to the output destination server 201 (S131).
  • the output destination server 201 uses its own private key SK201 as the random number R3 to generate a signature SK201(R3) (S132).
  • the output destination server 201 sends its own public key PK201 and signature SK201(R3) to the management server 100 (S133).
  • the signature verification unit 111 of the management server 100 verifies the sent public key PK201 with the signature SK201(R3) (S134).
  • FIG. 14 is a table that shows a list of destination devices for which the output value D2 is distributed, which the management server 100 has.
  • This table contains the request ID issued for each distribution destination device with the same output value D2, the destination indicating the distribution destination device with the same output value D2, and the information (certificate) in Figure 11 issued for that destination.
  • the ID of the document, the public key of the recipient), and the IP address shown in FIG. 12 are associated with each other.
  • three devices input device 10, output destination server 201, output destination server 202 with the same request ID "R01" are a set of distribution destination devices for the same output value D2.
  • the management server 100 sequentially adds the devices confirmed in the process of FIG. 8 to the table of FIG. 14.
  • FIG. 15 is a table showing a list of common keys CK that the management server 100 has.
  • the common key CK issued for each request ID shown in FIG. 14 is registered in this table. If you want to distribute the output value D3 to two devices (input device 10, output destination server 201) apart from the distribution destination device of the output value D2, the management server 100 sends a new request ID "R02" and the The combination of the distribution destination device and the new common key CK2 issued for its R02 may be added to the table of FIG. 14 and the table of FIG. 15.
  • FIG. 9 is a sequence diagram showing the distribution process of the common key CK.
  • the management server 100 creates a common key CK to be shared by multiple distribution destination devices (S201).
  • the management server 100 creates encrypted data PK10(CK) by encrypting the common key CK using the public key PK10 of the input device 10 confirmed in FIG. 8 (S202).
  • the management server 100 sends the encrypted data PK10 (CK) to the input device 10 (S203).
  • the input device 10 obtains the common key CK by decrypting the encrypted data PK10(CK) with its own private key SK10 (S204).
  • the above is a process when the input device 10 is the distribution destination device, but S202 to S204 are executed for each distribution destination device of the output value D2. As shown below, other distribution destination devices also execute the process of FIG. 9 in the same way.
  • the distribution destination device in S203 is the output destination server 201
  • the public key PK10 used to create the encrypted data in S202 is replaced with the public key PK201 of the output destination server 201 confirmed in FIG. 8.
  • the private key SK10 used to decrypt the encrypted data is replaced with the private key SK201 of the output destination server 201.
  • the public key PK10 used to create the encrypted data in S202 is replaced with the public key PK202 of the output destination server 202 confirmed in FIG. 8.
  • the private key SK10 used to decrypt the encrypted data is replaced with the private key SK202 of the output destination server 202.
  • FIG. 10 is a sequence diagram showing the distribution process of the output value D2.
  • the management server 100 acquires the output value D2, its signature s300 (D2), and its verification public key PKs from the offload destination FPGA 300 (S301). Therefore, the FPGA 300 is prepared in advance with a private key SKs for generating the signature s300 (D2) and a public key PKs for verifying it.
  • the management server 100 creates encrypted data CK(D2
  • the management server 100 sends the encrypted data CK(D2
  • the input device 10 decrypts and obtains data D2
  • the input device 10 decrypts the signature s300(D2) with the public key PKs and verifies whether it is valid as the signature of the output value D2 (S305). If the signature verification in S305 is successful, it can be confirmed that the data has not been tampered with.
  • the above is a process when the input device 10 is the distribution destination device, but S303 and S304 are executed for each distribution destination device (output destination server 201, output destination server 202) of the output value D2.
  • FIG. 16 is a hardware configuration diagram of each device of the calculation result protection system 1.
  • Each device of the calculation result protection system 1 includes a CPU 901, RAM 902, ROM 903, HDD 904, communication I/F 905, input/output I/F 906, media I/F 907, and TPM (Trusted Platform Module) 908. It is configured as a computer 900 having a computer 900.
  • Communication I/F 905 is connected to external communication device 915.
  • the input/output I/F 906 is connected to the input/output device 916.
  • the media I/F 907 reads and writes data from the recording medium 917.
  • the CPU 901 controls each unit by executing a program (also called an application or an abbreviated application) read into the RAM 902 . This program can also be distributed via a communication line or recorded on a recording medium 917 such as a CD-ROM.
  • TPM 908 is used, such as to form a protected area within RAM 902.
  • the management server 100 of the present invention generates a common key CK that is shared by multiple distribution destination devices (such as the input device 10), Encrypted data PK10 (CK) is generated for each distribution destination device by encrypting the common key CK using the public key PK that is paired with the private key SK that each distribution destination device has individually, and the generated encrypted data a common key distribution unit 113 that causes each distribution destination device to decrypt the common key CK by distributing PK10(CK) to each distribution destination device; It has a data output unit 114 that causes each distribution destination device to decrypt the output value D2 by distributing encrypted data CK(D2) in which the output value D2 is encrypted using the common key CK to each distribution destination device. It is characterized by
  • the management server 100 since the same common key CK is used when sending data to multiple distribution destination devices, the management server 100 does not need to generate and hold multiple common keys CK. Therefore, the cost of managing security resources can be reduced by integrated management of the common key CK. Furthermore, the processing load on the FPGA 300 that calculates the output value D2 can be reduced. In addition, the encryption and decryption processes using the common key CK require less load than the encryption and decryption processes using the private key SK and public key PK. Decryption processing can be executed with low load. Therefore, the burden of transmitting the same calculation result to multiple destinations using a reliable method can be reduced.
  • the management server 100 has a protection area 110 that protects stored data from unauthorized data access, It is characterized in that data used for processing by the common key distribution unit 113 and data used for processing by the data output unit 114 are stored within the protected area 110.
  • encryption keys such as the common key CK are safely stored in the protected area 110 within the management server 100.
  • the present invention is a calculation result protection system 1 having the above-mentioned management server 100 and a distribution destination device, At least some of the distribution destination devices have a protection area 10p that protects stored data from unauthorized data access,
  • the management server 100 further includes a signature verification unit 111 that verifies each distribution destination device within the protected area 110, The signature verification unit 111 verifies whether the distribution destination device has the protected area 10p by referring to the device information of the distribution destination device, determines that the distribution destination device having the protected area 10p passes the verification, and distributes the passed distribution. It is characterized by distributing generated encrypted data PK10 (CK) to the destination device.
  • CK generated encrypted data
  • the calculation result protection system 1 further includes an FPGA 300 that calculates the output value D2, The FPGA 300 sends the calculated output value D2 and its own signature to the management server 100, The data output unit 114 distributes the encrypted data CK(D2) and the signature of the FPGA 300 to each distribution destination device, The distribution destination device verifies the output value D2 obtained by decrypting the encrypted data CK(D2) and the signature of the FPGA 300 within the protected area 10p.
  • Calculation result protection system 10 Input device (distribution destination device) 10p protected area (second protected area) 100 Management server (calculation result distribution device) 110 Protected area (first protected area) 111 Signature verification section (verification section) 112 Signature adding unit 113 Common key distribution unit 114 Data output unit 201 Output destination server (distribution destination device) 201p protected area (second protected area) 202 Output destination server (distribution destination device) 202p protected area (second protected area) 300 FPGA (offload destination device) 301 Signature verification section 302 Signature adding section

Landscapes

  • Engineering & Computer Science (AREA)
  • Computer Security & Cryptography (AREA)
  • Computer Networks & Wireless Communication (AREA)
  • Signal Processing (AREA)
  • Storage Device Security (AREA)
PCT/JP2022/019759 2022-05-10 2022-05-10 計算結果配布装置、計算結果保護システム、および、計算結果配布方法 Ceased WO2023218514A1 (ja)

Priority Applications (3)

Application Number Priority Date Filing Date Title
PCT/JP2022/019759 WO2023218514A1 (ja) 2022-05-10 2022-05-10 計算結果配布装置、計算結果保護システム、および、計算結果配布方法
JP2024520109A JP7794303B2 (ja) 2022-05-10 2022-05-10 計算結果保護システム、および、計算結果配布方法
US18/861,955 US20250293861A1 (en) 2022-05-10 2022-05-10 Calculation result distribution device, calculation result protection system, and calculation result distribution method

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
PCT/JP2022/019759 WO2023218514A1 (ja) 2022-05-10 2022-05-10 計算結果配布装置、計算結果保護システム、および、計算結果配布方法

Publications (1)

Publication Number Publication Date
WO2023218514A1 true WO2023218514A1 (ja) 2023-11-16

Family

ID=88729944

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2022/019759 Ceased WO2023218514A1 (ja) 2022-05-10 2022-05-10 計算結果配布装置、計算結果保護システム、および、計算結果配布方法

Country Status (3)

Country Link
US (1) US20250293861A1 (https=)
JP (1) JP7794303B2 (https=)
WO (1) WO2023218514A1 (https=)

Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20180255023A1 (en) * 2017-03-02 2018-09-06 UnifyID Privacy-preserving system for machine-learning training data
JP2020177223A (ja) * 2019-04-15 2020-10-29 株式会社アクセル 演算装置、演算システム、及び演算方法
WO2021166787A1 (ja) * 2020-02-20 2021-08-26 Ｅａｇｌｙｓ株式会社 情報処理システム、情報処理装置、情報処理方法、および、情報処理プログラム

Family Cites Families (8)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US6041408A (en) * 1996-06-28 2000-03-21 Hitachi, Ltd. Key distribution method and system in secure broadcast communication
US6813357B1 (en) * 1998-12-25 2004-11-02 Matsushita Communication Industrial Co., Ltd. Exclusive key sharing method
US8104073B2 (en) * 2007-08-10 2012-01-24 Juniper Networks, Inc. Exchange of network access control information using tightly-constrained network access control protocols
JP5776432B2 (ja) * 2011-08-11 2015-09-09 ソニー株式会社 情報処理装置、および情報処理方法、並びにプログラム
JP6277494B2 (ja) * 2015-07-29 2018-02-14 パナソニックＩｐマネジメント株式会社 アプリケーション制御システム及びアプリケーション制御方法
CN110495135B (zh) * 2017-04-14 2022-06-28 三菱电机株式会社 密钥管理系统、通信设备以及密钥共享方法
US10936460B2 (en) * 2018-06-19 2021-03-02 Dell Products, L.P. Method and apparatus for identifying and reporting faults at an information handling system
US11438162B2 (en) * 2020-03-19 2022-09-06 Arista Networks, Inc. Network device authentication

Patent Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20180255023A1 (en) * 2017-03-02 2018-09-06 UnifyID Privacy-preserving system for machine-learning training data
JP2020177223A (ja) * 2019-04-15 2020-10-29 株式会社アクセル 演算装置、演算システム、及び演算方法
WO2021166787A1 (ja) * 2020-02-20 2021-08-26 Ｅａｇｌｙｓ株式会社 情報処理システム、情報処理装置、情報処理方法、および、情報処理プログラム

Also Published As

Publication number Publication date
JP7794303B2 (ja) 2026-01-06
JPWO2023218514A1 (https=) 2023-11-16
US20250293861A1 (en) 2025-09-18

Similar Documents

Publication Publication Date Title
RU2756048C2 (ru) Адресация доверенной среды исполнения с использованием ключа шифрования
US10972265B2 (en) Addressing a trusted execution environment
US20220114249A1 (en) Systems and methods for secure and fast machine learning inference in a trusted execution environment
CN114616797B (zh) 处理对控制存储在多个服务器处的信息的请求
US11212095B2 (en) Allowing restricted external access to devices
JP2020528224A (ja) 信頼できる実行環境におけるスマート契約動作のセキュアな実行
WO2022142790A1 (zh) 区块链系统的链外数据访问方法和系统
KR20190108580A (ko) 서명키를 사용한 신뢰 실행 환경의 어드레싱 기법
US20160087995A1 (en) Procedure For Platform Enforced Storage in Infrastructure Clouds
CN113259123B (zh) 一种区块链数据写入、访问方法及装置
CN118337430B (zh) 针对多方交互数据实现可信传输与反向授权处理的系统、方法、装置、处理器及其存储介质
EP3574429A1 (en) Addressing a trusted execution environment using clean room provisioning
US20250211619A1 (en) Remote attestation transport layer security and split trust encryption
JP2022522555A (ja) セミトラステッドな中継者を使用したセキュアなメッセージ受け渡し
US11398906B2 (en) Confirming receipt of audit records for audited use of a cryptographic key
KR101311059B1 (ko) 취소 정보 관리
CN114826702B (zh) 数据库访问密码加密方法、装置和计算机设备
JP7794303B2 (ja) 計算結果保護システム、および、計算結果配布方法
US11405201B2 (en) Secure transfer of protected application storage keys with change of trusted computing base
JP6830635B1 (ja) データ管理方法
Satar et al. Data Privacy and Integrity Issues Scheme in Cloud Computing: A Survey
Chang et al. T-ABE: A practical ABE scheme to provide trustworthy key hosting on untrustworthy cloud
WO2025187037A1 (ja) データ共有装置およびデータ共有方法
CN119766542A (zh) 基于非对称加密的数据离线审核方法及装置
HK40029518B (zh) 在可信执行环境中安全地执行智能合约操作

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 22941596

Country of ref document: EP

Kind code of ref document: A1

WWE Wipo information: entry into national phase

Ref document number: 2024520109

Country of ref document: JP

WWE Wipo information: entry into national phase

Ref document number: 18861955

Country of ref document: US

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 22941596

Country of ref document: EP

Kind code of ref document: A1

WWP Wipo information: published in national office

Ref document number: 18861955

Country of ref document: US
