WO2023213712A1 - Organic light emitting diode and device comprising the same - Google Patents

Organic light emitting diode and device comprising the same Download PDF

Info

Publication number
WO2023213712A1
WO2023213712A1 PCT/EP2023/061263 EP2023061263W WO2023213712A1 WO 2023213712 A1 WO2023213712 A1 WO 2023213712A1 EP 2023061263 W EP2023061263 W EP 2023061263W WO 2023213712 A1 WO2023213712 A1 WO 2023213712A1
Authority
WO
WIPO (PCT)
Prior art keywords
alkyl
alkoxy
partially
electron transport
compound
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/EP2023/061263
Other languages
French (fr)
Inventor
Johannes Scholz
Jerome Ganier
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
NovaLED GmbH
Original Assignee
NovaLED GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by NovaLED GmbH filed Critical NovaLED GmbH
Priority to CN202380038132.0A priority Critical patent/CN119302062A/en
Priority to KR1020247036594A priority patent/KR20250018475A/en
Priority to US18/861,809 priority patent/US20250295029A1/en
Publication of WO2023213712A1 publication Critical patent/WO2023213712A1/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/649—Aromatic compounds comprising a hetero atom
    • H10K85/654—Aromatic compounds comprising a hetero atom comprising only nitrogen as heteroatom
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K50/00—Organic light-emitting devices
    • H10K50/10—OLEDs or polymer light-emitting diodes [PLED]
    • H10K50/19—Tandem OLEDs
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/615—Polycyclic condensed aromatic hydrocarbons, e.g. anthracene
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/615—Polycyclic condensed aromatic hydrocarbons, e.g. anthracene
    • H10K85/622—Polycyclic condensed aromatic hydrocarbons, e.g. anthracene containing four rings, e.g. pyrene
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/649—Aromatic compounds comprising a hetero atom
    • H10K85/657—Polycyclic condensed heteroaromatic hydrocarbons
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/649—Aromatic compounds comprising a hetero atom
    • H10K85/657—Polycyclic condensed heteroaromatic hydrocarbons
    • H10K85/6572—Polycyclic condensed heteroaromatic hydrocarbons comprising only nitrogen in the heteroaromatic polycondensed ring system, e.g. phenanthroline or carbazole
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K50/00—Organic light-emitting devices
    • H10K50/10—OLEDs or polymer light-emitting diodes [PLED]
    • H10K50/14—Carrier transporting layers
    • H10K50/16—Electron transporting layers
    • H10K50/166—Electron transporting layers comprising a multilayered structure

Definitions

  • the present invention relates to an organic light emitting diode and a device comprising the same.
  • OLEDs Organic light-emiting diodes
  • a typical OLED includes an anode, a hole transport layer (HTL), an emission layer (EML), an electron transport layer (ETL), and a cathode, which are sequentially stacked on a substrate.
  • HTL hole transport layer
  • EML emission layer
  • ETL electron transport layer
  • cathode cathode
  • the HTL, the EML, and the ETL are thin films formed from organic and / or organometallic compounds.
  • the object of the present invention to provide an organic light emitting diode overcoming drawbacks of the prior art, in particular a multi-emission-layer top emission OLED with improved performance, that with improved driving voltage.
  • an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack;
  • the first charge generation layer is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer;
  • the first electron transport layer comprises a compound of Formula (I)
  • - a and b are independently i or 2;
  • - c is independently o or 1;
  • Ar 1 is independently selected from Ce to C&o aryl or C 2 to C 42 heteroaryl,
  • each Ar 1 may be substituted with one or two substituents independently selected from the group consisting of Ce to C12 aryl, C 3 to C u heteroaryl, and Ci to Ct, alkyl, D, Ci to Ce alkoxy, C 3 to C& branched alkyl, C 3 to Ce cyclic alkyl, C 3 to C& branched alkoxy, C 3 to Ci cyclic alkoxy, partially or perfluorinated C x to Ce alkyl, partially or perfluorinated C t to Ce alkoxy, partially or perdeuterated Ci to C* alkyl, partially or perdeuterated Ci to Cs alkoxy, halogen, CN or PY(R 10 ) 2 , wherein Y is selected from O, S or Se, preferably 0 and R xo is independently selected from Ce to C xa aryl, C 3 to C x2 heteroaryl, Ci to C& alkyl, C x to C& alkoxy, partially or perflu
  • each C& to C l2 aryl substituent on Ar’ and each C 3 to C u heteroaryl substituent on Ar 1 may be substituted with Ci to C 4 alkyl or halogen;
  • - A is independently selected from C 6 to C 3O aryl
  • each A may be substituted with one or two substituents independently selected from the group consisting of Ci to C i2 aryl and C x to C& alkyl, D, C x to C& alkoxy, C 3 to Ge branched alkyl, C 3 to Cs cyclic alkyl, C 3 to C& branched alkoxy, C 3 to Ci cyclic alkoxy, partially or perfluorinated C, to Ce alkyl, partially or perfluorinated Ci to C& alkoxy, partially or perdeuterated C x to Cf, alkyl, partially or perdeuterated C t to C& alkoxy, halogen, CN or PY(R‘°) 2 , wherein Y is selected from O, S or Se, preferably O, and R 10 is independently selected from Ce to Ci 2 aryl, C 3 to Ci 2 heteroaryl, Ci to Cb alkyl, Ci to C& alkoxy, partially or perfluorinated Ci to C& alkyl,
  • each C& to C i2 aryl substituent on A may be substituted with Ci to C 4 alkyl or halogen;
  • - X is independently selected from the group consisting of C 2 to C 42 heteroaryl and Cf, to Cao aryl,
  • each X may be substituted with one or two substituents independently selected from the group consisting of C& to C 12 aryl, C 3 to Cu heteroaryl, and Ci to C& alkyl, D, Ci to C& alkoxy, C 3 to Ce branched alkyl, C 3 to Ci cyclic alkyl, C 3 to Ci branched alkoxy, C 3 to C& cyclic alkoxy, partially or perfluorinated Ci to Ca alkyl, partially or perfluorinated G to C& alkoxy, partially or perdeuterated C, to C& alkyl, partially or perdeuterated G to Ce alkoxy, halogen, CN or PY(R 1O ) 2 , wherein Y is selected from 0, S or Se, preferably 0, and R 10 is independently selected from C& to Ci 2 aryl, C 3 to Ci 2 heteroaryl, G to C& alkyl, G to Cs alkoxy, partially or perfluorinated G to Cs alkyl, partially or
  • each Cs to Ga aryl substituent on X and each C 3 to C u heteroaryl substituent on X may be substituted with G to C 4 alkyl or halogen;
  • the second electron transport layer comprises a compound of Formula (II)
  • - m and n are independently 1 or 2;
  • - k is independently o, 1 or 2;
  • Ar 2 is independently selected from the group consisting of G to C 42 heteroaryl and Cs to Cso aryl,
  • each Ar 2 may be substituted with one or two substituents independently selected from the group consisting of Cs to C 12 aryl, C 3 to Cn heteroaryl, and G to Ce alkyl, D, G to G alkoxy, C 3 to Cs branched alkyl, C 3 to Cs cyclic alkyl, C 3 to Cs branched alkoxy, C 3 to Cs cyclic alkoxy, partially or perfluorinated G to Cs alkyl, partially or perfluorinated G to C 6 alkoxy, partially or perdeuterated G to Cs alkyl, partially or perdeuterated G to Cs alkoxy, halogen, CN or PY(R 10 ) 2 , wherein Y is selected from O, S or Se, preferably O, and R 10 is independently selected from Cs to C12 aryl, C 3 to Ga heteroaryl, G to Cs alkyl, G to Cs alkoxy, partially or perfluorinated G to Cs alkyl
  • each Cs to Ga aryl substituent on Ar 2 and each C 3 to Cn heteroaryl substituent on Ar 2 may be substituted with C s to C 4 alkyl or halogen;
  • - Z is independently selected from Cs to C 3O aryl
  • each Z may be substituted with one or two substituents independently selected from the group consisting of Cs to Gz aryl and G to Cs alkyl, D, G to Cs alkoxy, C 3 to Cb branched alkyl, C 3 to Cs cyclic alkyl, C 3 to Cs branched alkoxy, C 3 to C 6 cyclic alkoxy, partially or perfluorinated G to Cs alkyl, partially or perfluorinated G to Cs alkoxy, partially or perdeuterated G to Cs alkyl, partially or perdeuterated G to Cs alkoxy, halogen, CN or PY(R I0 ) 2 , wherein Y is selected from 0, S or Se, preferably O, and R 10 is independently selected from Cs to C 12 aryl, C 3 to C i2 heteroaryl, G to Cs alkyl, Ci to Cs alkoxy, partially or perfluorinated Ci to Cs alkyl, partially or perfluor
  • each C& to C 12 aryl substituent on Z may be substituted with Ci to C 4 alkyl or halogen;
  • - G is chosen so that the dipole moment of a compound G-phenyl is > i D and ⁇ 7 D;
  • the first electron transport layer and the second electron transport layer are free of an electrical dopant
  • the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer;
  • the object is further achieved by a device comprising the inventive organic light emitting diode, wherein the device is a display device or a lighting device.
  • the light may be emitted through a transparent cathode.
  • the light may be emited through a transparent anode.
  • the first electron transport layer comprises a compound of Formula (I)
  • the first electron transport layer may consist of the compound of Formula (I).
  • the first electron transport layer may consist of a mixture of the compound of Formula (I) and one or more further compounds, provided that none of the further compounds is an electrical dopant.
  • the first electron transport layer may comprise more than one compound of Formula (I).
  • the first electron transport layer may consist of a mixture of the compound of Formula (I) and further compounds known in the art as electron transport matrix compounds. Exemplary further electron transport matrix compounds which may be contained are disclosed below.
  • the group “A” is spacer moiety connecting (if present, that is in case that c > 1) the group Ar 1 and X.
  • the groups may or may not independently comprise the spacer A.
  • a and b are independently 1 or 2. Alternatively, a and b may both be 1.
  • c is independently o or i.
  • Ar 1 is independently selected from Ce to C&o aryl or C 2 to C 42 heteroaryl, alternatively Ce to C54 aryl or C a to C 39 heteroaryl, alternatively Ce to C 4 s aryl or C 2 to C 3 e heteroaryl, alternatively C& to C42 aryl or C 2 to C 3 e heteroaryl, alternatively C& to C 3 6 aryl or C 2 to C 30 heteroaryl, alternatively Ce to C 3 o aryl or C 2 to C 24 heteroaryl.
  • Ar 1 may be independently Ce to C 54 aryl, optionally Ce to C 4 s aryl, optionally Ca to C 42 aryl, optionally Ce to C 3 e aryl, optionally Ce to C 30 aryl, and optionally Ce to C 24 aryl.
  • Ar 1 may be independently C 2 to C 42 hetroaryl, optionally C 2 to C 4O hetroaryl, optionally C 2 to C 3 e hetroaryl, optionally C 2 to C 3O hetroaryl, and optionally C 2 to C 24 hetroaryl.
  • Ar 1 is different from X.
  • Ar' may comprise a system of two or more anellated aromatic rings, preferably three or more anellated aromatic rings.
  • Ar 1 may comprise at least one sp3-hypridized carbon atom.
  • Ar 1 may comprise at least one carbon-carbon sp 2 alkene bond which is not integrated into an aromatic ring structure.
  • Ar 1 is independently selected from unsubstituted C2 to C42 heteroaryl
  • the heteroatoms are bound into the molecular structure of Ar 1 by single bonds.
  • Ar 1 maybe independently selected from the group consisting of phenyl, naphthyl, anthracenyl, fluoranthenyl, xanthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl, spiro-xanthenyl, fluorenyl, spiro-fluorenyl, triphenylsilyl, tetraphenylsilyl, or a group haring the formula (Ila) or (lib) wherein
  • R 1 to R 9 are independently selected from the group consisting of H, Ce to Ci 2 aryl and C 4 to C,o heterorayl.
  • both R 6 and R?; and/or both R 8 and R 9 may be phenyl.
  • Ar 1 is a group having the formula (lib)
  • Ar 1 maybe independently selected from the group consisting of fluoranthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl, 9,9-dimethylfluorenyl, a group having the formula (Ila), a group having the formula (lib), wherein the asterisk symbol “ *” represents the binding position for binding the group of formula (Ila) to A; and
  • R 1 is H and R 2 to Rs are independently phenyl; or
  • R‘ and R 3 are phenyl and R 2 , R ⁇ and Rs are H or
  • R 6 to R 9 are phenyl.
  • Ar 1 is a group having the formula (lib)
  • At least two of R 1 to Rs, which are not H may be in ortho-position to each other. At least one of R 1 to Rs which is not H may be in ortho-position to the ⁇ -position.
  • two groups are in ortho -position to each other if bound to adjacent carbon atoms of the benzene ring in Formula (Ila), respectively.
  • at least one of R 1 and Rs is phenyl; and/or R 1 and R 2 are both phenyl; and/or R 2 and R 3 are both phenyl; and/or R 3 and R « are both phenyl; and/or R « and R s are both phenyl.
  • Ar 1 may be selected independently from one of the following groups
  • each of the substituents maybe independently selected from the group consisting of phenyl, naphtyl, biphenyl, pyridyl, picolinyl, lutidinyl, dibenzofuranyl, dibenzothiophene-yl, and benzothiophene-yl.

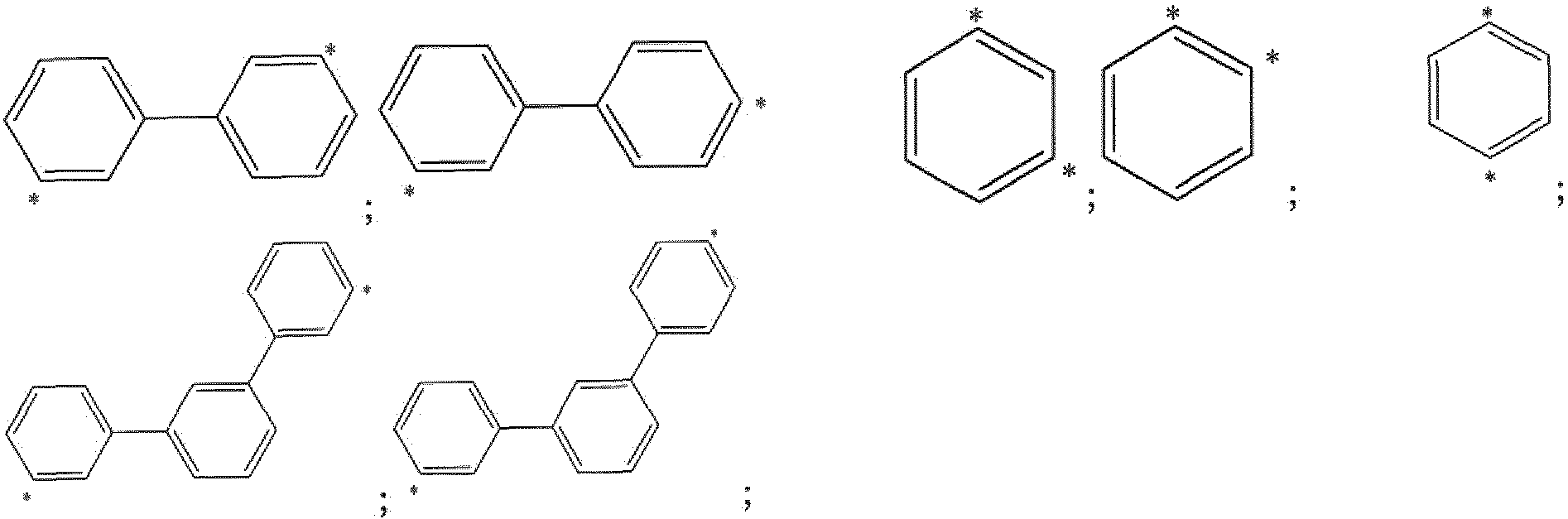

  • A may be selected independently from the group consisting of phenylene, naphthylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively.
  • A may be selected independently from one of the following groups or combinations thereof wherein the binding positions for binding to Ar 1 and X can be freely selected, preferably
  • each substituent on A may be independently selected from the group consisting of phenyl and Ci to C 4 alkyl.
  • X may be independently selected from the group consisting of C 2 to C 39 heteroaryl and Ce to €54 aryl, optionally C 2 to C 3 & heteroaryl and C& to C 4 s aryl, optionally C 3 to C 30 heteroaryl and Ce to C 42 aryl, optionally C 3 to C 27 heteroaryl and Ce to C 3 6 aryl, optionally C 3 to C 24 heteroaryl and Ce to C 3 o aryl, and optionally C 3 to C 2i heteroaryl and Ce to C 24 aryl, wherein the respective group may be substituted or unsubstituted.
  • X may be independently selected from the group consisting of C 2 to C 39 N-containing heteroaryl, C 2 to C 39 O-containing heteroaryl and Ce to C 54 aryl, optionally C 2 to C 3 e N- containing heteroaryl, C 2 to C 3 e O-containing heteroaryl and Ce to C 4 s aryl, optionally C 3 to C 3 o N-containing heteroaryl, C 3 to C 30 O-containing heteroaryl and Ce to C 42 aryl, optionally C 3 to C 27 N-containing heteroaryl, C 3 to C 27 O-containing heteroaryl and Ce to C 3 e aryl, optionally C 3 to C24 N-containing heteroaryl, C 3 to C 24 O-containing heteroaryl and Ce to C 3O aryl, and optionally C 3 to C21 N-containing heteroaiyl, C 3 to C 21 O-containing heteroaryl and Ce to C24 aryl.
  • X may be independently selected from the group consisting of C 2 to C 39 N-containing heteroaiyl and Ce to C54 aryl, optionally C a to C 3 e N-containing heteroaryl, and Ce to C 4 s aryl, optionally C 3 to C 30 N-containing heteroaryl and C& to C 42 aryl, optionally C 3 to C 27 N-containing heteroaryl and Ce to C 3 e aryl, optionally C 3 to C 24 N-containing heteroaryl and Ce to C 3O aryl, and optionally C 3 to C 2i N-containing heteroaryl and Ce to C 24 aryl.
  • a respective N-containing heteroaryl comprises one or more N-atoms as the only heteroatom(s).
  • X may be independently selected from the group consisting of triazinyl, 1,2-diazinyl, 1,3- diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyl, quinolinyl, benzoquinolinyl benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively.
  • X may be independently selected from the group consisting of triazinyl, 1,2-diazinyl, 1,3- diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively.
  • X may be independently selected from the group consisting of triazinyl, 1,2-diazinyl, 1,3- diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzoacridinyl, dibenzoacridinyl, fluoranthenyl which may be substituted or unsubstituted, respectively.
  • X may be selected independently from one of the following groups wherein the asterisk symbol represents the binding position for binding the group to A, respectively.
  • each substituent on X may be independently selected from the group consisting of phenyl, naphthyl and biphenyl-yl. In case that X is substituted, each substituent on X may be independently selected from the group consisting of phenyl and biphenyl-yl.
  • respective substituted X groups may be wherein the asterisk symbol represents the binding position for binding the group to A, respectively.
  • X (including the substituents) maybe selected independently from one of the following groups.
  • the compound of Formula (I) may comprise 6 to 14 aromatic or heteroaromatic rings, optionally 7 to 13 aromatic or heteroaromatic rings, optionally 7 to 12 aromatic or heteroaromatic rings, optionally 9 to 11 aromatic or heteroaromatic rings.
  • an aromatic, respectively heteroaromatic ring is a single aromatic ring, for example a 6- membered aromatic ring such as phenyl, a 6 -membered heteroaromatic ring, an example would be pyridyl, a 5-membered heteroaromatic ring an example would be pyrrolyl etc.
  • each ring is considered as a single ring in this regard.
  • naphthalene comprises two aromatic rings.
  • the molecular dipole moment computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, of the compound of formula (I) may be > o D and ⁇ 4 D; alternatively > o D and ⁇ 3.5 D; alternatively > o D and ⁇ 3.0 D; alternatively > o D and ⁇ 2.5 D; alternatively > 0 D and ⁇ 2.0 D.
  • the dipole moment is determined by a semi-empirical molecular orbital method.
  • the geometries of the molecular structures are optimized using the hybrid functional B3LYP with the 6-31G* basis set in the gas phase as implemented in the program package TURBOMOLE V6.5 (TURBOMOLE GmbH, Litzenhardtstrasse 19, 76135 Düsseldorf, Germany). If more than one conformation is viable, the conformation with the lowest total energy is selected to determine the bond lengths of the molecules.
  • the LUMO energy level of the compound of formula (I) in the absolute scale taking vacuum energy level as zero, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set is in the range from -1.90 eV to -1.60 eV, preferably from -1.87 eV to -1.65 eV, preferably from -1.85 eV to -1.65 eV.
  • the compound of Formula (I) may be selected from the compounds A-i to A ⁇ 4i of the following Table 1.
  • the LUMO energy level of the compound of formula (I) in the absolute scale talcing vacuum energy level as zero, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set is in the range from -1.90 eV to -1.45 eV, preferably from -1.89 eV to -1,47 eV.
  • the first electron transport layer may be arranged between the emission layer and the second electron transport layer.
  • the first electron transport layer may be arranged in direct contact with the emission layer.
  • the first electron transport layer may be arranged “contacting sandwiched” between the emission layer and the second electron transport layer.
  • the first electron transport layer may have a thickness of ⁇ 50 nm, optionally between 1 and 30 nm, optionally between 1 and lonm, optionally between 1 and 5 nm.
  • the second electron transport layer comprises a compound of Formula (II)
  • the second electron transport layer may consist of the compound of Formula (II).
  • the second electron transport layer may consist of a mixture of the compound of Formula (II) and one or more further compounds, provided that none of the further compounds is an electrical dopant.
  • the first electron transport layer may comprise more than one compound of Formula (II).
  • the second electron transport layer may consist of a mixture of the compound of Formula (II) and further compounds known in the art as electron transport matrix compounds. Exemplary further electron transport matrix compounds which may be contained are disclosed below.
  • the group “Z” is a spacer moiety connecting (if present, that is in case that k > i) the groups Ar 2 and G.
  • the compound of Formula (II) comprises more than one groups (Zk-G) the groups may or may not independently comprise the spacer Z.
  • n and n are independently i or 2. In Formula (II), m and n may be 1.
  • k is independently o, 1 or 2.
  • k may be independently 1 or 2.
  • Ar a may be independently selected from the group consisting of C 2 to C 39 heteroaryl and C& to C54 aryl, optionally C 2 to C 3 6 heteroaryl and C& to C 48 aryl, optionally C 3 to C 30 heteroaryl and C& to C42 aryl, optionally C 3 to C 27 heteroaryl and C& to C 3 6 aryl, optionally C 3 to C a4 heteroaryl and Cs to C 30 aryl, and optionally C 3 to C 2] heteroaryl and C(, to C 24 aryl.
  • Ar 2 may be independently selected from the group consisting of C 2 to C 39 N-containing heteroaryl and Ca to aryl, optionally C 2 to C 3 6 N-containing heteroaryl and C& to C 4 s aryl, optionally C 3 to C 30 N-containing heteroaryl and C& to C 42 aryl, optionally C 3 to C 27 N-containing heteroaryl and C& to C 38 aryl, optionally C 3 to C 24 N-containing heteroaryl and C& to C 30 aryl, and optionally C 3 to C 21 N-containing heteroaryl and C& to C 24 aryl.
  • a respective N-containing heteroaryl comprises one or more N-atoms as the only heteroatom(s).
  • Ar 2 may comprise at least two annelated 5- or 6-membered rings.
  • Ar 2 may be independently selected from the group consisting of pyridinyl, triazinyl, 1,2- diazinyl, 1,3-diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyl, quinolinyl, benzoquinolinyl benzoacridiny], dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively.
  • Ar 2 may be independently selected from the group consisting of 1,3-diazinyl, 1,4-diazinyl, anthracenyl, triazinyl, dibenzoacridinyl and phenanthrolinyl, which may be substituted or unsubstituted, respectively.
  • Ar 2 may be selected independently from one of the following groups wherein the asterisk symbol represents the binding position for binding the to Z, respectively.
  • each substituent on Ar 2 may be independently selected from the group consisting of phenyl, naphthyl, optionally P-naphthyl, pyridinyl and biphenyl-yl which may be substituted or unsubstituted, respectively.
  • each substituent on Ar 2 may be phenyl.
  • Ar 2 (including all substituents) may be selected from wherein the asterisk symbol represents the binding position for binding the to Z, respectively.
  • Z may be independently selected from Ce to C 3O aryl, alternatively Ce to C a4 aryl, alternatively Ce to Ct8 aryl, alternatively C& to C 12 aryl, which may be substituted or unsubstituted.
  • Z may be selected from the group consisting of phenylene, naphthylene, phenylenenaphthylene, phenylene-naphthylene-phenylene, phenylene-anthracenylene-phenylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively.
  • Z may be selected from the group consisting of phenylene, phenylene-naphthylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively.
  • Z may be selected independently from one of the following groups
  • binding positions for binding to Ar 2 and G can be freely selected.
  • Z may be selected independently from one of the following groups wherein the binding positions for binding to Ar 2 and G can be freely selected.
  • each substituent on Z may be independently selected from the group consisting of phenyl and Ci to C 4 alkyl.
  • G is chosen so that the dipole moment, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, of a compound G-phenyl is > 1 D and ⁇ 7 D.
  • the unit for the dipole moment “Debye” is abbreviated with the symbol “D”.
  • the inventors have found that it is advantageous if the compound of Formula (II) comprises a group haring a certain polarity, that is a specific dipole moment within the above range or the ranges mentioned below.
  • the compound of Formula (II) comprises such a polar group (first polar group) if the compound of Formula (II) comprises, in addition, a further polar group (second polar group) which is suitable to balance the dipole moment of the first polar group in a way that the total dipole moment of the compound of Formula (II) is low, for example, in case that the compound is a symmetrical molecule comprising a first polar group and a second polar group which are the same, the dipole moment could be o Debye. Therefore, the compound of Formula (II) cannot be characterized be referring to the total dipole moment of the compound.
  • of a compound containing N atoms is given by: where and r t are the partial charge and position of atom i in the molecule.
  • the dipole moment is determined by a semi-empirical molecular orbital method.
  • the geometries of the molecular structures are optimized using the hybrid functional B3LYP with the 6-31G* basis set in the gas phase as implemented in the program package TURBOMOLE V6.5 (TURBOMOLE GmbH, Litzenhardtstrasse 19, 76135 Düsseldorf, Germany). If more than one conformation is viable, the conformation with the lowest total energy is selected to determine the bond lengths of the molecules.
  • the entire moiety G encompasses all possible substituents which may be comprised.
  • G may be selected so that the dipole moment of a compound G-phenyl is > 1 D; optionally a 1.1 D; optionally > 1.14 D.. G maybe chosen so that the dipole moment of a compound G-phenyl is ⁇ 7 D, optionally, ⁇ 6.5 D, optionally ⁇ 6 D, optionally ⁇ 5.7 D, optionally ⁇ 5.63 D.
  • the dipole moment of a compound G-phenyl is > 1 D and ⁇ 6 D; optionally > 1.1 D and ⁇ 5.7 D.
  • Conformational isomerism is a form of stereoisomerism in which the isomers can be interconverted just by rotations about formally single bonds.
  • G may be selected from the group consisting of nitrile, benzonitrile, nicotinonitrile, amide, carbamide, and C 2 to C 42 heteroaryl; wherein G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of Ce to Cis aryl, C, to C i0 alkyl, C 2 to C X4 heteroaryl.
  • G may be selected from the group consisting of C 2 to C 39 heteroaryl, optionally C 2 to C 35 heteroaryl, optionally C 2 to C 32 heteroaryl, optionally C 2 to C a9 heteroaryl, optionally C 2 to C 25 heteroaryl; G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of Ct, to Ci 2 aryl, C, to Ce alkyl, C 2 to Cu heteroaryl.
  • G may be selected from the group consisting of C 2 to C 25 heteroaryl; wherein the respective G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of C& to C ro aryl, Ci to C 4 alkyl, C 2 to C 5 heteroaryl.
  • G may be selected from the group consisting of nitrile, benzonitrile, nicotinonitrile, amide-yl, carbamide-yl and C 2 to C ]7 heteroaryl; wherein the respective G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of phenyl, methyl, ethyl, and pyridyl.
  • G may be selected from the group consisting of phenanfhrolinyl, 2,2’-bipyridinyl, 9-phenyl- 1,10-phenanthrolinyl, 1,10-phenanthrolinyl, (pyridine-2-yl)imidazo[i,5-a]pyridinyl, 2- pyridin-2-yl-quinolinyl, terpyridinyl, nitrile, benzonitrile, nicotinonitrile, di-hydro- benzoimidazolone-yl, diphenyl-propane-yl, TV ⁇ V-dimethylacetamid, amide, carbamide, imidazolyl, phenylbenzoimidazolyl, ethylbenzoimidazolyl phenylbenzoquinolinyl, phenylbenzoimidazoquinolinyl, pyridinyl, bipyridinyl, picolinyl, lutideny
  • G may be selected from the group consisting of phenanthrolinyl, 2,2’-bipyridinyl, 9-phenyl- 1,10-phenanthrolinyl, 1,10-phenanthrolinyl, (pyridine-2-yl)imidazo[i,5-a]pyridinyI and 2- pyridin-2-yl-quinolinyl .
  • the compound of Formula (II) may comprise 6 to 12 aromatic or heteroaromatic rings, optionally 6 to 11 aromatic or heteroaromatic rings, optionally 7 to 10 aromatic or heteroaromatic rings, optionally 7 to 9 aromatic or heteroaromatic rings.
  • an aromatic, respectively heteroaromatic ring is a single aromatic ring, for example a 6- membered aromatic ring such as phenyl, a 6 -membered heteroaromatic ring, an example would be pyridyl, a 5-membered heteroaromatic ring an example would be pyrrolyl etc.
  • each ring is considered as a single ring in this regard.
  • naphthalene comprises two aromatic rings.
  • the compound of Formula (II) maybe selected from B-i to B-27 and/or the compounds shown in Table 3. Exemplary compounds of Formula (II) and properties thereof are summarized in Table 3.
  • the LUMO energy level of the compound of formula (II) in the absolute scale taking vacuum energy level as zero, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set is in the range from - 2.30 eV to -1.20 eV, preferably from -2.00 eV to -1.55 eV, preferably from -1.96 eV to -1.61 eV.
  • the compound of formula (II) comprises one polar group “G”.
  • the second electron transport layer may further comprise a compound (III), wherein the compound (III) comprises 8 to 13 aromatic or heteroaromatic rings, optionally 8 to 11 aromatic or heteroaromatic rings, optionally 9 to 11 aromatic or heteroaromatic rings, and optionally 9 aromatic or heteroaromatic rings, wherein one or more of the aromatic or heteroaromatic rings maybe substituted with Ci to C 4 alkyl.
  • an aromatic, respectively heteroaromatic ring is a single aromatic ring, for example a 6-membered aromatic ring such as phenyl, a 6- membered heteroaromatic ring such as pyridyl, a 5-membered heteroaromatic ring such as pyrrolyl etc.
  • each ring is considered as a single ring in this regard.
  • naphthalene comprises two aromatic rings.
  • the compound (III) may comprise at least one heteroaromatic ring, optionally 1 to 5 heteroaromatic rings, optionally 1 to 4 heteroaromatic rings, optionally 1 to 3 heteroaromatic rings, and optionally 1 or 2 heteroaromatic rings.
  • the aromatic or heteroaromatic rings of the compound (III) may be 6-membered rings.
  • the heteroaromatic rings of the compound (III) may be a N-containing heteroaromatic ring, optionally all of the heteroaromatic rings are N-containing heteroaromatic rings, optionally all of the heteroaromatic rings heteroaromatic rings contain N as the only type of heteroatom.
  • the compound (III) may comprises at least one 6-membered heteroaromatic ring containing one to three N-atoms in each heteroaromatic ring, optionally one to three 6-membered heteroaromatic rings containing one to three N-atoms in each heteroaromatic ring, respectively.
  • the at least one 6-membered heteroaromatic ring comprised in the compound (III) may be an azine.
  • the at least one 6-membered heteroaromatic ring comprised in the compound (III) may be triazine, diazine, pyrazine.
  • the heteroaromatic rings may be separated from each other by at least on aromatic ring which is free of a heteroatom.
  • heteroatoms in the heteroaromatic rings of compound (III) are bound into the molecular structure of compound (III) by at least one double bond.
  • the molecular dipole moment, computed by the TURBO MOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, of the compound (III) may be > o D and ⁇ 4 D; alternatively > 0.1 D and ⁇ 3.9 D; alternatively > 0.2 D and ⁇ , 3.7 D; alternatively > 0.3 D and ⁇ 3.5 D.
  • the compound (III) is not a compound of formula (II).
  • the compound of Formula (III) may be selected from the compounds C-i to C-6 of the following Table 4.
  • the weight ratio of Formula (II) to compound (III) may be 1:99 to 99:1, alternatively 10:90 to 60:40, alternatively 20:80 to 50:50, alternatively 25:75 to 40:60, alternatively about 30:70.
  • the LUMO energy level of the compound (III) in the absolute scale taking vacuum energy level as zero, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set is in the range from -2.00 eV to -1.70 eV, preferably from -1.95 eV to -1.80 eV.
  • the compound (III) comprises one nitrogen-containing six-membered ring.
  • the compound (III) comprises two nitrogen-containing six-membered rings.
  • the compound of formula (I) is not a compound of formula (II). In a further embodiment the compound of formula (II) is not a compound (III). In another embodiment the compound of formula (I) is not a compound (III). In a further embodiment of the invention all three compounds, namely the compound of formula (I), the compound of formula (II) and compound (III), are different from each other in that they have different molecular structure formulas.
  • the second electron transport layer may be arranged between the first electron transport layer and the electron injection layer.
  • the second electron transport layer may be arranged in direct contact with the first electron transport layer.
  • the second electron transport layer may be arranged in direct contact with the electron injection layer.
  • the second electron transport layer may be arranged in direct contact with the cathode.
  • the second electron transport layer may be arranged “contacting sandwiched” between the first electron transport layer and the electron injection layer.
  • the second electron transport layer may be arranged between the first electron transport layer and the charge generation layer.
  • the second electron transport layer may be arranged in direct contact with the charge generation layer.
  • the second electron transport layer may be arranged in direct contact with the n-type CGL.
  • the second electron transport layer may be arranged “contacting sandwiched” between the first electron transport layer and the n-type CGL.
  • the second electron transport layer may have a thickness of ⁇ too nm, optionally between 10 and 90 nm, optionally between 10 and 6onm, optionally between 10 and 50 nm.
  • the first charge generation layer is arranged between the first emission layer and the second emission layer.
  • the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer. That is, a specific compound of formula (II) is chosen for use in first charge generation layer and then exactly the same specific compound of formula (II) is also used as compound of formula (II) in the second electron transport layer.
  • “the same compound” refers in this regard to a compound having the same chemical formula including being the same isomer.
  • the second electron transport layer may be in direct contact with the first charge generation layer.
  • the charge generation layer may comprise a p-type sublayer and a n-type sublayer and the second electron transport layer may be in direct contact with the n-type sublayer.
  • An interlayer may be arranged between the p-type layer and the n-type layer. The interlayer maybe in direct contact with the p-type layer or the n-type layer. The interlayer may be in direct contact with the p-type layer and the n-type layer.
  • the first electron transport layer stack may be arranged between the first emission layer and the first charge generation layer.
  • the first charge generation layer comprises a metal, alternatively an alkali metal, a metal salt alternatively an alkaline earth metal salt and/or rare earth metal salt, or an organic alkali metal complex, alternatively an alkali metal complex, alternatively LiF, LiCl, LiBr, Lil, LiQ, a metal borate, or mixtures thereof.
  • the metal cation of the metal salt may be selected from the group consisting of alkali metals, alkaline earth metals, and rare eart h metals, alternatively from the group consisting of Li, Na, K, Rb, Cs, Mg, Ca, Sr, and Ba; alternatively from Li, Mg, Ca, and Sr.
  • the anion of the metal salt may be selected from the group consisting of quinolinolate, phosphine oxide phenolate and borate.
  • Respective compounds are, for example, disclosed in EP1837926A1, WO07107306A1 or W007107356A1.
  • the first charge generation layer may have a thickness in the range from 5 to 20 nm, especially from 10 to 20 nm, such as about 15 nm.
  • the organic light emitting diode according to the invention comprises at least two emission layers, namely the first emission layer and the second emission layer.
  • the organic lightemitting diode may, in addition, comprise further emission layers (third emission layer, fourth emission layer etc.).
  • the organic light-emitting diode comprises more than two emission layers, only one electron transport layer stack may be provided only between two of the emission layers. Alternatively, more than one electron transport layer stack may present.
  • a first electron transport layer stack may be arranged between the first emission layer and the second emission layer and a second electron transport layer stack may be arranged between the second emission layer and the third emission layer.
  • the organic light-emitting diode comprises more than two emission layers more than one charge generation layers may present.
  • a first charge generation layer may be arranged between the first emission layer and the second emission layer and a second charge generation layer may be arranged between the second emission layer and the third emission layer.
  • the organic light-emitting diode comprises more than two emission layers more than one charge generation layers may present.
  • a first charge generation layer may be arranged between the first emission layer and the second emission layer and a second charge generation layer may be arranged between the second emission layer and the third emission layer.
  • a layer stack is an arrangement of two or more distinct layers.
  • the layers of the layer stack may be distinguished from each other be the chemical nature of the materials comprised in the respective layers, that is, may be made of different compounds.
  • An electron transport layer stack in terms of the present disclosure comprises at least two different layers made of electron transport materials, respectively.
  • the compound of Formula (I) and/or the compound of Formula (II) and/or the Compound (III) may be different from each other. That is, that the compounds of Formula (I) and/or the compound of Formula (II) and/or the Compound (III) may differ from each other with respect to at least one structural aspect from each other, in particular may differ from each other by at least one atom and/or group.
  • the first electron transport layer and the second electron transport layer are free of an electrical dopant.
  • “free of’ means that respective compounds (electrical dopants) are only contained in the respective layers which cannot be avoided by standard purification methods and common technical means during preparation of the respective layer.
  • electrical dopants are in particular, but not limited thereto, electrical n- dopants.
  • the electrical n-dopant may be selected from a metal, alternatively an alkali metal, a metal salt alternatively an alkaline earth metal salt and/or rare earth metal salt, or an organic alkali metal complex, alternatively an alkali metal complex, alternatively LiF, LiCl, LiBr, Lil, LiQ, a metal borate, or mixtures thereof.
  • the first electron transport layer and the second electron transport layer may be free of an electrical n-dopant.
  • the electrical n-dopant may be a metal salt comprising at least one metal cation and at least one anion.
  • the metal cation of the metal salt may be selected from the group consisting of alkali metals, alkaline earth metals, and rare earth metals, alternatively from the group consisting of Li, Na, K, Rb, Cs, Mg, Ca, Sr, and Ba; alternatively from Li, Mg, Ca, and Sr.
  • the anion of the metal salt may be selected from the group consisting of quinolinolate, phosphine oxide phenolate and borate.
  • electrical n-dopants are in particular, but not limited thereto, an elemental metal, alternatively an electropositive metal selected from alkali metals, alkaline earth metals, rare earth metals and transition metals, transition metals; a metal salt, alternatively an alkali metal salt, alkaline earth metal salt and/or rare earth metal salt, or a metal complex, alternatively an alkali metal complex, alkaline earth metal complex, transition metal complex and/or rare earth metal complex.
  • n-doping metal salts can be LiF, LiCl, LiBr, Lil, metal borates, metal quinolinolates or mixtures thereof.
  • Further examples of electrical n- dopants are strong chemical reducing agents.
  • This class of "redox" n-dopants may be generically characterized by energy level of the highest occupied molecular orbital (HOMO) comparable with lowest unoccupied molecular orbital Energy Level of corresponding electron transport matrices, which is in usual OLED transport materials about -3.0 eV or less. It is to be understood that the term "about -3.0 eV or less” means less negative values than -3.0 eV, for example -2.8 eV, -2.5 eV, -2.3 eV, -2.1 eV or vales less negative than -2.0 eV.
  • Electrical n-dopants may be organic compounds as disclosed in EP1837926A1, WO07107306A1 or W007107356A1.
  • the electrical dopant is essentially non-emissive.
  • the first electron transport layer stack may be arranged between the first emission layer and the first charge generation layer.
  • the first electron transport layer and the second electron transport layer may be in direct contact with each other.
  • the electron transport layer stack may consist of the first electron transport layer and the second electron transport layer.
  • the second electron transport layer may be in direct contact with the electron injection layer.
  • the electron injection layer may consist of a number of individual electron injection sublayers.
  • the electron injection layer may comprise a metal, alternatively an alkali metal, a metal salt alternatively an alkaline earth metal salt and/or rare earth metal salt, or an organic alkali metal complex, alternatively an alkali metal complex, alternatively LiF, LiCl, LiBr, Lil, LiQ, a metal borate, or mixtures thereof.
  • the electron injection layer may consist of a metal, alternatively an alkali metal, a metal salt alternatively an alkaline earth metal salt and/or rare earth metal salt, or an organic alkali metal complex, alternatively an alkali metal complex, alternatively LiF, LiCl, LiBr, Lil, LiQ, a metal borate, or mixtures thereof.
  • the compound of Formula (II) is not comprised in the electron injection layer. It may be provided that the compound of Formula (I) is not comprised in the electron injection layer. It may be provided that compound (III) is not comprised in the electron injection layer.
  • the compound of Formula (I), the compound of Formula (II) and the compound (III) may be different from each other and/or may not be comprised in the electron injection layer, respectively.
  • the first electron transport layer stack may be arranged between the first emission layer and the first charge generation layer.
  • the second electron transport layer of the first electron transport layer stack may be in direct contact with the first charge generation layer.
  • the first electron transport layer and the second electron transport layer may be in direct contact with each other.
  • the electron transport layer stack may consist of the first electron transport layer and the second electron transport layer.
  • the organic light emitting diode may further comprise an electron injection layer and a second electron layer stack and the second electron layer stack is in direct contact with the electron injection layer.
  • the second electron transport layer stack may contain the same compounds (I), (II), and (III) as the first layer stack, that is, as defined in the present disclosure, wherein the respective compounds may be selected independently.
  • the compound of Formula (II) is not comprised in the first charge generation layer. It may be provided that the compound of Formula (I) is not comprised in the first charge generation layer. It may be provided that compound (III) is not comprised in the first charge generation layer.
  • the compound of Formula (I), the compound of Formula (II) and the compound (III) maybe different from each other and/or may not be comprised in the first charge generation layer, respectively.
  • the organic light emitting device comprises more than one electron transport layer stack (that is, other electron transport layer stacks besides the first electron transport layer stack) all of the above features regarding the first electron transport layer stack may independently apply for each of the electron transport layer stacks.
  • the organic light emitting device comprises more than one charge generation layers (that is, other charge generation layers besides the first charge generation layer) all of the above features regarding the first charge generation layer may independently apply for each of the charge generation layers.
  • the organic light emitting diode may further comprise a substrate, wherein the substrate may be transparent or non-transparent.
  • an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack;
  • the first charge generation layer is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer
  • the first electron transport layer comprises a compound of Formula (I)
  • - a and b are independently i or 2;
  • - c is independently o or 1;
  • - Ar 1 is independently selected from C& to C 30 aryl or C 2 to C 24 heteroaryl,
  • each Ar 1 may be substituted with one or two substituents independently selected from the group consisting of Ce to G a aryl, C 3 to Cn heteroaryl, and G to Ce alkyl, D, G to C 6 alkoxy, C 3 to Ce branched alkyl, C 3 to Ce cyclic alkyl, C 3 to Ce branched alkoxy, C 3 to Cf> cyclic alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated Ci to C& alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated G to G, alkoxy, halogen, CN or PY(R 10 ) 2 , wherein Y is selected from 0, S or Se, preferably 0 and R 10 is independently selected from Ce to C I2 aryl, C 3 to C K heteroaryl, G to Ce alkyl, G to Ce alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluor
  • each Ce to G 2 aiyl substituent on Art and each C 3 to Cn heteroaiyl substituent on Ar’ may be substituted with G to C 4 alkyl or halogen;
  • - A is independently selected from Ce to Gs aryl
  • each A may be substituted with one or two substituents independently selected from the group consisting of Ce to C i2 aryl and G to Ce alkyl, D, G to Ce alkoxy, C 3 to Ce branched alkyl, C 3 to Ce cyclic alkyl, C 3 to Ce branched alkoxy, C 3 to Ce cyclic alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated G to Ce alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated G to C& alkoxy, halogen, CN or PY(R l0 ) 2 , wherein Y is selected from 0, S or Se, preferably O, and R 10 is independently selected from Ce to C 12 aryl, C 3 to Ga heteroaryl, G to C 6 alkyl, G to Ce alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated G to Ce alkoxy, partially or perde
  • - X is independently selected from the group consisting of C 3 to C 2] heteroaryl and Ce to C 24 aryl,
  • each X may be substituted with one or two substituents independently selected from the group consisting of Ce to C J2 aryl, C 3 to C n heteroaryl, and C x to Ce alkyl, D, C x to Ce alkoxy, C 3 to Ce branched alkyl, C 3 to Ce cyclic alkyl, C 3 to Ce branched alkoxy, C 3 to Ce cyclic alkoxy, partially or perfluorinated Ci to Ce alkyl, partially or perfluorinated Ci to Ce alkoxy, partially or perdeuterated Ci to Ce alkyl, partially or perdeuterated Ci to Ce alkoxy, halogen, CN or PY(R I0 ) 2 , wherein Y is selected from O, S or Se, preferably O, and R 10 is independently selected from Ce to C 12 aryl, C 3 to Ci 2 heteroaryl, Ci to Ce alkyl, G to Ce alkoxy, partially or perfluorinated C, to Ce alkyd, partially or perfluorin
  • each Ce to C X2 aryl substituent on X and each C 3 to C n heteroaryl substituent on X may be substituted with C x to C 4 alkyl or halogen;
  • the second electron transport layer comprises a compound of Formula (II)
  • - m and n are independently 1 or 2;
  • - k is independently o, 1 or 2;
  • Ar 2 is independently selected from the group consisting of C 3 to C 30 heteroaryl and Ce to C 42 aryl,
  • each Ar 2 may be substituted with one or two substituents independently selected from the group consisting of Ce to C i2 aryl, C 3 to Cu heteroaryl, and G to Ce alkyl, D, Ci to Ce alkoxy, C 3 to Ce branched alkyl, C 3 to Ce cyclic alkyl, C 3 to Ce branched alkoxy, C 3 to Ce cyclic alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated Ci to Ce alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated C 2 to Ce alkoxy, halogen, CN or PY(R’°) 2 , wherein Y is selected from 0, S or Se, preferably 0, and R 10 is independently selected from Ce to G 2 aryl, C 3 to C I2 heteroaryl, G to C& alkyl, Ci to Ce alkoxy, partially or perfluorinated Ci to Ce alkyl, partially or perfluorinated Ci to
  • each Ce to C i2 aryl substituent on Ar 2 and each C 3 to C Pain heteroaryl substituent on Ar 2 may be substituted with G to C 4 alkyl or halogen;
  • each Z may be substituted rath one or two substituents independently selected from the group consisting of Ce to C i2 aryl and Ci to Ce alkyl, D, Ci to Ce alkoxy, C 3 to Ce branched alkyl, C 3 to Ce cyclic alkyl, C 3 to C 6 branched alkoxy, C 3 to Cs cyclic alkoxy, partially or perfluorinated Ci to C& alkyl, partially or perfluorinated Ci to C 6 alkoxy, partially or perdeuterated Ci to Ce alkyl, partially or perdeuterated Ci to Ce alkoxy, halogen, CN or PY(R 10 ) a , wherein Y is selected from O, S or Se, preferably O, and R 10 is independently selected from C& to Ci 2 aryl, C 3 to C 12 heteroaryl, C x to C& alkyl, Ci to C& alkoxy, partially or perflu
  • each Ce to C, 2 aryl substituent on Z may be substituted with Ci to C 4 alkyl or halogen;
  • - G is chosen so that the dipole moment of a compound G-phenyl is > 2 D and ⁇ 6 D;
  • the first electron transport layer and the second electron transport layer are free of an electrical dopant
  • the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer;
  • an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack;
  • the first charge generation layer is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer
  • the first electron transport layer comprises a compound of Formula (I)
  • - a and b are independently i or 2;
  • - c is independently o or i;
  • Ar 1 is independently selected from the group consisting of phenyl, naphthyl, anthracenyl, fluoranthenyl, xanthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl, spiro-xanthenyl, fluorenyl, spiro-fluorenyl, triphenylsilyl, tetraphenylsilyl, or a group having the formula (Ila) or (lib) wherein
  • R 1 to R 9 are independently selected from the group consisting of H, Ce to C 12 aryl and C 4 to C 1O heterorayl
  • -A is selected independently from the group consisting of phenylene, naphthylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively
  • - X is independently selected from the group consisting of C a to C 39 N-containing heteroaryl and Ce to aryl, optionally C 2 to C 3 & N-containing heteroaiyl, and C& to C 4 g aryl, optionally C 3 to C 3O N-containing heteroaryl and Ce to C 42 aryl, optionally C 3 to C 27 N-containing heteroaryl and C& to C 36 aryl, optionally C 3 to C 24 N-containing heteroaryl and Ce to C 3O aryl, and optionally C 3 to C21 N-containing heteroaryl and C& to C 24 aryl.
  • a respective N-containing heteroaryl comprises one or more N-atoms as the only heteroatom(s);
  • the second electron transport layer comprises a compound of Formula (II)
  • - m and n are independently 1 or 2;
  • - k is independently o, 1 or 2;
  • Ar z is independently selected from the group consisting of C 2 to C 39 N-containing heteroaryl and Ce to aryl, optionally C 2 to C 3 a N-containing heteroaryl and C& to C 4 s aryl, optionally C 3 to C30 N-containing heteroaryl and Ce to C 42 aryl, optionally C 3 to C 27 N-containing heteroaryl and C& to C 3 6 aryl, optionally C 3 to C 24 N-containing heteroaryl and Ce to C 30 aryl, and optionally C 3 to C21 N-containing heteroaiyl and Ce to C 24 aryl.
  • a respective N-containing heteroaryl comprises one or more N-atoms as the only heteroatom(s);
  • - Z is independently selected from Ce to C 30 aryl, alternatively C& to C 24 aryl, alternatively Ct, to Cis aryl, alternatively C& to C J2 aryl, which maybe substituted or unsubstituted;
  • - G is selected from the group consisting of nitrile, benzonitrile, nicotinonitrile, amide-yl, carbamide-yl and C 2 to Ci 7 heteroaryl, wherein the respective G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of phenyl, methyl, ethyl, and pyridyl;
  • the first electron transport layer and the second electron transport layer are free of an electrical dopant
  • the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer;
  • an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack;
  • the first charge generation layer is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer
  • the first electron transport layer comprises a compound of Formula (I)
  • - a and b are independently i or 2;
  • - c is independently o or 1;
  • Ar 1 is independently selected from the group consisting of fluoranthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl, 9, 9 -dimethylfluorenyl, a group having the formula (Ila), a group haring the formula (lib), wherein the asterisk symbol “*” represents the binding position for binding the group of formula (Ila) to A; and
  • R ! is H and R 2 to Rs are independently phenyl; or
  • R 1 and R 3 are phenyl and R 2 , R « and Rs are H or
  • R 6 to R9 are phenyl
  • - A is selected independently from the group consisting of phenylene, naphthylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively;
  • - X is independently selected from the group consisting of triazinyl, 1,2-diazinyl, 1,3-diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyl, quinolinyl, benzoquinolinyl benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively;
  • the second electron transport layer comprises a compound of Formula (II)
  • Ar 2 is independently selected from the group consisting of pyridinyl, triazinyl, 1,2-diazinyl, 1,3-diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyl, quinolinyl, benzoquinolinyl benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively;
  • - Z is selected from the group consisting of phenylene, phenylene-naphthylene, and biphenylene, which may be substituted or unsubstituted, respectively;
  • - G is selected from the group consisting of 2,2’-bipyridinyl, 9 ⁇ phenyl-i,io-phenanthrolinyl, 1,10 -phenanthrolinyl, and (pyridine-2-yl)imidazo[i,5-a]pyridinyl;
  • the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer;
  • an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack;
  • the first charge generation layer is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
  • the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer
  • the first electron transport layer comprises a compound selected from the compounds A-i to A-41;
  • the second electron transport layer comprises a compound selected from the compounds B-i to B-27;
  • the first electron transport layer and the second electron transport layer are free of an electrical dopant
  • the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer;
  • the organic electronic device may comprise, besides the layers already mentioned above, further layers. Exemplary embodiments of respective layers are described in the following:
  • the substrate may be any substrate that is commonly used in manufacturing of, electronic devices, such as organic light-emitting diodes. If light is to be emitted through the substrate, the substrate shall be a transparent or semitransparent material, for example a glass substrate or a transparent plastic substrate. If light is to be emitted through the top surface, the substrate may be both a transparent as well as a non-transparent material, for example a glass substrate, a plastic substrate, a metal substrate or a silicon substrate.
  • Either a first electrode or a second electrode comprised in the inventive organic electronic device may be an anode electrode.
  • the anode electrode may be formed by depositing or sputtering a material that is used to form the anode electrode.
  • the material used to form the anode electrode may be a high work-function material, so as to facilitate hole injection.
  • the anode material may also be selected from a low work function material (i.e. aluminum).
  • the anode electrode may be a transparent or reflective electrode.
  • Transparent conductive oxides such as indium tin oxide (ITO), indium zinc oxide (IZO), tin-dioxide (Sn02), aluminum zinc oxide (AIZO) and zinc oxide (ZnO) may be used to form the anode electrode.
  • the anode electrode may also be formed using metals, typically silver (Ag), gold (Au), or metal alloys.
  • the transparent or semitransparent anode may facilitate light emission through the anode.
  • a hole injection layer may be formed on the anode electrode by vacuum deposition, spin coating, printing, casting, slot-die coating, Langmuir-Blodgett (LB) deposition, or the like.
  • the deposition conditions may vary according to the compound that is used to form the HIL, and the desired structure and thermal properties of the HIL. In general, however, conditions for vacuum deposition may include a deposition temperature of too° C to 500° C, a pressure of 10-8 to 10-3 Torr (1 Torr equals 133.322 Pa), and a deposition rate of 0.1 to 10 nm/sec.
  • coating conditions may vary according to the compound that is used to form the HIL, and the desired structure and thermal properties of the HIL.
  • the coating conditions may include a coating speed of about 2000 rpm to about 5000 rpm, and a thermal treatment temperature of about 8o° C to about 200° C. Thermal treatment removes a solvent after the coating is performed.
  • the HIL may be formed of any compound that is commonly used to form a HIL.
  • examples of compounds that may be used to form the HIL include a phthalocyanine compound, such as copper phthalocyanine (CuPc), 4,4',4"-tris (3 -methylphenylphenylamino) triphenylamine (m- MTDATA), TDATA, 2T-NATA, polyaniline/dodecylbenzenesulfonic acid (Pani/DBSA), poly(3,4-ethylenedioxythiophene)/poly(4-styrenesulfonate) (PEDOT/PSS), polyaniline/camphor sulfonic acid (Pani/CSA), and polyaniline)/poly(4-styrenesulfonate (PANI/PSS).
  • CuPc copper phthalocyanine
  • m- MTDATA 4,4',4"-tris (3 -methylphenylphenylamino) triphenylamine
  • the HIL may comprise or consist of p-type dopant and the p-type dopant maybe selected from tetrafluoro-tetracyanoquinonedimethane (F4TCNQ), 2,2'-(perfluoronaphthalen-2,6- diylidene)-dimalononitrile, 4,4',4"-((iE,i’E,i"E)-cyclopropane-i ) 2,3- triylidenetris(cyanomethanylylidene))tris(2,3,5,6-tetrafluorobenzonitrile) or 2,2',2"- (cyclopropane-i,2,3-triylidene)tris(2-(p-cyanotetrafluorophenyl)acetonitrile) but not limited hereto.
  • F4TCNQ tetrafluoro-tetracyanoquinonedimethane
  • F4TCNQ tetrafluoro-te
  • the HIL may be selected from a hole -transporting matrix compound doped with a p- type dopant.
  • CuPc copper phthalocyanine
  • F4TCNQ tetrafluoro- tetracyanoquinonedimethane
  • ZnPc zinc phthalocyanine
  • HOMO -5.2
  • a-NPD doped with 2,2'- (perfluoronaphthalen-2,6-diylidene) dimalononitrile a-NPD doped with 2,2'- (perfluoronaphthalen-2,6-diylidene) dimalononitrile.
  • the p-type dopant concentrations can be selected from 1 to 20 wt.-%, more preferably from 3 wt-% to 10 wt.-%.
  • the thickness of the HIL may be in the range from about 1 nm to about 100 nm, and for example, from about 1 nm to about 25 nm. When the thickness of the HIL is within this range, the HIL may have excellent hole injecting characteristics, without a substantial penalty in driving voltage.
  • a hole transport layer may be formed on the HIL by vacuum deposition, spin coating, slot-die coating, printing, casting, Langmuir-Blodgett (LB) deposition, or the like.
  • the conditions for deposition and coating may be similar to those for the formation of the HIL.
  • the conditions for the vacuum or solution deposition may vary, according to the compound that is used to form the HTL.
  • the HTL may be formed of any compound that is commonly used to form a HTL.
  • Compounds that can be suitably used are disclosed for example in Yasuhiko Shirota and Hiroshi Kageyama, Chem. Rev. 2007, 107, 953-1010 and incorporated by reference.
  • Examples of the compound that may be used to form the HTL are: carbazole derivatives, such as N-phenylcarbazole or polyvinylcarbazole; benzidine derivatives, such as N,N'-bis(3-methylphenyl)-N,N'-diphenyl- [i,i-biphenyl]-4,4'-diamine (TPD), or N,N'-di(naphthalen-i-yl)-N,N'-diphenyl benzidine (alpha-NPD); and triphenylamine-based compound, such as 4,4',4"-tris(N- carbazolyljtriphenylamine (TCTA).
  • TCTA can transport holes and inhibit excitons from being diffused into the EML.
  • the thickness of the HTL may be in the range of about 5 nm to about 250 nm, preferably, about 10 nm to about 200 nm, farther about 20 nm to about 190 nm, further about 40 nm to about 180 nm, further about 60 nm to about 170 nm, further about 80 nm to about 160 nm, farther about 100 nm to about 160 nm, farther about 120 nm to about 140 nm.
  • a preferred thickness of the HTL may be 170 nm to 200 nm.
  • the HTL may have excellent hole transporting characteristics, without a substantial penalty in driving voltage.
  • an electron blocking layer is to prevent electrons from being transferred from an emission layer to the hole transport layer and thereby confine electrons to the emission layer. Thereby, efficiency, operating voltage and/or lifetime are improved.
  • the electron blocking layer comprises a triarylamine compound.
  • the triarylamine compound may have a LUMO level closer to vacuum level than the LUMO level of the hole transport layer.
  • the electron blocking layer may have a HOMO level that is farther away from vacuum level compared to the HOMO level of the hole transport layer.
  • the thickness of the electron blocking layer may be selected between 2 and 20 nm.
  • the electron blocking layer has a high triplet level, it may also be described as triplet control layer.
  • the function of the triplet control layer is to reduce quenching of triplets if a phosphorescent green or blue emission layer is used. Thereby, higher efficiency of light emission from a phosphorescent emission layer can be achieved.
  • the triplet control layer is selected from triarylamine compounds with a triplet level above the triplet level of the phosphorescent emitter in the adjacent emission layer. Suitable compounds for the triplet control layer, in particular the triarylamine compounds, are described in EP 2722 908 Al.
  • Emission layer Emission layer
  • the EML may be formed on the HTL by vacuum deposition, spin coating, slot-die coating, printing, casting, LB deposition, or the like.
  • the conditions for deposition and coating may be similar to those for the formation of the HIL. However, the conditions for deposition and coating may vary, according to the compound that is used to form the EML.
  • the emission layer does not comprise the compound of Formulas (I), (II) and/or the compound (III).
  • the emission layer may be formed of a combination of a host and an emitter dopant.
  • Example of the host are Alq3, 4,4'-N,N'-dicarbazole-biphenyl (CBP), poly(n-vinylcarbazole) (PVK), g,io-di(naphthalene-2-yl)anthracene (ADN), 4,4',4"-tris(carbazol-9-yl)- triphenylamine(TCTA), i,3,5-tris(N-phenylbenzimidazole-2-yl)benzene (TPBI), 3-tert-butyl- 9,io-di-2-naphthylanthracenee (TBADN), distyrylarylene (DSA) and bis(2-(2- hydroxyphenyl)benzo-thiazolate)zinc (Zn(BTZ)2).
  • CBP 4,4'-N,N'-dicarbazole-biphenyl
  • the emitter dopant maybe a phosphorescent or fluorescent emitter.
  • Phosphorescent emitters and emitters which emit light ria a thermally activated delayed fluorescence (TADF) mechanism may be preferred due to their higher efficiency.
  • the emitter may be a small molecule or a polymer.
  • red emitter dopants examples include PtOEP, Ir(piq)3, and Btp2lr(acac), but are not limited thereto. These compounds are phosphorescent emitters, however, fluorescent red emitter dopants could also be used.
  • Examples of phosphorescent blue emitter dopants are F2lrpic, (F2ppy)2lr(tmd) and Ir(dfppz)3 and ter-fluorene.
  • 4.4'-bis(4-diphenyI amiostyryljbiphenyl (DPAVBi), 2,5,8, ii-tetra- tert-butyl perylene (TBPe) are examples of fluorescent blue emitter dopants.
  • the amount of the emitter dopant may be in the range from about o.oi to about 50 parts by weight, based on 100 parts by weight of the host.
  • the emission layer may consist of a light-emitting polymer.
  • the EML may have a thickness of about 10 nm to about 100 nm, for example, from about 20 nm to about 60 nm. When the thickness of the EML is within this range, the EML may have excellent light emission, without a substantial penalty in driving voltage.
  • HBL Hole blocking layer
  • a hole blocking layer may be formed on the EML, by using vacuum deposition, spin coating, slot-die coating, printing, casting, LB deposition, or the like, in order to prevent the diffusion of holes into the ETL.
  • the HBL may have also a triplet exciton blocking function.
  • the conditions for deposition and coating may be similar to those for the formation of the HIL. However, the conditions for deposition and coating may vary, according to the compound that is used to form the HBL. Any compound that is commonly used to form a HBL may be used. Examples of compounds for forming the HBL include oxadiazole derivatives, triazole derivatives, and phenanthroline derivatives.
  • the HBL may have a thickness in the range from about 5 nm to about 100 nm, for example, from about 10 nm to about 30 nm. When the thickness of the HBL is within this range, the HBL may have excellent hole-blocking properties, without a substantial penalty in driving voltage.
  • Electron transport layer ETL
  • the OLED according to the present invention comprises at least two electron transport layers (ETLs). At least two of the electron transport layers are the first electron transport layer and the second electron transport layer as defined herein.
  • the OLED may comprise further ETLs which may or may not be as defined above. If the additional ETL(s) is/are not as defined above, the characteristics thereof may be as follows.
  • the OLED may comprise an electron transport layer stack comprising at least a first electron transport layer (ETL-i) comprising the compound of formula (I) and at least a second electron transport layer (ETL-2) comprising a compound of formula (II).
  • ETL-i first electron transport layer
  • ETL-2 second electron transport layer
  • the injection and transport of the electrons may be controlled, and the holes may be efficiently blocked.
  • the OLED may have long lifetime, improved performance and stability.
  • Electron injection layer (EIL)
  • An EIL which may facilitate injection of electrons from the cathode, optionally into a second electron transport layer stack, may be formed on the second electron transport layer stack, preferably directly on the second electron transport layer stack, preferably directly on the second electron transport layer of the second electron layer stack, preferably in direct contact with the second electron transport layer of the second electron layer stack.
  • materials for forming the EIL or being comprised in the EIL include lithium 8- hydroxyquinolinolate (LiQ), LiF, NaCl, CsF, Li 2 0, BaO, Ca, Ba, Yb, Mg which are known in the art.
  • Deposition and coating conditions for forming the EIL are similar to those for formation of the HIL, although the deposition and coating conditions may vary, according to the material that is used to form the EIL.
  • the EIL may comprise an organic matrix material doped with an n-type dopant.
  • the matrix material may be selected from materials conventionally used as matrix materials for electron transport layers.
  • the EIL may consist of a number of individual EIL sublayers. In case the EIL consists of a number of individual EIL sublayers, the number of sublayers is preferably 2.
  • the individual EIL sublayers may comprise different materials for forming the EIL.
  • the thickness of the EIL may be in the range from about 0.1 nm to about 10 nm, for example, in the range from about 0.5 nm to about 9 nm. When the thickness of the EIL is within this range, the EIL may have satisfactory electron-injecting properties, without a substantial penalty in driving voltage.
  • the electron transport stack of the present invention is not part of the electron injection layer.
  • the cathode electrode is formed on the EIL if present, preferably directly on the EIL, preferably in direct contact with the EIL.
  • the cathode and the EIL can be regarded as one functional part enabling the injection of electrons into the electron transport layer stack.
  • the cathode electrode maybe formed of a metal, an alloy, an electrically conductive compound, or a mixture thereof.
  • the cathode electrode may have a low work function.
  • the cathode electrode may be formed of lithium (Li), magnesium (Mg), aluminum (Al), aluminum (Al)-lithium (Li), calcium (Ca), barium (Ba), ytterbium (Yb), magnesium (Mg)- indium (In), magnesium (Mg)-silver (Ag), or the like.
  • the cathode electrode may be formed of a transparent conductive oxide, such as ITO or IZO.
  • the thickness of the cathode electrode maybe in the range from about 5 nm to about 1000 nm, for example, in the range from about 10 nm to about 100 nm.
  • the cathode electrode may be transparent or semitransparent even if formed from a metal or metal alloy.
  • the transparent or semitransparent cathode may facilitate light emission through the cathode.
  • cathode electrode and the electron injection layer are not part of the second electron transport layer or of any other part of the electron transport layer stack.
  • the charge generation layer that is, the first CGL as well as any other CGL comprised in the inventive OLED, may comprise a p-type CGL and an n-type CGL.
  • An interlayer may be arranged between the p-type layer and the n-type layer.
  • the charge generation layer GCL is a pn junction joining an n-type charge generation layer (electron generating layer, n-type CGL) and a-type charge generation layer (hole generating layer, p-type CGL).
  • the n-side of the pn junction generates electrons and injects them into the layer which is adjacent in the direction to the anode.
  • the p-side of the pn junction generates holes and injects them into the layer which is adjacent in the direction to the cathode.
  • Charge generation layers are used in tandem OLEDs (such as that of the present disclosure) comprising, between the cathode and anode, two or more emission layers.
  • the n-type charge generation layer provides electrons for the first light emission layer arranged near the anode, while the hole generating layer provides holes to the second light emission layer arranged between the first emission layer and the cathode.
  • Suitable matrix materials for the hole generating layer may be materials conventionally used as hole injection and/or hole transport matrix materials.
  • p-type dopant used for the hole generating layer can employ conventional materials.
  • the p-type dopant can be one selected from a group consisting of tetrafluore-7,7,8,8-tetracyanoquinodimethane (F4- TCNQ), derivatives of tetracyanoquinodimethane, radialene derivatives, iodine, FeClg, FeFg, and SbClg.
  • the host can be one selected from a group consisting of N,N'-di(naphthalen- i-yl)-N,N-diphenyl-benzidine (NPB), N,N'-diphenyl“N,N'-bis(3-methylphenyl)-i,i-biphenyl- 4,4 -diamine (TPD) and N,N',N'-tetranaphthyI-benzidine (TNB).
  • the p-type charge generation layer may consist of CNHAT.
  • the n-type charge generation layer may be layer of a neat n-type dopant, for example of an electropositive metal, or can consist of an organic matrix material doped with the n-type dopant.
  • the n-type dopant can be alkali metal, alkali metal compound, alkaline earth metal, alkaline earth metal compound, a transition metal, a transition metal compound or a rare earth metal.
  • the metal can be one selected from a group consisting of Li, Na, K, Rb, Cs, Mg, Ca, Sr, Ba, La, Ce, Sm, Eu, Tb, Dy, and Yb.
  • the n-type dopant can be one selected from a group consisting of Cs, K, Rb, Mg, Na, Ca, Sr, Eu and Yb.
  • Suitable matrix materials for the n-type charge generation layer layer may be the materials conventionally used as matrix materials for electron injection or electron transport layers.
  • the matrix material can be for example one selected from a group consisting of N-containing heterocyclic compounds like triazine compounds or phenanthroline compounds such as compound E or bipyridyl or terpyridyl compounds, hydroxyquinoline derivatives like tris(8-hydroxyquinoline)aluminum, benzazole derivatives, and silole derivatives.
  • the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer.
  • the hole generating layer may be arranged in direct contact to the n-type charge generation layer.
  • the electron transport stack of the present invention is not part of the charge generation layer.
  • OLED Organic light-emitting diode
  • OLEDs layers arranged between the above mentioned layers, on the substrate or on the top electrode.
  • an organic light-emitting diode comprising: a substrate, an anode, a first hole injection layer, a first hole transport layer, a first electron blocking layer, a first emission layer, a first optional hole blocking layer, a first electron transport layer stack, an first charge generation layer, a hole generating layer, a second hole transport layer, a second electron blocking layer, a second emission layer, a second optional hole blocking layer, a second electron transport layer stack, a second electron injection layer and a cathode.
  • the OLED may comprise a layer structure of a substrate that is adjacent arranged to an anode electrode, the anode electrode is adjacent arranged to a first hole injection layer, the first hole injection layer is adjacent arranged to a first hole transport layer, the first hole transport layer is adjacent arranged to a first electron blocking layer, the first electron blocking layer is adjacent arranged to a first emission layer, the first emission layer is adjacent arranged to a first charge generation layer, first charge generation layer is adjacent arranged to a first electron transport layer stack comprising a first electron transport layer and a second electron transport layer, the first electron transport layer stack is adjacent arranged to an electron injection layer, the electron injection layer is adjacent arranged to the cathode electrode.
  • the OLED according to Fig. i may be formed by a process, wherein on a substrate no, an anode 120, a first hole injection layer 130, a first hole transport layer 140, a first electron blocking layer 145, a first emission layer 150, a first electron transport layer stack 160, a first charge generation layer comprising an n-type charge generation layer 185 and a hole generating layer 135, a second hole transport layer 141, a second electron blocking layer 146, a second emission layer 151, a second electron transport layer stack 165, a second electron injection layer 181 and a cathode 190 are subsequently formed in that order.
  • a method of manufacturing an organic electronic device using: at least one deposition source, preferably two deposition sources and more preferred at least three deposition sources.
  • the methods for deposition that can be suitable comprise: deposition via vacuum thermal evaporation; deposition via solution processing, preferably the processing is selected from spincoating, printing, casting; and/or slot-die coating.
  • the two compounds may be deposited by co-deposition from two separate deposition sources or deposited as a pre-mix for one single source.
  • the method may further include forming on the anode electrode, an emission layer and at least one layer selected from the group consisting of forming a hole injection layer, forming a hole transport layer, or forming an electron hole blocking layer, between the anode electrode and the first electron transport layer.
  • the method may further include the steps for forming an organic light-emitting diode (OLED), wherein on a substrate a first anode electrode is formed, on the first anode electrode an emission layer is formed, on the emission layer an electron transport layer stack is formed, and on the electron transport layer stack a first charge generation layer is formed, and finally a cathode electrode is formed, optional a hole injection layer, a hole transport layer, formed in that order between the first anode electrode and the emission layer, an charge generation layer is formed between the electron transport layer stack and the cathode electrode.
  • OLED organic light-emitting diode
  • the OLED may have the following layer structure, wherein the layers having the following order: anode, hole injection layer, hole transport layer, electron blocking layer, emission layer, optional hole blocking layer, electron transport layer stack, n-type CGL, p-type CGL, hole transport layer, electron blocking layer, emission layer, optional hole blocking layer, electron transport layer stack, first charge generation layer comprising n-type CGL and p-type CGL, hole transport layer, electron blocking layer, emission layer, optional hole blocking layer, electron transport layer stack, electron injection layer, and cathode.
  • an electronic device comprising at least one organic light emitting device according to any embodiment described throughout this application, preferably, the electronic device comprises the organic light emitting diode in one of embodiments described throughout this application. More preferably, the electronic device is a display device or a lighting device.
  • the organic electronic device according to the invention may further comprise a layer comprising a radialene compound and/or a quinodimethane compound.
  • the radialene compound and/or the quinodimethane compound may be substituted with one or more halogen atoms and/or with one or more electron withdrawing groups.
  • Electron withdrawing groups can be selected from nitrile groups, halogenated alkyl groups, alternatively from perhalogenated alkyl groups, alternatively from perfluorinated alkyl groups.
  • Other examples of electron withdrawing groups may be acyl, sulfonyl groups or phosphoryl groups.
  • acyl groups, sulfonyl groups and/or phosphoryl groups may comprise halogenated and/or perhalogenated hydrocarbyl.
  • the perhalogenated hydrocarbyl may be a perfluorinated hydrocarbyl.
  • Examples of a perfluorinated hydrocarbyl can be perfluormethyl, perfluorethyl, perfluorpropyl, perfluorisopropyl, perfluorobutyl, perfluorophenyl, perfluorotolyl; examples of sulfonyl groups comprising a halogenated hydrocarbyl may be trifluoromethylsulfonyl, pentafluoroethylsulfonyl, pentafluorophenylsulfonyl, heptafluoropropylsufonyl, nonafluorobutylsulfonyl, and like.
  • the radialene and/or the quinodimethane compound may be comprised in a hole injection, hole transporting and/or a hole generation layer.
  • the radialene compound may have Formula (XX) and/or the quinodimethane compound may have Formula (XXIa) or (XXIb): wherein R 1 , R 2 , R 3 , R 4 , Rs, R 6 , R 7 , R 8 , R n , R 12 , R ls , R 16 , R 20 , R 23 are independently selected from above mentioned electron withdrawing groups and R 9 , R 10 , R 13 , R 14 , R 17 , R 18 , R 19 , R 22 , R 23 and R 24 are independently selected from H, halogen and above mentioned electron withdrawing groups.
  • an "alkyl group” may refer to an aliphatic hydrocarbon group.
  • the alkyl group may refer to "a saturated alkyl group” without any double bond or triple bond.
  • the term “alkyl” as used herein shall encompass linear as well as branched and cyclic alkyl.
  • C 3 -alkyl may be selected from n-propyl and iso-propyl.
  • C 4 -alkyl encompasses n-butyl, sec-butyl and t-butyl.
  • C 6 -alkyl encompasses n-hexyl and cyclo-hexyl.
  • the asterisk symbol “*” represents a binding position at which the moiety labelled accordingly is bond to another moiety.
  • the subscribed number n in C n relates to the total number of carbon atoms in the respective alkyl, arylene, heteroarylene or aryl group.
  • aryl or “arylene” as used herein shall encompass phenyl (Ce-aryl), fused aromatics, such as naphthalene, anthracene, phenanthrene, tetracene etc.. Further encompassed are biphenyl and oligo- or polyphenyls, such as terphenyl, phenyl-substituted biphenyl, phenylsubstituted terphenyl (such as tetraphenyl benzole groups) etc.
  • aryl group or “arylene group” may refer to a group comprising at least one hydrocarbon aromatic moiety, and all the elements of the hydrocarbon aromatic moiety may have p-orbitals which form conjugation, for example a phenyl group, a napthyl group, an anthracenyl group, a phenanthrenyl group, a pyrinyl group, a fluorenyl group and the like. Further encompoassed are spiro compounds in which two aromatic moieties are connected with each other via a spiro-atom, such as 9,9’-spirobi[9H-fluorene]yl.
  • the aryl or arylene group may include a monocyclic or fused ring polycyclic (i.e., links sharing adjacent pairs of carbon atoms) functional group.
  • heteroaryl refers to aryl groups in which at least one carbon atom is substituted with a heteroatom.
  • heteroaryl may refer to aromatic heterocycles with at least one heteroatom, and all the elements of the hydrocarbon heteroaromatic moiety may have p-orbitals which form conjugation.
  • the heteroatom may be selected from N, O, S, B, Si, P, Se, preferably from N, 0 and S.
  • a heteroarylene ring may comprise at least i to 3 heteroatoms.
  • a heteroarylene ring may comprise at least 1 to 3 heteroatoms individually selected from N, S and/or O.
  • heteroaryl comprises, for example, spiro compounds in which two aromatic moieties are connected with each other, such as spiro[fluorene-9,9’-xanthene].
  • heteroaryl groups are diazine, triazine, dibenzofurane, dibenzothiofurane, acridine, benzoacridine, dibenzoacridine etc.
  • perhalogenated refers to a hydrocarbyl group wherein all of the hydrogen atoms of the hydrocarbyl group are replaced by halogen (F, Cl, Br, I) atoms.
  • alkoxy refers to a structural fragment of the Formula -OR with R being hydrocarbyl, preferably alkyl or cycloalkyl.
  • thioalkyl refers to a structural fragment of the Formula -SR with R being hydrocarbyl, preferably alkyl or cycloalkyl.
  • C n -heteroaryl merely refers to the number of carbon atoms excluding the number of heteroatoms.
  • a C 3 heteroarylene group is an aromatic compound comprising three carbon atoms, such as pyrazol, imidazole, oxazole, thiazole and the like.
  • heteroaryl as used herewith shall encompass pyridine, quinoline, benzoquinoline, quinazoline, benzoquinazoline, pyrimidine, pyrazine, triazine, benzimidazole, benzothiazole, benzo[4,5]thieno[3,2-d]pyrimidine, carbazole, xanthene, phenoxazine, benzoacridine, dibenzoacridine and the like.
  • single bond refers to a direct bond
  • fluorinated refers to a hydrocarbon group in which at least one of the hydrogen atoms comprised in the hydrocarbon group is substituted by a fluorine atom. Fluorinated groups in which all of the hydrogen atoms thereof are substituted by fluorine atoms are referred to as perfluorinated groups and are particularly addressed by the term “fluorinated”,
  • a group is “substituted with” another group if one of the hydrogen atoms comprised in this group is replaced by another group, wherein the other group is the substituent.
  • the expression “between” with respect to one layer being between two other layers does not exclude the presence of further layers which may be arranged between the one layer and one of the two other layers.
  • the expression “in direct contact” with respect to two layers being in direct contact with each other means that no further layer is arranged between those two layers. One layer deposited on the top of another layer is deemed to be in direct contact with this layer.
  • contacting sandwiched refers to an arrangement of three layers whereby the layer in the middle is in direct contact with the two adjacent layers.
  • a lighting device may be any of the devices used for illumination, irradiation, signaling, or projection. They are correspondingly classified as illuminating, irradiating, signaling, and projecting devices.
  • a lighting device usually consists of a source of optical radiation, a device that transmits the radiant flux into space in the desired direction, and a housing that joins the parts into a single device and protects the radiation source and light-transmitting system against damage and the effects of the surroundings.
  • the organic electroluminescent device according to the present invention comprises two or three or more emission layers.
  • An OLED comprising more than one emission layer is also described as a tandem OLED or stacked OLED.
  • the organic electroluminescent device may be a bottom- or top-emission device.
  • the organic electroluminescent device may emit the light trough a transparent anode or through a transparent cathode.
  • Another aspect is directed to a device comprising at least one organic electroluminescent device (OLED).
  • OLED organic electroluminescent device
  • a device comprising organic light-emitting diodes is for example a display or a lighting panel.
  • the term “different” or “differs” in connection with the matrix material means that the matrix material differs in their structural Formula.
  • OLED organic light-emitting diode
  • OLETs organic light emitting transistors
  • ..volume percent As used herein, ..volume percent”, possiblyvol.-%”, ..percent by volume”, possibly% by volume”, and variations thereof refer to a composition, component, substance or agent as the volume of that component, substance or agent of the respective electron transport layer divided by the total volume of the respective electron transport layer thereof and multiplied by 100. It is understood that the total volume percent amount of all components, substances and agents of the cathode layer are selected such that it does not exceed 100 vol.-%.
  • the term “essentially non-emissive” or “non- emissive” means that the contribution of the compound or layer to the visible emission spectrum from the device is less than 10 %, preferably less than 5 % relative to the visible emission spectrum.
  • the risible emission spectrum is an emission spectrum with a wavelength of about > 380 nm to about ⁇ 780 nm.
  • the organic semiconducting layer comprising the compound of Formula (I) is essentially non-emissive or non-emitting.
  • the operating voltage also named U, is measured in Volt (V) at 10 milliAmpere per square centimeter (mA/cms).
  • the candela per Ampere efficiency also named cd/A efficiency is measured in candela per ampere at 10 milliAmpere per square centimeter (mA/ cm2).
  • the external quantum efficiency also named EQE, is measured in percent (%).
  • the color space is described by coordinates CIE-x and CIE-y (International Commission on Illumination 1931).
  • CIE-x International Commission on Illumination 1931
  • CIE-y International Commission on Illumination 1931
  • a smaller CIE-y denotes a deeper blue color.
  • Efficiency values are compared at the same CIE-y.
  • the highest occupied molecular orbital, also named HOMO, and lowest unoccupied molecular orbital, also named LUMO, are measured in electron volt (eV).
  • OLED organic light emitting diode
  • organic light emitting device organic optoelectronic device
  • organic light-emitting diode organic light-emitting diode
  • the anode and cathode may be described as anode electrode / cathode electrode or anode electrode / cathode electrode or anode electrode layer / cathode electrode layer.
  • Room temperature also named ambient temperature, is 23°C.
  • FIG. i is a schematic sectional view of a multi-emission layer organic light-emitting diode (OLED), according to an exemplary embodiment of the present invention
  • FIG. 2 is a schematic sectional view of a multi-emission layer OLED, according to an exemplary embodiment of the present invention.
  • first element when a first element is referred to as being formed or disposed “on” or “onto” a second element, the first element can be disposed directly on the second element, or one or more other elements may be disposed there between.
  • first element when referred to as being formed or disposed "directly on” or “directly onto” a second element, no other elements are disposed there between.
  • FIG. i is a schematic sectional view of an organic light-emitting diode (OLED) 200, according to an exemplary embodiment of the present invention.
  • the OLED 200 includes a substrate 110, an anode t20, a first hole injection layer (HIL-i) 130, a first hole transport layer (HTL-1) 140, a first electron blocking layer (EBL-i) 145, a first emission layer (EML-i) 150, a first electron transport layer (ETL-i) stack 160 comprising a first electron transport layer of the first stack 161 and a second electron transport layer of the first stack 162, a first charge generation layer comprising an n-type charge generation layer (n-type CGL) 185 and a hole generating layer (p- type charge generation layer; p-type GCL) 135, a second hole transport layer (HTL-2) 141, a second electron Hocking layer (EBL-2) 146, a second emission layer (EML-2) 151, a second electron transport layer (
  • a sealing layer may further be formed on the cathode electrodes 190, in order to seal the OLEDs 200.
  • various other modifications may be applied thereto.
  • the melting point (mp) is determined as peak temperatures from the DSC curves of the above TGA-DSC measurement or from separate DSC measurements (Metler Toledo DSC822e, heating of samples from room temperature to completeness of melting with heating rate 10 K/min under a stream of pure nitrogen. Sample amounts of 4 to 6 mg are placed in a 40 pL Mettler Toledo aluminum pan with lid, a ⁇ 1 mm hole is pierced into the lid).
  • Glass transition temperature The glass transition temperature (Tg) is measured under nitrogen and using a heating rate of 10 K per min in a Mettler Toledo DSC 822c differential scanning calorimeter as described in DIN EN ISO 11357, published in March 2010.
  • the rate onset temperature is determined by loading 100 mg compound into a VTE source.
  • VTE source a point source for organic materials may be used as supplied by Kurt J. Lesker Company (www.lesker.com) or CreaPhys GmbH (htp://www.creaphys.com).
  • the VTE source is heated at a constant rate of 15 K/min at a pressure of less than io -5 mbar and the temperature inside the source measured with a thermocouple. Evaporation of the compound is detected with a QCM detector which detects deposition of the compound on the quartz crystal of the detector. The deposition rate on the quartz crystal is measured in Angstrom per second. To determine the rate onset temperature, the deposition rate is plotted against the VTE source temperature. The rate onset is the temperature at which noticeable deposition on the QCM detector occurs. For accurate results, the VTE source is heated and cooled three time and only results from the second and third run are used to determine the rate onset temperature.
  • the rate onset temperature may be in the range of 200 to 255 °C. If the rate onset temperature is below 200 °C the evaporation may be too rapid and therefore difficult to control. If the rate onset temperature is above 255 °C the evaporation rate may be too low which may result in low tact time and decomposition of the organic compound in VTE source may occur due to prolonged exposure to elevated temperatures.
  • the rate onset temperature is an indirect measure of the volatility of a compound. The higher the rate onset temperature the lower is the volatility 7 of a compound.
  • the reduction potential is determined by cyclic voltammetry with potenioststic device Metrohm PGSTAT30 and software Metrohm Autolab GPES at room temperature.
  • the redox potentials given at particular compounds were measured in an argon de-aerated, dry 0.1M THF solution of the tested substance, under argon atmosphere, with 0.1M tetrabutylammonium hexafluorophosphate supporting electrolyte, between platinum working electrodes and with an Ag/AgCl pseudo-standard electrode (Metrohm Silver rod electrode), consisting of a silver wire covered by silver chloride and immersed directly in the measured solution, with the scan rate 100 mV/s.
  • the first run was done in the broadest range of the potential set on the working electrodes, and the range was then adjusted within subsequent runs appropriately.
  • the final three runs were done with the addition of ferrocene (in 0.1M concentration) as the standard.
  • Dipole moment The dipole moment
  • the dipole moment is determined by a semi-empirical molecular orbital method.
  • the geometries of the molecular structures are optimized using the hybrid functional B3LYP with the 6-31G* basis set in the gas phase as implemented in the program package TURBOMOLE V6.5 (TURBOMOLE GmbH, Litzenhardtstrasse 19, 76135 Düsseldorf, Germany). If more than one conformation is viable, the conformation with the lowest total energy is selected to determine the bond lengths of the molecules.
  • the HOMO and LUMO are calculated with the program package TURBOMOLE V6.5 (TURBOMOLE GmbH, Litzenhardtstrasse 19, 76135 Düsseldorf, Germany).
  • the optimized geometries and the HOMO and LUMO energy levels of the molecular structures are determined by applying the hybrid functional B3LYP with a 6-31G* basis set in the gas phase. If more than one conformation is viable, the conformation with the lowest total energy is selected.
  • compound B-i The synthesis of compound B-i is described in WO 2021/105518 Al.
  • the synthesis of compound B-2 is described in WO 2021/058761 Al.
  • the synthesis of compound B-3 is described in WO2O21/116225 Al.
  • the synthesis of compound B-4 is described in WO 2021/058761 Al.
  • the synthesis of compound B-5 is described in JP 2008-189660 A.
  • the synthesis of compound G (2-([i,i’-biphenyl]-3-yl)-4-phenyl-6-(3-(io-phenylanthracen-9- yl)phenyl)-i,3,5-triazine)) is described in WO 2020/ 120794 Al.
  • a substrate with dimensions of 150 mm x 150 mm x 0.7 mm was ultrasonically cleaned with a 2% aqueous solution of Deconex FPD 211 for 7 minutes and then with pure water for 5 minutes, and dried for 15 minutes in a spin rinse dryer.
  • Ag was deposited as anode at a pressure of 10-5 to icw mbar.
  • HT-i and D-i were vacuum co-deposited on the anode to form a HIL.
  • HT-i was vacuum deposited on the HIL to form an HTL.
  • HT-2 was vacuum deposited on the HTL to form an electron blocking layer (EBL).
  • EBL electron blocking layer
  • the first emission layer was formed on the EBL by co-deposition of HOST-i and EMITTER-i.
  • the compound of Formula (I) was vacuum deposited onto the emission layer to form the first electron transport layer.
  • the second electron transport layer was formed on the first electron transport layer by depositing a pre-mix of compound F and compound (III).
  • the n-type CGL was formed on the second electron transport layer by co-depositing compound F and Lithium.
  • HT-i and D-i were vacuum co-deposited on the n-type CGL to form a p-type CGL
  • HT-i was vacuum deposited on the p-type CGL to form an HTL.
  • HT-2 was vacuum deposited on the HTL to form an EBL.
  • the second emission layer was formed on the EBL by co-deposition of HOST-i and EMITTER-!.
  • the compound of Formula (I) was vacuum deposited onto the emission layer to form the first electron transport layer.
  • the second electron transport layer was formed on the first electron transport layer by depositing a pre-mix of compound F and compound (III).
  • the n-CGL was formed on the second electron transport layer by co-depositing compound F and Lithium.
  • HT-i and D-i were vacuum co-deposited on the n-type CGL to form a p-type CGL.
  • HT-i was vacuum deposited on the HIL to form an HTL.
  • HT-2 was vacuum deposited on the HTL to form an electron blocking layer (EBL).
  • EBL electron blocking layer
  • the third emission layer was formed on the EBL by co-deposition of HOST-i and EMITTER-i.
  • the compound of Formula (I) was vacuum deposited onto the emission layer to form the first electron transport layer.
  • the second electron transport layer was formed on the first electron transport layer by depositing compound E and compound (III) .
  • the electron injection layer is formed as a double layer on the electron transport layer by depositing first LiQ and subsequently Yb.
  • Ag:Mg is then evaporated at a rate of o.oi to i A/s at icr 7 mbar to form a cathode.
  • a cap layer of HT-3 is formed on the cathode.
  • the compound F was replaced by a compound of formula (II), namely compounds B-i to B-5, respectively.
  • the compound (III) is in all examples compound G.
  • the OLED devices according to the invention show improved DRIVING VOLTAGE and improved CEff in devices comprising an electron transport layer stack in accordance with the present invention.
  • Performance of an organic electroluminescent tandem device comprising the compound of Formula (I) in the first electron transport layer and the compound of Formula (II) or the comparative compound F in the second electron transport layer as well as in the first charge generation layer.

Landscapes

  • Physics & Mathematics (AREA)
  • Spectroscopy & Molecular Physics (AREA)
  • Chemical & Material Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Materials Engineering (AREA)
  • Optics & Photonics (AREA)
  • Electroluminescent Light Sources (AREA)

Abstract

The present invention relates to an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack; and to a display device or lighting device comprising the same.

Description

Organic light emitting diode and device comprising the same
TECHNICAL FIELD
The present invention relates to an organic light emitting diode and a device comprising the same.
BACKROUND OF THE INVENTION
Organic light-emiting diodes (OLEDs), which are self-emitting devices, have a wide viewing angle, excellent contrast, quick response, high brightness, excellent driving voltage characteristics, and color reproduction. A typical OLED includes an anode, a hole transport layer (HTL), an emission layer (EML), an electron transport layer (ETL), and a cathode, which are sequentially stacked on a substrate. In this regard, the HTL, the EML, and the ETL are thin films formed from organic and / or organometallic compounds.
When a voltage is applied to the anode and the cathode, holes injected from the anode electrode move to the EML, via the HTL, and electrons injected from the cathode electrode move to the EML, via the ETL. The holes and electrons recombine in the EML to generate excitons. When the excitons drop from an excited state to a ground state, light is emitted. The injection and flow of holes and electrons should be balanced, so that an OLED having the above-described structure has excellent efficiency.
A variety of organic electronic diodes comprising different electron transport materials are well known in the art. However, there is still a need to improve the performance of such devices, in particular to improve the performance of multi-emission-layer OLEDs, specifically with regard to driving voltage.
It is, therefore, the object of the present invention to provide an organic light emitting diode overcoming drawbacks of the prior art, in particular a multi-emission-layer top emission OLED with improved performance, that with improved driving voltage.
DISCLOSURE
The object is achieved by an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack; wherein
- the first charge generation layer is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer; - the first electron transport layer comprises a compound of Formula (I)
(Ar>-Ac)a-Xb (I);
- a and b are independently i or 2;
- c is independently o or 1;
- Ar1 is independently selected from Ce to C&o aryl or C2 to C42 heteroaryl,
- wherein each Ar1 may be substituted with one or two substituents independently selected from the group consisting of Ce to C12 aryl, C3 to Cu heteroaryl, and Ci to Ct, alkyl, D, Ci to Ce alkoxy, C3 to C& branched alkyl, C3 to Ce cyclic alkyl, C3 to C& branched alkoxy, C3 to Ci cyclic alkoxy, partially or perfluorinated Cx to Ce alkyl, partially or perfluorinated Ct to Ce alkoxy, partially or perdeuterated Ci to C* alkyl, partially or perdeuterated Ci to Cs alkoxy, halogen, CN or PY(R10)2, wherein Y is selected from O, S or Se, preferably 0 and Rxo is independently selected from Ce to Cxa aryl, C3 to Cx2 heteroaryl, Ci to C& alkyl, Cx to C& alkoxy, partially or perfluorinated Cf to Ce alkyl, partially or perfluorinated Cx to Ci alkoxy, partially or perdeuterated Cx to C& alkyl, partially or perdeuterated Cx to Ce alkoxy;
- wherein each C& to Cl2 aryl substituent on Ar’ and each C3 to Cu heteroaryl substituent on Ar1 may be substituted with Ci to C4 alkyl or halogen;
- A is independently selected from C6 to C3O aryl,
- wherein each A may be substituted with one or two substituents independently selected from the group consisting of Ci to Ci2 aryl and Cx to C& alkyl, D, Cx to C& alkoxy, C3 to Ge branched alkyl, C3 to Cs cyclic alkyl, C3 to C& branched alkoxy, C3 to Ci cyclic alkoxy, partially or perfluorinated C, to Ce alkyl, partially or perfluorinated Ci to C& alkoxy, partially or perdeuterated Cx to Cf, alkyl, partially or perdeuterated Ct to C& alkoxy, halogen, CN or PY(R‘°)2, wherein Y is selected from O, S or Se, preferably O, and R10 is independently selected from Ce to Ci2 aryl, C3 to Ci2 heteroaryl, Ci to Cb alkyl, Ci to C& alkoxy, partially or perfluorinated Ci to C& alkyl, partially or perfluorinated Ci to Ce alkoxy, partially or perdeuterated Ci to C& alkyl, partially or perdeuterated Ci to C& alkoxy;
-wherein each C& to Ci2 aryl substituent on A may be substituted with Ci to C4 alkyl or halogen;
- X is independently selected from the group consisting of C2 to C42 heteroaryl and Cf, to Cao aryl,
- wherein each X may be substituted with one or two substituents independently selected from the group consisting of C& to C12 aryl, C3 to Cu heteroaryl, and Ci to C& alkyl, D, Ci to C& alkoxy, C3 to Ce branched alkyl, C3 to Ci cyclic alkyl, C3 to Ci branched alkoxy, C3 to C& cyclic alkoxy, partially or perfluorinated Ci to Ca alkyl, partially or perfluorinated G to C& alkoxy, partially or perdeuterated C, to C& alkyl, partially or perdeuterated G to Ce alkoxy, halogen, CN or PY(R1O)2, wherein Y is selected from 0, S or Se, preferably 0, and R10 is independently selected from C& to Ci2 aryl, C3 to Ci2 heteroaryl, G to C& alkyl, G to Cs alkoxy, partially or perfluorinated G to Cs alkyl, partially or perfluorinated G to Cs alkoxy, partially or perdeuterated G to Cs alkyl, partially or perdeuterated G to Cs alkoxy;
- wherein each Cs to Ga aryl substituent on X and each C3 to Cu heteroaryl substituent on X may be substituted with G to C4 alkyl or halogen;
- the molecular dipole moment of the compound of formula (I) is > o D and <> 4 D;
- the second electron transport layer comprises a compound of Formula (II)
(Arf)m-(Zk-G)n (II);
- m and n are independently 1 or 2;
- k is independently o, 1 or 2;
- Ar2 is independently selected from the group consisting of G to C42 heteroaryl and Cs to Cso aryl,
- wherein each Ar2 may be substituted with one or two substituents independently selected from the group consisting of Cs to C12 aryl, C3 to Cn heteroaryl, and G to Ce alkyl, D, G to G alkoxy, C3 to Cs branched alkyl, C3 to Cs cyclic alkyl, C3 to Cs branched alkoxy, C3 to Cs cyclic alkoxy, partially or perfluorinated G to Cs alkyl, partially or perfluorinated G to C6 alkoxy, partially or perdeuterated G to Cs alkyl, partially or perdeuterated G to Cs alkoxy, halogen, CN or PY(R10)2, wherein Y is selected from O, S or Se, preferably O, and R10 is independently selected from Cs to C12 aryl, C3 to Ga heteroaryl, G to Cs alkyl, G to Cs alkoxy, partially or perfluorinated G to Cs alkyl, partially or perfluorinated G to Cs alkoxy, partially or perdeuterated G to C& alkyl, partially or perdeuterated G to Cs alkoxy;
-wherein each Cs to Ga aryl substituent on Ar2 and each C3 to Cn heteroaryl substituent on Ar2 may be substituted with Cs to C4 alkyl or halogen;
- Z is independently selected from Cs to C3O aryl,
- wherein each Z may be substituted with one or two substituents independently selected from the group consisting of Cs to Gz aryl and G to Cs alkyl, D, G to Cs alkoxy, C3 to Cb branched alkyl, C3 to Cs cyclic alkyl, C3 to Cs branched alkoxy, C3 to C6 cyclic alkoxy, partially or perfluorinated G to Cs alkyl, partially or perfluorinated G to Cs alkoxy, partially or perdeuterated G to Cs alkyl, partially or perdeuterated G to Cs alkoxy, halogen, CN or PY(RI0)2, wherein Y is selected from 0, S or Se, preferably O, and R10 is independently selected from Cs to C12 aryl, C3 to Ci2 heteroaryl, G to Cs alkyl, Ci to Cs alkoxy, partially or perfluorinated Ci to Cs alkyl, partially or perfluorinated G to Cs alkoxy, partially or perdeuterated Cf to Ce alkyl, partially or perdeuterated Ci to Ce alkoxy;
-wherein each C& to C12 aryl substituent on Z may be substituted with Ci to C4 alkyl or halogen;
- G is chosen so that the dipole moment of a compound G-phenyl is > i D and < 7 D;
- the first electron transport layer and the second electron transport layer are free of an electrical dopant;
- the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer; and
- G is free from P=O moiety.
The object is further achieved by a device comprising the inventive organic light emitting diode, wherein the device is a display device or a lighting device.
In the display device or lighting device the light may be emitted through a transparent cathode.
In the display device or lighting device the light may be emited through a transparent anode.
First electron transport layer
The first electron transport layer comprises a compound of Formula (I)
(Ar1-Ac)a-Xb (I).
The first electron transport layer may consist of the compound of Formula (I). Alternatively, the first electron transport layer may consist of a mixture of the compound of Formula (I) and one or more further compounds, provided that none of the further compounds is an electrical dopant. The first electron transport layer may comprise more than one compound of Formula (I). In particular, the first electron transport layer may consist of a mixture of the compound of Formula (I) and further compounds known in the art as electron transport matrix compounds. Exemplary further electron transport matrix compounds which may be contained are disclosed below.
In the compound of Formula (I), the group “A” is spacer moiety connecting (if present, that is in case that c > 1) the group Ar1 and X. In case that the compound of Formula (I) comprises more than one groups (Art-Ac), the groups may or may not independently comprise the spacer A.
In the compound of Formula (I), a and b are independently 1 or 2. Alternatively, a and b may both be 1. In the compound of Formula (I), c is independently o or i.
Ar1 is independently selected from Ce to C&o aryl or C2 to C42 heteroaryl, alternatively Ce to C54 aryl or Ca to C39 heteroaryl, alternatively Ce to C4s aryl or C2 to C3e heteroaryl, alternatively C& to C42 aryl or C2 to C3e heteroaryl, alternatively C& to C36 aryl or C2 to C30 heteroaryl, alternatively Ce to C3o aryl or C2 to C24 heteroaryl.
Ar1 may be independently Ce to C54 aryl, optionally Ce to C4s aryl, optionally Ca to C42 aryl, optionally Ce to C3e aryl, optionally Ce to C30 aryl, and optionally Ce to C24 aryl.
Ar1 may be independently C2 to C42 hetroaryl, optionally C2 to C4O hetroaryl, optionally C2 to C3e hetroaryl, optionally C2 to C3O hetroaryl, and optionally C2 to C24 hetroaryl.
In an embodiment Ar1 is different from X.
Ar' may comprise a system of two or more anellated aromatic rings, preferably three or more anellated aromatic rings.
Ar1 may comprise at least one sp3-hypridized carbon atom.
Ar1 may comprise at least one carbon-carbon sp2 alkene bond which is not integrated into an aromatic ring structure.
In an embodiment where Ar1 is independently selected from unsubstituted C2 to C42 heteroaryl, the heteroatoms are bound into the molecular structure of Ar1 by single bonds.
Ar1 maybe independently selected from the group consisting of phenyl, naphthyl, anthracenyl, fluoranthenyl, xanthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl, spiro-xanthenyl, fluorenyl, spiro-fluorenyl, triphenylsilyl, tetraphenylsilyl, or a group haring the formula (Ila) or (lib)
Figure imgf000006_0001
wherein
- the asterisk symbol represents the binding position for binding the group of formula (Ila) to A; and
- R1 to R9 are independently selected from the group consisting of H, Ce to Ci2 aryl and C4 to C,o heterorayl. In the group of Formula (Ila), both R6 and R?; and/or both R8 and R9 may be phenyl.
If Ar1 is a group having the formula (lib), binding of the group having the formula (lib) to A (or if A is not present in case that c =0) to X may be via any of the groups R6 to R9 wherein (formally) A (respectively X) replaces a terminal hydrogen atom of the respective R6 to R9.
Ar1 maybe independently selected from the group consisting of fluoranthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl, 9,9-dimethylfluorenyl, a group having the formula (Ila), a group having the formula (lib),
Figure imgf000007_0001
wherein the asterisk symbol “ *” represents the binding position for binding the group of formula (Ila) to A; and
R1 is H and R2 to Rs are independently phenyl; or
R‘ and R3 are phenyl and R2, R^ and Rs are H or
R6 to R9 are phenyl.
If Ar1 is a group having the formula (lib), binding of the group having the formula (lib) to A (or if A is not present in case that c =0) to X may be via any of the groups R6 to R9 wherein (formally) A (respectively X) replaces a terminal hydrogen atom of the respective R6 to R9.
In the group of Formula (Ila), at least two of R1 to Rs, which are not H may be in ortho-position to each other. At least one of R1 to Rs which is not H may be in ortho-position to the ^-position. In this regard, two groups are in ortho -position to each other if bound to adjacent carbon atoms of the benzene ring in Formula (Ila), respectively. In other words, it can be provided that at least one of R1 and Rs is phenyl; and/or R1 and R2 are both phenyl; and/or R2 and R3 are both phenyl; and/or R3 and R« are both phenyl; and/or R« and Rs are both phenyl.
Ar1 may be selected independently from one of the following groups
Figure imgf000008_0001
wherein the asterisk symbol represents the binding position for binding the to A, respectively and which may be substituted or unsubstituted, respectively.
In case that Ar1 is substituted, each of the substituents maybe independently selected from the group consisting of phenyl, naphtyl, biphenyl, pyridyl, picolinyl, lutidinyl, dibenzofuranyl, dibenzothiophene-yl, and benzothiophene-yl.
A may be selected independently from the group consisting of phenylene, naphthylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively.
A may be selected independently from one of the following groups or combinations thereof
Figure imgf000009_0001
wherein the binding positions for binding to Ar1 and X can be freely selected, preferably
Figure imgf000009_0002
In case that A is substituted, each substituent on A may be independently selected from the group consisting of phenyl and Ci to C4 alkyl.
X may be independently selected from the group consisting of C2 to C39 heteroaryl and Ce to €54 aryl, optionally C2 to C3& heteroaryl and C& to C4s aryl, optionally C3 to C30 heteroaryl and Ce to C42 aryl, optionally C3 to C27 heteroaryl and Ce to C36 aryl, optionally C3 to C24 heteroaryl and Ce to C3o aryl, and optionally C3 to C2i heteroaryl and Ce to C24 aryl, wherein the respective group may be substituted or unsubstituted.
X may be independently selected from the group consisting of C2 to C39 N-containing heteroaryl, C2 to C39 O-containing heteroaryl and Ce to C54 aryl, optionally C2 to C3e N- containing heteroaryl, C2 to C3e O-containing heteroaryl and Ce to C4s aryl, optionally C3 to C3o N-containing heteroaryl, C3 to C30 O-containing heteroaryl and Ce to C42 aryl, optionally C3 to C27 N-containing heteroaryl, C3 to C27 O-containing heteroaryl and Ce to C3e aryl, optionally C3 to C24 N-containing heteroaryl, C3 to C24 O-containing heteroaryl and Ce to C3O aryl, and optionally C3 to C21 N-containing heteroaiyl, C3 to C21 O-containing heteroaryl and Ce to C24 aryl.
X may be independently selected from the group consisting of C2 to C39 N-containing heteroaiyl and Ce to C54 aryl, optionally Ca to C3e N-containing heteroaryl, and Ce to C4s aryl, optionally C3 to C30 N-containing heteroaryl and C& to C42 aryl, optionally C3 to C27 N-containing heteroaryl and Ce to C3e aryl, optionally C3 to C24 N-containing heteroaryl and Ce to C3O aryl, and optionally C3 to C2i N-containing heteroaryl and Ce to C24 aryl. In this regard, it may be provided that a respective N-containing heteroaryl comprises one or more N-atoms as the only heteroatom(s). X may be independently selected from the group consisting of triazinyl, 1,2-diazinyl, 1,3- diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyl, quinolinyl, benzoquinolinyl benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively.
X may be independently selected from the group consisting of triazinyl, 1,2-diazinyl, 1,3- diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively.
X may be independently selected from the group consisting of triazinyl, 1,2-diazinyl, 1,3- diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzoacridinyl, dibenzoacridinyl, fluoranthenyl which may be substituted or unsubstituted, respectively.
X may be selected independently from one of the following groups
Figure imgf000010_0001
wherein the asterisk symbol represents the binding position for binding the group to A, respectively.
In case that X is substituted, each substituent on X may be independently selected from the group consisting of phenyl, naphthyl and biphenyl-yl. In case that X is substituted, each substituent on X may be independently selected from the group consisting of phenyl and biphenyl-yl.
In case that X is substituted, respective substituted X groups may be
Figure imgf000011_0001
wherein the asterisk symbol represents the binding position for binding the group to A, respectively.
X (including the substituents) maybe selected independently from one of the following groups.
Figure imgf000011_0002
Figure imgf000012_0001
wherein the asterisk symbol represents the binding position for binding the to A, respectively in case that c = o to Ar1.
It may be provided that the compound of Formula (I) does not contain a moiety P=O. It may be provided that the compound of Formula (I) does not contain P(=0)Aiyl2. It may be provided that the compound of Formula (I) does not contain P(=0)Alkyl2. It may be provided that the compound of Formula (I) does not contain P(=O)Ph2. It may be provided that the compound of Formula (I) does not contain P(=0)(CH3)2. It may be provided that the compound of Formula (I) does not contain R’P(=O)R” wherein R’ and R” are connected with each other to form a ring, that is, does not contain ring-phosphine oxide. It may be provided that the compound of Formula (I) does not contain R’P(=O)R” wherein R’ and R” are connected with each other to form a 7-membered ring.
It may be provided that the compound of Formula (I) does not contain two moieties P=O. It may be provided that wherein the compound of Formula (I) does not contain two P(=0)Aryl2. It may be provided that wherein the compound of Formula (I) does not contain two P(=O)Alkyl2. It may be provided that wherein the compound of Formula (I) does not contain two P(=O)Ph2. It maybe provided that wherein the compound of Formula (I) does not contain two P(=O)(CH3)2. It may be provided that wherein the compound of Formula (I) does not contain CN.
It may be provided that one or more of the following formulas are excluded from the scope of the Compound of Formula (I)
Figure imgf000012_0002
Figure imgf000013_0001
The compound of Formula (I) may comprise 6 to 14 aromatic or heteroaromatic rings, optionally 7 to 13 aromatic or heteroaromatic rings, optionally 7 to 12 aromatic or heteroaromatic rings, optionally 9 to 11 aromatic or heteroaromatic rings. In this regard, an aromatic, respectively heteroaromatic ring, is a single aromatic ring, for example a 6- membered aromatic ring such as phenyl, a 6 -membered heteroaromatic ring, an example would be pyridyl, a 5-membered heteroaromatic ring an example would be pyrrolyl etc. In a system of condensed (hetero) aromatic rings, each ring is considered as a single ring in this regard. For example, naphthalene comprises two aromatic rings.
The molecular dipole moment computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, of the compound of formula (I) may be > o D and < 4 D; alternatively > o D and < 3.5 D; alternatively > o D and < 3.0 D; alternatively > o D and < 2.5 D; alternatively > 0 D and < 2.0 D. In this regards, the dipole moment |g| of a molecule containing N atoms is given by:
Figure imgf000013_0002
IM] =
Figure imgf000014_0002
where qt and rt are the partial charge and position of atom i in the molecule. The dipole moment is determined by a semi-empirical molecular orbital method. The geometries of the molecular structures are optimized using the hybrid functional B3LYP with the 6-31G* basis set in the gas phase as implemented in the program package TURBOMOLE V6.5 (TURBOMOLE GmbH, Litzenhardtstrasse 19, 76135 Karlsruhe, Germany). If more than one conformation is viable, the conformation with the lowest total energy is selected to determine the bond lengths of the molecules.
In an embodiment the LUMO energy level of the compound of formula (I) in the absolute scale taking vacuum energy level as zero, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, is in the range from -1.90 eV to -1.60 eV, preferably from -1.87 eV to -1.65 eV, preferably from -1.85 eV to -1.65 eV.
The compound of Formula (I) may be selected from the compounds A-i to A~4i of the following Table 1.
Table 1:
Figure imgf000014_0001
Figure imgf000015_0001
Figure imgf000016_0001
Figure imgf000017_0001
Figure imgf000018_0001
Figure imgf000019_0001
Figure imgf000020_0001
Figure imgf000021_0001
In an embodiment the LUMO energy level of the compound of formula (I) in the absolute scale talcing vacuum energy level as zero, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, is in the range from -1.90 eV to -1.45 eV, preferably from -1.89 eV to -1,47 eV. The first electron transport layer may be arranged between the emission layer and the second electron transport layer. The first electron transport layer may be arranged in direct contact with the emission layer. The first electron transport layer may be arranged “contacting sandwiched” between the emission layer and the second electron transport layer.
The first electron transport layer may have a thickness of < 50 nm, optionally between 1 and 30 nm, optionally between 1 and lonm, optionally between 1 and 5 nm.
Second electron transport layer
The second electron transport layer comprises a compound of Formula (II)
(ArtVCZk-Qn (II).
The second electron transport layer may consist of the compound of Formula (II). Alternatively, the second electron transport layer may consist of a mixture of the compound of Formula (II) and one or more further compounds, provided that none of the further compounds is an electrical dopant. The first electron transport layer may comprise more than one compound of Formula (II). The second electron transport layer may consist of a mixture of the compound of Formula (II) and further compounds known in the art as electron transport matrix compounds. Exemplary further electron transport matrix compounds which may be contained are disclosed below.
G is free of a P=O moiety. The term “free of a P=O” moiety” refers especially to phosphine oxides, in general to all compounds all compounds in which a P=O group is bound to three other groups via single bonds to the P-atom. For example, the P=O moiety may be part of a a phosphinyl group (P(=0)R2 bound to Z via a single bond or via an arbitrary organic divalent group. “Free of’ means that a respective moiety7 is not part of the structure of the Group G.
It may be provided that the compound of Formula (II) does not contain a moiety P=0. It may be provided that the compound of Formula (II) does not contain P(=O)Aryla. It may be provided that the compound of Formula (II) does not contain P(=O)Alkyl2. It may be provided that the compound of Formula (II) does not contain P(=0)Ph2. It may be provided that the compound of Formula (II) does not contain P(=O)(CH3)2. It may be provided that the compound of Formula (II) does not contain R’P(=O)R” wherein R’ and R” are connected with each other to form a ring, that is, does not contain ring-phosphine oxide. It may be provided that the compound of Formula (II) does not contain R’P(=G)R” wherein R’ and R” are connected with each other to form a 7-membered ring.
It may be provided that the compound of Formula (II) does not contain two moieties P=O. It may be provided that wherein the compound of Formula (II) does not contain two P(=0)Aryl2. It may be provided that wherein the compound of Formula (II) does not contain two P(=O)Alkyla. It may be provided that wherein the compound of Formula (II) does not contain two P(=0)Ph2. It may be provided that wherein the compound of Formula (II) does not contain two P(=O)(CH3)2. It may be provided that one or more of the following formulas are excluded from the scope of the Compound of Formula (II)
Figure imgf000023_0001
In the compound of Formula (II), the group “Z” is a spacer moiety connecting (if present, that is in case that k > i) the groups Ar2 and G. In case that the compound of Formula (II) comprises more than one groups (Zk-G) the groups may or may not independently comprise the spacer Z.
In Formula (II), m and n are independently i or 2. In Formula (II), m and n may be 1.
In Formula (II), k is independently o, 1 or 2. In Formula (II), k may be independently 1 or 2. Ara may be independently selected from the group consisting of C2 to C39 heteroaryl and C& to C54 aryl, optionally C2 to C36 heteroaryl and C& to C48 aryl, optionally C3 to C30 heteroaryl and C& to C42 aryl, optionally C3 to C27 heteroaryl and C& to C36 aryl, optionally C3 to Ca4 heteroaryl and Cs to C30 aryl, and optionally C3 to C2] heteroaryl and C(, to C24 aryl.
Ar2 may be independently selected from the group consisting of C2 to C39 N-containing heteroaryl and Ca to aryl, optionally C2 to C36 N-containing heteroaryl and C& to C4s aryl, optionally C3 to C30 N-containing heteroaryl and C& to C42 aryl, optionally C3 to C27 N-containing heteroaryl and C& to C38 aryl, optionally C3 to C24 N-containing heteroaryl and C& to C30 aryl, and optionally C3 to C21 N-containing heteroaryl and C& to C24 aryl. In this regard, it may be provided that a respective N-containing heteroaryl comprises one or more N-atoms as the only heteroatom(s).
Ar2 may comprise at least two annelated 5- or 6-membered rings.
Ar2 may be independently selected from the group consisting of pyridinyl, triazinyl, 1,2- diazinyl, 1,3-diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyl, quinolinyl, benzoquinolinyl benzoacridiny], dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively.
Ar2 may be independently selected from the group consisting of 1,3-diazinyl, 1,4-diazinyl, anthracenyl, triazinyl, dibenzoacridinyl and phenanthrolinyl, which may be substituted or unsubstituted, respectively.
Ar2 may be selected independently from one of the following groups
Figure imgf000024_0001
wherein the asterisk symbol represents the binding position for binding the to Z, respectively.
In case that Ar2 is substituted, each substituent on Ar2 may be independently selected from the group consisting of phenyl, naphthyl, optionally P-naphthyl, pyridinyl and biphenyl-yl which may be substituted or unsubstituted, respectively.
In case that Ar2 is substituted, each substituent on Ar2 may be phenyl. Ar2 (including all substituents) may be selected from
Figure imgf000025_0001
wherein the asterisk symbol represents the binding position for binding the to Z, respectively.
Z may be independently selected from Ce to C3O aryl, alternatively Ce to Ca4 aryl, alternatively Ce to Ct8 aryl, alternatively C& to C12 aryl, which may be substituted or unsubstituted.
Z may be selected from the group consisting of phenylene, naphthylene, phenylenenaphthylene, phenylene-naphthylene-phenylene, phenylene-anthracenylene-phenylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively.
Z may be selected from the group consisting of phenylene, phenylene-naphthylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively.
Z may be selected independently from one of the following groups
Figure imgf000025_0002
Figure imgf000026_0001
wherein the binding positions for binding to Ar2 and G can be freely selected.
Z may be selected independently from one of the following groups
Figure imgf000026_0002
wherein the binding positions for binding to Ar2 and G can be freely selected.
In case that Z is substituted, each substituent on Z may be independently selected from the group consisting of phenyl and Ci to C4 alkyl.
G is chosen so that the dipole moment, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, of a compound G-phenyl is > 1 D and < 7 D. The unit for the dipole moment “Debye” is abbreviated with the symbol “D”. The inventors have found that it is advantageous if the compound of Formula (II) comprises a group haring a certain polarity, that is a specific dipole moment within the above range or the ranges mentioned below. It was further found that it is still advantageous that the compound of Formula (II) comprises such a polar group (first polar group) if the compound of Formula (II) comprises, in addition, a further polar group (second polar group) which is suitable to balance the dipole moment of the first polar group in a way that the total dipole moment of the compound of Formula (II) is low, for example, in case that the compound is a symmetrical molecule comprising a first polar group and a second polar group which are the same, the dipole moment could be o Debye. Therefore, the compound of Formula (II) cannot be characterized be referring to the total dipole moment of the compound. As a consequence, reference is made instead to an artificial compound comprising the polar group “G” and an unpolar group “phenyl”. In this regard, the dipole moment |£| of a compound containing N atoms is given by:
Figure imgf000027_0001
where and rt are the partial charge and position of atom i in the molecule. The dipole moment is determined by a semi-empirical molecular orbital method. The geometries of the molecular structures are optimized using the hybrid functional B3LYP with the 6-31G* basis set in the gas phase as implemented in the program package TURBOMOLE V6.5 (TURBOMOLE GmbH, Litzenhardtstrasse 19, 76135 Karlsruhe, Germany). If more than one conformation is viable, the conformation with the lowest total energy is selected to determine the bond lengths of the molecules. In this regard, the entire moiety G encompasses all possible substituents which may be comprised.
G may be selected so that the dipole moment of a compound G-phenyl is > 1 D; optionally a 1.1 D; optionally > 1.14 D.. G maybe chosen so that the dipole moment of a compound G-phenyl is < 7 D, optionally, < 6.5 D, optionally < 6 D, optionally < 5.7 D, optionally < 5.63 D.
In an embodiment the dipole moment of a compound G-phenyl is > 1 D and < 6 D; optionally > 1.1 D and < 5.7 D.
If more than one conformational isomer of the compound G-phenyl is viable then the average value of the dipole moments of the conformational isomers of G-phenyl is selected to be in this range. Conformational isomerism is a form of stereoisomerism in which the isomers can be interconverted just by rotations about formally single bonds.
By selecting the G such that the dipole moment of a compound G-phenyl lies in the above range it is provided that the electron injection from the adjacent, distinct charge generation layer (CGL) is improved and voltage of the OLED device is decreased and the cd/A efficiency of the OLED device is increased.
Exemplary compounds “G-phenyl” are listed in the following, wherein the moiety
Figure imgf000027_0002
in the respective compound specifies the “phenyTpart in “G-phenyl”
Figure imgf000027_0003
Figure imgf000028_0001
Figure imgf000029_0001
Table 2:
Figure imgf000030_0001
Figure imgf000031_0001
Figure imgf000032_0001
Figure imgf000033_0001
Figure imgf000034_0001
Figure imgf000035_0001
Figure imgf000036_0001
G may be selected from the group consisting of nitrile, benzonitrile, nicotinonitrile, amide, carbamide, and C2 to C42 heteroaryl; wherein G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of Ce to Cis aryl, C, to Ci0 alkyl, C2 to CX4 heteroaryl.
G may be selected from the group consisting of C2 to C39 heteroaryl, optionally C2 to C35 heteroaryl, optionally C2 to C32 heteroaryl, optionally C2 to Ca9 heteroaryl, optionally C2 to C25 heteroaryl; G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of Ct, to Ci2 aryl, C, to Ce alkyl, C2 to Cu heteroaryl.
G may be selected from the group consisting of C2 to C25 heteroaryl; wherein the respective G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of C& to Cro aryl, Ci to C4 alkyl, C2 to C5 heteroaryl.
G may be selected from the group consisting of nitrile, benzonitrile, nicotinonitrile, amide-yl, carbamide-yl and C2 to C]7 heteroaryl; wherein the respective G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of phenyl, methyl, ethyl, and pyridyl.
G may be selected from the group consisting of phenanfhrolinyl, 2,2’-bipyridinyl, 9-phenyl- 1,10-phenanthrolinyl, 1,10-phenanthrolinyl, (pyridine-2-yl)imidazo[i,5-a]pyridinyl, 2- pyridin-2-yl-quinolinyl, terpyridinyl, nitrile, benzonitrile, nicotinonitrile, di-hydro- benzoimidazolone-yl, diphenyl-propane-yl, TV^V-dimethylacetamid, amide, carbamide, imidazolyl, phenylbenzoimidazolyl, ethylbenzoimidazolyl phenylbenzoquinolinyl, phenylbenzoimidazoquinolinyl, pyridinyl, bipyridinyl, picolinyl, lutidenyl, pyridazinyl, pyrimidinyl, pyrazinyl, triphenyl-pyrazinyl, benzoquinolinyl, phenanthrolinyl, phenylphenanthrolinyl quinazolinyl, benzoxazolyl, benzimidazolyl pyridinyl- imidazopyridinyl;
Figure imgf000037_0001
wherein the asterisk symbol represents the binding position.
G may be selected from the group consisting of phenanthrolinyl, 2,2’-bipyridinyl, 9-phenyl- 1,10-phenanthrolinyl, 1,10-phenanthrolinyl, (pyridine-2-yl)imidazo[i,5-a]pyridinyI and 2- pyridin-2-yl-quinolinyl .
The compound of Formula (II) may comprise 6 to 12 aromatic or heteroaromatic rings, optionally 6 to 11 aromatic or heteroaromatic rings, optionally 7 to 10 aromatic or heteroaromatic rings, optionally 7 to 9 aromatic or heteroaromatic rings. In this regard, an aromatic, respectively heteroaromatic ring, is a single aromatic ring, for example a 6- membered aromatic ring such as phenyl, a 6 -membered heteroaromatic ring, an example would be pyridyl, a 5-membered heteroaromatic ring an example would be pyrrolyl etc. In a system of condensed (hetero) aromatic rings, each ring is considered as a single ring in this regard. For example, naphthalene comprises two aromatic rings.
The compound of Formula (II) maybe selected from B-i to B-27 and/or the compounds shown in Table 3.
Figure imgf000038_0001
Figure imgf000039_0001
Figure imgf000040_0001
Figure imgf000041_0001
Exemplary compounds of Formula (II) and properties thereof are summarized in Table 3.
Table 3:
Figure imgf000042_0001
Figure imgf000043_0001
Figure imgf000044_0001
Figure imgf000045_0001
Figure imgf000046_0001
Figure imgf000047_0001
In an embodiment the LUMO energy level of the compound of formula (II) in the absolute scale taking vacuum energy level as zero, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, is in the range from - 2.30 eV to -1.20 eV, preferably from -2.00 eV to -1.55 eV, preferably from -1.96 eV to -1.61 eV.
In an embodiment the compound of formula (II) comprises one polar group “G”.
The second electron transport layer may further comprise a compound (III), wherein the compound (III) comprises 8 to 13 aromatic or heteroaromatic rings, optionally 8 to 11 aromatic or heteroaromatic rings, optionally 9 to 11 aromatic or heteroaromatic rings, and optionally 9 aromatic or heteroaromatic rings, wherein one or more of the aromatic or heteroaromatic rings maybe substituted with Ci to C4 alkyl. In this regard, an aromatic, respectively heteroaromatic ring is a single aromatic ring, for example a 6-membered aromatic ring such as phenyl, a 6- membered heteroaromatic ring such as pyridyl, a 5-membered heteroaromatic ring such as pyrrolyl etc. In a system of condensed (hetero)aromatic rings, each ring is considered as a single ring in this regard. For example, naphthalene comprises two aromatic rings.
The compound (III) may comprise at least one heteroaromatic ring, optionally 1 to 5 heteroaromatic rings, optionally 1 to 4 heteroaromatic rings, optionally 1 to 3 heteroaromatic rings, and optionally 1 or 2 heteroaromatic rings.
The aromatic or heteroaromatic rings of the compound (III) may be 6-membered rings.
The heteroaromatic rings of the compound (III) may be a N-containing heteroaromatic ring, optionally all of the heteroaromatic rings are N-containing heteroaromatic rings, optionally all of the heteroaromatic rings heteroaromatic rings contain N as the only type of heteroatom. The compound (III) may comprises at least one 6-membered heteroaromatic ring containing one to three N-atoms in each heteroaromatic ring, optionally one to three 6-membered heteroaromatic rings containing one to three N-atoms in each heteroaromatic ring, respectively.
The at least one 6-membered heteroaromatic ring comprised in the compound (III) may be an azine. The at least one 6-membered heteroaromatic ring comprised in the compound (III) may be triazine, diazine, pyrazine.
If the compound (III) comprises two or more heteroaromatic rings, the heteroaromatic rings may be separated from each other by at least on aromatic ring which is free of a heteroatom.
In an embodiment, the heteroatoms in the heteroaromatic rings of compound (III) are bound into the molecular structure of compound (III) by at least one double bond.
The molecular dipole moment, computed by the TURBO MOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, of the compound (III) may be > o D and < 4 D; alternatively > 0.1 D and < 3.9 D; alternatively > 0.2 D and <, 3.7 D; alternatively > 0.3 D and < 3.5 D.
By choosing compound (III) according to these embodiments it is provided that the mobility of the second electron transport layer is further improved and voltage of the OLED device is decreased and the cd/A efficiency of the OLED device is increased.
In an embodiment the compound (III) is not a compound of formula (II). The compound of Formula (III) may be selected from the compounds C-i to C-6 of the following Table 4.
Table 4:
Figure imgf000048_0001
Figure imgf000049_0001
Figure imgf000050_0001
In case that the second electron transport layer comprises both the compound of Formula (II) and compound (III), the weight ratio of Formula (II) to compound (III) may be 1:99 to 99:1, alternatively 10:90 to 60:40, alternatively 20:80 to 50:50, alternatively 25:75 to 40:60, alternatively about 30:70.
In an embodiment the LUMO energy level of the compound (III) in the absolute scale taking vacuum energy level as zero, computed by the TURBOMOLE V6.5 program package using hybrid functional B3LYP and Gaussian 6-31G* basis set, is in the range from -2.00 eV to -1.70 eV, preferably from -1.95 eV to -1.80 eV.
In an embodiment the compound (III) comprises one nitrogen-containing six-membered ring.
In another embodiment the compound (III) comprises two nitrogen-containing six-membered rings.
In an embodiment the compound of formula (I) is not a compound of formula (II). In a further embodiment the compound of formula (II) is not a compound (III). In another embodiment the compound of formula (I) is not a compound (III). In a further embodiment of the invention all three compounds, namely the compound of formula (I), the compound of formula (II) and compound (III), are different from each other in that they have different molecular structure formulas.
The second electron transport layer may be arranged between the first electron transport layer and the electron injection layer. The second electron transport layer may be arranged in direct contact with the first electron transport layer. The second electron transport layer may be arranged in direct contact with the electron injection layer. The second electron transport layer may be arranged in direct contact with the cathode.
The second electron transport layer may be arranged “contacting sandwiched” between the first electron transport layer and the electron injection layer.
The second electron transport layer may be arranged between the first electron transport layer and the charge generation layer. The second electron transport layer may be arranged in direct contact with the charge generation layer. The second electron transport layer may be arranged in direct contact with the n-type CGL. The second electron transport layer may be arranged “contacting sandwiched” between the first electron transport layer and the n-type CGL.
The second electron transport layer may have a thickness of < too nm, optionally between 10 and 90 nm, optionally between 10 and 6onm, optionally between 10 and 50 nm.
First charge generation layer
The first charge generation layer is arranged between the first emission layer and the second emission layer. The first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer. That is, a specific compound of formula (II) is chosen for use in first charge generation layer and then exactly the same specific compound of formula (II) is also used as compound of formula (II) in the second electron transport layer. In other words, “the same compound” refers in this regard to a compound having the same chemical formula including being the same isomer.
The second electron transport layer may be in direct contact with the first charge generation layer. The charge generation layer may comprise a p-type sublayer and a n-type sublayer and the second electron transport layer may be in direct contact with the n-type sublayer. An interlayer may be arranged between the p-type layer and the n-type layer. The interlayer maybe in direct contact with the p-type layer or the n-type layer. The interlayer may be in direct contact with the p-type layer and the n-type layer.
The first electron transport layer stack may be arranged between the first emission layer and the first charge generation layer.
The first charge generation layer comprises a metal, alternatively an alkali metal, a metal salt alternatively an alkaline earth metal salt and/or rare earth metal salt, or an organic alkali metal complex, alternatively an alkali metal complex, alternatively LiF, LiCl, LiBr, Lil, LiQ, a metal borate, or mixtures thereof. The metal cation of the metal salt may be selected from the group consisting of alkali metals, alkaline earth metals, and rare eart h metals, alternatively from the group consisting of Li, Na, K, Rb, Cs, Mg, Ca, Sr, and Ba; alternatively from Li, Mg, Ca, and Sr. The anion of the metal salt may be selected from the group consisting of quinolinolate, phosphine oxide phenolate and borate. Respective compounds are, for example, disclosed in EP1837926A1, WO07107306A1 or W007107356A1.
The first charge generation layer may have a thickness in the range from 5 to 20 nm, especially from 10 to 20 nm, such as about 15 nm.
Further possible characteristics of the PLED
The organic light emitting diode according to the invention comprises at least two emission layers, namely the first emission layer and the second emission layer. The organic lightemitting diode may, in addition, comprise further emission layers (third emission layer, fourth emission layer etc.). In case that the organic light-emitting diode comprises more than two emission layers, only one electron transport layer stack may be provided only between two of the emission layers. Alternatively, more than one electron transport layer stack may present. For example, in case that the organic light-emitting diode comprises a first emission layer, a second emission layer and a third emission layer, a first electron transport layer stack may be arranged between the first emission layer and the second emission layer and a second electron transport layer stack may be arranged between the second emission layer and the third emission layer.
In case that the organic light-emitting diode comprises more than two emission layers more than one charge generation layers may present. For example, in case that the organic lightemitting diode comprises a first emission layer, a second emission layer and a third emission layer, a first charge generation layer may be arranged between the first emission layer and the second emission layer and a second charge generation layer may be arranged between the second emission layer and the third emission layer.
In case that the organic light-emitting diode comprises more than two emission layers more than one charge generation layers may present. For example, in case that the organic lightemitting diode comprises a first emission layer, a second emission layer and a third emission layer, a first charge generation layer may be arranged between the first emission layer and the second emission layer and a second charge generation layer may be arranged between the second emission layer and the third emission layer.
In terms of the present disclosure, a layer stack is an arrangement of two or more distinct layers. The layers of the layer stack may be distinguished from each other be the chemical nature of the materials comprised in the respective layers, that is, may be made of different compounds. An electron transport layer stack in terms of the present disclosure comprises at least two different layers made of electron transport materials, respectively.
The compound of Formula (I) and/or the compound of Formula (II) and/or the Compound (III) may be different from each other. That is, that the compounds of Formula (I) and/or the compound of Formula (II) and/or the Compound (III) may differ from each other with respect to at least one structural aspect from each other, in particular may differ from each other by at least one atom and/or group.
The first electron transport layer and the second electron transport layer are free of an electrical dopant. In this regard, “free of’ means that respective compounds (electrical dopants) are only contained in the respective layers which cannot be avoided by standard purification methods and common technical means during preparation of the respective layer. In this regards, electrical dopants are in particular, but not limited thereto, electrical n- dopants. The electrical n-dopant may be selected from a metal, alternatively an alkali metal, a metal salt alternatively an alkaline earth metal salt and/or rare earth metal salt, or an organic alkali metal complex, alternatively an alkali metal complex, alternatively LiF, LiCl, LiBr, Lil, LiQ, a metal borate, or mixtures thereof. In particular, the first electron transport layer and the second electron transport layer may be free of an electrical n-dopant. The electrical n-dopant may be a metal salt comprising at least one metal cation and at least one anion. The metal cation of the metal salt may be selected from the group consisting of alkali metals, alkaline earth metals, and rare earth metals, alternatively from the group consisting of Li, Na, K, Rb, Cs, Mg, Ca, Sr, and Ba; alternatively from Li, Mg, Ca, and Sr. The anion of the metal salt may be selected from the group consisting of quinolinolate, phosphine oxide phenolate and borate.
In this regard, electrical n-dopants are in particular, but not limited thereto, an elemental metal, alternatively an electropositive metal selected from alkali metals, alkaline earth metals, rare earth metals and transition metals, transition metals; a metal salt, alternatively an alkali metal salt, alkaline earth metal salt and/or rare earth metal salt, or a metal complex, alternatively an alkali metal complex, alkaline earth metal complex, transition metal complex and/or rare earth metal complex. Examples of n-doping metal salts can be LiF, LiCl, LiBr, Lil, metal borates, metal quinolinolates or mixtures thereof. Further examples of electrical n- dopants are strong chemical reducing agents. This class of "redox" n-dopants may be generically characterized by energy level of the highest occupied molecular orbital (HOMO) comparable with lowest unoccupied molecular orbital Energy Level of corresponding electron transport matrices, which is in usual OLED transport materials about -3.0 eV or less. It is to be understood that the term "about -3.0 eV or less" means less negative values than -3.0 eV, for example -2.8 eV, -2.5 eV, -2.3 eV, -2.1 eV or vales less negative than -2.0 eV.
Electrical n-dopants may be organic compounds as disclosed in EP1837926A1, WO07107306A1 or W007107356A1.
It is provided that the electrical dopant is essentially non-emissive.
The first electron transport layer stack may be arranged between the first emission layer and the first charge generation layer.
The first electron transport layer and the second electron transport layer may be in direct contact with each other.
The electron transport layer stack may consist of the first electron transport layer and the second electron transport layer.
The second electron transport layer may be in direct contact with the electron injection layer.
The electron injection layer may consist of a number of individual electron injection sublayers.
The electron injection layer may comprise a metal, alternatively an alkali metal, a metal salt alternatively an alkaline earth metal salt and/or rare earth metal salt, or an organic alkali metal complex, alternatively an alkali metal complex, alternatively LiF, LiCl, LiBr, Lil, LiQ, a metal borate, or mixtures thereof.
The electron injection layer may consist of a metal, alternatively an alkali metal, a metal salt alternatively an alkaline earth metal salt and/or rare earth metal salt, or an organic alkali metal complex, alternatively an alkali metal complex, alternatively LiF, LiCl, LiBr, Lil, LiQ, a metal borate, or mixtures thereof.
It may be provided that the compound of Formula (II) is not comprised in the electron injection layer. It may be provided that the compound of Formula (I) is not comprised in the electron injection layer. It may be provided that compound (III) is not comprised in the electron injection layer.
The compound of Formula (I), the compound of Formula (II) and the compound (III) may be different from each other and/or may not be comprised in the electron injection layer, respectively.
The first electron transport layer stack may be arranged between the first emission layer and the first charge generation layer. The second electron transport layer of the first electron transport layer stack may be in direct contact with the first charge generation layer.
The first electron transport layer and the second electron transport layer may be in direct contact with each other.
The electron transport layer stack may consist of the first electron transport layer and the second electron transport layer.
The organic light emitting diode may further comprise an electron injection layer and a second electron layer stack and the second electron layer stack is in direct contact with the electron injection layer. The second electron transport layer stack may contain the same compounds (I), (II), and (III) as the first layer stack, that is, as defined in the present disclosure, wherein the respective compounds may be selected independently.
It may be provided that the compound of Formula (II) is not comprised in the first charge generation layer. It may be provided that the compound of Formula (I) is not comprised in the first charge generation layer. It may be provided that compound (III) is not comprised in the first charge generation layer.
The compound of Formula (I), the compound of Formula (II) and the compound (III) maybe different from each other and/or may not be comprised in the first charge generation layer, respectively.
In case that the organic light emitting device comprises more than one electron transport layer stack (that is, other electron transport layer stacks besides the first electron transport layer stack) all of the above features regarding the first electron transport layer stack may independently apply for each of the electron transport layer stacks.
In case that the organic light emitting device comprises more than one charge generation layers (that is, other charge generation layers besides the first charge generation layer) all of the above features regarding the first charge generation layer may independently apply for each of the charge generation layers.
The organic light emitting diode may further comprise a substrate, wherein the substrate may be transparent or non-transparent.
Exemplary embodiments According to one embodiment, there is provided an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack; wherein
- the first charge generation layer is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer;
- the first electron transport layer comprises a compound of Formula (I)
(Ar’-AJa-Xb (I);
- a and b are independently i or 2;
- c is independently o or 1;
- Ar1 is independently selected from C& to C30 aryl or C2 to C24 heteroaryl,
- wherein each Ar1 may be substituted with one or two substituents independently selected from the group consisting of Ce to Ga aryl, C3 to Cn heteroaryl, and G to Ce alkyl, D, G to C6 alkoxy, C3 to Ce branched alkyl, C3 to Ce cyclic alkyl, C3 to Ce branched alkoxy, C3 to Cf> cyclic alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated Ci to C& alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated G to G, alkoxy, halogen, CN or PY(R10)2, wherein Y is selected from 0, S or Se, preferably 0 and R10 is independently selected from Ce to CI2 aryl, C3 to CK heteroaryl, G to Ce alkyl, G to Ce alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated G to Ce alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated G to Ce alkoxy;
- wherein each Ce to G2 aiyl substituent on Art and each C3 to Cn heteroaiyl substituent on Ar’ may be substituted with G to C4 alkyl or halogen;
- A is independently selected from Ce to Gs aryl,
- wherein each A may be substituted with one or two substituents independently selected from the group consisting of Ce to Ci2 aryl and G to Ce alkyl, D, G to Ce alkoxy, C3 to Ce branched alkyl, C3 to Ce cyclic alkyl, C3 to Ce branched alkoxy, C3 to Ce cyclic alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated G to Ce alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated G to C& alkoxy, halogen, CN or PY(Rl0)2, wherein Y is selected from 0, S or Se, preferably O, and R10 is independently selected from Ce to C12 aryl, C3 to Ga heteroaryl, G to C6 alkyl, G to Ce alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated G to Ce alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated G to Ce alkoxy; - wherein each Ce to CJ2 aryl substituent on A may be substituted with Ci to C4 alkyl or halogen;
- X is independently selected from the group consisting of C3 to C2] heteroaryl and Ce to C24 aryl,
- wherein each X may be substituted with one or two substituents independently selected from the group consisting of Ce to CJ2 aryl, C3 to Cn heteroaryl, and Cx to Ce alkyl, D, Cx to Ce alkoxy, C3 to Ce branched alkyl, C3 to Ce cyclic alkyl, C3 to Ce branched alkoxy, C3 to Ce cyclic alkoxy, partially or perfluorinated Ci to Ce alkyl, partially or perfluorinated Ci to Ce alkoxy, partially or perdeuterated Ci to Ce alkyl, partially or perdeuterated Ci to Ce alkoxy, halogen, CN or PY(RI0)2, wherein Y is selected from O, S or Se, preferably O, and R10 is independently selected from Ce to C12 aryl, C3 to Ci2 heteroaryl, Ci to Ce alkyl, G to Ce alkoxy, partially or perfluorinated C, to Ce alkyd, partially or perfluorinated G to Ce alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated Cx to C& alkoxy;
- wherein each Ce to CX2 aryl substituent on X and each C3 to Cn heteroaryl substituent on X may be substituted with Cx to C4 alkyl or halogen;
- the molecular dipole moment of the compound of formula (I) is > o D and < 3.5 D;
- the second electron transport layer comprises a compound of Formula (II)
(AriVCZk-Gln (II);
- m and n are independently 1 or 2;
- k is independently o, 1 or 2;
- Ar2 is independently selected from the group consisting of C3 to C30 heteroaryl and Ce to C42 aryl,
- wherein each Ar2 may be substituted with one or two substituents independently selected from the group consisting of Ce to Ci2 aryl, C3 to Cu heteroaryl, and G to Ce alkyl, D, Ci to Ce alkoxy, C3 to Ce branched alkyl, C3 to Ce cyclic alkyl, C3 to Ce branched alkoxy, C3 to Ce cyclic alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated Ci to Ce alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated C2 to Ce alkoxy, halogen, CN or PY(R’°)2, wherein Y is selected from 0, S or Se, preferably 0, and R10 is independently selected from Ce to G2 aryl, C3 to CI2 heteroaryl, G to C& alkyl, Ci to Ce alkoxy, partially or perfluorinated Ci to Ce alkyl, partially or perfluorinated Ci to Ce alkoxy, partially or perdeuterated Ci to Ce alkyl, partially or perdeuterated Ci to Ce alkoxy;
- wherein each Ce to Ci2 aryl substituent on Ar2 and each C3 to C„ heteroaryl substituent on Ar2 may be substituted with G to C4 alkyl or halogen;
- Z is independently selected from C& to Gs aiyl, *■ wherein each Z may be substituted rath one or two substituents independently selected from the group consisting of Ce to Ci2 aryl and Ci to Ce alkyl, D, Ci to Ce alkoxy, C3 to Ce branched alkyl, C3 to Ce cyclic alkyl, C3 to C6 branched alkoxy, C3 to Cs cyclic alkoxy, partially or perfluorinated Ci to C& alkyl, partially or perfluorinated Ci to C6 alkoxy, partially or perdeuterated Ci to Ce alkyl, partially or perdeuterated Ci to Ce alkoxy, halogen, CN or PY(R10)a, wherein Y is selected from O, S or Se, preferably O, and R10 is independently selected from C& to Ci2 aryl, C3 to C12 heteroaryl, Cx to C& alkyl, Ci to C& alkoxy, partially or perfluorinated Ci to Ce alkyl, partially or perfluorinated Ci to C& alkoxy, partially or perdeuterated Ct to Cs alkyl, partially or perdeuterated Cl to C& alkoxy;
- wherein each Ce to C,2 aryl substituent on Z may be substituted with Ci to C4 alkyl or halogen;
- G is chosen so that the dipole moment of a compound G-phenyl is > 2 D and < 6 D;
- the first electron transport layer and the second electron transport layer are free of an electrical dopant;
- the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer; and
- G is free from a P=O moiety.
According to one embodiment, there is provided an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack; wherein
- the first charge generation layer is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer;
- the first electron transport layer comprises a compound of Formula (I)
(Ar'-AcK-Xb (I);
- a and b are independently i or 2;
- c is independently o or i; - Ar1 is independently selected from the group consisting of phenyl, naphthyl, anthracenyl, fluoranthenyl, xanthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl, spiro-xanthenyl, fluorenyl, spiro-fluorenyl, triphenylsilyl, tetraphenylsilyl, or a group having the formula (Ila) or (lib)
Figure imgf000058_0001
wherein
- the asterisk symbol represents the binding position for binding the group of formula (Ila) to A; and
- R1 to R9 are independently selected from the group consisting of H, Ce to C12 aryl and C4 to C1O heterorayl
-A is selected independently from the group consisting of phenylene, naphthylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively
- X is independently selected from the group consisting of Ca to C39 N-containing heteroaryl and Ce to aryl, optionally C2 to C3& N-containing heteroaiyl, and C& to C4g aryl, optionally C3 to C3O N-containing heteroaryl and Ce to C42 aryl, optionally C3 to C27 N-containing heteroaryl and C& to C36 aryl, optionally C3 to C24 N-containing heteroaryl and Ce to C3O aryl, and optionally C3 to C21 N-containing heteroaryl and C& to C24 aryl. In this regard, it may be provided that a respective N-containing heteroaryl comprises one or more N-atoms as the only heteroatom(s);
- the second electron transport layer comprises a compound of Formula (II)
(Ara)m-(Zk-G)n (II);
- m and n are independently 1 or 2;
- k is independently o, 1 or 2;
- Arz is independently selected from the group consisting of C2 to C39 N-containing heteroaryl and Ce to aryl, optionally C2 to C3a N-containing heteroaryl and C& to C4s aryl, optionally C3 to C30 N-containing heteroaryl and Ce to C42 aryl, optionally C3 to C27 N-containing heteroaryl and C& to C36 aryl, optionally C3 to C24 N-containing heteroaryl and Ce to C30 aryl, and optionally C3 to C21 N-containing heteroaiyl and Ce to C24 aryl. In this regard, it may be provided that a respective N-containing heteroaryl comprises one or more N-atoms as the only heteroatom(s); - Z is independently selected from Ce to C30 aryl, alternatively C& to C24 aryl, alternatively Ct, to Cis aryl, alternatively C& to CJ2 aryl, which maybe substituted or unsubstituted;
- G is selected from the group consisting of nitrile, benzonitrile, nicotinonitrile, amide-yl, carbamide-yl and C2 to Ci7 heteroaryl, wherein the respective G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of phenyl, methyl, ethyl, and pyridyl;
- the first electron transport layer and the second electron transport layer are free of an electrical dopant;
- the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer; and
- G is free from a P=O moiety.
According to one embodiment, there is provided an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack; wherein
- the first charge generation layer is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer;
- the first electron transport layer comprises a compound of Formula (I)
(Ar^-AOa-Xb (I);
- a and b are independently i or 2;
- c is independently o or 1;
- Ar1 is independently selected from the group consisting of fluoranthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl, 9, 9 -dimethylfluorenyl, a group having the formula (Ila), a group haring the formula (lib),
Figure imgf000060_0001
wherein the asterisk symbol “*” represents the binding position for binding the group of formula (Ila) to A; and
R! is H and R2 to Rs are independently phenyl; or
R1 and R3 are phenyl and R2, R« and Rs are H or
R6 to R9 are phenyl;
- A is selected independently from the group consisting of phenylene, naphthylene, biphenylene and terphenylene which may be substituted or unsubstituted, respectively;
- X is independently selected from the group consisting of triazinyl, 1,2-diazinyl, 1,3-diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyl, quinolinyl, benzoquinolinyl benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively;
- the second electron transport layer comprises a compound of Formula (II)
(Ar2)m-(Zk-G)d (II);
- Ar2 is independently selected from the group consisting of pyridinyl, triazinyl, 1,2-diazinyl, 1,3-diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyl, quinolinyl, benzoquinolinyl benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively;
- Z is selected from the group consisting of phenylene, phenylene-naphthylene, and biphenylene, which may be substituted or unsubstituted, respectively;
- G is selected from the group consisting of 2,2’-bipyridinyl, 9~phenyl-i,io-phenanthrolinyl, 1,10 -phenanthrolinyl, and (pyridine-2-yl)imidazo[i,5-a]pyridinyl;
- the first electron transport layer and the second electron transport layer are free of an electrical dopant; - the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer; and
- G is free from a P=O moiety.
According to one embodiment, there is provided an organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack; wherein
- the first charge generation layer is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer;
- the first electron transport layer comprises a compound selected from the compounds A-i to A-41;
- the second electron transport layer comprises a compound selected from the compounds B-i to B-27;
- the first electron transport layer and the second electron transport layer are free of an electrical dopant;
- the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer; and
- G is free from a P=O moiety.
Further layers
In accordance with the invention, the organic electronic device may comprise, besides the layers already mentioned above, further layers. Exemplary embodiments of respective layers are described in the following:
Substrate
The substrate may be any substrate that is commonly used in manufacturing of, electronic devices, such as organic light-emitting diodes. If light is to be emitted through the substrate, the substrate shall be a transparent or semitransparent material, for example a glass substrate or a transparent plastic substrate. If light is to be emitted through the top surface, the substrate may be both a transparent as well as a non-transparent material, for example a glass substrate, a plastic substrate, a metal substrate or a silicon substrate.
Anode electrode
Either a first electrode or a second electrode comprised in the inventive organic electronic device may be an anode electrode. The anode electrode may be formed by depositing or sputtering a material that is used to form the anode electrode. The material used to form the anode electrode may be a high work-function material, so as to facilitate hole injection. The anode material may also be selected from a low work function material (i.e. aluminum). The anode electrode may be a transparent or reflective electrode. Transparent conductive oxides, such as indium tin oxide (ITO), indium zinc oxide (IZO), tin-dioxide (Sn02), aluminum zinc oxide (AIZO) and zinc oxide (ZnO), may be used to form the anode electrode. The anode electrode may also be formed using metals, typically silver (Ag), gold (Au), or metal alloys. The transparent or semitransparent anode may facilitate light emission through the anode.
Hole injection layer
A hole injection layer (HIL) may be formed on the anode electrode by vacuum deposition, spin coating, printing, casting, slot-die coating, Langmuir-Blodgett (LB) deposition, or the like. When the HIL is formed using vacuum deposition, the deposition conditions may vary according to the compound that is used to form the HIL, and the desired structure and thermal properties of the HIL. In general, however, conditions for vacuum deposition may include a deposition temperature of too° C to 500° C, a pressure of 10-8 to 10-3 Torr (1 Torr equals 133.322 Pa), and a deposition rate of 0.1 to 10 nm/sec.
When the HIL is formed using spin coating or printing, coating conditions may vary according to the compound that is used to form the HIL, and the desired structure and thermal properties of the HIL. For example, the coating conditions may include a coating speed of about 2000 rpm to about 5000 rpm, and a thermal treatment temperature of about 8o° C to about 200° C. Thermal treatment removes a solvent after the coating is performed.
The HIL may be formed of any compound that is commonly used to form a HIL. Examples of compounds that may be used to form the HIL include a phthalocyanine compound, such as copper phthalocyanine (CuPc), 4,4',4"-tris (3 -methylphenylphenylamino) triphenylamine (m- MTDATA), TDATA, 2T-NATA, polyaniline/dodecylbenzenesulfonic acid (Pani/DBSA), poly(3,4-ethylenedioxythiophene)/poly(4-styrenesulfonate) (PEDOT/PSS), polyaniline/camphor sulfonic acid (Pani/CSA), and polyaniline)/poly(4-styrenesulfonate (PANI/PSS).
The HIL may comprise or consist of p-type dopant and the p-type dopant maybe selected from tetrafluoro-tetracyanoquinonedimethane (F4TCNQ), 2,2'-(perfluoronaphthalen-2,6- diylidene)-dimalononitrile, 4,4',4"-((iE,i’E,i"E)-cyclopropane-i)2,3- triylidenetris(cyanomethanylylidene))tris(2,3,5,6-tetrafluorobenzonitrile) or 2,2',2"- (cyclopropane-i,2,3-triylidene)tris(2-(p-cyanotetrafluorophenyl)acetonitrile) but not limited hereto. The HIL may be selected from a hole -transporting matrix compound doped with a p- type dopant. Typical examples of known doped hole transport materials are: copper phthalocyanine (CuPc), which HOMO level is approximately -5.2 eV, doped with tetrafluoro- tetracyanoquinonedimethane (F4TCNQ), which LUMO level is about -5.2 eV; zinc phthalocyanine (ZnPc) (HOMO = -5.2 eV) doped with F4TCNQ; a-NPD (N,N'-Bis(naphthalen- i-yl)-N,N'-bis(phenyl)-benzidine) doped with F4TCNQ. a-NPD doped with 2,2'- (perfluoronaphthalen-2,6-diylidene) dimalononitrile. The p-type dopant concentrations can be selected from 1 to 20 wt.-%, more preferably from 3 wt-% to 10 wt.-%.
The thickness of the HIL may be in the range from about 1 nm to about 100 nm, and for example, from about 1 nm to about 25 nm. When the thickness of the HIL is within this range, the HIL may have excellent hole injecting characteristics, without a substantial penalty in driving voltage.
Hole transport layer
A hole transport layer (HTL) may be formed on the HIL by vacuum deposition, spin coating, slot-die coating, printing, casting, Langmuir-Blodgett (LB) deposition, or the like. When the HTL is formed by vacuum deposition or spin coating, the conditions for deposition and coating may be similar to those for the formation of the HIL. However, the conditions for the vacuum or solution deposition may vary, according to the compound that is used to form the HTL.
The HTL may be formed of any compound that is commonly used to form a HTL. Compounds that can be suitably used are disclosed for example in Yasuhiko Shirota and Hiroshi Kageyama, Chem. Rev. 2007, 107, 953-1010 and incorporated by reference. Examples of the compound that may be used to form the HTL are: carbazole derivatives, such as N-phenylcarbazole or polyvinylcarbazole; benzidine derivatives, such as N,N'-bis(3-methylphenyl)-N,N'-diphenyl- [i,i-biphenyl]-4,4'-diamine (TPD), or N,N'-di(naphthalen-i-yl)-N,N'-diphenyl benzidine (alpha-NPD); and triphenylamine-based compound, such as 4,4',4"-tris(N- carbazolyljtriphenylamine (TCTA). Among these compounds, TCTA can transport holes and inhibit excitons from being diffused into the EML.
The thickness of the HTL may be in the range of about 5 nm to about 250 nm, preferably, about 10 nm to about 200 nm, farther about 20 nm to about 190 nm, further about 40 nm to about 180 nm, further about 60 nm to about 170 nm, further about 80 nm to about 160 nm, farther about 100 nm to about 160 nm, farther about 120 nm to about 140 nm. A preferred thickness of the HTL may be 170 nm to 200 nm.
When the thickness of the HTL is within this range, the HTL may have excellent hole transporting characteristics, without a substantial penalty in driving voltage.
Electron blocking layer
The function of an electron blocking layer (EBL) is to prevent electrons from being transferred from an emission layer to the hole transport layer and thereby confine electrons to the emission layer. Thereby, efficiency, operating voltage and/or lifetime are improved. Typically, the electron blocking layer comprises a triarylamine compound. The triarylamine compound may have a LUMO level closer to vacuum level than the LUMO level of the hole transport layer. The electron blocking layer may have a HOMO level that is farther away from vacuum level compared to the HOMO level of the hole transport layer. The thickness of the electron blocking layer may be selected between 2 and 20 nm.
If the electron blocking layer has a high triplet level, it may also be described as triplet control layer.
The function of the triplet control layer is to reduce quenching of triplets if a phosphorescent green or blue emission layer is used. Thereby, higher efficiency of light emission from a phosphorescent emission layer can be achieved. The triplet control layer is selected from triarylamine compounds with a triplet level above the triplet level of the phosphorescent emitter in the adjacent emission layer. Suitable compounds for the triplet control layer, in particular the triarylamine compounds, are described in EP 2722 908 Al.
Emission layer (EML)
The EML may be formed on the HTL by vacuum deposition, spin coating, slot-die coating, printing, casting, LB deposition, or the like. When the EML is formed using vacuum deposition or spin coating, the conditions for deposition and coating may be similar to those for the formation of the HIL. However, the conditions for deposition and coating may vary, according to the compound that is used to form the EML.
It may be provided that the emission layer does not comprise the compound of Formulas (I), (II) and/or the compound (III).
The emission layer (EML) may be formed of a combination of a host and an emitter dopant. Example of the host are Alq3, 4,4'-N,N'-dicarbazole-biphenyl (CBP), poly(n-vinylcarbazole) (PVK), g,io-di(naphthalene-2-yl)anthracene (ADN), 4,4',4"-tris(carbazol-9-yl)- triphenylamine(TCTA), i,3,5-tris(N-phenylbenzimidazole-2-yl)benzene (TPBI), 3-tert-butyl- 9,io-di-2-naphthylanthracenee (TBADN), distyrylarylene (DSA) and bis(2-(2- hydroxyphenyl)benzo-thiazolate)zinc (Zn(BTZ)2).
The emitter dopant maybe a phosphorescent or fluorescent emitter. Phosphorescent emitters and emitters which emit light ria a thermally activated delayed fluorescence (TADF) mechanism may be preferred due to their higher efficiency. The emitter may be a small molecule or a polymer.
Examples of red emitter dopants are PtOEP, Ir(piq)3, and Btp2lr(acac), but are not limited thereto. These compounds are phosphorescent emitters, however, fluorescent red emitter dopants could also be used.
Examples of phosphorescent green emitter dopants are Ir(ppy)3 (ppy = phenylpyridine), Ir(ppy)2(acac), Ir(mpyp)3-
Examples of phosphorescent blue emitter dopants are F2lrpic, (F2ppy)2lr(tmd) and Ir(dfppz)3 and ter-fluorene. 4.4'-bis(4-diphenyI amiostyryljbiphenyl (DPAVBi), 2,5,8, ii-tetra- tert-butyl perylene (TBPe) are examples of fluorescent blue emitter dopants. The amount of the emitter dopant may be in the range from about o.oi to about 50 parts by weight, based on 100 parts by weight of the host. Alternatively, the emission layer may consist of a light-emitting polymer. The EML may have a thickness of about 10 nm to about 100 nm, for example, from about 20 nm to about 60 nm. When the thickness of the EML is within this range, the EML may have excellent light emission, without a substantial penalty in driving voltage.
Hole blocking layer (HBL)
A hole blocking layer (HBL) may be formed on the EML, by using vacuum deposition, spin coating, slot-die coating, printing, casting, LB deposition, or the like, in order to prevent the diffusion of holes into the ETL. When the EML comprises a phosphorescent dopant, the HBL may have also a triplet exciton blocking function.
When the HBL is formed using vacuum deposition or spin coating, the conditions for deposition and coating may be similar to those for the formation of the HIL. However, the conditions for deposition and coating may vary, according to the compound that is used to form the HBL. Any compound that is commonly used to form a HBL may be used. Examples of compounds for forming the HBL include oxadiazole derivatives, triazole derivatives, and phenanthroline derivatives.
The HBL may have a thickness in the range from about 5 nm to about 100 nm, for example, from about 10 nm to about 30 nm. When the thickness of the HBL is within this range, the HBL may have excellent hole-blocking properties, without a substantial penalty in driving voltage.
Electron transport layer (ETL)
The OLED according to the present invention comprises at least two electron transport layers (ETLs). At least two of the electron transport layers are the first electron transport layer and the second electron transport layer as defined herein. In addition, the OLED may comprise further ETLs which may or may not be as defined above. If the additional ETL(s) is/are not as defined above, the characteristics thereof may be as follows.
According to various embodiments the OLED may comprise an electron transport layer stack comprising at least a first electron transport layer (ETL-i) comprising the compound of formula (I) and at least a second electron transport layer (ETL-2) comprising a compound of formula (II).
By suitably adjusting energy levels of particular layers of the ETL, the injection and transport of the electrons may be controlled, and the holes may be efficiently blocked. Thus, the OLED may have long lifetime, improved performance and stability.
Electron injection layer (EIL)
An EIL, which may facilitate injection of electrons from the cathode, optionally into a second electron transport layer stack, may be formed on the second electron transport layer stack, preferably directly on the second electron transport layer stack, preferably directly on the second electron transport layer of the second electron layer stack, preferably in direct contact with the second electron transport layer of the second electron layer stack. Examples of materials for forming the EIL or being comprised in the EIL include lithium 8- hydroxyquinolinolate (LiQ), LiF, NaCl, CsF, Li20, BaO, Ca, Ba, Yb, Mg which are known in the art. Deposition and coating conditions for forming the EIL are similar to those for formation of the HIL, although the deposition and coating conditions may vary, according to the material that is used to form the EIL. The EIL may comprise an organic matrix material doped with an n-type dopant. The matrix material may be selected from materials conventionally used as matrix materials for electron transport layers.
The EIL may consist of a number of individual EIL sublayers. In case the EIL consists of a number of individual EIL sublayers, the number of sublayers is preferably 2. The individual EIL sublayers may comprise different materials for forming the EIL.
The thickness of the EIL may be in the range from about 0.1 nm to about 10 nm, for example, in the range from about 0.5 nm to about 9 nm. When the thickness of the EIL is within this range, the EIL may have satisfactory electron-injecting properties, without a substantial penalty in driving voltage.
The electron transport stack of the present invention is not part of the electron injection layer.
Cathode electrode
The cathode electrode is formed on the EIL if present, preferably directly on the EIL, preferably in direct contact with the EIL. In the sense of this invention the cathode and the EIL can be regarded as one functional part enabling the injection of electrons into the electron transport layer stack. The cathode electrode maybe formed of a metal, an alloy, an electrically conductive compound, or a mixture thereof. The cathode electrode may have a low work function. For example, the cathode electrode may be formed of lithium (Li), magnesium (Mg), aluminum (Al), aluminum (Al)-lithium (Li), calcium (Ca), barium (Ba), ytterbium (Yb), magnesium (Mg)- indium (In), magnesium (Mg)-silver (Ag), or the like. Alternatively, the cathode electrode may be formed of a transparent conductive oxide, such as ITO or IZO.
The thickness of the cathode electrode maybe in the range from about 5 nm to about 1000 nm, for example, in the range from about 10 nm to about 100 nm. When the thickness of the cathode electrode is in the range from about 5 nm to about 50 nm, the cathode electrode may be transparent or semitransparent even if formed from a metal or metal alloy. The transparent or semitransparent cathode may facilitate light emission through the cathode.
It is to be understood that the cathode electrode and the electron injection layer are not part of the second electron transport layer or of any other part of the electron transport layer stack.
Charge generation layer The charge generation layer (CGL), that is, the first CGL as well as any other CGL comprised in the inventive OLED, may comprise a p-type CGL and an n-type CGL. An interlayer may be arranged between the p-type layer and the n-type layer.
Typically, the charge generation layer GCL is a pn junction joining an n-type charge generation layer (electron generating layer, n-type CGL) and a-type charge generation layer (hole generating layer, p-type CGL). The n-side of the pn junction generates electrons and injects them into the layer which is adjacent in the direction to the anode. Analogously, the p-side of the pn junction generates holes and injects them into the layer which is adjacent in the direction to the cathode.
Charge generation layers are used in tandem OLEDs (such as that of the present disclosure) comprising, between the cathode and anode, two or more emission layers. In a tandem OLED comprising two emission layers, the n-type charge generation layer provides electrons for the first light emission layer arranged near the anode, while the hole generating layer provides holes to the second light emission layer arranged between the first emission layer and the cathode.
Suitable matrix materials for the hole generating layer may be materials conventionally used as hole injection and/or hole transport matrix materials. Also, p-type dopant used for the hole generating layer can employ conventional materials. For example, the p-type dopant can be one selected from a group consisting of tetrafluore-7,7,8,8-tetracyanoquinodimethane (F4- TCNQ), derivatives of tetracyanoquinodimethane, radialene derivatives, iodine, FeClg, FeFg, and SbClg. Also, the host can be one selected from a group consisting of N,N'-di(naphthalen- i-yl)-N,N-diphenyl-benzidine (NPB), N,N'-diphenyl“N,N'-bis(3-methylphenyl)-i,i-biphenyl- 4,4 -diamine (TPD) and N,N',N'-tetranaphthyI-benzidine (TNB). The p-type charge generation layer may consist of CNHAT.
The n-type charge generation layer may be layer of a neat n-type dopant, for example of an electropositive metal, or can consist of an organic matrix material doped with the n-type dopant. In one embodiment, the n-type dopant can be alkali metal, alkali metal compound, alkaline earth metal, alkaline earth metal compound, a transition metal, a transition metal compound or a rare earth metal. In another embodiment, the metal can be one selected from a group consisting of Li, Na, K, Rb, Cs, Mg, Ca, Sr, Ba, La, Ce, Sm, Eu, Tb, Dy, and Yb. More specifically, the n-type dopant can be one selected from a group consisting of Cs, K, Rb, Mg, Na, Ca, Sr, Eu and Yb. Suitable matrix materials for the n-type charge generation layer layer may be the materials conventionally used as matrix materials for electron injection or electron transport layers. The matrix material can be for example one selected from a group consisting of N-containing heterocyclic compounds like triazine compounds or phenanthroline compounds such as compound E or bipyridyl or terpyridyl compounds, hydroxyquinoline derivatives like tris(8-hydroxyquinoline)aluminum, benzazole derivatives, and silole derivatives.
The compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer. The hole generating layer may be arranged in direct contact to the n-type charge generation layer.
The electron transport stack of the present invention is not part of the charge generation layer.
Organic light-emitting diode (OLED)
According to various embodiments of the present invention, there may be provided OLEDs layers arranged between the above mentioned layers, on the substrate or on the top electrode.
According to one aspect of the present invention, there is provided an organic light-emitting diode comprising: a substrate, an anode, a first hole injection layer, a first hole transport layer, a first electron blocking layer, a first emission layer, a first optional hole blocking layer, a first electron transport layer stack, an first charge generation layer, a hole generating layer, a second hole transport layer, a second electron blocking layer, a second emission layer, a second optional hole blocking layer, a second electron transport layer stack, a second electron injection layer and a cathode.
According to one aspect of the present Invention, there is provided an organic light-emitting diode comprising: a substrate, an anode, a hole injection layer, a first hole transport layer, a first electron blocking layer, a first emission layer a first electron transport layer stack comprising a first electron transport layer and a second electron transport layer, a first charge generation layer, a second hole transport layer, a second electron blocking layer, a second emission layer, a second electron transport layer stack comprising a third electron transport layer (= first electron transport layer of the second stack) and a fourth electron transport layer (= second electron transport layer of the second stack), a second charge generation layer, a third hole transport layer, a third electron blocking layer, a third emission layer, a third electron transport layer stack comprising a fifth electron transport layer (= first electron transport layer of the third stack) and a sixth electron transport layer (= second electron transport layer of the third stack), an electron injection layer and a cathode.
According to one aspect, the OLED may comprise a layer structure of a substrate that is adjacent arranged to an anode electrode, the anode electrode is adjacent arranged to a first hole injection layer, the first hole injection layer is adjacent arranged to a first hole transport layer, the first hole transport layer is adjacent arranged to a first electron blocking layer, the first electron blocking layer is adjacent arranged to a first emission layer, the first emission layer is adjacent arranged to a first charge generation layer, first charge generation layer is adjacent arranged to a first electron transport layer stack comprising a first electron transport layer and a second electron transport layer, the first electron transport layer stack is adjacent arranged to an electron injection layer, the electron injection layer is adjacent arranged to the cathode electrode.
For example, the OLED according to Fig. i may be formed by a process, wherein on a substrate no, an anode 120, a first hole injection layer 130, a first hole transport layer 140, a first electron blocking layer 145, a first emission layer 150, a first electron transport layer stack 160, a first charge generation layer comprising an n-type charge generation layer 185 and a hole generating layer 135, a second hole transport layer 141, a second electron blocking layer 146, a second emission layer 151, a second electron transport layer stack 165, a second electron injection layer 181 and a cathode 190 are subsequently formed in that order.
For example, the OLED according to Fig. 2 may be formed by a process, wherein on an anode 120, a hole injection layer 130, a first hole transport layer 140, a first electron blocking layer 145, a first emission layer 150, a first electron transport layer stack 160 comprising a first electron transport layer 161 and a second electron transport layer 162, a first charge generation layer 184 comprising a n-type CGL sublayer 184a and a p-type CGL sublayer 184b, a second hole transport layer 141, a second electron blocking layer 146, a second emission layer 151, a second electron transport layer stack 165 comprising a third electron transport layer (= first electron transport layer of the second stack) 166 and a fourth electron transport layer (= second electron transport layer of the second stack) 167, a second charge generation layer 186 comprising a n-type CGL sublayer 186a and a p-type CGL sublayer 186b, a third hole transport layer 142, a third electron blocking layer 147, a third emission layer 152, a third electron transport layer stack 168 comprising a fifth electron transport layer (= first electron transport layer of the third stack) 163 and a sixth electron transport layer (= second electron transport layer of the third stack) 164, an electron injection layer 181 and a cathode 190 are subsequently formed in that order.
According to another aspect of the present invention, there is provided a method of manufacturing an organic electronic device, the method using: at least one deposition source, preferably two deposition sources and more preferred at least three deposition sources.
The methods for deposition that can be suitable comprise: deposition via vacuum thermal evaporation; deposition via solution processing, preferably the processing is selected from spincoating, printing, casting; and/or slot-die coating.
In case that (one or more of) the second electron transport layer(s) comprise(s) a compound (III) and a compound of formula (II) the two compounds may be deposited by co-deposition from two separate deposition sources or deposited as a pre-mix for one single source.
According to various embodiments of the present invention, the method may further include forming on the anode electrode, an emission layer and at least one layer selected from the group consisting of forming a hole injection layer, forming a hole transport layer, or forming an electron hole blocking layer, between the anode electrode and the first electron transport layer.
According to various embodiments of the present invention, the method may further include the steps for forming an organic light-emitting diode (OLED), wherein on a substrate a first anode electrode is formed, on the first anode electrode an emission layer is formed, on the emission layer an electron transport layer stack is formed, and on the electron transport layer stack a first charge generation layer is formed, and finally a cathode electrode is formed, optional a hole injection layer, a hole transport layer, formed in that order between the first anode electrode and the emission layer, an charge generation layer is formed between the electron transport layer stack and the cathode electrode.
According to various embodiments, the OLED may have the following layer structure, wherein the layers having the following order: anode, hole injection layer, hole transport layer, electron blocking layer, emission layer, optional hole blocking layer, electron transport layer stack, n-type CGL, p-type CGL, hole transport layer, electron blocking layer, emission layer, optional hole blocking layer, electron transport layer stack, first charge generation layer comprising n-type CGL and p-type CGL, hole transport layer, electron blocking layer, emission layer, optional hole blocking layer, electron transport layer stack, electron injection layer, and cathode.
According to another aspect of the invention, it is provided an electronic device comprising at least one organic light emitting device according to any embodiment described throughout this application, preferably, the electronic device comprises the organic light emitting diode in one of embodiments described throughout this application. More preferably, the electronic device is a display device or a lighting device.
In one embodiment, the organic electronic device according to the invention may further comprise a layer comprising a radialene compound and/or a quinodimethane compound.
In one embodiment, the radialene compound and/or the quinodimethane compound may be substituted with one or more halogen atoms and/or with one or more electron withdrawing groups. Electron withdrawing groups can be selected from nitrile groups, halogenated alkyl groups, alternatively from perhalogenated alkyl groups, alternatively from perfluorinated alkyl groups. Other examples of electron withdrawing groups may be acyl, sulfonyl groups or phosphoryl groups.
Alternatively, acyl groups, sulfonyl groups and/or phosphoryl groups may comprise halogenated and/or perhalogenated hydrocarbyl. In one embodiment, the perhalogenated hydrocarbyl may be a perfluorinated hydrocarbyl. Examples of a perfluorinated hydrocarbyl can be perfluormethyl, perfluorethyl, perfluorpropyl, perfluorisopropyl, perfluorobutyl, perfluorophenyl, perfluorotolyl; examples of sulfonyl groups comprising a halogenated hydrocarbyl may be trifluoromethylsulfonyl, pentafluoroethylsulfonyl, pentafluorophenylsulfonyl, heptafluoropropylsufonyl, nonafluorobutylsulfonyl, and like.
In one embodiment, the radialene and/or the quinodimethane compound may be comprised in a hole injection, hole transporting and/or a hole generation layer.
In one embodiment, the radialene compound may have Formula (XX) and/or the quinodimethane compound may have Formula (XXIa) or (XXIb):
Figure imgf000071_0001
wherein R1, R2, R3, R4, Rs, R6, R7, R8, Rn, R12, Rls, R16, R20, R23 are independently selected from above mentioned electron withdrawing groups and R9, R10, R13, R14, R17, R18, R19, R22, R23 and R24 are independently selected from H, halogen and above mentioned electron withdrawing groups.
Hereinafter, the embodiments are illustrated in more detail with reference to examples. However, the present disclosure is not limited to the following examples. Reference will now be made in detail to the exemplary aspects.
GENERAL DEFINITIONS
In the present specification, when a definition is not otherwise provided, an "alkyl group" may refer to an aliphatic hydrocarbon group. The alkyl group may refer to "a saturated alkyl group" without any double bond or triple bond. The term “alkyl” as used herein shall encompass linear as well as branched and cyclic alkyl. For example, C3-alkyl may be selected from n-propyl and iso-propyl. Likewise, C4-alkyl encompasses n-butyl, sec-butyl and t-butyl. Likewise, C6-alkyl encompasses n-hexyl and cyclo-hexyl.
As used herein if not explicitly mentioned else, the asterisk symbol “*” represents a binding position at which the moiety labelled accordingly is bond to another moiety.
The subscribed number n in Cn relates to the total number of carbon atoms in the respective alkyl, arylene, heteroarylene or aryl group.
The term “aryl” or “arylene” as used herein shall encompass phenyl (Ce-aryl), fused aromatics, such as naphthalene, anthracene, phenanthrene, tetracene etc.. Further encompassed are biphenyl and oligo- or polyphenyls, such as terphenyl, phenyl-substituted biphenyl, phenylsubstituted terphenyl (such as tetraphenyl benzole groups) etc.. “Arylene” respectively “heteroarylene”, refers to groups to which two further moieties are attached. In the present specification, the term “aryl group” or “arylene group” may refer to a group comprising at least one hydrocarbon aromatic moiety, and all the elements of the hydrocarbon aromatic moiety may have p-orbitals which form conjugation, for example a phenyl group, a napthyl group, an anthracenyl group, a phenanthrenyl group, a pyrinyl group, a fluorenyl group and the like. Further encompoassed are spiro compounds in which two aromatic moieties are connected with each other via a spiro-atom, such as 9,9’-spirobi[9H-fluorene]yl. The aryl or arylene group may include a monocyclic or fused ring polycyclic (i.e., links sharing adjacent pairs of carbon atoms) functional group.
The term “heteroaryl” as used herein refers to aryl groups in which at least one carbon atom is substituted with a heteroatom. The term “heteroaryl” may refer to aromatic heterocycles with at least one heteroatom, and all the elements of the hydrocarbon heteroaromatic moiety may have p-orbitals which form conjugation. The heteroatom may be selected from N, O, S, B, Si, P, Se, preferably from N, 0 and S. A heteroarylene ring may comprise at least i to 3 heteroatoms. Preferably, a heteroarylene ring may comprise at least 1 to 3 heteroatoms individually selected from N, S and/or O. Just as in case of “aryl”/”arylene”, the term “heteroaryl” comprises, for example, spiro compounds in which two aromatic moieties are connected with each other, such as spiro[fluorene-9,9’-xanthene]. Further exemplary heteroaryl groups are diazine, triazine, dibenzofurane, dibenzothiofurane, acridine, benzoacridine, dibenzoacridine etc.
The term “alkenyl” as used herein refers to a group -CR1 = CR2R3 comprising a carbon-carbon double bond.
The term “perhalogenated” as used herein refers to a hydrocarbyl group wherein all of the hydrogen atoms of the hydrocarbyl group are replaced by halogen (F, Cl, Br, I) atoms.
The term “alkoxy” as used herein refers to a structural fragment of the Formula -OR with R being hydrocarbyl, preferably alkyl or cycloalkyl.
The term “thioalkyl” as used herein refers to a structural fragment of the Formula -SR with R being hydrocarbyl, preferably alkyl or cycloalkyl.
The subscripted number n in Cn-heteroaryl merely refers to the number of carbon atoms excluding the number of heteroatoms. In this context, it is clear that a C3 heteroarylene group is an aromatic compound comprising three carbon atoms, such as pyrazol, imidazole, oxazole, thiazole and the like.
The term “heteroaryl” as used herewith shall encompass pyridine, quinoline, benzoquinoline, quinazoline, benzoquinazoline, pyrimidine, pyrazine, triazine, benzimidazole, benzothiazole, benzo[4,5]thieno[3,2-d]pyrimidine, carbazole, xanthene, phenoxazine, benzoacridine, dibenzoacridine and the like.
In the present specification, the term single bond refers to a direct bond.
The term “fluorinated” as used herein refers to a hydrocarbon group in which at least one of the hydrogen atoms comprised in the hydrocarbon group is substituted by a fluorine atom. Fluorinated groups in which all of the hydrogen atoms thereof are substituted by fluorine atoms are referred to as perfluorinated groups and are particularly addressed by the term “fluorinated”,
In terms of the invention, a group is “substituted with” another group if one of the hydrogen atoms comprised in this group is replaced by another group, wherein the other group is the substituent.
In terms of the invention, the expression “between” with respect to one layer being between two other layers does not exclude the presence of further layers which may be arranged between the one layer and one of the two other layers. In terms of the invention, the expression “in direct contact” with respect to two layers being in direct contact with each other means that no further layer is arranged between those two layers. One layer deposited on the top of another layer is deemed to be in direct contact with this layer.
The term “contacting sandwiched” refers to an arrangement of three layers whereby the layer in the middle is in direct contact with the two adjacent layers.
With respect to the inventive electron transport layer stack the compounds mentioned in the experimental part are most preferred.
A lighting device may be any of the devices used for illumination, irradiation, signaling, or projection. They are correspondingly classified as illuminating, irradiating, signaling, and projecting devices. A lighting device usually consists of a source of optical radiation, a device that transmits the radiant flux into space in the desired direction, and a housing that joins the parts into a single device and protects the radiation source and light-transmitting system against damage and the effects of the surroundings.
According to another aspect, the organic electroluminescent device according to the present invention comprises two or three or more emission layers. An OLED comprising more than one emission layer is also described as a tandem OLED or stacked OLED.
The organic electroluminescent device (OLED) may be a bottom- or top-emission device. The organic electroluminescent device (OLED) may emit the light trough a transparent anode or through a transparent cathode.
Another aspect is directed to a device comprising at least one organic electroluminescent device (OLED).
A device comprising organic light-emitting diodes is for example a display or a lighting panel.
In the present invention, the following defined terms, these definitions shall be applied, unless a different definition is given in the claims or elsewhere in this specification.
In the context of the present specification the term “different” or “differs” in connection with the matrix material means that the matrix material differs in their structural Formula. The terms “OLED” and “organic light-emitting diode” are simultaneously used and have the same meaning. The term “organic electroluminescent device” as used herein may comprise both organic light emitting diodes as well as organic light emitting transistors (OLETs).
As used herein, „ weight percent", „wt.-%”, ..percent by weight”, „% by weight”, and variations thereof refer to a composition, component, substance or agent as the weight of that component, substance or agent of the respective electron transport layer divided by the total weight of the respective electron transport layer thereof and multiplied by too. It is under-stood that the total weight percent amount of all components, substances and agents of the respective electron transport layer and electron injection layer are selected such that it does not exceed 100
As used herein, ..volume percent", „vol.-%”, ..percent by volume”, „% by volume”, and variations thereof refer to a composition, component, substance or agent as the volume of that component, substance or agent of the respective electron transport layer divided by the total volume of the respective electron transport layer thereof and multiplied by 100. It is understood that the total volume percent amount of all components, substances and agents of the cathode layer are selected such that it does not exceed 100 vol.-%.
All numeric values are herein assumed to be modified by the term "about", whether or not explicitly indicated. As used herein, the term "about" refers to variation in the numerical quantity that can occur. Whether or not modified by the term „about“ the claims include equivalents to the quantities.
It should be noted that, as used in this specification and the appended claims, the singular forms „a”, „an”, and „the“ include plural referents unless the content clearly dictates otherwise.
The term “free of’, “does not contain”, “does not comprise” does not exclude impurities. Impurities have no technical effect with respect to the object achieved by the present invention.
In the context of the present specification the term “essentially non-emissive” or “non- emissive” means that the contribution of the compound or layer to the visible emission spectrum from the device is less than 10 %, preferably less than 5 % relative to the visible emission spectrum. The risible emission spectrum is an emission spectrum with a wavelength of about > 380 nm to about < 780 nm.
Preferably, the organic semiconducting layer comprising the compound of Formula (I) is essentially non-emissive or non-emitting.
The operating voltage, also named U, is measured in Volt (V) at 10 milliAmpere per square centimeter (mA/cms).
The candela per Ampere efficiency, also named cd/A efficiency is measured in candela per ampere at 10 milliAmpere per square centimeter (mA/ cm2).
The external quantum efficiency, also named EQE, is measured in percent (%). The color space is described by coordinates CIE-x and CIE-y (International Commission on Illumination 1931). For blue emission the CIE-y is of particular importance. A smaller CIE-y denotes a deeper blue color. Efficiency values are compared at the same CIE-y.
The highest occupied molecular orbital, also named HOMO, and lowest unoccupied molecular orbital, also named LUMO, are measured in electron volt (eV).
The term “OLED”, “organic light emitting diode”, “organic light emitting device”, “organic optoelectronic device” and “organic light-emitting diode” are simultaneously used and have the same meaning.
The term “life-span” and “lifetime” are simultaneously used and have the same meaning.
The anode and cathode may be described as anode electrode / cathode electrode or anode electrode / cathode electrode or anode electrode layer / cathode electrode layer.
Room temperature, also named ambient temperature, is 23°C.
BRIEF DESCRIPTION OF THE DRAWINGS
These and/or other aspects and advantages of the present invention will become apparent and more readily appreciated from the following description of the exemplary embodiments, taken in conjunction with the accompanying drawings, of which:
FIG. i is a schematic sectional view of a multi-emission layer organic light-emitting diode (OLED), according to an exemplary embodiment of the present invention;
FIG. 2 is a schematic sectional view of a multi-emission layer OLED, according to an exemplary embodiment of the present invention.
DETAILED DESCRIPTION
Reference will now be made in detail to the exemplary embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the like elements throughout. The exemplary embodiments are described below, in order to explain the aspects of the present invention, by referring to the figures.
Herein, when a first element is referred to as being formed or disposed "on" or “onto” a second element, the first element can be disposed directly on the second element, or one or more other elements may be disposed there between. When a first element is referred to as being formed or disposed "directly on" or “directly onto” a second element, no other elements are disposed there between.
FIG. i is a schematic sectional view of an organic light-emitting diode (OLED) 200, according to an exemplary embodiment of the present invention. The OLED 200 includes a substrate 110, an anode t20, a first hole injection layer (HIL-i) 130, a first hole transport layer (HTL-1) 140, a first electron blocking layer (EBL-i) 145, a first emission layer (EML-i) 150, a first electron transport layer (ETL-i) stack 160 comprising a first electron transport layer of the first stack 161 and a second electron transport layer of the first stack 162, a first charge generation layer comprising an n-type charge generation layer (n-type CGL) 185 and a hole generating layer (p- type charge generation layer; p-type GCL) 135, a second hole transport layer (HTL-2) 141, a second electron Hocking layer (EBL-2) 146, a second emission layer (EML-2) 151, a second electron transport layer (ETL-2) stack 165 comprising a third electron transport layer (= first electron transport layer of the second stack) 166 and a fourth electron transport layer (= second electron transport layer of the second stack) 167, an electron injection layer (EIL) 181 and a cathode 190.
Referring to Fig. 2, the OLED 200 includes an anode 120, a hole injection layer (HIL) 130, a first hole transport layer (HTL-1) 140, a first electron blocking layer (EBL-i) 145, a first emission layer (EML-i) 150, a first electron transport layer (ETL-i) stack 160 comprising a first electron transport layer 161 and a second electron transport layer 162, a first charge generation layer (CGL-i) 184, a second hole transport layer (HTL-2) 141, a second electron blocking layer (EBL-2) 146, a second emission layer (EML-2) 151, a second electron transport layer (ETL-2) stack 165 comprising a third electron transport layer (= first electron transport layer of the second stack) 166 and a fourth electron transport layer (= second electron transport layer of the second stack) 167, a second charge generation layer (CGL-2) 186, a third hole transport layer (HTL-3) 142, a third electron blocking layer (EBL-3) 147, a third emission layer (EML-3) 152, a third electron transport layer (ETL-3) stack 168 comprising a fifth electron transport layer (= first electron transport layer of the third stack) 163 and a sixth electron transport layer (- second electron transport layer of the third stack) 164, an electron injection layer (EIL) 181 and a cathode 190. The OLED shown in Fig. 2 has a first emitting part A, a second emitting part B, and a third emitting part C.
While not shown in Fig. 1 and Fig. 2 a sealing layer may further be formed on the cathode electrodes 190, in order to seal the OLEDs 200. In addition, various other modifications may be applied thereto.
Hereinafter, one or more exemplaiy embodiments of the present invention will be described in detail with, reference to the following examples. However, these examples are not intended to limit the purpose and scope of the one or more exemplary embodiments of the present invention.
DETAILED DESCRIPTION
Melting point
The melting point (mp) is determined as peak temperatures from the DSC curves of the above TGA-DSC measurement or from separate DSC measurements (Metler Toledo DSC822e, heating of samples from room temperature to completeness of melting with heating rate 10 K/min under a stream of pure nitrogen. Sample amounts of 4 to 6 mg are placed in a 40 pL Mettler Toledo aluminum pan with lid, a <1 mm hole is pierced into the lid).
Glass transition temperature The glass transition temperature (Tg) is measured under nitrogen and using a heating rate of 10 K per min in a Mettler Toledo DSC 822c differential scanning calorimeter as described in DIN EN ISO 11357, published in March 2010.
Rate onset temperature
The rate onset temperature (TRO) is determined by loading 100 mg compound into a VTE source. As VTE source a point source for organic materials may be used as supplied by Kurt J. Lesker Company (www.lesker.com) or CreaPhys GmbH (htp://www.creaphys.com). The VTE source is heated at a constant rate of 15 K/min at a pressure of less than io-5 mbar and the temperature inside the source measured with a thermocouple. Evaporation of the compound is detected with a QCM detector which detects deposition of the compound on the quartz crystal of the detector. The deposition rate on the quartz crystal is measured in Angstrom per second. To determine the rate onset temperature, the deposition rate is plotted against the VTE source temperature. The rate onset is the temperature at which noticeable deposition on the QCM detector occurs. For accurate results, the VTE source is heated and cooled three time and only results from the second and third run are used to determine the rate onset temperature.
To achieve good control over the evaporation rate of an organic compound, the rate onset temperature may be in the range of 200 to 255 °C. If the rate onset temperature is below 200 °C the evaporation may be too rapid and therefore difficult to control. If the rate onset temperature is above 255 °C the evaporation rate may be too low which may result in low tact time and decomposition of the organic compound in VTE source may occur due to prolonged exposure to elevated temperatures.
The rate onset temperature is an indirect measure of the volatility of a compound. The higher the rate onset temperature the lower is the volatility7 of a compound.
Reduction potential
The reduction potential is determined by cyclic voltammetry with potenioststic device Metrohm PGSTAT30 and software Metrohm Autolab GPES at room temperature. The redox potentials given at particular compounds were measured in an argon de-aerated, dry 0.1M THF solution of the tested substance, under argon atmosphere, with 0.1M tetrabutylammonium hexafluorophosphate supporting electrolyte, between platinum working electrodes and with an Ag/AgCl pseudo-standard electrode (Metrohm Silver rod electrode), consisting of a silver wire covered by silver chloride and immersed directly in the measured solution, with the scan rate 100 mV/s. The first run was done in the broadest range of the potential set on the working electrodes, and the range was then adjusted within subsequent runs appropriately. The final three runs were done with the addition of ferrocene (in 0.1M concentration) as the standard. The average of potentials corresponding to cathodic and anodic peak of the studied compound, after subtraction of the average of cathodic and anodic potentials observed for the standard Fc+/Fc redox couple, afforded finally the values reported above. All studied compounds as well as the reported comparative compounds showed well-defined reversible electrochemical behavior.
Dipole moment The dipole moment |g] of a molecule containing N atoms is given by:
Figure imgf000078_0001
where qt and rt are the partial charge and position of atom i in the molecule.
The dipole moment is determined by a semi-empirical molecular orbital method.
The geometries of the molecular structures are optimized using the hybrid functional B3LYP with the 6-31G* basis set in the gas phase as implemented in the program package TURBOMOLE V6.5 (TURBOMOLE GmbH, Litzenhardtstrasse 19, 76135 Karlsruhe, Germany). If more than one conformation is viable, the conformation with the lowest total energy is selected to determine the bond lengths of the molecules.
Calculated HOMO and LUMP
The HOMO and LUMO are calculated with the program package TURBOMOLE V6.5 (TURBOMOLE GmbH, Litzenhardtstrasse 19, 76135 Karlsruhe, Germany). The optimized geometries and the HOMO and LUMO energy levels of the molecular structures are determined by applying the hybrid functional B3LYP with a 6-31G* basis set in the gas phase. If more than one conformation is viable, the conformation with the lowest total energy is selected.
Synthesis procedure
The synthesis of compound B-i is described in WO 2021/105518 Al. The synthesis of compound B-2 is described in WO 2021/058761 Al. The synthesis of compound B-3 is described in WO2O21/116225 Al. The synthesis of compound B-4 is described in WO 2021/058761 Al. The synthesis of compound B-5 is described in JP 2008-189660 A. The synthesis of compound G (= (2-([i,i’-biphenyl]-3-yl)-4-phenyl-6-(3-(io-phenylanthracen-9- yl)phenyl)-i,3,5-triazine)) is described in WO 2020/ 120794 Al.
General procedure for fabrication of OLEDs
Manufacturing of the comparative example (CompEx)
For the top emission OLED devices a substrate with dimensions of 150 mm x 150 mm x 0.7 mm was ultrasonically cleaned with a 2% aqueous solution of Deconex FPD 211 for 7 minutes and then with pure water for 5 minutes, and dried for 15 minutes in a spin rinse dryer. Subsequently, Ag was deposited as anode at a pressure of 10-5 to icw mbar. Then, HT-i and D-i were vacuum co-deposited on the anode to form a HIL. Then, HT-i was vacuum deposited on the HIL to form an HTL. Then, HT-2 was vacuum deposited on the HTL to form an electron blocking layer (EBL).
Afterwards the first emission layer was formed on the EBL by co-deposition of HOST-i and EMITTER-i.
Then, the compound of Formula (I) was vacuum deposited onto the emission layer to form the first electron transport layer.
Then, the second electron transport layer was formed on the first electron transport layer by depositing a pre-mix of compound F and compound (III).
Then, the n-type CGL was formed on the second electron transport layer by co-depositing compound F and Lithium.
Then, HT-i and D-i were vacuum co-deposited on the n-type CGL to form a p-type CGL
Then, HT-i was vacuum deposited on the p-type CGL to form an HTL. Then, HT-2 was vacuum deposited on the HTL to form an EBL.
Afterwards the second emission layer was formed on the EBL by co-deposition of HOST-i and EMITTER-!.
Then, the compound of Formula (I) was vacuum deposited onto the emission layer to form the first electron transport layer. Then, the second electron transport layer was formed on the first electron transport layer by depositing a pre-mix of compound F and compound (III).
Then, the n-CGL was formed on the second electron transport layer by co-depositing compound F and Lithium.
Then, HT-i and D-i were vacuum co-deposited on the n-type CGL to form a p-type CGL.
Then, HT-i was vacuum deposited on the HIL to form an HTL. Then, HT-2 was vacuum deposited on the HTL to form an electron blocking layer (EBL).
Afterwards the third emission layer was formed on the EBL by co-deposition of HOST-i and EMITTER-i.
Then, the compound of Formula (I) was vacuum deposited onto the emission layer to form the first electron transport layer. Then, the second electron transport layer was formed on the first electron transport layer by depositing compound E and compound (III) .Then, the electron injection layer is formed as a double layer on the electron transport layer by depositing first LiQ and subsequently Yb.
Ag:Mg is then evaporated at a rate of o.oi to i A/s at icr7 mbar to form a cathode. A cap layer of HT-3 is formed on the cathode.
Manufacturing of the inventive examples ( OLED-i to OLED-g)
For the OLED examples 1 to 5 the compound F was replaced by a compound of formula (II), namely compounds B-i to B-5, respectively.
The compound (III) is in all examples compound G.
The details of the layer stack in the top emission OLED devices are given below. A slash
Figure imgf000080_0001
separates individual layers. Layer thicknesses are given in squared brackets [...], mixing ratios in vh.% given in round brackets
Figure imgf000080_0002
Layer stack details used in the OLED device - with compound (III):
Ag [loonm] / HT-1:D-1 (vol% 92:8) [lonm] / HT-i [aqnm] / HT-2 [gnm] / Hog:BD2OO (wt% 97:3) [20 nm] / Compound of Formula (I) fenm] / {Compound of Formula (II) or F}: Compound of Formula (III) (wt% 30:70) [25nm] / {Compound of Formula (II) or F}:Li (wt% 99:1) [i5nm] / HT-i:D-i (vol% 90:10) [lonm] /HT-i [36nm] / HT-2 [511m] / Hog:BD2OO (wt% 97:3) [20 nm] / Compound of Formula (I) [511m] / {Compound of Formula (II) or F}): Compound of Formula (III) (wt% 30:70) [25nm] / {Compound of Formula (II) or F}:Li (wt%99:i) [15nm] / HT-i:D-l (vol% 90:10) [lonm] /HT-i [57nm] / HT-2 [511m] / Hog:BD200 (wt% 97:3) [20 nm] / Compound of Formula (I) [snm] / {Compound of Formula (II) or F}: Compound of Formula (III) (wt% 30:70) [30nm] / LiQ [mm] / Yb [anm] / Ag:Mg (wt% 90:10) [13 nm] / HT-3 [6snm]
Table 5: List of compounds used
Figure imgf000080_0003
Figure imgf000081_0001
Technical Effect of the invention
The OLED devices according to the invention show improved DRIVING VOLTAGE and improved CEff in devices comprising an electron transport layer stack in accordance with the present invention.
Table 5:
Performance of an organic electroluminescent tandem device comprising the compound of Formula (I) in the first electron transport layer and the compound of Formula (II) or the comparative compound F in the second electron transport layer as well as in the first charge generation layer.
Table 6:
Figure imgf000081_0002
The features disclosed in the foregoing description and in the dependent claims may, both separately and in any combination thereof, be material for realizing the aspects of the disclosure made in the independent claims, in diverse forms thereof.

Claims

Claims
1. Organic light emitting diode comprising an anode, a cathode, a first emission layer, a second emission layer, a first charge generation layer and a first electron transport layer stack; wherein
- the first charge generation layer is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack is arranged between the first emission layer and the second emission layer;
- the first electron transport layer stack comprises a first electron transport layer and a second electron transport layer;
- the first electron transport layer comprises a compound of Formula (I)
(Art-Aja-Xb (I);
- a and b are independently i or 2;
- c is independently o or i;
- Ar1 is independently selected from C& to Cto aryl or C2 to C42 heteroaryl,
- wherein each Ar1 may be substituted with one or two substituents independently selected from the group consisting of Ce to Ci2 aryl, C3 to Cn heteroaryl, and Ci to Cg alkyl, D, Ct to Ce alkoxy, C3 to Ct> branched alkyl, C3 to C& cyclic alkyl, C3 to C6 branched alkoxy, C3 to Cb cyclic alkoxy, partially or perfluorinated Ct to Cb alkyl, partially or perfluorinated Ci to C& alkoxy, partially or perdeuterated Ci to Cb alkyl, partially or perdeuterated Ci to C& alkoxy, halogen, CN or PY(Rlo)2, wherein Y is selected from O, S or Se, preferably O and R’° is independently selected from C& to C12 aryl, C3 to CX2 heteroaryl, Ct to C& alkyl, Ci to Ce alkoxy, partially or perfluorinated Ci to C& alkyl, partially or perfluorinated C, to Cb alkoxy, partially or perdeuterated Ci to Cc alkyl, partially or perdeuterated Ct to Ce alkoxy;
- wherein each C6 to C12 aryl substituent on Ar1 and each C3 to Cn heteroaryl substituent on Art may be substituted with Ci to C4 alkyl or halogen;
- A is independently selected from Cb to C30 aryl,
- wherein each A may be substituted with one or two substituents independently selected from the group consisting of C& to Ci2 aryl and C, to Ce alkyl, D, C( to C& alkoxy, C3 to Cb branched alkyl, C3 to C& cyclic alkyl, C3 to Ct, branched alkoxy, C3 to Ct, cyclic alkoxy, partially or perfluorinated Ci to C& alkyl, partially or perfluorinated Ci to Cb alkoxy, partially or perdeuterated Ci to C& alkyl, partially or perdeuterated G to Ce alkoxy, halogen, CN or PY(R10)2, wherein Y is selected from O, S or Se, preferably O, and R10 is independently selected from Ce to C,2 aryl, C3 to Ci2 heteroaryl, G to Ct, alkyl, G to C& alkoxy, partially or perfluorinated Ci to C& alkyl, partially or perfluorinated G to C& alkoxy, partially or perdeuterated G to C& alkyl, partially or perdeuterated G to G> alkoxy;
- wherein each Cs to C12 aryl substituent on A may be substituted with G to C4 alkyl or halogen;
- X is independently selected from the group consisting of C2 to C42 heteroaryl and Ct> to C&o aryl,
- wherein each X may be substituted with one or two substituents independently selected from the group consisting of C& to C12 aryl, C3 to Gi heteroaiyl, and G to C6 alkyl, D, G to C& alkoxy, C3 to C& branched alkyl, C3 to C& cyclic alkyl, C3 to C& branched alkoxy, C3 to C& cyclic alkoxy, partially or perfluorinated G to G> alkyl, partially or perfluorinated G to Ce alkoxy, partially or perdeuterated G to C6 alkyl, partially or perdeuterated G to C& alkoxy, halogen, CN or PY(R1O)2, wherein Y is selected from O, S or Se, preferably O, and R10 is independently selected from Ce to Ct2 aryl, C3 to Ga heteroaryl, G to Ce alkyl, G to Ce alkoxy, partially or perfluorinated Cs to Ce alkyl, partially or perfluorinated G to G alkoxy, partially or perdeuterated G to C$ alkyl, partially or perdeuterated G to Ct, alkoxy;
- wherein each Ce to Ci2 aryl substituent on X and each C3 to Cn heteroaryl substituent on X may be substituted with G to C4 alkyl or halogen;
- the molecular dipole moment of the compound of formula (I) is a o D and < 4 D;
- the second electron transport layer comprises a compound of Formula (II)
(Ara)m-(Zk-G)n (II);
- m and n are independently 1 or 2;
- k is independently o, 1 or 2;
- Ar2 is independently selected from the group consisting of C2 to C42 heteroaryl and Ce to Ceo aryl,
- wherein each Ar2 may be substituted with one or two substituents independently selected from the group consisting of Ce to C12 aryl, C3 to Cn heteroaryl, and G to Ce> alkyl, D, G to Ce alkoxy, C3 to C& branched alkyl, C3 to C& cyclic alkyl, C3 to C6 branched alkoxy, C3 to Ct, cyclic alkoxy, partially or perfluorinated G to C& alkyl, partially or perfluorinated G to C6 alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated G to Ce alkoxy, halogen, CN or PY(R10)2, wherein Y is selected from O, S or Se, preferably O, and R10 is independently selected from Ce to Ci2 aryl, C3 to Ci2 heteroaryl, G to Ce alkyl, Ci to Ce alkoxy, partially or perfluorinated Ci to C6 alkyl, partially or perfluorinated Ci to Ce alkoxy, partially or perdeuterated Ci to Ce alkyl, partially or perdeuterated G to Ce alkoxy;
- wherein each Ce to C>2 aryl substituent on Ar2 and each C3 to Cn heteroaryl substituent on Ar2 may be substituted with Ci to C4 alkyl or halogen;
- Z is independently selected from Ce to C30 aryl,
- wherein each Z may be substituted with one or two substituents independently selected from the group consisting of Ce to Ci2 aryl and G to Ce alkyl, D, Ci to Ce alkoxy, C3 to Ce branched alkyl, C3 to Ce cyclic alkyl, C3 to Ce branched alkoxy, C3 to Ce cyclic alkoxy, partially or perfluorinated G to Ce alkyl, partially or perfluorinated G to Ce alkoxy, partially or perdeuterated Ci to Ce alkyl, partially or perdeuterated G to Ce alkoxy, halogen, CN or PY(R1O)2, wherein Y is selected from 0, S or Se, preferably 0, and R10 is independently selected from C6 to Ci2 aryl, C3 to C12 heteroaryl, G to Ce alkyl, G to Ce alkoxy, partially or perfluorinated Ci to Ce alkyl, partially or perfluorinated G to Ce alkoxy, partially or perdeuterated G to Ce alkyl, partially or perdeuterated G to Ce alkoxy;
- wherein each Ce to Ga aryl substituent on Z may be substituted with G to C4 alkyl or halogen;
- G is chosen so that the dipole moment of a compound G-phenyl is > 1 D and < 7 D;
- the first electron transport layer and the second electron transport layer are free of an electrical dopant;
- the first charge generation layer comprises the compound of Formula (II), wherein the compound of Formula (II) in the first charge generation layer is the same compound of Formula (II) as in the second electron transport layer; and
- G is free from P=O moiety. Organic light emitting diode according to claim 1, wherein Ar1 is independently selected from the group consisting of phenyl, naphthyl, anthracenyl, fluoranthenyl, xanthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl spiro-xanthenyl, fluorenyl, spiro-fluorenyl, triphenylsilyl, tetraphenylsilyl, or a group having the formula (Ila) or (lib)
Figure imgf000085_0001
wherein
- the asterisk symbol represents the binding position for binding the group of formula (Ila) to A; and
- R1 to R9 are independently selected from the group consisting of H, Ce to C12 aryl and C4 to CiO heterorayl. Organic light emitting diode according to claim 1, wherein Ar1 is independently selected from the group consisting of fluoranthenyl, dibenzofuranyl, pyrimidinyl pyrazinyl, 9,9- dimethylfluorenyl, a group having the formula (Ila), a group having the formula (lib),
Figure imgf000086_0001
wherein
- the asterisk symbol “*” represents the binding position for binding the group of formula (Ila) to A; and
- RJ is H and R2 to R5 are independently phenyl; or
- R1 and R3 are phenyl and R2, R‘» and R5 are H or
- R6 to R9 are phenyl. Organic light emitting diode according to any of the preceding claims, wherein A is selected from the group consisting of phenylene, naphthylene, biphenylene and terphenylene, which may be substituted or unsubstituted, respectively. Organic light emitting diode according to any of the preceding claims, wherein X is independently selected from the group consisting of triazinyl, 1,2-diazinyl, 1,3-diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyi, quinolinyl, benzoquinolinyl benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively. Organic light emitting diode according to any of the preceding claims, wherein Ar2 is independently selected from the group consisting of pyridinyl, triazinyl, 1,2-diazinyl, 1,3-diazinyl, 1,4-diazinyl, quinazolinyl, benzoquinazolinyl, benzimidazolyi, quinolinyl, benzoquinolinyl benzoacridinyl, dibenzoacridinyl, fluoranthenyl, anthracenyl, naphthyl, triphenylenyl, phenanthrolinyl, and dinaphthofuranyl which may be substituted or unsubstituted, respectively. Organic light emitting diode according to any of the preceding claims, wherein
- G is selected from the group consisting of nitrile, benzonitrile, nicotinonitrile, amideyl, carbamide-yl and C2 to Ci7 heteroaryl;
- the respective G may include one or more substituents attached to the group, wherein the one or more substituents are selected from the group consisting of phenyl, methyl, ethyl, and pyridyl. Organic light emitting diode according to any of the preceding claims, wherein G is selected from the group consisting of 2,2’-bipyridinyl, 9~phenyl-i,io-phenanthrolinyl, 1,10-phenanthrolinyl, (pyridine-2-yl)imidazo[i,5~a]pyridinyl, 2-pyridin-2-yl- quinolinyl and terpyridinyl. Organic light emitting diode according to any of the preceding claims, wherein G is selected such that the compound G-phenyl is represented by one of the following structures
Figure imgf000087_0001
Figure imgf000088_0001
Figure imgf000089_0001
io. Organic light emitting diode according to any of the preceding claims, wherein the compound of Formula (II) is selected from B-i to B-27
Figure imgf000089_0002
Figure imgf000090_0001
Figure imgf000091_0001
Figure imgf000092_0001
Figure imgf000093_0001
. Organic light emitting diode according to any of the preceding claims, wherein the second electron transport layer further comprises a compound (III), wherein the compound (III) comprises 8 to 13 aromatic or heteroaromatie rings, optionally 8 to 11 aromatic or heteroaromatic rings, optionally 9 or 10 aromatic or heteroaromatic rings. . Organic light emitting diode according to claim 11, wherein the compound (III) comprises 1 to 5 heteroaromatic rings. - Organic light emitting diode according to claim 11 or 12, wherein, if the compound (III) comprises two or more heteroaromatic rings, the heteroaromatic rings are separated from each other by at least one aromatic ring which is free of a heteroatom. . Organic light emiting diode according to any of the preceding claims, wherein the first electron transport layer stack is arranged between the first emission layer and the first charge generation layer. . Organic light emitting diode according to any of the preceding claims, wherein the first electron transport layer and the second electron transport layer are in direct contact with each other. . Organic light emitting diode according to any of the preceding claims, wherein the second electron transport layer is in direct contact with the first charge generation layer. Organic light emitting diode according to any of the preceding claims, wherein the first charge generation layer comprises a metal, alternatively an alkali metal or a metal salt. Device comprising the organic light emitting diode according to any of the preceding claims, wherein the device is a display device or a lighting device and the light is emitted through a transparent cathode. Device comprising the organic light emitting diode according to claims 1 to 17, wherein the device is a display derice or a lighting derice and the light is emitted through a transparent anode.
PCT/EP2023/061263 2022-05-02 2023-04-28 Organic light emitting diode and device comprising the same Ceased WO2023213712A1 (en)

Priority Applications (3)

Application Number Priority Date Filing Date Title
CN202380038132.0A CN119302062A (en) 2022-05-02 2023-04-28 Organic light emitting diode and device comprising the same
KR1020247036594A KR20250018475A (en) 2022-05-02 2023-04-28 Organic light-emitting diode and device including same
US18/861,809 US20250295029A1 (en) 2022-05-02 2023-04-28 Organic Light Emitting Diode and Device Comprising the Same

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
EP22171165.8A EP4273948A1 (en) 2022-05-02 2022-05-02 Organic light emitting diode and device comprising the same
EP22171165.8 2022-05-02

Publications (1)

Publication Number Publication Date
WO2023213712A1 true WO2023213712A1 (en) 2023-11-09

Family

ID=81579731

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/EP2023/061263 Ceased WO2023213712A1 (en) 2022-05-02 2023-04-28 Organic light emitting diode and device comprising the same

Country Status (5)

Country Link
US (1) US20250295029A1 (en)
EP (1) EP4273948A1 (en)
KR (1) KR20250018475A (en)
CN (1) CN119302062A (en)
WO (1) WO2023213712A1 (en)

Families Citing this family (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP4444061A1 (en) * 2023-04-06 2024-10-09 Novaled GmbH Organic electroluminescent device comprising a organic matrix compound and organic electron transport compound of formula (i), and display device comprising the organic electroluminescent device

Citations (12)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP1837926A1 (en) 2006-03-21 2007-09-26 Novaled AG Heterocyclic radicals or diradicals and their dimers, oligomers, polymers, di-spiro and polycyclic derivatives as well as their use in organic semiconductor materials and electronic devices.
WO2007107306A1 (en) 2006-03-22 2007-09-27 Novaled Ag Use of heterocyclic radicals for doping organic semiconductors
WO2007107356A1 (en) 2006-03-21 2007-09-27 Novaled Ag Method for preparing doped organic semiconductor materials and formulation utilized therein
JP2008189660A (en) 2007-01-11 2008-08-21 Toray Ind Inc Method for producing nitrogen-containing aromatic ring derivative
EP2722908A1 (en) 2012-10-17 2014-04-23 Novaled AG Phosphorescent OLED and hole transporting materials for phosphorescent OLEDs
US20140117337A1 (en) * 2012-10-31 2014-05-01 Lg Display Co., Ltd. Light emitting device and organic light emitting display device including the same
US20140291631A1 (en) * 2013-04-01 2014-10-02 Samsung Display Co., Ltd. Organic light emitting diode device
WO2020120794A2 (en) 2018-12-14 2020-06-18 Novaled Gmbh Organic light emitting device and a compound for use therein
WO2021058761A1 (en) 2019-09-26 2021-04-01 Novaled Gmbh First and second organic semiconductor layer and organic electronic device comprising the same
WO2021105518A1 (en) 2019-11-27 2021-06-03 Novaled Gmbh Organic electronic device and display device comprising the organic electronic device as well as organic compounds for use in organic electronic devices
WO2021116225A1 (en) 2019-12-10 2021-06-17 Novaled Gmbh Acridine compound and organic semiconducting layer, organic electronic device and display device comprising the same
EP3923364A1 (en) * 2020-06-12 2021-12-15 Novaled GmbH Organic light emitting diode and device comprising the same

Patent Citations (12)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP1837926A1 (en) 2006-03-21 2007-09-26 Novaled AG Heterocyclic radicals or diradicals and their dimers, oligomers, polymers, di-spiro and polycyclic derivatives as well as their use in organic semiconductor materials and electronic devices.
WO2007107356A1 (en) 2006-03-21 2007-09-27 Novaled Ag Method for preparing doped organic semiconductor materials and formulation utilized therein
WO2007107306A1 (en) 2006-03-22 2007-09-27 Novaled Ag Use of heterocyclic radicals for doping organic semiconductors
JP2008189660A (en) 2007-01-11 2008-08-21 Toray Ind Inc Method for producing nitrogen-containing aromatic ring derivative
EP2722908A1 (en) 2012-10-17 2014-04-23 Novaled AG Phosphorescent OLED and hole transporting materials for phosphorescent OLEDs
US20140117337A1 (en) * 2012-10-31 2014-05-01 Lg Display Co., Ltd. Light emitting device and organic light emitting display device including the same
US20140291631A1 (en) * 2013-04-01 2014-10-02 Samsung Display Co., Ltd. Organic light emitting diode device
WO2020120794A2 (en) 2018-12-14 2020-06-18 Novaled Gmbh Organic light emitting device and a compound for use therein
WO2021058761A1 (en) 2019-09-26 2021-04-01 Novaled Gmbh First and second organic semiconductor layer and organic electronic device comprising the same
WO2021105518A1 (en) 2019-11-27 2021-06-03 Novaled Gmbh Organic electronic device and display device comprising the organic electronic device as well as organic compounds for use in organic electronic devices
WO2021116225A1 (en) 2019-12-10 2021-06-17 Novaled Gmbh Acridine compound and organic semiconducting layer, organic electronic device and display device comprising the same
EP3923364A1 (en) * 2020-06-12 2021-12-15 Novaled GmbH Organic light emitting diode and device comprising the same

Non-Patent Citations (1)

* Cited by examiner, † Cited by third party
Title
YASUHIKO SHIROTAHIROSHI KAGEYAMA, CHEM. REV., vol. 107, 2007, pages 953 - 1010

Also Published As

Publication number Publication date
US20250295029A1 (en) 2025-09-18
CN119302062A (en) 2025-01-10
EP4273948A1 (en) 2023-11-08
KR20250018475A (en) 2025-02-06

Similar Documents

Publication Publication Date Title
EP3923364B1 (en) Organic light emitting diode and device comprising the same
EP3895226B1 (en) Organic light emitting device and a compound for use therein
EP3923363B1 (en) Organic light emitting diode and device comprising the same
EP4472384B1 (en) Compound, organic light emitting diode, and display device
WO2025068271A1 (en) Organic light emitting device, display device comprising the same
US20250295029A1 (en) Organic Light Emitting Diode and Device Comprising the Same
US20250287776A1 (en) Organic Light Emitting Diode and Device Comprising the Same
EP4383987A1 (en) Organic light emitting diode, device comprising the same as and compound for use therein
US20250126967A1 (en) Organic Light Emitting Diode, Method for Preparing the Same and Device Comprising the Same
US20250056963A1 (en) Organic Light Emitting Diode and Device Comprising the Same
EP4572585A1 (en) Compound and organic light emitting diode
US20240407258A1 (en) Organic Electronic Device and a Compound
EP4198026A1 (en) Compounds for use in semiconductiong materials suitable for electronic devices
WO2024132924A1 (en) Organic light emitting diode, display device comprising the same and compound
WO2024246202A1 (en) Organic light emitting device and display device comprising the same
WO2024170261A1 (en) Organic light emitting diode, display device comprising the same and compound
WO2024033353A1 (en) Compound, organic semiconducting material comprising the same, organic electronic device comprising the same and display device comprising the same

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 23722383

Country of ref document: EP

Kind code of ref document: A1

WWE Wipo information: entry into national phase

Ref document number: 18861809

Country of ref document: US

WWE Wipo information: entry into national phase

Ref document number: 202380038132.0

Country of ref document: CN

NENP Non-entry into the national phase

Ref country code: DE

WWP Wipo information: published in national office

Ref document number: 202380038132.0

Country of ref document: CN

WWP Wipo information: published in national office

Ref document number: 1020247036594

Country of ref document: KR

122 Ep: pct application non-entry in european phase

Ref document number: 23722383

Country of ref document: EP

Kind code of ref document: A1

WWP Wipo information: published in national office

Ref document number: 18861809

Country of ref document: US
