WO2023127864A1 - 情報処理システム及びサーバ、情報処理方法、プログラム - Google Patents

情報処理システム及びサーバ、情報処理方法、プログラム Download PDF

Info

Publication number
WO2023127864A1
WO2023127864A1 PCT/JP2022/048129 JP2022048129W WO2023127864A1 WO 2023127864 A1 WO2023127864 A1 WO 2023127864A1 JP 2022048129 W JP2022048129 W JP 2022048129W WO 2023127864 A1 WO2023127864 A1 WO 2023127864A1
Authority
WO
WIPO (PCT)
Prior art keywords
information
space
storage
storage space
user
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/JP2022/048129
Other languages
English (en)
French (fr)
Japanese (ja)
Inventor
忠成 樋口
秀治 河合
建斗 近藤
圭輔 田路
拓也 堀
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Aeronext Inc
Original Assignee
Aeronext Inc
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Aeronext Inc filed Critical Aeronext Inc
Publication of WO2023127864A1 publication Critical patent/WO2023127864A1/ja
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Images

Classifications

    • G—PHYSICS
    • G06—COMPUTING OR CALCULATING; COUNTING
    • G06Q—INFORMATION AND COMMUNICATION TECHNOLOGY [ICT] SPECIALLY ADAPTED FOR ADMINISTRATIVE, COMMERCIAL, FINANCIAL, MANAGERIAL OR SUPERVISORY PURPOSES; SYSTEMS OR METHODS SPECIALLY ADAPTED FOR ADMINISTRATIVE, COMMERCIAL, FINANCIAL, MANAGERIAL OR SUPERVISORY PURPOSES, NOT OTHERWISE PROVIDED FOR
    • G06Q10/00—Administration; Management
    • G06Q10/08—Logistics, e.g. warehousing, loading or distribution; Inventory or stock management
    • G06Q10/083—Shipping

Definitions

  • the present disclosure relates to an information processing system, a server, an information processing method, and a program.
  • Patent Literature 1 discloses a home delivery system that can store a package in a proxy storage space if it cannot be delivered, in order to cope with the situation where the package cannot be delivered if it is already stored in the home delivery box and the package is redelivered. ing.
  • Patent Document 1 when a package is already stored in a home delivery box, it is stored in a proxy storage space.
  • the next parcel delivered is of a size that can be stored in the remaining space (so-called empty space) of the home delivery box, it will be stored in the proxy storage space, so the user will have to store parcels from multiple locations. It often needs to be picked up.
  • the substitute storage space arranged in the common area of the collective housing will be filled up, and redelivery will be necessary after all.
  • delivery boxes when items to be delivered are stored in a predetermined storage space, the availability of the storage space cannot be grasped and is not considered in delivery.
  • the delivery efficiency is high, the delivery cost (and thus the delivery fee) will be reduced. Therefore, it is desirable for both the service provider and the user to load a large number of packages onto a single mobile unit. Considering , it is difficult to determine how much space is left in the mobile body loading section, and operation with high loading efficiency is desired.
  • the present disclosure has been made in view of such a background. It is possible to provide an information processing system, a server, an information processing method, and a program that make it easy to grasp and enable efficient storage in various storage spaces.
  • the main technology of the present disclosure for solving the above problems is storage container type information indicating the type of each volume of a storage container that stores stored items linked to a user, and storage space volume information indicating at least the volume of the storage space. and a residual space calculation unit that calculates residual space information indicating the residual space in the storage space, and an additional storage object extraction unit that extracts additional storage objects that can be stored in the residual space information in the storage space, based on , an information processing system or the like.
  • FIG. 1 is a diagram showing the configuration of an information processing system according to an embodiment of the present disclosure
  • FIG. 2 is a block diagram showing the hardware configuration of a management server in FIG. 1
  • FIG. 2 is a block diagram showing the hardware configuration of the user terminal and worker terminal in FIG. 1
  • FIG. 2 is a block diagram showing functions of a management server in FIG. 1
  • FIG. 3 is a block diagram showing the structure of the storage of FIG. 2
  • 6 is a block diagram showing the structure of a delivery information storage unit in FIG. 5;
  • FIG. It is an example of a storage space according to an embodiment of the present disclosure.
  • 4 is a flowchart of an information processing method according to an embodiment of the present invention
  • It is an example of a display screen according to an embodiment of the present disclosure.
  • An information processing system or the like has the following configuration.
  • [Item 1] based on storage container type information indicating the type of each volume of a storage container that stores items stored in the storage space linked to the user, and storage space volume information indicating at least the volume of the storage space; a residual space calculation unit that calculates residual space information indicating the residual space; an additional content extraction unit that extracts additional content that can be stored in the remaining space information in the storage space;
  • the storage vessel type information is based on a volume obtained by dividing a predetermined storage space volume by a predetermined number, with a predetermined storage space volume as a reference storage space volume.
  • the information processing system includes advertising article information, The information processing system according to any one of items 1 and 2, characterized by: [Item 4]
  • the additional content extraction unit further refers to the purchase history information of the user, The information processing system according to any one of items 1 to 3, characterized by: [Item 5]
  • the additional content extracting unit further refers to the purchase desired information of the user,
  • the information processing system according to any one of items 1 to 4 characterized by: [Item 6]
  • the additional content extracting unit further refers to at least one of purchase history information and purchase request information of other users associated with the user,
  • the additional content information includes regular purchase product information of the user or other users associated with the user,
  • the additional content information includes information on items desired to be provided indicating items provided by other users,
  • the information processing system in this embodiment has a management server 1, one or more user terminals 2, and one or more user terminals 2.
  • FIG. The management server 1, the user terminal 2, and the worker terminal 3 are communicably connected to each other via a network. Note that the illustrated configuration is an example, and the configuration is not limited to this.
  • FIG. 2 is a diagram showing the hardware configuration of the management server 1. As shown in FIG. Note that the illustrated configuration is an example, and other configurations may be employed.
  • the management server 1 is connected to one or more user terminals 2 and one or more worker terminals 3 and constitutes part of this system.
  • the management server 1 may be, for example, a general-purpose computer such as a workstation or personal computer, or may be logically realized by cloud computing.
  • the management server 1 includes at least a control unit 10 , a memory 11 , a storage 12 , a transmission/reception unit 13 , an input/output unit 14 and the like, which are electrically connected to each other through a bus 15 .
  • the control unit 10 is an arithmetic device that controls the overall operation of the management server 1, controls transmission and reception of data between elements, executes applications, and performs information processing necessary for authentication processing.
  • the control unit 10 is a CPU (Central Processing Unit) and/or a GPU (Graphics Processing Unit), and executes programs for this system stored in the storage 12 and developed in the memory 11 to perform each information processing. do.
  • CPU Central Processing Unit
  • GPU Graphics Processing Unit
  • the memory 11 includes a main memory composed of a volatile memory device such as a DRAM (Dynamic Random Access Memory), and an auxiliary memory composed of a non-volatile memory device such as a flash memory or a HDD (Hard Disc Drive). .
  • the memory 11 is used as a work area or the like for the processor 10, and stores a BIOS (Basic Input/Output System) executed when the management server 1 is started, various setting information, and the like.
  • BIOS Basic Input/Output System
  • the storage 12 stores various programs such as application programs.
  • a database storing data used for each process may be constructed in the storage 12 .
  • the transmission/reception unit 13 connects the management server 1 to the network and the blockchain network.
  • the transmitting/receiving unit 13 may include a short-range communication interface of Bluetooth (registered trademark) and BLE (Bluetooth Low Energy).
  • the input/output unit 14 is an information input device such as a keyboard and mouse, and an output device such as a display.
  • a bus 15 is commonly connected to the above elements and transmits, for example, address signals, data signals and various control signals.
  • the user terminal 2 shown in FIG. 3 is an information processing device such as a personal computer, a tablet terminal, a smart phone, a mobile phone, a PHS, a PDA, etc. owned by the user. , a storage 22 , a transmission/reception unit 23 , an input/output unit 24 and the like, which are electrically connected to each other through a bus 25 . Since the main functions of each element can be configured in the same manner as the management server 1 described above, detailed description of each element will be omitted.
  • the worker terminal 3 is an information processing device such as a personal computer, a tablet terminal, a smartphone, a mobile phone, a PHS, a PDA, etc., possessed by a worker who manages deliveries at a collection point or the like. Since the main functions can be configured in the same manner as the user terminal 2 described above, detailed description of each element will be omitted.
  • FIG. 4 is a block diagram illustrating functions implemented in the control unit 10 of the management server 1

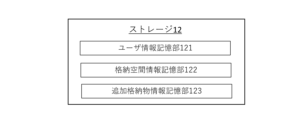

  • FIG. 5 is a block diagram illustrating information stored in the storage 12.
  • the control unit 10 of the management server 1 includes an information transmission/reception unit 100, a data management unit 120, and a storage management unit 150 as functional units.
  • the storage management unit 150 includes a residual space calculation unit 151 and an additional content extraction unit 152 .
  • the storage 12 also includes various databases such as a user information storage unit 121 , a storage space information storage unit 122 , and an additional content information storage unit 123 .
  • User information stored in the user information storage unit 121 may be, for example, user basic information (user name, user name, email address, address, telephone number, etc.), user identification information, external application account information, and the like. However, it is not limited to these. For example, when performing electronic commerce on this information processing system or on an external system that cooperates with this information processing system by sending or receiving related information, user information may include payment information (credit card information, etc.), purchase history information, desired purchase product information (so-called favorite registration product information, wish list product information, etc.), regular purchase product information (described later), and the like.
  • payment information credit card information, etc.
  • purchase history information purchase history information
  • desired purchase product information so-called favorite registration product information, wish list product information, etc.
  • regular purchase product information described later
  • Storage space information stored in the storage space information storage unit 122 includes, for example, storage space identification information, user identification information, content information, storage state information, load resistance information, manageable temperature range information, additional content information, and the like. can be included, and the stored item information can include, but is not limited to, container type information, weight information, management temperature zone information, and the like.
  • the additional content information stored in the additional content information storage unit 123 may differ depending on the additional content to be registered. , width, height), weight information, management temperature zone information, top and bottom stacking availability information (top stacking availability information or bottom stacking availability information), etc., but not limited to these.
  • the information transmitting/receiving unit 100 transmits various information (including requests) to an external device (eg, user terminal 2, worker terminal 3, etc.) directly or indirectly connected to the management server 1 at least via a network. Send and receive various information (including requests) from external devices.
  • an external device eg, user terminal 2, worker terminal 3, etc.
  • the screen information generation unit 110 generates screen information to be displayed via the user interface of the user terminal 2 or the worker terminal 3.
  • the screen information can be, for example, user interface screen information generated by arranging various images and text based on predetermined layout rules using the image and text data stored in the storage 12 as materials.
  • the screen information generation unit 110 may be a functional unit executed by the control unit 20 by an application (including a web browser) stored in each user terminal 2 or the like. That is, information necessary for generating a user interface screen such as image data is transmitted from the management server 1, and an application such as the user terminal 2 generates a user interface screen based on the necessary information based on a predetermined layout rule. can be displayed on the user terminal 2.
  • Processing related to the screen information generation unit 110 can also be executed by a GPU (Graphics Processing Unit).
  • the data management unit 120 performs data management such as transmitting various information received by the information transmitting/receiving unit 100 to various functional units and acquiring various information from various functional units.
  • the predetermined processing in the data management unit 120 includes, for example, storage container type information indicating the type of each volume of a storage container that stores items in the storage space linked to the user, and storage space volume indicating the volume of the storage space.
  • residual space calculation processing for calculating residual space information indicating the residual space in the storage space, and additional content extraction processing for extracting additional content that can be stored in the residual space in the storage space, based on the information; It includes, but is not limited to, various processes such as storage space information update processing for updating content information included in storage space information and additional content information.
  • the shape of the containment vessel is, for example, a three-dimensional container with a geometric shape, and it is desirable that it be a rectangular parallelepiped (including a cube) in consideration of storage in the containment space and stacking.
  • the containment vessel may be made of any material, including paper, plastic, metal, etc. In particular, corrugated cardboard made of paper or plastic is recommended for ease of production and weight. desirable from the viewpoint of Here, in the present disclosure, storage container type information is set so that the type of the storage container can be identified with respect to the stored items such as delivery items.
  • the containment vessel type is, for example, a plurality of containment vessels that are set to be mutually identifiable based on the volume obtained by dividing the reference storage space volume by a predetermined number (e.g., an integer), with a predetermined storage space volume as the reference storage space volume.
  • Number of multiple containment vessel volumes that are identifiably set for each type of volume may include types (e.g. 1/3, 2/3, 1; 1/4, 1/2, 3/4, 1, etc.);
  • a plurality of types of containment vessel volume for example, 1/2, 1 /4, 1/8 .
  • volume of the containment vessel more specifically, for example, when the standard containment space volume is divided by 4 (i.e., when 1/4), any of the depth, width, and height of the containment space divided by 4, or two of the depth, width, and height of the storage space divided by two.
  • the reference storage space volume may not be the same as the predetermined storage space volume, but may be substantially the same (substantially the same) volume.
  • the volume may be obtained by subtracting the excess space (for example, several millimeters or several centimeters), or if a partition is provided inside the containment vessel, the partition (for example, several millimeters or several centimeters) is reduced.
  • the containment space may be of substantially the same volume as the reference containment space volume, but larger by a partition).
  • the storage space for storing the user's stored items and/or the storage space subject to the reference storage space volume may be any space having a predetermined volume. It is preferable that it is a space, and more specifically, it is an installation that a user uses, such as a storage space for the user, a delivery box with a smart lock installed in a private house, or a common area for an apartment.
  • the storage space of the delivery box to be placed (the position of the space may be determined in advance by linking information related to the user, or the position where the package is stored by linking information related to the user by the delivery person) storage space such as a shelf, locker, post office box, and cold storage box without electrical locking/unlocking control.
  • the storage space for delivery may be used as a reference, and a delivery storage unit for a mobile object (a mobile object such as a UAV or UGV, especially an autonomously controlled mobile object) for delivering a package, or a delivery storage space. It may also be a movable object such as a carrier (for example, a truck carrier, a rear box of a motorcycle, a box carriage, a basket carriage, etc.) used for delivery by an employee, or a bag for delivery.
  • the space having a predetermined volume may be a space whose lengths in the depth direction, width direction, and height direction are fixed as described above.
  • the storage space to be stored and the reference storage space may be the same, or the size of the storage space to be stored may be the reference storage space multiplied by a predetermined number (especially an integer).
  • the storage management unit 150 stores items such as delivered items by a reader (for example, a reader operated by a worker, a stationary reader, a reader provided in a work robot (especially an autonomously controlled work robot), etc.). Depending on the contents acceptance process such as reading of the identification code attached to (for example, reading of two-dimensional barcode, RFID tag, NFC, etc.) and input operation of contents information related to contents by workers etc. Information registration such as addition of content identification information in the information storage unit 123 and storage space identification information in the storage space information storage unit 124 and association of user identification information is executed.
  • a reader for example, a reader operated by a worker, a stationary reader, a reader provided in a work robot (especially an autonomously controlled work robot), etc.
  • Information registration such as addition of content identification information in the information storage unit 123 and storage space identification information in the storage space information storage unit 124 and association of user identification information is executed.
  • the remaining space calculation unit 151 stores storage container type information indicating the type of each volume of a storage container that stores items in the storage space linked to the user, and storage space volume information indicating at least the volume of the storage space. Based on this, residual space information indicating the residual space (so-called empty space) in the storage space is calculated.
  • the residual space calculation method calculates the residual space by a known cartoning calculation algorithm for storing a given object for a given volume of space.
  • the remaining space is also It becomes a volume value that can be easily converted into the type of the containment vessel, and it can become easier to obtain the residual converted containment vessel type information in which the remaining space is converted into the type of the containment vessel.
  • any of the depth, width, and height of the containment space is divided by a predetermined number and multiplied by a number less than the predetermined number.
  • the remaining space in the containment space can be calculated more easily. become easier.
  • the storage space information storage unit 124 the target storage space is linked to the storage space identification information. Identifiably divided area identification information attached to each area divided by a partition or the like and corresponding container type information corresponding to the divided area identification information are stored, and the remaining space calculation unit 151 can store divided area identification information may be used as residual space information.
  • the containment vessel has a plurality of types of containment vessel volume (for example, 1/ 3, 2/3, and 1).
  • the user information "U0001" is associated with the storage space identification information "0001". If the contents (content information "N0001”) stored in a container (container type "S033") with a volume of 1/3 of the standard storage space volume are stored here, the storage space where no contents are stored is stored. , the remaining space information is updated to "2/3" by subtracting 1/3 from 1, and the remaining converted containment vessel type information has two "S033" and or "S066 (standard storage space volume Container type indicating two-thirds of containers)” is updated as information indicating one.
  • the remaining space is calculated in this way, and can be executed more easily if any of the depth, width, and height of the storage space is divided by a predetermined number, as shown in the example. It should be noted that, as described above, it is possible to calculate a more sophisticated residual space by using a known packing calculation algorithm, in which case the storage positions of already stored contents may also be rearranged.
  • the remaining space information may be divided area identification information that is not associated with the contents
  • the residual conversion container type information may be the corresponding container type information that corresponds to the divided area identification information that is not associated with the contents.
  • the position of the partition may be movable, and the corresponding container type information may be changed (for example, from two "S033" to "S066", or vice versa), There is not only one corresponding containment vessel type information (for example, "S066") corresponding to each divided area identification information, but instead or in addition, a plurality of corresponding containment vessel type information (“S033" is two ) may be associated.
  • the storage space information storage unit 122 especially remaining space information
  • storage space for example, storage space groups such as shelves allocated for each individual
  • the linked user information is "U0001”
  • the content information is "N0001”. Since it is shown that one "S025" indicating the container type of 1/4 is stored, the remaining space information is "3/4" (remaining converted containment vessel type information is 4 of the standard storage space volume). It is calculated as "S075", which indicates the container type of 30%.
  • the linked user information is "U0011” and the content information is "N0002". Since it is shown that one “S050” indicating the container type of half of the standard storage space volume is stored, the remaining space information is "1/2" (remaining conversion container type information is the standard storage space volume "S050", which indicates the container type of 1/2, is calculated.
  • the linked user information is "U0005" and the content information is "N0003". Since it is shown that one "S100” indicating the container type substantially the same as is stored, the remaining space information is calculated as "0" (that is, no space).
  • the linked user information is "U0003" and the content information is "N0004" and "N0005". Since it is shown that there is one "S025" (for example, the information indicating whether or not vertical stacking is possible indicates that stacking is strictly prohibited) and one "S050" is stored, the remaining space information is "1/4" ( The remaining converted containment vessel type information is calculated as "S025") indicating the container type of 1/4 of the standard storage space volume.
  • the linked user information is "U0009” (that is, two storage spaces are used), and the content information is "N0006” and “N0007", and since it is indicated that one "S100” and one "S050” are stored as the containment vessel type information corresponding to the contents, the remaining space information is “ 0" and "1/2".
  • the substantial remaining space of the storage space for the user of the user information "U0009” is "1/2" ("S050" indicating the container type whose residual conversion container type information is 1/2 of the standard storage space volume). ).
  • the remaining space calculation unit 151 calculates the storage space based on the storage container type information corresponding to the items stored in the storage space linked to the user and the storage space volume information indicating at least the volume of the storage space. It is possible to calculate residual space information that indicates the residual space within.
  • the containment vessel type information a predetermined storage space volume is set as the standard storage space volume, and identification information is set for each containment vessel volume divided by a predetermined number so that the storage space can be stored like a puzzle. Objects can be stored efficiently, and the remaining space volume can be clarified as the remaining conversion container type information. By using this, it is possible to extract additional storage items to be added to the residual space. Details are given below.
  • the additional content extraction unit 152 extracts additional content information indicating additional content that can be stored in the remaining space of the target storage space. More specifically, the additional storage item extraction unit 152 extracts additional storage items that can be stored based on, for example, residual space information (particularly, residual conversion container type information) corresponding to the residual space of the target storage space. Extract the additional content information shown. That is, compared with the storage container type corresponding to the remaining space, the additional content information corresponding to the storage container type whose volume is equal to or less than the volume indicated by the storage container type is extracted. A plurality of storage container types corresponding to the residual space may be selectable.
  • the residual space calculation unit 151 calculates combination information of the storage container types corresponding to the residual space, Additional storage object information by type may be extracted (for example, a combination that allows two additional storage objects of 1/4 of the containment vessel type to be stored in the remaining space of 1/2, or a combination of 1/4 of the containment vessel type 1 additional storage item and 2 additional storage items of type 1/8 containment vessel, combination of storage of 4 additional items of type 1/8 containment vessel, etc.).
  • additional content information for example, additional content information (especially list information) may be presented via an application on the user terminal 2, or additional content information (especially list information) may be presented via an application on the worker terminal 3 , list information) may be presented.
  • the selected additional content information is transmitted from the data management unit 120 to the user terminal 2, permission confirmation processing for the additional content information is executed on the user's application, When the data management unit 120 receives information indicating permission, it may be determined as additional delivery content information.
  • the type of container that cannot be stored is determined according to the type of container of the selected product (for example, , For the remaining space of 1/2, since three additional storage items with a containment vessel type of 1/8 were selected, a volume larger than the containment vessel type of 1/8 cannot be selected, or a containment vessel type of 1/3 Since additional storage items are selected, volumes larger than 1/6 of the containment vessel type cannot be selected, etc.), processing to disable selection of additional content information corresponding to the containment vessel type that has become unstorable (for example, may be grayed out to restrict selection operations, or not displayed in the list information).
  • the additional content can be a variety of content and is exemplified below.
  • Additional content information is linked to own user identification information or other user identification information that indicates advertisement items to be provided to the user (also referred to as "own user” when distinguished from “other users") or other users. It may contain advertising material information. That is, the additional content extracting unit 152 extracts the advertising article indicating the advertising article that can be stored in the remaining space based on the converted storage container type information corresponding to the advertising article information and the remaining space information (particularly, the converted residual storage container type information). Extract information as additional content information.
  • the advertising article information includes, for example, advertising article identification information, advertising article size information (depth, width, height), weight information, management temperature zone information, vertical loading information, advertisement type (sample, paper advertisement (flyer, leaflet, etc.) ), advertising article category information (food, beverages, alcoholic beverages, sweets, household goods, cosmetics, etc.), conversion container type information (even if stored in advance, advertising article size may be converted from information and stored), advertiser information, etc. may be included.
  • other users are users corresponding to other user identification information associated with own user identification information.
  • Other user identification information may be, for example, cohabiting user identification information set as a family member or partner, or proxy user identification information set by the user as a proxy receiving user.
  • the process of registering the identification information of the other user is executed on the application on the user's side, and/or the association with the identification information of the user on the application on the other user's side. You may perform the process which selects the propriety of permission with respect to, etc.
  • the additional content extracting unit 152 extracts, as additional content information, advertising article information to be used as additional content at random from advertising article information including converted storage container type information that can be stored in the remaining space.
  • the user or operator may select and set the advertising article category information and the advertiser information to be extracted on the application.
  • the purchase history information linked to the own user information or other user information can be referenced, product category information, manufacturer information, and seller information of products purchased in the past by referring to the purchase history information At least one of them may be referred to, and one or a plurality of pieces of advertising article information including corresponding advertising article category information and advertiser information may be extracted as additional storage items.
  • the additional content extracting unit 152 can refer to the desired purchase product information linked to the user information of the user or other users instead of the purchase history information
  • the product category information of the desired purchase product information can be referred to. , manufacturer information, and/or seller information.
  • Additional content information may include regular purchase product information linked to own user identification information or other user identification information, which indicates regular purchase products registered in advance by the user or other users in association with each identification information. That is, the additional storage object extraction unit 152 is based on the conversion container type information corresponding to the regular purchase product information linked to the own user identification information or the other user identification information and the residual space information (especially the residual conversion container type information) , regular purchase product information indicating regular purchase products that can be stored in the remaining space is extracted as additional storage item information.
  • Regular purchase product information includes, for example, product identification information, product size (depth, width, height), weight information, management temperature zone information, vertical stacking availability information, conversion container type information (even if pre-stored, additional storage may be converted from the product size when extracting the product information and stored), regular delivery delivery date information (for example, regular delivery around what day of the month), etc. may be included.
  • the additional content extracting unit 152 refers to the scheduled delivery date information, for example, and the scheduled delivery date is within a predetermined period of the date of execution of the extraction request (for example, the date of execution of the extraction request). For example, regular purchase products that will arrive in the nearest storage space within a week) are extracted as additional storage item information. The user or worker selects one or more regular purchase products to be additionally stored from the list of regular purchase product information presented on the application, taking into consideration the remaining space.
  • the additional content information may include information on an article desired to be provided that is linked to other user identification information indicating an article desired by another user to be provided to a designated user or a desired user. That is, the additional storage object extraction unit 152 stores in the remaining space based on the conversion container type information corresponding to the provision desired product information linked to the other user identification information and the residual space information (especially the residual conversion container type information). Offer desired product information indicating possible offer desired products is extracted as additional content information.
  • Information on items to be provided includes, for example, identification information on items to be provided, size of items to be provided, weight information, management temperature zone information, information on whether vertical stacking is possible, conversion container type information (even if stored in advance, when extracting additional content information, may be stored after being converted from the size of the provided article), provided article registration date information, and the like, and may be registered as additional content information by other users.
  • the item desired to be provided may be, for example, a gift (present) with a specified partner, or may be a donated item or a sharing item with no specified partner.
  • the additional storage item extraction unit 152 extracts the desired item information (which is associated with the user identification information and/or is associated with the specific identification information) indicating the converted storage container type information that can be stored in the remaining space. (not open) is presented to the user terminal or worker terminal as list information or the like. The user or operator selects one or more items of desired item information to be additionally stored from the list of items of desired item information presented on the application, taking into account the remaining space.
  • the additional content information may include delivery item information indicating a delivery item linked to the user's own identification information or other user's identification information. That is, the additional content extraction unit 152, based on the converted container type information corresponding to the delivery item information linked to the own user identification information or the other user identification information and the residual space information (especially the residual converted container type information), Delivery item information indicating deliverable items that can be stored in the remaining space is extracted as additional storage item information.
  • the delivery item information includes, for example, delivery item identification information, delivery item size (depth, width, height), weight information, management temperature zone information, vertical stacking availability information, conversion container type information (even if pre-stored, additional (It may be converted from the product size when extracting the content information and stored), information on the scheduled date of delivery of the delivery (for example, the date of delivery each month), etc. may be included.
  • the additional content extracting unit 152 refers to, for example, the scheduled delivery date information of the delivered item, and the scheduled delivery date of the delivered item is within a predetermined period of the date when the extraction request is executed (for example, when the extraction request is executed). Delivery items that arrive at the nearest storage space within one week of the date) are extracted as additional storage item information. The user or worker selects one or more delivery items to be additionally stored from the delivery item information list presented on the application, taking into consideration the remaining space.
  • the additional content extracting unit 152 may, for example, extract at least one of the additional content items in the above examples.
  • the object that the user wishes to additionally store may be displayed and selectable, or the user may set information on the object desired to be additionally stored as user information in advance, and the object may be automatically extracted based on the setting. 8, when viewing the additional content list information, sorting or rearranging may be used to select viewing objects.
  • FIG. 9 is a flow chart showing an example of processing of the information processing system of FIG.
  • a user or worker provided by this information processing system accesses the management server 1 using an application (including a web browser) or the like, and when using the service for the first time, performs use registration processing.
  • the service may be made available by logging in after receiving predetermined authentication such as entering an ID and password.
  • the service may be made available using a unique application ID associated with the application downloaded to the user terminal 2 or worker terminal 3 as user identification information (ID).
  • ID user identification information
  • the data management unit 120 (especially the storage management unit 150) of the management server 1, for example, according to the content receiving process such as reading of the identification code attached to the content by the reader, a new , the content identification information and the storage space identification information are generated, and the content information and the storage space information are linked to the user and registered (S101).
  • the content receiving process such as reading of the identification code attached to the content by the reader
  • a new the content identification information and the storage space identification information are generated, and the content information and the storage space information are linked to the user and registered (S101).
  • the storage space is already associated with the user, only the content information may be registered.
  • the remaining space calculation unit 151 calculates storage container type information indicating the type of each volume of the storage container that stores the items in the storage space linked to the user, and storage space volume information indicating at least the volume of the storage space. , and the remaining space information indicating the remaining space in the storage space is calculated, and the corresponding storage space information is updated (S102).
  • the residual space information is residual converted containment vessel type information obtained by converting the residual space into the containment vessel type, the later-described comparison will be facilitated.
  • step S102 the residual space for a containment vessel that does not have enough space (for example, the smallest containment vessel type (in particular, the smallest conversion containment vessel type for the object that can be extracted as the additional content in step S104)) is stored. If it is determined that there is no space, etc., this flow ends. After that, if the stored item has already been stored in the storage container corresponding to this system, it is stored in the storage space as it is. After being stored in the storage container of the calculated storage container type, it is stored in the storage space.
  • the stored item has already been stored in the storage container corresponding to this system, it is stored in the storage space as it is. After being stored in the storage container of the calculated storage container type, it is stored in the storage space.
  • step S102 if it is determined that there is sufficient remaining space (for example, there is at least a remaining space that can accommodate a storage container of the smallest storage container type), the additional content extraction unit 152 selects Additional content information indicating additional content that can be stored in the remaining storage space is extracted (S104). More specifically, for example, as illustrated in FIG. 10, additional content display areas 1010, 1011, etc. of additional content information are displayed as a list on the application of the user or worker.
  • Additional content information is determined according to the additional content selection operation via the additional content display area 1010 of the item list information, etc., the determined additional content information is transmitted to the management server 1, and the data management unit 120 (especially The storage management unit 150) updates (including adds) additional content information included in the storage space information.
  • extraction of additional content by referring to user information such as purchase history information of the user, or by referring to additional desired content information set in advance by the user, instead of presenting it as additional content list information
  • a predetermined number of additional contents extracted by the unit 152 are presented as options on the user's or worker's application, and the user or worker is made to perform a selection operation to determine the additional contents.
  • a predetermined number of additional contents extracted by is presented on the user's or worker's application as an addition confirmation notice, and the user or worker is made to select whether or not to add the contents, thereby determining the additional contents or additionally storing them.
  • the additional content to be added from among the storable additional content extracted by the entity extraction unit 152 may be determined by the system without intervention of the user's operation and the operator's operation. , the determined additional content information is transmitted to the management server 1, and the data management unit 120 (especially the storage management unit 150) updates (including addition) the additional content information included in the storage space information. Even when the operator selects the additional content information on the application, the additional content may be determined by presenting an addition confirmation notice and allowing the user to select whether or not to add the content.
  • the information on the additional content item may be displayed on the worker terminal 3 so that the worker can check it during the storage work.
  • the storage work equipment (storage work robot, storage work arm, storage work movable table, etc.) can manage the additional storage items through autonomous control. It may be taken out of a space (for example, a shelf) and stored in a storage space.
  • the product list display of the additional content includes, for example, a display target designation section 1040 (for example, a check box or a pull-down format) for selecting which type of additional content to display, or which type of additional content has priority.
  • the user may be able to appropriately set the information regarding the display of the additional content by the additional content display information setting unit such as the display order designation unit 1050 that selects whether to display the additional content.
  • display with priority means, for example, that the display order is set early, and more specifically, in the case of vertical scrolling, it is displayed on the upper side of the display area, swiped, etc. When proceeding with the additional content information to be displayed in order, it may be displayed first.
  • the selection operation to the additional content display area 1010 or the like of the additional content list information may be the additional content selection operation, or the additional content detailed information screen displayed after the additional content display area 1010 or the like is selected. Additional content selection operations may be made possible within, and are not limited to these.
  • the stored item After that, if the stored item has already been stored in the storage container corresponding to this system, it is stored in the storage space as it is. After being stored in the storage container of the calculated storage container type, it is stored in the storage space, and the selected additional storage item is stored in the remaining space of the storage space and delivered to the user.

Landscapes

  • Business, Economics & Management (AREA)
  • Engineering & Computer Science (AREA)
  • Economics (AREA)
  • Quality & Reliability (AREA)
  • Entrepreneurship & Innovation (AREA)
  • Human Resources & Organizations (AREA)
  • Marketing (AREA)
  • Operations Research (AREA)
  • Development Economics (AREA)
  • Strategic Management (AREA)
  • Tourism & Hospitality (AREA)
  • Physics & Mathematics (AREA)
  • General Business, Economics & Management (AREA)
  • General Physics & Mathematics (AREA)
  • Theoretical Computer Science (AREA)
  • Management, Administration, Business Operations System, And Electronic Commerce (AREA)
PCT/JP2022/048129 2021-12-27 2022-12-27 情報処理システム及びサーバ、情報処理方法、プログラム Ceased WO2023127864A1 (ja)

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
JP2021212591A JP7641580B2 (ja) 2021-12-27 2021-12-27 情報処理システム及びサーバ、情報処理方法、プログラム
JP2021-212591 2021-12-27

Publications (1)

Publication Number Publication Date
WO2023127864A1 true WO2023127864A1 (ja) 2023-07-06

Family

ID=86998989

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2022/048129 Ceased WO2023127864A1 (ja) 2021-12-27 2022-12-27 情報処理システム及びサーバ、情報処理方法、プログラム

Country Status (2)

Country Link
JP (1) JP7641580B2 (enExample)
WO (1) WO2023127864A1 (enExample)

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2016172622A (ja) * 2015-03-17 2016-09-29 株式会社フルタイムシステム 収納装置及び宅配システム
JP2020065731A (ja) * 2018-10-24 2020-04-30 原　周平 物品収納決済システム
JP2020077305A (ja) * 2018-11-09 2020-05-21 株式会社ナスタ 荷物配送システム
CN112216034A (zh) * 2019-07-10 2021-01-12 姚爱军 基于快递柜空闲存放位作为临时无人售货柜的方法

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2016172622A (ja) * 2015-03-17 2016-09-29 株式会社フルタイムシステム 収納装置及び宅配システム
JP2020065731A (ja) * 2018-10-24 2020-04-30 原　周平 物品収納決済システム
JP2020077305A (ja) * 2018-11-09 2020-05-21 株式会社ナスタ 荷物配送システム
CN112216034A (zh) * 2019-07-10 2021-01-12 姚爱军 基于快递柜空闲存放位作为临时无人售货柜的方法

Also Published As

Publication number Publication date
JP7641580B2 (ja) 2025-03-07
JP2023096676A (ja) 2023-07-07

Similar Documents

Publication Publication Date Title
JP6088100B1 (ja) 購入支援システム
JP7713207B2 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
JP7697169B2 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
JP7641580B2 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
JP7659781B2 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
JP7659779B2 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
JP7659778B2 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
JP7641581B2 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
JP7713686B2 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
JP7659782B2 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
JP6169296B1 (ja) 購入支援システム
WO2023127868A1 (ja) 情報処理システム及びサーバ、情報処理方法、プログラム
KR20220128809A (ko) 화주와 창고주 사이의 통합 물품 관리 서비스 제공 방법
HK1255168A1 (en) Purchase assistance system

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 22916087

Country of ref document: EP

Kind code of ref document: A1

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 22916087

Country of ref document: EP

Kind code of ref document: A1
