WO2016069321A2 - Electroactive materials - Google Patents

Electroactive materials Download PDF

Info

Publication number
WO2016069321A2
WO2016069321A2 PCT/US2015/056364 US2015056364W WO2016069321A2 WO 2016069321 A2 WO2016069321 A2 WO 2016069321A2 US 2015056364 W US2015056364 W US 2015056364W WO 2016069321 A2 WO2016069321 A2 WO 2016069321A2
Authority
WO
WIPO (PCT)
Prior art keywords
deuterated
formula
aryl
compound
group
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/US2015/056364
Other languages
French (fr)
Other versions
WO2016069321A3 (en
Inventor
Weiying Gao
Michael Henry Howard, Jr.
Viacheslav V. Diev
Weishi Wu
Hong Meng
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
EIDP Inc
Original Assignee
EI Du Pont de Nemours and Co
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by EI Du Pont de Nemours and Co filed Critical EI Du Pont de Nemours and Co
Priority to KR1020177011304A priority Critical patent/KR102283559B1/en
Priority to US15/518,854 priority patent/US10193070B2/en
Publication of WO2016069321A2 publication Critical patent/WO2016069321A2/en
Publication of WO2016069321A3 publication Critical patent/WO2016069321A3/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D487/00—Heterocyclic compounds containing nitrogen atoms as the only ring hetero atoms in the condensed system, not provided for by groups C07D451/00 - C07D477/00
    • C07D487/02—Heterocyclic compounds containing nitrogen atoms as the only ring hetero atoms in the condensed system, not provided for by groups C07D451/00 - C07D477/00 in which the condensed system contains two hetero rings
    • C07D487/04—Ortho-condensed systems
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D487/00—Heterocyclic compounds containing nitrogen atoms as the only ring hetero atoms in the condensed system, not provided for by groups C07D451/00 - C07D477/00
    • C07D487/02—Heterocyclic compounds containing nitrogen atoms as the only ring hetero atoms in the condensed system, not provided for by groups C07D451/00 - C07D477/00 in which the condensed system contains two hetero rings
    • C07D487/06—Peri-condensed systems
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D493/00—Heterocyclic compounds containing oxygen atoms as the only ring hetero atoms in the condensed system
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D493/00—Heterocyclic compounds containing oxygen atoms as the only ring hetero atoms in the condensed system
    • C07D493/02—Heterocyclic compounds containing oxygen atoms as the only ring hetero atoms in the condensed system in which the condensed system contains two hetero rings
    • C07D493/06—Peri-condensed systems
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D495/00—Heterocyclic compounds containing in the condensed system at least one hetero ring having sulfur atoms as the only ring hetero atoms
    • C07D495/02—Heterocyclic compounds containing in the condensed system at least one hetero ring having sulfur atoms as the only ring hetero atoms in which the condensed system contains two hetero rings
    • C07D495/04—Ortho-condensed systems
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D495/00—Heterocyclic compounds containing in the condensed system at least one hetero ring having sulfur atoms as the only ring hetero atoms
    • C07D495/02—Heterocyclic compounds containing in the condensed system at least one hetero ring having sulfur atoms as the only ring hetero atoms in which the condensed system contains two hetero rings
    • C07D495/06—Peri-condensed systems
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D517/00—Heterocyclic compounds containing in the condensed system at least one hetero ring having selenium, tellurium, or halogen atoms as ring hetero atoms
    • C07D517/02—Heterocyclic compounds containing in the condensed system at least one hetero ring having selenium, tellurium, or halogen atoms as ring hetero atoms in which the condensed system contains two hetero rings
    • C07D517/04—Ortho-condensed systems
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D517/00—Heterocyclic compounds containing in the condensed system at least one hetero ring having selenium, tellurium, or halogen atoms as ring hetero atoms
    • C07D517/02—Heterocyclic compounds containing in the condensed system at least one hetero ring having selenium, tellurium, or halogen atoms as ring hetero atoms in which the condensed system contains two hetero rings
    • C07D517/06—Peri-condensed systems
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D519/00—Heterocyclic compounds containing more than one system of two or more relevant hetero rings condensed among themselves or condensed with a common carbocyclic ring system not provided for in groups C07D453/00 or C07D455/00
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08G—MACROMOLECULAR COMPOUNDS OBTAINED OTHERWISE THAN BY REACTIONS ONLY INVOLVING UNSATURATED CARBON-TO-CARBON BONDS
    • C08G73/00—Macromolecular compounds obtained by reactions forming a linkage containing nitrogen with or without oxygen or carbon in the main chain of the macromolecule, not provided for in groups C08G12/00 - C08G71/00
    • C08G73/02—Polyamines
    • C08G73/026—Wholly aromatic polyamines
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K11/00—Luminescent materials, e.g. electroluminescent or chemiluminescent
    • C09K11/02—Use of particular materials as binders, particle coatings or suspension media therefor
    • C09K11/025—Use of particular materials as binders, particle coatings or suspension media therefor non-luminescent particle coatings or suspension media
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K11/00—Luminescent materials, e.g. electroluminescent or chemiluminescent
    • C09K11/06—Luminescent materials, e.g. electroluminescent or chemiluminescent containing organic luminescent materials
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K50/00—Organic light-emitting devices
    • H10K50/10—OLEDs or polymer light-emitting diodes [PLED]
    • H10K50/11—OLEDs or polymer light-emitting diodes [PLED] characterised by the electroluminescent [EL] layers
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K50/00—Organic light-emitting devices
    • H10K50/10—OLEDs or polymer light-emitting diodes [PLED]
    • H10K50/11—OLEDs or polymer light-emitting diodes [PLED] characterised by the electroluminescent [EL] layers
    • H10K50/12—OLEDs or polymer light-emitting diodes [PLED] characterised by the electroluminescent [EL] layers comprising dopants
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K50/00—Organic light-emitting devices
    • H10K50/10—OLEDs or polymer light-emitting diodes [PLED]
    • H10K50/14—Carrier transporting layers
    • H10K50/15—Hole transporting layers
    • H10K50/156—Hole transporting layers comprising a multilayered structure
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K50/00—Organic light-emitting devices
    • H10K50/80—Constructional details
    • H10K50/805—Electrodes
    • H10K50/81—Anodes
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K50/00—Organic light-emitting devices
    • H10K50/80—Constructional details
    • H10K50/805—Electrodes
    • H10K50/82—Cathodes
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/10—Organic polymers or oligomers
    • H10K85/111—Organic polymers or oligomers comprising aromatic, heteroaromatic, or aryl chains, e.g. polyaniline, polyphenylene or polyphenylene vinylene
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/10—Organic polymers or oligomers
    • H10K85/111—Organic polymers or oligomers comprising aromatic, heteroaromatic, or aryl chains, e.g. polyaniline, polyphenylene or polyphenylene vinylene
    • H10K85/115—Polyfluorene; Derivatives thereof
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/30—Coordination compounds
    • H10K85/321—Metal complexes comprising a group IIIA element, e.g. Tris (8-hydroxyquinoline) gallium [Gaq3]
    • H10K85/324—Metal complexes comprising a group IIIA element, e.g. Tris (8-hydroxyquinoline) gallium [Gaq3] comprising aluminium, e.g. Alq3
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/615—Polycyclic condensed aromatic hydrocarbons, e.g. anthracene
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/615—Polycyclic condensed aromatic hydrocarbons, e.g. anthracene
    • H10K85/626—Polycyclic condensed aromatic hydrocarbons, e.g. anthracene containing more than one polycyclic condensed aromatic rings, e.g. bis-anthracene
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/631—Amine compounds having at least two aryl rest on at least one amine-nitrogen atom, e.g. triphenylamine
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/631—Amine compounds having at least two aryl rest on at least one amine-nitrogen atom, e.g. triphenylamine
    • H10K85/633—Amine compounds having at least two aryl rest on at least one amine-nitrogen atom, e.g. triphenylamine comprising polycyclic condensed aromatic hydrocarbons as substituents on the nitrogen atom
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/631—Amine compounds having at least two aryl rest on at least one amine-nitrogen atom, e.g. triphenylamine
    • H10K85/636—Amine compounds having at least two aryl rest on at least one amine-nitrogen atom, e.g. triphenylamine comprising heteroaromatic hydrocarbons as substituents on the nitrogen atom
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/649—Aromatic compounds comprising a hetero atom
    • H10K85/654—Aromatic compounds comprising a hetero atom comprising only nitrogen as heteroatom
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/649—Aromatic compounds comprising a hetero atom
    • H10K85/657—Polycyclic condensed heteroaromatic hydrocarbons
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/649—Aromatic compounds comprising a hetero atom
    • H10K85/657—Polycyclic condensed heteroaromatic hydrocarbons
    • H10K85/6572—Polycyclic condensed heteroaromatic hydrocarbons comprising only nitrogen in the heteroaromatic polycondensed ring system, e.g. phenanthroline or carbazole
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/649—Aromatic compounds comprising a hetero atom
    • H10K85/657—Polycyclic condensed heteroaromatic hydrocarbons
    • H10K85/6574—Polycyclic condensed heteroaromatic hydrocarbons comprising only oxygen in the heteroaromatic polycondensed ring system, e.g. cumarine dyes
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K85/00—Organic materials used in the body or electrodes of devices covered by this subclass
    • H10K85/60—Organic compounds having low molecular weight
    • H10K85/649—Aromatic compounds comprising a hetero atom
    • H10K85/657—Polycyclic condensed heteroaromatic hydrocarbons
    • H10K85/6576—Polycyclic condensed heteroaromatic hydrocarbons comprising only sulfur in the heteroaromatic polycondensed ring system, e.g. benzothiophene
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/10—Non-macromolecular compounds
    • C09K2211/1003—Carbocyclic compounds
    • C09K2211/1007—Non-condensed systems
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/10—Non-macromolecular compounds
    • C09K2211/1003—Carbocyclic compounds
    • C09K2211/1011—Condensed systems
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/10—Non-macromolecular compounds
    • C09K2211/1018—Heterocyclic compounds
    • C09K2211/1025—Heterocyclic compounds characterised by ligands
    • C09K2211/1029—Heterocyclic compounds characterised by ligands containing one nitrogen atom as the heteroatom
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/10—Non-macromolecular compounds
    • C09K2211/1018—Heterocyclic compounds
    • C09K2211/1025—Heterocyclic compounds characterised by ligands
    • C09K2211/1029—Heterocyclic compounds characterised by ligands containing one nitrogen atom as the heteroatom
    • C09K2211/1033—Heterocyclic compounds characterised by ligands containing one nitrogen atom as the heteroatom with oxygen
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/10—Non-macromolecular compounds
    • C09K2211/1018—Heterocyclic compounds
    • C09K2211/1025—Heterocyclic compounds characterised by ligands
    • C09K2211/1044—Heterocyclic compounds characterised by ligands containing two nitrogen atoms as heteroatoms
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/10—Non-macromolecular compounds
    • C09K2211/1018—Heterocyclic compounds
    • C09K2211/1025—Heterocyclic compounds characterised by ligands
    • C09K2211/1059—Heterocyclic compounds characterised by ligands containing three nitrogen atoms as heteroatoms
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/10—Non-macromolecular compounds
    • C09K2211/1018—Heterocyclic compounds
    • C09K2211/1025—Heterocyclic compounds characterised by ligands
    • C09K2211/1088—Heterocyclic compounds characterised by ligands containing oxygen as the only heteroatom
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/10—Non-macromolecular compounds
    • C09K2211/1018—Heterocyclic compounds
    • C09K2211/1025—Heterocyclic compounds characterised by ligands
    • C09K2211/1092—Heterocyclic compounds characterised by ligands containing sulfur as the only heteroatom
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/14—Macromolecular compounds
    • C09K2211/1408—Carbocyclic compounds
    • C09K2211/1416—Condensed systems
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/14—Macromolecular compounds
    • C09K2211/1408—Carbocyclic compounds
    • C09K2211/1425—Non-condensed systems
    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09K—MATERIALS FOR MISCELLANEOUS APPLICATIONS, NOT PROVIDED FOR ELSEWHERE
    • C09K2211/00—Chemical nature of organic luminescent or tenebrescent compounds
    • C09K2211/14—Macromolecular compounds
    • C09K2211/1441—Heterocyclic
    • C09K2211/1466—Heterocyclic containing nitrogen as the only heteroatom
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K2101/00—Properties of the organic materials covered by group H10K85/00
    • H10K2101/10—Triplet emission
    • H—ELECTRICITY
    • H10—SEMICONDUCTOR DEVICES; ELECTRIC SOLID-STATE DEVICES NOT OTHERWISE PROVIDED FOR
    • H10K—ORGANIC ELECTRIC SOLID-STATE DEVICES
    • H10K2102/00—Constructional details relating to the organic devices covered by this subclass
    • H10K2102/10—Transparent electrodes, e.g. using graphene
    • H10K2102/101—Transparent electrodes, e.g. using graphene comprising transparent conductive oxides [TCO]
    • H10K2102/103—Transparent electrodes, e.g. using graphene comprising transparent conductive oxides [TCO] comprising indium oxides, e.g. ITO

Definitions

  • the present disclosure relates to novel electroactive compounds.
  • the disclosure further relates to electronic devices having at least one layer comprising such an electroactive compound.
  • organic electronic devices such as organic light emitting diodes (“OLED”), that make up OLED displays
  • OLED organic light emitting diodes
  • one or more organic electroactive layers are sandwiched between two electrical contact layers.
  • OLED organic light emitting diodes
  • At least one organic electroactive layer emits light through the light- transmitting electrical contact layer upon application of a voltage across the electrical contact layers.
  • organic electroluminescent compounds As the light-emitting component in light-emitting diodes. Simple organic molecules, conjugated polymers, and organometallic complexes have been used.
  • Devices that use electroluminescent materials frequently include one or more charge transport layers, which are positioned between a photoactive (e.g., light-emitting) layer and a contact layer (hole-injecting contact layer).
  • a device can contain two or more contact layers.
  • a hole transport layer can be positioned between the photoactive layer and the hole-injecting contact layer.
  • the hole-injecting contact layer may also be called the anode.
  • An electron transport layer can be positioned between the photoactive layer and the electron-injecting contact layer.
  • the electron-injecting contact layer may also be called the cathode.
  • Ar 1 - Ar 4 , Ar 1a and Ar 4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl, and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • R 3a and R 4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
  • L, L 1 and L 2 are the same or different at each occurrence and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • X is O, S, or Se
  • g and h are the same or different and are 0 or 1 , with the proviso that g + h > 0;
  • n is an integer greater than 0;
  • M is a conjugated moiety
  • Q1 is a monomeric unit having Formula V
  • Q2 is a monomeric unit having Formula XI;
  • an electronic device having at least one layer comprising a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII.
  • FIG. 1 includes an illustration of one example of an organic electronic device.
  • FIG. 2 includes an illustration of another example of an organic electronic device.
  • an electronic device having at least one layer comprising a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII.
  • alkyl includes branched and straight- chain saturated aliphatic hydrocarbon groups. Unless otherwise indicated, the term is also intended to include cyclic groups. Examples of alkyl groups include methyl, ethyl, propyl, isopropyl, isobutyl, secbutyl, tertbutyl, pentyl, isopentyl, neopentyl, cyclopentyl, hexyl, cyclohexyl, isohexyl and the like. The term “alkyl” further includes both substituted and
  • the alkyl group may be mono-, di- and tri-substituted.
  • One example of a substituted alkyl group is trifluoromethyl.
  • Other substituted alkyl groups are formed from one or more of the substituents described herein.
  • alkyl groups have 1 to 20 carbon atoms.
  • the group has 1 to 6 carbon atoms.
  • the term is intended to include heteroalkyl groups. Heteroalkyl groups may have from 1 -20 carbon atoms.
  • aromatic compound is intended to mean an organic compound comprising at least one unsaturated cyclic group having 4n+2 delocalized pi electrons.
  • the term is intended to encompass both aromatic compounds having only carbon and hydrogen atoms, and heteroaromatic compounds wherein one or more of the carbon atoms within the cyclic group has been replaced by another atom, such as nitrogen, oxygen, sulfur, or the like.
  • aryl or "aryl group” means a moiety derived from an aromatic compound.
  • a group "derived from” a compound indicates the radical formed by removal of one or more H or D.
  • the aryl group may be a single ring (monocyclic) or multiple rings (bicyclic, or more) fused together or linked covalently. Examples of aryl moieties include, but are not limited to, phenyl, 1 -naphthyl, 2-naphthyl, dihydronaphthyl,
  • aryl groups have 6 to 60 ring carbon atoms; in some embodiments, 6 to 30 ring carbon atoms.
  • the term is intended to include heteroaryl groups. Heteroaryl groups may have from 4-50 ring carbon atoms; in some embodiments, 4-30 ring carbon atoms.
  • alkoxy is intended to mean the group -OR, where R is alkyl.
  • aryloxy is intended to mean the group -OR, where R is aryl.
  • Each R' and R" is independently an optionally substituted alkyl, cycloalkyl, or aryl group.
  • R' and R" together with the nitrogen atom to which they are bound, can form a ring system in certain embodiments.
  • Substituents may also be crosslinking groups. Any of the preceding groups with available hydrogens, may also be deuterated.
  • charge transport when referring to a layer, material, member, or structure is intended to mean such layer, material, member, or structure facilitates migration of such charge through the thickness of such layer, material, member, or structure with relative efficiency and small loss of charge.
  • Hole transport materials facilitate positive charge; electron transport materials facilitate negative charge.
  • light-emitting materials may also have some charge transport properties, the term "charge transport layer, material, member, or structure” is not intended to include a layer, material, member, or structure whose primary function is light emission.
  • CN refers to the cyano group, -C ⁇ N.
  • compound is intended to mean an electrically uncharged substance made up of molecules that further include atoms, wherein the atoms cannot be separated from their corresponding molecules by physical means without breaking chemical bonds.
  • the term is intended to include oligomers and polymers.
  • deuterated is intended to mean that at least one hydrogen (“H") has been replaced by deuterium (“D").
  • deuterated analog refers to a structural analog of a compound or group in which one or more available hydrogens have been replaced with deuterium.
  • deuterated compound or deuterated analog the
  • deuterium is present in at least 100 times the natural abundance level.
  • electroactive refers to a layer or a material, is intended to indicate a layer or material which electronically facilitates the operation of the device.
  • electroactive materials include, but are not limited to, materials which conduct, inject, transport, or block a charge, where the charge can be either an electron or a hole, or materials which emit radiation or exhibit a change in concentration of electron-hole pairs when receiving radiation.
  • inactive materials include, but are not limited to, planarization materials, insulating materials, and environmental barrier materials.
  • fluoro is intended to indicate that one or more hydrogens in a group has been replaced with fluorine.
  • FWHM full width half maximum
  • germyl refers to the group RsGe-, where R is the same or different at each occurrence and is H, D, C1 -20 alkyi, deuterated alkyi, fluoroalkyl, aryl, or deuterated aryl.
  • hetero indicates that one or more carbon atoms has been replaced with a different atom.
  • the heteroatom is O, N, S, or combinations thereof.
  • X O, S, or Se.
  • the positions on the fused ring core are numbered as follows:
  • indoloindole or "indoloindole core” indicates the structure shown below.
  • the positions on the indoloindole core are numbered as follows:
  • liquid composition is intended to mean a liquid medium in which a material is dissolved to form a solution, a liquid medium in which a material is dispersed to form a dispersion, or a liquid medium in which a material is suspended to form a suspension or an emulsion.
  • photoactive refers to a material or layer that emits light when activated by an applied voltage (such as in a light emitting diode or chemical cell), that emits light after the absorption of photons (such as in down-converting phosphor devices), or that responds to radiant energy and generates a signal with or without an applied bias voltage (such as in a photodetector or a photovoltaic cell).
  • siloxane refers to the group RsSiOF ⁇ Si-, where R is the same or different at each occurrence and is H, D, C1 -20 alkyl, deuterated alkyl, fluoroalkyl, aryl, or deuterated aryl. In some embodiments, one or more carbons in an R alkyl group are replaced with Si.
  • silica refers to the group R3S1O-, where R is the same or different at each occurrence and is H, D, C1 -20 alkyl, deuterated alkyl, fluoroalkyl, aryl, or deuterated aryl.
  • sil refers to the group R3S1-, where R is the same or different at each occurrence and is H, D, C1 -20 alkyl, deuterated alkyl, fluoroalkyl, aryl, or deuterated aryl. In some embodiments, one or more carbons in an R alkyl group are replaced with Si.
  • substituent R may be bonded at any available position on the one or more rings.
  • adjacent to when used to refer to layers in a device, does not necessarily mean that one layer is immediately next to another layer.
  • adjacent R groups is used to refer to R groups that are next to each other in a chemical formula (i.e., R groups that are on atoms joined by a bond). Exemplary adjacent R groups are shown below:
  • the compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII is deuterated.
  • the compound is at least 10% deuterated.
  • % deuterated or “% deuteration” is meant the ratio of deuterons to the sum of protons plus deuterons, expressed as a
  • the compound, polymer or copolymer is at least 10% deuterated; in some embodiments, at least 20%
  • deuterated in some embodiments, at least 30% deuterated; in some embodiments, at least 40% deuterated; in some embodiments, at least 50% deuterated; in some embodiments, at least 60% deuterated; in some embodiments, at least 70% deuterated; in some embodiments, at least 80% deuterated; in some embodiments, at least 90% deuterated; in some embodiments, 100% deuterated.
  • the compounds, polymers and copolymers described herein can be formed into layers for electronic devices.
  • the term "layer” is used interchangeably with the term “film” and refers to a coating covering a desired area.
  • the term is not limited by size.
  • the area can be as large as an entire device or as small as a specific functional area such as the actual visual display, or as small as a single sub-pixel.
  • Layers and films can be formed by any conventional deposition technique, including vapor deposition, liquid deposition (continuous and discontinuous techniques), and thermal transfer.
  • Continuous liquid deposition techniques include but are not limited to, spin coating, gravure coating, curtain coating, dip coating, slot-die coating, spray coating, and continuous nozzle coating.
  • Discontinuous liquid deposition techniques include, but are not limited to, ink jet printing, gravure printing, and screen printing.
  • the compounds, polymers and copolymers described herein can be used as hole transport materials in devices.
  • the compounds, polymers and copolymers described herein are electroluminescent and can be used as emissive materials in devices.
  • the compounds, polymers and copolymers described herein can be used as hosts for photoactive dopants.
  • the compounds, polymers and copolymers described herein can be used as hosts for photoactive dopants in combination with one or more additional hosts.
  • the compounds, polymers and copolymers described herein can be used as electron transport materials in devices.
  • the compounds, polymers and copolymers described herein have a photoluminescence emission profile with a FWHM that is less than 75 nm; in some embodiments, less than 60 nm; in some embodiments, less than 50 nm. This is advantageous for display devices for producing more saturated color.

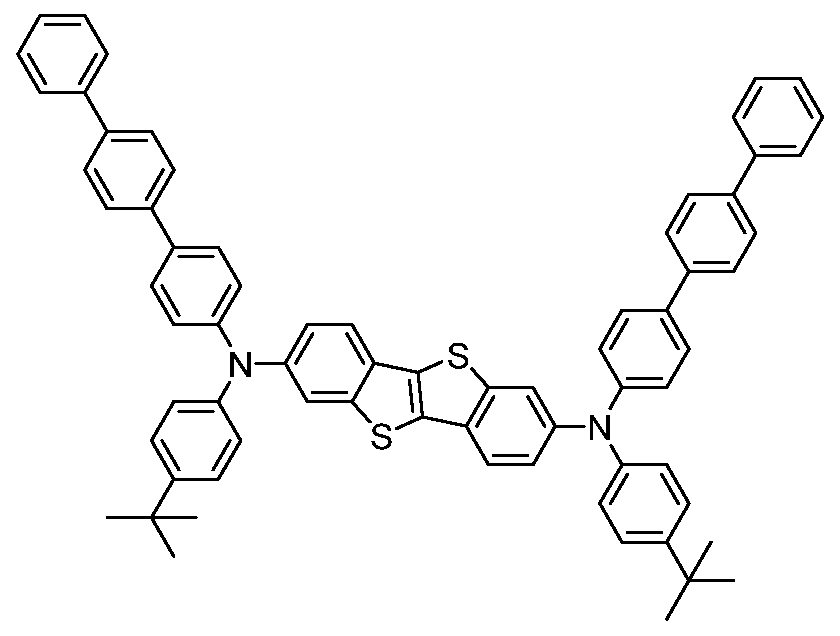

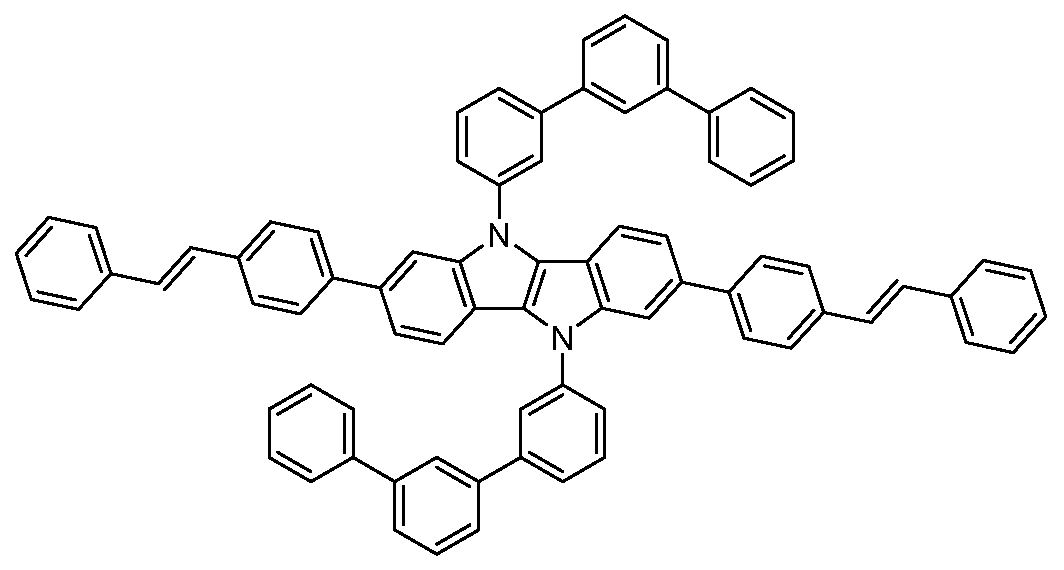

  • the new compound is an electroactive compound havin Formula I
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl heteroaryl, and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino; and a and b are the same or different and are an integer from 0-4.
  • R 1 R 2 .
  • R 1 ⁇ R 2 In some embodiments of Formula I, R 1 ⁇ R 2 .
  • R 3 R 4 .
  • R 3 ⁇ R 4 In some embodiments of Formula I, R 3 ⁇ R 4 .
  • R 1 is an alkyl group or deuterated alkyl group having 1 -30 carbons; in some embodiments, 3-20 carbons; in some embodiments, 5-20 carbons.
  • R 1 is a hydrocarbon aryl group having 6-36 ring carbons.
  • the hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
  • R 1 has no heteroaromatic groups.
  • R 1 has Formula a
  • R 5 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, alkoxy, siloxane, silyl, germyl deuterated alkyl, deuterated alkoxy, deuterated siloxane, deuterated silyl, and deuterated germyl, where adjacent R 5 groups can be joined together to form an fused aromatic ring or a deuterated fused aromatic ring;
  • p is the same or different at each occurrence and is an integer from 0-4;
  • q is an integer from 0-5;
  • r is an integer from 1 to 5;
  • ** represents a point of attachment to N.
  • R 1 has Formula b
  • R 5 , p, r and ** are as in Formula a.
  • R 1 is selected from the group consisting of phenyl, naphthyl, anthracenyl, a group derived from benz[de]anthracene, Formula a, and deuterated analogs thereof.
  • R 1 is a heteroaryl group having at least one ring atom which is selected from the group consisting of N, O, and S.
  • R 1 is an N-heteroaryl group, having at least one ring atom that is N.
  • the N-heteroaryl is derived from a compound selected from the group consisting of pyrrole, pyridine, pyrimidine, carbazole, imidazole, benzimidazole, imidazolobenzimidazole, triazole, benzotriazole, triazolopyridine, indole, indolocarbazole, phenanthroline, quinoline, isoquinoline, quinoxaline, substituted
  • the N-heteroaryl is a carbazole or deuterated carbazole.
  • the N-heteroaryl is a carbazole or deuterated carbazole havin formula Cz-1 :
  • R 8 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, silyl, germyl, aryl, deuterated alkyl, deuterated silyl, deuterated germyl, and deuterated aryl;
  • R 9 is selected from the group consisting of aryl and deuterated aryl; c1 is an integer of 0-3;
  • a1 is an integer of 0-4;
  • # represents a point of attachment .
  • the N-heteroaryl is a carbazole or deuterated carbazole having formula Cz-2:
  • R , R and # are as defined above for Cz-1 .
  • N-heteroaryl which is a carbazole or deuterated carbazole having formula Cz-3:
  • the N-heteroaryl is a benzimidazole or deuterated benzimidazole havin formula Bzl-1 :
  • R 10 is selected from the group consisting of alkyl, aryl, and deuterated analogs thereof; R 8 and # are as defined above for Cz-1 .
  • the N-heteroaryl is a benzimidazole or deuterated benzimidazole havin formula Bzl-2:
  • R 10 and # are as defined above for Bzl-1 .
  • R 1 is an O-heteroaryl having at least one ring atom that is O.
  • the O-heteroaryl is derived from a compound selected from the group consisting of furan, benzofuran, dibenzofuran, substituted derivatives thereof, and deuterated analogs thereof.
  • the O-heteroaryl is a dibenzofuran or deuterated dibenzofuran.
  • the O-heteroaryl is a dibenzofuran or deuterated dibenzofuran havin formula DBF-1 :
  • the O-heteroaryl is a dibenzofuran or deuterated dibenzofuran having formula DBF-2:
  • the O-heteroaryl is a dibenzofuran or deuterated dibenzofuran having formula DBF-3:
  • R 1 is an S-heteroaryl having at least one ring atom which is S.
  • the S-heteroaryl is derived from a compound selected form the group consisting of thiophene,
  • the S-heteroaryl is a dibenzothiophene or deuterated dibenzothiophene.
  • the S-heteroaryl is a dibenzothiophene or deuterated dibenzothio hene having formula DBT-1
  • the S-heteroaryl is a dibenzothioph deuterated dibenzothiophene having formula DBT-2:
  • the S-heteroaryl is a dibenzothiophene or deuterated dibenzothiophene having formula DBT-3:
  • # represents the point of attachment
  • R 1 is an ⁇ , ⁇ -heteroaryl having at least one ring atom that is N and at least one ring atom that is O.
  • the ⁇ , ⁇ -heteroaryl is derived from a compound selected from the group consisting of oxazole, benzoxazole, phenoxazine, substituted derivatives thereof, and deuterated analogs thereof.
  • the ⁇ , ⁇ -heteroaryl is a benzoxazole or deuterated benzoxazole having formula BzO-1 :
  • the ⁇ , ⁇ -heteroaryl is a benzoxazole or deuterated benzoxazole having formula BzO-2:
  • R 1 is an N, S-heteroaryl having at least one ring atom that is N and at least one ring atom that is S.
  • the N,S -heteroaryl is derived from a compound selected from the group consisting of thiazole, benzothiazole, substituted derivatives thereof, and deuterated analogs thereof.
  • the N,S-heteroaryl is a benzothiazole or deuterated benzothiazole having formula BT-1 :
  • the N,S-heteroaryl is a benzothiazole or deuterated benzothiazole having formula BT-2:
  • R 1 is an aryl or heteroaryl group and has at least one substituent selected from the group consisting of D, alkyi, silyl, germyl, aryl, heteroaryl, deuterated alkyi, deuterated silyl, deuterated germyl, deuterated aryl, and deuterated heteroaryl.
  • R 1 All of the above-described embodiments for R 1 apply equally to R 2 .
  • a 1 .
  • a 2.
  • a 4.
  • a > 0 and at least one R 3 is at position 6 on the indoloindole core, as defined above.
  • a > 0 and at least one R 3 is at position 7 on the indoloindole core, as defined above.
  • a > 0 and at least one R 3 is at position 9 on the indoloindole core, as defined above.
  • a > 0 and at least one R 3 is D.
  • a > 0 and at least one R 3 is alkenylaryl or deuterated alkenylaryl.
  • the alkenylaryl is selected from the group consisting of styryl, stilbenyl, substituted derivatives thereof, and deuterated analogs thereof.
  • a > 0 and at least one R 3 is a hydrocarbon aryl group having 6-36 ring carbons.
  • the hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
  • a > 0 and at least one R 3 has no heteroaromatic groups.
  • a > 0 and at least one R 3 has
  • R 5 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, alkoxy, siloxane, silyl, germyl, deuterated alkyl, deuterated alkoxy, deuterated siloxane, deuterated silyl, and deuterated germyl, where adjacent R 5 groups can be joined together to form an fused aromatic ring or a deuterated fused aromatic ring;
  • p is the same or different at each occurrence and is an integer from 0-4;
  • q is an integer from 0-5;
  • r is an integer from 1 to 5;
  • R 3 is selected from the group consisting of styryl, stilbenyl, phenyl, naphthyl, Formula a1 , substituted derivatives thereof, and deuterated analogs thereof.
  • a > 0 and at least one R 3 is a heteroaryl group having at least one ring atom which is selected from the group consisting of N, O, and S.
  • a > 0 and at least one R 3 is an N-heteroaryl group, having at least one ring atom that is N.
  • a > 0 and at least one R 3 is an O-heteroaryl having at least one ring atom that is O.
  • a > 0 and at least one R 3 is an S-heteroaryl having at least one ring atom which is S.
  • a > 0 and at least one R 3 is an N, O-heteroaryl having at least one ring atom that is N and at least one ring atom that is O.
  • a > 0 and at least one R 3 is an N, S-heteroaryl having at least one ring atom that is N and at least one ring atom that is S.
  • a > 0 and at least one R 3 is a diarylamino group or deuterated diarylamino group.
  • the diarylamino group has Formula c
  • Ar 5 and Ar 6 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • # indicates a point of attachment.
  • Ar 5 Ar 6 .
  • Ar 5 has Formula a, as defined above.
  • Ar 5 has Formula b, as defined above.
  • Ar 5 is selected from the group consisting of phenyl, naphthyl, Formula a, substituted derivatives thereof, and deuterated analogs thereof.
  • a > 0 and at least one R 3 has substituents selected from the group consisting of D, CN, alkyl, silyl, germyl, diarylamino, aryl, heteroaryl, deuterated alkyl, deuterated silyl, deuterated germyl, deuterated diarylamino, deuterated aryl, and deuterated heteroaryl.
  • b > 0 and at least one R 4 is at position 1 on the indoloindole core, as defined above.
  • b > 0 and at least one R 4 is at position 2 on the indoloindole core, as defined above.
  • b > 0 and at least one R 4 is at position 3 on the indoloindole core, as defined above. In some embodiments of Formula I, b > 0 and at least one R 4 is at position 4 on the indoloindole core, as defined above.
  • the compound has Formula l-a
  • Ar 7 is selected from the group consisting of aryl, heteroaryl,
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl, and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino; and b is an integer from 0-4;
  • c2 is an integer from 0-3;
  • n2 is an integer from 2-6.
  • Ar 7 is bonded to position 6 on the indoloindole core, as defined above.
  • Ar 7 is bonded to position 7 on the indoloindole core, as defined above.
  • Ar 7 is bonded to position 8 on the indoloindole core, as defined above.
  • Ar 7 is bonded to position 9 on the indoloindole core, as defined above.
  • Ar 7 is a hydrocarbon aryl group having 6-36 ring carbons.
  • the hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
  • Ar 7 R 1 has no heteroaromatic groups.
  • Ar 7 has Formula a1 , as defined above.
  • Ar 7 is a group derived from a compound selected from the group consisting of benzene, biphenyl, terphenyl, naphthalene, anthracene, fluorene, benzofluorene,
  • Ar 7 is a heteroaryl group having at least one ring atom which is selected from the group consisting of N, O, and S, as described above.
  • Ar 7 is an N-heteroaryl group, as described above.
  • Ar 7 is an N,O-heteroaryl group, as described above.
  • Ar 7 is an O-heteroaryl group, as described above.
  • Ar 7 is an S-heteroaryl group, as described above.
  • Ar 7 is an N, S-heteroaryl group as described above.
  • Ar 7 is derived from a compound selected from the group consisting of pyrrole, pyridine, pyrimine, carbazole, imidazole, substituted derivatives thereof, and deuterated analogs thereof.
  • n2 2.
  • n2 3.
  • n2 4.
  • n2 5.
  • n2 6.
  • Formula I apply equally to R 1 , R 2 , R 3 , R 4 , and b in Formula l-a.
  • any of the above embodiments for Formula I can be combined with one or more of the other embodiments, so long as they are not mutually exclusive.
  • the same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
  • the compounds of Formula I can be made using any technique that will yield a C-C or C-N bond.
  • a variety of such techniques are known, such as Suzuki, Yamamoto, Stille, and metal-catalyzed C-N couplings as well as metal catalyzed and oxidative direct arylation.
  • Deuterated compounds can be prepared in a similar manner using deuterated precursor materials or, more generally, by treating the non- deuterated compound with deuterated solvent, such as benzene-d6, in the presence of a Lewis acid H/D exchange catalyst, such as
  • the new compound is an electroactive compound has havin Formula II
  • Ar 1 and Ar 2 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • L 1 and L 2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • c and d are the same or different and are an integer from 0-3;
  • e and f are the same or different and are 0 or 1 ;
  • n is an integer greater than 0.
  • the term "compound having Formula II" is intended to include small molecules, oligomers and polymers.
  • n 1 and L 1 is halogen.
  • Such compounds can be useful as monomers for the formation of polymeric compounds.
  • the halogen is CI or Br; in some embodiments,
  • n 2-10. In some embodiments of Formula II, the compound is a polymer with n > 10. In some embodiments, the compound is a polymer with M n >20,000; in some embodiments, M n >50,000.
  • n > 10 and L 1 is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof.
  • n > 10 and L 2 is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof.
  • n > 10 and L 1 is selected from phenyl, diphenylamino, and deuterated analogs thereof.
  • n > 10 and L 2 is selected from phenyl, diphenylamino, and deuterated analogs thereof.
  • e 1 .
  • f 0.
  • f 1 .
  • e 0 and L 1 is bonded to position 6 on the indoloindole core, as defined above.
  • e 0 and L 1 is bonded to position 7 on the indoloindole core, as defined above.
  • e 0 and L 1 is bonded to position 8 on the indoloindole core, as defined above.
  • e 0 and L 1 is bonded to position 9 on the indoloindole core, as defined above.
  • f 0 and L 2 is bonded to position 1 on the indoloindole core, as defined above.
  • f 0 and L 2 is bonded to position 2 on the indoloindole core, as defined above.
  • f 0 and L 2 is bonded to position 3 on the indoloindole core, as defined above.
  • f 0 and L 2 is bonded to position 4 on the indoloindole core, as defined above.
  • Ar 1 Ar 2 . In some embodiments of Formula II, Ar 1 ⁇ Ar 2 .
  • f 1 and Ar 2 is bonded to position 1 on the indoloindole core, as defined above.
  • f 1 and Ar 2 is bonded to position 2 on the indoloindole core, as defined above.
  • f 1 and Ar 2 is bonded to position 3 on the indoloindole core, as defined above.
  • f 1 and Ar 2 is bonded to position 4 on the indoloindole core, as defined above.
  • the hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
  • R 6 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, alkoxy, siloxane, silyl, germyl, diarylamino, carbazolyl, deuterated alkyl, deuterated alkoxy, deuterated siloxane, deuterated silyl, deuterated germyl, deuterated diarylamino, and deuterated carbazolyl, where adjacent R 6 groups can be joined together to form a fused aromatic ring or a deuterated fused aromatic ring;
  • p is the same or different at each occurrence and is an integer from 0-4;
  • r is an integer from 1 to 5;
  • e 1 and Ar 1 has Formula e
  • Ar 1 is selected from the group consisting of phenyl, biphenyl, 1 -naphthyl, 2-naphthyl, anthracenyl, fluorenyl, stilbenyl, deuterated analogs thereof, and derivatives thereof having one or more substituents selected from the group consisting of fluoro, alkyl, alkoxy, silyl, siloxy, germyl, a substituent with a crosslinking group, and deuterated analogs thereof.
  • the electroactive compound of Formula II has Formula ll-a
  • Ar 1 and Ar 2 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • L 1 and L 2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • c and d are the same or different and are an integer from 0-3;
  • e and f are the same or different and are 0 or 1 ;
  • n is an integer greater than 0.
  • the term "compound having Formula ll-a" is intended to include small molecules, oligomers and polymers.
  • n 2-10.
  • the compound is a polymer with n > 10. In some embodiments, the compound is a polymer with M n >20,000; in some embodiments, M n >50,000.
  • L 1 is bonded to position 6 on the indoloindole core, as defined above.
  • L 1 is bonded to position 7 on the indoloindole core, as defined above.
  • L 1 is bonded to position 8 on the indoloindole core, as defined above.
  • L 1 is bonded to position 9 on the indoloindole core, as defined above.
  • L 2 is bonded to position 1 on the indoloindole core, as defined above.
  • L 2 is bonded to position 2 on the indoloindole core, as defined above.
  • L 2 is bonded to position 3 on the indoloindole core, as defined above.
  • L 2 is bonded to position 4 the indoloindole core, as defined above.
  • the electroactive compound of Formula II has Formula ll-b
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl heteroaryl and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • L 1 and L 2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • c and d are the same or different and are an integer from 0-3;
  • e and f are the same or different and are 0 or 1 ;
  • n is an integer greater than 0.
  • the term "compound having Formula l l-b" is intended to include small molecules, oligomers and polymers.
  • n 2-10.
  • the compound is a polymer with n > 10. In some embodiments, the compound is a polymer with M n >20,000; in some embodiments, M n >50,000.
  • L 1 is bonded to position 6 on the indoloindole core, as defined above.
  • L 1 is bonded to position 7 on the indoloindole core, as defined above.
  • L 1 is bonded to position 8 on the indoloindole core, as defined above.
  • L 1 is bonded to position 9 on the indoloindole core, as defined above.
  • L 2 is bonded to position 1 on the indoloindole core, as defined above.
  • L 2 is bonded to position 2 on the indoloindole core, as defined above.
  • L 2 is bonded to position 3 on the indoloindole core, as defined above.
  • L 2 is bonded to position 4 on the indoloindole core, as defined above.
  • any of the above embodiments for Formula II, Formula l l-a, or Formula l l-b can be combined with one or more of the other embodiments, so long as they are not mutually exclusive.
  • R 1 is a hydrocarbon aryl group or deuterated hydrocarbon aryl having 6-36 ring carbons
  • R 4 is an S-heteroaryl.
  • the same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
  • the new compound is an electroactive compound havin Formula III
  • Ar 3 and Ar 4 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • L 1 and L 2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • a and b are the same or different and are an integer from 0-4;
  • g and h are the same or different and are 0 or 1 , with the proviso that g + h > 0;
  • n is an integer greater than 0.
  • the term "compound having Formula III” is intended to include small molecules, oligomers and polymers.
  • a 1 .
  • a > 0 and at least one R 3 is at position 6 on the indoloindole core, as defined above.
  • a > 0 and at least one R 3 is at position 7 on the indoloindole core, as defined above.
  • a > 0 and at least one R 3 is at position 8 on the indoloindole core, as defined above.
  • a > 0 and at least one R 3 is at position 9 on the indoloindole core, as defined above.
  • b 4.
  • b > 0 and at least one R 4 is at position 1 on the indoloindole core, as defined above.
  • b > 0 and at least one R 4 is at position 2 on the indoloindole core, as defined above.
  • b > 0 and at least one R 4 is at position 3 on the indoloindole core, as defined above.
  • b > 0 and at least one R 4 is at position 4 on the indoloindole core, as defined above.
  • n, L 1 , and L 2 in Formula II apply equally to n, L 1 , and L 2 in Formula III.
  • any of the above embodiments for Formula III can be combined with one or more of the other embodiments, so long as they are not mutually exclusive.
  • a 2 and at least one R 3 is naphthyl and the embodiment in which at least one R 3 is D.
  • the compounds of Formula II or Formula III can be made using known coupling techniques and polymerization techniques, as described above.
  • Deuterated compounds can be prepared as described above.
  • n1 is an integer greater than 1 and # indicates a point of attachment. In some embodiments of the above compounds, n1 > 10.
  • n1 is an integer greater than 1 . In some embodiments of the above compound, n1 > 10.
  • the electroactive compound is a copolymer having at least one unit of Formula IV wherein:
  • Ar 1 and Ar 2 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • c and d are the same or different and are an integer from 0-3; e and f are the same or different and are 0 or 1 ; and
  • f 1 and Ar 2 is bonded to position 3 on the indoloindole core, as defined above.
  • f 1 and Ar 2 is bonded to position 4 on the indoloindole core, as defined above.
  • the electroactive compound is a copolymer having at least one unit of Formula IV-a
  • Ar 1 and Ar 2 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • c and d are the same or different and are an integer from 0-3;
  • e and f are the same or different and are 0 or 1 ;
  • the electroactive compound is a copolymer having at least one unit of Formula IV-b
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • c and d are the same or different and are an integer from 0-3; and * represents a point of attachment to a copolymer.
  • the electroactive compound is a copolymer having at least one unit of Formula V wherein:
  • Ar 3 and Ar 4 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 1 and R 2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • a and b are the same or different and are an integer from 0-4; g and h are the same or different and are 0 or 1 , with the proviso that g + h > 0; and
  • a > 0 and R 3 is bonded to position 6 on the indoloindole core, as defined above.
  • a > 0 and R 3 is bonded to position 7 on the indoloindole core, as defined above.
  • a > 0 and R 3 is bonded to position 8 on the indoloindole core, as defined above. In some embodiments of Formula V, a > 0 and R 3 is bonded to position 9 on the indoloindole core, as defined above.
  • the copolymer has Formula VI
  • L 1 and L 2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • M is a conjugated moiety
  • the "Q" and "M” units are ordered in a regular alternating pattern.
  • the "Q" and “M” units are ordered in blocks of like monomers.
  • the "Q" and "M” units are randomly arranged.
  • L 1 is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof. In some embodiments of Formula VI, L 1 is selected from phenyl, triphenylamino, and deuterated analogs thereof.
  • L 2 is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof.
  • L 2 is selected from phenyl, triphenylamino, and deuterated analogs thereof.
  • At least one ## represents a point of attachment to L 2 .
  • M is a deuterated aromatic moiety.
  • M is a monomeric unit derived from an olefin, an acetylenic compound, a styrene, a stilbene, a
  • M has Formula d, as defined above.
  • M has Formula e, as defined above.
  • M is a monomeric unit derived from a hydrocarbon aryl having two or more fused rings or a deuterated analog thereof.
  • M is a monomeric unit derived from the group consisting of naphthalene, anthracene, fluorene, phenanthrene, triphenylene, substituted derivatives thereof, and deuterated analogs thereof.
  • M is a monomeric unit derived from a triarylamino group or deuterated analog thereof.
  • M is a monomeric unit having two or more triarylamino groups.
  • M is a monomeric unit derived from a heteroaromatic compound having at least one ring atom which is selected from the group consisting of N, O, and S.
  • M is a monomeric unit derived from an N-heteroaryl, as described above. In some embodiments of Formula VI, M is a monomeric unit derived from an S-heteroaryl, as described above.
  • M is a monomeric unit derived from an O-heteroaryl, as described above.
  • M is a monomeric unit derived from an N, O-heteroaryl as described above.
  • M is a monomeric unit derived from an N, S-heteroaryl as described above.
  • M has one of the formulae iven below.
  • R 7 is the same or different at each occurrence and is selected from the group consisting of H, D, alkyl, and deuterated alkyl;
  • R 8 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, silyl, germyl, aryl, deuterated alkyl, deuterated silyl, deuterated germyl, and deuterated aryl; R is the same or different at each occurrence and is selected from the group consisting of aryl and deuterated aryl;
  • R 10 is the same or different at each occurrence and is selected from the group consisting of alkyl, aryl, and deuterated analogs thereof;
  • x is the same or different at each occurrence and is an integer from 0 to the maximum number of positions available for substituents
  • x is 0-2.
  • w is in the range of 0.5-0.99; in some embodiments, 0.6-0.95; in some embodiments, 0.75-0.95.
  • any of the above embodiments for Formula VI can be combined with one or more of the other embodiments, so long as they are not mutually exclusive.
  • the embodiment in which Q has Formula IV-a can be combined with the embodiment in which c > 0 and R 3 is an N- heteroaryl and with the embodiment in which M has formula M1 .
  • the same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
  • the copolymer has Formula VII
  • L 1 and L 2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • M is a conjugated moiety
  • Q1 is a monomeric unit having Formula V
  • the "Q1 " and "M" units are ordered in a regular alternating pattern.
  • the "Q1 " and “M” units are ordered in blocks of like monomers.
  • the "Q1 " and “M” units are randomly arranged.
  • any of the above embodiments for Formula VII can be combined with one or more of the other embodiments, so long as they are not mutually exclusive.
  • M has formula M4.
  • the copolymer having Formula VI or Formula VII can be made using known coupling techniques and polymerization techniques, as described above.
  • Deuterated compounds can be prepared as described above.
  • copolymers having Formula VI are shown below.
  • Com ound VI-1 where * represents a point of attachment in the copolymer, n1 is an integer greater than 1 , and the numbers represent mole fractions. In some embodiments of the above compounds, n1 > 10.
  • the new compound is an electroactive com ound having Formula VIII
  • R 3 and R 4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
  • X is O, S, or Se
  • a and b are the same or different and are an integer from 0-4.
  • x O.
  • x S.
  • x Se.
  • R 3 R 4
  • a 1 -4.
  • a 1 .
  • a 2.
  • any of the above embodiments for Formula VIII can be combined with one or more of the other embodiments, so long as they are not mutually exclusive.
  • the same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
  • the compounds of Formula VIII can be made using known coupling techniques, as described above.
  • Deuterated compounds can be prepared as described above. Exemplary preparations are given in the Examples.
  • the compounds having Formula IX or Formula X have as fused ring core, as defined above.
  • the new compound is an electroactive compound having Formula IX wherein:
  • X is O, S, or Se
  • Ar 1 - Ar 4 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 3a and R 4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
  • s and t are 0 or 1 , with the proviso that s + t > 0.
  • x S.
  • R 1 R 2 .
  • R 1 ⁇ R 2 .
  • s 1 and the amino nitrogen is bonded to position 6 on the fused ring core, as defined above.
  • s 1 and the amino nitrogen is bonded to position 7 on the fused ring core, as defined above.
  • s 1 and the amino nitrogen is bonded to position 8 on the fused ring core, as defined above.
  • s 1 and the amino nitrogen is bonded to position 9 on the fused ring core, as defined above.
  • t 1 and the amino nitrogen is bonded to position 1 on the fused ring core, as defined above.
  • t 1 and the amino nitrogen is bonded to position 2 on the fused ring core, as defined above.
  • t 1 and the amino nitrogen is bonded to position 3 on the fused ring core, as defined above.
  • t 1 and the amino nitrogen is bonded to position 4 on the fused ring core, as defined above.
  • Ar 1 is a hydrocarbon aryl group having 6-36 ring carbons.
  • the hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
  • Ar 1 has no heteroaromatic groups.
  • Ar 1 has Formula a, as defined above.
  • Ar 1 has Formula b, as defined above.
  • Ar 1 is selected from the group consisting of phenyl, naphthyl, Formula a, substituted derivatives thereof, and deuterated analogs thereof.
  • Ar 1 has substituents selected from the group consisting of D, alkyl, silyl, germyl, aryl, diarylamino, carbazolyl, deuterated alkyl, deuterated silyl, deuterated germyl, deuterated aryl, deuterated diarylamino, and deuterated carbazolyl.
  • the electroactive compound of Formula IX has Formula IX-a
  • X is O, S, or Se
  • Ar 1 - Ar 4 are the same or different and are selected from the group consisting of aryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R and R are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
  • s and t are 0 or 1 , with the proviso that s + t > 0.
  • any of the above embodiments for Formula IX can be combined with one or more of the other embodiments, so long as they are not mutually exclusive.
  • the same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
  • the new compound is an electroactive compound havin Formula X
  • X is O, S, or Se
  • Ar 1a and Ar 4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, and deuterated analogs thereof;
  • Ar 2 and Ar 3 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 3a and R 4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
  • L is the same or different at each occurrence and is selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • c and d are the same or different and are an integer from 0-3; and n is an integer greater than 0.
  • the term "compound having Formula X" is intended to include small molecules, oligomers and polymers.
  • the halogen is CI or Br; in some embodiments, Br.
  • n 2-10.
  • the compound is a polymer with n > 10. In some embodiments, the compound is a polymer with M n >20,000; in some embodiments, M n >50,000.
  • n > 10 and L is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof. In some embodiments of Formula X, n > 10 and L is selected from phenyl, triphenylamino, and deuterated analogs thereof.
  • Ar 1a Ar 2 .
  • Ar 3 Ar 4a .
  • Ar 1a Ar 4a .
  • Ar 2 Ar 3 .
  • an amino nitrogen is bonded to position 1 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 2 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 3 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 4 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 6 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 7 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 8 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 9 on the fused ring core, as defined above.
  • Ar 1a is a hydrocarbon aryl group having 6-36 ring carbons.
  • the hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
  • Ar 1a has no heteroaromatic groups.
  • Ar 1a has Formula d, as defined above. In some embodiments of Formula X, Ar 1a has Formula e, as defined above.
  • Ar 1a is selected from the group consisting of 1 -naphthyl, 2-naphthyl, anthracenyl, fluorenyl, deuterated analogs thereof, and derivatives thereof having one or more substituents selected from the group consisting of fluoro, alkyl, alkoxy, silyl, siloxy, germyl, a substituent with a crosslinking group, and deuterated analogs thereof.
  • the compound of Formula II has Formula -a
  • X is O, S, or Se
  • Ar 1a and Ar 4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • Ar 2 and Ar 3 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, and deuterated analogs thereof;
  • R 3a and R 4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
  • L is the same or different at each occurrence and is selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • c and d are the same or different and are an integer from 0-3; and n is an integer greater than 0.
  • any of the above embodiments for Formula X can be combined with one or more of the other embodiments, so long as they are not mutually exclusive.
  • the same is true for the other non-mutually- exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
  • the compounds having Formula IX or Formula X can be made using known coupling techniques, as described above.
  • the new compound is a copolymer having at least one monomeric unit of Formula XI
  • X is O, S, or Se
  • Ar 1a and Ar 4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • Ar 2 and Ar 3 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
  • R 3a and R 4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl; and
  • an amino nitrogen is bonded to position 1 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 2 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 3 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 4 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 6 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 7 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 8 on the fused ring core, as defined above.
  • an amino nitrogen is bonded to position 9 on the fused ring core, as defined above.
  • the copolymer has Formula XII
  • L is the same or different at each occurrence and is selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
  • M is a conjugated moiety

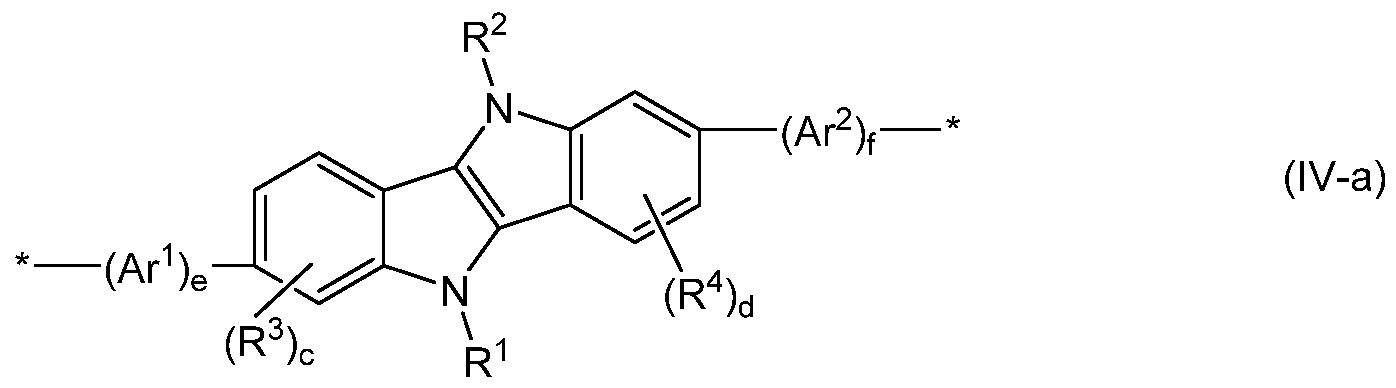

  • Q2 is a monomeric unit having Formula XI
  • the "Q" and “M” units can be ordered in a regular alternating pattern, in blocks of like monomers, or randomly arranged.
  • the copolymer having Formula XII can be made using known coupling techniques and polymerization techniques.
  • the deuterated analog materials can be made as described above.
  • the * indicates a point of attachment in the copolymer.
  • Organic electronic devices that may benefit from having one or more layers including at least one compound as described herein include, but are not limited to, (1 ) devices that convert electrical energy into radiation (e.g., a light-emitting diode, light emitting diode display, lighting device, luminaire, or diode laser), (2) devices that detect signals through electronics processes (e.g., photodetectors, photoconductive cells, photoresistors, photoswitches, phototransistors, phototubes, IR detectors, biosensors), (3) devices that convert radiation into electrical energy, (e.g., a photovoltaic device or solar cell), (4) devices that convert light of one wavelength to light of a longer wavelength, (e.g., a down-converting phosphor device); and (5) devices that include one or more electronic components that include one or more organic semi-conductor layers (e.g., a transistor or diode).
  • Other uses for the compositions according to the present invention include coating materials for memory storage devices, antistatic films, biosensors, electrochro
  • FIG. 1 One illustration of an organic electronic device structure including at least one of the new compounds, polymers or copolymers described herein is shown in FIG. 1 .
  • the device 100 has a first electrical contact layer, an anode layer 1 10 and a second electrical contact layer, a cathode layer 160, and a photoactive layer 140 between them. Additional layers may optionally be present.
  • Adjacent to the anode may be a hole injection layer 120, sometimes referred to as a buffer layer.
  • Adjacent to the hole injection layer may be a hole transport layer 130, including hole transport material.
  • Adjacent to the cathode may be an electron transport layer 150, including an electron transport material.
  • devices may use one or more additional hole injection or hole transport layers (not shown) next to the anode 1 10 and/or one or more additional electron injection or electron transport layers (not shown) next to the cathode 160.
  • Layers 120 through 150 are individually and collectively referred to as the organic active layers.
  • the light- emitting layer is pixellated, with subpixel units for each of the different colors.
  • An illustration of a pixellated device including at least one of the new compounds, polymers or copolymers described herein is shown in FIG. 2.
  • the device 200 has anode 1 10, hole injection layer 120, hole transport layer 130, photoactive layer 140, electron transport layer 150, and cathode 160.
  • the photoactive layer is divided into subpixels 141 , 142, 143, which are repeated across the layer.
  • the subpixels represent red, blue and green color emission. Although three different subpixel units are depicted in FIG. 2, two or more than three subpixel units may be used.
  • the different layers have the following range of thicknesses: anode 1 10, 500-5000 A, in some embodiments, 1000- 2000 A; hole injection layer 120, 50-2000 A, in some embodiments, 200- 1000 A; hole transport layer 130, 50-3000 A, in some embodiments, 200- 2000 A; photoactive layer 140, 10-2000 A, in some embodiments, 100- 1000 A; electron transport layer 150, 50-2000 A, in some embodiments, 100-1000 A; cathode 160, 200-10000 A, in some embodiments, 300-5000 A.
  • the desired ratio of layer thicknesses will depend on the exact nature of the materials used.
  • the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII described herein may be present in one or more of the electroactive layers of a device.
  • the new compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII are useful as photoactive materials in layer 140.
  • the new compounds, polymers and copolymers described herein are present as photoactive dopant materials in one or more host materials.
  • dopant is intended to mean a material, within a layer including a host material, that changes the electronic characteristic(s) or the targeted wavelength(s) of radiation emission, reception, or filtering of the layer compared to the electronic characteristic(s) or the wavelength(s) of radiation emission, reception, or filtering of the layer in the absence of such material.
  • host material is intended to mean a material to which a dopant is added. The host material may or may not have electronic characteristic(s) or the ability to emit, receive, or filter radiation. In some embodiments, the host material is present in higher
  • the compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII is useful as a host material for photoactive dopant materials in photoactive layer 140.
  • the new compounds, polymers and copolymers described herein can be used alone or in combination with one or more additional host materials.
  • the compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII is useful as an electron transport material in layer 150.
  • an organic electronic device includes an anode, a cathode, and at least one organic active layer therebetween, where the organic active layer includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII.
  • an organic electronic device includes an anode, a cathode, and a photoactive layer therebetween, where the photoactive layer includes a compound having Formula I, Formula II,
  • an organic electronic device includes an anode, a cathode, and a photoactive layer therebetween, and further includes an additional organic active layer including a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII.
  • the additional organic active layer is an electron transport layer.
  • the anode 1 10 is an electrode that is particularly efficient for injecting positive charge carriers. It can be made of, for example materials containing a metal, mixed metal, alloy, metal oxide or mixed-metal oxide, or it can be a conducting polymer, and mixtures thereof. Suitable metals include the Group 1 1 metals, the metals in Groups 4, 5, and 6, and the Group 8-10 transition metals. If the anode is to be light-transmitting, mixed-metal oxides of Groups 12, 13 and 14 metals, such as indium-tin- oxide, are generally used.
  • the anode may also include an organic material such as polyaniline as described in "Flexible light-emitting diodes made from soluble conducting polymer," Nature vol. 357, pp 477 479 (1 1 June 1992). At least one of the anode and cathode should be at least partially transparent to allow the generated light to be observed.
  • Optional hole injection layer 120 includes hole injection materials.
  • the term "hole injection layer” or “hole injection material” is intended to mean electrically conductive or semiconductive materials and may have one or more functions in an organic electronic device, including but not limited to, planarization of the underlying layer, charge transport and/or charge injection properties, scavenging of impurities such as oxygen or metal ions, and other aspects to facilitate or to improve the performance of the organic electronic device.
  • Hole injection materials may be polymers, oligomers, or small molecules, and may be in the form of solutions, dispersions, suspensions, emulsions, colloidal mixtures, or other compositions.
  • the hole injection layer can be formed with polymeric materials, such as polyaniline (PANI) or polyethylenedioxythiophene (PEDOT), which are often doped with protonic acids.
  • the protonic acids can be, for example, poly(styrenesulfonic acid), poly(2-acrylamido-2-methyl-1 - propanesulfonic acid), and the like.
  • the hole injection layer 120 can include charge transfer compounds, and the like, such as copper phthalocyanine and the tetrathiafulvalene-tetracyanoquinodimethane system (TTF-TCNQ).
  • TTF-TCNQ tetrathiafulvalene-tetracyanoquinodimethane system
  • the hole injection layer 120 is made from a dispersion of a conducting polymer and a colloid-forming polymeric acid. Such materials have been described in, for example, published U.S. patent applications 2004-0102577, 2004-0127637, and 2005-0205860.
  • Layer 130 includes hole transport material.
  • layer 130 includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII.
  • layer 130 includes only a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII, where additional materials that would materially alter the principle of operation or the distinguishing characteristics of the layer are not present.
  • layer 130 includes other hole transport materials.
  • hole transport materials for the hole transport layer have been summarized for example, in Kirk-Othmer Encyclopedia of Chemical Technology, Fourth Edition, Vol. 18, p. 837-860, 1996, by Y. Wang. Both hole transporting small molecules and polymers can be used. Commonly used hole transporting molecules include, but are not limited to: 4,4',4"-tris(N,N-diphenyl-amino)-triphenylamine (TDATA); 4,4',4"-tris(N- 3-methylphenyl-N-phenyl-amino)-triphenylamine (MTDATA);
  • N,N'-diphenyl-N,N'-bis(3-methylphenyl)-[1 ,1 '-biphenyl]-4,4'-diamine TPD
  • 4, 4'-bis(carbazol-9-yl)biphenyl CBP
  • 1 ,3-bis(carbazol-9-yl)benzene mCP
  • TAPC N,N'-bis(4- methylphenyl)-N,N'-bis(4-ethylphenyl)-[1 ,1 '-(3,3'-dimethyl)biphenyl]-4,4'- diamine
  • ETPD tetrakis-(3-methylphenyl)-N,N,N',N'-2,5- phenylenediamine
  • PDA a-phenyl-4-N,N-diphenylamin
  • the hole transport layer is doped with a p-dopant, such as tetrafluorotetracyanoquinodimethane and perylene-3,4,9,10- tetracarboxylic-3,4,9,10-dianhydride.
  • a p-dopant such as tetrafluorotetracyanoquinodimethane and perylene-3,4,9,10- tetracarboxylic-3,4,9,10-dianhydride.
  • the photoactive layer 140 can be a light-emitting layer that is activated by an applied voltage (such as in a light-emitting diode or light-emitting electrochemical cell), a layer of material that absorbs light and emits light having a longer wavelength (such as in a down-converting phosphor device), or a layer of material that responds to radiant energy and generates a signal with or without an applied bias voltage (such as in a photodetector or photovoltaic device).
  • an applied voltage such as in a light-emitting diode or light-emitting electrochemical cell
  • a layer of material that absorbs light and emits light having a longer wavelength such as in a down-converting phosphor device
  • a layer of material that responds to radiant energy and generates a signal with or without an applied bias voltage such as in a photodetector or photovoltaic device.
  • the photoactive layer includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or
  • the photoactive layer further comprises a host material.
  • host materials include, but are not limited to, chrysenes, phenanthrenes, triphenylenes, phenanthrolines, naphthalenes, anthracenes, quinolines, isoquinolines, quinoxalines, phenylpyridines, indolocarbazoles, furans, benzofurans, dibenzofurans, benzodifurans, and metal quinolinate complexes.
  • the host materials are deuterated.
  • the photoactive layer includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII as host material and additionally includes a photoactive dopant.
  • the photoactive dopant can be an organic electroluminescent ("EL") material. Any EL material can be used in the devices, including, but not limited to, small molecule organic fluorescent compounds, fluorescent and phosphorescent metal complexes, conjugated polymers, and mixtures thereof.
  • fluorescent compounds include, but are not limited to, chrysenes, pyrenes, perylenes, rubrenes, coumarins, anthracenes, thiadiazoles, derivatives thereof, and mixtures thereof.
  • metal complexes include, but are not limited to, metal chelated oxinoid
  • cyclometalated iridium and platinum electroluminescent compounds such as complexes of iridium with phenylpyridine, phenylquinoline, or
  • conjugated polymers include, but are not limited to
  • the photoactive layer further includes a second host material.
  • second host materials include, but are not limited to, chrysenes, phenanthrenes, thphenylenes, phenanthrolines, naphthalenes, anthracenes, quinolines, isoquinolines, quinoxalines, phenylpyridines, indolocarbazoles, furans, benzofurans, dibenzofurans, benzodifurans, and metal quinolinate complexes.
  • photoactive layer 140 includes only a host which is a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one
  • photoactive layer 140 includes a
  • photoactive dopant a host material which is a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII, and a second host material.
  • photoactive layer 140 includes only a photoactive dopant, a first host material which is a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of
  • the weight ratio of total host material to dopant is in the range of 99.5:0.5 to 25:75; in some embodiments, 99:1 to 30:70; in some embodiments, 95:5 to 60:40; in some embodiments, 90:10 to 70:30.
  • the weight ratio of first host material to second host material is in the range of 10:90 to 90:10; in some
  • Optional layer 150 can function both to facilitate electron transport, and also serve as a confinement layer to prevent quenching of the exciton at layer interfaces. Preferably, this layer promotes electron mobility and reduces exciton quenching.
  • layer 150 includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII.
  • layer 150 includes only a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII where additional materials that would materially alter the principle of operation or the distinguishing characteristics of the layer are not present.
  • layer 150 includes other electron transport materials.
  • electron transport materials which can be used in the optional electron transport layer 150, include metal chelated oxinoid compounds, including metal quinolate derivatives such as tris(8- hydroxyquinolato)aluminum (AIQ), bis(2-methyl-8-quinolinolato)(p- phenylphenolato) aluminum (BAIq), tetrakis-(8-hydroxyquinolato)hafnium (HfQ) and tetrakis-(8-hydroxyquinolato)zirconium (ZrQ); and azole compounds such as 2- (4-biphenylyl)-5-(4-t-butylphenyl)-1 ,3,4-oxadiazole (PBD), 3-(4-biphenylyl)-4-phenyl-5-(4-t-butylphenyl)-1 ,2,4-triazole (TAZ), and 1 ,3,5-tri(phenyl-2-benzimidazo
  • AIQ
  • the electron transport material is selected from the group consisting of metal quinolates and phenanthroline derivatives.
  • the electron transport layer further includes an n-dopant.
  • N-dopant materials are well known.
  • An optional electron injection layer may be deposited over the electron transport layer.
  • electron injection materials include, but are not limited to, Li-containing organometallic compounds, LiF, Li 2 O, Li quinolate, Cs-containing organometallic compounds, CsF, Cs 2 O, and CS2CO3. This layer may react with the underlying electron transport layer, the overlying cathode, or both.
  • the amount of material deposited is generally in the range of 1 - 100 A, in some embodiments 1 -10 A.
  • the cathode 160 is an electrode that is particularly efficient for injecting electrons or negative charge carriers.
  • the cathode can be any metal or nonmetal having a lower work function than the anode.
  • Materials for the cathode can be selected from alkali metals of Group 1 (e.g., Li, Cs), the Group 2 (alkaline earth) metals, the Group 12 metals, including the rare earth elements and lanthanides, and the actinides. Materials such as aluminum, indium, calcium, barium, samarium and magnesium, as well as combinations, can be used.
  • anode 1 10 and hole injection layer 120 there can be a layer (not shown) between the anode 1 10 and hole injection layer 120 to control the amount of positive charge injected and/or to provide band-gap matching of the layers, or to function as a protective layer.
  • Layers that are known in the art can be used, such as copper phthalocyanine, silicon oxy-nitride, fluorocarbons, silanes, or an ultra-thin layer of a metal, such as Pt.
  • some or all of anode layer 1 10, active layers 120, 130, 140, and 150, or cathode layer 160 can be surface-treated to increase charge carrier transport efficiency.
  • the choice of materials for each of the component layers is preferably determined by balancing the positive and negative charges in the emitter layer to provide a device with high electroluminescence efficiency.
  • each functional layer can be made up of more than one layer.
  • the device layers can be formed by any deposition technique, or combinations of techniques, including vapor deposition, liquid deposition, and thermal transfer. Substrates such as glass, plastics, and metals can be used. Conventional vapor deposition techniques can be used, such as thermal evaporation, chemical vapor deposition, and the like.
  • the organic layers can be applied from solutions or dispersions in suitable solvents, using conventional coating or printing techniques, including but not limited to spin-coating, dip-coating, roll-to-roll techniques, ink-jet printing, continuous nozzle printing, screen-printing, gravure printing and the like.
  • a suitable solvent for a particular compound or related class of compounds can be readily determined by one skilled in the art.
  • non-aqueous solvents can be relatively polar, such as Ci to C20 alcohols, ethers, and acid esters, or can be relatively non-polar such as Ci to C12 alkanes or aromatics such as toluene, xylenes, trifluorotoluene and the like.
  • suitable liquids for use in making the liquid composition includes, but not limited to, chlorinated hydrocarbons (such as methylene chloride, chloroform, chlorobenzene), aromatic hydrocarbons (such as substituted and non-substituted toluenes and xylenes), including triflurotoluene), polar solvents (such as tetrahydrofuran (THP), N-methyl pyrrolidone) esters (such as ethylacetate) alcohols (isopropanol), ketones (cyclopentatone) and mixtures thereof.
  • chlorinated hydrocarbons such as methylene chloride, chloroform, chlorobenzene
  • aromatic hydrocarbons such as substituted and non-substituted toluenes and xylenes
  • triflurotoluene including triflurotoluene
  • polar solvents such as tetrahydrofuran (THP), N-methyl pyrrolidone) esters (
  • electroluminescent materials have been described in, for example, published PCT application WO 2007/145979.
  • the device is fabricated by liquid deposition of the hole injection layer, the hole transport layer, and the photoactive layer, and by vapor deposition of the anode, the electron transport layer, an electron injection layer and the cathode.
  • the efficiency of devices made with the new compositions described herein can be further improved by optimizing the other layers in the device.
  • more efficient cathodes such as Ca, Ba or LiF can be used.
  • Shaped substrates and novel hole transport materials that result in a reduction in operating voltage or increase quantum efficiency are also applicable.
  • Additional layers can also be added to tailor the energy levels of the various layers and facilitate electroluminescence.
  • the device has the following structure, in order: anode, hole injection layer, hole transport layer, photoactive layer, electron transport layer, electron injection layer, cathode.
  • This example illustrates the preparation of the indoloindole core structure.
  • This example illustrates the synthesis of a compound having Formula I, Compou -1 .
  • This example illustrates the synthesis of a compound having Formula I, Compound I-3.
  • This example illustrates the synthesis of a compound having Formula I, Compound I-4.
  • Synthesis Example 6 This example illustrates the synthesis of a compound having Formula I, Compound 1-18.
  • Step 1 1 -chloro-3-[2-(3-chloro-2-nitro-phenyl)ethynyl]-2- nitrobenzene (J).
  • Tetrakis(triphenylphosphine)palladium(0) (4.00 g, 3.46 mmol), copper (I) iodide (1 .34 g, 7.04 mmol) and N, /V-dimethylaminopyridine (1 .07 g, 8.76 mmol) were added and the reaction mixture was purged with argon gas for another 15 minutes. Acetylene gas was bubbled through the reaction mixture with stirring at room temperature for 7 hours. After removal of volatiles by rotary evaporation, the reaction mixture was diluted with ethyl acetate (500 mL) and filtered. The filtrate was washed with water (500 mL) and brine (500 mL).
  • reaction mixture was cooled to room temperature and the resulting precipitate was filtered, washed with water (200 mL) and dried to get crude compound that was washed with ethanol (25 mL) and dried under vacuum to afford the desired product (4.6 g, 62% yield) as a pale yellow solid that was determined to be 98.6% pure by UPLC analysis.
  • Step 4 -dichloro-5,10-diphenyl-indolo[3,2-b]indole (M)
  • the reaction mixture was then heated under reflux for 40 hours, cooled to room temperature, and filtered.
  • the filtrate was diluted with ethyl acetate (10 mL), washed with water (5 mL) and brine (5 mL), dried over anhydrous sodium sulfate and concentrated under reduced pressure.
  • the crude product was purified by washing with 50% ethanol in n-pentane (2 mL) to afford the desired product (0.09 g, 58% yield) as a brown solid that was determined to be 95.0% pure by UPLC analysis.
  • the structure was confirmed by NMR spectrometry and mass spectroscopy.
  • Compound M was treated with phenyl boronic acid, Aliquat®336, and K2CO3 in toluene. This was refluxed for 16 hours.
  • the compound will be made starting with Compound M from Synthesis Example 7, and treating with the pinacol ester of the appropriate boronic acid, as shown in the scheme below.
  • This example illustrates the preparation of a compound having Formula I, bis-(2-napthyl)-indoloindole, I-26.
  • This example illustrates the preparation of a compound having Formula VIII, Compound VIII-2.
  • This example illustrates the preparation of a compound having Formula I, Compound 1-19, and the corresponding polymer having Formula II, Compound 11-1 .
  • This example illustrates the preparation of a polymer having Formula II, Compound 11 -3.
  • This example illustrates the preparation of a polymer having Formula II, Compound II-6.
  • This example illustrates the preparation of a polymer having Formula II, Compound II-7.
  • reaction mixture cooled down to room temperature, diluted with 100 ml of toluene, organic phase separated and passed through filter filled with silica gel washing with toluene and dichloromethane. The residue after evaporation of solvents was subjected to purification on column filled with basic alumina and silica gel washing with toluene. Crude product after distillation of eluent was fractionated by dissolving in toluene (20 ml) and addition of acetone (20 ml).
  • This example illustrates the preparation of a compound having Formula I, Compound 1-12.
  • This example illustrates the preparation of a compound having Formula I, bis-(10H-phenoxazin-10-yl)-indoloindole, Compound I-24.
  • This example illustrates the preparation of a compound having Formula I, bis-(9,9-dimethylfluorenyl)-indoloindole, Compound I-25.
  • This example illustrates the preparation of a compound having Formula I, 2-(N-benzocarbazolyl)-7-(N-phenyl-N-1 -napthyl)- indoloindole, Compound I-27.
  • Reaction mixture was heated at 100C overnight. After that reaction mixture cooled down, water (100ml) added and the reaction mixture was stirred in the air for 30 min. Toluene layer separated and passed through a layer of celite, florisil and silica gel washing with toluene (300ml_). Solvent was removed by using rotary evaporator, the residue was redissolved in dichloromethane and evaporated onto celite and purified on silica gel column using hexanes - dichloromethane mixtures as eluent. All fractions containing product combined, eluent evaporated by using rotary
  • This example illustrates the preparation of a compound having Formula VIII, Compound VIII-6.
  • Tris(dibenzylidene-acetone)-dipalladiunn(0) (0.72 g, 0.78 mmol) and 1 ,1 '-Bis(diphenylphosphino)-ferrocene (0.87 g, 1 .57 mmol) were dissolved in toluene under N 2 .
  • the mixture (brown) was stirred at RT for 10 min.
  • intermediate 5 from Synthesis Example 10 (15.07 g, 0.056 mmol), bromobenzene (21 .88 g, 0.14 mol) and sodium tert-butoxide (12.92 g, 0.13 mol) were added.
  • This example illustrates the preparation of a compound having Formula I, Compound 1-29.
  • Step a 2-bromo-7-(3-(naphthalen-1 -yl)phenyl)-5,10-diphenyl-4b,5,9b,10- tetrahydroindolo[3,2-b]indole
  • reaction was stirred and refluxed under nitrogen for 16 hours.
  • UPLC analysis indicated that the reaction is a mixture of starting 2,7-dibromo- 5,10-diphenyl-4b,5,9b,10-tetrahydroindolo[3,2-b]indole, the mono-coupled 2-bromo-7-(3-(naphthalen-1 -yl)phenyl)-5,10-diphenyl-4b,5,9b,10- tetrahydroindolo[3,2-b]indole and the disubstituted 2,7-bis(3-(naphthalen- 1 -yl)phenyl)-5,10-diphenyl-5,10-dihydroindolo[3,2-b]indole, in a ratio of about 25:50:25.
  • the reaction mixture was passed through a layer of Celit to remove the insoluble material eluted with toluene.
  • the solution was washed with water, aq. HCI (10%, 100 mL), saturated brine and dride with MgSO 4 . After filtering, the solvent was removed by rotary evaporation and the residue was separated on a Silica gel column eluted with
  • This example illustrates the preparation of a compound having Formula I, Compound I-30.
  • Step a (E)-2-(4-(tert-butyl)styryl)-4,4,5,5-tetramethyl-1 ,3,2-dioxaborolane
  • catalyst CuCO 3 basic 29.36g, 100 mmol
  • triphenyl phosphin 1 .70 g, 6.50 mmol
  • reaction mixture was vigorously (800-900 rpm) stirred at ambient temperature for 15 min.

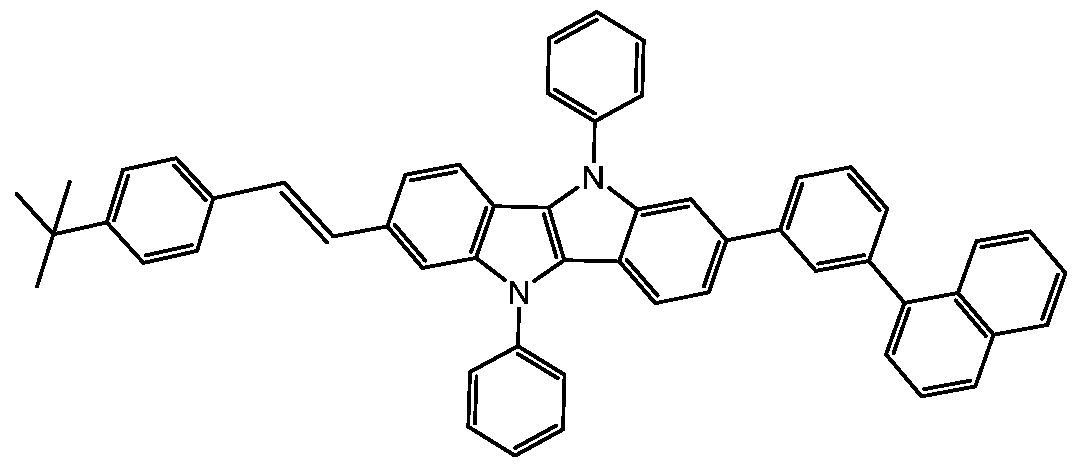

  • Step b (E)-2-(4-(tert-butyl)styryl)-7-(3-(naphthalen-1 -yl)phenyl)-5,10- diphenyl-5,10-dihydroindolo[3,2-b]indole
  • UPLC analysis indicated that the product was formed in about 60% together with unreacted starting dibromide and the disubstituted byproduct in about 20% respectively.
  • the reaction mixture was passed through a layer of Celit to remove the insoluble material eluted with toluene.
  • the solvent was removed by rotary evaporation and 5.2 g of the crude product was used to be separated on Silica gel column eluted with DCM/hexane gradient.
  • the product containing fractions were identified by UPLC and collected. The solvent was removed and the product was crystalized from toluene/ethanol to give 2.8g of yellow crystalline solid in 99.5% purity by UPLC analysis.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Organic Chemistry (AREA)
  • Engineering & Computer Science (AREA)
  • Materials Engineering (AREA)
  • Physics & Mathematics (AREA)
  • Spectroscopy & Molecular Physics (AREA)
  • Optics & Photonics (AREA)
  • Medicinal Chemistry (AREA)
  • Polymers & Plastics (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Health & Medical Sciences (AREA)
  • Inorganic Chemistry (AREA)
  • Electroluminescent Light Sources (AREA)
  • Pharmaceuticals Containing Other Organic And Inorganic Compounds (AREA)
  • Nitrogen And Oxygen Or Sulfur-Condensed Heterocyclic Ring Systems (AREA)

Abstract

There is disclosed a compound having Formula (I), Formula (II), Formula (III), Formula (VIII), Formula (IX), or Formula (X) The variables are described in detail in the application.

Description

TITLE
ELECTROACTIVE MATERIALS
RELATED APPLICATION DATA
This application claims priority under 35 U.S.C. § 1 19(e) from U.S. Provisional Application Nos. 62/073408, 62/073424, 62/073543, and 62/073561 , which all were filed on October 31 , 2014, and which are incorporated by reference herein in their entirety.
BACKGROUND INFORMATION
Field of the Disclosure
The present disclosure relates to novel electroactive compounds. The disclosure further relates to electronic devices having at least one layer comprising such an electroactive compound.
Description of the Related Art
In organic electronic devices, such as organic light emitting diodes ("OLED"), that make up OLED displays, one or more organic electroactive layers are sandwiched between two electrical contact layers. In an OLED at least one organic electroactive layer emits light through the light- transmitting electrical contact layer upon application of a voltage across the electrical contact layers.
It is well known to use organic electroluminescent compounds as the light-emitting component in light-emitting diodes. Simple organic molecules, conjugated polymers, and organometallic complexes have been used.
Devices that use electroluminescent materials frequently include one or more charge transport layers, which are positioned between a photoactive (e.g., light-emitting) layer and a contact layer (hole-injecting contact layer). A device can contain two or more contact layers. A hole transport layer can be positioned between the photoactive layer and the hole-injecting contact layer. The hole-injecting contact layer may also be called the anode. An electron transport layer can be positioned between the photoactive layer and the electron-injecting contact layer. The electron-injecting contact layer may also be called the cathode.
There is a continuing need for electroactive materials for use in electronic devices.
SUMMARY
There is provided a compound having Formula I, Formula II, Formula III Formula VIII, Formula IX, or Formula X
Figure imgf000004_0001
wherein:
Ar1 - Ar4, Ar1a and Ar4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof; R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl, and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
R3a and R4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
L, L1 and L2 are the same or different at each occurrence and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
X is O, S, or Se;
a and b are the same or different and are an integer from 0-4; c and d are the same or different and are an integer from 0-3; e and f are the same or different and are 0 or 1 ;
g and h are the same or different and are 0 or 1 , with the proviso that g + h > 0;
n is an integer greater than 0; and
s and t are 0 or 1 , with the proviso that s + t > 0 and when s = 1 , a is 0-3, and when t = 1 , b is 0-3.
There is also provided a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI
Figure imgf000005_0001
Figure imgf000006_0001
where * represents a point of attachment in the copolymer and Ar1 - Ar4, Ar1a, Ar4a, R1 - R4, R3a, R4a, a-h and n are as defined above.
There is also provided a copolymer having Formula VI, Formula VII, or Formula XII
Formula VII
Figure imgf000006_0002
-Q2 ■M- Formula XII
w where:
M is a conjugated moiety;
Q is a monomeric unit having Formula IV;
Q1 is a monomeric unit having Formula V;
Q2 is a monomeric unit having Formula XI;
w and z represent non-zero mole fractions such that w + z = 1 : and L, L1 and L2 are as defined above. There is also provided an electronic device having at least one layer comprising a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII.
The foregoing general description and the following detailed description are exemplary and explanatory only and are not restrictive of the invention, as defined in the appended claims.
BRIEF DESCRIPTION OF THE DRAWINGS
Embodiments are illustrated in the accompanying figures to improve understanding of concepts as presented herein.
FIG. 1 includes an illustration of one example of an organic electronic device.
FIG. 2 includes an illustration of another example of an organic electronic device.
Skilled artisans appreciate that objects in the figures are illustrated for simplicity and clarity and have not necessarily been drawn to scale.
For example, the dimensions of some of the objects in the figures may be exaggerated relative to other objects to help to improve understanding of embodiments.
DETAILED DESCRIPTION
There is provided a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, and a copolymer having Formula VI, Formula VII, or Formula XII, as described in detail below.
There is also provided an electronic device having at least one layer comprising a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII.
Many aspects and embodiments have been described above and are merely exemplary and not limiting. After reading this specification, skilled artisans appreciate that other aspects and embodiments are possible without departing from the scope of the invention.
Other features and benefits of any one or more of the embodiments will be apparent from the following detailed description, and from the claims. The detailed description first addresses Definitions and
Clarification of Terms followed by the Compound of Formula I; the
Compound of Formula II or Formula III; the Copolymer Having at Least one Unit of Formula IV or Formula V and the Copolymer of Formula VI or Formula VII; the Compound of Formula VIII; the Compound of Formula IX or Formula X; the Copolymer Having at Least one Unit of Formula XI and the Copolymer of Formula XII; the Electronic Device; and finally Examples.
1 Definitions and Clarification of Terms
Before addressing details of embodiments described below, some terms are defined or clarified.
As used herein, the term "alkyl" includes branched and straight- chain saturated aliphatic hydrocarbon groups. Unless otherwise indicated, the term is also intended to include cyclic groups. Examples of alkyl groups include methyl, ethyl, propyl, isopropyl, isobutyl, secbutyl, tertbutyl, pentyl, isopentyl, neopentyl, cyclopentyl, hexyl, cyclohexyl, isohexyl and the like. The term "alkyl" further includes both substituted and
unsubstituted hydrocarbon groups. In some embodiments, the alkyl group may be mono-, di- and tri-substituted. One example of a substituted alkyl group is trifluoromethyl. Other substituted alkyl groups are formed from one or more of the substituents described herein. In certain embodiments alkyl groups have 1 to 20 carbon atoms. In other embodiments, the group has 1 to 6 carbon atoms. The term is intended to include heteroalkyl groups. Heteroalkyl groups may have from 1 -20 carbon atoms.
The term "aromatic compound" is intended to mean an organic compound comprising at least one unsaturated cyclic group having 4n+2 delocalized pi electrons. The term is intended to encompass both aromatic compounds having only carbon and hydrogen atoms, and heteroaromatic compounds wherein one or more of the carbon atoms within the cyclic group has been replaced by another atom, such as nitrogen, oxygen, sulfur, or the like.
The term "aryl" or "aryl group" means a moiety derived from an aromatic compound. A group "derived from" a compound, indicates the radical formed by removal of one or more H or D. The aryl group may be a single ring (monocyclic) or multiple rings (bicyclic, or more) fused together or linked covalently. Examples of aryl moieties include, but are not limited to, phenyl, 1 -naphthyl, 2-naphthyl, dihydronaphthyl,
tetrahydronaphthyl, biphenyl. anthryl, phenanthryl, fluorenyl, indanyl, biphenylenyl, acenaphthenyl, acenaphthylenyl, and the like. In some embodiments, aryl groups have 6 to 60 ring carbon atoms; in some embodiments, 6 to 30 ring carbon atoms. The term is intended to include heteroaryl groups. Heteroaryl groups may have from 4-50 ring carbon atoms; in some embodiments, 4-30 ring carbon atoms.
The term "alkoxy" is intended to mean the group -OR, where R is alkyl.
The term "aryloxy" is intended to mean the group -OR, where R is aryl.
Unless otherwise indicated, all groups can be substituted or unsubstituted. An optionally substituted group, such as, but not limited to, alkyl or aryl, may be substituted with one or more substituents which may be the same or different. Suitable substituents include D, alkyl, aryl, nitro, cyano, -N(R')(R ), halo, hydroxy, carboxy, alkenyl, alkynyl, cycloalkyl, heteroaryl, alkoxy, aryloxy, heteroaryloxy, alkoxycarbonyl, perfluoroalkyl, perfluoroalkoxy, arylalkyl, silyl, siloxy, siloxane, germyl, thioalkoxy, -S(O)2-, -C(=O)-N(R')(R"), (R')(R")N-alkyl, (R')(R")N-alkoxyalkyl, (R')(R")N- al kylary loxyal kyl , -S(O)s-aryl (where s=0-2) or -S(O)s-heteroaryl (where s=0-2). Each R' and R" is independently an optionally substituted alkyl, cycloalkyl, or aryl group. R' and R", together with the nitrogen atom to which they are bound, can form a ring system in certain embodiments. Substituents may also be crosslinking groups. Any of the preceding groups with available hydrogens, may also be deuterated.
The term "charge transport," when referring to a layer, material, member, or structure is intended to mean such layer, material, member, or structure facilitates migration of such charge through the thickness of such layer, material, member, or structure with relative efficiency and small loss of charge. Hole transport materials facilitate positive charge; electron transport materials facilitate negative charge. Although light-emitting materials may also have some charge transport properties, the term "charge transport layer, material, member, or structure" is not intended to include a layer, material, member, or structure whose primary function is light emission.
The term "CN" refers to the cyano group, -C≡N.
The term "compound" is intended to mean an electrically uncharged substance made up of molecules that further include atoms, wherein the atoms cannot be separated from their corresponding molecules by physical means without breaking chemical bonds. The term is intended to include oligomers and polymers.
The term "deuterated" is intended to mean that at least one hydrogen ("H") has been replaced by deuterium ("D"). The term
"deuterated analog" refers to a structural analog of a compound or group in which one or more available hydrogens have been replaced with deuterium. In a deuterated compound or deuterated analog, the
deuterium is present in at least 100 times the natural abundance level.
The term "electroactive" as it refers to a layer or a material, is intended to indicate a layer or material which electronically facilitates the operation of the device. Examples of electroactive materials include, but are not limited to, materials which conduct, inject, transport, or block a charge, where the charge can be either an electron or a hole, or materials which emit radiation or exhibit a change in concentration of electron-hole pairs when receiving radiation. Examples of inactive materials include, but are not limited to, planarization materials, insulating materials, and environmental barrier materials.
The prefix "fluoro" is intended to indicate that one or more hydrogens in a group has been replaced with fluorine.
The term "FWHM" stands for "full width half maximum" and is intended to mean the width of the emission profile at half the maximum intensity. The term "germyl" refers to the group RsGe-, where R is the same or different at each occurrence and is H, D, C1 -20 alkyi, deuterated alkyi, fluoroalkyl, aryl, or deuterated aryl.
The prefix "hetero" indicates that one or more carbon atoms has been replaced with a different atom. In some embodiments, the heteroatom is O, N, S, or combinations thereof.
The term "fused ring core" indicates the structure below, where X = O, S, or Se. The positions on the fused ring core are numbered as follows:
Figure imgf000011_0001
The term "indoloindole" or "indoloindole core" indicates the structure shown below. The positions on the indoloindole core are numbered as follows:
Figure imgf000011_0002
The term "liquid composition" is intended to mean a liquid medium in which a material is dissolved to form a solution, a liquid medium in which a material is dispersed to form a dispersion, or a liquid medium in which a material is suspended to form a suspension or an emulsion.
The term "photoactive" refers to a material or layer that emits light when activated by an applied voltage (such as in a light emitting diode or chemical cell), that emits light after the absorption of photons (such as in down-converting phosphor devices), or that responds to radiant energy and generates a signal with or without an applied bias voltage (such as in a photodetector or a photovoltaic cell). The term "siloxane" refers to the group RsSiOF^Si-, where R is the same or different at each occurrence and is H, D, C1 -20 alkyl, deuterated alkyl, fluoroalkyl, aryl, or deuterated aryl. In some embodiments, one or more carbons in an R alkyl group are replaced with Si.
The term "siloxy" refers to the group R3S1O-, where R is the same or different at each occurrence and is H, D, C1 -20 alkyl, deuterated alkyl, fluoroalkyl, aryl, or deuterated aryl.
The term "silyl" refers to the group R3S1-, where R is the same or different at each occurrence and is H, D, C1 -20 alkyl, deuterated alkyl, fluoroalkyl, aryl, or deuterated aryl. In some embodiments, one or more carbons in an R alkyl group are replaced with Si.
In a structure where a substituent bond passes through one or more rings as shown below,
Figure imgf000012_0001
it is meant that the substituent R may be bonded at any available position on the one or more rings.
The phrase "adjacent to," when used to refer to layers in a device, does not necessarily mean that one layer is immediately next to another layer. On the other hand, the phrase "adjacent R groups," is used to refer to R groups that are next to each other in a chemical formula (i.e., R groups that are on atoms joined by a bond). Exemplary adjacent R groups are shown below:
Figure imgf000012_0002
In this specification, unless explicitly stated otherwise or indicated to the contrary by the context of usage, where an embodiment of the subject matter hereof is stated or described as comprising, including, containing, having, being composed of or being constituted by or of certain features or elements, one or more features or elements in addition to those explicitly stated or described may be present in the embodiment. An alternative embodiment of the disclosed subject matter hereof, is described as consisting essentially of certain features or elements, in which embodiment features or elements that would materially alter the principle of operation or the distinguishing characteristics of the
embodiment are not present therein. A further alternative embodiment of the described subject matter hereof is described as consisting of certain features or elements, in which embodiment, or in insubstantial variations thereof, only the features or elements specifically stated or described are present.
Further, unless expressly stated to the contrary, "or" refers to an inclusive or and not to an exclusive or. For example, a condition A or B is satisfied by any one of the following: A is true (or present) and B is false (or not present), A is false (or not present) and B is true (or present), and both A and B are true (or present).
Also, use of "a" or "an" are employed to describe elements and components described herein. This is done merely for convenience and to give a general sense of the scope of the invention. This description should be read to include one or at least one and the singular also includes the plural unless it is obvious that it is meant otherwise.
Group numbers corresponding to columns within the Periodic Table of the elements use the "New Notation" convention as seen in the CRC Handbook of Chemistry and Physics, 81 st Edition (2000-2001 ).
Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. Although methods and materials similar or equivalent to those described herein can be used in the practice or testing of embodiments of the present invention, suitable methods and materials are described below. All publications, patent applications, patents, and other references mentioned herein are incorporated by reference in their entirety, unless a particular passage is cited. In case of conflict, the present specification, including definitions, will control. In addition, the materials, methods, and examples are illustrative only and not intended to be limiting. To the extent not described herein, many details regarding specific materials, processing acts, and circuits are conventional and may be found in textbooks and other sources within the organic light-emitting diode display, photodetector, photovoltaic, and semiconductive member arts.
In some embodiments, the compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII is deuterated. In some embodiments, the compound is at least 10% deuterated. By "% deuterated" or "% deuteration" is meant the ratio of deuterons to the sum of protons plus deuterons, expressed as a
percentage. In some embodiments, the compound, polymer or copolymer is at least 10% deuterated; in some embodiments, at least 20%
deuterated; in some embodiments, at least 30% deuterated; in some embodiments, at least 40% deuterated; in some embodiments, at least 50% deuterated; in some embodiments, at least 60% deuterated; in some embodiments, at least 70% deuterated; in some embodiments, at least 80% deuterated; in some embodiments, at least 90% deuterated; in some embodiments, 100% deuterated.
The compounds, polymers and copolymers described herein can be formed into layers for electronic devices. The term "layer" is used interchangeably with the term "film" and refers to a coating covering a desired area. The term is not limited by size. The area can be as large as an entire device or as small as a specific functional area such as the actual visual display, or as small as a single sub-pixel. Layers and films can be formed by any conventional deposition technique, including vapor deposition, liquid deposition (continuous and discontinuous techniques), and thermal transfer. Continuous liquid deposition techniques, include but are not limited to, spin coating, gravure coating, curtain coating, dip coating, slot-die coating, spray coating, and continuous nozzle coating. Discontinuous liquid deposition techniques include, but are not limited to, ink jet printing, gravure printing, and screen printing. In some embodiments, the compounds, polymers and copolymers described herein can be used as hole transport materials in devices.
In some embodiments, the compounds, polymers and copolymers described herein are electroluminescent and can be used as emissive materials in devices.
In some embodiments, the compounds, polymers and copolymers described herein can be used as hosts for photoactive dopants.
In some embodiments, the compounds, polymers and copolymers described herein can be used as hosts for photoactive dopants in combination with one or more additional hosts.
In some embodiments, the compounds, polymers and copolymers described herein can be used as electron transport materials in devices.
In some embodiments, the compounds, polymers and copolymers described herein have a photoluminescence emission profile with a FWHM that is less than 75 nm; in some embodiments, less than 60 nm; in some embodiments, less than 50 nm. This is advantageous for display devices for producing more saturated color.
2. Compound having Formula I
In some embodiments, the new compound is an electroactive compound havin Formula I
Figure imgf000015_0001
wherein:
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl heteroaryl, and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino; and a and b are the same or different and are an integer from 0-4. In some embodiments of Formula I, R1 = R2.
In some embodiments of Formula I, R1≠ R2.
In some embodiments of Formula I, R3 = R4.
In some embodiments of Formula I, R3≠ R4.
In some embodiments of Formula I, R1 is an alkyl group or deuterated alkyl group having 1 -30 carbons; in some embodiments, 3-20 carbons; in some embodiments, 5-20 carbons.
In some embodiments of Formula I, R1 is a hydrocarbon aryl group having 6-36 ring carbons. The hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
In some embodiments of Formula I, R1 has no heteroaromatic groups.
In some embodiments of Formula I, R1 has Formula a
Formula a
Figure imgf000016_0001
where:
R5 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, alkoxy, siloxane, silyl, germyl deuterated alkyl, deuterated alkoxy, deuterated siloxane, deuterated silyl, and deuterated germyl, where adjacent R5 groups can be joined together to form an fused aromatic ring or a deuterated fused aromatic ring;
p is the same or different at each occurrence and is an integer from 0-4;
q is an integer from 0-5;
r is an integer from 1 to 5; and
** represents a point of attachment to N.
In some embodiments of Formula I, R1 has Formula b
Figure imgf000017_0001
where R5, p, r and ** are as in Formula a.
In some embodiments of Formula I, R1 is selected from the group consisting of phenyl, naphthyl, anthracenyl, a group derived from benz[de]anthracene, Formula a, and deuterated analogs thereof.
In some embodiments of Formula I, R1 is a heteroaryl group having at least one ring atom which is selected from the group consisting of N, O, and S.
In some embodiments of Formula I, R1 is an N-heteroaryl group, having at least one ring atom that is N.
In some embodiments, the N-heteroaryl is derived from a compound selected from the group consisting of pyrrole, pyridine, pyrimidine, carbazole, imidazole, benzimidazole, imidazolobenzimidazole, triazole, benzotriazole, triazolopyridine, indole, indolocarbazole, phenanthroline, quinoline, isoquinoline, quinoxaline, substituted
derivatives thereof, and deuterated analogs thereof. In some embodiments, the N-heteroaryl is a carbazole or deuterated carbazole.
In some embodiments, the N-heteroaryl is a carbazole or deuterated carbazole havin formula Cz-1 :
Figure imgf000018_0001
wherein:
R8 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, silyl, germyl, aryl, deuterated alkyl, deuterated silyl, deuterated germyl, and deuterated aryl;
R9 is selected from the group consisting of aryl and deuterated aryl; c1 is an integer of 0-3;
a1 is an integer of 0-4; and
# represents a point of attachment .
In some embodiments, the N-heteroaryl is a carbazole or deuterated carbazole having formula Cz-2:
Figure imgf000018_0002
where R , R and # are as defined above for Cz-1 .
In some embodiments, the N-heteroaryl which is a carbazole or deuterated carbazole having formula Cz-3:
Figure imgf000018_0003
where R8, R9 and # are as defined above for Cz-1 . In some embodiments, the N-heteroaryl is a benzimidazole or deuterated benzimidazole havin formula Bzl-1 :
Figure imgf000019_0001
where R10 is selected from the group consisting of alkyl, aryl, and deuterated analogs thereof; R8 and # are as defined above for Cz-1 .
In some embodiments, the N-heteroaryl is a benzimidazole or deuterated benzimidazole havin formula Bzl-2:
Figure imgf000019_0002
where R10 and # are as defined above for Bzl-1 .
In some embodiments of Formula I, R1 is an O-heteroaryl having at least one ring atom that is O.
In some embodiments, the O-heteroaryl is derived from a compound selected from the group consisting of furan, benzofuran, dibenzofuran, substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments, the O-heteroaryl is a dibenzofuran or deuterated dibenzofuran.
In some embodiments, the O-heteroaryl is a dibenzofuran or deuterated dibenzofuran havin formula DBF-1 :
Figure imgf000019_0003
where a1 , c1 , R and # are as defined above for Cz-1 . In some embodiments, the O-heteroaryl is a dibenzofuran or deuterated dibenzofuran having formula DBF-2:
Figure imgf000020_0001
where # represents the point of attachment.
In some embodiments, the O-heteroaryl is a dibenzofuran or deuterated dibenzofuran having formula DBF-3:
Figure imgf000020_0002
where # represents the point of attachment.
In some embodiments of Formula I, R1 is an S-heteroaryl having at least one ring atom which is S.
In some embodiments, the S-heteroaryl is derived from a compound selected form the group consisting of thiophene,
benzothiophene, dibenzothiophene, substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments, the S-heteroaryl is a dibenzothiophene or deuterated dibenzothiophene.
In some embodiments, the S-heteroaryl is a dibenzothiophene or deuterated dibenzothio hene having formula DBT-1
Figure imgf000020_0003
where a1 , c1 , R , and # are as defined above for Cz-1 .
In some embodiments, the S-heteroaryl is a dibenzothioph deuterated dibenzothiophene having formula DBT-2:
Figure imgf000021_0001
where # represents the point of attachment.
In some embodiments, the S-heteroaryl is a dibenzothiophene or deuterated dibenzothiophene having formula DBT-3:
Figure imgf000021_0002
wherein # represents the point of attachment.
In some embodiments of Formula I, R1 is an Ν,Ο-heteroaryl having at least one ring atom that is N and at least one ring atom that is O.
In some embodiments, the Ν,Ο-heteroaryl is derived from a compound selected from the group consisting of oxazole, benzoxazole, phenoxazine, substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments, the Ν,Ο-heteroaryl is a benzoxazole or deuterated benzoxazole having formula BzO-1 :
Figure imgf000021_0003
where a1 , R and # are as defined above for Cz-1 .
In some embodiments, the Ν,Ο-heteroaryl is a benzoxazole or deuterated benzoxazole having formula BzO-2:
Figure imgf000021_0004
where # represents the point of attachment.
In some embodiments of Formula I, R1 is an N, S-heteroaryl having at least one ring atom that is N and at least one ring atom that is S. In some embodiments, the N,S -heteroaryl is derived from a compound selected from the group consisting of thiazole, benzothiazole, substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments, the N,S-heteroaryl is a benzothiazole or deuterated benzothiazole having formula BT-1 :
Figure imgf000022_0001
where a1 , R and # are as defined above for Cz-1 .
In some embodiments, the N,S-heteroaryl is a benzothiazole or deuterated benzothiazole having formula BT-2:
Figure imgf000022_0002
where # represents the point of attachment.
In some embodiments of Formula I, R1 is an aryl or heteroaryl group and has at least one substituent selected from the group consisting of D, alkyi, silyl, germyl, aryl, heteroaryl, deuterated alkyi, deuterated silyl, deuterated germyl, deuterated aryl, and deuterated heteroaryl.
All of the above-described embodiments for R1 apply equally to R2.
In some embodiments of Formula I, a = 0.
In some embodiments of Formula I, a = 1 .
In some embodiments of Formula I, a = 2.
In some embodiments of Formula I, a = 3.
In some embodiments of Formula I, a = 4.
In some embodiments of Formula I, a > 0.
In some embodiments of Formula I, a > 0 and at least one R3 is at position 6 on the indoloindole core, as defined above.
In some embodiments of Formula I, a > 0 and at least one R3 is at position 7 on the indoloindole core, as defined above.
In some embodiments of Formula I, a > 0 and <
position 8 on the indoloindole core, as defined above. In some embodiments of Formula I, a > 0 and at least one R3 is at position 9 on the indoloindole core, as defined above.
In some embodiments of Formula I, a > 0 and at least one R3 is D.
In some embodiments of Formula I, a > 0 and at least one R3 is alkenylaryl or deuterated alkenylaryl.
In some embodiments, the alkenylaryl is selected from the group consisting of styryl, stilbenyl, substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments of Formula I, a > 0 and at least one R3 is a hydrocarbon aryl group having 6-36 ring carbons. The hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
In some embodiments of Formula I, a > 0 and at least one R3 has no heteroaromatic groups.
In some embodiments of Formula I, a > 0 and at least one R3 has
Formula a1
Formula a1
Figure imgf000023_0001
where:
R5 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, alkoxy, siloxane, silyl, germyl, deuterated alkyl, deuterated alkoxy, deuterated siloxane, deuterated silyl, and deuterated germyl, where adjacent R5 groups can be joined together to form an fused aromatic ring or a deuterated fused aromatic ring;
p is the same or different at each occurrence and is an integer from 0-4;
q is an integer from 0-5;
r is an integer from 1 to 5; and
# indicates a point of attachment. In some embodiments of Formula I, a > 0 and at least one R3 has Formula b1
Formula b1
Figure imgf000024_0001
where R5, p, r and # are as in Formula a1 .
In some embodiments of Formula I, R3 is selected from the group consisting of styryl, stilbenyl, phenyl, naphthyl, Formula a1 , substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments of Formula I, a > 0 and at least one R3 is a heteroaryl group having at least one ring atom which is selected from the group consisting of N, O, and S.
In some embodiments of Formula I, a > 0 and at least one R3 is an N-heteroaryl group, having at least one ring atom that is N.
In some embodiments of Formula I, a > 0 and at least one R3 is an O-heteroaryl having at least one ring atom that is O.
In some embodiments of Formula I, a > 0 and at least one R3 is an S-heteroaryl having at least one ring atom which is S.
In some embodiments of Formula I, a > 0 and at least one R3 is an N, O-heteroaryl having at least one ring atom that is N and at least one ring atom that is O.
In some embodiments of Formula I, a > 0 and at least one R3 is an N, S-heteroaryl having at least one ring atom that is N and at least one ring atom that is S.
In some embodiments of Formula I, a > 0 and at least one R3 is a diarylamino group or deuterated diarylamino group.
In some embodiments, the diarylamino group has Formula c
Ar5
# j Formula c
Ar6 where:
Ar5 and Ar6 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof; and
# indicates a point of attachment.
In some embodiments of Formula c, Ar5 = Ar6.
In some embodiments of Formula c, Ar5≠ Ar6.
In some embodiments of Formula c, Ar5 has Formula a, as defined above.
In some embodiments of Formula c, Ar5 has Formula b, as defined above.
In some embodiments of Formula I, Ar5 is selected from the group consisting of phenyl, naphthyl, Formula a, substituted derivatives thereof, and deuterated analogs thereof.
All of the above-described embodiments for Ar5 apply equally to
Ar6.
In some embodiments of Formula I, a > 0 and at least one R3 has substituents selected from the group consisting of D, CN, alkyl, silyl, germyl, diarylamino, aryl, heteroaryl, deuterated alkyl, deuterated silyl, deuterated germyl, deuterated diarylamino, deuterated aryl, and deuterated heteroaryl.
In some embodiments of Formula I, b = 0.
In some embodiments of Formula I, b = 1 .
In some embodiments of Formula I, b = 2.
In some embodiments of Formula I, b = 3.
In some embodiments of Formula I, b = 4.
In some embodiments of Formula I, b > 0.
In some embodiments of Formula I, b > 0 and at least one R4 is at position 1 on the indoloindole core, as defined above.
In some embodiments of Formula I, b > 0 and at least one R4 is at position 2 on the indoloindole core, as defined above.
In some embodiments of Formula I, b > 0 and at least one R4 is at position 3 on the indoloindole core, as defined above. In some embodiments of Formula I, b > 0 and at least one R4 is at position 4 on the indoloindole core, as defined above.
All of the above-described embodiments for R3 apply equally to R4. In some embodiments of Formula I, the compound has Formula l-a
Figure imgf000026_0001
wherein:
Ar7 is selected from the group consisting of aryl, heteroaryl,
substituted derivatives thereof, and deuterated analogs thereof;
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl, and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino; and b is an integer from 0-4;
c2 is an integer from 0-3; and
n2 is an integer from 2-6.
In some embodiments of Formula l-a, Ar7 is bonded to position 6 on the indoloindole core, as defined above.
In some embodiments of Formula l-a, Ar7 is bonded to position 7 on the indoloindole core, as defined above.
In some embodiments of Formula l-a, Ar7 is bonded to position 8 on the indoloindole core, as defined above.
In some embodiments of Formula l-a, Ar7 is bonded to position 9 on the indoloindole core, as defined above. In some embodiments of Formula l-a, Ar7 is a hydrocarbon aryl group having 6-36 ring carbons. The hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
In some embodiments of Formula l-a, Ar7 R1 has no heteroaromatic groups.
In some embodiments of Formula l-a, Ar7 has Formula a1 , as defined above.
In some embodiments of Formula l-a, Ar7 is a group derived from a compound selected from the group consisting of benzene, biphenyl, terphenyl, naphthalene, anthracene, fluorene, benzofluorene,
benzanthracene, 7H-benz[c/e]anthracene, substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments of Formula l-a, Ar7 is a heteroaryl group having at least one ring atom which is selected from the group consisting of N, O, and S, as described above.
In some embodiments of Formula l-a, Ar7 is an N-heteroaryl group, as described above.
In some embodiments of Formula l-a, Ar7 is an N,O-heteroaryl group, as described above.
In some embodiments of Formula l-a, Ar7 is an O-heteroaryl group, as described above.
In some embodiments of Formula l-a, Ar7 is an S-heteroaryl group, as described above.
In some embodiments of Formula l-a, Ar7 is an N, S-heteroaryl group as described above.
In some embodiments of Formula l-a, Ar7 is derived from a compound selected from the group consisting of pyrrole, pyridine, pyrimine, carbazole, imidazole, substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments of Formula l-a, c2 = 0.
In some embodiments of Formula l-a, c2 = 1 .
In some embodiments of Formula l-a, c2 = 2.
In some embodiments of Formula l-a, c2 = 3. In some embodiments of Formula l-a, c2 > 0.
In some embodiments of Formula l-a, n2 = 2.
In some embodiments of Formula l-a, n2 = 3.
In some embodiments of Formula l-a, n2 = 4.
In some embodiments of Formula l-a, n2 = 5.
In some embodiments of Formula l-a, n2 = 6.
All of the above-described embodiments for R
Formula I, apply equally to R1, R2, R3, R4, and b in Formula l-a.
In some embodiments of Formula l-a, b = c2 = 0, and n2 = 2.
Any of the above embodiments for Formula I can be combined with one or more of the other embodiments, so long as they are not mutually exclusive. For example, the embodiment in which a = 2 can be combined with the embodiment in which a > 0 and at least one R3 is D and the embodiment in which a > 0 and at least one R3 has Formula a. The same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
The compounds of Formula I can be made using any technique that will yield a C-C or C-N bond. A variety of such techniques are known, such as Suzuki, Yamamoto, Stille, and metal-catalyzed C-N couplings as well as metal catalyzed and oxidative direct arylation.
One way to prepare the indoloindole core (shown as F) is given below:
Figure imgf000029_0001
PdCI2(PP 3)2 Cul Et3N
Figure imgf000029_0002
Deuterated compounds can be prepared in a similar manner using deuterated precursor materials or, more generally, by treating the non- deuterated compound with deuterated solvent, such as benzene-d6, in the presence of a Lewis acid H/D exchange catalyst, such as
tnfluoromethanesulfonic acid, aluminum trichloride or ethyl aluminum dichloride.
Exemplary preparations are given in the Examples.
Some non-limiting examples of compounds having Formula I are shown below.
Compound 1-1
Figure imgf000029_0003
Compound I-2
Figure imgf000029_0004
Compound 1-3
Figure imgf000030_0001
Figure imgf000030_0002
Compound 1-5
Figure imgf000030_0003
Com ound 1-6
Figure imgf000030_0004
Compound 1-7
Figure imgf000031_0001
Figure imgf000031_0002
Figure imgf000031_0003
Figure imgf000031_0004
Compound 1-1 1
Figure imgf000032_0001
Figure imgf000032_0002
Figure imgf000032_0003
Figure imgf000032_0004
Figure imgf000033_0001

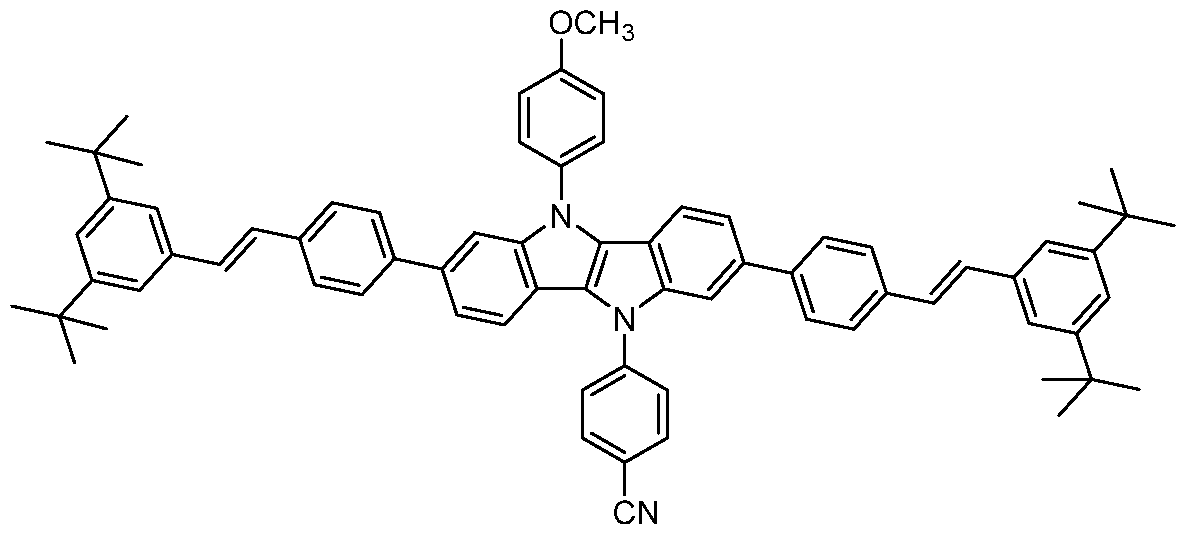

Com ound 1-16
Figure imgf000033_0002
Com ound 1-17
Figure imgf000033_0003
Compound 1-19
Figure imgf000034_0001
Compound I-20
Figure imgf000034_0002
Figure imgf000034_0003
Compound I-22
Figure imgf000034_0004
Compound 1-23
Figure imgf000035_0001
Compound 1-24
Figure imgf000035_0002
Compound 1-27
Figure imgf000036_0001
Figure imgf000036_0002
Figure imgf000036_0003
Figure imgf000036_0004
Com ound 1-31
Figure imgf000037_0001
Figure imgf000037_0002
3. Compound Having Formula II or Formula III
In some embodiments, the new compound is an electroactive compound has havin Formula II
Figure imgf000037_0003
wherein:
Ar1 and Ar2 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof; R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
L1 and L2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
c and d are the same or different and are an integer from 0-3;
e and f are the same or different and are 0 or 1 ; and
n is an integer greater than 0.
The compound having Formula II can be a small molecule with n=1 , an oligomer, or a polymer. As used herein, the term "compound having Formula II" is intended to include small molecules, oligomers and polymers.
In some embodiments of Formula II, n=1 and L1 is halogen. Such compounds can be useful as monomers for the formation of polymeric compounds.
In some embodiments, the halogen is CI or Br; in some
embodiments, Br.
In some embodiments of Formula II, n=1 and L2 is halogen.
In some embodiments of Formula II, n=1 and L1 is a crosslinking group or deuterated crosslinking group.
In some embodiments of Formula II, n=1 and L2 is a crosslinking group or deuterated crosslinking group.
In some embodiments of Formula II, n=1 and L1 is H or D.
In some embodiments of Formula II, n=1 and L2 is H or D.
In some embodiments of Formula II, n=2-10. In some embodiments of Formula II, the compound is a polymer with n > 10. In some embodiments, the compound is a polymer with Mn>20,000; in some embodiments, Mn >50,000.
In some embodiments of Formula II, n > 10 and L1 is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof.
In some embodiments of Formula II, n > 10 and L2 is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof.
In some embodiments of Formula II, n > 10 and L1 is selected from phenyl, diphenylamino, and deuterated analogs thereof.
In some embodiments of Formula II, n > 10 and L2 is selected from phenyl, diphenylamino, and deuterated analogs thereof.
In some embodiments of Formula II, e = 0.
In some embodiments of Formula II, e = 1 .
In some embodiments of Formula II, f = 0.
In some embodiments of Formula II, f = 1 .
In some embodiments of Formula II, e = f = 0.
In some embodiments of Formula II, e = f = 1 .
In some embodiments of Formula II, e = 0 and L1 is bonded to position 6 on the indoloindole core, as defined above.
In some embodiments of Formula II, e = 0 and L1 is bonded to position 7 on the indoloindole core, as defined above.
In some embodiments of Formula II, e = 0 and L1 is bonded to position 8 on the indoloindole core, as defined above.
In some embodiments of Formula II, e = 0 and L1 is bonded to position 9 on the indoloindole core, as defined above.
In some embodiments of Formula II, f = 0 and L2 is bonded to position 1 on the indoloindole core, as defined above.
In some embodiments of Formula II, f = 0 and L2 is bonded to position 2 on the indoloindole core, as defined above.
In some embodiments of Formula II, f = 0 and L2 is bonded to position 3 on the indoloindole core, as defined above.
In some embodiments of Formula II, f = 0 and L2 is bonded to position 4 on the indoloindole core, as defined above.
In some embodiments of Formula II, Ar1 = Ar2. In some embodiments of Formula II, Ar1≠ Ar2.
In some embodiments of Formula II, e = 1 and Ar1 is bonded to position 6 on the indoloindole core, as defined above.
In some embodiments of Formula II, e = 1 and Ar1 is bonded to position 7 on the indoloindole core, as defined above.
In some embodiments of Formula II, e = 1 and Ar1 is bonded to position 8 on the indoloindole core, as defined above.
In some embodiments of Formula II, e = 1 and Ar1 is bonded to position 9 on the indoloindole core, as defined above.
In some embodiments of Formula II, f = 1 and Ar2 is bonded to position 1 on the indoloindole core, as defined above.
In some embodiments of Formula II, f = 1 and Ar2 is bonded to position 2 on the indoloindole core, as defined above.
In some embodiments of Formula II, f = 1 and Ar2 is bonded to position 3 on the indoloindole core, as defined above.
In some embodiments of Formula II, f = 1 and Ar2 is bonded to position 4 on the indoloindole core, as defined above.
In some embodiments of Formula II, e = 1 and Ar1 is a hydrocarbon aryl group having 6-36 ring carbons. The hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
In some embodiments of Formula II, e = 1 and Ar1 has no heteroaromatic groups.
In some embodiments of Formula II, e = 1 and Ar1 has Formula d
Formula d
Figure imgf000040_0001
where: R6 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, alkoxy, siloxane, silyl, germyl, diarylamino, carbazolyl, deuterated alkyl, deuterated alkoxy, deuterated siloxane, deuterated silyl, deuterated germyl, deuterated diarylamino, and deuterated carbazolyl, where adjacent R6 groups can be joined together to form a fused aromatic ring or a deuterated fused aromatic ring;
p is the same or different at each occurrence and is an integer from 0-4;
r is an integer from 1 to 5;
# indicates a point of attachment; and
## indicates a point of attachment.
In some embodiments, e = 1 and Ar1 has Formula e
Figure imgf000041_0001
where R6, p, r, # and ## are as in Formula d.
In some embodiments of Formula II, e = 1 and Ar1 is selected from the group consisting of phenyl, biphenyl, 1 -naphthyl, 2-naphthyl, anthracenyl, fluorenyl, stilbenyl, deuterated analogs thereof, and derivatives thereof having one or more substituents selected from the group consisting of fluoro, alkyl, alkoxy, silyl, siloxy, germyl, a substituent with a crosslinking group, and deuterated analogs thereof.
In some embodiments of Formula II, e = 1 and Ar1 is an N- heteroaryl or deuterated N-heteroaryl, as described above.
In some embodiments of Formula II, e = 1 and Ar1 is an S- heteroaryl, as described above. In some embodiments of Formula II, e = 1 and Ar1 is an
O-heteroaryl, as described above.
In some embodiments of Formula II, e = 1 and Ar1 is an N,O- heteroaryl, as described above.
In some embodiments of Formula II, e = 1 and Ar1 is an N,S- heteroaryl, as described above.
All of the above-described embodiments for Ar1 apply equally to
Ar2.
In some embodiments of Formula I , c = 0
In some embodiments of Formula I , c = 1
In some embodiments of Formula I , c = 2
In some embodiments of Formula I , c = 3
In some embodiments of Formula I , c > 0
In some embodiments of Formula I , d = 0
In some embodiments of Formula I , d = 1
In some embodiments of Formula I , d = 2
In some embodiments of Formula I , d = 3
In some embodiments of Formula I , d > 0
All of the above-described embodiments for R1 , R2, R3, and R4 in Formula I apply equally to R1, R2, R3, and R4 in Formula II.
In some embodiments, the electroactive compound of Formula II has Formula ll-a
Figure imgf000042_0001
wherein:
Ar1 and Ar2 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof; R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
L1 and L2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
c and d are the same or different and are an integer from 0-3;
e and f are the same or different and are 0 or 1 ; and
n is an integer greater than 0.
The compound having Formula ll-a can be a small molecule with n=1 , an oligomer, or a polymer. As used herein, the term "compound having Formula ll-a" is intended to include small molecules, oligomers and polymers.
In some embodiments of Formula ll-a, n=2-10.
In some embodiments of Formula ll-a, the compound is a polymer with n > 10. In some embodiments, the compound is a polymer with Mn>20,000; in some embodiments, Mn >50,000.
In some embodiments of Formula ll-a, L1 is bonded to position 6 on the indoloindole core, as defined above.
In some embodiments of Formula ll-a, L1 is bonded to position 7 on the indoloindole core, as defined above.
In some embodiments of Formula ll-a, L1 is bonded to position 8 on the indoloindole core, as defined above.
In some embodiments of Formula ll-a, L1 is bonded to position 9 on the indoloindole core, as defined above. In some embodiments of Formula ll-a, L2 is bonded to position 1 on the indoloindole core, as defined above.
In some embodiments of Formula ll-a, L2 is bonded to position 2 on the indoloindole core, as defined above.
In some embodiments of Formula ll-a, L2 is bonded to position 3 on the indoloindole core, as defined above.
In some embodiments of Formula ll-a, L2 is bonded to position 4 the indoloindole core, as defined above.
The above-described embodiments for L1 , L2, Ar1, Ar2, R1 , R2, R3 R4, R1, R2, c, d, e, f, and n in Formula II, apply equally to L1 , L2, Ar1 , Ar2, R1 , R2, R3, R4, R1, R2, c, d, e, f, and n in Formula ll-a.
In some embodiments, the electroactive compound of Formula II has Formula ll-b
Figure imgf000044_0001
wherein:
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl heteroaryl and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
L1 and L2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
c and d are the same or different and are an integer from 0-3;
e and f are the same or different and are 0 or 1 ; and
n is an integer greater than 0.
The compound having Formula l l-b can be a small molecule with n=1 , an oligomer, or a polymer. As used herein, the term "compound having Formula l l-b" is intended to include small molecules, oligomers and polymers.
In some embodiments of Formula l l-b, n=2-10.
In some embodiments of Formula l l-b, the compound is a polymer with n > 10. In some embodiments, the compound is a polymer with Mn>20,000; in some embodiments, Mn >50,000.
In some embodiments of Formula l l-b, L1 is bonded to position 6 on the indoloindole core, as defined above.
In some embodiments of Formula l l-b, L1 is bonded to position 7 on the indoloindole core, as defined above.
In some embodiments of Formula l l-b, L1 is bonded to position 8 on the indoloindole core, as defined above.
In some embodiments of Formula l l-b, L1 is bonded to position 9 on the indoloindole core, as defined above.
In some embodiments of Formula l l-b, L2 is bonded to position 1 on the indoloindole core, as defined above.
In some embodiments of Formula l l-b, L2 is bonded to position 2 on the indoloindole core, as defined above.
In some embodiments of Formula l l-b, L2 is bonded to position 3 on the indoloindole core, as defined above.
In some embodiments of Formula l l-b, L2 is bonded to position 4 on the indoloindole core, as defined above.
The above-described embodiments for L1 , L2, R1, R2, R3, R4, R1, R2, c, d, and n in Formula II, apply equally to L1 , L2, R1, R2, R3, R4, R1, R2, c, d, and n in Formula l l-b.
Any of the above embodiments for Formula II, Formula l l-a, or Formula l l-b can be combined with one or more of the other embodiments, so long as they are not mutually exclusive. For example, the embodiment in which R1 is a hydrocarbon aryl group or deuterated hydrocarbon aryl having 6-36 ring carbons can be combined with the embodiment in which d > 0 and at least one R4 is an S-heteroaryl. The same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
In some embodiments, the new compound is an electroactive compound havin Formula III
Figure imgf000046_0001
wherein:
Ar3 and Ar4 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
L1 and L2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
a and b are the same or different and are an integer from 0-4;
g and h are the same or different and are 0 or 1 , with the proviso that g + h > 0; and
n is an integer greater than 0.
The compound having Formula III can be a small molecule with n=1 , an oligomer, or a polymer. As used herein, the term "compound having Formula III" is intended to include small molecules, oligomers and polymers.
In some embodiments of Formula II I, g = 0 and h : = 1 .
In some embodiments of Formula II I, g = 1 and h : = 0.
In some embodiments of Formula II I, g = h = 1 .
All of the above-described embodiments for Ar1 in Formula II apply equally to Ar3 in Formula III.
All of the above-described embodiments for Ar2 in Formula II apply equally to Ar4 in Formula III.
In some embodiments of Formula II I, a = 0.
In some embodiments of Formula II I, a = 1 .
In some embodiments of Formula II I, a = 2.
In some embodiments of Formula II I, a = 3.
In some embodiments of Formula II I, a = 4.
In some embodiments of Formula II I, a > 0.
In some embodiments of Formula II I, a > 0 and at least one R3 is at position 6 on the indoloindole core, as defined above.
In some embodiments of Formula II I, a > 0 and at least one R3 is at position 7 on the indoloindole core, as defined above.
In some embodiments of Formula II I, a > 0 and at least one R3 is at position 8 on the indoloindole core, as defined above.
In some embodiments of Formula II I, a > 0 and at least one R3 is at position 9 on the indoloindole core, as defined above.
In some embodiments of Formula II I, b = 0.
In some embodiments of Formula II I, b = 1 .
In some embodiments of Formula II I, b = 2. In some embodiments of Formula III, b = 3.
In some embodiments of Formula III, b = 4.
In some embodiments of Formula III, b > 0.
In some embodiments of Formula III, b > 0 and at least one R4 is at position 1 on the indoloindole core, as defined above.
In some embodiments of Formula III, b > 0 and at least one R4 is at position 2 on the indoloindole core, as defined above.
In some embodiments of Formula III, b > 0 and at least one R4 is at position 3 on the indoloindole core, as defined above.
In some embodiments of Formula III, b > 0 and at least one R4 is at position 4 on the indoloindole core, as defined above.
All of the above-described embodiments for n, L1, and L2 in Formula II apply equally to n, L1, and L2 in Formula III.
All of the above-described embodiments for R1 , R2, R3, and R4 in Formula I apply equally to R1, R2, R3, and R4 in Formula III.
Any of the above embodiments for Formula III can be combined with one or more of the other embodiments, so long as they are not mutually exclusive. For example, the embodiment in which f = 1 and Ar1 has Formula c can be combined with the embodiment in which a = 2 and at least one R3 is naphthyl and the embodiment in which at least one R3 is D. The same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which
embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
The compounds of Formula II or Formula III can be made using known coupling techniques and polymerization techniques, as described above. Deuterated compounds can be prepared as described above.
Exemplary preparations are given in the Examples.
Some non-limiting examples of compounds having Formula II are shown below. Compound 11-1
Figure imgf000049_0001
Figure imgf000049_0002
Figure imgf000049_0003
Figure imgf000050_0001
Figure imgf000050_0002
Compound 11-6
Figure imgf000050_0003
Figure imgf000050_0004
Compound 11-8
Figure imgf000051_0001
In the above compounds, n1 is an integer greater than 1 and # indicates a point of attachment. In some embodiments of the above compounds, n1 > 10.
Some non-limiting examples of compounds having Formula III are shown below.
Compound 111-1
Figure imgf000051_0002
In the above compounds, n1 is an integer greater than 1 . In some embodiments of the above compound, n1 > 10.
4. Copolymer Having at Least one Unit of Formula IV or Formula V and the Copolymer of Formula VI or Formula VII
In some embodiments, the electroactive compound is a copolymer having at least one unit of Formula IV
Figure imgf000052_0001
wherein:
Ar1 and Ar2 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
c and d are the same or different and are an integer from 0-3; e and f are the same or different and are 0 or 1 ; and
* represents a point of attachment to the copolymer.
In some embodiments of Formula IV, e = 1 and Ar1 is bonded to position 6 on the indoloindole core, as defined above.
In some embodiments of Formula IV, e = 1 and Ar1 is bonded to position 7 on the indoloindole core, as defined above.
In some embodiments of Formula IV, e = 1 and Ar1 is bonded to position 8 on the indoloindole core, as defined above.
In some embodiments of Formula IV, e = 1 and Ar1 is bonded to position 9 on the indoloindole core, as defined above.
In some embodiments of Formula IV, f = 1 and Ar2 is bonded to position 1 on the indoloindole core, as defined above. In some embodiments of Formula IV, f = 1 and Ar2 is bonded to position 2 on the indoloindole core, as defined above.
In some embodiments of Formula IV, f = 1 and Ar2 is bonded to position 3 on the indoloindole core, as defined above.
In some embodiments of Formula IV, f = 1 and Ar2 is bonded to position 4 on the indoloindole core, as defined above.
All of the above-described embodiments for Ar1 , Ar2, R1 , R2, R3, R4, c, d, e, and f in Formula II, apply equally to Ar1 , Ar2, R1 , R2, R3, R4, c, d, e, and f in Formula IV.
In some embodiments, the electroactive compound is a copolymer having at least one unit of Formula IV-a
Figure imgf000053_0001
wherein:
Ar1 and Ar2 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
c and d are the same or different and are an integer from 0-3;
e and f are the same or different and are 0 or 1 ; and
* represents a point of attachment to the copolymer. All of the above-described embodiments for Ar1 , Ar2, R1 , R2, R3, R4, c, d, e, and f in Formula IV, apply equally to Ar1, Ar2, R1, R2, R3, R4, c, d, e, and f in Formula IV-a.
In some embodiments, the electroactive compound is a copolymer having at least one unit of Formula IV-b
Figure imgf000054_0001
wherein:
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
c and d are the same or different and are an integer from 0-3; and * represents a point of attachment to a copolymer.
All of the above-described embodiments for R1 , R2, R3, R4, c, and d in Formula IV, apply to R1 , R2, R3, R4, c, and d in Formula IV-b.
In some embodiments, the electroactive compound is a copolymer having at least one unit of Formula V
Figure imgf000055_0001
wherein:
Ar3 and Ar4 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
a and b are the same or different and are an integer from 0-4; g and h are the same or different and are 0 or 1 , with the proviso that g + h > 0; and
* represents a point of attachment to the copolymer.
In some embodiments of Formula V, a > 0 and R3 is bonded to position 6 on the indoloindole core, as defined above.
In some embodiments of Formula V, a > 0 and R3 is bonded to position 7 on the indoloindole core, as defined above.
In some embodiments of Formula V, a > 0 and R3 is bonded to position 8 on the indoloindole core, as defined above. In some embodiments of Formula V, a > 0 and R3 is bonded to position 9 on the indoloindole core, as defined above.
In some embodiments of Formula V, b > 0 and R4 is bonded to position 1 on the indoloindole core, as defined above.
In some embodiments of Formula V, b > 0 and R4 is bonded to position 2 on the indoloindole core, as defined above.
In some embodiments of Formula V, b > 0 and R4 is bonded to position 3 on the indoloindole core, as defined above.
In some embodiments of Formula V, b > 0 and R4 is bonded to position 4 on the indoloindole core, as defined above.
All of the above-described embodiments for Ar3, Ar4, R3, R4, a, b, g, and h in Formula III, apply equally to Ar3, Ar4, R3, R4, a, b, g, and h in Formula V.
In some embodiments, the copolymer has Formula VI
L - Q- -M- Formula VI
w wherein:
L1 and L2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
M is a conjugated moiety;
Q is a monomeric unit having Formula IV; and
w and z represent non-zero mole fractions such that w + z = 1 .
In some embodiments of Formula VI, the "Q" and "M" units are ordered in a regular alternating pattern.
In some embodiments of Formula VI, the "Q" and "M" units are ordered in blocks of like monomers.
In some embodiments of Formula VI, the "Q" and "M" units are randomly arranged.
In some embodiments of Formula VI, L1 is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof. In some embodiments of Formula VI, L1 is selected from phenyl, triphenylamino, and deuterated analogs thereof.
In some embodiments of Formula VI, L2 is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof.
In some embodiments of Formula VI, L2 is selected from phenyl, triphenylamino, and deuterated analogs thereof.
In some embodiments of Formula VI, at least one ## represents a point of attachment to L2.
In some embodiments of Formula VI, M is a deuterated aromatic moiety.
In some embodiments of Formula VI, M is a monomeric unit derived from an olefin, an acetylenic compound, a styrene, a stilbene, a
substituted derivative thereof, or a deuterated analog thereof.
In some embodiments of Formula VI, M has Formula d, as defined above.
In some embodiments of Formula VI, M has Formula e, as defined above.
In some embodiments of Formula VI, M is a monomeric unit derived from a hydrocarbon aryl having two or more fused rings or a deuterated analog thereof.
In some embodiments of Formula VI, M is a monomeric unit derived from the group consisting of naphthalene, anthracene, fluorene, phenanthrene, triphenylene, substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments of Formula VI, M is a monomeric unit derived from a triarylamino group or deuterated analog thereof.
In some embodiments of Formula VI, M is a monomeric unit having two or more triarylamino groups.
In some embodiments of Formula VI, M is a monomeric unit derived from a heteroaromatic compound having at least one ring atom which is selected from the group consisting of N, O, and S.
In some embodiments of Formula VI, M is a monomeric unit derived from an N-heteroaryl, as described above. In some embodiments of Formula VI, M is a monomeric unit derived from an S-heteroaryl, as described above.
In some embodiments of Formula VI, M is a monomeric unit derived from an O-heteroaryl, as described above.
In some embodiments of Formula VI, M is a monomeric unit derived from an N, O-heteroaryl as described above.
In some embodiments of Formula VI, M is a monomeric unit derived from an N, S-heteroaryl as described above.
In some embodiments of Formula VI, M has one of the formulae iven below.
Figure imgf000058_0001
Figure imgf000059_0001
Figure imgf000059_0002
Figure imgf000059_0003
Figure imgf000059_0004
hrough M15:
R7 is the same or different at each occurrence and is selected from the group consisting of H, D, alkyl, and deuterated alkyl;
R8 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, silyl, germyl, aryl, deuterated alkyl, deuterated silyl, deuterated germyl, and deuterated aryl; R is the same or different at each occurrence and is selected from the group consisting of aryl and deuterated aryl;
R10 is the same or different at each occurrence and is selected from the group consisting of alkyl, aryl, and deuterated analogs thereof;
x is the same or different at each occurrence and is an integer from 0 to the maximum number of positions available for substituents; and
* represents the point of attachment in the copolymer.
In some embodiments of M1 through M15, x is 0-2.
In some embodiments of Formula VI, w > z.
In some embodiments of Formula VI, w is in the range of 0.5-0.99; in some embodiments, 0.6-0.95; in some embodiments, 0.75-0.95.
Any of the above embodiments for Formula VI can be combined with one or more of the other embodiments, so long as they are not mutually exclusive. For example, the embodiment in which Q has Formula IV-a can be combined with the embodiment in which c > 0 and R3 is an N- heteroaryl and with the embodiment in which M has formula M1 . The same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
In some embodiments, the copolymer has Formula VII
Formula VII
Figure imgf000060_0001
L1 and L2 are the same or different and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
M is a conjugated moiety;
Q1 is a monomeric unit having Formula V; and
w and z represent non-zero mole fractions such that w + z = 1 . In some embodiments of Formula VII, the "Q1 " and "M" units are ordered in a regular alternating pattern.
In some embodiments of Formula VII, the "Q1 " and "M" units are ordered in blocks of like monomers.
In some embodiments of Formula VII, the "Q1 " and "M" units are randomly arranged.
All of the above-described embodiments for L1 , L2, M, and w in Formula VI apply equally to L1, L2, M, and w in Formula VII.
Any of the above embodiments for Formula VII can be combined with one or more of the other embodiments, so long as they are not mutually exclusive. For example, the embodiment in which g = 1 and Ar3 is a hydrocarbon aryl group having 6-36 ring carbons has can be combined with the embodiment in which b > 0 and R4 is a hydrocarbon aryl group having at least one substituent selected from the group consisting of D, alkyi, silyl, aryl, diarylamino, carbazolyl, deuterated alkyi, deuterated silyl, deuterated aryl, deuterated diarylamino, and deuterated carbazolyl and with the embodiment in which M has formula M4. The same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
The copolymer having Formula VI or Formula VII can be made using known coupling techniques and polymerization techniques, as described above. Deuterated compounds can be prepared as described above.
Some non-limiting examples of copolymers having Formula VI are shown below. Com ound VI-1
Figure imgf000062_0001
where * represents a point of attachment in the copolymer, n1 is an integer greater than 1 , and the numbers represent mole fractions. In some embodiments of the above compounds, n1 > 10.
Some non-limiting examples of copolymers having Formula VII are shown below.
Compound VI 1-1
Figure imgf000062_0002
where * represents a point of attachment in the copolymer. 5. Compound Having Formula VIII
In some embodiments, the new compound is an electroactive com ound having Formula VIII
Figure imgf000063_0001
wherein:
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
X is O, S, or Se; and
a and b are the same or different and are an integer from 0-4.
In some embodiments of Formula VIII, x = O.
In some embodiments of Formula VIII, x = S.
In some embodiments of Formula VIII, x = Se.
In some embodiments of Formula VIII, R3 = R4
In some embodiments of Formula VIII, R3 ≠R4
In some embodiments of Formula VIII, a = 1 -4.
In some embodiments of Formula VIII, a = 1 .
In some embodiments of Formula VIII, a = 2.
In some embodiments of Formula VIII, a = 3.
In some embodiments of Formula VIII, a = 4.
In some embodiments of Formula VIII, b = 1 -4.
In some embodiments of Formula VIII, b = 1 .
In some embodiments of Formula VIII, b = 2.
In some embodiments of Formula VIII, b = 3. In some embodiments of Formula VIII, b = 4.
In some embodiments of Formula VIII, a > 0 and b > 0.
All of the above-described embodiments for R3 and R4 in Formula I apply equally to R3, R4, a and b in Formula VIII.
Any of the above embodiments for Formula VIII can be combined with one or more of the other embodiments, so long as they are not mutually exclusive. For example, the embodiment in which a = 2 can be combined with the embodiment in which at least one R3 is D and the embodiment in which at least one R3 has formula a. The same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
The compounds of Formula VIII can be made using known coupling techniques, as described above. Deuterated compounds can be prepared as described above. Exemplary preparations are given in the Examples.
Some non-limiting examples of compounds having Formula VIII are shown below.
Compound VIII-1
Figure imgf000064_0001
Compound VIII-2
Figure imgf000064_0002
Compound VIII-3
Figure imgf000065_0001
Compound VI 11-4
Figure imgf000065_0002
Compound VIII-6
Figure imgf000065_0003
6. Compound Having Formula IX or Formula X
The compounds having Formula IX or Formula X have as fused ring core, as defined above.
In some embodiments, the new compound is an electroactive compound having Formula IX
Figure imgf000066_0001
wherein:
X is O, S, or Se;
Ar1 - Ar4 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
R3a and R4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
a and b are the same or different and are an integer from 0-4, with the proviso that when s = 1 , a is 0-3, and when t = 1 , b is 0-3; and
s and t are 0 or 1 , with the proviso that s + t > 0.
In some embodiments of Formula IX, x = O.
In some embodiments of Formula IX, x = S.
In some embodiments of Formula IX, x = Se.
In some embodiments of Formula IX, Ar1 = Ar2
In some embodiments of Formula IX, Ar1 ≠Ar2
In some embodiments of Formula IX, Ar3 = Ar4
In some embodiments of Formula IX, Ar3 ≠Ar4
In some embodiments of Formula IX, Ar1 = Ar3
In some embodiments of Formula IX, Ar2 = Ar4
In some embodiments of Formula IX, R1 = R2.
In some embodiments of Formula IX, R1 ≠R2. In some embodiments of Formula IX, s = 1 and t = 0.
In some embodiments of Formula IX, s = 0 and t = 1 .
In some embodiments of Formula IX, s = t = 1 .
In some embodiments of Formula IX, s = 1 and the amino nitrogen is bonded to position 6 on the fused ring core, as defined above.
In some embodiments of Formula IX, s = 1 and the amino nitrogen is bonded to position 7 on the fused ring core, as defined above.
In some embodiments of Formula IX, s = 1 and the amino nitrogen is bonded to position 8 on the fused ring core, as defined above.
In some embodiments of Formula IX, s = 1 and the amino nitrogen is bonded to position 9 on the fused ring core, as defined above.
In some embodiments of Formula IX, t = 1 and the amino nitrogen is bonded to position 1 on the fused ring core, as defined above.
In some embodiments of Formula IX, t = 1 and the amino nitrogen is bonded to position 2 on the fused ring core, as defined above.
In some embodiments of Formula IX, t = 1 and the amino nitrogen is bonded to position 3 on the fused ring core, as defined above.
In some embodiments of Formula IX, t = 1 and the amino nitrogen is bonded to position 4 on the fused ring core, as defined above.
In some embodiments of Formula IX, Ar1 is a hydrocarbon aryl group having 6-36 ring carbons. The hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
In some embodiments of Formula IX, Ar1 has no heteroaromatic groups.
In some embodiments of Formula IX, Ar1 has Formula a, as defined above.
In some embodiments of Formula IX, Ar1 has Formula b, as defined above.
In some embodiments of Formula IX, Ar1 is selected from the group consisting of phenyl, naphthyl, Formula a, substituted derivatives thereof, and deuterated analogs thereof.
In some embodiments of Formula IX, Ar1 has substituents selected from the group consisting of D, alkyl, silyl, germyl, aryl, diarylamino, carbazolyl, deuterated alkyl, deuterated silyl, deuterated germyl, deuterated aryl, deuterated diarylamino, and deuterated carbazolyl.
All of the above-described embodiments for Ar1 in Formula IX apply equally to Ar2 in Formula IX.
All of the above-described embodiments for Ar in Formula IX apply equally to Ar3 in Formula IX.
All of the above-described embodiments for Ar1 in Formula IX apply equally to Ar4 in Formula IX.
All of the above-described embodiments for R3 in Formula I apply equally to R3a,
All of the above-described embodiments for R4 in Formula I apply equally to R4a in Formula IX.
All of the above-described embodiments for a and b in Formula I apply equally to R3, R4, a and b in Formula IX, with the proviso that when s = 1 , a is 0-3, and when t = 1 , b is 0-3.
In some embodiments, the electroactive compound of Formula IX has Formula IX-a
Figure imgf000068_0001
wherein:
X is O, S, or Se;
Ar1 - Ar4 are the same or different and are selected from the group consisting of aryl groups, substituted derivatives thereof, and deuterated analogs thereof;
R and R are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
a and b are the same or different and are an integer from 0-4, with the proviso that when s = 1 , a is 0-3, and when t = 1 , b is 0-3; and
s and t are 0 or 1 , with the proviso that s + t > 0.
All the above-described embodiments for X, Ar1 , Ar2, Ar3, Ar4, R3a, R4a, a, b, s, and t in Formula IX, apply equally to X, Ar1, Ar2, Ar3, Ar4, R3a, R4a, a, b, s, and t in Formula IX-a.
Any of the above embodiments for Formula IX can be combined with one or more of the other embodiments, so long as they are not mutually exclusive. For example, the embodiment in which a = 2 can be combined with the embodiment in which at least one R3 is naphthyl and the embodiment in which at least one R3 has formula a. The same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
In some embodiments, the new compound is an electroactive compound havin Formula X
Figure imgf000069_0001
wherein:
X is O, S, or Se;
Ar1a and Ar4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, and deuterated analogs thereof; Ar2 and Ar3 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof; R3a and R4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
L is the same or different at each occurrence and is selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
c and d are the same or different and are an integer from 0-3; and n is an integer greater than 0.
The compound having Formula X can be a small molecule with n=1 , an oligomer, or a polymer. As used herein, the term "compound having Formula X" is intended to include small molecules, oligomers and polymers.
In some embodiments of Formula X, n=1 and L is halogen. Such compounds can be useful as monomers for the formation of polymeric compounds. In some embodiments, the halogen is CI or Br; in some embodiments, Br.
In some embodiments of Formula X, n=1 and L is a crosslinking group or deuterated crosslinking group.
In some embodiments of Formula X, n=1 and L is H or D.
In some embodiments of Formula X, n=2-10.
In some embodiments of Formula X, the compound is a polymer with n > 10. In some embodiments, the compound is a polymer with Mn>20,000; in some embodiments, Mn >50,000.
In some embodiments of Formula X, n > 10 and L is selected from aryl, arylamino, crosslinkable groups, and deuterated analogs thereof. In some embodiments of Formula X, n > 10 and L is selected from phenyl, triphenylamino, and deuterated analogs thereof.
In some embodiments of Formula X, Ar1a = Ar2.
In some embodiments of Formula X, Ar1a≠ Ar2.
In some embodiments of Formula X, Ar3 = Ar4a.
In some embodiments of Formula X, Ar3≠ Ar4a.
In some embodiments of Formula X, Ar1a = Ar4a.
In some embodiments of Formula X, Ar1a≠ Ar4a.
In some embodiments of Formula X, Ar2 = Ar3.
In some embodiments of Formula X, Ar2≠ Ar3.
In some embodiments of Formula X, an amino nitrogen is bonded to position 1 on the fused ring core, as defined above.
In some embodiments of Formula X, an amino nitrogen is bonded to position 2 on the fused ring core, as defined above.
In some embodiments of Formula X, an amino nitrogen is bonded to position 3 on the fused ring core, as defined above.
In some embodiments of Formula X, an amino nitrogen is bonded to position 4 on the fused ring core, as defined above.
In some embodiments of Formula X, an amino nitrogen is bonded to position 6 on the fused ring core, as defined above.
In some embodiments of Formula X, an amino nitrogen is bonded to position 7 on the fused ring core, as defined above.
In some embodiments of Formula X, an amino nitrogen is bonded to position 8 on the fused ring core, as defined above.
In some embodiments of Formula X, an amino nitrogen is bonded to position 9 on the fused ring core, as defined above.
In some embodiments of Formula X, Ar1a is a hydrocarbon aryl group having 6-36 ring carbons. The hydrocarbon aryl group can include one or more single ring groups bonded together, one or more fused rings, or combinations thereof.
In some embodiments of Formula X, Ar1a has no heteroaromatic groups.
In some embodiments of Formula X, Ar1a has Formula d, as defined above. In some embodiments of Formula X, Ar1a has Formula e, as defined above.
In some embodiments of Formula X, Ar1a is selected from the group consisting of 1 -naphthyl, 2-naphthyl, anthracenyl, fluorenyl, deuterated analogs thereof, and derivatives thereof having one or more substituents selected from the group consisting of fluoro, alkyl, alkoxy, silyl, siloxy, germyl, a substituent with a crosslinking group, and deuterated analogs thereof.
All of the above-described embodiments for Ar1 a in Formula X apply equally to Ar4a in Formula X.
All the above-described embodiments for X, Ar2, Ar3, R3a, R4a, s, and t in Formula IX, apply equally to X, Ar2, Ar3, R3a, R4a, s, and t in Formula X.
All of the above-described embodiments for c and d in Formula II apply equally to c and d in Formula X.
In some embodiments, the compound of Formula II has Formula -a
Figure imgf000072_0001
wherein:
X is O, S, or Se;
Ar1a and Ar4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof; Ar2 and Ar3 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, and deuterated analogs thereof; R3a and R4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
L is the same or different at each occurrence and is selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
c and d are the same or different and are an integer from 0-3; and n is an integer greater than 0.
All of the above-described embodiments for X, Ar1a, Ar2, Ar3, Ar4a, R3a, R4a, c, d, and n in Formula X, apply equally to X, Ar1 a, Ar2, Ar3, Ar4a, R3a, R4a, c, d, and n in in Formula X-a.
Any of the above embodiments for Formula X can be combined with one or more of the other embodiments, so long as they are not mutually exclusive. For example, the embodiment in which n > 10 can be combined with the embodiment in which X = S and the embodiment in which Ar1a has formula c. The same is true for the other non-mutually- exclusive embodiments discussed above. The skilled person would understand which embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
The compounds having Formula IX or Formula X can be made using known coupling techniques, as described above.
Some non-limiting examples of compounds having Formula IX are shown below.
Figure imgf000074_0001
Compound IX-2
Figure imgf000074_0002
Compound IX-4
Figure imgf000074_0003
Figure imgf000075_0001
73 Compound IX-7
Figure imgf000076_0001
Figure imgf000076_0002
Figure imgf000076_0003
Figure imgf000076_0004
Compound IX-1 1
Figure imgf000077_0001
Compound IX-12
Figure imgf000077_0002
7. Copolymer Having at least one Monomeric Unit of Formula XI and Copolymer Having Formula XII
In some embodiments, the new compound is a copolymer having at least one monomeric unit of Formula XI
Figure imgf000077_0003
wherein:
X is O, S, or Se;
Ar1a and Ar4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
Ar2 and Ar3 are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
R3a and R4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl; and
* represents a point of attachment in the copolymer.
In some embodiments of Formula XI, an amino nitrogen is bonded to position 1 on the fused ring core, as defined above.
In some embodiments of Formula XI, an amino nitrogen is bonded to position 2 on the fused ring core, as defined above.
In some embodiments of Formula XI, an amino nitrogen is bonded to position 3 on the fused ring core, as defined above.
In some embodiments of Formula XI, an amino nitrogen is bonded to position 4 on the fused ring core, as defined above.
In some embodiments of Formula XI, an amino nitrogen is bonded to position 6 on the fused ring core, as defined above.
In some embodiments of Formula XI, an amino nitrogen is bonded to position 7 on the fused ring core, as defined above.
In some embodiments of Formula XI, an amino nitrogen is bonded to position 8 on the fused ring core, as defined above.
In some embodiments of Formula XI, an amino nitrogen is bonded to position 9 on the fused ring core, as defined above.
All of the above-described embodiments for X, Ar1a, Ar2, Ar3, Ar4a, R3a, R4a, c, and d in Formula X, apply equally to X, Ar1a, Ar2, Ar3, Ar4a, R3a, R4a, c, and d in in Formula XI.
In some embodiments, the copolymer has Formula XII
Formula XII
Figure imgf000078_0001
where:
L is the same or different at each occurrence and is selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
M is a conjugated moiety; Q2 is a monomeric unit having Formula XI; and w and z represent non-zero mole fractions such that w + z = 1 .
In Formula XII, the "Q" and "M" units can be ordered in a regular alternating pattern, in blocks of like monomers, or randomly arranged.
All of the above-described embodiments for L1 in Formula VI apply equally to L in Formula XII.
All of the above-described embodiments for M and w in Formula VI apply equally to M and w in Formula XII.
Any of the above embodiments for Formula XII can be combined with one or more of the other embodiments, so long as they are not mutually exclusive. For example, the embodiment in which Ar1a = Ar4a in Q2 can be combined with the embodiment in which M has formula M1 . The same is true for the other non-mutually-exclusive embodiments discussed above. The skilled person would understand which
embodiments were mutually exclusive and would thus readily be able to determine the combinations of embodiments that are contemplated by the present application.
The copolymer having Formula XII can be made using known coupling techniques and polymerization techniques. The deuterated analog materials can be made as described above.
Some non-limiting examples of copolymers having Formula XII are shown below.
Com ound XI 1-1
Figure imgf000079_0001
The * indicates a point of attachment in the copolymer.
8. Electronic Devices
Organic electronic devices that may benefit from having one or more layers including at least one compound as described herein include, but are not limited to, (1 ) devices that convert electrical energy into radiation (e.g., a light-emitting diode, light emitting diode display, lighting device, luminaire, or diode laser), (2) devices that detect signals through electronics processes (e.g., photodetectors, photoconductive cells, photoresistors, photoswitches, phototransistors, phototubes, IR detectors, biosensors), (3) devices that convert radiation into electrical energy, (e.g., a photovoltaic device or solar cell), (4) devices that convert light of one wavelength to light of a longer wavelength, (e.g., a down-converting phosphor device); and (5) devices that include one or more electronic components that include one or more organic semi-conductor layers (e.g., a transistor or diode). Other uses for the compositions according to the present invention include coating materials for memory storage devices, antistatic films, biosensors, electrochromic devices, solid electrolyte capacitors, energy storage devices such as a rechargeable battery, and electromagnetic shielding applications.
One illustration of an organic electronic device structure including at least one of the new compounds, polymers or copolymers described herein is shown in FIG. 1 . The device 100 has a first electrical contact layer, an anode layer 1 10 and a second electrical contact layer, a cathode layer 160, and a photoactive layer 140 between them. Additional layers may optionally be present. Adjacent to the anode may be a hole injection layer 120, sometimes referred to as a buffer layer. Adjacent to the hole injection layer may be a hole transport layer 130, including hole transport material. Adjacent to the cathode may be an electron transport layer 150, including an electron transport material. As an option, devices may use one or more additional hole injection or hole transport layers (not shown) next to the anode 1 10 and/or one or more additional electron injection or electron transport layers (not shown) next to the cathode 160. Layers 120 through 150 are individually and collectively referred to as the organic active layers.
In some embodiments, in order to achieve full color, the light- emitting layer is pixellated, with subpixel units for each of the different colors. An illustration of a pixellated device including at least one of the new compounds, polymers or copolymers described herein is shown in FIG. 2. The device 200 has anode 1 10, hole injection layer 120, hole transport layer 130, photoactive layer 140, electron transport layer 150, and cathode 160. The photoactive layer is divided into subpixels 141 , 142, 143, which are repeated across the layer. In some embodiments, the subpixels represent red, blue and green color emission. Although three different subpixel units are depicted in FIG. 2, two or more than three subpixel units may be used.
The different layers will be discussed further herein with reference to FIG. 1 . However, the discussion applies to FIG. 2 and other
configurations as well.
In some embodiments, the different layers have the following range of thicknesses: anode 1 10, 500-5000 A, in some embodiments, 1000- 2000 A; hole injection layer 120, 50-2000 A, in some embodiments, 200- 1000 A; hole transport layer 130, 50-3000 A, in some embodiments, 200- 2000 A; photoactive layer 140, 10-2000 A, in some embodiments, 100- 1000 A; electron transport layer 150, 50-2000 A, in some embodiments, 100-1000 A; cathode 160, 200-10000 A, in some embodiments, 300-5000 A. The desired ratio of layer thicknesses will depend on the exact nature of the materials used.
One or more of the new the compound having Formula I, Formula
II, Formula III, Formula VIII, Formula IX, or Formula X, the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII described herein may be present in one or more of the electroactive layers of a device.
In some embodiments, the new compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII are useful as photoactive materials in layer 140. In some embodiments, the new compounds, polymers and copolymers described herein are present as photoactive dopant materials in one or more host materials. The term "dopant" is intended to mean a material, within a layer including a host material, that changes the electronic characteristic(s) or the targeted wavelength(s) of radiation emission, reception, or filtering of the layer compared to the electronic characteristic(s) or the wavelength(s) of radiation emission, reception, or filtering of the layer in the absence of such material. The term "host material" is intended to mean a material to which a dopant is added. The host material may or may not have electronic characteristic(s) or the ability to emit, receive, or filter radiation. In some embodiments, the host material is present in higher
concentration.
In some embodiments, the compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII is useful as a host material for photoactive dopant materials in photoactive layer 140. The new compounds, polymers and copolymers described herein can be used alone or in combination with one or more additional host materials.
In some embodiments, the compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, the copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or the copolymer having Formula VI, Formula VII, or Formula XII is useful as an electron transport material in layer 150.
In some embodiments, an organic electronic device includes an anode, a cathode, and at least one organic active layer therebetween, where the organic active layer includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII.
In some embodiments, an organic electronic device includes an anode, a cathode, and a photoactive layer therebetween, where the photoactive layer includes a compound having Formula I, Formula II,
Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII. In some embodiments, an organic electronic device includes an anode, a cathode, and a photoactive layer therebetween, and further includes an additional organic active layer including a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII. In some embodiments, the additional organic active layer is an electron transport layer.
The anode 1 10 is an electrode that is particularly efficient for injecting positive charge carriers. It can be made of, for example materials containing a metal, mixed metal, alloy, metal oxide or mixed-metal oxide, or it can be a conducting polymer, and mixtures thereof. Suitable metals include the Group 1 1 metals, the metals in Groups 4, 5, and 6, and the Group 8-10 transition metals. If the anode is to be light-transmitting, mixed-metal oxides of Groups 12, 13 and 14 metals, such as indium-tin- oxide, are generally used. The anode may also include an organic material such as polyaniline as described in "Flexible light-emitting diodes made from soluble conducting polymer," Nature vol. 357, pp 477 479 (1 1 June 1992). At least one of the anode and cathode should be at least partially transparent to allow the generated light to be observed.
Optional hole injection layer 120 includes hole injection materials. The term "hole injection layer" or "hole injection material" is intended to mean electrically conductive or semiconductive materials and may have one or more functions in an organic electronic device, including but not limited to, planarization of the underlying layer, charge transport and/or charge injection properties, scavenging of impurities such as oxygen or metal ions, and other aspects to facilitate or to improve the performance of the organic electronic device. Hole injection materials may be polymers, oligomers, or small molecules, and may be in the form of solutions, dispersions, suspensions, emulsions, colloidal mixtures, or other compositions.
The hole injection layer can be formed with polymeric materials, such as polyaniline (PANI) or polyethylenedioxythiophene (PEDOT), which are often doped with protonic acids. The protonic acids can be, for example, poly(styrenesulfonic acid), poly(2-acrylamido-2-methyl-1 - propanesulfonic acid), and the like. The hole injection layer 120 can include charge transfer compounds, and the like, such as copper phthalocyanine and the tetrathiafulvalene-tetracyanoquinodimethane system (TTF-TCNQ). In some embodiments, the hole injection layer 120 is made from a dispersion of a conducting polymer and a colloid-forming polymeric acid. Such materials have been described in, for example, published U.S. patent applications 2004-0102577, 2004-0127637, and 2005-0205860.
Layer 130 includes hole transport material.
In some embodiments, layer 130 includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII. In some embodiments, layer 130 includes only a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII, where additional materials that would materially alter the principle of operation or the distinguishing characteristics of the layer are not present.
In some embodiments, layer 130 includes other hole transport materials. Examples of hole transport materials for the hole transport layer have been summarized for example, in Kirk-Othmer Encyclopedia of Chemical Technology, Fourth Edition, Vol. 18, p. 837-860, 1996, by Y. Wang. Both hole transporting small molecules and polymers can be used. Commonly used hole transporting molecules include, but are not limited to: 4,4',4"-tris(N,N-diphenyl-amino)-triphenylamine (TDATA); 4,4',4"-tris(N- 3-methylphenyl-N-phenyl-amino)-triphenylamine (MTDATA);
N,N'-diphenyl-N,N'-bis(3-methylphenyl)-[1 ,1 '-biphenyl]-4,4'-diamine (TPD); 4, 4'-bis(carbazol-9-yl)biphenyl (CBP); 1 ,3-bis(carbazol-9-yl)benzene (mCP); 1 ,1 -bis[(di-4-tolylamino) phenyljcyclohexane (TAPC); N,N'-bis(4- methylphenyl)-N,N'-bis(4-ethylphenyl)-[1 ,1 '-(3,3'-dimethyl)biphenyl]-4,4'- diamine (ETPD); tetrakis-(3-methylphenyl)-N,N,N',N'-2,5- phenylenediamine (PDA); a-phenyl-4-N,N-diphenylaminostyrene (TPS); p-(diethylamino)benzaldehyde diphenylhydrazone (DEH); triphenylamine (TPA); bis[4-(N,N-diethylamino)-2-methylphenyl](4-methylphenyl)meth (MPMP); 1 -phenyl-3-[p-(diethylamino)styryl]-5-[p-(diethylamino)phenyl] pyrazoline (PPR or DEASP); 1 ,2-trans-bis(9H-carbazol-9-yl)cyclobutane (DCZB); N,N,N',N'-tetrakis(4-methylphenyl)-(1 ,1 '-biphenyl)-4,4'-diamine (TTB); N,N'-bis(naphthalen-1 -yl)-N,N'-bis-(phenyl)benzidine (a-NPB); and porphyrinic compounds, such as copper phthalocyanine. Commonly used hole transporting polymers include, but are not limited to,
polyvinylcarbazole, (phenylmethyl)polysilane, poly(dioxythiophenes), polyanilines, and polypyrroles. It is also possible to obtain hole
transporting polymers by doping hole transporting molecules such as those mentioned above into polymers such as polystyrene and
polycarbonate. In some cases, triarylamine polymers are used, especially triarylamine-fluorene copolymers. In some cases, the polymers and copolymers are crosslinkable. Examples of crosslinkable hole transport polymers can be found in, for example, published US patent application 2005-0184287 and published PCT application WO 2005/052027. In some embodiments, the hole transport layer is doped with a p-dopant, such as tetrafluorotetracyanoquinodimethane and perylene-3,4,9,10- tetracarboxylic-3,4,9,10-dianhydride.
Depending upon the application of the device, the photoactive layer 140 can be a light-emitting layer that is activated by an applied voltage (such as in a light-emitting diode or light-emitting electrochemical cell), a layer of material that absorbs light and emits light having a longer wavelength (such as in a down-converting phosphor device), or a layer of material that responds to radiant energy and generates a signal with or without an applied bias voltage (such as in a photodetector or photovoltaic device).
In some embodiments, the photoactive layer includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or
Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII as a photoactive material. In some embodiments, the photoactive layer further comprises a host material. Examples of host materials include, but are not limited to, chrysenes, phenanthrenes, triphenylenes, phenanthrolines, naphthalenes, anthracenes, quinolines, isoquinolines, quinoxalines, phenylpyridines, indolocarbazoles, furans, benzofurans, dibenzofurans, benzodifurans, and metal quinolinate complexes. In some embodiments, the host materials are deuterated.
In some embodiments, the photoactive layer includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII as host material and additionally includes a photoactive dopant. The photoactive dopant can be an organic electroluminescent ("EL") material. Any EL material can be used in the devices, including, but not limited to, small molecule organic fluorescent compounds, fluorescent and phosphorescent metal complexes, conjugated polymers, and mixtures thereof. Examples of fluorescent compounds include, but are not limited to, chrysenes, pyrenes, perylenes, rubrenes, coumarins, anthracenes, thiadiazoles, derivatives thereof, and mixtures thereof. Examples of metal complexes include, but are not limited to, metal chelated oxinoid
compounds, such as tris(8-hydroxyquinolato)aluminum (Alq3);
cyclometalated iridium and platinum electroluminescent compounds, such as complexes of iridium with phenylpyridine, phenylquinoline, or
phenylpyrimidine ligands as disclosed in Petrov et al., U.S. Patent
6,670,645 and Published PCT Applications WO 03/063555 and WO 2004/016710, and organometallic complexes described in, for example, Published PCT Applications WO 03/008424, WO 03/091688, and WO 03/040257, and mixtures thereof. In some cases the small molecule fluorescent or organometallic materials are deposited as a dopant with a host material to improve processing and/or electronic properties.
Examples of conjugated polymers include, but are not limited to
poly(phenylenevinylenes), polyfluorenes, poly(spirobifluorenes), polythiophenes, poly(p-phenylenes), copolymers thereof, and mixtures thereof.
In some embodiments, the photoactive layer further includes a second host material. Examples of second host materials include, but are not limited to, chrysenes, phenanthrenes, thphenylenes, phenanthrolines, naphthalenes, anthracenes, quinolines, isoquinolines, quinoxalines, phenylpyridines, indolocarbazoles, furans, benzofurans, dibenzofurans, benzodifurans, and metal quinolinate complexes.
In some embodiments, photoactive layer 140 includes only a host which is a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one
monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII and a photoactive dopant, where additional materials that would materially alter the principle of operation or the distinguishing characteristics of the layer are not present.
In some embodiments, photoactive layer 140 includes a
photoactive dopant, a host material which is a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII, and a second host material. In some embodiments, photoactive layer 140 includes only a photoactive dopant, a first host material which is a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of
Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII, and a second host material, where additional materials that would materially alter the principle of operation or the distinguishing characteristics of the layer are not present.
In some embodiments, the weight ratio of total host material to dopant is in the range of 99.5:0.5 to 25:75; in some embodiments, 99:1 to 30:70; in some embodiments, 95:5 to 60:40; in some embodiments, 90:10 to 70:30.
In some embodiments, the weight ratio of first host material to second host material is in the range of 10:90 to 90:10; in some
embodiments, 75:25 to 25:75; in some embodiments, 60:40 to 40:60.
Optional layer 150 can function both to facilitate electron transport, and also serve as a confinement layer to prevent quenching of the exciton at layer interfaces. Preferably, this layer promotes electron mobility and reduces exciton quenching.
In some embodiments, layer 150 includes a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII. In some embodiments, layer 150 includes only a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X, a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI, or a copolymer having Formula VI, Formula VII, or Formula XII where additional materials that would materially alter the principle of operation or the distinguishing characteristics of the layer are not present.
In some embodiments, layer 150 includes other electron transport materials. Examples of electron transport materials which can be used in the optional electron transport layer 150, include metal chelated oxinoid compounds, including metal quinolate derivatives such as tris(8- hydroxyquinolato)aluminum (AIQ), bis(2-methyl-8-quinolinolato)(p- phenylphenolato) aluminum (BAIq), tetrakis-(8-hydroxyquinolato)hafnium (HfQ) and tetrakis-(8-hydroxyquinolato)zirconium (ZrQ); and azole compounds such as 2- (4-biphenylyl)-5-(4-t-butylphenyl)-1 ,3,4-oxadiazole (PBD), 3-(4-biphenylyl)-4-phenyl-5-(4-t-butylphenyl)-1 ,2,4-triazole (TAZ), and 1 ,3,5-tri(phenyl-2-benzimidazole)benzene (TPBI); quinoxaline derivatives such as 2,3-bis(4-fluorophenyl)quinoxaline; phenanthrolines such as 4,7-diphenyl-1 ,10-phenanthroline (DPA) and 2, 9-di methyl -4,7- diphenyl-1 ,10-phenanthroline (DDPA); triazines; fullerenes; and mixtures thereof. In some embodiments, the electron transport material is selected from the group consisting of metal quinolates and phenanthroline derivatives. In some embodiments, the electron transport layer further includes an n-dopant. N-dopant materials are well known. The n-dopants include, but are not limited to, Group 1 and 2 metals; Group 1 and 2 metal salts, such as LiF, CsF, and CS2CO3; Group 1 and 2 metal organic compounds, such as Li quinolate; and molecular n-dopants, such as leuco dyes, metal complexes, such as W2(hpp)4 where hpp=1 ,3,4,6,7,8- hexahydro-2H-pyrimido-[1 ,2-a]-pyrimidine and cobaltocene, tetrathianaphthacene, bis(ethylenedithio)tetrathiafulvalene, heterocyclic radicals or diradicals, and the dinners, oligomers, polymers, dispiro compounds and polycycles of heterocyclic radical or diradicals.
An optional electron injection layer may be deposited over the electron transport layer. Examples of electron injection materials include, but are not limited to, Li-containing organometallic compounds, LiF, Li2O, Li quinolate, Cs-containing organometallic compounds, CsF, Cs2O, and CS2CO3. This layer may react with the underlying electron transport layer, the overlying cathode, or both. When an electron injection layer is present, the amount of material deposited is generally in the range of 1 - 100 A, in some embodiments 1 -10 A.
The cathode 160, is an electrode that is particularly efficient for injecting electrons or negative charge carriers. The cathode can be any metal or nonmetal having a lower work function than the anode. Materials for the cathode can be selected from alkali metals of Group 1 (e.g., Li, Cs), the Group 2 (alkaline earth) metals, the Group 12 metals, including the rare earth elements and lanthanides, and the actinides. Materials such as aluminum, indium, calcium, barium, samarium and magnesium, as well as combinations, can be used.
It is known to have other layers in organic electronic devices. For example, there can be a layer (not shown) between the anode 1 10 and hole injection layer 120 to control the amount of positive charge injected and/or to provide band-gap matching of the layers, or to function as a protective layer. Layers that are known in the art can be used, such as copper phthalocyanine, silicon oxy-nitride, fluorocarbons, silanes, or an ultra-thin layer of a metal, such as Pt. Alternatively, some or all of anode layer 1 10, active layers 120, 130, 140, and 150, or cathode layer 160, can be surface-treated to increase charge carrier transport efficiency. The choice of materials for each of the component layers is preferably determined by balancing the positive and negative charges in the emitter layer to provide a device with high electroluminescence efficiency.
It is understood that each functional layer can be made up of more than one layer. The device layers can be formed by any deposition technique, or combinations of techniques, including vapor deposition, liquid deposition, and thermal transfer. Substrates such as glass, plastics, and metals can be used. Conventional vapor deposition techniques can be used, such as thermal evaporation, chemical vapor deposition, and the like. The organic layers can be applied from solutions or dispersions in suitable solvents, using conventional coating or printing techniques, including but not limited to spin-coating, dip-coating, roll-to-roll techniques, ink-jet printing, continuous nozzle printing, screen-printing, gravure printing and the like.
For liquid deposition methods, a suitable solvent for a particular compound or related class of compounds can be readily determined by one skilled in the art. For some applications, it is desirable that the compounds be dissolved in non-aqueous solvents. Such non-aqueous solvents can be relatively polar, such as Ci to C20 alcohols, ethers, and acid esters, or can be relatively non-polar such as Ci to C12 alkanes or aromatics such as toluene, xylenes, trifluorotoluene and the like. Other suitable liquids for use in making the liquid composition, either as a solution or dispersion as described herein, including the new compounds, includes, but not limited to, chlorinated hydrocarbons (such as methylene chloride, chloroform, chlorobenzene), aromatic hydrocarbons (such as substituted and non-substituted toluenes and xylenes), including triflurotoluene), polar solvents (such as tetrahydrofuran (THP), N-methyl pyrrolidone) esters (such as ethylacetate) alcohols (isopropanol), ketones (cyclopentatone) and mixtures thereof. Suitable solvents for
electroluminescent materials have been described in, for example, published PCT application WO 2007/145979.
In some embodiments, the device is fabricated by liquid deposition of the hole injection layer, the hole transport layer, and the photoactive layer, and by vapor deposition of the anode, the electron transport layer, an electron injection layer and the cathode.
It is understood that the efficiency of devices made with the new compositions described herein, can be further improved by optimizing the other layers in the device. For example, more efficient cathodes such as Ca, Ba or LiF can be used. Shaped substrates and novel hole transport materials that result in a reduction in operating voltage or increase quantum efficiency are also applicable. Additional layers can also be added to tailor the energy levels of the various layers and facilitate electroluminescence.
In some embodiments, the device has the following structure, in order: anode, hole injection layer, hole transport layer, photoactive layer, electron transport layer, electron injection layer, cathode.
Although methods and materials similar or equivalent to those described herein can be used in the practice or testing of the present invention, suitable methods and materials are described below. In addition, the materials, methods, and examples are illustrative only and not intended to be limiting. All publications, patent applications, patents, and other references mentioned herein are incorporated by reference in their entirety.
EXAMPLES
The concepts described herein will be further described in the following examples, which do not limit the scope of the invention described in the claims.
Synthesis Example 1
This example illustrates the preparation of the indoloindole core structure.
Figure imgf000091_0001
To a RBF (2000 ml_) was added compound A (100g, 0.495mol), Cul (1 g) and Pd(PPh3)2CI2(2.5g), followed by the addition of Et3N (1000 ml_). The mixture was purged with N2 for 10 min. Then Ethynyl-trimethyl- silane (58g, 0.591 mol) was added dropwise. The mixture was stirred for 4 hours The Et3N was removed on vacuum. The residue diluted with water, Extracted with MTBE, washed with water, concentrated on vacuum to give the desired product which was used for next step. (108g, 99%)
To a 3-neck RBF (2000 ml_) was added compound B (108g, 0.492mol), followed by the addition of THF(500 ml_). The mixture was cooled to -10 °C under N2. The Bu4NF in THF was added dropwise below 0 °C. After addition the reaction mixture was warmed to ambient temperature and stirred for two hours. TLC checked the reaction was completed. The reaction mixture was poured into water while keeping the temperature below 30 °C, extracted with MTBE, washed with water, dried with sulfate sodium. After filtration the filtrate was concentrated on vacuum to give the crude product. Purification by Silica gel column
chromatography gave the product (48g, yield: 66%).
To a RBF (1000 ml) was added compound C (25g, 0.17gmol), followed by the addition of Et3N (600 ml). The mixture was purged with N2 for 10 min. A catalyst amount of Pd (PPh3)2CI2 (200mg) and Cul (35mg) were added. The mixture was stirred for 6 hours, filtered and the solid was collected. The solid was reflux in ethanol (500ml_) for 2 hours and the solid was collected to give the crude product. The material was purified with crystallization from toluene to give the product (42g, 92%).
Into a RBF (2000 ml) was added compound D (20g, 55.2mmol),
TBAB (2g), followed by the addition of CH2CI2 (600 ml) and HOAc (30 ml). Then KMnO4 (35.2g, 223mmole) in the water (600 ml_) was added. The mixture was refluxed for 5 hours under N2. An aqueous NaHSO3 solution was added dropwise until the mixture became clear. The organic layer was separated and concentrated under vacuum to give the product as a yellow solid. (20g, 89%)
Into a RBF (1000 ml_) was added SnCI2.2H2O (63g, 280mmol), HOAc (300ml), aqueous HCI (6N, 300 ml_). The mixture was heated to reflux. The compound E was added slowly. The mixture was stirred for another one hour. After cooling to ambient temperature, the solid was collected by filtration, washed with MeOH and dried under vacuum to give the desired product F as a white solid. (4.2 g, 61 %) Synthesis Example 2
This example illustrates the synthesis of a compound having Formula I, Compou -1 .
Figure imgf000093_0001
A mixture of compound F from Synthesis Example 1 (15g,
72.7mmo), iodobenzene (59g, 289mmol), Cu (3.7g, 59mmol), 18-crown-6 (7.5g), K2CO3 (59g, 0.43) in o-DCB was heated to reflux for 4 hours under N2. The mixture was cooled to ambient temperature and diluted with THF. After filtration, the filtrate was concentrated to a final volume (50ml), added slowly to 500ml Methanol. The precipitate was collected by filtration to give the product (15g, 57%).
Figure imgf000093_0002
Into a RBF (500 ml_) was added compound G (10g, 28mmol), followed by the addition of pyridine (130 ml_) and CCI4 (20ml_). The mixture was cooled to 0 °C and bromine in CCI4 (1 N) was dropwise added The mixture was stirred overnight, added slowly to 500ml Methanol with stirring. The precipitate was collected by filtration to give the product. (12g, 84%)
Figure imgf000094_0001
H
Compound 1-1
To a mixture of H and (E)-4,4,5,5-tetramethyl-2-(4-pentylstyryl)- 1 ,3,2-dioxaborolane (1 .58 g) in toluene (50 mL) was added aqueous Na2CO3 (2M, 1 .27 g, 6 mL of H2O) followed by the addition of Aliquat 336 (0.49 g). The mixture was bubbled with nitrogen for 15 min, then
Pd(PPh3) (55 mg) was added. The mixture was heated at 90 °C (oil bath) for 18 h under a nitrogen atmosphere. After cooling to ambient
temperature, the mixture (green) was poured into MeOH. The solid was filtered off and purified by Silica gel column chromatography to give the product (0.6 g) as a bright yellow solid. The compound structure was confirmed by NMR analysis.
Synthesis Example 3
This example illustrates the synthesis of a compound having
Formula I, Compound I-2.
Figure imgf000094_0002
H Compound I-2 Into a RBF (500 ml) was added compound H (5g, 9.7 mmol) from Example 2, (3-(naphthalen-1 -yl)phenyl)boronic acid (7.25g, 30mmol), followed by the addition of toluene (150 mL). The mixture was purged with N2 for 10 min. Then K2CO3 (6.9g, 50mmole) in the water (30ml_) was added. The mixture was purged with N2 for 10 min. A catalytic amount of Pd(PPh3) (200mg) was added. The mixture was refluxed overnight. After separation of the aqueous phase, THF layer was filtered through silica pad to remove the insoluble materials. The filtrate was concentrated to a final volume of (50ml), added slowly to 500ml methanol with stirring. The precipitate was collected by filtration to give the crude product, which was purified by Silica gel column chromatography (100%Hexane first, then the gradient of CHCI3/Hexane (1/4-1/2) to give the product (6.2g, yield: 85%). The compound structure was confirmed by NMR analysis.
Synthesis Example 4
This example illustrates the synthesis of a compound having Formula I, Compound I-3.
Figure imgf000095_0001
A mixture of compound F (5g, 24.27mmol) from Example 1 , iodo- benzene (5g, 24.51 mmol), Cu (1 .24g), 18-crown-6 (2.5g), K2CO3 in o-DCB was heated to reflux for 4 hours under N2. The mixture was cooled to ambient temperature and diluted with THF. This was filtered,
concentrated, and purified by Silica column chromatography
-1/2)) to give the product (2 g, yield: 30%).
Figure imgf000095_0002
Compound I-3 A mixture of compound J (1 g, 24.27mmol), compound K (1 .14g, 4.25mmol), and K2CO3 in DMF was heated to 90 °C for 4 hours under N2. The mixture was cooled to ambient temperature and diluted with water. This was filtered to give the crude product as a yellow solid. This was purified by Silica gel column chromatography (CHCIs/Hexane (1/4-1/2)) to give the product (1 .5g, yield: 82%). The compound structure was confirmed by NMR analysis.
Synthesis Example 5
This example illustrates the synthesis of a compound having Formula I, Compound I-4.
Figure imgf000096_0001
H Compound I-4
Into a RBF (25 ml_) was added compound H (0.2g, 0.39 mmol), (4- (diphenylamino)phenyl)boronic acid (0.39g, 1 .36 mmol), followed by the addition of toluene (20 ml_). The mixture was purged with N2 for 10 min. Then Na2CO3 (0.16, 1 .54mmole) in water (30ml_) was added. The mixture was continued to purge with N2 for 10 min. A catalyst amount of Pd(PPh3) (20mg) was added. The mixture was refluxed overnight. After separation of the aqueous phase, the THF layer was filtered through Silica pad to remove the insoluble materials. The filtrate was concentrated to a final volume (50ml), added slowly to methanol (500ml_). The precipitate was collected by filtration to give the crude product, which was purified by Silica gel column chromatography (100%Hexane to CHCI3/Hexane (1/4-1/2)) to give the product (0.2g, yield: 80%) The compound structure was confirmed by NMR analysis.
Synthesis Example 6 This example illustrates the synthesis of a compound having Formula I, Compound 1-18.
a. Synthesis of N-(3,5-dimethylphenyl)-[1 ,1 ':3',1 "-terphenyl]-3-amine
Figure imgf000097_0001
3-bromo-3'-phenylbiphenyl (10 g, 31 .53 mmol), 3,5-dimethylanaline (4.09 g, 33.10 mmol), tris (dibenzylideneacetone) dipalladium (577 mg, 0.63 mmol), tri-tert-butylphosphine (255 mg, 1 .26 mmol) and anhydrous toluene (250 ml) were taken in a 500 ml_ flask under nitrogen and stirred for 5 min. To this solution sodium t-butoxide (3.33 g, 34.68 mmol) was added in small portions with stirring at room temperature and the resulting solution allowed to stir at 80 °C for 1 hour. Reaction was shown complete by UPLC analysis. After cooling, the mixture was filtered and passed through a layer of Silica gel eluted with toluene. The solvent was removed and the residue was dissolved in chloroform and hexane (1/2) and separated on a Silica gel column eluted with chloroform/hexane gradient. Fractions were identified by UPLC and collected. The solvent was evaporated to give 7.19 g product as colorless thick oil in 97% purity; 4.23 g material was recovered with about 80% purity. The structure of the product was confirmed by NMR analysis.
b. Synthesis of N2,N7-di([1 ,1 ':3',1 "-terphenyl]-3-yl)-N2,N7-bis(3,5- dimethylphenyl)-5,10-diphenyl-5,10-dihydroindolo[3,2-b]indole-2,7- diamine, Compound 1-18.
Figure imgf000097_0002
2,7-dibromo-5,10-diphenyl-5,10-dihydroindolo[3,2-b]indole (1 .60 g, 3.04 mmol), N-(3,5-dimethylphenyl)-[1 ,1 ':3',1 "-terphenyl]-3-amine (2.98 g, 6.22 mmol), tris (dibenzylideneacetone) dipalladium (56 mg, 0.06 mmol), tri-tert-butylphosphine (25 mg, 0.12 mmol) and anhydrous toluene (62 ml) were taken in a 200 mL flask under nitrogen and stirred for 5 min. To this solution sodium t-butoxide (0.64 g, 6.68 mmol) was added in small portions with stirring at room temperature and the resulting solution allowed to stir at 90 °C overnight. Reaction was shown complete by UPLC analysis. After cooling the crude product was filtered off, this was dissolved in hot toluene and passed through a layer of silica gel eluted with toluene. Filtrate was reduced in volume whereupon product recrystallized. Crystals were collected and rinsed with toluene (20mL) and methanol (20mL). Recrystallized again from toluene under heating gave 576 mg product in 99.1 % purity by UPLC analysis. The product structure was confirmed by NMR analysis.
Synthesis Example 7
This example illustrates the synthesis of a compound having
Formula I, Compound 1-17.
Step 1 : 1 -chloro-3-[2-(3-chloro-2-nitro-phenyl)ethynyl]-2- nitrobenzene (J).
Figure imgf000098_0001
To a stirred solution of 1 -chloro-3-iodo-2-nitrobenzene (I; 25 g, 88.2 mmol) in triethylamine (250 mL) was added pyridine (29 mL, 352.8 mmol). The reaction mixture was purged with argon gas for 20 minutes.
Tetrakis(triphenylphosphine)palladium(0) (4.00 g, 3.46 mmol), copper (I) iodide (1 .34 g, 7.04 mmol) and N, /V-dimethylaminopyridine (1 .07 g, 8.76 mmol) were added and the reaction mixture was purged with argon gas for another 15 minutes. Acetylene gas was bubbled through the reaction mixture with stirring at room temperature for 7 hours. After removal of volatiles by rotary evaporation, the reaction mixture was diluted with ethyl acetate (500 mL) and filtered. The filtrate was washed with water (500 mL) and brine (500 mL). The organic layer was dried over anhydrous sodium sulfate, filtered and concentrated under reduced pressure. The crude compound was purified by column chromatography using silica gel (60- 120 mesh), eluting with 0 - 10% ethyl acetate in petroleum ether. The product isolated from the chromatography was washed with ethanol (40 mL) to afford the desired product (10.8 g, 73% yield) as brown solid that was determined to be 99.4% pure by UPLC analysis.
Step 2: -bis(3-chloro-2-nitro-phenyl)ethane-1 ,2-dione (K)
Figure imgf000099_0001
j K
To a stirred solution of 1 -chloro-3-[2-(3-chloro-2-nitro- phenyl)ethynyl]-2-nitrobenzene (12.5 g, 37.21 mmol) in dichloromethane (375 mL) was added a solution of potassium permanganate (23.5 g, 148.7 mmol) in water (375 mL), tetrabutylammonium bromide (1 .2 g, 3.72 mmol) and acetic acid (19 mL). The reaction mixture was heated at reflux for 5 hours, cooled to room temperature, poured in to saturated sodium bisulfite solution (400 mL) and stirred with dichloromethane (500 mL) for 30 minutes. The organic layer was separated, washed with water (400 mL), brine (400 mL) and concentrated under reduced pressure. The crude product was washed with ethanol (40 mL) to afford the desired product (8.5 g, 62% yield) as pale yellow solid that was determined to be 91 .8% pure by UPLC analysis.
Step 3: -dichloro-5,10-dihydroindolo[3,2-b]indole (L)
Figure imgf000099_0002
A mixture of tin(ll) chloride dihydrate (52.1 g, 231 mmol) in acetic acid (300 mL) and aqueous 6/V hydrochloric acid (300 mL) was heated to 120 °C for 1 h with stirring. The mixture turned to clear solution. 1 ,2-bis(3- chloro-2-nitro-phenyl)ethane-1 ,2-dione (10.0 g, 27.18 mmol) was added portion wise over a period of 30 minutes at 120 °C. The reaction mixture was heated at reflux for 1 h. The reaction mixture was cooled to room temperature and the resulting precipitate was filtered, washed with water (200 mL) and dried to get crude compound that was washed with ethanol (25 mL) and dried under vacuum to afford the desired product (4.6 g, 62% yield) as a pale yellow solid that was determined to be 98.6% pure by UPLC analysis.
Step 4: -dichloro-5,10-diphenyl-indolo[3,2-b]indole (M)
Figure imgf000100_0001
M
To a stirred solution of 1 ,6-dichloro-5,10-dihydroindolo[3,2-b]indole (100 mg, 0.364 mmol) in 1 ,2-dichlorobenzene (2 mL) were added bromobenzene (343 mg, 2.19 mmol) and potassium carbonate (302 mg, 2.18 mmol). The reaction mixture was purged with argon gas for 30 minutes, then copper powder (20 mg, 0.298 mmol), and 1 ,4,7,10,13,16- hexaoxacyclooctadecane (18-crown-6; 36 mg, 0.134 mmol) were added and the reaction mixture was again purged with argon for 15 minutes. The reaction mixture was then heated under reflux for 40 hours, cooled to room temperature, and filtered. The filtrate was diluted with ethyl acetate (10 mL), washed with water (5 mL) and brine (5 mL), dried over anhydrous sodium sulfate and concentrated under reduced pressure. The crude product was purified by washing with 50% ethanol in n-pentane (2 mL) to afford the desired product (0.09 g, 58% yield) as a brown solid that was determined to be 95.0% pure by UPLC analysis. The structure was confirmed by NMR spectrometry and mass spectroscopy.
Step 5
Figure imgf000101_0001
Compound 1-17
In this step, Compound M was treated with phenyl boronic acid, Aliquat®336, and K2CO3 in toluene. This was refluxed for 16 hours.
Compound 1-17 was formed in 12% yield.
Synthesis Example 8
This example illustrates how the preparation of a compound having Formula I, Compound I-28, could be carried out.
The compound will be made starting with Compound M from Synthesis Example 7, and treating with the pinacol ester of the appropriate boronic acid, as shown in the scheme below.
Figure imgf000101_0002
I-28
In the above scheme, "Bpin" indicates the pinacol ester of the boronic acid; "dba" is dibenzylideneacetone; "Cy" is cydohexyl; and "KOAc" is potassium acetate.
Synthesis Example 9
This example illustrates the preparation of a compound having Formula I, bis-(2-napthyl)-indoloindole, I-26.
Figure imgf000102_0001
A mixture of 2,7-dibromo-5,10-diphenyl-5,10-dihydro- indolo[3,2-b]indole (0.3 g, 0.58 mmole), 2-naphthylboronic acid (0.25 g, 1 .45 mmole), cesium carbonate (1 .51 g, 4.64 mmole), and Pd(PPh3)4 (13 mg, 0.012 mmole) in 1 ,4-dioxane was heated at 100C for 22 hours under nitrogen atmosphere. After that reaction mixture cooled down, solids filtered and washed with water and dried. Resulting solids were dissolved in dichloromethane (350 ml) and passed through a plug of silica gel washing with dichloromethane. Solvent was evaporated to volume 100 ml and precipitated product collected by filtration to give 0.151 g of 2,7-bis-(2-naphthyl)-5,10- diphenyl-5,10H-indolo[3,2-b]indole with purity 99.8% by UPLC. MS: MH+ = 612. UV-VIS: max = 387 nm in toluene. Photoluminescence (toluene): Xmax: 437 nm.
Synthesis Example 10
This example illustrates the preparation of a compound having Formula VIII, Compound VIII-2.
tep a.
Figure imgf000102_0002
1 2
260g of 4,4'-dinitro-2,2'-stilbenedisulfonic acid was added in portionwise to 1408g of CISO3H at <20°C.After stirring for 1 h at 45~55°C, Thionyl chloride(352.7ml) was added dropwise . The resulting mixture was stirred for 12hrs at 45~55°C. Quenched to 15kg crush ice. Filtered and washed with H2O and ethanol. Slurry with refluxing THF and dried.
Resulted in yellow solid (188g, yield: 66.6%).
Step b.
Figure imgf000103_0001
1535ml of 45% hydroiodic acid were added into the suspension of 84g of 4,4'-dinitrostilben-2,2'-disulfochloride in 2000nl of acetic acid at 80- 100°C. The resulting reaction mixture was kept at this temperature for extra 9 hours and was allowed to stand at 20°C for 12 hours. Then the precipitated from the reaction was filtered, and treated with water solution of sodium hydrosulfite, washed and dried(no amounts are indicated for water or sodium hydrosulfite). The yield of 4,4'-dinitrostilben-2,2'-dithiol was 51g(85%).
364g of Bromine was added into the suspension of 4,4'- dinitrostilben-2,2'-dithiol(1 14g) in 2250ml of acetic acid at 80-100°C. The resulting reaction mixture was kept at this temperature for extra 48 hours. Then the precipitated from the reaction was filtered, and treated with water solution of sodium hydrosulfite, washed with acetone and 5%NaHCO3 , slurried with THF and dried(no amounts are indicated for water or sodium hydrosulfite). Afford 98g of product.
Step d.
Figure imgf000104_0001
1500ml of Cone. HCI was added dropwise into the suspension of 4,4'-dinitrobenzothieno(3,2-b)benzothiophene(98g) and Tin(285g) in 1750ml of acetic acid at 80-100°C. The resulting reaction mixture was kept at this temperature for extra 12 hours. After addindg 1000ml 6N HCI, the precipitated from the reaction was filtered, and treated with water and 10%K2CO3 .Extracted with refluxing THF twice, recrystallized in THF to get 43g of 2,7-diaminobenzothieno(3,2-b)benzothiophene(yield: 53%). tep e.
Figure imgf000104_0002
2. Reflux
To an ice-cold mixture of 2,7-diaminobenzothieno(3,2- b)benzothiophene(lg), ethanol(30ml) and sulfuric acid (4ml) was added sodium nitrate solution(1 .3g of in 10ml H2O) below 5°C. After the mixture was stirred for 3 hours, Aqueous potassium lodide(6.2g) in 40ml H2O was added at 0~25°C, stirred for 6hrs at 25°C, the resulting mixture was refluxed for 5hrs.
Sodium hydrogen sulfite was added to reduce liberated iodine. The resulting precipitate was collected by filtration , washed with methanol and refluxing THF. The yield was 1 .3g (71 %)
Step e.
Figure imgf000105_0001
To a mixture of intermediate 6 (1 .0 g, 2.03 mmol) and boronic acid 7 ( 2.02 g, 8.13 mmol) in toluene (~ 30 ml_) was added 2M Na2CO3 (1 .1 g, 10 mmol, 5 ml_ of H2O) followed by the addition of phase-transfer agent Aliquat336 (0.41 g, 1 .0 mmol). The mixture was bubbled with nitrogen for 15 min. Then Pd(PPh3) (47 mg, 0.04 mmol) was added. The mixture was heated at 90 °C (oil bath) for 3 days under a nitrogen atmosphere. After cooling down the mixture was poured into MeOH. The solid was filtered off and washed with diluted HCI, H2O, MeOH to give a crude: 0.82 g, brown solid. The crude was re-dissolved in CHCI3 (not completely dissolved), passed through a Florisil column, rinsed with Hex / CHCI3 5:1 , 4:1 , 3:1 , 2:1 , 1 :1 to CHCI3. The pure fractions were collected and concentrated, hexane was added. The solid was filtered and rinsed with hexane to give Compound VIII-2, 0.42 g, 32%, as a pale yellow solid. The structure was confirmed by NMR.
Synthesis Example 1 1
This example illustrates the preparation of a compound having Formula I, Compound 1-19, and the corresponding polymer having Formula II, Compound 11-1 .
Figure imgf000106_0001
a. Synthesis of 5,10-bis(2-ethylhexyl)-5,10- dihydroindolo[3,2-b]indole, Compound 1-19.
Sodium hydride (60% dispersion in mineral oil, 4g, 0.1 mole) was stirred in octane under nitrogen for 5 minutes and then sodium hydride allowed to precipitate. Octane decanted and activated sodium hydride was transferred to a suspension of 5,10-dihydro- indolo[3,2-b]indole (7.5g, 36.4 mmole) in dry DMF (100 ml) followed by addition of 2-ethylhexylbromide (17.6 g, 91 mmole). The mixture was stirred for 10 hours under nitrogen atmosphere at ambient temperature, after that the product was precipitated by adding 100 ml of methanol, product collected by filtration, washed with methanol and dried. Yield 12g (27.9 mmole, 77%). 1 H-NMR (CDCI3, 500 MHz): 0.84 (t, J=7 Hz, 6H), 0.90 (t, J=7 Hz, 6H), 1 .18 - 1 .51 (m, 16H), 2.12 - 2.24 (m, 2H) 4.26-4.46 (m, 4H), 7.16 (t, J=7 Hz, 2H), 7.24 - 7.34 (m, 2H), 7.44 (d, J=8 Hz, 2H), 7.84 (d, J=8 Hz, 2H). MS: 431 (MH+). UV- VIS: max = 371 , 356, 327, 262, 204 nm in acetonitrile-water 1 :1 . b. Synthesis of monomer - 2,7-dibromo-5,10-bis-(2-ethylhexyl)-5,10- dihydroindolo[3,2-b]indole.
To a stirred solution of 5,10-bis-(2-ethylhexyl)-5,10- dihydroindolo[3,2-b]indole (9.0 g, 20.9 mmole) in dichloromethane (100 ml) N-bromosuccinimide (7.81 g, 43.9 mmole, 2.1 equiv.) was added at once and the reaction mixture stirred for 20 minutes at room temperature. After that the reaction mixture was quenched with acetone (10 ml), passed through a plug of silica washing with dichloromethane. Solvent evaporated using rotary evaporator, the residue redissolved in toluene and precipitated by addition of methanol. The product was collected by filtration. Yield 10 g (17 mmole, 81 %). 1H-NMR (CDCI3, 500 MHz): 0.83 (t, J=7 Hz, 6H), 0.89 (t, J=7Hz, 6H), 1 .15 - 1 .48 (m, 16 H) 2.02 - 2.17 (m, 2H) 4.25 (m, 4H) 7.25 - 7.27 (m, 2H) 7.55 (d, J=2 Hz, 2H) 7.63 (d, J=8 Hz, 2H). MS: 589 (MH+). UV-VIS: Xmax = 381 , 365, 339, 276 nm in acetonitrile - water 1 :1 .
c. Synthesis of poly(5,10-bis(2-ethylhexyl)-5,10-dihydroindolo[3,2- b]indole), Compound 11-1 .
A mixture of bis(1 ,5-cyclooctadiene)nickel (0.55g, 2 mmole),
2,2'-dipyridyl (0.312g, 2 mmole) and 1 ,5-cyclooctadiene (0.216g, 2 mmole) in toluene (20 ml) and dimethylformamide (10 ml) was stirred at 60°C for 45 minutes under nitrogen atmosphere. After that a solution of 2,7-dibromo-5,10-bis(2-ethylhexyl)-5,10-dihydroindolo[3,2- b]indole (0.563 g, 0.96 mmole) and 4-bromobiphenyl (1 1 mg) in 10 ml of toluene was added at once and the reaction mixture was stirred at 60°C for 3 hours. After that reaction cooled to room temperature and poured into methanol (200 ml) and cone, hydrochloric acid (15 ml) with rapid stirring. Stirred for 30 min. Crude polymer was filtered and washed with methanol and toluene. Solids dissolved in dichloromethane and filtered through a plug of silica washing with dichloromethane. Solvents evaporated to give the product with bright blue luminescence in toluene solution. Gel permeation chromatography in tetrahydrofuran, Mw = 4400. Polydispersity 1 .3. UV-VIS: Xmax = 435, 367, 296 nm in toluene.
Synthesis Example 12.
This example illustrates the preparation of a polymer having Formula II, Compound 11 -3.
Figure imgf000108_0001
A mixture of 2,7-dibromo-5,10-bis-(2-ethylhexyl)-5,10- dihydroindolo[3,2-b]indole (0.546 g, 0.93 mmole), (4,4,5,5-tetramethyl- 1 ,2,3-dioxaborolane-1 ,4-diyl)-2,5-dihexylphenylene (0.462 g, 0.93 mmole), Pd2(dba)3 (0.045 g, 0.037 mmole), triphenylphosphine (0.037 g, 0.093 mmole), potassium phosphate (0.591 g, 2.79 mmole), aliquat 336 (0.2 g) in water (2 ml) and toluene (20 ml) was purged with nitrogen for 30 min and then heated to 100C overnight. Reaction mixture was cooled down, diluted with 100 ml of toluene and organic phase separated. Sodium diethyldithiocarbamate (10 equivalents, 2g) was added to toluene solution, the resulting mixture stirred for an hour and passed through filter filled with silica gel washing with toluene and dichloromethane. Toluene was evaporated on rotary evaporator to give 225 mg of crude polymer. Additional purification on column filled with basic alumina and silica gel followed by evaporation of solvents, redissolving polymer in 15 ml of toluene and precipitation into methanol afforded 20 mg of Compound 11 -3. Molecular weight by GPC - 13.2 KDa. UV-vis (toluene), max: 348 nm. Photoluminescence (toluene): max: 424 nm.
Synthesis Example 13
This example illustrates the preparation of a compound having Formula I, Compound I-20, and the corresponding polymer,
a. Synthesis of 5,10-bis-(9-heptadecyl)-5,10- dihydroindolo[3,2-b]indole, Compound I-20.
Figure imgf000109_0001
Sodium hydride (60% dispersion in mineral oil, 0.57g, 14 mmole) was stirred in octane under nitrogen and then allowed to precipitate. Octane decanted and activated sodium hydride was transferred to a suspension of 5,10-dihydro-indolo[3,2-b]indole (0.89 g, 4.3 mmole) in dry DMF (18 ml) and 52% purity 9-heptadecyl tosylate (10 g). The mixture was stirred overnight under nitrogen atmosphere. After that the mixture was diluted with methanol (20 ml), solvent decanted and the residue subjected to short column filled with silica gel washing with toluene. Solvent was distilled off using rotary evaporator and the residue was subjected to the second column filled with silica gel using hexanes as eluent. Solvent was distilled off using rotary evaporator to give 2.7 g of the product as white solids. UV-VIS: ηΐ3χ = 374 nm in toluene. Photoluminescence (toluene): max: 404 nm. b. Synthesis of polymer, Compound II-5.
A mixture of bis-(1 ,5-cyclooctadiene)nickel (0.396 g, 1 .44 mmole), 2,2'-dipyridyl (0.225 g, 1 .44 mmole) and 1 ,5-cyclooctadiene (0.156 g, 1 .44 mmole) in toluene (15 ml) and dimethylformamide (15 ml) was stirred at 60°C for 45 minutes under nitrogen atmosphere. After that a solution of 2,7-dibromo-5,10-bis-(9-heptadecyl)-5,10- dihydroindolo[3,2-b]indole (0.600 g, 0.713 mmole) in 15 ml of toluene was added at once and the reaction mixture was stirred at 60°C for 3 hours. After that reaction cooled to room temperature and poured into methanol (300 ml) and cone, hydrochloric acid (15 ml) with rapid stirring and stirred for 1 hour. Precipitate filtered, dissolved in toluene and passed through a column filled with layers of silica gel and basic alumina washing with toluene. Solvent evaporated on rotary evaporator, the residue redissolved in toluene and precipitated by addition of acetone. Solvent decanted, solids were redissolved in toluene and precipitated into methanol. Yield - 270 mg (56%). Gel permeation chromatography in tetrahydrofuran, Mw = 482 KDa. Polydispersity 3.04. UV-VIS: Xmax = 442 nm in toluene. Photoluminescence (toluene): max: 471 nm.
Synthesis Example 14
This example illustrates the preparation of a polymer having Formula II, Compound II-6.
Figure imgf000110_0001
A mixture of bis-(1 ,5-cyclooctadiene)nickel (0.231 g, 0.84 mmole), 2,2'-dipyridyl (0.131 g, 0.84 mmole) and 1 ,5-cyclooctadiene (0.091 g, 0.84 mmole) in toluene (8 ml) and dimethylformamide (5 ml) was stirred at 60°C for 45 minutes under nitrogen atmosphere. After that a solution of 2,7-dibromo-5,10-bis-(9-heptadecyl)-5,10- dihydroindolo[3,2-b]indole (0.35 g, 0.416 mmole) and 4- bromobiphenyl (9.5 mg, 0.041 mmole) in 8 ml of toluene was added at once and the reaction mixture was stirred at 60°C for 3 hours. After that reaction cooled to room temperature and poured into methanol (300 ml) and cone, hydrochloric acid (15 ml) with rapid stirring and stirred for 1 hour. Precipitate filtered, dissolved in toluene and passed through a column filled with layers of silica gel and basic alumina washing with toluene. Solvent evaporated on rotary evaporator till volume 20 ml and 20 ml of acetone added to the solution to precipitate the product. Solids were collected by filtration, redissolved in toluene and precipitated into methanol to give 140 mg of
Compound II-6. Gel permeation chromatography in tetrahydrofuran, Mw = 73 KDa. Polydispersity 2.12. UV-VIS: max = 443 nm in toluene. Photoluminescence (toluene): max: 472 nm.
Synthesis Example 15
This example illustrates the preparation of a polymer having Formula II, Compound II-7.
Figure imgf000111_0001
A mixture of 2,7-dibromo-5,10-bis-(9-heptadecyl)-5,10- dihydroindolo[3,2-b]indole (0.45 g, 0.535 mmole), (4,4,5,5- tetramethyl-1 ,2,3-dioxaborolane-1 ,4-diyl)-2,5-dihexylphenylene (0.267 g, 0.535 mmole), Pd(PPh3) (0.031 g, 0.0268 mmole), cesium carbonate (0.538 g, 1 .605 mmole), aliquat 336 (0.2 g) in water (2 ml) and toluene (20 ml) was purged with nitrogen for 30 min and then heated to 100C for 10 hours. After that the reaction mixture was cooled to room temperature, diluted with toluene (100 ml), washed with water. Organic phase separated and passed through filter filled with silica gel washing with toluene. The residue after evaporation of toluene was subjected to an additional column purification using basic alumina and silica gel washing with toluene. Toluene distilled off and dried in vacuum to give 370 mg of amorphous Compound II-7. Gel permeation chromatography in tetrahydrofuran, Mw = 16 KDa. UV-VIS: max = 348 nm in toluene. Photoluminescence (toluene): max: 421 nm.
Synthesis Example 16
This example illustrates the preparation of a copolymer having
Formula VI, Compound VI-2.
Figure imgf000112_0001
Pd(PPh3)4/Cs2C03
toluene/water
aluquat 336
Figure imgf000112_0002
A mixture of 2,7-dibromo-5,10-diphenyl-5,10- dihydroindolo[3,2-b]indole (0.5 g, 0.969 mmole), 2,7-bis(4,4,5,5- tetramethyl-1 ,3,2-dioxaborolan-2-yl)-9,9-di-n-octylfluorene (0.623 g, 0.969 mmole), cesium carbonate (0.944 g, 2.907 mmole), aliquat 336 (0.2 g) in water (5 ml) and toluene (50 ml) was purged with nitrogen for 5 min then solution of Pd(PPh3) (6 mg, 0.0048 mmole) in toluene (5 ml) was added and the mixture was purged with nitrogen for additional 30 min and then heated at 100C for 6 hours. After that reaction mixture was cooled down to room temperature and
additional amount of Pd(PPh3) (6 mg, 0.0048 mmole) in toluene (5 ml) added, reaction mixture purged with nitrogen and heated for an additional 8 hours at 100C. Reaction mixture cooled down to room temperature, diluted with 100 ml of toluene, organic phase separated and passed through filter filled with silica gel washing with toluene and dichloromethane. The residue after evaporation of solvents was subjected to purification on column filled with basic alumina and silica gel washing with toluene. Crude product after distillation of eluent was fractionated by dissolving in toluene (20 ml) and addition of acetone (20 ml). Higher molecular weight polymeric fraction was collected by decanting solution, redissolving solids in toluene (20 ml) and precipitation into methanol (200 ml) to give 80 mg of polymeric fraction having higher molecular weight. Gel permeation
chromatography in tetrahydrofuran, Mw = 67 KDa. Polydispersity = 2. UV-VIS: max = 421 nm in toluene. Photoluminescence (toluene): max: 453 nm.
Supernatant was collected, solvent evaporated, the residue redissolved in toluene and precipitated into methanol to give 50 mg of lower molecular weight fraction. Gel permeation chromatography in tetrahydrofuran, Mw = 18 KDa. Polydispersity = 1 ,9. UV-VIS: max = 420 nm in toluene. Photoluminescence (toluene): max: 452 nm.
Synthesis Example 17
This example illustrates the preparation of a compound having
Formula I, Compound 1-21 .
Figure imgf000113_0001
A mixture of 2,7-dibromo-5,10-diphenyl-5,10-dihydro- indolo[3,2-b]indole (3.15 g, 6.1 mmole), 4,4,5,5-tetramethyl-2-[4- [(1 E)-2-phenylethenyl]phenyl]-1 ,3,2-dioxaborolane (4.1 g, 13.4 mmole), cesium carbonate (15.6 g, 48 mmole), and Pd(PPh3)4 (0.69 g, 0.60 mmole) in 1 ,4-dioxane (160 ml) was heated at 94C for 18 hours under nitrogen atmosphere. After that reaction mixture was cooled down, solids were filtered, washed with water and dried to give crude product. This crude material was suspended in hot nitrobenzene, solids filtered and washed with acetone and dried to give 1 .67 g of crude material. This material was sublimed in high vacuum to give 1 .06 g of Compound 1-21 with purity 97% by UPLC. Product is not sufficiently soluble for NMR analysis.
an be made in an analogous way using
Figure imgf000114_0001
Synthesis Example 18
This example illustrates the preparation of a compound having Formula I, Compound 1-12.
Figure imgf000114_0002
A mixture of 2,7-dibromo-5,10-bis-(ortho-terphenyl-yl)-5,10- dihydro-indolo[3,2-b]indole (0.458 g, 0.691 mmole), 4,4,5,5- tetramethyl-2-[4-[(1 E)-2-phenylethenyl]phenyl]-1 ,3,2-dioxaborolane (0.779 g, 2.072 mmole), cesium carbonate (1 .1 17 g, 3.455 mmole), and Pd(PPh3) (46 mg, 0.023 mmole) in 1 ,4-dioxane (100 ml) was heated at 100C for 1 day under nitrogen atmosphere. After that reaction mixture was cooled down, solids were filtered, washed with water and methanol to give crude product. This crude material was dissolved in a mixture of hot chlorobenzene and 1 ,2-dichlorobenzene under nitrogen atmosphere, filtration of hot solution through 0.2 micron filter and collecting precipitate formed upon cooling to ambient temperature. Yield - 50 mg. UV-VIS: max = 406 nm in toluene.
Photoluminescence (toluene): max: 495 nm.
Synthesis Example 19
This example illustrates the preparation of a compound having
F rmula I, bis-dibenzofuranyl indoloindole, Compound I-22.
Figure imgf000115_0001
A mixture of 2,7-dibromo-5,10-diphenyl-5,10-dihydro- indolo[3,2-b]indole (1 g, 1 .937 mmole), 4-(dibenzofuranyl)boronic acid (1 .23 g, 5.81 1 mmole), cesium carbonate (3.16 g, 9.69 mmole), and Pd(PPh3) (132 mg, 0.1 1 mmole) in 1 ,4-dioxane (100 ml) was heated at 100C overnight under nitrogen atmosphere. After that reaction mixture cooled down, solids filtered and washed with water and methanol. The resulting solid material was placed into 250 ml flask and dissolved in 1 ,2-dichlorobenzene heated to 180C.
Crystalline product formed upon cooling the resulting solution to ambient temperature was collected by filtration, washed with dichloromethane and dried in vacuum to give 420 mg of the product with purity >99.9% by UPLC. Product is not sufficiently soluble for NMR. UV-VIS: max = 388 nm in toluene. Photoluminescence
(toluene): Xmax: 436 nm.
Synthesis Example 20
This example illustrates the preparation of a compound having
Formula I, bis-benzocarbazolyl indoloindole, Compound I-23.
Figure imgf000116_0001
A mixture of 2,7-dibromo-5,10-diphenyl-5,10-dihydro- indolo[3,2-b]indole (0.95 g, 1 .84 mmole), 7H-benzo[c]carbazole (1 g, 4.6 mmole), Pd2(dba)3 (0.084 g, 0.092 mmole), and tri-tert-butyl phosphine (0.037 g, 0.184 mmole) in toluene (150 ml) was stirred under nitrogen atmosphere for approximately 1 min followed by addition of sodium tert-butoxide (0.6 g, 6.25 mmol). Reaction mixture was heated at 100C overnight. After that additional amount of Pd2(dba)3 (0.084 g, 0.092 mmole), tri-tert-butyl phosphine (0.037 g, 0.184 mmole) and sodium tert-butoxide (0.6 g, 6.25 mmol) added and the mixture was heated at 100C for 1 day. Mixture was cooled down to ambient temperature, precipitate filtered, washed with water and methanol. This crude product was dissolved in minimal amount of dichloromethane (400 ml) and passed through a filter filled with silica gel and basic alumina washing with dichloromethane. The residue after evaporation of dichloromethane was recrystallized from a mixture of hot chlorobenzene and 1 ,2-dichlorobenzene under nitrogen atmosphere to give 370 mg of the product after filtration and drying in vacuum. 1 H-NMR (CDCI3, 500 MHz): 7.24 - 8.05 (broadened signals due to aggregation, 32H), 8.66 (d, 2H, J = 9.5 Hz), 8.86 (d, 2H, J = 8.5 Hz). UV-VIS: Xmax = 366 nm in toluene. Photoluminescence (toluene): max: 391 nm. Synthesis Example 21
This example illustrates the preparation of a compound having Formula I, bis-(10H-phenoxazin-10-yl)-indoloindole, Compound I-24.
Figure imgf000117_0001
A mixture of 2,7-dibromo-5,10-diphenyl-5,10-dihydro- indolo[3,2-b]indole (1 g, 1 .94 mmole), phenoxazine (0.87 g, 4.84 mmole), Pd2(dba)3 (0.089 g, 0.097 mmole), and tri-tert-butyl phosphine (0.039 g, 0.194 mmole) in toluene (150 ml) was stirred under nitrogen atmosphere for approximately 1 min followed by addition of sodium tert-butoxide (0.558 g, 5.82 mmol). Reaction mixture was heated at 100C overnight. Mixture was cooled down to ambient temperature, precipitate filtered, washed with water and methanol. Crude product was not sufficiently soluble for column chromatography purification. Solids were gradually dissolved within 1 hour in 1 ,2-dichlorobenzene (200 ml) at 180C under nitrogen atmosphere. Product precipitated upon cooling of 1 ,2- dichloromethane solution to ambient temperature (0.8 g after drying in vacuum). Crystallization was repeated one time more using equal amount of 1 ,2-dichlorobenzene (200 ml). Product collected by filtration and dried in vacuum to yield 0.6 g (purity by UPLC 99.63%) of the desired material. Product is not sufficiently soluble for NMR. UV-VIS: max = 356, 324 nm in toluene. Photoluminescence (toluene): max: 433 nm.
Synthesis Example 22
This example illustrates the preparation of a compound having Formula I, bis-(9,9-dimethylfluorenyl)-indoloindole, Compound I-25.
Figure imgf000118_0001
A mixture of 2,7-dibromo-5,10-diphenyl-5,10-dihydro- indolo[3,2-b]indole (1 g, 1 .94 mmole), 9,9-dimethylfluorene-2- pinacolboronate (1 .56 g, 4.87 mmole), cesium carbonate (5.1 g, 15.7 mmole), and Pd(PPh3)4 (45 mg, 0.039 mmole) in 1 ,4-dioxane (50 ml) was heated at 100C for 20 hours under nitrogen atmosphere. After that reaction mixture cooled down, solids filtered and washed with water and dried. Resulting solids were dissolved in dichloromethane (900 ml) and passed through a plug of silica gel washing with dichloromethane. Solvent was evaporated to volume 250 ml and precipitated product collected by filtration to give 0.95 g of crude material that was additionally recrystallized from hot toluene (300 ml) to give 0.68 g of Compound I-25 with purity 99.82% by UPLC. MS: MH+ = 743. UV-VIS: Xmax = 391 nm in toluene. Photoluminescence (toluene): max: 438 nm.
Synthesis Example 23
This example illustrates the preparation of a compound having Formula I, 2-(N-benzocarbazolyl)-7-(N-phenyl-N-1 -napthyl)- indoloindole, Compound I-27.
Figure imgf000119_0001
a. Synthesis of 2-bromo-7-(N-phenyl-N-1 -napthyl)-5,10-diphenyl- indolo[3,2-b]indole.
A mixture of 2,7-dibromo-5,10-diphenyl-5,10-dihydro-indolo[3,2- b]indole (1 .3 g, 2.519 mmole), N-phenyl-N-1 -napthylamine (0.69 g, 3.15 mmole), Pd2(dba)3 (0.056 g, 0.061 mmole), and 1 ,1 '- bis(diphenylphosphino)ferrocene (0.062 g, 0.01 1 mmole) in toluene (100 ml) was stirred under nitrogen atmosphere for approximately 1 min followed by addition of sodium tert-butoxide (0.362 g, 3.78 mmol).
Reaction mixture was heated at 100C overnight. After that reaction mixture cooled down, water (100ml) added and the reaction mixture was stirred in the air for 30 min. Toluene layer separated and passed through a layer of celite, florisil and silica gel washing with toluene (300ml_). Solvent was removed by using rotary evaporator, the residue was redissolved in dichloromethane and evaporated onto celite and purified on silica gel column using hexanes - dichloromethane mixtures as eluent. All fractions containing product combined, eluent evaporated by using rotary
evaporator. The residue after evaporation of eluent - 430 mg (purity 90% by UPLC) was used for the next step without further purification. MS: MH+ = 656. UV-VIS: max = 393 nm in water-acetonitrile.
b. Synthesis of 2-(N-benzocarbazolyl)-7-(N-phenyl-N-1 -napthyl)-- 5,10-diphenyl-indolo[3,2-b]indole , Compound I-27. A mixture of 2-bromo-7-(N-phenyl-N-1 -napthyl)-5,10-diphenyl- indolo[3,2-b]indole (0.43 g, 0.66 mmole), benzocarbazole (0.158 g, 0.73 mmole), Pd2(dba)3 (0.012 g, 0.013 mmole), and tri-tert- butylphosphine (0.062 g, 0.01 1 mmole) in toluene (50 ml) was stirred under nitrogen atmosphere for approximately 1 min followed by addition of sodium tert-butoxide (0.095 g, 0.99 mmol). Reaction mixture was heated at 100C overnight. After that reaction mixture cooled down, water (50ml) added and the reaction mixture was stirred in the air for 30 min. Toluene layer separated and passed through layers of celite, florisil and silica gel washing with toluene. Solvent was removed by using rotary evaporator, the residue was redissolved in dichloromethane and evaporated onto celite and purified on silica gel column using hexanes - dichloromethane mixtures as eluent to give 180 mg of the product. This product was subjected to the second column chromatography purification on silica gel using hexanes - dichloromethane mixtures as eluent to give 55 mg of the product with purity 99.13% by UPLC. 1H-NMR (CDCI3, 500 MHz): 6.83 (dd, 1 H, J = 2; 8.5 Hz), 6.90 - 6.95 (m, 3H), 7.19-7.23 (m, 3H), 7.35 - 7.76 (m, 21 H), 7.83 (d, 2H, J = 7.5 Hz), 7.87 (d, 1 H, J = 9 Hz), 7.90 (t, 2H, J = 9 Hz), 7.99 (d, 1 H, J = 8.5 Hz), 8.06 (d, 1 H, J = 8 Hz), 7.69 (d, 1 H, J = 7.5 Hz), 8.86 (d, 1 H, J = 8.5 Hz). MS: MH+ = 791 . UV-VIS: max = 373 nm in toluene. Photoluminescence (toluene): max: 466 nm.
Synthesis Example 24
This example illustrates the preparation of a compound having Formula VIII, Compound VIII-6.
Step a.
Figure imgf000120_0001
8 Tris(dibenzylidene-acetone)-dipalladiunn(0) (0.72 g, 0.78 mmol) and 1 ,1 '-Bis(diphenylphosphino)-ferrocene (0.87 g, 1 .57 mmol) were dissolved in toluene under N2. The mixture (brown) was stirred at RT for 10 min. Then intermediate 5 from Synthesis Example 10 (15.07 g, 0.056 mmol), bromobenzene (21 .88 g, 0.14 mol) and sodium tert-butoxide (12.92 g, 0.13 mol) were added. The mixture was bubbled with N2 for 15 min., and heated at 100 °C (oil bath) for 20 h. The reaction mixture (brown with solids) was filtered and rinsed with toluene to give D100675-72D-C, 35.12 g, 149%, brown solid, MS contains product and byproducts.
Step b.
Figure imgf000121_0001
Tris(dibenzylidene-acetone)-dipalladium(0) (0.72 g, 0.78
mmol) and 1 ,1 '-Bis(diphenylphosphino)-ferrocene (0.87 g, 1 .57
mmol) were dissolved in toluene under N2. The mixture (purple-red) was stirred at RT for 10 min. Then intermediate 8 (10.0 g, 0.024
mmol), bromobenzene (1 1 .15 g, 0.071 mol) and sodium tert-butoxide (5.46 g, 0.057 mol) were added. The mixture was bubbled with N2 for 15 min. and then heated at 1 10 °C (oil bath) for 20 h. TLC checked product formed. The reaction mixture (brown with solids) was cooled down and poured into MeOH. The solid was filtered off and washed with diluted HCI, H2O, MeOH (2x) to give 72P-C, 7.23 g, yellow solid. 72P-C was re-dissolved in CHCI3 (not completely dissolved), poured into a short column of silica gel (pre-rinsed with CHCI3 with 1 % Et3N), rinsed with CHCI3 (difficulty to dissolve, stirred on the top, ~ 1 .5 L).
The fractions were collected and concentrated, MeOH was added, the solid was filtered to give 72P-1 , 5.2 g, yellow solid. 72P-1 was purified further by 3-zone sublimation to give 72P-2, 4.1 g, yellow solid, HPLC>99%. The structure was confirmed by NMR analysis. Synthesis Example 25
This example illustrates the preparation of a compound having Formula I, Compound 1-29.
Step a. 2-bromo-7-(3-(naphthalen-1 -yl)phenyl)-5,10-diphenyl-4b,5,9b,10- tetrahydroindolo[3,2-b]indole
Figure imgf000122_0001
2,7-Dibromo-5,10-diphenyl-4b,5,9b,10-tetrahydroindolo[3,2-b]indole (5.18 g, 10 mmol), (3-(naphthalen-1 -yl)phenyl)boronic acid (2.60 g, 10.50 mmol), CS2CO3 (13.03g, 40 mmol), and anhydrous toluene (160 ml) were taken in a 500 mL flask under nitrogen and stirred for 5 min. With stirring, the system was purged with nitrogen for 20 min. Pd(PPh3) (231 mg, 0.20 mmol) was added and the system was purged for another 15 min. The reaction was stirred and refluxed under nitrogen for 16 hours. UPLC analysis indicated that the reaction is a mixture of starting 2,7-dibromo- 5,10-diphenyl-4b,5,9b,10-tetrahydroindolo[3,2-b]indole, the mono-coupled 2-bromo-7-(3-(naphthalen-1 -yl)phenyl)-5,10-diphenyl-4b,5,9b,10- tetrahydroindolo[3,2-b]indole and the disubstituted 2,7-bis(3-(naphthalen- 1 -yl)phenyl)-5,10-diphenyl-5,10-dihydroindolo[3,2-b]indole, in a ratio of about 25:50:25. The reaction mixture was passed through a layer of Celit to remove the insoluble material eluted with toluene. The solution was washed with water, aq. HCI (10%, 100 mL), saturated brine and dride with MgSO4. After filtering, the solvent was removed by rotary evaporation and the residue was separated on a Silica gel column eluted with
chloroform/hexane gradient. The product containing fractions were identified by UPLC and collected. The product was obtained as a pale yellow amorphous solid, 4.06g in 99.1 % purity by UPLC analysis. Step b. (E)-2-(4-(4-(tert-butyl)styryl)phenyl)-7-(3-(naphthalen-1 -yl)phenyl)- -diphenyl-5,10-dihydroindolo[3,2-b]indole, Compound I-29.
Figure imgf000123_0001
2-Bromo-7-(3-(naphthalen-1 -yl)phenyl)-5,10-diphenyl-4b,5,9b,10- tetrahydroindolo[3,2-b]indole (2.00 g, 3.12 mmol), E)-2-(4-(4-(tert- butyl)styryl)phenyl)-4,4,5,5-tetramethyl-1 ,3,2-dioxaborolane (1 .19 g, 3.28 mmol), Cs2CO3 (4.07g, 12.51 mmol), and anhydrous toluene (80 mL) were taken in a 200 mL flask under nitrogen and stirred for 5 min. With stirring, the system was purged with nitrogen for 20 min. Pd(PPh3) (72 mg, 0.06 mmol) was added and the system was purged for another 15 min. The reaction was stirred and refluxed under nitrogen for 16 hours. The reaction mixture was passed through a layer of Celit to remove the insoluble material eluted with toluene. The solvent was removed by rotary evaporation and the residue was separated on a Silica gel column eluted with chloroform/hexane gradient. The product containing fractions were identified by UPLC and collected. The solvent was removed and the residue was crystallized from toluene/acetonitrile to give 1 .7g of yellow crystalline solid in 99.9% purity by UPLC analysis.
Synthesis Example 26
This example illustrates the preparation of a compound having Formula I, Compound I-30.
Figure imgf000123_0002
Step a. (E)-2-(4-(tert-butyl)styryl)-4,4,5,5-tetramethyl-1 ,3,2-dioxaborolane
Figure imgf000124_0001
In a dry two-necked round bottom flask were placed catalyst CuCO3 basic (29.36g, 100 mmol) and triphenyl phosphin (1 .70 g, 6.50 mmol) under the nitrogen atmosphere. Afterwards, 250 mL of deionized water was added and reaction mixture was vigorously (800-900 rpm) stirred at ambient temperature for 15 min. The β-borylating reagent
4 ,4,4',4',5,5,5',5'-octamethyl-2,2'-bi(1 ,3,2-dioxaborolane) (18.50 g, 1 10 mmol) was added in one portion and such reaction mixture was stirred at ambient temperature for another 30 min. Starting material 1 -(tert-butyl)-4- ethynylbenzene (15.82 g, 100 mmol) was slowly added into the reaction and the mixture was intensively stirred at 27 °C overnight. The reaction mixture was diluted with brine (350 mL) and extracted with EtOAc (3 x 200 mL). Combined organic layers were again washed with saturated brine (200 mL), dried over Na2SO and organic solvent was removed under the reduced pressure. The crude product was purified with column
chromatography (S1O2; n-hexane/DCM) and crystallized from hexane to give 19 g of white crystalline solid 98% purity by UPLC analysis. The structure was determined with 1 H and 13C NMR analysis.
Step b. (E)-2-(4-(tert-butyl)styryl)-7-(3-(naphthalen-1 -yl)phenyl)-5,10- diphenyl-5,10-dihydroindolo[3,2-b]indole
Figure imgf000124_0002
2-Bromo-7-(3-(naphthalen-1 -yl)phenyl)-5,10-diphenyl-4b,5,9b,10- tetrahydroindolo[3,2-b]indole (2.00 g, 3.12 mmol), (E)-2-(4-(tert- butyl)styryl)-4,4,5,5-tetramethyl-1 ,3,2-dioxaborolane (0.94 g, 3.28 mmol), CS2CO3 (4.07g, 12.51 mmol), and anhydrous toluene (80 ml_) were taken in a 200 ml_ flask under nitrogen and stirred for 5 min. With stirring, the system was purged with nitrogen for 20 min. Pd(PPh3)4 (72 mg, 0.06 mmol) was added and the system was purged for another 15 min. The reaction was stirred and refluxed under nitrogen for 16 hours. The reaction mixture was passed through a layer of Celit to remove the insoluble material eluted with toluene. The solvent was removed by rotary evaporation and the residue was separated twice on Silica gel column eluted with chloroform/hexane gradient. The product containing fractions were identified by UPLC and collected. The solvent was removed and the product was precipitated from toluene (5ml_) into acetonitrile to give 1 .8g of yellow amorphous solid in 99.9% purity by UPLC analysis.
Synthesis Example 27
This example illustrates the preparation of a compound having
Formula I, Compound 1-31 .
Figure imgf000125_0001
Step a. (E)-2-bromo-7-(4-(tert-butyl)styryl)-5,10-diph
dihydroindolo[3,2-b]indole
Figure imgf000125_0002
In dry box, 2,7-dibromo-5,10-diphenyl-5,10-dihydroindolo[3,2- b]indole (7.74 g, 15 mmol), (E)-2-(4-(tert-butyl)styryl)-4,4,5,5-tetramethyl- 1 ,3,2-dioxaborolane (4.51 g, 15 mmol), Cs2CO3 (19.55g, 60 mmol), Pd(PPh3)4 (347 mg, 0.30 mmol) and anhydrous toluene (225 ml_) were taken in a 500 ml_ flask . The reaction was stirred and refluxed under nitrogen for 16 hours. UPLC analysis indicated that the product was formed in about 60% together with unreacted starting dibromide and the disubstituted byproduct in about 20% respectively. The reaction mixture was passed through a layer of Celit to remove the insoluble material eluted with toluene. The solvent was removed by rotary evaporation and 5.2 g of the crude product was used to be separated on Silica gel column eluted with DCM/hexane gradient. The product containing fractions were identified by UPLC and collected. The solvent was removed and the product was crystalized from toluene/ethanol to give 2.8g of yellow crystalline solid in 99.5% purity by UPLC analysis.
Step b. ((E)-2-(3-(9H-carbazol-9-yl)phenyl)-7-(4-(tert-butyl)styryl)-5,10- diphenyl-5,10-dihydroindolo[3,2-b]indole
Figure imgf000126_0001
In dry box, (E)-2-bromo-7-(4-(tert-butyl)styryl)-5,10-diphenyl-5,10- dihydroindolo[3,2-b]indole (1 .37 g, 2.30 mmol), 9-(3-(4,4,5,5-tetramethyl- 1 ,3,2-dioxaborolan-2-yl)phenyl)-9H-carbazole (0.89 g, 2.41 mmol), Cs2CO3 (2.99g, 12.51 mmol), Pd(PPh3) (53 mg, 0.05 mmol) and anhydrous toluene (100 mL) were taken in a 250 mL flask . The reaction was stirred and refluxed under nitrogen for 16 hours. The reaction mixture was passed through a layer of Celit to remove the insoluble material eluted with toluene. The solvent was removed by rotary evaporation and the residue was separated twice on Silica gel column eluted with
DCM/hexane gradient. The product containing fractions were identified by UPLC and collected. The solvent was removed and the product was crystalized from toluene/acetonitrile to give 0.5g of yellow crystalline solid in 99.9% purity by UPLC analysis. Synthesis Example 28
This example illustrates the preparation of a compound having Formula I, Compound 1-32.
Figure imgf000127_0001
To a mixture of 2,7-dibromo-5,10-diphenyl-5,10-dihydro-indolo[3,2- b]indole (1 .5 g, 2.91 mmole), N-(3-carazolyl)-phenyl-N-1 -napthylamine (1 .40 g, 3.64 mmole) and sodium tert-butoxide (0.42 g, 4.37 mmol) in toluene (80 ml) was added a mixture of Pd2(dba)3 (0.055 g, 0.060 mmole) and 1 ,1 '-bis(diphenylphosphino)ferrocene (0.067 g, 0.12 mmole) in toluene (20 ml) with stirring under nitrogen atmosphere. Reaction mixture was heated at 106C overnight. After that reaction mixture cooled down, water (60 ml) added and the reaction mixture was stirred in the air for 1 hour. Toluene layer separated, water phase extracted with toluene, combined toluene solution dried over sodium sulfate and passed through layers of celite, florisil and basic alumina washing with toluene. Solvent was removed by using rotary evaporator, the residue was redissolved in dichloromethane and evaporated onto celite and purified on silica gel column using hexanes - dichloromethane mixtures as eluent. Fractions containing product combined, eluent evaporated by using rotary evaporator. The residue after evaporation of eluent was redissolved in hot toluene and precipitate formed upon cooling to ambient temperature was filtered, washed with toluene and hexanes and dried in vacuum to give 0.52 g of the product with purity 99.17% by UPLC. MS: MH+ = 1 123. UV- VIS: max = 393 nm in toluene. Photoluminescence (toluene): max: 485 nm. Example 1
This example illustrates the photoluminescence of compounds having Formula I.
The compounds were individually dissolved in toluene. The concentration was adjusted such that the optical density of the solution in a 1 -cm quartz cell was preferably in the 0.2-0.4 range, at the excitation wavelengths between 300 and 360 nm. The photoluminescence spectrum was measured with a Spex Fluorolog spectrometer. The results are given in Table 1 below, where "PL" indicates photoluminescence.
Table 1 .
Figure imgf000128_0001
VI-2* 451 46
VI-2** 452 47
* indicates the higher molecular weight polymer from Synthesis Ex. 16.
** indicates the lower molecular weight polymer from Synthesis Ex. 16.
Device Examples
(1 ) Materials
Dopant D1 is shown below
Figure imgf000129_0001
-1 is shown below
Figure imgf000129_0002
ET-2 is lithium quinolate.
ET-3 is a metal quinolate complex.
ET-4 is CsF.
ET-5 is an aryl phosphine oxide.
HIJ-1 and HIJ-2 are hole injection materials which are made from an aqueous dispersion of an electrically conductive polymer and a polymeric fluorinated sulfonic acid. Such materials have been described in, for example, published U.S. patent applications US 2004/0102577, US 2004/0127637, and US 2005/0205860, and published PCT application WO 2009/018009. Host H1 is a diarylanthracene compound
Host H2 is a deuterated diarylanthracene compound
Host H3 is a deuterated indolocarbazole
HTM-1 is a hole transport material which is a fluorene-t arylamine
copolymer
HTM-2 is a hole transport material which is a binaphthyl-triarylamine
polymer
HTM-3 is a hole transport material which is a triarylamine polymer. Such materials have been described in, for example, published US
Application 2013-0082251 .
HTM-4 is an aromatic compound having multiple phenyl groups. The
compound can be made using known C-C coupling techniques. Such materials have been described in, for example, published PCT
Application WO 2015089304.
(2) Device fabrication
OLED devices were fabricated by a combination of solution processing and thermal evaporation techniques. Patterned indium tin oxide (ITO) coated glass substrates from Thin Film Devices, Inc were used. These ITO substrates are based on Corning 1737 glass coated with ITO having a sheet resistance of 30 ohms/square and 80% light
transmission. The patterned ITO substrates were cleaned ultrasonically in aqueous detergent solution and rinsed with distilled water. The patterned ITO was subsequently cleaned ultrasonically in acetone, rinsed with isopropanol, and dried in a stream of nitrogen.
Device Type 1 : Immediately before device fabrication the cleaned, patterned ITO substrates were treated with UV ozone for 10 minutes. Immediately after cooling, an aqueous dispersion of hole injection material was spin-coated over the ITO surface and heated to remove solvent. After cooling, the substrates were then spin-coated with a toluene solution of hole transport material, and then heated to remove solvent. After cooling the substrates were spin-coated with a methyl benzoate solution of the host and dopant, and heated to remove solvent. The substrates were masked and placed in a vacuum chamber. A layer of electron transport material was deposited by thermal evaporation, followed by a layer of electron injection material. Masks were then changed in vacuo and a layer of Al was deposited by thermal evaporation. The chamber was vented, and the devices were encapsulated using a glass lid, dessicant, and UV curable epoxy.
Device Type 2: Immediately before device fabrication the cleaned, patterned ITO substrates were treated with UV ozone for 10 minutes. Immediately after cooling, an aqueous dispersion of hole injection material was spin-coated over the ITO surface and heated to remove solvent. After cooling, the substrates were then spin-coated with a toluene solution of hole transport material, and then heated to remove solvent. After cooling, the workpieces were placed in a vacuum chamber. Layers of the photoactive and host materials, electron transport materials, and the Al cathode were then deposited sequentially by thermal evaporation using the appropriate masks. The chamber was vented, and the devices were encapsulated using a glass lid, desiccant, and UV curable epoxy.
(3) Device characterization
The OLED samples were characterized by measuring their
(1 ) current-voltage (l-V) curves, (2) electroluminescence radiance versus voltage, and (3) electroluminescence spectra versus voltage. All three measurements were performed at the same time and controlled by a computer. The current efficiency of the device at a certain voltage is determined by dividing the electroluminescence radiance of the LED by the current density needed to run the device. The unit is a cd/A. The power efficiency is the current efficiency divided by the operating voltage. The unit is Im/W. The color coordinates were determined using either a Minolta CS-100 meter or a Photoresearch PR-705 meter. Device Example 1
This example demonstrates the fabrication and performance of a device including a photoactive layer with a compound of Formula I having green emission. The device was made as described above for Device Type 1 . Device structure, in order (all percentages are by weight, based on the total weight of the layer):
Glass substrate
Anode: indium tin oxide("ITO") (50 nm)
Hole injection layer: HIJ-1 (50 nm)
Hole transport layer: HTM-2 (20 nm)
Photoactive layer : host H1 and Compound 1-1 (60 nm) with a host/dopant ratio of 13:1
Electron transport layer: ET-3 (10 nm)
Electron injection layer: ET-4 (0.7 nm)
Cathode: Al (100 nm)
The device results are as follows:
Current efficiency = 15.2 cd/A
Quantum efficiency = 6.6%
Power efficiency = 10.5 Im/W
Voltage @ 300 A/m2 = 5.6
Color coordinates according to the CLE. chromaticity scale (Commission Internationale de L'Eclairage, 1931 ):
x = 0.160, y = 0.41 1
Time to reach ½ initial luminance = 96,791 h @1000nits,
20°C.
Device Examples 2-4
These examples demonstrate the fabrication and performance of a device including a photoactive layer with a compound of Formula I having green emission. The devices were made as described above for Device Type 1 .
Device structure, in order (all percentages are by weight, based on the total weight of the layer):
Glass substrate
Anode: ITO (180 nm)
Hole injection layer: HIJ-2 (100 nm) First hole transport layer: HTM-1 (3-5 nm)
Second hole transport layer: HTM-3 (100 nm)
Photoactive layer : host H2 and photoactive dopant (40 nm), the dopant and host/dopant ratio are given below in Table 2 Electron transport layer: ET-1 (20 nm)
Electron injection layer: ET-2 (3.5 nm)
Cathode: Al (100 nm)
The device results are given below in Table 2 Table 2. Device results
Figure imgf000133_0001
Ratio is the weight ratio of host:dopant; CE is the current efficiency; EQE = external quantum efficiency; CIEx and CIEy are the x and y color coordinates according to the CLE. chromaticity scale (Commission Internationale de L'Eclairage, 1931 ); PE is the power efficiency. T80 is the time in hours for a device to reach 80% of the initial luminance at the current density (mA/cm2) given and temperature = 50°C. T70 is the time in hours for a device to reach 70% of the initial luminance at the current density given(mA/cm2) and temperature = 50°C.
Device Example 5
This example demonstrates the fabrication and performance of a device including a photoactive layer with a compound of Formula I as a host material. The device was made as described above for Device Type 1 . Device structure, in order (all percentages are by weight, based on the total weight of the layer):
Glass substrate
Anode: ITO (50 nm)
Hole injection layer: HIJ-2 (51 .5 n m)
Hole transport layer: HTM-2 ( 21 .5nm)
Photoactive layer: Compound I-3, Host H3 and dopant D1 in the weight ratio 17:67:16 (61 nm)
Electron transport layer: ET-3 (10 nm)
Electron injection layer: ET-4 (0.7 nm)
Cathode: Al (100 nm)
The device results are given below in Table 3
Table 3. Device results
Figure imgf000134_0001
CE is the current efficiency; EQE = external quantum efficiency; CIEx and CIEy are the x and y color coordinates according to the CLE. chromaticity scale (Commission
Internationale de L'Eclairage, 1931 ); PE is the power efficiency. T70 is the time in hours for a device to reach 70% of the initial luminance at current density (mA/cm2) = 37.8 and temperature = 20°C
Device Examples 6-1 1
These examples demonstrate the fabrication and performance of devices including a photoactive layer with a compound having Formula I, Compound I-29.
In Device Examples 6-8, the devices were made as described above for Device Type 1 . The device structure was, in order (all percentages are by weight, based on the total weight of the layer):
Glass substrate
Anode: ITO (50 nm)
Hole injection layer: HIJ-2 (100 nm) Hole transport layer: 8:2 (by weight) HTM-3:HTM-4 (100 nm)
Photoactive layer: Host H2: dopant Connpound I-29 in the weight ratios given below (38 nm)
Electron transport layer: ET-1 (20 nm)
Electron injection layer: ET-2 (3.8 nm)
Cathode: Al (100 nm)
In Device Examples 9-1 1 , the devices were made as described above for Device Type 2. The device structure was, in order (all percentages are by weight, based on the total weight of the layer):
Glass substrate
Anode: ITO (50 nm)
Hole injection layer: HIJ-2 (60 nm)
Hole transport layer: HTM-3 (18 nm)
Photoactive layer: Host H2: dopant Compound I-29 in the weight ratios given below (20 nm)
Electron transport layer: 3:2 (by weight) ET-5:ET-2 (20 nm)
Electron injection layer: ET-2 (3.8 nm)
Cathode: Al (100 nm)
The device results are given below in Table 4.
Table 4. Device results
Figure imgf000135_0001
All data at 1000 nits except for lifetest. Ratio is the weight ratio of host:dopant; CE is the current efficiency; EQE = external quantum efficiency; CIEx and CIEy are the x and y color coordinates according to the CLE. chromaticity scale (Commission Internationale de L'Eclairage, 1931 ); V is the voltage at 15 mA/cm2; T95 is the time in hours for a device to reach 95% of the initial luminance at temperature = 50°C and current density of 22 mA/cm2 for Ex. 6-8 and 16.5 mA/cm2 for Ex. 9-1 1.
Device Examples 12-17
These examples demonstrate the fabrication and performance of devices including a photoactive layer with a compound having Formula I, Compound I-30.
Device Examples 12-14 were carried out the same as Device Examples 6-8, except that Compound I-30 was used as the dopant.
Device Examples 15-17 were carried out the same as Device Examples 9-1 1 , except that Compound I-30 was used as the dopant.
The results are given in Table 5.
Table 5. Device results
Figure imgf000136_0001
All data at 1000 nits except for lifetest. Ratio is the weight ratio of host:dopant; CE is the current efficiency; EQE = external quantum efficiency; CIEx and CIEy are the x and y color coordinates according to the CLE. chromaticity scale (Commission Internationale de L'Eclairage, 1931 ); V is the voltage at 15 mA/cm2; T95 is the time in hours for a device to reach 95% of the initial luminance at temperature = 50°C and current density of 22 mA/cm2 for Ex. 12-14 and 16.5 mA/cm2 for Ex. 15-17. Device Examples 18-27
These examples demonstrate the fabrication and performance of devices including a photoactive layer with a compound having Formula I.
The devices were made as described above for Device Type 1 . The device structure was, in order (all percentages are by weight, based on the total weight of the layer):
Glass substrate
Anode: ITO (50 nm)
Hole injection layer: HIJ-2 (40 nm)
Hole transport layer: 6:4 (by weight) HTM-3:HTM-4 (19 nm)
Photoactive layer: Host H2: dopant in the weight ratios given below (38 nm)
Electron transport layer: 3:2 (by weight) ET-5:ET-2 (20 nm)
Cathode: Al (100 nm)
The dopant, hos dopant ratios, and device results are given in
Table 6.
Table 6. Device results
Figure imgf000137_0001
27 1-27 91 :9 4.7 2.4 0.191 0.361 5.3 - -
All data at 1000 nits except for lifetest. Ratio is the weight ratio of host:dopant; CE is the current efficiency; EQE = external quantum efficiency; CIEx and CIEy are the x and y color coordinates according to the CLE. chromaticity scale (Commission Internationale de L'Eclairage, 1931 ); V is the voltage at 15 mA/cm2; T95 is the time in hours for a device to reach 95% of the initial luminance at temperature = 50°C and current density of 22 mA/cm2.
Device Examples 28-30
These examples demonstrate the fabrication and performance of devices including a photoactive layer with a compound having Formula I, Compound 1-21 .
The devices were made as described above for Device Type 2. The device structure was, in order (all percentages are by weight, based on the total weight of the layer):
Glass substrate
Anode: ITO (50 nm)
Hole injection layer: HIJ-2 (100 nm)
Hole transport layer: 8:2 (by weight) HTM-3:HTM-4 (105 nm)
Photoactive layer: Host H2: dopant Compound 1-21 in the weight ratios given below (33 nm)
Electron transport layer: ET-1 (20 nm)
Electron injection layer: ET-2 (3.8 nm)
Cathode: Al (100 nm)
The hos dopant ratio and the device results are given in Table 7.
Table 7. Device results
Figure imgf000138_0001
All data at 1000 nits except for lifetest. Ratio is the weight ratio of host:dopant; CE is the current efficiency; EQE = external quantum efficiency; CIEx and CIEy are the x and y color coordinates according to the CLE. chromaticity scale (Commission Internationale de L'Eclairage, 1931 ); V is the voltage at 15 mA/cm2; T95 is the time in hours for a device to reach 95% of the initial luminance at temperature = 50°C and current density of 16.5 mA/cm2.
Device Examples 31 -40
These examples demonstrate the fabrication and performance of devices including a photoactive layer with a polymer having Formula II or Formula VI.
The devices were made as described for Device Type 1 .
Examples 31 -32 were carried out as in Devices Examples 6-8, but with different dopants. Examples 33-40 were carried out as in Device Examples 18-27, but with different dopants.
The dopants, hos dopant ratio, and the device results are given in Table 8.
Table 8. Device results
Figure imgf000139_0001
* indicates the higher molecular weight polymer from Synthesis Ex. 16 ** indicates the lower molecular weight polymer from Synthesis Ex. 16
All data at 1000 nits. Ratio is the weight ratio of host:dopant; CE is the current efficiency; EQE = external quantum efficiency; CIEx and CIEy are the x and y color coordinates according to the CLE. chromaticity scale (Commission Internationale de L'Eclairage, 1931 ); V is the voltage at 15 mA/cm2.
Device Examples 41 -42
These examples demonstrate the fabrication and performance of devices including a photoactive layer with a compound having Formula VIII, Compound VIII-6.
The examples were carried out the same as Device Examples 6-8, with liquid deposition of the photoactive layer, but with Compound VIII-6. The hos dopant ratio and the device results are given in Table 8. Table 8. Device results
Figure imgf000140_0001
All data at 1000 nits. Ratio is the weight ratio of host:dopant; CE is the current efficiency; EQE = external quantum efficiency; CIEx and CIEy are the x and y color coordinates according to the CLE. chromaticity scale (Commission Internationale de L'Eclairage, 1931 ); V is the voltage at 15 mA/cm2.
Note that not all of the activities described above in the general description or the examples are required, that a portion of a specific activity may not be required, and that one or more further activities may be performed in addition to those described. Still further, the order in which activities are listed are not necessarily the order in which they are performed.
In the foregoing specification, the concepts have been described with reference to specific embodiments. However, one of ordinary skill in the art appreciates that various modifications and changes can be made without departing from the scope of the invention as set forth in the claims below. Accordingly, the specification and figures are to be regarded in an illustrative rather than a restrictive sense, and all such modifications are intended to be included within the scope of invention.
Benefits, other advantages, and solutions to problems have been described above with regard to specific embodiments. However, the benefits, advantages, solutions to problems, and any feature(s) that may cause any benefit, advantage, or solution to occur or become more pronounced are not to be construed as a critical, required, or essential feature of any or all the claims.
It is to be appreciated that certain features are, for clarity, described herein in the context of separate embodiments, may also be provided in combination in a single embodiment. Conversely, various features that are, for brevity, described in the context of a single embodiment, may also be provided separately or in any subcombination. The use of numerical values in the various ranges specified herein is stated as approximations as though the minimum and maximum values within the stated ranges were both being preceded by the word "about." In this manner, slight variations above and below the stated ranges can be used to achieve substantially the same results as values within the ranges. Also, the disclosure of these ranges is intended as a continuous range including every value between the minimum and maximum average values including fractional values that can result when some of components of one value are mixed with those of different value. Moreover, when broader and narrower ranges are disclosed, it is within the contemplation of this invention to match a minimum value from one range with a maximum value from another range and vice versa.

Claims

CLAIMS What is claimed is:
1 . A compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X
Figure imgf000142_0001
wherein:
Ar1 - Ar4, Ar1a and Ar4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl, and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
R3a and R4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
L, L1 and L2 are the same or different at each occurrence and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
X is O, S, or Se;
a and b are the same or different and are an integer from 0-4; c and d are the same or different and are an integer from 0-3; e and f are the same or different and are 0 or 1 ;
g and h are the same or different and are 0 or 1 , with the proviso that g + h > 0;
n is an integer greater than 0; and
s and t are 0 or 1 , with the proviso that s + t > 0 and when s = 1 , a is 0-3, and when t = 1 , b is 0-3.
2. A copolymer having at least one monomeric unit of Formula , Formula V, or Formula XI
Figure imgf000143_0001
Figure imgf000144_0001
Ar1 - Ar4, Ar1a and Ar4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof;
R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl, and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
R3a and R4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
X is O, S, or Se;
a and b are the same or different and are an integer from 0-4;
c and d are the same or different and are an integer from 0-3;
e and f are the same or different and are 0 or 1 ; and
g and h are the same or different and are 0 or 1 , with the proviso that g + h > 0; and
* represents a point of attachment in the copolymer.
3. The compound of Claim 1 having Formula I or Formula II.
4. The compound of Claim 3, wherein R1 is an alkyl group or deuterated alkyl group having 1 -30 carbons.
5. The compound of Claim 3, wherein a > 0 and at least one R3 is alkenylaryl or deuterated alkenylaryl.
6. The compound of Claim 3, wherein a > 0 and at least one R3 is selected from the group consisting of styryl, stilbenyl, phenyl, naphthyl, Formula a1 , substituted derivatives thereof, and deuterated analogs thereof, where Formula a1 is
Figure imgf000145_0001
R5 is the same or different at each occurrence and is selected from the group consisting of D, alkyl, alkoxy, siloxane, silyl, germyl, deuterated alkyl, deuterated alkoxy, deuterated siloxane, deuterated silyl, and deuterated germyl, where adjacent R5 groups can be joined together to form an fused aromatic ring or a deuterated fused aromatic ring;
p is the same or different at each occurrence and is an integer from 0-4;
q is an integer from 0-5;
r is an integer from 1 to 5; and
# indicates a point of attachment.
7. The compound of Claim 3, wherein a > 0 and at least one R3 is an N-heteroaryl group.
8. The compound of Claim 3, wherein a > 0, b > 0, e > 0, f > 0 and R3≠ R4 and Ar1≠ Ar2.
9. The compound of Claim 1 having Formula VIII, wherein
X = S.
10. An organic electronic device comprising an anode, a cathode, and at least one organic active layer therebetween, wherein the organic active layer comprises a compound having Formula I, Formula II, Formula III, Formula VIII, Formula IX, or Formula X or a copolymer having at least one monomeric unit of Formula IV, Formula V, or Formula XI
Figure imgf000146_0001
Figure imgf000147_0001
Figure imgf000147_0002
- Ar4, Ar1a and Ar4a are the same or different and are selected from the group consisting of aryl groups, heteroaryl groups, substituted derivatives thereof, and deuterated analogs thereof; R1 and R2 are the same or different at each occurrence and are selected from the group consisting of alkyl, silyl, germyl, aryl, heteroaryl, and deuterated analogs thereof;
R3 and R4 are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, diarylamino, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, deuterated heteroaryl, and deuterated diarylamino;
R3a and R4a are the same or different at each occurrence and are selected from the group consisting of D, alkyl, alkoxy, silyl, siloxy, siloxane, germyl, aryl, alkenylaryl, aryloxy, heteroaryl, deuterated alkyl, deuterated alkoxy, deuterated silyl, deuterated siloxy, deuterated siloxane, deuterated germyl, deuterated aryl, deuterated alkenylaryl, deuterated aryloxy, and deuterated heteroaryl;
L, L1 and L2 are the same or different at each occurrence and are selected from the group consisting of H, D, halogen, aryl, arylamino, crosslinkable groups, deuterated aryl, deuterated arylamino, and deuterated crosslinkable groups;
X is O, S, or Se;
a and b are the same or different and are an integer from 0-4; c and d are the same or different and are an integer from 0-3; e and f are the same or different and are 0 or 1 ;
g and h are the same or different and are 0 or 1 , with the proviso that g + h > 0;
n is an integer greater than 0; and
s and t are 0 or 1 , with the proviso that s + t > 0 and when s = 1 , a is 0-3, and when t = 1 , b is 0-3; and
* represents a point of attachment in the copolymer.
PCT/US2015/056364 2014-10-31 2015-10-20 Electroactive materials Ceased WO2016069321A2 (en)

Priority Applications (2)

Application Number Priority Date Filing Date Title
KR1020177011304A KR102283559B1 (en) 2014-10-31 2015-10-20 Electroactive materials
US15/518,854 US10193070B2 (en) 2014-10-31 2015-10-20 Electroactive materials

Applications Claiming Priority (8)

Application Number Priority Date Filing Date Title
US201462073561P 2014-10-31 2014-10-31
US201462073543P 2014-10-31 2014-10-31
US201462073408P 2014-10-31 2014-10-31
US201462073424P 2014-10-31 2014-10-31
US62/073,561 2014-10-31
US62/073,424 2014-10-31
US62/073,543 2014-10-31
US62/073,408 2014-10-31

Publications (2)

Publication Number Publication Date
WO2016069321A2 true WO2016069321A2 (en) 2016-05-06
WO2016069321A3 WO2016069321A3 (en) 2016-08-18

Family

ID=55858515

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/US2015/056364 Ceased WO2016069321A2 (en) 2014-10-31 2015-10-20 Electroactive materials

Country Status (3)

Country Link
US (1) US10193070B2 (en)
KR (1) KR102283559B1 (en)
WO (1) WO2016069321A2 (en)

Cited By (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2017177719A1 (en) * 2016-04-15 2017-10-19 京东方科技集团股份有限公司 Organic electroluminescent material and organic electroluminescent device
CN107936038A (en) * 2017-11-22 2018-04-20 北京大学深圳研究生院 A kind of OLED electron transport layer materials and its preparation method and application
WO2018173598A1 (en) * 2017-03-22 2018-09-27 新日鉄住金化学株式会社 Organic electroluminescent element
CN110734453A (en) * 2018-07-18 2020-01-31 北京大学深圳研究生院 A kind of amine derivative and preparation method thereof, organic light emitting diode
CN110734451A (en) * 2018-07-18 2020-01-31 北京大学深圳研究生院 semiconductor materials, preparation method thereof and organic light emitting diode
US11174259B2 (en) * 2017-06-23 2021-11-16 Universal Display Corporation Organic electroluminescent materials and devices
CN114940681A (en) * 2016-11-23 2022-08-26 株式会社Lg化学 Electroactive compounds

Families Citing this family (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
KR102378363B1 (en) * 2014-12-31 2022-03-25 삼성디스플레이 주식회사 Compound and Organic light emitting device comprising same
KR102238701B1 (en) * 2015-02-03 2021-04-08 주식회사 엘지화학 Electroactive material
DE102015103742A1 (en) * 2015-03-13 2016-09-15 Osram Oled Gmbh Organic optoelectronic component and method for producing an organic optoelectronic component
KR102343602B1 (en) * 2015-04-15 2021-12-27 에스에프씨 주식회사 An electroluminescent compound and an electroluminescent device comprising the same
KR102777743B1 (en) * 2018-08-10 2025-03-11 삼성디스플레이 주식회사 Organic electroluminescence device and condensed cyclic compound for organic electroluminescence device
WO2021241882A1 (en) * 2020-05-29 2021-12-02 주식회사 엘지화학 Compound and organic light-emitting device comprising same

Family Cites Families (24)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US6670645B2 (en) 2000-06-30 2003-12-30 E. I. Du Pont De Nemours And Company Electroluminescent iridium compounds with fluorinated phenylpyridines, phenylpyrimidines, and phenylquinolines and devices made with such compounds
US6875523B2 (en) 2001-07-05 2005-04-05 E. I. Du Pont De Nemours And Company Photoactive lanthanide complexes with phosphine oxides, phosphine oxide-sulfides, pyridine N-oxides, and phosphine oxide-pyridine N-oxides, and devices made with such complexes
IL158865A0 (en) 2001-07-18 2004-05-12 Du Pont Luminescent lanthanide complexes with imine ligands and devices made with such complexes
US7166368B2 (en) 2001-11-07 2007-01-23 E. I. Du Pont De Nemours And Company Electroluminescent platinum compounds and devices made with such compounds
JP4299144B2 (en) 2001-12-26 2009-07-22 イー・アイ・デュポン・ドウ・ヌムール・アンド・カンパニー Electroluminescent iridium compounds comprising fluorinated phenylpyridines, phenylpyrimidines, and phenylquinolines, and devices made using such compounds
US6963005B2 (en) 2002-08-15 2005-11-08 E. I. Du Pont De Nemours And Company Compounds comprising phosphorus-containing metal complexes
CA2499364A1 (en) 2002-09-24 2004-04-08 E. I. Du Pont De Nemours And Company Water dispersible polyanilines made with polymeric acid colloids for electronics applications
AU2003275203A1 (en) 2002-09-24 2004-04-19 E.I. Du Pont De Nemours And Company Water dispersible polythiophenes made with polymeric acid colloids
TWI365218B (en) 2003-11-17 2012-06-01 Sumitomo Chemical Co Conjugated oligomers or polymers based on crosslinkable arylamine compounds
US7365230B2 (en) 2004-02-20 2008-04-29 E.I. Du Pont De Nemours And Company Cross-linkable polymers and electronic devices made with such polymers
US7351358B2 (en) 2004-03-17 2008-04-01 E.I. Du Pont De Nemours And Company Water dispersible polypyrroles made with polymeric acid colloids for electronics applications
EP2026975A2 (en) 2006-06-05 2009-02-25 E.I. Du Pont De Nemours And Company Liquid composition for deposition of organic active materials in the field of oled printing
CN101688052A (en) 2007-07-27 2010-03-31 E.I.内穆尔杜邦公司 Aqueous dispersion of conductive polymer comprising inorganic nanoparticles
JP2009054809A (en) * 2007-08-28 2009-03-12 Mitsui Chemicals Inc Organic transistor
JP5252481B2 (en) * 2008-03-31 2013-07-31 国立大学法人広島大学 Light emitting element
JP5252482B2 (en) * 2008-03-31 2013-07-31 国立大学法人広島大学 Light emitting element
KR101212670B1 (en) * 2009-11-03 2012-12-14 제일모직주식회사 Composition for organic photoelectric device, organic photoelectric device using the same and display device comprising the same
KR20110116635A (en) * 2010-04-20 2011-10-26 다우어드밴스드디스플레이머티리얼 유한회사 Novel Organic Electronic Materials and Organic Electroluminescent Devices Employing the Same
TW201204687A (en) 2010-06-17 2012-02-01 Du Pont Electroactive materials
TWI510488B (en) * 2010-09-13 2015-12-01 Nippon Steel & Sumikin Chem Co Organic electroluminescent elements
JP5834015B2 (en) * 2010-10-13 2015-12-16 新日鉄住金化学株式会社 Organic electroluminescence device
KR101789254B1 (en) * 2013-01-18 2017-10-23 삼성전자주식회사 Compound for organic optoelectronic device, organic light emitting diode including the same and display including the organic light emitting diode
KR102167039B1 (en) * 2013-04-10 2020-10-19 삼성디스플레이 주식회사 Compound and organic light emitting device comprising same
CN105981192B (en) 2013-12-13 2018-10-16 E.I.内穆尔杜邦公司 The system that forms the electroactive layer

Cited By (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2017177719A1 (en) * 2016-04-15 2017-10-19 京东方科技集团股份有限公司 Organic electroluminescent material and organic electroluminescent device
US10886475B2 (en) 2016-04-15 2021-01-05 Boe Technology Group Co., Ltd. Organic electroluminescent materials and organic electroluminescent devices
CN114940681A (en) * 2016-11-23 2022-08-26 株式会社Lg化学 Electroactive compounds
US12004419B2 (en) 2016-11-23 2024-06-04 Lg Chem, Ltd. Electroactive compounds
WO2018173598A1 (en) * 2017-03-22 2018-09-27 新日鉄住金化学株式会社 Organic electroluminescent element
JPWO2018173598A1 (en) * 2017-03-22 2020-01-23 日鉄ケミカル＆マテリアル株式会社 Organic electroluminescent device
JP7037543B2 (en) 2017-03-22 2022-03-16 日鉄ケミカル＆マテリアル株式会社 Organic electroluminescent device
US11174259B2 (en) * 2017-06-23 2021-11-16 Universal Display Corporation Organic electroluminescent materials and devices
CN107936038A (en) * 2017-11-22 2018-04-20 北京大学深圳研究生院 A kind of OLED electron transport layer materials and its preparation method and application
CN110734453A (en) * 2018-07-18 2020-01-31 北京大学深圳研究生院 A kind of amine derivative and preparation method thereof, organic light emitting diode
CN110734451A (en) * 2018-07-18 2020-01-31 北京大学深圳研究生院 semiconductor materials, preparation method thereof and organic light emitting diode

Also Published As

Publication number Publication date
KR20170078637A (en) 2017-07-07
US10193070B2 (en) 2019-01-29
US20170229654A1 (en) 2017-08-10
WO2016069321A3 (en) 2016-08-18
KR102283559B1 (en) 2021-07-28

Similar Documents

Publication Publication Date Title
KR102357973B1 (en) Hole transport materials
KR102283559B1 (en) Electroactive materials
JP7258399B2 (en) hole transport material
JP5893011B2 (en) Electroactive materials
US12232413B2 (en) Electroactive materials
WO2018097937A1 (en) Electroactive compounds
JP2014509068A (en) Electroactive compositions for electronic technology applications
JP6821234B2 (en) Electroactive material
JP2013515011A (en) Deuterated zirconium compounds for electronic applications
JP6789594B2 (en) Electroactive material
US20170029362A1 (en) Luminescent compounds
KR102253688B1 (en) Electroactive material
US10862037B2 (en) Electroactive materials
US9276217B2 (en) Electroactive materials
JP2022532201A (en) Electroactive compound

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 15854991

Country of ref document: EP

Kind code of ref document: A2

ENP Entry into the national phase

Ref document number: 20177011304

Country of ref document: KR

Kind code of ref document: A

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 15854991

Country of ref document: EP

Kind code of ref document: A2
