WO2015003723A1

WO2015003723A1 - Substituted 4-proline derivatives as iglur antagonists

Info

Publication number: WO2015003723A1
Application number: PCT/DK2014/050218
Authority: WO
Inventors: Lennart Bunch
Original assignee: Københavns Universitet
Current assignee: Københavns Universitet
Priority date: 2013-07-12
Filing date: 2014-07-11
Publication date: 2015-01-15
Anticipated expiration: 2016-01-12

Abstract

The present invention relates to compounds of Formula (I), combinations and use thereof for disease therapy, or pharmaceutically acceptable salt or solvate thereof, including all tautomers, stereoismers and polymorphs thereof, which are iGluR receptor inhibitors, and hence are useful in the treatment of psychiatric diseases or neurological disorders or a disease or disorder associated with abnormal activities of iGluR receptors.

Description

Title

Substituted 4-proline derivatives as iGluR antagonists

Field of the invention

The present invention relates to a class of substituted pyrrolidine-2- carboxylic acid derivatives as iGluR receptor antagonist, their salt and solvates, pharmaceutical compositions comprising them, their use as medicament and in therapy, and preparation thereof. In particular, the invention relates to a class of substituted pyrrolidine-2-carboxylic acid derivatives as iGluR recep- tor antagonists, which is useful in the treatment of psychiatric diseases or neurological disorders or a disease or disorder associated with abnormal activities of iGluR receptors.

Background

In the mammalian central nervous system (CNS), (S)-glutamate

(Glu) functions as the major excitatory neurotransmitter (Figure l).¹ The glutamatergic neurotransmitter system is involved in a vast number of basic neuro-physiological processes such as memory, cognition, as well as neuronal plasticity and development.^2"9 Thus, psychiatric diseases or neurological dis- orders such as depression,^10"12 anxiety,^13"15 addiction,¹⁶ migraine,¹⁷ and schizophrenia^18"22 may be directly related to disordered glutamatergic neurotransmission. Moreover, elevated synaptic Glu levels or excessive Glu signaling is neurotoxic and will ultimately cause neuronal death.^23"26 Thus, it is believed that neurodegenerative diseases such as Alzheimer's,^27"31 Hunting- ton's,³² amyotrophic lateral sclerosis (ALS),³³ cerebral stroke,³⁴ and epilepsy³⁵ may indeed be the result of a malfunctioning glutamatergic neurotransmitter system which may be reversed by action of small molecule Glu ligands.¹

Once released from the pre-synaptic neuron into the synapse, Glu activates a number of pre- and post-synaptic Glu receptors. On the basis of the pharmacological profile and ligand selectivity the Glu receptors have been grouped in two main classes: the fast acting ligand gated ion channels named the ionotropic Glu receptors (iGluRs), which comprise the AMPA receptors (subunits GluAl-4), kainate (KA) receptors (subunits GluKl-5), and NMDA receptors (subunits GluNl, GluN2A-D and GluN3A-C),³⁶ The second main class is the G-protein coupled metabotropic Glu receptors (mGluRs, subunits mGluRl-8), which produce a slower signal transduction through second messenger systems.

Functional NMDA receptors are tetrameric in structure, formed by the assembly of two heterodimers comprising one GluNl subunit in combina- tion with one of the GluN2A-D subunits.³⁶ The NMDA receptors are blocked (antagonized) by small-molecules acting as glycine antagonists, open channel blockers, non-competitive antagonists or competitive antagonists.³⁸ Within the latter class of NMDA blockers, small molecules such as D-AP5, (#)-CPP, CGS19755, UBP141 and NVP-AAM077³⁹ have been reported to antagonize the GluN2A-D subunits with varying degrees of subunit preference (2-10 fold).³⁸ Furthermore, peptides (e.g. Conantokin G) isolated from the venom of Conus geographus have shown to antagonize GluNl/GluN2B selectively over GluNlGluN2A (100 fold), but with only a 10-fold preference over GluNl/GluN2C and GluNl/2D.⁴⁰

(S)-Glutamate NMDA D-AP5 (R)-CPP CGS 19755 (Glu)

UBP141 NVP-AAM077

Chemical structures of (S)-Glu, NMDA and selected published competitive NMDA antagonists.

Further, disturbances of expression of KA receptors and function of KA receptors has been suggested to be linked to severe neurological- and psychiatric diseases.¹³⁸ Abnormal expression of KA subunit composition (GluK3 and GluK5) in the prefrontal cortex has been observed in schizophrenic subjects,¹³⁹ but also decreased expression of GluK2 and GluK3 from the medial dorsal thalamus to the dorsolateral prefrontal cortex and other cortical regions may be important to the pathophysiology of schizophrenia.¹⁴⁰ Furthermore, two population studies have suggested altered GluK3 expression GRIK3 gene) as a risk factor, ' whereas GluK2 (GRIK2 gene) in one Japanese study came out short.¹⁴³ In bipolar disorder the GluK3 receptor is suggested to play a role,¹⁴⁴ but also intervention of GluK2 may constitute a therapeutic target.¹⁴⁵ In an rodent (rat) model of pain, trigeminal caudal nucleus nerve terminals mainly express GluK2/GluK3 subunits, which evidence that differentiated expression of KA receptor subtypes plays a role at the various stages of pain transmission.¹⁴⁶

To this date only selective antagonists for the GluKl subtype has been reported.

(S)-Glutamate 1 LY466195 UBP310

(Glu) (CNG-10100)

iGluR antagonist 1 (CNG-10100) and examples of selective high- affinity GluKl antagonists LY466195 and UBP310

(ref for UBP310: Dolman, N. P., More, J. C. A., Alt, A., Knauss, J. L, PentikAMinen, O. T., Glasser, C. R., Bleakman, D., Mayer, M. L, Collingridge, G. L, and Jane, D. E. (2007) Synthesis and Pharmacological Characterization of N3-Substituted Willardiine Derivatives: Role of the Substituent at the 5- Position of the Uracil Ring in the Development of Highly Potent and Selective GLUK5 Kainate Receptor Antagonists, J. Med. Chem. 50, 1558-1570).

Hence, there is a strong need present for novel selective antagonists for iGluR or its subtypes such as GluAl-4, GluKl-5, or GluNl-3, which can be used to elucidate the role and function of iGluR receptors under both physiological and pathological conditions. Thus, new antagonists targeting iGluR receptors such as GluAl-4, GluKl-5, or GluNl-3 would therefore be useful in the treatment of disorders and diseases associated with these receptors. In particularly, it would be advantageously to identify antagonists having high affinity and at the same time high specificity to only one receptor or subgroup of receptors. Such compounds would be useful in the characterization of diseases related to these receptors, as well as for the treatment of diseases triggered by activity from or lack of activity from these receptors.

Therefore, the aim of the present invention is to provide improved antagonists having high affinity and selectivity to one or more iGluR receptors such as GluAl-4, GluKl-5, or GluNl-3, preferably one selective iGluR receptor.

Summary of the invention

With this background, it is an object of the present invention in a first embodiment to provide a compound of Formula (I)

and pharmaceutically acceptable derivatives, the tautomers and stereoisomers, and protected compounds tereof, wherein ;

f at least one double bond between two adjacent ringatoms forming the ring system consisting of T¹, T², Z¹, Z², Z³ and optionally Z⁴,

X is C, NH, O or S,

T¹ is C, or CH, T² is C, or CH,

Y is COR¹, substituted or unsubstituted Ci-Cs-alkyleneCOR¹, POCOR¹^, substituted or unsubstituted Ci-C₆-alkylenePO(ORi)₂, S0₂ORi, substituted or unsubstituted

S0₂N(R¹)_2; or Ci-C₆- alkyleneS0₂N(R¹)₂, wherein one or more -CH₂- groups forming the alkylene group may optionally be replaced by -CH=CH- or -C≡C-,

Z¹ is CR², C(R²)₂, N, S, O, or NR³,

Z² is CR², C(R²)₂, N, S, O, or NR³,

Z³ is CR², C(R²)₂, N, S, O, or NR³,

Z⁴ is absent, CR², C(R²)₂, N, S, O, or NR³,

wherein if appropriate the residues Z¹, Z², Z³ and Z⁴, cannot represent adjacent O or S,

R¹ is independently selected from the group comprising H, OR⁴, Ci- Ce-alkyl, C₂-C₆-alkenyl, C₂-C₆-alkynyl, COOR⁴, N(OH)H, or NHR⁴,

R² is independently selected from the group comprising R⁴, O, OR⁴,

Ci-C₆-alkyl OR⁴, halogen, N(OH)H, N(OH)R⁴, NHR⁴, COR⁴, Ci-C₆-alkyl COR⁴, COOR⁴, Ci-C₆-alkyl COOR⁴, CONHR⁴, Ci-C₆-alkyl CO NHR⁴, or S0₂NHR⁴,

R³ is independently selected from the group comprising R⁴, O, OR⁴, or halogen,

R⁴ is independently selected from the group comprising H, Ci-C₆- alkyl, C₂-C₆-alkenyl, C₂-C₆-alkynyl, phenyl, Ci-C₆-alkylphenyl, or saturated or unsaturated C₅- or C₆-cycloalkyl, saturated or unsaturated C₅- or C₆- heterocyclyl, or saturated or unsaturated Ci-C₆-alkyl C₅- or C₆-heterocyclyl, wherein Ci-C₆-alkyl, C₂-C₆-alkenyl, C₂-C₆-alkynyl, phenyl, Ci-C₆-alkylphenyl, or saturated or unsaturated C₅- or C₆-cycloalkyl, saturated or unsaturated C₅- or C₆-heterocyclyl, or saturated or unsaturated Ci-C₆-alkyl C₅- or C₆- heterocyclyl may be substituted with one or more substituents selected from the group comprising Ci-C₆-alkyl, Ci-C₆-alkoxy, aryl, halogen, O, and amine, R¹ may together with Z¹, Z², or Z³ or

Z² may together with Z¹ or Z³, or

Z³ may together with Z⁴,

optionally form if appropriate a saturated or unsaturated C₅- or C₆- cycloalkyl or a 5- or 6-membered heterocyclyl, wherein the saturated or un- saturated C₅- or C₆-cycloalkyl or the 5- or 6-membered heterocyclyl may be substituted with one or more substituents selected from the group comprising R₂, OR₄ or R₄, halogen represents CI, Br, or I, and

with the proviso that Z¹, Z², Z³ and Z⁴ are not all CH, and with the proviso that T¹ and T² are not both C, when R¹ is OH.

In one particular embodiment of the present invention, T¹, T², Y, Z¹, Z², Z³, and optionally Z⁴ represents an aromatic, conjugated, saturated or unsaturated ring system. Thus, compounds comprising Formula (I), wherein

^Q represents compounds of Formula (Ia2), (Ib2), (Ic2), (Id2),

(Ie2),

(1C2),

wherein

X, T¹, T², Y, Z¹, Z², Z³, Z⁴, R¹, R², R³, R⁴ and halogen have the same meaning as defined above are also part of the present invention.

In yet another embodiment of the present invention, the compound of Formula (I) as previously described can comprise additional ringforming structures. Thus, compounds comprising Formula (I), wherein ^Q represents compounds of Formula (Ia3), (Ib3), (Ic3), (Id3), or (Ie3), wherein

R¹ and (Z¹, Z², or Z³),

Z² and Z¹ or Z³), or

Z³ and Z⁴,

form if appropriate a saturated or unsaturated C₅- or C₆-cycloalkyl or a 5- or 6-membered heterocyclyl ring, the heterocyclyl ring containing one, two, three or four heteroatoms selected from the group comprising sulfur, oxygen and nitrogen, and the saturated or unsaturated C₅- or C₆-cycloalkyl or the 5- or 6-membered heterocyclyl ring may be substituted with one or more substituents selected from the group comprising OR₄ or R₄,

X, T¹, T², Y, Z¹, Z², Z³, Z⁴, R¹, R², R³, R⁴ and halogen have the same meaning as defined above, are also part of the present invention.

In particular, in yet a further embodiment, compounds selected from the group consisting of compounds of Formula (I) wherein the 5- or 6- membered ring is selected from the group consisting of pyrrolidine, pyrrole, tetrahydrofuran, furan, thiolane, thiophene, imidazolidine, pyrazolidine, imid- azole, pyrazole, oxazolidine, isoxazolidine, oxazole, isoxazole, thiazolidine, isothiazolidine, thiazole, isothiazole, dioxolane, dithiolane, triazoles, furazan, oxadiazole, thiadiazole, dithiazole, tetrazole, piperidine, pyridine, oxane, pyran, thiane thiopyran, piperazine, diazines, morpholine, oxazine, thiomorpholine, thiazine, dioxane, dioxine, dithiane, dithiine, triazine, trioxane, or tetrazine, and wherein the 5- or 6-membered heterocyclic ring may be substituted with 1 to 3 substituents are comprised by the present invention.

Preferred compounds of the present invention are compounds comprising Formula (I), wherein

X is O or S,

T¹ is C,

T² is C,

Y is COOH,

Z¹ is CH,

Z² is CH,

Z³ is CH,

Z⁴ is absent or CH.

Further, in one embodiment of the invention, compounds of Formula (I), selected from the group consisting of

(2) (2S,4 R)-l-(tert-butoxycarbonyl)-4-(2-carboxyphenoxy)pyrrolidine-2- carboxylic acid,

(3) (2S,4 R)-l-(tert-butoxycarbonyl)-4-(3-carboxyphenoxy)pyrrolidine-2- carboxylic acid,

(4) (2S,4 R)-l-(tert-butoxycarbonyl)-4-(4-carboxyphenoxy)pyrrolidine-2- carboxylic acid, (5) (2S,4£)-4-(2-carboxyphenoxy)pyrrolidine-2-carboxylic acid trifluoroacetic acid,

(6) (2S,4£)-4-(3-carboxyphenoxy)pyrrolidine-2-carboxylic acid hydrochloride,

(7) (2S,4£)-4-(4-carboxyphenoxy)pyrrolidine-2-carboxylic acid hydrochloride,

(16) (2S,4K)- l-(tert-butoxycarbonyl)-4-((2- carboxyphenyl)thio)pyrrolidine-2-carboxylic acid,

(18) (2S,4£)-4-((2-carboxyphenyl)thio)pyrrolidine-2-carboxylic acid trifluoroacetic acid,

(19) (2S,4£)-4-((3-carboxyphenyl)thio)pyrrolidine-2-carboxylic acid,

(20) (2S,4£)- l-tert-butyl 2-methyl 4-((methylsulfonyl)oxy)pyrrolidine- l,2- dicarboxylate,

(25) (2S,4R)-4-(2-(carboxymethyl)phenoxy)pyrrolidine-2-carboxylic acid, (26) (2S,4R)-4-(3-(carboxymethyl)phenoxy)pyrrolidine-2-carboxylic acid,

(27) (2S,4R)-4-((3-carboxynaphthalen-2-yl)oxy)pyrrolidine-2-carboxylic acid,

(28) (2S,4R)-4-((2-carboxynaphthalen- l-yl)oxy)pyrrolidine-2-carboxylic acid,

(29) (2S,4R)-4-((l-carboxynaphthalen-2-yl)oxy)pyrrolidine-2-carboxylic acid,

(30) (2S,4R)-4-(2,4-dicarboxyphenoxy)pyrrolidine-2-carboxylic acid,

(31) (2S,4R)-4-(2-carboxy-4-methylphenoxy)pyrrolidine-2-carboxylic acid,

(32) (2S,4R)-4-(4-acetyl-2-carboxyphenoxy)pyrrolidine-2-carboxylic acid, and (33) (2S,4R)-4-(2-carboxy-6-methylphenoxy)pyrrolidine-2- carboxylic acid, are particularly preferred.

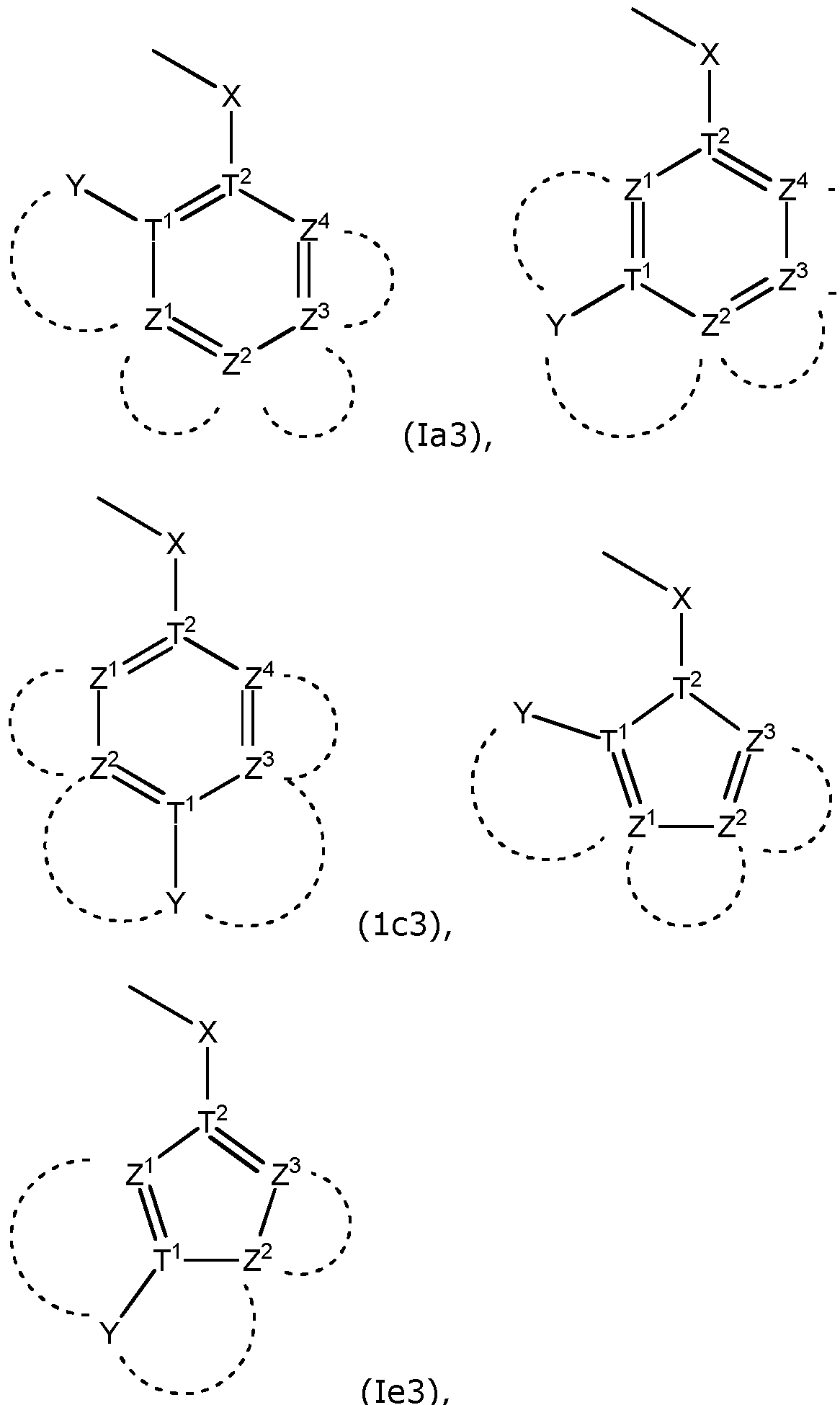

In another particular embodiment, compounds of Formula (I) may have an altered stereochemistry. Thus, compounds of Formula (I) according to

wherein

^Q ,— -, T¹, T², Y, Z¹, Z², Z³, Z⁴, R¹, R², R³, R⁴ and halogen have the same meaning as defined above, are also part of the invention .

Each of the described em bodiments of the present invention is to be construed as disclosing the present invention either individually or in com bination with the other em bod iments.

Detailed description of the invention

In the following the present invention is described in more deta il . All individual features and deta ils can be ind ividually applied to each embodiment and aspect of the compounds of Form ula (I), its prepa rations, its for- m ulations, its methods a nd its use.

The term "Ci-C₆ alkyl", unless otherwise ind icated, denotes a stra ight chain or branched alkyl group with 1, 2, 3, 4, 5 or 6 carbon atoms. Suitable Ci-6 alkyl groups include, for exam ple, methyl, ethyl, propyl (e.g . n-propyl and isopropyl), butyl (e.g n-butyl, iso-butyl, sec-butyl and tert-butyl), pentyl (e.g . n- pentyl), and hexyl (e.g . n-hexyl) .

The term "Ci-C 6 alkenyl", unless otherwise indicated, may be interpreted sim ilarly to the term "alkyl". Alkenyl groups contain at least 1 double bond . Suitable alkenyl groups include ethenyl, propenyl, 1-butenyl, and 2- butenyl .

The term "Ci-C 6-alkynyl", unless otherwise indicated, may be interpreted sim ilarly to the term "alkyl". Alkenyl groups contain at least 1 triple bond .

The term "Ci-C₆-alkylene", unless otherwise indicated, denotes a methylene, ethylene, propylene, butylene, pentylene, or hexylene group, wherein the methylene, ethylene, propylene, butylene, pentylene, or hexylene group optionally may be substituted with R₄, a mine or halogen .

The term "saturated or unsaturated C₅- or C₆-cycloa lkyl", unless otherwise indicated, denotes cyclic ca rbon rings com prising 5 or 6 carbon atoms, wherein either a single or double bond between the m utually adjacent carbon atoms exist. Suitable saturated or unsaturated C₅- or C₆-cycloalkyl groups include cyclopentane, cyclohexa ne, cyclopentene, cyclohexene, cyclopenta- diene, cyclohhexad iene, and phenyl .

The term "5- or 6-membered heterocyclyl", unless otherwise indicated, denotes a heterocyclic com pound, such as a carbocyclyl group, phenyl group, or aryl residue, having atoms of at least two different elements as members of its ring. Suitable ring atoms in heterocyclic compound may be C, N, S, or O. Heterocyclic compounds according to the present invention may contain 3, 4, 5, 6, 7, 8 or even more rings atoms, preferably 5 or 6 ring atoms. Suitable saturated or unsaturated heterocyclic compounds may include

The term "halogen" comprises fluorine (F), chlorine (CI), bromine

(Br) and iodine (I), more typically F, CI or Br.

All possible tautomers of the claimed compounds are included in the present invention. Tautomers are isomers of organic compounds that readily interconvert by a chemical reaction called tautomerization. This reaction commonly results in the formal migration of a hydrogen atom or proton, accompanied by a switch of a single bond and adjacent double bond.

The compounds of the invention have one or more asymmetric centers. Compounds with asymmetric centers give rise to enantiomers (optical isomers), diastereomers (configurational isomers) or both, and it is intended that all of the possible enantiomers and diastereomers in mixtures and as pure or partially purified compounds are included within the scope of this invention. The present invention is meant to encompass all isomeric forms of the compounds of the invention. The present invention includes all stereoisomers of compounds of Formula (I). Compounds of Formula (I) comprises although depending on the choice of T₂ at least one chiral centers, i.e. at the second position of pyrrolidine, a COOH group, and at the third position of pyrrolidine, a 5- or 6-membered ring, as indicated by the Q-group. Diastereomers differ from enantiomers in that these are pairs of stereoisomers that differ in all stereocenters. Diastereomers have different physical properties (unlike enantiomers) and different chemical reactivity. Diastereoselectivity is the preference for the formation of one or more than one diastereomer over the other in an organic reaction.

The independent syntheses of the enantiomerically or diastereomerically enriched compounds, or their chromatographic separa- tions, may be achieved as known in the art by appropriate modification of the methodology disclosed herein. Their absolute stereochemistry may be determined by the x-ray crystallography of crystalline products or crystalline intermediates that are derivatized, if necessary, with a reagent containing an asymmetric center of known absolute configuration. If desired, racemic mix- tures of the compounds may be separated so that the individual enantiomers or diastereomers are isolated. The separation can be carried out by methods well known in the art, such as the coupling of a racemic mixture of compounds to an enantiomerically pure compound to form a diastereomeric mixture, followed by separation of the individual diastereomers by standard methods, such as fractional crystallization or chromatography. The coupling reaction is often the formation of salts using an enantiomerically pure acid or base. The diastereomeric derivatives may then be converted to the pure en- antiomers by cleavage of the added chiral residue. The racemic mixture of the compounds can also be separated directly by chromatographic methods using chiral stationary phases, which methods are well known in the art.

Alternatively, any enantiomer or diastereomer of a compound may be obtained by stereoselective synthesis using optically pure starting materials or reagents of known configuration by methods well known in the art.

As compounds of Formula (I) contains at least 2 two asymmetric carbons, there are up to 4 possible configurations, which cannot be super- imposable mirror images of each other.

Pyrrolidine-2-carboxylic acid derivatives according to the invention can be prepared from the various examples given further below or by consulting handbooks within organic chemistry. Examples of such handbook - although not intending to be construed as limiting - are "Organic Chemistry, 2^nd Edition, 2000, by Maitland Jones, Jr., and Organic Chemistry, 6th Edition, Robert T. Morrison, and Robert N. Boyd. The above referred handbooks are hereby incorporated by reference.

The term "pharmaceutically acceptable derivative" in present context includes pharmaceutically acceptable salts, which indicate a salt which is not harmful to the patient. Such salts include pharmaceutically acceptable basic or acid addition salts as well as pharmaceutically acceptable metal salts, ammonium salts and alkylated ammonium salts. A pharmaceutically acceptable derivative further includes hydrates, polymorphs, esters and prodrugs, or other precursors of a compound which may be biologically metabolized into the active compound, or crystal forms of a compound. Salts and solvates of the compounds of Formula (I) and physiologically functional derivatives thereof which are suitable for use in medicine are those wherein the counter- ion or associated solvent is pharmaceutically acceptable. However, salts and solvates having non-pharmaceutically acceptable counter-ions or associated solvents are within the scope of the present invention, for example, for use as intermediates in the preparation of other compounds and their pharmaceutically acceptable salts and solvates.

Pharmaceutically acceptable acid addition salts include those formed from hydrochloric, hydrobromic, sulfuric, nitric, citric, tartaric, phosphoric, lactic, pyruvic, acetic, trifluoroacetic, triphenylacetic, sulfamic, sulfanilic, succinic, oxalic, fumaric, maleic, malic, mandelic, glutamic, aspartic, oxaloacetic, methanesulfonic, ethanesulfonic, arylsulfonic (for example p-toluenesulfonic, benzenesulfonic, naphthalenesulfonic or naphthalenedisulfonic), salicylic, glutaric, gluconic, tricarballylic, cinnamic, substituted cinnamic (for example, phenyl, methyl, methoxy or halo substituted cinnamic, including 4-methyl and 4-methoxycinnamic acid), ascorbic, oleic, naphthoic, hydroxynaphthoic (for example 1- or 3-hydroxy-2-naphthoic), naphthaleneacrylic (for example naphthalene-2-acrylic), benzoic, 4-methoxybenzoic, 2- or 4- hydroxybenzoic, 4-chlorobenzoic, 4-phenylbenzoic, benzeneacrylic (for example 1,4- benzenediacrylic), isethionic acids, perchloric, propionic, glycolic, hydroxyethanesulfonic, pamoic, cyclohexanesulfamic, salicylic, saccharinic and trifluoroacetic acid.

Pharmaceutically acceptable base salts include ammonium salts, al- kali metal salts such as those of sodium and potassium, alkaline earth metal salts such as those of calcium and magnesium and salts with organic bases such as dicyclohexylamine and [Lambda]/-methyl-D-glucamine.

Furthermore, some of the crystalline forms of the compounds may exist as polymorphs and as such are intended to be included in the present invention. In addition, some of the compounds may form solvates with water (i.e. hydrates) or common organic solvents, and such solvates are also intended to be encompassed within the scope of this invention. The compounds, including their salts, can also be obtained in the form of their hydrates, or include other solvents used for their crystallization.

Organic molecules can form crystals that incorporate water into the crystalline structure without modification of the organic molecule. An organic molecule can exist in different crystalline forms, each different crystalline forms may contain the same number of water molecules pr organic molecule or a different number of water molecules pr organic molecule.

The term "administering" shall encompass the treatment of the vari- ous disorders described with derivatives of the claimed compounds which convert to the active compound in vivo after administration to the subject. Conventional procedures for the selection and preparation of suitable prodrug derivatives are described, for example, in "Design of Prodrugs", ed. H. Bundgaard, Elsevier, 1985.

The term "antagonist" in the present context refers to a substance that does not provoke a biological response itself upon binding to a receptor. Hence, antagonists have affinity to but no efficacy for their cognate receptors, and binding will disrupt the interaction and inhibit the function of e.g. an agonist.

The term "AMPA receptor" denotes a receptor family within the iGluRs receptors. The AMPA receptor comprises subunits such as, GluAl, GluA2, GluA3, or GluA4.

The term "KA" denotes a receptor family within iGluRs receptors. The KA receptor comprises subunits such as GluKl, GluK2, GluK3, GluK4, or GluK5.

The term "NMDA" denotes a receptor family within iGluRs receptors. The NMDA receptor comprises subunits such as GluNl, GluN2A, GluN2B, GluN2C, GluN2D, GluN3A, GluN3B, or GluN3C.

A receptor antagonist defined by the Formula (I), is thus capable of binding to the GluKl, GluK2, GluK3, GluK4, or GluK5 receptor, respectively. However, the receptor antagonist may optionally bind to other receptors, such as the AMPA receptor and NMDA receptor subunits.

The antagonist may be a selective antagonist, which only binds to and activates one type of receptor. Antagonist may bind reversible or irreversible depending on the antagonist-receptor complex.

The antagonist can also be an antagonist of several different types of receptors, and thus capable of binding to one or more different receptors, such AMPA receptors, KA receptors, and NMDA receptors. An antagonist may have high affinity to one or more iGluR receptors and at the same time having high selectivity to these one or more iGluR receptors. I.e. the antagonist has low affinity to the other iGluR receptors. Such antagonists are also part of the present invention.

The term "IC₅₀" is commonly used as a measure of antagonist drug potency and reflects the measure of the effectiveness of a compound in inhib- iting biological or biochemical function. This quantitative measure indicates how much of a compound of Formula (I) is needed to inhibit 50% of the activity of a particular receptor. IC₅₀ can be regarded as the functional strength of the different compounds of Formula (I).

IC₅₀ is not a direct indicator of affinity although the two can be related at least for competitive agonists and antagonists by the Cheng-Prusoff equation.

The term 'V refers to the binding affinity, which describe the binding of compounds of Formula (I) to a receptor.

As used herein, the term "pharmaceutical composition" is intended to encompass a product comprising compounds of Formula (I) in the therapeutically effective amounts, as well as any product which results, directly or indirectly, from combinations of the claimed compounds.

The term "therapeutically effective amount" of a compound as used herein refers to an amount sufficient to cure, alleviate, prevent, reduce the risk of, or partially arrest the clinical manifestations of a given disease or disorder and its complications. An amount adequate to accomplish this is defined as a "therapeutically effective amount".

Compounds of Formula (I) according to the present invention may be used in pharmaceutical compositions and method for treatment of disorders, diseases in a subject, or conditions associated with the dysfunction of iGluR receptors, e.g. the AMPA receptors, KA receptors and NMDA receptors, and their corresponding subunits, GluAl-4, GluKl-5 and GluNl, GluN2A-D, and GluN3A-C. Thus, targeting iGluR or its subtypes such as GluAl-4, GluKl-5, GluNl-3 and its subtypes with antagonists according to the present invention would be helpful in the treatment of disorders and diseases associated with these receptors.

The terms "treatment" and "treating" as used herein refer to the management and care of a subject for the purpose of combating a condition, disease or disorder. The term is intended to include the full spectrum of treatments for a given condition from which the subject is suffering, such as administration of the active compound for the purpose of: alleviating or relieving symptoms or complications; delaying the progression of the condition, disease or disorder; curing or eliminating the condition, disease or disorder; and/or preventing the condition, disease or disorder, wherein "preventing" or "prevention" is to be understood to refer to the management and care of a patient for the purpose of hindering the development of the condition, disease or disorder, and includes the administration of the active compounds to prevent or reduce the risk of the onset of symptoms or complications.

The term "subject" refers to an animal, preferably a mammal, most preferably a human, who has been the object of treatment, observation or experiment. Treatment of animals, such as mice, rats, dogs, cats, cows, sheep and pigs, is, however, also within the scope of the present invention.

In one embodiment, compounds of Formula (I) may be used as a medicament, optionally in combination with one or more therapeutically acceptable diluents or carriers.

In a certain embodiment, the present invention relates to compounds of Formula (I) or pharmaceutical compositions thereof, or methods for treatment of diseases or conditions binding one of GluKi, GluK₂, GluK₃, GluK₄, or GluK₅ receptors to obtain a beneficial therapeutic effect.

Further, in another aspect, the present invention relates to a method for treating a disease or disorder mediated by the GluK receptors, wherein the disease or disorder is selected from the group consisting of psychiatric diseases or neurological disorders or a disease or disorder associated with abnormal activities of GluK receptors in a patient in need thereof, comprising administering to the patient a therapeutically effective amount of compounds of Formula (I) or a pharmaceutically acceptable derivative thereof, optionally together with a pharmaceutically acceptable carrier.

In yet a certain embodiment, the present invention relates to com- pounds of Formula (I) pharmaceutical compositions thereof, or methods, for treatment of disorders of the central nervous system, neuro-physiological processes such as memory, cognition; as well as neuronal plasticity and development, psychiatric diseases or neurological disorders such as depression, anxiety, addiction, pain, migraine, and schizophrenia, and neurodegenerative diseases; such as Alzheimer, Huntington disease, amyotrophic lateral sclerosis (ALS), cerebral stroke, and epilepsy; and diseases including aching, ADHD, Autism, Diabetes, Huntington's disease, ischemia, multiple sclerosis, Parkinson's disease (Parkinsonism), Rasmussen's encephalitis, seizures, AIDS dementia complex, amyotrophic lateral sclerosis, combined systems disease (vitamin B12 deficiency), drug addiction, drug tolerance, drug dependency, glaucoma, hepatic encephalopathy, hydroxybutyric aminoaciduria, hyperhomocysteinemia and homocysteinuria, hyperprolinemia, lead encephalopathy, leber's disease, MELAS syndrome, MERRF, mitochondrial abnormalities (and other inherited or acquired biochemical disorders), neuropathic pain syndromes (e.g. causalgia or painful peripheral neuropathies), nonketotic hyperglycinemia, olivopontocerebellar atrophy, essential tremor, Rett syndrome, sulfite oxidase deficiency, Wernicke's encephalopathy or cancer.

In a preferred embodiment, the present invention relates to antagonist of compound of Formula (I) and its pharmaceutical compositions, which are administered in one or more daily doses of 0.5-1500 mg/day, preferably 0.5-200 mg/day, more preferably 0.5-60 mg/day, even more preferably 0.5- 30 mg/day.

In a preferred embodiment, the present invention relates to antagonist of compound of Formula (I) suitable for oral, rectal, nasal, pulmonary, buccal, sublingual, transdermal or parenteral administration.

According to the present invention, the antagonist of compound of Formula (I) is administered to subjects in need of treatment in pharmaceutically effective doses. A therapeutically effective amount of a compound according to the present invention is an amount sufficient to cure, prevent, re- duce the risk of, alleviate or partially arrest the clinical manifestations of a given disease or its complications. The amount that is effective for a particular therapeutic purpose will depend on the severity and the sort of the disease as well as on the weight and general state of the subject. The antagonists of the present invention may be administered one or several times per day, such as from 1 to 4 times per day, such as from 1 to 3 times per day, such as from 1 to 2 times per day, wherein administration from 1 to 3 times per day is preferred.

The antagonists of the present invention may be administered simultaneously, sequentially or separately in combination with one or more second active ingredients selected from the group of agents having affinity to one or more receptors or transporters in the CNS or in any way otherwise related to the treatment of the same diseases, disorders or conditions as the antagonists of the present invention.

During any of the processes for preparation of the compounds of the present invention, it may be necessary and/or desirable to protect sensitive or reactive groups on any of the molecules concerned. This may be achieved by means of conventional protecting groups, such as those described in Protective Groups in Organic Chemistry, ed. J.F.W. McOmie, Plenum Press, 1973; and T. W. Greene & P. G. M. Wuts, Protective Groups in Organic Syn- thesis, John Wiley & Sons, 1991, fully incorporated herein by reference. The protecting groups may be removed at a convenient subsequent stage using methods known from the art. Thus, compounds of Formula (I) of the present invention may be in the form of their protected compounds. Results and discussion

Based on ligand conformational analysis and the vast structural information on the GluA2 & GluKl ligand binding domains, (2S,4R)-4-(3- carboxybenzyl)pyrrolidine-2-carboxylic acid (AX, CNG-10200) was designed. Succeeding its synthesis, pharmacological characterization of AX showed medium range micromolar binding affinity to NMDA receptors. Thus, AX defined a new lead structure for the discovery of subtype selective iGluR antagonists.

Scheme 1. Chemical structures designed iGluR antagonist AX (CNG- 10200) and repositioning of the distal carboxylic acid group, replacement and/or changing of the steric configuration of the bridging carbon atom (X) between the two ring structures.

The preparation of carboxyphenoxy antagonists of the present inven- tion followed generally the below outlined synthesis scheme. A more detailed description is given further below. Further substitutions in the phenyl group or benzylring can be made by methods being well known to the skilled person.

2: R = o-COOH 5: R = o-COOH 3: R = m-COOH 6: R = m-COOH 4: R = p-COOH 7: R = p-COOH

9: R = o-COOH 12: R = o-COOH 10: R = m-COOH 13: R = m-COOH 11 : R = p-COOH 14: R = p-COOH

Reaction scheme 1 : Synthesis of the phenol ether 4-CPP analogues

The preparation of carboxy-thiophenyl antagonists of the present invention followed generally the below outlined synthesis scheme. A more de^¬ tailed description is given further below. Further substitutions in the phenyl group or benzylring can be made by methods being well known to the skilled person.

(a) Methyl mercaptobenzoate

K₂C0₃, DMF, 50 C

16: R = o-COOH 18: R = o-COOH = m-COOH] 19: R = m-COOH

Reaction scheme 2: Synthesis of the thiophenol ether 4-CPP analogues. The preparation of carboxy- benzyl antagonists of the present invention followed generally the below outlined synthesis scheme. A more detailed description is given further below. Further substitutions in the benzylring can be made by methods being well known to the skilled person.

Reaction scheme 3: Synthesis of the thiophenol ether 4-CPP analogues.

Double protection of AX1 gave AX2 in high yield. Selective alkylation gave the trans diastereomer AX3, exclusively. Reduction of the endo-carbonyl group gave AX4 which was deprotected to the diol AX5. Double oxidation gave diacid AX6 which was finally deprotected under acidic conditions to give the target compound AX. Pharmacological characterization

Analog AX, 5, 6, 7, 18, and 19 were characterized pharmacologically in radio ligand binding assays at native iGluRs (rat synaptosomes) and cloned homomeric subtypes, GluKl-3, cf. Table 1. At native iGluRs AX, 7, 18, and 19 showed neglictable affinity for AM PA receptors and KA receptors (> 100 μΜ) but most interestingly, micro molar affinity for the NMDA receptors (IC₅₀ < 100 μΜ). At cloned homomeric GluKl-3 receptors AX displayed no affinity (> 100 μΜ), whereas 6, and in particular 5 and 18 showed high affinity for the cloned homomeric GluKl receptor.

AMPA KA NMDA GluKl GluK2 GluK3

IC₅₀ I 50 Kj Kj Kj Kj (AX) 10-200 > 100 > 100 68 > 100 > 100 > 100

(6), 10-201 > 100 > 100 > 100 35.7 > 100 > 100

(7), 10-202 > 100 > 100 81 > 100 > 100 > 100 (5), 10-203 > 100 > 100 > 100 4 > 100 > 100

(18), 10-204 > 100 > 100 15 8 > 100 16

(19), 10-205 > 100 > 100 68 > 100 > 100 > 100

(25), 10-211

(26), 10-212

(27), 10-213

(28), 10-214

(29), 10-215

(30), 10-216

(31), 10-217

(32), 10-218 > 100 > 100 > 100 > 100 30

Table 1. pharmacological characterization at native iGluR receptors as well as cloned homomeric GluKl-3 subtypes. All values in μΜ. This section provides specific examples of selected targets molecules. However, it is to be understood that these examples outline the synthetic routes for other target molecules not specifically disclosed .

All reagents were obtained from commercial suppliers and used without further purification. Dry solvents were obtained differently. THF was dis- tilled over sodium/benzophenone. Et₂0 was dried over neatly cut sodium . All solvents were tested for water content using a Carl Fisher apparatus. Water - or air sensitive reactions were conducted in flame dried glassware under nitrogen with syringe-septum cap technique. Purification by DCVC (dry column vacuum chromatography) was performed with silica gel size 15-40μηι (Merck, Silica gel 60). For TLC was used Merck TLC Silica gel F₂₅₄ with appropriate spray reagents: KMn0₄ or Molybdenum blue. ¹H NMR and ¹³C NMR spectra were obtained on a Varian Mercury Plus (300 MHz) and a Varian Gemini 2000 instrument (75 MHz), respectively. HPLC was done using Agilent Prep HPLC systems with Agilent 1100 series pump, Agilent 1200 series diode array, mul- tiple wavelength detector (G1365B), and Agilent PrepHT High Performance Preparative Cartridge Column (Zorbax, 300 SB-C18 Prep HT, 21.2 x 250 mm, 7 μηι). Preparative HPLC was performed using Spectraseries UV100 with a JASCO 880-PU HPLC pump and an XTerra®Prep MS C18 ,( ΙΟμηι, 10X300 mm) column. LC-MS was performed using an Agilent 1200 series solvent delivery system equipped with an autoinjector coupled to an Agilent 6400 series triple quadrupole mass spectrometer equipped with an electrospray ionization source. Gradients of 10% aqueous acetonitrile + 0.05% formic acid (buffer A) and 90% aqueous acetonitrile + 0.046% formic acid (buffer B) were employed or an Agilent 1200 system using a C18 reverse phase column (Zorbax 300 SB-C18, 21.1 mm - 250 mm) with a linear gradient of the binary solvent system of H₂0/CH₃CN/TFA (A: 100/0/0.1 and B: 5/95/0.1) with a flow rate of 20 mL/min. Optical rotation was measured using a Perkin-Elmer 241 spectrometer, with Na lamp at 589 nm. Melting points were measured using an automated melting point apparatus, MPA100 OptiMelt (SRS) and are stated uncorrected. Compounds were dried either under high vacuum or freeze dried using a Holm & Halby, Heto LyoPro 6000 freezedrier.

Determination of binding affinities at native AMPA, KA and NMDA receptors was carried out as described in reference: Assaf, Z; Larsen, AP; Venskutonyte, R; Han, L; Abrahamsen, B; Nielsen, B; Gajhede, M; Kastrup, JS; Jensen, AA; Pickering, DS; Frydenvang, K; Gefflaut, T and Bunch, L* "Chemo-Enzymatic Synthesis of New 2,4-S n-Functionalized (S)-Glutamate Analogues and Structure-Activity-Relationship Studies at Ionotropic Gluta- mate Receptors and Excitatory Amino Acid Transporters" J. Med. Chem. 2013, 56, 1614-1628

Determination of binding affinities at Cloned homomeric subtypes, GluKl, GluK2, GluK3 receptors was carried out as described in reference: Assaf, Z; Larsen, AP; Venskutonyte, R; Han, L; Abrahamsen, B; Nielsen, B; Gajhede, M; Kastrup, JS; Jensen, AA; Pickering, DS; Frydenvang, K; Gefflaut, T and Bunch, L* "Chemo-Enzymatic Synthesis of New 2,4-S n-Functionalized (S)-Glutamate Analogues and Structure-Activity-Relationship Studies at Ionotropic Glutamate Receptors and Excitatory Amino Acid Transporters" J. Med. Chem. 2013, 56, 1614-1628 Compounds (S)-tert- butyl 2-(((£er£-butyldimethylsilyl)oxy)methyl)-5 pyrrolidine-l-carboxylate (AX2):

To a solution of (S)-pyroglutaminol (AX1) (1.00 g, 8.69 mmol, 1.00 equiv) in DCM (10 mL) was added imidazole (1.48 g, 21.7 mmol, 2.50 equiv) and TBDMS-CI (1.56 g, 10.4 mmol, 1.20 equiv). The mixture was stirred at room temperatrue (r.t). for 24 hours. The solution was diluted with Et₂0 (100 mL) and the organic phase was washed with H₂0 (2 x 100 mL) and brine (2 x 100 mL) respectively. The organic phase was dried over MgS0₄, filtered and concentrated in vacuo to yield a yellow oil (1.90 g).

The crude oil (1.90 g, 8.2 mmol, 1.00 equiv) was dissolved in MeCN (70 mL), cooled to 0°C and added DMAP (0.11 g, 0.83 mmol, 0.11 equiv) and Boc₂0 (3.60 g, 16.5 mmol, 1.99 equiv). The reaction mixture was left to stir at room temperature under nitrogen for 18 h. The organic phase was washed with brine (3 x 100 mL), dried over MgS0₄, filtered and concentrated in vacuo to yield a dark, red oil, which was purified using flash chromatography (EtOAc : heptane (1 : 9)) affording protected lactam AX 2 (2.61 g, 91 %) as a thick, yellow oil. ^ NMR (300 mHz, CDCI₃) : δ 0.04 (3H, s), 0.05 (3H, s), 0.88 (9H, s), 1.54 (9H, s), 1.95 - 2.20 (2H, m), 2.37 (1H, ddd, J = 18, 9, 2 Hz), 2.71 (1H, dt, J = 18, 11 Hz), 3.68 (1H, dd, J = 10, 2 Hz), 3.91 (1H, dd, J = 11, 4 Hz), 4.16 (1H, m); ¹³C NMR (75 MHz, CDCI₃) : δ - 5.4, -5.3, 18.3, 21.3, 26.0, 28.2, 32.5, 59.0, 64.4, 82.7, 150.0, 174.9; OR: [a]²² _D: -71.57 (c = 0.55 g/100 mL; EtOAc); TLC: R_f: 0.13 (EtOAc : heptane (1 : 9)).

(3/?,5S)-(£er£-Butoxycarbonyl)-5-(((£er£- butyl)dimethylsilyloxy)methyl)-3-(3-(methoxycarbonyl)benzyl)- pyrrolidin-2-one (AX3):

Lactam AX2 (500 mg, 1.52 mmol, 1.00 equiv) was weight out in a dry flask that was afterwards purged with nitrogen. Dry THF (2 mL) was added and the solution cooled to -78 °C. 1M LiHMDS (1.80 mL, 1.80 mmol, 1.19 equiv) was drop wise added over the course of 10 min. and stirred for 2 h. Methyl 3-bromomethylbenzoate (454 mg, 1.98 mmol, 1.31 equiv) was dissolved in dry THF (2 mL) in a dry flask and drop wise added to the mixture of lactam 2 over the course of 15 min. The mixture was stirred for 3 h before removed from the cooling bath and allowed to warm up to room temperature. The mixture was quenched by addition of sat. NH₄CI (4 mL) and transferred to a separation funnel containing EtOAc (5 mL). The aqueous phase was extracted with EtOAc (2 x 5 mL) and the combined organic phases was washed with brine, dried over MgS0₄ and concentrated in vacuo. The product was purified using DCVC (0 - 28 % EtOAc in heptanes) to afford methyl ester AX3 (467 mg, 64 %) as a dark, orange oil. ^ NMR (300 MHz, CDCI₃): δ 0.00 (6H, s), 0.85 (9H, s), 1.55 (9H, s), 1.75 - 1.93 (2H, m), 1.95 - 2.07 (1H, m), 3.05 - 3.20 (1H, m), 3.30 - 3.40 (1H, m), 3.56 - 3.64 (1H, m), 3.83 - 3.93 (4H, m), 4.00 - 4.09 (1H, m), 7.33 - 7.40 (2H, m), 7.81 - 7.85 (1H, m), 7.85 - 7.90 (1H, m); ¹³C NMR (75 MHz, CDCI₃) : δ -5.39, -5.35, 18.3, 26.0, 28.3, 28.5, 37.1, 44.5, 52.2, 57.0, 64.2, 82.9, 127.7, 128.6, 129.8, 130.3, 133.4, 139.6, 150.0, 166.9, 175.4; LCMS: m/z [M + H] ⁺ : calc: 378.2, found : 378.1; TLC: R_f : 0.37 (EtOAc : heptanes (1 : 4)); OR: [a]^{20 5} _D: -31.55 (c = 0.37 g/100 mL; Abs. EtOH).

( 2S,4/?)- ( tert- Butoxyca r bo ny I )- 2- (( (tert- butyl)dimethylsilyloxy)methyl)-4-(3-( hydroxy methyl)benzyl)- pyrrolidine (AX4).

Methyl ester AX3 (1.31 g, 2.75 mmol, 1.00 equiv) was weight out in a dry flask and dissolved in dry THF (10 mL). 1M BH₃ ^■ THF complex (14.6 mL, 14.6 mmol, 5.31 equiv) was added and the mixture heated to reflux for 21 h. The mixture was cooled to 0 °C, added THF (35 mL) and subsequently H₂0 (4.2 ml) was carefully added drop wise over the course of 30 min. 2M NaOH (22.3 ml) was carefully added drop wise over the course of 30 min and 30% H₂0₂ (7 ml) was added over the course of 15 min. After stirring for 5 min at 0 °C the mixture was removed from the icebath and left to stir for 1.5 h at room temperature. The mixture was transferred to a separation funnel containing sat. NaHC0₃ (75 mL) and EtOAc (75 mL). The aqueous phase was extracted with EtOAc (2 x 75 mL). The combined organic phases was washed with brine (100 mL), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DVCV (0 - 100 % EtOAc in heptanes) to yield alcohol AX4 (0.68 g, 56 %) as a clear, colorless oil. ^ NMR (300 MHz, CDCI₃) : δ 0.03 (6H, s), 0.88 (9H, s), 1.46 (9H, s), 1.55 - 1.85 (2H, m), 1.95 - 2.15 (1H, m), 2.50 - 2.75 (3H, m), 2.95 - 3.15 (1H, m), 3.35 - 3.55 (1.5H, m), 3.55 - 3.85 (2H, m), 3.85 - 3.95 (0.5H, m), 4.68 (2H, s), 7.08 (1H, d, J = 7 Hz), 7.12 - 7.25 (3H, m); ¹³C NMR (75 MHz, CDCI₃) : δ -5.1, 18.5, 26.1, 28.8, 34.1, 34.7, 37.9, 39.0, 39.9, 52.1, 52.5, 58.6, 58.8, 63.6, 64.0, 65.5, 79.2, 79.5, 124.8, 127.3, 128.0, 128.6, 140.7, 141.1, 154.5; LCMS : m/z [M + H]⁺ : calc: 380.2, found : 380.2 (- t-Bu); TLC: R_f : 0.46 (EtOAc : heptanes (1 : 1)); OR: [a]^{20 5} _D: -28.41 (c = 0.35 g/100 mL; Abs. EtOH).

(2S,4/?)-tert-butyl 2-(hydroxymethyl)-4-(3- (hydroxymethyl)benzyl)pyrrolidine-l-carboxylate (AX5):

Silyl protected alcohol AX4 (0.67 g, 1.55 mmol, 1.00 equiv) was dissolved in dry THF (11 mL) and added 1M TBAF in THF (4.66 mL, 4.66 mmol, 3.01 equiv). The mixture was left to stir at room temperature for 1 h before added sat. NaHC0₃ (40 mL). The mixture was transferred to a separation funnel containing EtOAc (30 ml_). The aqueous phase was extracted with EtOAc (2 x 50 ml_) and the combined organic phase was washed with brine (50 ml_), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DVCV (0 - 100 % EtOAc in toluene) to yield diol AX 5 (0.26 g, 52 %) as a clear, colorless oil. ^ NMR (300 MHz, CDCI₃) : δ 1.48 (9H, s), 1.60 - 2.05 (3H, m), 2.35 - 2.55 (1H, m), 2.55 - 2.70 (2H, m), 3.10 - 3.20 (1H, m), 3.42 (1H, dd, J = 10, 7 Hz), 3.52 - 3.65 (2H, m), 4.08 (1H, bs), 4.46 (1H, bs), 4.69 (2H, s), 7.07 (1H, d, J = 7 Hz), 7.16 (1H, s), 7.18 - 7.33 (2H, m); ¹³C NMR (75 MHz, CDCI₃) : δ 28.7, 34.3, 39.1, 39.4, 52.6, 59.6, 65.4, 68.0, 80.6, 125.0, 127.3, 128.0, 128.7, 140.4, 141.2; LCMS: m/z [M + H]⁺ : calc: 266.1, found : 266.1 (- t-Bu); TLC: R_f : 0.10 (EtOAc : heptanes (1 : 1)); OR: [a]^{20 5} _D: -14.11 (c = 0.25 g/100 ml_; Abs. EtOH).

(2S,4/?)-l-(tert-butoxycarbonyl)-4-(3- carboxybenzyl)pyrrolidine-2-carboxylic acid (AX6):

AX5 AX6

Diol AX 5 (180 mg, 0.56 mmol, 1.00 equiv) was dissolved in CH₃CN (2.4 ml) and added a sodium phosphate buffer (1.8 ml_, pH = 6.7 (670 mM)) and TEMPO (12 mg, 0.08 mmol, 0.14 equiv). The reaction mixture was heated to 35°C and drop wise added a solution of NaCI0₂ (200 mg, 2.21 mmol, 4.12 equiv) in H₂0 (0.48 ml_) and a solution of NaOCI (8 μΙ_ 10-13 % aqueous solution, app. 1 mg, app. 0.013 mmol, 0.023 equiv) in H₂0 (0.24 ml_) simultaneously over the course of 2 h. The lack of characteristic intermediate colorisation of mixture facilitated the addition of additional TEMPO (10 mg, 0.06 mmol, 0.11 equiv) and NaOCI (2 drops). This resulted in a dark coloring of the mixture that disappeared shortly after. The mixture was stirred for 18 h at 35 °C. The mixture was cooled to 0 °C, added H₂0 (2 ml_) and 2M NaOH (drop wise until pH = 10). The mixture was then drop wise added a solution of Na₂S0₃ (300 mg, 2.38 mmol, 4.25 equiv) in H₂0 (2 ml_). The mixture was stirred at room temperature for 30 min. The mixture was transferred to a separation funnel and washed with Et₂0 (2 x 20 mL). The aqueous mixture was made acidic using 4M HCI (a few drops, pH = 2) and extracted with Et₂0 (3 x 20 mL). The pooled organic phases was washed with brine (30 mL), dried over MgS0₄, filtered and concentrated in vacuo to yield diacid AX6 (122 mg, 62 %) as a white solid. ^ NMR (300 MHz, CDCI₃) : δ 1.44 (4H, s), 1.50 (5H, s), 1.75 - 2.10 (1.46H, m), 2.25 - 2.40 (0.57H, m), 2.55 - 2.95 (3H, m), 3.00 - 3.20 (1H, m), 3.58 (0.57H, m), 3.80 (0.46H, m), 4.32 (0.46H, m), 4.42 (0.57H, d, J = 8 Hz), 7.33 - 7.44 (2H, m), 7.87 - 7.99 (2H, m); ¹³C NMR (75 MHz, CDCI₃) : δ 28.4, 28.5, 35.0, 36.2, 38.4, 38.8, 39.2, 51.5, 51.8, 59.0, 80.7, 81.2, 128.3, 128.8, 129.7, 130.2, 134.0, 140.1, 153.8, 155.4, 171.6, 176.6, 178.7; LCMS: m/z [M + H] ⁺ : calc: 350.2, found : 250.1 (-Boc); TLC: R_f : 0.46 (EtOAc : heptanes : AcOH (32 : 16 : 1)); OR: [a]^{20 5} _D: -3.42 (c = 0.38 g/100 mL; Abs. EtOH). (2S,4R)-4-(3-carboxybenzyl)pyrrolidine-2-carboxylic acid, hydrochloride, (AX) 10-200:

(2S,4#)-4-(3-carboxybenzyl)-proline hydrochloride (AX) 10-200:

AX6 ^AX

Diacid AX6 (121 mg, 0.35 mmol, 1.00 equiv) was dissolved in Et₂0 (2 mL), cooled to 0 °C and added 1M HCI in Et₂0 (4.18 mL, 4.18 mmol, 11.9 equiv). The mixture was stirred at room temperature for 18 h and concentrated in vacuo to yield proline salt AX (98 mg, 99 %) as a yellow foam. The mixture was triturated with CH₃CN twice to yield a white, colloid precipitate that was isolated by decantation and drying of the semi-solid in vacuo. ^ NMR (300 MHz, D₂0) : δ 2.05 - 2.18 (1H, m), 2.18 - 2.34 (1H, m), 2.57 - 2.75 (1H, m), 2.75 - 2.88 (2H, m), 2.98 - 3.10 (1H, m), 3.52 (1H, dd, J = 11, 7 Hz), 4.40 (1H, dd, J = 9, 4 Hz), 7.38 - 7.53 (2H, m), 7.78 - 7.88 (2H, m); ¹³C NMR (75 MHz, CDCI₃) : δ 34.5, 37.6, 39.1, 50.8, 60.5, 128.4, 129.5, 130.3, 130.4, 134.6, 140.4, 171.0, 173.3; LCMS: m/z [M + H]⁺ : calc: 250.1, found : 250.1; OR: [a]²² _D: - 16.76 (c = 0.34 g/100 mL; 2M NaOH).

Starting materials, compounds 1 (CAS 102195-79-9), 8 (CAS 102195- 79-9) and CAS: 17342-08-4) are commercially available from a wide range of leading fine chemical suppliers such as Sigma-Aldrich, Combi-Blocks, and

TCI.

(2S,4/?)-l-(tert-butoxycarbonyl)-4-(2- carboxyphenoxy)pyrrolidine-2-carboxylic acid (2):

Proline analogue 1 (140 mg, 0.57 mmol, 1.00 equiv), methyl 2- hydroxybenzoate (108 mg, 0.71 mmol, 1.24 equiv), PPh₃ (140 mg, 0.69 mmol, 1.21 equiv) and DIAD (181 mg, 0.69 mmol, 1.21 equiv) were weight out in a dry flask and dissolved in dry THF (4 mL). The mixture was left to stir at room temperature for 18 h. The mixture was added a combination of Et₂0 and THF (1 : 1, 20 mL) and washed with 2M NaOH (2 x 10 mL), brine (15 mL), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DCVC (0 - 24 % EtOAc in toluene).

The mixture was dissolved in THF (6 mL), cooled to 0 °C and drop wise added 1M LiOH (6 mL) over the course of 2 min and subsequently 4M NaOH (1 mL) over the course of 2 min. The mixture was left to stir at 0 °C for 15 min and at room temperature for 20 h. The mixture was added H₂0 (20 mL) and the aqueous phase washed with Et₂0 (2 x 20 mL). The aqueous phase was added cone. HCI (pH χ 1) and extracted with a mixture of Et₂0 and THF (1 : 1, 3 x 20 mL). The pooled organic phases was washed with brine (30 mL), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DCVC (0 - 100 % EtOAc in heptanes containing 2 % AcOH) to yield diacid 2 (123 mg, 61 %) as a clear, colorless oil. H NMR (300 MHz, (CDCI₃) : δ 1.42/1.43 (9H, 2 x s), 2.30 - 2.50 (1H, m), 2.55 - 2.75 (1H, m), 3.67 - 3.95 (2H, m), 4.49 (0.5H, t, J = 8 Hz), 4.59 (0.5H, t, J = 8 Hz), 5.09 (1H, bs), 6.96 (1H, dd, J = 8, 5 Hz), 7.07 (1H, td, J = 8, 4 Hz), 7.50 (1H, m), 7.98 (1H, dm, J = 8 Hz); ¹³C NMR (75 MHz, (CDCI₃) : δ 28.3, 28.4, 35.3, 36.6, 51.7, 52.1, 57.8, 57.9, 76.8, 77.2, 81.5, 81.7, 114.8, 115.1, 119.7, 120.1, 122.1, 133.2, 133.4, 134.6, 134.7, 153.9, 155.3, 156.3, 168.6, 168.7, 177.1, 177.5; LCMS: m/z [M + H] ⁺ : calc: 352.1, found : 252.2 (-Boc); HPLC: purity₂54 = 100 %; TLC: R_f : 0.13 (EtOAc : heptanes : AcOH (40 : 20 : 1)); OR: [a]³⁵ _D: -42.31 (c = 0.52 g/100 mL; Abs. EtOH).

(2S,4/?)-l-(tert-butoxycarbonyl)-4-(3- carboxyphenoxy)pyrrolidine-2-carboxylic acid (3):

(a) Methyl 3-hy-

3

Proline analogue 1 (300 mg, 1.22 mmol, 1.00 equiv), methyl 3- hydroxybenzoate (230 mg, 1.51 mmol, 1.24 equiv) and PPh₃ (374 mg, 1.43 mmol, 1.17 equiv) were weight out in a dry flask, dissolved in dry THF (8 mL) and cooled to 0 °C. DIAD (290 DL, 1.47 mmol, 1.20 equiv) was drop wise added over the course of 15 min and the mixture was left to stir at room temperature for 18 h. The mixture was added Et₂0 (20 mL) and washed with 2M NaOH (2 x 10 mL), brine (15 mL), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DCVC (0 - 25 % EtOAc in toluene and 0 - 35 % EtOAc in heptanes).

The mixture was dissolved in THF (10 mL), cooled to 0 °C and drop wise added 2M NaOH (5 mL) over the course of 2 min. The mixture was left to stir at 0 °C for 15 min and at room temperature for 20 h. The mixture was added H₂0 (20 mL) and the aqueous phase washed with Et₂0 (2 x 20 mL). The aqueous phase was added cone. HCI (pH χ 1) and extracted with a mix- ture of Et₂0 and THF (1 : 1, 3 x 20 mL). The combined organic phases was washed with brine (30 mL), dried over MgS0₄, filtered and concentrated in vacuo to yield diacid 3 (336 mg, 91 %) as a white foam. H NMR (300 MHz, (CD₃)₂SO) : δ 1.36 (9H, s), 2.10 - 2.30 (1H, m), 2.35 - 2.52 (1H, m), 3.50 - 3.70 (2H, m), 4.21 (1H, q, J = 8 Hz), 5.08 (1H, bs), 7.20 (1H, dd, J = 8, 2 Hz), 7.36 - 7.46 (2H, m), 7.54 (1H, d, J = 7 Hz); ¹³C NMR (75 MHz, (CD₃)₂SO) : δ 27.9, 28.1, 35.0, 35.8, 51.6, 51.8, 57.4, 57.6, 74.8, 75.7, 79.3, 115.5, 115.8, 120.2, 120.3, 122.0, 122.1, 129.9, 132.2, 153.0, 153.4, 156.4, 166.8, 173.2, 173.6; LCMS: m/z [M + H] ⁺ : calc: 352.1, found : 252.0 (-Boc); TLC: R_f : 0.18 (EtOAc : heptanes : AcOH (40 : 20 : 1)); OR: [a]³⁵ _D: - 23.33 (c = 0.45 g/100 mL; Abs. EtOH).

(2S,4/?)-l-(tert-butoxycarbonyl)-4-(4- carboxyphenoxy)pyrrolidine-2-carboxylic acid (4):

The mixture was dissolved in THF (6 mL), cooled to 0 °C and drop wise added 1M LiOH (6 mL) over the course of 2 min and subsequently 4M NaOH (1 mL) over the course of 2 min. The mixture was left to stir at 0 °C for 15 min and at room temperature for 20 h. The mixture was added H₂0 (20 mL) and the aqueous phase washed with Et₂0 (2 x 20 mL). The aqueous phase was added cone. HCI (pH χ 1) and extracted with a mixture of Et₂0 and THF (1 : 1, 3 x 20 mL). The combined organic phases was washed with brine (30 mL), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DCVC (0 - 100 % EtOAc in heptanes containing 2 % AcOH) to yield diacid 4 (106 mg, 53 %) as a clear, colorless oil. H NMR (300 MHz, ((CD₃)₂SO) : δ 1.34/1.35 (9H, 2 x s), 2.15 - 2.30 (1H, m), 2.35 - 2.54 (1H, m), 3.54 (1H, d, J = 13 Hz), 3.64 (1H, td, J = 11, 3 Hz), 4.19 (1H, q, J = 8 Hz), 5.08 (1H, bs), 6.99 (2H, d, J = 9 Hz), 7.86 (2H, d, J = 9 Hz); ¹³C NMR (75 MHz, ((CD₃)₂SO) : δ 27.9, 28.1, 35.1, 35.9, 51.7, 52.0, 57.4, 57.6, 74.9, 75.7, 79.3, 115.0, 123.3, 131.4, 153.0, 153.4, 160.1, 166.8, 173.2, 173.7; LCMS: m/z [M + H]⁺ : calc: 352.1, found : 252.1 (-Boc); HPLC: purity₂₅₄ = 100 %; TLC: R_f : 0.19 (EtOAc : heptanes : AcOH (40 : 20 : 1)); OR: [a]³⁵ _D: - 21.62 (c = 0.45 g/100 mL; Abs. EtOH).

(2S,4 ?)-4-(2-carboxyphenoxy)pyrrolidine-2-carboxylic acid trifluoroacetic acid (5):

2 5

Protected proline analogue 2 (70 mg, 0.20 mmol, 1.00 equiv) was suspended in DCM (1.5 mL) and dissolved by addition of TFA (2 mL). The mixture was left to stir at room temperature under nitrogen for 18 h. The mixture was concentrated in vacuo, suspended in H₂0 and freeze dried to yield proline salt 5 (65 mg, 89 %) as a white solid. ^ NMR (300 MHz, D₂0) : δ 2.33 (1H, ddd, J = 15, 11, 5 Hz), 2.62 (1H, dd, J = 15, 8 Hz), 3.63 (2H, m), 4.53 (1H, dd, J = 11, 8 Hz), 5.20 (1H, m), 6.97 - 7.05 (2H, m), 7.46 (1H, ddd, J = 8, 8, 2 Hz), 7.64 (1H, dd, J = 8, 2 Hz); ¹³C NMR (75 MHz, D₂0) : δ 35.2, 51.4, 59.7, 77.6, 115.7, 121.3, 122.6, 132.1, 134.8, 155.2, 170.4, 172.4; LCMS: m/z [M + H]⁺ : calc: 252.1, found : 252.2; OR: [a]²² _D: - 6.70 (c = 0.37 g/100 mL; H₂0).

(2S,4/?)-4-(3-carboxyphenoxy)pyrrolidine-2-carboxylic acid hydrochloride (6):

Protected proline analogue 3 (120 mg, 0.34 mmol, 1.00 equiv) was dissolved in AcOH (3 mL) and added 1M HCI in Et₂0 (2 mL). The mixture was left to stir at room temperature under nitrogen for 18 h. The white precipitate formed was isolated by decantation of the solvents, washing with Et₂0, re- suspension in Et₂0 and filtering. The solid was dried in vacuo to yield proline salt 6 (94 mg, 96 %) as a white solid. ^ NMR (300 MHz, D₂0) : δ 2.43 (1H, ddd, J = 14, 10, 5 Hz), 2.74 (1H, dd, J = 14, 8 Hz), 3.59 - 3.80 (2H, m), 4.61 (1H, dd, J = 11, 8 Hz), 5.31 (1H, bs), 7.22 (1H, dd, J = 8, 2 Hz), 7.44 (1H, t, J = 8 Hz), 7.51 (1H, bs), 7.64 (1H, d, J = 8 Hz); ¹³C NMR (75 MHz, D₂0) : δ 35.1, 51.6, 59.4, 76.6, 116.9, 121.9, 124.0, 130.7, 131.8, 156.2, 170.4, 172.4; LCMS: m/z [M + H]⁺: calc: 252.1, found : 252.0; HPLC: puri- ty₂₅4 = 100 %; OR: [a]³⁵ _D: -9.48 (c = 0.57 g/100 mL; Abs. EtOH).

(2S,4/?)-4-(4-carboxyphenoxy)pyrrolidine-2-carboxylic acid hydrochloride (7):

Protected proline analogue 4 (89 mg, 0.25 mmol, 1.00 equiv) was suspended in DCM (4.5 mL) and added TFA (4.5 mL). The mixture was left to stir at room temperature under nitrogen for 18 h. The mixture was concentrated in vacuo, dissolved in H₂0 (5 mL) and freeze dried. The salt was dissolved in 2M HCI (5 mL), concentrated in vacuo, redissolved in H₂0 (3 x 5 mL) and concentrated in vacuo after each time. The salt was then dissolved in H₂0 (5 mL) and freeze dried to yield proline salt 7 (65 mg, 90 %) as a reddish foam. ^ NMR (300 MHz, D₂0) : δ 1.36 (1H, m), 1.63 (1H, dd, J = 14, 8 Hz), 2.24 (1H, d, J = 13 Hz), 2.66 (1H, dd, J = 14, 5 Hz), 3.07 (1H, dd, J = 9, 8 Hz), 4.18 (1H, m), 6.23 (2H, dm, J = 9 Hz), 7.19 (2H, dm, J = 9 Hz); ¹³C NMR (75 MHz, D₂0) : δ 34.4, 48.6, 57.7, 75.5, 111.9, 125.7, 128.0, 156.0, 171.6, 178.3; LCMS: m/z [M + H] ⁺ : calc: 252.1, found : 252.1; HPLC: purity₂₅₄ > 99 %; OR: [a]²² _D: -81.18 (c = 0.11 g/100 mL; 2M NaOH).

(2S,4S)-l-(tert-butoxycarbonyl)-4-(2- carbox henoxy)pyrrolidine-2-carboxylic acid (9):

Methyl ester 8 (303 mg, 1.24 mmol, 1.00 equiv), methyl 2- hydroxybenzoate (236 mg, 1.55 mmol, 1.26 equiv), PPh₃ (395 mg, 1.51 mmol, 1.22 equiv) and DIAD (325 mg, 1.61 mmol, 1.30 equiv) were weight out in a dry flask and dissolved in dry THF (6 mL). The mixture was left to stir at room temperature for 18 h. The mixture was added a combination of Et₂0 and THF (1 : 1, 40 mL) and washed with 2M NaOH (2 x 20 mL), brine (20 mL), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DCVC (0 - 30 % EtOAc in toluene).

The mixture was dissolved in THF (6 mL), cooled to 0 °C and drop wise added 2M LiOH (12 mL) over the course of 5 min. The mixture was left to stir at 0 °C for 15 min and at room temperature for 20 h. The mixture was added H₂0 (40 mL) and the aqueous phase washed with Et₂0 (2 x 40 mL). The aqueous phase was added cone. HCI (pH χ 0) and extracted with a mixture of Et₂0 and THF (1 : 1, 3 x 40 mL). The combined organic phases was washed with brine (50 mL), dried over MgS0₄, filtered and concentrated in vacuo to yield diacid 9 (333 mg, 77 %) as a clear, colorless oil. H NMR (300 MHz, ((CD₃)₂SO) : δ 1.36/1.41 (9H, 2 x s), 2.10 - 2.18 (1H, m), 2.59 - 2.74 (1H, m), 3.38 (1H, dd, J = 11, 4 Hz), 3.79 - 3.87 (1H, m), 4.19-4.27 (1H, m), 4.93 - 5.01 (1H, m), 7.00 - 7.09 (2H, m), 7.44 - 7.50 (1H, m), 7.62 (1H, dd, J = 8, 2 Hz); ¹³C NMR (75 MHz, ((CD₃)₂SO) : δ 28.0, 28.2, 34.7, 35.5, 51.3, 51.7, 57.2, 57.4, 75.8, 76.7, 78.9, 79.1, 115.5, 121.0, 122.5, 130.9, 132.8, 152.7, 153.2, 155.7, 166.8, 172.7, 173,0; LCMS: m/z [M + H] ⁺ : calc: 352.1, found : 252.1 (-Boc); HPLC: purity₂₅₄ > 99 %; TLC: R_f : 0.20 (EtOAc : heptanes : AcOH (40 : 20 : 1)); OR: [a]³⁵ _D: (c = mL; Abs. EtOH).

(2S,4S)-l-(tert-butoxycarbonyl)-4-(3- carbox henoxy)pyrrolidine-2-carboxylic acid (10):

Methyl ester 8 (350 mg, 1.43 mmol, 1.00 equiv), methyl 3- hydroxybenzoate (270 mg, 1.77 mmol, 1.24 equiv), DIAD (351 mg, 1.74 mmol, 1.22 equiv) and PPh₃ (452 mg, 1.72 mmol, 1.20 equiv) were weight out in a dry flask and dissolved in dry THF (8 mL) under nitrogen. The mixture was left to stir at room temperature for 18 h. The mixture was added a combination of Et₂0 and THF (1 : 1, 40 mL) and washed with 2M NaOH (2 x 20 mL), brine (25 mL), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DCVC (0 - 24 % EtOAc in toluene).

The mixture was dissolved in THF (12 mL), cooled to 0 °C and drop wise added 1M LiOH (12 mL) over the course of 2 min and subsequently 4M NaOH (2 mL) over the course of 4 min. The mixture was left to stir at 0 °C for 15 min and at room temperature for 20 h. The mixture was added H₂0 (40 mL) and the aqueous phase washed with Et₂0 (2 x 40 mL). The aqueous phase was added cone. HCI (pH χ 1) and extracted with a mixture of Et₂0 and THF (1 : 1, 3 x 40 mL). The pooled organic phases was washed with brine (50 mL), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DCVC (0 - 100 % EtOAc in heptanes containing 2 % AcOH) to yield diacid 10 (343 mg, 68 %) as a clear, colorless oil. H NMR (300 MHz, ((CD₃)₂SO) : δ 1.36/1.40 (9H, 2 x s), 2.15 - 2.26 (1H, m), 2.50 - 2.65 (1H, m), 3.41 (1H, dd, J = 12, 6 Hz), 3.65 - 3.77 (1H, m), 4.28 (1H, m), 5.05 - 5.15 (1H, m), 7.07 - 7.14 (1H, m), 7.32 - 7.35 (1H, m), 7.40 (1H, t, J = 8 Hz), 7.52 (1H, dm, J = 8 Hz); ¹³C NMR (75 MHz, ((CD₃)₂SO) : δ 28.0, 28.2, 34.7, 35.5, 51.4, 51.8, 57.2, 57.4, 74.5, 75.6, 78.8, 79.0, 116.0, 119.8, 121.8, 129.8, 132.2, 153.1, 153.2, 156.3, 166.8, 172.7, 172.9 LCMS: m/z [M + H]⁺ : calc: 352.1, found : 252.1 (-Boc); HPLC: purity₂₅₄ = 100 %; TLC: R_f : 0.27 (EtOAc : heptanes : AcOH (40 : 20 : 1)); OR: [a]³⁵ _D: -17.03 (c = 0.49 g/100 mL; Abs. EtOH).

(2S,4S)-l-(tert-butoxycarbonyl)-4-(4- carbox henoxy)pyrrolidine-2-carboxylic acid (11):

Methyl ester 8 (305 mg, 1.24 mmol, 1.00 equiv), methyl 4- hydroxybenzoate (246 mg, 1.62 mmol, 1.30 equiv), PPh₃ (395 mg, 1.51 mmol, 1.21 equiv) and DIAD (317 mg, 1.57 mmol, 1.26 equiv) were weight out in a dry flask and dissolved in dry THF (6 mL). The mixture was left to stir at room temperature for 18 h. The mixture was added a combination of Et₂0 and THF (1 : 1, 40 mL) and washed with 2M NaOH (2 x 20 mL), brine (25 mL), dried over MgS0₄, filtered and concentrated in vacuo. The mixture was purified using DCVC (0 - 30 % EtOAc in toluene).

The mixture was dissolved in THF (6 mL), cooled to 0 °C and drop wise added 2M LiOH (12 mL) over the course of 5 min. The mixture was left to stir at 0 °C for 15 min and at room temperature for 20 h. The mixture was added H₂0 (40 mL) and the aqueous phase washed with Et₂0 (2 x 40 mL). The aqueous phase was added cone. HCI (pH = 0) and extracted with a mixture of Et₂0 and THF (1 : 1, 3 x 40 mL). The combined organic phases was washed with brine (50 mL), dried over MgS0₄, filtered and concentrated in vacuo to yield diacid 11 (311 mg, 71 %) as a clear, colorless oil. H NMR (300 MHz, ((CD₃)₂SO) : δ 1.36/1.40 (9H, 2 x s), 2.17 - 2.22 (2H, m), 2.51 - 2.66 (1H, m), 3.41 (1H, dd, J = 12, 6 Hz), 3.69-3.78 (1H, m), 4.24-4.32 (1H, m), 5.08-5.11 (1H, m), 6.92 (2H, dd, J = 9, 3 Hz), 7.86 (2H, d, J = 9 Hz); ¹³C NMR (75 MHz, ((CD₃)₂SO) : δ 28.0, 28.2, 30.5, 34.7, 35.5, 51.5, 51.8, 57.2, 57.4, 74.6, 75.7, 78.9, 79.0, 115.0, 123.2, 131.3, 153.0, 153.1, 166.8, 172.6, 172.9; LCMS: m/z [M + H] ⁺ : calc: 352.1, found : 252.1 (-Boc); HPLC: purity₂₅₄ = 100%; TLC: R_f : 0.23 (EtOAc : heptanes : AcOH (40 : 20 : 1); OR: [a]³⁵ _D: (c = 0. g/100 mL; Abs. EtOH).

(2S,4S)-4-(l-carboxyphenoxy)pyrrolidine-2-carboxylic acid trifluoroacetic acid (12):

12 Protected proline 9 (288 mg, 0.82 mmol, 1.00 equiv) was suspended in DCM (5 mL) and dissolved by addition of TFA (5 mL). The mixture was left to stir at room temperature under nitrogen for 18 h. The mixture was concentrated in vacuo, dissolved in H₂0 (5 mL) and freeze dried to yield proline salt 12 (260 mg, 87 %) as a brownish foam. ^ NMR (300 MHz, D₂0) : δ 2.46-2.62 (2H, m), 3.47 (1H, dd, J = 13, 4 Hz), 3.69 (1H, d, J = 13 Hz), 4.29 (1H, dd, J = 10, 4 Hz), 5.14 (1H, m), 6.95 - 7.03 (2H, m), 7.40-7.46 (1H, m), 7.61 (1H, dd, J = 8, 2 Hz); ¹³C NMR (400 MHz, D₂0) : δ 34.3, 51.1, 59.5, 76.6, 115.2, 121.3, 122.2, 131.5, 134.2, 154.5, 170.4, 172.7; LCMS: m/z [M + H]⁺ : calc: 252.1, found : 252.1; HPLC: purity₂₅4 = 100 %; OR: [a]²² _D: -7.54 (c = 0.31 g/100 mL; H₂0 and 1% TFA).

(2S,4S)-4-(3-carboxyphenoxy)pyrrolidine-2-carboxylic acid hydrochloride (13):

13

10

Protected proline 10 (204 mg, 0.58 mmol, 1.00 equiv) was suspended in DCM (5 mL) and dissolved by addition of TFA (5 mL). The mixture was left to stir at room temperature under nitrogen for 18 h. The mixture was concentrated in vacuo, dissolved in H₂0 (5 mL) and freeze dried.

The salt was dissolved in 2M HCI (3 mL), concentrated in vacuo, redis- solved in H₂0 (3 x 5 mL) and concentrated in vacuo after each time. The salt was then dissolved in H₂0 (5 mL) and freeze dried to yield proline salt 13 (156 mg, 93 %) as a reddish foam. ^ NMR (300 MHz, D₂0) : δ 2.50 - 2.67 (2H, m), 3.59 (1H, dd, J = 13, 4 Hz), 3.70 (1H, d, J = 13 Hz), 4.59 (1H, t, J = 6 Hz), 5.14 (1H, m), 7.03 (1H, ddm, J = 8, 3 Hz), 7.25 - 7.34 (2H, m), 7.47 (1H, dm, J = 8 Hz); ¹³C NMR (75 MHz, D₂0) : δ 34.3, 51.4, 58.8, 75.2, 116.3, 121.3, 123.4, 130.1, 131.0, 155.1, 169.6, 171.7; LCMS: m/z [M + H]⁺ : calc: 252.1, found : 252.1; HPLC: purity₂₅₄ = 100 %; OR: [a]²² _D: 8.04 (c = 0.56 g/100 mL; H₂0).

(2S,4S)-4-(l-carboxyphenoxy)pyrrolidine-2-carboxylic acid trifluoroacetic acid (14):

Protected proline 11 (262 mg, 0.75 mmol, 1.00 equiv) was suspended in DCM (5 mL) and added TFA (5 mL). The mixture was left to stir at room temperature under nitrogen for 18 h. The mixture was concentrated in vacuo, dissolved in H₂0 (5 mL) and freeze dried to yield proline salt 14 (231 mg, 85 %) as a brownish foam. ^ NMR (300 MHz, D₂0) : δ 2.51 - 2.66 (2H, m), 3.57 (1H, dd, J = 13, 4 Hz), 3.70 (1H, d, J = 13 Hz), 4.53 (1H, dd, J = 9, 4Hz), 5.25 (1H, m), 6.87-6.92 (2H, m) , 7.84 - 7.90 (2H, m); ¹³C NMR (400 MHz, ((CD₃)₂SO ): δ 34.3, 50.7, 57.8, 75.0, 113,7, 115.2, 123.9, 131.4, 158.5, 166.8, 170.2; LCMS: m/z [M + H] ⁺ : calc: 252.1, found : 252.0; HPLC: purity₂₅₄ > 98 %; OR: [a]²² _D: 28.16 (c = 0.25 g/100 mL; H₂0 and 1% TFA).

{2S,4S)-l-tert- butyl 2-methyl 4- ((methylsulfonyl)oxy)pyrrolidine-l,2-dicarboxylate (15):

15

Alcohol 1 (550 mg, 2.24 mmol, 1.00 equiv) was dissolved in dry THF

(5 mL) and added TEA (1.70 mL, 3.95 mmol, 1.76 equiv) under nitrogen. The mixture was cooled to 0 °C, drop wise added mesyl chloride (0.30 mL, 3.88 mmol, 1.73 equiv) over the course of 10 min and the mixture was stirred at 0 °C for an additional 5 h. The mixture was added H₂0 (10 mL) and extracted with EtOAc (3 x 10 mL). The combined organic phases was washed with 1M HCI (10 mL), sat. NaHC0₃ (15 mL), brine (10 mL), dried over MgS0₄, filtered and concentrated in vacuo to yield mesylate 15 (714 mg, 98 %) as a slightly, white solid. ^ NMR (300 MHz, (CDCI₃) : δ 1.44, 1.49 (9H, 2 x s), 2.46 - 2.58 (2H, m), 3.02 (3H, s), 3.75 - 3.84 (2H, m), 3.76 (3H, s), 4.42 (0.53H, dd, J = 8, 3 Hz), 4.53 (0.46H, dd, J = 7, 5 Hz), 5.24 (1H, m). Characterisation is consistent which existing literature.

(2S,4/?)-l-(tert-butoxycarbonyl)-4-((2- carboxyphenyl)thio)pyrrolidine-2-carboxylic acid (16):

6⁶

Methyl 2-mercaptobenzoate (307 mg, 183 mmol, 1.63 equiv) was dissolved in DMF (7 mL) and added K₂C0₃ (265 mg, 1.92 mmol, 1.71 equiv). Mesylate 15 (345 mg, 1.12 mmol, 1.00 equiv) was drop wise added to the mixture over the course of 5 min, which was subsequently heated to 50 °C and stir under nitrogen for 18 h. The mixture was added 10 % brine (75 mL) and extracted with Et₂0 (2 x 75 mL). The combined organic phases was washed with 0.5 M NaOH (2 x 50 mL), brine (50 mL), dried over MgS0₄, filtered and concentrated in vacuo.

The crude oil was dissolved in THF (7.5 mL), cooled to 0 °C and drop wise added 2M LiOH (20 mL) over the course of 5 min. After additional 15 min at 0 °C the mixture was left to stir for 18 h at room temperature. The mixture was added H₂0 (75 mL) and was washed with Et₂0 (2 x 50 mL). The aqueous phase was acidified (pH χ 1) using cone. HCI and extracted with a combination of Et₂0 and THF (1 : 1) (3 x 70 mL). The combined organic phases was washed with brine, dried over MgS0₄, filtered and concentrated in vacuo. The crude product was purified using DCVC (0 - 75 % EtOAc in toluene and 2 % AcOH) yielding thioether 16 (304 mg, 78 %) as a clear, colorless oil. ^ NMR (300 MHz, (CDCI₃) : δ 1.43/1.47 (9H, 2 x s), 2.26 - 2.68 (2H, m), 3.40-3.56 (1H, m), 3.96 - 4.06 (1.5H, m), 4.17 (0.5H, dd, J = 11, 7 Hz), 4.46 (0.5H, dd, J = 8, 5 Hz), 4.57 (0.5H, dd, J = 8, 3 Hz), 7.13-7.25 (1H, m), 7.33 (1H, t, J = 10 Hz), 7.48 (1H, q, J = 8 Hz), 8.07 (1H, dd, J = 8, 3 Hz), 12.0 (2H, bs); ¹³C NMR (75 MHz, (CDCI₃) : δ 28.4, 28.5, 35.5, 36.5, 40.5, 41.0, 52.4, 52.5, 58.4, 58.5, 81.3, 81.7, 124.7, 124.8, 126.6, 126.8, 126.9, 132.5, 133.5, 140.7, 140.8, 153.5, 155.0, 171.3, 176.5, 178.4; LCMS: m/z [M + H]⁺ : calc: 368.1, found : 268.1 (-Boc); HPLC: purity₂₅₄ = 100 %; TLC: R_f : 0.19 (EtOAc : heptanes : AcOH (40 : 20 : 1)); OR: [a]^zz _D: - 22.53 (c = 0.49 g/100 mL; abs EtOH ).

(2S,4 ?)-4-((2-carboxyphenyl)thio)pyrrolidine-2-carboxylic acid trifluoroacetic acid (18).

Protected proline 16 (196 mg, 0.53 mmol) was dissolved in DCM (5 mL) and added TFA (4 mL). The mixture was stirred at room temperature for 18 h under nitrogen and subsequently concentrated in vacuo. The product was dissolved in 15 H₂0 and freeze dried to yield proline salt 18 (191 mg, 94 %) as a pale, brown solid. ^ NMR (400 MHz, D₂0) : δ 2.41-2.48 (1H, m), 2.60-2.68 ( 1H, m), 3.37 (1H, dd, J = 12, 4 Hz), 3.87 (1H, dd, J = 12, 4 Hz), 4.25 (1H, s), 4.63 (1H, dd, J = 12, 8 Hz), 7.34 (1H, t, J = 8 Hz), 7.45 (1H, d, J = 8 Hz), 7.54 (1H, t, J = 8, Hz), 7.88 (1H, d, J = 8 Hz); ¹³C NMR (400 MHz, D₂0) : δ 34.3, 41.9, 50.8, 59.0, 126.7, 129.3, 130.4, 131.1, 133.2, 135.3, 163.0, 171.2; LCMS : m/z [M + H]⁺ : calc: 268.1, found : 268.1; HPLC: purity^ > 99 %; OR: [a]²² _D: - 11.78 (c = 0.44 g/100 mL; H₂0 and 2% TFA).

(2S,4/?)-4-((3-carboxyphenyl)thio)pyrrolidine-2-carboxylic acid

(19):

(a) Methyl 2-mercaptobenzoate,

15

Methyl 3-mercaptobenzoate (286 mg, 1.70 mmol, 1.44 equiv) was dissolved in DMF (12 mL) and added K₂C0₃ (243 mg, 1.76 mmol, 1.49 equiv). Mesylate 15 (365 mg, 1.18 mmol, 1.00 equiv) was added to the mixture, which was subsequently left to stir at room temperature under nitrogen for 18 h. The mixture was added 10 % brine (100 mL) and extracted with Et₂0 (3 x 60 mL). The combined organic phases was washed with 0.5 M NaOH (2 x 80 mL), brine (60 mL), dried over MgS0₄, filtered and concentrated in vacuo. The crude oil was dissolved in THF (10 mL), cooled to 0 °C and drop wise added 2M NaOH (5 mL) over the course of 5 min. After additional 15 min at 0 °C the mixture was left to stir at room temperature for 19 h. The mixture was added H₂0 (20 mL) and washed with Et₂0 (2 x 20 mL). The aqueous phase was acidified (pH χ 1) using cone. HCI, extracted with a combination of Et₂0 and THF (3 : 4) (20 mL) and concentrated in vacuo.

The crude product was suspended in DCM (2 mL) and dissolved by addition of TFA (2 mL). The mixture was left to stir at room temperature under nitrogen for 22 h. The mixture was concentrated in vacuo, dissolved in H₂0 (30 mL) and washed with DCM (3 x 30 mL). The water phase was freeze dried to yield thioether 19 (121 mg, 40 %) as an off-white solid. ^ NMR (400 MHz, D₂0) : δ 2.33-2.40 (1H, m), 2.49-2.57 (1H, m), 3.32 (1H, dd, J = 12, 4 Hz), 3.77 (1H, dd, J = 12, 4 Hz), 4.07 (1H, pentet, J = 4 Hz), 4.60 (1H, t, J = 8 Hz), 7.37 (1H, t, J = 8 Hz), 7.56 (1H, d, J = 8 Hz), 7.78 (1H, d, J = 8 Hz), 7.85 (1H, s); ¹³C NMR (400 MHz, D₂0) : δ 34.4, 43.5, 50.7, 58.9, 129.1, 129.66, 130.7, 132.4, 133.0, 136.4, 169.2, 171.4; LCMS: m/z [M + H] ⁺ : calc: 268.1, found : 268.1; HPLC: purity₂₅₄ > 98 %; OR: [a]²² _D: -6.55 (c = 0.29 g/100 mL; H₂0).

(2S,4/?)-l-tert-butyl 2-methyl 4- ((methylsulfonyl)oxy)pyrrolidine-l,2-dicarboxylate (20):

20

Alcohol 8 (2.11 g, 8.60 mmol, 1.00 equiv) was dissolved in dry THF (15 mL) and added TEA (1.70 mL, 12.2 mmol, 1.42 equiv) under nitrogen. The mixture was cooled to 0 °C and drop wise added mesyl chloride (1.00 mL, 12.9 mmol, 1.50 equiv) over the course of 15 min and the mixture was stirred for an additional 5 h. The mixture was added H₂0 (30 mL) and extracted with EtOAc (3 x 25 mL). The combined organic phases was washed with 1M HCI (30 mL), sat. NaHC0₃ (40 mL), brine (30 mL), dried over MgS0₄, filtered and concentrated in vacuo to yield mesylate 20 (2.50 g, 90 %) as a white solid. ^ NMR (300 MHz, (CDCI₃) : 1.43, 1.47 (9H, 2 x s), 2.25 (0.40H, dd, J = 14, 5 Hz), 2.28 (0.60, dd, J = 14, 5 Hz), 2.58 (0.40, ddd, J = 14, 8, 3 Hz), 2.67 (0.60, tdd, J = 14, 8, 2 Hz) 3.06 (3H, s), 3.72 - 3.89 (5H, m), 4.40 (0.60H, t, J = 8 Hz), 4.46 (0.40H, t, J = 8 Hz), 5.26 (1H, m). Characterisation is consistent which existing literature.

20

(2S,4S)-l-(tert-butoxycarbonyl)-4-((2- carboxyphenyl)thio)pyrrolidine-2-carboxylic acid (21): Methyl 2- mercaptobenzoate (180 mg, 1.07 mmol, 1.66 equiv) was dissolved in DMF (4 mL) and added K₂C0₃ (149 mg, 1.08 mmol, 1.67 equiv). Mesylate 20 (200 mg, 0.65 mmol, 1.00 equiv) was drop wise added to the mixture, which was subsequently heated to 50 °C and stired under nitrogen for 18 h. The mixture was added 10 % brine (40 mL) and extracted with Et₂0 (2 x 50 mL). The combined organic phases was washed with 0.5 M NaOH (2 x 30 mL), brine (50 mL), dried over MgS0₄, filtered and concentrated in vacuo. The oil was purified using DCVC (0 - 22 % EtOAc in toluene)

The oil was dissolved in THF (5 mL), cooled to 0 °C and drop wise added 2M LiOH (10 mL) over the course of 5 min. After additional 15 min at 0 °C the mixture was left to stir for 18 h at room temperature. The mixture was added H₂0 (50 mL) and was washed with Et₂0 (2 x 25 mL). The aqueous phase was acidified (pH χ 1) using cone. HCI and extracted with a combina- tion of Et₂0 and THF (1 : 1) (3 x 25 mL). The combined organic phases was washed with brine (25 mL), dried over MgS0₄, filtered and concentrated in vacuo. The crude product was purified using DCVC (0 - 75 % EtOAc in toluene and 2 % AcOH) yielding thioether 21 (153 mg, 67 %) as a white solid. ^ NMR (300 MHz, (CDCI₃) : δ 1.47/1.54 (9H, 2 x s), 2.44 - 2.66 (2H, m), 3.60-3.78 (1H, m), 3.89 - 4.03 (1H, m), 4.09-4.16 (1H, m), 4.44 (0.5H, d, J = 8 Hz), 4.55 (0.5H, d, J = 8 Hz), 7.20 (1H, d, J = 8 Hz), 7.33 (1H, d, J = 8 Hz), 7.48 (2H, t, J = 8 Hz); ¹³C NMR (400 MHz, (CDCI₃) : δ 28.3, 28.5, 34.9, 36.0, 42.0, 50.9, 57.8, 58.0, 80.7, 81.0, 124.7, 124.8, 126.9, 127.1, 128.3, 128.5, 132.5, 132.6, 132.9, 133.1, 135.8, 140.3, 140.8, 153.9, 154.7, 171.7, 179.1, 179.7; LCMS: m/z [M + H] ⁺ : calc: 368.1, found : 268.1 (-Boc); HPLC: purity₂54 = 100 %; TLC: R_f : 0.18 (EtOAc : heptanes : AcOH (40 : 20 : 1)); OR: [a]²² _D: -28.30 (c = 0.29 g/100 mL; abs EtOH).

(2S,4S)-4-((2-carboxyphenyl)thio)pyrrolidine-2-carboxylic acid

(23):

2²³

Protected proline 21 (100 mg, 0.27 mmol) was suspended in DCM (1 mL) and dissolved by addition of TFA (1 mL). The mixture was left to stir at room temperature under nitrogen for 1 h. The mixture was concentrated in vacuo, dissolved in H₂0 (30 mL) and washed with DCM (3 x 20 mL). The aqueous phase was freeze dried to yield proline 23 (54 mg, 74 %) as an off- white solid. ^ NMR (400 MHz, D₂0) : δ 2.18-2.25 (1H, m), 2.77-285 (1H, m), 3.34 (0.5H, d, J = 4 Hz), 3.39 (0.5H, d, J = 4 Hz), 3.76 (1H, dd, J = 12, 8 Hz), 4.15 (1H, m), 4.50 (1H, dd, J = 8, 4 Hz), 7.26 (1H, t, J = 8 Hz), 7.35 (1H, t, J = 8 Hz), 7.47 (2H, t, J = 8 Hz); ¹³C NMR (400 MHz, D₂0) : δ 34.0, 41.6, 50.8, 58.9, 126.6, 129.5, 130.4, 131.0, 133.1, 135.3, 162.8, 170.9; LCMS: m/z [M + H]⁺ : calc: 268.1, found : 268.1; HPLC: purity₂₅₄ = 100 %; OR: [a]²² _D: -4.67 (c = 0.19 g/100 mL; H₂0 and 5% TFA).

(2S,4S)-4-((3-carboxyphenyl)thio)pyrrolidine-2-carboxylic acid

(24):

(a) Methyl 2-mercaptobenzoate,

Methyl 3-mercaptobenzoate (473 mg, 2.81 mmol, 1.51 equiv) was dissolved in DMF (22 mL) and added K₂C0₃ (397 mg, 2.87 mmol, 1.54 equiv). Mesylate 20 (604 mg, 1.87 mmol, 1.00 equiv) was drop wise added to the mixture, which was subsequently left to stir at room temperature under ni- trogen for 18 h. The mixture was added 1 % brine (400 mL) and extracted with Et₂0 (3 x 100 mL). The combined organic phases was washed with 0.5 M NaOH (2 x 100 mL), brine (80 mL), dried over MgS0₄, filtered and concentrated in vacuo.

The oil was dissolved in THF (10 mL), cooled to 0 °C and drop wise added 2M NaOH (5 mL) over the course of 5 min. After additional 15 min at 0 °C the mixture was left to stir at room temperature for 20 h. The mixture was added H₂0 (30 mL) and washed with Et₂0 (2 x 30 mL). The aqueous phase was acidified (pH χ 1) using cone. HCI, extracted with a combination of Et₂0 and THF (3 : 4) (40 mL) and concentrated in vacuo.

The crude product was suspended in DCM (4 mL) and dissolved by ad- dition of TFA (4 mL). The mixture was left to stir at room temperature under nitrogen for 21 h. The mixture was concentrated in vacuo, dissolved in H₂0 (30 mL) and washed with DCM (3 x 30 mL). The aqueous phase was freeze dried to yield proline 24 (188 mg, 38 %) as an off-white solid. H NMR (400 MHz, D₂0) : δ 2.25-2.32 (1H, m), 2.79-2.87 (1H, m), 3.48 (1H, dd, J = 12, 4 Hz), 3.76 (1H, dd, J = 12, 4 Hz), 4.20 (1H, pentet, J = 4 Hz), 4.44 (1H, dd, J = 12, 8 Hz), 7.55 (1H, t, J = 8 Hz), 7.76 (1H, d, J = 8 Hz), 7.78 (1H, dd, J = 8, 4 Hz), 8.01 (1H, s); ¹³C NMR (400 MHz, D₂0) : δ 34.3, 43.7, 50.7, 59.8, 129.3, 129.7, 130.9, 132.9, 133.2, 137.0, 169.7, 171.8; LCMS: m/z [M + H]⁺ : calc: 268.1, found : 268.1; HPLC: purity₂₅₄ > 99 %; OR: [a]²² _D: -18.19 (c = 0.24 g/100 mL; H₂0).

The protected compounds produced above may be deprotected by methods, which are well-known by the skilled person.

The following compounds, compounds 25 to 33, were prepared following corresponding procedures as described above.

(2S,4R)-4-(2-(carboxymethyl)phenoxy)pyrrolidine-2-carboxylic acid,

(25) ,

(2S,4R)-4-(3-(carboxymethyl)phenoxy)pyrrolidine-2-carboxylic acid,

(26) ,

(2S,4R)-4-((3-carboxynaphthalen-2-yl)oxy)pyrrolidine-2-carboxylic ac- id, (27),

(2S,4R)-4-((2-carboxynaphthalen-l-yl)oxy)pyrrolidine-2-carboxylic acid, (28),

(2S,4R)-4-((l-carboxynaphthalen-2-yl)oxy)pyrrolidine-2-carboxylic acid, (29),

(2S,4R)-4-(2,4-dicarboxyphenoxy)pyrrolidine-2-carboxylic acid, (30), (2S,4R)-4-(2-carboxy-4-methylphenoxy)pyrrolidine-2-carboxylic acid,

(31) ,

(2S,4R)-4-(4-acetyl-2-carboxyphenoxy)pyrrolidine-2-carboxylic acid,

(32) ,

(2S,4R)-4-(2-carboxy-6-methylphenoxy)pyrrolidine-2-carboxylic acid,

(33) .

Compound # CNG code Chemical structure

Table 2. prepared compounds, 25 to 33.

References

(1) Meldrum, B. S. Glutamate as a Neurotransmitter in the Brain: Review of Physiology and Pathology. J. Nutr. 2000, 130, 1007-1007.

(2) Bleakman, D.; Lodge, D. Neuropharmacology of AMPA and kainate receptors. Neuropharmacology 1998, 37, 1187-1204.

(3) Chittajallu, R. ; Braithwaite, S. P. ; Clarke, V. R. J. ; Henley, J. M. Kainate receptors: subunits, synaptic localization and function. Trends in Pharmacological Sciences 1999, 20, 26-35.

(4) Lerma, J. ; Paternain, A. V. ; Rodriguez-Moreno, A. ; Lopez- Garcia, J. C. Molecular physiology of kainate receptors. Physiological Reviews

2001, 81, 971-998.

(5) Rozas, J. L ; Paternain, A. V. ; Lerma, J. Noncanonical signaling by ionotropic kainate receptors. Neuron 2003, 39, 543-53.

(6) Pinheiro, P. ; Mulle, C. Kainate receptors. Cell and Tissue Re- search 2006, 326, 457-482.

(7) Lovinger, D. M. Neurotransmitter roles in synaptic modulation, plasticity and learning in the dorsal striatum. Neuropharmacology 2010, 58, 951-961.

(8) Anggono, V. ; Huganir, R. L. Regulation of AMPA receptor traf- ficking and synaptic plasticity. Current Opinion in Neurobiology 2012, 22,

461-469.

(9) Kalivas, P. W. Cocaine and amphetamine-like psychostimulants: neurocircuitry and glutamate neuroplasticity. Dialogues in clinical neurosci- ence 2007, 9, 389-97.

(10) McCarthy, D. J. ; Alexander, R. ; Smith, M. A. ; Pathak, S. ;

Kanes, S. ; Lee, C.-M. ; Sanacora, G. Glutamate-based depression GBD. Medical Hypotheses 2012, 78, 675-681.

(11) Sanacora, G. ; Treccani, G. ; Popoli, M. Towards a glutamate hypothesis of depression : An emerging frontier of neuropsychopharmacology for mood disorders. Neuropharmacology 2012, 62, 63-77.

(12) Chaki, S.; Okubo, T.; Sekiguchi, Y. Non-monoamine- based approach for the treatment of depression and anxiety disorders. Recent Patents CNS Drug Discov. 2006, 1, 1-27.

(13) Harvey, B. H. ; Shahid, M. Metabotropic and ionotropic glutamate receptors as neurobiological targets in anxiety and stress- related disorders: focus on pharmacology and preclinical translational models. Pharmacol Biochem Behav 2012, 100, 775-800.

(14) Riaza Bermudo-Soriano, C ; Perez- Rodriguez, M. M. ; Vaquero-Lorenzo, C ; Baca-Garcia, E. New perspectives in glutamate and anxiety. Pharmacology Biochemistry and Behavior 2012, 100, 752-774.

(15) Michelson, D. ; Levine, L. R. ; Dellva, M. A. ; Mesters, P. ; Schoepp, D. D. ; Dunayevich, E. ; Tollefson, G. D. Clinical studies with mGluR2/3 agonists: LY354740 compared with placebo in patients with gener- alized anxiety disorder. Neuropharmacology 2005, 49, 257-257.

(16) Lea, P. M. th; Faden, A. I. Metabotropic glutamate receptor subtype 5 antagonists MPEP and MTEP. CNS drug reviews 2006, 12, 149- 66.

(17) Vikelis, M. ; Mitsikostas, D. D. The role of glutamate and its receptors in migraine. CNS Neurol. Disord. Drug Targets 2007, 6, 251-7.

(18) Javitt, D. C. Glutamatergic theories of schizophrenia. Isr J Psychiatry Relat Sci 2010, 47, 4-16.

(19) Javitt, D. C. Glutamate and schizophrenia : phencyclidine, N-methyl-D-aspartate receptors, and dopamine-glutamate interactions. Int. Rev. Neurobiol.2007, 78, 69-108.

(20) Fell, M. J. ; McKinzie, D. L ; Monn, J. A. ; Svensson, K. A. Group II metabotropic glutamate receptor agonists and positive allosteric modulators as novel treatments for schizophrenia. Neuropharmacology 2012, 62, 1473-1483.

(21) Rotaru, D. C ; Lewis, D. A. ; Gonzalez-Burgos, G. The role of glutamatergic inputs onto parvalbumin-positive interneurons: relevance for schizophrenia. Rev Neurosci 2012, 23, 97-109.

(22) Coyle, J. T. ; Basu, A. ; Benneyworth, M. ; Balu, D. ; Konopaske, G. Glutamatergic synaptic dysregulation in schizophrenia : thera- peutic implications. Handb Exp Pharmacol 2012, 267-295.

(23) Almeida, A. ; Heales, S. J. ; Bolanos, J. P. ; Medina, J. M . Glutamate neurotoxicity is associated with nitric oxide-mediated mitochondrial dysfunction and glutathione depletion. Brain research 1998, 790, 209-16.

(24) Gu, B. ; Nakamichi, N. ; Zhang, W.-S. ; Nakamura, Y. ; Kambe, Y. ; Fukumori, R. ; Takuma, K. ; Yamada, K. ; Takarada, T. ; Taniura, H. ; Yoneda, Y. Possible protection by notoginsenoside Rl against glutamate neurotoxicity mediated by N-methyl-D-aspartate receptors composed of an NR1/NR2B subunit assembly. J. Neurosci. Res. 2009, 87, 2145-2156.

(25) Kumar, A. ; Singh, R. L ; Babu, G. N. Cell death mecha- nisms in the early stages of acute glutamate neurotoxicity. Neurosci. Res.

2010, 66, 271-278.

(26) Miao, Y. ; Dong, L.-D. ; Chen, J. ; Hu, X.-C ; Yang, X.-L ; Wang, Z. Involvement of calpain/p35-p25/Cdk5/NMDAR signaling pathway in glutamate-induced neurotoxicity in cultured rat retinal neurons. PLoS ONE 2012, 7, e42318.

(27) Danysz, W. ; Parsons, C. G. Alzheimer's disease, β- amyloid, glutamate, NMDA receptors and memantine--searching for the connections. Br. J. Pharmacol. 2012, 167, 324-352.

(28) McKeage, K. Memantine: a review of its use in moderate to severe Alzheimer's disease. CNS Drugs 2009, 23, 881-97.

(29) Kavirajan, H. Memantine: a comprehensive review of safety and efficacy. Expert opinion on drug safety 2009, 8, 89-109.

(30) Francis, P. T. Glutamatergic approaches to the treatment of cognitive and behavioural symptoms of Alzheimer's disease. Neurodegener Dis. 2008, 5, 241-3.

(31) Hu, N.-W. ; Ondrejcak, T. ; Rowan, M. J. Glutamate receptors in preclinical research on Alzheimer's disease: update on recent advances. Pharmacol. Biochem. Behav. 2012, 100, 855-862.

(32) Fan, M. M. ; Raymond, L. A. N-methyl-D-aspartate (NMDA) receptor function and excitotoxicity in Huntington's disease. Progress in neurobiology 2007, 81, 272-93.

(33) Corona, J. C ; Tovar-y-Romo, L. B.; Tapia, R. Glutamate excitotoxicity and therapeutic targets for amyotrophic lateral sclerosis. Expert opinion on therapeutic targets 2007, 11, 1415-28.

(34) Muir, K. W. Glutamate-based therapeutic approaches: clinical trials with NMDA antagonists. Current Opinion In Pharmacology 2006, 6, 53-60.

(35) Alexander, G. M. ; Godwin, D. W. Metabotropic glutamate receptors as a strategic target for the treatment of epilepsy. Epilepsy Re- search 2006, 71, 1-22. (36) Traynelis, S. F. ; Wollmuth, L. P. ; McBain, C. J. ; Menniti,

F. S. ; Vance, K. M. ; Ogden, K. K. ; Hansen, K. B. ; Yuan, H. ; Myers, S. J. ; Dingledine, R. Glutamate receptor ion channels: structure, regulation, and function. Pharmacol Rev 2010, 62, 405-496.

(37) Vaidyaa, A. ; Jainb, S. ; Jaina, A. K. ; Agrawala, A. ;

Kashawa, S. K. ; Jaina, S. K. ; Agrawala, R. K. Metabotropic Glutamate Receptors: A Review on Prospectives and Therapeutic Aspects. Mini Rev Med Chem 2012.

(38) Ogden, K. K. ; Traynelis, S. F. New advances in NMDA re- ceptor pharmacology. Trends in Pharmacological Sciences 2011, 32, 726-

733.

(39) Frizelle, P. A. ; Chen, P. E. ; Wyllie, D. J. A. Equilibrium Constants for (R)-[(S)- l-(4-Bromo-phenyl)-ethylamino]-(2,3-dioxo- 1,2,3,4- tetrahydroquinoxalin-5-yl)-methyl]-phosphonic Acid (NVP-AAM077) Acting at Recombinant NR1/NR2A and NR1/NR2B N-Methyl-d-aspartate Receptors: Implications for Studies of Synaptic Transmission. Mol Pharmacol 2006, 70, 1022-1032.

(40) Teichert, R. W. ; Jimenez, E. C ; Twede, V. ; Watkins, M. ; Hollmann, M. ; Bulaj, G. ; Olivera, B. M. Novel conantokins from Conus parius venom are specific antagonists of N-methyl-D-aspartate receptors. J. Biol. Chem.2007, 282, 36905-36913.

(138) Jane, D. E. ; Lodge, D. ; Collingridge, G. L. Kainate receptors: Pharmacology, function and therapeutic potential. Neuropharmacology 2009, 56, 90-113.

(139) Meador- Wood ruff, J. H. ; Davis, K. L ; Haroutunian, V. Abnormal kainate receptor expression in prefrontal cortex in schizophrenia. Neuropsychopharmacology 2001, 24, 545-552.

(140) Sodhi, M. S. ; Simmons, M. ; McCullumsmith, R. ; Haroutunian, V. ; Meador-Woodruff, J. H. Glutamatergic gene expression is specifically re- duced in thalamocortical projecting relay neurons in schizophrenia. Biol Psychiatry 2011, 70, 646-54.

(141) Ahmad, Y. ; Bhatia, M. S. ; Mediratta, P. K. ; Sharma, K. K. ; Negi, H. ; Chosdol, K. ; Sinha, S. Association between the ionotropic glutamate receptor kainate3 (GRIK3) Ser310Ala polymorphism and schizophrenia in the Indian population. World J Biol Psychiatry 2009, 10, 330-3. (142) Djurovic, S. ; Kahler, A. K. ; Kulle, B. ; Jonsson, E. G. ; Agartz, I. ; Le Hellard, S. ; Hall, H. ; Jakobsen, K. D. ; Hansen, T. ; Melle, I. ; Werge, T. ; Steen, V. M. ; Andreassen, O. A. A possible association between schizophrenia and GRIK3 polymorphisms in a multicenter sample of Scandinavian origin (SCOPE). Schizophr Res 2009, 107, 242-8.

(143) Shibata, H. ; Shibata, A. ; Ninomiya, H. ; Tashiro, N. ; Fukumaki, Y. Association study of polymorphisms in the GluR6 kainate receptor gene (GRIK2) with schizophrenia. Psychiatry Res 2002, 113, 59-67.

(144) Schiffer, H. H. ; Heinemann, S. F. Association of the human kainate receptor GluR7 gene (GRIK3) with recurrent major depressive disorder. American Journal of Medical Genetics Part B-Neuropsychiatric Genetics 2007, 144B, 20-26.

(145) Peng, L ; Li, B. ; Du, T. ; Wang, F. ; Hertz, L. Does conventional anti-bipolar and antidepressant drug therapy reduce NMDA-mediated neu- ronal excitation by downregulating astrocytic GluK2 function? Pharmacol Biochem Behav 2012, 100, 712-25.

(146) Samengo, I. ; Curro, D. ; Navarra, P. ; Barrese, V. ; Taglialatela, M. ; Martire, M. Molecular and pharmacological evidence for a facilitatory functional role of pre-synaptic GluK2/3 kainate receptors on GABA release in rat trigeminal caudal nucleus. Eur J Pain 2012, 16, 1148-57.

(147) Larsen, A. M. ; Bunch, L. Medicinal Chemistry of Competitive Kainate Receptor Antagonists. ACS Chemical Neuroscience 2010, 2, 60-74.

Claims

P A T E N T C L A I M S

1. A compound of Formula (I)

(I),

and pharmaceutically acceptable derivatives, the tautomers and stereoisomers, and protected compounds tereof, wherein );

— in each case may represent if appropriate the presence of at least one double bond between two adjacent ringatoms forming the ring system consisting of T¹, T², Z¹, Z², Z³ and optionally Z⁴,

X is C, NH, O or S,

T¹ is C, or CH,

T² is C, or CH,

Y is COR¹, substituted or unsubstituted Ci-Ce-alkyleneCOR¹, PC OR¹^, substituted or unsubstituted Ci-C₆-alkylenePO(ORi)₂, S0₂ORi, substituted or unsubstituted

S0₂N(R¹)₂ or Ci-C₆- alkyleneS0₂N(R¹)₂, wherein one or more -CH₂- groups forming the alkylene group may optionally be replaced by -CH=CH- or -C≡C-,

Z¹ is CR², C(R²)₂, N, S, O, or NR³,

Z² is CR², C(R²)₂, N, S, O, or NR³,

Z³ is CR², C(R²)₂, N, S, O, or NR³,

Z⁴ is absent, CR², C(R²)₂, N, S, O, or NR³,

R² is independently selected from the group comprising R⁴, O, OR⁴, Ci-C₆-alkyl OR⁴, halogen, N(OH)H, N(OH)R⁴, NHR⁴, COR⁴, Ci-C₆-alkyl COR⁴, COOR⁴, Ci-C₆-alkyl COOR⁴, CONHR⁴, Ci-C₆-alkyl CO NHR⁴, or S0₂NHR⁴,

R⁴ is independently selected from the group comprising H, Ci-C₆- alkyl, C₂-C₆-alkenyl, C₂-C₆-alkynyl, phenyl, Ci-C₆-alkylphenyl, or saturated or unsaturated C₅- or C₆-cycloalkyl, saturated or unsaturated C₅- or C₆- heterocyclyl, or saturated or unsaturated Ci-C₆-alkyl C₅- or C₆-heterocyclyl, wherein Ci-C₆-alkyl, C₂-C₆-alkenyl, C₂-C₆-alkynyl, phenyl, Ci-C₆-alkylphenyl, or saturated or unsaturated C₅- or C₆-cycloalkyl, saturated or unsaturated C₅- or C₆-heterocyclyl, or saturated or unsaturated Ci-C₆-alkyl C₅- or C₆- heterocyclyl may be substituted with one or more substituents selected from the group comprising Ci-C₆-alkyl, Ci-C₆-alkoxy, aryl, halogen, O, and amine,

R¹ may together with Z¹, Z², or Z³ or

Z² may together with Z¹ or Z³, or

Z³ may together with Z⁴,

optionally form if appropriate a saturated or unsaturated C₅- or C₆- cycloalkyl or a 5- or 6-membered heterocyclyl, wherein the saturated or unsaturated C₅- or C₆-cycloalkyl or the 5- or 6-membered heterocyclyl may be substituted with one or more substituents selected from the group comprising R₂, OR₄ or R₄, halogen represents CI, Br, or I, and with the proviso that Z¹, Z², Z³ and Z⁴ are not all CH, and with the that T¹ and T² are not both C, when R¹ is OH.

2. A compound according to claim 1 comprising Formula (I), where-

represents compounds of Formula (Ia2), (Ib2), (Ic2), (Id2),

meaning as defined in claim 1.

3. A compound according to any of the claims 1 to 2, comprising Formula (I), wherein

^Q represents compounds of Formula (Ia3), (Ib3), (Ic3), (Id3), or (Ie3), wherein (Ib3),

(Id3), or

(Ie3),

wherein

R¹ and (Z¹, Z², or Z³),

Z² and Z¹ or Z³), or

Z³ and Z⁴,

form if appropriate a saturated or unsaturated C₅- or C₆-cycloalkyl or a 5- or 6-membered heterocyclyl ring, the heterocyclyl ring containing one, two, three or four heteroatoms selected from the group comprising sulfur, oxygen and nitrogen, and the saturated or unsaturated C₅- or C₆-cycloalkyl or the 5- or 6-membered heterocyclyl ring may be substituted with one or more substituents selected from the group comprising OR₄ or R₄, X, T¹, T², Υ, Ζ¹, Ζ², Ζ³, Ζ⁴, R¹, R², R³, R⁴ and halogen have the same meaning as defined in claim 1.

4. A compound of Formula (I) according to any of the claims 1 to 3, wherein the 5- or 6-membered ring is selected from the group consisting of pyrrolidine, pyrrole, tetrahydrofuran, furan, thiolane, thiophene, imidazolidine, pyrazolidine, imidazole, pyrazole, oxazolidine, isoxazolidine, oxazole, isoxazole, thiazolidine, isothiazolidine, thiazole, isothiazole, dioxolane, dithiolane, triazoles, furazan, oxadiazole, thiadiazole, dithiazole, tetrazole, piperidine, pyridine, oxane, pyran, thiane thiopyran, piperazine, diazines, morpholine, oxazine, thiomorpholine, thiazine, dioxane, dioxine, dithiane, dithiine, triazine, trioxane, or tetrazine, and wherein the 5- or 6- membered heterocyclic ring may be substituted with 1 to 3 substituents.

5. A compound according to any of the claims 1 to 4 comprising Formula (I), wherein

X is O or S,

T¹ is C,

T² is C,

Y is COOH,

Z¹ is CH,

Z² is CH,

Z³ is CH,

Z⁴ is absent or CH,

6. A compound according to any of the claims 1 to 5 selected from the group consisting of

(2) (2S,4£)-l-(tert-butoxycarbonyl)-4-(2-carboxyphenoxy)pyrrolidine-2- carboxylic acid,

(3) (2S,4£)-l-(tert-butoxycarbonyl)-4-(3-carboxyphenoxy)pyrrolidine-2- carboxylic acid,

(4) (2S,4£)-l-(tert-butoxycarbonyl)-4-(4-carboxyphenoxy)pyrrolidine-2- carboxylic acid,

(5) (2S,4£)-4-(2-carboxyphenoxy)pyrrolidine-2-carboxylic acid trifluoroacetic acid,

(6) (2S,4£)-4-(3-carboxyphenoxy)pyrrolidine-2-carboxylic acid hydrochloride,

(7) (2S,4£)-4-(4-carboxyphenoxy)pyrrolidine-2-carboxylic acid hydrochio- ride,

(19) (2S,4£)-4-((3-carboxyphenyl)thio)pyrrolidine-2-carboxylic acid,

(27) (2S,4R)-4-((3-carboxynaphthalen-2-yl)oxy)pyrrolidine-2-carboxylic acid,

(28) (2S,4R)-4-((2-carboxynaphthalen- l-yl)oxy)pyrrolidine-2-carboxylic acid,

(29) (2S,4R)-4-((l-carboxynaphthalen-2-yl)oxy)pyrrolidine-2-carboxylic acid,

(30) (2S,4R)-4-(2,4-dicarboxyphenoxy)pyrrolidine-2-carboxylic acid,

(31) (2S,4R)-4-(2-carboxy-4-methylphenoxy)pyrrolidine-2-carboxylic acid, (32) (2S,4R)-4-(4-acetyl-2-carboxyphenoxy)pyrrolidine-2-carboxylic acid, and (33) (2S,4R)-4-(2-carboxy-6-methylphenoxy)pyrrolidine-2-carboxylic acid.

7. A compound according to any one of the preceding claims for use as a medicament.

8. A pharmaceutical composition comprising a compound according to any one of claims 1 to 7 in combination with one or more therapeutically acceptable diluents or carriers.

9. A compound according to any one of claims 1 to 6 or a pharma- ceutical composition according to claim 8 for use in treatment of disorders of the central nervous system, neuro-physiological processes such as memory, cognition; as well as neuronal plasticity and development, psychiatric diseases or neurological disorders such as depression, anxiety, addiction, pain, migraine, and schizophrenia, and neurodegenerative diseases; such as Alz- heimer, Huntington disease, amyotrophic lateral sclerosis (ALS), cerebral stroke, and epilepsy; and diseases including aching, ADHD, Autism, Diabetes, Huntington's disease, ischemia, multiple sclerosis, Parkinson's disease (Parkinsonism), Rasmussen's encephalitis, seizures, AIDS dementia complex, amyotrophic lateral sclerosis, combined systems disease (vitamin B12 defi- ciency), drug addiction, drug tolerance, drug dependency, glaucoma, hepatic encephalopathy, hydroxybutyric aminoaciduria, hyperhomocysteinemia and homocysteinuria, hyperprolinemia, lead encephalopathy, leber's disease, MELAS syndrome, MERRF, mitochondrial abnormalities (and other inherited or acquired biochemical disorders), neuropathic pain syndromes (e.g. causalgia or painful peripheral neuropathies), nonketotic hyperglycinemia, olivopontocerebellar atrophy, essential tremor, Rett syndrome, sulfite oxidase deficiency, Wernicke's encephalopathy or cancer.
