Abstract

Genetically engineered cells and microorganisms are provided that produce products from the fatty acid biosynthetic pathway (fatty acid derivatives), as well as methods of their use. The products are particularly useful as biofuels.

Description

ENHANCED PRODUCTION OF FATTY ACID DERIVATIVES

TECHNICAL FIELD

Genetically engineered cells and microorganisms are provided that produce products from the fatty acid biosynthetic pathway (i.e. , fatty acid derivatives), as well as methods of their use. The products are particularly useful as biofuels.

CROSS-REFERENCE TO RELATED APPLICATIONS

This application claims priority to U.S. Provisional Application Serial No. 60/908,547, filed on March 28, 2007; U.S. Provisional Application Serial No. 60/989,798, filed on November 21, 2007; and Patent Cooperation Treaty Application No. PCT/US2007/011923, filed May 18, 2007, which are herein incorporated by reference in their entirety.

BACKGROUND

Developments in technology have been accompanied by an increased reliance on fuel sources. Such fuel sources are becoming increasingly limited and difficult to acquire. With the burning of fossil fuels taking place at an unprecedented rate, it is likely that the world's fuel demand will soon outweigh current fuel supplies.

As a result, efforts have been directed toward harnessing sources of renewable energy, such as sunlight, water, wind, and biomass. The use of biomasses to produce new sources of fuel which are not derived from petroleum sources, (i. e. , biofuel) has emerged as one alternative option. Biofuel is a biodegradable, clean- burning combustible fuel which can be comprised of alkanes and esters. An exemplary biofuel is biodiesel. Biodiesel can be used in most internal combustion diesel engines in either a pure form, which is referred to as "neat" biodiesel, or as a mixture in any concentration with regular petroleum diesel.

Biodiesel offers a number of interesting and attractive beneficial properties compared to petroleum-based diesel, including reduced emissions (e.g., carbon monoxide, sulphur, aromatic hydrocarbons, soot particles, etc.) during combustion. Biodiesel also maintains a balanced carbon dioxide cycle because it is based on renewable biological materials. Biodiesel is non-toxic, completely biodegradable, and very safe due to its high flash point and low flammability. Furthermore, biodiesel provides good lubrication properties, thereby reducing wear and tear on engines.

Current methods of making biodiesel involve transesterifi cation of triacylglycerides from vegetable oil feedstocks, such as rapeseed in Europe, soybean in North America, and palm oil in South East Asia. Industrial-scale biodiesel production is thus geographically and seasonally restricted to areas where vegetable oil feedstocks are produced. The transesterification process leads to a mixture of fatty esters which can be used as biodiesel. An undesirable byproduct of the transesterification process is glycerin. To be usable as biodiesel, the fatty esters must be further purified from the heterogeneous product. This increases costs and the amount of energy required for fatty ester production and, ultimately, biodiesel production as well. Furthermore, vegetable oil feedstocks are inefficient sources of energy because they require extensive acreage for cultivation. For example, the yield of biodiesel from rapeseed is only 1300 L/hectare because only the seed oil is used for biodiesel production, and not the rest of the rapeseed biomass. Additionally, cultivating some vegetable oil feedsocks, such as rapeseed and soybean, requires frequent crop rotation to prevent nutrient depletion of the land..

Therefore, there is a need for an economically- and energy-efficient biofuel and method of making biofuels from renewable energy sources, such as biomass.

SUMMARY

This invention relates to the production of fatty acid derivatives from recombinant cells. Generally, the fatty acid derivatives are produced by expressing or over-expressing at least one gene encoding a fatty acid derivative enzyme. In addition, a gene encoding an acyl-CoA dehydrogenase enzyme can be modified in the recombinant cell such that expression of the gene is attenuated.

In one aspect, the invention provides a recombinant cell comprising at least one of (a) at least one gene encoding a fatty acid derivative enzyme, which gene is modified such that the gene is over-expressed, and (b) a gene encoding an acyl-CoA dehydrogenase enzyme, which gene is modified such that expression of the gene is attenuated. The modified gene encoding a fatty acid derivative enzyme gene may be a gene encoding an acyl-CoA synthase, a thioesterase, an ester synthase, an alcohol acyltransferase, an alcohol dehydrogenase, an acyl-CoA reductase, or a fatty-alcohol forming acyl-CoA reductase. In one embodiment, the modified gene encodes an acyl-CoA synthase, a thioesterase or an ester synthase. In some embodiments, the acyl-CoA synthase and a thioesterase and/or an ester synthase are modified. In some embodiments, the cell also comprises a gene encoding a transport protein.

The recombinant or host cell of the invention may be a Saccharomyces cerevisiae, Candida lipolytica, E. coli, Arthrobacter, Rhodotorula glutinins, Acinetobacter, Candida lipolytica, Botryococcus braunii, Vibrio furnissii, Micrococcus leuteus, Stenotrophomonas maltophilia or Bacillus subtilis cell, e.g., an Arthrobacter AK 19, Acinetobacter sp. strain M-I , E. coli B, E. coli C, E. coli K or E. coli W cell. In other embodiments, the recombinant cell is a cyanobacteria cell, e.g., a Synechocystis sp. PCC6803 or Synechococcus elongatus PCC7942 cell. In still other embodiments, the recombinant cell is a plant, animal or human cell. Alternatively, the recombinant cell is a microorganism cell from a bacteria, yeast, or filamentous fungi.

In a second aspect, the invention provides a recombinant cell capable of producing a fatty acid derivative, wherein the cell is modified to include at least one exogenous nucleic acid sequence encoding a fatty acid derivative enzyme. The exogenous nucleic acid sequence may encode an acyl-CoA synthase, a thioesterase, an ester synthase, an alcohol acyltransferase, an alcohol dehydrogenase, an acyl- CoA reductase or a fatty-alcohol forming acyl-CoA reductase. In some embodiments, the cell is modified to include at least two exogenous nucleic acid sequences encoding a fatty acid derivative enzyme, e.g., a first exogenous nucleic acid sequences encodes an acyl-CoA synthase and a second exogenous nucleic acid sequence encodes a thioesterase or an ester synthase. In other embodiments, the gene encoding a fatty acid derivative enzyme is modified to optimize a codon for expression in the recombinant cell.

In one embodiment, the recombinant cell comprises a modified gene encoding an acyl-CoA synthase, such asfadD.fadK, BH3103, yhfL, Pfl-4354, EA Vl 5023, fadDl, fadD2, RPCJ074, fadDD35, fadDD22, faa3p or the gene encoding the protein ZP__01644857. Examples of the acyl-CoA synthase genes are fadDD35 from M. tuberculosis HR7Rv [NP_217021], yhfL from B. subtilis [NP_388908], fadDl from P. aeruginosa PAOl [NP_251989], the gene encoding the protein ZP_01644857 from Stenotrophomonas maltophilia R551-3, or faa3p from Saccharomyces cerevisiae [NP_012257]. In a second embodiment, the recombinant cell comprises a modified gene encoding a thioesterase, such as tesA, 'tesA, tesB, fatB, fatB2, fatB3, fatB [M 14 IT],

In a third embodiment, the recombinant cell comprises a modified gene encoding an ester synthase, such as an ester synthase gene obtained from Acinetobacter spp., Alcanivorax borkumensis, Arabidopsis thaliana, Saccharomyces cerevisiae, Homo sapiens, Simmondsia chinensis, Mortierella alpina, Cryptococcus curvatus, Alcanivorax jadensis, Alcanivorax borkumensis. Acinetobacter sp. HOl-N or Rhodococcus opacus. Examples of ester synthase genes include wax/dgat, a bifunctional ester synthase/acyl-CoA:diacylglycerol acyltransferase from Simmondsia chinensis, Acinetobacter sp. strain ADP 1 , Alcanivorax borkumensis, Pseudomonas aeruginosa, Fundibacter jadensis, Arabidopsis thaliana, or Alkaligenes eutrophus.

In one embodiment, the recombinant cell of the invention further comprises at least one of apdh, pαnK, αceEF, fαbli, fαbD, fαbG, αcpP, and fαbF gene that is modified to be expressed or overexpressed. In a second embodiment, the recombinant cell further comprises at least one of a fadE, gpsA, ldhA, pflB, adhE, pta, poxB, ackA, and ackB gene that is modified such that expression of the gene is attenuated. In a third embodiment, the recombinant cell further comprises at least one modified gene of plsB and sfa. In other embodiments, the gene encoding an acyl-CoA dehydrogenase enzyme is deleted.

Recombinant cells according to the invention produce more acyl-CoA relative to a non-recombinant cell, e.g., an otherwise identical non-recombinant cell or a cell of similar lineage and phenotype.

The invention further provides compositions produced by the recombinant cells disclosed herein. The compositions comprising fatty acid derivatives produced from a recombinant cell may comprising less than or equal to about 50 ppm arsenic, about 30 ppm, about 25 ppm, or between about 10-50 ppm arsenic; less than or equal to about 200 ppm calcium, about 150 ppm calcium, about 1 19 ppm calcium or between about 50-200 ppm calcium; less than or equal to about 200 ppm chlorine, about 150 ppm chlorine, about 1 19 ppm chlorine or between about 50-200 ppm chlorine; less than or equal to about 50 ppm copper, about 30 ppm copper, about 23 ppm copper, or between about 10-50 ppm copper; less than or equal to about 300 ppm iron, about 200 ppm iron, about 136 ppm iron, or between about 50-250 ppm iron; less than or equal to about 50 ppm lead, about 30 ppm lead, about 25 ppm lead, or between about 10-50 ppm lead; less than or equal to about 50 ppm manganese, about 30 ppm manganese, about 23 ppm manganese, or between about 10-50 ppm manganese; less than or equal to about 50 ppm magnesium, about 30 ppm magnesium, about 23 ppm magnesium, or between about 10-50 ppm magnesium; less than or equal to about 0.5 ppm mercury, about 0.1 ppm mercury, about 0.06 ppm mercury or between about 0.01-0.2 ppm mercury; less than or equal to about 50 ppm molybdenum, about 30 ppm molybdenum, about 23 ppm molybdenum or between about 10-50 ppm molybdenum; less than or equal to about 2% nitrogen; about 1% nitrogen, about 0.5% nitrogen, or between about 0.1-1% nitrogen; less than or equal to about 200 ppm potassium, about 150 ppm potassium, about 103 ppm potassium, or between about 50-200 ppm potassium; less than or equal to about 300 ppm sodium, 200 ppm sodium, about 140 ppm sodium, or between about 50- 300 ppm sodium; less than or equal to about 1 ppm sulfur, less than or equal to about 1% sulfur, about 0.14% sulfur, or between about 0.05-0.3% sulfur; less than or equal to about 50 ppm zinc, about 30 ppm zinc, about 23 ppm zinc, or between about 10-50 ppm zinc; or less than or equal to about 700 ppm phosphorus, about 500 ppm phosphorus, about 350 ppm phosphorus, or between about 100-700 ppm phosphorus.

In one aspect, the composition produced by a recombinant cell of the invention comprises a fatty acid having a double bond at position 7 in the carbon chain (between C₇ and Cs) from the reduced end of the fatty acid derivative. In some embodiments, the composition comprises C₅-C₂₅ fatty esters, or C₁₀-C₂₀ fatty esters, or Ci₂-Ci₈ fatty esters. In other embodiments, the fatty acid derivatives comprise straight chain fatty acid derivatives, branched chain fatty acid derivatives, cyclic moieties. In still other embodiments, the fatty acid derivatives are unsaturated (e.g., monounsaturated) or saturated.

In other aspects, the composition comprises a fatty ester that is produced from an alcohol and an acyl-CoA, wherein the alcohol is at least about 1 , about 2, about 3, about 4, about 5, about 6, about 7, about 8, about 10, about 12, about 14, about 16, or about 18 carbons in length, and the acyl-CoA is at least about 2, about 4, about 6, about 8, about 10, about 12, about 14, about 16, about 18, about 20, about 22, about 24, or about 26 carbons in length. In some embodiments, the alcohol and acyl-CoA from which the fatty ester are produced vary by about 2, about 4, about 6, about 8, about 10, about 12 or about 14 carbon atoms.

In one embodiment, the composition produced by a recombinant cell of this invention has a fraction of modern carbon of about 1.003 to about 1.5. In other aspects, the invention provides a method for producing fatty acid derivatives in a recombinant cell comprising a) obtaining a recombinant cell; b) culturing the recombinant cell, and c) producing fatty acid derivatives.

In further aspects, the invention provides a method of increasing production of fatty acid derivatives in a recombinant cell comprising introducing an exogenous nucleic acid encoding a fatty acid derivative enzyme into the recombinant cell, and expressing the exogenous nucleic acid, wherein expression of the nucleic acid in the recombinant cell results in increased production of fatty acid derivatives relative to a non-recombinant cell, e.g., an otherwise identical non-recombinant cell or a cell of similar lineage and phenotype. In some embodiments, the exogenous nucleic acid encodes an acyl-CoA synthase, a thioesterase or an ester synthase. In other embodiments, exogenous nucleic acid encoding an acyl-CoA synthase, a thioesterase and an ester synthase are introduced into the recombinant cell. In other embodiments, a method for increasing the production level of fatty acid derivatives in a recombinant cell is provided, the method comprising: introducing a nucleic acid construct into a host cell, the nucleic acid construct comprising (a) a nucleic acid sequence encoding a fatty acid derivative enzyme of SEQ ID NO:2, SEQ ID NO:3, SEQ ID NO: 6, SEQ ID NO:9 or SEQ ID NO: 13, and (b) regulatory sequences for expression of the nucleic acid sequence; expressing the nucleic acid sequence; and obtaining the fatty acid derivatives. In still further aspects, the invention provides a recombinant construct comprising a nucleic acid sequence encoding a fatty acid derivative enzyme, wherein the nucleic acid sequence is modified to over-express the gene encoding a fatty acid derivative enzyme. In one embodiment, the nucleic acid sequence is modified to over-express the gene encoding an acyl-CoA synthase, a thioesterase, or an ester synthase. In a second embodiment, the nucleic acid sequence is modified to over-express (1) the gene encoding an acyl-CoA synthase, and (2) the gene encoding a thioesterase or an ester synthase. In a third embodiment, the nucleic acid sequence is modified to over-express the gene encoding ( 1 ) an acyl-CoA synthase, (2) a thioesterase, and (3) an ester synthase. In a fourth embodiment, the construct further comprises a nucleic acid sequence encoding an acyl-CoA dehydrogenase which is modified such that expression of the acyl-CoA dehydrogenase is attenuated. Vectors comprising these recombinant constructs are also provided by the invention. In some embodiments, the vector further comprises a structural gene providing for selection of transformed cells.

In another aspect, the invention provides a method for increasing production of fatty acid derivatives in a host cell, comprising: transforming the host cell with a nucleotide sequence so that the host cell expresses or over-expresses a fatty acid derivative enzyme gene, wherein the production of fatty acid derivatives in the host cell has been increased relative to a cell that has not been transformed. In such a method, the host cells may be harvested and lysed to obtain the fatty acid derivatives that have been produced. Alternatively, the host cell is transformed with a nucleotide sequence encoding a transport protein and the host cell releases the fatty acid derivatives extracellularly. In still another aspect, the invention provides a vector comprising a nucleic acid sequence encoding a fatty acid derivative enzyme operably linked to a promoter that is functional in a host cell, wherein the nucleic acid sequence comprises a first nucleic acid sequence encoding an acyl-CoA synthase and a second nucleic acid sequence encoding a thioesterase or ester synthase. The vector may further comprise a nucleic acid sequence encoding a transport protein. In one embodiment, the second nucleic acid sequence encodes a thioesterase and the vector further comprises a third nucleic acid sequence encoding an ester synthase. In a second embodiment, the vector further comprises a nucleic acid sequence encoding a transport protein.

In a still further aspect, the invention provides a method of producing fatty acid derivatives comprising: (a) providing a host cell comprising the vector of the invention, and (b) culturing the host cell to produce fatty acid derivatives. In some embodiments, a supernatant from the culturing of the host cell is collected to obtain the fatty acid derivatives that have been produced. Fatty acid derivatives produced by such methods are also provided by the invention.

In one aspect, fatty acid derivatives produced in accordance with the invention may be used as biofuel compositions. The fatty acid derivatives may be used as a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel. In another aspect, the compositions produced by a recombinant cell of the invention comprise fatty esters and free fatty acids. For example, in one embodiment, the percentage of free fatty acids by weight is at least about 1%, about 2%, about 3%, about 4%, about 5%, about 6%, about 7%, about 8%, about 9%, about 10%, about 15%, about 20%, or about 25%. In another embodiment, the percentage of fatty esters produced by weight is at least about 50%, about 55%, about 60%, about 65%, about 70%, about 75%, about 80%, about 85%, or about 90%. In a further embodiment, the ratio of fatty esters to free fatty acids is about 10:1, about 9:1, about 8:1, about 7:1, about 5: 1, about 2:1 or about 1 :1. In one embodiment, the composition produced in accordance with the invention includes a fatty ester, wherein the fatty ester is at least one of: ethyl dodecanoate, ethyl tridecanoate, ethyl tetradecanoate, ethyl pentadecanoate, ethyl cis-9-hexadecenoate, ethyl hexadecanoate, ethyl heptadecanoate, ethyl cis-1 1- octadecenoate, ethyl octadecanoate, or a combination thereof. In a second embodiment, the composition produced in accordance with the invention includes a free fatty acid, wherein the free fatty acid is at least one of: dodecanoic acid, tetradecanoic acid, pentadecanoic acid, cis-9-hexadecenoic acid, hexadecanoic acid, cis-1 1 -octadecenoic acid, or combinations thereof.

The compositions of these embodiments may also be used as biofuels, for example, as a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

In some embodiments, the compositions disclosed herein contain a percentage by weight of Cu free fatty acids relative to the total free fatty acids of at least about 5%, 10%, or 15%. In other embodiments, the compositions disclosed herein contain a percentage by weight of C_H free fatty acids relative to the total free fatty acids of at least about 20%, 30%, or 40%. In other embodiments, the compositions disclosed herein contain a percentage by weight of Cj₅ free fatty acids relative to the total free fatty acids of at least about 1 % or 2%. In other embodiments, the compositions disclosed herein contain a percentage by weight of Ci₆ free fatty acids relative to the total free fatty acids of at least about 20%, 30%, or 40%. In other embodiments, the compositions disclosed herein contain a percentage by weight of Ci ₈ free fatty acids relative to the total free fatty acids of at least about 15%, 20%, or 25%. In some embodiments, the compositions disclosed herein contain a percentage by weight of Cn fatty esters relative to the total fatty esters of at least about 1%, 2%, or 3%. In other embodiments, the compositions disclosed herein contain a percentage by weight of Ci₄ fatty esters relative to the total fatty esters of at least about 10%, 15%, or 20%. In other embodiments, the compositions disclosed herein contain a percentage by weight of Ci₆ fatty esters relative to the total fatty esters of at least about 30%, 40%, or 50%. In other embodiments, the compositions disclosed herein contain a percentage by weight OfCi₈ fatty esters relative to the total fatty esters of at least about 20%, 30%, or 40%.

BRIEF DESCRIPTION OF THE FIGURES

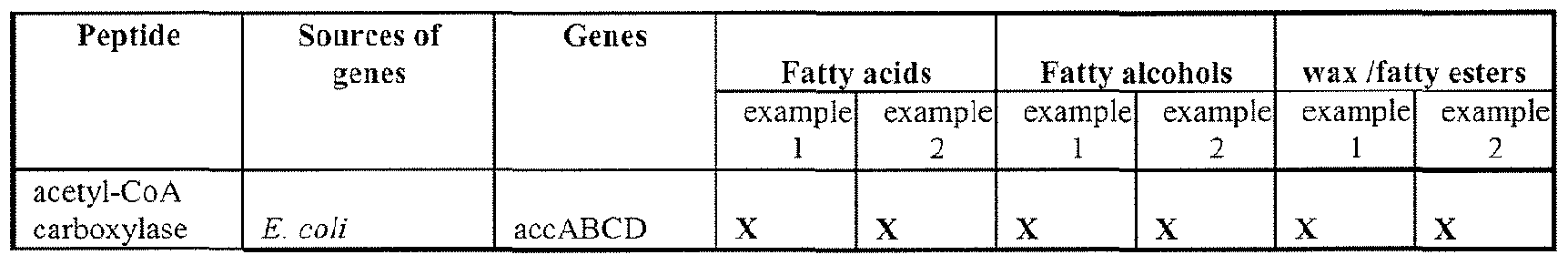

Figure 1 is a table identifying various genes that can be over-expressed or attenuated to incrase fatty acid derivative production. The table also identifies various genes that can be modulated to alter the structure of the fatty acid derivative product. Some of the genes that are used to alter the structure of the fatty acid derivative will also increase the production of fatty acid derivatives.

Figure 2 is a diagram illustrating the FAS biosynthetic pathway.

Figure 3 is a diagram illustrating the beta-oxidation pathway, including steps catalyzed by the following enzymes (1) acyl-CoA synthase (EC 6.2.1.-). (2) acyl- CoA dehydrogenase (EC 1.3.99.3), (3) enoyl-CoA hydratase (EC 4.2.1.17); (4) 3-hydroxybutyryl-CoA epimerase (EC 5.1.2.3), and (5) 3-ketoacyl-CoA thiolase (EC 2.3.1.16). This final reaction of the β-oxidation cycle, releases acetyl-CoA and an acyl- CoA fatty acid two carbons shorter, ready to go through β-oxidation reactions again. Figure 4 is a diagram illustrating biosynthetic pathways that produce fatty esters depending upon the substrates provided.

Figure 5 is a diagram illustrating biosynthetic pathways that produce fatty alcohols.

Figure 6 is a diagram illustrating biosynthetic pathways that produce fatty esters.

Figure 7 is a graph depicting fatty alcohol production by the strain, described in Example 5, co-transformed with pCDFDuet-1-fadD-acrl and plasmids containing various thioesterase genes. Saturated Cio, Ci₂, Ci₄, C_i6 and Ci₈ fatty alcohol were identified. Figure 8 is a graph depicting the release of fatty alcohols from the production strain. Approximately 50% of the fatty alcohol produced was released from the cells when they were grown at 37°C.

Figure 9A-D are plots depicting GS-MS spectra of octyl octanoate (CsCs) produced by a production host expressing alcohol acetyl transferase (AATs, EC 2.3.1.84) and production hosts expressing ester synthase (EC 2.3.1.20, 2.3.1.75). Figure 9A is a GC-MS spectrum showing ethyl acetate extract of strain C41(DE3, AfadE/pRZl .43)/pRSET B+pAS004.114B) wherein the pHZl .43 plasmid expressed ADPl ester synthase (EC 2.3.1.20, 2.3.1.75). Figure 9B is a GC-MS spectrum showing ethyl acetate extract of strain C41(DE3, AfadE/pHZl Λ3)/pRSET B+pAS004.114B) wherein the pHZ1.43 plasmid expressed SAAT. Figure 9C is a GC-MS spectrum showing acetyl acetate extract of strain C41(DE3, Δ/2κ*E/pHZl.43 VpRSET B+pAS004.114B) wherein the pHZ1.43 plasmid did not contain ADP 1 (ester synthase) or SAAT. Figure 9D is a GC-MS spectrum showing the mass spectrum and fragmentation pattern of CsCs produced by C41(DE3,

AfadE/pHZl .43)/pRSET B+pAS004.114B wherein the pHZl .43 plasmid expressed SAAT).

Figure 10 is a graph depicting the distribution of ethyl esters made when the ester synthase from A. haylyi ADPl (WSadpl) was co-expressed with thioesterase gene from Cuphea hookeriana in a production host.

Figure 1 1 is a graph depicting the production of ethyl esters by various ester synthases at 25⁰C. The ethyl esters were produced by recombinant E. coli strains carrying various ester synthase genes. The recombinant strains were 1. C41 (DE3, AfadEAfabR)/pETDuet-\ -tesA + pCDFDuet-1-fadD with 1 pHZ1.43; 2. pHZ1.97_377; 3. pHZ1.97_atfA2; 4. pHZ1.97_376; 5. pHZ1.97_atfAl ; 6. No plasmids (control).

Figure 12 is a graph depicting the acyl composition of fatty acid ethyl esters (FAEE) produced from various E. coli strains. The recombinant strains are 1. C41 (DE3, AfadEAfabR)/ pETDuet-1 -tesA + pCDFDuet-1-fadD with 1 pHZ1.43; 2. pHZ1.97_377; 3. pHZ1.97_atfA2; 4. pHZ1.97_376; 5. pHZ1.97_atfAl ; 6. No plasmids (control).

Figure 13 is a graph depicting the production of ethyl esters by various ester synthases at 37°C. The ethyl esters were produced by recombinant E. coli strains carrying various ester synthase genes. The recombinant strains were 1. C41 (DE3, AfadEAfabR)/ pETOuet-l-tesA + pCDFDuet-1-fadD with 1 pHZ1.43; 2. pHZ1.97_377; 3. pHZ1.97_atfA2; 4. pHZ1.97_376; 5. pHZ1.97_atfAl ; 6. No plasmids (control).

Figure 14 is a graph depicting concentrations of free fatty acids (FFA) and fatty acid ethyl esters (FAEE) produced from three individual colonies from the transformants, C41 (DE3, AfadEAfabR)/ pETOuet-l-tesA + pCDFDuet-1-fadD +pHZ1.97_atfA2 t. The FFA was converted to fatty acid ethyl ester (FAEE) and quantified by GC/MS.

Figure 15 is a diagram depicting the control region for FabA and FabB. The FadR and FabR consensus binding sites are shown in bold. Vertical arrows indicate the positions where mutations can be made to alter fabA expression. The proposed base for each position is also indicated by the brackets. The two regions that constitute the -35 and -10 regions of the typical E. coli promoter are indicated by the brackets. The proposed mutations that make the promoter closer to the consensus promoter sequence are also shown.

Figure 16A and Figure 16B are chromatograms depicting GC/MS analysis. Figure 16A is a chromatogram depicting the ethyl extract of the culture of E. coli LS9001 strain transformed with plasmids pCDFDuet-1-fadD-WSadpl, pETDuet-1- 'tesA. Figure 16B is a chromatogram depicting ethyl hexadecanoate and ethyl oleate used as reference.

Figure 17 is a map of the pOP-80 plasmid.

Figure 18 is SEQ ID NO: 1 , the full DNA sequence of the pOP-80 plasmid.

Figure 19 is SEQ ID NO: 2, the DNA sequence for the E. coli codon- optimized fadD35 gene (accession code NP_217021). Figure 20 is SEQ ID NO: 3, the DNA sequence for the E. coli codon- optimized fadDl gene (accession code NP_251989).

Figure 21 is SEQ ID NO: 4, the BsyhfLBspHIF primer based on the DNA sequence deposited at NCBI with the accession code NC_000964. Figure 22 is SEQ ID NO: 5, the BsyhfLEcoR primer based on the DNA sequence deposited at NCBI with the accession code NC_000964.

Figure 23 is SEQ ID NO: 6, the DNA sequence for the yhjL gene from Bacillus subtilis.

Figure 24 is SEQ ID NO: 7, the Scfaa3pPciF primer based on the DNA sequence deposited at NCBI with the accession code NC_001 141.

Figure 25 is SEQ ID NO: 8, the ScfaaSpPciI primer based on the DNA sequence deposited at NCBI with the accession code NC_001 141.

Figure 26 is SEQ ID NO: 9, the DNA sequence for the FAA3 gene from Saccharomyces cerevisiae (NP_012257). Figure 27 is SEQ ID NO: 10, the Smprk59BspF primer based on the DNA sequence deposited at NCBI with the accession code NZ_^AAVZO 1000044.

Figure 28 is SEQ ID NO: 1 1, the Smprk59HindR primer based on the DNA sequence deposited at NCBI with the accession code NZ_^AAVZO 1000044.

Figure 29 is SEQ ID NO: 12, the PrkBsp primer. Figure 30 is SEQ ID NO: 13, the DNA sequence encoding the protein

ZP_01644857 from Stenotrophomonas maltophilia R551-3.

Figure 31 is SEQ ID NO: 14, the protein sequence of ZP_01644857 from Stenotrophomonas maltophilia ATCC 17679. Abbreviations and Terms

The following explanations of terms and methods are provided to better describe the present disclosure and to guide those of ordinary skill in the art in the practice of the present disclosure. As used herein, the singular forms "a" or "an" or "the" include plural references unless the context clearly dictates otherwise. For example, reference to "a cell" or "the cell" includes one or a plurality of such cells. The term "or" refers to a single element of stated alternative elements or a combination of two or more elements, unless the context clearly indicates otherwise. For example, the phrase "thioesterase activity or fatty alcohol-forming acyl-CoA reductase activity" refers to thioesterase activity, fatty alcohol forming acyl-CoA reductase activity, or a combination of both thioesterase activity and fatty alcohol forming acyl-CoA reductase activity. Additionally, throughout the specification, a reference may be made using an abbreviated gene name or enzyme name, but it is understood that such an abbreviated gene or enzyme name represents the genus of genes or enzymes. For example "fadD" refers to a gene encoding the enzyme "FadD," as well as genes encoding acyl-CoA synthase (EC 6.2.1.-). Such gene names include all genes encoding the same peptide and homologous enzymes having the same physiological function, and enzyme names include all peptides that catalyze the same fundamental chemical reaction or have the same activity. Figure 1 provides various abbreviated gene and peptide names, descriptions of their activities, and their enzyme classification numbers. These can be used to identify other members of the class of enzymes having the associated activity and their associated genes, which can be used to produce fatty acid derivatives.. Unless explained otherwise, all technical and scientific terms used herein have the same meaning as commonly understood to one of ordinary skill in the art to which this disclosure belongs. Although methods and materials similar or equivalent to those described herein can be used in the practice or testing of the present disclosure, suitable methods and materials are described below. The materials, methods, and examples are illustrative only and not intended to be limiting. Other features of the disclosure are apparent from the following detailed description and the claims.

Accession Numbers: The accession numbers throughout this description are derived from the NCBI database (National Center for Biotechnology

Information) maintained by the National Institute of Health, U.S.A. The accession numbers are as provided in the database on March 27, 2007.

Enzyme Classification Numbers (EC): EC numbers are established by the Nomenclature Committee of the International Union of Biochemistry and Molecular Biology (NC-IUBMB) (available at http://www.chem.qmul.ac.uk/iubmb/enzyme/). The EC numbers provided herein are derived from the KEGG Ligand database, maintained by the Kyoto Encyclopedia of Genes and Genomics, sponsored in part by the University of Tokyo. The EC numbers are as provided in the database on March 27, 2007. Attenuate: To weaken, reduce or diminish. In one example, the sensitivity of a particular enzyme to feedback inhibition or inhibition caused by a composition that is not a product or a reactant (non-pathway specific feedback) is reduced such that the enzyme activity is not impacted by the presence of a compound. In another example, the expression of fabH gene is temperature sensitive and its sequence can be altered to decrease the sensitivity to temperature fluctuations. Expression of the fabH gene can be attenuated when branched amino acids are desired. In another example, an enzyme that has been modified to be less active can be referred to as attenuated. A functional modification of the sequence encoding an enzyme can be used to attenuate expression of an enzyme. Sequence modifications may include, for example, a mutation, deletion or insertion of one or more nucleotides in a gene sequence or a sequence controlling the transcription or translation of a gene sequence, which modification results in reduction or inhibition of production of the gene product, or renders the gene product non-functional. For example, functional deletion oifabR in E. coli reduces the repression of the fatty acid biosynthetic pathway and allows E. coli to produce more unsaturated fatty acids (UFAs). In some instances a functional deletion is described as a knock-out mutation.

Other methods are available for attenuating expression of an enzyme. For example, attenuation can be accomplished by modifying the sequence encoding the gene as described above; placing the gene under the control of a less active promoter, expressing interfering RNA, ribozymes or antisense sequences that target the gene of interest; by changing the physical or chemical environment, such as temperature, pH, or solute concentration, such that the optimal activity of the gene or gene product is not realized; or through any other technique known in the art..

Biofuel: The term '"biofueP refers to any fuel derived from biomass.

Biomass is a biological material that can be converted into a biofuel. One exemplary source of biomass is plant matter. For example, com, sugar cane, and switchgrass can be used as biomass. Another non-limiting example of biomass is animal matter, for example cow manure. Biomass also includes waste products from industry, agriculture, forestry, and households. Examples of such waste products which can be used as biomass are fermentation waste, straw, lumber, sewage, garbage and food leftovers. Biomass also includes sources of carbon, such as carbohydrates (e.g., sugars).

Biofuels can be substituted for petroleum based fuels. For example, biofuels are inclusive of transportation fuels (e.g., gasoline, diesel, jet fuel, etc.), heating fuels, and electricity-generating fuels. Biofuels are a renewable energy source. Non- limiting examples of biofuels are biodiesel, hydrocarbons (e.g., alkanes, alkenes, alkynes, or aromatic hydrocarbons), and alcohols derived from biomass.

Biodiesel: Biodiesel is a biofuel. Biodiesel can be a substitute of diesel, which is derived from petroleum. Biodiesel can be used in internal combustion diesel engines in either a pure form, which is referred to as "neat" biodiesel, or as a mixture in any concentration with petroleum-based diesel. Biodiesel can be comprised of hydrocarbons or esters. In one embodiment, biodiesel is comprised of fatty esters, such as fatty acid methyl esters (FAME) or fatty acid ethyl esters (FAEE). In a preferred embodiment, these FAME and FAEE are comprised of fatty acyl moieties having a carbon chain length of about 8-20, 10- 18, or 12-16 carbons in length. Fatty esters used as biodiesel may contain carbon chains which are saturated or unsaturated.

Biocrude: Biocrude is a biofuel. Biocrude can be used as a substitute for petroleum based fuels. In addition, biocrude, like petroleum crude, can be converted into other fuels, for example gasoline, diesel, jet fuel, or heating oil. Moreover, biocrude, like petroleum crude, can be converted into other industrially useful chemicals for use in, for example, pharmaceuticals, cosmetics, consumer goods, industrial processes, etc.

Biocrude may include, for example, hydrocarbons, hydrocarbon products, fatty acid esters, and/or aliphatic ketones. In a preferred embodiment, biocrude is comprised of hydrocarbons, for example aliphatic (e.g., alkanes, alkenes, alkynes) or aromatic hydrocarbons.

Carbon source: Generally refers to a substrate or compound suitable to be used as a source of carbon for prokaryotic or simple eukaryotic cell growth. Carbon sources can be in various forms, including, but not limited to polymers, carbohydrates, acids, alcohols, aldehydes, ketones, amino acids, peptides, gases

(e.g., CO and CO₂), etc. These include, for example, various monosaccharides such as glucose, fructose, mannose and galactose; oligosaccharides such as fructo- oligosaccharide and galacto-oligosaccharide; polysaccharides such as xylose, and arabinose; disaccharides such as sucrose, maltose and turanose; cellulosic material such as methyl cellulose and sodium carboxymethyl cellulose; saturated or unsaturated fatty acid esters such as succinate, lactate and acetate; alcohols such as ethanol, etc., or mixtures thereof.

The carbon source can additionally be a product of photosynthesis, including, but not limited to glucose. Cloud point of a fluid: The temperature at which dissolved solids are no longer completely soluble, precipitating as a second phase giving the fluid a cloudy appearance. This term is relevant to several applications with different consequences. In the petroleum industry, cloud point refers to the temperature below which wax or other heavy hydrocarbons crystalizes in a crude oil, refined oil or fuel to form a cloudy appearance. The presence of solidified waxes influences the flowing behavior of the fluid, the tendency to clog fuel filters/injectors etc., the accumulation of wax on cold surfaces (e.g., pipeline or heat exchanger fouling), and even the emulsion characteristics with water. Cloud point is an indication of the tendency of the oil to plug filters or small orifices at cold operating temperatures.

The cloud point of a nonionic surfactant or glycol solution is the temperature where the mixture starts to phase separate and two phases appear, thus becoming cloudy. This behavior is characteristic of non-ionic surfactants containing polyoxyethylene chains, which exhibit reverse solubility versus temperature behavior in water and therefore "cloud out" at some point as the temperature is raised. Glycols demonstrating this behavior are known as "cloud-point glycols" and are used as shale inhibitors. The cloud point is affected by salinity, being generally lower in more saline fluids.

Cloud point lowering additive: An additive which may be added to a composition to decrease or lower the cloud point of a solution, as described above.

Detectable: Capable of having an existence or presence ascertained. For example, production of a product from a reactant (e.g., the production of Cl 8 fatty acids) is detectable using the methods provided below.

Endogenous: As used herein, with reference to a nucleic acid molecule and a particular cell or microorganism, "endogenous" refers to a nucleic acid sequence or peptide that is in the cell and was not introduced into the cell using recombinant engineering techniques. For example, a gene that was present in the cell when the cell was originally isolated from nature. A gene is still considered endogenous if the control sequences, such as a promoter or enhancer sequences that activate transcription or translation, have been altered through recombinant techniques.

Ester synthase: An ester synthase is a peptide capable of producing fatty esters. More specifically, an ester synthase is a peptide which converts a thioester to a fatty ester. In a preferred embodiment, the ester synthase converts the thioester, acyl-CoA, to a fatty ester.

In an alternate embodiment, an ester synthase uses a thioester and an alcohol as substrates to produce a fatty ester. Ester synthases are capable of using short and long chain acyl-CoAs as substrates. In addition, ester synthases are capable of using short and long chain alcohols as substrates.

Non-limiting examples of ester synthases are wax synthases, wax-ester synthases, acyl-CoA:alcohol transacylases, acyltransferases, and fatty acyl- coenzyme A: fatty alcohol acyltransferases. Exemplary ester synthases are classified in enzyme classification number EC 2.3.1.75. Exemplary GenBank Accession Numbers are provided in Figure 1.

Exogenous: As used herein, with reference to a nucleic acid molecule and a particular cell, "exogenous" refers to any nucleic acid molecule that does not originate from that particular cell as found in nature. For example, '"exogenous DNA" could refer to a DNA sequence that was inserted within the genomic DNA sequence of a microorganism, or an extra chromosomal nucleic acid sequence that was introduced into the microorganism. Thus, a non-naturally-occurring nucleic acid molecule is considered to be exogenous to a cell once introduced into the cell. A nucleic acid molecule that is naturally-occurring also can be exogenous to a particular cell. For example, an entire coding sequence isolated from an E. coli DH5 alpha cell is an exogenous nucleic acid with respect to a second E. coli DH5 alpha cell once that coding sequence is introduced into the second E. coli DH5alpha cell, even though both cells are DH5alpha cells. Expression: The process by which the inheritable information in a gene, such as the DNA sequence, is made into a functional gene product, such as protein or RNA.

Several steps in the gene expression process may be modulated, including the transcription step, the translational step, and the post-translational modification of the resulting protein. Gene regulation gives the cell control over its structure and function, and it is the basis for cellular differentiation, morphogenesis and the versatility and adaptability of any organism. Gene regulation may also serve as a substrate for evolutionary change, since control of the timing, location, and amount of gene expression can have a profound effect on the functions (actions) of the gene in the organism.

Expressed genes include genes that are transcribed into messenger RNA (mRNA) and then translated into protein, as well as genes that are transcribed into types of RNA, such as transfer RNA (tRNA), ribosomal RNA (rRNA), and regulatory RNA that are not translated into protein. Fatty ester: A fatty ester is an ester. In a preferred embodiment, a fatty ester is any ester made from a fatty acid, for example a fatty acid ester.

In one embodiment, a fatty ester contains an A side (i.e., the carbon chain attached to the carboxylate oxygen) and a B side (i.e., the carbon chain comprising the parent carboxylate). In a preferred embodiment, when the fatty ester is derived from the fatty acid biosynthetic pathway, the A side is contributed by an alcohol, and the B side is contributed by a fatty acid.

Any alcohol can be used to form the A side of the fatty esters. For example, the alcohol can be derived from the fatty acid biosynthetic pathway. Alternatively, the alcohol can be produced through non-fatty acid biosynthetic pathways.

Moreover, the alcohol can be provided exogenously. For example, the alcohol can be supplied in the fermentation broth in instances where the fatty ester is produced by an organism. Alternatively, a carboxylic acid, such as a fatty acid or acetic acid, can be supplied exogenously in instances where the fatty ester is produced by an organism that can also produce alcohol.

The carbon chains comprising the A side or B side can be of any length. In one embodiment, the A side of the ester is at least about 1, 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, or 18 carbons in length. The B side of the ester is at least about 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, or 26 carbons in length. The A side and/or the B side can be straight or branched chain. The branched chains may have one or more points of branching. In addition, the branched chains may include cyclic branches. Furthermore, the A side and/or B side can be saturated or unsaturated. If unsaturated, the A side and/or B side can have one or more points of unsaturation. In one embodiment, the fatty ester is produced biosynthetically. In this embodiment, first the fatty acid is "activated.^"' Non-limiting examples of

"activated" fatty acids are acyl-CoA, acyl ACP, and acyl phosphate. Acyl-CoA can be a direct product of fatty acid biosynthesis or degradation. In addition, acyl-CoA can be synthesized from a free fatty acid, a CoA, and an adenosine nucleotide triphosphate (ATP). An example of an enzyme which produces acyl-CoA is acyl- CoA synthase

After the fatty acid is activated, it can be readily transferred to a recipient nucleophile. Exemplary nucleophiles are alcohols, thiols, or phosphates. In another embodiment, the fatty ester can be derived from a fatty acyl- thioester and an alcohol.

In one embodiment, the fatty ester is a wax. The wax can be derived from a long chain alcohol and a long chain fatty acid. In another embodiment, the fatty ester is a fatty acid thioester, for example fatty acyl Coenzyme A (CoA). In other embodiments, the fatty ester is a fatty acyl pantothenate, an acyl acyl carrier protein (ACP), or a fatty phosphate ester.

Fatty esters have many uses. For examples, fatty esters can be used as a biofuel or a surfactant.

Fatty acid derivative: The term "fatty acid derivative" includes products made in part from the fatty acid biosynthetic pathway of the production host organism. "Fatty acid derivative" also includes products made in part from acyl- ACP or acyl-ACP derivatives. The fatty acid biosynthetic pathway includes fatty acid synthase enzymes which can be engineered as described herein to produce fatty acid derivatives, and in some examples can be expressed with additional enzymes to produce fatty acid derivatives having desired carbon chain characteristics.

Exemplary fatty acid derivatives include for example, short and long chain alcohols, hydrocarbons, and fatty alcohols and esters, including waxes, fatty acid esters, or fatty esters. Fatty acid derivative enzymes: All enzymes that may be expressed or over-expressed in the production of fatty acid derivatives are collectively referred to herein as fatty acid derivative enzymes. These enzymes may be part of the fatty acid biosynthetic pathway. Non-limiting examples of fatty acid derivative synthases include fatty acid synthases, thioesterases, acyl-CoA synthases, acyl-CoA reductases, alcohol dehydrogenases, alcohol acyltransferases, fatty alcohol-forming acyl-CoA reductase, and ester synthases. Fatty acid derivative enzymes convert a substrate into a fatty acid derivative. In some examples, the substrate may be a fatty acid derivative which the fatty acid derivative enzyme converts into a different fatty acid derivative.

Fatty alcohol forming peptides: Peptides capable of catalyzing the conversion of acyl-CoA to fatty alcohol, including fatty alcohol forming acyl-CoA reductase (FAR, EC 1.1.1.*), acyl-CoA reductase (EC 1.2.1.50) or alcohol dehydrogenase (EC 1.1.1.1 ). Additionally, one of ordinary skill in the art will appreciate that some fatty alcohol forming peptides will catalyze other reactions as well. For example, some acyl-CoA reductase peptides will accept other substrates in addition to fatty acids. Such non-specific peptides are, therefore, also included. Nucleic acid sequences encoding fatty alcohol forming peptides are known in the art and such peptides are publicly available. Exemplary GenBank Accession Numbers are provided in Figure 1.

Fraction of modern carbon: Fraction of modern carbon (fjvi) is defined by National Institute of Standards and Technology (NIST) Standard Reference Materials (SRMs) 4990B and 4990C, known as oxalic acids standards HOxI and HOxII, respectively. The fundamental definition relates to 0.95 times the ¹⁴C /¹²C isotope ratio HOxI (referenced to AD 1950). This is roughly equivalent to decay- corrected pre-Industrial Revolution wood. For the current living biosphere (plant material), fjv_t is approximately 1.1.

Hydrocarbon: includes chemical compounds that contain the elements carbon (C) and hydrogen (H). All hydrocarbons consist of a carbon backbone and atoms of hydrogen attached to that backbone. Sometimes, the term is used as a shortened form of the term "aliphatic hydrocarbon." There are essentially three types of hydrocarbons: (1 ) aromatic hydrocarbons, which have at least about one aromatic ring; (2) saturated hydrocarbons, also known as alkanes, which lack double, triple or aromatic bonds; and (3) unsaturated hydrocarbons, which have one or more double or triple bond between carbon atoms and include: alkenes (e.g., dienes) and alkynes.

Isolated: An "isolated" biological component (such as a nucleic acid molecule, protein, or cell) is a biological component that has been substantially separated or purified away from other biological components in which the biological component naturally occurs, such as other chromosomal and extra-chromosomal DNA sequences; chromosomal and extra-chromosomal RNA; and proteins. Nucleic acid molecules and proteins that have been "isolated" include nucleic acid molecules and proteins purified by standard purification methods. The term embraces nucleic acid molecules and proteins prepared by recombinant expression in a production host cell as well as chemically synthesized nucleic acid molecules and proteins.

In one example, isolated refers to a naturally-occurring nucleic acid molecule that is not contiguous with both of the sequences with which it is directly adjacent to (i.e., the sequence on the 5' end and the sequence on the 3' end) in the naturally- occurring genome of the organism from which it is derived.

Microorganism: Includes prokaryotic and eukaryotic microbial species from the domains Archaea, Bacteria and Eucarya, the latter including yeast and filamentous fungi, protozoa, algae, or higher Protista. The terms "microbial cells" and "'microbes" are used interchangeably with the term microorganism.

Nucleic Acid Molecule: Encompasses both RNA and DNA sequences including, without limitation, cDNA, genomic DNA sequences, and mRNA. The term ncludes synthetic nucleic acid molecules, such as those that are chemically synthesized or recombinantly produced. The nucleic acid molecule can be double- stranded or single-stranded. When single-stranded, the nucleic acid molecule can be the sense strand or the antisense strand. In addition, a nucleic acid molecule can be circular or linear.

Operably linked: A first nucleic acid sequence is operably linked to a second nucleic acid sequence when the first nucleic acid sequence is placed in a functional relationship to the second nucleic acid sequence. For instance, a promoter is operably linked to a coding sequence if the promoter is in a position to affect the transcription or expression of the coding sequence. Generally, operably linked DNA sequences are contiguous and may join two protein coding regions, in the same reading frame. Configurations of separate genes which are operably linked and are transcribed in tandem as a single messenger RNA are denoted as operons. Placing genes in close proximity, for example in a plasmid vector, under the transcriptional regulation of a single promoter, constitutes a synthetic operon. ORF (open reading frame): A series of nucleotide triplets (i.e., codons) coding for amino acids without any termination codons. These sequences are usually translatable into a peptide.

Over-express: When a peptide is present in a greater concentration in a recombinant host cell compared to its concentration in a non-recombinant host cell of the same species. Over-expression can be accomplished using any method known in the art. For example, over-expression can be caused by altering the control sequences in the genomic DNA sequence of a host cell, introducing one or more coding sequences into the genomic DNA sequence, altering one or more genes involved in the regulation of gene expression (e.g., deleting a repressor gene or producing an active activator), amplifying the gene at a chromosomal location (tandem repeats), introducing an extra chromosomal nucleic acid sequence, increasing the stability of the RNA transcribed via introduction of stabilizing sequences, and combinations thereof. Examples of recombinant microorganisms that over-produce a peptide include microorganisms that express nucleic acid sequences encoding acyl-CoA synthases (EC 6.2.1.-). Other examples include microorganisms that have had exogenous promoter sequences introduced upstream to the endogenous coding sequence of a thioesterase peptide (EC 3.1.2.-). Over-expression also includes elevated rates of translation of a gene compared to the endogenous translation rate for that gene. Methods of testing for over-expression are well known in the art. For example, transcribed RNA levels can be assessed using rtPCR and protein levels can be assessed using SDS page gel analysis. Partition coefficient: The partition coefficient, P, is defined as the equilibrium concentration of a compound in an organic phase divided by the concentration at equilibrium in an aqueous phase (e.g., fermentation broth). In one embodiment of the bi-phasic system described herein, the organic phase is formed by the fatty acid derivative during the production process. However, in some examples, an organic phase can be provided, such as by providing a layer of octane, to facilitate product separation. When describing a two phase system, the partition coefficient, P, is usually discussed in terms of logP. A compound with a logP of 1 would partition 10:1 to the organic phase. A compound with a logP of -1 would partition 1 : 10 to the organic phase. By choosing an appropriate fermentation broth and organic phase, a fatty acid derivative with a high logP value will separate into the organic phase even at very low concentrations in the fermentation vessel.

Production host: A production host is a cell used to produce the products disclosed herein. As disclosed herein, the production host is modified to express or over-express selected genes, or to have attenuated expression of selected genes. Non-limiting examples of production hosts include plant, animal, human, bacteria, yeast, or filamentous fungi cells.

Promoters and enhancers: Transcriptional control signals in eukaryotes comprise "promoter" and "enhancer" elements. Promoters and enhancers consist of short arrays of DNA sequences which interact specifically with cellular proteins involved in transcription (Maniatis et al, Science 236:1237, 1987). Promoter and enhancer elements have been isolated from a variety of eukaryotic sources including genes in yeast, insect, mammalian and plant cells. Promoter and enhancer elements that have been isolated from viruses. Analogous control elements, such as promoters and enhancers, are also found in prokaryotes. The selection of a particular promoter and enhancer depends on the cell type used to express the protein of interest. Some eukaryotic and prokaryotic promoters and enhancers have a broad production host cell range while others are functional in a limited subset of production host cells (see, e.g., Voss et ah, Trends Biochem. ScL, 1 1 :287, 1986; and Maniatis et ah, 1987 supra).

The terms "promoter element," "promoter," or "promoter sequence" refer to a DNA sequence that functions as a switch which activates the expression of a gene. If the gene is activated, it is said to be transcribed, or participating in transcription. Transcription involves the synthesis of mRNA from the gene. The promoter, therefore, serves as a transcriptional regulatory element and also provides a site for initiation of transcription of the gene into mRNA.

Purified: The term "purified" refers to molecules that are removed from their natural environment by, for example, isolation or separation. "Substantially purified" molecules are at least about 60% free, preferably at least about 75% free, and more preferably at least about 90% free from other components with which they are naturally associated. As used herein, the term "purified" or "to purify" also refers to the removal of contaminants from a sample. For example, the removal of contaminants can result in an increase in the percentage of fatty acid derivatives of interest in a sample. For example, after fatty acid derivatives are expressed in plant, bacterial, yeast, or mammalian production host cells, the fatty acid derivatives are purified by the removal of production host cell proteins. After purification, the percentage of fatty acid derivatives in the sample is increased. The term purified does not require absolute purity; rather, it is intended as a relative term. Thus, for example, a purified fatty acid derivative preparation is one in which the product is more concentrated than the product is in its environment within a cell. For example, a purified fatty ester is one that is substantially separated from cellular components (e.g., nucleic acids, lipids, carbohydrates, and other peptides) that can accompany it. In another example, a purified fatty ester preparation is one in which the fatty ester is substantially free from contaminants, such as those that might be present following fermentation.

For example, a fatty ester is purified when at least about 50% by weight of a sample is composed of the fatty ester. In another example when at least about 60%, 70%, 80%, 85%, 90%, 92%, 95%, 98%, or 99% or more by weight of a sample is composed of the fatty ester.

Recombinant: A recombinant nucleic acid molecule is one that has a sequence that is not naturally occurring, has a sequence that is made by an artificial combination of two otherwise separated segments of sequence, or both. This artificial combination can be achieved, for example, by chemical synthesis or by the artificial manipulation of isolated segments of nucleic acid molecules, such as genetic engineering techniques. Recombinant is also used to describe nucleic acid molecules that have been artificially manipulated, but contain the same regulatory sequences and coding regions that are found in the organism from which the nucleic acid was isolated. A recombinant protein is a protein derived from a recombinant nucleic acid molecule.

A recombinant or transformed cell is one into which a recombinant nucleic acid molecule has been introduced, such as an acyl-CoA synthase encoding nucleic acid molecule, for example by molecular biology techniques. Transformation encompasses all techniques by which a nucleic acid molecule can be introduced into such a cell, including, but not limited to, transfection with viral vectors, conjugation, transformation with plasmid vectors, and introduction of naked DNA sequence by electroporation, lipofection, and particle gun acceleration.

Sequence identity: The similarity between two nucleic acid sequences or between two amino acid sequences is expressed in terms of the level of sequence identity shared between the sequences. Sequence identity is typically expressed in terms of percentage identity. The higher the percentage identity, the more similar the two sequences. For the purposes of this application, the terms "identity" and "similarity^"' are interchangeable.

Methods for aligning sequences for comparison are well known in the art. Various programs and alignment algorithms are described in: Smith & Waterman, Adv. Appl. Math. 2:482, 1981 ; Needleman & Wunsch, J. MoI. Biol. 48:443, 1970; Pearson & Lipman, Proc. Natl. Acad. ScL USA 85:2444, 1988; Higgins & Sharp, Gene 73:237 244, 1988; Higgins & Sharp, G4-5/OS 5:151-153, 1989; Corpet et al, Nucleic Acids Research 16:10881-10890, 1988; Huang et al., 05/058: 155-165, 1992; and Pearson et al., Methods in Molecular Biology 24:307-331, 1994. Altschul et al., J. MoI. Biol. 215:403-410, 1990, presents a detailed consideration of sequence alignment methods and homology calculations.

The NCBI Basic Local Alignment Search Tool (BLAST™; Altschul et al., J. MoI. Biol. 215:403-410, 1990) is available from several sources, including the National Center for Biotechnology Information (NBCI, Bethesda, MD), for use in connection with the sequence analysis programs blastp, blastn, blastx, tblastn and tblastx. BLAST™ can be accessed on the Internet at the NBCI website. As used herein, sequence identity is commonly determined with the BLAST™ software set to default parameters. For example, blastn (version 2.0) software can be used to determine sequence identity between two nucleic acid sequences using default parameters (e.g., expect = 10, matrix = BLOSUM62, filter = DUST (Tatusov and Lipmann, in preparation as of December 1, 1999; and Hancock and Armstrong, Compiit. Appl. Biosci. 10:67-70, 1994), gap existence cost = 1 1, per residue gap cost = 1 , and lambda ratio = 0.85). For comparison of two polypeptides, blastp (version 2.0) software can be used with default parameters {e.g., expect 10, filter = SEG (Wootton and Federhen, Computers in Chemistry 17: 149-163, 1993), matrix = BLOSUM62, gap existence cost = 11 , per residue gap cost = 1, lambda = 0.85).

For comparisons of nucleic acid sequences, the "Blast 2 sequences" function of the BLAST™ (Blastn) program is employed using the default BLOSUM62 matrix set to default parameters {e.g., cost to open a gap [default = 1 1]; cost to extend a gap [default = I]; expectation value (E) [default = 10.0]; word size [default = 11]; number of one-line descriptions (V) [default = 100]; number of alignments to show (B) [default = 100]). Nucleic acid sequences with even greater similarity to the reference sequences will show increasing percentage identities when assessed by this method, such as at least about 45%, at least about 60%, at least about 70%, at least about 75%, at least about 80%, at least about 85%, at least about 90%, at least about 95%, or at least about 98%, or at least about 99% sequence identity.

For comparisons of amino acid sequences of greater than about 30 amino acids, the "Blast 2 sequences" function of the BLAST™ program is employed using the default BLOSUM62 matrix set to default parameters (e.g., gap existence cost of 11, and a per residue gap cost of 1). When aligning short peptides (e.g., fewer than around 30 amino acids), the alignment should be performed using the Blast 2 sequences function, employing the PAM30 matrix set to default parameters (e.g., open gap 9, extension gap 1 penalties). Proteins with even greater similarity to the reference sequences will show increasing percentage identities when assessed by this method, such as at least about 35%, at least about 45%, at least about 50%, at least about 60%, at least about 80%, at least about 85%, at least about 90%, at least about 95%, at least about 98%, or at least about 99% sequence identity to the sequences. Surfactants: Substances capable of reducing the surface tension of a liquid in which they are dissolved. They are typically composed of a water-soluble head and a hydrocarbon chain or tail. The water soluble head is hydrophilic and can be either ionic or nonionic. The hydrocarbon chain is hydrophobic. Surfactants are used in a variety of products, including detergents and cleaners, and are also used as auxiliaries for textiles, leather and paper, in chemical processes, in cosmetics and pharmaceuticals, in the food industry and in agriculture. In addition, they can be used to aid in the extraction and isolation of crude oils which are found hard to access environments or in water emulsions.

There are four types of surfactants characterized by varying uses. Anionic surfactants have detergent-like activity and are generally used for cleaning applications. Cationic surfactants contain long chain hydrocarbons and are often used to treat proteins and synthetic polymers or are components of fabric softeners and hair conditioners. Amphoteric surfactants also contain long chain hydrocarbons and are typically used in shampoos. Non-ionic surfactants are generally used in cleaning products.

Synthase: A synthase is an enzyme which catalyzes a synthesis process. As used herein, the term synthase includes synthases and synthetases. Transport protein: A protein that facilitates the movement of one or more compounds in and/or out of an organism or organelle. In some embodiments, an exogenous DNA sequence encoding an ATP-Binding Cassette (ABC) transport protein will be functionally expressed by the production host so that the production host exports the fatty acid derivative into the culture medium. ABC transport proteins are found in many organisms, such as Caenorhabditis elegans, Arabidopsis thalania, Alcaligenes eutrophns (later renamed Ralstonia eutropha), or Rhodococcus erythropolis. Non-limiting examples of ABC transport proteins include CER5, AtMRP5, AmiS2 and AtPGPl . In a preferred embodiment, the ABC transport protein is CER5 {e.g., AY734542). In other embodiments, the transport protein is an efflux protein selected from: AcrAB, ToIC, or AcrEF from E. coli or till 618, till 619, and .110139 from Thermosynechococcus elongatus BP-I .

In further embodiments, the transport protein is a fatty acid transport protein (FATP) selected from Drosophila melanogaster, Caenorhabditis elegans, Mycobacterium tuberculosis, or Saccharomyces cerevisiae or any one of the mammalian FATPs well known in the art.

Under conditions that permit product production: Any fermentation conditions that allow a production host to produce a desired product, such as acyl- CoA or fatty acid derivatives such as fatty acids, hydrocarbons, fatty alcohols, waxes, or fatty esters. Fermentation conditions usually comprise many parameters. Exemplary conditions include, but are not limited to, temperature ranges, levels of aeration, and media composition. Each of these conditions, individually and in combination, allows the production host to grow. Exemplary mediums include broths or gels. Generally, the medium includes a carbon source, such as glucose, fructose, cellulose, or the like, that can be metabolized by the microorganism directly. In addition, enzymes can be used in the medium to facilitate the mobilization (e.g., the depolymerization of starch or cellulose to fermentable sugars) and subsequent metabolism of the carbon source. To determine if the culture conditions permit product production, the production host can be cultured for about 4, 8, 12, 24, 36, or 48 hours. During culturing or after culturing, samples can be obtained and analyzed to determine if the culture conditions permit product production. For example, the production hosts in the sample or the medium in which the production hosts were grown can be tested for the presence of the desired product. When testing for the presence of a product, assays, such as, but not limited to, TLC, HPLC, GC/FID, GC/MS, LC/MS, MS, as well as those provided in the examples below, can be used.

Vector: A nucleic acid molecule as introduced into a cell, thereby producing a transformed cell. A vector can include nucleic acid sequences that permit it to replicate in the cell, such as an origin of replication. A vector can also include one or more selectable marker genes or other genetic elements known in the art.

Wax: Wax is comprised of fatty esters. In a preferred embodiment, the fatty ester contains an A side and a B side comprised of medium to long carbon chains. In addition to fatty esters, a wax may comprise other components. For example, wax can also comprise hydrocarbons, sterol esters, aliphatic aldehydes, alcohols, ketones, beta-diketones, triacylglycerols, etc.

DETAILED DESCRIPTION

Many cells microorganisms can utilize fatty acids as energy sources and, therefore, contain β-oxidation pathways that metabolize fatty acids to make energy. Surprisingly, it was found that over-expressing a peptide having acyl-CoA synthase activity (the first enzymatic activity found in the β-oxidation pathway), and/or attenuating other genes in the beta oxidation pathway, could increase the amount of acyl-CoA produced, while maintaining the viability of the cell or microorganism. Simlarly, over-expressing a peptide having acyl-CoA synthase activity in combination with over-expression of peptides that form fatty acid derivatives can improve fatty acid derivative production. Fatty acid derivatives are useful as biofuels and specialty chemicals, which can be used to make additional products such as nutritional supplements, polymers, paraffin replacements, and personal care products. Furthermore, the teachings disclosed herein allow for the production of fatty acid derivatives with particular branch points, levels of saturation, and carbon chain length. Non-limiting examples of microorganisms which can be used as production hosts to produce fatty acid derivatives include bacteria, yeast, or filamentous fungi. Further non-limiting examples of suitable production hosts include plant, animal, or human cells. Alcohols (short chain, long chain, branched, or unsaturated) can be produced by the production hosts described herein. Such alcohols can be used as fuels directly or they can be used to create a fatty ester. Fatty esters, alone or in combination with other fatty acid derivatives described herein, are useful as fuels. Similarly, hydrocarbons produced from the production hosts described herein can be used as biofuels. Such hydrocarbon-based fuels can be designed to contain branch points, defined degrees of saturation, and specific carbon lengths. When used as biofuels alone or in combination with other fatty acid derivatives, the hydrocarbons can be combined with additives or other traditional fuels (e.g., alcohols, diesel derived from triglycerides, and petroleum-based fuels).

The centane number (CN), viscosity, melting point, and heat of combustion for various fatty esters have been characterized in Knothe, Fuel Processing Technology 86:1059-1070, 2005, which is herein incorporated by reference in its entirety. A production host can be engineered to produce any of the fatty esters described in Knothe, using the teachings provided herein.

I. Production of Fatty Acid Derivatives and Modifications for Increasing

Production

The production host used to produce acyl-CoA and/or fatty acid derivatives can be recombinantly modified to include nucleic acid sequences that over-express peptides. For example, the production host can be modified to increase the production of acyl-CoA and reduce the catabolism of fatty acid derivatives and intermediates in the fatty acid biosynthetic pathway, such as acyl-CoA, or to reduce feedback inhibition at specific points in the fatty acid biosynthetic pathway. In addition to modifying the genes described herein, additional cellular resources can be diverted to over-produce fatty acids, for example, the lactate, succinate and/or acetate pathways can be attenuated, and acetyl-CoA carboxylase (ace) can be over-

expressed. The modifications to the production host described herein can be through genomic alterations, addition of recombinant expression systems, or combinations

thereof. The fatty acid biosynthetic pathways involved are illustrated in Figure 2 through Figure 6. Subsections A-G below describe the steps in these pathways. Different steps in the pathway are catalyzed by different enzymes. Each step is a potential place for overexpression of the gene to produce more enzyme and thus drive the production of more fatty acids and fatty acid derivatives. Genes encoding enzymes required for the pathway may also be recombinantly added to a production host lacking such enzymes. Finally, steps that would compete with the pathway leading to production of fatty acids and fatty acid derivatives can be attenuated or blocked in order to increase the production of the desired products. A. Acetyl-CoA - Malonyl-CoA to Acyl-ACP Fatty acid synthase (FAS) is a group of peptides that catalyze the initiation and elongation of acyl chains (Marrakchi et al, Biochemical Society, 30: 1050-1055, 2002). The acyl carrier protein (ACP) along with the enzymes in the FAS pathway control the length, degree of saturation, and branching of the fatty acids produced. The steps in this pathway are catalyzed by enzymes of the fatty acid biosynthesis (fab) and acetyl-CoA carboxylase (ace) gene families. Depending upon the desired product, one or more of these genes can be attenuated or over-expressed (see Figure

1 for a detailed description of the enzymatic activity of each enzyme and its enzyme

classification number).

1. Fatty acid biosynthetic pathway: acetyl-CoA or malonyl-CoA to acyl-ACP The fatty acid biosynthetic pathway in the production host uses the precursors acetyl-CoA and malonyl-CoA (Figure 1 ). The steps in this pathway are catalyzed by enzymes of the fatty acid biosynthesis (fab) and acetyl-CoA carboxylase (ace) gene families. This pathway is described in Heath et ah, Prog. Lipid Res. 40(6):467-97 (2001), which is incorporated herein by reference in its entirety.

Acetyl-CoA is carboxylated by acetyl-CoA carboxylase (Ace, a multisubunit enzyme encoded by four separate genes, accABCD), to form malonyl-CoA. The malonate group is transferred to ACP by malonyl-CoA:ACP transacylase (FabD) to form malonyl-ACP. A condensation reaction then occurs, where malonyl-ACP merges with acetyl-CoA, resulting in β-ketoacyl-ACP. β-ketoacyl-ACP synthase III (FabH) initiates the FAS cycle, while β-ketoacyl-ACP synthase I (FabB) and β- ketoacyl-ACP synthase II (FabF) are involved in subsequent cycles.

Next, a cycle of steps is repeated until a saturated fatty acid of the appropriate length is made. First, the β-ketoacyl-ACP is reduced by NADPH to form β-hydroxyacyl-ACP. This step is catalyzed by β-ketoacyl-ACP reductase (FabG). β-hydroxyacyl-ACP is then dehydrated to form trans -2-enoy\- ACP . β-hydroxyacyl-ACP dehydratase/isomerase (FabA) or β-hydroxyacyl-ACP dehydratase (FabZ) catalyze this step. NADPH-dependent ϊrørø-2-enoyl-ACP reductase I, II, or III (Fabl, FabK, and FabL, respectively) reduces trø«s-2-enoyl- ACP to form acyl-ACP. Subsequent cycles are started by the condensation of malonyl-ACP with acyl-ACP by β-ketoacyl-ACP synthase I or β-ketoacyl-ACP synthase II (FabB and FabF, respectively). 2. Modifications to the fatty acid biosynthetic pathway to increase acyl-ACP production

Production host organisms may be engineered to overproduce acetyl-CoA and malonyl-CoA. Such production host organisms include plant, animal, or human cells. Microorganisms such as bacteria, yeast, or filamentous fungi can be used as production hosts. Non-limiting examples of microorganisms that may be used as production hosts include E. coli, Saccharomyces cerevisiae, Candida lipolytica, E. coli, Arthrobacter AK 19, Rhodotorula glutinins, Acinetobacter sp. strain M-I, Candida lipolytica, and other oleaginous microorganisms. Several different modifications can be made, either in combination or individually, to the production host to obtain increased acetyl-CoA/malonyl-CoA/fatty acid and fatty acid derivative production.

For example, to increase acetyl-CoA production, one or more of the following genes could be expressed in a production host: pdh, panK, aceEF (encoding the EIp dehydrogenase component and the E2p dihydrolipoamide acyltransferase component of the pyruvate and 2-oxoglutarate dehydrogenase complexes), fabH, fabD, fabG, acpP, fabF. In other examples, additional DNA sequence encoding fatty-acyl-CoA reductases and aldehyde decarbonylases could be expressed in the production host. It is well known in the art that a plasmid containing one or more of the aforementioned genes, all under the control of a constitutive, or otherwise controllable promoter, can be constructed. Exemplary GenBank accession numbers for these genes are: pdh (BAB34380, AAC73227, AAC73226), panK (also known as coaA, AAC76952), aceEF (AAC73227, AAC73226),fabH

(AACl 4176), fabG (AAC74177), acpP (AAC74178),/αZ>F(AAC74179). Additionally, the expression levels oifadE, gpsA, idhA, pflb, adhE, pta, poxB, ackA, and/or ackB can be reduced or knocked-out in the engineered microorganism by transformation with conditionally replicative or non-replicative plasmids containing null or deletion mutations of the corresponding genes, or by substituting promoter or enhancer sequences. Exemplary GenBank accession numbers for these genes are: fadE (AAC73325), gspA (AAC76632), IdhA (AACT '4462), pflb (AAC73989), adhE (AAC74323A pta (AAC75357), poxB (AAC73958), ackA (AAC75356), and ackB (BAB81430). The resulting engineered production hosts will have increased acetyl-CoA production levels when grown in an appropriate environment.

Moreover, malonyl-CoA overproduction can be affected by engineering the production host as described above with ace ABCD {e.g., accession number AAC73296, EC 6.4.1.2) included in the plasmid synthesized cle novo. Fatty acid overproduction can be achieved by further including a DNA sequence encoding lipase (e.g., Accession numbers CAA89087, CAA98876) in the plasmid synthesized de novo.

As a result, in some examples, acetyl-CoA carboxylase is over-expressed to increase the intracellular concentration thereof by at least about 2-fold, preferably at least about 5-fold, or more preferably at least about 10-fold, relative to native expression levels.

In addition, the plsB {e.g., Accession number AAC7701 1) D31 IE mutation can be used to increase the amount of available acyl-CoA.

In addition, over-expression of a. sfa gene (suppressor of FabA, e.g., Accession number AAN79592) can be included in the production host to increase production of monounsaturated fatty acids (Rock et al., J. Bacteriology 178:5382- 5387, 1996).

B. Acyl-ACP to Fatty Acid

1. Fatty acid biosynthetic pathway: acyl-ACP to fatty acids As described above, acetyl-CoA and malonyl-CoA are processed in several steps to form acyl-ACP chains. The enzyme .SM-glycerol-3 -phosphate acyltransferase (PIsB) catalyzes the transfer of an acyl group from acyl-ACP or acyl- CoA to the sn-\ position of glycerol-3 -phosphate. Thus, PIsB is a key regulatory enzyme in phospholipid synthesis, which is part of the fatty acid pathway. Inhibiting PIsB leads to an increase in the levels of long chain acyl-ACP, which feedback will inhibit early steps in the pathway (e.g., accABCD, fabH, and fabl). Uncoupling of this regulation, for example by thioesterase overexpression, leads to increased fatty acid production. The tes and fat gene families express thioesterase. Fabl is also inhibited in vitro by long-chain acyl-CoA. 2. Modifications to the fatty acid biosynthetic pathway to produce desired fatty acids

To engineer a production host for the production of a homogeneous population of fatty acid derivatives, one or more endogenous genes can be attenuated or functionally deleted and, as a result, one or more thioesterases can be expressed. For example, Cio fatty acid derivatives can be produced by attenuating thioesterase Ci₈ (e.g., accession numbers AAC73596 and POADAl ), which uses Ci_8:i-ACP and expressing thioesterase Ci₀ (e.g., accession number Q39513), which uses Cio-ACP. This results in a relatively homogeneous population of fatty acid derivatives that have a carbon chain length of 10. In another example, Ci₄ fatty acid

derivatives can be produced by attenuating endogenous thioesterases that produce non-Cu fatty acids and expressing the thioesterase accession number Q39473 (which uses C ₁₄- ACP). In yet another example, C ₁₂ fatty acid derivatives can be produced by expressing thioesterases that use C₁₂-ACP (for example, accession number Q41635) and attenuating thioesterases that produce non-Cn fatty acids. Acetyl-CoA, malonyl-CoA, and fatty acid overproduction can be verified using methods known in the art, for example by using radioactive precursors, HPLC, and GC-MS subsequent to cell lysis. Non-limiting examples of thioesterases useful in the claimed methods and production hosts are listed in Table 1.

Table 1: Thioesterases

* Mayer et a!., BMC Plant Biology 7 : 1 - 1 1 , 2007

C. Fatty Acid to Acyl-CoA

1. Conversion of fatty acids to acyl-CoA

Acyl-CoA synthase (ACS) esterifies free fatty acids to acyl-CoA by a two- step mechanism. The free fatty acid first is converted to an acyl-AMP intermediate

(an adenylate) through the pyrophosphorolysis of ATP. The activated carbonyl carbon of the adenylate is then coupled to the thiol group of CoA, releasing AMP and the acyl-CoA final product. See Shockey et al, Plant. Physiol. 129: 1710-1722, 2002. The E. coli ACS enzyme FadD and the fatty acid transport protein FadL are essential components of a fatty acid uptake system. FadL mediates transport of fatty acids into the bacterial cell, and FadD mediates formation of acyl-CoA esters. When no other carbon source is available, exogenous fatty acids are taken up by bacteria and converted to acyl-CoA esters, which bind to the transcription factor FadR and derepress the expression of the fad genes that encode proteins responsible for fatty acid transport (FadL), activation (FadD), and β-oxidation (FadA, FadB, FadE, and FadH). When alternative sources of carbon are available, bacteria synthesize fatty acids as acyl-ACPs, which are used for phospholipid synthesis, but are not substrates for β-oxidation. Thus, acyl-CoA and acyl-ACP are both independent sources of fatty acids that will result in different end-products. See Caviglia et al, J. Biol. Chem. 279(12):1163-1 169, 2004.

2. Modifications to increase conversion of fatty acids to acyl- CoA

Production hosts can be engineered using known peptides to produce fatty acids of various lengths which can be converted to acyl-CoA. One method of making fatty acid derivatives involves increasing the expression of, or expressing more active forms of, one or more acyl-CoA synthase peptides (EC 6.2.1.-).

A list of acyl-CoA synthases that can be expressed to produce acyl-CoA and fatty acid derivatives is shown in Table 2. These Acyl-CoA synthases were examined to optimize any pathway that uses fatty-acyl-CoAs as substrates. Using bioinformatics and synthetic genes, heterologous fadD genes were expressed in production strains and evaluated for their capacity to produce biodiesel and potentially biocrude.

Table 2: Acyl-CoA synthases

Based on their degree of similarity to E. coli FadD, the following homologous genes were selected to be synthesized and evaluated: fadDD35 from M. tuberculosis URlRv [NP_217021 ] . yhjL from B. subtilis [NP_388908]. fadDl from P. aeruginosa PAOl [NP_251989]. fadD homolog, Faa3p from Saccharomyces cerevisiae [NP_012257].

Additional fatty acid acyl-CoA synthases from eukaryotic organisms which can be used to produce acyl-CoA, as well as fatty acid derivatives, include those described in Shockey et ah, Plant. Physiol. 129: 1710-1722, 2002 (Arabidopsis), Caviglia et al, J. Biol. Chem. 279: 1 163-1 169, 2004 (rat), and Knoll et al, J. Biol. Chem. 269(23): 16348-56, 1994 (yeast). Gene sequences encoding these synthetases are known in the art. See, e.g., Johnson et al, J. Biol. Chem. 269: 18037-18046, 1994; Shockey et al, Plant. Physiol. 129: 1710-1722, 2002; Black et al, J. Biol Chem. 267: 25513-25520, 1992. These eukaryotic acyl-CoA synthases, despite their lack of high homology to E. coli fadD sequences, can complement FadD activity in E. coli fadD knockouts. D. Acyl-CoA to Fatty Alcohol

1. Conversion of acyl-CoA to fatty alcohol

Acyl-CoA is reduced to a fatty aldehyde by NADH-dependent acyl-CoA reductase (e.g., Acrl). The fatty aldehyde is then reduced to a fatty alcohol by NADPH-dependent alcohol dehydrogenase (e.g., YqhD). Alternatively, fatty alcohol forming acyl-CoA reductase (FAR) catalyzes the reduction of an acyl-CoA into a fatty alcohol and CoASH. FAR uses NADH or NADPH as a cofactor in this four-electron reduction. Although the alcohol-generating FAR reactions proceed through an aldehyde inteπnediate, a free aldehyde is not released. Thus, the alcohol- forming FARs are distinct from those enzymes that carry out two-electron reductions of acyl-CoA and yield free fatty aldehyde as a product. (See Cheng and Russell, J. Biol. Chem., 279(36):37789-37797, 2004; Metz et al, Plant Physiol, 122:635-644, 2000).

2. Modifications to increase conversion of acyl-CoA to fatty alcohol

Production hosts can be engineered using known polypeptides to produce fatty alcohols from acyl-CoA. One method of making fatty alcohols involves increasing the expression of, or expressing more active forms of, fatty alcohol forming acyl-CoA reductases (encode by a gene such as acrl from FAR, EC 1.2.1.50/1.1.1) or acyl-CoA reductases (EC 1.2.1.50) and alcohol dehydrogenase (EC 1.1.1.1). Exemplary GenBank Accession Numbers are provided in Figure 1.

Fatty alcohols can be described as hydrocarbon-based surfactants. For surfactant production, the production host is modified so that it produces a surfactant from a renewable carbon source. Such a production host includes a first exogenous DNA sequence encoding a protein capable of converting a fatty acid to a fatty aldehyde and a second exogenous DNA sequence encoding a protein capable of converting a fatty aldehyde to an alcohol. In some examples, the first exogenous DNA sequence encodes a fatty acid reductase. In one embodiment, the second exogenous DNA sequence encodes mammalian microsomal aldehyde reductase or long-chain aldehyde dehydrogenase. In a further example, the first and second exogenous DNA sequences are from Arthrobacter AK 19, Rhodotorula glutinins,

Acinetobacter sp. strain M-I, or Candida lipolytica. In one embodiment, the first and second heterologous DNA sequences are from a multienzyme complex from Acinetobacter sp. strain M-I or Candida lipolytica. Additional sources of heterologous DNA sequences encoding fatty acid to long chain alcohol converting proteins that can be used in surfactant production include, but are not limited to, Mortierella alpina (ATCC 32222), Cryptococcus curvatus, (also referred to as Apiotricum curvatum), Alcanivorax jadensis (T9T =DSM 12718 =ATCC 700854), Acinetobacter sp. HOl-N (ATCC 14987) and Rhodococcus opacus (PD630 DSMZ 44193).

In one example, the fatty acid derivative is a saturated or unsaturated surfactant product having a carbon chain length of about 6 to about 36 carbon atoms, about 8 to about 30 carbon atoms, about 10 to about 26 carbon atoms, about 12 to about 20 carbon atoms, or about 12 to about 16 carbon atoms. In another example, the surfactant product has a carbon chain length of about 10 to about 18 carbon atoms, or about 12 to about 14 carbon atoms.

Appropriate production hosts for producing surfactants can be either eukaryotic or prokaryotic microorganisms. Exemplary production hosts include Arthrobacter AK 19, Rhodotorula glutinins, Acinetobacter sp strain M-I ,

Arabidopsis thalania, Candida lipolytica, Saccharomyces cerevisiae, and E. coli engineered to express acetyl-CoA carboxylase. Production hosts which demonstrate an innate ability to synthesize high levels of surfactant precursors in the form of lipids and oils, such as Rhodococcus opacus, Arthrobacter AK 19, and Rhodotorula glutinins E. coli engineered to express acetyl CoA carboxylase, and other oleaginous bacteria, yeast, and fungi can also be used.

E. Fatty Alcohols to Fatty Esters

Production hosts can be engineered using known polypeptides to produce fatty esters of various lengths. One method of making fatty esters includes increasing the expression of, or expressing more active forms of, one or more alcohol O-acetyltransferase peptides (EC 2.3.1.84). These peptides catalyze the acetylation of an alcohol by converting an acetyl-CoA and an alcohol to a CoA and an ester. In some examples, the alcohol O-acetyltransferase peptides can be expressed in conjunction with selected thioesterase peptides, FAS peptides, and fatty alcohol forming peptides, thus allowing the carbon chain length, saturation, and degree of branching to be controlled. In some cases, the bkd operon can be coexpressed to enable branched fatty acid precursors to be produced.

As used herein, alcohol O-acetyltransferase peptides include peptides in enzyme classification number EC 2.3.1.84, as well as any other peptide capable of catalyzing the conversion of acetyl-CoA and an alcohol to form a CoA and an ester. Additionally, one of ordinary skill in the art will appreciate that alcohol O- acetyltransferase peptides will catalyze other reactions.

For example, some alcohol O-acetyltransferase peptides will accept other substrates in addition to fatty alcohols or acetyl-CoA thioester, such as other alcohols and other acyl-CoA thioesters. Such non-specific or divergent-specificity alcohol O-acetyltransferase peptides are, therefore, also included. Alcohol O- acetyltransferase peptide sequences are publicly available. Exemplary GenBank Accession Numbers are provided in Figure 1. Assays for characterizing the activity of particular alcohol O-acetyltransferase peptides are well known in the art.

O-acyltransferases can be engineered to have new activities and specificities for the donor acyl group or acceptor alcohol moiety. Engineered enzymes can be generated through well-documented rational and evolutionary approaches. F. Acyl-CoA to Fatty Esters

1. Production of fatty esters

Fatty esters are synthesized by acyl-CoA: fatty alcohol acyltransferase (e.g., ester synthase), which conjugate a long chain fatty alcohol to a fatty acyl-CoA via an ester linkage. Ester synthases and encoding genes are known from the jojoba plant and the bacterium Acinetobacter sp. strain ADPl (formerly Acinetobacter calcoaceticus ADPl). The bacterial ester synthase is a bifunctional enzyme, exhibiting ester synthase activity and the ability to form triacylglycerols from diacylglycerol substrates and fatty acyl-CoAs (acyl-CoA:diglycerol acyltransferase (DGAT) activity). The gene wax/dgat encodes both ester synthase and DGAT. See Cheng et cil, J. Biol. Chem. 279(36):37798-37807, 2004; Kalscheuer and Steinbuchel, J. Biol. Chem. 278:8075-8082, 2003. Ester synthases may also be used to produce certain fatty esters which can be used as a fuel, such as biodiesel, as described herein. 2. Modifications to produce fatty esters

The production of fatty esters, including waxes, from acyl-CoA and alcohols, can be engineered using known polypeptides. One method of making fatty esters includes increasing the expression of, or expressing more active forms of, one or more ester synthases (EC 2.3.1.20, 2.3.1.75). Ester synthase peptide sequences are publicly available. Exemplary GenBank Accession Numbers are provided in Figure 1. Methods to identify ester synthase activity are provided in U.S. Patent No. 7,118,896, which is herein incorporated by reference in its entirety.

In particular examples, if the desired product is an ester-based biofuel, the production host is modified so that it produces an ester generated from a renewable energy source. Such a production host includes an exongenous DNA sequence encoding an ester synthase that is expressed so as to confer upon said production host the ability to synthesize a saturated, unsaturated, or branched fatty ester from a renewable energy source. In some embodiments, the organism can also express DNA sequence encoding the following exemplary proteins: fatty acid elongases, acyl-CoA reductases, acyltransferases, ester synthases, fatty acyl transferases, diacylglycerol acyltransferases, acyl-coA wax alcohol acyltransferases. In an alternate embodiment, the organism expresses a DNA sequence encoding a bifunctional ester synthase/acyl-CoA:diacylglycerol acyltransferase. For example, the bifunctional ester synthase/acyl-CoA:diacylglycerol acyltransferase can be selected from the multienzyme complexes from Simmondsia chinensis,

Acinetobacter sp. strain ADPl (formerly Acinetobacter calcoaceticus ADPl), Alcanivorax borkumensis , Pseudomonas aeruginosa, Fundibacter jadensis, Arabidopsis thaliana, or Alcaligenes eutroplnis (later renamed Ralstonia eutropha). In one embodiment, the fatty acid elongases, acyl-CoA reductases or wax synthases are from a multienzyme complex from Alcaligenes eutrophus (later renamed

Ralstonia eutropha) or other organisms known in the literature to produce esters, such as wax or fatty esters.

Additional sources of heterologous DNA sequence encoding ester synthesis proteins useful in fatty ester production include, but are not limited to, Mortierella alpina {e.g., ATCC 32222), Cryptococcus curvatus (also referred to as Apiotricum curvatum), Alcanivorax jadensis (for example T9T =DSM 12718 =ATCC 700854), Acinetobacter sp. HOl-N, {e.g., ATCC 14987) and Rhodococcus opacus {e.g., PD630, DSMZ 44193). Useful production hosts for producing fatty esters can be either eukaryotic or prokaryotic microorganisms. Non-limiting examples of production hosts for producing fatty esters include Saccharomyces cerevisiae, Candida lipolytica, E. coli Arthrobacter AK 19, Rhodotorula glutinins, Acinetobacter sp. strain M-I, Candida lipolytica, and other oleaginous microorganisms.

In one example, the ester synthase from Acinetobacter sp. ADPl at locus AAOl 7391 (described in Kalscheuer and Steinbuchel, J. Biol. Chem. 278:8075- 8082, 2003, herein incorporated by reference) is used. In another example, the ester synthase from Simmondsia chinensis at locus AAD38041 is used. Optionally, an ester exporter such as a member of the FATP family can be used to facilitate the release of esters into the extracellular environment. A non- limiting example of an ester exporter that can be used is fatty acid (long chain) transport protein CG7400-PA, isoform A, from Drosophila melanogaster, at locus NP_524723. G. Acyl-ACP, Acyl-CoA to Hydrocarbon

1. Hydrocarbons from particular microorganisms A diversity of microorganisms are known to produce hydrocarbons, such as alkanes, olefins, and isoprenoids. Many of these hydrocarbons are derived from fatty acid biosynthesis. The production of these hydrocarbons can be controlled by controlling the genes associated with fatty acid biosynthesis in the native production hosts.

For example, hydrocarbon biosynthesis in the algae Botryococcus braunii occurs through the decarbonylation of fatty aldehydes. The fatty aldehydes are produced by the reduction of fatty acyl - thioesters by fatty acyl-CoA reductase. Thus, the structure of the final alkanes can be controlled by engineering B. braunii to express specific genes, such as thioesterases, which control the chain length of the fatty acids being channeled into alkane biosynthesis. Expressing the enzymes that result in branched chain fatty acid biosynthesis in B. braunii will result in the production of branched chain alkanes. Introduction of genes affecting the production of desaturation of fatty acids will result in the production of olefins. Further combinations of these genes can provide further control over the final structure of the hydrocarbons produced.

To produce higher levels of the native or engineered hydrocarbons, the genes involved in the biosynthesis of fatty acids and their precursors or the degradation to other products can be expressed, over-expressed, or attenuated. Each of these approaches can be applied to the production of alkanes in Vibrio furnissii Ml and other Vibrio furnissii strains, which produce alkanes through the reduction of fatty alcohols. In addition to Vibrio furnissii, other alkane producing organisms that utilize the fatty acid pathway could be used.

Each of these approaches can also be applied to the production of the olefins produced by many strains of Micrococcus leuteus, Stenotrophomonas maltophilia, and related microorganisms. These microorganisms produce long chain olefins that are derived from the head to head condensation of fatty acid precursors. Controlling the structure and level of the fatty acid precursors using the methods described herein will result in formation of olefins of different chain length, branching, and levels of saturation.

Cyanobacteria can also be used as production hosts for the production of fatty acid derivatives such as fatty alcohols, fatty esters, and hydrocarbons. For example, Synechocystis sp. PCC6803 and Synechococcus elongatus PCC7942 can serve as production hosts and can be engineered using standard molecular biology techniques (Thiel, Genetic analysis of cyanobacteria, in 1 THE MOLECULAR BIOLOGY OF CYANOBACTERIA, ADVANCES IN PHOTOSYNTHESIS AND RESPIRATION 581-611 (Kluwer Academic Publishers 1994); Koksharova & WoIk, Appl.

Microbiol. Biotechnol, 58: 123-137, 2002). Fatty acid biosynthesis genes can be easily identified and isolated in these organisms {see Table 18).

Furthermore, many cyanobacteria are natural producers of hydrocarbons, such as heptadecane, and therefore contain hydrocarbon biosynthesis genes which can be deregulated and over-expressed in conjunction with manipulating their fatty acid biosynthesis genes to increase hydrocarbon production.

Unlike other bacteria, some cyanobacteria (e.g., Synechocystis sp. PCC6803) contain polyunsaturated fatty acids in their lipids (Murata, Plant cell Physiol., 33: 933-941, 1992), and thus have the inherent capability to produce polyunsaturated fatty acid derivatives. Most importantly, cyanobacteria are photosynthetic organisms that synthesize all of their cellular carbon by harvesting sun light and fixing carbon dioxide. Therefore, fatty acid derivatives produced in cyanobacteria are directly derived from CO₂.

2. Hydrocarbons from reduction of primary alcohols Hydrocarbons can also be produced using evolved oxidoreductases for the reduction of primary alcohols. Primary fatty alcohols are known to be used to produce alkanes in microorganisms, such as Vibrio furnissii Ml (Park, J. Bacteriol, 187:1426-1429, 2005). One example of an oxidoreductase which can be used to produce hydrocarbons from fatty alcohols is NAD(P)H-dependent oxidoreductase. Synthetic NAD(P)H dependent oxidoreductases can be produced through the use of evolutionary engineering and can be expressed in production hosts to produce fatty acid derivatives.

The process of "'evolving^"' a fatty alcohol reductase to have the desired activity is well known (Kolkman and Stemmer, Nat. Biotechnol. 19:423-8, 2001 ; Ness et al, Adv Protein Chem. 55:261-92, 2000; Minshull and Stemmer, Curr. Opin. Chem. Biol. 3:284-90, 1999; Huisman and Gray, Curr. Opin. Biotechnol. 13:352-8, 2002; U.S. Patent Pub. No. 2006/0195947.

A library OfNAD(P)H dependent oxidoreductases is generated by standard methods, such as error prone PCR, site-specific random mutagenesis, site specific saturation mutagenesis, or site directed specific mutagenesis. Additionally, a library can be created through the "'shuffling^"' of naturally occurring NAD(P)H dependent oxidoreductase encoding sequences. The library is expressed in a suitable production host, such as E. coli. Individual colonies expressing a different member of the oxidoreductase library are then analyzed for expression of an oxidoreductase that can catalyze the reduction of a fatty alcohol.

For example, each cell can be assayed as a whole cell bioconversion, a cell extract, or a permeabilized cell. Enzymes purified from the cell can be analyzed as well. Fatty alcohol reductases are identified by spectrophotometrically or fluorometrically monitoring the fatty alcohol-dependent oxidation OfNAD(P)H. Production of alkanes is monitored by GC-MS, TLC, or other methods.

An oxidoreductase identified in this manner is used to produce alkanes, alkenes, and related branched hydrocarbons. This is achieved either in vitro or in vivo. The latter is achieved by expressing the evolved fatty alcohol reductase gene in an organism that produces fatty alcohols, such as those described herein. The fatty alcohols act as substrates for the alcohol reductase, which produces alkanes. Other oxidoreductases can also be engineered to catalyze this reaction, such as those that use molecular hydrogen, glutathione, FADH, or other reductive coenzymes. H. Release of Fatty Acid Derivatives - Transport Proteins

Transport proteins export fatty acid derivatives out of the production host. Many transport and efflux proteins serve to excrete a large variety of compounds, and can naturally be modified to be selective for particular types of fatty acid derivatives. Non-limiting examples of suitable transport proteins are ATP-Binding Cassette (ABC) transport proteins, efflux proteins, and fatty acid transporter proteins (FATP). Additional non-limiting examples of suitable transport proteins include the ABC transport proteins from organisms such as Caenorhabditis elegans, Arabidopsis thalania, Alkaligenes eutrophus, Rhodococcus erythropolis. Exemplary ABC transport proteins which could be used are CER5, AtMRP5, AmiS2, or AtPGPl . In a preferred embodiment, the ABC transport proteins is CER5 {e.g.,

AY734542)). See also transport proteins identified in Figure 1. Vectors containing genes that express suitable transport proteins can be inserted into the protein production host to increase the release of fatty acid derivatives.

Production hosts can also be chosen for their endogenous ability to release fatty acid derivatives. The efficiency of product production and release into the fermentation broth can be expressed as a ratio of intracellular product to extracellular product. In some examples, the ratio can be about 5:1, 4:1, 3:1, 2:1, 1 :1, 1 :2, 1 :3, 1 :4, or 1 :5. II. Selection of Carbon Chain Characteristics of Fatty Acid Derivatives Fatty acid derivatives with particular branch points, levels of saturation, carbon chain length, and ester characteristics can be produced as desired. Microorganisms that naturally produce particular derivatives can be chosen. Alternatively, genes that express enzymes that will produce particular fatty acid derivatives can be inserted into the production host microorganism. Figure 1 provides non-limiting examples of enzymes that can be used alone or in combination to make fatty acid derivatives with desired characteristics.

In some examples, the expression of exongenous FAS genes originating from different species or engineered variants can be introduced into the production host to result in the biosynthesis of fatty acids that are structurally different (in length, branching, degree of unsaturation, etc.) from those of the native production host. These heterologous gene products can also be chosen or engineered to be unaffected by the natural regulatory mechanisms in the production host cell, and therefore allow for control of the production of the desired commercial product. For example, the FAS enzymes from Bacillus subtilis, Saccharomyces cerevisiae, Streptomyces spp., Ralstonia, Rhodococcus, Corynebacteria, Brevibacteria, Mycobacteria, oleaginous yeast, and the like can be expressed in the production host. The expression of such exongenous enzymes will alter the structure of the fatty acid produced. When a production host is engineered to produce a fatty acid with a specific level of unsaturation, branching, or carbon chain length, the resulting engineered fatty acid can be used in the production of fatty acid derivatives. Fatty acid derivatives generated from such production hosts can display the characteristics of the engineered fatty acid. For example, a production host can be engineered to make branched, short chain fatty acids, which may then be used by the production host to produce branched, short chain fatty alcohols. Similarly, a hydrocarbon can be produced by engineering a production host to produce a fatty acid having a defined level of branching, unsaturation, and/or carbon chain length, thus, producing a homogeneous hydrocarbon population. Additional steps can be employed to improve the homogeneity of the resulting product. For example, when an unsaturated alcohol, fatty ester, or hydrocarbon is desired, the production host organism can be engineered to produce low levels of saturated fatty acids and in addition can be modified to express an additional desaturase and thus lessen the production of saturated product.

A. Branched and Cyclic Moieties

1. Engineering branched and cyclic fatty acid derivatives Fatty acids are a key intermediate in the production of fatty acid derivatives. Fatty acid derivatives can be produced that contain branch points, cyclic moieties, and combinations thereof, by using branched or cyclic fatty acids to make the fatty acid derivatives.

For example, E. coli naturally produces straight chain fatty acids (sFAs). To engineer E. coli to produce branched chain fatty acids (brFAs), several genes that provide branched precursors (e.g., bkd operon) can be introduced into the production host and expressed to allow initiation of fatty acid biosynthesis from branched precursors (e.g., fabH). The bkd, Hv, icm, and fab gene families may be expressed or over-expressed to produce branched chain fatty acid derivatives. Similarly, to produce cyclic fatty acids, genes that provide cyclic precursors can be introduced into the production host and expressed to allow initiation of fatty acid biosynthesis from cyclic precursors. The ans, chc, and pint gene families may be expressed or over-expressed to produce cyclic fatty acids. Figure 1 recites non-limiting examples

of genes in these gene families that may be used in the present methods and production hosts.

Additionally, the production host can be engineered to express genes encoding proteins for the elongation of brFAs (e.g., ACP, FabF, etc.) and/or to delete or attenuate the corresponding E. coli genes that normally lead to sFAs. In this regard, endogenous genes that would compete with the introduced genes {e.g., fabH, fabF) are deleted or attenuated.

The branched acyl-CoA (e.g., 2-methyl-butyryl-CoA, isovaleryl-CoA, isobutyryl-CoA, etc.) are the precursors of brFA. In most microorganisms containing brFA, the brFA are synthesized in two steps from branched amino acids (e.g., isoleucine, leucine, and valine) (Kadena, Microbiol. Rev. 55:288, 1991). A production host can be engineered to express or over-express one or more of the enzymes involved in these two steps to produce brFAs, or to over-produce brFAs. For example, the production host may have an endogenous enzyme that can accomplish one step leading to brFA, therefore only genes encoding enzymes involved in the second step need to be introduced recombinantly. 2. Formation of branched fatty acids and branched fatty acid derivatives

The first step in forming brFAs is the production of the corresponding α-keto

acids by a branched-chain amino acid aminotransferase. Production hosts may endogenously include genes encoding such enzymes or such genes may be

recombinantly introduced. E. coli, for example, endogenously expresses such an enzyme, HvE (EC 2.6.1.42; GenBank accession YPJ326247). In some production hosts, a heterologous branched-chain amino acid aminotransferase may not be expressed. However, E. coli HvE or any other branched-chain amino acid aminotransferase {e.g., HvE from Lactococcus lactis (GenBank accession AAF34406), HvE from Pseudomonas putida (GenBank accession NP_745648), or HvE from Streptomyces coelicolor (GenBank accession NP_629657)), if not endogenous, can be introduced. ,If the aminotransferase reaction is rate limiting in brFA biosynthesis in the chosen production host organism, then the aminotransferase can be over-expressed. The second step is the oxidative decarboxylation of the α-ketoacids to the corresponding branched-chain acyl-CoA. This reaction can be catalyzed by a branched-chain α-keto acid dehydrogenase complex {bkd; EC 1.2.4.4.) (Denoya et al., J. Bacteriol. 177:3504, 1995), which consists of Elα/β (decarboxylase), E2 (dihydrolipoyl transacylase) and E3 (dihydrolipoyl dehydrogenase) subunits. These branched-chain α-keto acid dehydrogenase complexes are similar to pyruvate and α- ketoglutarate dehydrogenase complexes. Every microorganism that possesses brFAs and/or grows on branched-chain amino acids can be used as a source to isolate bkd genes for expression in production hosts such as, for example, E. coli. Furthermore, E. coli has the E3 component as part of its pyruvate dehydrogenase complex (Ipd, EC 1.8.1.4, GenBank accession NP_414658), thus it can be sufficient to only express the El a/β and E2 bkd genes. Table 3 recites non-limiting examples of bkd genes from several microorganisms that can be recombinantly introduced and expressed in a production host to provide branched-chain acyl-CoA precursors. Microorganisms having such bkd genes can also be used as production hosts. Table 3: Bkd genes from selected microorganisms

In another example, isobutyryl-CoA can be made in a production host, for example in E. coli, through the coexpression of a crotonyl-CoA reductase (Ccr, EC 1.6.5.5, 1.1.1.1 ) and isobutyryl-CoA mutase (large subunit lcmA, EC 5.4.99.2; small subunit IcmB, EC 5.4.99.2 ) (Han and Reynolds, J. Bacteriol. 179:5157, 1997). Crotonyl-CoA is an intermediate in fatty acid biosynthesis in E. coli and other microorganisms. Non-limiting examples of ccr and icm genes from selected microorganisms are given in Table 4.

Table 4: Ccr and icm genes from selected microorganisms

In addition to expression of the bkd genes, the initiation of brFA biosynthesis utilizes β-ketoacyl-acyl-carrier-protein synthase III (FabH, EC 2.3.1.41) with specificity for branched chain acyl-CoAs (Li et al., J. Bacteriol. 187:3795-3799, 2005). Non-limiting examples of such FabH enzymes are listed in Table 5. fabH genes that are involved in fatty acid biosynthesis of any brFA-containing microorganism can be expressed in a production host. The Bkd and FabH enzymes from production hosts that do not naturally make brFA may not support brFA production, therefore Bkd and FabH can be expressed recombinantly. Vectors containing the bkd and fabH genes can be inserted into such a production host. Similarly, the endogenous level of Bkd and FabH production may not be sufficient to produce brFA, therefore, they can be over-expressed. Additionally, other components of fatty acid biosynthesis pathway can be expressed or over-expressed, such as acyl carrier proteins (ACPs) and β-ketoacyl-acyl-carrier-protein synthase II (fab F, EC 2.3.1.41) (non-limiting examples of candidates are listed in Table 5). In addition to expressing these genes, some genes in the endogenous fatty acid biosynthesis pathway may be attenuated in the production host. Genes encoding enzymes that would compete for substrate with the enzymes of the pathway that result in brFA production may be attenuated to increase brFA production. For example, in E. coli the most likely candidates to interfere with brFA biosynthesis are fabH (GenBank accession # NP_415609) and/or fabF genes (GenBank accession # NP_415613).

Table 5: FabH, ACP andfabF genes from selected microorganisms with brFAs

As mentioned above, branched chain alcohols can be produced through the combination of expressing genes that support brFA synthesis and alcohol synthesis. For example, when an alcohol reductase, such as Acrl from Acinetobacter baylyi ADPl, is coexpressed with a bkd operon, E. coli can synthesize isopentanol, isobutanol or 2-methyl butanol. Similarly, when Acrl is coexpressed with ccrlicm genes, E. coli can synthesize isobutanol.

3. Formation of cyclic fatty acids and cyclic fatty acid derivatives

To convert a production host such as E. coli into an organism capable of synthesizing ω-cyclic fatty acids (cyFA), a gene that provides the cyclic precursor cyclohexylcarbonyl-CoA (CHC-CoA) (Cropp et al., Nature Biotech. 18:980-983, 2000) is introduced and expressed in the production host. A similar conversion is

possible for other production hosts, for example, bacteria, yeast and filamentous

fungi. Non-limiting examples of genes that provide CHC-CoA in E. coli include: ansJ, ansK, ansL, chcA and ansM from the ansatrienin gene cluster of Streptomyces collinus (Chen et al, Eur. J. Biochem. 261 : 98-107, 1999) or plmJ, plmK, plmL, chcA and plmM from the phoslactomycin B gene cluster of Streptomyces sp. HK803 (Palaniappan et al, J. Biol. Chem. 278:35552-35557, 2003) together with the chcB gene (Patton et al, Biochem. 39:7595-7604, 2000) from S. collinus, S. avermitilis or S. coelicolor (see Table 6 for GenBank accession numbers). The genes listed above in Table 5 can then be expressed to allow initiation and elongation of ω-cyclic fatty acids. Alternatively, the homologous genes can be isolated from microorganisms that make cyFA and expressed in E. coli.

Table 6: Genes for the synthesis of CHC-CoA

*Only chcA is annotated in GenBank entry U72144, ansJKLM are according to Chen et al. (Eur. J. Biochem. 261 :98-107, 1999).

The genes listed in Table 5 (fabH, ACP and fabF) are sufficient to allow

initiation and elongation of ω-cyclic fatty acids because they can have broad

substrate specificity. If the coexpression of any of these genes with the

ansJKLM/chcAB or pmUKLM/chcAB genes from Table 5 does not yield cyFA, then

fabH, ACP and/or /αZλFhomologs from microorganisms that make cyFAs can be isolated (e.g., by using degenerate PCR primers or heterologous DNA sequence

probes) and coexpressed. Table 7 lists non-limiting examples of microorganisms that contain ω-cyclic fatty acids.

Table 7: Non-limiting examples of microorganisms that contain tα-cyclic fatty acids

*Uses cycloheptylcarbonyl-CoA and not cyclohexylcarbonyl-CoA as precursor for cyFA biosynthesis.

B. Saturation

Fatty acids are a key intermediate in the production of fatty acid derivatives. The degree of saturation in fatty acid derivatives can be controlled by regulating the degree of saturation of the fatty acid intermediates. The sfa, gns, and fab families of genes can be expressed or over-expressed to control the saturation of fatty acids. Figure 1 recites non-limiting examples of genes in these gene families that may be used in the present methods and production hosts. Production hosts can be engineered to produce unsaturated fatty acids by engineering the production host to over-express fabB, or by growing the production host at low temperatures {e.g., less than 37°C). FabB has preference to cis- δ decenoyl-ACP and results in unsaturated fatty acid production in E. coli. Over-

expression of fabB results in the production of a significant percentage of unsaturated fatty acids (de Mendoza et ah, J. Biol. Chem., 258:2098-101 , 1983). fabB may be inserted into and expressed in production hosts not naturally having the

gene. These unsaturated fatty acids can then be used as intermediates in production hosts that are engineered to produce fatty acid derivatives, such as fatty alcohols, fatty esters, waxes, olefins, alkanes, and the like.

Alternatively, the repressor of fatty acid biosynthesis, for example, fabR (GenBank accession NP_418398 ), can be deleted, which will also result in increased unsaturated fatty acid production in E. coli (Zhang et al., J. Biol. Chem. 277:15558, 2002). Similar deletions may be made in other production hosts. Further increase in unsaturated fatty acids may be achieved, for example, by over- expression of/άέM (trans-2, cis-3-decenoyl-ACP isomerase, GenBank accession DAA05501) and controlled expression of fabK (trans-2-enoyl-ACP reductase II, GenBank accession NP_357969) from Streptococcus pneumoniae (Marrakchi et al., J. Biol. Chem. 277: 44809, 2002), while deleting E. colifabl (trans-2-enoyl-ACP reductase, GenBank accession NP_415804). Additionally, to increase the percentage of unsaturated fatty esters, the production host can also over-express fabB (encoding β-ketoacyl-ACP synthase I, Accessions: BAA16180, EC:2.3.1.41). sfa (encoding a suppressor of ^'fabA, Accession: AAC44390), and gnsA and gnsB (both encoding secG null mutant suppressors, (i.e., cold shock proteins), Accession: ABD 18647.1, AAC74076.1). In some examples, the endogenous fabF gene can be attenuated, thus increasing the percentage of palmitoleate (Ci_{6 1}) produced. C. Chain Length and Ester Characteristics

1. Chain length and production of odd-numbered chains The methods described herein permit production of fatty esters and fatty acid derivatives of varied lengths. Chain length is controlled by thioesterase, which is produced by expression of the tes and fat gene families. By expressing specific thioesterases, fatty acids and fatty acid derivatives having a desired carbon chain length can be produced. Non-limiting examples of suitable thioesterases are listed in Figure 1. A gene encoding a particular thioesterase may be introduced into a production host so that a fatty acid or fatty acid derivative of a particular carbon chain length is produced. Expression of endogenous thioesterases should then be suppressed.

In one embodiment, the fatty acid derivative contain a carbon chain of about 4 to 36 carbon atoms, about 6 to 32 carbon atoms, about 10 to 30 carbon atoms, about 10 to 18 carbon atoms, about 24 to 32 carbon atoms, about 26 to 30 carbon atoms, about 26 to 32 carbon atoms, about 5 to 10 carbon atoms, about 10 to 16 carbon atoms, or about 12 to 18 carbon atoms. In an alternate embodiment, the fatty acid derivative contain a carbon chain less than about 20 carbon atoms, less than about 18 carbon atoms, or less than about 16 carbon atoms. In another embodiment, the fatty ester product is a saturated or unsaturated fatty ester product having a carbon atom content between 24 and 46 carbon atoms. In one embodiment, the fatty ester product has a carbon atom content between 24 and 32 carbon atoms. In another embodiment, the fatty ester product has a carbon content of 14 and 20 carbons. In another embodiment, the fatty ester is the methyl ester of C]_8:i. In another embodiment, the fatty ester is the ethyl ester of Ci_6:i. In another embodiment, the fatty ester is the methyl ester of

In yet another embodiment, the fatty ester is octadecyl ester of octanol.

Some microorganisms preferentially produce even- or odd-numbered carbon chain fatty acids and fatty acid derivatives. For example, E. coli normally produce even-numbered carbon chain fatty acids and fatty acid ethyl esters (FAEE). Surprisingly, the methods disclosed herein may be used to alter that production. For example, E. coli can be made to produce odd-numbered carbon chain fatty acids and FAEE.

2. Ester characteristics An ester includes what may be designated an "A" side and a "B" side. The B side may be contributed by a fatty acid produced from de novo synthesis in the production host organism. In some embodiements where the production host is additionally engineered to make alcohols, including fatty alcohols, the A side is also produced by the production host organism. In yet other embodiements, the A side can be provided in the medium. By selecting the desired thioesterase genes, the B side (and the A side when fatty alcohols are being made) can be designed to be have certain carbon chain characteristics. These characteristics include points of branching, unsaturation , and desired carbon chain lengths.

When particular thioesterase genes are selected, the A and B side will have similar carbon chain characteristics when they are both contributed by the production host using fatty acid biosynthetic pathway intermediates. For example, at least about 50%, 60%, 70%, or 80% of the fatty esters produced will have A sides and B sides that vary by about 2, 4, 6, 8, 10, 12, or 14 carbons in length. The A side and the B side can also display similar branching and saturation levels. In addition to producing fatty alcohols for contribution to the A side, the production host can produce other short chain alcohols such as ethanol, propanol, isopropanol, isobutanol, and butanol for incorporation on the A side using techniques well known in the art. For example, butanol can be made by the production host organism. To create butanol producing cells, the LS9001 strain, for example, can be further engineered to express atoB (acetyl-CoA acetyltransferase) from Escherichia coli K 12, β-hydroxybutyryl-CoA dehydrogenase from

Butyrivibrio fibrisolvens, crotonase from Clostridium beijerinckii, butyryl CoA dehydrogenase from Clostridium beijerinckii, CoA-acylating aldehyde dehydrogenase (ALDH) from Cladosporium fulvum, and adhE encoding an aldehyde-alchol dehydrogenase of Clostridium acetobutylicum in the pBAD24 expression vector under the prpB CDE promoter system. Other production host organisms may be similarly modified to produce butanol or other short chain alcohols. For example, ethanol can be produced in a production host using the methods taught by Kalscheuer et al, Microbiology 152:2529-2536, 2006, which is herein incorporated by reference.

III. Genetic Engineering of Production Strain to Increase Fatty Acid Derivative Production

Heterologous DNA sequences involved in a biosynthetic pathway for the production of fatty acid derivatives can be introduced stably or transiently into a production host cell using techniques well known in the art (non-limiting examples include electroporation, calcium phosphate precipitation, DEAE-dextran mediated transfection, liposome-mediated transfection, conjugation, transduction, and genomic integration). For stable transformation, a DNA sequence can further include a selectable marker, including non-limiting examples such as antibiotic resistance and genes that complement auxotrophic deficiencies.

Various embodiments of this disclosure utilize an expression vector that includes a heterologous DNA sequence encoding a protein involved in a metabolic

or biosynthetic pathway. Suitable expression vectors include, but are not limited to,

viral vectors (such as baculovirus vectors), phage vectors (such as bacteriophage vectors), plasmids, phagemids, cosmids, fosmids, bacterial artificial chromosomes, viral vectors (e.g., viral vectors based on vaccinia virus, poliovirus, adenovirus, adeno-associated virus, SV40, herpes simplex virus, and the like), Pl -based artificial chromosomes, yeast plasmids, yeast artificial chromosomes, and any other vectors for specific production hosts of interest (such as E. coli, Pseudomonas pisum, and Saccharomyces cerevisiae).

Useful expression vectors can include one or more selectable marker genes to provide a phenotypic trait for selection of transformed production host cells. The selectable marker gene encodes a protein necessary for the survival or growth of transformed production host cells grown in a selective culture medium. Production host cells not transformed with the vector containing the selectable marker gene will not survive in the culture medium. Typical selection genes encode proteins that (a) confer resistance to antibiotics or other toxins {e.g., ampicillin, neomycin, methotrexate, or tetracycline); (b) complement auxotrophic deficiencies; or (c) supply critical nutrients not available from complex media (e.g., the gene encoding D-alanine racemate for Bacilli). In alternative embodiments, the selectable marker gene is one that encodes dihydrofolate reductase or confers neomycin resistance (for use in eukaryotic cell culture), or one that confers tetracycline or ampicillin resistance (for use in a prokaryotic production host cell, such as E. coli). In the expression vector, the DNA sequence encoding the gene in the biosynthetic pathway is operably linked to an appropriate expression control sequence, (promoters, enhancers, and the like) to direct synthesis of the encoded gene product. Such promoters can be derived from microbial or viral sources, including CMV and SV40. Depending on the production host/vector system utilized, any number of suitable transcription and translation control elements can be used in the expression vector, including constitutive and inducible promoters, transcription enhancer elements, transcription terminators, etc. (see, e.g., Bitter et al, Methods in Enzymology, 153:516-544, 1987). Suitable promoters for use in prokaryotic production host cells include, but are not limited to, promoters capable of recognizing the T4, T3, Sp6 and T7 polymerases, the P_R and P_L promoters of bacteriophage lambda, the trp, recA, heat shock, and lacZ promoters of E. coli, the alpha-amylase and the sigma-specific promoters of B. subtilis, the promoters of the bacteriophages of Bacillus, Streptomyces promoters, the hit promoter of bacteriophage lambda, the bla promoter of the beta-lactamase gene of pBR322, and the CAT promoter of the chloramphenicol acetyl transferase gene. Prokaryotic promoters are reviewed by Glick, J. Ind. Microbiol. 1 :277, 1987; Watson et al , MOLECULAR BIOLOGY OF THE GENE, 4th Ed. (1987), Benjamin Cummins (1987); and Sambrook et al, MOLECULAR CLONING: A LABORATORY MANUAL, 2nd Ed. (Cold Spring Harbor

Laboratory Press 1989). Non-limiting examples of suitable eukaryotic promoters for use within a eukaryotic production host are viral in origin and include the promoter of the mouse metallothionein I gene (Hamer et al, J. MoI Appl. Gen. 1 :273, 1982); the TK promoter of herpes virus (McKnight, Cell 31 :355, 1982); the SV40 early promoter (Benoist et al, Nature (London) 290:304, 1981); the cytomegalovirus promoter (Foecking et al, Gene 45:101 , 1980); the yeast gal4 gene promoter (Johnston et al, PNAS (USA) 79:6971, 1982; Silver et al, PNAS (USA) 81 :5951, 1984); and the IgG promoter (Orlandi et al, PNAS (USA) 86:3833, 1989). The production host can be genetically modified with a heterologous DNA sequence encoding a biosynthetic pathway gene product that is operably linked to an inducible promoter. Inducible promoters are well known in the art. Non-limiting examples of suitable inducible promoters include promoters that are affected by proteins, metabolites, or chemicals. These include, but are not limited to: a bovine leukemia virus promoter, a metallothionein promoter, a dexamethasone-inducible MMTV promoter, an SV40 promoter, an MRP polIII promoter, a tetracycline- inducible CMV promoter (such as the human immediate-early CMV promoter) as well as those from the trp and lac operons. In some examples, a production host is genetically modified with a heterologous DNA sequence encoding a biosynthetic pathway gene product that is operably linked to a constitutive promoter. Suitable constitutive promoters are known in the art and include constitutive adenovirus major late promoter, a constitutive MPSV promoter, or a constitutive CMV promoter. In some examples, a modified production host is one that is genetically modified with an exongenous DNA sequence encoding a single protein involved in a biosynthesis pathway. In other embodiments, a modified production host is one that is genetically modified with exongenous DNA sequences encoding two or more proteins involved in a biosynthesis pathway, for example, the first and second enzymes in a biosynthetic pathway.

Where the production host is genetically modified to express two or more proteins involved in a biosynthetic pathway, those DNA sequences can each be contained in a single or in separate expression vectors. When those DNA sequences are contained in a single expression vector, in some embodiments, the nucleotide sequences will be operably linked to a common control element where the common control element controls expression of all of the biosynthetic pathway protein- encoding DNA sequences in the single expression vector (e.g., a promoter).

When a modified production host is genetically modified with heterologous DNA sequences encoding two or more proteins involved in a biosynthesis pathway, one of the DNA sequences can be operably linked to an inducible promoter, and one or more of the DNA sequences can be operably linked to a constitutive promoter.

In some embodiments, the intracellular concentration (e.g., the concentration of the intermediate in the genetically modified production host) of the biosynthetic pathway intermediate can be increased to further boost the yield of the final product. The intracellular concentration of the intermediate can be increased in a number of ways, including, but not limited to, increasing the concentration in the culture medium of a substrate for a biosynthetic pathway; increasing the catalytic activity of an enzyme that is active in the biosynthetic pathway; increasing the intracellular amount of a substrate (e.g., a primary substrate) for an enzyme that is active in the biosynthetic pathway; and the like.

In some examples, the fatty acid derivative or intermediate is produced in the cytoplasm of the production host. The cytoplasmic concentration can be increased in a number of ways, including, but not limited to, binding of the fatty acid to coenzyme A to form an acyl-CoA thioester. Additionally, the concentration of acyl- CoA can be increased by increasing the biosynthesis of CoA in the cell, such as by over-expressing genes associated with pantothenate biosynthesis (e.g., panD) or knocking out the genes associated with glutathione biosynthesis (e.g., glutathione synthase). Regulatory sequences, coding sequences, and combinations thereof, can be introduced or altered in the chromosome of the production host. In some examples, the integration of the desired recombinant sequence into the production host genomic sequence does not require the use of a selectable marker such as an antibiotic. In some examples, the genomic alterations include changing the control sequence of the target genes by replacing the native promoter(s) with a promoter that is insensitive to regulation. There are numerous approaches for doing this. For example, Valle and Flores, Methods MoL Biol. 267:1 13-122, 2006, describes a PCR- based method to over-express chromosomal genes in E. coli. Another approach is based on the use of single-strand oligonucleotides to create specific mutations directly in the chromosome, using the technology developed by Court et al, Proc. Nat. Acad. Sci. 100:15748-15753, 2003. This technology is based on the use of the over-expression of the Beta protein from the bacteriophage lambda to enhance genetic recombination. The advantages of this approach are that synthetic oligonucleotides 70 bases long (or more) can be used to create point mutations, insertions, and deletions, thus eliminating any cloning steps. Furthermore, the system is sufficiently efficient that no markers are necessary to isolate the desired mutations.

With this approach the regulatory region of a gene can be changed to create a stronger promoter and/or eliminate the binding site of a repressor. In such a manner, a desired gene can be overexpressed in the production host organism. IV. Fermentation

A. Maximizing Production Efficiency

The production and isolation of fatty acid derivatives can be enhanced by employing specific fermentation techniques. One method for maximizing production while reducing costs is increasing the percentage of the carbon source that is converted to hydrocarbon products.

During normal cellular lifecycles carbon is used in cellular functions including producing lipids, saccharides, proteins, organic acids, and nucleic acids. Reducing the amount of carbon necessary for growth-related activities can increase the efficiency of carbon source conversion to output. This can be achieved by first growing microorganisms to a desired density, such as a density achieved at the peak of the log phase of growth. At such a point, replication checkpoint genes can be harnessed to stop the growth of cells. Specifically, quorum sensing mechanisms (reviewed in Camilli and Bassler Science 31 1 :1 1 13, 2006; Venturi FEMS Microbio. Rev. 30:274-291 , 2006; and Reading and Sperandio FEMS Microbiol, Lett. 254: 1 - 1 1 , 2006, which references are incorporated by reference herein) can be used to activate genes such asp53, p21, or other checkpoint genes.

Genes that can be activated to stop cell replication and growth in E. coli include umuDC genes, the over-expression of which stops the progression from stationary phase to exponential growth (Murli et αi, J. ofBαct. 182:1 127, 2000). UmuC is a DNA polymerase that can carry out translesion synthesis over non- coding lesions - the mechanistic basis of most UV and chemical mutagenesis. The umuDC gene products are used for the process of translesion synthesis and also serve as a DNA sequence damage checkpoint. The umuDC gene products include UmuC, UmuD, umuD', UmuD'?C, UmuD'₂ and UnIuD₂. Simultaneously, the product-producing genes could be activated, thus minimizing the need for replication and maintenance pathways to be used while the fatty acid derivative is being made. Production host microorganisms can also be engineered to express umuC and umuD from E. coli in pBAD24 under the prpBCDE promoter system through de novo synthesis of this gene with the appropriate end-product production genes.

The percentage of input carbons converted to fatty esters or hydrocarbon products is a cost driver. The more efficient the process is {i.e., the higher the percentage of input carbons converted to fatty esters or hydrocarbon products), the less expensive the process will be. For oxygen-containing carbon sources {e.g., glucose and other carbohydrate based sources), the oxygen must be released in the form of carbon dioxide. For every 2 oxygen atoms released, a carbon atom is also released leading to a maximal theoretical metabolic efficiency of -34% (w/w) (for fatty acid derived products). This figure, however, changes for other hydrocarbon products and carbon sources. Typical efficiencies in the literature are approximately <5%. Production hosts engineered to produce hydrocarbon products can have greater than 1, 3, 5, 10, 15, 20, 25, and 30% efficiency. In one example, production hosts will exhibit an efficiency of about 10% to about 25%. In other examples, such production hosts will exhibit an efficiency of about 25% to about 30%. In other examples, such production hosts will exhibit >30% efficiency.

The production host can be additionally engineered to express recombinant cellulosomes, such as those described in PCT application number PCT/US2007/003736, incorporated herein by reference in its entirety, which could allow the production host to use cellulosic material as a carbon source. For example, the production host can be additionally engineered to express invertases (EC 3.2.1.26) so that sucrose can be used as a carbon source.

Similarly, the production host can be engineered using the teachings described in U.S. Patent Nos. 5,000,000; 5,028,539; 5,424,202; 5,482,846; and 5,602,030 to Ingram et al, all incorporated herein by reference in their entirety, so that the production host can assimilate carbon efficiently and use cellulosic materials as carbon sources.

In one example, the fermentation chamber will enclose a fermentation that is undergoing a continuous reduction. In this instance, a stable reductive environment would be created. The electron balance would be maintained by the release of carbon dioxide (in gaseous form). Efforts to augment the NAD/H and NADP/H balance can also facilitate in stabilizing the electron balance.

The availability of intracellular NADPH can also be enhanced by engineering the production host to express an NADH :N ADPH transhydrogenase. The expression of one or more NADH:NADPH transhydrogenase converts the NADH produced in glycolysis to NADPH which enhances the production of fatty acid derivatives.

B. Small-Scale Hydrocarbon Production For small scale hydrocarbon product production, E. coli BL21(DE3) cells harboring pBAD24 (with ampicillin resistance and the end-product synthesis pathway) as well as pUMVCl (with kanamycin resistance and the acetyl CoA/malonyl CoA over-expression system) are incubated overnight in 2 L flasks at 37°C shaken at >200 rpm in 500 mL LB medium supplemented with 75 μg/mL ampicillin and 50 μg/ml kanamycin until cultures reach an OD_6Oo of >0.8. Upon achieving an OD_6Oo of >0.8, cells are supplemented with 25 mM sodium proprionate (pH 8.0) to activate the engineered gene systems for production, and to stop cellular proliferation by activating UmuC and UmuD proteins. Induction is performed for 6 hours at 3O⁰C. After incubation, the media is examined for hydrocarbon product using GC-MS.

C. Large-Scale Hydrocarbon Production

For large scale product production, the engineered production hosts are grown in batches of 10 L, 100 L, or larger; fermented; and induced to express desired products based on the specific genes encoded in the appropriate plasmids.

For example, E. coli BL21(DE3) cells harboring pBAD24 (with ampicillin resistance and the end-product synthesis pathway) as well as pUMVCl (with kanamycin resistance and the acetyl-CoA/malonyl-CoA over-expression system) are incubated from a 500 mL seed culture for 10 L fermentations (5 L for 100 L fermentations) in LB media (glycerol free) with 50 μg/mL kanamycin and 75 μg/mL ampicillin at 37°C, shaken at >200 rpm, until cultures reach an OD_6Oo of >0.8 (typically 16 hours). Media is continuously supplemented to maintain 25 mM sodium proprionate (pH 8.0) to activate the engineered gene systems for production, and to stop cellular proliferation by activating umiiC and umuD proteins. Media is continuously supplemented with glucose to maintain a concentration 25 g/100 mL.

After the first hour of induction, aliquots of no more than 10% of the total cell volume are removed each hour and allowed to sit without aggitation to allow the hydrocarbon product to rise to the surface and undergo a spontaneous phase separation. The hydrocarbon component is then collected and the aqueous phase returned to the reaction chamber. The reaction chamber is operated continuously. When the OD₆Oo drops below 0.6, the cells are replaced with a new batch grown from a seed culture.

For wax ester production, the wax esters are isolated, washed briefly in 1 M HCl to split the ester bond, and returned to pH 7 with extensive washing with distilled water. V. Post-Production Processing

The fatty acid derivatives produced during fermentation can be separated from the fermentation media. Any technique known for separating fatty acid derivatives from aqueous media can be used. One exemplary separation process provided herein is a two phase (bi-phasic) separation process. This process involves fermenting the genetically engineered production hosts under conditions sufficient to produce a fatty acid derivative, allowing the derivative to collect in an organic phase, and separating the organic phase from the aqueous fermentation broth. This method can be practiced in both a batch and continuous fermentation setting.

Bi-phasic separation uses the relative immisiciblity of fatty acid derivatives to facilitate separation. Immiscible refers to the relative inability of a compound to dissolve in water and is defined by the compounds partition coefficient. One or ordinary skill in the art will appreciate that by choosing a fermentation broth and organic phase such that the fatty acid derivative being produced has a high logP value, the fatty acid derivative will separate into the organic phase, even at very low concentrations in the fermentation vessel.

The fatty acid derivatives produced by the methods described herein will be relatively immiscible in the fermentation broth, as well as in the cytoplasm. Therefore, the fatty acid derivative will collect in an organic phase either intracellularly or extracellularly. The collection of the products in the organic phase will lessen the impact of the fatty acid derivative on cellular function, and will allow the production host to produce more product. The fatty alcohols, fatty esters, waxes, and hydrocarbons produced as described herein allow for the production of homogeneous compounds wherein at least about 60%, 70%, 80%, 90%, or 95% of the fatty alcohols, fatty esters, and waxes produced will have carbon chain lengths that vary by less than about 6, less than about 4 carbons, or less than about 2 carbons. These compounds can also be produced so that they have a relatively uniform degree of saturation, for example at least about 60%, 70%, 80%, 90%, or 95% of the fatty alcohols, fatty esters, hydrocarbons and waxes will be monounsaturated, diunsaturated, or triunsaturated. These compounds can be used directly as fuels, personal care additives, or nutritional supplements. These compounds can also be used as feedstock for subsequent reactions for example transesterification, hydrogenation, catalytic cracking (via hydrogenation, pyrolisis, or both), or epoxidation reactions to make other products.

The fatty alcohols, fatty esters, waxes, and hydrocarbons produced as described herein contain low levels of unwanted or undesired elements, including, but not limited to, heavy metals. In some embodiments, the fatty alcohols, fatty esters, waxes, and hydrocarbons produced as described herein will contain less than about 50 ppm arsenic; less than about 300 ppm calcium; less than about 200 ppm chlorine; less than about 50 ppm cobalt; less than about 50 ppm copper; less than about 300 ppm iron; less than about 2% by weight water; less than about 50 ppm lead; less than about 50 ppm manganese; less than about 0.2 ppm mercury; less than about 50 ppm molybdenum; less than about 1% by weight nitrogen; less than about 200 ppm potassium; less than about 300 ppm sodium; less than about 3% by weight sulfur; less than 50 ppm zinc; or less than 700 ppm phosphorus. In some embodiments, the fatty alcohols, fatty esters, waxes, and hydrocarbons produced as described herein will contain between about 50% and about 90% carbon; between about 5% and about 25% hydrogen; or between about 5% and about 25% oxygen. In other embodiments, the fatty alcohols, fatty esters, waxes, and hydrocarbons produced as described herein will contain between about 65% and about 85% carbon; between about 10% and about 15% hydrogen; or between about 10% and about 20% oxygen. •

VI. Fuel Compositions

The fatty acid derivatives described herein can be used as fuel. One of ordinary skill in the art will appreciate that, depending upon the intended purpose of the fuel, different fatty acid derivatives can be produced and used. For example, a branched fatty acid derivative may be desirable for automobile fuel that is intended to be used in cold climates.

Using the methods described herein, fuels comprising relatively homogeneous fatty acid derivatives that have desired fuel qualities can be produced. Such fatty acid derivative-based fuels can be characterized by carbon fingerprinting, and their lack of impurities when compared to petroleum derived fuels or biodiesel derived from triglyceride. The fatty acid derivative-based fuels can also be combined with other fuels or fuel additives to produce fuels having desired properties. The production hosts and methods disclosed herein can be used to produce free fatty acids and fatty esters. In some embodiments, the percentage of free fatty acids in the product produced by the production host is at least about 1 %, 2%, 3%, 4%, 5%, 6%, 7%, 8%, 9%, 10%, 15%, 20%, or 25%. In some embodiments, the percentage of fatty esters in the product produced by the production host is at least about 50%, 55%, 60%, 65%, 70%, 75%, 80%, 85%, or 90%. In some embodiments, the ratio of fatty esters to free fatty acids in the product produced by the production host is about 10:1, 9:1, 8:1, 7: 1 , 5:1, 2:1, or 1 :1. In other embodiments, the fatty ester produced by the production host is ethyl dodecanoate, ethyl tridecanoate, ethyl tetradecanoate, ethyl pentadecanoate, ethyl cis-9-hexadecenoate, ethyl hexadecanoate, ethyl heptadecanoate, ethyl cis-1 1 -octadecenoate, ethyl octadecanoate, or combinations thereof. In other embodiments, the free fatty acid produced by the production host is dodecanoic acid, tetradecanoic acid, pentadecanoic acid, cis-9-hexadecenoic acid, hexadecanoic acid, cis-1 1 - octadecenoic acid, or combinations thereof. A. Carbon fingerprinting

Biologically produced fatty acid derivatives represent a new source of fuels, such as alcohols, diesel, and gasoline. Some biofuels made using fatty acid derivatives have not been produced from renewable sources and are new compositions of matter. These new fuels can be distinguished from fuels derived form petrochemical carbon on the basis of dual carbon-isotopic fingerprinting. Additionally, the specific source of biosourced carbon (e.g., glucose vs. glycerol) can be determined by dual carbon-isotopic fingerprinting (see U.S. Patent No. 7,169,588, which is herein incorporated by reference in its entirety, in particular, see col. 4, line 31, to col. 6, line 8).

The fatty acid derivatives and the associated biofuels, chemicals, and mixtures may be completely distinguished from their petrochemical derived counterparts on the basis of ¹⁴C (fvi) and dual carbon-isotopic fingerprinting.

The fatty acid derivatives described herein have utility in the production of biofuels and chemicals. The new fatty acid derivative-based products provided by the instant invention additionally may be distinguished on the basis of dual carbon- isotopic fingerprinting from those materials derived solely from petrochemical sources. The ability to distinguish these products is beneficial in tracking these materials in commerce. For example, fuels or chemicals comprising both "new" and "old" carbon isotope profiles may be distinguished from fuels and chemicals made only of "old" materials. Thus, the instant materials may be followed in commerce or identified in commerce as a biofuel on the basis of their unique profile. In addition, other competing materials can be identified as being biologically derived or derived from a petrochemical source.

In some examples, a biofuel composition is made that includes a fatty acid derivative having 8^{l j}C of from about -10.9 to about -15.4, wherein the fatty acid derivative accounts for at least about 85% of biosourced material (i.e., derived from a renewable resource such as cellulosic materials and sugars) in the composition. In other examples, the biofuel composition includes a fatty acid derivative having the formula:

X-<CH(R))_nCH₃ wherein X represents CH₃, -CH₂OR¹: -C(O)OR²; or -C(O)NR³R⁴; R is, for each n, independently absent, H or a lower aliphatic; n is an integer from about 8 to about 34, preferably from about 10 to about 24; and

R¹, R^", R³ and R independently are selected from H or a lower alkyl. Typically, when R is lower aliphatic, R represents a branched, unbranched or cyclic lower alkyl or lower alkenyl moiety. Exemplary R groups include, without limitation, methyl, isopropyl, isobutyl, sec-butyl, cyclopentenyl, and the like. The fatty acid derivative is additionally characterized as having a 5^ljC of from about - 10.9 to about -15.4, and the fatty acid derivative accounts for at least about 85% of biosourced material in the composition. In some examples the fatty acid derivative in the biofuel composition is characterized by having a fraction of modern carbon (f_M ¹⁴C) of at least about 1.003, 1.010, or 1.5. B. Impurities

The fatty acid derivatives described herein are useful for making biofuels. These fatty acid derivatives are made directly from fatty acids and not from the chemical processing of triglycerides. Accordingly, fuels comprising the disclosed fatty acid derivatives will contain fewer impurities than are normally associated with biofuels derived from triglycerides, such as fuels derived from vegetable oils and fats. The crude fatty acid derivative biofuels described herein (prior to mixing the fatty acid derivative with other fuels such as petroleum-based fuels) will contain less transesterification catalyst than petrochemical diesel or biodiesel. For example, the fatty acid derivative can contain less than about 2%, 1.5%, 1.0%, 0.5%, 0.3%, 0.1%, 0.05%, or 0% of a transesterification catalyst or an impurity resulting from a transesterification catalyst.

Non-limiting examples of transesterification catalysts include hydroxide catalysts, such as NaOH, KOH, and LiOH; and acidic catalysts, such as mineral acid catalysts and Lewis acid catalysts. Non-limiting examples of catalysts and impurities resulting from transesterification catalysts include tin, lead, mercury, cadmium, zinc, titanium, zirconium, hafnium, boron, aluminum, phosphorus, arsenic, antimony, bismuth, calcium, magnesium, strontium, uranium, potassium, sodium, lithium, and combinations thereof. Similarly, the crude fatty acid derivative biofuels described herein (prior to mixing the fatty acid derivative with other fuels such as petrochemical diesel or biodiesel) will contain less glycerol (or glycerin) than biofuels made from triglycerides. For example, the fatty acid derivative can contain less than about 2%, 1.5%, 1.0%, 0.5%, 0.3%, 0.1 %, 0.05%, or 0% by weight of glycerol. The crude biofuel derived from fatty acid derivatives will also contain less free alcohol (i.e., alcohol that is used to create the ester) than biodiesel made from triglycerides. This is due in part to the efficiency of utilization of the alcohol by the production host. For example, the fatty acid derivative will contain less than about 2%, 1.5%, 1.0%, 0.5%, 0.3%, 0.1%, 0.05%, or 0% by weight of free alcohol. Biofuel derived from the disclosed fatty acid derivatives can be additionally characterized by its low concentration of sulfur compared to petroleum derived diesel. For example, biofuel derived from fatty acid derivatives can have less than about 2%, 1.5%, 1.0%, 0.5%, 0.3%, 0.1%, 0.05%, or 0% by weight of sulfur. C. Additives Fuel additives are used to enhance the performance of a fuel or engine. For example, fuel additives can be used to alter the freezing/gelling point, cloud point, lubricity, viscosity, oxidative stability, ignition quality, octane level, and flash point. In the United States, all fuel additives must be registered with Environmental Protection Agency. The names of fuel additives and the companies that sell the fuel additives are publicly available by contacting the EPA or by viewing the agency's website. One of ordinary skill in the art will appreciate that the fatty acid derivatives described herein can be mixed with one or more fuel additives to impart a desired quality. The fatty acid derivatives described herein can be mixed with other fuels such as biodiesel derived from triglycerides, various alcohols such as ethanol and butanol, and petroleum-derived products such as gasoline or diesel.

In some examples, a fatty acid derivative with a low gel point, such as Ci_6:i ethyl ester or C_{\ &: \} ethyl ester, is produced. This low gel point fatty acid derivative can be mixed with biodiesel made from triglycerides to reduce gel point of the resulting fuel when compared to the biodiesel made from triglycerides. Similarly, a fatty acid derivative, such as C|_6:ι ethyl ester or Ci_8:i ethyl ester, can be mixed with petroleum-derived diesel to provide a mixture that is at least about, and often greater than, 5% by weight of biodiesel. In some examples, the mixture includes at least about 10%, 15%, 20%, 30%, 40%, 50%, 60% by weight of the fatty acid derivative.

For example, a biofuel composition can be made that includes at least about

5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 85%, 90% or 95% of a fatty acid derivative that includes a carbon chain that is 8:0, 10:0, 12:0, 14:0, 14:1 , 16:0, 16:1,

18:0, 18:1, 18:2, 18:3, 20:0, 20:1, 20:2, 20:3, 22:0, 22:1 or 22:3. Such biofuel compositions can additionally include at least one additive selected from a cloud point lowering additive that can lower the cloud point to less than about 5°C, or 0⁰C; a surfactant; a microemulsion; at least about 5%, 10%, 15%, 20%, 30%, 40%, 50%, 60%, 70% or 80%, 85%, 90%, or 95% diesel fuel from triglycerides; petroleum- derived gasoline; or diesel fuel from petroleum.

EXAMPLES

The examples that follow illustrate the engineering of production hosts to produce specific fatty acid derivatives. The biosynthetic pathway involved in the production of fatty acid derivatives are illustrated in the figures. For example, Figure 1 is a diagram of the FAS pathway showing the enzymes directly involved in the synthesis of acyl-ACP. To increase the production of fatty acid derivatives, such as waxes, fatty esters, fatty alcohols, and hydrocarbons one or more of the enzymes in Figure 1 can be over expressed or mutated to reduce feedback inhibition to increase the amount of acyl-ACP produced. Additionally, enzymes that metabolize the intermediates to make non-fatty acid based products (side reactions) can be functionally deleted or attenuated to increase the flux of carbon through the fatty acid biosynthetic pathway. In the examples below, many production hosts are described that have been modified to increase fatty acid production. Figure 4, Figure 5, and Figure 6 show biosynthetic pathways that can be engineered to make fatty alcohols and fatty esters, respectively. As illustrated in Figure 5, the conversion of each substrate (e.g., acetyl-CoA, malonyl-CoA, acyl- ACP, fatty acid, and acyl-CoA) to each product (e.g., acetyl-CoA, malonyl-CoA, acyl-ACP, fatty acid, and acyl-CoA) can be accomplished using several different polypeptides that are members of the enzyme classes indicated.

The examples below describe microorganisms that have been engineered or can be engineered to produce specific fatty alcohols, waxes, fatty esters, and hydrocarbons.

Example 1. Production host vonstruction

An exemplary production host is LS9001. LS9001 was produced by modifying C41(DE3) from Over-express.com (Saint Beausine, France) to knock-out the fadE gene (acyl-CoA dehydrogenase). Briefly, the fadE knock-out strain of E. coli was made using primers

YafV_^Notl and lvry_01 to amplify about 830 bp upstream of ^'fadE and primers Lpcafj)l and LpcaRJBam to amplify about 960 bp downstream of ^'fadE. Overlap PCR was used to create a construct for in-frame deletion of the complete fadE gene. The fadE deletion construct was cloned into the temperature-sensitive plasmid pKOV3, which contained a sacB gene for counterselection, and a chromosomal deletion of fadE was made according to the method of Link et a!., J. Bad. 179:6228- 6237, 1997. The resulting strain was not capable of degrading fatty acids and fatty acyl-CoAs. This knock-out strain is herein designated as ΔfadE.

Additional modifications that were included in a production host include introducing a plasmid carrying the four genes which are responsible for acetyl-CoA carboxylase activity in E. coli (accA, accB, accC, and accD, Accessions: NP_414727, NP_417721 , NP_417722, NP_416819, EC 6.4.1.2). The accABCD genes were cloned in two steps as bicistronic operons into the Ncol/Hindlll and Ndel/Avrll sites of pACYCDuet-1 (Novagen, Madison, WI), and the resulting plasmid was termed pAS004.126.

Additional modifications that were included in a production host include the following: over-expression of aceEF (encoding the EIp dehydrogase component and the E2p dihydrolipoamide acyltransferase component of the pyruvate and 2- oxoglutarate dehydrogenase complexes); and fabH/fabD/fabG/acpP/fabF (encoding FAS) from E. coli, Nitrosomonas europaea (ATCC 19718), Bacillus subtilis, Saccharomγces cerevisiae, Streptomyces spp, Ralstonia, Rhodococcus, Corynebacteria, Brevibacteήa, Mycobacteria, and oleaginous yeast. Similarly, production hosts were engineered to express ace ABCD (encoding acetyl co-A carboxylase) from Pisum savitum. However, when the production host is also producing butanol it is less desirable to express the Pisum savitum homolog.

In some production hosts, genes were knocked out or attenuated using the method of Link, et al, J. Bacteriol. 179:6228-6237, 1997. Genes that were knocked out or attenuated include gpsA (encoding biosynthetic sn-glycerol 3- phosphate dehydrogenase, accession NP_418065, EC: 1.1.1.94); ldhA (encoding lactate dehydrogenase, accession NP_415898, EC: 1.1.1.28); pflb (encoding formate acetyltransferase 1, accessions: P09373, EC: 2.3.1.54); adhE (encoding alcohol dehydrogenase, accessions: CAA47743, EC: 1.1.1.1, 1.2A A0);pta (encoding phosphotransacetylase, accessions: NP_416800, EC: 23A .8); poxB

(encoding pyruvate oxidase, accessions: NP_415392. EC: 1.2.2.2); ackA (encoding acetate kinase, accessions: NP_416799, EC: 2.7.2.1) and combinations thereof.

Similarly, the PlsB[D31 IE] mutation was introduced into LS9001 to attenuate plsB using the method described in Example 1 for the fadE deletion. This mutation decreased the amount of carbon diverted to phospholipid production (see Figuie 1) An allele encoding PlsB[D31 1 E] was made by replacing the GAC codon for aspartate 311 with a GAA codon for glutamate The altered allele was made by gene synthesis and the chromosomal plsB wildtype allele was exchanged for the mutant plsB[O31 IE] allele using the method of Link et al {see above)

For the commercial production of fatty acid derivatives via fermentation, the production host internal regulatory pathways were optimized to pioduce moie of the desned products In many instances, this iegulation was diminished by over- expressmg certain enzymes Some examples are shown in Table 8

Table 8: Additional genes that can be optimized for fatty acid derivative production

Example 2. Production host modifications

The following plasmids were constructed foi the expression of various proteins that are used in the synthesis of fatty acid derivatives The constructs were made using standaid molecular biology methods All the cloned genes were put under the control of IPTG-mducible promoters (e g , T7, tac, oi lac promoters). The 'tesA gene (thioesterase A gene accession NP_415027 without leader sequence (Cho and Cronan, J. Biol. Chem., 270:4216-9, 1995, EC: 3.1.1.5, 3.1.2.-)) of E. coli was cloned into Ndel/Avrll digested pETDuet-1 (pETDuet-1 described herein is available from Novagen, Madison, WI). Genes encoding for FatB-type plant thioesterases (TEs) from Umbellularia californica, Cuphea hookeriana, and Cinnamonum camphorum (accessions: UcFatBl=AAA34215, ChFatB2=AAC49269, ChFatB3=AAC72881 , CcFatB=AAC49151) were individually cloned into three different vectors: (i) Ndel/Avrll digested pETDuet-1 ; (ii) Xhol/Hindlll digested pBluescript KS+ (Stratagene, La Jolla, CA, to create N- terminal lacZ: :TE fusion proteins); and (iii) Xbal/Hindlll digested pMAL-c2X (New England Lab, Ipswich, MA) (to create n-terminal malEv.TE fusions). The fadD gene (encoding acyl-CoA synthase) from E. coli was cloned into a Ncol/Hindlll digested pCDFDuet-1 derivative, which contained the acrl gene (acyl-CoA reductase) from Acinetobacter baylyi ADPl within its Ndel/Avrll sites. Table 9 provides a summary of the plasmids generated to make several exemplary production strains. One of ordinary skill in the art will appreciate that different plasmids and genomic modifications can be used to achieve similar strains.

Table 9: Summary of plasmids used in production hosts

The chosen expression plasmids contain compatible replicons and antibiotic resistance markers to produce a four-plasmid expression system. Therefore, LS9001 can be co-transformed with: (i) any of the TE-expressing plasmids; (ii) the FadD- expressing plasmid, which also expresses Acrl ; and (iii) ester synthase expression plasmid. When induced with IPTG, the resulting strain will produce increased concentrations of fatty alcohols from carbon sources such as glucose. Example 3. Production of fatty alcohol in the recombinant E. coli strain

Fatty alcohols were produced by expressing a thioesterase gene and an acyl- CoA reductase gene exogenously in a production host. More specifically, plasmids pCDFDuet-1-fadD-acrl (acyl-CoA reductase) and pETDuet-l-'tesA (thioesterase) were transformed into E. coli strain LS9001 (described in Example 1) and corresponding transformants were selected in LB plates supplemented with 100 mg/L of spectinomycin and 50 mg/L of carbenicillin. Four transformants of LS9001/pCDFDuet-l-fadD-acrl were independently inoculated into 3 mL of M9 medium supplemented with 50 mg/L of carbenicillin and 100 mg/L of spectinomycin. The samples containing the transformants were grown in at 25°C in a shaker (250 rpm) until they reached 0.5 OD₆oo. Next, 1.5 mL of each sample was transferred into a 250 mL flask containing 30 mL of the M9 medium described above. The resulting culture was grown at 25°C in a shaker until the culture reached between 0.5-1.0 OD₆oo- IPTG was then added to a final concentration of 1 mM. Cell growth continued for 40 hours.

The cells were then spun down at 4000 rpm.The cell pellets were suspended in 1.0 mL of methanol. 3 mL of ethyl acetate was then mixed with the suspended cells. 3 mL Of H₂O was then added to the mixture. Next, the mixture was sonicated for 20 minutes. The resulting sample was centrifuged at 4000 rpm for 5 minutes. Then the organic phase (the upper phase), which contained fatty alcohol, was subjected to GC/MS analysis. The total alcohol (including tetradecanol, hexadecanol, hexadecenol and octadecenol) yield was about 1-10 mg/L. When an E. coli strain carrying only empty vectors was cultured in the same way, fatty alcohols yields of only 0.2-0.5 mg/L were measured in the ethyl acetate extract. Example 4. Production of fatty acids (FA) and fatty acid ethyl esters (FAEE) containing odd-numbered carbon chains without heavy metals

1. Production of biodiesel sample #23-30

Biodiesel sample #23-30 ("'sample #23-30") was produced by the bioreactor cultivation of an E. coli strain (C41 DE3 AfάdE AfabR "TesA fadD adplws) engineered to produce fatty esters. A two-stage inoculum protocol was utilized for expansion of the culture. The first stage consisted of the inoculation of 50 mL LB media (supplemented with 100 μg/L carbenicillin and 100 μg/L spectinomycin) in a 250 mL baffled shake flask with a 1 mL frozen stock vial of the E. coli ester production strain. This seed flask was incubated at 37°C for seven hours (final

OD₆₀₀ ⁼ 4.5 AU, pH 6.7), after which 3 mL of the primary culture was transferred to each of three 2 L baffled flasks containing 350 mL buffered Fl minimal medium, also containing 100 μg/L carbenicillin and 100 μg/L spectinomycin. The shake flask buffer used was Bis-Tris propane at a final concentration of 200 mM (pH 7.2). These secondary seed flasks were incubated at 37°C for eighteen hours (final OD_6O0 = 12 AU, pH 5.5) and the contents used to inoculate three 14 L bioreactors with a starting volume of 6.5 liters of buffered Fl minimal medium following inoculation. These bioreactors also contained 100 μg/L carbenicillin and 100 g/L spectinomycin. These 14 L bioreactors were initially cultivated at 37°C, and the dissolved oxygen level was maintained at 30% of saturation, using the agitation and oxygen enrichment cascade loops. The pH of the cultivation was maintained at 7.2, using 1 M H₂SO4 and anhydrous ammonia gas. A nutrient feed consisting primarily of 43% (w/v) glucose was initiated when the original 5 g/L charge in the basal medium was exhausted. The glucose solution feed rate was then manually tuned for the duration of the run to keep the residual glucose at a low (but non-zero) value for the duration of the fermentation. Cultures were induced with 1 mM IPTG (final concentration) when the optical density of the culture reached a value of 30 AU. At this induction point, the bioreactor cultivation temperature was reduced to 3O⁰C, and approximately 15 mL/L (on a 6.5 to 7 liter volume basis) of ethanol was added to the culture and monitored by HPLC throughout. Additional ethanol was added periodically to the bioreactors to maintain the residual concentration at around 20 mL/L. The bioreactors were harvested after approximately 60 hours of cultivation, with approximately 10 L of the broth harvested from each of the three bioreactors.

These harvest broths were combined and extracted with an equivalent volume of ethyl acetate with stirring at room temperature for two hours. The broth extract was then centrifuged (3500 rpm, 30 minutes) to separate the liquid layers, followed by the removal of the organic layer for further processing. The ethyl acetate was almost completely removed (<0.3% residual, by GC/FID) from this organic layer by rotary evaporation (Bϋchi, R-200), leaving approximately 90 mL of a dark, oily liquid. This liquid was referred to as sample #23-30.

2. Quantification of FA and FAEE in sample #23-30

GC-MS was performed using an Agilent 5975B MSD system equipped with a 30m^χ0.25mm (0.1 Oμm film) DB-5 column. The column temperature was 3 min isothermal at 100⁰C. The column was programmed to rise from 100⁰C to 320⁰C at a rate of 20°C/min. When the final temperature was reached, the column remained isothermal for 5 minutes at 32O⁰C. The injection volume was 1 μL. The carrier gas, helium, was released at 1.3 mL/min. The mass spectrometer was equipped with an electron impact ionization source. The ionization source temperature was set at 300⁰C. FAEE standards (e.g., ethyl dodecanoate, ethyl tetradecanoate, ethyl cis-9- hexadecenoate, ethyl hexadecanoate, ethyl octadecanoate, all >99%); fatty acid methyl ester (FAME) standards (e.g., methyl dodecanoate, methyl tetradecanoate, methyl pentadecanoate, methyl cis-9-hexadecenoate, methyl hexadecanoate, methyl cis-1 1 -octadecenoate, all >99%); trimethylsilyl diazomethane (TMSD, 2 M in hexane); hydrochloric acid (37%); methanol (>99.9%); and ethyl acetate (>99.9%) were purchased from Sigma- Aldrich and used without further purification.

Sample #23-30 was derivatized by adding 50 μL trimethylsilyldiazomethane (TMSD), 8 μL HCl, and 36 μL methanol to 1 niL of sample (1 mg/mL in ethyl acetate). The mixture was incubated at room temperature for 1 hour. Prior to quantitation, the FAEE and FAME in sample #23-30 were identified using two methods. First, the GC retention time of each compound was compared to the retention time of a known standard. Second, identification of each compound was confirmed by matching the compound's mass spectrum to a standard's mass spectrum in the mass spectra library. When a standard for a FAEE or FAME was available, the quantification of the FAEE or FAME was determined by generating a calibration curve (concentration vs. instrument response). A linear relationship between the instrument response and the analyte concentration was then obtained. The concentration of the compound in the sample was determined by taking its instrument response and referring to the calibration curve.

When a standard for an FAEE was not available, an average instrument response was used to determine the compound's concentrations. The slope and the intercept for all existing calibration curves were averaged. From these averages, a linear relationship between concentration and instrument response was determined. The concentration of unknown compounds was then determined by referencing its instrument response to the linear relationship between instrument response and concentration using Equation 1.

Equation 1: concentration = (instrument response - average interception) / average slope

After identifying and quantifying the FAME, the concentration of the associated free fatty acids was determined based upon the concentration of FAME and the molecular weight ratio of FA to FAME. Finally, the concentration of FAEE and FA in mg/L was converted into percentage in the biodiesel sample (w/w %). The concentrations of FAEE and FA in sample #23-30 are listed in Table 10.

The total concentration of FAEEs and FAs was 80.7%. The rest of the unknown compounds may be analyzed by LC/MS/MS method. Ethyl pentadecanoate, ethyl cis-9-hexadecenoate, ethyl hexadecanoate and ethyl cis-1 1 -octadecenoate were the major component of sample #23-30.

Table 10: Percentage of FAEE and FA in sample #23-30

*Percentage is w/w %.

Surprisingly, sample #23-30 contained odd-numbered FA and FAEE. Further analysis, such as LC/MS/MS, may be performed to confirm that these odd- numbered carbon chain fatty acids were produced by E.coli and did not come from the E. colϊs own lipids. 3. Quantitative elemental analysis of sample #23-30 Heavy metals are known to poison the catalysts used in catalytic cracking. To measure the levels of heavy metals in sample #23-30, sample #23-30 was sent to Galbraith Laboratories, Inc. for quantitative elemental analysis of arsenic, calcium, carbon, chlorine, cobalt, copper, hydrogen, iron, Karl Fisher water, lead, manganese, magnesium, mercury, molybdenum, nitrogen, potassium, sodium, sulfur, zinc, oxygen, and phosphorus. Preparatory and analytical methods are described below. Results are shown in Table 1 1. All amounts in Table 1 1 were below the level of quantitation (LOQ) except for carbon (73.38%), chlorine (91 ppm), hydrogen (12.1%), Karl Fisher water (0.998%), mercury (0.057 ppm), oxygen (14.53%), and phosphorus (343 ppm). Therefore, sample #23-30 did not contain high levels of the heavy metals that were measured.

Method G-52, Rev 6: Microwave digestion of samples for metals analysis An appropriate amount of sample was weighed into a microwave vessel to the nearest 0.001 g. The appropriate reagents were then added to the microwave vessel. If a visible reaction was observed the reaction was allowed to cease before capping the vessel. The vessel was then sealed and placed in the microwave according to the manufacture's directions. The temperature of each vessel reached a minimum of 180 ± 10⁰C in 5 minutes. It remained at a minimum of 180 ± 10⁰C for 10 minutes. At the end of the microwave program the vessels were allowed to cool for a minimum of 5 minutes before removal. The vessels were then uncapped and transferred to volumetric flasks for analysis by the proper technique.

Method G-55, Rev 3: Parr oxygen bomb combustion for the determination of halogens Samples were weighed into a combustion cup, and Mineral oil was added as a combustion aid. For chlorine (Cl) and bromine (Br) measurements, 1% hydrogen peroxide solution was added into the bomb. For sulfur (S) measurements, 0.01 N sodium hydroxide solution was added. The sample and cup were sealed into a Parr oxygen combustion bomb along with a suitable absorbing solution. The bomb was purged with oxygen, then pressurized to 25-30 atm of oxygen pressure, and ignited. Afterwards, the contents of the bomb were well mixed and transferred to a beaker for subsequent analysis.

Method G-30B, Rev 7: Wet ash digestion of inorganic and organic compounds for metals analysis

The sample was charred using H₂SO₄. If analyzing for metals that form insoluble sulfates, HClO₄ and HNO₃ were used to char the organic material. After charring the sample, HNO₃ was added and the sample was refluxed to solubilize the metals present. If the solution became cloudy, HCl was added to aid complete digestion. HF could be used if silicon was present in the sample but only if silicon was not an analyte of interest. All HF used was restricted to Teflon vessels. The clear digestate was quantitatively transferred to a Class A volumetric flask and brought to final volume. The sample was then analyzed.

Method ME-4A Rev 2 Determination of anions suppressed by ion chromato graph y

Method S-300 Rev 7 Determination of water by coulometric titration (Karl Fischer)

This method combined coulometry with the Karl Fischer titration The sample was mixed with an amine-methanol mixture containing predominantly iodide ion (I-) and sulfur dioxide The iodine pi oduced at the anode through the electrolysis was allowed to react with water In such cases, iodine was produced in direct proportion to the quantity of electricity accotdmg to Faraday's Law Also, because 1 mole of water stoichiometrically reacts with 1 mole of iodine, 1 mg of water was equivalent to 10 71 coulombs of electn city Utilizing this principle the Moistuie Meter determined the amount of water directly from the number of coulombs required for the electrolysis This procedure included both direct introduction and a vaporizer pre-treatment technique

Method E16-2, rev 9 (Tiace El 6-2A) Sulfur determination using the LECO SC 432DR

The SC 432DR Sulfur Analyzer is a non-dispeisive infrared, digitally controlled instrument designed to measure sulfur content in a variety of organic and inorganic materials The sample was combusted at 1350 + 5O⁰C in an atmosphere of pure oxygen The sulfur was oxidized to sulfur dioxide and quantitated by infrared absorption The SC-432DR was equipped with two detectors, a high-range and a low-iange infrared cell

Method ME-2, Rev 14: Carbon, hydrogen, and nitrogen determination This instrument bums sample in pure oxygen at 950⁰C under static conditions to produce combustion products Of CO₂, HoO, and N₂. The PE-240 automatically analyzes these products in a self-integrating, steady state thermal conductivity analyzer. Tungstic anhydride may be added to aid combustion. An extended combustion time (e.g., burn hard mode) may be employed for difficult to combust samples.

Method ME-70, Rev 4: Inductively coupled plasma atomic emission spectrometry

This method describes multi-elemental determinations by ICP-AES using simultaneous optical systems and axial or radial viewing of the plasma. The instrument measures characteristic emission spectra by optical spectrometry. Samples are nebulized and the resulting aerosol is transported to the plasma torch. Element-specific emission spectra are produced by radio-frequency inductively coupled plasma. The spectra are dispersed by a grating spectrometer, and the intensities of the emission lines are monitored by photosensitive devices. Background correction is required for trace element determination. Background must be measured adjacent to analyte lines on samples during analysis. The position selected for the background-intensity measurement, on either or both sides of the analytical line, will be determined by the complexity of the spectrum adjacent to the analyte line In one mode of analysis, the position used should be as free as possible from spectral interference and should reflect the same change in background intensity as occurs at the analyte wavelength measured Background correction is not required in cases of line broadening where a background correction measurement would actually degrade the analytical result

Method E80 2, Rev 4 Determination of mecury (automated cold vapor technique)

This procedure is based on EPA SW846 Method 7471 A Cold Vapor Atomic Absorption is based on the general theory of atomic absorption, which holds that free atoms of the analyte absorb energy from a lamp source that is proportional to the concentration of analyte By using a lamp containing the metal to be measured, the exact wavelength needed for absorption is produced and interferences are greatly reduced. Cold Vapor Atomic Absorption uses this principle, and the mercury atoms are liberated by reducing mercury ions with Tin (II) Chloride (SnCl₂). Nitrogen gas carries the atoms through an optical cell, with the Hg lamp on one end and the detector on the other end. Because the cold vapor method is employed, instead of a flame method, undigested organic compounds are an interference concern, because of their wide band of absorption wavelengths.

Table 11: Quantitative elemental analysis of sample #23-30

Results presented as "<" are below LOQ. * Oxygen content was detennined by subtracting the observed results for all other elements from 100%.

Example 5. Production and release of fatty alcohol from production host Acii (acyl-CoA reductase) was expressed in E. coli grown on glucose as the sole carbon and energy source. The E. coli produced small amounts of fatty alcohols such as dodecanol (Ci₂ o-OH), tetradecanol (Ci_4:o-OH) and hexadecanol (Ci6:o-OH). In other samples, FadD (acyl-CoA synthase) was expressed together with acrl in E. coli. A five-fold increase in fatty alcohol production was observed. In other samples, cιcrl,fadD, and accABCD (acetyl-CoA carboxylase)

(plasmid carrying ace AB CD constructed as described in Example 1) were expressed along with various individual thioesterases (TEs) in wild-type E. coli C41(DE3) and an E. coli C41 (DE3 AfadE, a strain lacking acyl-CoA dehydrogenase). This resulted in additional increases in fatty alcohol production and modulation of the profiles of fatty alcohols {see Figure 7). For example, over-expression of E. coli tesA (pETDuet-l-'tesA) in this system achieved approximately a 60-fold increase in Ci_2:o-OH, Ci₄;o-OH and Ci_6:o-OH, with Ci₄;o-OH being the major fatty alcohol. A very similar result was obtained when the ChFatB3 enzyme (FatB3 from Ciiphea hookeriana in pMAL-c2X-TEcu) was expressed. When the UcFatBl enzyme (FatBl from Umbellularia californicain in pMAL-c2X-TEuc) was expressed, fatty alcohol production increased approximately 20-fold and Ci₂;o-OH was the predominant fatty alcohol. Expression of ChFatB3 and UcFatBl also led to the production of significant amounts of the unsaturated fatty alcohols Ci_6:|-OH and Ci_4:i-OH, respectively. The presence of fatty alcohols was also found in the supernatant of samples generated from the expression of tesA (Figure 8). At 37°C, approximately equal amounts of fatty alcohols were found in the supernatant and in the cell pellet. Whereas at 25⁰C, approximately 25% of the fatty alcohols were found in the supernatant.

Example 6. Production of fatty alcohol using a variety of acyl-CoA reductases

This example describes fatty alcohol production using a variety of acyl-CoA reductases. Fatty alcohols can be the final product. Alternatively, the production host cells can additionally express/over-express ester synthases to produce fatty esters.

Each of four genes encoding fatty acyl-CoA reductases (Table 12) from various sources were codon-optimized for E. coli expression and synthesized by Codon Devices, Inc. (Cambridge, MA). Each of the synthesized genes was cloned as a Ndel-Avrll fragment into pCDFDuet-1-fadD (described in Example 3). Each of the plasmids carrying these acyl-CoA reductase genes with the E. colifadD gene was transformed into E. coli strain C41 (DE) strain, which was purchased from Over-expression.com.

The recombinant strains were grown in 3 mL of LB broth (supplemented with 100 mg/L of spectinomycin) at 37°C overnight. 0.3 mL of the overnight culture was transferred to 30 mL of fresh M9 medium (with 100 mg/L of spectinomycin) and grown at 25°C. When the cultures reached OD_6Oo of 0.5, IPTG was added to obtain a final concentration of 1 mM. Each culture was fed 0.1 % of one of three fatty acids dissolved in H₂O at pH 7.0. The three fatty acids fed were sodium dodecanoate, sodium myristate, or sodium palmitate. A culture without the addition of fatty acid was also included as a control. After induction the cultures were grown at the same temperature for an additional 40 hours at 25°C.

The quantification of fatty alcohol yield at the end of fermentation was performed using GC-MS as described above in Example 3 and Example 4. The resulting fatty alcohol produced from the corresponding fatty acid is shown in Table 13. The results showed that three acyl-CoA reductases - Acrl , AcrM and BmFAR - could convert all three fatty acids into corresponding fatty alcohols. The results also showed that hFAR and JjFAR had activity when myristate and palmitate were the substrates. However, there was little to no activity when dodecanoate was the substrate. mFARl and mFAR2 only showed low activity with myristate and showed no activity with the other two fatty acids. Table 12: Acyl-CoA reductases

Acyl- Peak Area⁰

CoA No fatty acid

E. coli reductas Dodecanoat Myri state Palmitate feeding ^a

C41(DE3 /tetradecanol /hexadecanol /hexadecano

) genes /dodecanol mFARl 7,400 85,700 8,465 70,900 mFARl 2,900 14,100 32,500 25,800

JjFAR 5,200 8,500 53,112 33,800

BmFAR 35,800 409,000 407,000 48,770 acrl 202,000 495,000 1,123,700 58,515 acrM 42,500 189,000 1 12,448 36,854 hFARl 5,050 59,500 109,400 94,400 vector control 4,000 1 ,483 32,700 27,500 media control 10,700 1 ,500 25,700 25,000

Note: ^a Only hexadecanol was quantified in this case. ^b Fatty acid fed/ fatty alcohol produced. ^cThe area peak of fatty alcohol produced.

Example 7. Medium chain fatty esters

Alcohol acetyl transferases (AATs, EC 2.3.1.84), which is responsible for acyl acetate production in various plants, can be used to produce medium chain length fatty esters, such as octyl octanoate, decyl octanoate, decyl decanoate, and the like. Fatty esters, synthesized from medium chain alcohol (such as C₆ and Cg) and medium chain acyl-CoA (or fatty acids, such as C₆ and Cg) have a relativly low

melting point. For example, hexyl hexanoate has a melting point of -55°C and octyl octanoate has a melting point of -18⁰C to -17°C. The low melting points of these compounds make them good candidates for use as biofuels.

Example 8. Medium chain fatty esters

In this example, an SAA T gene encoding a thioesterase was co-expressed in a production host E. coli C41(DE3, AfadE) with fadD from E. coli and acrl (alcohol reductase from A. baylyi ADPl). Octanoic acid was provided in the fermentation broth. This resulted in the production of octyl octanoate. Similarly, when the ester synthase gene from A. baylyi ADPl was expressed in the production host instead of the SAAT gene, octyl octanoate was produced. A recombinant SAA T gene was synthesized by DNA 2.0 (Menlo Park, CA

94025). The synthesized DNA sequence was based on the published gene sequence (accession number AFl 93789), but modified to eliminate the Ncol site. The synthesized SAAT gene (as a BanϊΑl-HindlW fragment) was cloned in pRSET B (Invitrogen, Calsbad, California), linearized with Bamlil and Hindlll. The resulting plasmid, pHZl .63A was cotransformed into an E. coli production host with pAS004.1 14B, which carries a. fadD gene from E. coli and acrl gene from A. baylyi ADPl. The transformants were grown in 3 niL of M9 medium with 2% glucose. After IPTG induction and the addition of 0.02% octanoic acid, the culture was continued at 25°C for 40 hours. 3 mL of acetyl acetate was then added to the whole culture and mixed several times with a mixer. The acetyl acetate phase was analyzed by GC/MS.

Surprisingly, no acyl acetate was observed in the acetyl acetate extract. However, octyl octanoate was observed. However, the control strain without the SAAT gene (C41(DE3, AfadE)/pRSET B+pAS004.114B) did not produce octyl octanoate. Furthermore, the strain (C41(DE3, AfadE)/pHZl A3 B+pAS004.114B) in which the ester synthase gene from A. baylyi ADP 1 was earned by pHZl .43 produced octyl octanoate {see Figure 9A-D).

The finding that SAA T activity produces octyl octanoate makes it possible to produce medium chain fatty esters, such as octyl octanoate and octyl decanoate, which have low melting point and are good candidates for use as biofuels to replace triglyceride based biodiesel.

Example 9. Production of fatty esters in E. coli strain LS9001

Fatty esters were produced by engineering an E. coli production host to express a fatty alcohol forming acyl-CoA reductase, thioesterase, and an ester synthase. Thus, the production host produced both the A and the B side of the ester and the structure of both sides was influenced by the expression of the thioesterase gene.

Ester synthase from A. baylyi ADPl (termed WSadpl, accessions AA017391 , EC 2.3.175) was amplified with the following primers using genomic DNA sequnce from A baylyi ADP l as the template: (1) WSadpl_NdeI, 5'- TCATATGCGCCCATTACATCCG -3^" and (2) WSadpl_^Avr, 5'- TCCTAGGAGGGCTA ATTTAGCCCTTT AGTT-3 ' .

The PCR product was digested with Ndel and Avrll and cloned into pCOALDeut-1 to give pHZ 1.43. The plasmid carrying WSadpl was then co- transformed into E. coli strain LS9001 with both pETDuet-l 'tesA and pCDFDuet-1- fadD-acrl and transformants were selected in LB plates supplemented with 50 mg/L of kanamycin, 50 mg/L of carbenicillin and 100 mg/L of spectinomycin. Three transformants were inoculated in 3 mL of LBKCS (LB broth supplement with 50 mg/L kanamycin, 50 mg/L carbenicillin, 100 mg/L spectinomycin, and 10 g/L glucose) and incubated at 37⁰C in a shaker (250 rpm). When the cultures reached 0.5 OD_OOO, 1-5 mL of each culture was transferred into 250 mL flasks containing 50 mL LBKCS. The flasks were then incubated in a shaker (250 rpm) at 37°C until the culture reached 0.5-1.0 OD₆₀₀. IPTG was then added to a final concentration of 1 mM. The induced cultures were incubated at 37⁰C in a shaker (250 rpm) for another 40-48 hours.

The culture was then placed into 50 mL conical tubes and the cells were spun down at 3500 X g for 10 minutes. The cell pellet was then mixed with 5 mL of ethyl acetate. The ethyl acetate extract was analyzed with GC/MS. The yield of fatty esters (including Ci₆Ci₆, Ci_4:iCi₆, Ci_8:iCi_8:ι,C₂Ci₄, C₂Ci₆, C₂Ci_6:i, C₁₆Ci₆-A and C₂Ci_{S: !}) was about 10 mg/L. When an E. coli strain only carrying empty vectors was cultured in the same way, only 0.2 mg/L of fatty esters was found in the ethyl acetate extract.

Example 10. Production and release of fatty-ethyl ester from production host

The LS9001 strain was transformed with plasmids carrying an ester synthase gene from A. baylyi (plasmid pHZl .43), a thioesterase gene from Cuphea hookeriana (plasmid pMAL-c2X-TEcu) and afadD gene from E. coli (plasmid pCDFDuet-1-fadD).

This recombinant strain was grown at 25⁰C in 3 mL M9 medium with 50mg/L kanamycin, 100 mg/L carbenicillin, and 100 mg/L of spectinomycin. After IPTG induction, the media was adjusted to a final concentration of 1 % ethanol and 2% glucose. The culture was allowed to grow for 40 hours after IPTG induction. The cells were separated from the spent medium by centrifugation at 3500 X g for 10 minutes). The cell pellet was re-suspended with 3 mL of M9 medium. The cell suspension and the spent medium were then extracted with 1 volume of ethyl acetate. The resulting ethyl acetate phases from the cells suspension and the supernatant were subjected to GC-MS analysis.

The C i₆ ethyl ester was the most prominent ester species (as expected for this thioesterase, see Table 1 ), and 20% of the fatty ester produced was released from the cell (see Figure 10). A control E. coli strain C41(DE3, AfadE) containing pCOLADuet-1 (empty vector for the ester synthase gene), pMAL-c2X-TEuc

(containing /ά£δ from U. California) and pCDFDuet-1-fadD (fadD gene from E. coli) failed to produce detectable amounts of fatty ethyl esters. The fatty esters were quantified using commercial palmitic acid ethyl ester as the reference.

Fatty esters were also made using the methods described herein except that methanol or isopropanol was added to the fermentation broth. The expected fatty esters were produced.

Example 11. The influence of various thioesterases on the composition of fatty- ethyl esters produced in recombinant E. coli strains.

The thioesterases FatB3 (C. hookeriana), TesA (E. coli), and FatB (U. California) were expressed simultaneously with ester synthase (A. baylyϊ). A plasmid, pHZl .61 , was constructed by replacing the Notl-Avrll fragment (carrying the acrl gene) with the Notl-Avrll fragment from pHZl .43 so that fadD and the ADPl ester synthase were in one plasmid and both coding sequences were under the control of separate T7 promoter. The construction of pHZl.61 made it possible to use a two plasmid system instead of the three plasmid system as described in Example 8. pHZl.61 was then co-transformed into E. coli C41(DE3, AfadE) with one of the various plasmids carrying the different thioesterase genes stated above.

The total fatty acid ethyl esters (in both the supernatant and intracellular fatty acid ethyl fluid) produced by these transformants were evaluated using the technique described herein. The yields and the composition of fatty acid ethyl esters are summarized in Table 14.

Table 14: Yields (mg/L) and composition of fatty acid ethyl esters by recombinant E. coli C41(DE3, AfadE)/pRZ1.61 and plasmids carrying various thioesterase genes.

Note: "TesA, pETDuet-1 -' tesΛ; chFatB3, pMAL-c2X-TEcu; ucFatB, pMAL-c2X- TEuc; pMAL, pMAL-c2X, the empty vector for thioesterase genes used in the study.

Example 12. Use of various ester synthases to produce biofuel Four genes encoding ester synthases were synthesized based on corresponding DNA sequences reported on NCBl GenBank with minor modifications. These modifications include the removal of internal Ncol, Ndel, Hindlll and Avrll sites present without introducing changes to the corresponding amino acid sequence. The four genes of interest were synthesized with an Ndel site on the 5' end and an Avrll at the 3' end. The sequences were then cloned into the Ndel and Avrll site of pCOLADuet-1 (Novagene) to produce pHZl .97-376, pHZl .97-377, pHZ1.97-atfAl and pHZ1.97-atfA2. The plasmids carrying each of the four genes of interest along with the respective GenBank accession numbers and the GenPeptide accessions numbers are listed in Table 15 below.

Table 15: Ester synthases

Each of the four plasmids was transformed into E. coli C41 (DE3, AfadEAfabR)! pETDuet-1 -tesA + pCDFDuet-1 -fadD. Three transformants from each transformation were picked for fermentation to test their ability to synthesize fatty acid ethyl esters. The fermentation was performed as described in Example 9, but with two different temperatures, either at 25°C or 37°C. Strain C41 (DE3, AfadEAfabR)/ pETDuet- 1 -toJ + pC DF Duet- l-fadD+pHZ 1.43 (expressing ADPl ester synthase) was used as a positive control and C41 (DE3, AfadEAfabR)/ ρETDuet-1-fcs^ +^• pCDFDuet-1-fadD as a negative control.

The expression of each of the four ester synthase genes in the E. coli strain with attenuated fadE and fab R activity and over-expressing ^ltesA saάfadD enabled each strain to produce around 250 mg/L of FAEE at 25°C. This is the same amount produced by the positive control that expressed ADPl . In contrast, the negative control strain produced less than 50 mg/L FAEE in the same condition (Figure 11) at 25⁰C. The fatty acyl composition of FAEE produced from these four ester synthases is similar to that from ADPl ester synthases (Figure 12). Results from fermentations performed at 37⁰C indicated that strains carrying pHZ1.97_aftA2 and strains carrying pHZ1.97_376 produced more FAEE than the positive control carrying pHZ1.43 (Figure 13). The strains carrying pHZ1.97_aftA2 and the strains carrying pHZ1.97_376 also produced large amount of free fatty acid. Whereas the strain carrying pHZ.143 did not accumulate free fatty acid (Figure 14). The results showed that these four ester synthases are capable of accepting ethanol and a broad range of acyl-CoA as substrates.

Example 13. Use of eukaryotic ester synthase to produce biofuel

This example describes the cloning and expression of an ester synthase from Saccharomyces cerevisiae. Plasmids were generated using standard molecular biology techniques.

Table 16: Plasmids with eebl

* The Saccharomyces cerevisiae gene eebl (GenBank accession number YPL095C) was PCR-amplifed from S. cerevisiae genomic DNA sequence using primers introducing 5' BamHI and 3' HindIII sites. An E. coli C41 (DE3 ΔfadE) production host was used to express the various plasmids. The E. coli cells were grown on M9 minimal media (6 g/L Na₂HPO₄, 3 g/L KH₂PO₄ , 0.5 g/L NaCl, 1 g/L NH₄Cl, 1 mg/L thiamine (vit. Bl), 1 mM MgSO₄, 0.1 mM CaCl₂, 0.4% (w/v) or 2% (w/v) glucose, as indicated). All fatty acid stock solutions were prepared by dissolving the fatty acid sodium or potassium salt in distilled deinoized water at pH 7.0. Octanoic acid stock was purchased from Sigma, St. Louis, MO.

Fermentations were performed using the C41 (DE3 ΔfadE) strain containing plasmids pCDFDuet-1-acrl, pMAL-c2X-TEuc (ucFatB), and pGL 10.59 (eebl ). The control strain was C41 (DE3 ΔfadE) strain carrying pCDFDuet-1 -acrl, pMAL-c2X- TEuc, and the empty pCOLADuet-1 vector. Three colonies from each

transformation were used to inoculate M9 + 0.4% glucose starter cultures supplemented with carbenicillin (100 μg/mL), spectinomycin (100 μg/mL), and kanamycin (50 μg/mL). The cultures were allowed to grow at 37°C overnight. Production cultures were established by making a 1 :100 dilution of starter culture to

inoculate 3 mL M9 media + 0.4% glucose. The production cultures were allowed to grow at 37°C until OD₆₀O = 0.6 before being induced with 1 niM IPTG, fed 1 % ethanol, and cultured for an additional 40 hours at 25°C. Whole cell cultures were extracted with an equal volume of ethyl acetate by vortexing vigorously for 30 seconds. The organic phase was taken and run on the GC/MS using the method alkane_l_splitless_ctc.m for FAEE detection, which is described above in Example 4, part 2, "Quantification of FA and FAEE in sample #23-30."

No FAEE peaks could be detected in any of the samples. In order to determine whether Eebl was being properly expressed, IPTG-induced and uninduced cultures were analyzed by SDS-PAGE. No bands corresponding to the size of Eebl (~52 kDa) could be detected. This suggests that for this particular plasmid system, Eebl is not well-expressed.

Additional expression experiments were preformed using a different expression vector. The gene was cloned into the vector pMALc2x, which expresses the target protein as a maltose binding protein (MBP) fusion. SDS-PAGE analysis of whole-cell lysates revealed that cultures induced with 1 mM IPTG yielded an appropriately-sized band corresponding to the Eeb l -MBP fusion (-92 kDa). The band was not present in uninduced cells.

Eebl enzymatic activity was assessed using the C41 (DE3 MadE) E. coli strain carrying plasmids pCDFDuet-1-acrl and pGL10.104 {eebl). A C41 (DE3 AfάdE) with pCDFDuet- 1 -acrl and pMALc2x served as the control strain. Three colonies were picked from each transformation and used to inoculate M9 + 0.4% glucose overnight starter cultures supplemented with carbenicillin (100 μg/mL) and spectinomycin (100 μg/mL). A 1 : 100 dilution of the starter cultures was used to inoculate 10 mL M9 + 0.4% glucose production cultures. The production cultures were allowed to grow at 37°C until OD_OOO ⁼ 0.4 - 0.5 before inducing with ImM IPTG, feeding 1% ethanol, and feeding octanoic acid (0.01% or 0.02% final volume) or decanoic acid (0.02% final volume). Fermentations were allowed to continue for 24 hours at 25°C. Extractions were carried out by adding 1/10 volume of 12 M HCl and an equal volume of ethyl acetate to the culture and vortexing for 30 seconds. Samples were analyzed by GC/MS as described above.

GC/MS data revealed a peak corresponding to the octanoic acid ethyl ester could be detected for cells expressing Eebl and fed octanoic acid and ethanol. The vector control strain also showed a C₂Q peak, albeit a smaller peak than that of the Eebl expressing cells.

Cells fed 0.02% decanoic acid did not grow well, therefore the following studies were conducted using 0.01% or 0.005% decanoic acid. To test the ability of Eebl to utilize alcohols other than ethanol in the synthesis of fatty acid esters, fermentations were carried out using the same strain: C41 (DE3 AfadE) with pCDFDuet-1-acrl and pGL10.104. Cells were cultured as previously described. At induction, the cells were fed 0.02% octanoic acid along with either 1% methanol, ethanol, propanol, or isopropanol. Cells were also fed 0.01% or 0.005% decanoic acid and 1% ethanol. Fermentations were continued post-induction for 24 hours at 25°C. For GC/MS, cultures were spun down to separate the pellet and the supernatant. The pellet was resuspended in an equal volume of fresh M9 + 0.4% glucose media. Both the resuspended pellet and supernatant samples were extracted as described above and analyzed by GC/MS.

All of the supernatant samples contained large amounts of fatty acid and no fatty acid esters were detected. Similarly, the vector control pellet samples contained no peaks. However, cells fed ClO fatty acid showed peaks identified as decanoic acid.

The pellet samples derived from the cells expressing Eebl and fed Cg fatty acid and propanol or ethanol showed small peaks corresponding to the propyl or ethyl esters. No peaks were detected for the cells fed methanol or isopropanol. Cultures fed 0.01% or 0.005% ClO fatty acid and ethanol also produced the C₂C _!0 FAEE, which was present in the pellet samples.

The results indicated that Eebl was capable of synthesizing FAEEs using octanoic or decanoic acids and was also able to use methanol to generate the octanoic methyl ester. However, these compounds are highly volatile and GC/MS data may not accurately reflect the true titers. To more accurately measure product formation a hexadecane overlay was used to facilitate the capture of these more volatile FAEE.

Eeb 1 activity using various fatty acid substrates was assessed using strain C41 (DE3 AfadE) with pCDFDuet-1 -acrl and pGL10.104 while feeding different chain-length fatty acids. Cells were cultured as before, but were induced at OD₆₀₀ = 0.8 - 0.9 so as to promote better cell growth post-induction. At this point, cells were fed 1% ethanol and 0.02% C8 fatty acid or 0.01% of the following fatty acids: ClO, C12, C14, and C16. Cultures fed C₈ or C,_o fatty acids were overlaid with 20% total volume hexadecane. Fermentations were carried out for an additional 24 hours at 25°C. For product analysis, whole cultures (without separating the supernatant from the pellet) were extracted as before, with 1/10 volume of HCl and a volume of ethyl acetate equal to the culture. Hexadecane samples were injected directly into the GC/MS using the program hex_l_splitless_ctc.m, which is described above in Example 4, part 2, "Quantification of FA and FAEE in sample #23-30."

None of the vector controls showed any FAEE peaks. For the Cs- and Cio- fed cells, large C₂Cg and C₂C₁₀ peaks could be detected in the hexadecane samples, but not in the ethyl acetate samples. This demonstrated that hexadecane was able to successfully trap the volatile FAEEs. For the rest of the ethyl acetate samples, small peaks could be detected for C₂C₁₂ and C₂Ci₄ FAEEs, but none for C2C16. Thus, Eebl generated ethyl esters using fatty acids with chain lengths from Cs to Ci₄. Eebl favored Cs and C ₁₀ over the longer-chain fatty acids.

Example 14. Genomic integration of recombinant sequences to make a host strain that over-expresses E. colifabA and/or fabB genes.

It is known that the product of the fabR gene acts as a repressor of the expression of the fabA and fabB genes. It is also known that FadR works as an activator of the same genes. The FabR and predicted consensus binding sequences were previously published by Zhang el ai, J. Biol. Client 277: 15558-15565, 2002. The consensus binding sequences and their location as they relate to the fabA and fabB genes from E. coli is shown in Figure 15.

AfabR knock-out strain of is. coli was created. Primers TrmA_R_NotI and FabR_FOP were used to amplify approximately 1000 bp upstream of fabR, and primers SthAJFJBam and Fab RJROP were used to amplify approximately 1000 bp downstream oϊfabR (see Table D). Overlap PCR was applied to create a construct for in-frame deletion of the complete fabR gene. The fabR deletion construct was cloned into the temperature-sensitive plasmid pKOV3, which contained SacB for counterselection, and a chromosomal deletion of fabR was made according to the method of Church and coworkers (Link et al, J. Bad 179:6228-6237, 1997).

Table 17: fabR knock-out primers

Primer Primer Sequence (5' to 3')

Name

TrrnAJR,- ATAGTTTAGCGGCCGCAAATCGAGCTGGATCAGGATTA

Not

FabR FOP AGGATTCAGACATCGTGATGTAATGAAACAAGCAAATCAA GATAGA

SthA_F_Ba CGCGGATCCGAATCACTACGCCACTGTTCC m

FabR ROP TTGATTTGCTTGTTTCATTACATCACGATGTCTGAATCCTTG

Example 15. Production host construction

Table 18 identifies the homologues of many of the genes described herein which are known to be expressed in microorganisms that produce biodiesels, fatty alcohols, and hydrocarbons. To increase fatty acid production and, therefore, hydrocarbon production in production hosts such as those identified in Table 18, heterologous genes can be expressed, such as those from E. coli. One of ordinary skill in the art will also appreciate that genes that are endogenous to the micoorganisms provided in Table 18 can also be expressed, over-expressed, or attenuated using the methods described herein. Moreover, genes that are described in Table 18 can be expressed, over-expressed, or attenuated in production hosts that endogenously produce hydrocarbons to allow for the production of specific hydrocarbons with defined carbon chain length, saturation points, and branch points.

Table 18: Hydrocarbon production hosts

Organism Gene Name Accession No./Seq ID/Loci EC No.

Kineococcus radiotolerans ZP 00618040 6.3.4.14, SRS30216 accC /ZP 00618387 6.4.1.2

Kineococcus radiotolerans SRS30216 accD ZP 00618306 6.4.1.2

Kineococcus radiotolerans SRS30216 fadE ZP 00617773 1.3.99.-

Kineococcus radiotolerans SRS302J6 plsB(D3HE) ZP 00617279 2.3.1.15

Kineococcus radiotolerans SRS30216 aceE ZP 00617600 1.2.4.1

Kineococcus radiotolerans SRS30216 aceF ZP 00619307 2.3.1.12

Kineococcus radiotolerans SRS30216 fabH ZP 00618003 2.3.1.180

Kineococcus radiotolerans SRS30216 fabD ZP 00617602 2.3.1.39

Kineococcus radiotolerans SRS302I6 fabG ZP 00615651 1.1.1.100

3.1.26.3,

Kineococcus radiotolerans 1.6.5.3, SRS30216 acpP ZP 00617604 1.6.99.3

Kineococcus radiotolerans SRS30216 fabF ZP 00617605 2.3.1.179

Kineococcus radiotolerans SRS302J6 gpsA ZP 00618825 1.1.1.94

Kineococcus radiotolerans SRS30216 ldhA ZP 00618879 1.1.1.28

Rhodospirillum rubrum accA YP 425310 6.4.1.2

R h odosp irillun i rubrum accB YP 427521 6.4.1.2

YP 427522/YP 425144/YP 427028/YP 426209'' 6.3.4.14,

Rhodospirillum rubrum accC YP 427404 6.4.1.2

Rhodospirillum rubrum accD YP 42851 1 6.4.1.2

Rhodospirillum rubrum fadE YP 427035 1.3.99.-

Rhodospirillum rubrum aceE YP 427492 1.2.4.1

Rhodospirillum rubrum aceF YP 426966 2.3.1.12

Rhodospirillum rubrum fabH YP 426754 2.3.1.180

Rhodospirillum rubrum fabD YP 425507 2.3.1.39

Rhodospirillum rubrum fabG YP 425508/YP 425365 1.1.1.100

3.1.26.3. 1.6.5.3,

Rhodospirillum rubrum acpP YP 425509 1.6.99.3

YP 425510/YP 425510

Rhodospirillum rubrum fabF /YP 425285 2.3.1.179

Rhodospirillum rubrum gpsA YP 428652 1.1.1.94

1.1.1.27

Rhodospirillum rubrum ldhA YP 426902/YP 428871 1.1.1.28

Vibrio furnissii accA 1 , 16 6.4.1.2

Vibrio furnissii accB 2, 17 6.4.1.2

6.3.4.14,

Vibrio furnissii accC J , 18 6.4.1.2

Vibrio furnissii accD 4, 19 6.4.1.2

Vibrio furnissii fadE 5, 20 1.3.99,-

Vibrio furnissii plsB(D311E) 6, 21 2.3.1.15

For Table 18, Accession Numbers are from GenBank, Release 159.0 as of April 15, 2007, EC Numbers are from KEGG, Release 42.0 as of April 2007 (plus daily updates up to and including 05/09/07), results for Erwinia amylovora strain Ea273 are taken from the Sanger sequencing center, completed shotgun sequence as of 5/9/07, positions for Erwinia represent locations on the Sanger psuedo-chromosome, sequences from Vibrio jurnisu Ml are from the LS9 VFMl pseudochrotnosome, v2 build, as of 9/28/06, and include the entire gene, and may also include flanking sequence

Example 16. Additional Exemplary Production Strains Table 19 provides additional exemplary production strains Two example biosynthetic pathways are descπbed for producing fatty acids, fatty alcohols, and wax esters For example, Table 19 provides Examples 1 and 2 that pioduce fatty acids The production host strain used to produce fatty acids in Example 1 is a production host cell that is engineered to have the synthetic enzymatic activities indicated by the ' x^" marks in the rows which identify the genes (see "x" identifying acetyl-CoA caiboxylase, thio-esterase, and acyl-CoA synthase activity) Production host cells can be selected from bacteria yeast, and fungi These genes can also be transformed into a production host cell that is modified to contain one or moie of the genetic manipulations descπbed in Figure 1 As provided in Table 19, additional production hosts can be created using the indicated exogenous genes

Table 19: Combination of genes useful for making genetically engineered production strains

Example 17. Use of additional acyl-CoA synthases to over produce acyl-CoA

Homologues to E. coli fadD can be expressed in E. coli by synthesizing codon-optimized genes of the desired sequence from M. tuberculosis HR7Rv (NP_217021 , FadDD35), B. subtdis (H? J 88908, YhfL), Saccharomyces cerevisiae (NP_012257, Faa3p) and P. aeruginosa PAOl (NP_251989). The synthetic genes can be designed to include Nco\ and Hindll compatable overhangs. The acyl-CoA synthases can be then cloned into NcolJHindlll digested pTrcHis2 vector (Invitrogen Corp., Carlsbad, California) as described above and expressed in E. coli strain MG1655 ΔfadE. After expression in E coli, acyl-CoA production will be increased.

Fatty acid derivatives such as FAEE can also be produced by co- tranformation of the E coli strain MGl 655 AfadE with various acyl-CoA synthases in the pTrcHis2 vector with a compatible plasmid deπved from pCL1920, which contains the ester synthase from A. baylyi or the thioesterase gene from Cuphea hookeriana. The resulting production host will produce FAEE when cultured in media containing cthanol as described above.

Example 18. Use of additional acyl-CoA synthases to overproduce aeyl-CoA

The DNA sequences or protein sequences of numerous E coli FadD homologs are known. However, the biochemical properties of only a few have been described. See, e.g.. Knoll et al, J. Biol. Chem. 269(23):16348-56, 1994; Shockey et al, Plant Physiol. 132: 1065-1076, 2003. Furthermore, their capacity to be expressed in an active form at significant levels for commercial purposes is unknown. To explore the possibility of using heterologous acyl-CoA synthases for esters production, several acyl-CoA synthases genes were cloned and expressed as follows. Although this example describes transforming the production host with separate plasmids for the thioesterase, ester synthase, and acyl-CoA synthase genes, these genes may alternatively be incorporated together in one plasmid to transform the production host.

1) Construction of pOP-80 plasmid To over-express the genes, a low copy plasmid based on the commercial vector pCL1920 (Lerner & Inouye, (1990) NAR 18: 4631 ) carrying a strong transcriptional promoter was constructed by digesting pCL1920 with the restriction enzymes AfIII and Sfol (New England BioLabs Inc. Ipswich, MA). Three DNA sequence fragments were produced by this digestion. The 3737 bp fragment was gel-purified using a gel -purification kit (Qiagen, Inc. Valencia, CA). In parallel, a DNA sequence fragment containing the trc-promoter and lad region from the commercial plasmid pTrcHis2 (Invitrogen, Carlsbad, CA) was amplified by PCR using primers LF302 (5'-atatgacgtcGGCATCCGCTTACAGACA-3') and LF303 (5'-aattcttaagTCAGGAGAGCGTTCACCGACAA-3^!). These two primers also introduced recognition sites for the Zral(gacgtc) and AflII(cttaag) enzymes, respectively, at the end of the PCR products. After amplification, the PCR products were purified using a PCR-purification kit (Qiagen, Inc. Valencia, CA) and digested with Zral and AfIII following the recommendations of the supplier (New England BioLabs Inc., Ipswich, MA). After digestion, the PCR product was gel-purified and ligated with the 3737 bp DNA sequence fragment derived from pCL1920. After transformation with the ligation mixture in TOPlO chemically competent cells (Invitrogen, Carlsbad, CA), transformants were selected on Luria agar plates containing 100 μg/mL spectinomycin. Many colonies were visible after overnight incubation at 37°C. Plasmids present in these colonies were purified, analyzed with restriction enzymes, and then sequenced. One plasmid produced in this way was retained, named pOP-80, and used for further expression experiments. A map of pOP-80 is shown in Figure 17.

The DNA sequence of relevant regions of plasmid pOP-80 was corroborated. It was found that in the junctions were the 2 fragments were ligated, 3-4 bases at each end were missing, this was probably caused by an exonuclease activity contaminating one of the restriction enzymes. It is likely that these small deletions did not affect any relevant plasmid function. The resulting plasmid was used for all expression experiments described in this example. The full sequence of the plasmid is disclosed as SEQ ID NO: 1 (Figure 18).

2) Cloning of fadD3 ^'5 from Mycobacterium tuberculosis HR7Rv

An E. coli codon-optimized gene was synthesized by DNA 2.0 Inc. (Menlo Park, CA), using the protein sequence of the fadD35 gene deposited at NCBI with the accession code NP_217021. The synthetic gene contained a unique Ncol site at the 5'-end and a unique EcoRI site at the 3 '-end. The synthetic gene was provided by DNA 2.0 Inc. cloned in plasmid pJ201 : 16084. The fad 35 gene was released from this plasmid by digesting with Ncol and EcoRI. The sequence of this fragment is shown in SEQ ID NO: 1. The resulting DNA sequence fragment (SEQ ID NO: 2, Figure 19) was ligated with pOP-80, which was previously digested with Ncol and EcoRI. The ligation mixture was transformed into TOPlO chemically competent cells (Invitrogen, Carlsbad, CA), which were then plated on Luria agar plates containing 100 μg/mL spectinomycin and incubated at 37⁰C overnight. Colonies that appeared the next day were screened, and a strain containing the correct plasmid was identified. The plasmid was named pDS9.

3) Cloning of fadDl from Pseudomonas aeruginosa PAOl

An E. coli codon-optimized gene was synthesized by DNA 2.0 Inc. (Menlo Park, CA) using the protein sequence of the fadDl gene deposited at NCBI with the accession code NP__251989. The synthetic gene contained a unique BspHI site at the 5 '-end and a unique EcoRI site at the 3 '-end. The synthetic gene was provided by DNA 2.0, Inc. and cloned in plasmid pJ201 : 16083. The fadDl gene was released from this plasmid by digesting with BspHI and EcoRI. The sequence of this fragment is shown in SEQ ID NO: 3 (Figure 20). The resulting DNA sequence fragment was ligated with pOP-80, which was previously digested with Ncol and EcoRI. The ligation mixture was transformed into TOPlO chemically competent cells (Invitrogen, Carlsbad, CA), which were then plated on Luria agar plates containing 100 μg/mL spectinomycin and incubated at 37°C overnight. Colonies that appeared the next day were screened. A strain containing the correct plasmid was identified. The plasmid was named pDS8. 4) Cloning of yhfL from Bacillus subtilis

TheyhfL gene was amplified by PCR using Bacillus subtilis 1168 chromosomal DNA sequence as a template, and two primers designed based on the DNA sequence deposited at NCBI with the accession code NCJ300964. The sequence of the 2 primers was: BsyhfLBspHIF: 5'-CATCATGAATCTTGTTTC-S ' (SEQ ID NO: 4, Figure

21)

BsyhfLEcoR: 5'- CGGAATTCTTATTGGGGCAAAATATC-3 ' (SEQ ID NO: 5, Figure 22) These two primers introduced a BspHI recognition site at the 5 '-end and an

EcoRI recognition site at the 3 '-end. The PCR product was cloned directly into pCR-Blunt II-TOPO vector using the Zero Blunt TOPO PCR cloning kit (Invitrogen, Carlsbad, CA). A plasmid carrying the yhfL gene was named pDSl . To subclone yhfL, plasmid pDSl was digested with BspHI and EcoRI. The resulting DNA sequence fragment (SEQ ID NO: 6, Figure 23) was gel-purified and cloned into pOP-80, which was previously digested with Ncol and EcoRI. The plasmid carrying the B. subtilis yhfL gene cloned into pOP-80 was named pDS4 5) Cloning of faa3p from Saccharomyces cerevisiae (NP 012257)

The faa3p gene was amplified by PCR using commercial Saccharomyces cerevisiae chromosomal DNA sequence ATCC 204508D (American Type Culture Collection, Manassas, VA) as a template, and two primers that were designed based on the DNA sequence deposited at NCBI with the accession code NC__001141. The sequence of the two primers was:

Scfaa3pPciF: 5'-CGACATGTCCGAACAACAC-S' (SEQ ID NO: 7, Figure 24)

Scfaa3pPciI: 5'-GCAAGCTTCTAAGAATTTTCTTTG-S' (SEQ ID NO: 8, Figure 25)

These two primers introduced a Pcil recognition site at the 5'-end and an HindIII recognition site at the 3 '-end. The PCR product was cloned directly into pCR-Blunt II-TOPO vector using the Zero Blunt TOPO PCR cloning kit (Invitrogen, Carlsbad, CA). A plasmid carrying the faa3p gene was named pDS2. To subclone faa3p, plasmid pDS2 was digested with Pcil and Hindlll. The DNA sequence fragment (SEQ ID NO: 9, Figure 26) was gel-purified and cloned into pOP-80, which was previously digested with Ncol and Hindlll. The plasmid carrying the S. cerevisiae faa3p gene cloned into pOP-80 was named pDS5.

6) Cloning of ZP 01644857 from Stenotrophomonas maltophilia R551-3

The structural gene sequence for the protein ZP_01644857 is available at NCBI as part of the locus NZ_^AAVZOl 000044. The gene was amplified by PCR using Stenotrophomonas maltophilia R551-3 chromosomal DNA sequence as template, and two primers designed based on the deposited DNA sequence. The sequence of the two primers was:

Smprk59BspF: 5'- AGTCATGAGTCTGGATCG-3' (SEQ ID NO: 10, Figure 27)

Smprk59HindR: 5'- GGAAGCTTACGGGGCGGGCG-3' (SEQ ID NO: 1 1 , Figure 28)

These two primers introduced a BspHI recognition site at the 5 '-end and an Hindlll recognition site at the 3 '-end. The PCR product was cloned directly into pCR-Blunt II-TOPO vector using the Zero Blunt TOPO PCR cloning kit (Invitrogen, Carlsbad, CA). A plasmid carrying the gene encoding the protein ZPJ)1644857 was named pDS3. To facilitate further subcloning of the gene, an internal BspHI site was removed by site directed mutagenesis using the primer PrkBsp- (5'-GCGAACGGCCTGGTCTTTATGAAGTTCGGTGG-S') (SEQ ID NO: 12, Figure 29) and the QuikChange Multi Site-Directed mutagenesis kit (Stratagene, La Jolla, CA). After the proper mutation was corroborated by DNA sequencing, the resulting plasmid was digested with BspHI and Hindlll, and was named pDS6. The DNA sequence fragment (SEQ ID NO: 13, Figure 30) was gel-purified and cloned into pOP-80 previously digested with Ncol and Hindlll. The plasmid carrying the gene encoding the protein ZP_01644857 cloned into pOP-80 was named pDS7. The protein sequence of ZP_01644857 is disclosed in SEQ ID NO: 14 (Figure 31).

7) Construction of strains to produce fatty esters. An E. coli BL21(DE3) strain was first transformed with plasmid pETDuet-1- tesA (described in Example 2) carrying the E. coli tesA gene, and plasmid pHZ1.97 (described in Example 12) carrying the atjA^' l ester synthetase gene, respectively. Both genes were under the T7 promoter inducible by IPTG. Two independent transformants carrying both plasmids were transformed with each of the recombinant plasmids carrying the heterologous fadD genes, and selected on Luria agar plates containing 100 μg/mL carbenicillin, 50 μg/mL kanamycin, and 100 μg/mL spectinomycin. Three independent colonies carrying the three plasmids were tested for fatty-ester production.

8) Analysis of fatty esters produced using ZP 01644857 from Stenotrophomonas maltophilia R551-3

To evaluate the use of the protein ZP_01644857 from Stenotrophomonas maltophilia R551-3 in a production host to produce fatty esters, an E. coli BL21(DE3) strain was transformed with plasmid pETDuet-1 -tesA (described in Example 2) carrying the E. coli tesA gene, plasmid pHZl .97 (described in Example 12) carrying the atfA2 ester synthetase gene, and plasrmd pDS7 carrying the gene encoding the protein ZP_01644857 (described above in this example). This production host was fermented to produce fatty esters as described in Example 13 As a control, a second E. coli strain BL21(DE3)ΔfadE, containing plasmids pETDuet-1-tesA, pHZl 97, and pCL1920 was used as a production host to produce fatty esters.

Table 20 below shows the fatty ester yields from these production hosts.

Table 20. Fatty ester yields from a production host that produced ZP_01644857

Control- strain BL21 (DE3) D fadE, containing plasmids pETDuet-1 -tesA, pHZl 97 and pCL1920

Strain BL21 (DE3) D fadE, containing plasmids pETDuet- 1 -tes A, pHZ1.97 and pDS7. c These values repiesent the average of 3 cultures

Example 19. Down-regulation of beta-oxidation This example descnbes the creation of an E coli stiain MG1655 AfadE

ΔydiO

Fatty acid degradation can be eliminated or attenuated by attenuating any of the β-oxidation enzymatic reactions described above (see Figure 3) For example, the E coh strain MG 1655 AfadE can be further engineered by using pnmers to amplify up-stream oϊydiO and additional pnmers to amplify downstream of γώO. Overlap PCR can then be used to create a construct for in-frame deletion of the complete ydi O gene. The ydiO deletion construct is then cloned into the temperature sensitive plasmid ρKOV3, which contains a sacB gene for counter-selection, and a chromosomal deletion of ydiO is made according to the method of Link et ah, J. Bad. 179:6228-6237, 1997. The resulting strain will not be capable of degrading fatty acids and fatty acyl-CoAs. Additional methods of generating a double knockout of fadE and ydi O are described in Campbell et ah, MoI. Microbiol. 47:793- 805, 2003.

It is also possible to avoid fatty acid degradation by using a production host that does not contain the beta-oxidation pathway. For example, several species of Streptococcus have been sequenced and none of the genes involved in beta- oxidation have been found.

Example 20. Identification of additional ester synthases

This example provides additional ester synthases and methods of using such synthases for the production of fatty esters.

Using bioinformatics, additional ester synthases were identified. These ester synthases contain motifs that differ from other known motifs, such as the motifs found in ADPl . The differences in the motifs are noted in Table 21, below.

Table 21: Comparison of ester synthases motifs

The identified sequences can be cloned using standard molecular biology techniques. These sequences can be expressed using the vectors described herein and used to make various fatty esters. The motifs can also be used to identify other ester synthases.

Example 21. Product Characterization

To characterize and quantify the fatty alcohols and fatty esters, gas chromatography (GC) coupled with electron impact mass spectra (MS) detection was used. Fatty alcohol samples were first derivatized with an excess of N- trimethylsilyl (TMS) imidazole to increase detection sensitivity. Fatty esters did not required derivatization. Both fatty alcohol-TMS derivatives and fatty esters were dissolved in an appropriate volatile solvent, such as ethyl acetate. The samples were analyzed on a 30 m DP-5 capillary column using the following method. After a 1 μL splitless injection onto the GC/MS column, the oven was held at 100⁰C for 3 minutes. The temperature was ramped up to 32O⁰C at a rate of 20°C/minute. The oven was held at 320⁰C for an additional 5 minutes. The flow rate of the carrier gas helium was 1.3 mL/minute. The MS quadrapole scanned from 50 to 550 m/z. Retention times and fragmentation patterns of product peaks were compared with authentic references to confirm peak identity.

For example, hexadeconic acid ethyl ester eluted at 10.18 minutes (Figure 16A and Figure 16B). The parent ion of 284 mass units was readily observed. More abundent were the daughter ions produced during mass fragmentation. This included the most prevalent daughter ion of 80 mass units. The derivatized fatty alcohol hexadecanol-TMS eluted at 10.29 minutes and the parent ion of 313 could be observed. The most prevalent ion was the M- 14 ion of 299 mass units.

Quantification was carried out by injecting various concentrations of the appropriate authentic references using the GC/MS method described above. This information was used to generate a standard curve with response (total integrated ion count) versus concentration.

EQUIVALENTS While specific examples of the subject inventions are explicitly disclosed herein, the above specification and examples herein are illustrative and not restrictive. Many variations of the inventions will become apparent to those skilled in the art upon review of this specification including the examples. The full scope of the inventions should be determined by reference to the examples, along with their full scope of equivalents, and the specification, along with such variations. All publications, patents, patent applications, and other references cited in this application are herein incorporated by reference in their entirety as if each publication, patent, patent application or other reference were specifically and individually indicated to be incorporated by reference.

Claims

CLAIMS:

1. A recombinant cell comprising at least one of (a) at least one gene encoding a fatty acid derivative enzyme, which gene is modified such that the gene is over-expressed, and (b) a gene encoding an acyl-CoA dehydrogenase enzyme, which gene is modified such that expression of the gene is attenuated.

2. The recombinant cell of claim 1, comprising (a) at least one of the modified gene encoding a fatty acid derivative enzyme and (b) the modified gene encoding an acyl-CoA dehydrogenase enzyme.

3. The recombinant cell of claim 1, wherein the modified gene encoding a fatty acid derivative enzyme is a gene encoding an acyl-CoA synthase, a thioesterase, an ester synthase, an alcohol acyltransferase, an alcohol dehydrogenase, an acyl-CoA reductase, or a fatty-alcohol forming acyl-CoA reductase.

4. The recombinant cell of claim 3, wherein the modified gene encoding a fatty acid derivative enzyme is a gene encoding an acyl-CoA synthase, a thioesterase or an ester synthase.

5. The recombinant cell of claim 3, wherein the cell comprises:

(a) a modified gene encoding an acyl-CoA synthase, and (b) a modified gene encoding a thioesterase or an ester synthase.

6. The recombinant cell of claim 3, wherein the cell comprises:

(a) a modified gene encoding an acyl-CoA synthase,

(b) a modified gene encoding a thioesterase, and

(c) a modified gene encoding an ester synthase.

7. The recombinant cell of claim 1 , wherein the cell comprises a gene encoding a transport protein.

8. The recombinant cell of claim 1 , wherein the cell is a Saccharomyces cerevisiae, Candida lipolytica, Escherichia coli, Arthrobacter, Rhodotorula ghitinins, Acinetobacter, Candida lipolytica, Botryococcus braunii, Vibrio furnissii, Micrococcus lenteus, Stenotrophomonas maltophilia or Bacillus subtilis cell.

9. The recombinant cell of claim 8, wherein the cell is an Arthrobacter AK 19, Acinetobacter sp. strain M-I, E. coli B, E. coli C, E. coli K or E. coli W cell.

10. The recombinant cell of claim 1, wherein the cell is a cyanobacteria cell.

11. The recombinant cell of claim 10, wherein the cyanobacteria cell is a Synechocystis sp. PCC6803 or Synechococcus elongatus PCC7942 cell.

12. The recombinant cell of claim 1, wherein the cell is a plant, animal or human cell.

13. The recombinant cell of claim 1, wherein the cell is a microorganism cell from a bacteria, yeast, or filamentous fungi.

14. A recombinant cell capable of producing a fatty acid derivative, wherein the cell is modified to include at least one exogenous nucleic acid sequence encoding a fatty acid derivative enzyme.

15. The recombinant cell of claim 14, wherein the exogenous nucleic acid sequence encodes an acyl-CoA synthase, a thioesterase, an ester synthase, an alcohol acyltransferase, an alcohol dehydrogenase, an acyl-CoA reductase, or a fatty- alcohol forming acyl-CoA reductase.

16. The recombinant cell of claim 14, wherein the cell is modified to include at least two exogenous nucleic acid sequences encoding a fatty acid derivative enzyme.

17. The recombinant cell of claim 16, wherein a first exogenous nucleic acid sequences encodes an acyl-CoA synthase.

18. The recombinant cell of claim 17, wherein a second exogenous nucleic acid sequence encodes a thioesterase or an ester synthase.

19. The recombinant cell of claim 17, wherein the first exogenous nucleic acid sequence encodes afadD.

20. The recombinant cell of claim 14, wherein the cell is a plant, animal or human cell.

21. The recombinant cell of claim 14, wherein the cell is a microorganism cell from a bacteria, yeast, or filamentous fungi.

22. The recombinant cell of claim 14, wherein the exogenous nucleic acid sequences are from Arthrobacter, Rhodotorula glutinins, Acinetobacter sp., Alcanivorax borkumensis or Candida lipolytica.

23. The recombinant cell of claim 14, wherein the cell is an Arthrobacter AK 19, Acinetobacter sp. strain M-I, E. coli B, E. coli C, E. coli K or E. coli W cell.

24. The recombinant cell of claim 1 , wherein the gene encoding a fatty acid derivative enzyme is modified to be optimized for expression in the recombinant cell.

25. The recombinant cell of claim 1, wherein the cell comprises a modified gene encoding an acyl-CoA synthase.

26. The recombinant cell of claim 25, wherein the cell comprises a second modified fatty acid derivative enzyme gene and the second gene encodes a fatty alcohol forming acyl-CoA reductase, acyl-CoA reductase, or alcohol dehydrogenase.

27. The recombinant cell of claim 25, wherein the acyl-CoA synthase gene is fadD.fadK, BH3103, yh/L, Pfl-4354, EA V15023,fadDl,fadD2, RPCJ074, \fadDD35,fadDD22, faa3p, or a gene encoding ZPJ) 1644857.

28. The recombinant cell of claim 27, wherein the acyl-CoA synthase gene is fadDD35 from M. tuberculosis HR7Rv [NP_217021], yhfL from B. subtilis [NP_388908], fadDl from P. aeruginosa PAOl [NP_251989], a gene encoding ZP_01644857 from Stenotrophomonas maltophilia R551-3, or faa3p from Saccharomyces cerevisiae [NP_012257].

29. The recombinant cell of claim 1, wherein the cell comprises a modified fatty acid derivative enzyme gene encoding a thioesterase.

30. The recombinant cell of claim 29, wherein the thioesterase gene is tesA, 'tesA, tesB, fatB, fatB2, fatB3, fatB [M141T] , fatA or fatAl.

31. The recombinant cell of claim 1 , wherein the modified fatty acid derivative enzyme gene encodes an ester synthase.

32. The recombinant cell of claim 31 , wherein the ester synthase gene is obtained from Acinetobacter spp., Alcanivorax borkumensis, Arabidopsis thaliana, Saccharomyces cerevisiae, Homo sapiens, or Simmondsia chinensis.

33. The recombinant cell of claim 31 , wherein the ester synthase gene is wax/dgat.

34. The recombinant cell of claim 31, wherein the ester synthase is a bifunctional ester synthase/acyl-Co A :diacyl glycerol acyltransferase from Simmondsia chinensis, Acinetobacter sp. strain ADPl, Alcanivorax borkumensis, Pseudomonas aeruginosa, Fundibacter jadensis, Arabidopsis thaliana, or Alkaligenes eutrophus.

35. The recombinant cell of claim 31 , wherein the ester synthase is obtained from Mortierella alpina, Cryptococcus curvatus, Alcanivorax jadensis, Acinetobacter sp. HOl-N or Rhodococcus opacus.

36. The recombinant cell of claim 1, further comprising at least one of apdh, pαnK, αceEF, fάbH, fαbD, jαbG, αcpP, and fαbF gene that is modified to be expressed or overexpressed.

37. The recombinant cell of claim 1, further comprising at least one oϊ&fαdE, gpsA, idhA, pflB, αdhE, ptα, poxB, αckA, and αckB gene that is modified such that expression of the gene is attenuated.

38. The recombinant cell of claim 1, further comprising at least one modified gene of plsB and sfa.

39. The recombinant cell of claim 1, wherein the gene encoding an acyl-CoA dehydrogenase enzyme is deleted.

40. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 50 ppm arsenic.

41. The composition of claim 40, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 30 ppm arsenic.

42. The composition of claim 41, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 25 ppm arsenic.

43. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising about 10 to about 50 ppm arsenic.

44. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 200 ppm calcium.

45. The composition of claim 44, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 150 ppm calcium.

46. The composition of claim 45, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 1 19 ppm calcium.

47. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising about 50 to about 200 ppm calcium.

48. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 200 ppm chlorine.

49. The composition of claim 48, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 150 ppm chlorine.

50. The composition of claim 49, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 1 19 ppm chlorine.

51. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising about 50 to about 200 ppm chlorine.

52. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 50 ppm copper.

53. The composition of claim 52, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 30 ppm copper.

54. The composition of claim 53, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 23 ppm copper.

55. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising about 10 to about 50 ppm copper.

56. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 300 ppm iron.

57. The composition of claim 56, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about

200 ppm iron.

58. The composition of claim 57, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 136 ppm iron.

59. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising about 50 to about 250 ppm iron.

60. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 50 ppm lead.

61. The composition of claim 60, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 30 ppm lead.

62. The composition of claim 61, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 25 ppm lead.

63. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising about 10 to about 50 ppm lead.

64. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 50 ppm manganese.

65. The composition of claim 64, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 30 ppm manganese.

66. The composition of claim 65, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 23 ppm manganese.

67. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising about 10 to about 50 ppm manganese.

68. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 50 ppm magnesium.

69. The composition of claim 68, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 30 ppm magnesium.

70. The composition of claim 69, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 23 ppm magnesium.

71. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising about 10 to about 50 ppm magnesium.

72. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 0.5 ppm mercury.

73. The composition of claim 72, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 0.1 ppm mercury.

74. The composition of claim 73, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about

0.06 ppm mercury.

75. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising about 0.01 to about 0.2 ppm mercury.

76. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 50 ppm molybdenum.

77. The composition of claim 76, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 30 ppm molybdenum.

78. The composition of claim 77, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 23 ppm molybdenum.

79. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising about 10 to about 50 ppm molybdenum.

80. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 2% nitrogen.

81. The composition of claim 80, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about

1% nitrogen.

82. The composition of claim 81 , comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 0.5% nitrogen.

83. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising about 0.1 to about 1 % nitrogen.

84. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 200 ppm potassium.

85. The composition of claim 84, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 150 ppm potassium.

86. The composition of claim 85, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about

103 ppm potassium.

87. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising about 50 to about 200 ppm potassium.

88. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 300 ppm sodium.

89. The composition of claim 88, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 200 ppm sodium.

90. The composition of claim 89, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 140 ppm sodium.

91. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising about 50 to about 300 ppm sodium.

92. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 1 ppm sulfur.

93. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 1 % sulfur.

94. The composition of claim 93, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 0.14% sulfur.

95. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising about 0.05 to about 0.3% sulfur.

96. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 50 ppm zinc.

97. The composition of claim 96, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 30 ppm zinc.

98. The composition of claim 97, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 23 ppm zinc.

99. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising about 10 to about 50 ppm zinc.

100. A composition produced by a recombinant cell of claim 1 , comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 700 ppm phosphorus.

101. The composition of claim 100, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 500 ppm phosphorus.

102. The composition of claim 101, comprising fatty acid derivatives produced from a recombinant cell and further comprising less than or equal to about 350 ppm phosphorus.

103. A composition produced by a recombinant cell of claim 1, comprising fatty acid derivatives produced from a recombinant cell and further comprising about 100 to about 700 ppm phosphorus.

104. A composition produced by a recombinant cell of claim 1 , comprising a fatty acid having a double bond at position 7 in the carbon chain (between C₇ and Cs) from the reduced end of the fatty acid derivative.

105. A composition produced by a recombinant cell of claim 1 , wherein the composition comprises C₅-C₂₅ fatty esters.

106. A composition produced by a recombinant cell of claim 1 , wherein the composition comprises Ci_O-C₂₀ fatty esters.

107. A composition produced by a recombinant cell of claim 1 , wherein the composition comprises Ci₂-Ci_S fatty esters.

108. A composition produced by a recombinant cell of claim 1 , wherein the fatty acid derivatives comprise straight chain fatty acid derivatives.

109. A composition produced by a recombinant cell of claim 1 , wherein the fatty acid derivatives comprise branched chain fatty acid derivatives.

1 10. A composition produced by a recombinant cell of claim 1 , wherein the fatty acid derivatives comprise cyclic moieties.

1 1 1. A composition produced by a recombinant cell of claim 1 , wherein the fatty acid derivatives are unsaturated.

112. A composition produced by a recombinant cell of claim 1 11, wherein the fatty acid derivatives are monounsaturated.

113. A composition produced by a recombinant cell of claim 1, wherein the fatty acid derivatives are saturated.

1 14. A composition produced by a recombinant cell of claim 1, wherein the composition comprises a fatty ester that is produced from an alcohol and an acyl-CoA, wherein the alcohol is at least about 1, about 2, about 3, about 4, about 5, about 6, about 7, about 8, about 10, about 12, about 14, about 16, or about 18 carbons in length, and the acyl-CoA is at least about 2, about 4, about 6, about 8, about 10, about 12, about 14, about 16, about 18, about 20, about 22, about 24, or about 26 carbons in length.

1 15. The composition of claim 1 14, wherein the alcohol and acyl-CoA from which the fatty esters are produced vary by about 2, about 4, about 6, about 8, about 10, about 12 or about 14 carbon atoms.

116. A composition produced by a recombinant cell of claim 1 , wherein the fatty acid derivatives have a fraction of modern carbon of about 1.003 to about 1.5.

117. A method for producing fatty acid derivatives in a recombinant cell comprising a) obtaining the recombinant cell of claim 1 ; b) culturing the recombinant cell under suitable conditions for expression, and c) producing fatty acid derivatives.

1 18. A method for producing fatty acid derivatives in a recombinant cell comprising a) obtaining the recombinant cell of claim 5; b) culturing the recombinant cell under suitable conditions for expression, and c) producing fatty acid derivatives.

1 19. A method for producing fatty acid derivatives in a recombinant cell comprising a) obtaining the recombinant cell of claim 6; b) culturing the recombinant cell under suitable conditions for expression, and c) producing fatty acid derivatives.

120. A method of increasing production of fatty acid derivatives in a recombinant cell comprising introducing an exogenous nucleic acid encoding a fatty acid derivative enzyme into a cell, and expressing the exogenous nucleic acid, wherein expression of the nucleic acid in the recombinant cell results in increased production of fatty acid derivatives relative to a non-recombinant cell.

121. The method of claim 120, wherein the exogenous nucleic acid encodes an acyl-CoA synthase, a thioesterase or an ester synthase.

122. The method of claim 120, wherein exogenous nucleic acid encoding an acyl- CoA synthase, a thioesterase and an ester synthase are introduced into the recombinant cell.

123. A method for increasing the production level of fatty acid derivatives in a recombinant cell, the method comprising:

(a) introducing a nucleic acid construct into a host cell, the nucleic acid construct comprising (a) a nucleic acid sequence encoding a fatty acid derivative enzyme of SEQ ID NO:2, SEQ ID NO:3, SEQ ID NO: 6, SEQ ID NO:9 or SEQ ID NO:13, and (b) regulatory sequences for expression of the nucleic acid sequence;

(b) expressing the nucleic acid sequence; and (c) obtaining the fatty acid derivatives.

124. A recombinant construct comprising a nucleic acid sequence encoding a fatty acid derivative enzyme, wherein the nucleic acid sequence is modified to over-express the gene encoding a fatty acid derivative enzyme.

125. The recombinant construct of claim 124, wherein the nucleic acid sequence is modified to over-express the gene encoding an acyl-CoA synthase, a thioesterase, or an ester synthase.

126. The recombinant construct of claim 124, wherein the nucleic acid sequence is modified to over-express (1) the gene encoding an acyl-CoA synthase, and (2) the gene encoding a thioesterase or an ester synthase.

127. The recombinant construct of claim 126, wherein the nucleic acid sequence is modified to over-express the gene encoding (1) an acyl-CoA synthase, (2) a thioesterase, and (3) an ester synthase.

128. The recombinant construct of claim 124, wherein the construct further comprises a nucleic acid sequence encoding an acyl-CoA dehydrogenase which is modified such that expression of the acyl-CoA dehydrogenase is attenuated.

129. A vector comprising the recombinant construct of claim 124.

130. A vector comprising the recombinant construct of claim 125.

131. A vector comprising the recombinant construct of claim 126.

132. A vector comprising the recombinant construct of claim 127.

133. A vector comprising the recombinant construct of claim 128.

134. The vector of claim 129, wherein the vector further comprises a structural gene providing for selection of transformed cells.

135. A method for increasing production of fatty acid derivatives in a production host cell, comprising: transforming the host cell with a nucleotide sequence so that the production host cell expresses or over-expresses a fatty acid derivative enzyme, wherein the production of fatty acid derivatives in the production host cell has been increased relative to a production host cell that has not been transformed.

136. The method of claim 135, wherein the production host cells are harvested and are lysed to obtain the fatty acid derivatives that have been produced.

137. The method of claim 135, wherein the production host cell is transformed with a nucleotide sequence encoding a transport protein and the production host cell releases the fatty acid derivatives extracellularly.

138. A vector comprising a nucleic acid sequence encoding a fatty acid derivative enzyme operably linked to a promoter that is functional in a host cell, wherein the nucleic acid sequence comprises a first nucleic acid sequence encoding an acyl-CoA synthase and a second nucleic acid sequence encoding a thioesterase or an ester synthase.

139. The vector of claim 138, further comprising a nucleic acid sequence encoding a transport protein.

140. The vector of claim 138, wherein the second nucleic acid sequence encodes a thioesterase and the vector further comprises a third nucleic acid sequence encoding an ester synthase.

141. The vector of claim 140, further comprising a nucleic acid sequence encoding a transport protein.

142. A method of producing fatty acid derivatives comprising:

(a) providing a production host cell comprising the vector of claim 138, and

(b) culturing the production host cell to produce fatty acid derivatives

143. A method of producing fatty acid derivatives comprising: (a) providing a production host cell comprising the vector of claim 140, and

(b) culturing the production host cell to produce fatty acid derivatives.

144. The method of claim 142, wherein a supernatant from the culturing of the production host cell is collected to obtain the fatty acid derivatives that have been produced.

145. The method of claim 143, wherein a supernatant from the culturing of production host cells is collected to obtain the fatty acid derivatives that have been produced.

146. A fatty acid derivative produced by the method of claim 142.

147. A fatty acid derivative produced by the method of claim 143.

148. A biofuel composition comprising a fatty acid derivative of claim 146.

149. A biofuel composition comprising a fatty acid derivative of claim 147.

150. The fatty acid derivative of claim 146, wherein the fatty acid derivative is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

151. The fatty acid derivative of claim 147, wherein the fatty acid derivative is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

152. The recombinant cell of claim 4, wherein the recombinant cell comprises: a modified gene encoding an acyl-CoA synthase, and a modified gene encoding a thioesterase.

153 The recombinant cell of claim 152 which produces more acyl-CoA relative to a non-recombinant cell.

154 A biofuel composition comprising the composition of claim 104.

155 A biofuel composition comprising the composition of claim 105.

156 A biofuel composition comprising the composition of claim 106.

157 A biofuel composition comprising the composition of claim 107.

158 A biofuel composition comprising the composition of claim 1 14.

159 A biofuel composition comprising the composition of claim 116.

160. The biofuel composition of claim 154, wherein the biofuel is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

161. The biofuel composition of claim 155, wherein the biofuel is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

162. The biofuel composition of claim 156, wherein the biofuel is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

163. The biofuel composition of claim 157, wherein the biofuel is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

164. The biofuel composition of claim 158, wherein the biofuel is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

165. The biofuel composition of claim 159, wherein the biofuel is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

166. A composition produced by a recombinant cell of claim 1 , comprising free fatty acids.

167. The composition of claim 166, wherein the percentage of free fatty acids by weight is at least about 1%.

168. The composition of claim 166, wherein the percentage of free fatty acids by weight is at least about 5%.

169. The composition of claim 166, wherein the percentage of free fatty acids by weight is at least about 8%.

170. The composition of claim 166, wherein the percentage of free fatty acids by weight is at least about 10%.

171. The composition of claim 166, wherein the percentage of free fatty acids by weight is at least about 20%.

172. A composition produced by a recombinant cell of claim 1 , comprising fatty esters.

173. The composition of claim 172, wherein the percentage of fatty esters by weight is at least about 50%.

174. The composition of claim 172, wherein the percentage of fatty esters by weight is at least about 60%.

175. The composition of claim 172, wherein the percentage of fatty esters by weight is at least about 75%.

176. The composition of claim 172, wherein the percentage of fatty esters by weight is at least about 80%.

177. The composition of claim 172, wherein the percentage of fatty esters by weight is at least about 85%.

178. A composition produced by a recombinant cell of claim 1, comprising fatty esters and free fatty acids.

179. The composition of claim 179, wherein the ratio of fatty esters to free fatty acids is about 10:1, about 9:1, about 8:1, about 7:1, about 5:1, about 2:1 or about 1 :1.

180. The composition of claim 179, wherein the ratio of fatty esters to free fatty acids is about 9:1 or about 8:1.

181. The composition of claim 179, wherein the fatty ester is at least one of: ethyl dodecanoate, ethyl tridecanoate, ethyl tetradecanoate, ethyl pentadecanoate, ethyl cis-9-hexadecenoate, ethyl hexadecanoate, ethyl heptadecanoate, ethyl cis-1 1-octadecenoate, ethyl octadecanoate, or a combination thereof.

182. The composition of claim 172, wherein the free fatty acid is at least one of: dodecanoic acid, tetradecanoic acid, pentadecanoic acid, cis-9-hexadecenoic acid, hexadecanoic acid, cis-1 1-octadecenoic acid, or combinations thereof.

183. A biofuel composition comprising me composition of claim 166.

184. The biofuel composition of claim 183, wherein the biofuel is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

185. A biofuel composition comprising the composition of claim 172.

186. The biofuel composition of claim 185, wherein the biofuel is a biodiesel, fatty alcohol, fatty ester, triacylglyceride, gasoline or jet fuel.

187. The composition of claim 166, wherein the percentage by weight of C ₁₂ free fatty acids relative to the total free fatty acids is at least about 5%.

188. The composition of claim 166, wherein the percentage by weight of Ci? free fatty acids relative to the total free fatty acids is at least about 10%.

189. The composition of claim 166, wherein the percentage by weight of C₁₄ free fatty acids relative to the total free fatty acids is at least about 20%.

190. The composition of claim 166, wherein the percentage by weight of C₁₄ free fatty acids relative to the total free fatty acids is at least about 30%.

191. The composition of claim 166, wherein the percentage by weight of C ₁₅ free fatty acids relative to the total free fatty acids is at least about 1%.

192. The composition of claim 166, wherein the percentage by weight of Ci₆ free fatty acids relative to the total free fatty acids is at least about 20%.

193. The composition of claim 166, wherein the percentage by weight OfCj₆ free fatty acids relative to the total free fatty acids is at least about 30%.

194. The composition of claim 166, wherein the percentage by weight of Q₈ free fatty acids relative to the total free fatty acids is at least about 15%.

195. The composition of claim 166, wherein the percentage by weight of Cj₈ free fatty acids relative to the total free fatty acids is at least about 20%.

196. The composition of claim 166, wherein the percentage by weight of Ci₂ fatty esters relative to the total fatty esters is at least about 1%.

197. The composition of claim 166, wherein the percentage by weight of C)₂ fatty esters relative to the total fatty esters is at least about 2%.

198. The composition of claim 166, wherein the percentage by weight of C]₄ fatty esters relative to the total fatty esters is at least about 10%.

199. The composition of claim 166, wherein the percentage by weight of C]₄ fatty esters relative to the total fatty esters is at least about 15%.

200. The composition of claim 166, wherein the percentage by weight of Ci₆ fatty esters relative to the total fatty esters is at least about 30%.

201. The composition of claim 166, wherein the percentage by weight of

fatty esters relative to the total fatty esters is at least about 40%.

202. The composition of claim 166, wherein the percentage by weight of Ci₈ fatty esters relative to the total fatty esters is at least about 20%. '

203. The composition of claim 166, wherein the percentage by weight of Ci₈ fatty esters relative to the total fatty esters is at least about 30%.
