RU96213U1 - COMBINED PLASTIC AND METAL FITTING FOR TRANSITION FROM PLASTIC PIPELINE TO METAL PIPELINE - Google Patents
COMBINED PLASTIC AND METAL FITTING FOR TRANSITION FROM PLASTIC PIPELINE TO METAL PIPELINE Download PDFInfo
- Publication number
- RU96213U1 RU96213U1 RU2009138415/22U RU2009138415U RU96213U1 RU 96213 U1 RU96213 U1 RU 96213U1 RU 2009138415/22 U RU2009138415/22 U RU 2009138415/22U RU 2009138415 U RU2009138415 U RU 2009138415U RU 96213 U1 RU96213 U1 RU 96213U1
- Authority
- RU
- Russia
- Prior art keywords
- metal
- plastic
- pipeline
- fitting
- combined
- Prior art date
Links
Landscapes
- Lining Or Joining Of Plastics Or The Like (AREA)
Abstract
Комбинированный фитинг из пластика и металла для перехода с пластикового трубопровода на металлический трубопровод, выполненный из металлической закладной части с нанесенными на цилиндрическую внешнюю часть ее поверхности проточками, и пластиковой части, отличающийся тем, что не менее чем одна из проточек выполнена конической формы с профилем типа «ласточкин хвост», и/или на внутренней поверхности металлической части комбинированного фитинга выполнена кольцевая канавка трапецеидальной формы, и/или на внутренней поверхности цилиндрической части металлической части комбинированного фитинга выполнена выемка. A combined fitting made of plastic and metal for transition from a plastic pipeline to a metal pipeline made of a metal embedded part with grooves deposited on the cylindrical outer part of its surface and a plastic part, characterized in that at least one of the grooves is conical in shape with a type profile A dovetail, and / or an annular groove of a trapezoidal shape is made on the inner surface of the metal part of the combined fitting, and / or on the inner surface of the cylinder cal part of the metallic portion of the combined fitting recess is formed.
Description
Заявленные комбинированные фитинги относятся к устройствам, используемым в промышленности и жилищном хозяйстве для транспортировки жидких и газообразных сред, в том числе для водоснабжения и отопления зданий и сооружений, производственных цехов и т.п.The claimed combined fittings relate to devices used in industry and housing for transporting liquid and gaseous media, including for water supply and heating of buildings and structures, production shops, etc.
Такие фитинги служат для перехода с пластиковых систем водоснабжения и отопления, в которых используются пластиковые трубы, на металлические трубопроводы (в частности, стальные, медные) или для монтажа в указанных системах оборудования с резьбовым способом соединения. С одной стороны комбинированный фитинг соединяется с системой своей пластиковой частью через муфтовую диффузионную сварку, а с другой стороны- с металлическими трубопроводами посредством металлической внутренней или наружной резьбы.Such fittings are used to transfer from plastic water supply and heating systems that use plastic pipes to metal pipelines (in particular, steel, copper) or for installation of threaded connection equipment in these systems. On the one hand, the combined fitting is connected to the system with its plastic part through diffusion welding, and on the other hand, with metal pipelines by means of metal internal or external threads.
В системах холодного и горячего водоснабжения для транспортировки воды используют комбинированные фитинги, выполненные из полипропилена, полибутилена и т.п.,. например из PPR-80 (ГОСТ Р 52134-2003 «Трубы напорные из термопластов и соединительные детали к ним для систем водоснабжения и отопления. Общие технические условия.) с металлическими (латунными, бронзовыми, медными) вставками, обеспечивающими соединение плавстиковых труб и резьбовых элементов системы.In cold and hot water supply systems, combined fittings made of polypropylene, polybutylene, etc., are used to transport water. for example, from PPR-80 (GOST R 52134-2003 “Pressure pipes made of thermoplastics and their connecting parts for water supply and heating systems. General specifications.) with metal (brass, bronze, copper) inserts that provide the connection of fluor tubes and threaded elements system.
Для таких комбинированных фитингов характерно отслоение пластика от латуни при изготовлении, а также при небольших механических нагрузках в процессе эксплуатации, что приводит к негерметичности фитинга.For such combined fittings, peeling of plastic from brass during manufacture, as well as during small mechanical stresses during operation, is characteristic, which leads to leakage of the fitting.
Комбинированный фитинг изготавливается следующим образом: металлический закладной элемент с заранее выполненными конструктивными элементами (например с резьбой) закладывается в литейную форму. Литейная форма заполняется пластиком с высокой температурой (например, для PPR температура 260°С.). Таким образом, получается фитинг состоящий из металлической (например, латунной) и пластиковой частей, соединенных неразборно. Металл и пластик имеют разное тепловое линейное расширение, благодаря чему при охлаждении фитинга происходит отслоение пластика от металла.A combined fitting is made as follows: a metal embedded element with pre-made structural elements (for example, with thread) is laid in a mold. The mold is filled with plastic with high temperature (for example, for PPR the temperature is 260 ° C.). Thus, a fitting is obtained consisting of metal (for example, brass) and plastic parts connected inseparably. Metal and plastic have different linear thermal expansion, so that when the fitting is cooled, the plastic delaminates from the metal.
При эксплуатации комбинированного фитинга различия в механических свойствах металла и пластика также служат причиной отслоения пластика от металла вследствие деформаций пластика при механических нагрузках на его внешний слой.When using a combined fitting, differences in the mechanical properties of metal and plastic also cause the plastic to peel off from the metal due to plastic deformation under mechanical stresses on its outer layer.
Возникающее в процессе изготовления и/или эксплуатации отслоение влияет на внешний вид изделия, а, кроме того, ведет к неоправданному гидравлическому сопротивлению системы, нарушению герметичности фитинга.The delamination that occurs during manufacturing and / or operation affects the appearance of the product, and, in addition, leads to unjustified hydraulic resistance of the system, a violation of the tightness of the fitting.
Для того чтобы минимизировать эти недостатки, в настоящее время используются дополнительные материалы, например: резиновые уплотнительные кольца у фитингов PILSA, или конструктивные элементы металлической части, развивающие поверхность соприкосновения металла и пластика, определяющие длину пути и, соответственно, - сопротивление транспортируемой жидкости, а также препятствующие разделению этих частей при температурных и механических нагрузках.In order to minimize these shortcomings, additional materials are currently being used, for example: rubber O-rings for PILSA fittings, or structural elements of the metal part, developing the contact surface of metal and plastic, determining the path length and, accordingly, the resistance of the transported liquid, and preventing the separation of these parts under thermal and mechanical loads.
Технический результат, на достижение которого направлено создание заявляемой полезной модели, заключается в повышении надежности комбинированного фитинга при изменениях температуры и механических нагрузках при монтаже и эксплуатации за счет снижения вероятности отслоения пластика от металла в процессе его изготовления и эксплуатации и, как следствие, повышение надежности систем транспортировки жидкостей и газов.The technical result, the achievement of which the creation of the claimed utility model is aimed, is to increase the reliability of the combined fitting with changes in temperature and mechanical loads during installation and operation by reducing the likelihood of delamination of the plastic from the metal during its manufacture and operation and, as a result, increasing the reliability of the systems transportation of liquids and gases.
Заявляемая полезная модель иллюстрируется графическими материалами, приведенными на фиг.1 и фиг.2.The inventive utility model is illustrated by the graphic materials shown in figure 1 and figure 2.
На фиг.1 показан комбинированный фитинг, где приняты следующие обозначения:In Fig.1 shows a combination fitting, where the following notation:
1 - фитинг1 - fitting
2 - металлическая часть фитинга2 - metal part of the fitting
3 - пластиковая часть фитинга.3 - plastic part of the fitting.

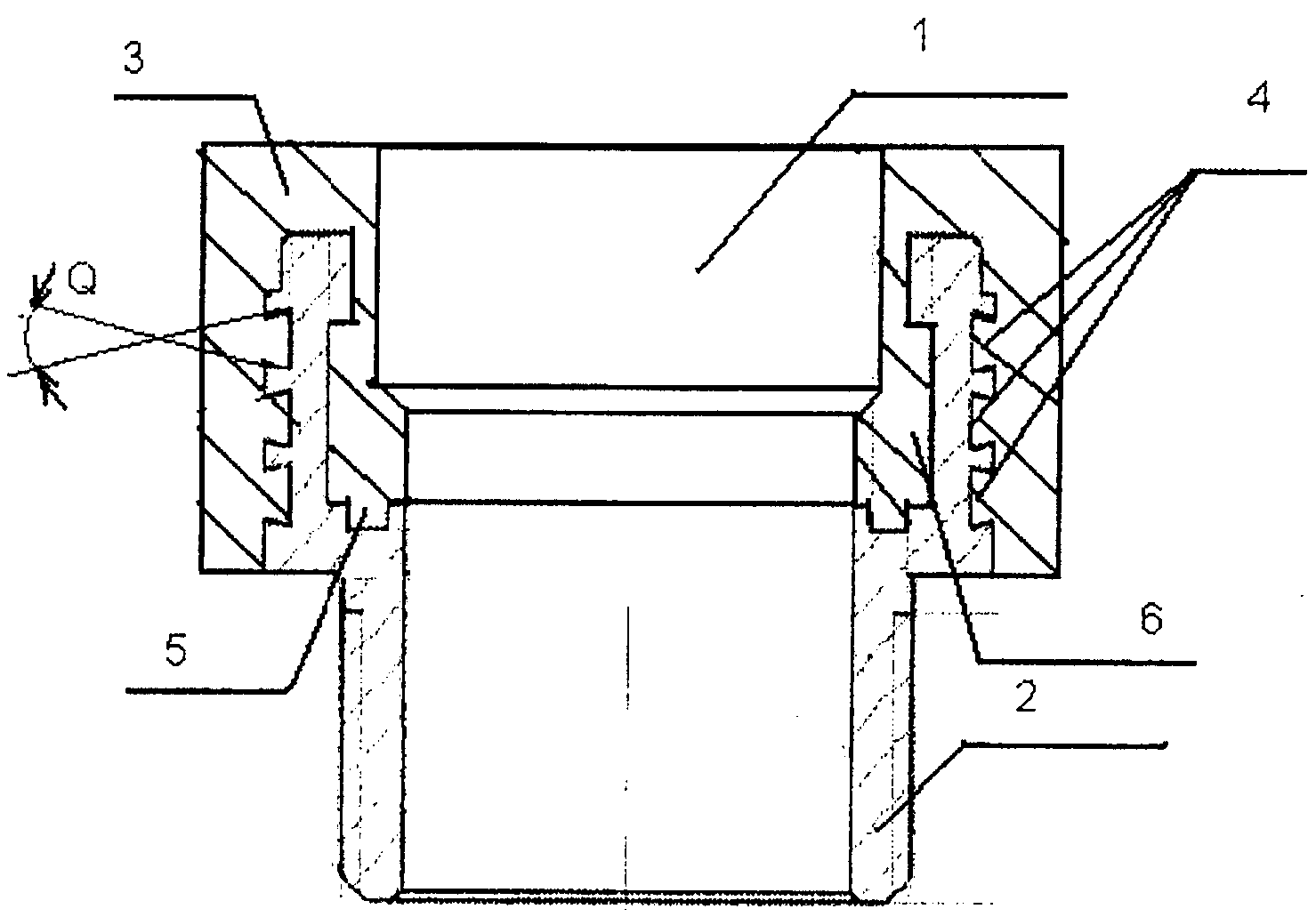

На фиг.2 показан комбинированный фитинг, в металлической части которого выполнены проточки, канавки и выемки, образующие «пластиковые замки», где приняты следующие обозначения:Figure 2 shows a combined fitting, in the metal part of which grooves, grooves and recesses are formed, forming "plastic locks", where the following notation is accepted:
1 - комбинированный фитинг1 - combination fitting
2 - металлическая часть комбинированного фитинга2 - metal part of the combined fitting
3 - пластиковая часть комбинированного фитинга3 - plastic part of the combined fitting
4 - конические проточки на внешней стороне металлической цилиндрической части комбинированного фитинга с профилем типа «ласточкин хвост».4 - conical grooves on the outside of the metal cylindrical part of the combined fitting with a dovetail profile.
5 - кольцевая канавка трапецеидальной формы на внутренней поверхности металлической части комбинированного фитинга5 - trapezoidal annular groove on the inner surface of the metal part of the combined fitting
6 - выемка на внутренней поверхности металлической цилиндрической части комбинированного фитинга6 - recess on the inner surface of the metal cylindrical part of the combined fitting
Достижение заявленного технического результата обеспечивается выполнением проточек с профилем типа «ласточкин хвост» на внешней стороне закладной металлической части комбинированного фитинга на ее цилиндрической части и/или выполнением на внутренней стороне цилиндрической части металлической части комбинированного фитинга выемки и/или выполнением на внутренней стороне металлической части комбинированного фитинга кольцевой канавки трапецеидальной формы.Achieving the claimed technical result is achieved by making grooves with a dovetail profile on the outside of the embedded part of the metal fitting of the combined fitting on its cylindrical part and / or by making a recess on the inside of the cylindrical part of the metal part of the combined fitting and / or by performing on the inside of the metal part of the combined trapezoidal ring groove fitting.
Угол обратной конусности Q проточек на внешней стороне закладной металлической части комбинированного фитинга на ее цилиндрической части с профилем типа «ласточкин хвост» по абсолютной величине может изменяться в пределах от 1° до 180°. Конкретная величина выбирается в зависимости от жесткости пластика, температурного линейного расширения. Так, температурное линейное расширение и величина угла обратной конусности Q находятся в пропорциональной зависимости, зависимость жесткости пластика и угла Q носит характер обратной пропорции.The inverse taper angle Q of the grooves on the outer side of the embedded metal part of the combined fitting on its cylindrical part with a dovetail profile in absolute value can vary from 1 ° to 180 °. The specific value is selected depending on the stiffness of the plastic, the temperature linear expansion. So, the temperature linear expansion and the value of the inverse taper angle Q are proportional, the dependence of the plastic stiffness and the angle Q is inversely proportional.
Кольцевая канавка на внутренней стороне закладной металлической части комбинированного фитинга, и выемка на ее внутренней стороне также могут выполняться с обратной конусностью с углом конусности Q.The annular groove on the inner side of the embedded metal part of the combined fitting, and the recess on its inner side can also be performed with inverse taper with a taper angle Q.
При изготовлении комбинированного фитинга после закладки его металлического закладного элемента с заранее выполненными конструктивными элементами (например, с резьбой) в литейную форму она заполняется разогретым пластиком (как было сказано выше, для PPR, например, температура составляет 260°.С.), который заполняет проточки, канавки и выемки, формируя тем самым «замки», препятствующие отслоению пластика от металлической части фитинга.In the manufacture of a combined fitting after laying its metal embedded element with prefabricated structural elements (for example, with a thread) into the mold, it is filled with heated plastic (as mentioned above, for PPR, for example, the temperature is 260 ° C.), Which fills grooves, grooves and recesses, thereby forming “locks” that prevent the plastic from peeling off the metal part of the fitting.
Claims (1)
