Description

FUEL CLEANING BRUSH WITH FUNCTION

SUCTION

This utility model relates to devices for cleaning floors, carpets and carpeting using a steam jet, by suctioning dust and liquids using water filtration.

Such known devices typically comprise an engine for sucking in particles of liquids and / or liquids, a reservoir containing filter water, a dirt collecting reservoir, and a steam generating apparatus.

In all known designs, these mechanisms are housed in a housing resting on three or four wheels. The housing is connected to a hose that extends from it and ends with a control lever to which auxiliary devices for cleaning with steam or suction are attached.

During operation, the consumer must pull the housing by the control step to move it over the entire area to be cleaned. This creates certain inconveniences, including due to the considerable weight of the device, as well as due to difficulties in maneuvering the sliding case around obstacles such as furniture or walls. In this regard, such devices are called traction type devices.

The objective underlying the present utility model is to create a brush for cleaning with steam, having a suction function, which has the same functional elements as the above devices, but which eliminates the aforementioned disadvantages, and the proposed brush design allows its use in a more convenient, easier and less tiring way.

The technical result is achieved by creating a brush for cleaning with the help of: steam, which has a suction function, including a device for creating

steam, a device for absorbing dust particles and / or liquids, an engine connected to said absorption device, and a water filtering device, wherein said steam generating device, a suction device and a water filtering device are placed in a housing on a substrate located on wheels and provided, in its lower part facing the floor, with nozzles for supplying steam and an inlet, while the control lever to which the specified engine is attached extends upwards from 5 nnogo case on the substrate for manipulating them.

Below is described in detail one of the possible practical options for implementing this utility model, with reference to illustrative and non-limiting drawings, where:

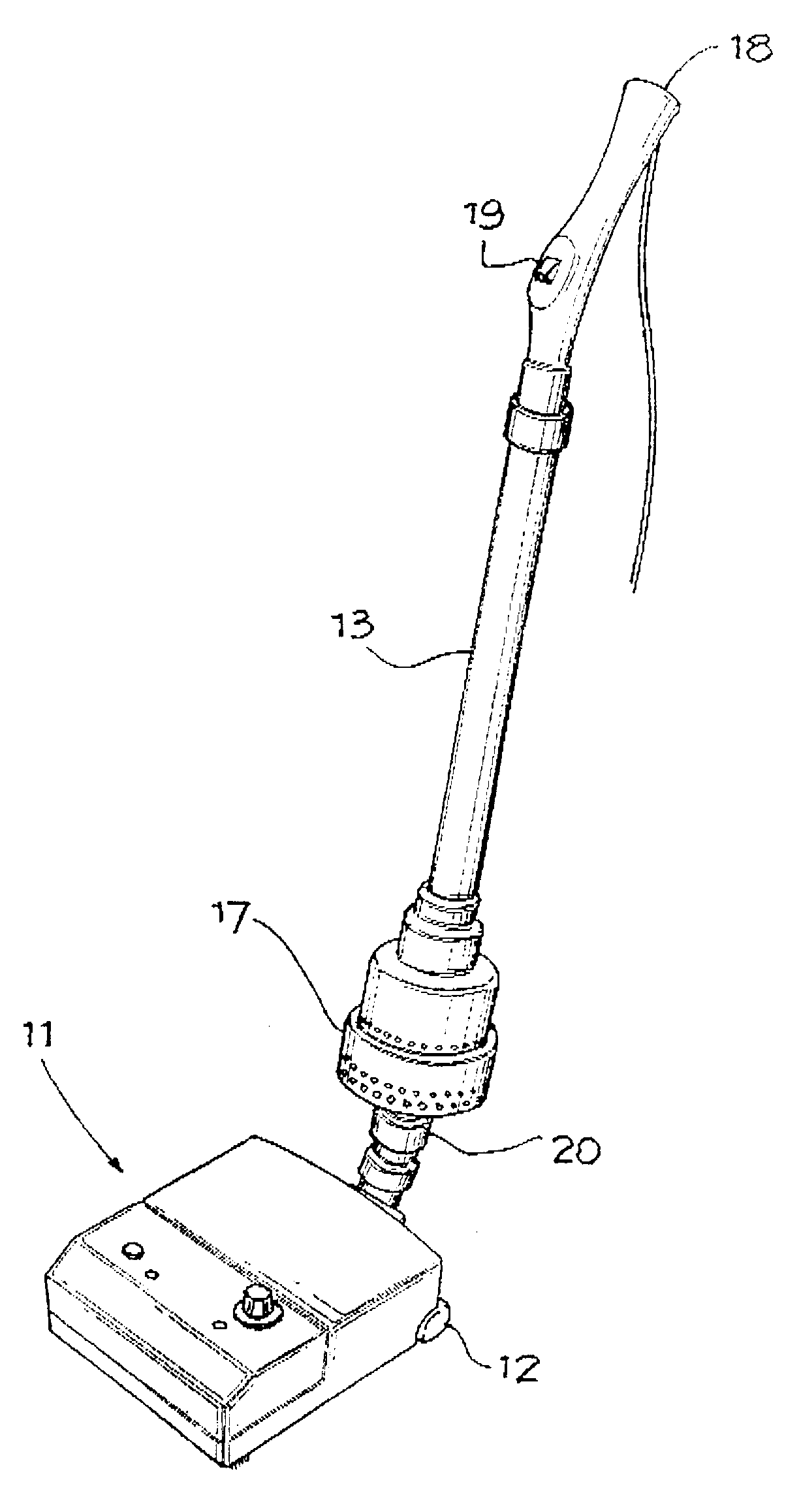

FIG. 1 is a perspective view illustrating an example of a brush for cleaning with steam having a suction function.

FIG. 2 is a plan view of a structure of a cleaning brush without a cover.

FIG. 3 represents only the brush control lever.

The device in question comprises a housing 11 on a substrate located on the floor on wheels 12, and having a control rod 13 that is oriented vertically from the wall of the housing on the substrate. The housing on the substrate includes a device 14 for generating steam, which mainly consists of a boiler, a pipe 15, open towards the floor to absorb particles of the drink and / or liquids, and a device 16 for filtering water into which the pipe 15 is introduced. The device for creating steam, which can be operated continuously or controlled by an electromagnetic valve, is designed to release a steam jet onto the floor through a plurality of nozzles filled in the substrate (not shown in the drawing).

The motor 17 for the suction action of the device is attached to the control lever 13, in close proximity to the housing 11 on the substrate. On top of

the control lever provide a handle 18 with buttons 19 for actuating and selecting the operating mode of the device. The control lever can be disconnected with the housing 11 on the substrate, as it is equipped with a connecting pipe 20 located below the engine 17. After disconnecting with the housing on the substrate, said connecting pipe 20 can be connected to a suitable filter, optionally having an auxiliary suction device, to make it possible using the control lever as a regular electric brush.

In addition, it is obvious that, without deviating from the scope of the guarded protection, instead of the steam generating device 14, a water tank may be provided having a suitable pump for supplying vaporous water.

Thus, the proposed design of a brush for cleaning with steam, having a suction function, is easier to handle, as it allows you to move the case containing the functional mechanisms of the device, instead of dragging it, thereby working with the brush easily and with less effort .

Claims (5)

1. A brush for cleaning with steam, having a suction function, including a device for creating steam, a device for sucking dust particles and / or liquids, an engine connected to the specified suction device, and a device for filtering water, characterized in that the said device for to create steam, a suction device and a filtering device are placed in a housing on a substrate located on wheels and provided with nozzles for supplying steam and an inlet to the bottom of the substrate facing the floor m aperture, wherein said motor is fixedly connected to the control lever that is oriented upward from said housing on the substrate for convenience of manipulation brush. 2. A brush for cleaning with steam, having a suction function according to claim 1, characterized in that said motor is attached to the base of said control lever. 3. A brush for cleaning with steam, having a suction function according to any one of claims 1 or 2, characterized in that below the engine the control lever is made in the form of a pipe for connecting it to the housing on the substrate. 4. A brush for cleaning with steam, having a suction function, according to claim 3, characterized in that in the mode of disconnecting the control lever from the housing on the substrate, the device comprising the filter and the auxiliary suction device functions like an electric brush. 5. A brush for cleaning with steam, having a suction function, according to any one of the preceding paragraphs, characterized in that on the top of the control lever there is a handle with buttons for actuating and selecting the operating mode of the brush.
