Abstract
Ложка, имеющая черпало и рукоятку, отличающаяся тем, что рукоятка выполнена в виде двух палочек, вставленных в черпало с возможностью их разъединения с ним. A spoon having a scoop and a handle, characterized in that the handle is made in the form of two sticks inserted into the scoop with the possibility of disconnecting them from it.
Description
Полезная модель представляет собой устройство столовой ложки, которая может быть использована в быту, в заведениях общественного питания и, в частности, для приема пищи.The utility model is a tablespoon device, which can be used in everyday life, in public catering establishments and, in particular, for eating.
Известно множество самых различных вариантов конструктивного выполнения ложки. Все их объединяет наличие у ложки черпала (хлебала), рукоятки и перемычки между рукояткой и черпалом. При этом рукоятка, как правило, жестко присоединена к черпалу без возможности ее отделения и, кроме того, представляет собой единый, цельный элемент.There are many different variations of the design of the spoon. All of them are united by the presence of a scoop (slurp), a handle and a jumper between the handle and the scoop. In this case, the handle, as a rule, is rigidly attached to the scoop without the possibility of its separation and, in addition, is a single, integral element.
В качестве ближайшего аналога заявленной полезной модели выбрана стандартная и самая распространенная ее конструкция, которая используется в быту каждым человеком уже несколько веков.As the closest analogue of the claimed utility model, the standard and most common design is chosen, which has been used in everyday life by every person for several centuries.
Техническим результатом, на достижение которого направлена полезная модель, является возможность принимать как жидкую пишу (например, супы), так и иную без смены прибора, который фактически состоит из двух приборов: ложки и палочек. Кроме того, достигается разнообразие имеющихся конструктивных вариантов выполнения ложки, в том числе в целях ее применения в заведениях общественного питания смешанной кухни. Заявленная полезная модель также олицетворяет собой объединение культур.The technical result, which the utility model aims to achieve, is the ability to take both liquid writing (for example, soups) and another without changing the device, which actually consists of two devices: a spoon and a chopstick. In addition, a variety of available structural options for the implementation of the spoon is achieved, including with a view to its use in catering establishments of mixed cuisine. The claimed utility model also embodies the unification of cultures.
Указанные технические результаты достигаются за счет того, что рукоятка ложки выполнена в виде двух палочек, вставленных в черпало. Это обеспечивается тем, что черпало в своей задней части имеет два отверстия с диаметром, позволяющим вставить и зафиксировать кончики этих палочек, образующих таким образом рукоятку ложки. При этом за счет сужения диаметра на конце палочек, они могут быть достаточно плотно вставлены в черпало, но при этом за счет незначительного усилия могут быть и отделены от него.These technical results are achieved due to the fact that the handle of the spoon is made in the form of two sticks inserted into the scoop. This is ensured by the fact that the scoop in its rear part has two holes with a diameter that allows you to insert and fix the tips of these sticks, thus forming the handle of the spoon. Moreover, due to the narrowing of the diameter at the end of the rods, they can be inserted quite tightly into the scoop, but at the same time, due to the slight effort, they can be separated from it.
Сущность полезной модели поясняется рисунками.The essence of the utility model is illustrated by drawings.

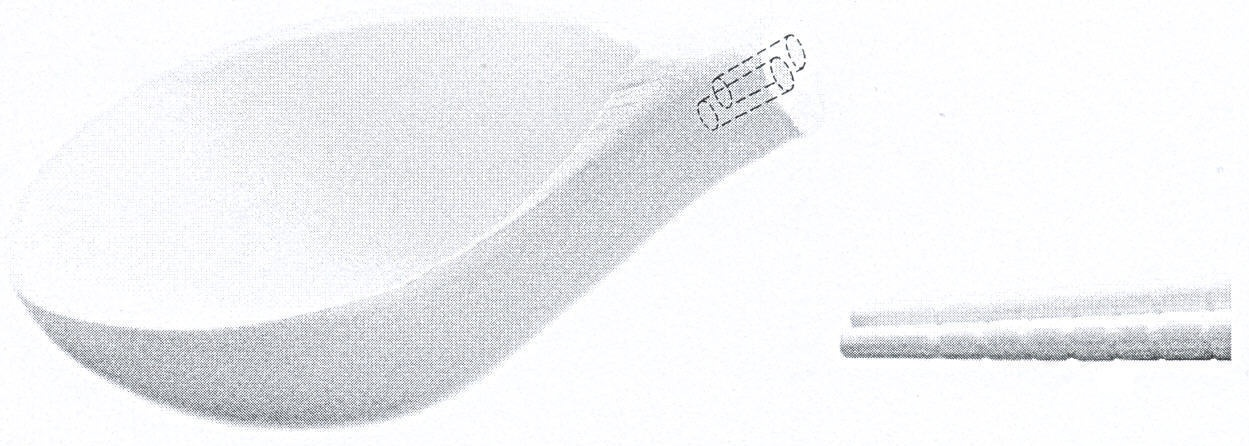

На рисунке 1 показано черпало с отверстиями для палочек с задние стороны и кончики палочек.Figure 1 shows the scoop with the holes for the sticks on the back and the tips of the sticks.
На рисунке 2 показана ложка с одной вставленной палочкой и одной отделенной.Figure 2 shows a spoon with one stick inserted and one separated.
На рисунке 3 показан общий вид ложки в собранном состоянии сбоку.Figure 3 shows a general view of the spoon in the assembled state from the side.
На рисунке 4 показан общий вид ложки в собранном состоянии сверху.Figure 4 shows a general view of the spoon in the assembled state from above.
