Abstract
본 발명은 천장형 타입의 공기 조화기의 실내기에 관한 것이다.
상기 실내기는 상기 케이싱과 상기 저면 패널이 이루는 내부 공간에 설치되며, 나란하게 배치되는 제1송풍팬 및 제2송풍팬; 및 상기 제1,2송풍팬의 사이에 배치되어, 상기 제1,2송풍팬의 설치공간을 분리하는 격벽장치을 더 포함할 수 있다.
상기 실내기는 상기 격벽장치에 결합되며, 상기 제1송풍팬에서 토출되는 기류가 상기 제2송팬측으로 재흡입되지 않도록 상기 제1송풍팬의 제1토출측 공간과, 상기 제2송풍팬의 제2토출측 공간의 사이에 배치되는 마운트 브라켓을 더 포함할 수 있다.The present invention relates to an indoor unit of a ceiling type air conditioner.
The indoor unit includes a first blowing fan and a second blowing fan installed in an inner space formed by the casing and the bottom panel and arranged side by side; and a partition wall device disposed between the first and second blowing fans to separate installation spaces of the first and second blowing fans.
The indoor unit is coupled to the bulkhead device, and the space on the first discharge side of the first blower fan and the second discharge side of the second blower fan prevent airflow discharged from the first blower fan from being re-sucked into the second blower fan. A mount bracket disposed between the spaces may be further included.
Description
본 발명은 천장형 타입의 공기 조화기의 실내기에 관한 것이다.The present invention relates to an indoor unit of a ceiling type air conditioner.
공기 조화기는 소정공간의 공기를 용도, 목적에 따라 가장 적합한 상태로 유지하기 위한 기기이다. 일반적으로, 상기 공기 조화기에는, 압축기, 응축기, 팽창장치 및 증발기가 포함되며, 냉매의 압축, 응축, 팽창 및 증발과정을 수행하는 냉동 사이클이 구동되어, 상기 소정공간을 냉방 또는 난방할 수 있다. An air conditioner is a device for maintaining the air in a predetermined space in the most suitable state according to the use and purpose. In general, the air conditioner includes a compressor, a condenser, an expansion device, and an evaporator, and a refrigeration cycle that performs compression, condensation, expansion, and evaporation of refrigerant is driven to cool or heat the predetermined space. .
상기 소정공간은 상기 공기 조화기는 사용되는 장소에 따라, 다양하게 제안될 수 있다. 일례로, 상기 공기 조화기가 가정이나 사무실에 배치되는 경우, 상기 소정공간은 집 또는 건물의 실내 공간일 수 있다. The predetermined space may be proposed in various ways according to a place where the air conditioner is used. For example, when the air conditioner is disposed in a home or office, the predetermined space may be an indoor space of the house or building.
공기 조화기가 냉방 운전을 수행하는 경우, 실외기에 구비되는 실외 열교환기가 응축기 기능을 하며 실내기에 구비되는 실내 열교환기가 증발기 기능을 수행한다. 반면에, 공기 조화기가 난방 운전을 수행하는 경우, 상기 실내 열교환기가 응축기 기능을 하며 상기 실외 열교환기가 증발기 기능을 수행한다.When the air conditioner performs a cooling operation, the outdoor heat exchanger provided in the outdoor unit functions as a condenser and the indoor heat exchanger provided in the indoor unit performs the function of an evaporator. On the other hand, when the air conditioner performs a heating operation, the indoor heat exchanger functions as a condenser and the outdoor heat exchanger functions as an evaporator.
공기 조화기의 실내기는 설치위치에 따라, 직립형, 벽걸이형 또는 천장형 타입으로 구분될 수 있다. 상기 직립형 실내기는 실내공간에 세워지도록 설치되는 타입의 실내기이며, 상기 벽걸이형 실내기는 벽면에 부착되도록 설치되는 타입의 실내기이고, 상기 천장형 타입의 실내기는 천장에 설치되는 타입의 실내기로서 이해될 수 있다.The indoor unit of the air conditioner may be classified into an upright type, a wall-mounted type, or a ceiling type type according to an installation location. The upright type indoor unit may be understood as an indoor unit installed to stand upright in an indoor space, the wall-mounted indoor unit installed to be attached to a wall surface, and the ceiling type indoor unit installed on a ceiling. there is.
천장형 타입의 실내기에는 공기유동을 발생시키기 위한 송풍팬이 설치될 수 있다. 일반적으로, 상기 송풍팬은 횡류팬을 포함할 수 있다.A blowing fan for generating air flow may be installed in the ceiling-type indoor unit. In general, the blowing fan may include a cross-flow fan.
종래의 천장형 타입의 실내기에서, 상기 횡류팬에서 토출된 기류가 실내기의 토출부를 향하지 않고, 다시 횡류팬으로 흡입되는 현상이 발생하였다. 이러한 현상은 실내기의 송풍효율을 저하시키고 소음을 발생시키는 원인으로서 작용하였다.In the conventional ceiling-type indoor unit, the airflow discharged from the cross-flow fan does not go to the discharge part of the indoor unit and is sucked back into the cross-flow fan. This phenomenon lowered the ventilation efficiency of the indoor unit and acted as a cause of generating noise.
천장형 타입의 공기조화기의 실내기에 관한 선행문헌 정보는 아래와 같다.Prior literature information on the indoor unit of the ceiling type air conditioner is as follows.
1. 공개번호 (공개일) : 10-2003-0072962 (2003년 9월 19일)1. Publication number (publication date): 10-2003-0072962 (September 19, 2003)
2. 발명의 명칭 : 천장형 공기조화기2. Title of Invention: Ceiling type air conditioner
본 발명은 실내기에서 토출되는 기류를 안정적으로 가이드 하기 위한 가이드 장치를 구비하는 천장형 타입의 공기 조화기의 실내기를 제공하는 것을 목적으로 한다.An object of the present invention is to provide an indoor unit of a ceiling-type air conditioner having a guide device for stably guiding airflow discharged from the indoor unit.
본 발명은 다수 개의 횡류팬에서 발생되는 토출기류가 서로 간섭되거나, 횡류팬으로 재흡입되지 않도록 가이드 장치를 구비하는 천장형 타입의 공기 조화기의 실내기를 제공하는 것을 목적으로 한다.An object of the present invention is to provide an indoor unit of a ceiling-type air conditioner having a guide device to prevent airflow discharged from a plurality of crossflow fans from interfering with each other or being re-sucked into the crossflow fans.
본 발명은 가로 방향으로 나란하게 배치되는 제1,2횡류팬이 제공되는 실내기에 있어서, 제1횡류팬에서 토출되는 기류가 제2횡류팬으로 재흡입되는 것을 방지하도록 제1,2횡류팬 사이의 영역에 가이드 장치를 배치하는 천장형 타입의 공기 조화기의 실내기를 제공하는 것을 목적으로 한다.In an indoor unit provided with first and second cross-flow fans disposed side by side in a horizontal direction, the present invention is provided between the first and second cross-flow fans to prevent airflow discharged from the first cross-flow fan from being re-sucked into the second cross-flow fan. It is an object of the present invention to provide an indoor unit of an air conditioner of a ceiling type in which a guide device is disposed in a region of a ceiling.
본 발명은 상기 제1횡류팬에서 토출되는 기류가 제2횡류팬을 향하지 않고 실내기의 토출부를 향하여 유동함으로써, 기류의 송풍팬 재흡입에 따른 소음 발생을 방지할 수 있는 천장형 타입의 공기 조화기의 실내기를 제공하는 것을 목적으로 한다.The present invention is a ceiling-type air conditioner capable of preventing the generation of noise due to the re-intake of the air flow by the blower fan by allowing the air flow discharged from the first cross-flow fan to flow toward the outlet of the indoor unit instead of toward the second cross-flow fan. It is an object of the present invention to provide an indoor unit of
본 발명의 실시예는, 송풍팬의 일측에 가이드 장치를 배치하여 송풍팬에서 토출된 공기가 다시 송풍팬으로 흡입되는 현상을 방지함으로써, 송풍팬의 구동에 따른 소음이 발생하는 것을 방지하고 송풍성능을 향상시킬 수 있다.In an embodiment of the present invention, a guide device is disposed on one side of a blowing fan to prevent the air discharged from the blowing fan from being sucked back into the blowing fan, thereby preventing noise caused by driving the blowing fan and blowing performance. can improve
상기 송풍팬은 원주 방향으로 공기를 흡입하여 원주 방향으로 토출하는 횡류팬을 포함할 수 있다.The blowing fan may include a cross-flow fan that sucks in air in a circumferential direction and discharges it in a circumferential direction.
상기 송풍팬은 제1횡류팬 및 제2횡류팬을 포함할 수 있다.The blowing fan may include a first cross-flow fan and a second cross-flow fan.
상기 제1,2횡류팬은 가로 방향으로 나란하게 배치되며, 상기 가이드 장치는 상기 제1,2횡류팬의 사이 영역에 배치되어 상기 제1횡류팬에서 토출되는 공기가 상기 제2횡류팬의 흡입측으로 유동하는 것을 방지할 수 있다.The first and second cross-flow fans are disposed side by side in a horizontal direction, and the guide device is disposed in an area between the first and second cross-flow fans so that the air discharged from the first cross-flow fan is sucked into the second cross-flow fan. sideways flow can be prevented.
상기 가이드 장치는 상기 제1,2횡류팬 사이에 제공되는 격벽장치를 포함할 수 있다.The guide device may include a partition wall device provided between the first and second crossflow fans.
상기 격벽장치는 상기 제1,2횡류팬을 좌우로 분리하는 격벽 플레이트를 포함할 수 있다.The partition wall device may include a partition plate separating the first and second crossflow fans into left and right sides.
상기 격벽장치는 상기 격벽 플레이트로부터 리어 가이드를 향하는 방향으로 돌출되며, 마운트 브라켓과 결합되는 브라켓체결부를 더 포함할 수 있다.The partition wall device may further include a bracket fastening portion protruding from the partition plate toward the rear guide and coupled to a mount bracket.
상기 격벽장치는 실내기의 케이싱에 배치될 수 있다.The barrier rib device may be disposed in a casing of the indoor unit.
상기 가이드 장치는 상기 격벽장치와 결합되는 마운트 브라켓을 더 포함할 수 있다. The guide device may further include a mount bracket coupled to the partition wall device.
상기 마운트 브라켓은 실내기의 저면 패널에 배치될 수 있다.The mount bracket may be disposed on a bottom panel of the indoor unit.
상기 격벽장치와 상기 마운트 브라켓은 서로 결합되어, 실내기의 내부 공간을 제1횡류팬이 설치되는 제1설치공간과 상기 제2횡류팬이 설치되는 제2설치공간으로 분리할 수 있다.The bulkhead device and the mount bracket are coupled to each other so that an internal space of the indoor unit can be divided into a first installation space in which the first cross-flow fan is installed and a second installation space in which the second cross-flow fan is installed.
상기 마운트 브라켓은 상기 제1횡류팬에서 토출되는 공기를 실내기의 토출부로 가이드 하기 위한 차폐부를 포함할 수 있다. The mount bracket may include a shielding portion for guiding air discharged from the first cross-flow fan to a discharge portion of the indoor unit.
상기 차폐부는 상기 제1횡류팬의 제1토출기류와 상기 제2횡류팬의 제2토출기류의 사이 영역에 위치하여, 상기 제1토출기류가 상기 제2횡류팬의 토출측으로 유동하는 것을 방지할 수 있다.The shield is located in a region between the first discharge air flow of the first cross-flow fan and the second discharge air flow of the second cross-flow fan to prevent the first discharge air flow from flowing toward the discharge side of the second cross-flow fan. can
상기 제2횡류팬에는, 제1,2횡류팬의 연결 축을 고정하기 위한 축 고정부가 배치될 수 있다.A shaft fixing unit for fixing connecting shafts of the first and second cross-flow fans may be disposed on the second cross-flow fan.
상기 축 고정부는 제2횡류팬의 주판 내측에 인접하여 배치되며, 상기 축 고정부가 배치되는 공간에는 제2횡류팬의 블레이드 일부가 제공되지 않을 수 있다.The shaft fixing part is disposed adjacent to the inner side of the main plate of the second cross-flow fan, and a part of the blade of the second cross-flow fan may not be provided in a space where the shaft fixing part is disposed.
상기 마운트 브라켓의 차폐부는 상기 축 고정부가 배치되는 공간에 인접하여 배치될 수 있다.The shielding portion of the mount bracket may be disposed adjacent to a space in which the shaft fixing portion is disposed.
상기 실내기에는, 송풍팬의 외주면에 인접하게 제공되어 송풍팬을 통과하는 기류의 흡입 또는 토출을 가이드 하는 리어 가이드를 포함할 수 있다.The indoor unit may include a rear guide provided adjacent to an outer circumferential surface of the blowing fan to guide suction or discharge of air current passing through the blowing fan.
상기 실내기에는, 송풍팬의 토출측 외주면에 인접하게 제공되어, 상기 송풍팬에서 토출되는 공기가 상기 송풍팬의 흡입측으로 다시 흡입되는 것을 방지하기 위한 스테빌라이저를 더 포함할 수 있다.The indoor unit may further include a stabilizer provided adjacent to an outer circumferential surface of a discharge side of the blowing fan to prevent air discharged from the blowing fan from being sucked back into the suction side of the blowing fan.
본 발명의 실시예에 따른 천장형 타입의 공기 조화기의 실내기는, 천장에 매립되는 케이싱; 및 상기 케이싱의 하단부에 구비되며, 실내공간의 공기 흡입을 위한 흡입부 및 상기 실내공간으로 공기를 배출하기 위한 토출부를 형성하는 저면 패널을 포함할 수 있다.An indoor unit of a ceiling-type air conditioner according to an embodiment of the present invention includes a casing embedded in a ceiling; and a bottom panel provided at a lower end of the casing and forming a suction part for sucking air into the indoor space and a discharge part for discharging air into the indoor space.
상기 실내기는 상기 케이싱과 상기 저면 패널이 이루는 내부 공간에 설치되며, 나란하게 배치되는 제1송풍팬 및 제2송풍팬; 및 상기 제1,2송풍팬의 사이에 배치되어, 상기 제1,2송풍팬의 설치공간을 분리하는 격벽장치을 더 포함할 수 있다.The indoor unit includes a first blowing fan and a second blowing fan installed in an inner space formed by the casing and the bottom panel and arranged side by side; and a partition wall device disposed between the first and second blowing fans to separate installation spaces of the first and second blowing fans.
상기 실내기는 상기 격벽장치에 결합되며, 상기 제1송풍팬에서 토출되는 기류가 상기 제2송팬측으로 재흡입되지 않도록 상기 제1송풍팬의 제1토출측 공간과, 상기 제2송풍팬의 제2토출측 공간의 사이에 배치되는 마운트 브라켓을 더 포함할 수 있다.The indoor unit is coupled to the bulkhead device, and the space on the first discharge side of the first blower fan and the second discharge side of the second blower fan prevent airflow discharged from the first blower fan from being re-sucked into the second blower fan. A mount bracket disposed between the spaces may be further included.
상기 케이싱과 상기 저면 패널이 고정되도록, 상기 격벽장치는 상기 케이싱의 내측면에 구비되며, 상기 마운트 브라켓은 상기 저면 패널에 지지될 수 있다.The partition wall device may be provided on an inner surface of the casing so that the casing and the bottom panel are fixed, and the mount bracket may be supported by the bottom panel.
상기 제1송풍팬 및 제2송풍팬의 외주를 감싸도록 배치되어, 상기 흡입부로부터 상기 토출부로의 공기 유동을 가이드 하는 리어 가이드를 더 포함할 수 있다.The rear guide may further include a rear guide disposed to surround outer circumferences of the first and second blowing fans and guiding air flow from the suction part to the discharge part.
상기 제1송풍팬 및 제2송풍팬의 유입측에 배치되는 열교환기; 및 상기 열교환기의 하측에 배치되며, 상기 제1송풍팬 및 제2송풍팬의 내부에서 편심와류가 발생되도록 상기 제1송풍팬 및 제2송풍팬의 토출측에 배치되는 스테빌라이저를 더 포함할 수 있다.a heat exchanger disposed on inlet sides of the first and second blowing fans; and a stabilizer disposed below the heat exchanger and disposed on discharge sides of the first and second blowing fans to generate eccentric vortices inside the first and second blowing fans. there is.
상기 스테빌라이저는, 상기 스테빌라이저의 상면에서 하방으로 함몰하도록 구성되며, 상기 열교환기의 최하단부가 위치하여 응축수가 수집되는 드레인 공간을 형성할 수 있다.The stabilizer is configured to be recessed downward from an upper surface of the stabilizer, and a lowermost portion of the heat exchanger is positioned to form a drain space in which condensate is collected.
상기 마운트 브라켓은 상기 제1송풍팬의 제1토출측 공간에서 상기 제2송풍팬의 제2토출측 공간을 향하는 경로상에 배치되는 차단벽을 포함할 수 있다.The mount bracket may include a blocking wall disposed on a path from a first discharge side space of the first blowing fan to a second discharge side space of the second blowing fan.
상기 마운트 브라켓은, 상기 저면 패널에 결합되는 제1파트; 및 상기 제1파트에서 상기 격벽장치를 향하는 방향으로 돌출하며, 상기 격벽장치와 결합되는 체결부를 가지는 제2파트를 포함할 수 있다.The mount bracket may include a first part coupled to the bottom panel; and a second part protruding from the first part in a direction toward the barrier rib device and having a fastening portion coupled to the barrier rib device.
상기 마운트 브라켓의 제2파트는 상기 제1송풍팬 및 상기 제2송풍팬이 배열되는 방향으로 이격되는 양 측단부를 가진다.The second part of the mount bracket has both side ends spaced apart in a direction in which the first blowing fan and the second blowing fan are arranged.
상기 양 측단부는, 상기 제1,2송풍팬 중 상기 제1송풍팬에 더 가깝게 위치되고 개방된 단부를 형성하는 제1측단부; 및 상기 제1,2송풍팬 중 상기 제2송풍팬에 더 가깝게 위치되고 차폐부를 형성하는 제2측단부를 포함할 수 있다.The both side ends may include first side ends positioned closer to the first blowing fan among the first and second blowing fans and forming open ends; and a second side end portion of the first and second blowing fans positioned closer to the second blowing fan and forming a shielding portion.
상기 제2측단부는 상기 차단벽을 정의할 수 있다.The second side end portion may define the blocking wall.
상기 차폐부는 상기 제1,2송풍팬으로부터 상기 토출부를 향하는 방향으로 리니어하게 연장되는 제1차폐파트 및 상기 제1차폐파트에서 경사지게 연장되는 제2차폐파트를 포함할 수 있다.The shielding part may include a first shielding part extending linearly from the first and second blowing fans toward the discharge unit, and a second shielding part inclinedly extending from the first shielding part.
상기 제1송풍팬은 제1주판 및 다수의 제1블레이드를 포함하고, 상기 제2송풍팬은 상기 제1주판을 마주보는 제2주판 및 다수의 제2블레이드를 포함하며, 상기 제1차폐파트의 연장선은 제2송풍팬의 제2주판을 만나도록 형성될 수 있다.The first blowing fan includes a first main plate and a plurality of first blades, the second blowing fan includes a second main plate and a plurality of second blades facing the first main plate, and the first shield part An extension of may be formed to meet the second main plate of the second blowing fan.
상기 제2송풍팬은 상기 제1,2송풍팬의 연결 축을 고정하기 위한 축 고정부 및 상기 축 고정부의 설치를 위하여 제2블레이드의 일부가 형성되지 않는 빈 공간을 정의하는 설치 공간부를 포함하고, 상기 제2차폐파트의 단부에서 상기 제2송풍팬을 향하여 연장한 선은 상기 설치 공간부를 지나는 것을 특징으로 한다.The second blowing fan includes a shaft fixing part for fixing the connecting shafts of the first and second blowing fans and an installation space defining an empty space in which a part of the second blade is not formed to install the shaft fixing part, , A line extending from the end of the second shielding part toward the second blowing fan passes through the installation space.
상기 마운트 브라켓의 제1측단부에서 상기 제1송풍팬을 향하여 연장한 선은 상기 제1송풍팬의 제1주판을 지나는 것을 특징으로 한다.A line extending from the first side end of the mount bracket toward the first blowing fan passes through the first main plate of the first blowing fan.
상기 마운트 브라켓의 내부공간에서, 상기 제2차폐파트의 일방향 폭은 상기 제1차폐파트의 일방향 폭보다 크게 형성되며, 상기 일방향은 상기 제1,2송풍팬이 배열되는 방향에 대응할 수 있다.In the inner space of the mount bracket, a width in one direction of the second shielding part is larger than a width in one direction of the first shielding part, and the one direction may correspond to a direction in which the first and second blowing fans are arranged.
상기 제1송풍팬 및 제2송풍팬은 원주 방향으로 공기를 흡입하여 원주 방향으로 공기를 배출하는 원심팬을 포함할 수 있다.The first blowing fan and the second blowing fan may include a centrifugal fan that sucks in air in a circumferential direction and discharges air in a circumferential direction.
본 발명의 실시예에 따르면, 가이드 장치를 구비하여 실내기에서 토출되는 기류를 안정적으로 가이드 할 수 있다.According to an embodiment of the present invention, airflow discharged from an indoor unit can be stably guided by providing a guide device.
본 발명의 실시예에 따르면, 상기 가이드 장치에 의하여 다수 개의 횡류팬에서 발생되는 토출기류가 서로 간섭되거나 횡류팬으로 재흡입되는 것을 방지할 수 있다.According to an embodiment of the present invention, it is possible to prevent discharge airflows generated from a plurality of crossflow fans from interfering with each other or being re-sucked into the crossflow fans by the guide device.
본 발명의 실시예에 따르면, 가로 방향으로 나란하게 배치되는 제1,2횡류팬이 제공되고, 제1,2횡류팬 사이의 영역에 가이드 장치를 배치하여 제1횡류팬에서 토출되는 기류가 제2횡류팬으로 재흡입되는 것을 방지할 수 있다.According to an embodiment of the present invention, first and second cross-flow fans are provided that are arranged side by side in a horizontal direction, and a guide device is disposed in an area between the first and second cross-flow fans so that the air flow discharged from the first cross-flow fan is controlled. 2 Re-inhalation can be prevented by the cross-flow fan.
본 발명의 실시예에 따르면, 제1횡류팬에서 토출되는 기류가 제2횡류팬을 향하지 않고 실내기의 토출부를 향하여 유동함으로써, 기류의 송풍팬 재흡입에 따른 소음 발생을 방지할 수 있다.According to an embodiment of the present invention, the airflow discharged from the first crossflow fan flows toward the discharge portion of the indoor unit instead of toward the second crossflow fan, thereby preventing the generation of noise due to re-intake of the airflow by the blower fan.
도 1은 본 발명의 실시예에 따른 천장형 실내기의 구성을 보여주는 저면도이다.
도 2는 본 발명의 실시예에 따른 천장형 실내기의 케이싱과 저면 패널이 분리된 모습을 보여주는 전방 분해 사시도이다.
도 3은 도 2의 "A" 부분을 확대한 도면이다.
도 4는 본 발명의 실시예에 따른 천장형 실내기의 케이싱과 저면 패널이 분리된 모습을 보여주는 후방 분해 사시도이다.
도 5는 도 4의 "B" 부분을 확대한 도면이다.
도 6은 본 발명의 실시예에 따른 천장형 실내기의 분해 사시도이다.
도 7은 도 1의 7-7'를 따라 절개한 단면도이다.
도 8은 본 발명의 실시예에 따른 제1,2횡송풍팬 및 상기 제1,2송풍팬의 사이 영역에 배치되는 마운트 브라켓을 보여주는 도면이다.
도 9는 본 발명의 실시예에 따른 제2송풍팬의 축 고정부에 인접하여 마운트 브라켓이 배치되는 모습을 보여주는 도면이다.
도 10은 본 발명의 실시예에 따른 마운트 브라켓의 구성을 보여주는 사시도이다.
도 11은 본 발명의 실시예에 따른 마운트 브라켓의 구성을 보여주는 저면도이다.
도 12는 본 발명의 실시예에 따른 마운트 브라켓의 구성을 보여주는 측면도이다.
도 13a는 본 발명의 실시예에 따른 마운트 브라켓과 대비하기 위하여, 대조군에 따라 차폐부를 구비하지 않는 마운트 브라켓의 구성을 보여주는 도면이다.

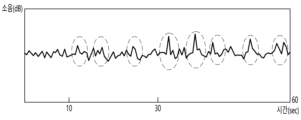

도 13b는 대조군에 따른 마운트 브라켓을 설치하고 제1,2송풍팬을 구동하였을 때 발생하는 소음 변화를 보여주는 실험 그래프이다.

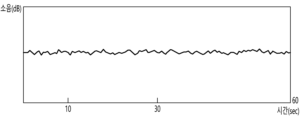

도 14는 본 발명의 실시예에 따른 마운트 브라켓을 설치하고 제1,2송풍팬을 구동하였을 때 발생하는 소음 변화를 보여주는 실험 그래프이다.
도 15a는 대조군과 본 발명의 실시예에 따른 마운트 브라켓을 설치하였을 때, 제1,2송풍팬의 회전수 대비 실내기의 풍량의 변화를 비교하여 보여주는 실험 그래프이다.
도 15b는 대조군과 본 발명의 실시예에 따른 마운트 브라켓을 설치하였을 때, 실내기의 풍량 대비 소음의 변화를 비교하여 보여주는 실험 그래프이다.
도 15c는 대조군과 본 발명의 실시예에 따른 마운트 브라켓을 설치하였을 때, 제1,2송풍팬의 회전수 대비 소음의 변화를 비교하여 보여주는 실험 그래프이다.1 is a bottom view showing the configuration of a ceiling type indoor unit according to an embodiment of the present invention.
2 is an exploded front perspective view showing a state in which a casing and a bottom panel of a ceiling type indoor unit according to an embodiment of the present invention are separated.
FIG. 3 is an enlarged view of part “A” in FIG. 2 .
4 is an exploded rear perspective view illustrating a state in which a casing and a bottom panel of a ceiling type indoor unit according to an embodiment of the present invention are separated.
FIG. 5 is an enlarged view of part “B” of FIG. 4 .
6 is an exploded perspective view of a ceiling type indoor unit according to an embodiment of the present invention.
7 is a cross-sectional view taken along line 7-7' in FIG. 1;
8 is a view showing first and second transverse blowing fans and a mount bracket disposed in a region between the first and second blowing fans according to an embodiment of the present invention.
9 is a view showing a state in which a mount bracket is disposed adjacent to a shaft fixing part of a second blowing fan according to an embodiment of the present invention.
10 is a perspective view showing the configuration of a mount bracket according to an embodiment of the present invention.
11 is a bottom view showing the configuration of a mount bracket according to an embodiment of the present invention.
12 is a side view showing the configuration of a mount bracket according to an embodiment of the present invention.
Figure 13a is a view showing the configuration of a mount bracket not provided with a shield according to the control group in order to contrast with the mount bracket according to an embodiment of the present invention.
13B is an experimental graph showing a change in noise generated when a mount bracket according to a control group is installed and first and second blower fans are driven.
14 is an experimental graph showing a change in noise generated when a mount bracket according to an embodiment of the present invention is installed and first and second blower fans are driven.
15A is an experimental graph showing a comparison of changes in air volume of an indoor unit with respect to revolutions of first and second blower fans when a control group and a mount bracket according to an embodiment of the present invention are installed.
15B is an experimental graph showing a comparison of changes in air volume versus noise of an indoor unit when a control group and a mount bracket according to an embodiment of the present invention are installed.
15C is an experimental graph showing a comparison of changes in noise versus rotation speed of first and second blower fans when a control group and a mount bracket according to an embodiment of the present invention are installed.
이하, 본 발명의 일부 실시 예들을 예시적인 도면을 통해 상세하게 설명한다. 도면의 구성요소들에 참조부호를 부가함에 있어서, 동일한 구성요소들에 대해서는 비록 다른 도면상에 표시되더라도 가능한 한 동일한 부호를 가지도록 하고 있음에 유의해야 한다. 또한, 본 발명의 실시 예를 설명함에 있어, 관련된 공지 구성 또는 기능에 대한 구체적인 설명이 본 발명의 실시 예에 대한 이해를 방해한다고 판단되는 경우에는 그 상세한 설명은 생략한다.Hereinafter, some embodiments of the present invention will be described in detail through exemplary drawings. In adding reference numerals to components in the drawings, it should be noted that the same components have the same numerals as much as possible even if they are displayed on different drawings. In addition, in describing an embodiment of the present invention, if it is determined that a detailed description of a related known configuration or function hinders understanding of the embodiment of the present invention, the detailed description will be omitted.
또한, 본 발명의 실시 예의 구성 요소를 설명하는 데 있어서, 제 1, 제 2, A, B, (a), (b) 등의 용어를 사용할 수 있다. 이러한 용어는 그 구성 요소를 다른 구성 요소와 구별하기 위한 것일 뿐, 그 용어에 의해 해당 구성 요소의 본질이나 차례 또는 순서 등이 한정되지 않는다. 어떤 구성 요소가 다른 구성요소에 "연결", "결합" 또는 "접속"된다고 기재된 경우, 그 구성 요소는 그 다른 구성요소에 직접적으로 연결되거나 접속될 수 있지만, 각 구성 요소 사이에 또 다른 구성 요소가 "연결", "결합" 또는 "접속"될 수도 있다고 이해되어야 할 것이다.Also, terms such as first, second, A, B, (a), and (b) may be used to describe components of an embodiment of the present invention. These terms are only used to distinguish the component from other components, and the nature, order, or order of the corresponding component is not limited by the term. When an element is described as being “connected,” “coupled to,” or “connected” to another element, that element may be directly connected or connected to the other element, but there may be another element between the elements. It should be understood that may be "connected", "coupled" or "connected".
도 1은 본 발명의 실시예에 따른 천장형 실내기의 구성을 보여주는 저면도이고, 도 2는 본 발명의 실시예에 따른 천장형 실내기의 케이싱과 저면 패널이 분리된 모습을 보여주는 전방 분해 사시도이고, 도 3은 도 2의 "A" 부분을 확대한 도면이고, 도 4는 본 발명의 실시예에 따른 천장형 실내기의 케이싱과 저면 패널이 분리된 모습을 보여주는 후방 분해 사시도이고, 도 5는 도 4의 "B" 부분을 확대한 도면이고, 도 6은 본 발명의 실시예에 따른 천장형 실내기의 분해 사시도이고, 도 7은 도 1의 7-7'를 따라 절개한 단면도이다.1 is a bottom view showing the configuration of a ceiling type indoor unit according to an embodiment of the present invention, and FIG. 2 is a front exploded perspective view showing a state in which a casing and a bottom panel of a ceiling type indoor unit according to an embodiment of the present invention are separated. FIG. 3 is an enlarged view of part “A” in FIG. 2 , FIG. 4 is an exploded rear perspective view showing a state in which a casing and a bottom panel of a ceiling type indoor unit according to an embodiment of the present invention are separated, and FIG. 5 is an exploded perspective view of FIG. FIG. 6 is an exploded perspective view of a ceiling type indoor unit according to an embodiment of the present invention, and FIG. 7 is a cross-sectional view taken along line 7-7' in FIG. 1 .
도 1 내지 도 7을 참조하면, 본 발명의 실시예에 따른 천장형 타입의 공기 조화기의 실내기(10, 이하 "천장형 실내기"라 칭함)는 천장에 매립되도록 설치될 수 있다.Referring to FIGS. 1 to 7 , an indoor unit 10 (hereinafter, referred to as “ceiling type indoor unit”) of a ceiling-type air conditioner according to an embodiment of the present invention may be installed to be buried in the ceiling.
상기 천장형 실내기(10)는 케이싱(110) 및 저면 패널(120)을 포함할 수 있다.The ceiling type
상기 케이싱(110)은 상기 천장의 내부공간에 매립되며, 상기 저면 패널(120)은 상기 케이싱(110)의 하측에 결합될 수 있다. 상기 저면 패널(120) 대략 천장의 높이에 위치되어 외부에 노출될 수 있다. The
상기 저면 패널(120)은 하방에서 바라볼 때 대략 직사각형 형상을 가지는 패널 본체(121)를 포함할 수 있다. 상기 패널 본체(121)는 상기 케이싱(110)의 하단보다 더 외측으로 돌출되도록 형성되어 둘레부가 상기 천장의 하면과 접하도록 구성될 수 있다.The
상기 패널 본체(121)는 공기가 흡입되는 영역을 정의하는 개구부(123)를 형성할 수 있다. The
상기 저면 패널(120)에는, 실내공간의 공기를 흡입하기 위한 흡입부(135)를 형성하는 흡입 그릴(130)이 장착될 수 있다. 상기 흡입 그릴(130)은 상기 개구부(123)를 덮도록 배치되며, 상기 흡입부(135)는 상기 개구부(123)와 대응하는 위치에 형성될 수 있다.A
상기 흡입 그릴(130)은 상기 저면 패널(120)에 분리 가능하게 결합될 수 있다. The
상기 흡입 그릴(130)에는, 상기 흡입부(135)를 통한 이물 유입을 방지하기 위한 그릴부(136)가 제공될 수 있다.A
상기 흡입부(135)는 상기 저면 패널(120) 또는 흡입 그릴(130)의 가로방향으로 길게 형성될 수 있다.The
상기 저면 패널(120)에는, 실내공간으로 공기를 토출하기 위한 토출부(122)가 형성될 수 있다. 상기 토출부(122)는 상기 저면 패널(120)의 가로 방향으로 길게 형성될 수 있다.A
상기 천장형 실내기(10)는 상기 토출부(122)의 일측에 움직임 가능하게 제공되어 상기 토출부(122)를 통하여 토출되는 공기의 양 또는 풍향을 조절할 수 있는 토출베인(125)을 더 포함할 수 있다.The ceiling type
상기 토출베인(125) 상기 토출부(122)를 개방 또는 폐쇄하도록 움직일 수 있다. 상기 토출베인(125)은 상기 저면 패널(120)에 지지될 수 있다.The
상기 토출베인(125)의 측방에는 상기 토출베인(125)을 구동하기 위한 베인 모터(미도시) 및 상기 베인 모터의 구동에 따라 회전하는 베인 링크(125a)가 제공될 수 있다. 상기 토출베인(125)은 상기 베인 링크(125a)에 결합될 수 있다.A vane motor (not shown) for driving the
상기 토출베인(125)의 내측면에는 상기 토출베인(125)을 저면 패널(120)에 지하는 베인지지부(125b)가 제공될 수 있다. 상기 베인지지부(125b)는 다수 개가 구비될 수 있다.A
상기 천장형 실내기(10)는 토출기류의 방향을 좌우 방향으로 제어하는 루버(126)를 포함할 수 있다. 상기 루버(126)는 상기 저면 패널(120)에 지지될 수 있다.The ceiling type
상기 루버(126)는 가로 방향으로 이격하여 다수 개가 제공될 수 있다.A plurality of the
상기 루버(126)는 수직선을 기준으로 좌우 방향으로 회전되어 토출기류의 좌우 방향을 제어할 수 있다. 상기 다수의 루버(126)는 루버 바아(126a)에 연결되며, 상기 루버 바아(126a)의 움직임에 따라 함께 회전할 수 있다. 상기 토출부(122)의 측방에는, 상기 루버 바아(126a)에 구동력을 제공하는 루버 모터(미도시)가 제공될 수 있다.The
도 1을 기준으로, 저면 패널(120)의 하단부측을 "전방부", 상단부측을 "후방부"라 정의한다. 상기 흡입부(135)는 상기 저면 패널(120)의 전방부에 형성되고, 상기 토출부(122)는 상기 저면 패널(120)의 후방부에 형성될 수 있다.Referring to FIG. 1 , the lower end side of the
제1,2송풍팬(143,145, 도 6 참조)이 구동하면, 실내공간의 공기는 상기 흡입부(135)을 통하여 상기 케이싱(100)의 내부로 흡입되고 열교환기(150, 도 6 참조)에서 열교환 된다. 상기 열교환기(150)를 통과한 공기는 상기 제1,2송풍팬(143,145)의 외주면을 따라 유동하며, 저면 패널(120)의 토출부(122)를 통하여 배출될 수 있다.When the first and second blowing
상기 케이싱(110)과 저면 패널(120)이 이루는 실내기의 내부 공간에는, 다수의 부품이 설치될 수 있다. A number of parts may be installed in the inner space of the indoor unit formed by the
상기 다수의 부품에는, 실내공기의 흡입 및 토출을 위하여 구동하는 팬 어셈블리(140)를 포함할 수 있다.The plurality of components may include a
상기 팬 어셈블리(140)는 구동력을 발생시키는 팬 모터(141) 및 송풍팬(143,145)을 포함할 수 있다. 상기 팬 모터(141)는 상기 송풍팬(143,145)의 측방에 배치될 수 있다. 상기 팬 모터(141)와 상기 송풍팬(143,145)은 축 결합될 수 있다.The
상기 송풍팬(143,145)은 다수의 송풍팬을 포함할 수 있다. 일례로, 상기 다수의 송풍팬은 제1송풍팬(143) 및 제2송풍팬(145)을 포함할 수 있다.The blowing
상기 제1,2송풍팬(143,145)은 좌우 방향으로 나란하게 배치될 수 있다.The first and second blowing
상기 제1,2송풍팬(143,145)은 원주 방향으로 공기를 흡입하여 원주 방향으로 배출하는 횡류팬을 포함할 수 있다.The first and second blowing
상기 제1,2송풍팬(143,145)은 연결 축(146,도 8 참조)에 의하여 연결되어 함께 회전할 수 있다. 상기 연결 축(146)은 상기 제1송풍팬(143)과 제2송풍팬(145)의 사이에 제공되며, 상기 제1송풍팬(143)으로부터 좌우 방향으로 연장하여 상기 제2송풍팬(145)에 결합될 수 있다.The first and second blowing
상기 다수의 부품에는, 상기 케이싱(110)의 내부로 흡입된 공기와 열교환되는 열교환기(150)가 포함된다. 상기 열교환기(150)는 상기 저면 패널(120)에 대하여 상방으로 경사지게 연장되며, 공기 유동을 기준으로 팬 어셈블리(140)의 흡입측에 배치될 수 있다.The plurality of parts include a
상기 열교환기(150)의 하측에는, 응축수를 집수하기 위한 드레인 팬(155)이 제공될 수 있다.A
상기 다수의 부품은 상기 열교환기(150)의 하측에 배치되는 스테빌라이저(170)를 포함할 수 있다. 상기 스테빌라이저(170)는 제1,2송풍팬(143,145)의 외주면을 바라보도록 배치될 수 있다.The plurality of components may include a
상기 스테빌라이저(170)는 상기 제1,2송풍팬(143,145)의 토출측에 배치되며, 상기 제1,2송풍팬(143,145의 내부에서 안정적인 편심와류가 발생되도록 하여 토출유동 성능을 개선시키기 위한 부품으로서 이해될 수 있다.The
상기 스테빌라이저(170)는 상기 제1,2송풍팬(143,145)의 하단부측에 인접하여 배치될 수 있다. 상세히, 상기 스테빌라이저(170)는 상기 제1,2송풍팬(143,145)의 토출측에서 상기 제1,2송풍팬(143,145)의 외주면과 이격되게 설치되어, 상기 제1,2송풍팬(143,145)에서 토출된 공기가 상기 열교환기(150) 측으로 역류하는 것을 방지할 수 있다.The
상기 스테빌라이저(170)와 상기 제1,2송풍팬(143,145)의 외주면 사이에는 상대적으로 작은 공간이 형성될 수 있다. 그리고, 상기 스테빌라이저(170)는 상기 제1,2송풍팬(143,145)의 축 방향을 따라 길게 연장될 수 있다.A relatively small space may be formed between the
상기 스테빌라이저(170)는 드레인 공간을 형성할 수 있다. 상세히, 상기 상기 스테빌라이저(170)의 상면은 하방으로 함몰되는 형상을 가지며, 상기 함몰된 공간은 상기 열교환기(150)에서 발생되는 응축수를 집수하는 드레인 공간(170a)을 형성할 수 있다.The
상기 드레인 공간(170a)에는, 경사지게 배치되는 열교환기(150)의 최하단부가 위치할 수 있다. 상기 드레인 팬(155)은 상기 열교환기(150)의 중앙부 및 상부의 하측에 위치할 수 있다.In the
상기 다수의 부품은 상기 케이싱(110)의 내측면에 제공되며, 상기 제1,2송풍팬(143,145)의 외주면 일부를 감싸는 리어 가이드(160)를 더 포함할 수 있다.The plurality of components may further include a
상기 리어 가이드(160)는 상기 제1,2송풍팬(143,145)으로 흡입된 기류를 토출부(122)측으로 가이드 하는 유동 가이드로서 기능한다.The
상기 리어 가이드(160)는 상기 케이싱(110)의 상부 내측면에 배치되는 제1가이드파트(161)를 포함할 수 있다. 상기 제1가이드파트(161)는 리니어한 플레이트 형상을 가질 수 있다.The
상기 리어 가이드(160)는 상기 제1가이드파트(161)에서 실내기의 후방부를 향하여 라운드지게 연장되는 제2가이드파트(165)를 포함할 수 있다. The
상기 제2가이드파트(165)는 라운드지게 연장되는 가이드 리브(168)를 포함할 수 있다. 상기 가이드 리브(168)는 상기 제2가이드파트(165)의 일면에서 돌출하여 기류를 가이드 하는 가이드 리브(168)를 포함할 수 있다. 상기 제2가이드파트(165)의 일면은 상기 제1,2송풍팬(143,145)의 외주면을 바라보는 면으로서 이해될 수 있다. 상기 가이드 리브(168)는 좌우 방향으로 다수 개가 제공될 수 있다.The
상기 다수의 부품은 상기 흡입 그릴(130)의 내측에 배치되어 공기 중 이물을 필터링 하는 필터(180)를 더 포함할 수 있다. 상기 필터(180)는 상기 열교환기(150)의 유입측에 배치될 수 있다.The plurality of parts may further include a
상기 다수의 부품은 상기 천장형 실내기(10)의 작동을 제어하는 PCB 장치(190)를 더 포함할 수 있다. 상기 PCB 장치(190)는 상기 흡입 그릴(130)을 통하여 흡입되는 공기가 상기 열교환기(150)로 유입되는 경로에 배치될 수 있다. 상기 PCB 장치(190)는 상기 공기에 의하여 냉각될 수 있다.The plurality of components may further include a
상기 천장형 실내기(10)는 상기 제1,2송풍팬(143,145)을 통과한 공기가 상기 토출부(122)로 안정적으로 유동할 수 있도록 안내하는 가이드 장치(210,250)를 더 포함할 수 있다.The ceiling type
상기 가이드 장치(210,250)는 상기 제1,2송풍팬(143,145)의 토출영역을 분리시키는 격벽장치(210)를 포함할 수 있다.The
상기 격벽장치(210)는 상기 케이싱(110)에 구비될 수 있다.The
상기 격벽장치(210)는 상기 리어 가이드(160)의 내측면에 접하거나 인접하게 배치될 수 있다. 일례로, 상기 격벽장치(210)는 제2가이드파트(165)의 내측면에 접하거나 인접하게 배치될 수 있다.The
상기 격벽장치(210)는 상기 다수의 가이드 리브(168) 중 2개의 가이드 리브(168)의 사이 공간에 배치될 수 있다.The
상기 격벽장치(210)는 상기 제1,2송풍팬(143,145)의 사이에 제공되어, 상기 제1송풍팬(143)의 토출영역과 상기 제2송풍팬(145)의 토출영역을 분리시킬 수 있다. 상기 격벽장치(210)에 의하여, 상기 제1송풍팬(143) 및 제2송풍팬(145) 중 어느 하나의 송풍팬에서 토출되는 공기가 다른 하나의 송풍팬측으로 유동하는 현상을 줄일 수 있다.The
상기 격벽장치(210)는 상기 제1,2송풍팬(143,145)의 사이에 제공되는 격벽 플레이트(211)를 포함할 수 있다. 상기 제1,2송풍팬(143,145)을 흡입측 영역 및 토출측 영역으로 구분하였을 때, 상기 격벽 플레이트(211)는 상기 제1,2송풍팬(143,145)의 토출측 영역 사이에 배치되도록 반 원판의 형상을 가질 수 있다.The
상기 격벽장치(210)는 상기 격벽 플레이트(211)에서 상기 리어 가이드(160)의 내측면을 향하는 방향으로 돌출하는 브라켓 체결부(213)를 더 포함할 수 있다. 상기 브라켓 체결부(213)는 상기 리어 가이드(160)의 내측면, 즉 제2가이드파트(165)의 내측면에 접하거나 인접하도록 배치될 수 있다.The
상기 브라켓 체결부(213)는 마운트 브라켓(250)과 결합될 수 있다. 상기 브라켓 체결부(213)에는 브라켓 체결홀(214)이 형성되며, 소정의 체결부재는 상기 브라켓 체결홀(214)에 삽입되어 상기 마운트 브라켓(250)에 체결될 수 있다.The
상기 격벽장치(210)와 상기 마운트 브라켓(250)이 결합되면, 상기 상기 마운트 브라켓(250)은 상기 격벽장치(210)로부터 토출부(122)를 향하는 방향으로 연장될 수 있다.When the
상기 가이드 장치(210,250)는 제1송풍팬(143)에서 토출된 공기가 제2송풍팬(145)으로 재흡입되는 것을 방지하도록, 토출기류를 토출부(122)측으로 가이드 하는 마운트 브라켓(250)을 더 포함할 수 있다.The
상기 마운트 브라켓(250)은 상기 저면 패널(120)에 구비되며, 상기 저면 패널(120)로부터 상기 격벽장치(210)를 향하는 방향으로 연장될 수 있다.The
상기 마운트 브라켓(250)은 상기 다수의 루버(126) 중 2개의 루버(126)의 사이 공간에 배치될 수 있다.The
상기 마운트 브라켓(250)은 상기 제1,2송풍팬(143,145)의 각 토출측 공간의 사이에 제공될 수 있다. 상기 제1,2송풍팬(143,145)의 각 토출측 공간은 상기 제1,2송풍팬(143,145)의 토출측 외주면과 실내기의 토출부(122) 사이의 공간으로서 이해될 수 있다.The
상기 마운트 브라켓(250)은 상기 제1송풍팬(143)의 제1토출측 공간과 상기 제2송풍팬(145)의 제2토출측 공간의 사이에 배치될 수 있다.The
상기 마운트 브라켓(250)은 저면 패널(120)에 체결될 수 있다.The
상기 마운트 브라켓(250)은 상기 저면 패널(120)의 제1부분에 체결되는 제1파트(251)를 포함할 수 있다. The
상기 제1파트(251)에는, 상기 저면 패널(120)의 패널 브라켓(124)에 체결될 수 있는 제1패널체결부(251a)를 포함할 수 있다. 소정의 체결부재는 상기 제1패널체결부(251a)에 삽입되어 상기 패널 브라켓(124)에 체결될 수 있다. 일례로, 상기 패널 브라켓(124)은 상기 저면 패널(120)의 이면에서 후방으로 돌출하도록 구성될 수 있다.The
상기 마운트 브라켓(250)은 상기 제1파트(251)에서 상기 격벽장치(210) 또는 상기 제1,2송풍팬(143,145)을 향하는 방향으로 돌출하는 제2파트(252)를 포함할 수 있다.The
상기 제2파트(252)는 절곡된 형상을 가질 수 있다. 상기 제2파트(252)는 상기 제1파트(251)로부터 상기 격벽장치(210)를 향하여 상 방향으로 연장되는 일 부분 및 상기 일 부분으로부터 가로 방향으로 걸곡하며 상기 격벽장치(210)와 결합되는 결합면을 가지는 타 부분을 포함할 수 있다.The
상기 타 부분은 상기 격벽장치(210)의 브라켓 체결부(213)에 체결되는 격벽체결홀(254)을 형성할 수 있다. 소정의 체결부재는 상기 격벽 체결홀(254)에 삽입되어 상기 브라켓 체결홀(214)에 결합될 수 있다.The other part may form a partition
상기 마운트 브라켓(250)은 상기 제2파트(252)에서 저면 패널(120)을 향하는 방향으로 절곡하여 상기 저면 패널(120)에 결합되는 제3파트(253)를 더 포함할 수 있다.The
상기 제1,3파트(251,253)는 상기 마운트 브라켓(250)을 상기 저면 패널(120)에 지지하기 위한 "지지 레그"를 형성하는 것으로 이해될 수 있다. 상기 제2파트(252)는 상기 마운트 브라켓(250)을 상기 격벽장치(210)에 결합시키기 위한 "결합 브라켓"을 형성하는 것으로 이해될 수 있다.It may be understood that the first and
상기 마운트 브라켓(250)은 상기 제1송풍팬(143)에서 토출되는 공기가 상기 제2송풍팬(145)의 흡입측으로 재흡입되는 것을 방지하는 "차단벽"으로서의 차폐부(255)를 더 포함할 수 있다.The
상기 차폐부(255)는 상기 제1송풍팬(143)의 하측에 정의되는 제1토출공간과, 상기 제2송풍팬(145)의 하측에 정의되는 제2토출공간의 사이에 배치되어, 상기 제1토출공간과 상기 제2토출공간을 분리시키는 기능을 수행할 수 있다.The shielding
상기 차폐부(255)는 상기 제1송풍팬(143)에서 토출되는 기류가 상기 제2송풍팬(145)의 흡입측을 향하여 가로 방향으로 유동하는 것을 차단하며, 공기는 상기 차폐부(255)의 면을 따라 하방으로 유동하여 상기 토출부(122)를 통하여 배출될 수 있다.The shielding
상기 차폐부(255)는 상기 마운트 브라켓(250)의 일 측면을 형성할 수 있다.The shielding
상기 일 측면은 상기 마운트 브라켓(250) 중 상하 방향으로 리니어 하게 또는 절곡하여 연장되는 측면으로서 이해될 수 있다.The one side may be understood as a side of the
도 8은 본 발명의 실시예에 따른 제1,2횡류팬 및 상기 제1,2횡류팬의 사이 영역에 배치되는 마운트 브라켓을 보여주는 도면이고, 도 9는 본 발명의 실시예에 따른 제2횡류팬의 축 고정부에 인접하여 마운트 브라켓이 배치되는 모습을 보여주는 도면이고, 도 10은 본 발명의 실시예에 따른 마운트 브라켓의 구성을 보여주는 사시도이고, 도 11은 본 발명의 실시예에 따른 마운트 브라켓의 구성을 보여주는 저면도이고, 도 12는 본 발명의 실시예에 따른 마운트 브라켓의 구성을 보여주는 측면도이다.8 is a view showing first and second cross-flow fans according to an embodiment of the present invention and a mount bracket disposed in an area between the first and second cross-flow fans, and FIG. 9 is a view showing a second cross-flow fan according to an embodiment of the present invention. It is a view showing a mount bracket disposed adjacent to a shaft fixing part of a fan, FIG. 10 is a perspective view showing a configuration of a mount bracket according to an embodiment of the present invention, and FIG. 11 is a mount bracket according to an embodiment of the present invention. A bottom view showing the configuration of, Figure 12 is a side view showing the configuration of the mount bracket according to an embodiment of the present invention.
도 8 내지 도 12를 참조하면, 본 발명의 실시예에 따른 마운트 브라켓(250)은 제1,2송풍팬(143,145)의 토출측 영역(D2,D2)에 배치될 수 있다.Referring to FIGS. 8 to 12 , the
상기 마운트 브라켓(250)은 상기 제1송풍팬(143)의 토출측 영역(D1)과 상기 제2송풍팬(143)의 토출측 영역(D2)의 사이에 배치될 수 있다.The
상기 마운트 브라켓(250)은 저면 패널(120)에 지지되며, 격벽장치(210)에 결합하도록 구성될 수 있다.The
상기 제1송풍팬(143)은 연결축(146)이 결합되는 제1주판(143a)을 포함할 수 있다. 상기 제2송풍팬(145)은 상기 연결축(146)이 결합되는 제2주판(145a)을 포함할 수 있다.The
상기 제1,2주판(143a,145b)은 서로 마주보도록 배치될 수 있다.The first and second
상기 제1,2주판(143a,145a)은 가로 방향으로 이격하여 배치되며, 상기 연결축(146)은 상기 제1,2주판(143a,145a)의 사이에서 가로 방향으로 연장될 수 있다.The first and second
상기 제1송풍팬(143)은 상기 제1주판(143a)으로부터 가로 방향으로 이격되는 제1지지판(143b)을 더 포함할 수 있다. 상기 제1지지판(143b)은 다수 개가 가로 방향으로 이격하여 배치될 수 있다.The
상기 제1송풍팬(143)은 상기 제1주판(143a)과 상기 제1지지판(43b)의 사이, 그리고, 인접한 2개의 제1지지판(143b)의 사이에 배치되는 다수의 제1블레이드(143c)를 포함할 수 있다.The
상기 다수의 제1블레이드(143c)는 제1송풍팬(143)의 원주 방향으로 배열될 수 있다.The plurality of
상기 다수의 제1블레이드(143c)는 상기 제1송풍팬(143)에서 토출되는 기류가 편향되어 형성될 수 있도록, 가로방향으로 연장되는 가상의 연장선(ℓ1)을 기준으로 경사지게 배치될 수 있다. The plurality of
일례로, 도 8을 기준으로, 상기 다수의 제1블레이드(143c)는 상기 연장선(ℓ1)을 기준으로 제1설정각도(θ1) 만큼 우상향으로 경사지게 배치될 수 있다. 이와 같은 구성에 의하여, 상기 제1송풍팬(143)에서 토출되는 기류는 상기 제1송풍팬(143)의 직하방이 아니라, 우측 하방을 향할 수 있다. 이 때, 상기 제2송풍팬(145)은 상기 제1송풍팬(143)의 우측에 배치된다.For example, referring to FIG. 8 , the plurality of
이러한 편향된 기류가 형성될 경우, 제1송풍팬(143)에서 발생되는 소음이 저감될 수 있다.When such a deflected air flow is formed, noise generated from the first blowing
상기 제2송풍팬(145)은 제1송풍팬에서 설명한 제1지지판(143b)과 제1블레이드(143c)와 동일한 구성인, 제2지지판(미도시) 및 다수의 제2블레이드(145c)를 포함할 수 있다.The
상기 다수의 제2블레이드(145c)는 상기 제2송풍팬(145)에서 토출되는 기류가 편향되어 형성될 수 있도록, 가로방향으로 연장되는 가상의 연장선(ℓ1)을 기준으로 경사지게 배치될 수 있다. The plurality of
일례로, 도 8을 기준으로, 상기 다수의 제2블레이드(145c)는 상기 연장선(ℓ1)을 기준으로 우상향으로 경사지게 배치될 수 있다. 이와 같은 구성에 의하여, 상기 제2송풍팬(145)에서 토출되는 기류는 상기 제2송풍팬(145)의 직하방이 아니라, 우측 하방을 향할 수 있다.For example, referring to FIG. 8 , the plurality of
이러한 편향된 기류가 형성될 경우, 제2송풍팬(145)에서 발생되는 소음이 저감될 수 있다.When such a deflected air flow is formed, noise generated from the
상기 제2송풍팬(145)는, 상기 연결축(146)을 안정적으로 고정하기 위한 축 고정부(147)를 더 포함할 수 있다. 상기 축 고정부(147)는 상기 제2주판(145a)의 내측에 위치할 수 있다.The
상기 축 고정부(147)의 적어도 일부분이 배치되는 공간이 확보될 수 있도록 상기 제2송풍팬(145)는 다수의 블레이드 중 일부의 블레이드가 배치되지 않는 빈 공간(145f)을 형성할 수 있다. 상기 빈 공간(145f)은 "설치공간부"로 정의될 수 있다.The
상기 빈 공간(145f)은 제1연장판(145d), 제2연장판(145e) 및 블레이드(145c)에 의하여 정의될 수 있다. 상기 제1연장판(145d)은 상기 제2주판(145a)으로부터 상기 제1주판(143a)에 대하여 멀어지는 방향으로 연장될 수 있다.The
상기 제2연장판(145e)은 상기 제1연장판(145d)으로부터 교차하는 방향으로 연장될 수 있다. 일례로, 상기 제2연장판(145e)은 상기 제2주판(145a)에 대략 평행한 방향으로 연장될 수 있다.The
상기 제1,2송풍팬(143,145)이 구동할 때, 상기 빈 공간(145f)에 기류가 유입되는 경우 서징 유동이 발생되고 그에 따라 소음이 크게 발생될 우려가 나타난다.When the first and second blowing
특히, 상기 제1송풍팬(143)에서 토출된 기류가 상기 제2송풍팬(145)의 빈 공간(145f)으로 유입되는 경우, 이러한 현상이 심하게 나타날 수 있다.In particular, when the airflow discharged from the first blowing
이러한 현상을 방지하기 위하여, 상기 제1송풍팬(143)에서 토출되는 공기가 상기 제2송풍팬(145)으로 유동할 수 있는 경로에 마운트 브라켓(250)을 설치할 수 있다.To prevent this phenomenon, a
상기 마운트 브라켓(250)은 저면 패널(120)에 체결되는 제1파트(251) 및 제3파트(253)를 포함할 수 있다. 상기 제1파트(251,253)에는 상기 저면 패널(120)에 체결되는 제1패널체결부(251a)가 형성되고, 상기 제3파트(253)에는 상기 저면 패널(120)에 체결되는 제2패널체결부(253a)가 형성될 수 있다.The
상기 제1파트(251)는 상기 마운트 브라켓(250)의 후방부를 형성하며, 상기 제3파트(253)는 상기 마운트 브라켓(250)의 전방부를 형성할 수 있다.The
상기 마운트 브라켓(250)은 상기 격벽장치(210)와 체결되는 제2파트(252)를 포함할 수 있다. 상기 제2파트(252)는 상기 마운트 브라켓(250)의 상면부를 형성할 수 있다. 상기 제2파트(252)에는 격벽체결홀(254)이 형성될 수 있다.The
상기 마운트 브라켓(250)의 양측단부는 제1,2송풍팬(143,145)이 배열되는 가로 방향으로 이격되어 형성될 수 있다.Both ends of the
상기 마운트 브라켓(250)의 양측단부 중 상기 제2송풍팬(145)보다 상기 제1송풍팬(143)에 더 인접한 측단부는 제1측단부(257a)를 형성한다.Among both ends of the
상기 제1측단부를 전방으로 연장하였을 때, 상기 제1측단부의 연장선은 제1송풍팬(143)의 제1주판(143a)을 만나도록 형성될 수 있다. 즉, 좌우 방향을 기준으로 상기 제1측단부의 연장선과 제1주판은 동일선상에 위치할 수 있다.When the first side end portion is extended forward, an extension line of the first side end portion may be formed to meet the first
상기 제1측단부(257a)는 개방된 단부를 형성할 수 있다. The
상기 제1송풍팬(143)의 경사진 블레이드(143c)의 배치에 의하여, 상기 제1송풍팬(143)에서 토출되는 기류는 상기 제1측단부(257a)를 향하는 방향으로 유동하며, 상기 개방된 제1측단부(257a)를 통하여 마운트 브라켓(250)의 내부로 유입될 수 있다.Due to the arrangement of the
상기 마운트 브라켓(250)의 양측단부 중 상기 제1송풍팬(143)보다 상기 제2송풍팬(145)에 더 인접한 측단부는 제2측단부(257b)를 형성한다.Among both ends of the
상기 제2측단부(257b)는 닫혀진 단부를 형성할 수 있다. 상기 닫혀진 단부는 공기의 유동이 통과하지 못하도록 차단벽을 정의하는 차폐부(255)를 형성할 수 있다.The second
상기 차폐부(255)는 하방으로 리니어하게 연장되는 제1차폐파트(255a) 및 상기 제1차폐파트(255a)에서 경사지게 연장되는 제2차폐파트(255)를 포함할 수 있다.The shielding
상기 제1차폐파트(255a)를 전방으로 연장하였을 때, 상기 제1차폐파트(255a)의 연장선은 제2송풍팬(145)의 제2주판(145a)을 만나도록 형성될 수 있다. 즉, 좌우 방향을 기준으로 상기 제1차폐파트의 연장선과 제2주판은 동일선상에 위치할 수 있다.When the
상기 제2차폐파트(255b)는 상기 제1차폐파트(255a)로부터 상기 제1주판(143a)에서 멀어지는 방향으로 하방 경사지게 연장될 수 있다. The
상기 제2차폐파트(255b)의 하단부를 전방으로 연장하였을 때, 상기 제2차폐파트(255b)의 연장선은 상기 빈 공간(145f)을 지나도록 형성될 수 있다. 일례로 좌우 방향을 기준으로, 상기 제2차폐파트(255b)의 연장선은 빈 공간(145f)를 정의하는 제2연장판(145e)과 동일선상에 위치할 수 있다.When the lower end of the
상기 제2차폐파트(255b)가 형성되는 위치에서 상기 마운트 브라켓(250)의 내부공간 좌우폭은 상기 제1차폐파트(255a)가 형성되는 위치에서 상기 마운트 브라켓(250)의 내부공간 좌우폭보다 크게 형성될 수 있다.The left and right widths of the inner space of the
상기 제1측단부(257a)를 통하여 상기 마운트 브라켓(250)의 내부로 유입된 공기는 상기 차폐부(255)에 의하여 상기 제2송풍팬(145)측으로 유동하는 것이 방지될 수 있다. 공기는 상기 제1차폐파트(255a) 및 제2차폐파트(255b)에 의하여 가이드 되어 저면 패널(120)의 토출부(122) 측으로 유동할 수 있다.Air introduced into the
이와 같이, 상기 제1송풍팬(143)에서 토출된 공기는 상기 제2송풍팬(145)측, 특히 상기 빈 공간(145f)이 형성된 영역으로 재흡입되지 않으므로 서징 유동이 발생하는 것을 방지할 수 있다. 결국, 제2송풍팬(145) 측에서 소음이 발생되는 것이 발생될 수 있다. In this way, since the air discharged from the first blowing
도 13a는 본 발명의 실시예에 따른 마운트 브라켓과 대비하기 위하여, 대조군에 따라 차폐부를 구비하지 않는 마운트 브라켓의 구성을 보여주는 도면이고, 도 13b는 대조군에 따른 마운트 브라켓을 설치하고 제1,2횡류팬을 구동하였을 때 발생하는 소음 변화를 보여주는 실험 그래프이고, 도 14는 본 발명의 실시예에 따른 마운트 브라켓을 설치하고 제1,2횡류팬을 구동하였을 때 발생하는 소음 변화를 보여주는 실험 그래프이다.13a is a view showing the configuration of a mount bracket not provided with a shield according to a control group in order to contrast with a mount bracket according to an embodiment of the present invention, and FIG. 13b is a view showing a mount bracket according to a control group installed and first and
도 13a는 본 발명의 실시예에 따른 마운트 브라켓에서, 차폐부가 제공되지 않는 구조, 즉 마운트 브라켓의 양측단부가 모두 개방된 형상을 가지는 마운트 브라켓(대조군)의 구조를 보여준다.13A shows a structure in which a shield is not provided in the mount bracket according to an embodiment of the present invention, that is, a structure in which both ends of the mount bracket have an open shape (control group).
도 13b는 이러한 대조군에 따른 마운트 브라켓을 천장형 실내기에 설치한 후 제1,2송풍팬을 구동하였을 때, 시간 경과에 따라 발생하는 소음의 변화를 보여준다.13B shows a change in noise generated over time when the first and second blower fans are driven after the mount bracket according to the control group is installed in the ceiling type indoor unit.
도 13b를 참조하면, 시간의 경과에 따라 불규칙한 주기로 소음(풍절음)의 크기가 크게 상승하는 구간(점선 구간)이 존재함을 알 수 있다. 이러한 소음 발생은 제품의 신뢰성을 떨어뜨리고 사용자가 불편함을 느낄 수 있다.Referring to FIG. 13B , it can be seen that there is a section (dotted line section) in which the size of noise (wind noise) greatly increases at irregular intervals with the lapse of time. The generation of such noise may decrease the reliability of the product and cause discomfort to the user.
반면에, 도 14는 본 발명의 실시예에 따른 마운트 브라켓을 천장형 실내기에 설치한 후 제1,2송풍팬을 구동하였을 때, 시간 경과에 따라 발생하는 소음의 변화를 보여준다.On the other hand, FIG. 14 shows a change in noise generated over time when the first and second blower fans are driven after the mount bracket according to the embodiment of the present invention is installed in the ceiling type indoor unit.
도 14를 참조하면, 시간의 경과에 따라 소음의 크기가 크게 변화하지 않으면서 대체로 일정하게 형성됨을 알 수 있다. 이와 같이 소음의 변동이 크지 않으면, 제품의 신뢰성을 높이고 사용자가 안락함을 느낄 수 있다.Referring to FIG. 14 , it can be seen that the level of noise is formed substantially constant with the lapse of time without greatly changing. In this way, if the change in noise is not large, the reliability of the product can be increased and the user can feel comfortable.
도 15a는 대조군과 본 발명의 실시예에 따른 마운트 브라켓을 설치하였을 때, 제1,2송풍팬의 회전수 대비 실내기의 풍량의 변화를 비교하여 보여주는 실험 그래프이고, 도 15b는 대조군과 본 발명의 실시예에 따른 마운트 브라켓을 설치하였을 때, 실내기의의 풍량 대비 소음의 변화를 비교하여 보여주는 실험 그래프이고, 도 15c는 대조군과 본 발명의 실시예에 따른 마운트 브라켓을 설치하였을 때, 제1,2송풍팬의 회전수 대비 소음의 변화를 비교하여 보여주는 실험 그래프이다.15A is an experimental graph showing a comparison of changes in air volume of an indoor unit versus rotational speed of first and second blowing fans when a control group and a mount bracket according to an embodiment of the present invention are installed, and FIG. When the mount bracket according to the embodiment is installed, it is an experimental graph showing a comparison of the change in air volume versus noise of the indoor unit, and FIG. This is an experimental graph showing the comparison of the change in noise versus the number of revolutions of the blowing fan.
먼저, 도 15a를 참조하면, 제1,2송풍팬의 회전수가 증가함에 따라 대조군 및 본 발명에 따른 실내기의 풍량은 증가하도록 형성된다.First, referring to FIG. 15A, as the number of revolutions of the first and second blowing fans increases, the air volume of the control group and the indoor unit according to the present invention increases.
상기 회전수가 증가함에 따라, 본 발명에 따른 실내기의 풍량은 대조군에서의 실내기의 풍량보다 크게 형성될 수 있다. 이는, 마운트 브라켓의 차폐부에 의하여, 제1송풍팬에서 토출되는 기류가 제2송풍팬으로 재흡입되는 것을 방지함으로써 송풍량이 증가됨을 알 수 있다.As the number of revolutions increases, the air volume of the indoor unit according to the present invention may be greater than that of the indoor unit in the control group. It can be seen that the amount of air blown increases by preventing the airflow discharged from the first blower fan from being re-sucked into the second blower fan by the shielding part of the mount bracket.
도 15b를 참조하면, 실내기의 풍량이 증가함에 따라 대조군 및 본 발명에 따른 실내기의 소음은 증가하도록 형성된다.Referring to FIG. 15B, as the air volume of the indoor unit increases, the noise of the control unit and the indoor unit according to the present invention increases.
상기 실내기의 풍량이 증가함에 따라, 본 발명에 따른 실내기의 소음은 대조군에서의 실내기의 소음보다 적게 형성될 수 있다. 이는, 마운트 브라켓의 차폐부에 의하여, 제1송풍팬에서 토출되는 기류가 제2송풍팬으로 재흡입되는 것을 방지함으로써 서징 유동이 방지되고 그에 따라 소음이 적게 발생됨을 알 수 있다.As the air volume of the indoor unit increases, the noise of the indoor unit according to the present invention may be less than that of the control group. From this, it can be seen that the shielding part of the mount bracket prevents the airflow discharged from the first blowing fan from being re-sucked into the second blowing fan, thereby preventing the surging flow and thereby reducing the noise.
도 15c를 참조하면, 제1,2송풍팬의 회전수가 증가함에 따라 대조군 및 본 발명에 따른 실내기의 소음은 증가하도록 형성된다.Referring to FIG. 15C , as the number of revolutions of the first and second blowing fans increases, the noise of the control group and the indoor unit according to the present invention increases.
상기 제1,2송풍팬의 회전수가 증가함에 따라, 본 발명에 따른 실내기의 소음은 대조군에서의 실내기의 소음보다 적게 형성될 수 있다. 이는, 마운트 브라켓의 차폐부에 의하여, 제1송풍팬에서 토출되는 기류가 제2송풍팬으로 재흡입되는 것을 방지함으로써 서징 유동이 방지되고 그에 따라 소음이 적게 발생됨을 알 수 있다.As the number of revolutions of the first and second blower fans increases, noise of the indoor unit according to the present invention may be less than that of the indoor unit of the control group. From this, it can be seen that the shielding part of the mount bracket prevents the airflow discharged from the first blowing fan from being re-sucked into the second blowing fan, thereby preventing the surging flow and thereby reducing the noise.
10 : 천장형 실내기
110 : 케이싱
120 : 저면 패널
130 : 흡입그릴
140 : 팬 어셈블리
143 ; 제1송풍팬
145 : 제2송풍팬
150 : 열교환기
160 : 리어 가이드
170 : 스테빌라이저
180 : 필터 어셈블리
210 : 격벽장치
250 : 마운트 브라켓
255 : 차폐부10: ceiling type indoor unit 110: casing
120: bottom panel 130: suction grill
140:
145: second blowing fan 150: heat exchanger
160: rear guide 170: stabilizer
180: filter assembly 210: bulkhead device
250: mount bracket 255: shield
Claims (15)
상기 케이싱의 하단부에 구비되며, 실내공간의 공기 흡입을 위한 흡입부 및 상기 실내공간으로 공기를 배출하기 위한 토출부를 형성하는 저면 패널;
상기 케이싱과 상기 저면 패널이 이루는 내부 공간에 설치되며, 나란하게 배치되는 제1송풍팬 및 제2송풍팬;
상기 제1,2송풍팬의 사이에 배치되어, 상기 제1,2송풍팬의 설치공간을 분리하는 격벽장치; 및
상기 격벽장치에 결합되며, 상기 제1송풍팬에서 토출되는 기류가 상기 제2송팬측으로 재흡입되지 않도록 상기 제1송풍팬의 제1토출측 공간과, 상기 제2송풍팬의 제2토출측 공간의 사이에 배치되는 마운트 브라켓을 포함하는 천장형 타입의 공기 조화기의 실내기.Casing embedded in the ceiling;
a bottom panel provided at a lower end of the casing and forming a suction part for sucking air into the indoor space and a discharge part for discharging air into the indoor space;
a first blowing fan and a second blowing fan installed in an inner space formed by the casing and the bottom panel and arranged side by side;
a partition wall device disposed between the first and second blowing fans to separate installation spaces of the first and second blowing fans; and
It is coupled to the partition wall device, and between the first discharge side space of the first blowing fan and the second discharge side space of the second blowing fan so that the airflow discharged from the first blowing fan is not re-sucked into the second blowing fan side. An indoor unit of a ceiling-type air conditioner including a mount bracket disposed on.
상기 케이싱과 상기 저면 패널이 고정되도록, 상기 격벽장치는 상기 케이싱의 내측면에 구비되며, 상기 마운트 브라켓은 상기 저면 패널에 지지되는 천장형 타입의 공기 조화기의 실내기.According to claim 1,
The partition wall device is provided on an inner surface of the casing so that the casing and the bottom panel are fixed, and the mount bracket is supported by the bottom panel.
상기 제1송풍팬 및 제2송풍팬의 외주를 감싸도록 배치되어, 상기 흡입부로부터 상기 토출부로의 공기 유동을 가이드 하는 리어 가이드를 더 포함하는 천장형 타입의 공기 조화기의 실내기.According to claim 1,
The indoor unit of the ceiling-type air conditioner further includes a rear guide disposed to surround outer circumferences of the first and second blowing fans and guiding air flow from the suction part to the discharge part.
상기 제1송풍팬 및 제2송풍팬의 유입측에 배치되는 열교환기; 및
상기 열교환기의 하측에 배치되며, 상기 제1송풍팬 및 제2송풍팬의 내부에서 편심와류가 발생되도록 상기 제1송풍팬 및 제2송풍팬의 토출측에 배치되는 스테빌라이저를 더 포함하는 천장형 타입의 공기 조화기의 실내기.According to claim 1,
a heat exchanger disposed on inlet sides of the first and second blowing fans; and
A ceiling type further comprising a stabilizer disposed below the heat exchanger and disposed on a discharge side of the first blowing fan and the second blowing fan so that eccentric vortices are generated inside the first blowing fan and the second blowing fan. The indoor unit of the type air conditioner.
상기 스테빌라이저는,
상기 스테빌라이저의 상면에서 하방으로 함몰하도록 구성되며, 상기 열교환기의 최하단부가 위치하여 응축수가 수집되는 드레인 공간을 형성하는 천장형 타입의 공기 조화기의 실내기.According to claim 4,
The stabilizer,
An indoor unit of a ceiling-type air conditioner configured to be recessed downward from an upper surface of the stabilizer and forming a drain space in which condensate is collected at a lowermost part of the heat exchanger.
상기 마운트 브라켓은 상기 제1송풍팬의 제1토출측 공간에서 상기 제2송풍팬의 제2토출측 공간을 향하는 경로상에 배치되는 차단벽을 포함하는 천장형 타입의 공기 조화기의 실내기.According to claim 1,
The mount bracket includes a blocking wall disposed on a path from the first discharge side space of the first blower fan to the second discharge side space of the second blower fan.
상기 마운트 브라켓은,
상기 저면 패널에 결합되는 제1파트; 및
상기 제1파트에서 상기 격벽장치를 향하는 방향으로 돌출하며, 상기 격벽장치와 결합되는 체결부를 가지는 제2파트를 포함하는 천장형 타입의 공기 조화기의 실내기.According to claim 6,
The mount bracket,
a first part coupled to the bottom panel; and
An indoor unit of a ceiling type air conditioner comprising a second part protruding from the first part in a direction toward the partition wall device and having a fastening portion engaged with the partition wall device.
상기 마운트 브라켓의 제2파트는 상기 제1송풍팬 및 상기 제2송풍팬이 배열되는 방향으로 이격되는 양 측단부를 가지고,
상기 양 측단부는,
상기 제1,2송풍팬 중 상기 제1송풍팬에 더 가깝게 위치되고 개방된 단부를 형성하는 제1측단부; 및
상기 제1,2송풍팬 중 상기 제2송풍팬에 더 가깝게 위치되고 차폐부를 형성하는 제2측단부를 포함하는 천장형 타입의 공기 조화기의 실내기.According to claim 7,
The second part of the mount bracket has both side ends spaced apart in a direction in which the first blowing fan and the second blowing fan are arranged,
Both side ends,
a first side end portion of the first and second blowing fans positioned closer to the first blowing fan and forming an open end portion; and
An indoor unit of a ceiling type air conditioner including a second side end portion of the first and second blowing fans positioned closer to the second blowing fan and forming a shielding portion.
상기 제2측단부는 상기 차단벽을 정의하는 천장형 타입의 공기 조화기의 실내기.According to claim 8,
The second side end portion defines the blocking wall.
상기 차폐부는 상기 제1,2송풍팬으로부터 상기 토출부를 향하는 방향으로 리니어하게 연장되는 제1차폐파트 및 상기 제1차폐파트에서 경사지게 연장되는 제2차폐파트를 포함하는 천장형 타입의 공기 조화기의 실내기.According to claim 8,
The shielding part is a ceiling type air conditioner including a first shielding part extending linearly from the first and second blowing fans in a direction toward the discharge part and a second shielding part extending obliquely from the first shielding part. indoor unit.
상기 제1송풍팬은 제1주판 및 다수의 제1블레이드를 포함하고, 상기 제2송풍팬은 상기 제1주판을 마주보는 제2주판 및 다수의 제2블레이드를 포함하며,
상기 제1차폐파트의 연장선은 제2송풍팬의 제2주판을 만나도록 형성되는 천장형 타입의 공기 조화기의 실내기.According to claim 10,
The first blowing fan includes a first main plate and a plurality of first blades, and the second blowing fan includes a second main plate and a plurality of second blades facing the first main plate,
The extension line of the first shielding part is formed to meet the second main plate of the second blowing fan.
상기 제2송풍팬은 상기 제1,2송풍팬의 연결 축을 고정하기 위한 축 고정부 및 상기 축 고정부의 설치를 위하여 제2블레이드의 일부가 형성되지 않는 빈 공간을 정의하는 설치 공간부를 포함하고,
상기 제2차폐파트의 단부에서 상기 제2송풍팬을 향하여 연장한 선은 상기 설치 공간부를 지나는 것을 특징으로 하는 천장형 타입의 공기 조화기의 실내기.According to claim 11,
The second blowing fan includes a shaft fixing part for fixing the connecting shafts of the first and second blowing fans and an installation space defining an empty space in which a part of the second blade is not formed to install the shaft fixing part, ,
An indoor unit of a ceiling-type air conditioner, characterized in that a line extending from an end of the second shielding part toward the second blowing fan passes through the installation space.
상기 마운트 브라켓의 제1측단부에서 상기 제1송풍팬을 향하여 연장한 선은 상기 제1송풍팬의 제1주판을 지나는 것을 특징으로 하는 천장형 타입의 공기 조화기의 실내기.According to claim 11,
A line extending from the first side end of the mount bracket toward the first blowing fan passes through the first main plate of the first blowing fan.
상기 마운트 브라켓의 내부공간에서, 상기 제2차폐파트의 일방향 폭은 상기 제1차폐파트의 일방향 폭보다 크게 형성되며,
상기 일방향은 상기 제1,2송풍팬이 배열되는 방향에 대응하는 천장형 타입의 공기 조화기의 실내기.According to claim 10,
In the inner space of the mount bracket, the one-way width of the second shielding part is formed larger than the one-way width of the first shielding part,
The one direction corresponds to the direction in which the first and second blowing fans are arranged, the indoor unit of the ceiling-type air conditioner.
상기 제1송풍팬 및 제2송풍팬은 원주 방향으로 공기를 흡입하여 원주 방향으로 공기를 배출하는 원심팬을 포함하는 천장형 타입의 공기 조화기의 실내기.
According to claim 1,
The first blowing fan and the second blowing fan include centrifugal fans that suck in air in a circumferential direction and discharge air in a circumferential direction.
Priority Applications (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
KR1020210175661A KR20230087064A (en) | 2021-12-09 | 2021-12-09 | Ceiling type indoor unit of air conditioner |
Applications Claiming Priority (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
KR1020210175661A KR20230087064A (en) | 2021-12-09 | 2021-12-09 | Ceiling type indoor unit of air conditioner |
Publications (1)
Publication Number | Publication Date |
---|---|
KR20230087064A true KR20230087064A (en) | 2023-06-16 |
Family
ID=86948138
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
KR1020210175661A KR20230087064A (en) | 2021-12-09 | 2021-12-09 | Ceiling type indoor unit of air conditioner |
Country Status (1)
Country | Link |
---|---|
KR (1) | KR20230087064A (en) |
-
2021
- 2021-12-09 KR KR1020210175661A patent/KR20230087064A/en unknown
Similar Documents
Publication | Publication Date | Title |
---|---|---|
KR101717344B1 (en) | Outdoor unit of air conditioner | |
KR101852800B1 (en) | Indoor unit of air conditioner | |
JP2009270778A (en) | Air conditioner | |
KR20190139054A (en) | An outdoor unit for a an air conditioner | |
KR100728674B1 (en) | Indoor unit of Air conditioner | |
KR100642365B1 (en) | Indoor unit of duct type air-conditioner | |
KR102521424B1 (en) | Ceiling type air conditioner | |
KR20230087064A (en) | Ceiling type indoor unit of air conditioner | |
KR20070000898A (en) | Inner-door unit of air-conditioner | |
KR20070073163A (en) | Indoor unit for air conditioner | |
KR20190141479A (en) | An outdoor unit for a an air conditioner | |
KR101419941B1 (en) | Ceiling type air conditioner | |
KR102522048B1 (en) | Ceiling type air conditioner | |
KR100751121B1 (en) | Indoor unit for air-conditioner | |
KR101419944B1 (en) | Indoor unit of air conditioner | |
KR100547689B1 (en) | Fan motor fixing structure of integrated air conditioner | |
KR100653785B1 (en) | Air conditioner | |
KR100626446B1 (en) | Indoor unit for air conditioner | |
KR100382522B1 (en) | Convertible type indoor device of air-conditioner | |
WO2020170725A1 (en) | Air conditioner | |
US20230204227A1 (en) | Air conditioner | |
KR20070006417A (en) | Indoor unit for air conditioner | |
KR200272518Y1 (en) | Blower fixed structure of in door unit for an aricondition | |
KR100564457B1 (en) | Air conditioner | |
KR20040017687A (en) | Drain pan structure for air conditioner |
