KR20210112716A - Vent with excellent insulation and aesthetic look - Google Patents
Vent with excellent insulation and aesthetic look Download PDFInfo
- Publication number
- KR20210112716A KR20210112716A KR1020200028100A KR20200028100A KR20210112716A KR 20210112716 A KR20210112716 A KR 20210112716A KR 1020200028100 A KR1020200028100 A KR 1020200028100A KR 20200028100 A KR20200028100 A KR 20200028100A KR 20210112716 A KR20210112716 A KR 20210112716A
- Authority
- KR
- South Korea
- Prior art keywords
- frame
- window
- insulation
- glass
- vent
- Prior art date
Links
Images
Classifications
-
- E—FIXED CONSTRUCTIONS
- E04—BUILDING
- E04B—GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTITIONS; ROOFS; FLOORS; CEILINGS; INSULATION OR OTHER PROTECTION OF BUILDINGS
- E04B2/00—Walls, e.g. partitions, for buildings; Wall construction with regard to insulation; Connections specially adapted to walls
- E04B2/88—Curtain walls
- E04B2/96—Curtain walls comprising panels attached to the structure through mullions or transoms
- E04B2/965—Connections of mullions and transoms
-
- E—FIXED CONSTRUCTIONS
- E06—DOORS, WINDOWS, SHUTTERS, OR ROLLER BLINDS IN GENERAL; LADDERS
- E06B—FIXED OR MOVABLE CLOSURES FOR OPENINGS IN BUILDINGS, VEHICLES, FENCES OR LIKE ENCLOSURES IN GENERAL, e.g. DOORS, WINDOWS, BLINDS, GATES
- E06B3/00—Window sashes, door leaves, or like elements for closing wall or like openings; Layout of fixed or moving closures, e.g. windows in wall or like openings; Features of rigidly-mounted outer frames relating to the mounting of wing frames
- E06B3/04—Wing frames not characterised by the manner of movement
- E06B3/263—Frames with special provision for insulation
-
- E—FIXED CONSTRUCTIONS
- E06—DOORS, WINDOWS, SHUTTERS, OR ROLLER BLINDS IN GENERAL; LADDERS
- E06B—FIXED OR MOVABLE CLOSURES FOR OPENINGS IN BUILDINGS, VEHICLES, FENCES OR LIKE ENCLOSURES IN GENERAL, e.g. DOORS, WINDOWS, BLINDS, GATES
- E06B3/00—Window sashes, door leaves, or like elements for closing wall or like openings; Layout of fixed or moving closures, e.g. windows in wall or like openings; Features of rigidly-mounted outer frames relating to the mounting of wing frames
- E06B3/04—Wing frames not characterised by the manner of movement
- E06B3/263—Frames with special provision for insulation
- E06B2003/26349—Details of insulating strips
- E06B2003/2635—Specific form characteristics
Abstract
Description
본 발명은 아파트나 빌딩 또는 학교 등의 건축물에 설치되는 커튼월 벤트(Curtain wall vent)에 관한 기술로서, 보다 상세하게 설명하면 창문 프레임의 실외측에 단열 프레임이 배치되고, 단열 프레임에 유리창이 끼워져 부착 설치됨으로써, 외부에서 냉기나 열기가 실내측으로 전달되는 것을 차단하여 단열성을 높이며, 또한 단열 프레임이 창문의 부속품과 동일한 색상으로 성형되므로, 별도로 도색 작업이 필요없고 외부 미관이 우수할 뿐만 아니라 조립되는 부품수를 줄여서 시공성이 높고, 유리창의 처짐을 방지하는 단열성과 미관이 우수한 벤트에 관한 기술이다.The present invention relates to a technology for a curtain wall vent installed in a building such as an apartment, a building, or a school. In more detail, an insulating frame is disposed on the outdoor side of the window frame, and a glass window is inserted into the insulating frame. By attaching and installing, it blocks the transfer of cold or hot air from the outside to the indoor side to increase the insulation, and also because the insulation frame is molded in the same color as the window accessories, there is no need for a separate painting work, and the external appearance is excellent as well as being assembled It is a technology related to a vent that has high workability by reducing the number of parts, and has excellent thermal insulation and aesthetics to prevent sagging of glass windows.
일반적으로, 아파트ㆍ학교ㆍ도서관ㆍ빌딩 등 대부분의 건물에 창호가 설치되며, 이러한 창호는 건물의 외관을 미려하게 꾸미고, 햇빛과 바람이 들어오는 통로 역할을 하면서 더위와 추위를 막아줄 뿐만 아니라 최근에는 방수ㆍ방음 및 관망(觀望) 기능으로 사용자에게 쾌적한 환경을 제공하고 있다.In general, windows are installed in most buildings such as apartments, schools, libraries, and buildings, and these windows not only decorate the exterior of the building beautifully and serve as a passageway for sunlight and wind to enter, but also block heat and cold. It provides a comfortable environment for users with waterproof, soundproof and pipe network functions.
최근 대부분의 창호는 건물의 외벽 공간에 창틀프레임이 고정 설치되고, 여기에 여닫이식 창문 또는 고정식 창문이 설치되며, 이와 같은 창호는 겨울철 난방을 하거나 또는 우천시 빗물이 실내로 들어오지 않도록 창문을 닫고, 또한 실내공기를 환기시키기 위하여 창문을 열게 된다.Recently, most windows have a window frame fixed to the outer wall space of a building, and a casement window or fixed window is installed here. The windows are opened to ventilate the indoor air.
한편 건물의 외부 벽체를 금속재 및 무기질 재료를 이용하여 비내력벽으로 시공하는 고층 빌딩은 대부분 커튼월(curtain wall)이 설치되고 있으며, 커튼월은 외부 벽체의 경량화가 가능하고, 사용하는 재료에 따라 건물의 외관이 수려하다는 장점으로, 고층 건물의 시공에 널리 이용되고 있다.On the other hand, most high-rise buildings where the exterior walls of buildings are constructed as non-bearing walls using metal and inorganic materials have curtain walls installed. It is widely used in the construction of high-rise buildings due to the advantage of its beautiful appearance.
종래 단열 성능을 더욱 향상시키고, 미관상 통일된 심미감을 제공하는 창호의 대표적인 선행기술로서, 대한민국 등록특허 제10-1486064호(창호의 단열 벤트 어셈블리)가 제시된 바 있다.As a representative prior art of windows and doors that further improve thermal insulation performance and provide a unified aesthetic feeling in the prior art, Korean Patent Registration No. 10-1486064 (insulation vent assembly of windows) has been proposed.
상기 선행기술의 "창호의 단열 벤트 어셈블리"는 복층 유리 창호의 가장자리에 대면하는 일단부가 복층 유리 창호를 마감 고정하며, 세로바의 실외측 면에 관통된 설치 슬롯의 실외측 가장자리에 고정된 제1 단열 부재와 타단부가 체결되어 설치 슬롯 및 설치 슬롯 내부 공간을 마감하는 연결 유닛에 의하여, 단열 성능을 더욱 향상시킴은 물론, 다양한 두께의 복층유리 창호와 다양한 규격의 벤트 구조에 적용할 수 있도록 함과 동시에, 미관상 통일된 심미감을 제공하는 효과가 있다.The "insulation vent assembly of the window" of the prior art has one end facing the edge of the double-glazed glass window and closed-fixing the double-glazed window, and the first fixed to the outdoor edge of the installation slot penetrated into the outdoor side of the vertical bar. The insulating member and the other end are fastened to the connection unit that closes the installation slot and the space inside the installation slot, which not only improves the insulation performance, but also allows it to be applied to double-glazed windows of various thicknesses and vent structures of various specifications. At the same time, it has the effect of providing a unified aesthetic feeling.
또한 종래 단열 효과를 높이고, 창문 프레임이 뒤틀리거나 휘어지는 것을 방지하는 창호의 대표적인 선행기술로서, 대한민국 등록특허 제10-1610195호(커튼월용 창호)가 제시된 바 있다.In addition, as a representative prior art of windows and doors that enhance the conventional insulation effect and prevent the window frame from being twisted or bent, Korean Patent Registration No. 10-1610195 (windows for curtain walls) has been proposed.
상기 선행기술의 "커튼월용 창호"는 문틀 프레임의 내측 둘레에 창문 프레임의 외측 둘레가 밀착되는 보강 단열수단을 구비함으로써, 외부에서 찬공기나 열기가 실내로 유입되는 것을 방지하여 단열 효과를 향상시키는 효과가 있고, 창문 프레임을 개폐할 경우에 강화유리의 무게나 개폐 충격으로 인하여 창문 프레임이 쉽게 뒤틀리거나 휘어지는 현상을 방지하는 효과가 있다.The "window for curtain wall" of the prior art has a reinforced heat insulating means for adhering the outer periphery of the window frame to the inner periphery of the door frame frame, thereby preventing cold air or heat from flowing into the room from the outside to improve the insulation effect. There is an effect, and when opening and closing the window frame, there is an effect of preventing the phenomenon that the window frame is easily twisted or bent due to the weight of the tempered glass or the opening and closing shock.
그러나, 선행기술에서 제시된 "창호"는 단열 성능이 더욱 향상되고, 미관상 통일된 심미감을 제공하고 있으나, 창문 프레임이 다수개의 부품과 단열부재로 조립 시공됨으로써, 조립되는 부품수가 많아져 시공성과 내구성이 저하되고, 실외측에 위치하는 복층 유리가 하중으로 인해 아래로 처지는 실정으로, 장기간 사용시 기밀성이 떨어지는 문제점이 있다.However, the "windows and doors" presented in the prior art have improved insulation performance and provide a unified aesthetic feeling. It is lowered, and the situation in which the laminated glass located on the outdoor side sags down due to the load has a problem of poor airtightness when used for a long period of time.
즉, 창문 프레임의 실외측에 연결 유닛과 다수개의 단열부재가 조립되어 복층 유리가 부착 시공됨으로써, 복층 유리의 하중에 대한 지지력이 떨어지고, 시간이 지날수록 복층 유리가 아래로 처지므로, 내구성과 기밀성이 저하되는 문제점이 있다.In other words, since the connecting unit and a plurality of heat insulating members are assembled on the outdoor side of the window frame and the laminated glass is attached and constructed, the bearing capacity for the load of the laminated glass is lowered, and the laminated glass sags downward as time goes by, so durability and airtightness There is a problem of this deterioration.
또한 선행기술은 창문 프레임과 단열부재 및 창문의 부속품을 동일한 색상(검정색)으로 도색하여 통일된 심미감을 제공하고 있으나, 도색 작업이 추가적으로 필요하고, 이로 인해 시공 비용이 증가함에 따라 사실상 도색 작업이 실시되지 못하고 있는 실정이다.In addition, the prior art provides a unified aesthetic feeling by painting the window frame, insulation member, and window accessories in the same color (black). It is currently not possible.
본 발명은 종래 선행기술에서 제시된 "창호"의 문제점들을 개선하고자 안출된 기술로서, 외부에서 냉기나 열기가 실내측으로 전달되는 것을 차단하여 단열성이 높고, 창문 프레임의 실외측에 조립되는 단열 프레임이 창문의 부속품과 동일한 색상으로 성형됨으로써, 별도로 도색 작업이 필요없고 외부 미관이 우수하며, 조립되는 부품수를 줄여서 시공성이 높은 단열성과 미관이 우수한 벤트를 제공하는 것을 목적으로 한다.The present invention is a technology devised to improve the problems of "windows" presented in the prior art, and has high thermal insulation properties by blocking the transmission of cold air or heat from the outside to the indoor side, and the insulation frame assembled on the outdoor side of the window frame is a window By molding in the same color as the accessories of
또한 본 발명의 실시예는 유리창의 지지력을 보강하여 하중으로 인한 처짐 현상과 뒤틀림을 방지함으로써, 장기간 내구성과 기밀성을 유지하고, 방음 및 방수기능을 향상시키는 단열성과 미관이 우수한 벤트를 제공하는 것을 목적으로 한다.In addition, an embodiment of the present invention provides a vent with excellent thermal insulation and aesthetics that maintains long-term durability and airtightness, and improves sound insulation and waterproofing functions by reinforcing the bearing capacity of the glass window to prevent sagging and distortion due to load. do it with
본 발명은 상기와 같은 소기의 목적을 실현하고자,The present invention is to realize the desired object as described above,
건물의 외측부에 수직 및 수평상으로 설치되고, 장방형으로 공간부가 구성되는 메인 프레임; 상기 메인 프레임의 공간부 내측면에 부착 설치되는 창틀 프레임; 상기 창틀 프레임의 내측에 개폐가능케 설치되며, 장방형으로 구성되는 창문 프레임; 상기 창문 프레임의 실외측 둘레에 결합 설치되는 단열 프레임; 및 상기 단열 프레임에 결합 설치되고, 유리창을 받쳐 지지하는 유리의자;를 포함하여 구현된다.a main frame installed vertically and horizontally on the outside of the building, and comprising a rectangular space; a window frame frame attached and installed on the inner surface of the space of the main frame; a window frame which is installed so as to be opened and closed on the inside of the window frame and is configured in a rectangular shape; a thermal insulation frame coupled to the outer periphery of the window frame; and a glass chair coupled to the insulating frame and installed to support the glass window.
또한 본 발명의 실시예로서, 창문 프레임은 단면을 직사각 형상으로 구성하되, 실외측 방향의 외측면에 체결홈이 형성되고, 외측면 모서리 부분에 체결부가 형성되는 것을 특징으로 한다.In addition, as an embodiment of the present invention, the window frame has a rectangular cross section, and a fastening groove is formed on the outer surface of the outdoor direction, and a fastening part is formed on an outer side edge portion.
또한 본 발명의 실시예로서, 단열 프레임은 폴리아미드(Polyamide) 재질로 압출 성형되고, 실내측 방향의 단부에 체결부가 형성되며, 상기 체결부의 실외측 방향에 체결홈이 형성되는 한편 상기 체결홈의 외측부에 다른 하나의 체결홈이 형성되는 것을 특징으로 한다.In addition, as an embodiment of the present invention, the heat insulation frame is extrusion-molded with a polyamide material, and a fastening part is formed at the end of the indoor direction, and a fastening groove is formed in the outdoor direction of the fastening part while the fastening groove of the fastening groove is formed. It is characterized in that another fastening groove is formed on the outer side.
또한 본 발명의 실시예로서, 유리의자는 창문 프레임의 하부 외측에 수평상으로 배치된 단열 프레임에 설치되며, 수직상의 단부에 체결부가 형성되고, 수평상으로 배치된 외측부 위에 유리창이 놓여 설치되는 것을 특징으로 한다.In addition, as an embodiment of the present invention, the glass chair is installed in an insulating frame arranged horizontally on the outside of the lower part of the window frame, a fastening part is formed at a vertical end, and a glass window is installed on the outer part arranged horizontally. characterized.
본 발명의 실시예는 창문 프레임의 실외측에 단열 프레임이 배치되고, 단열 프레임에 유리창이 끼워져 부착 시공됨으로써, 외부에서 냉기나 열기가 실내측으로 전달되는 것을 차단하여 단열성을 높이며, 단열 프레임이 창문의 부속품과 동일한 색상으로 성형됨에 따라 별도로 도색 작업이 필요없고 외부 미관이 깔끔하고 우수하며, 조립되는 부품수를 줄여서 시공성이 높은 효과가 있다.In an embodiment of the present invention, a thermal insulation frame is disposed on the outdoor side of the window frame, and a glass window is inserted and attached to the insulation frame, so that cold air or heat from the outside is blocked from being transmitted to the indoor side to increase the thermal insulation, and the insulation frame is the window of the window. As it is molded in the same color as the accessories, there is no need for a separate painting work, the external appearance is neat and excellent, and the number of parts to be assembled is reduced, which has a high workability effect.
특히, 단열 프레임 전체가 열전도성이 매우 낮은 폴리아미드 재질로 성형됨으로써, 외부에서 실내측으로 전달되는 냉기나 열기를 효과적으로 차단하여 단열성이 보다 높고, 또한 단열 프레임이 창문의 부속품과 동일한 색상으로 성형되므로, 기존에 실시되었던 도색 작업이 필요없고, 시공 비용이 절감되는 한편 외부 미관이 동일한 색상으로 깔끔하게 시공되는 효과가 있다.In particular, since the entire insulation frame is molded of a polyamide material with very low thermal conductivity, it effectively blocks the cold or heat transmitted from the outside to the indoor side, so that the insulation is higher, and the insulation frame is molded in the same color as the window accessories There is no need for the existing painting work, the construction cost is reduced, and the exterior aesthetics are neatly constructed with the same color.
또한 본 발명의 실시예는 단열 프레임에 유리창을 받쳐 지지하는 유리의자가 끼워져 조립됨으로써, 유리창의 지지력을 보강하여 하중으로 인한 처짐 현상과 뒤틀림을 방지하므로, 장기간 내구성과 기밀성을 유지하고, 방음 및 방수기능을 향상시키는 효과도 있다.In addition, in the embodiment of the present invention, the glass chair supporting the glass window is inserted into the insulating frame and assembled, thereby reinforcing the supporting force of the glass window to prevent sagging and distortion due to the load, thus maintaining long-term durability and airtightness, soundproofing and waterproofing It also has the effect of improving the function.
도 1은 본 발명의 실시예를 나타낸 설치상태 정면도.

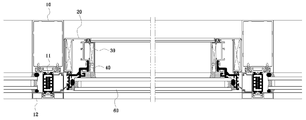

도 2는 본 발명의 실시예를 나타낸 설치상태 평단면도.
도 3은 본 발명에서 창문을 나타낸 측단면도.

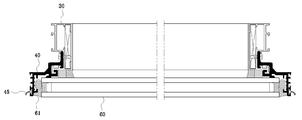

도 4는 본 발명에서 창문을 나타낸 평단면도.
도 5는 본 발명에서 창문을 나타낸 요부 측단면도.
도 6은 본 발명에서 창문 프레임과 단열 프레임 및 유리의자를 나타낸 요부 사시도.
도 7은 본 발명에서 창문 프레임과 단열 프레임 및 유리의자를 나타낸 분해 측단면도.
도 8은 본 발명에서 창문을 나타낸 다른 평단면도.
도 9는 본 발명에서 창문을 나타낸 다른 요부 측단면도.
도 10은 본 발명에서 창문 프레임과 단열 프레임 및 유리의자를 나타낸 분해 측단면도.1 is a front view of an installation state showing an embodiment of the present invention.
Figure 2 is an installation state plan sectional view showing an embodiment of the present invention.
Figure 3 is a side cross-sectional view showing the window in the present invention.
Figure 4 is a plan sectional view showing the window in the present invention.
5 is a side cross-sectional view showing the main part of the window in the present invention.
Figure 6 is a perspective view showing the main part of the window frame, the insulating frame and the glass chair in the present invention.
Figure 7 is an exploded side cross-sectional view showing a window frame, an insulating frame and a glass chair in the present invention.
8 is another plan sectional view showing a window in the present invention.
9 is a side cross-sectional view of another main part showing a window in the present invention.
Figure 10 is an exploded side cross-sectional view showing a window frame, an insulating frame and a glass chair in the present invention.
본 발명의 실시예에 따른 주요 구성은, 건물의 외측부에 수직 및 수평상으로 설치되고, 장방형으로 공간부가 구성되는 메인 프레임(10); 상기 메인 프레임(10)의 공간부 내측면에 부착 설치되는 창틀 프레임(20); 상기 창틀 프레임(20)의 내측에 개폐가능케 설치되며, 장방형으로 구성되는 창문 프레임(30); 상기 창문 프레임(30)의 실외측 둘레에 결합 설치되는 단열 프레임(40); 및 상기 단열 프레임(40)에 결합 설치되고, 유리창(60)을 받쳐 지지하는 유리의자(50);를 포함하여 이루어진다.The main configuration according to the embodiment of the present invention, the
상기 실시예의 주요 구성에서 메인 프레임(10)은 건물의 외측부에 시공되는 구조물로서, 상기 메인 프레임(10)은 도면에서 도 1 및 도 2와 같이, 건물의 외부에 수직 및 수평상으로 설치되어 격자 형태로 시공되며, 외측부에 페어유리가 설치되는 한편 창문이 배치되는 위치에 장방형으로 소정 크기의 공간부가 구비된다.In the main configuration of the above embodiment, the
상기에서 메인 프레임(10)은 내구성과 내식성이 우수하고, 하중이 가벼운 알루미늄 프로파일로 압출 성형되며, 대부분 장방형의 단면 형상으로 구성되고, 별도의 브라켓을 이용하여 건물의 외부 벽체에 고정 설치된다.In the above, the
한편 메인 프레임(10)은 외측면에 단열 브라켓(11)이 수직 및 수평상으로 결합 설치되어 격자 형태로 배치되고, 상기 단열 브라켓(11)의 내측부에 페어유리가 설치되는 한편 단열 브라켓(11)과 페어유리의 외측부에 마감캡(12)이 설치된다.On the other hand, the
상기에서 단열 브라켓(11)은 열전도성이 매우 낮은 폴리아미드(Polyamide) 재질로 압출 성형되며, 외부에서 메인 프레임(10)으로 전달되는 냉기나 열기를 차단하여 단열성을 높이게 된다.In the above, the
또한 상기 실시예의 주요 구성에서 창틀 프레임(20)은 메인 프레임(10)에 구비된 공간부에 창문을 설치하기 위한 구조물로서, 상기 창틀 프레임(20)은 도면에서 도 1 및 도 2와 같이, 메인 프레임(10)에서 장방형으로 구성된 공간부의 내측면 둘레에 다수개의 나사로 부착 설치된다.In addition, in the main configuration of the above embodiment, the
상기에서 창틀 프레임(20)은 알루미늄 프로파일로 압출 성형되고, 메인 프레임(10)의 공간부 내측면 둘레에 수직 및 수평상으로 밀착되어 다수개의 나사로 고정 설치되며, 창문을 닫았을 때, 기밀성이 유지되도록 내측부 둘레에 복수개의 패킹이 끼워져 설치된다.In the above, the
또한 상기 실시예의 주요 구성에서 창문 프레임(30)은 유리창(60)을 설치하기 위한 구조물로서, 상기 창문 프레임(30)은 도면에서 도 1 내지 도 4와 같이, 장방형으로 구성되어 창틀 프레임(20)의 내측 공간에 배치되며, 상기 창틀 프레임(20)에 스테이암(stay arm)과 힌지부로 개폐가능케 설치된다.In addition, in the main configuration of the above embodiment, the
상기에서 창문 프레임(30)은 도면에서 도 5 내지 도 7과 같이, 알루미늄 프로파일로 압출 성형되고, 단면을 직사각 형상으로 구성하되, 실외측 방향의 외측면에 체결홈(31)이 형성되고, 외측면 모서리 부분에 체결부(32)가 형성된다.In the above, the
상기에서 체결홈(31)은 창문 프레임(30)의 내측 방향으로 오목하게 형성되며, 체결부(32)는 모서리 부분에 연장하여 "" 형상으로 구성되고, 사용자가 창문을 개폐하기 위한 핸들(33)이 실내측 내부 측면에 설치된다.In the above, the
또한 상기 실시예의 주요 구성에서 단열 프레임(40)은 외부에서 냉기나 열기가 실내측으로 전달되는 것을 차단하는 기능으로서, 상기 단열 프레임(40)은 도면에서 도 2 내지 도 4와 같이, 창문 프레임(30)의 실외측 둘레에 결합 설치되고, 열전도성이 매우 낮은 폴리아미드(Polyamide) 재질의 검정색으로 압출 성형된다.In addition, in the main configuration of the embodiment, the
상기에서 단열 프레임(40)은 도면에서 도 5 내지 도 7과 같이, 실내측 방향의 단부에 체결부(41)가 형성되고, 상기 체결부(41)의 실외측 방향에 체결홈(42)이 형성되는 한편 상기 체결홈(42)의 외측부에 다른 하나의 체결홈(43)이 형성된다.As shown in FIGS. 5 to 7 in the drawings, the
한편 상기 체결홈(43)에서 실외측 방향으로 연장하여 외측부에 커버홈(44)이 형성되고, 상기 커버홈(44)에 창문을 닫았을 때, 기밀성을 유지하기 위한 커버(45)가 끼워져 설치되며, 상기 커버(45)는 메인 프레임(10)에서 실외측에 조립되는 브라켓에 밀착되어 기밀성을 확보한다.On the other hand, a
단열 프레임(40)은 실내측 방향의 단부에 형성된 체결부(41)가 창문 프레임(30)의 체결홈(31)에 길이 방향으로 끼워져 조립되는 한편 창문 프레임(30)의 체결부(32)가 단열 프레임(40)의 체결홈(42)에 길이 방향으로 끼워져 조립됨으로써, 창문 프레임(30)의 실외측 둘레에 단열 프레임(40)이 배치된다.The
따라서, 단열 프레임(40)은 창문 프레임(30)의 실외측에 배치되어 외부에서 냉기나 열기가 창문 프레임(30)으로 전달되는 것을 차단하며, 또한 폴리아미드 재질의 검정색으로 성형됨에 따라 창문의 부속품(실리콘 실란트, 유리창 간봉, 유리창 테두리 등)과 색상이 동일하여 별도로 도색 작업이 필요없고 외부 미관이 깔끔하고 우수하다.Therefore, the insulating
특히, 단열 프레임(40) 전체가 열전도성이 매우 낮은 폴리아미드 재질로 성형됨으로써, 외부에서 실내측으로 전달되는 냉기나 열기를 효과적으로 차단하여 기존 선행기술 보다 단열성이 높게 시공된다.In particular, since the entire insulating
또한 단열 프레임(40)이 창문의 부속품과 동일한 색상으로 성형되므로, 기존에 실시되었던 도색 작업이 필요없고, 시공 비용이 절감되는 한편 외부 미관이 동일한 색상으로 깔끔하게 시공된다.In addition, since the insulating
또한 상기 실시예의 주요 구성에서 유리의자(50)는 유리창(60)을 받쳐 지지하는 기능으로서, 상기 유리의자(50)는 도면에서 도 3과 같이, 창문 프레임(30)의 하부 외측에 수평상으로 배치된 단열 프레임(40)에 설치되며, 알루미늄 프로파일 또는 폴리아미드(Polyamide) 재질로 압출 성형된다.In addition, in the main configuration of the embodiment, the
상기에서 유리의자(50)는 도면에서 도 5 내지 도 7과 같이, 전반적인 형상이 "┘" 형태로 구성되고, 2~5㎝ 길이로 절단하여 사용하며, 단열 프레임(40)의 양측부에 끼워져 배치되고, 수직상의 단부에 체결부(51)가 형성되는 한편 수평상으로 배치된 외측부 위에 유리창(60)이 놓여 부착 설치된다.In the above, as shown in FIGS. 5 to 7 in the drawings, the
상기에서 수직상의 단부에 형성된 체결부(51)가 단열 프레임(40)에 구비된 체결홈(43)에 끼워져 조립 설치되며, 수평상으로 배치된 외측부 위에 고무 재질의 완충용 패드(61)가 놓이고, 그 위에 유리창(60)이 올려져 놓인다.In the above, the
상기에서 유리창(60)의 하단부와 단열 프레임(40)의 실외측 단부 사이에 실리콘 실란트(Sealant)(62)가 주입되어 기밀성이 확보되는 한편 유리창(60)이 부착 설치된다.In the above,
따라서, 본 발명의 실시예는 창문 프레임(30)의 실외측에 단열 프레임(40)과 유리의자(50)가 설치되고, 상기 유리의자(50) 위에 유리창(60)이 놓여 설치됨으로써, 외부에서 냉기나 열기가 실내측에 위치하는 창문 프레임(30)으로 전달되는 것을 차단하여 단열성을 높이며, 또한 유리의자(50)가 유리창(60)을 받쳐 지지하므로, 유리창의 지지력을 보강하여 하중으로 인한 유리창(60)의 처짐 현상과 뒤틀림을 방지하게 된다.Accordingly, in the embodiment of the present invention, the
또한 도면에서 도 8 내지 도 10은 단열 프레임(40)과 유리의자(50)의 다른 실시예로서, 건물의 외부에 시공되는 커튼월에서 메인 프레임(10)의 설치구조에 따라 단열 프레임(40)과 유리의자(50)를 외측 방향으로 길게 연장하여 구성할 수 있다.In addition, in the drawings, FIGS. 8 to 10 are another embodiment of the
여기서, 창문 프레임(30)과 단열 프레임(40) 및 유리의자(50)의 조립 방식은 위에서 설명한 조립 구조와 동일하며, 단지 단열 프레임(40)과 유리의자(50)가 외측 방향으로 길게 연장하여 형성된다.Here, the assembly method of the
이러한 구성으로 이루어진 본 발명의 실시예는 창문 프레임의 실외측에 열전도성이 매우 낮은 단열 프레임이 배치됨으로써, 외부에서 냉기나 열기가 실내측으로 전달되는 것을 차단하여 단열성이 높고, 또한 창문 프레임의 실외측에 단열 프레임과 유리의자만 조립 설치되므로, 조립되는 부품수를 보다 줄여서 시공성이 우수하다.In the embodiment of the present invention having such a configuration, a thermal insulation frame with very low thermal conductivity is disposed on the outdoor side of the window frame, so that cold air or heat from the outside is blocked from being transmitted to the indoor side, so that the thermal insulation property is high, and also the outdoor side of the window frame Since only the insulation frame and glass chair are assembled and installed, the number of parts to be assembled is reduced and the workability is excellent.
또한 본 발명의 실시예는 단열 프레임이 폴리아미드 재질의 검정색으로 성형됨으로써, 창문의 부속품과 색상이 동일하여 별도로 도색 작업이 필요없으며, 외부 미관이 깔끔하고 우수하게 시공된다.In addition, in the embodiment of the present invention, since the insulating frame is molded in black made of polyamide material, there is no need for a separate painting operation because the color is the same as the accessories of the window, and the external appearance is neat and excellently constructed.
한편 본 발명의 실시예는 단열 프레임에 유리창을 받쳐 지지하는 유리의자가 설치됨으로써, 유리창의 지지력을 더욱 보강하여 하중으로 인한 유리창의 처짐 현상과 뒤틀림을 방지하므로, 장기간 내구성과 기밀성을 유지하고, 방음 및 방수기능을 향상시키게 된다.On the other hand, in the embodiment of the present invention, since a glass chair supporting the glass window is installed in the heat insulating frame, the supporting force of the glass window is further reinforced to prevent sagging and distortion of the glass window due to the load, so that durability and airtightness are maintained for a long time, and sound insulation And it will improve the waterproof function.
상기에서 본 발명의 바람직한 실시예를 참고로 설명 하였으며, 상기의 실시예에 한정되지 아니하고, 상기의 실시예를 통해 본 발명이 속하는 기술분야에서 통상의 지식을 가진 자가 본 발명의 요지를 벗어나지 않는 범위에서 다양한 변경으로 실시할 수 있는 것이다.The preferred embodiment of the present invention has been described with reference to the above, and it is not limited to the above embodiment, and a person of ordinary skill in the art to which the present invention belongs through the above embodiment does not deviate from the gist of the present invention It can be implemented with various changes in
10: 메인 프레임
11: 단열 브라켓
12: 마감캡
20: 창틀 프레임
30: 창문 프레임
31: 체결홈
32: 체결부
33: 핸들
40: 단열 프레임
41: 체결부
42(43): 체결홈
44: 커버홈
45: 커버
50: 유리의자
51: 체결부
60: 유리창10: main frame 11: insulation bracket
12: Closing cap 20: Window frame frame
30: window frame 31: fastening groove
32: fastening part 33: handle
40: insulation frame 41: fastening part
42 (43): fastening groove 44: cover groove
45: cover 50: glass chair
51: fastening part 60: glass window
Claims (4)
상기 메인 프레임(10)의 공간부 내측면에 부착 설치되는 창틀 프레임(20);
상기 창틀 프레임(20)의 내측에 개폐가능케 설치되며, 장방형으로 구성되는 창문 프레임(30);
상기 창문 프레임(30)의 실외측 둘레에 결합 설치되는 단열 프레임(40); 및
상기 단열 프레임(40)에 결합 설치되고, 유리창(60)을 받쳐 지지하는 유리의자(50);를 포함하여 구성된 것을 특징으로 하는 단열성과 미관이 우수한 벤트.
The main frame 10 is installed vertically and horizontally on the outside of the building, and the space portion is configured in a rectangular shape;
a window frame 20 attached to and installed on the inner surface of the space of the main frame 10;
a window frame 30 configured to be opened and closed on the inside of the window frame frame 20 and configured in a rectangular shape;
Insulation frame 40 coupled to the outer periphery of the window frame 30; and
A vent with excellent thermal insulation and aesthetics, characterized in that it includes; a glass chair (50) that is coupled to the insulation frame (40) and supports and supports the glass window (60).
창문 프레임(30)은,
단면을 직사각 형상으로 구성하되, 실외측 방향의 외측면에 체결홈(31)이 형성되고, 외측면 모서리 부분에 체결부(32)가 형성된 것을 특징으로 하는 단열성과 미관이 우수한 벤트.
According to claim 1,
The window frame 30 is
A vent with excellent thermal insulation and aesthetics, characterized in that it has a rectangular cross section, a fastening groove (31) is formed on the outer surface of the outer side, and a fastening part (32) is formed on the edge of the outer surface.
단열 프레임(40)은,
폴리아미드(Polyamide) 재질로 압출 성형되고, 실내측 방향의 단부에 체결부(41)가 형성되며, 상기 체결부(41)의 실외측 방향에 체결홈(42)이 형성되는 한편 상기 체결홈(42)의 외측부에 다른 하나의 체결홈(43)이 형성된 것을 특징으로 하는 단열성과 미관이 우수한 벤트.
According to claim 1,
Insulation frame 40,
It is extrusion-molded with a polyamide material, and a fastening part 41 is formed at the end of the indoor direction, and a fastening groove 42 is formed in the outdoor direction of the fastening part 41 while the fastening groove ( A vent with excellent thermal insulation and aesthetics, characterized in that the other fastening groove 43 is formed on the outer side of the 42).
유리의자(50)는,
창문 프레임(30)의 하부 외측에 수평상으로 배치된 단열 프레임(40)에 설치되며, 수직상의 단부에 체결부(51)가 형성되고, 수평상으로 배치된 외측부 위에 유리창(60)이 놓여 설치되는 것을 특징으로 하는 단열성과 미관이 우수한 벤트.According to claim 1,
The glass chair 50,
It is installed in the insulating frame 40 arranged horizontally on the lower outer side of the window frame 30, the fastening part 51 is formed at the end of the vertical, and the glass window 60 is placed on the outer part arranged horizontally and installed A vent with excellent thermal insulation and aesthetics.
