The present invention relates to an ice box that can be accommodated in multiple layers, and more particularly, to an ice box configured to allow multiple layers to be stored and classified according to the type and weight of the contents.
The ice box is to fill the ice inside the ice box formed of an excellent heat insulating material in order to prevent the deterioration and decay of food or drink and to keep it in a cold state for a long time, and to store and store food therein.
However, in the conventional ice box, contents having different types and weights, etc., are all contained in one inner space.
Because of this, the contents in the internal space are easily mixed up, so it is not sanitary and tidy, and when you want to take out a certain kind of contents, you have to scour it. There is a problem in that there is inconvenience in using.
In addition, according to the conventional ice box, the ice directly comes into contact with the contents, and the ice melts relatively quickly, making it difficult to keep the interior space at a low temperature for a long time, and the contents are immersed in the water formed by melting the ice to remove the contents. When discomfort
There is a problem that can give.
The present invention is devised to solve the problems of the prior art, the present invention can be classified and stored according to the type and weight of the contents, hygienic and neat storage is possible because it does not mix when storing various types of contents, the inside An object of the present invention is to provide an ice box capable of keeping the temperature inside the space portion at a low temperature for a longer time.
In the ice box capable of receiving a multi-layer storage according to the present invention for achieving the above object has a heat insulating structure having an inner space portion and an upper surface of the body and a lid for opening and closing the upper surface of the body, Guide grooves are formed on both inner surfaces of the inner surface of the body facing each other from the top to the lower side, and the inner surface of the body extends by a predetermined length in the lateral direction of the guide groove while communicating with the guide grooves. A plurality of branching grooves having a shape separated from the grooves are formed one by one at a predetermined interval while going downward from the top of the body, and are divided into upper and lower layers of the inner space of the body, and are formed on both sides of the layer separating plate. Hanging stones to be inserted into the guide groove and the branch groove in a position corresponding to the guide groove It comprises a layer separator plate protruding.
In addition, the guide grooves are preferably formed by two spaced apart from each other on one of the inner surface of the body.
In addition, the branch groove is preferably formed to be inclined obliquely downward while going sideways from the portion which is separated from the guide groove.
In addition, the ice box that can be accommodated in multiple layers according to the present invention has an insulating structure and has an inner space, the ice box including an upper surface of the body and the lid for opening and closing the upper surface of the body, each other of the inner side of the body A plurality of support protrusions protruding from the inner surface of the body by a predetermined length toward each of the inner side surfaces facing each other are formed from the upper side of the body downward at a predetermined interval, and a plurality of inner spaces of the body are formed. It may be configured as a layer separating plate for partitioning up and down, including a layer separating plate which is supported by supporting the bottom surface of the edge portion provided at the same height.
In addition, it is preferable that each of the supporting projections is formed on each one of the same height on one inner surface of the body.
In addition, it is preferable that a handle groove is formed on the upper surface of the layer separator plate so as to lift the layer separator plate by placing a finger.
As described above, the multi-layered ice box according to the present invention has the advantage that it is possible to classify and store according to the type and weight of the contents, so that even when storing various kinds of contents, hygienic and neat storage is possible. In addition, when the contents are stored at a low temperature by placing ice on the bottom, the ice and the contents do not directly contact each other, so that the temperature in the inner space may be maintained at a low temperature for a longer time.
1 and 2 are a perspective view showing an ice box capable of storing a multi-layer according to an embodiment of the present invention.
Figure 3 is a perspective view showing a layer separator plate of a multi-layer storage ice box according to an embodiment of the present invention.
4 and 5 is a perspective view showing an ice box capable of storing a multi-layer according to another embodiment of the present invention.
Figure 6 is a side cross-sectional view showing an ice box capable of receiving a multi-layer according to another embodiment of the present invention.
Figure 7 is a perspective view showing a layer separator plate of the ice box capable of receiving a multi-layer according to another embodiment of the present invention.
Detailed contents to carry out
Hereinafter, specific embodiments of the present invention will be described in detail with reference to the accompanying drawings.

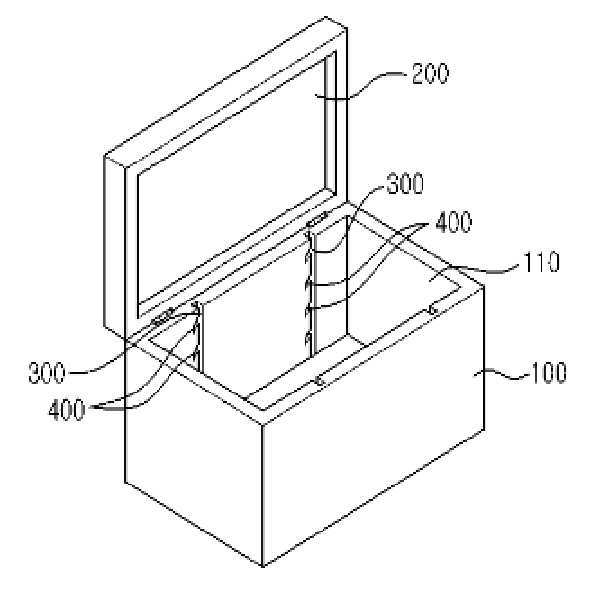

1 and 2 is a perspective view showing a multi-layer storage ice box according to the first embodiment of the present invention in the present invention, Figure 3 is a layer separation of a multi-layer storage ice box according to the first embodiment of the present invention A perspective view of a plate.
The ice box according to the present invention has a heat insulating structure like a conventional ice box and has an
Guide grooves 300 and
The
When the
Two
Referring to the operation of the ice box can be stored in multiple layers according to the present invention configured as described above are as follows.
With the lid of the ice box open, lift the
When the
4 and 5 are perspective views showing an ice box capable of storing a multi-layer according to a second embodiment of the present invention, Figure 6 is a side cross-sectional view showing an ice box capable of storing a multi-layer according to a second embodiment of the present invention, 7 is a perspective view illustrating a layer separator of an ice box capable of storing multiple layers according to a second embodiment of the present invention.
The difference from the above-described embodiment is that the guide groove 300 and the
In the embodiment configured as described above, the
However, this embodiment may be more difficult to install or separate the
As described above, the present invention has been described only with respect to specific examples, but it is apparent to those skilled in the art that various modifications and changes can be made within the technical spirit of the present invention based on the specific examples above. Of course, it belongs to the utility model registration claim attached to the modification.
100: body 110: internal space
200: lid 300: guide groove
400: branch groove 500: floor separator
510: protrusion 520: groove for the handle
600: base protrusion
Claims (6)
Guide grooves are formed to extend from the top to the bottom on each of the inner surfaces facing each other of the inner surface of the body,
The inner side of the body extends by a predetermined length in the lateral direction of the guide grooves while communicating with the guide grooves are divided into a plurality of branch grooves having a shape separated from the guide groove from the top of the body one by one at a predetermined interval formed ,
A layer separator for partitioning the inner space of the body up and down as a layer separating plate protruding the engaging projection for insertion into the guide groove and the branch groove in a position corresponding to the guide groove of both side of the layer separator plate Ice box capable of storing multiple layers, characterized in that configured to include.
The guide groove is a multi-storey ice box, characterized in that formed on the inner surface of the body two by two spaced apart from each other.
The diverging groove is a multi-storey ice box, characterized in that formed to be inclined obliquely downward while going sideways from the portion separated from the guide groove.
A plurality of support protrusions protruding from the inner surface of the body by a predetermined length toward each of the inner surfaces of the inner surface of the body facing each other toward the inner space portion are formed one by one at a predetermined interval,
As a layer separating plate for partitioning the inner space of the body up and down, the supporting protrusions provided at the same height include a layer separating plate supported by supporting the bottom surface of the edge portion. box.
The support protrusion is a multi-storey ice box, characterized in that formed on the inner surface of the body two by each two at the same height.
