Abstract
Description
본 발명은 경추베개, 척추배개, 그리고 발받침대로 구성되어 수면 중이거나 휴식을 취하는 중에 인체 구조가 균형이 잡히고 바른 자세가 될 수 있도록 하는 멀티자세 교정기에 관한 것으로서, 특히, 경추배개에 뇌에 초음파를 인가하는 초음파유닛이 구비되어서 기분전환과 의욕적인 생활이 될 수 있도록 한 멀티자세 교정기에 관한 것이다.
The present invention relates to a multi-posture corrector which is composed of a cervical vertebrae, a spinal pillow, and a foot rest so that the human body structure can be in a balanced and correct posture during sleep or rest. It is provided with an ultrasonic unit for applying a multi-posture braces to be able to change mood and motivation life.
취침 시에 사람 인체의 목과 머리 부분을 편안하게 지탱하고 안식하게 해 주는 기능을 하는 것이 베개인데, 종래의 것은 딱딱한 것과 부드러운 것에 따른 소재 선택과, 한약재 등과 같은 기능성 소재를 베개 내부로 넣어주는 등 재질 및 기능성 측면에서 다양한 베개가 시판되고 있다.
The pillow is a pillow that functions to comfortably support and rest the neck and head of the human body at bedtime. The conventional method is to select materials based on hard and soft materials, and to put functional materials such as herbal medicines into the pillow. And various pillows are commercially available in terms of functionality.
인간 생활의 일과 중 1/3은 잠자리를 통하여 휴식을 취하고 있기 때문에 안락한 수면은 매우 중요한 의미를 갖는다. 이와 같은 수면을 취함에 있어 가장 중요한 것은 베개이다. Comfortable sleep has a very important meaning because one-third of the daily life of people is resting through sleeping. The most important thing in taking such a sleep is a pillow.
어깨결림, 코골이, 두통, 불면증, 목디스크, 일자목 등의 대부분은 베개를 잘못 베거나 잘못 선택한 데 그 원인이 있다고 전해져 오고 있는 것도 이를 뒷받침하게 된다. This is supported by the fact that most of the shoulders, snoring, headache, insomnia, neck disc, and diagonal neck are mislabeled or mis-selected.
그러나 종래의 베개는 너무 딱딱하거나 너무 물렁하거나 또는 너무 높거나 너무 낮아서 머리와 목 부위가 베개에 안착되지 않고 자유 이동하여 어깨선의 흐름을 깨트리는 폐단이 있었던 것이다.
However, the conventional pillow is too hard or too soft or too high or too low so that the head and neck areas are not seated on the pillow and move freely to break the flow of the shoulder line.
또한, 일반적으로, 인체의 구조는 머리와 상부경추를 잇는 연결부위가 전만(앞으로 볼록함)인데다 인체의 중력과 지구의 자전주기의 영향으로 무게 중심까지 경추보다 앞으로 치우쳐 있어서, 후두부와 후두하부의 근육은 쉽게 긴장된다.In addition, in general, the structure of the human body is shifted forward (convexly) from the head to the upper cervical vertebra, and due to the gravitational force of the human body and the rotation period of the earth, the center of gravity is biased forward from the cervical vertebra, Is easily tense.
또한, 생활 중 스트레스나, 나쁜 자세습관, 각종부상 시에는 이 부위의 긴장 정도가 더 심해져 대후두 신경이나 추골동맥 등을 폐색시켜 후두하부에 압박을 가하게 된다.In addition, stress in life, bad posture habits, and various injuries increase the degree of tension in this area, and occlusion of the large laryngeal nerve or the vertebral artery causes pressure on the lower larynx.
그렇게 되면, 경정맥공을 통과하는 여러 신경들이 지속적인 압박을 받게 되고, 이들이 지배하는 근육이 긴장되어 항상성을 유지하려는 자율신경계 시스템에 기능장애가 발생하며, 심한 경우 뇌를 싸고 있는 뇌경막까지도 긴장시켜 전신증상이 나타나게 된다.In this case, the various nerves passing through the jugular vein are subjected to sustained compression, and the muscles that they control are tensed, resulting in dysfunction of the autonomic nervous system that maintains homeostasis. In severe cases, .
따라서, 후두부 및 후두하부의 긴장된 근육과 연부조직을 이완시켜주는 치료는 대단히 중요한 것이다.Therefore, treatment to relax the tense muscles and soft tissues of the larynx and lower larynx is of great importance.
종래에는 이러한 후두부 및 후두하부의 긴장을 일일이 수기 임상가(manual therapist), 물리치료사 등의 시술자가 수작업으로 풀어주는 번거로운 시술과정을 거쳐 치료하였다.
Conventionally, the tension of the larynx and the lower larynx has been treated through a cumbersome procedure by manual practitioners such as manual therapists and physical therapists.
하지만, 이러한 임상가나 물리치료사에 의한 치료방법은 후두부 및 후두하부의 긴장이 이완될 때까지 시술자가 직접 손가락으로 환자의 머리를 들어 올려서 지탱하고 있어야 하므로, 치료에 많은 힘과 노력, 시간이 소요되어 건강에 매우 유익함에도 불구하고 많은 환자에게 시술하기 어려운 문제점이 있다.
However, the treatment by the clinician or physiotherapist requires the surgeon to directly lift the patient's head with his finger until the tension in the larynx and lower larynx is relaxed. Although very beneficial to health, there are problems that are difficult to process for many patients.
이러한 문제점을 개선하고자 최근에 등록실용신안 제20-0460780호 "숙면용 정형 베개", 등록특허 제10-0926484호 "두개천골 요법을 이용한 명상베개" 등은 환자가 베고 누우면 후두부 및 후두하부를 자극하여 이완시켜주는 베개를 제안하고 있다.
In order to improve this problem, recently registered Utility Model No. 20-0460780 "sleeping orthopedic pillow", Patent No. 10-0926484 "meditation pillow using cranial sacral therapy" and the like, when the patient cuts and lie down the back of the head and larynx I suggest a pillow that stimulates and relaxes.
상기 등록실용신안 제20-0460780호 "숙면용 정형 베개", 등록특허 제10-0926484호 "두개천골 요법을 이용한 명상베개" 는 경추를 지지하고 후두부를 받쳐주어 편안한 자세가 되도록 하고, 경추와 후두부를 연결하는 후두하부를 돌기를 통해 가압자극하여 뇌척수순환과 뇌혈류순환을 개선하고 있지만, 이것만으로는 근육의 긴장완화와 스트레스의 완화, 기분전환, 바른자세로의 교정에 부족한 면이 있다.
The registered utility model No. 20-0460780 "Sleep Orthopedic Pillow", Patent No. 10-0926484 "Meditation pillow using cranial sacral therapy" is to support the cervical spine and support the back of the head to make a comfortable posture, cervical and back head Pressurizing stimulation through the lower part of the larynx, which connects to improve the cerebrospinal fluid circulation and cerebral blood circulation, but this alone is insufficient for muscle relaxation and stress relief, mood swings, and correct posture correction.
본 발명은 이와 같이 종래기술에 따른 베개에서 부족한 근육의 긴장완화와 스트레스의 완화, 기분전환, 바른자세로의 교정 효과를 높일 수 있도록, The present invention as described above to increase the effect of reducing the tension and relaxation of stress, relaxation of the muscles lacking in the pillow according to the prior art, correct posture,
경추를 진동자극하고 뇌에 초음파를 인가하여 긴장완화와 스트레스의 완화, 기분전환, 바른자세로의 교정 효과를 높이고, 척추베개와 발받침대를 더 구비하여 신체 전체의 골격을 바른 자세로 교정시켜줄 수 있는 멀티자세 교정기를 제공함을 목적으로 한다.
By vibrating the cervical spine and applying ultrasonic waves to the brain, it is possible to relieve tension, relieve stress, improve mood, and improve corrective posture, and to further equip the skeleton of the whole body with more spine pillows and foot rests. The purpose is to provide a multi-posture corrector.
최근 영국 의한 학술지 '브레인 스티뮬레이션'(Brain Stimulation) 최신호에 따르면 미국 애리조나 대학 의식연구센터 연구진의 실험 결과 초음파를 뇌의 특정부위에 인가하면 기분을 전환시켜 의욕적인 생활을 할 수 있게 한다는 연구 결과가 나왔다. According to a recent study by the British journal Brain Stimulation, researchers at the University of Arizona Center for Consciousness Research found that applying ultrasound waves to specific areas of the brain can change mood and lead a motivated lifestyle. Came out.
이는 초음파가 뇌의 감정과 연관한 부위에서 신경 세포가 활성화되어서, 우울증, 저산소 외상성 뇌손상, 뇌졸증, 알츠하이머, 정신질화 등의 정신과 신경의 다양한 질환에 유용한 효과를 가져오는 것으로 분석되고 있고, 초음파는 개운하고 행복한 느낌을 주며, 주의력도 높아지고 의욕도 높아지도록 하는 효과가 있다.
It is analyzed that ultrasound activates nerve cells in areas associated with emotions of the brain, and has useful effects on various diseases of the psychiatric nerves, such as depression, hypoxic traumatic brain injury, stroke, Alzheimer's, and mental nitrification. It gives a refreshing and happy feeling, and it increases the attention and motivation.
이와 같은 목적을 달성하기 위한 본 발명에 따른 멀티자세 교정기는 Multi-posture corrector according to the present invention for achieving the above object
경추를 지지하는 경추지지부와, 상기 경추지지부의 후방으로 연결되어 후두부가 안착되는 후두부안착부가 형성된 본체를 포함하는 경추베개;A cervical spine comprising a cervical support supporting a cervical spine, and a main body formed with a posterior head seating portion connected to the rear of the cervical spine support to which the head is seated;
상기 경추지지부에 구비되어서 경추를 진동자극하는 진동유닛;A vibration unit provided at the cervical spine support part to vibrate a cervical spine;
상기 경추지지부와 후두부안착부의 연결부위에 구비되어서 뇌에 초음파를 인가하는 초음파유닛;을 포함하여 이루어진다.
And an ultrasonic unit provided at the connection part of the cervical spine support part and the back head seat part to apply ultrasonic waves to the brain.
그리고 척추를 지지하는 척주지지부가 형성된 바디와, 상기 바디에 내장되어서 상기 척주지지부를 가열하는 가열유닛을 포함하는 척추베개;를 더 포함하는 것을 특징으로 하고,
And a spinal pillow including a body having a spinal column support part supporting the spine and a heating unit embedded in the body to heat the spinal column support part.
발을 지지하며, 높이 조절이 가능한 발 받침대;를 더 포함하는 것을 특징으로 하고,
Supporting the foot, foot height adjustable height; further comprising,
상기 경추베개는 The cervical pillow is
상기 본체에 내장되어서 상기 경추지지부의 함몰을 방지하는 형상유지패널과, A shape maintaining panel embedded in the main body to prevent depression of the cervical spine support;
상기 본체의 저면에 탈부착되어서 본체의 높이를 조절하도록 하는 높낮이조절패드를 더 포함하는 것을 특징으로 한다.
It is characterized in that it further comprises a height adjustment pad detachably attached to the bottom of the main body to adjust the height of the main body.
이와 같은 구성을 갖는 본 발명에 따른 멀티자세 교정기는 경추를 단순히 지지하고 후두하부를 단순히 가압하는 소극적인 자극에서 벗어나, 진동유닛으로 경추를 진동자극하고 후두하부측에서 뇌에 초음파를 인가하여 보다 적극적으로 근육의 긴장완화와 스트레스의 완화, 기분전환, 바른자세로의 교정 효과 등을 한 차원 높이고, The multi-posture corrector according to the present invention having such a configuration frees the passive stimulus for simply supporting the cervical spine and simply presses the lower larynx, vibrating stimulating the cervical spine with a vibration unit, and applying ultrasonic waves to the brain at the lower laryngeal side more actively. Increases muscle tension, stress relief, mood swings, and corrective posture
경추베개 이외에 척추베개와 발 받침대를 더 도입하여 인위적인 힘을 가하는 방식이 아니라 자연스럽게 누운 상태에서 인체 구조 전체를 바르고 균형잡힌 자세가 되도록 교정하고, 그에 따라 숙면을 유도하고 자율신경이 안정화되어 간 기능 개선과 스트레스 완화 등에 도움을 주는 멀티자세 교정기로서, 산업발전에 매우 유용한 발명이다.
In addition to the cervical pillow, spine pillows and foot rests are introduced to provide a more balanced and balanced posture of the human body in a naturally laid state, rather than artificially applying force. As a multi-posture corrector that helps to relieve stress and stress, it is a very useful invention for industrial development.

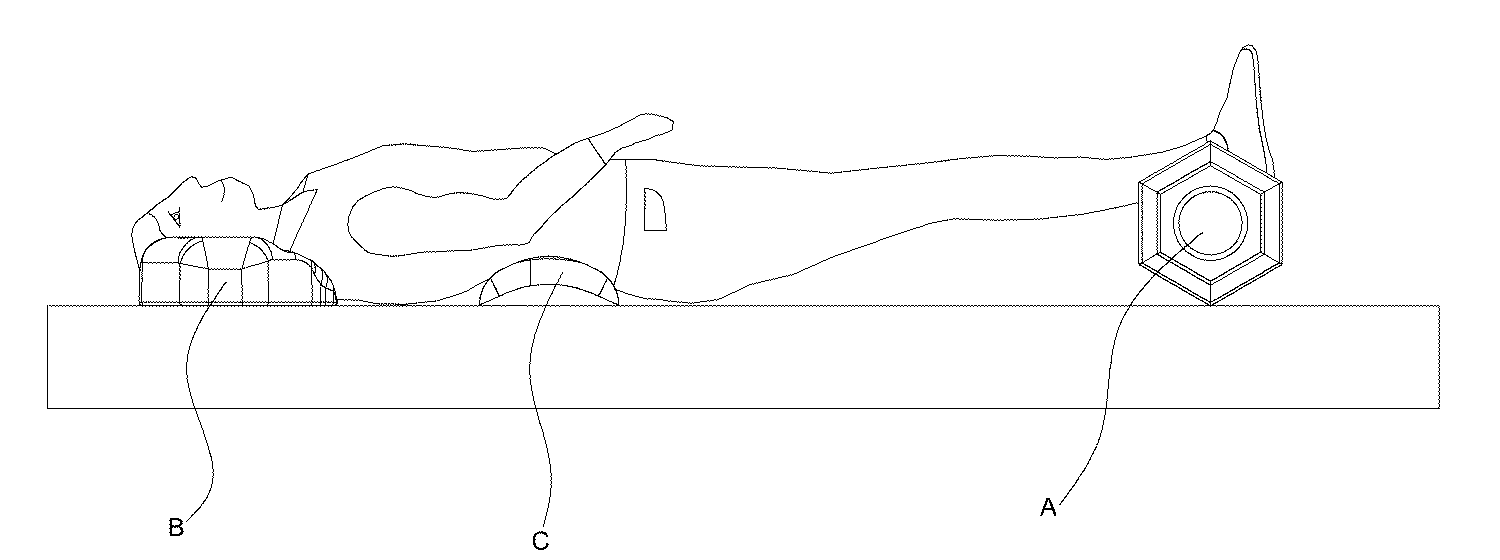

도 1 은 본 발명에 따른 멀티자세 교정기의 사용 일례를 도시한 도면.
도 2 는 본 발명에 따른 경추베개의 사시도.
도 3 은 본 발명에 따른 척추베개의 사시도.
도 4 는 본 발명에 따른 발 받침대의 사시도.
1 is a view showing an example of use of a multi-posture corrector according to the present invention.
Figure 2 is a perspective view of the cervical spine pillow according to the present invention.
Figure 3 is a perspective view of the spine pillow according to the present invention.
4 is a perspective view of the foot rest according to the present invention.
이하, 도면을 참조하여 본 발명에 따른 멀티자세 교정기에 대하여 보다 상세하게 설명한다.
Hereinafter, with reference to the drawings will be described in more detail with respect to the multi-posture corrector according to the present invention.
본 발명을 보다 구체적으로 설명하기에 앞서, Before describing the present invention in more detail,
본 발명은 다양한 변경을 가할 수 있고 여러 가지 형태를 가질 수 있는 바, 구현예(態樣, aspect)(또는 실시예)들을 본문에 상세하게 설명하고자 한다. 그러나 이는 본 발명을 특정한 개시 형태에 대해 한정하려는 것이 아니며, 본 발명의 사상 및 기술범위에 포함되는 모든 변경, 균등물 내지 대체물을 포함하는 것으로 이해되어야 한다. While the present invention has been described in connection with certain embodiments, it is obvious that the invention is not limited to the disclosed embodiments, but, on the contrary, is intended to cover various modifications and equivalent arrangements included within the spirit and scope of the invention. It is to be understood, however, that the invention is not intended to be limited to the particular forms disclosed, but on the contrary, is intended to cover all modifications, equivalents, and alternatives falling within the spirit and scope of the invention.
각 도면에서 동일한 참조부호, 특히 십의 자리 및 일의 자리 수, 또는 십의 자리, 일의 자리 및 알파벳이 동일한 참조부호는 동일 또는 유사한 기능을 갖는 부재를 나타내고, 특별한 언급이 없을 경우 도면의 각 참조부호가 지칭하는 부재는 이러한 기준에 준하는 부재로 파악하면 된다.In the drawings, the same reference numerals are used for the same reference numerals, and in particular, the numerals of the tens and the digits of the digits, the digits of the tens, the digits of the digits and the alphabets are the same, Members referred to by reference numerals can be identified as members corresponding to these standards.
또 각 도면에서 구성요소들은 이해의 편의 등을 고려하여 크기나 두께를 과장되게 크거나(또는 두껍게) 작게(또는 얇게) 표현하거나, 단순화하여 표현하고 있으나 이에 의하여 본 발명의 보호범위가 제한적으로 해석되어서는 안 된다.In the drawings, the components are expressed by exaggeratingly larger (or thicker) or smaller (or thinner) in size or thickness in consideration of the convenience of understanding, etc. However, It should not be.
본 명세서에서 사용한 용어는 단지 특정한 구현예(태양, 態樣, aspect)(또는 실시예)를 설명하기 위해 사용된 것으로, 본 발명을 한정하려는 의도가 아니다. 단수의 표현은 문맥상 명백하게 다르게 뜻하지 않는 한, 복수의 표현을 포함한다. 본 출원에서, ~포함하다~ 또는 ~이루어진다~ 등의 용어는 명세서 상에 기재된 특징, 숫자, 단계, 동작, 구성요소, 부분품 또는 이들을 조합한 것이 존재함을 지정하려는 것이지, 하나 또는 그 이상의 다른 특징들이나 숫자, 단계, 동작, 구성요소, 부분품 또는 이들을 조합한 것들의 존재 또는 부가 가능성을 미리 배제하지 않는 것으로 이해되어야 한다.The terminology used herein is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention. Singular expressions include plural expressions unless the context clearly indicates otherwise. In the present application, the term " comprising " or " consisting of ", or the like, refers to the presence of a feature, a number, a step, an operation, an element, a component, But do not preclude the presence or addition of one or more other features, integers, steps, operations, components, parts, or combinations thereof.
다르게 정의되지 않는 한, 기술적이거나 과학적인 용어를 포함해서 여기서 사용되는 모든 용어들은 본 발명이 속하는 기술 분야에서 통상의 지식을 가진 자에 의해 일반적으로 이해되는 것과 동일한 의미를 가지고 있다. 일반적으로 사용되는 사전에 정의되어 있는 것과 같은 용어들은 관련 기술의 문맥 상 가지는 의미와 일치하는 의미를 가지는 것으로 해석되어야 하며, 본 출원에서 명백하게 정의하지 않는 한, 이상적이거나 과도하게 형식적인 의미로 해석되지 않는다.
Unless defined otherwise, all terms used herein, including technical or scientific terms, have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. Terms such as those defined in commonly used dictionaries are to be interpreted as having a meaning consistent with the contextual meaning of the related art and are to be interpreted as either ideal or overly formal in the sense of the present application Do not.
도면에서 보는 바와 같이 본 발명에 따른 멀티자세 교정기는 경추베개(B ; Back bone fillow), 척추베개(C ; Cervical spine fillow), 발 받침대(A ; Ankle, Foot rest) 그리고 경추베개(B)에 구비되는 진동유닛(V ; Vibration unit)과 초음파유닛(U ; Ultrasound unit)의 구성요소로 대별될 수 있다.
As shown in the figure, the multi-posture corrector according to the present invention is provided on the cervical spine pillow (B; Cervical spine fillow), foot rest (A; Ankle, Foot rest), and cervical pillow (B). Vibration unit (V; Vibration unit) and may be divided into components of an ultrasonic unit (U; Ultrasound unit).
상기 경추베개(B)는 본체(10)와, 높낮이조절패드(20)와, 형상유지패널(30)을 포함하여 이루어진다.
The cervical spine pillow B includes a
상기 본체(10)는 메모리폼과 같이 부드러우면서 탄성을 갖고, 장기간 사용에도 탄성(복원력)이 오래 유지되는 재질을 사용하는 것이 바람직하다. The
상기 본체(10)의 전방 중앙부에는 사용자의 경추를 지지하는 경추지지부(11)가 형성되고, 상기 경추지지부(11)와 연결되는 상기 본체(10)의 후방 중앙부에는 사용자의 후두부가 안착되는 후두부안착부(15)가 형성되고, 상기 본체(10)의 양측으로는 사용자가 옆으로 누웠을 때 귀를 수용하여 귀가 눌리지 않도록 하는 귀수용부(19)가 형성된다.
A cervical spine support
상기 경추지지부(11)는 전방에서 후방으로 가면서 그 높이가 완만하게 라운드지며 길어지는 구조를 가져 사용자의 목을 편안하게 일정 높이로 지지하고, 양측은 상기 경추지지부(11)가 전방에서 후방으로 가면서 그 높이가 길어지는 것에 상응하여 경추지지부(11)의 바닥과 대비하여 돌출된 구조를 가져 사용자의 목이 무의식적으로 경추지지부(11)를 벗어나지 않도록 하고, 상기 경추지지부(11)의 바닥 중앙에는 전후방향으로 목의 경추를 수용하여 경추가 눌려 통증이 유발되지 않도록 하는 경추홈(12)이 형성된다.
The cervical
상기 후두부안착부(15)는 상기 경추지지부(11)의 후방에서 함몰된 구조를 가져 후두부가 안착되고, 바닥에는 후두부를 자극하고 통풍이 되도록 하는 돌기(16)들이 돌출형성되는 것이 바람직할 수 있다.
The
상기 높낮이조절패드(20)는 상기 본체(10)의 저면에 탈부착되어서 본체(10)의 높낮이, 보다 정확하게는 상기 경추지지부(11)의 높낮이를 조절할 수 있도록 한다. 상기 높낮이조절패드(20)는 사용자의 신장에 따라 경추지지부(11)의 적절한 높이가 달라지고, 개인의 취향에 따라 선호하는 경추지지부(11)의 높이가 달라질 수 있음에 따라 이를 보완하는 역할을 한다. The
상기 높낮이조절패드(20)의 탈부착 방법으로는 상기 본체(10)의 내부 저면측에 자석(또는 철판)을 구비시키고, 상기 높낮이조절패드(20)의 내부 상부측에 철판(또는 자석)을 구비시켜서 자석이 철판에 부착되도록 하는 방법이 사용될 수 있고, 다른 방법으로 벨크로테이프(일명 '찍찍이')의 암놈과 수놈을 상기 본체와 높낮이조절패드의 하부면과 상부면에 각각 부착시키는 방법을 사용할 수 있을 것이다.
As a detachable method of the
상기 형상유지패널(30)은 상기 경추지지부(11)의 하부에 배치되도록 상기 본체(10)에 내장된다. The
상기 본체(10)에서 사용자가 누웠을 때 하중에 집중되는 부분은 상기 경추지지부(11) 부위로서, 상기 본체(10)의 탄성 복원력이 아무리 우수해도 장기간 사용하면 복원력을 잃어 눌리고, 즉, 높이가 낮아지고 형상에 변형이 오게 된다. In the
이러한 하중에 의한 변형의 발생에 대항하여 장기간 그 형상이 유지되도록 하는 것이 상기 형상유지패널(30)이다. The
또한, 상기 형상유지패널(30)은 상기 진동유닛(V)과 초음파유닛(U)이 장착되고 보호될 수 있는 공간(31)을 제공하는 역할도 한다.
In addition, the
상기 형상유지패널(30)은 상기 경추지지부(11)에 대응하는 형성을 가져서, 전방에서 후방으로 가면서 라운드지며 점차 높이가 길어지는 구조를 갖고, 양측은 상부로 돌출되는 구조를 갖고, 중앙의 전후방향으로는 상기 경추홈(12)에 상응하여 경추공(32)이 형성되고, 좌우 양측에는 상기 진동유닛(V)이 장착되는 장착공(33)이 형성되고, 전방과 후방에는 상기 본체(10)의 내부 저면측에 배치되어 바닥에 지지됨으로써 위에서 하중에 가해지는 때에 살짝 눌렸다가 바로 복원되도록 탄성력을 제공하는 다리(35)가 연결된다. The
상기 경추공(32)은 상기 본체(10)의 발포성형시에 발포재료가 경추공(32)으로 유입되면서 경추홈(12)이 보다 쉽게 형성되도록 하며, 본체(10)의 발포성형시에 발포되는 본체(10)의 발포재료가 경추공(32)으로 침투되어 본체(10)와 형상유지패널(30)의 결합력을 높이는 역할을 한다.
The cervical
상기 진동유닛(V)은 상기 형상유지패널(30)의 장착공(33)에 장착되어 상기 본체(10)의 경추지지부(11)에 구비된다. The vibration unit (V) is mounted to the mounting hole (33) of the
상기 진동유닛(V)은 상기 경추지지부(11)의 경추홈(12) 양측으로 각각 노출되어 사용자의 경추 양측을 마사지하듯이 가격하는 가격구(41)를 갖는 승하강부재(40)와, 상기 승하강부재(40)의 승하강을 가이드하며 상기 형상유지패널(30)에 장착되는 'ㄷ'자 모양의 장착브라켓(50)과, 상기 장착브라켓(50)의 내측에 장착되어서 상기 승하강부재(40)를 승하강시키는 모터(미도시)를 포함한다. The vibration unit (V) is exposed to both sides of the cervical vertebral groove (12) of the cervical vertebral support (11), respectively, the elevating member (40) having a price port (41) that strikes the mass of both cervical vertebrae of the user, and the Guides the elevating member of the elevating
상기 승하강부재(40)의 하부에는 승하강핀(43)이 돌출되고, 상기 장착브라켓(50)에는 상기 승하강핀(43)이 삽입되어 승하강을 가이드하는 가이드홀(53)이 형성되고, 상기 모터의 회전축에는 상기 승하강핀(43)과 연결되는 편심구가 구비되어서, 모터가 회전하면 편심구에 의해서 상기 승하강핀이 승하강을 하게 되고, 그에 따라 상기 가격구(41)가 경추를 가격하여 마사지하게 된다.
A lifting
상기 초음파유닛(U)은 상기 본체(10)의 경추지지부(11)와 후두부안착부(15)를 연결하는 연결부위에 구비되어서, 후두하부측에서 뇌에 초음파를 인가한다. The ultrasound unit (U) is provided at a connection portion connecting the cervical
상기 초음파유닛(U)은 사용자의 후두부가 위치하는 상기 본체(10)의 표면(상부면 ; 경추지지부와 후두부 안착부를 연결하는 부위)에 노출되거나, 표면 살짝 아래에 내장되어서 뇌에 초음파를 인가한다.The ultrasound unit (U) is exposed to the surface (upper surface; the area connecting the cervical spine support and the laryngeal seat) of the
상기 초음파유닛(U)은 한번 작동하면 약 1MHz~2MHz 대역의 초음파를 약 30초간 뇌에 인가하게 된다. 초음파를 약 30초간 뇌에 인가하면 몇십분(30~40분) 동안 그 효과가 지속된다.
The ultrasonic unit (U) is applied once to the brain for about 30 seconds in the ultrasound of 1MHz ~ 2MHz band once operated. When ultrasound is applied to the brain for about 30 seconds, the effect lasts for several ten minutes (30-40 minutes).
상기 초음파유닛(U)의 양측에는 골전도유닛(60)이 구비된다. 사용자의 후두부에 진동을 주어서 그 진동에 의해 뇌(골)를 진동시켜 소리가 들리도록 한다. 사용자는 상기 골전도유닛(60)에 접촉되어 뇌가 진동되어야 소리를 들을 수 있고, 주변의 사람은 소리를 들을 수 없다.
사용자는 상기 골전도유닛(60)을 통해 주변 사람에게 피해를 주지 않고 음악을 듣거나, 수면을 유도하거나 편안함을 느끼도록 하는 기능성 음원을 청취할 수 있다.
The user may listen to a functional sound source to listen to music, induce sleep, or feel comfortable without damaging the surrounding people through the
상기 진동유닛(V)과 초음파유닛(U)은 상기 본체(10)의 외부에 구비되며 케이블로 연결된 컨트롤러(미도시)에 의해 그 동작이 제어된다. The vibration unit (V) and the ultrasonic unit (U) is provided on the outside of the
상기 진동유닛(V)과 초음파유닛(U)은 전기에 의해 구동되는 유닛으로서, 구동시에 전자파를 발생시킬 수 있고, 이 전자파는 인체에 유해할 수 있다. 그래서 상기 본체(10)의 상부면이나 본체(10) 전체에는 전자파를 차단하는 플러렌 구조의 광물(예; 슘기트 광물)을 함유하는 것이 바람직할 수 있다.
The vibration unit (V) and the ultrasonic unit (U) is a unit driven by electricity, and can generate electromagnetic waves when driving, the electromagnetic waves can be harmful to the human body. Therefore, it may be desirable to contain a fullerene structure mineral (eg, calcium gate mineral) on the upper surface of the
상기 척추베개(C)는 만곡된 형상을 갖는 척추를 지지하여 편안한 자세가 되도록 하며 자세(골격)을 균형잡히게 교정한다. The spine pillow (C) supports a spine having a curved shape to make a comfortable posture and to correct the posture (skeleton) in a balanced manner.
상기 척추베개(C)는 만곡된 척추에 상응하여 라운드진 구조의 척추지지부(71)를 갖는 바디(70)와, 상기 바디(70)에 내장되어서 상기 척추지지부(71)를 가열하는 가열유닛(미도시)을 포함하여 이루어진다. 그리고 상기 척추지지부(71)에는 척추와 그 부근의 피부를 가압하여 자극하는 자극돌기(73)들이 돌출형성되는 것이 바람직할 수 있다. The spine pillow (C) is a
상기 척추베개(C)는 뜨끈뜨근한 온열로 인체에 시원한 느낌을 주고, 온돌방과 같은 찜질 효과를 줄 수 있고, 허리 부분을 포근하게 감싸주어 편안한 자세가 되도록 하고, 비틀어진 자세를 교정하여 허리 통증 개선 효과를 얻을 수 있다. The spine pillow (C) gives a cool feeling to the human body with hot heat, can give a poultice effect, such as ondolbang, wraps around the waist to make a comfortable posture, correct the twisted posture back pain An improvement effect can be obtained.
상기 척추베개(C)도 가열유닛이 전기를 사용하게 전자파를 발생시킬 수 있으므로, 그 표면에 전자파를 차단하는 플러렌 구조의 광물을 함유하도록 하는 것이 바람직할 것이다.
Since the spine pillow (C) can also generate electromagnetic waves using the heating unit, it will be desirable to contain minerals of the fullerene structure that block electromagnetic waves on its surface.
상기 발 받침대(A)는 인간의 생활 속에서 가장 많은 체하중을 받아 피로가 쌓이고 경직되는 발을 올려놓아 편안하게 하고, 사용자가 사용하기 편안 높이로 조정할 수 있어서 혈액 순환이 잘되고 시원하게 피로를 풀어주는 역할을 한다. The foot support (A) is the most heavy load in human life, fatigue and pile up the foot stiff and comfortable, and can be adjusted to a comfortable height for the user to improve blood circulation and cool fatigue Play a role.
상기 발 받침대(A)는 발목 부위가 올려지는 올림부(81)와, 상기 올림부(81)의 양측으로 돌출되어서 올려진 발이 분리이탈되지 않도록 막아주는 막음부(83)를 포함한다. The foot support A includes an raising
이때, 상기 올림부(81)의 높이를 단계적으로 조절할 수 있도록, 상기 막음부(83)는 다면체(도면은 6면체) 구조를 갖고, 상기 올림부(81)는 막음부(83)의 중심에서 편심된 위치에 있다. 그래서 다면체의 막음부(83)를 한칸씩 돌릴때 마다 상기 올림부(81)의 높이가 단계적으로 높아지거나 낮아지게 된다. In this case, the blocking
상기 발 받침대(A)는 올려진 발에 통증이 유발되지 않도록 부드럽고, 장기간 사용에도 그 형상에 변형이 최소화되도록 형상기억의 기능을 갖는 메모리폼을 사용하는 것이 바람직할 것이다.
The foot support (A) is preferable to use a memory foam having a function of shape memory so as to minimize the deformation in its shape even in the long-term use, so as not to cause pain in the raised foot.
이상에서 본 발명을 설명함에 있어 첨부된 도면을 참조하여 특정 형상과 구조를 갖는 멀티자세 교정기에 대해 설명하였으나 본 발명은 당업자에 의하여 다양한 변형 및 변경이 가능하고, 이러한 변형 및 변경은 본 발명의 보호범위에 속하는 것으로 해석되어야 한다.
In the above description of the present invention has been described with reference to the accompanying drawings a multi-posture corrector having a specific shape and structure, the present invention can be variously modified and changed by those skilled in the art, such modifications and changes are the protection of the present invention Should be interpreted as being within the scope.
A : 발 받침 대 B : 경추베개
C : 척추베개 U : 초음파유닛
V : 진동유닛 10 : 본체
20 : 높낮이조절패드 30 : 형상유지패널
40 : 승하강부재 50 : 장착브라켓
70 : 바디A: footrest stand B: cervical pillow
C: Spinal pillow U: Ultrasonic unit
V: Vibration Unit 10: Body
20: height adjustment pad 30: shape maintenance panel
40: lifting member 50: mounting bracket
70: body
Claims (4)
상기 경추지지부에 구비되어서 경추를 진동자극하는 진동유닛;
상기 경추지지부와 후두부안착부의 연결부위에 구비되어서 뇌에 초음파를 인가하는 초음파유닛;을 포함하여 이루어지는 멀티자세 교정기. A cervical spine comprising a cervical support supporting a cervical spine, and a main body formed with a posterior head seating portion connected to the rear of the cervical spine support to which the head is seated;
A vibration unit provided at the cervical spine support part to vibrate a cervical spine;
And an ultrasound unit provided at a connection portion of the cervical spine support part and the back head seat part to apply ultrasound to the brain.
척추를 지지하는 척주지지부가 형성된 바디와, 상기 바디에 내장되어서 상기 척주지지부를 가열하는 가열유닛을 포함하는 척추베개;를 더 포함하는 것을 특징으로 하는 멀티자세 교정기. The method of claim 1,
And a spinal pillow comprising a body having a spinal column support part supporting the spine and a heating unit embedded in the body to heat the spinal column support part.
발을 지지하며, 높이 조절이 가능한 발 받침대;를 더 포함하는 것을 특징으로 하는 멀티자세 교정기. 3. The method according to claim 1 or 2,
A multi-posture brace, characterized in that it further comprises a foot support, the foot support for height adjustment.
상기 경추베개는
상기 본체에 내장되어서 상기 경추지지부의 함몰을 방지하는 형상유지패널과,
상기 본체의 저면에 탈부착되어서 본체의 높이를 조절하도록 하는 높낮이조절패드를 더 포함하는 것을 특징으로 하는 멀티자세 교정기. The method of claim 3, wherein
The cervical spine pillow
A shape maintaining panel embedded in the main body to prevent depression of the cervical spine support;
And a height adjusting pad detachably attached to the bottom of the main body to adjust the height of the main body.
Priority Applications (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
KR1020130161637A KR101378163B1 (en) | 2013-12-23 | 2013-12-23 | Multi position rest |
Applications Claiming Priority (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
KR1020130161637A KR101378163B1 (en) | 2013-12-23 | 2013-12-23 | Multi position rest |
Publications (1)
Publication Number | Publication Date |
---|---|
KR101378163B1 true KR101378163B1 (en) | 2014-03-27 |
Family
ID=50649547
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
KR1020130161637A KR101378163B1 (en) | 2013-12-23 | 2013-12-23 | Multi position rest |
Country Status (1)
Country | Link |
---|---|
KR (1) | KR101378163B1 (en) |
Cited By (4)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CN105380739A (en) * | 2015-01-13 | 2016-03-09 | 张剑扬 | Cervical pillow |
KR200482062Y1 (en) * | 2015-09-11 | 2016-12-20 | 이광은 | Stretching Organization Package |
KR101811282B1 (en) | 2017-04-07 | 2017-12-21 | 공재철 | Pillow with functionality |
KR101878598B1 (en) * | 2017-03-24 | 2018-07-13 | 김민호 | Functional pillow |
Citations (4)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
KR20050122125A (en) * | 2004-06-23 | 2005-12-28 | 김부길 | Health care heating massage the cervical vertebrae device for infrared rays radiation thermotherapy |
JP2006346457A (en) * | 2005-05-17 | 2006-12-28 | Toshio Oshiro | Bedding pillow with light irradiation element laid thereon |
KR100926484B1 (en) * | 2008-05-30 | 2009-11-12 | 주식회사 진바이오테크 | Meditation pillow for use Craniosacral Therapy |
KR200460780Y1 (en) * | 2010-02-05 | 2012-06-11 | 주식회사 티앤아이 | Orthopedic pillow for deepsleep |
-
2013
- 2013-12-23 KR KR1020130161637A patent/KR101378163B1/en active IP Right Grant
Patent Citations (4)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
KR20050122125A (en) * | 2004-06-23 | 2005-12-28 | 김부길 | Health care heating massage the cervical vertebrae device for infrared rays radiation thermotherapy |
JP2006346457A (en) * | 2005-05-17 | 2006-12-28 | Toshio Oshiro | Bedding pillow with light irradiation element laid thereon |
KR100926484B1 (en) * | 2008-05-30 | 2009-11-12 | 주식회사 진바이오테크 | Meditation pillow for use Craniosacral Therapy |
KR200460780Y1 (en) * | 2010-02-05 | 2012-06-11 | 주식회사 티앤아이 | Orthopedic pillow for deepsleep |
Cited By (4)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CN105380739A (en) * | 2015-01-13 | 2016-03-09 | 张剑扬 | Cervical pillow |
KR200482062Y1 (en) * | 2015-09-11 | 2016-12-20 | 이광은 | Stretching Organization Package |
KR101878598B1 (en) * | 2017-03-24 | 2018-07-13 | 김민호 | Functional pillow |
KR101811282B1 (en) | 2017-04-07 | 2017-12-21 | 공재철 | Pillow with functionality |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
KR101077885B1 (en) | A myofascal relaxer for physical therapy | |
JP3181658U (en) | Deep sleep pillow | |
KR101173164B1 (en) | Cervical vertebrae tow and cure device | |
US20170128307A1 (en) | Functional pillow for manipulation therapy | |
KR101474820B1 (en) | Circulation of cerebrospinal fluid (CSF) to induce functional pillow | |
CN201328904Y (en) | Vibrating traction hyperthermia bed | |
KR101378163B1 (en) | Multi position rest | |
CN211382432U (en) | Intelligent multifunctional treatment bed | |
EP2896393B1 (en) | Head relaxing pillow | |
KR20170133002A (en) | Massage Pillow | |
KR100795271B1 (en) | Bear back n' neck pillo | |
RU2721142C1 (en) | Height-adjustable rehabilitation therapeutic pillow | |
KR20200136285A (en) | Massage Device Of Posterior Cervical muscle | |
KR20180004993A (en) | Rolling Shiatsu massage pillow for cervical treatment with functionality | |
WO2011074718A1 (en) | Myofascial release device for physical therapy | |
CN202724244U (en) | Physiotherapy massage bed | |
KR100371610B1 (en) | A spine correcting method of using the chair | |
KR20210133333A (en) | Massage Device Of Posterior Cervical muscle | |
KR20210132831A (en) | Massage Device Of Posterior Cervical muscle | |
TWI583364B (en) | Cranio-sacral therapy and chiropractic applied myofascial relaxer for physical therapy | |
KR20170006499A (en) | Acupressure device for a cervical vertebrae | |
CN109646164A (en) | Lumber ertebral disc recovery band | |
KR102501550B1 (en) | Chair type orthodontic treatment device with spinal traction alignment function | |
CN214388530U (en) | Multifunctional massage instrument and massage instrument set | |
KR102326038B1 (en) | Apparatus for cervical vertebra massage |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
A201 | Request for examination | ||
A302 | Request for accelerated examination | ||
E701 | Decision to grant or registration of patent right | ||
GRNT | Written decision to grant | ||
FPAY | Annual fee payment |
Payment date: 20170223 Year of fee payment: 4 |
|
FPAY | Annual fee payment |
Payment date: 20180108 Year of fee payment: 5 |
|
FPAY | Annual fee payment |
Payment date: 20190116 Year of fee payment: 6 |
