EP2350119B1 - Lipopeptide compounds and their use - Google Patents

Lipopeptide compounds and their use Download PDF

Info

Publication number
EP2350119B1
EP2350119B1 EP09829415.0A EP09829415A EP2350119B1 EP 2350119 B1 EP2350119 B1 EP 2350119B1 EP 09829415 A EP09829415 A EP 09829415A EP 2350119 B1 EP2350119 B1 EP 2350119B1
Authority
EP
European Patent Office
Prior art keywords
independently
present
optionally substituted
compound according
compound
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Not-in-force
Application number
EP09829415.0A
Other languages
German (de)
French (fr)
Other versions
EP2350119A1 (en
EP2350119A4 (en
Inventor
Rustum S. Boyce
Joseph Cherian
Cleofe Calanasan
Muhammad Sofian Asi Sihombing
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Uniquest Pty Ltd
Original Assignee
Uniquest Pty Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Uniquest Pty Ltd filed Critical Uniquest Pty Ltd
Publication of EP2350119A1 publication Critical patent/EP2350119A1/en
Publication of EP2350119A4 publication Critical patent/EP2350119A4/en
Application granted granted Critical
Publication of EP2350119B1 publication Critical patent/EP2350119B1/en
Not-in-force legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07K—PEPTIDES
    • C07K7/00—Peptides having 5 to 20 amino acids in a fully defined sequence; Derivatives thereof
    • C07K7/50—Cyclic peptides containing at least one abnormal peptide link
    • C07K7/54—Cyclic peptides containing at least one abnormal peptide link with at least one abnormal peptide link in the ring
    • C07K7/56—Cyclic peptides containing at least one abnormal peptide link with at least one abnormal peptide link in the ring the cyclisation not occurring through 2,4-diamino-butanoic acid
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P31/00—Antiinfectives, i.e. antibiotics, antiseptics, chemotherapeutics
    • A61P31/04—Antibacterial agents
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K38/00—Medicinal preparations containing peptides

Definitions

  • the present invention pertains generally to the field of therapeutic compounds, and more specifically to certain lipopeptide compounds comprising a cyclic peptide bearing a lipid side chain (for convenience, collectively referred to herein as "LP compounds"), which, inter alia, are antimicrobial, particularly antibacterial.
  • LP compounds lipopeptide compounds comprising a cyclic peptide bearing a lipid side chain
  • the present invention also pertains to pharmaceutical compositions comprising such compounds, and the use of such compounds and compositions, both in vitro and in vivo, to provide an antimicrobial function, particularly an antibacterial function, and in the treatment of diseases and conditions that are mediated by microbes, particularly bacteria, that are ameliorated by the antimicrobial function, particularly an antibacterial function, including bacterial diseases, optionally in combination with another agent, for example, another antibacterial agent.
  • Ranges are often expressed herein as from “about” one particular value, and/or to “about” another particular value. When such a range is expressed, another embodiment includes from the one particular value and/or to the other particular value. Similarly, when values are expressed as approximations, by the use of the antecedent "about,” it will be understood that the particular value forms another embodiment.
  • Secondary metabolites from microorganisms are successfully employed for the treatment of infectious diseases.
  • Secondary metabolites are low molecular weight compounds whose production takes place in "biosynthetic oneway streets" which branch off from the primary metabolism, and whose function for the particular producer is unclear.
  • the main area of use of these secondary metabolites is the therapy of infectious diseases.
  • MRSA strains penicillin- or methicillin-resistant strains
  • a therapeutically adequate effect on penicillin- or methicillin-resistant strains (MRSA strains) which have developed further antibiotic resistances is often possessed only by glycopeptides such as vancomycin or teicoplanin.
  • strains also resistant to these antibiotics are increasingly appearing ( FEMS Microbiol. Lett. 98 (1992) 5 109 to 116 ).
  • Antibiotics from the class of the lipopeptides which are characterized by a linear or cyclic peptide portion or a combination of both, with naturally and/or non-naturally derivatized and/or non-derivatized amino acids, with which a saturated or unsaturated acyl residue is connected, have been found in the past as effective against fungi and Gram-positive bacteria.
  • a lipopeptide is Friulimicin B, shown below.
  • European Patent Application No. 0 629 636 proposes lipopeptides which have homologous amino acid sequences but different fatty acid residues (lipid portion) and which are synthesized by Actinoplanes sp. during the fermentation and released into the culture medium, as well as a process for isolating the lipopeptides from the culture medium, their purification and the use of the lipopeptides as pharmacological active substances, in particular against Gram-positive bacteria.
  • these lipopeptides exhibit toxic properties, in particular hemolysis.
  • WO 99/43700 discloses calcium salts of lipopeptide antibiotics and methods of their preparation.
  • WO 2005/000878 discloses lipopeptide antibiotic derivative compositions and their respective methods of use.
  • AU 696566 discloses derivatives of the lipopeptide A1437, processes of their preparation and uses thereof.
  • One aspect of the invention pertains to certain lipopeptide compounds related to friulimicin but with modified acyl side chains, as described herein. For convenience, these compounds are collectively referred to herein as "LP compounds”.
  • compositions e.g., a pharmaceutical composition
  • a composition comprising a LP compound, as presently claimed, and a pharmaceutically acceptable carrier or diluent.
  • composition e.g., a pharmaceutical composition
  • a method of preparing a composition comprising the step of admixing a LP compounds, as described herein, and a pharmaceutically acceptable carrier or diluent.
  • Disclosed herein is a method of killing microbes in a host (e.g. a subject/patient), in vitro or in vivo, comprising contacting the host with an effective amount of a LP compound, as described herein.
  • the present invention is concerned with providing an antimicrobial action (e.g. an antibacterial and/or antifungal action).
  • Disclosed herein is a method of inhibiting (e.g. reducing or preventing) growth or reproduction of bacteria, killing bacteria, or a combination of both these, in vitro or in vivo, comprising contacting a host (e.g. a subject/patient) with an effective amount of a LP compound, as described herein.
  • a host e.g. a subject/patient
  • an effective amount of a LP compound as described herein.
  • the method may further comprise contacting the host with one or more other antibacterial agents.
  • Also disclosed herein is a method of killing bacteria in a host (e.g. a subject/patient), in vitro or in vivo, comprising contacting the host with an effective amount of a LP compound, as described herein.
  • the method may further comprise contacting the host with one or more other antibacterial agents.
  • Disclosed herein is a method of reducing or preventing the growth or reproduction of bacteria in a host (e.g. a subject/patient), in vitro or in vivo, comprising contacting the host with an effective amount of a LP compound, as described herein.
  • the method may further comprise contacting the host with one or more other antibacterial agents.
  • Also disclosed herein is a bacteriostatic method using an effective amount of a LP compound.
  • Also disclosed herein is a method of treatment comprising administering to a subject in need of treatment a therapeutically-effective amount of a LP compound, as described herein, preferably in the form of a pharmaceutical composition.
  • the method may further comprise administering to the subject one or more other antibacterial agents.
  • Another aspect of the present invention pertains to a LP compound as claimed herein for use in a method of treatment of the human or animal body by therapy.
  • the method of treatment comprises treatment with both (i) a LP compound as claimed and (ii) one or more other antibacterial agents.
  • Another aspect of the present invention pertains to use of a LP compound, as claimed herein, in the manufacture of a medicament for use in treatment.
  • the treatment comprises treatment with both (i) a medicament comprising a LP compound as claimed and (ii) one or more other antibacterial agents.
  • the treatment is treatment of a disease or condition that is mediated or caused by bacteria.
  • the treatment is treatment of a disease or condition that is ameliorated by the inhibition of bacteria growth or reproduction and/or bacteria death.
  • the treatment is treatment of a bacterial infection.
  • the treatment is treatment of a bacterial disease.
  • kits comprising (a) a LP compound, as described herein, preferably provided as a pharmaceutical composition and in a suitable container and/or with suitable packaging; and (b) instructions for use, for example, written instructions on how to administer the compound.
  • the kit may further comprise one or more other antibacterial agents.
  • LP compounds disclosed herein are obtainable by a method of synthesis as described herein, or a method comprising a method of synthesis as described herein.
  • the present invention also includes an LP compound as described in the claims obtained by a method of synthesis.
  • a lipopeptide having an acyl side chain e.g. a LP compound, as described herein
  • the method comprises the step of reacting an ester precursor of the acyl side chain with a lipopeptide in the presence of calcium chloride.
  • One aspect of the present invention relates to certain lipopeptide compounds related structurally to friulimicin but containing modified acyl side chains (for convenience, collectively referred to herein as "LP compounds").
  • the compounds are selected from compounds of the following formula, and pharmaceutically acceptable salts, hydrates, and solvates thereof: wherein:
  • indices such as "C 4-7 " in terms such as "C 4-14 heterocyclylene” refer to the number of ring atoms, whether carbon atoms or heteroatoms.
  • cyclohexylene, piperidinylene, pyridinylene and piperazinylene are example of a C 6 cyclylene group.
  • two or more neighbouring groups are each a single bond, they form only one single bond.
  • -R 1 is independently -OH or -NH 2 . In one embodiment, -R 1 is independently -OH. In one embodiment, -R 1 is independently-NH 2 .
  • -R 2 is independently -R B .
  • each -L S - is independently a single bond.
  • -R B is independently R B4 -R B3 -L B2 -R B2 -L B1 -R B1 -C(O)-.
  • -R B1 - is independently -R BP - or -R BN - and each of -R B2 - and - R B3 - is independently -R BS -, -R BP -, -R BN - or -R BH -, wherein at least one of -R B2 - and - R B3 - is independently -R BH -.
  • -R B1 - is independently -R BP - or -R BN -
  • each of -R B2 - and - R B3 - is independently -R BS -, -R BP -, -R BN - or -R BH -, wherein at least one of -R B2 -, and - R B3 - is independently -R BH -.
  • -R B1 - is independently -R BP - or -R BN -, wherein at least one of - R B2 -, and -R B3 - is independently -R BH - and wherein at least one of -R B2 -, and -R B3 - is independently -R BP -.
  • -R B1 - is independently -R BP -, and each of -R B2 - and -R B3 - is independently-R BP -, -R BN - or -R BH -, wherein at least one of -R B2 -, and -R B3 - is independently -R BH -.
  • -R B1 - is independently -R BP -
  • - R B3 - is independently -R BH - and the other is independently -R BP -.
  • -R B1 - is independently -R BP -. In one embodiment, -R B1 - is independently -R BN -.
  • -R B2 - is independently -R BS -. In one embodiment, -R B2 - is independently -R BP In one embodiment, -R B2 - is independently -R BN -. In one embodiment, -R B2 - is independently -R BH -.
  • -R B3 - is independently -R BS -. In one embodiment, -R B3 - is independently -R BP -. In one embodiment, -R B3 - is independently -R BN -. In one embodiment, -R B3 - is independently -R BH -.
  • -R B1 - is independently -R BP -
  • -R B2 - is independently -R BH -
  • - R B3 - is independently -R BP -.
  • -R B1 - is independently -R BP -
  • -R B2 - is independently -R BH -
  • - R B3 - is independently -R BP -.
  • each -R BS - is independently a single bond.
  • each -R BP - is independently phenylene, and is optionally substituted. In one embodiment, each -R BP -, if present, is independently
  • each -R BN - is independently naphthylene, and is optionally substituted. In one embodiment, each -R BN -, if present, is independently
  • each -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 4-14 heterocyclylene, and is optionally substituted. In one embodiment, each -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 4-10 heterocyclylene, and is optionally substituted. In one embodiment, each -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 4-6 heterocyclylene, and is optionally substituted. In one embodiment, each -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 5-6 heterocyclylene, and is optionally substituted.
  • each -R BH - is independently aromatic or unsaturated non-aromatic C 5 heterocyclylene, and is optionally substituted.
  • each -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 4-10 heterocyclylene, wherein at least one ring atom is N, and is optionally substituted. In one embodiment, each -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 4-10 heterocyclylene, wherein at least one ring atom is O, and is optionally substituted. In one embodiment, each -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 4-10 heterocyclylene, wherein at least one ring atom is S, and is optionally substituted.
  • each -R BH - is independently aromatic or unsaturated non-aromatic C 5-6 heterocyclylene containing at least one of N, O or S as a ring atom, and is optionally substituted. In one embodiment, each -R BH - is independently aromatic or unsaturated non-aromatic C 5-6 heterocyclylene containing at least one N as a ring atom, and is optionally substituted. In one embodiment, each -R BH - is independently aromatic or unsaturated non-aromatic C 5-6 heterocyclylene containing at least one N and one O as ring atoms, and is optionally substituted.

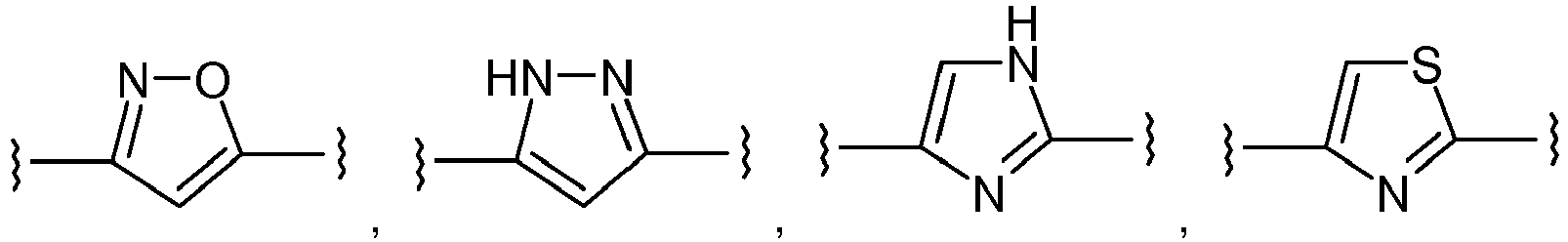

  • each -R BH - is independently isoxazolylene, oxazolylene, thiazolylene, pyrazolylene, imidazolylene, pyrrolyl, indazolyl, triazolyl, tetrazolyl, oxadiazolylene, pyridinylene or piperazinylene, pyrimidinyl, Pyrazinyl, thiadiazolyl oxadiazolylene, pyridinylene or piperazinylene, and is optionally substituted.
  • each -R BH - is independently isoxazolylene, oxazolylene, thiazolylene, pyrazolylene, imidazolylene, oxadiazolylene or pyridinylene, and is optionally substituted.
  • each -R BH is independently isoxazolylene, and is optionally substituted.
  • each -R BH is independently
  • each of -L B1 - and -L B2 - is independently -L S -, -L BB - or -L BO -. In one embodiment, each of -L B1 - and -L B2 - is independently -L S -. In one embodiment, each of -L B1 - and -L B2 - is independently -L BB -. In one embodiment, each of -L B1 - and -L B2 - is independently -L BO -.
  • -L B1 - is independently -L S -. In one embodiment, -L B1 - is independently -L BB -. In one embodiment, -L B1 - is independently -L BO -.
  • -L B2 - is independently -L S -. In one embodiment, -L B2 - is independently -L BB -. In one embodiment, -L B2 - is independently -L BO -.
  • each -L S - is independently a single bond.
  • each -L BB - is independently saturated aliphatic C 1-4 alkylene, and is optionally substituted. In one embodiment, each -L BB -, if present, is independently saturated aliphatic C 1-2 alkylene, and is optionally substituted. In one embodiment, each -L BB -, if present, is independently -CH 2 -CH 2 -.
  • each -L BO - is independently saturated aliphatic C 1-4 alkoxylene, and is optionally substituted. In one embodiment, each -L BO -, if present, is independently saturated aliphatic C 1-2 alkoxylene, and is optionally substituted. In one embodiment, each -L BO -, if present, is independently -CH 2 -O-.
  • -R B4 is independently -H, -R B4A , -R B4AA or -R B4O . In one embodiment, -R B4 is independently -H. In one embodiment, -R B4 is independently -R B4A . In one embodiment, -R B4 is independently -R B4AA . In one embodiment, -R B4 is independently -R B4O .
  • -R B4A if present, is independently saturated or unsaturated aliphatic or alicyclic C 1-10 alkyl, and is optionally substituted. In one embodiment, -R B4A , if present, is independently saturated or unsaturated aliphatic or alicyclic C 1-8 alkyl, and is optionally substituted. In one embodiment, -R B4A , if present, is independently saturated or unsaturated aliphatic or alicyclic C 2-8 alkyl, and is optionally substituted. In one embodiment, -R B4A , if present, is independently saturated or unsaturated aliphatic or alicyclic C 3-8 alkyl, and is optionally substituted.
  • -R B4A if present, is independently saturated aliphatic C 3-8 alkyl, and is optionally substituted. In one embodiment, -R B4A , if present, is independently saturated linear C 3-8 alkyl, and is optionally substituted. In one embodiment, -R B4A , if present, is independently saturated alicyclic C 3-8 alkyl, and is optionally substituted. In one embodiment, -R B4A , if present, is independently cyclohexyl, and is optionally substituted.
  • -R B4AA if present, is independently C 6-10 aryl-C 1-6 alkyl, and is optionally substituted. In one embodiment, -R B4AA , if present, is independently C 6 aryl-C 1-6 alkyl, and is optionally substituted. In one embodiment, -R B4AA , if present, is independently C 6 aryl-C 1-2 alkyl, and is optionally substituted. In one embodiment, -R B4AA , if present, is independently
  • -R B4O if present, is independently -R B4O1 or R B4O2 . In one embodiment, -R B4O , if present, is independently -R B4O1 In one embodiment, -R B4O , if present, is independently -R B4O .
  • -R B4O1 if present, is independently saturated or unsaturated aliphatic or alicyclic C 1-10 alkoxy, and is optionally substituted. In one embodiment, -R B4O1 , if present, is independently saturated or unsaturated aliphatic C 1-10 alkoxy, and is optionally substituted. In one embodiment, -R B4O1 , if present, is independently saturated or unsaturated aliphatic C 3-8 alkoxy, and is optionally substituted. In one embodiment, -R B4O1 , if present, is independently saturated or unsaturated aliphatic C 4-7 alkoxy, and is optionally substituted.
  • -R B4O1 if present, is independently saturated or unsaturated aliphatic C 5-7 alkoxy, and is optionally substituted. In one embodiment, -R B4O1 , if present, is independently saturated or unsaturated aliphatic C 6 alkoxy, and is optionally substituted.
  • -R B4O1 if present, is independently -O-(CH 2 ) 3 -CH 3 , -O-(-CH 2 ) 4 -CH 3 , -O-(CH 2 ) 5 -CH 3 or -O-(CH 2 ) 6 -CH 3 . In one embodiment, -R B4O1 , if present, is independently-O-(CH 2 ) 3 -CH 3 . In one embodiment, -R B4O1 , if present, is independently -O-(CH 2 ) 4 -CH 3 . In one embodiment, -R B4O1 , if present, is independently -O-(CH 2 ) 5 -CH 3 . In one embodiment, -R B4O1 , if present, is independently -O-(CH 2 ) 6 -CH 3 .
  • -R B4O2 if present, is independently C 6-10 aryloxy, and is optionally substituted. In one embodiment, -R B4O2 , if present, is independently C 6 aryloxy, and is optionally substituted. In one embodiment, -R B4O2 , if present, is independently
  • -L BB - if present, is independently unsubstituted. In one embodiment, -L BB -, if present, is independently optionally substituted with one or more substituents, -R S1 .
  • -L BO - if present, is independently unsubstituted. In one embodiment, -L BO -, if present, is independently optionally substituted with one or more substituents, -R S1 .
  • each R S1 is independently selected from:
  • each R S1 is independently selected from:
  • each R S1 if present, is independently selected from -R SS1 .
  • -R B4A if present, is independently unsubstituted. In one embodiment, -R B4A , if present, is independently optionally substituted with one or more substituents, -R S2 .
  • -R B4O1 if present, is independently unsubstituted. In one embodiment, -R B4O1 , if present, is independently optionally substituted with one or more substituents, -R S2 .
  • -R B4O2 if present, is independently unsubstituted. In one embodiment, -R B4O2 , if present, is independently optionally substituted with one or more substituents, -R S2 .
  • -R B4AA if present, is independently unsubstituted. In one embodiment, -R B4AA , if present, is independently optionally substituted with one or more substituents, -R S2 .
  • each -R S2 is independently selected from:
  • each -R S2 is independently selected from:
  • each -R S2 is independently selected from:
  • each -R S2 is independently selected from:
  • -R BP - if present, is independently unsubstituted. In one embodiment, -R BP -, if present, is independently optionally substituted with one or more substituents, -R S3 .
  • -R BN - if present, is independently unsubstituted.
  • -R BP - if present, is independently optionally substituted with one or more substituents, -R s3 .
  • each R S3 is independently selected from:
  • each R S3 is independently selected from:
  • -R BH - is independently unsubstituted. In one embodiment, -R BH - is independently is optionally substituted with one or more substituents, -R S4 .
  • each R S4 is independently selected from:
  • each R S4 is independently selected from:
  • each -L JA - is independently -(CH 2 ) n2 -, wherein n2 is independently 1 to 4.
  • each -L JA - is independently -CH 2 - or -CH 2 CH 2 -.
  • each -R JA1 is independently:
  • each -R JA1 is independently:
  • each -R JA1 is independently:
  • each -R JB6 is independently azetidinyl, pyrrolidinyl, imidazolidinyl, pyrazolidinyl, piperidinyl, piperazinyl, morpholinyl, azepinyl, diazepinyl, tetrahydrofuranyl, tetrahydropyranyl, dioxanyl, and is optionally substituted.
  • each -R JB6 is independently pyrrolidinyl, piperidinyl, piperazinyl, morpholinyl, tetrahydrofuranyl, or tetrahydropyranyl, and is optionally substituted.
  • each -R JB7 if present, is independently phenyl, and is optionally substituted.
  • each -R JB8 is independently C 5-6 heteroaryl, and is optionally substituted.
  • each -R JB8 if present, is independently C 9-10 heteroaryl, and is optionally substituted.
  • each -R JB8 is independently furanyl, thienyl, pyrrolyl, imidazolyl, pyrazolyl, triazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, pyridyl, pyrimidinyl, pyridazinyl, benzofuranyl, benzothienyl, benzopyrrolyl, benzoimidazolyl, benzopyrazolyl, benzotriazolyl, benzoxazolyl, benzoisoxazolyl, benzothiazolyl, benzoisothiazolyl, benzopyridyl, benzopyrimidinyl, or benzopyridazinyl, and is optionally substituted.
  • each -R JB8 is independently furanyl, thienyl, pyrrolyl, imidazolyl, pyrazolyl, triazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, pyridyl, pyrimidinyl, or pyridazinyl, and is optionally substituted.
  • each -L JB - is independently -CH 2 - or -CH 2 CH 2 -. In one embodiment, each -L JB -, if present, is independently -CH 2 -.
  • each -R SS1 is independently saturated aliphatic C 1 - 6 alkyl.
  • each -R SS1 if present, is independently saturated aliphatic C 1 - 3 alkyl.
  • each -R SS1 if present, is independently -Me.
  • each -L SS1 - is independently -(CH 2 ) n -, wherein n is independently 1 to 4.
  • each -L SS1 - is independently -CH 2 - or -CH 2 CH 2 -.
  • -R 2 is independently:
  • -R 2 is independently:
  • -R 2 is independently:
  • -R 2 is independently: wherein -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 5 - 6 heterocyclylene, and is optionally substituted.
  • -R 2 is independently: wherein -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 5-6 heterocyclylene, and is optionally substituted, and wherein -R B4 is independently -R B4A , -R B4AA or -R B4O .
  • -R 2 is independently: wherein -R BH - is independently aromatic or saturated or unsaturated non-aromatic C 5-6 heterocyclylene, and is optionally substituted, and wherein -R B4 is independently -R B4A or -R B4O .
  • -R B4 is -R B4A , -R B4AA or -R B4O .
  • -R B2 - is -R BH -
  • -R B4 is -R B4A , -R B4AA or -R B4O .
  • -R 2 is independently selected from:
  • the LP compound, as described herein is a salt. In one embodiment, the LP compound, as described herein, is a sodium or calcium salt. In one embodiment, the LP compound, as described herein, is a Ca 2 Cl 2 salt.

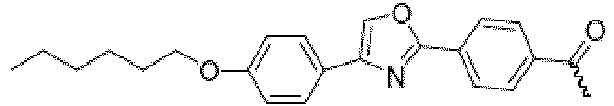

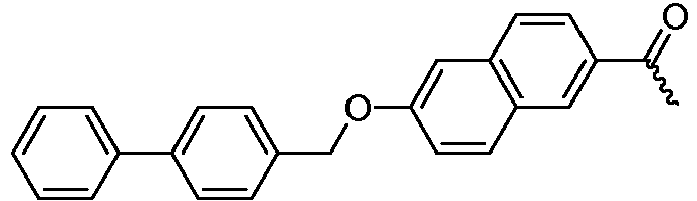

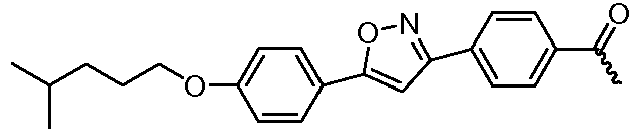

  • the compounds are selected from compounds of the following formulae and pharmaceutically acceptable salts, hydrates, and solvates thereof, wherein the lipopeptide to which the side chain is attached is: Compound Side Chain Structure LP-020 LP-021 LP-022 LP-023 LP-024 LP-025 LP-026 LP-027 LP-028 LP-029 LP-030 LP-031 LP-032 LP-033 LP-034 LP-035 LP-036 LP-037 LP-038 LP-039 LP-040 LP-041 LP-042 LP-043 LP-044 LP-045 LP-046 LP-047 LP-048
  • the compound is selected from LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-034, LP-035, LP-036, LP-037, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • the compound is selected from LP-020, LP-022, LP-023, LP-024, LP-025, LP-027, LP-028, LP-029, LP-031, LP-034, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the compound is selected from LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-034, LP-035, LP-036 and LP-037.
  • the compound is selected from LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • LP compounds, as described herein exhibit antibacterial activity, for example against the test strains described herein.
  • the LP compounds, as described herein exhibit low levels of hemolysis, for example as demonstrated in the hemolysis assays reported herein.
  • LP compounds as described herein, preferably exhibit improved performance as compared to known lipopeptide compounds in terms of one or more of toxicity, pharmacokinetics (including one or more of adsorption, distribution, metabolism and excretion), pharmacodynamics, bioavailability, solubility and pharmacological activity.
  • LP compounds, as described herein preferably exhibit low haemolytic activity.
  • One aspect of the present invention pertains to LP compounds, as described herein, in substantially purified form and/or in a form substantially free from contaminants.
  • the substantially purified form is at least 50% by weight, e.g., at least 60% by weight, e.g., at least 70% by weight, e.g., at least 80% by weight, e.g., at least 90% by weight, e.g., at least 95% by weight, e.g., at least 97% by weight, e.g., at least 98% by weight, e.g., at least 99% by weight.
  • the substantially purified form refers to the compound in any stereoisomeric or enantiomeric form.
  • the substantially purified form refers to a mixture of stereoisomers, i.e., purified with respect to other compounds.
  • the substantially purified form refers to one stereoisomer, e.g., optically pure stereoisomer.
  • the substantially purified form refers to a mixture of enantiomers.
  • the substantially purified form refers to a equimolar mixture of enantiomers (i.e., a racemic mixture, a racemate).
  • the substantially purified form refers to one enantiomer, e.g., optically pure enantiomer.
  • the contaminants represent no more than 50% by weight, e.g., no more than 40% by weight, e.g., no more than 30% by weight, e.g., no more than 20% by weight, e.g., no more than 10% by weight, e.g., no more than 5% by weight, e.g., no more than 3% by weight, e.g., no more than 2% by weight, e.g., no more than 1% by weight.
  • the contaminants refer to other compounds, that is, other than stereoisomers or enantiomers. In one embodiment, the contaminants refer to other compounds and other stereoisomers. In one embodiment, the contaminants refer to other compounds and the other enantiomer.
  • the substantially purified form is at least 60% optically pure (i.e., 60% of the compound, on a molar basis, is the desired stereoisomer or enantiomer, and 40% is the undesired stereoisomer or enantiomer), e.g., at least 70% optically pure, e.g., at least 80% optically pure, e.g., at least 90% optically pure, e.g., at least 95% optically pure, e.g., at least 97% optically pure, e.g., at least 98% optically pure, e.g., at least 99% optically pure.
  • 60% optically pure i.e., 60% of the compound, on a molar basis, is the desired stereoisomer or enantiomer, and 40% is the undesired stereoisomer or enantiomer
  • at least 70% optically pure e.g., at least 80% optically pure, e.g., at least 90% optically pure, e
  • Certain compounds may exist in one or more particular geometric, optical, enantiomeric, diasteriomeric, epimeric, atropic, stereoisomeric, tautomeric, conformational, or anomeric forms, including but not limited to, cis- and trans-forms; E- and Z-forms; c-, t-, and r- forms; endo- and exo-forms; R-, S-, and meso-forms; D- and L-forms; d- and I-forms; (+) and (-) forms; keto-, enol-, and enolate-forms; syn- and anti-forms; synclinal- and anticlinal-forms; ⁇ - and ⁇ -forms; axial and equatorial forms; boat-, chair-, twist-, envelope-, and halfchair-forms; and combinations thereof, hereinafter collectively referred to as "isomers” (or "isomeric forms").
  • isomers are structural (or constitutional) isomers (i.e., isomers which differ in the connections between atoms rather than merely by the position of atoms in space).
  • a reference to a methoxy group, -OCH 3 is not to be construed as a reference to its structural isomer, a hydroxymethyl group, -CH 2 OH.
  • a reference to ortho-chlorophenyl is not to be construed as a reference to its structural isomer, meta-chlorophenyl.
  • a reference to a class of structures may well include structurally isomeric forms falling within that class (e.g., C 1-7 alkyl includes n-propyl and iso-propyl; butyl includes n-, iso-, sec-, and tert-butyl; methoxyphenyl includes ortho-, meta-, and para-methoxyphenyl).
  • C 1-7 alkyl includes n-propyl and iso-propyl
  • butyl includes n-, iso-, sec-, and tert-butyl
  • methoxyphenyl includes ortho-, meta-, and para-methoxyphenyl
  • keto/enol (illustrated below), imine/enamine, amide/imino alcohol, amidine/amidine, nitroso/oxime, thioketone/enethiol, N-nitroso/hydroxyazo, and nitro/aci-nitro.
  • H may be in any isotopic form, including 1 H, 2 H (D), and 3 H (T); C may be in any isotopic form, including 12 C, 13 C, and 14 C; O may be in any isotopic form, including 16 O and 18 O; and the like.
  • a reference to a particular compound includes all such isomeric forms, including mixtures (e.g., racemic mixtures) thereof.
  • Methods for the preparation (e.g., asymmetric synthesis) and separation (e.g., fractional crystallisation and chromatographic means) of such isomeric forms are either known in the art or are readily obtained by adapting the methods taught herein, or known methods, in a known manner.
  • a corresponding salt of the compound for example, a pharmaceutically-acceptable salt.
  • pharmaceutically acceptable salts are discussed in Berge et al., 1977, "Pharmaceutically Acceptable Salts," J. Pharm. Sci., Vol. 66, pp. 1-19 .
  • a salt may be formed with a suitable cation.
  • suitable inorganic cations include, but are not limited to, alkali metal ions such as Na + and K + , alkaline earth cations such as Ca 2+ and Mg 2+ , and other cations such as Al +3 .
  • Suitable organic cations include, but are not limited to, ammonium ion (i.e., NH 4 + ) and substituted ammonium ions (e.g., NH 3 R + , NH 2 R 2 + , NHR 3 + , NR 4 + ).
  • suitable substituted ammonium ions are those derived from: ethylamine, diethylamine, dicyclohexylamine, triethylamine, butylamine, ethylenediamine, ethanolamine, diethanolamine, piperazine, benzylamine, phenylbenzylamine, choline, meglumine, and tromethamine, as well as amino acids, such as lysine and arginine.
  • An example of a common quaternary ammonium ion is N(CH 3 ) 4 + .
  • a salt may be formed with a suitable anion.
  • suitable inorganic anions include, but are not limited to, those derived from the following inorganic acids: hydrochloric, hydrobromic, hydroiodic, sulfuric, sulfurous, nitric, nitrous, phosphoric, and phosphorous.
  • Suitable organic anions include, but are not limited to, those derived from the following organic acids: 2-acetyoxybenzoic, acetic, ascorbic, aspartic, benzoic, camphorsulfonic, cinnamic, citric, edetic, ethanedisulfonic, ethanesulfonic, fumaric, glucheptonic, gluconic, glutamic, glycolic, hydroxymaleic, hydroxynaphthalene carboxylic, isethionic, lactic, lactobionic, lauric, maleic, malic, methanesulfonic, mucic, oleic, oxalic, palmitic, pamoic, pantothenic, phenylacetic, phenylsulfonic, propionic, pyruvic, salicylic, stearic, succinic, sulfanilic, tartaric, toluenesulfonic, and valeric.
  • a reference to a particular compound also includes salt forms thereof.
  • a sodium or calcium salt e.g. a Ca 2 Cl 2 salt
  • a calcium salt is preferred, particularly a calcium salt.
  • solvate is used herein in the conventional sense to refer to a complex of solute (e.g., compound, salt of compound) and solvent. If the solvent is water, the solvate may be conveniently referred to as a hydrate, for example, a mono-hydrate, a di-hydrate, a tri-hydrate, etc.
  • a reference to a particular compound also includes solvate and hydrate forms thereof.
  • chemically protected form is used herein in the conventional chemical sense and pertains to a compound in which one or more reactive functional groups are protected from undesirable chemical reactions under specified conditions (e.g., pH, temperature, radiation, solvent, and the like).
  • specified conditions e.g., pH, temperature, radiation, solvent, and the like.
  • well known chemical methods are employed to reversibly render unreactive a functional group, which otherwise would be reactive, under specified conditions.
  • one or more reactive functional groups are in the form of a protected or protecting group (also known as a masked or masking group or a blocked or blocking group).
  • the aldehyde or ketone group is readily regenerated by hydrolysis using a large excess of water in the presence of acid.
  • an amine group may be protected, for example, as an amide (-NRCO-R) or a urethane (-NRCO-OR), for example, as: a methyl amide (-NHCO-CH 3 ); a benzyloxy amide (-NHCO-OCH 2 C 6 H 5 , -NH-Cbz); as a t-butoxy amide (-NHCO-OC(CH 3 ) 3 , -NH-Boc); a 2-biphenyl-2-propoxy amide (-NHCO-OC(CH 3 ) 2 C 6 H 4 C 6 H 5 , -NH-Bpoc), as a 9-fluorenylmethoxy amide (-NH-Fmoc), as a 6-nitroveratryloxy amide (-NH-Nvoc), as a 2-trimethylsilylethyloxy amide (-NH-Teoc), as a 2,2,2-trichloroethyloxy amide (-NH-Troc),
  • a carboxylic acid group may be protected as an ester for example, as: an C 1-7 alkyl ester (e.g., a methyl ester; a t-butyl ester); a C 1-7 haloalkyl ester (e.g., a C 1-7 trihaloalkyl ester); a triC 1-7 alkylsilyl-C 1-7 alkyl ester; or a C 5-20 aryl-C 1-7 alkyl ester (e.g., a benzyl ester; a nitrobenzyl ester); or as an amide, for example, as a methyl amide.
  • an C 1-7 alkyl ester e.g., a methyl ester; a t-butyl ester
  • a C 1-7 haloalkyl ester e.g., a C 1-7 trihaloalkyl ester
  • prodrug refers to a compound which, when metabolised (e.g., in vivo ), yields the desired active compound. Typically, the prodrug is inactive, or less active than the desired active compound, but may provide advantageous handling, administration, or metabolic properties.
  • prodrugs are activated enzymatically to yield the active compound, or a compound which, upon further chemical reaction, yields the active compound (for example, as in ADEPT, GDEPT, LIDEPT, etc.).
  • the prodrug may be a sugar derivative or other glycoside conjugate, or may be an amino acid ester derivative.
  • LP compounds as described herein, involves deacylation of known Fmoc protected friulimicin B to yield the cyclic core peptide, preparing an activated ester which is the side chain precursor and then coupling the activated ester and cyclic core peptide.
  • Isolation of the lipopeptide precursor is achieved by deacylation, using deacylase, of a precursor lipopeptide, illustrated below by Fmoc-Friulimicin B:

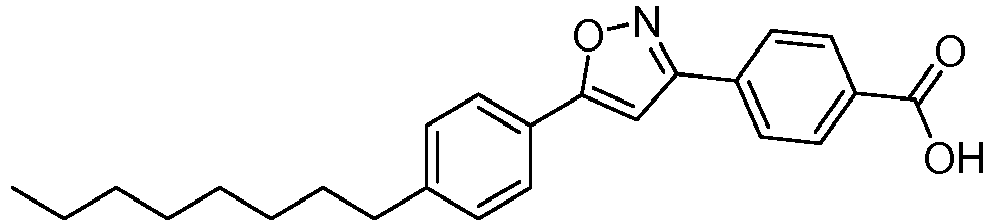

  • the following scheme shows the general method for synthesising the side chain precursors of LP compounds comprising a side chain of the form phenyl-heterocycle-phenyl-C(O)-.

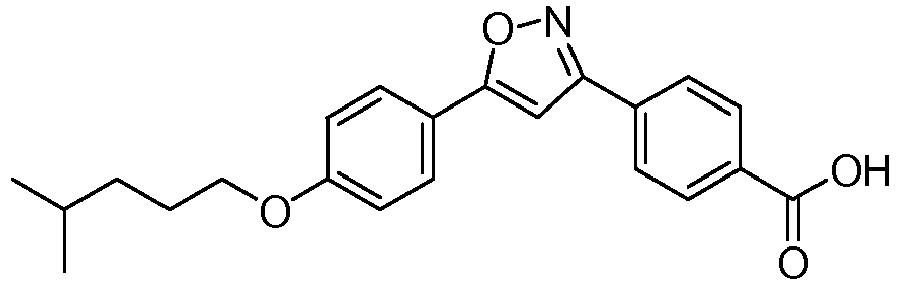

  • the scheme shows formation of the isoxazole product, but other heterocycles can be incorporated instead (for example, the regiosomeric isoxazole analogue can be obtained by using the minor regioisomer product).
  • the side chain precursors are converted to activated esters (pentafluorophenyl esters or HOBt esters) by reaction with pentafluorophenol or HOBt in the presence of dicyclohexylcarbodiimide (DCC).
  • activated esters pentafluorophenyl esters or HOBt esters
  • the activated esters are then coupled with the lipopeptide using one of the following coupling methods:
  • a lipopeptide having an acyl side chain e.g. a LP compound, as described herein
  • the method comprises the step of reacting an ester precursor of the acyl side chain with a cyclic peptide in the presence of calcium chloride.
  • the ester may be a pentafluorophenyl ester or a HOBt ester.
  • compositions e.g., a pharmaceutical composition
  • a composition comprising a LP compound, as described herein, and a pharmaceutically acceptable carrier, diluent, or excipient.
  • composition e.g., a pharmaceutical composition
  • a composition comprising admixing a LP compound, as described herein, and a pharmaceutically acceptable carrier, diluent, or excipient.
  • the compounds described herein are useful, for example, in the treatment of diseases and conditions that are ameliorated by the inhibition of microbe growth or reproduction and/or microbe death.
  • the compounds described herein are useful, for example, in the treatment of diseases and conditions that are ameliorated by the inhibition of bacteria growth or reproduction and/or bacteria death.
  • the compounds described herein are useful, for example, in the treatment of infectious diseases and conditions.
  • the compounds described herein are useful, for example, in the treatment of sequelae associated with diseases and conditions that are ameliorated by the inhibition of bacteria growth or reproduction and/or bacteria death.
  • the compounds according to the invention have pharmacological activity, in particular as antibiotic for Grampositive bacteria.
  • the LP compounds, as described herein have activity against MRSA and/or glycopeptide-resistant strains.
  • MRSA strains penicillin- or methicillin-resistant strains
  • LP compounds, as described herein have activity against these problem organisms.
  • the LP compounds described herein are for use in a method of (a) inhibiting bacteria growth or reproduction; (b) killing bacteria; or (c) a combination of both of these.
  • the LP compounds as described herein have a bacteriocidal and/or bacteriostatic activity.
  • Suitable assays for determining antibacterial activity are described herein and/or are known in the art.
  • inhibiting bacteria growth or reproduction is preventing or stopping bacteria growth or reproduction.
  • Disclosed herein is a method of inhibiting bacteria growth or reproduction, killing bacteria, or a combination of both of these.
  • the method can be performed in vitro or in vivo.
  • the method may be performed in vitro.
  • the method may be performed in vivo.
  • the bacteria may be a host (e.g. a human or animal) and the method includes contacting the host with an effective amount of a LP compound, as described herein.
  • the method comprises contacting the bacteria with an effective amount of a LP compound, as described herein.
  • Disclosed herein is a method of inhibiting bacteria growth or reproduction (e.g., inhibiting binary fission of bacteria cells), comprising contacting the bacteria with an effective amount of a LP compound, as described herein.
  • the method may be a method of inhibiting bacteria growth or reproduction in vitro or in vivo, comprising contacting the bacteria with an effective amount of a LP compound, as described herein.
  • Disclosed herein is a method of inhibiting bacteria growth or reproduction (e.g., inhibiting binary fission of bacteria cells) in a host, comprising contacting the host with an effective amount of a LP compound, as described herein.
  • the method may further comprise contacting the host with one or more other antibacterial agents.
  • Disclosed herein is a method of killing bacteria, comprising contacting the bacteria with an effective amount of a LP compound, as described herein.
  • the method may be a method of killing bacteria in vitro or in vivo, comprising contacting the bacteria with an effective amount of a LP compound, as described herein.
  • Disclosed herein is a method of killing bacteria in a host, comprising contacting the host with an effective amount of a LP compound, as described herein.
  • the method may further comprise contacting the host with one or more other antibacterial agents.
  • the LP compound is provided in the form of a pharmaceutically acceptable composition.
  • Any type of bacteria may be treated, including but not limited to those described herein.
  • a sample of bacteria cells may be grown in vitro and a compound brought into contact with said cells, and the effect of the compound on those cells observed.
  • effect the morphological status of the cells (e.g., alive or dead, etc.) may be determined. Where the compound is found to exert an influence on the cells, this may be used as a prognostic or diagnostic marker of the efficacy of the compound in methods of treating a patient having a bacterial infection or disease of the same type.
  • an LP compound as described herein, for use in a method of treatment of the human or animal body by therapy.
  • the method of treatment may comprise treatment with both (i) a LP compound, as described herein, and (ii) one or more other antibacterial agents.
  • Disclosed herein is the use of an LP compound, as described herein, in the manufacture of a medicament for use in treatment.
  • the medicament may comprise the LP compound.
  • the treatment may comprise treatment with both (i) a medicament comprising a LP compound, as described herein, and (ii) one or more other antibacterial agents.
  • Also disclosed herein is a method of treatment comprising administering to a patient in need of treatment a therapeutically effective amount of a LP compound, as described herein, preferably in the form of a pharmaceutical composition.
  • the method may further comprise administering to the subject one or more other antibacterial agents.
  • the LP compounds of the present invention can be used to treat any bacterial infection or disease.
  • the LP compounds of the present invention can be used to reduce or prevent growth or reproduction of an infecting bacterium and/or kill an infecting bacterium.
  • infecting bacterium is meant a bacterium that has established infection in the host, and which may be associated with a disease or undesirable symptom as a result.
  • infecting bacteria of interest are pathogenic bacteria, and may include a culture of multiple bacteria which together act to cause the pathology. Treatment may require elimination of a single, or multiple types of bacteria.
  • pathogenic bacteria bacteria that causes, or is capable of causing disease. Pathogenic bacteria propagate on or in tissues and may obtain nutrients and other essential materials from their hosts. As used herein, the term “pathogenicity”, “pathogenic” and the like refers to a capability of causing disease and/or degree of capacity to cause disease to its host. The term is applied to parasitic micro-organisms in relation to their hosts.
  • Pathogenic bacteria are a major cause of human death and disease and cause infections such as tetanus, typhoid fever, diphtheria, syphilis, cholera, foodborne illness, leprosy and tuberculosis. Bacterial diseases are also important in agriculture, with bacteria causing leaf spot, fire blight and wilts in plants, as well as Johne's disease, mastitis, salmonella and anthrax in farm animals.
  • drug-resistant bacteria or “antibiotic-resistant bacteria” is meant a bacterial strain that is resistant to growth inhibition or killing by an antibiotic. Multi-drug resistant bacteria are resistant to two or more antibiotics classes. Drug resistance can encompass, for example, ineffective killing of the infecting bacteria such that at least an infectious dose remains in the subject and the infection continues, resulting in continued symptoms of the associated infectious disease or later evidence of such symptoms. Drug resistance can also encompass inhibiting growth of the drug-resistant bacteria until such time therapy is discontinued, after which the bacteria begin to replicate and further the infectious disease.
  • inhibiting bacterial growth or reproduction in the context of infection of an incapacitated bacterial cell according to the invention is meant that, following infection of the bacteria, the bacterial host cell's normal transcriptional and/or translational mechanisms are compromised such that the infected bacteria does not undergo substantial cell division (replication by binary fission) and is caused to enter a state of bacteriostasis. The stasis causes pathogenic effects to also regress.
  • infectious disease or "infectious disorder” is meant a disease arising from the presence of a microbial agent, particularly a bacteria, in a host.
  • the microbial agent may be an infectious bacteria or an infectious fungi, which gives rise to a bacterial infectious disease or a fungal infectious disease, respectively.
  • LP compounds as described herein can be used to treat diseases or conditions arising from infection of a host with one or more species of bacteria.
  • treatment is treatment of any one of the diseases, disorders or conditions described herein.
  • the activity of the LP compounds as described herein may be a bacteriocidal or bacteriostatic activity, or both.
  • the anti-bacterial effect may arise through one or more mechanisms.
  • the compounds of the present invention may be used in the treatment of the bacterial diseases described herein, independent of the mechanism.
  • treatment refers generally to treatment and therapy, whether of a human or an animal (e.g., in veterinary applications), in which some desired therapeutic effect is achieved, for example, the inhibition of the progress of the condition, and includes a reduction in the rate of progress, a halt in the rate of progress, alleviatiation of symptoms of the condition, amelioration of the condition, and cure of the condition.
  • Treatment as a prophylactic measure i.e., prophylaxis
  • treatment is also included. For example, use with patients who have not yet developed the condition, but who are at risk of developing the condition, is encompassed by the term "treatment.”
  • treatment includes the prophylaxis of bacterial infection, reducing the incidence of bacterial infection, alleviating the symptoms of bacterial infection, etc.
  • terapéuticaally-effective amount refers to that amount of a compound, or a material, composition or dosage form comprising a compound, which is effective for producing some desired therapeutic effect, commensurate with a reasonable benefit/risk ratio, when administered in accordance with a desired treatment regimen.
  • treatment includes combination treatments and therapies, in which two or more treatments or therapies are combined, for example, sequentially or simultaneously.
  • the compounds described herein may also be used in combination therapies, e.g., in conjunction with other agents, for example, other antibacterial compounds.
  • a compound as described herein may be beneficial to combine treatment with a compound as described herein with one or more other (e.g., 1, 2, 3, 4) agents or therapies that regulates bacteria growth or reproduction and/or bacteria survival.
  • one or more other agents or therapies that regulates bacteria growth or reproduction and/or bacteria survival.
  • several characteristic features of bacterial infection may be treated.
  • One aspect of the present invention pertains to a LP compound as described herein, in combination with one or more additional therapeutic agents.
  • agents i.e., the compound described here, plus one or more other agents
  • the agents may be formulated together in a single dosage form, or alternatively, the individual agents may be formulated separately and presented together in the form of a kit, optionally with instructions for their use.
  • the LP compounds described herein may also be used as cell culture additives to inhibit bacteria growth or reproduction.
  • the LP compounds described herein may also be used as part of an in vitro assay, for example, in order to determine whether a candidate host is likely to benefit from treatment with the compound in question.
  • the LP compounds described herein may also be used as a standard, for example, in an assay, in order to identify other antibacterial compounds, etc.
  • kits comprising (a) a LP compound as described herein, or a composition comprising a LP compound as described herein, e.g., preferably provided in a suitable container and/or with suitable packaging; and (b) instructions for use, e.g., written instructions on how to administer the compound or composition.
  • the kit may further comprise one or more other antibacterial agents.
  • the written instructions may also include a list of indications for which the active ingredient is a suitable treatment.
  • the LP compound or pharmaceutical composition comprising the LP compound may be administered to a subject by any convenient route of administration, whether systemically/peripherally or topically (i.e., at the site of desired action). Oral administration is an example.
  • the subject/patient may be a chordate, a vertebrate, a mammal, a placental mammal, a marsupial (e.g., kangaroo, wombat), a rodent (e.g., a guinea pig, a hamster, a rat, a mouse), murine (e.g., a mouse), a lagomorph (e.g., a rabbit), avian (e.g., a bird (e.g.
  • canine e.g., a dog
  • feline e.g., a cat
  • equine e.g., a horse
  • porcine e.g., a pig
  • ovine e.g., a sheep
  • bovine e.g., a cow
  • a primate simian (e.g., a monkey or ape)
  • a monkey e.g., marmoset, baboon
  • an ape e.g., gorilla, chimpanzee, orangutang, gibbon
  • a human e.g., gorilla, chimpanzee, orangutang, gibbon
  • the subject/patient may be any of its forms of development, for example, a foetus.
  • the subject/patient is a human.
  • the subject/patient is not a human.
  • the LP compound While it is possible for the LP compound to be administered alone, it is preferable to present it as a pharmaceutical formulation (e.g., composition, preparation, medicament) comprising at least one LP compound, as described herein, together with one or more other pharmaceutically acceptable ingredients well known to those skilled in the art, including, but not limited to, pharmaceutically acceptable carriers, diluents, excipients, adjuvants, fillers, buffers, preservatives, anti-oxidants, lubricants, stabilisers, solubilisers, surfactants (e.g., wetting agents), masking agents, colouring agents, flavouring agents, and sweetening agents.
  • the formulation may further comprise other active agents, for example, other therapeutic or prophylactic agents.
  • the present invention further provides pharmaceutical compositions, as defined above, and methods of making a pharmaceutical composition comprising admixing at least one LP compound, as described herein, together with one or more other pharmaceutically acceptable ingredients well known to those skilled in the art, e.g., carriers, diluents, excipients, etc. If formulated as discrete units (e.g., tablets, etc.), each unit contains a predetermined amount (dosage) of the compound.
  • pharmaceutically acceptable pertains to compounds, ingredients, materials, compositions, dosage forms, etc., which are, within the scope of sound medical judgment, suitable for use in contact with the tissues of the subject in question (e.g., human) without excessive toxicity, irritation, allergic response, or other problem or complication, commensurate with a reasonable benefit/risk ratio.
  • Each carrier, diluent, excipient, etc. must also be “acceptable” in the sense of being compatible with the other ingredients of the formulation.
  • Suitable carriers, diluents, excipients, etc. can be found in standard pharmaceutical texts, for example, Remington's Pharmaceutical Sciences, 18th edition, Mack Publishing Company, Easton, Pa., 1990 ; and Handbook of Pharmaceutical Excipients, 5th edition, 2005 .
  • GM538 was made from friulimicin B.
  • Deacylation can be effected using purified enzyme deacylation or whole cell biotransformation.
  • TK23 Streptomyces lividans which contains the AAC-fragment from Actinoplanes utahensis (NRRL 12052) cloned into pUWL201 PW expression vector.
  • Tryptic soy broth was the nutrient solution utilised for both seed culture and deacylase production culture.
  • TSB tryptone 17g/L, soytone 3g/L, glucose 2.5g/L, NaCl 5g/L and K 2 HPO 4 2.5g/L
  • thiostrepton 25 ⁇ g/ml
  • Seed culture was inoculated with approximately six agar plugs from a 7 - 10 day old culture, grown on ISP2 agar (yeast extract 4g/L, malt extract 10g/L, glucose 4g/L, agar 20g/L), supplemented with 25 ⁇ g/L of thiostrepton.
  • the fermentation was carried out in 250ml Erlenmeyer flasks each containing 50ml of TSB, also supplemented with 25 ⁇ g/L of thiostrepton. All flasks were incubated at 28°C, for 24 hours on a rotary shaker (50mm orbit) set at 200rpm.
  • the production fermentation was carried out in 250ml Erlenmeyer flasks each containing 50ml of TSB supplemented with 25 ⁇ g/L of thiostrepton. Each flask was inoculated with 1ml of seed culture (2%) and was incubated at 28°C, for 72 - 96 hours on a rotary shaker (50mm orbit) set at 200rpm.
  • Enzyme (deacylase) purification was achieved through (NH 4 ) 2 SO 4 precipitation.
  • the harvested broth was filtered through filter paper under vacuum and transferred to 4°C.
  • the filtrate was stirred and (NH 4 ) 2 SO 4 was added slowly at a rate of 194.4g per 800ml of filtrate to achieve a final concentration of 40% (NH 4 ) 2 SO 4 .
  • This mixture was slowly stirred over night at 4°C and precipitated by centrifugation preferably at 12,000g for 15 minutes at 4°C.
  • the resulting precipitate was placed in a dialysis bag with 10ml of 2% K 2 HPO 4 /NaPi (pH 7.9).
  • the solution was dialyzed overnight against a solution of 2% K 2 HPO 4 /NaPi (pH 7.9).
  • the dialyzed solution was stored at 4°C.
  • the concentrated residue was purified by preparative RP-HPLC (Waters Novapak ® 40 ⁇ 100 mm column, acetonitrile-water with 0.1% formic acid as solvent) and freeze-dried to give the deacylated product GM539 as white solid (MW1317; ave. isolated yield 40%).
  • Seed culture was inoculated with approximately six agar plugs from a 7 - 10 day old culture, grown on ISP2 agar (yeast extract 4g/L, malt extract 10g/L, glucose 4g/L, agar 20g/L), supplemented with 25 ⁇ g/L of thiostrepton.
  • the fermentation was carried out in 250ml Erlenmeyer flasks each containing 50ml of TSB, also supplemented with 25 ⁇ g/L of thiostrepton. All flasks were incubated at 28°C, for 24 hours on a rotary shaker (50mm orbit) set at 200rpm.
  • the production fermentation was carried out in 250ml Erlenmeyer flasks each containing 50ml of TSB supplemented with 25 ⁇ g/L of thiostrepton. Each flask was inoculated with 1ml of seed culture (2%) and was incubated at 28°C, for 72 - 96 hours on a rotary shaker (50mm orbit) set at 200rpm.
  • GM538 dissolved in 2% K 2 HPO 4 /NaPi (pH 7.9).
  • the biotransformation was typically complete within three days, and the material was harvested by centrifugation.
  • the cells can be washed in RO water and reused successfully for at least 3 cycles of biotransformation, although by the third round the length of time required to obtain full conversion (50mg of GM538) lengthens to over four days. All subsequent biotransformation cycles were undertaken in a non-nutritional buffer solution (TRIS-HCl).
  • the whole cell biotransformation methodology was found to provide a more efficient conversion to deacylated product, with higher yields.
  • the ⁇ -aryldiketone (0.53mmol) and ammonium formate (2.65mmol, 5eq) were dissolved in 2mL DMF and the reaction mixture was heated to 100-105°C C until the disappearance of starting material as monitored by analytical hplc.
  • the resulting mixture was partitioned between water and ethyl acetate then the organic layer washed with saturated aqueous sodium chloride.
  • the ethyl acetate layer was dried with anhydrous sodium sulfate and the solvent removed under reduced pressure.
  • the solid, semi-solid or oily mixture obtained was purified by either recrystallization with ethyl acetate-heptane (1:5) or silica gel chromatography (Combiflash®) with gradient elution using EA-hexane as solvent or preparative RP-HPLC (X-Terra ® PrepRP 18 19 ⁇ 50 mm column with gradient elution (acetonitrile-water with 0.1% formic acid as solvent).
  • the acetophenone (5.61 mmol) was added to a solution of dimethyl terepthalate (8.98 mmol) in DMF (45 mL). To this solution was added potassium t-butoxide (8.42 mmol) at room temperature then the mixture was stirred around 55-60°C for 2-3days. The mixture was diluted with methanol (110 mL) at 0°C and then quenched and crystallized by the slow addition of aqueous hydrochloric acid solution (10mL, 1:1 conc HCl and water). The mixture was filtered and washed with water. The wet solid was dried under vacuum to give the product. (average yield: 52%)
  • 4-(4-hexyloxyphenyl)bromobenzene (200 mg, 0.6 mmol) and 4-carbomethoxyphenylboronic acid (160 mg, 0.9 mmol) were coupled as described before using Pd(PPh 3 ) 4 (40 mg, 0.03 mmol), K 2 CO 3 (186 mg, 1.3 mmol) in toluene (10 mL) containing EtOH (1.5 mL) and water (0.4 mL) under Argon atmosphere.
  • the minor isomer (142 mg, 0.4 mmol) was dissolved in toluene (5 mL) containing EtOH (0.7 mL), water (0.2 mL), K 2 CO 3 (124 mg, 0.9 mmol) and 4-propyloxyphenylboronic acid (120 mg, 0.6 mmol). After degassing for 5 minutes Pd(PPh 3 ) 4 (23 mg, .02 mmol)was added and the mixture refluxed for 3 h. The product crystalised out of the reaction mixture and was filtered, washed with water and MeOH (100 mg, 62%).
  • the phosphonium salt (1.46g, 2.97mmol) was dissolved in anhydrous THF (20mL) and cooled to 0°C.
  • LiHMDS 1.0M in THF
  • the reaction mixture was then re-cooled to 0°C prior to the addition of 4-bromobenzaldehyde (0.50g, 2.70mmol). It was stirred at 0°C for 10min, then 1 hr at room temperature before heating at 50°C.
  • the crude material was re-dissolved in CH 2 Cl 2 , washed with water, dried (Na 2 SO 4 ), filtered and concentrated.
  • the crude product was purified by silica gel chromatography using CombiFlash (EtOAc/hexanes) to give the desired compound (0.15g, 52%).
  • the crude material was re-dissolved in CH 2 Cl 2 , washed with water, dried (Na 2 SO 4 ), filtered and concentrated.
  • the crude product was purified by silica gel chromatography using CombiFlash (EtOAc/hexanes) to give the desired compound (0.10g, 33%).
  • 6-Bromo-naphthalene-2-carboxylic acid methyl ester (0.2 g, 0.75mmol) and 4-styrylphenylboronic acid (0.25 g, 1.1 mmol) were dissolved in toluene/EtOH/H 2 O (15mL, 10:4:1). The solution was purged with Argon prior to the addition of K 2 CO 3 (0.31 g, 2.2 mmol) and Pd(PPh 3 ) 4 (25.0mg). The reaction mixture was then heated at reflux overnight. After all starting material had reacted as indicated by TLC (CH 2 Cl 2 /hexanes, 1:9), solvents were removed under reduced pressure.
  • the Wittig salt (0.42g, 0.857mmol) was dissolved in anhyd. THF (8mL) then cooled to 0°C. After 15min, LiHMDS (1.0M in THF; 1.3mL, 1.3mmol) was added drop-wise. Ice-bath was removed and the reaction mixture was stirred at room temperature for 1 hr, then re-cooled to 0°C prior to the drop-wise addition of the aldehyde (70.7mg, 0.302mol). The reaction mixture was then stirred at room temperature. After all starting material had reacted, the reaction mixture was cooled to 0°C and diluted with EtOAc. Sat. aq. NH 4 Cl was carefully added to the vigorously stirred mixture.
  • the bromo-ester (75.4mg, 0.205mmol) and phenylboronic acid (37.5mg, 0.310mmol) were dissolved in 1,4-dioxane/H 2 O (6mL, 4:1). The solution was purged with Argon prior to the addition of K 2 CO 3 (57.1 mg, 0.413mmol) and Pd(PPh 3 ) 4 (12.3mg, 0.0106mmol). The reaction mixture was then heated at 80°C. After all starting material had reacted as indicated by TLC (CH 2 Cl 2 /hexanes, 1:9), solvents were removed under reduced pressure. The crude material was re-dissolved in EtOAc, washed with water, dried (Na 2 SO 4 ), filtered and concentrated.
  • the ester (0.109g, 0.297mmol) was dissolved in THF/MeOH/H 2 O (13mL; 10:2:1). LiOH (16.7mg, 0.696mmol) was then added and the reaction mixture stirred at 60°C. After all starting material had reacted as indicated by TLC (CH 2 Cl 2 /hexanes; 1:2), solvents were removed under reduced pressure. The crude material was acidified with 1 N HCl, filtered and washed with H 2 O and ether to give the acid as a white solid (71.3mg, 68%).
  • Benzyltriphenylphosphonium chloride (0.735g, 1.89mmol) was dissolved in anhyd. THF (15mL) then cooled to 0°C. After 15min, LiHMDS (1.0M in THF; 3.8mL, 3.80mol) was added drop-wise. Ice-bath was removed and the reaction mixture was stirred at room temperature overnight prior to the addition of the aldehyde (0.213g, 0.906mol). The reaction mixture was then stirred at room temperature for 16h then worked-up by cooling to 0°C and diluted with EtOAc. Sat. aq. NH 4 Cl was carefully added to the vigorously stirred mixture. Aqueous layer was then separated and extracted with EtOAc.
  • This precursor was synthesised by alkylation of the Naphthalene carboxylic ester with the appropriate alkylating agent, i.e. alkyl bromide followed by ester hydrolysis and preparation of activated ester.
  • alkylating agent i.e. alkyl bromide
  • This precursor was synthesised by alkylation of the Naphthalene carboxylic ester with the appropriate alkylating agent, i.e. alkyl bromide followed by ester hydrolysis and preparation of activated ester.
  • alkylating agent i.e. alkyl bromide
  • This precursor was synthesised by alkylation of the Naphthalene carboxylic ester with the appropriate alkylating agent, i.e. alkyl bromide followed by ester hydrolysis and preparation of activated ester.
  • alkylating agent i.e. alkyl bromide
  • GM539 (20 mg, 0.015 mmol) and the pentafluorophenol ester (22 mg, 0.045 mmol) were dissolved in anhydrous DMF (0.4 mL) under Argon.
  • DIPEA 8.3 ⁇ L, 0.045 mmol was added and the reaction was stirred at room temeprature for 2.5 h at the end of which HPLC indicated consumption of starting material.
  • 20% piperdine in DMF 100 ⁇ L was added to the reaction mixture and stirred for 20 min at room temperature which was sufficient to deprotect the Fmoc- group. 20% piperdine in DMF (100 ⁇ L) was added and the reaction monitered by HPLC.
  • the mixture was purified by preparative HPLC (gradient elution, ACN-H 2 O with 0.1% HCO 2 H) and collecting fractions in tubes containing phosphate buffer to afford two separated peaks having the same molecular mass. These fractions were reanalyzed by analytical HPLC and evaporated separately. The residue was loaded on a pre-washed (with 100 mL MeOH and 100 mL water) C-18 plug and washed with 100 mL water. The compound was eluted using MeOH (50 mL) and the fractions containing product evaporated.
  • preparative HPLC gradient elution, ACN-H 2 O with 0.1% HCO 2 H
  • GM539 (20 mg, 0.015 mmol) and CaCl 2 (3.3 mg, 0.030 mmol) were taken in anhydrous DMF (0.2 mL) under Argon. After cooling to 0 °C, Et 3 N (10.4 uL, 0.075 mmol) was added and stirring continued for another 5 minutes at the same temperature to ensure dissolution of CaCl 2 . Pentafluorophenylester (0.045 mmol) was then introduced at 0 °C and stirred for 2 h at the same temperature. After stirring overnight.at room temperature, 20% piperdine in DMF (100 ⁇ L) was added and the reaction monitered by HPLC. After completion of the reaction, the product was purified by preparative HPLC and isolated as described in method A.
  • GM539 (20 mg, 0.015 mmol) and the HOBt ester (0.045 mmol) were dissolved in anhydrous DMF (0.5 mL) under Argon.
  • DIPEA 8.3 ⁇ L, 0.045 mmol was added and the reaction was stirred at room temeprature for 2.5 h at the end of which HPLC indicated consumption of starting material. 20% piperdine in DMF (100 ⁇ L) was added and the reaction monitered by HPLC. After completion of the reaction, the product was purified by preparative HPLC and isolated as described in method A.
  • GM539 (10 mg, 0.007 mmol) and CaCl 2 (1.7 mg, 0.015 mmol) were taken in anhydrous DMF (0.5 mL) under Argon. After cooling to 0 °C, Et 3 N (5.4 uL, 0.038 mmol) was added and stirring continued for another 5 minutes at the same temperature to ensure dissolution of CaCl 2 . HOBt ester (0.021 mmol) was added and the mixture stirred at 0 °C for 1 hour and then at room temperature till the reaction was complete. Piperidine (100 uL of 20% stock solution in DMF) was added and the reaction monitored by HPLC. After completion of the reaction, the product was purified by preparative HPLC and isolated as described in method A.
  • GM539 (0.015 mmol) and CaCl 2 (0.03mmol, 2eq) was added with 1.0 ml DMF.
  • triethylamine (Et 3 N, 0.075mmol, 5eq)
  • the activated acid was added and the mixture stirred at 0°C for another hour.
  • the mixture was warmed to room temperature and stirred overnight.
  • the reaction was purified by preparative RP-HPLC (X-Terra ® PrepRP 18 19 ⁇ 50 mm column, acetonitrile-water as solvent).
  • the fractions containing the product were dried under reduced pressure, dissolved in 1mL DMF, added with TBAF hydrate (15eq) then stirred for 1 hr. After 3 hrs of incomplete reaction, 10uL of 20% piperidine in DMF was added and the mixture stirred for an additional 1hr.
  • the mixture was purified by preparative RP-HPLC (X-Terra ® PrepRP 18 19 ⁇ 50 mm column, acetonitrile-water with 0.1% formic acid as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak ® C18 cartridge Vac 6cc (1 g).
  • the mixture was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 ⁇ 50 mm column, acetonitrile-water with 0.1% formic acid as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1g).
  • GM539 (20mg, 0.015mmol) and CaCl 2 (3.2mg, 0.029mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et 3 N (11 ⁇ L, 0.109mmol). After 10min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50 ⁇ L) was added and stirred overnight at rt.
  • GM539 (20mg, 0.015mmol) and CaCl 2 (3.5mg, 0.031mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et 3 N (11 ⁇ L, 0.109mmol). After 10min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50 ⁇ L) was added and stirred overnight at rt.
  • GM539 (19.0mg, 0.014mmol) and CaCl 2 (3.3mg, 0.030mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et 3 N (11 ⁇ L, 0.109mmol). After 10min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50 ⁇ L) was added and stirred overnight at rt.
  • GM539 (20.5mg, 0.016mmol) and CaCl 2 (3.7mg, 0.033mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et 3 N (12 ⁇ L, 0.119mmol). After 10min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50 ⁇ L) was added and stirred overnight at rt.
  • GM539 (20.0mg, 0.015mmol) and CaCl 2 (3.7mg, 0.033mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et 3 N (12 ⁇ L, 0.119mmol)). After 15min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50 ⁇ L) was added and stirred overnight at rt.
  • GM539 (19.8mg, 0.015mmol) and CaCl 2 (3.4mg, 0.0306mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et 3 N (12 ⁇ L, 0.119mmol)). After 15min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50 ⁇ L) was added and stirred overnight at rt.
  • GM539 i.e. deacylated Fmoc Friulimicin B (10 mg, 0.007 mmol) and CaCl 2 (1.7 mg, 0.015 mmol) were taken in anhydrous DMF (0.2 mL) under Argon. After cooling to 0°C, Et 3 N (5.2 ⁇ L, 0.007 mmol) was added and stirring continued for another five minutes at the same temperature to ensure dissolution of CaCl 2 . HOBt ester (11 mg, 0.021 mmol) was added and the mixture stirred at 0°C for 30 minutes by which time HPLC showed completion of the reaction. TBAF (40 mg, 0.15 mmol) was added and the mixture warmed to room temperature.
  • reaction mixture was centrifuged and purified by preparative HPLC (reverse phase, X-Terra® PrepRP18 19 ⁇ 50 mm column, acetonitrile-water with 0.1% formic acid as mobile phase) collecting in tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride.
  • Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1 g) to afford LP-026.
  • MICs Minimum inhibitory concentrations
  • Staphylococci and enterococci were grown on cation-adjusted Mueller-Hinton agar (CAMHA) at 35°C and streptococci were grown on CAMHB + 3% lysed horse blood at 35°C under 5% CO 2 .
  • Inocula for MIC determinations were grown from a single colony under the conditions described above for 24h.
  • Colonies were then suspended in saline (0.9% NaCl) to an OD600nm equivalent to a 0.5 McFarland standard and then diluted to 5.55 x105 CFU/ml in cation-adjusted Mueller-Hinton broth supplemented with calcium to 50 ⁇ g/ml and polysorbate (tween) 80 to 0.002% (and 3.33% lysed horse blood for streptococci).
  • 2-fold dilution series of test compounds were prepared and diluted in CAMHB supplemented with calcium to 50 ⁇ g/ml and polysorbate (tween) 80 to 0.002% and added to wells of 96-well flat bottom microtitre plate (Griener) in 10 ⁇ l volumes. 90 ⁇ l of inocula are then added to test compound and the plates incubated for 20-24h at 35°C.
  • the MIC was recorded as the lowest concentration of test compound that inhibited visible growth.
  • % hemolysis was measured using the following assay.
  • the in vitro haemolysis assay usually used was an adaptation of the protocol provided by Aventis (Isert, 1995) and is described below.
  • the main variations in comparison to the original protocol were a reduction of the assay volumes by 80% and the conducting of the assay in Eppendorf tubes.
  • Stock solution of the antibiotics and other additives were prepared in 0.9% NaCl solution. If not specified otherwise additives and antibiotics were mixed and preincubated for 2 hours at 20° C.
  • the degree of haemolysis in the samples was determined by measurement of the absorption of the supernatant at 540 nm.
  • the photometer was calibrated with the negative control (blood incubated with 0.9% NaCl).
  • Friulimicin-sodium salt (CBS000043, CBC000209) and test compounds (also sodium salts) were prepared in 0.9% NaCl and diluted to 3200mg/L in 0.9% NaCl solution containing two times the salts molar concentration of Ca 2+ . These test solution was then diluted in 0.9% NaCl to a second concentration of 200mg/L. Equivalent calcium free test solutions were also prepared. All test solutions were then preincubated for 2 hours at 20° C. Subsequently 40 ⁇ l of these mixtures were transferred into triplicate Eppendorf tubes with 40 ⁇ l fresh venous blood to produce assay concentrations of test compounds of 1600 and 100mg/L. Tubes were then mixed and incubated for 180 min at 37° C on a horizontal shaker at 200 rounds per minute.
  • Additional Ca 2+ is added in the higher concentration hemolysis assay because the presence of Ca 2+ affects hemolysis; indeed Ca salt is more hemolytic than the Na salt, particularly at high drug concentrations.
  • Ca salt is more hemolytic than the Na salt, particularly at high drug concentrations.
  • Additional Ca 2+ (in addition to what is present in blood) is used because it is estimated that at the higher dose of 1600 mg/L, the intrinsic blood levels of Ca 2+ will be insufficient to convert all the drug to the Ca salt.
  • the S . aureus ATCC 29213 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • LP-001 LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-038, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-04
  • LP-001 For the S. aureus ATCC 29213 assay, the following compounds had a minimum inhibitory concentration of less than 5 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048
  • LP-001 LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the S . aureus 29213 FRI-68 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 20 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-018, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-039, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 10 ⁇ g/ml: LP-006, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-022, LP-024, LP-031, LP-033, LP-034, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 5 ⁇ g/ml: LP-012, LP-013, LP-014, LP-022, LP-024, LP-041 and LP-048.
  • the S . aureus 33591 (MRSA) assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • LP-001 For the S . aureus 33591 (MRSA) assay, the following compounds had a minimum inhibitory concentration of less than 10 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-038, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046,
  • LP-001 For the S . aureus 33591 (MRSA) assay, the following compounds had a minimum inhibitory concentration of less than 5 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • the S . epdermidis 12228 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 10 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-038, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP
  • the following compounds had a minimum inhibitory concentration of less than 5 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the following compounds had a minimum inhibitory concentration of less than ⁇ 2 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-018,, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-036, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the E. faecalis 29212 assay was carried out on the following compounds: LP-001 to LP-003, LP-006 to LP-018, LP-020 to LP-025, and LP-027 to LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 20 ⁇ g/ml: LP-001, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-037, LP-040, LP-041, LP-042, LP-043, LP-045, LP-046, LP-047 and LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 10 ⁇ g/ml: LP-003, LP-007, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-016, LP-017, LP-018, LP-022, LP-023, LP-024, LP-025, LP-027, LP-028, LP-029, LP-030, LP-032, LP-033, LP-034, LP-041, LP-042, LP-043, LP-045, LP-046, LP-047 and LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 5 ⁇ g/ml: LP-003, LP-009, LP-011, LP-012, LP-013, LP-014, LP-016, LP-017, LP-018, LP-022, LP-024, LP-025, LP-027, LP-029, LP-030, LP-034, LP-041, LP-042, LP-043 and LP-048.
  • the S.pneumoniae 33400 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 20 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-018, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 10 ⁇ g/ml: LP-002, LP-006, LP-010, LP-011, LP-012, LP-013, LP-020, LP-022, LP-023, LP-024, LP-026, LP-027, LP-031, LP-033, LP-034, LP-035, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 5 ⁇ g/ml: LP-006, LP-041, LP-045 and LP-048.
  • the S.pneumoniae 49619 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • LP-001 LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-038, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048
  • LP-001 LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • LP-001 LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the S.pyogenes 12344 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 20 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 10 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the following compounds had a minimum inhibitory concentration of less than 5 ⁇ g/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-033, LP-034, LP-035, LP-036, LP-037, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • the hemolysis assays were carried out on the following compounds: LP-001, LP-006 to LP-016, LP-018, LP-020 to LP-031, LP-033, LP-034, LP-036 to LP-045, LP-047 and LP-048.
  • LP-001 LP-006, LP-007, LP-008, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-029, LP-030, LP-031, LP-033, LP-034, LP-036, LP-037, LP-039, LP-038, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045 and LP-047.
  • % hemolysis at 100 mg/L assay without additional calcium the following compounds had a % hemolysis of ⁇ 1 %: LP-001, LP-007, LP-009, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-018, , LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-033, LP-034, LP-036, LP-037, LP-039, LP-038, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045 and LP-047.
  • LP-001 LP-006, LP-007, LP-008, LP-009, LP-013, LP-014, LP-015, LP-016, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-031, LP-033, LP-034, LP-036, LP-037, LP-039, LP-038, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • LP-001 LP-006, LP-007, LP-008, LP-009, LP-013, LP-014, LP-015, LP-016, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-031, LP-033, LP-034, LP-036, LP-037, LP-039, LP-038, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • EP0629636A FEMS Microbiol. Lett. 98 (1992) 5 109 to 116 Neu H. C., Science 257, 1992, pages 1064-1073

Landscapes

  • Chemical & Material Sciences (AREA)
  • Organic Chemistry (AREA)
  • Health & Medical Sciences (AREA)
  • Medicinal Chemistry (AREA)
  • General Health & Medical Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Biochemistry (AREA)
  • Biophysics (AREA)
  • Proteomics, Peptides & Aminoacids (AREA)
  • Molecular Biology (AREA)
  • Genetics & Genomics (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Oncology (AREA)
  • Public Health (AREA)
  • Veterinary Medicine (AREA)
  • Communicable Diseases (AREA)
  • Animal Behavior & Ethology (AREA)
  • Nuclear Medicine, Radiotherapy & Molecular Imaging (AREA)
  • Pharmacology & Pharmacy (AREA)
  • General Chemical & Material Sciences (AREA)
  • Medicines That Contain Protein Lipid Enzymes And Other Medicines (AREA)
  • Peptides Or Proteins (AREA)

Description

    TECHNICAL FIELD
  • The present invention pertains generally to the field of therapeutic compounds, and more specifically to certain lipopeptide compounds comprising a cyclic peptide bearing a lipid side chain (for convenience, collectively referred to herein as "LP compounds"), which, inter alia, are antimicrobial, particularly antibacterial.
    The present invention also pertains to pharmaceutical compositions comprising such compounds, and the use of such compounds and compositions, both in vitro and in vivo, to provide an antimicrobial function, particularly an antibacterial function, and in the treatment of diseases and conditions that are mediated by microbes, particularly bacteria, that are ameliorated by the antimicrobial function, particularly an antibacterial function, including bacterial diseases, optionally in combination with another agent, for example, another antibacterial agent.
    • BACKGROUND
  • A number of patents and publications are cited herein in order to more fully describe and disclose the invention and the state of the art to which the invention pertains.
  • Throughout this specification, including the claims which follow, unless the context requires otherwise, the word "comprise," and variations such as "comprises" and "comprising," will be understood to imply the inclusion of a stated integer or step or group of integers or steps but not the exclusion of any other integer or step or group of integers or steps.
  • It must be noted that, as used in the specification and the appended claims, the singular forms "a," "an," and "the" include plural referents unless the context clearly dictates otherwise. Thus, for example, reference to "a pharmaceutical carrier" includes mixtures of two or more such carriers, and the like.
  • Ranges are often expressed herein as from "about" one particular value, and/or to "about" another particular value. When such a range is expressed, another embodiment includes from the one particular value and/or to the other particular value. Similarly, when values are expressed as approximations, by the use of the antecedent "about," it will be understood that the particular value forms another embodiment.
  • This disclosure includes information that may be useful in understanding the present invention. It is not an admission that any of the information provided herein is prior art or relevant to the presently claimed invention, or that any publication specifically or implicitly referenced is prior art.
    • Lipopeptides
  • Secondary metabolites from microorganisms are successfully employed for the treatment of infectious diseases. Secondary metabolites are low molecular weight compounds whose production takes place in "biosynthetic oneway streets" which branch off from the primary metabolism, and whose function for the particular producer is unclear. The main area of use of these secondary metabolites is the therapy of infectious diseases. However, owing to the wide use, there is frequently development of resistance so that there is a continuous need for novel antibiotics and active substances with novel mechanisms of action (Neu H. C., Science 257, 1992, pages 1064-1073). A therapeutically adequate effect on penicillin- or methicillin-resistant strains (MRSA strains) which have developed further antibiotic resistances is often possessed only by glycopeptides such as vancomycin or teicoplanin. However, strains also resistant to these antibiotics are increasingly appearing (FEMS Microbiol. Lett. 98 (1992) 5 109 to 116).
  • Antibiotics from the class of the lipopeptides, which are characterized by a linear or cyclic peptide portion or a combination of both, with naturally and/or non-naturally derivatized and/or non-derivatized amino acids, with which a saturated or unsaturated acyl residue is connected, have been found in the past as effective against fungi and Gram-positive bacteria. One example of such a lipopeptide is Friulimicin B, shown below.
    Figure imgb0001
  • For the majority of these compounds, however, toxic properties are also known.
  • European Patent Application No. 0 629 636 proposes lipopeptides which have homologous amino acid sequences but different fatty acid residues (lipid portion) and which are synthesized by Actinoplanes sp. during the fermentation and released into the culture medium, as well as a process for isolating the lipopeptides from the culture medium, their purification and the use of the lipopeptides as pharmacological active substances, in particular against Gram-positive bacteria. However, these lipopeptides exhibit toxic properties, in particular hemolysis.
  • WO 99/43700 discloses calcium salts of lipopeptide antibiotics and methods of their preparation.
  • WO 2005/000878 discloses lipopeptide antibiotic derivative compositions and their respective methods of use.
  • AU 696566 discloses derivatives of the lipopeptide A1437, processes of their preparation and uses thereof.
  • There remains a need to provide pharmacologically active substances that can be used in the treatment of bacterial infection, particularly resistant strains (e.g. MRSA), whilst avoiding the toxic effects discussed above.
    • SUMMARY OF THE INVENTION
  • One aspect of the invention pertains to certain lipopeptide compounds related to friulimicin but with modified acyl side chains, as described herein. For convenience, these compounds are collectively referred to herein as "LP compounds".
  • Another aspect of the invention pertains to a composition (e.g., a pharmaceutical composition) comprising a LP compound, as presently claimed, and a pharmaceutically acceptable carrier or diluent.
  • Disclosed is a method of preparing a composition (e.g., a pharmaceutical composition) comprising the step of admixing a LP compounds, as described herein, and a pharmaceutically acceptable carrier or diluent.
  • Disclosed herein is a method of killing microbes in a host (e.g. a subject/patient), in vitro or in vivo, comprising contacting the host with an effective amount of a LP compound, as described herein. The present invention is concerned with providing an antimicrobial action (e.g. an antibacterial and/or antifungal action).
  • Disclosed herein is a method of inhibiting (e.g. reducing or preventing) growth or reproduction of bacteria, killing bacteria, or a combination of both these, in vitro or in vivo, comprising contacting a host (e.g. a subject/patient) with an effective amount of a LP compound, as described herein.
  • The method may further comprise contacting the host with one or more other antibacterial agents.
  • Also disclosed herein is a method of killing bacteria in a host (e.g. a subject/patient), in vitro or in vivo, comprising contacting the host with an effective amount of a LP compound, as described herein.
  • The method may further comprise contacting the host with one or more other antibacterial agents.
  • Also disclosed is a bacteriocidal method using an effective amount of a LP compound.
  • Disclosed herein is a method of reducing or preventing the growth or reproduction of bacteria in a host (e.g. a subject/patient), in vitro or in vivo, comprising contacting the host with an effective amount of a LP compound, as described herein.
  • The method may further comprise contacting the host with one or more other antibacterial agents.
  • Also disclosed herein is a bacteriostatic method using an effective amount of a LP compound.
  • Also disclosed herein is a method of treatment comprising administering to a subject in need of treatment a therapeutically-effective amount of a LP compound, as described herein, preferably in the form of a pharmaceutical composition.
  • The method may further comprise administering to the subject one or more other antibacterial agents.
  • Another aspect of the present invention pertains to a LP compound as claimed herein for use in a method of treatment of the human or animal body by therapy.
  • In one embodiment, the method of treatment comprises treatment with both (i) a LP compound as claimed and (ii) one or more other antibacterial agents.
  • Another aspect of the present invention pertains to use of a LP compound, as claimed herein, in the manufacture of a medicament for use in treatment.
  • In one embodiment, the treatment comprises treatment with both (i) a medicament comprising a LP compound as claimed and (ii) one or more other antibacterial agents.
  • In one embodiment, the treatment is treatment of a disease or condition that is mediated or caused by bacteria.
  • In one embodiment, the treatment is treatment of a disease or condition that is ameliorated by the inhibition of bacteria growth or reproduction and/or bacteria death.
  • In one embodiment, the treatment is treatment of a bacterial infection.
  • In one embodiment, the treatment is treatment of a bacterial disease.
  • Disclosed herein is a kit comprising (a) a LP compound, as described herein, preferably provided as a pharmaceutical composition and in a suitable container and/or with suitable packaging; and (b) instructions for use, for example, written instructions on how to administer the compound.
  • The kit may further comprise one or more other antibacterial agents.
  • LP compounds disclosed herein are obtainable by a method of synthesis as described herein, or a method comprising a method of synthesis as described herein.
  • The present invention also includes an LP compound as described in the claims obtained by a method of synthesis.
  • Disclosed herein are novel intermediates which are suitable for use in the methods of synthesis described herein.
  • The use of such novel intermediates, as described herein, in methods of synthesis are also disclosed.
  • Thus, disclosed herein are methods of synthesis of an LP compound, as described herein.
  • Disclosed herein is a method of forming a lipopeptide having an acyl side chain (e.g. a LP compound, as described herein), wherein the method comprises the step of reacting an ester precursor of the acyl side chain with a lipopeptide in the presence of calcium chloride.
  • As will be appreciated by one of skill in the art, features and preferred embodiments of one aspect of the invention will also pertain to other aspect of the invention.
    • DETAILED DESCRIPTION OF THE INVENTION Compounds
  • One aspect of the present invention relates to certain lipopeptide compounds related structurally to friulimicin but containing modified acyl side chains (for convenience, collectively referred to herein as "LP compounds").
  • In one embodiment, the compounds are selected from compounds of the following formula, and pharmaceutically acceptable salts, hydrates, and solvates thereof:
    Figure imgb0002
     wherein:
    • -R1 is independently -OH or -NH2
    and wherein:
    • -R2 is independently -RB
      wherein:
      • -RB is independently RB4-RB3-LB2-RB2-LB1-RB1-C(O)-
        wherein:
        • -RB1- is independently -RBP- or -RBN-,
        and wherein:
        • each of -RB2-, and -RB3- is independently -RBS-, -RBP-, -RBN- or -RBH-,
        and wherein:
        • at least one of -RB2- and -RB3- is independently -RBH-
          wherein:
          • each -RBP-, if present, is independently phenylene, and is optionally substituted
          and wherein:
          • each -RBN-, if present, is independently naphthylene, and is optionally substituted
          and wherein:
          • each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-14heterocyclylene, and is optionally substituted
          and wherein:
          • each -RBS-, if present, is independently a single bond
        and wherein:
        • each of -LB1- and -LB2- is independently -LS-, -LBB- or -LBO-
          wherein:
          • each -LS-, if present, is independently a single bond
          and wherein:
          • each -LBB-, if present, is independently saturated aliphatic C1-4alkylene, and is optionally substituted
          and wherein:
          • each -LBO-, if present, is independently saturated aliphatic C1-4alkoxylene, and is optionally substituted
        and wherein:
        • -RB4 is independently -H, -RB4A, -RB4AA or -RB4O
          wherein:
          • -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-10alkyl, and is optionally substituted
          and wherein:
          • -RB4AA, if present, is independently C6-10aryl-C1-6alkyl, and is optionally substituted
          and wherein:
          • -RB4O, if present, is independently -RB4O1 or RB4O2
            wherein:
            • RB4O1, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-10alkoxy, and is optionally substituted
            and wherein:
            • -RB4O2, if present, is independently C6-10aryloxy, and is optionally substituted.
  • For the avoidance of doubt, the indices such as "C4-7" in terms such as "C4-14heterocyclylene" refer to the number of ring atoms, whether carbon atoms or heteroatoms. For example, cyclohexylene, piperidinylene, pyridinylene and piperazinylene are example of a C6cyclylene group.
  • For the avoidance of doubt, it is not intended that the groups -R1 and -R2 are linked, other than via the acyl chain as shown in the above formula.
  • For the avoidance of doubt, where two or more neighbouring groups are each a single bond, they form only one single bond.
    • The Group -R 1
  • In one embodiment, -R1 is independently -OH or -NH2.
    In one embodiment, -R1 is independently -OH.
    In one embodiment, -R1 is independently-NH2.
    • The Group -R 2
  • In one embodiment, -R2 is independently -RB.
    • The Group -L S -
  • In one embodiment, each -LS-, if present, is independently a single bond.
    • The Group -R B
  • In one embodiment, -RB is independently RB4-RB3-LB2-RB2-LB1-RB1-C(O)-.
    • The Groups -R B1 -, -R B2 -, and -R B3 -
  • In one embodiment, -RB1- is independently -RBP- or -RBN- and each of -RB2- and - RB3- is independently -RBS-, -RBP-, -RBN- or -RBH-, wherein at least one of -RB2- and - RB3- is independently -RBH-.
  • In one embodiment, -RB1- is independently -RBP- or -RBN-, and each of -RB2- and - RB3- is independently -RBS-, -RBP-, -RBN- or -RBH-, wherein at least one of -RB2-, and - RB3- is independently -RBH-.
  • In one embodiment, -RB1- is independently -RBP- or -RBN-, wherein at least one of - RB2-, and -RB3- is independently -RBH- and wherein at least one of -RB2-, and -RB3- is independently -RBP-.
    In one embodiment, -RB1- is independently -RBP-, and each of -RB2- and -RB3- is independently-RBP-, -RBN- or -RBH-, wherein at least one of -RB2-, and -RB3- is independently -RBH-.
  • In one embodiment, -RB1- is independently -RBP-, and at least one of -RB2-, and - RB3- is independently -RBH- and the other is independently -RBP-.
  • In one embodiment, -RB1- is independently -RBP-.
    In one embodiment, -RB1- is independently -RBN-.
  • In one embodiment, -RB2- is independently -RBS-.
    In one embodiment, -RB2- is independently -RBP
    In one embodiment, -RB2- is independently -RBN-.
    In one embodiment, -RB2- is independently -RBH-.
  • In one embodiment, -RB3- is independently -RBS-.
    In one embodiment, -RB3- is independently -RBP-.
    In one embodiment, -RB3- is independently -RBN-.
    In one embodiment, -RB3- is independently -RBH-.
  • In one embodiment, -RB1- is independently -RBP-, -RB2- is independently -RBH- and - RB3- is independently -RBP-.
  • In one embodiment, -RB1- is independently -RBP-, -RB2- is independently -RBH- and - RB3- is independently -RBP-.
    • The Group -R BS -
  • In one embodiment, each -RBS-, if present, is independently a single bond.
    • The Group -R BP -
  • In one embodiment, each -RBP-, if present, is independently phenylene, and is optionally substituted.
    In one embodiment, each -RBP-, if present, is independently
    Figure imgb0003
    • The Group -R BN -
  • In one embodiment, each -RBN-, if present, is independently naphthylene, and is optionally substituted.
    In one embodiment, each -RBN-, if present, is independently
    Figure imgb0004
    • The Group -R BH -
  • In one embodiment, each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-14heterocyclylene, and is optionally substituted. In one embodiment, each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-10heterocyclylene, and is optionally substituted. In one embodiment, each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-6heterocyclylene, and is optionally substituted. In one embodiment, each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C5-6heterocyclylene, and is optionally substituted.
  • In one embodiment, each -RBH- is independently aromatic or unsaturated non-aromatic C5heterocyclylene, and is optionally substituted.
  • In one embodiment, each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-10heterocyclylene, wherein at least one ring atom is N, and is optionally substituted.
    In one embodiment, each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-10heterocyclylene, wherein at least one ring atom is O, and is optionally substituted.
    In one embodiment, each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-10heterocyclylene, wherein at least one ring atom is S, and is optionally substituted.
  • In one embodiment, each -RBH- is independently aromatic or unsaturated non-aromatic C5-6heterocyclylene containing at least one of N, O or S as a ring atom, and is optionally substituted.
    In one embodiment, each -RBH- is independently aromatic or unsaturated non-aromatic C5-6heterocyclylene containing at least one N as a ring atom, and is optionally substituted.
    In one embodiment, each -RBH- is independently aromatic or unsaturated non-aromatic C5-6heterocyclylene containing at least one N and one O as ring atoms, and is optionally substituted.
  • In one embodiment, each -RBH- is independently isoxazolylene, oxazolylene, thiazolylene, pyrazolylene, imidazolylene, pyrrolyl, indazolyl, triazolyl, tetrazolyl, oxadiazolylene, pyridinylene or piperazinylene, pyrimidinyl, Pyrazinyl, thiadiazolyl oxadiazolylene, pyridinylene or piperazinylene, and is optionally substituted.
  • In one embodiment, each -RBH- is independently isoxazolylene, oxazolylene, thiazolylene, pyrazolylene, imidazolylene, oxadiazolylene or pyridinylene, and is optionally substituted.
  • In one embodiment, each -RBH is independently isoxazolylene, and is optionally substituted.
  • In one embodiment, each -RBH is independently
    Figure imgb0005
    Figure imgb0006
    Figure imgb0007
    Figure imgb0008
    Figure imgb0009
    • The Groups -L B1 - and -L B2 -
  • In one embodiment, each of -LB1- and -LB2- is independently -LS-, -LBB- or -LBO-.
    In one embodiment, each of -LB1- and -LB2- is independently -LS-.
    In one embodiment, each of -LB1- and -LB2- is independently -LBB-.
    In one embodiment, each of -LB1- and -LB2- is independently -LBO-.
  • In one embodiment, -LB1- is independently -LS-.
    In one embodiment, -LB1- is independently -LBB-.
    In one embodiment, -LB1- is independently -LBO-.
  • In one embodiment, -LB2- is independently -LS-.
    In one embodiment, -LB2- is independently -LBB-.
    In one embodiment, -LB2- is independently -LBO-.
    • The Group -L S -
  • In one embodiment, each -LS-, if present, is independently a single bond.
    • The Group -L BB -
  • In one embodiment, each -LBB-, if present, is independently saturated aliphatic C1-4alkylene, and is optionally substituted.
    In one embodiment, each -LBB-, if present, is independently saturated aliphatic C1-2alkylene, and is optionally substituted.
    In one embodiment, each -LBB-, if present, is independently -CH2-CH2-.
    • The Group -L BO -
  • In one embodiment, each -LBO-, if present, is independently saturated aliphatic C1-4alkoxylene, and is optionally substituted.
    In one embodiment, each -LBO-, if present, is independently saturated aliphatic C1-2alkoxylene, and is optionally substituted.
    In one embodiment, each -LBO-, if present, is independently -CH2-O-.
    • The Group -R B4 -
  • In one embodiment, -RB4 is independently -H, -RB4A, -RB4AA or -RB4O.
    In one embodiment, -RB4 is independently -H.
    In one embodiment, -RB4 is independently -RB4A.
    In one embodiment, -RB4 is independently -RB4AA.
    In one embodiment, -RB4 is independently -RB4O.
    • The Group -R B4A
  • In one embodiment, -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-10alkyl, and is optionally substituted.
    In one embodiment, -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-8alkyl, and is optionally substituted.
    In one embodiment, -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C2-8alkyl, and is optionally substituted.
    In one embodiment, -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C3-8alkyl, and is optionally substituted.
    In one embodiment, -RB4A, if present, is independently saturated aliphatic C3-8alkyl, and is optionally substituted.
    In one embodiment, -RB4A, if present, is independently saturated linear C3-8alkyl, and is optionally substituted.
    In one embodiment, -RB4A, if present, is independently saturated alicyclic C3-8alkyl, and is optionally substituted.
    In one embodiment, -RB4A, if present, is independently cyclohexyl, and is optionally substituted.
    • The Group -R B4AA
  • In one embodiment, -RB4AA, if present, is independently C6-10aryl-C1-6alkyl, and is optionally substituted.
    In one embodiment, -RB4AA, if present, is independently C6aryl-C1-6alkyl, and is optionally substituted.
    In one embodiment, -RB4AA, if present, is independently C6aryl-C1-2alkyl, and is optionally substituted.
    In one embodiment, -RB4AA, if present, is independently
    Figure imgb0010
    • The Group -R B4O
  • In one embodiment, -RB4O, if present, is independently -RB4O1 or RB4O2.
    In one embodiment, -RB4O, if present, is independently -RB4O1
    In one embodiment, -RB4O, if present, is independently -RB4O.
    • The Group -R B4O1
  • In one embodiment, -RB4O1, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-10alkoxy, and is optionally substituted.
    In one embodiment, -RB4O1, if present, is independently saturated or unsaturated aliphatic C1-10alkoxy, and is optionally substituted.
    In one embodiment, -RB4O1, if present, is independently saturated or unsaturated aliphatic C3-8alkoxy, and is optionally substituted.
    In one embodiment, -RB4O1, if present, is independently saturated or unsaturated aliphatic C4-7alkoxy, and is optionally substituted.
    In one embodiment, -RB4O1, if present, is independently saturated or unsaturated aliphatic C5-7alkoxy, and is optionally substituted.
    In one embodiment, -RB4O1, if present, is independently saturated or unsaturated aliphatic C6alkoxy, and is optionally substituted.
  • In one embodiment, -RB4O1, if present, is independently -O-(CH2)3-CH3, -O-(-CH2)4-CH3, -O-(CH2)5-CH3 or -O-(CH2)6-CH3.
    In one embodiment, -RB4O1, if present, is independently-O-(CH2)3-CH3.
    In one embodiment, -RB4O1, if present, is independently -O-(CH2)4-CH3.
    In one embodiment, -RB4O1, if present, is independently -O-(CH2)5-CH3.
    In one embodiment, -RB4O1, if present, is independently -O-(CH2)6-CH3.
    • The Group -R B4O2
  • In one embodiment, -RB4O2, if present, is independently C6-10aryloxy, and is optionally substituted.
    In one embodiment, -RB4O2, if present, is independently C6aryloxy, and is optionally substituted.
    In one embodiment, -RB4O2, if present, is independently
    Figure imgb0011
    • Optional Substituents on -L BB - and -L BO -
  • In one embodiment, -LBB-, if present, is independently unsubstituted.
    In one embodiment, -LBB-, if present, is independently optionally substituted with one or more substituents, -RS1.
  • In one embodiment, -LBO-, if present, is independently unsubstituted.
    In one embodiment, -LBO-, if present, is independently optionally substituted with one or more substituents, -RS1.
  • In one embodiment, each RS1, if present, is independently selected from:
    • -RSS1,
    • -F, -Cl, -Br, -I,
    • -CF3, -OCF3, -SCF3,
    • -OH, -LSS1-OH, -O-LSS1-OH, -NH-LSS1-OH, -NRSS1-LSS1-OH,
    • -ORSS1,
    • -NH2, -NHRSS1, -NRSS1 2; and
    • -LSS1-NH2, -LSS1-NHRSS1, -LSS1-NRSS1 2
  • In one embodiment, each RS1, if present, is independently selected from:
    • F, -Cl, -Br, -I, or
    • OH, -LSS1-OH,
    • ORSS1,
    • NH2; and
    • LSS1-NH2
  • In one embodiment, each RS1, if present, is independently selected from -RSS1.
    • Optional Substituents on -R B4A , -R B4O1 , -R B4O2 and -R B4AA
  • In one embodiment, -RB4A, if present, is independently unsubstituted.
    In one embodiment, -RB4A, if present, is independently optionally substituted with one or more substituents, -RS2.
  • In one embodiment, -RB4O1, if present, is independently unsubstituted.
    In one embodiment, -RB4O1, if present, is independently optionally substituted with one or more substituents, -RS2.
  • In one embodiment, -RB4O2, if present, is independently unsubstituted.
    In one embodiment, -RB4O2, if present, is independently optionally substituted with one or more substituents, -RS2.
  • In one embodiment, -RB4AA, if present, is independently unsubstituted.
    In one embodiment, -RB4AA, if present, is independently optionally substituted with one or more substituents, -RS2.
  • In one embodiment, each -RS2, if present, is independently selected from:
    • -RJA1,
    • -F, -Cl, -Br, -I,
    • -CF3, -OCF3, -SCF3,
    • -OH, -LJA-OH, -O-LJA-OH, -NH-LJA-OH, -NRJA1-LJA-OH,
    • -ORJA1, -LJA-ORJA1, -O-LJA-ORJA1, -NH-LJA-ORJA1, -NRJA1-LJA-ORJA1,
    • -SH, -SRJA1,
    • -CN,
    • -NH2, -NHRJA1, -NRJA1 2, -NRJA2RJA3,
    • -LJA-NH2, -LJA-NHRJA1, -LJA-NRJA1 2, -LJA-NRJA2RJA3,
    • -O-LJA-NH2, -O-LJA-NHRJA1, -O-LJA-NJA12 2, -O-LJA-NRJA2RJA3,
    • -NH-LJA-NH2, -NRJA1-LJA-NH2, -NH-LJA-NHRJA1, -NRJA1-LJA-NHRJA1,
    • -NH-LJA-NRJA1 2, NRJA1-LJA-NRJA1 2,
    • -NH-LJA-NRJA2RJA3, -NRJA1-LJA-NJA2RJA3,
    • -OC(=O)RJA1,
    • -C(=O)OH, -C(=O)ORJA1,
    • -C(=O)RJA1,
    • -C(=O,)NH2, -C(=O)NHRJA1, -C(=O)NRJA1 2, -C(=O)NRJA2RJA3,
    • -NHC(=O)RJA1, -NRJA1C(=O)RJA1,
    • -NHC(=O)ORJA1, -NRJA1C(=O)ORJA1,
    • -OC(=O)NH2, -OC(=O)NHRJA1, OC(=O)NRJA1 2, -OC(=O)NRJA2RJA3,
    • -NHC(=O)NH2, -NHC(=O)NHRJA1,
    • -NHC(=O)NRJA1 2, -NHC(=O)NRJA2RJA3,
    • -NRJA1C(=O)NH2, -NRJA1C(=O)NHRJA1,
    • -NRJA1C(=O)NRJA1 2, NRJA1C(=O)NRJA2RJA3,
    • -NHS(=O)2RJA1, -NRJA1S(=O)2RJA1,
    • -S(=O)2NH2, -S(=O)2NHRJA1, -S(=O)2NRJA1 2, -S(=O)2NRJA2RJA3,
    • -S(=O)JA1, -S(=O)2RJA1, -OS(=O)2RJA1, -S(=O)2OH, -S(=O)2ORJA1; and
    • =O;
  • In one embodiment, each -RS2, if present, is independently selected from:
    • -RJA1,
    • -F, -Cl, -Br,
    • -CF3, -OCF3,
    • -OH, -LJA-OH, -O-LJA-OH,
    • -ORJA1, -LJA-ORJA1, -O-LJA-ORJA1,
    • -CN,
    • -NH2, -NHRJA1, -NRJA1 2, -NRJA2RJA3,
    • -LJA-NH2, -LJA-NHRJA1, -LJA-NRJA1 2, -LJA-NRJA2RJA3,
    • -C(=O)OH, -C(=O)ORJA1,
    • -C(=O)RJA1,
    • -C(=O)NH2, -C(=O)NHRJA1, -C(=O)NRJA1 2, -C(=O)NRJA2RJA3,
    • -NHC(=O)RJA1, -NRJA1C(=O)RJA1,
    • -NHC(=O)NH2, -NHC(=O)NHRJA1,
    • -NHC(=O)NRJA1 2, -NHC(=O)NRJA2RJA3,
    • -NRJA1C(=O)NH2, -NRJA1C(=O)NHRJA1,
    • -NRJA1C(=O)NRJA1 2, NRJA1C(=O)NRJA2RJA3,
    • -NHS(=O)2RJA1, -NRJA1S(=O)2RJA1,
    • -S(=O)2NH2, -S(=O)2NHRJA1, -S(=O)2NRJA1 2, -S(=O)2NRJA2RJA3,
    • -S(=O)RJA1, -S(=O)2RJA1, -OS(=O)2RJA1, -S(=O)2OH, -S(=O)2ORJA1; and
    • =O.
  • In one embodiment, each -RS2, if present, is independently selected from:
    • -RJA1,
    • -F, -Cl, -Br,
    • -CF3, -OCF3, -SCF3,
    • -OH, -LJA-OH, -O-LJA-OH, -NH-LJA-OH, -NRJA1-LJA-OH,
    • -ORJA1, -LJA-ORJA1, -O-LJA-ORJA1, -NH-LJA-ORJA1, -NRJA1-LJA-ORJA1,
    • -SH, -SRJA1,
    • -CN,
    • -NH2, -NHRJA1, -NRJA1 2,
    • -LJA-NH2, -LJA-NHRJA1, -LJA-NRJA1 2,
    • -OC(O)RJA1,
    • -C(O)O,H, -C(O)ORJA1,
    • -C(O)RJA1,
    • -C(O)NH2, -C(O)NHRJA1, -C(O)N(RJA1)2,
    • -NHC(O)RJA1, -NRJA1C(O)RJA1; and
    • =O.
  • In one embodiment, each -RS2, if present, is independently selected from:
    • -RSS1,
    • -F, -Cl, -Br,
    • -CF3, -OCF3, -SCF3,
    • -OH, -LSS1-OH, -O-LSS1-OH, -NH-LSS1-OH, -NRSS1-LSS1-OH,
    • -NH2, -NHRSS1, -NRSS1 2,
    • -LSS1-NH2, -LSS1-NHRSS1, -LSS1-NRSS1 2; and
    • =O.
    Optional Substituents on -R BP - and R BN -
  • In one embodiment, -RBP-, if present, is independently unsubstituted.
    In one embodiment, -RBP-, if present, is independently optionally substituted with one or more substituents, -RS3.
  • In one embodiment, -RBN-, if present, is independently unsubstituted.
    In one embodiment, -RBP-, if present, is independently optionally substituted with one or more substituents, -Rs3.
  • In one embodiment, each RS3, if present, is independently selected from:
    • -RJA1,
    • -F, -Cl, -Br,
    • -CF3, -OCF3, -SCF3,
    • -OH, -LJA-OH, -O-LJA-OH, -NH-LJA-OH, -NRJA1-LJA-OH,
    • -ORJA1, -LJA-ORJA1, -O-LJA-ORJA1, -NH-LJA-ORJA1, -NRJA1-LJA-ORJA1,
    • -SH, -SRJA1,
    • -CN,
    • -NH2, -NHRJA1, -NRJA1 2,
    • -LJA-NH2, -LJA-NHRJA1, -LJA-NRJA1 2,
    • -OC(O)RJA1,
    • -C(O)OH, -C(O)ORJA1,
    • -C(O)RJA1,
    • -C(O)NH2, -C(O)NHRJA1, -C(O)N(RJA1)2; and
    • -NHC(O)JA1, -NRJA1C(O)RJA1.
  • In one embodiment, each RS3, if present, is independently selected from:
    • -RSS1,
    • -F, -Cl, -Br, -I; and
    • -OH
    Optional Substituents on -R BH
  • In one embodiment, -RBH- is independently unsubstituted.
    In one embodiment, -RBH- is independently is optionally substituted with one or more substituents, -RS4.
  • In one embodiment, each RS4, if present, is independently selected from:
    • -RJA1,
    • -F, -Cl, -Br,
    • -CF3, -OCF3, -SCF3,
    • -OH, -LJA-OH, -O-LJA-OH, -NH-LJA-OH, -NRJA1-LJA-OH,
    • -ORJA1, -LJA-ORJA1, -O-LJA-ORJA1, -NH-LJA-ORJA1, -NRJA1-LJA-ORJA1,
    • -SH, -SRJA1,
    • -CN,
    • -NH2, -NHRJA1, -NRJA1 2,
    • -LJA-NH2, -LJA-NHRJA1, -LJA-NRJA1 2,
    • -OC(O)RJA1,
    • -C(O)OH, -C(O)ORJA1,
    • -C(O)RJA1,
    • -C(O)NH2, -C(O)NHRJA1, -C(O)N(RJA1)2; and
    • -NHC(O)RJA1, -NRJA1C(O)RJA1.
  • In one embodiment, each RS4, if present, is independently selected from:
    • -RSS1,
    • -F, -Cl, -Br, -I; and
    • -OH
    Elements of the Optional Substituents -R S2 -R S3 and -R S4
  • In one embodiment:
    • each -LJA-, if present, is independently saturated aliphatic C1-5alkylene;
    • each -NRJA2RJA3, if present, is independently C4-7heterocyclyl, and is optionally substituted, for example, with one or more groups selected from -RJ44, -CF3, -F, -OH, -ORJ44, -NH2, -NHRJ44, -NRJ44 2, and =O; wherein each -RJ44 is independently saturated aliphatic C1-4alkyl;
    • each -RJA1 is independently:
      • -RJB1, -RJB2, -RJB3, -RJB4, -RJB5, -RJB6, -RJB7, -RJB8,
      • -LJB-RJB4, -LJB-RJB5, -LJB-RJB6, -LJB-RJB7, or -LJB-RJB8;
    • each -RJB1 is independently saturated aliphatic C1-6alkyl;
    • each -RJB2 is independently aliphatic C2-6alkenyl;
    • each -RJB3 is independently aliphatic C2-6alkynyl;
    • each -RJB4 is independently saturated C3-6cycloalkyl;
    • each -RJB5 is independently C3-6cycloalkenyl;
    • each -RJB6 is independently non-aromatic C4-7heterocyclyl;
    • each -RJB7 is independently C6-10carboaryl;
    • each -RJB8 is independently C5-10heteroaryl;
    • each -LJB- is independently saturated aliphatic C1-3alkylene;
      wherein:
    • each -RJB4, -RJB5, -RJB6, -RJB7, and -RJB8 is optionally substituted, for example, with one or more substituents -RJC1 and/or one or more substituents -RJC2,
    • each -RJB1, -RJB2, -RJB3, and -LJB- is optionally substituted, for example, with one or more substituents -RJC2, and
      wherein:
    • each -RJC1 is independently saturated aliphatic C1-4alkyl, phenyl, or benzyl;
    • each -RJC2 is independently:
      • -F, -Cl, -Br, -I,
      • -CF3, -OCF3,
      • -OH,
      • -CN,
      • -NO2,
      • -NH2,
      • -C(=O)OH,
      • -C(=O)NH2.
  • In one embodiment, each -LJA-, if present, is independently -(CH2)n2-, wherein n2 is independently 1 to 4.
  • In one embodiment, each -LJA-, if present, is independently -CH2- or -CH2CH2-.
  • In one embodiment, each -NRJA2RJA3, if present, is independently azetidino, pyrrolidino, imidazolidino, pyrazolidino, piperidino, piperazino, morpholino, azepino, or diazepino, and is optionally substituted, for example, with one or more groups selected from -RJ44, -CF3, -F, -OH, -ORJ44, -NH2, -NHRJ44, -NRJ44 2, and =O.
  • In one embodiment, each -RJA1, if present, is independently:
    • -RJB1, -RJB4, -RJB6, -RJB7, -RJB8,
    • -LJB-RJB4, LJB-RJB6, -LJB-RJB7, or LJB-RJB8,
  • In one embodiment, each -RJA1, if present, is independently:
    • -RJB1, -RJB6, -RJB7, -RJB8,
    • -LJB-RJB6, -LJB-RJB7, LJB-RJB6, or LJB-RJB8.
  • In one embodiment, each -RJA1, if present, is independently:
    • -RJB1, -RJB6, -RJB7, or -LJB-RJB7,
  • In one embodiment, each -RJB6, if present, is independently azetidinyl, pyrrolidinyl, imidazolidinyl, pyrazolidinyl, piperidinyl, piperazinyl, morpholinyl, azepinyl, diazepinyl, tetrahydrofuranyl, tetrahydropyranyl, dioxanyl, and is optionally substituted.
  • In one embodiment, each -RJB6, if present, is independently pyrrolidinyl, piperidinyl, piperazinyl, morpholinyl, tetrahydrofuranyl, or tetrahydropyranyl, and is optionally substituted.
  • In one embodiment, each -RJB7, if present, is independently phenyl, and is optionally substituted.
  • In one embodiment, each -RJB8, if present, is independently C5-6heteroaryl, and is optionally substituted.
  • In one embodiment, each -RJB8, if present, is independently C9-10heteroaryl, and is optionally substituted.
  • In one embodiment, each -RJB8, if present, is independently furanyl, thienyl, pyrrolyl, imidazolyl, pyrazolyl, triazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, pyridyl, pyrimidinyl, pyridazinyl, benzofuranyl, benzothienyl, benzopyrrolyl, benzoimidazolyl, benzopyrazolyl, benzotriazolyl, benzoxazolyl, benzoisoxazolyl, benzothiazolyl, benzoisothiazolyl, benzopyridyl, benzopyrimidinyl, or benzopyridazinyl, and is optionally substituted.
  • In one embodiment, each -RJB8, if present, is independently furanyl, thienyl, pyrrolyl, imidazolyl, pyrazolyl, triazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, pyridyl, pyrimidinyl, or pyridazinyl, and is optionally substituted.
  • In one embodiment, each -LJB-, if present, is independently -CH2- or -CH2CH2-.
    In one embodiment, each -LJB-, if present, is independently -CH2-.
  • In one embodiment, each -RSS1, if present, is independently saturated aliphatic C1-6alkyl.
  • In one embodiment, each -RSS1, if present, is independently saturated aliphatic C1-3alkyl.
  • In one embodiment, each -RSS1, if present, is independently -Me.
  • In one embodiment, each -LSS1-, if present, is independently -(CH2)n-, wherein n is independently 1 to 4.
  • In one embodiment, each -LSS1-, if present, is independently -CH2- or -CH2CH2-.
    • Embodiments
  • In one embodiment, -R2 is independently:
    Figure imgb0012
  • Preferred definitions are set out below.
  • In one embodiment, -R2 is independently:
    Figure imgb0013
  • In one embodiment, -R2 is independently:
    Figure imgb0014
  • In one embodiment, -R2 is independently:
    Figure imgb0015
     wherein -RBH- is independently aromatic or saturated or unsaturated non-aromatic C5-6heterocyclylene, and is optionally substituted.
  • In one embodiment, -R2 is independently:
    Figure imgb0016
     wherein -RBH- is independently aromatic or saturated or unsaturated non-aromatic C5-6heterocyclylene, and is optionally substituted, and wherein -RB4 is independently -RB4A, -RB4AA or -RB4O.
  • In one embodiment, -R2 is independently:
    Figure imgb0017
     wherein -RBH- is independently aromatic or saturated or unsaturated non-aromatic C5-6heterocyclylene, and is optionally substituted, and wherein -RB4 is independently -RB4A or -RB4O.
  • In one embodiment, if any one of -RB1-, -RB2- and -RB3- is -RBH-, then -RB4 is -RB4A, -RB4AA or -RB4O.
  • In one embodiment, if -RB2- is -RBH-, then -RB4 is -RB4A, -RB4AA or -RB4O.
  • In one embodiment, -R2 is independently selected from:
    Figure imgb0018
    Figure imgb0019
  • In one embodiment, the LP compound, as described herein, is a salt.
    In one embodiment, the LP compound, as described herein, is a sodium or calcium salt.
    In one embodiment, the LP compound, as described herein, is a Ca2Cl2 salt.
    • Further Embodiments
  • Further embodiments of the present invention are as follows:
    1. 1. A compound selected from compounds of the following formula, and pharmaceutically acceptable salts, hydrates, and solvates thereof:
      Figure imgb0020
       wherein:
      • -R1 is independently -OH or -NH2
      and wherein:
      • -R2 is independently -RB
        wherein:
        • -RB is independently RB4-RB3-LB2-RB2-LB1-RB1-C(O)-
          wherein:
          • -RB1- is independently -RBP- or -RBN-,
          and wherein:
          • each of -RB2-, and -RB3- is independently -RBS-, -RBP-, -RBN- or -RBH-,
          and wherein:
          • at least one of -RB2- and -RB3- is independently -RBH-
            wherein:
            • each -RBP-, if present, is independently phenylene, and is optionally substituted
            and wherein:
            • each -RBN-, if present, is independently naphthylene, and is optionally substituted
            and wherein:
            • each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-14heterocyclylene, and is optionally substituted
            and wherein:
            • each -RBS-, if present, is independently a single bond
          and wherein:
          • each of -LB1- and -LB2- is independently -LS-, -LBB- or -LBO-
            wherein:
            • each -LS-, if present, is independently a single bond
            and wherein:
            • each -LBB-, if present, is independently saturated aliphatic C1-4alkylene, and is optionally substituted
            and wherein:
            • each -LBO-, if present, is independently saturated aliphatic C1-4alkoxylene, and is optionally substituted
          and wherein:
          • -RB4 is independently -H, -RB4A, -RB4AA or -RB4O
            wherein:
            • -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-10alkyl, and is optionally substituted
            and wherein:
            • -RB4AA, if present, is independently C6-10aryl-C1-6alkyl, and is optionally substituted
            and wherein:
            • -RB4O, if present, is independency -RB4O1 or RB4O2
              wherein:
              • -RB4O1, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-10alkoxy, and is optionally substituted
              and wherein:
              • -RB4O2, if present, is independently C6-10aryloxy, and is optionally substituted.
    2. 2. A compound according to paragraph 1, wherein -R1 is independently -OH.
    3. 3. A compound according to paragraph 1, wherein -R1 is independently -NH2.
    4. 4. A compound according to any one of paragraphs 1 to 3, wherein -R2 is independently -RB.
    5. 5. A compound according to any one of paragraphs 1 to 4, wherein -RB1- is independently -RBP- or -RBN-, and each of -RB2- and -RB3- is independently -RBS-, - RBP-, -RBN- or -RBH-, wherein at least one of -RB2-, and -RB3- is independently -RBH-.
    6. 6. A compound according to any one of paragraphs 1 to 4, wherein -RB1- is independently -RBP- or -RBN-, wherein at least one of -RB2-, and -RB3- is independently -RBH- and wherein at least one of -RB2-, and -RB3- is independently - RBP-.
    7. 7. A compound according to any one of paragraphs 1 to 4, wherein -RB1- is independently -RBP-, and each of -RB2- and -RB3- is independently-RBP-, -RBN- or-RBH-, wherein at least one of -RB2-, and -RB3- is independently -RBH-.
    8. 8. A compound according to any one of paragraphs 1 to 4, wherein -RB1- is independently -RBP-, and at least one of -RB2-, and -RB3- is independently -RBH- and the other is independently -RBP-.
    9. 9. A compound according to any one of paragraphs 1 to 4, wherein, -RB1- is independently -RBP-.
    10. 10. A compound according to any one of paragraphs 1 to 4, wherein -RB1- is independently -RBN-.
    11. 11. A compound according to any one of paragraphs 1 to 4, wherein -RB2- is independently -RBS-.
    12. 12. A compound according to any one of paragraphs 1 to 4, wherein -RB2- is independently -RBP-.
    13. 13. A compound according to any one of paragraphs 1 to 4, wherein -RB2- is independently -RBN-.
    14. 14. A compound according to any one of paragraphs 1 to 4, wherein, -RB2- is independently -RBH-.
    15. 15. A compound according to any one of paragraphs 1 to 4, wherein -RB3- is independently -RBS-.
    16. 16. A compound according to any one of paragraphs 1 to 4, wherein -RB3- is independently -RBP-.
    17. 17. A compound according to any one of paragraphs 1 to 4, wherein -RB3- is independently -RBN-.
    18. 18. A compound according to any one of paragraphs 1 to 4, wherein -RB3- is independently -RBH-.
    19. 19. A compound according to any one of paragraphs 1 to 4, wherein -RB1- is independently -RBP-, -RB2- is independently -RBH- and -RB3- is independently -RBP-.
    20. 20. A compound according to any one of paragraphs 1 to 4, wherein -RB1- is independently -RBP-, -RB2- is independently -RBH- and -RB3- is independently -RBP-.
    21. 21. A compound according to any one of paragraphs 1 to 20, wherein each -RBP-, if present, is independently
      Figure imgb0021
    22. 22. A compound according to any one of paragraphs 1 to 21, wherein each -RBN-, if present, is independently
      Figure imgb0022
    23. 23. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-10heterocyclylene, and is optionally substituted.
    24. 24. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-6heterocyclylene, and is optionally substituted.
    25. 25. A compound according to any one of paragraphs 1 to 22, wherein, each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C5-6heterocyclylene, and is optionally substituted.
    26. 26. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently aromatic or unsaturated non-aromatic C5heterocyclylene, and is optionally substituted.
    27. 27. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-10heterocyclylene, wherein at least one ring atom is N, and is optionally substituted.
    28. 28. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-10heterocyclylene, wherein at least one ring atom is O, and is optionally substituted.
    29. 29. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-10heterocyclylene, wherein at least one ring atom is S, and is optionally substituted.
    30. 30. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently aromatic or unsaturated non-aromatic C5-6heterocyclylene containing at least one of N, O or S as a ring atom, and is optionally substituted.
    31. 31. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently aromatic or unsaturated non-aromatic C5-6heterocyclylene containing at least one N as a ring atom, and is optionally substituted.
    32. 32. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently aromatic or unsaturated non-aromatic C5-6heterocyclylene containing at least one N and one O as ring atoms, and is optionally substituted.
    33. 33. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently isoxazolylene, oxazolylene, thiazolylene, pyrazolylene, imidazolylene, pyrrolyl, indazolyl, triazolyl, tetrazolyl, oxadiazolylene, pyridinylene or piperazinylene, pyrimidinyl, Pyrazinyl, thiadiazolyl oxadiazolylene, pyridinylene or piperazinylene, and is optionally substituted.
    34. 34. A compound according to any one of paragraphs 1 to 22, wherein each -RBH- is independently isoxazolylene, oxazolylene, thiazolylene, pyrazolylene, imidazolylene, oxadiazolylene or pyridinylene, and is optionally substituted.
    35. 35. A compound according to any one of paragraphs 1 to 22, wherein each -RBH is independently isoxazolylene, and is optionally substituted.
    36. 36. A compound according to any one of paragraphs 1 to 22, wherein each -RBH is independently
      Figure imgb0023
      Figure imgb0024
      Figure imgb0025
      Figure imgb0026
      Figure imgb0027
    37. 37. A compound according to any one of paragraphs 1 to 36, wherein each of - LB1- and -LB2- is independently -LS-.
    38. 38. A compound according to any one of paragraphs 1 to 36, wherein each of - LB1- and -LB2- is independently -LBB-.
    39. 39. A compound according to any one of paragraphs 1 to 36, wherein each of - LB1- and -LB2- is independently -LBO-.
    40. 40. A compound according to any one of paragraphs 1 to 36, wherein -LB1- is independently -LS-.
    41. 41. A compound according to any one of paragraphs 1 to 36, wherein -LB1- is independently -LBB-.
    42. 42. A compound according to any one of paragraphs 1 to 36, wherein -LB1- is independently -LBO-.
    43. 43. A compound according to any one of paragraphs 1 to 36, wherein -LB2- is independently -LS-.
    44. 44. A compound according to any one of paragraphs 1 to 36, wherein -LB2- is independently -LBB-.
    45. 45. A compound according to any one of paragraphs 1 to 36, wherein -LB2- is independently -LBO-.
    46. 46. A compound according to any one of paragraphs 1 to 45, wherein each -LBB-, if present, is independently saturated aliphatic C1-2alkylene, and is optionally substituted.
    47. 47. A compound according to any one of paragraphs 1 to 45, wherein each -LBB-, if present, is independently -CH2-CH2-.
    48. 48. A compound according to any one of paragraphs 1 to 47, wherein each -LBO-, if present, is independently saturated aliphatic C1-2alkoxylene, and is optionally substituted.
    49. 49. A compound according to any one of paragraphs 1 to 47, wherein each -LBO-, if present, is independently -CH2-O-.
    50. 50. A compound according to any one of paragraphs 1 to 49, wherein -RB4 is independently -H.
    51. 51. A compound according to any one of paragraphs 1 to 49, wherein -RB4 is independently -RB4A.
    52. 52. A compound according to any one of paragraphs 1 to 49, wherein -RB4 is independently -RB4AA.
    53. 53. A compound according to any one of paragraphs 1 to 49, wherein -RB4 is independently -RB4O.
    54. 54. A compound according to any one of paragraphs 1 to 53, wherein -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-8alkyl, and is optionally substituted.
    55. 55. A compound according to any one of paragraphs 1 to 53, wherein -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C2-8alkyl, and is optionally substituted.
    56. 56. A compound according to any one of paragraphs 1 to 53, wherein -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C3-8alkyl, and is optionally substituted.
    57. 57. A compound according to any one of paragraphs 1 to 53, wherein -RB4A, if present, is independently saturated aliphatic C3-8alkyl, and is optionally substituted.
    58. 58. A compound according to any one of paragraphs 1 to 53, wherein -RB4A, if present, is independently saturated linear C3-8alkyl, and is optionally substituted.
    59. 59. A compound according to any one of paragraphs 1 to 53, wherein -RB4A, if present, is independently saturated alicyclic C3-8alkyl, and is optionally substituted.
    60. 60. A compound according to any one of paragraphs 1 to 53, wherein -RB4A, if present, is independently cyclohexyl, and is optionally substituted.
    61. 61. A compound according to any one of paragraphs 1 to 60, wherein -RB4AA, if present, is independently C6aryl-C1-6alkyl, and is optionally substituted.
    62. 62. A compound according to any one of paragraphs 1 to 60, wherein -RB4AA, if present, is independently C6aryl-C1-2alkyl, and is optionally substituted.
    63. 63. A compound according to any one of paragraphs 1 to 60, wherein -RB4AA, if present, is independently
      Figure imgb0028
    64. 64. A compound according to any one of paragraphs 1 to 63, wherein -RB4O, if present, is independently -RB4O1.
    65. 65. A compound according to any one of paragraphs 1 to 63, wherein -RB4O, if present, is independently -RB4O2.
    66. 66. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently saturated or unsaturated aliphatic C1-10alkoxy, and is optionally substituted.
    67. 67. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently saturated or unsaturated aliphatic C3-8alkoxy, and is optionally substituted.
    68. 68. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently saturated or unsaturated aliphatic C4-7alkoxy, and is optionally substituted.
    69. 69. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently saturated or unsaturated aliphatic C5-7alkoxy, and is optionally substituted.
    70. 70. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently saturated or unsaturated aliphatic C6alkoxy, and is optionally substituted.
    71. 71. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently-O-(CH2)3-CH3, -O-(CH2)4-CH3, -O-(CH2)5-CH3 or-O- (CH2)6-CH3.
    72. 72. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently-O-(CH2)3-CH3.
    73. 73. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently-O-(CH2)4-CH3.
    74. 74. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently -O-(CH2)5-CH3.
    75. 75. A compound according to any one of paragraphs 1 to 65, wherein -RB4O1, if present, is independently-O-(CH2)6-CH3.
    76. 76. A compound according to any one of paragraphs 1 to 75, wherein -RB4O2, if present, is independently C6aryloxy, and is optionally substituted.
    77. 77. A compound according to any one of paragraphs 1 to 75, wherein -RB4O2, if present, is independently
      Figure imgb0029
    78. 78. A compound according to any one of paragraphs 1 to 77, wherein each of-LBB-, if present, and -LBO-, if present, is independently optionally substituted with one or more substituents, -RS1, wherein each RS1, if present, is independently selected from:
      • -RSS1,
      • -F, -Cl, -Br, -I,
      • -CF3, -OCF3, -SCF3,
      • -OH, -LSS1-OH, -O-LSS1-OH, -NH-LSS1-OH, -NRSS1-LSS1-OH,
      • -ORSS1,
      • -NH2, -NHRSS1, -NRSS1 2; and
      • -LSS1-NH2, -LSS1-NHRSS1, -LSS1-NRSS1 2;
      each of -RB4A, if present, -RB4O1, if present, -RB4O2, if present, and -RB4AA, if present, is independently optionally substituted with one or more substituents, -RS2, wherein each RS2, if present, is independently selected from:
      • -RJA1,
      • -F, -Cl, -Br, -I,
      • -CF3, -OCF3, -SCF3,
      • -OH, -LJA-OH, -O-LJA-OH, -NH-LJA-OH, -NRJA1-LJA-OH,
      • -ORJA1, -LJA-ORJA1, -O-LJA-ORJA1, -NH-LJA-ORJA1, -NRJA1-LJA-ORJA1,
      • -SH, -SRJA1,
      • -CN,
      • -NH2, -NHRJA1, -NRJA1 2, -NRJA2RJA3,
      • -LJA-NH2, -LJA-NHRJA1, -LJA-NRJA1 2, -LJA-NRJA2RJA3,
      • -O-LJA-NH2, -O-LJA-NHRJA1, -O-LJA-NRJA1 2, -O-LJA-NRJA2RJA3,
      • -NH-LJA-NH2, -NRJA1-LJA-NH2, -NH-LJA-NHRJA1, -NRJA1-LJA-NHRJA1,
      • -NH-LJA-NRJA1 2,NRJA1-LJA-NRJA1 2,
      • -NH-LJA-NRJA2RJA3, -NRJA1-LJA-NRJA2RJA3,
      • -OC(=O)RJA1,
      • -C(=O)OH, -C(=O)ORJA1,
      • -C(=O)RJA1,
      • -C(=O)NH2, -C(=O)NHRJA1, -C(=O)NRJA1 2, -C(=O)NRJA2RJA3,
      • -NHC(=O)RjA1, -NRJA1C(=O)RJA1,
      • -NHC(=O)ORJA1, -NRJA1C(=O)ORJA1,
      • -OC(=O)NH2, -OC(=O)NHRJA1, -OC(=O)NRJA1 2, -OC(=O)NRJA2RJA3,
      • -NHC(=O)NH2, -NHC(=O)NHRJA1,
      • -NHC(=O)NRJA1 2, -NHC(=O)NRJA2RJA3,
      • -NRJA1C(=O)NH2, -NRJA1C(=O)NHRJA1,
      • -NRJA1C(=O)NRJA1 2, -NRJA1C(=O)NRJA2RJA3,
      • -NHS(=O)2RJA1, -NRJA1S(=O)2RJA1,
      • -S(=O)2NH2, -S(=O)2NHRJA1 -S(=O)2NRJA1 2, -S(=O)2NRJA2RJA3,
      • -S(=O)RJA1, -S(=O)2RJA1, -OS(=O)2RJA1, -S(=O)2OH, -S(=O)2ORJA1; and
      • =O;
      each of -RBP-, if present, and -RBN-, if present, is independently optionally substituted with one or more substituents, -RS3, wherein each RS3, if present, is independently selected from:
      • -RJA1,
      • -F, -Cl, -Br,
      • -CF3, -OCF3, -SCF3,
      • -OH, -LJA-OH, -O-LJA-OH, -NH-LJA-OH, -NRJA1-LJA-OH,
      • -ORJA1, -LJA-ORJA1, -O-LJA-ORJA1, -NH-LJA-ORJA1, -NRJA1-LJA-ORJA1,
      • -SH, -SRJA1,
      • -CN,
      • -NH2, -NHRJA1, -NRJA1 2,
      • -LJA-NH2, -LJA-NHRJA1, -LJA-NRJA1 2,
      • -OC(O)RJA1,
      • -C(O)OH, -C(O)ORJA1,
      • -C(O)RJA1,
      • -C(O)NH2, -C(O)NHRJA1, -C(O)N(RJA1)2; and
      • -NHC(O)RJA1, -NRJA1C(O)RJA1;
      and -RBH- is independently is optionally substituted with one or more substituents, - RS4, wherein each RS4, if present, is independently selected from:
      • -RJA1,
      • -F, -Cl, -Br,
      • -CF3, -OCF3, -SCF3,
      • -OH, -LJA-OH, -O-LJA-OH, -NH-LJA-OH, -NRJA1-LJA-OH,
      • -ORJA1 -LJA-ORJA1 -O-LJA-ORJA1 -NH-LJA-ORJA1, -NRJA1-LJA-ORJA1
      • -SH, -SRJA1,
      • -CN,
      • -NH2, -NHRJA1, -NRJA1 2,
      • -LJA-NH2, -LJA-NHRJA1 -LJA-NRJA1 2,
      • -OC(O)RJA1,
      • -C(O)OH, -C(O)ORJA1,
      • -C(O)RJA1,
      • -C(O)NH2, -C(O)NHRJA1, -C(O)N(RJA1)2; and
      • -NHC(O)RJA1, -NRJA1C(O)RJA1;
      wherein:
      • each -RSS1, if present, is independently saturated aliphatic C1-6alkyl;
      • each -LSS1-, if present, is independently -(CH2)n-, wherein n is independently 1 to 4;
      • each -LJA-, if present, is independently saturated aliphatic C1-5alkylene;
      • each -NRJA2RJA3, if present, is independently C4-7heterocyclyl, and is optionally substituted, for example, with one or more groups selected from -RJ44, -CF3, -F, -OH, -ORJ44, -NH2, -NHRJ44, -NRJ44 2, and =O; wherein each -RJ44 is independently saturated aliphatic C1-4alkyl;
      • each -RJA1 is independently:
        • -RJB1, -RJB2, -RJB3, -RJB4, -RJB5, -RJB6, -RJB7, -RJB8,
        • -LJB-RJB4, -LJB-RJB5, -LJB-RJB6, -LJB-RJB7, or -LJB-RJB8;
      • each -RJB1 is independently saturated aliphatic C1-6alkyl;
      • each -RJB2 is independently aliphatic C2-6alkenyl;
      • each -RJB3 is independently aliphatic C2-6alkynyl;
      • each -RJB4 is independently saturated C3-6cycloalkyl;
      • each -RJB5 is independently C3-6cycloalkenyl;
      • each -RJB6 is independently non-aromatic C4-7heterocyclyl;
      • each -RJB7 is independently C6-10carboaryl;
      • each -RJB8 is independently C5-10heteroaryl;
      • each -LJB- is independently saturated aliphatic C1-3alkylene;
      wherein:
      • each -RJB4, -RJB5, -RJB6, -RJB7, and -RJB8 is optionally substituted, for example, with one or more substituents -RJC1 and/or one or more substituents -RJC2,
      • each -RJB1, -RJB2, -RJBS, and -LJB- is optionally substituted, for example, with one or more substituents -RJC2, and
      wherein:
      • each -RJC1 is independently saturated aliphatic C1-4alkyl, phenyl, or benzyl;
      • each -RJC2 is independently:
        • -F, -Cl, -Br, -I,
        • -CF3, -OCF3,
        • -OH,
        • -CN,
        • -NO2,
        • -NH2,
        • -C(=O)OH,
        • -C(=O)NH2.
    79. 79. A compound according to paragraph 77, wherein each RS1, if present, is independently selected from:
      • -F, -Cl, -Br, -I, or
      • -OH, -LSS1-OH,
      • -ORSS1,
      • -NH2; and
      • -LSS1-NH2
    80. 80. A compound according to paragraph 77, wherein each RS1, if present, is independently selected from: -RSS1.
    81. 81. A compound according to any one of paragraphs 77 to 80, wherein each -RS2, if present, is independently selected from:
      • -RJA1,
      • -F, -Cl, -Br,
      • -CF3, -OCF3,
      • -OH, -LJA-OH, -O-LJA-OH,
      • -ORJA1, -LJA-ORJA1, -O-LJA-ORJA1,
      • -CN,
      • -NH2, -NHRJA1, -NRJA1 2, -NRJA2RJA3,
      • -LJA-NH2, -LJA-NHRJA1, -LJA-NRJA1 2, -LJA-NRJA2RJA3,
      • -C(=O)OH, -C(=O)ORJA1,
      • -C(=O)RJA1,
      • -C(=O,)NH2, -C(=O)NHRJA1, -C(=O)NRJA1 2, -C(=O)NRJA2RJA3,
      • -NHC(=O)RJA1, -NRJA1C(=O)RJA1,
      • -NHC(=O)NH2, -NHC(=O)NHRJA1,
      • -NHC(=O)NRJA1 2, -NHC(=O)NRJA2RJA3,
      • -NRJA1C(=O)NH2, -NRJA1C(=O)NHRJA1,
      • -NRJA1C(=O)NRJA1 2 -NRJA1C(=O)NRJA2RJA3,
      • -NHS(=O)2RJA1, -NRJA1S(=O)2RJA1,
      • -S(=O)2NH2, -S(=O)2NHRJA1, -S(=O)2NRJA1 2, -S(=O)2NRJA2RJA3,
      • -S(=O)RJA1, -S(=O)2RJA1, -OS(=O)2RJA1, -S(=O)2OH, -S(=O)2ORJA1; and =O.
    82. 82. A compound according to any one of paragraphs 77 to 80, wherein each -RS2, if present, is independently selected from:
      • -RJA1,
      • -F, -Cl, -Br,
      • -CF3, -OCF3, -SCF3,
      • -OH, -LJA-OH, -O-LJA-OH, -NH-LJA-OH, -NRJA1-LJA-OH,
      • -ORJA1, -LJA-ORJA1, -O-LJA-ORJA1, -NH-LJA-ORJA1, -NRJA1-LJA-ORJA1,
      • -SH, -SRJA1,
      • -CN,
      • -NH2, -NHRJA1, -NRJA1 2,
      • -LJA-NH2, -LJA-NHRJA1, -LJA-NRJA1 2,
      • -OC(O)RJA1,
      • -C(O)OH, -C(O)ORJA1,
      • -C(O)RJA1,
      • -C(O)NH2, -C(O)NHRJA1, -C(O)N(RJA1)2,
      • -NHC(O)RJA1, -NRJA1C(O)RJA1; and
      • =O.
    83. 83. A compound according to any one of paragraphs 77 to 80, wherein each -RS2, if present, is independently selected from:
      • -RSS1,
      • -F, -Cl, -Br,
      • -CF3, -OCF3, -SCF3,
      • -OH, -LSS1-OH, -O-LSS1-OH, -NH-LSS1-OH, -NRSS1-LSS1-OH,
      • -NH2, -NHRSS1, -NRSS12,
      • -LSS1-NH2, -LSS1-NHRSS1, -LSS1-NRSS1 2; and
      • =O.
    84. 84. A compound according to any one of paragraphs 77 to 83, wherein each RS3, if present, is independently selected from:
      • -RSS1,
      • -F, -Cl, -Br, -I; and
      • -OH.
    85. 85. A compound according to any one of paragraphs 77 to 83, wherein each RS4, if present, is independently selected from:
      • -RSS1,
      • -F, -Cl, -Br, -I; and
      • -OH.
    86. 86. A compound according to any one of paragraphs 77 to 85, wherein each -LJA-, if present, is independently -(CH2)n2-, wherein n2 is independently 1 to 4.
    87. 87. A compound according to any one of paragraphs 77 to 85, wherein each -LJA-, if present, is independently -CH2- or -CH2CH2-.
    88. 88. A compound according to any one of paragraphs 77 to 87, wherein each -NRJA2RJA3, if present, is independently azetidino, pyrrolidino, imidazolidino, pyrazolidino, piperidino, piperazino, morpholino, azepino, or diazepino, and is optionally substituted, for example, with one or more groups selected from -RJ44, -CF3, -F, -OH, -ORJ44, -NH2 -NHRJ44, -NRJ44 2, and =O.
    89. 89. A compound according to any one of paragraphs 77 to 88, wherein each -RJA1, if present, is independently:
      • -RJB1, -RJB4, -RJB6, -RJB7, -RJB8,
      • -LJB-RJB4, -LJB-RJB6, -LJB-RJB7, or -LJB-RJB8.
    90. 90. A compound according to any one of paragraphs 77 to 88, wherein each -RJA1, if present, is independently:
      • -RJB1, -RJB6, -RJB7, -RJB8,
      • LJB-RJB6, -LJB-RJB7, LJB-LJB6, or LJB-RJB8.
    91. 91. A compound according to any one of paragraphs 77 to 88, wherein each -RJA1, if present, is independently:
      • -RJB1, -RJB6, -RJB7, or -LJB-RJB7.
    92. 92. A compound according to any one of paragraphs 77 to 91, wherein each -RJB6, if present, is independently azetidinyl, pyrrolidinyl, imidazolidinyl, pyrazolidinyl, piperidinyl, piperazinyl, morpholinyl, azepinyl, diazepinyl, tetrahydrofuranyl, tetrahydropyranyl, dioxanyl, and is optionally substituted.
    93. 93. A compound according to any one of paragraphs 77 to 91, wherein each -RJB6, if present, is independently pyrrolidinyl, piperidinyl, piperazinyl, morpholinyl, tetrahydrofuranyl, or tetrahydropyranyl, and is optionally substituted.
    94. 94. A compound according to any one of paragraphs 77 to 93, wherein each -RJB7, if present, is independently phenyl, and is optionally substituted.
    95. 95. A compound according to any one of paragraphs 77 to 94, wherein each -RJB8, if present, is independently C5-6heteroaryl, and is optionally substituted.
    96. 96. A compound according to any one of paragraphs 77 to 94, wherein each -RJB8, if present, is independently C9-10heteroaryl, and is optionally substituted.
    97. 97. A compound according to any one of paragraphs 77 to 94, wherein each -RJB8, if present, is independently furanyl, thienyl, pyrrolyl, imidazolyl, pyrazolyl, triazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, pyridyl, pyrimidinyl, pyridazinyl, benzofuranyl, benzothienyl, benzopyrrolyl, benzoimidazolyl, benzopyrazolyl, benzotriazolyl, benzoxazolyl, benzoisoxazolyl, benzothiazolyl, benzoisothiazolyl, benzopyridyl, benzopyrimidinyl, or benzopyridazinyl, and is optionally substituted.
    98. 98. A compound according to any one of paragraphs 77 to 94, wherein each -RJB8, if present, is independently furanyl, thienyl, pyrrolyl, imidazolyl, pyrazolyl, triazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, pyridyl, pyrimidinyl, or pyridazinyl, and is optionally substituted.
    99. 99. A compound according to any one of paragraphs 77 to 98, wherein each -LJB-, if present, is independently -CH2- or -CH2CH2-.
    100. 100. A compound according to any one of paragraphs 77 to 98, wherein each -LJB-, if present, is independently -CH2-.
    101. 101. A compound according to any one of paragraphs 77 to 100, wherein each-RSS1, if present, is independently saturated aliphatic C1-6alkyl.
    102. 102. A compound according to any one of paragraphs 77 to 100, wherein each-RSS1, if present, is independently saturated aliphatic C1-3alkyl.
    103. 103. A compound according to any one of paragraphs 77 to 100, wherein each-RSS1, if present, is independently -Me.
    104. 104. A compound according to any one of paragraphs 77 to 103, wherein each-LSS1-, if present, is independently -(CH2)n-, wherein n is independently 1 to 4.
    105. 105. A compound according to any one of paragraphs 77 to 103, wherein each-LSS1-, if present, is independently -CH2- or -CH2CH2-.
    106. 106. A compound according to any one of paragraphs 1 to 105, wherein -R2 is independently:
      Figure imgb0030
    107. 107. A compound according to any one of paragraphs 1 to 105, wherein if any one of -RB1-, -RB2- and -RB3- is -RBN-, then -RB4 is -H.
    108. 108. A compound according to any one of paragraphs 1 to 105, wherein if -RB2- is -RBN-, then -RB4 is -H.
    109. 109. A compound according to any one of paragraphs 1 to 105, wherein -R2 is independently:
      Figure imgb0031
    110. 110. A compound according to any one of paragraphs 1 to 105, wherein -R2 is independently:
      Figure imgb0032
    111. 111. A compound according to any one of paragraphs 1 to 105, wherein -R2 is independently:
      Figure imgb0033
       wherein -RBH- is independently aromatic or saturated or unsaturated non-aromatic C5-6heterocyclylene, and is optionally substituted.
    112. 112. A compound according to any one of paragraphs 1 to 105, wherein -R2 is independently:
      Figure imgb0034
       wherein -RBH- is independently aromatic or saturated or unsaturated non-aromatic C5-6heterocyclylene, and is optionally substituted, and wherein -RB4 is independently -RB4A,-RB4AA-or -RB4O.
    113. 113. A compound according to any one of paragraphs 1 to 105, wherein -R2 is independently:
      Figure imgb0035
       wherein -RBH- is independently aromatic or saturated or unsaturated non-aromatic C5-6heterocyclylene, and is optionally substituted, and wherein -RB4 is independently -RB4A or -RB40.
    114. 114. A compound according to any one of paragraphs 1 to 105, wherein if any one of -RB1-, -RB2- and -RB3- is -RBH-, then -RB4 is -RB4A, -RB4AA or -RB4O.
    115. 115. A compound according to any one of paragraphs 1 to 105, wherein if -RB2- is -RBH-, then -RB4 is -RB4A, -RB4AA or -RB4.
    116. 116. A compound according to any one of paragraphs 1 to 105, wherein -R2 is independently selected from:
      Figure imgb0036
      Figure imgb0037
    117. 117. A compound according to any one of paragraphs 1 to 116, wherein the compound is a salt.
    118. 118. A compound according to any one of paragraphs 1 to 116, wherein the compound is a sodium or calcium salt.
    119. 119. A compound according to any one of paragraphs 1 to 116, wherein the compound is a Ca2Cl2 salt.
    120. 120. A pharmaceutical composition comprising a compound according to any one of paragraphs 1 to 119, and a pharmaceutically acceptable carrier, diluent, or excipient.
    121. 121. A method of preparing a pharmaceutical composition comprising the step of admixing a compound according to any one of paragraphs 1 to 119, and a pharmaceutically acceptable carrier, diluent, or excipient.
    122. 122. A compound according to any one of paragraphs 1 to 119, for use in a method of treatment of the human or animal body by therapy.
    123. 123. A compound according to any one of paragraphs 1 to 119, for use in the treatment of diseases and conditions that are ameliorated by the inhibition of microbe growth or reproduction and/or microbe death.
    124. 124. A compound according to any one of paragraphs 1 to 119, for use in the treatment of diseases and conditions that are ameliorated by the inhibition of bacteria growth or reproduction and/or bacteria death.
    125. 125. A compound according to any one of paragraphs 1 to 119, for use in the treatment of a bacterial infection or bacterial disease.
    126. 126. A compound according to any one of paragraphs 1 to 119, for use in the treatment of sequelae associated with diseases and conditions that are ameliorated by the inhibition of bacteria growth or reproduction and/or bacteria death.
    127. 127. A compound according to any one of paragraphs 1 to 119, for use in a method of (a) inhibiting bacteria growth or reproduction; (b) killing bacteria; or (c) a combination of both of these.
    128. 128. Use of a compound according to any one of paragraphs 1 to 119, in the manufacture of a medicament for use in treatment of a disease or condition that is ameliorated by the inhibition of microbe growth or reproduction and/or microbe death.
    129. 129. Use of a compound according to any one of paragraphs 1 to 119, in the manufacture of a medicament for use in treatment of a disease or condition that is ameliorated by the inhibition of bacteria growth or reproduction and/or bacteria death.
    130. 130. Use of a compound according to any one of paragraphs 1 to 119, in the manufacture of a medicament for use in treatment of a bacterial infection or bacterial disease.
    Combinations
  • Each and every compatible combination of the optional features and embodiments described above is explicitly disclosed herein, as if each and every combination was individually and explicitly recited.
    • Specific Embodiments
  • In one embodiment, the compounds are selected from compounds of the following formulae and pharmaceutically acceptable salts, hydrates, and solvates thereof, wherein the lipopeptide to which the side chain is attached is:
    Figure imgb0038
    Compound Side Chain Structure
    LP-020
    Figure imgb0039
    LP-021
    Figure imgb0040
    LP-022
    Figure imgb0041
    LP-023
    Figure imgb0042
    LP-024
    Figure imgb0043
    LP-025
    Figure imgb0044
    LP-026
    Figure imgb0045
    LP-027
    Figure imgb0046
    LP-028
    Figure imgb0047
    LP-029
    Figure imgb0048
    LP-030
    Figure imgb0049
    LP-031
    Figure imgb0050
    LP-032
    Figure imgb0051
    LP-033
    Figure imgb0052
    LP-034
    Figure imgb0053
    LP-035
    Figure imgb0054
    LP-036
    Figure imgb0055
    LP-037
    Figure imgb0056
    LP-038
    Figure imgb0057
    LP-039
    Figure imgb0058
    LP-040
    Figure imgb0059
    LP-041
    Figure imgb0060
    LP-042
    Figure imgb0061
    LP-043
    Figure imgb0062
    LP-044
    Figure imgb0063
    LP-045
    Figure imgb0064
    LP-046
    Figure imgb0065
    LP-047
    Figure imgb0066
    LP-048
    Figure imgb0067
  • In embodiments, the compound is selected from LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-034, LP-035, LP-036, LP-037, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • In embodiments, the compound is selected from LP-020, LP-022, LP-023, LP-024, LP-025, LP-027, LP-028, LP-029, LP-031, LP-034, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • In embodiments, the compound is selected from LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-034, LP-035, LP-036 and LP-037.
  • In embodiments, the compound is selected from LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • LP compounds, as described herein, exhibit antibacterial activity, for example against the test strains described herein. Suitably the LP compounds, as described herein, exhibit low levels of hemolysis, for example as demonstrated in the hemolysis assays reported herein.
  • LP compounds, as described herein, preferably exhibit improved performance as compared to known lipopeptide compounds in terms of one or more of toxicity, pharmacokinetics (including one or more of adsorption, distribution, metabolism and excretion), pharmacodynamics, bioavailability, solubility and pharmacological activity. In particular, LP compounds, as described herein, preferably exhibit low haemolytic activity.
    • Substantially Purified Forms
  • One aspect of the present invention pertains to LP compounds, as described herein, in substantially purified form and/or in a form substantially free from contaminants.
  • In one embodiment, the substantially purified form is at least 50% by weight, e.g., at least 60% by weight, e.g., at least 70% by weight, e.g., at least 80% by weight, e.g., at least 90% by weight, e.g., at least 95% by weight, e.g., at least 97% by weight, e.g., at least 98% by weight, e.g., at least 99% by weight.
  • Unless specified, the substantially purified form refers to the compound in any stereoisomeric or enantiomeric form. For example, in one embodiment, the substantially purified form refers to a mixture of stereoisomers, i.e., purified with respect to other compounds. In one embodiment, the substantially purified form refers to one stereoisomer, e.g., optically pure stereoisomer. In one embodiment, the substantially purified form refers to a mixture of enantiomers. In one embodiment, the substantially purified form refers to a equimolar mixture of enantiomers (i.e., a racemic mixture, a racemate). In one embodiment, the substantially purified form refers to one enantiomer, e.g., optically pure enantiomer.
  • In one embodiment, the contaminants represent no more than 50% by weight, e.g., no more than 40% by weight, e.g., no more than 30% by weight, e.g., no more than 20% by weight, e.g., no more than 10% by weight, e.g., no more than 5% by weight, e.g., no more than 3% by weight, e.g., no more than 2% by weight, e.g., no more than 1% by weight.
  • Unless specified, the contaminants refer to other compounds, that is, other than stereoisomers or enantiomers. In one embodiment, the contaminants refer to other compounds and other stereoisomers. In one embodiment, the contaminants refer to other compounds and the other enantiomer.
  • In one embodiment, the substantially purified form is at least 60% optically pure (i.e., 60% of the compound, on a molar basis, is the desired stereoisomer or enantiomer, and 40% is the undesired stereoisomer or enantiomer), e.g., at least 70% optically pure, e.g., at least 80% optically pure, e.g., at least 90% optically pure, e.g., at least 95% optically pure, e.g., at least 97% optically pure, e.g., at least 98% optically pure, e.g., at least 99% optically pure.
    • Isomers
  • Certain compounds may exist in one or more particular geometric, optical, enantiomeric, diasteriomeric, epimeric, atropic, stereoisomeric, tautomeric, conformational, or anomeric forms, including but not limited to, cis- and trans-forms; E- and Z-forms; c-, t-, and r- forms; endo- and exo-forms; R-, S-, and meso-forms; D- and L-forms; d- and I-forms; (+) and (-) forms; keto-, enol-, and enolate-forms; syn- and anti-forms; synclinal- and anticlinal-forms; α- and β-forms; axial and equatorial forms; boat-, chair-, twist-, envelope-, and halfchair-forms; and combinations thereof, hereinafter collectively referred to as "isomers" (or "isomeric forms").
  • Note that, except as discussed below for tautomeric forms, specifically excluded from the term "isomers," as used herein, are structural (or constitutional) isomers (i.e., isomers which differ in the connections between atoms rather than merely by the position of atoms in space). For example, a reference to a methoxy group, -OCH3, is not to be construed as a reference to its structural isomer, a hydroxymethyl group, -CH2OH. Similarly, a reference to ortho-chlorophenyl is not to be construed as a reference to its structural isomer, meta-chlorophenyl. However, a reference to a class of structures may well include structurally isomeric forms falling within that class (e.g., C1-7alkyl includes n-propyl and iso-propyl; butyl includes n-, iso-, sec-, and tert-butyl; methoxyphenyl includes ortho-, meta-, and para-methoxyphenyl).
  • The above exclusion does not pertain to tautomeric forms, for example, keto-, enol-, and enolate-forms, as in, for example, the following tautomeric pairs: keto/enol (illustrated below), imine/enamine, amide/imino alcohol, amidine/amidine, nitroso/oxime, thioketone/enethiol, N-nitroso/hydroxyazo, and nitro/aci-nitro.
    Figure imgb0068
  • Note that specifically included in the term "isomer" are compounds with one or more isotopic substitutions. For example, H may be in any isotopic form, including 1H, 2H (D), and 3H (T); C may be in any isotopic form, including 12C, 13C, and 14C; O may be in any isotopic form, including 16O and 18O; and the like.
  • Unless otherwise specified, a reference to a particular compound includes all such isomeric forms, including mixtures (e.g., racemic mixtures) thereof. Methods for the preparation (e.g., asymmetric synthesis) and separation (e.g., fractional crystallisation and chromatographic means) of such isomeric forms are either known in the art or are readily obtained by adapting the methods taught herein, or known methods, in a known manner.
    • Salts
  • It may be convenient or desirable to prepare, purify, and/or handle a corresponding salt of the compound, for example, a pharmaceutically-acceptable salt. Examples of pharmaceutically acceptable salts are discussed in Berge et al., 1977, "Pharmaceutically Acceptable Salts," J. Pharm. Sci., Vol. 66, pp. 1-19.
  • For example, if the compound is anionic, or has a functional group which may be anionic (e.g., -COOH may be -COO-), then a salt may be formed with a suitable cation. Examples of suitable inorganic cations include, but are not limited to, alkali metal ions such as Na+ and K+, alkaline earth cations such as Ca2+ and Mg2+, and other cations such as Al+3. Examples of suitable organic cations include, but are not limited to, ammonium ion (i.e., NH4 +) and substituted ammonium ions (e.g., NH3R+, NH2R2 +, NHR3 +, NR4 +). Examples of some suitable substituted ammonium ions are those derived from: ethylamine, diethylamine, dicyclohexylamine, triethylamine, butylamine, ethylenediamine, ethanolamine, diethanolamine, piperazine, benzylamine, phenylbenzylamine, choline, meglumine, and tromethamine, as well as amino acids, such as lysine and arginine. An example of a common quaternary ammonium ion is N(CH3)4 +.
  • If the compound is cationic, or has a functional group which may be cationic (e.g., -NH2 may be -NH3 +), then a salt may be formed with a suitable anion. Examples of suitable inorganic anions include, but are not limited to, those derived from the following inorganic acids: hydrochloric, hydrobromic, hydroiodic, sulfuric, sulfurous, nitric, nitrous, phosphoric, and phosphorous.
  • Examples of suitable organic anions include, but are not limited to, those derived from the following organic acids: 2-acetyoxybenzoic, acetic, ascorbic, aspartic, benzoic, camphorsulfonic, cinnamic, citric, edetic, ethanedisulfonic, ethanesulfonic, fumaric, glucheptonic, gluconic, glutamic, glycolic, hydroxymaleic, hydroxynaphthalene carboxylic, isethionic, lactic, lactobionic, lauric, maleic, malic, methanesulfonic, mucic, oleic, oxalic, palmitic, pamoic, pantothenic, phenylacetic, phenylsulfonic, propionic, pyruvic, salicylic, stearic, succinic, sulfanilic, tartaric, toluenesulfonic, and valeric. Examples of suitable polymeric organic anions include, but are not limited to, those derived from the following polymeric acids: tannic acid, carboxymethyl cellulose.
  • Unless otherwise specified, a reference to a particular compound also includes salt forms thereof.
  • As discussed herein, a sodium or calcium salt (e.g. a Ca2Cl2 salt) is preferred, particularly a calcium salt.
    • Solvates and Hydrates
  • It may be convenient or desirable to prepare, purify, and/or handle a corresponding solvate of the compound. The term "solvate" is used herein in the conventional sense to refer to a complex of solute (e.g., compound, salt of compound) and solvent. If the solvent is water, the solvate may be conveniently referred to as a hydrate, for example, a mono-hydrate, a di-hydrate, a tri-hydrate, etc.
  • Unless otherwise specified, a reference to a particular compound also includes solvate and hydrate forms thereof.
    • Chemically Protected Forms
  • It may be convenient or desirable to prepare, purify, and/or handle the compound in a chemically protected form. The term "chemically protected form" is used herein in the conventional chemical sense and pertains to a compound in which one or more reactive functional groups are protected from undesirable chemical reactions under specified conditions (e.g., pH, temperature, radiation, solvent, and the like). In practice, well known chemical methods are employed to reversibly render unreactive a functional group, which otherwise would be reactive, under specified conditions. In a chemically protected form, one or more reactive functional groups are in the form of a protected or protecting group (also known as a masked or masking group or a blocked or blocking group). By protecting a reactive functional group, reactions involving other unprotected reactive functional groups can be performed, without affecting the protected group; the protecting group may be removed, usually in a subsequent step, without substantially affecting the remainder of the molecule. See, for example, Protective Groups in Organic Synthesis (T. Green and P. Wuts; 4th Edition; John Wiley and Sons, 2006).
  • A wide variety of such "protecting," "blocking," or "masking" methods are widely used and well known in organic synthesis. For example, a compound which has two nonequivalent reactive functional groups, both of which would be reactive under specified conditions, may be derivatized to render one of the functional groups "protected," and therefore unreactive, under the specified conditions; so protected, the compound may be used as a reactant which has effectively only one reactive functional group. After the desired reaction (involving the other functional group) is complete, the protected group may be "deprotected" to return it to its original functionality.
  • For example, a hydroxy group may be protected as an ether (-OR) or an ester (-OC(=O)R), for example, as: a t-butyl ether; a benzyl, benzhydryl (diphenylmethyl), or trityl (triphenylmethyl) ether; a trimethylsilyl or t-butyldimethylsilyl ether; or an acetyl ester (-OC(=O)CH3, -OAc).
  • For example, an aldehyde or ketone group may be protected as an acetal (R-CH(OR)2) or ketal (R2C(OR)2), respectively, in which the carbonyl group (>C=O) is converted to a diether (>C(OR)2), by reaction with, for example, a primary alcohol. The aldehyde or ketone group is readily regenerated by hydrolysis using a large excess of water in the presence of acid.
  • For example, an amine group may be protected, for example, as an amide (-NRCO-R) or a urethane (-NRCO-OR), for example, as: a methyl amide (-NHCO-CH3); a benzyloxy amide (-NHCO-OCH2C6H5, -NH-Cbz); as a t-butoxy amide (-NHCO-OC(CH3)3, -NH-Boc); a 2-biphenyl-2-propoxy amide (-NHCO-OC(CH3)2C6H4C6H5, -NH-Bpoc), as a 9-fluorenylmethoxy amide (-NH-Fmoc), as a 6-nitroveratryloxy amide (-NH-Nvoc), as a 2-trimethylsilylethyloxy amide (-NH-Teoc), as a 2,2,2-trichloroethyloxy amide (-NH-Troc), as an allyloxy amide (-NH-Alloc), as a 2(-phenylsulfonyl)ethyloxy amide (-NH-Psec); or, in suitable cases (e.g., cyclic amines), as a nitroxide radical (>N-O●).
  • For example, a carboxylic acid group may be protected as an ester for example, as: an C1-7alkyl ester (e.g., a methyl ester; a t-butyl ester); a C1-7haloalkyl ester (e.g., a C1-7trihaloalkyl ester); a triC1-7alkylsilyl-C1-7alkyl ester; or a C5-20aryl-C1-7alkyl ester (e.g., a benzyl ester; a nitrobenzyl ester); or as an amide, for example, as a methyl amide.
  • For example, a thiol group may be protected as a thioether (-SR), for example, as: a benzyl thioether; an acetamidomethyl ether (-S-CH2NHC(=O)CH3).
    • Prodrugs
  • It may be convenient or desirable to prepare, purify, and/or handle the compound in the form of a prodrug. The term "prodrug," as used herein, pertains to a compound which, when metabolised (e.g., in vivo), yields the desired active compound. Typically, the prodrug is inactive, or less active than the desired active compound, but may provide advantageous handling, administration, or metabolic properties.
  • For example, some prodrugs are esters of the active compound (e.g., a physiologically acceptable metabolically labile ester). During metabolism, the ester group (-C(=O)OR) is cleaved to yield the active drug. Such esters may be formed by esterification, for example, of any of the carboxylic acid groups (-C(=O)OH) in the parent compound, with, where appropriate, prior protection of any other reactive groups present in the parent compound, followed by deprotection if required.
  • Also, some prodrugs are activated enzymatically to yield the active compound, or a compound which, upon further chemical reaction, yields the active compound (for example, as in ADEPT, GDEPT, LIDEPT, etc.). For example, the prodrug may be a sugar derivative or other glycoside conjugate, or may be an amino acid ester derivative.
    • Chemical Synthesis
  • Methods for the chemical synthesis of LP compounds of the present invention are described herein. These and/or other well known methods may be modified and/or adapted in known ways in order to facilitate the synthesis of additional compounds within the scope of the present invention.
  • The synthesis of LP compounds, as described herein, involves deacylation of known Fmoc protected friulimicin B to yield the cyclic core peptide, preparing an activated ester which is the side chain precursor and then coupling the activated ester and cyclic core peptide.
    • Lipopeptide Precursor
  • Isolation of the lipopeptide precursor is achieved by deacylation, using deacylase, of a precursor lipopeptide, illustrated below by Fmoc-Friulimicin B:
    Figure imgb0069
    • Side Chain Precursor
  • The following scheme shows the general method for synthesising the side chain precursors of LP compounds comprising a side chain of the form phenyl-heterocycle-phenyl-C(O)-.
    Figure imgb0070
  • The scheme shows formation of the isoxazole product, but other heterocycles can be incorporated instead (for example, the regiosomeric isoxazole analogue can be obtained by using the minor regioisomer product).
    • Coupling of Side Chain Precursor with Lipopeptide Pprecursor
  • The side chain precursors are converted to activated esters (pentafluorophenyl esters or HOBt esters) by reaction with pentafluorophenol or HOBt in the presence of dicyclohexylcarbodiimide (DCC).
  • The activated esters are then coupled with the lipopeptide using one of the following coupling methods:
    • Method A: lipopeptide stirred with pentafluorophenol ester in the presence of DIPEA, followed by Fmoc deprotection with piperidine and purification by preparative HPLC.
    • Method B: Et3N added to lipopeptide and CaCl2 at 0 °C, followed by addition of pentafluorophenol ester and subsequent deprotection with piperidine and purification by preparative HPLC.
    • Method C: as per Method A except that HOBt ester used instead of pentafluorophenol ester.
    • Method D: as per Method B except that HOBt ester used instead of pentafluorophenol ester.
    • Method E: Et3N added to lipopeptide and CaCl2 at 0 °C, followed by addition of pentafluorophenol ester, warming to room temperature and purification by preparative RP-HPLC; product fractions being dissolved in DMF, to which TBAF hydrate is added, followed by addition of piperidine and subsequent purification by preparative RP-HPLC.
    • Method F: CaCl2 was added to lipopeptide and pentafluorophenol ester at room temperature, followed by Et3N addition at 0 °C and then stirring. Warming to room temperature and addition of piperidine followed by purification by preparative RP-HPLC.
    Coupling Method
  • Disclosed herein is a method of forming a lipopeptide having an acyl side chain (e.g. a LP compound, as described herein), wherein the method comprises the step of reacting an ester precursor of the acyl side chain with a cyclic peptide in the presence of calcium chloride.
  • The ester may be a pentafluorophenyl ester or a HOBt ester.
    • Compositions
  • One aspect of the present invention pertains to a composition (e.g., a pharmaceutical composition) comprising a LP compound, as described herein, and a pharmaceutically acceptable carrier, diluent, or excipient.
  • Also disclosed herein is a method of preparing a composition (e.g., a pharmaceutical composition) comprising admixing a LP compound, as described herein, and a pharmaceutically acceptable carrier, diluent, or excipient.
    • Uses
  • The compounds described herein are useful, for example, in the treatment of diseases and conditions that are ameliorated by the inhibition of microbe growth or reproduction and/or microbe death.
  • The compounds described herein are useful, for example, in the treatment of diseases and conditions that are ameliorated by the inhibition of bacteria growth or reproduction and/or bacteria death.
  • The compounds described herein are useful, for example, in the treatment of infectious diseases and conditions.
  • The compounds described herein are useful, for example, in the treatment of sequelae associated with diseases and conditions that are ameliorated by the inhibition of bacteria growth or reproduction and/or bacteria death.
  • The compounds according to the invention have pharmacological activity, in particular as antibiotic for Grampositive bacteria. Preferably the LP compounds, as described herein, have activity against MRSA and/or glycopeptide-resistant strains. A therapeutically adequate effect on penicillin- or methicillin-resistant strains (MRSA strains) which have developed further antibiotic resistances is often possessed only by glycopeptides such as vancomycin or teicoplanin. However, strains also resistant to these antibiotics are increasingly appearing (FEMS Microbiol. Lett. 98 (1992) 5 109 to 116). Preferably LP compounds, as described herein, have activity against these problem organisms.
  • Use in Methods of Killing Bacteria or Inhibiting Bacteria Growth or Reproduction
  • The LP compounds described herein are for use in a method of (a) inhibiting bacteria growth or reproduction; (b) killing bacteria; or (c) a combination of both of these.
  • Thus, the LP compounds as described herein have a bacteriocidal and/or bacteriostatic activity.
  • Suitable assays for determining antibacterial activity (e.g. bacteriostatic or bacteriocidal activity) are described herein and/or are known in the art.
  • Suitably, inhibiting bacteria growth or reproduction is preventing or stopping bacteria growth or reproduction.
  • Disclosed herein is a method of inhibiting bacteria growth or reproduction, killing bacteria, or a combination of both of these.
  • The method can be performed in vitro or in vivo. The method may be performed in vitro. Alternatively, the method may be performed in vivo.
  • As disclosed herein, the bacteria may be a host (e.g. a human or animal) and the method includes contacting the host with an effective amount of a LP compound, as described herein.
  • Suitably the method comprises contacting the bacteria with an effective amount of a LP compound, as described herein.
  • Disclosed herein is a method of inhibiting bacteria growth or reproduction (e.g., inhibiting binary fission of bacteria cells), comprising contacting the bacteria with an effective amount of a LP compound, as described herein.
  • As disclosed herein, the method may be a method of inhibiting bacteria growth or reproduction in vitro or in vivo, comprising contacting the bacteria with an effective amount of a LP compound, as described herein.
  • Disclosed herein is a method of inhibiting bacteria growth or reproduction (e.g., inhibiting binary fission of bacteria cells) in a host, comprising contacting the host with an effective amount of a LP compound, as described herein.
  • Suitably, the method may further comprise contacting the host with one or more other antibacterial agents.
  • Disclosed herein is a method of killing bacteria, comprising contacting the bacteria with an effective amount of a LP compound, as described herein.
  • As disclosed here, the method may be a method of killing bacteria in vitro or in vivo, comprising contacting the bacteria with an effective amount of a LP compound, as described herein.
  • Disclosed herein is a method of killing bacteria in a host, comprising contacting the host with an effective amount of a LP compound, as described herein.
  • Suitably, the method may further comprise contacting the host with one or more other antibacterial agents.
  • In one embodiment, the LP compound is provided in the form of a pharmaceutically acceptable composition.
  • Any type of bacteria may be treated, including but not limited to those described herein.
  • One of ordinary skill in the art is readily able to determine whether or not a candidate compound possesses bacteriocidal and/or bacteriostatic activity. For example, assays which may conveniently be used to assess the activity offered by a particular compound are described herein.
  • For example, a sample of bacteria cells may be grown in vitro and a compound brought into contact with said cells, and the effect of the compound on those cells observed. As an example of "effect," the morphological status of the cells (e.g., alive or dead, etc.) may be determined. Where the compound is found to exert an influence on the cells, this may be used as a prognostic or diagnostic marker of the efficacy of the compound in methods of treating a patient having a bacterial infection or disease of the same type.
    • Use in Methods of Therapy
  • Also disclosed herein is an LP compound, as described herein, for use in a method of treatment of the human or animal body by therapy.
  • The method of treatment may comprise treatment with both (i) a LP compound, as described herein, and (ii) one or more other antibacterial agents.
    • Use in the Manufacture of Medicaments
  • Disclosed herein is the use of an LP compound, as described herein, in the manufacture of a medicament for use in treatment.
  • Suitably, the medicament may comprise the LP compound.
  • Suitably, the treatment may comprise treatment with both (i) a medicament comprising a LP compound, as described herein, and (ii) one or more other antibacterial agents.
    • Methods of Treatment
  • Also disclosed herein is a method of treatment comprising administering to a patient in need of treatment a therapeutically effective amount of a LP compound, as described herein, preferably in the form of a pharmaceutical composition.
  • Suitably, the method may further comprise administering to the subject one or more other antibacterial agents.
    • Conditions Treated - Bacterial Infections and Bacterial Diseases
  • The LP compounds of the present invention can be used to treat any bacterial infection or disease. In particular, the LP compounds of the present invention can be used to reduce or prevent growth or reproduction of an infecting bacterium and/or kill an infecting bacterium.
  • By "infecting bacterium" is meant a bacterium that has established infection in the host, and which may be associated with a disease or undesirable symptom as a result. Generally, infecting bacteria of interest are pathogenic bacteria, and may include a culture of multiple bacteria which together act to cause the pathology. Treatment may require elimination of a single, or multiple types of bacteria.
  • By "pathogenic bacteria" is meant bacteria that causes, or is capable of causing disease. Pathogenic bacteria propagate on or in tissues and may obtain nutrients and other essential materials from their hosts. As used herein, the term "pathogenicity", "pathogenic" and the like refers to a capability of causing disease and/or degree of capacity to cause disease to its host. The term is applied to parasitic micro-organisms in relation to their hosts.
  • Pathogenic bacteria are a major cause of human death and disease and cause infections such as tetanus, typhoid fever, diphtheria, syphilis, cholera, foodborne illness, leprosy and tuberculosis. Bacterial diseases are also important in agriculture, with bacteria causing leaf spot, fire blight and wilts in plants, as well as Johne's disease, mastitis, salmonella and anthrax in farm animals.
  • By "drug-resistant bacteria" or "antibiotic-resistant bacteria" is meant a bacterial strain that is resistant to growth inhibition or killing by an antibiotic. Multi-drug resistant bacteria are resistant to two or more antibiotics classes. Drug resistance can encompass, for example, ineffective killing of the infecting bacteria such that at least an infectious dose remains in the subject and the infection continues, resulting in continued symptoms of the associated infectious disease or later evidence of such symptoms. Drug resistance can also encompass inhibiting growth of the drug-resistant bacteria until such time therapy is discontinued, after which the bacteria begin to replicate and further the infectious disease.
  • By "inhibition of bacterial growth or reproduction" in the context of infection of an incapacitated bacterial cell according to the invention is meant that, following infection of the bacteria, the bacterial host cell's normal transcriptional and/or translational mechanisms are compromised such that the infected bacteria does not undergo substantial cell division (replication by binary fission) and is caused to enter a state of bacteriostasis. The stasis causes pathogenic effects to also regress.
  • By "infectious disease" or "infectious disorder" is meant a disease arising from the presence of a microbial agent, particularly a bacteria, in a host. The microbial agent may be an infectious bacteria or an infectious fungi, which gives rise to a bacterial infectious disease or a fungal infectious disease, respectively.
    • Types of Disease/Disorder
  • LP compounds as described herein can be used to treat diseases or conditions arising from infection of a host with one or more species of bacteria.
  • In one embodiment (e.g., of use in methods of therapy, of use in the manufacture of medicaments, of methods of treatment), treatment is treatment of any one of the diseases, disorders or conditions described herein.
  • The activity of the LP compounds as described herein may be a bacteriocidal or bacteriostatic activity, or both.
  • The anti-bacterial effect may arise through one or more mechanisms. The compounds of the present invention may be used in the treatment of the bacterial diseases described herein, independent of the mechanism.
    • Treatment
  • The term "treatment," as used herein in the context of treating a condition, pertains generally to treatment and therapy, whether of a human or an animal (e.g., in veterinary applications), in which some desired therapeutic effect is achieved, for example, the inhibition of the progress of the condition, and includes a reduction in the rate of progress, a halt in the rate of progress, alleviatiation of symptoms of the condition, amelioration of the condition, and cure of the condition. Treatment as a prophylactic measure (i.e., prophylaxis) is also included. For example, use with patients who have not yet developed the condition, but who are at risk of developing the condition, is encompassed by the term "treatment."
  • For example, treatment includes the prophylaxis of bacterial infection, reducing the incidence of bacterial infection, alleviating the symptoms of bacterial infection, etc.
  • The term "therapeutically-effective amount," as used herein, pertains to that amount of a compound, or a material, composition or dosage form comprising a compound, which is effective for producing some desired therapeutic effect, commensurate with a reasonable benefit/risk ratio, when administered in accordance with a desired treatment regimen.
    • Combination Therapies
  • The term "treatment" includes combination treatments and therapies, in which two or more treatments or therapies are combined, for example, sequentially or simultaneously. For example, the compounds described herein may also be used in combination therapies, e.g., in conjunction with other agents, for example, other antibacterial compounds.
  • For example, it may be beneficial to combine treatment with a compound as described herein with one or more other (e.g., 1, 2, 3, 4) agents or therapies that regulates bacteria growth or reproduction and/or bacteria survival. In this way, several characteristic features of bacterial infection may be treated.
  • One aspect of the present invention pertains to a LP compound as described herein, in combination with one or more additional therapeutic agents.
  • The agents (i.e., the compound described here, plus one or more other agents) may be formulated together in a single dosage form, or alternatively, the individual agents may be formulated separately and presented together in the form of a kit, optionally with instructions for their use.
    • Other Uses
  • The LP compounds described herein may also be used as cell culture additives to inhibit bacteria growth or reproduction.
  • The LP compounds described herein may also be used as part of an in vitro assay, for example, in order to determine whether a candidate host is likely to benefit from treatment with the compound in question.
  • The LP compounds described herein may also be used as a standard, for example, in an assay, in order to identify other antibacterial compounds, etc.
    • Kits
  • Also disclosed is a kit comprising (a) a LP compound as described herein, or a composition comprising a LP compound as described herein, e.g., preferably provided in a suitable container and/or with suitable packaging; and (b) instructions for use, e.g., written instructions on how to administer the compound or composition.
  • Suitably, the kit may further comprise one or more other antibacterial agents.
  • The written instructions may also include a list of indications for which the active ingredient is a suitable treatment.
    • Routes of Administration
  • The LP compound or pharmaceutical composition comprising the LP compound may be administered to a subject by any convenient route of administration, whether systemically/peripherally or topically (i.e., at the site of desired action). Oral administration is an example.
    • The Subject/Patient
  • The subject/patient may be a chordate, a vertebrate, a mammal, a placental mammal, a marsupial (e.g., kangaroo, wombat), a rodent (e.g., a guinea pig, a hamster, a rat, a mouse), murine (e.g., a mouse), a lagomorph (e.g., a rabbit), avian (e.g., a bird (e.g. a chicken)), canine (e.g., a dog), feline (e.g., a cat), equine (e.g., a horse), porcine (e.g., a pig), ovine (e.g., a sheep), bovine (e.g., a cow), a primate, simian (e.g., a monkey or ape), a monkey (e.g., marmoset, baboon), an ape (e.g., gorilla, chimpanzee, orangutang, gibbon), or a human.
  • Furthermore, the subject/patient may be any of its forms of development, for example, a foetus.
  • In one preferred embodiment, the subject/patient is a human.
  • In another embodiment, the subject/patient is not a human.
    • Formulations
  • While it is possible for the LP compound to be administered alone, it is preferable to present it as a pharmaceutical formulation (e.g., composition, preparation, medicament) comprising at least one LP compound, as described herein, together with one or more other pharmaceutically acceptable ingredients well known to those skilled in the art, including, but not limited to, pharmaceutically acceptable carriers, diluents, excipients, adjuvants, fillers, buffers, preservatives, anti-oxidants, lubricants, stabilisers, solubilisers, surfactants (e.g., wetting agents), masking agents, colouring agents, flavouring agents, and sweetening agents. The formulation may further comprise other active agents, for example, other therapeutic or prophylactic agents.
  • Thus, the present invention further provides pharmaceutical compositions, as defined above, and methods of making a pharmaceutical composition comprising admixing at least one LP compound, as described herein, together with one or more other pharmaceutically acceptable ingredients well known to those skilled in the art, e.g., carriers, diluents, excipients, etc. If formulated as discrete units (e.g., tablets, etc.), each unit contains a predetermined amount (dosage) of the compound.
  • The term "pharmaceutically acceptable," as used herein, pertains to compounds, ingredients, materials, compositions, dosage forms, etc., which are, within the scope of sound medical judgment, suitable for use in contact with the tissues of the subject in question (e.g., human) without excessive toxicity, irritation, allergic response, or other problem or complication, commensurate with a reasonable benefit/risk ratio. Each carrier, diluent, excipient, etc. must also be "acceptable" in the sense of being compatible with the other ingredients of the formulation.
  • Suitable carriers, diluents, excipients, etc. can be found in standard pharmaceutical texts, for example, Remington's Pharmaceutical Sciences, 18th edition, Mack Publishing Company, Easton, Pa., 1990; and Handbook of Pharmaceutical Excipients, 5th edition, 2005.
    • EXAMPLES
  • The following examples are provided solely to illustrate the present invention and are not intended to limit the scope of the invention, as described herein.
    • Chemical Synthesis
  • With reference to the general scheme given above, the following compounds were synthesised.
    • (A) PRODUCTION AND ISOLATION OF LIPOPEPTIDE (1) Production of lipopeptide precursor
  • GM538 was made from friulimicin B.
    • Protection of Dab-9 amino group of Friulimicin-B with Fmoc-Cl:
  • Figure imgb0071
  • To a 500-mL round bottom flask containing Friulimicin-B Na2 (MW1347; 0.744 mmol) was added NaHCO3 (MW84; 3.72 mmol), Milli-Q water (91.7 mL) and acetone (63.5 mL). A solution of Fmoc-Cl (MW258.7; 1.12 mmol) in acetone (23.4 mL) was then added. The resultant reaction mixture was stirred at room temperature for 1 hour and progress of the reaction was monitored by HPLC. The solvents were removed under reduced pressure to give a white residue, which was purified by preparative RP-HPLC (Waters Novapak® 40×100 mm column, acetonitrile-water with 0.1% formic acid as solvent) to give the Fmoc-Friulimicin-B (GM538) as a white solid (MW1525; 840mg, 74%).
    • (2) Deacylation of lipopeptide precursor
  • Deacylation can be effected using purified enzyme deacylation or whole cell biotransformation.
    • (a) Deacylation using purified enzyme
  • The fermentation conditions described apply to Streptomyces lividans (TK23) which contains the AAC-fragment from Actinoplanes utahensis (NRRL 12052) cloned into pUWL201 PW expression vector.
  • Tryptic soy broth (TSB) was the nutrient solution utilised for both seed culture and deacylase production culture. TSB (tryptone 17g/L, soytone 3g/L, glucose 2.5g/L, NaCl 5g/L and K2HPO4 2.5g/L) was supplemented with thiostrepton (25µg/ml) to ensure the stabilisation of the expression vector.
    • Fermentation
  • Seed culture was inoculated with approximately six agar plugs from a 7 - 10 day old culture, grown on ISP2 agar (yeast extract 4g/L, malt extract 10g/L, glucose 4g/L, agar 20g/L), supplemented with 25µg/L of thiostrepton. The fermentation was carried out in 250ml Erlenmeyer flasks each containing 50ml of TSB, also supplemented with 25µg/L of thiostrepton. All flasks were incubated at 28°C, for 24 hours on a rotary shaker (50mm orbit) set at 200rpm. The production fermentation was carried out in 250ml Erlenmeyer flasks each containing 50ml of TSB supplemented with 25µg/L of thiostrepton. Each flask was inoculated with 1ml of seed culture (2%) and was incubated at 28°C, for 72 - 96 hours on a rotary shaker (50mm orbit) set at 200rpm.
    • Enzyme purification
  • Enzyme (deacylase) purification was achieved through (NH4)2SO4 precipitation. The harvested broth was filtered through filter paper under vacuum and transferred to 4°C. The filtrate was stirred and (NH4)2SO4 was added slowly at a rate of 194.4g per 800ml of filtrate to achieve a final concentration of 40% (NH4)2SO4. This mixture was slowly stirred over night at 4°C and precipitated by centrifugation preferably at 12,000g for 15 minutes at 4°C. The resulting precipitate was placed in a dialysis bag with 10ml of 2% K2HPO4/NaPi (pH 7.9). The solution was dialyzed overnight against a solution of 2% K2HPO4/NaPi (pH 7.9). The dialyzed solution was stored at 4°C.
    • Deacylation
  • Figure imgb0072
  • To a 250-mL round bottom flask containing Fmoc-Friulimicin-B (GM538, MW1525, 0.55 mmol) was added 2% K2HPO4/NaPi pH7.9 solution (20 mL). The solution was stirred gently and warmed to 28-30°C before the deacylase (15 mL) was added. The reaction mixture was stirred gently at 28-30°C for 48-72 hours and then concentrated under reduced pressure. The progress of reaction was monitored by HPLC. The concentrated residue was purified by preparative RP-HPLC (Waters Novapak® 40×100 mm column, acetonitrile-water with 0.1% formic acid as solvent) and freeze-dried to give the deacylated product GM539 as white solid (MW1317; ave. isolated yield 40%).
    • (b) Whole cell biotransformation Fermentation
  • Seed culture was inoculated with approximately six agar plugs from a 7 - 10 day old culture, grown on ISP2 agar (yeast extract 4g/L, malt extract 10g/L, glucose 4g/L, agar 20g/L), supplemented with 25µg/L of thiostrepton. The fermentation was carried out in 250ml Erlenmeyer flasks each containing 50ml of TSB, also supplemented with 25µg/L of thiostrepton. All flasks were incubated at 28°C, for 24 hours on a rotary shaker (50mm orbit) set at 200rpm. The production fermentation was carried out in 250ml Erlenmeyer flasks each containing 50ml of TSB supplemented with 25µg/L of thiostrepton. Each flask was inoculated with 1ml of seed culture (2%) and was incubated at 28°C, for 72 - 96 hours on a rotary shaker (50mm orbit) set at 200rpm.
    • Deacylation
  • After 24 hours the flasks were removed from the shaker and inoculated with up to 100mg of GM538 (dissolved in 2% K2HPO4/NaPi (pH 7.9). The biotransformation was typically complete within three days, and the material was harvested by centrifugation. The cells can be washed in RO water and reused successfully for at least 3 cycles of biotransformation, although by the third round the length of time required to obtain full conversion (50mg of GM538) lengthens to over four days. All subsequent biotransformation cycles were undertaken in a non-nutritional buffer solution (TRIS-HCl).
  • The whole cell biotransformation methodology was found to provide a more efficient conversion to deacylated product, with higher yields.
    • (B) SYNTHESIS OF (PRECURSOR) SIDE CHAINS (1) SIDE CHAINS COMPRISING A HETEROCYCLE
  • Unless stated otherwise, the following scheme was used to synthesis the side chain precursors of compounds comprising a side chain of the form phenyl-heterocycle-phenyl-C(O)-.
    Figure imgb0073
    • Synthesis of β-Keto Enamine from the Diaryl-β-diketone
  • The β-aryldiketone (0.53mmol) and ammonium formate (2.65mmol, 5eq) were dissolved in 2mL DMF and the reaction mixture was heated to 100-105°C C until the disappearance of starting material as monitored by analytical hplc. The resulting mixture was partitioned between water and ethyl acetate then the organic layer washed with saturated aqueous sodium chloride. The ethyl acetate layer was dried with anhydrous sodium sulfate and the solvent removed under reduced pressure. The solid, semi-solid or oily mixture obtained was purified by either recrystallization with ethyl acetate-heptane (1:5) or silica gel chromatography (Combiflash®) with gradient elution using EA-hexane as solvent or preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column with gradient elution (acetonitrile-water with 0.1% formic acid as solvent).
    • Synthesis of 3, 5-Diarylisoxazole from the β-Keto Enamine
  • The β-keto enamine (0.107mmol), DMF (1 mL), and hydroxylamine hydrochloride (5.45 mmol) were combined in a reaction vessel, and the mixture was stirred at 60-65°C until the disappearance of starting material as monitored by analytical hplc. The mixture was partitioned between water and dichloromethane (DCM). The organic layer was evaporated under reduced pressure and then purified by silica gel chromatography (Combiflash®) with gradient elution using DCM-hexane as solvent.
    • (a) Side chains of the form alkyl-phenyl-heterocycle-phenyl-C(O)- LP-041 precursor
  • Figure imgb0074
    • Methyl 4-{3-Oxo-3-[4-(butyl)phenyl]propanoyl}-benzoate; HPLC retention time, RT 5.80 min
  • Methyl 4-{1-Amino-3-[4-(butylphenyl)-3-oxo-1-propenyl}benzoate; Purified by silica gel chromatography (Combiflash®) with gradient elution using EA-hexane as solvent; HPLC retention time RT, 4.55min; 95% hplc purity; 26% isolated yield as major regioisomer product; 1H NMR (500 MHz, CDCl3-d, δ) 0.94 (3H, t, J 7.4Hz), 1.35-1.39 (2H, m), 1.61-1.64 (2H, m), 2.67 (2H, t, J 7.8Hz), 3.94 (3H, s), 6.16 (1 H, s), 7.24 (2H, d, J 8.1 Hz), 7.71 (2H, dd, J 1.8, 6.6Hz), 7.88 (2H, dd, J 1.7, 6.6Hz), 8.12 (2H, d, J 8.4Hz).
  • Methyl 4-{5-[4-(butyl)phenyl]-3-isoxazolyl}benzoate; >95% hplc purity, 51% yield; 1H NMR (500 MHz, CDCl3-d, δ) 0.96 (3H, t, J 7.4Hz), 1.37-1.41 (2H, m), 1.62-1.67 (2H, m), 2.68 (2H, t, J 7.8Hz), 3.96 (3H, s), 6.83(1 H, s), 7.32 (2H, d, J 8.2Hz), 7.77 (2H, dd, J 1.6, 6.5Hz), 7.96 (2H, dd, J 1.8, 6.7Hz), 8.16 (2H, d, J 8.2Hz).
  • 4-{5-[4-(butyl)phenyl]-3-isoxazolyl}benzoic acid; HPLC retention time RT, 4.55 min, >95% hplc purity; quantitative yield.
    • LP-040 precursor
  • Using the same methodology as described above in respect of LP-041, and with a heptyl substituted β-aryldiketone starting material in place of the butyl substituted starting material, the heptyl substituted analogue was synthesised.
    • LP-045 precursor
  • Figure imgb0075
  • Methyl 4-{3-Amino-3-[4-(butylphenyl)-1-oxo-2-propenyl}benzoate; Purified by silica gel chromatography (Combiflash®) with gradient elution using EA-hexane as solvent; HPLC retention time RT, 4.55 min; 95% hplc purity; 16% isolated yield as minor regioisomer product; 1H NMR (500 MHz, CDCl3-d, δ) 0.94 (3H, t, J 7.4Hz), 1.35-1.42 (2H, m), 1.63-1.67 (2H, m), 2.67 (2H, t, J 7.8Hz), 3.95 (3H, s), 6.16 (1H, s), 7.32 (2H, d, J 8.7Hz), 7.57 (2H, d, J 8.2Hz), 7.99 (2H, d, J 8.4Hz), 8.10 (2H, d, J 8.4Hz).
  • Methyl 4-{4-[4-(butyl)phenyl]-3-isoxazolyl}benzoate; HPLC retention time RT, 5.53 min >95% hplc purity, 83% yield; 1H NMR (500 MHz, CDCl3-d, δ) 0.96 (3H, t, J 7.4Hz), 1.37-1.43 (2H, m), 1.65-1.68 (2H, m), 2.68 (2H, t, J 7.7Hz), 3.97 (3H, s), 6.83(1 H, s), 7.31 (2H, d, J 8.1 Hz), 7.78 (2H, d, J 8.2Hz), 7.91 (2H, dd, J 1.8, 6.9Hz), 8.16 (2H, dd, J 1.8, 6.8Hz).
  • 4-{4-[4-(butyl)phenyl]-3-isoxazolyl}benzoic acid; HPLC retention time RT, 4.47min, >95% hplc purity; quantitative yield; 1H NMR (500 MHz, DMSO-d6 , δ) 0.91 (3H, t, J 7.3Hz), 1.30-1.34 (2H, m), 1.57-1.60 (2H, m), 2.65 (2H, t, J 7.4Hz), 7.37 (2H, d, J 8.2Hz), 7.72 (1H, s), 7.83 (2H, dd, J 8.2Hz), 8.02 (2H, d, J 8.5Hz), 8.10 (2H, dd, J 1.9, 6.7Hz).
    • LP-044 precursor
  • Figure imgb0076
  • Methyl 4-{3-Oxo-3-[4-(propyl)phenyl]propanoyl}-benzoate; 1H NMR (500 MHz, CDCl3-d,δ) 0.99 (3H, t, J 7.2Hz), 1.68-1.75 (2H, m), 2.70 (2H, t, J 7.5Hz), 4.02 (3H, s), 6.90(1 H, s), 7.34 (2H, d, J 8.0Hz), 7.95 (2H, d, J 8.0Hz), 8.06 (2H, d, J 8.1 Hz), 8.17 (2H, d, J 8.2Hz).
  • Methyl 4-{1-Amino-3-[4-(propylphenyl)-3-oxo-1-propenyl}benzoate; Purified by silica gel chromatography (Combiflash®) with gradient elution using EA-hexane as solvent; HPLC retention time RT, 4.05min; 95% hplc purity; 47% yield; 1H NMR (500 MHz, CDCl3-d,δ) 0.98 (3H, t, J 7.3Hz), 1.65-1.72 (2H, m), 2.65 (2H, t, J 7.8Hz), 3.98 (3H, s), 6.16(1 H, s), 7.26 (2H, d, J 8.1 Hz), 7.71 (2H, dd, J 1.8, 6.7Hz), 7.88 (2H, dd, J 1.6, 6.6Hz), 8.11 (2H, d, J 8.4Hz).
  • Methyl 4-{5-[4-(propyl)phenyl]-3-isoxazolyl}benzoate; >95% hplc purity, 76% yield; 1H NMR (500 MHz, CDCl3-d,δ) 0.98 (3H, t, J 7.3Hz), 1.66-1.74 (2H, m), 2.65 (2H, t, J 7.8Hz), 3.97 (3H, s), 6.83(1 H, s), 7.32 (2H, d, J 8.3Hz), 7.77 (2H, d, J 8.2Hz), 7.96 (2H, dd, J 1.8, 6.7Hz), 8.16 (2H, dd, J 1.8, 6.7Hz).
  • 4-{5-[4-(propyl)phenyl]-3-isoxazolyl}benzoic acid; HPLC retention time RT, 4.1min, >95% hplc purity; quantitative yield; 1H NMR (500 MHz, DMSO-d 6, δ) 0.91 (3H, t, J 7.4Hz), 1.59-1.65 (2H, m), 2.63 (2H, t, J 7.4Hz), 7.39 (2H, d, J 8.3Hz), 7.60(1 H, s), 7.83 (2H, dd, J 1.7, 6.6Hz), 7.99 (2H, d, J 8.4Hz), 8.07 (2H, dd, J 1.7, 6.7Hz).
    • LP-043 precursor
  • Figure imgb0077
  • Methyl 4-{3-Oxo-3-[4-(pentyl)phenyl]propanoyl}-benzoate; 1H NMR (500 MHz, CDCl3-d, δ) 0.91 (3H, t, J 6.8Hz), 1.32-1.38 (4H, m), 1.63-1.69 (2H, m), 2.69 (2H, t, J 7.9Hz), 4.00 (3H, s), 5.3 (0.29H, s, keto CH2) 6.7 (1 H, s, enol), 7.31 (2H, d, J 8.2Hz), 7.93 (2H, d, J 8.2Hz), 8.03 (2H, dd, J 1.8, 6.9Hz), 8.15 (2H, dd, J 1.7, 6.8Hz), (exists as its keto-enol tautomer).
  • Methyl 4-{1-Amino-3-[4-(pentylphenyl)-3-oxo-1-propenyl}benzoate; Purified by silica gel chromatography (Combiflash®) with gradient elution using EA-hexane as solvent; HPLC retention time RT, 4.95min; >95% hplc purity; 55% yield; 1H NMR (500 MHz, CDCl3-d, δ) 0.90 (3H, t, 6.9Hz), 1.31-1.36 (4H, m), 1.63-1.68 (2H, m), 2.69 (2H, t, J 7Hz), 3.99 (3H, s), 6.16 (1 H, s), 7.25 (2H, d, J 8.3Hz), 7.7 (2H, dd, J 1.8, 6.7Hz), 7.87 (2H, dd, J1.7, 6.6Hz), 8.13 (2H, dd, J1.8, 6.6 Hz).
  • Methyl 4-{5-[4-(pentyl)phenyl]-3-isoxazolyl}benzoate; >95% hplc purity, 74% yield; 1H NMR (500 MHz, CDCl3-d, δ) 0.90 (3H, t, 7.1Hz), 1.34-1.39 (4H, m), 1.64-1.68 (2H, m), 2.68 (2H, t, J 7.9Hz), 3.99 (3H, s), 6.83 (1 H, s), 7.32 (2H, d, J 8.2Hz), 7.77 (2H, dd, J 1.7, 6.6Hz), 7.96 (2H, d, J8.3Hz), 8.16 (2H, dd, J 1.8, 6.7Hz).
  • 4-{5-[4-(pentyl)phenyl]-3-isoxazolyl}benzoic acid; HPLC retention time RT, 4.96min, >95% hplc purity; quantitative yield; 1H NMR (500 MHz, DMSO-d 6, δ) 0.86 (3H, t, 6.9Hz), 1.27-1.33 (4H, m), 1.59-1.62 (2H, m), 2.64 (2H, t, J 7.5Hz), 7.39 (2H, d, J 8.2Hz), 7.61 (1 H, s), 7.83 (2H, d, J8.2Hz), 8.0 (2H, d, J8.4Hz), 8.07 (2H, d, J 8.4Hz).
    • LP-042 precursor Methyl 4-[3-oxo-3-(4-hexylphenyl)propanoyl]benzoate (MP198-261)
  • Figure imgb0078
  • Starting from 4-hexylphenylacetophenone, 0.82 g (2.24 mmol, 46%) of the product was isolated. 1H NMR (CDCl3, 500 MHz): δ = 8.15 (d, 2 H, J = 6.7 Hz), 8.04 (d, 2 H, J = 6.7 Hz), 7.92 (d, 2 H, J = 6.7 Hz), 7.33 (d, 2 H, J = 6.7 Hz), 6.88 (s, 1 H), 3.97 (s, 3 H), 2.70 (t, 2 H, J = 7.6 Hz), 1.65 (m, 1 H), 1.33 (m, 2 H), 0.90 (t, 3 H, J = 7.3 Hz). HPLC: 6.543 min.
    • Methyl 4-[5-(4-hexylphenyl)isoxazol-3-yl]benzoate (MP198-263)
  • Figure imgb0079
  • Starting from methyl 4-[3-oxo-3-(4-hexylphenyl)propanoyl]benzoate, 268 mg (0.74 mmol, 68%) of the product was isolated. 1H NMR (CDCl3, 500 MHz): δ = 8.17 (d, 2 H, J = 6.6 Hz), 7.95 (d, 2 H, J = 6.6 Hz), 7.77 (d, 2 H, J = 6.6 Hz), 7.32 (d, 2 H, J = 6.6 Hz), 6.79 (s, 1 H), 3.96 (s, 3 H), 2.68 (t, 2 H, J = 7.7 Hz), 1.66 (m, 1 H), 1.33 (m, 2 H), 0.90 (t, 3 H, J = 7.3 Hz). HPLC: 6.299 min.
    • 4-[5-(4-Hexylphenyl)isoxazol-3-yl]benzoic acid (MP206-165)
  • Figure imgb0080
  • Starting from methyl 4-[5-(4-hexylphenyl)isoxazol-3-yl]benzoate, 107 mg (0.31 mmol, 94%) of the product was isolated. HPLC: 5.388 min.
    • 1-H-Benzotriazole 4-[5-(4-hexylphenyl)isoxazol-3-yl]benzoate (MP206-174)
  • Figure imgb0081
  • 28 mg (0.08 mmol) 4-[5-(4-Hexylphenyl)isoxazol-3-yl]benzoic acid was dissolved in 5 mL THF and 13 mg (1.2 eq) HOBt and 18 mg (1.1 eq) DCC were added. After stirring over night the mixture was filtered through cotton wool and the solvent was evaporated in vacuo. The crude material was directly used for the coupling. HPLC: 6.634 min.
    • LP-047 precursor
  • Using the methodology described above, the following compound was synthesised.
    Figure imgb0082
    • Methyl 4-[3-Oxo-3-(4-cyclohexylphenyl)-propanoyl]-benzoate;
  • HPLC retention time RT 6.29 min
    • Methyl 4-{1-Amino-3-[4-(cyclohexylphenyl)-3-oxo-1-propenyl}benzoate;
  • HPLC retention time RT, 4.96min, 51.2% yield
    • Methyl 4-{5-[4-cyclohexylphenyl]-3-isoxazolyl}benzoate;
  • HPLC retention time RT, 6.03min, 79% yield
    • 4-{5-[4-(cyclohexylphenyl]-3-isoxazolyl}benzoic acid;
  • HPLC retention time RT, 4.98min, M- 346.14
    • LP-046 precursor
  • Using the methodology described above, the following compound was synthesised.
    Figure imgb0083
    • Methyl 4-[3-Oxo-3-(4-octylphenyl)-propanoyl]-benzoate;
  • HPLC retention time RT 5.43 min, 29% yield
    • Methyl 4-{1-Amino-3-[4-(octylphenyl)-3-oxo-1-propenyl}benzoate;
  • HPLC retention time RT, 6.21 min, 61% yield
    • Methyl 4-{5-[4- octylphenyl]-3-isoxazolyl}benzoate;
  • HPLC retention time RT, 5.75, 80% yield
    • 4-{5-[4-(octylphenyl]-3-isoxazolyl}benzoic acid;
  • HPLC retention time RT 7.19 min
    • (b) Side chains of the form phenyl-alkyl-phenyl-heterocycle-phenyl-C(O)- LP-048 precursor 4-[5-(4-Phenethyl-phenyl)-isoxazol-3-yl]-benzoic acid
  • Figure imgb0084
  • Following same sequence of reaction, 4-[5-(4-Phenethyl-phenyl)-isoxazol-3-yl]-benzoic acid was made from 1-(4-Phenethyl-phenyl)-ethanone and dimethyl terephthalate. HPLC Rt: 4.42min.
    • (c) Side chains of the form alkoxy-phenyl-heterocycle-phenyl-C(O)- (i) With the heterocycle being isoxazole
  • Unless stated otherwise, the following methodology was used to synthesise the side isoxazole-containing side chains.
    Figure imgb0085
    • 4-Alkoxyacetophenone
  • 4-Hydroxyacetophenone (1g, 7.34 mmol), DMF (10mL), alkyl halide (8.1 mmol), and potassium carbonate (8.81 mmol) were combined in a 50-mL round bottom flask. The mixture was stirred at 50 °C for 17 h, and then water (25 mL) and n-hexane (2 x 25 ml) were added to the reaction mixture at room temperature. The organic layer was separated and washed with 1M aqueous sodium hydroxide solution (25 mL), and then with 1M aqueous hydrochloric acid solution water (25 mL). The organic layer was dried with anhydrous sodium sulfate and dried under reduced pressure (average yield: 90%).
    • Diaryl-β-diketone
  • The acetophenone (5.61 mmol) was added to a solution of dimethyl terepthalate (8.98 mmol) in DMF (45 mL). To this solution was added potassium t-butoxide (8.42 mmol) at room temperature then the mixture was stirred around 55-60°C for 2-3days. The mixture was diluted with methanol (110 mL) at 0°C and then quenched and crystallized by the slow addition of aqueous hydrochloric acid solution (10mL, 1:1 conc HCl and water). The mixture was filtered and washed with water. The wet solid was dried under vacuum to give the product. (average yield: 52%)
    • LP-039 precursor
  • Figure imgb0086
  • 4'-(4-methylpentyloxy)acetophenone; 1H NMR (500 MHz, CDCl3-d, δ) 0.94 (6H, d, J 4Hz), 1.35-1.38 (1 H, m), 1.58-1.62 (2H, m), 1.80-1.83 (2H, m), 2.55 (3H, s), 4.01 (2H, t, J 6.6 Hz), 6.93 (2H, d, J 6.9Hz), 7.94 (2H, d, J 7.0Hz).
  • Methyl 4-{3-Oxo-3-[4-(4-methylpentyloxy)phenyl]propanoyl}-benzoate; HPLC retention time, RT 6.19min
  • Methyl 4-{5-[4-(4-methylpentyloxy)phenyl]-3-isoxazolyl}benzoate; HPLC retention time RT, 5.92min, 90% pure (by 1H NMR), 19% yield; 1H NMR (500 MHz, CDCl3-d, δ) 0.94 (3H, d, J6.6 Hz), 1.35-1.39 (2H, m), 1.63-1.64 (1 H, m), 1.82-1.85 (2H, m), 4.01 (3H, s), 4.06 (2H, t, J 6.6 Hz), 6.75 (1 H, s), 7.01 (2H, d, J8.8Hz), 7.81 (2H, d, J8.9 Hz), 7.94 (2H, dd, J1.9, 6.7 Hz), 8.16 (2H, d, J8.2 Hz).
  • 4-{5-[4-(4-methylpentyloxylphenyl]-3-isoxazolyl}benzoic; 90% pure (by 1H NMR), quantitative yield; 1H NMR (500 MHz, DMSO-d6, δ) 0.88 (6H, d, J6.6 Hz), 1.28-1.33 (2H, m), 1.54-1.62 (1 H, m), 1.70-1.75 (2H, m), 4.03 (2H, t, J 6.5 Hz), 7.11 (2H, d, J8.8Hz), 7.53 (1 H, s), 7.87 (2H, d, J8.8 Hz), 8.04 (2H, d, J 8.3Hz), 8.11 (2H, d, J8.3 Hz).
    • LP-022 precursor
  • Figure imgb0087
  • 4'-Hexyloxyacetophenone; 1H NMR (500 MHz, CDCl3-d, δ) 0.93 (3H, t, J 6.9Hz), 1.34-1.38 (4H, m), 1.46-1.48 (2H, m), 1.80-1.84 (2H, m), 2.56 (3H, s), 4.03 (2H, t, J 6.6 Hz), 6.93 (2H, dd, J 1.9, 7.1 Hz), 7.94 (2H, dd, J 2.0, 7.0Hz).
  • Methyl 4-{3-Oxo-3-[4-(hexyloxy)phenyl]propanoyl}-benzoate; HPLC retention time RT, 6.37min; 1H NMR (500 MHz, CDCl3-d, δ) 0.92 (3H, t, J 6.5Hz), 1.35-1.40 (4H, m), 1.46-1.51 (2H, m), 1.80-1.86 (2H, m), 3.97 (3H, s), 4.05 (2H, t, J 6.6 Hz), 4.61 (0.05H, s, keto CH2) 6.84 (0.98H, s, enol), 6.99 (2H, d, J 8.8Hz), 7.99 (2H, d, J 8.8 Hz), 8.03 (2H, d, J 8.3Hz), 8.15 (2H, d, J8.3Hz) 16.89 (0.75H, s, enol OH), (exists as its keto-enol tautomer).
  • Methyl 4-{1-Amino-3-[4-(hexyloxyphenyl)-3-oxo-1-propenyl}benzoate; Recrystallized from EA-heptane (1:5), >95% hplc purity, 54% yield; 1H NMR (500 MHz, CDCl3-d, δ) 0.93 (3H, t, 6.6 Hz), 1.35-1.37 (4H, m), 1.48-1.59 (2H, m), 1.80-1.83 (2H, m), 3.97 (3H, s), 4.01 (2H, t, J 6.6 Hz), 6.14 (1 H, bs), 6.94 (2H, dd, J 6.9, 2.0 Hz), 7.71 (2H, dd, J 6.6, 1.8 Hz), 7.94 (2H, dd, J6.9, 2.0 Hz), 8.14 (2H, dd, J 6.6, 1.8 Hz).
  • Methyl 4-{5-[4-(Hexyloxy)phenyl]-3-isoxazolyl}benzoate; HPLC retention time RT, 6.02min, >95% hplc purity, 82% yield; 1H NMR (500 MHz, CDCl3-d, δ) 0.94 (3H, t, J6.6 Hz), 1.36-1.39 (4H, m), 1.48-1.58 (2H, m), 1.81-1.84 (2H, m), 3.96 (3H, s), 4.02 (2H, t, J 6.6 Hz), 6.56 (1 H, s), 7.0 (2H, dd, J8.8, 2.0 Hz), 7.77 (2H, dd, J8.8, 2.0 Hz), 7.94 (2H, dd, J8.4, 2.0 Hz), 8.15 (2H, dd, J8.4, 2.0 Hz).
  • 4-{5-[4-(Hexyloxy)phenyl]-3-isoxazolyl}benzoic acid; HPLC retention time RT 5.02min, >95% hplc purity, quantitative yield; 1H NMR (500 MHz, DMSO-d6 , δ) 0.88 (3H, t, J7.0Hz), 1.30-1.43 (4H, m), 1.41-1.42 (2H, m), 1.70-1.74 (2H, m), 4.05 (2H, t, J6.5 Hz), 7.11 (2H, d, J8.8 Hz), 7.51 (1 H, s), 7.84 (2H, d, J8.8 Hz), 8.0 (2H, d, J8.3 Hz), 8.07 (2H, d, J8.3 Hz).
    • LP-025 precursor
  • Figure imgb0088
  • 4'-Heptyloxyacetophenone; 1H NMR (500 MHz, CDCl3-d, δ) 0.91 (3H, t, J 7.0Hz), 1.31-1.37 (6H, m), 1.46-1.48 (2H, m), 1.80-1.83 (2H, m), 2.56 (3H, s), 4.03 (2H, t, J 6.6 Hz), 6.93 (2H, dd, J 2.1, 6.9Hz), 7.93 (2H, dd, J 2.1, 6.9Hz).
  • Methyl 4-{3-Oxo-3-[4-(heptyloxy)phenyl]propanoyl}-benzoate; HPLC retention time, RT 6.73min
  • Methyl 4-{1-Amino-3-[4-(heptyloxyphenyl)-3-oxo-1-propenyl}benzoate; Recrystallized from EA-heptane (1:5), HPLC retention time RT, 5.49min, 92% hplc purity, 62% yield; 1H NMR (500 MHz, CDCl3-d, δ) 0.91 (3H, t, 6.7 Hz), 1.32-1.39 (6H, m), 1.46-1.49 (2H, m), 1.79-1.83 (2H, m), 3.97 (3H, s), 4.02 (2H, t, J 6.6 Hz), 6.14 (1 H, bs), 6.94 (2H, dd, J 6.9,2.0 Hz), 7.71 (2H, dd, J 6.6, 1.9 Hz), 7.94 (2H, dd, J6.8, 2.0 Hz), 8.14 (2H, dd, J 6.6,2.0 Hz).
  • Methyl 4-{5-[4-(Heptyloxy)phenyl]-3-isoxazolyl}benzoate; HPLC retention time RT, 6.37min, >95% hplc purity, 82% yield; 1H NMR (500 MHz, CDCl3-d, δ) 0.91 (3H, t, J7.0 Hz), 1.31-1.39 (6H, m), 1.44-1.51 (2H, m), 1.80-1.88 (2H, m), 3.96 (3H, s), 4.03 (2H, t, J 6.6 Hz), 6.75 (1 H, s), 7.0 (2H, dd, J6.8, 2.0 Hz), 7.78 (2H, dd, J6.8, 2.0 Hz), 7.95 (2H, dd, J6.7, 1.8 Hz), 8.16 (2H, dd, J8.3, 1.7 Hz).
  • 4-{5-[4-(Heptyloxy)phenyl]-3-isoxazolyl}benzoic acid; HPLC retention time RT, 5.49min, quantitative yield; 1H NMR (500 MHz, DMSO-d6 , δ) 0.87 (3H, t, J7.0Hz), 1.23-1.35 (6H, m), 1.39-1.45 (2H, m), 1.70-1.76 (2H, m), 4.05 (2H, t, J6.5 Hz), 7.10 (2H, d, J8.8 Hz), 7.47 (1 H, s), 7.83 (2H, d, J8.8 Hz), 8.0 (2H, b), 8.16 (2H, b).
    • LP-038 precursor 1-[4-(3-Methylbutoxy)phenyl]ethanone
  • Figure imgb0089
  • Starting from 1-bromo-3-methylbutane, 1.47 g (7.13 mmol, 97%) of the title compound was isolated and directly used for the next step. 1H NMR (CDCl3, 500 MHz): δ = 7.95 (d, 2 H, J = 6.9 Hz), 6.94 (d, 2 H, J = 6.9 Hz), 4.05 (t, 2 H, J = 8.5 Hz), 2.56 (s, 3 H). 1.86 (m, 1 H), 1.71 (m, 2 H), 0.99 (m, 6 H).
    • Methyl 4-[3-oxo-3-(4-(3-methylbutoxy)propoxyphenyl)propanoyl]benzoate
  • Figure imgb0090
  • Starting from 1-[4-(3-methylbutoxy)phenyl]ethanone, 0.86 g (2.33 mmol, 48%) of the title compound was isolated. 1 H NMR (CDCl3, 500 MHz): δ = 8.08 (m, 4 H), 7.29 (d, 2 H, J = 6.4 Hz), 7.00 (d, 2 H, J = 3.0 Hz), 6.85 (s, 1 H), 4.10 (m, 2 H), 3.98 (s, 3 H), 1.87 (m, 1 H), 1.73 (m, 2 H), 1.00 (m, 6 H). HPLC: 5.826 min.
    • Methyl 4-[5-(4-(3-methylbutoxy)phenyl)isoxazol-3-yl]benzoate
  • Figure imgb0091
  • Starting from methyl 4-[3-oxo-3-(4-(3-ethylbutoxy)propoxyphenyl)propanoyl] benzoate, 637 mg (1.74 mmol, 75%) of the product was isolated. HPLC: 5.561 min.
    • 4-[5-(4-(3-Methylbutoxy)phenyl)isoxazol-3-yl]benzoic acid
  • Figure imgb0092
  • Starting from methyl 4-[5-(4-(3-methylbutoxy)phenyl)isoxazol-3-yl]benzoate, 213 mg (0.60 mmol, 88%) of the title compound was isolated. HPLC: 4.539 min.
    • 1-H-Benzoltriazole 4-[5-(4-(3-methylbutoxy)phenyl)isoxazol-3-yl]benzoate
  • Figure imgb0093
  • Starting from 4-[5-(4-(3-methylbutoxy)phenyl)isoxazol-3-yl]benzoic acid, 40 mg (0.085 mmol, 50%) of the title compound was isolated. HPLC: 5.878 min.
    • LP-036 precursor Methyl 4-[3-(4-butyloxyphenyl)-3-oxopropanoyl]benzoate
  • Figure imgb0094
  • Starting from 4-pentyloxyacetophenone, 0.58 g (32%) of the product was isolated. 1H NMR (CDCl3, 500 MHz): δ = 8.15 (d, 2 H, J = 8.4 Hz), 8.03 (d, 2 H, J = 8.4 Hz), 8.00 (d, 2 H, J = 8.0 Hz), 6.96 (d, 2 H, J = 8.4 Hz), 6.84 (s, 1 H), 4.07 (t, 2 H, J = 7.6 Hz), 3.96 (s, 3 H), 1.83 (m, 2 H), 1.52 (m, 2 H), 1.03 (t, 3 H, J = 7.4 Hz). HPLC: 5.518 min.
    • Methyl 4-{5-[4-(butyloxy)phenyl]isoxazol-3-yl}benzoate
  • Figure imgb0095
  • Starting from methyl 4-[3-(4-butyloxyphenyl)-3-oxopropanoyl]benzoate, 0.37 g (quant.) of the product was isolated. 1H NMR (CDCl3, 500 MHz): δ = 8.17 (d, 2 H, J = 6.7 Hz), 7.95 (d, 2 H, J = 8.5 Hz), 7.78 (d, 2 H, J = 8.5 Hz), 7.02 (d, 2 H, J = 6.7 Hz), 6.76 (s, 1 H), 4.05 (t, 2 H, J = 4.6 Hz), 3.97 (s, 3 H), 1.82 (m, 2 H), 1.53 (m, 2 H), 1.01 (t, 3 H, J = 7.4 Hz). HPLC: 5.250 min.
    • 4-{5-[4-(butyloxy)phenyl]isoxazol-3-yl}benzoic acid
  • Figure imgb0096
  • Starting from methyl 4-{5-[4-(butyloxy)phenyl]isoxazol-3-yl}benzoate, 0.34 g (97%) of the product was isolated. HPLC: 4.221 min.
    • 1H -benzotriazole 4-{5-[4-(butyloxy)phenyl]isoxazol-3-yl}benzoate
  • Figure imgb0097
  • Starting from 4-{5-[4-(butyloxy)phenyl]isoxazol-3-yl}benzoic acid, 53 mg (117 mmol, 67%) of the product was isolated. HPLC: 5.608 min.
    • LP-034 precursor Methyl 4-[3-(4-pentyloxyphenyl)-3-oxopropanoyl]benzoate
  • Figure imgb0098
  • Starting from 4-pentyloxyphenylacetophenone, 0.48 g (1.54 mmol, 12%) of the product was isolated. HPLC: 4.905 min.
    • 4-{5-[4-(Pentyloxy)phenyl]isoxazol-3-yl}benzoic acid
  • Figure imgb0099
  • To 92 mg (0.26 mmol) methyl 4-[3-(4-pentyloxyphenyl)-3-oxopropanoyl]benzoate in 10 mL ethanol was added 146 mg (3.63 mmol) sodium hydroxide and 500 mg (7.25 mmol) hydroxylamine hydrochloride in 2 mL water. The solution was refluxed for 7 h. After cooling to room temperature, 1 M hydrochloric acid was added and the precipitate formed was filtered off and washed with water. Upon drying, the product was obtained as a white solid (22 mg, 0.06 mmol, 23%). 1H NMR (D6-acetone, 500 MHz): δ = 8.18 (d, 2 H, J = 8.6 Hz), 8.06 (d, 2 H, J = 8.5 Hz), 7.89 (d, 2 H, J = 8.6 Hz), 7.30 (s, 1 H), 7.11 (d, 2 H, J = 8.6 Hz), 4.08 (t, 2 H, J = 7.3 Hz), 1.82 (m, 2 H), 1.47 (m, 4 H), 0.93 (t, 3 H, J = 7.3 Hz). HPLC: 4.641 min.
    • 1H-benzotriazole 4-{5-[4-(pentyloxy)phenyl]isoxazol-3-yl}benzoate
  • Figure imgb0100
  • Starting from 4-{5-[4-(pentyloxy)phenyl]isoxazol-3-yl}benzoic acid, 30 mg of a crude mixture was obtained that was directly used for the next step. HPLC: 5.946 min.
    • LP-032 precursor 4-(5-octylisoxazol-3-yl)benzoic acid
  • Adopting the same method as for LP-033 discussed below, using the alkyne (I) and oxime (II)
    Figure imgb0101
     the following compound was synthesized:
    Figure imgb0102
    • (ii) With the heterocycle being oxazole LP-031 precursor 1-(4-(pentyloxy)phenyl)ethanone
  • Figure imgb0103
  • To a solution of the 4-hydroxyacetophenone (1.0 g, 7.3 mmol) in 5 mL DMF under Ar was added K2CO3 (1.0 g, 7.3 mmol) and 1-bromopentane (1.1 mL, 8.7 mmol) and heated at 60 °C overnight. The reaction mixture was cooled to room temperature, poured into water (100 mL) and extracted with EtOAc. The organic layer was washed with brine, dried and evaporated to afford a residue which upon purification by combiflash, eluting with 5% EtOAc in Hexane afforded 1.3 g product (86%).1H NMR (500 MHz, CDCl3): δ 0.98 (t, 3 H, J = 7.0 Hz), 1.41-1.49 (m, 4 H), 1.83-1.86 (m, 2 H), 2.59 (s, 3 H), 4.09 (t, 2 H, J = 6.5 Hz), 6.98 (d, 2 H, J = 7.0 Hz), 7.98 (d, 2 H, J = 7.0 Hz).
    • 2-bromo-1-(4-(pentyloxy)phenyl)ethanone
  • Figure imgb0104
  • 4-Pentyloxyacetophenone (1.3 g, 6.3 mmol) was dissolved in anhydrous CH2Cl2 (20 mL) and anhydrous MeOH (10 mL) under Ar. Tetrabutylammoniumtribromide (3.3 g, 6.9 mmol) was added and the reaction mixture stirred at room temperature for 48 h. Solvent was removed under vacuum and the thick residue passed through a short plug of silica gel eluting with 10% EtOAc in hexane to afford 1.6 g product (91 %). 1H NMR (500 MHz, CDCl3): δ 0.96 (t, 3 H, J = 7.1 Hz), 1.41-1.49 (m, 4 H), 1.82-1.87 (m, 2 H), 4.04 (t, 2 H, J = 6.5 Hz), 4.41 (s, 2 H), 6.98 (d, 2 H, J = 7.2 Hz), 7.98 (d, 2 H, J = 7.2 Hz).
    • 2-(azidomethyl)-2-(4-(pentyloxy)phenyl)-1,3-dioxolane
  • Figure imgb0105
  • To a solution of the bromide (1.6 g, 5.6 mmol) in DMF (10 mL) was added sodium azide (445 mg, 5.8 mmol) and stirred at room temperature. After 2 h, the mixture was poured into water and extracted with EtOAc. The organic layer was washed with water, brine, dried and evaporated to afford the product as yellow syrup which was redissolved in anhydrous CH2Cl2 (60 mL) containing ethyleneglycol (7.5 mL, 150.0 mmol) and BF3.OEt2 (7.5 mL, 59.0 mmol) and stirred under argon for 48 h. The solution was washed with sat. aq. NaHCO3 the organic layer was dried and evaporated to afford crude product which was passed through a short plug of silica eluting with 5% EtOAc in hexane to afford product (1.1 g, 68 %). 1H NMR (500 MHz, CDCl3): δ 0.96 (t, 3 H, J = 7.0 Hz), 1.40-1.46 (m, 4 H), 1.79-1.82 (m, 2 H), 3.44 (s, 2 H), 3.91 (t, 2 H, J = 3.5 Hz), 3.96 (t, 2 H, J = 6.5 Hz), 4.18 (t, 2 H, J = 3.5 Hz), 6.90 (d, 2 H, J = 7.0 Hz), 7.42 (d, 2 H, J = 7.0 Hz).
    • (2-(4-(pentyloxy)phenyl)-1,3-dioxolan-2-yl)methanamine
  • Figure imgb0106
  • To a solution of the keto-protected azide (1.1 g, 3.8 mmol) in anhydrous THF (5 mL) was added Ph3P (1.5 g, 5.6 mmol) under argon and stirred at room temperature for 24 h. The solution was concentrated to 2 mL and 200 µL water added. After stirring 5 h, the solvent was evaporated and the residue purified by combiflash, eluting with 80 - 100 % EtOAc to afford 0.8 g (80%) product. 1H NMR (500 MHz, CDCl3): δ 0.97 (t, 3 H, J = 7.0 Hz), 1.27-1.41 (m, 4 H), 1.79-1.83 (m, 2 H), 2.92 (s, 2 H), 3.85 (t, 2 H, J = 3.5 Hz), 3.97 (t, 2 H, J = 6.5 Hz), 4.06 (t, 2 H, J = 3.5 Hz), 6. (d, 2 H, J = 70 Hz), 7.37 (d, 2 H, J = 7. Hz). Mass: m/z 266 (M+1).
    • 2-(4-carbomethoxybenzoyl)amino-1-(4-(pentyloxy)phenyl)ethanone:
  • Figure imgb0107
  • To a solution of the amine (800 mg, 2.8 mmol) in DMF (10 mL) under argon was added EDCI (820 mg, 4.2 mmol), HOBt (650 mg, 4.2 mmol), DIPEA (800 µL, 5.6 mmol) and terephthalic acid monomethyl ester (735 mg, 4.2 mmol). After stirring at room temperature for 24 h, the mixture was poured into water and extracted with EtOAc. Organic layer was washed with water, brine and dried. The residue was redissolved in 20 mL MeOH containing 2 mL CH2Cl2 and 20 mg p-TSA monohydrate. After stirring 30 min at room temperature, the solution was evaporated and the residue diluted with EtOAc. The organic layer was washed with sat. aq. NaHCO3, brine and dried. Evaporation of the organic layer afforded product which was pure enough for next step (crude wt. 800 mg, 61 %). 1H NMR (500 MHz, CDCl3): δ 0.97 (t, 3 H, J = 7.0 Hz), 1.40-1.56 (m, 4 H), 1.84-1.87 (m, 2 H), 3.98 (s, 3 H), 4.08 (t, 2 H, J = 6.5 Hz), 4.93 (s, 2 H), 7.01 (d, 2 H, J = 7.0 Hz), 7.97 (d, 2 H, J = 7.0 Hz), 8.02 (d, 2 H, J = 7.0 Hz), 8.17 (d, 2 H, J = 7. 0 Hz). Mass: m/z 384 (M+1).
    • 4-(5-(4-(pentyloxy)phenyl)oxazol-2-yl)benzoic acid:
  • Figure imgb0108
  • To a solution of the β-ketoamide (800 mg, 2.08 mmol) in anhydrous CH2Cl2 (30 mL) under argon was added Ph3P (1.1 g, 4.1 mmol), iodine (1.0 g, 1.9 mmol) and Et3N (1.2 mL, 8.3 mmol) successively. After stirring at room temperature for 30 min, the reaction mixture was treated with sat. aq. NaHSO3. The organic layer was dried, evaporated and residue purified by combiflash eluting with 5% EtOAc in hexane to afford 160 mg (20 %) of pure product as a white solid (overall 4.0 % yield).1H NMR (500 MHz, CDCl3): δ 0.97 (t, 3 H, J = 7.0 Hz), 1.42-1.53 (m, 4 H), 1.83-1.86 (m, 2 H), 3.99 (s, 3 H), 4.05 (t, 2 H, J = 6.5 Hz), 7.0 (dd, 2 H, J = 2.0, 7.0 Hz), 7.38 (s, 1 H), 7.68 (d, 2 H, J = 7.0 Hz), 8.19 (d, 2 H, J = 7.0 Hz). Mass: m/z: 366 (M+1).
  • To a solution of the oxazole (160 mg, 0.4 mmol) in THF-MeOH-H2O (6 mL, 4:2:1) was added LiOH (16 mg) and stirred overnight at room temperature. The mixture was evaporated to dryness and diluted with 1 N HCi (2 mL). Solid formed was filtered, washed with water, Et2O and dried to afford 100 mg (60 %) of the carboxylic acid. Mass: m/z 352 (M+1); HPLC retention time: 4.404
    • LP-029 precursor
  • In a similar fashion, 4-(5-(4-(hexyloxy)phenyl)oxazol-2-yl)benzoic acid derivative was synthesized from 4-hydroxyacetophenone with an overall yield 4.0 %.
    Figure imgb0109
  • HPLC retention time: 4.839.
    • LP-024 precursor 1-(4-(hexyloxy)phenyl)-2-hydroxyethanone 4-carbomethoxybenozic acid ester
  • Figure imgb0110
  • To a solution of terephthalic acid monomethyl ester (1.0 g, 5.6 mmol) and 4-hexyloxy-2'-bromoacetophenone (synthesized by following (2.0 g, 6.7 mmol) in DMF (10 mL) was added K2CO3 (0.77 g, 5.6 mmol) and heated at 60 °C. After 10 h, the reaction mixture was cooled to room temperature and poured into water. The product was extracted using EtOAc, washed with brine, dried and concentrated. The crude residue was purified by combiflash to afford 1.0 g (45 %) product. 1H NMR (500 MHz, CDCl3): δ 0.94 (t, 3 H, J = 7.0 Hz), 1.36-1.39 (m, 4 H), 1.48-1.58 (m, 2 H), 1.81-1.85 (m, 2 H), 3.99 (s, 3 H), 4.07 (t, 2 H, J = 6.5 Hz), 5.58 (s, 2 H), 6.99 (d, 2 H, J = 9.0 Hz), 7.92 (d, 2 H, J = 9.0 Hz), 8.16 (d, 2 H, J = 9.0), 8.122 (d, 2 H, J = 9.0 Hz).
    • 4-(4-(4-(hexyloxy)phenyl)oxazol-2-yl)benzoic acid
  • Figure imgb0111
  • To a suspension of the β-ketoester (0.3 g, 0.7 mmol) and acetamide (0.225 g, 3.75 mmol) in xylenes (2 mL) was added BF3.OEt2 (10 uL) and the mixture was heated to 140 °C. After 3 h, another 20 µL BF3.OEt2 was added and heating continued overnight. After cooling to room temperature, the mixture was diluted with EtOAc and washed with water. The organic layer was dried, evaporated and the residue purified by combiflash to afford the desired oxazole (40 mg, 20% yield wrt 40 mg recovered starting material). 1H NMR (500 MHz, CDCl3): δ 0.94 (t, 3 H, J = 7.0 Hz), 1.37-1.39 (m, 4 H), 1.42-1.50 (m, 2 H), 1.81-1.84 (m, 2 H), 3.99 (s, 3 H), 4.03 (t, 2 H, J = 6.5 Hz), 6.99 (d, 2 H, J = 6.7 Hz), 7.77 (d, 2 H, J = 6.7 Hz), 7.94 (s, 1 H), 8.17 (d, 2 H, J = 6.7 Hz), 8.24 (d, 2 H, J = 6.7 Hz).
  • The oxazole thus obtained (40 mg) was hydrolyzed to the corresponding acid as described previously to afford 30 mg (79% yield) of acid (12 % overall yield). HPLC retention time: 5.130.
    • LP-027 precursor 2-[4-(Methoxycarbonyl)phenyl]-2-oxoethyl 4-hexyloxybenzoate
  • Figure imgb0112
  • 400 mg (2.06 mmol) 4-hexyloxybenzoic acid was dissolved in 5 mL methanol. 4.12 mL (2.06 mmol) sodium methoxide was added as a 0.5 M solution in methanol and the solution was stirred for 1 h. The solvent was evaporated in vacuo. A solution of 264 mg (1.03 mmol) bromoketone in 5 mL DMF was added to the sodium carboxylate and the reaction was stirred at 140 °C for 30 min. The reaction mixture was diluted with water and acidified with 1 M hydrochloric acid. The precipitate formed was filtered off and washed with water. Flash chromatography yielded 200 mg (0.50 mmol, 49%) of the product. 1H NMR (CDCl3, 500 MHz): = 8.17 (d, 2 H, J = 8.51 Hz). 8.08 (dd, 2 H, J = 9.0, 2.1 Hz), 8.03 (m, 4 H), 6.94 (dt, 2 H, J = 8.9, 2.9 Hz), 5.55 (s, 2 H), 4.03 (t, 2 H, J = 6.5 Hz), 3.97 (s, 3 H), 1.82 (quint, 2 H, J = 7.2 Hz), 1.49 (m, 2 H), 1.36 (m, 4 H), 0.92 (m, 3 H).
    • Methyl 4-[2-(4-hexyloxyphenyl)-1,3-oxazol-4-yl]benzoate
  • Figure imgb0113
  • 140 mg (0.377 mmol) 2-[4-(methoxycarbonyl)phenyl]-2-oxoethyl 4-hexyloxybenzoate and 111 mg (5 eq) acetamide were dissolved in 5 mL xylenes. 10 uL (0.2 eq) boron trifluoride was added and the reaction was stirred at 140 °C for 18 h. Another 50 uL (1.0 eq) boron trifluoride was added and stirring continued for 24 h. The reaction was quenched with saturated sodium bicarbonate solution and extracted with DCM. The combined organic phases were dried and evaporated. Purification of the residue by flash chromatography (100% hexanes to 10% EA/hexanes) yielded 26 mg (0.068 mmol, 18%) of the product. MS: m/z = 380.21 [M+1]+.
    • 4-[2-(4-Hexyloxyphenyl)-1,3-oxazol-4-yl]benzoic acid
  • Figure imgb0114
  • Starting from methyl 4-[2-(4-hexyloxyphenyl)-1,3-oxazol-4-yl]benzoate, 25 mg (0.07 mmol, quant.) of the title compound was isolated. HPLC: 5.127 min.
    • 1-H-Benzotriazole methyl 4-[2-(4-hexyloxyphenyl)-1,3-oxazol-4-yl]benzoate
  • Figure imgb0115
  • Starting from 4-[2-(4-Hexyloxyphenyl)-1,3-oxazol-4-yl]benzoic acid, 25 mg of a crude product was isolated and directly used for the next step. HPLC: 6.487 min.
    • (iii) With the heterocycle being thiazole LP-030 precursor 4-(5-(4-(hexyloxy)phenyl)thiazol-2-yl)benzoic acid
  • Figure imgb0116
  • To a suspension of the 4-(5-(4-(hexyloxy)phenyl)thiazol-2-yl)benzoic acid methyl ester (synthesized from 4-hydroxyacetophenone as described above, 500 mg, 1.2 mmol) in anhydrous toluene (15 mL) was added Lawesson's reagent (1.0 g, 2.4 mmol). After heating the mixture at 110 °C for 5 h, it was cooled to room temperature and the solid formed filtered, washed with EtOAc and MeOH to afford product (450 mg, 90% yield). 1H NMR (500 MHz, CDCl3): δ 0.94 (t, 3 H, J = 7.0 Hz), 1.37-1.39 (m, 4 H), 1.42-1.50 (m, 2 H), 1.81-1.84 (m, 2 H), 3.95 (s, 3 H), 4.01 (t, 2 H, J = 6.5 Hz), 6.96 (d, 2 H, J = 6.6 Hz), 7.55 (d, 2 H, J = 6.6 Hz), 7.98 (s, 1 H), 8.05 (d, 2 H, J = 6.6 Hz), 8.13 (d, 2 H, J = 6.6 Hz). HPLC retention time: 6.495.
  • The thiazole obtained (400 mg) was hydrolyzed to the corresponding acid as described previously to afford 200 mg of the acid (46 %). HPLC retention time: 5.267.
    • LP-021 precursor 4-[5-(4-Hexyloxy-phenyl)-thiophen-2-yl]-benzoic acid
  • Figure imgb0117
  • A solution of 2,5-dibromothiophene (1.0 g, 4.1 mmol), 4-methylcarboxyphenylboronic acid (370 mg, 2.05 mmol), Pd(PPh3)4 (30 mg) and K2CO3 (1.13 g, 8.2 mmol) in toluene (20 mL) containing 5 mL EtOH and 1 mL water were refluxed overnight under argon. After cooling to room temperature, the solvent was evaporated and residue partitioned between EtOAc and water. Organic layer was separated, dried, evaporated and residue purified by combiflash to afford 4-(5-Bromo-thiophen-2-yl)-benzoic acid methyl ester (200 mg) which was redissolved in toluene (10 mL), containing 4-hexyloxyphenylboronic acid (222 mg, 0.1 mmol), Pd(PPh3)4 (30 mg) and K2CO3 (189 mg, 0.13 mmol) containing 3 mL EtOH and 0.5 mL water and refluxed overnight. The resulting solution was cooled and the solid formed filtered, washed with water and methanol and dried (130 mg). It was subjected to hydrolysis using dioxane-water/NaOH overnight to afford 4-[5-(4-Hexyloxy-phenyl)-thiophen-2-yl]-benzoic acid
    • (iv) With the heterocycle being pyrazole LP-028 precursor Methyl 4-[5-(4-hexyloxyphenyl)-1H-pyrazol-3-yl]benzoate
  • Figure imgb0118
  • 150 mg (0.39 mmol) 4-{5-[4-(pentyloxy)phenyl]isoxazol-3-yl}benzoic acid was dissolved in 10 mL ethanol. 0.2 mL hydrazine monohydrate and 1 mL acetic acid were added and the resulting solution was heated under reflux for 45 min. The volatiles were evaporated. Purification of the residue by flash chromatography (hexane/ethyl acetate 5:1) yielded 133 mg (0.35 mmol, 89%) of the title compound. 1H NMR (CDCl3, 500 MHz): δ= 8.09 (d, 2 H, J = 8.4 Hz), 7.82 (d, 2 H, J = 7.8 Hz), 7.59 (d, 2 H, J = 8.2 Hz), 6.91 (d, 2 H, J = 8.8 Hz), 6.80 (s, 1 H), 3.97 (t, 2 H, J = 6.6 Hz), 3.94 (s, 3 H), 1.80 (quint, 2 H, J = 6.8 Hz), 1.50 (m, 2 H), 1.35 (m, 4 H), 0.92 (t, 3 H, J = 7.0 Hz).
    • 4-[5-(4-hexyloxyphenyl)-1H-pyrazol-3-yl]benzoic acid
  • Figure imgb0119
  • Starting from methyl 4-[5-(4-pentoxyphenyl)-1H-pyrazol-3-yl]benzoate, 126 mg (0.34 mmol, quant.) of the title compound was isolated. HPLC: 4.068 min.
    • 1-H-benzotriazole 4-[5-(4-hexyloxyphenyl)-1H-pyrazol-3-yl]benzoate
  • Figure imgb0120
  • Starting from 4-[5-(4-pentoxyphenyl)-1H-pyrazol-3-yl]benzoic acid, 45 mg of a crude product was isolated that was directly used for the next step. HPLC: 5.483 min.
    • LP-035 precursor Methyl 4-[3-(4-butoxyphenyl)-1H-pyrazol-5-yl]benzoate
  • Figure imgb0121
  • 190 mg (0.54 mmol) methyl 4-[3-(4-butoxyphenyl)-3-oxopropanoyl]benzoate was dissolved in 10 mL ethanol and 0.5 mL hydrazine hydrate and 1 mL acetic acid were added. The mixture was refluxed for 1 h. Upon cooling, the product crystallized. To complete crystallisation, 5 mL water was added and the product was filtered off, washed with water and dried. A white crystalline material (150 mg, 0.42 mmol, 78%) was isolated and directly used for the next step.
    • 4-[3-(4-Butoxyphenyl)-1H-pyrazol-5-yl] benzoic acid
  • Figure imgb0122
  • Starting from methyl 4-[3-(4-butoxyphenyl)-1H-pyrazol-5-yl]benzoate 139 mg (0.41 mmol, 96%) of the title compound was isolated. MS: m/z = 337.2 [M+1]+. HPLC: 3.259 min.
    • Pentafluorophenyl 4-[3-(4-butoxyphenyl)-1H-pyrazol-5-yl]benzoate
  • Figure imgb0123
  • Starting from 4-[3-(4-butoxyphenyl)-1H-pyrazol-5-yl] benzoic acid, 53 mg (quant.) of a white solid was isolated and directly used for the next step. HPLC: 5.743 min.
    • (v) With the heterocycle being imidazole LP-037 precursor 4-(5-(4-(pentyloxy) phenyl)-1H-imidazol-2-yl)benzoic acid:
  • Figure imgb0124
  • To a suspension of the β-ketoester (synthesized as described above, 0.8 g, 2.08 mmol) in toluene (10 mL) in a flask fitted with a dean-stark apparatus was added NH4OAc (8.0 g, 10.8 mmol). After refluxing for 12 h, the mixture was cooled to room temperature and evaporated. The residue was diluted with water and the solid formed filtered, washed with Et2O and dried to afford the product (200 mg) which underwent hydrolysis using 10 mg LiOH in 10 mL THF:MeOH:H2O in the ratio 6:3:1 to afford the corresponding carboxylic acid (120 mg, 17 %). Mass: m/z 351 (M+1); HPLC retention time: 1.704.
    • (vi) With the heterocycle being oxadiazole LP-026 precursor 4-(hexyloxy)-N'-hydroxybenzamidine:
  • Figure imgb0125
  • To a solution of 4-O-hexylbenzonitrile (2.5 g, 12.3 mmol, prepared by alkylation of 4-cyanophenol using 1-bromohexane following the procedure described above) in EtOH (20 mL) and pyridine (1.3 mL, 18.45 mmol) was added hydroxylamine hydrochloride (1.0 g, 16.0 mmol). After stirring for 24 h, the solvent was evaporated. The residue was dissolved in ethyl acetate and washed successively with 1 N HCl, water and brine. The organic layer was isolated, dried and evaporated to afford the amidoxime (2.5 g, 86 % yield) which was pure enough for the next step. Mass: m/z 237 (M+1).
    • 4-(3-(4-(hexyloxy)phenyl)-1,2,4-oxadiazol-5-yl)benzoic acid:
  • Figure imgb0126
  • To a solution of the amidoxime (500 mg, 2.1 mmol) in DMF (10 mL) was added terephthalic acid monomethyl ester (0.6 g, 3.3 mmol), EDCI (0.6 g, 3.3 mmol), HOBt (0.49 g, 3.3 mmol) and Et3N (0.6 mL, 4.2 mmol). After stirring overnight at room temperature, the mixture was poured into water and extracted with Ethyl acetate. The organic layer was washed with 1 N HC!, water, brine, dried over Na2SO4 and evaporated. The residue was dissolved in anhydrous DME (20 mL) containing Et3N (0.6 mL, 4.2 mmol, 2.0 eq. with respect to the amidoxime). The mixture was bought to reflux and the reaction followed by TLC. After 4 h, the mixture was allowed to cool to room temperature and the solvent removed under vacuum. The residue was subjected to combiflash to afford the 1,2,4-oxadiazole (0.4 g, 50% yield). Mass: m/z: 381 (M+1). 1H NMR (500 MHz, CDCl3): δ 0.93 (t, 3 H, J = 7.0 Hz), 1.37-1.39 (m, 4 H), 1.50-1.56 (m, 2 H), 1.83-1.86 (m, 2 H), 3.97 (s, 3 H), 4.05 (t, 2 H, J = 6.5 Hz), 7.03 (d, 2 H, J = 6.5 Hz), 8.13 (d, 2 H, J = 6.5 Hz), 8.23 (d, 2 H, J = 6.5 Hz), 8.31 (d, 2 H, J = 6.5 Hz).
  • Hydrolysis of the ester (40 mg, 0.1 mmol) as described previously using LiOH (10 mg, 0.4 mmol) gave the corresponding carboxylic acid (33 mg, 87%). Mass: m/z: 365 (M-1); HPLC retention time: 5.260.
    • (vii) With the heterocycle being pyridine LP-023 precursor 4-(6-(4-(hexyloxy)phenyl)pyridin-3-yl)benzoic acid:
  • Figure imgb0127
  • A mixture of 2-Bromopyridyl-5-boronic acid (300 mg, 1.5 mmol), methyl-4-iodobenzoate (400 mg, 1.5 mmol) and K2CO3 (310 mg, 2.25 mmol) in toluene (10 mL) containing EtOH (1.5 mL) and water (0.4 mL) was degassed for 5 minutes using Argon. Pd(PPh3)4 (40 mg, 0.03 mmol) was added and the mixture refluxed overnight under Argon. After cooling to room temperature, the solvent was removed and the residue washed extracted with EtOAc. The organic layer was washed with water, dried and evaporated. The crude product was triturated with Et2O to afford pure product (300 mg, 70%). Mass: m/z 292(M+1). 1H NMR (500 MHz, CDCl3): δ 3.98 (s, 3 H), 7.61 (d, 1 H, J = 8.0 Hz), 7.64 (d, 2 H, J = 8.0 Hz), 7.79 (dd, 1 H, J = 2.5, 8.0 Hz), 8.19 (d, 2 H, J = 8.0 Hz), 8.65 (d, 1 H, J = 2.2 Hz).
  • To the above product (300 mg, 1.0 mmol) in in toluene (10 mL) containing EtOH (1.5 mL) and water (0.4 mL) was added 4-hexyloxybenzeneboronic acid (300 mg, 1.3 mmol) and K2CO3 (280 mg, 2.0 mmol). After degassing for 5 minutes, Pd(PPh3)4 (40 mg, 0.03 mmol) was added and the mixture refluxed overnight under Argon. After cooling to room temperature, the solid formed was filtered and washed with MeOH to afford product (280 mg, 75%). 1H NMR (500 MHz, DMSO-d6): δ 0.90 (br s, 3 H), 1.34-1.50 (m, 6 H), 1.73-1.75 (m, 2 H), 3.90 (s, 3 H), 3.95 (m, 2 H), 7.07 (d, 2 H, J = 8.0 Hz), 7.73 - 8.13 (m, 8 H), 9.02 (s, 1 H).
  • The above product was hydrolyzed by refluxing in dioxane containing 1.5 mL 1 N LiOH solution overnight. The mixture was neutralized using 1 N HCl. The solid formed was filtered, washed with water and dried to afford the carboxylic acid (200 mg, 71 %). HPLC retention time: 5.014.
    • LP-020 precursor 4-[5-(4-Hexyloxy-phenyl)-pyridin-2-yl]-benzoic acid.
  • Using the same sequence of reactions, the regioisomer was synthesized. Thus, coupling of 2-bromopyridyl-5-boronic acid with 4-O-hexyloxy-iodobenzene followed by reacting with 4-carbomethoxyphenylboronic acid and hydrolysis gave 4-[5-(4-Hexyloxy-phenyl)-pyridin-2-yl]-benzoic acid.
    Figure imgb0128
    • (d) Side chains of the form alkyl-heterocycle-phenyl-C(O)- LP-033 precursor
  • Figure imgb0129
  • To a solution of 4-carbomethoxybenzaldehyde (2.0 g, 12.0 mmol) in EtOH (5 mL) containing pyridine (1.3 mL, 18.3 mmol) was added NH2OH.HCl (1.0 g, 14.4 mmol). After stirring at room temperature overnight, solvent was evaporated and the residue partitioned between EtOAc and 1 N HCl. Organic layer was dried and evaporated to afford the oxime (2.0 g, 91%). 1H NMR: (500 MHz, CDCl3): δ 3.97 (s, 3 H), 7.96 (d, 2 H, J = 7.0 Hz), 8.06 - 8.11 (m, 3 H).
  • The above oxime (500 mg, 2.8 mmol) was dissolved in dry DMF (3 mL) and heated to 50 °C. N-Chlorosuccinimide (370 mg, 2.8 mmol) was then added and the mixture stirred at room temperature for 1 h. The mixture was diluted with water and extracted with Et2O, dried and evaporated to afford the product (480 mg) which was used as such.
  • To a mixture of the above product (213 mg, 1.0 mmol) and 4-phenoxyphenyl acetylene (198 mg, 1.0 mmol) in t-BuOH-water (1:1 ration, 6 mL) was added sodium ascorbate (100 uL of 1 M solution, 10 mol%), CuSO4.5H2O (2.7 mg in 100 uL water, 2 mol%) and KHCO3 (433 mg, 3.5 mmol). The mixture was stirred vigorously at room temperature for 1.5 h and poured into 50 mL water. The solid formed was filtered, washed with MeOH and dried to afford product (150 mg, 51 %). 1H NMR: (500 MHz, DMSO-d 6): δ 3.94 (s, 3 H), 6.63 (s, 1 H), 6.82-7.13 (m, 3 H), 7.21-7.44 (m, 4 H), 7.82 (d, 2 H, J = 8.5 Hz), 7.36 (d, 2 H, J = 8.5 Hz), 8.17 (d, 2 H, J = 8.5 Hz).
  • The product obtained above was subjected to hydrolysis as described previously using LiOH in Dioxane-water to afford the corresponding carboxylic acid (100 mg, 71 %). HPLC retention time: 4.050.
    • (2) REFERENCE EXAMPLES OF SIDE CHAINS COMPRISING PHENYL AND/OR NAPHTHYL (a) Side chains containing phenyl LP-016 precursor 4-(4-(4-(hexyloxy) phenyl) phenyl) benzoic acid
  • Figure imgb0130
  • 4-(4-hexyloxyphenyl)bromobenzene (200 mg, 0.6 mmol) and 4-carbomethoxyphenylboronic acid (160 mg, 0.9 mmol) were coupled as described before using Pd(PPh3)4 (40 mg, 0.03 mmol), K2CO3 (186 mg, 1.3 mmol) in toluene (10 mL) containing EtOH (1.5 mL) and water (0.4 mL) under Argon atmosphere. After refluxing for 2 h, the solid formed was filtered, washed with water and MeOH to afford product (0.2 g, 86%) which was subjected to hydrolysis as described previously by reflusing in dioxane (15 mL) containing 1 N NaOH (1.0 mL) for 24 h to provide the carboxylic acid (0.13 g, 68%). 1H NMR (500 MHz, DMSO-d 6): δ 0.89 (t, 3 H, J = 7.0 Hz), 1.32-1.35 (m, 4 H), 1.43-1.46 (m, 2 H), 1.72-1.75 (m, 2 H), 4.02 (t, 2 H, J = 6.5 Hz), 7.04 (d, 2 H, J = 8.2 Hz), 7.67 (d, 2 H, J = 8.2 Hz), 7.76 (d, 2 H, J = 8.2 Hz), 7.83 (d, 2 H, J = 8.2 Hz), 7.86 (d, 2 H, J = 8.2 Hz), 8.03 (d, 2 H, J = 8.2 Hz). Mass: m/z 376 (M+1); HPLC retention time: 5.029.
    • LP-017 precursor
  • Using the same methodology as that described above for LP-015 precursor, but using 4-(4-heptyloxyphenyl)bromobenzene instead of the hexyl analogue, the heptyloxy terphenyl compound was synthesised.
    • LP-018 precursor
  • Using the same methodology as that described above for LP-015 precursor, but using 4-(4-pentyloxyphenyl)bromobenzene instead of the hexyl analogue, the pentyloxy terphenyl compound was synthesised.
    • LP-006 precursor 4-(4-(4-propyloxyphenyl)phenethyl)benzoic acid
  • Figure imgb0131
  • To a suspension of the wittig salt (730 mg, 1.4 mmol) in anhydrous THF (10 mL) was added LiHMDS (1 M soln in THF, 1.5 mL, 1.5 mmol) at 0 °C. After 1 hr, 4-bromobenzaldehyde (250 mg, 1.3 mmo) was added as a solution in THF (2 mL) and the resulting mixture stirred at room temperature for 2 h. The reaction was quenched by adding ice and solvent evaporated. The residue was partitioned between EtOAc and water. Organic layer was dried, evaporated and residue purified by combiflash to afford the product (285 mg cis isomer and and 142 mg trans isomer, 98% yield). The minor isomer (142 mg, 0.4 mmol) was dissolved in toluene (5 mL) containing EtOH (0.7 mL), water (0.2 mL), K2CO3 (124 mg, 0.9 mmol) and 4-propyloxyphenylboronic acid (120 mg, 0.6 mmol). After degassing for 5 minutes Pd(PPh3)4 (23 mg, .02 mmol)was added and the mixture refluxed for 3 h. The product crystalised out of the reaction mixture and was filtered, washed with water and MeOH (100 mg, 62%). 1H NMR: (500 MHz, DMSO-d 6): δ 1.01 (t, 3 H, J = 7.4 Hz), 1.72 (m, 2 H), 3.86 (s, 3 H), 3.98 (t, 3 H, J = 6.5 Hz), 7.01 (d, 2 H, J = 6.5 Hz), 7.36 (d, 1 H, J = 12.0 Hz), 7.45 (d, 1 H, J = 12.0 Hz), 7.65-7.72 (m, 6 H), 7.76 (d, 2 H, J = 8.0 Hz), 7.96 (d, 2 H, J = 8.0 Hz).
  • The product obtained by Suzuki coupling (100 mg) was dissolved in THF and subjected to hydrogenation using Pd/C (10 % wet) at 1 atm pressure overnight. Filtration of the reaction mixture through celite and evaporation of the filtrate afforded the product as white solid (100 mg). 1H NMR: (500 MHz, DMSO-d 6): δ 1.0 (t, 3 H, J = 7.4 Hz), 1.76 (m, 2 H), 2.92-3.30 (m, 4 H), 3.84 (s, 3 H), 3.95 (t, 3 H, J = 6.5 Hz), 7.00 (d, 2 H, J = 6.5 Hz), 7.29 (d, 2 H, J = 6.5 Hz), 7.40 (d, 2 H, J = 6.5 Hz), 7.51 (d, 2 H, J = 6.5 Hz), 7.57 (d, 2 H, J = 6.5 Hz), 7.88 (d, 2 H, J = 6.5 Hz).
  • The product (100 mg, 0.26 mmol) was hydrolysed using LiOH (12 mg, 0.5 mmol) in dioxane (5 mL) containing water (1 mL) at 110 °C to afford the corresponding carboxylic acid (80 mg, 83%). 1H NMR: (500 MHz, DMSO-d6): δ 1.0 (t, 3 H, J = 7.4 Hz), 1.73-1.77 (m, 2 H), 2.90-2.98 (m, 4 H), 3.98 (t, 3 H, J = 6.5 Hz), 6.99 (d, 2 H, J = 6.5 Hz), 7.29 (d, 2 H, J = 6.5 Hz), 7.36 (d, 2 H, J = 6.5 Hz), 7.53 (d, 2 H, J = 6.5 Hz), 7.57 (d, 2 H, J = 6.5 Hz), 7.85 (d, 2 H, J = 6.5 Hz).
    • LP-007 precursor Methyl 4-[(4-n-butylphenyl)-4-phenethenyl]-benzoate
  • Figure imgb0132
  • E-Methyl-4-[(4-bromophenethenyl)]-benzoate (0.11 g, 0.34mmol) and 4-n-butylbenzene boronic acid (0.12g, 0.68mmol) were dissolved in 1,4-dioxane/H2O (1 mL, 4:1). The solution was purged with Argon prior to the addition of K2CO3 (0.094g, 0.68mmol) and Pd(PPh3)4 (19.3mg, 0.017mmol). The reaction mixture was then heated at 100°C. After 16h, it was cooled to rt and diluted with EtOAc and water. The organic layer was separated and the aqueous layer was extracted (3x) with EtOAc. Combined organic layers was washed (2x) with brine, dried (Na2SO4), filtered and concentrated. The crude material was purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give the desired product (82.9mg, 66%). 1H-NMR (500MHz, CDCl3) δ 7.93 (d, 2H, J = 8.0Hz), 7.50 (d, 2H, J = 7.4Hz), 7.46 (d, 2H, J = 7.4Hz), 7.37 (d, 2H, 8.0Hz), 7.28 (d, 2H, J = 7.8Hz), 7.25 (d, 2H, J = 7.8Hz), 6.73 (d, 1 H, J = 12.2Hz), 6.63 (d, 1 H, J = 12.2Hz), 3.91 (s, 3H), 2.67 - 2.64 (m, 2H), 1.68 - 1.62 (m, 2H), 1.43 - 1.36 (m, 2H), 0.96 (t, 3H, J = 7.3Hz).
    • Methyl-4-[(4-n-butylphenyl)-4-phenethyl]-benzoate
  • Figure imgb0133
  • To the starting material (82.9mg, 0.22mmol) in THF (10mL) was added 10% Pd/C (10mg). The suspension was stirred at room temperature under 1atm of H2 (balloon). After 16hr, the reaction mixture was filtered through Celite, concentrated under reduced pressure and purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give the desired product (73.2mg, 88%). 1H-NMR (500MHz, CDCl3) δ 7.96 (d, 2H, J = 8.2Hz), 7.51 (d, 2H, J = 8.1 Hz), 7.50 (d, 2H, J = 8.1 Hz), 7.26 - 7.24 (m, 4H), 7.21 (d, 2H, J = 8.1 Hz), 3.04 - 2.96 (m, 4H), 2.67 - 2.64 (m, 2H), 1.68 - 1.62 (m, 2H), 1.44 - 1.36 (m, 2H), 0.96 (t, 3H, J = 7.3Hz).
    • 4-[(4-n-Butylphenyl)-4-phenethyl]-benzoic acid
  • Figure imgb0134
  • The ester (69.2mg, 0.19mmol) was dissolved in THF/MeOH/H2O (10mL; 7:2:1). LiOH (8.5mg, 0.37mmol) was then added and the reaction mixture stirred at 50°C. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes; 1:2), solvents were removed under reduced pressure. The crude material was acidified with 1 N HCl, filtered and washed with H2O and ether to give the desired acid as a white solid (58mg, 87%). R t = 5.514min; m/z 329.1546 [M - H]-.
    • 1-H-Benzotriazole-4-[(4-n-butylphenyl)-4-phenethyl]-benzoate
  • Figure imgb0135
  • To the acid (30.5mg, 0.085mmol) in anhyd. THF (10mL) under Argon atmosphere was added DCC (27.8mg, 0.13mmol) and HOBt (17.8mg, 0.13mmol). After stirring at rt for 30min, the reaction mixture was heated at 60°C. After all starting material had reacted, the solvent was removed under reduced pressure. The crude material was taken up in warm ether and filtered to remove insoluble by-products. The filtrate was then concentrated to give the activated ester which was used as such for the next step.
    • LP-002 precursor Methyl-4-[(4-bromophenethenyl)]-benzoate
  • Figure imgb0136
  • The phosphonium salt (1.46g, 2.97mmol) was dissolved in anhydrous THF (20mL) and cooled to 0°C. LiHMDS (1.0M in THF) (2.97mL, 2.97mmol) was added dropwise, stirred at 0°C for 10min then at room temperature for 1 hr. The reaction mixture was then re-cooled to 0°C prior to the addition of 4-bromobenzaldehyde (0.50g, 2.70mmol). It was stirred at 0°C for 10min, then 1 hr at room temperature before heating at 50°C. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes, 1:2), the reaction mixture was diluted with EtOAc and quenched with sat. aq. NH4Cl. The aqueous layer was extracted (3x) with EtOAc, washed with water, dried (Na2SO4), filtered and concentrated. The crude material was purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give E- and Z-methyl-4-[(4-bromophenethenyl)]-benzoate (0.56g and 0.29g, respectively; 99% combined yield). E-isomer: 1H-NMR (500MHz, CDCl3) δ 7.94 (d, 2H, J = 8.4Hz), 7.76 (d, 2H, J = 8.0Hz), 7.37 (d, 2H, J = 8.4Hz), 7.50 (d, 2H, J = 8.0Hz), 6.75 (d, 1 H, J = 12.2Hz), 6.63 (d, 1 H, J = 12.2Hz), 3.97 (s, 3H).
    • Methyl-4-[(4-methoxyphenethenyl)-4-phenethenyl]-benzoate
  • Figure imgb0137
  • E-Methyl-4-[(4-bromophenethenyl)]-benzoate (0.23g, 0.72mmol) and 4-methoxyphenylvinyl boronic acid (0.26g, 1.47mmol) were dissolved in 1,4-dioxane/H2O (3mL, 4:1). The solution was purged with Argon prior to the addition of K2CO3 (0.21g, 1.50mmol) and Pd(PPh3)4 (50mg, 0.043mmol). The reaction mixture was then heated at 100°C. After 16h, it was cooled to rt and diluted with EtOAc and water. The organic layer was separated and the aqueous layer was extracted (3x) with EtOAc. Combined organic layers was washed (2x) with brine, dried (Na2SO4), filtered and concentrated. The crude material was purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give the desired product (0.10g, 52% BRSM). 1H-NMR (500MHz, CDCl3) δ 7.92 - 7.35 (m, 8H), 7.21 - 7.20 (m, 2H), 7.05 (d, 1 H J = 16.3Hz), 6.95 - 6.90 (m, 3H), 6.68 (d, 1 H, J = 12.2Hz), 6.61 (d, 1 H, J = 12.2Hz), 3.91 (s, 3H), 3.84 (s, 3H).
    • Methyl-4-[(4-methoxyphenethyl)-4-phenethyl]-benzoate
  • Figure imgb0138
  • To the starting material (0.10g, 0.28mmol) in THF (10mL) was added 10% Pd/C (12.1 mg). The suspension was stirred at room temperature under 1 atm of H2 (balloon). After 16hr, the reaction mixture was filtered through Celite, concentrated under reduced pressure and purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give the desired product (96.0mg, 90%). 1H-NMR (500MHz, CDCl3) δ 7.95 (d, 2H, J = 8.2Hz), 7.22 (d, 2H, J = 8.1 Hz), 7.10 - 7.07 (m, 6H), 6.83 (d, 2H, J = 8.5Hz), 3.91 (s, 3H), 3.80 (s, 3H), 2.95 - 2.86 (m, 8H).
    • 4-[(4-methoxyphenethyl)-4-phenethyl]-benzoic acid
  • Figure imgb0139
  • The ester (72mg, 0.19mmol) was dissolved in THF/MeOH/H2O (10mL; 7:2:1). LiOH (8.8mg, 0.38mmol) was then added and the reaction mixture stirred at 50°C. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes; 1:2), solvents were removed under reduced pressure. The crude material was acidified with 1 N HCl, filtered and washed with H2O and ether to give the desired acid as a white solid (49mg, 71 %). R t = 4.327min; m/z 359.1599 [M - H]-
    • 1-H-Benzotriazole-4-[(4-methoxyphenethyl)-4-phenethyl]-benzoate
  • Figure imgb0140
  • To the acid (32.1 mg, 0.089mmol) in anhyd. THF (4mL) under Argon atmosphere was added DCC (28.8mg, 0.139mmol) and HOBt (18.1 mg, 0.139mmol). After stirring at rt for 16h, DCC (28.3mg, 0.137mmol) and HOBt (18.3mg, 0.139mmol) were again added. Reaction mixture was then stirred at 60°C. After all starting material had reacted, the solvent was removed under reduced pressure. The crude material was taken up in warm ether and filtered to remove insoluble by-products. The filtrate was then concentrated to give the activated ester which was used as such for the next step.
    • LP-001 precursor Methyl-4-[(4-fluorophenethenyl)-4-phenethenyl]-benzoate
  • Figure imgb0141
  • E-Methyl-4-[(4-bromophenethenyl)]-benzoate (0.25g, 0.791 mmol) and 4-fluoro-phenylvinyl boronic acid (0.21 g, 1.28mmol) were dissolved in 1,4-dioxane/H2O (3mL, 4:1). The solution was purged with Argon prior to the addition of K2CO3 (0.22g, 1.60mmol) and Pd(PPh3)4 (47.4mg, 0.041 mmol). The reaction mixture was then heated at 80°C. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes, 1:2), solvents were removed under reduced pressure. The crude material was re-dissolved in CH2Cl2, washed with water, dried (Na2SO4), filtered and concentrated. The crude product was purified by silica gel chromatography using CombiFlash (EtOAc/hexanes) to give the desired compound (0.15g, 52%). 1H-NMR (500MHz, CDCl3) δ 7.92 (d, 2H, J = 8.2Hz), 7.48 - 7.46 (m, 2H), 7.37 - 7.35 (m, 4H), 7.22 (d, 2H, J = 8.2Hz), 7.07 - 7.04 (m, 3H), 6.97 (d, 1 H, J = 16.3Hz), 6.69 (d, 1 H, J = 12.2Hz), 6.62 (d, 1 H, J = 12.2Hz), 3.91 (s, 3H).
    • Methyl-4-[(4-fluorophenethyl)-4-phenethyl]-benzoate
  • Figure imgb0142
  • To the starting material (0.15g, 0.414mmol) in THF (10mL) was added 10% Pd/C (17.2mg). The suspension was stirred at room temperature under 1 atm of H2 (balloon). After 16hr, the reaction mixture was filtered through Celite, concentrated under reduced pressure and purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give the desired product (0.11 g, 72%). 1H-NMR (500MHz, CDCl3) δ 7.95 (d, 2H, J = 8.0Hz), 7.22 (d, 2H, J = 8.0Hz), 7.12 - 7.06 (m, 6H), 6.96 (d, 1 H, J = 8.7Hz), 6.95 (d, 1 H, J = 8.7Hz), 3.92 (s, 3H), 2.99 - 2.85 (m, 8H).
    • 4-[(4-fluorophenethyl)-4-phenethyl]-benzoic acid
  • Figure imgb0143
  • The ester (0.11 g, 0.300mmol) was dissolved in THF/MeOH/H2O (9mL; 6:2:1). LiOH (15.7mg, 0.654mmol) was then added and the reaction mixture stirred at 60°C. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes; 1:2), solvents were removed under reduced pressure. The crude material was acidified with 1 N HCl, filtered and washed with H2O and ether to give the acid as a white solid (83.1 mg, 79%). R t = 4.469min; m/z 347.1367 [M - H]-.
    • 1-H-Benzotriazole-4-[(4-fluorophenethyl)-4-phenethyl]-benzoate
  • Figure imgb0144
  • To the acid (30.3mg, 0.087mmol) in anhyd. THF (5mL) under Argon atmosphere was added DCC (28.7mg, 0.14mmol) and HOBt (18.4mg, 0.14mmol). The reaction mixture was then stirred at 60°C. After 4hr, DCC (16.8mg, 0.081 mmol) and HOBt (10.6mg, 0.078mmol) were further added and the reaction mixture stirred at 40°C overnight. After all starting material had reacted, the solvent was removed under reduced pressure. The crude material was taken up in ether and filtered to remove insoluble by-products. The filtrate was then concentrated to give the activated ester which was used as such for the next step.
    • LP-003 precursor Methyl-4-[(4-methylphenethenyl)-4-phenethenyl]-benzoate
  • Figure imgb0145
  • E-Methyl-4-[(4-bromophenethenyl)]-benzoate (0.262g, 0.829mmol) and 4-methyl-phenylvinyl boronic acid (0.23g, 1.42mmol) were dissolved in 1,4-dioxane/H2O (3mL, 4:1). The solution was purged with Argon prior to the addition of K2CO3 (0.25g, 1.81 mmol) and Pd(PPh3)4 (52.5mg, 0.045mmol). The reaction mixture was then heated at 80°C. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes, 1:2), solvents were removed under reduced pressure. The crude material was re-dissolved in CH2Cl2, washed with water, dried (Na2SO4), filtered and concentrated. The crude product was purified by silica gel chromatography using CombiFlash (EtOAc/hexanes) to give the desired compound (0.10g, 33%). 1H-NMR (500MHz, CDCl3) δ 7.92 (d, 2H, J = 8.0Hz), 7.41 (d, 2H, d = 7.8Hz), 7.38 - 7.35 (m, 4H), 7.21 (d, 2H, J = 8.0Hz), 7.17 (d, 2H, J = 7.8Hz), 7.07 (d, 1H, J = 16.2Hz), 7.01 (d, 1H, J = 16.2Hz), 6.70 (d, 1H, J = 12.2Hz), 6.61 (d, 1H, J = 12.2Hz), 3.92 (s, 3H), 2.37 (s, 3H).
    • Methyl-4-[(4-methylphenethyl)-4-phenethyl]-benzoate
  • Figure imgb0146
  • To the starting material (0.10g, 0.28mmol) in THF (10mL) was added 10% Pd/C (12.5mg). The suspension was stirred at room temperature under 1 atm of H2 (balloon). After 16hr, the reaction mixture was filtered through Celite, concentrated under reduced pressure and purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give the desired product (80.0mg, 80%). 1H-NMR (500MHz, CD3OD) δ 7.96 (d, 2H, J = 8.0Hz), 7.23 (d, 2H, J = 8.0Hz), 7.12 - 7.06 (m, 8H), 3.92 (s, 3H), 3.00 - 2.88 (m, 8H), 2.34 (s, 3H).
    • 4-[(4-Methylphenethyl)-4-phenethyl]-benzoic acid
  • Figure imgb0147
  • The ester (80.0mg, 0.22mmol) was dissolved in THF/MeOH/H2O (9mL; 6:2:1). LiOH (10.9mg, 0.37mmol) was then added and the reaction mixture stirred at 50°C. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes; 1:2), solvents were removed under reduced pressure. The crude material was acidified with 1 N HCl, filtered and washed with H2O and ether to give the acid as a white solid (53.4mg, 69%). 1H-NMR (500MHz, d 6-DMSO) δ 7.71 (d, 2H, J = 7.9Hz), 7.17 - 6.91 (m, 10H), 2.25 (s, 3H).
    • 1-H-Benzotriazole-4-[(4-methylphenethyl)-4-phenethyl]-benzoate
  • Figure imgb0148
  • To the acid (33.3mg, 0.097mmol) in anhyd. THF (10mL) under Argon atmosphere was added DCC (33.3mg, 0.16mmol) and HOBt (21.3mg, 0.16mmol). The reaction mixture was then stirred at 60°C. After 4hr, DCC (17.4mg, 0.084mmol) and HOBt (11.5mg, 0.085mmol) were further added and the reaction mixture stirred at 40°C overnight. After all starting material had reacted, the solvent was removed under reduced pressure. The crude material was taken up in ether and filtered to remove insoluble by-products. The filtrate was then concentrated to give the activated ester which was used as such for the next step.
    • (b) Side chains containing naphthylene LP-009 precursor
  • Figure imgb0149
  • 6-Bromo-naphthalene-2-carboxylic acid methyl ester (0.2 g, 0.75mmol) and 4-styrylphenylboronic acid (0.25 g, 1.1 mmol) were dissolved in toluene/EtOH/H2O (15mL, 10:4:1). The solution was purged with Argon prior to the addition of K2CO3 (0.31 g, 2.2 mmol) and Pd(PPh3)4 (25.0mg). The reaction mixture was then heated at reflux overnight. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes, 1:9), solvents were removed under reduced pressure. The crude material was re-dissolved in EtOAc, washed with water, dried (Na2SO4), filtered and concentrated. The crude product was purified by silica gel chromatography using CombiFlash (EtOAc/hexanes) to give the desired compound (120 mg)which upon hydrogenation over Pd/C in THF under hydrogen atmosphere gave 6-(4-Phenethyl-phenyl)-naphthalene-2-carboxylic acid methyl ester (100 mg). This compound was subjected to hydrolysis in refluxing dioxane-water in presence of NaOH overnight to afford 6-(4-Phenethyl-phenyl)-naphthalene-2-carboxylic acid.
    • LP-011 precursor 6-Bromo-2-napthaldehyde
  • Figure imgb0150
  • To a cooled (0°C) solution of methyl-6-bromo-2-napthoate (1.20g, 5.20mmol) in anhyd. CH2Cl2 (30mL), was added DIBAL (1.0M in toluene; 18mL, 18mmol) dropwise under Argon atmosphere. The reaction mixture was stirred overnight at room temperature. After all starting material had reacted as indicated by TLC (EtOAc/hexanes, 1:4), the reaction mixture was cooled to 0°C, then MeOH carefully added. It was then diluted with ether and 20% sodium tartrate solution added. After vigorous stirring for 1 hr, the organic layer was separated and the aqueous layer extracted (2x) with ether. The combined organic extracts was washed with brine, dried (Na2SO4), filtered and concentrated. The crude product was used for the next step without further purification or characterization.
  • The crude product obtained above was dissolved in CH2Cl2 (50mL) and MnO2 (7.8g, 89.7mmol) added. The reaction mixture was stirred overnight at room temperature. After all starting material had reacted as indicated by TLC (EtOAc/hexanes, 1:4), the reaction mixture was filtered through Celite and concentrated under reduced pressure. The crude material was passed through a short silica column to give the desired aldehyde (0.66g, 61%). 1H-NMR (500MHz, CDCl3) δ 10.2 (s, 1H), 8.32 (s, 1H), 8.10 (s, 1H), 8.00 (dd, 1 H, J = 1.5, 8.5Hz), 7.89 - 7.86 (m, 2H), 7.67 (dd, 1H, J = 1.9, 8.7Hz).
    • Methyl-4-[2-(6-bromonaphthalen-2-yl)vinyl]-benzoate
  • Figure imgb0151
  • The Wittig salt (0.42g, 0.857mmol) was dissolved in anhyd. THF (8mL) then cooled to 0°C. After 15min, LiHMDS (1.0M in THF; 1.3mL, 1.3mmol) was added drop-wise. Ice-bath was removed and the reaction mixture was stirred at room temperature for 1 hr, then re-cooled to 0°C prior to the drop-wise addition of the aldehyde (70.7mg, 0.302mol). The reaction mixture was then stirred at room temperature. After all starting material had reacted, the reaction mixture was cooled to 0°C and diluted with EtOAc. Sat. aq. NH4Cl was carefully added to the vigorously stirred mixture. Aqueous layer was then separated and extracted with EtOAc. Combined organic extracts was washed with brine, dried (Na2SO4), filtered and concentrated. The crude material was purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give the desired product (75.4mg, 68%). 1H-NMR (500MHz, CDCl3) δ 7.94 (s, 1H), 7.90 (d, 2H, J = 8.1 Hz), 7.68 (s, 1 H), 7.58 - 7.50 (m, 3H), 7.33 - 7.27 (m, 3H), 6.83 (d, 1 H, J = 12.2Hz), 6.72 (d, 1 H, J = 12.2Hz), 3.91 (s, 3H).
    • Methyl-4-[2-(6-phenylnaphthalen-2-yl)vinyl]-benzoate
  • Figure imgb0152
  • The bromo-ester (75.4mg, 0.205mmol) and phenylboronic acid (37.5mg, 0.310mmol) were dissolved in 1,4-dioxane/H2O (6mL, 4:1). The solution was purged with Argon prior to the addition of K2CO3 (57.1 mg, 0.413mmol) and Pd(PPh3)4 (12.3mg, 0.0106mmol). The reaction mixture was then heated at 80°C. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes, 1:9), solvents were removed under reduced pressure. The crude material was re-dissolved in EtOAc, washed with water, dried (Na2SO4), filtered and concentrated. The crude product was purified by silica gel chromatography using CombiFlash (EtOAc/hexanes) to give the desired compound (45.0mg, 60%). 1H-NMR (500MHz, CDCl3) δ 7.98 (s, 1H), 7.91 (d, 2H, J = 8.4Hz), 7.79 (d, 1 H, J = 8.5Hz), 7.75 - 7.71 (m, 5H), 7.51 - 7.48 (m, 2H), 7.41 - 7.33 (m, 4H), 6.88 (d, 1 H, J = 12.2Hz), 6.72 (d, 1 H, J = 12.2Hz), 3.92 (s, 3H).
    • Methyl-4-[2-(6-phenylnaphthalen-2-yl)ethyl]-benzoate
  • Figure imgb0153
  • To the starting material (0.117g, 0.320mmol) in THF (15mL) was added 10% Pd/C (17.2mg). The suspension was stirred at room temperature under 1atm of H2 (balloon). After 16hr, the reaction mixture was filtered through Celite, concentrated under reduced pressure and purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give the desired product (0.109g, 93%). 1H-NMR (500MHz, CDCl3) δ 8.02 (s, 1 H), 7.97 (d, 2H, J = 7.9Hz), 7.84 (d, 2H, J = 8.3Hz), 7.75 - 7.72 (m, 3H), 7.61 (s, 1H), 7.51 - 7.48 (m, 2H), 7.40 - 7.27 (m, 4H), 3.92 (s, 3H), 3.13 - 3.10 (m, 4H).
    • 4-[2-(6-Phenylnaphthalen-2-yl)ethyl]-benzoic acid
  • Figure imgb0154
  • The ester (0.109g, 0.297mmol) was dissolved in THF/MeOH/H2O (13mL; 10:2:1). LiOH (16.7mg, 0.696mmol) was then added and the reaction mixture stirred at 60°C. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes; 1:2), solvents were removed under reduced pressure. The crude material was acidified with 1 N HCl, filtered and washed with H2O and ether to give the acid as a white solid (71.3mg, 68%). 1H-NMR (500MHz, d 6-DMSO) δ 8.15 (s, 1 H), 7.90 (d, 1 H, J = 8.3Hz), 7.89 (d, 1 H, J = 8.4Hz), 7.84 (d, 2H, J = 8.2Hz), 7.80 - 7.78 (m, 3H), 7.72 (s, 1 H), 7.51 - 7.36 (m, 6H), 3.07 (m, 4H).
    • 1-H-Benzotriazole-4-[2-(6-phenylnaphthalen-2-yl)ethyl]-benzoate
  • Figure imgb0155
  • To the acid (27.4mg, 0.078mmol) in anhyd. THF (5mL) under Argon atmosphere was added DCC (27.3mg, 0.132mmol) and HOBt (16.3mg, 0.121mmol). The reaction mixture was then stirred at room temperature. After 2hr, DCC (13.3mg, 0.064mmol) and HOBt (16.2mg, 0.120mmol) were further added and the reaction mixture stirred at room temperature overnight. After all starting material had reacted, the solvent was removed under reduced pressure. The crude material was taken up in ether and filtered to remove insoluble by-products. The filtrate was then concentrated to give the activated ester which was used as such for the next step.
    • LP-010 precursor
  • Figure imgb0156
  • 4-[2-(4-Bromo-phenyl)-vinyl]-benzoic acid methyl ester (0.2 g, 0.6 mmol) and naphthyl-2-boronic acid (0.16 g, 0.9 mmol) were dissolved in toluene/EtOH/H2O (15mL, 10:4:1). The solution was purged with Argon prior to the addition of K2CO3 (0.256 g, 1.8 mmol) and Pd(PPh3)4 (20.0mg). The reaction mixture was then heated at reflux overnight. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes, 1:9), solvents were removed under reduced pressure. The crude material was re-dissolved in EtOAc, washed with water, dried (Na2SO4), filtered and concentrated. The crude product was purified by silica gel chromatography using CombiFlash (EtOAc/hexanes) to give the desired compound (130 mg) which upon hydrogenation over Pd/C in THF under hydrogen atmosphere gave 4-[2-(4-Naphthalen-2-yl-phenyl)-ethyl]-benzoic acid methyl ester (110 mg). This compound was subjected to hydrolysis in refluxing dioxane-water in presence of NaOH overnight to afford 4-[2-(4-Naphthalen-2-yl-phenyl)-ethyl]-benzoic acid. HPLC Rt: 4.68min
    • LP-008 precursor 2-Bromo-6-styrylnaphthalene
  • Figure imgb0157
  • Benzyltriphenylphosphonium chloride (0.735g, 1.89mmol) was dissolved in anhyd. THF (15mL) then cooled to 0°C. After 15min, LiHMDS (1.0M in THF; 3.8mL, 3.80mol) was added drop-wise. Ice-bath was removed and the reaction mixture was stirred at room temperature overnight prior to the addition of the aldehyde (0.213g, 0.906mol). The reaction mixture was then stirred at room temperature for 16h then worked-up by cooling to 0°C and diluted with EtOAc. Sat. aq. NH4Cl was carefully added to the vigorously stirred mixture. Aqueous layer was then separated and extracted with EtOAc. Combined organic extracts was washed with brine, dried (Na2SO4), filtered and concentrated. The crude material was purified by silica gel chromatography using CombiFlash (EtOAc/hexanes) to give the desired product (0.11g, 20%). 1H-NMR (500MHz, CDCl3) δ 7.95 (s, 1 H), 7.71 (s, 1 H), 7.60 - 7.57 (m, 2H), 7.52 (d, 1 H, J = 8.5Hz), 7.38 (d, 1 H, J = 8.5Hz), 7.29 - 7.25 (m, 5H).
    • Methyl-4-[6-styrylnaphthalen-2-yl]-benzoate
  • Figure imgb0158
  • The bromo-alkene (0.115g, 0.372mmol) and 4-methylcarboxyphenylboronic acid (0.10g, 0.556mmol) were dissolved in 1,4-dioxane/H2O (9mL, 8:1). The solution was purged with Argon prior to the addition of K2CO3 (0.10g, 0.723mmol) and Pd(PPh3)4 (21.0mg, 0.0182mmol). The reaction mixture was then heated at 60°C overnight. After all starting material had reacted as indicated by TLC (CH2Cl2/hexanes, 1:9), solvents were removed under reduced pressure. The crude material was re-dissolved in EtOAc, washed with water, dried (Na2SO4), filtered and concentrated. The crude product was purified by silica gel chromatography using CombiFlash (EtOAc/hexanes) to give the desired compound (22.1mg, 16%). 1H-NMR (500MHz, CDCl3) δ 7.97 (s, 1 H), 7.91 (d, 2H, J = 8.4z), 7.76 (d, 1 H, J = 8.6Hz), 7.69 (s, 1 H), 7.61 - 7.58 (m, 2H), 7.52 (d, 1 H, J = 8.5Hz), 7.41 (d, 1 H, J = 8.5Hz), 7.32 - 7.27 (m, 6H), 6.71 (d, 1 H, J = 12.2Hz), 6.62 (d, 1 H, J = 12.2Hz), 3.97 (s, 3H).
    • Methyl-4-[6-phenethylnaphthalen-2-yl]-benzoate
  • Figure imgb0159
  • To the starting material (22.1mg, 0.0605mmol) in THF (10mL) was added 10% Pd/C (5.2mg). The suspension was stirred at room temperature under 1 atm of H2 (balloon). After 16hr, the reaction mixture was filtered through Celite, concentrated under reduced pressure and purified by silica gel chromatography using CombiFlash (CH2Cl2/hexanes) to give the desired product (21.4mg, 96%). 1H-NMR (500MHz, CDCl3) δ 8.15 (d, 2H, J = 8.0Hz), 8.06 (s, 1 H), 7.87 - 7.86 (m, 2H), 7.80 (d, 1 H, J = 8.0Hz), 7.74 (d, 1 H, J = 8.6Hz), 7.64 (s, 1 H), 7.38 (d, 1 H, J = 8.3Hz), 7.31 - 7.20 (m, 5H), 3.97(s, 3H), 3.14 - 3.03 (m, 4H).
    • 4-[6-Phenethylnaphthalen-2-yl]-benzoic acid
  • Figure imgb0160
  • The ester (21.4mg, 0.0583mmol) was dissolved in THF/MeOH/H2O (11 mL; 8:2:1). LiOH (3.5mg, 0.146mmol) was then added and the reaction mixture stirred at 60°C. After all starting material had reacted as indicated by TLC (EtOAc/hexanes; 1:9), solvents were removed under reduced pressure. The crude material was acidified with 1 N HCl, filtered and washed with H2O and ether to give the acid as a white solid (15.2mg, 74%). Rt = 4.773min; m/z 351.1343 [M - H]-.
    • 1-H-Benzotriazole-4-[6-phenethylnaphthalen-2-yl]-benzoate
  • Figure imgb0161
  • To the acid (15.2mg, 0.043mmol) in anhyd. THF (2mL) under Argon atmosphere was added DCC (23.8mg, 0.115mmol) and HOBt (15.7mg, 0.116mmol). The reaction mixture was then stirred at room temperature overnight, then at 40°C. After all starting material had reacted, the solvent was removed under reduced pressure. The crude material was taken up in ether and filtered to remove insoluble by-products. The filtrate was then concentrated to give the activated ester which was used as such for the next step.
    • LP-013 precursor
  • This precursor was synthesised by alkylation of the Naphthalene carboxylic ester with the appropriate alkylating agent, i.e. alkyl bromide followed by ester hydrolysis and preparation of activated ester.
    • LP-014 precursor
  • This precursor was synthesised by alkylation of the Naphthalene carboxylic ester with the appropriate alkylating agent, i.e. alkyl bromide followed by ester hydrolysis and preparation of activated ester.
    • LP-015 precursor
  • This precursor was synthesised by alkylation of the Naphthalene carboxylic ester with the appropriate alkylating agent, i.e. alkyl bromide followed by ester hydrolysis and preparation of activated ester.
    • (C) COUPLING OF SIDE CHAINS TO LIPOPEPTIDE (1) Synthesis of Activated esters Synthesis of Pentafluorophenyl esters of carboxylic acids:
  • To a solution of the carboxylic acid (0.3 mmol) in anhydrous THF (2 mL) under Ar was added DCC (0.32 mmol) and pentafluorophenol (0.35 mmol) and stirred at room temperature overnight. After cooling the reaction mixture to 0°C, DCU was filtered off and the filtrate evaporated under vacuum. The residue was recrystalised from Et2O-Hexane (4:1) to afford the pentafluorophenol ester.
    • Synthesis of HOBt ester of carboxylic acids:
  • To a solution of the carboxylic acid (0.3 mmol) in anhydrous THF (2 mL) under Argon was added DCC (0.45 mmol) and HOBt (0.45 mmol) and stirred at room temperature overnight. After cooling the reaction mixture to 0°C, DCU was filtered off and the filtrate evaporated under vacuum to afford the HOBt ester which was used as such for coupling.
    • (2) Coupling with GM539 Method A. Coupling done in the absence of CaCl2:
  • GM539 (20 mg, 0.015 mmol) and the pentafluorophenol ester (22 mg, 0.045 mmol) were dissolved in anhydrous DMF (0.4 mL) under Argon. DIPEA (8.3 µL, 0.045 mmol) was added and the reaction was stirred at room temeprature for 2.5 h at the end of which HPLC indicated consumption of starting material. 20% piperdine in DMF (100 µL) was added to the reaction mixture and stirred for 20 min at room temperature which was sufficient to deprotect the Fmoc- group. 20% piperdine in DMF (100 µL) was added and the reaction monitered by HPLC. After completion of the reaction, the mixture was purified by preparative HPLC (gradient elution, ACN-H2O with 0.1% HCO2H) and collecting fractions in tubes containing phosphate buffer to afford two separated peaks having the same molecular mass. These fractions were reanalyzed by analytical HPLC and evaporated separately. The residue was loaded on a pre-washed (with 100 mL MeOH and 100 mL water) C-18 plug and washed with 100 mL water. The compound was eluted using MeOH (50 mL) and the fractions containing product evaporated.
    • Method B. Coupling done in presence of CaCl2 using pentafluorophenol activated ester:
  • GM539 (20 mg, 0.015 mmol) and CaCl2 (3.3 mg, 0.030 mmol) were taken in anhydrous DMF (0.2 mL) under Argon. After cooling to 0 °C, Et3N (10.4 uL, 0.075 mmol) was added and stirring continued for another 5 minutes at the same temperature to ensure dissolution of CaCl2. Pentafluorophenylester (0.045 mmol) was then introduced at 0 °C and stirred for 2 h at the same temperature. After stirring overnight.at room temperature, 20% piperdine in DMF (100 µL) was added and the reaction monitered by HPLC. After completion of the reaction, the product was purified by preparative HPLC and isolated as described in method A.
    • Method C: Coupling in absence of CaC/ 2 using HOBt ester
  • GM539 (20 mg, 0.015 mmol) and the HOBt ester (0.045 mmol) were dissolved in anhydrous DMF (0.5 mL) under Argon. DIPEA (8.3 µL, 0.045 mmol) was added and the reaction was stirred at room temeprature for 2.5 h at the end of which HPLC indicated consumption of starting material. 20% piperdine in DMF (100 µL) was added and the reaction monitered by HPLC. After completion of the reaction, the product was purified by preparative HPLC and isolated as described in method A.
    • Method D: Coupling in presence of CaCl2 using HOBt ester:
  • GM539 (10 mg, 0.007 mmol) and CaCl2 (1.7 mg, 0.015 mmol) were taken in anhydrous DMF (0.5 mL) under Argon. After cooling to 0 °C, Et3N (5.4 uL, 0.038 mmol) was added and stirring continued for another 5 minutes at the same temperature to ensure dissolution of CaCl2. HOBt ester (0.021 mmol) was added and the mixture stirred at 0 °C for 1 hour and then at room temperature till the reaction was complete. Piperidine (100 uL of 20% stock solution in DMF) was added and the reaction monitored by HPLC. After completion of the reaction, the product was purified by preparative HPLC and isolated as described in method A.
    • Method E: Coupling in presence of CaCl2 pentafluorophenol activated ester:
  • GM539 (0.015 mmol) and CaCl2 (0.03mmol, 2eq) was added with 1.0 ml DMF. To this suspension was added triethylamine (Et3N, 0.075mmol, 5eq), then stirred for 10-15min at 0°C. The activated acid was added and the mixture stirred at 0°C for another hour. The mixture was warmed to room temperature and stirred overnight. The reaction was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water as solvent).
  • The fractions containing the product were dried under reduced pressure, dissolved in 1mL DMF, added with TBAF hydrate (15eq) then stirred for 1 hr. After 3 hrs of incomplete reaction, 10uL of 20% piperidine in DMF was added and the mixture stirred for an additional 1hr. The mixture was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water with 0.1% formic acid as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1 g).
    • Method F. Coupling in the presence of CaCl2 and pentafluorophenol activated ester:
  • To a mixture of GM539 (0.0164 mmol) and CaCl2 (0.033 mmol, 2eq) in 0.5 ml DMF was added the activated acid (3eq in 0.5mL DMF with 0.4mL anh THF washing). After 10-15min stirring at room temperature, triethylamine (Et3N, 0.082mmol, 5eq) was added at 0°C and kept stirring for another two hours. The mixture was warmed to room temperature and stirred until all the starting material has been used up as monitored by analytical hplc. To the above coupling mixture was added piperidine (20% in DMF) and stirred at room temperature until deprotection was complete. The mixture was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water with 0.1% formic acid as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1g).
    • (3) Examples of coupling
  • To illustrate the coupling procedure, the following examples are provided:
    • LP-007 (comparative example)
  • Coupling of GM539 with activated ester side chain followed by Fmoc deprotection to form LP-007:
    Figure imgb0162
  • GM539 (20mg, 0.015mmol) and CaCl2 (3.2mg, 0.029mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et3N (11µL, 0.109mmol). After 10min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50µL) was added and stirred overnight at rt. After deprotection was complete, the mixture was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1g) and finally lypholized to give LP-007 (1.8mg, 8%). Rt = 3.198min; m/z 718.3447 ½ [M + 2H]2+, 1435.6902 [M + H]+.
    • LP-002 (comparative example )
  • Coupling of GM539 with activated ester side chain followed by Fmoc deprotection to form LP-002:
    Figure imgb0163
  • GM539 (20mg, 0.015mmol) and CaCl2 (3.5mg, 0.031mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et3N (11µL, 0.109mmol). After 10min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50µL) was added and stirred overnight at rt. After deprotection was complete, the mixture was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1 g) and finally lypholized to give LP-002 (1.3mg, 6%). Rt = 2.564min; m/z 719.3394 ½ [M + 2H]2+, 1437.6548 [M + H]+.
    • LP-001 (comparative example)
  • Coupling of GM539 with activated ester side chain followed by Fmoc deprotection to form LP-001:
    Figure imgb0164
  • GM539 (19.0mg, 0.014mmol) and CaCl2 (3.3mg, 0.030mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et3N (11µL, 0.109mmol). After 10min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50µL) was added and stirred overnight at rt. After deprotection was complete, the mixture was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1 g) and finally lypholized to give LP-001 (1.0mg, 4.9%). Rt = 2.607min; m/z 713.3244 ½ [M + 2H]2+, 1425.6480 [M + H]+.
    • LP-003 (comparative example)
  • Coupling of GM539 with activated ester side chain followed by Fmoc deprotection to form LP-003:
    Figure imgb0165
  • GM539 (20.5mg, 0.016mmol) and CaCl2 (3.7mg, 0.033mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et3N (12µL, 0.119mmol). After 10min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50µL) was added and stirred overnight at rt. After deprotection was complete, the mixture was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1 g) and finally lypholized to give LP-003 (1.2mg, 5.4%). R t = 2.840min; m/z 711.3365 ½ [M + 2H]2+, 1421.6655 [M + H]+.
    • LP-01 (comparative example)
  • Coupling of GM539 with activated ester side chain followed by Fmoc deprotection to form LP-011:
    Figure imgb0166
  • GM539 (20.0mg, 0.015mmol) and CaCl2 (3.7mg, 0.033mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et3N (12µL, 0.119mmol)). After 15min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50µL) was added and stirred overnight at rt. After deprotection was complete, the mixture was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1 g) and finally lypholized to give LP-011 (1.3mg, 6%). Rt = 2.683min; m/z 715.3283 ½ [M + 2H]2+, 1429.6415 [M + H]+.
    • LP-008 (comparative example)
  • Coupling of GM539 with activated ester side chain followed by Fmoc deprotection to form LP-008:
    Figure imgb0167
  • GM539 (19.8mg, 0.015mmol) and CaCl2 (3.4mg, 0.0306mmol) were dissolved in anhyd. DMF (0.5mL) at rt. The solution was then cooled to 0°C prior to the addition of anhyd. Et3N (12µL, 0.119mmol)). After 15min, the crude ester was added drop-wise. The reaction mixture was stirred at 0°C for 1 hr, then at rt. After all starting material had reacted, 20% piperidine (50µL) was added and stirred overnight at rt. After deprotection was complete, the mixture was purified by preparative RP-HPLC (X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water as solvent) using collection tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1 g) and finally lypholized to give LP-008 (3.5mg, 16%). Rt = 2.668min; m/z 1429.6346 [M + H]+.
    • LP-026
  • Coupling of GM539 with activated ester side chain followed by Fmoc deprotection to form LP-026:
    Figure imgb0168
  • GM539 i.e. deacylated Fmoc Friulimicin B (10 mg, 0.007 mmol) and CaCl2 (1.7 mg, 0.015 mmol) were taken in anhydrous DMF (0.2 mL) under Argon. After cooling to 0°C, Et3N (5.2 µL, 0.007 mmol) was added and stirring continued for another five minutes at the same temperature to ensure dissolution of CaCl2. HOBt ester (11 mg, 0.021 mmol) was added and the mixture stirred at 0°C for 30 minutes by which time HPLC showed completion of the reaction. TBAF (40 mg, 0.15 mmol) was added and the mixture warmed to room temperature. After 3 hours, the deprotection of Fmoc was complete. The reaction mixture was centrifuged and purified by preparative HPLC (reverse phase, X-Terra® PrepRP18 19 × 50 mm column, acetonitrile-water with 0.1% formic acid as mobile phase) collecting in tubes containing 2.5mL of 15mM sodium phosphate buffer (pH 7.2) with 50mm sodium chloride. Product-containing fractions were desalted using a Sep-Pak® C18 cartridge Vac 6cc (1 g) to afford LP-026.
  • HPLC retention time: 2.934
    Mass: m/z 722 (MH)+/2
    Product: 4.0 mg, Yield: 37 %;
    Purity: >98%.
  • The coupling method using CaCl2 as described herein has been found to provide higher yields and easier product isolation.
  • The following compounds shown in Table 1 were isolated, wherein the lipopeptide to which the side chain is attached is:
    Figure imgb0169
    Compound Side chain Method of coupling Yield (%) Mass m/z Purity (%) HPLC retention time (min)*
    LP-001
    Figure imgb0170
         		D 4.9 1425.648 (MH)+ 2.607
    LP-002
    Figure imgb0171
         		D 6 1437.65 (MH)+ 2.564
    LP-003
    Figure imgb0172
         		D 5.4 1421.666 (MH)+ 2.840
    LP-006
    Figure imgb0173
         		D 46 1437.7 (MH+) >95 2.670
    LP-007
    Figure imgb0174
         		D 8 1435.69 (MH+) 3.198
    LP-008
    Figure imgb0175
         		D 16 1429.635 (MH)+ 2.668
    LP-009
    Figure imgb0176
         		D 17 1429.706 (MH)+ >93 2.689
    LP-010
    Figure imgb0177
         		D 12 1429.6 (MH)+ >95 2.605
    LP-011
    Figure imgb0178
         		D D 6 6 1429.64 (MH)+ 2.683
    LP-012
    Figure imgb0179
         		D 6 716.3 [(M+2)/2]+ 94 2.455
    727.3 [(M+1+23)/2]+
    LP-013
    Figure imgb0180
         		D 12 682.3 [(M+2)/2]+ 97 2.570
    693.3 [(M+1+23)/2]+
    LP-014
    Figure imgb0181
         		D 23 689.3 [(M+2)/2]+ 98 2.856
    700.3 [(M+1+23)/2]+
    LP-015
    Figure imgb0182
         		D 29 675.3 [(M+2)/2]+ 97 2.355
    686.3 [(M+1+23)/2]+
    LP-016
    Figure imgb0183
         		D 10 1451.78 (MH+). >95 3.206
    LP-017
    Figure imgb0184
         		D 3 744.3 [(M+1+23)/2]+ 91 3.534
    LP-018
    Figure imgb0185
         		D 7 730.3 [(M+1+23)/2]+ 95 3.026
    LP-020
    Figure imgb0186
         		D 26 1452.6 (MH+) >95 2.749
    LP-021
    Figure imgb0187
         		D 13 748.31 [(M+2)/2] >90 3.166
    LP-022
    Figure imgb0188
         		B 11 722.2 [(M+2)/2]+ >95 2.970
    LP-023
    Figure imgb0189
         		D 25 1452.6 (MH+) >95 2.527
    LP-024
    Figure imgb0190
         		B 20.5 1442.7 (MH+) >95 2.849
    LP-025
    Figure imgb0191
         		F 19.8 729.3 [(M+2)/2]+ 98 3.173
    LP-026
    Figure imgb0192
         		B&D 31 (B) & 37 (D) 1444 (MH+) >95 2.786
    LP-027
    Figure imgb0193
         		D 22 722.2 [(M+2)/2] 94 2.798
    LP-028
    Figure imgb0194
         		D 1.6 721.3 [(M+2)/2] >95 2.564
    LP-029 Error! Objects cannot be created from editing field codes. D 9 1442 (MH+) >95 2.743
    LP-030
    Figure imgb0195
         		D 18 730.0 (MH+/2) >95 2.835
    LP-031
    Figure imgb0196
         		B 26 715.3 (MH+/2) 93 2.475
    LP-032
    Figure imgb0197
         		D 20 721.82 [(M+2)/2]+ 90 2.755
    LP-033
    Figure imgb0198
         		D 38.5 717.797 [(M+2)/2]+ >95 2.366
    LP-034
    Figure imgb0199
         		C 5 715.1 [(M+2)/2] 80 2.700
    LP-035
    Figure imgb0200
         		E 2 707.2 [(M+2)/2] >99 1.994
    LP-036
    Figure imgb0201
         		C 1 708.1 [(M+2)/2] 95 2.351
    LP-037
    Figure imgb0202
         		B 9.5 1427 (MH+) 93 1.567
    LP-038
    Figure imgb0203
         		C 11 715.2 [(M+2)/2] >95 2.606
    LP-039
    Figure imgb0204
         		C&F 12 722.2 [(M+2)/2]+ 95 2.853
    LP-040
    Figure imgb0205
         		D 4 731.85 [(M+1+23)/2]+ >98% 3.350
    LP-041
    Figure imgb0206
         		F 37 700.2 [(M+2)/2]+ 98 2.554
    LP-042
    Figure imgb0207
         		D 34 714.2 [(M+2)/2] >95 3.105
    LP-043
    Figure imgb0208
         		D 14 1412.6, (MH)+, 706.8 [(M+2)/2]+ >95 2.803
    LP-044
    Figure imgb0209
         		D 38.5 1384.6, (MH)+, 692.8 [(M+2)/2]+ >95 2.297
    LP-045
    Figure imgb0210
         		D 48 1398.8, (MH)+, 700.1 [(M+2)/2]+ >95 2.515
    LP-046
    Figure imgb0211
         		D 3.2 727.8 [(M+2)/2]+ >95 3.576
    LP-047
    Figure imgb0212
         		D 8.3 1424.67 (MH)+ 38 2.898
    LP-048
    Figure imgb0213
         		D 18 1446.6 (MH+) >95 2.605
    *gradient elution using 25-100% acetonitrile-water with 0.1% formic acid in 7.5min, 1.5mL/min, Xterra® column MSC18, 2.5micron, 4.6x20mm using Agilent 1100 analytical hplc system
    • Biological Methods Assays
  • Minimum inhibitory concentrations (MICs) were determined for the following assays.
  • The following panel of strains was used to assess antibacterial activity:
    • Staphylococcus aureus ATCC 29213
    • Staphylococcus aureus ATCC 29213 FRI-68 (strain with reduced susceptibility to friulimicin)
    • Staphylococcus aureus ATCC 33591 (MRSA)
    • Staphylococcus epidermidis ATCC 12228
    • Enterococcus faecalis ATCC 29212
    • Streptococcus pneumoniae ATCC 33400
    • Streptococcus pneumoniae ATCC 46919
    • Streptococcus pyogenes ATCC 12344
  • Staphylococci and enterococci were grown on cation-adjusted Mueller-Hinton agar (CAMHA) at 35°C and streptococci were grown on CAMHB + 3% lysed horse blood at 35°C under 5% CO2. Inocula for MIC determinations were grown from a single colony under the conditions described above for 24h. Colonies were then suspended in saline (0.9% NaCl) to an OD600nm equivalent to a 0.5 McFarland standard and then diluted to 5.55 x105 CFU/ml in cation-adjusted Mueller-Hinton broth supplemented with calcium to 50µg/ml and polysorbate (tween) 80 to 0.002% (and 3.33% lysed horse blood for streptococci). 2-fold dilution series of test compounds were prepared and diluted in CAMHB supplemented with calcium to 50µg/ml and polysorbate (tween) 80 to 0.002% and added to wells of 96-well flat bottom microtitre plate (Griener) in 10µl volumes. 90µl of inocula are then added to test compound and the plates incubated for 20-24h at 35°C.
  • The MIC was recorded as the lowest concentration of test compound that inhibited visible growth.
  • In addition, % hemolysis was measured using the following assay.
    • In vitro haemolysis assay
  • The in vitro haemolysis assay usually used was an adaptation of the protocol provided by Aventis (Isert, 1995) and is described below. The main variations in comparison to the original protocol were a reduction of the assay volumes by 80% and the conducting of the assay in Eppendorf tubes. Stock solution of the antibiotics and other additives were prepared in 0.9% NaCl solution. If not specified otherwise additives and antibiotics were mixed and preincubated for 2 hours at 20° C.
  • Subsequently 40 µl of these mixtures were transferred into an Eppendorf tube with 40 µl fresh venous blood, mixed and incubated for 180 min at 37° C on a horizontal shaker at 200 rounds per minute. For each series of experiments a negative control and a sample for the determination of the complete hydrolysis were prepared. In the negative control 40 µl 0.9% NaCl solution were mixed with 40 µl fresh venous blood and for the complete hydrolysis 40 µl water were mixed with 40 µl fresh venous blood. Subsequently the samples were carefully mixed with 1 ml 0.9% NaCl solution or water (sample for complete hydrolysis). After centrifugation at 2500 RFC for 5 min the degree of haemolysis in the samples was determined by measurement of the absorption of the supernatant at 540 nm. The photometer was calibrated with the negative control (blood incubated with 0.9% NaCl).
  • The absorption of a completely hydrolysed sample (incubated with water) was used as the 100 % value for the calculation of the degree of haemolysis of the samples. If not explicitly stated otherwise this procedure was used for the experiments described in this report.
    • Modified Haemolysis Protocol
  • Stock solutions of Friulimicin-sodium salt (CBS000043, CBC000209) and test compounds (also sodium salts) were prepared in 0.9% NaCl and diluted to 3200mg/L in 0.9% NaCl solution containing two times the salts molar concentration of Ca2+. These test solution was then diluted in 0.9% NaCl to a second concentration of 200mg/L. Equivalent calcium free test solutions were also prepared. All test solutions were then preincubated for 2 hours at 20° C. Subsequently 40 µl of these mixtures were transferred into triplicate Eppendorf tubes with 40 µl fresh venous blood to produce assay concentrations of test compounds of 1600 and 100mg/L. Tubes were then mixed and incubated for 180 min at 37° C on a horizontal shaker at 200 rounds per minute.
  • For each series of experiments a negative control and a sample for the determination of the complete hydrolysis were prepared. In the negative control 40 µl 0.9% NaCl solution was mixed with 40 µl fresh venous blood and for the complete haemolysis 40 µl water was mixed with 40 µl fresh venous blood. Subsequently the samples were carefully mixed with 1 ml 0.9% NaCl solution or water (sample for complete haemolysis). After centrifugation at 2500 RFC for 5 min the degree of haemolysis in the samples was determined by measurement of the absorption of the supernatant at 540 nm. The photometer was calibrated with the negative control (blood incubated with 0.9% NaCl).
  • The absorption of a completely haemolysed sample (incubated with water) was used as the 100 % value for the calculation of the degree of haemolysis of the samples. If not explicitly stated otherwise this procedure was used for the experiments described in this report.
  • Additional Ca2+ is added in the higher concentration hemolysis assay because the presence of Ca2+ affects hemolysis; indeed Ca salt is more hemolytic than the Na salt, particularly at high drug concentrations. There is Ca in blood and hence the dosed Na salt converts in vivo to the Ca salt. Additional Ca2+ (in addition to what is present in blood) is used because it is estimated that at the higher dose of 1600 mg/L, the intrinsic blood levels of Ca2+ will be insufficient to convert all the drug to the Ca salt.
    • Biological Data
  • Biological data were obtained using the antibacterial assays described above.
  • The S. aureus ATCC 29213 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • For the S. aureus ATCC 29213 assay, the following compounds tested had a minimum inhibitory concentration of less than 10 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-038, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • For the S. aureus ATCC 29213 assay, the following compounds had a minimum inhibitory concentration of less than 5 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • For the S. aureus ATCC 29213 assay, the following compounds had a minimum inhibitory concentration of ≤2 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • One compound, compound LP-031, had a minimum inhibitory concentration of 1 µg/ml.
  • The S. aureus 29213 FRI-68 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • For the S. aureus 29213 FRI-68 assay, the following compounds had a minimum inhibitory concentration of less than 20 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-018, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-039, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • For the S. aureus 29213 FRI-68 assay, the following compounds had a minimum inhibitory concentration of less than 10 µg/ml: LP-006, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-022, LP-024, LP-031, LP-033, LP-034, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • For the S. aureus 29213 FRI-68 assay, the following compounds had a minimum inhibitory concentration of less than 5 µg/ml: LP-012, LP-013, LP-014, LP-022, LP-024, LP-041 and LP-048.
  • One compound, compound LP-031, had a minimum inhibitory concentration of 8µg/ml.
  • The S. aureus 33591 (MRSA) assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • For the S. aureus 33591 (MRSA) assay, the following compounds had a minimum inhibitory concentration of less than 10 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-038, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • For the S. aureus 33591 (MRSA) assay, the following compounds had a minimum inhibitory concentration of less than 5 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • For the S. aureus 33591 (MRSA) assay, the following compounds had a minimum inhibitory concentration of ≤2 µg/ml: LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-016, LP-017, LP-018, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • One compound, compound LP-031, had a minimum inhibitory concentration of 1µg/ml.
  • The S. epdermidis 12228 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • For the S. epdermidis 12228 assay, the following compounds had a minimum inhibitory concentration of less than 10 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-038, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • For the S. epdermidis 12228 assay, the following compounds had a minimum inhibitory concentration of less than 5 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • For the S. epdermidis 12228 assay, the following compounds had a minimum inhibitory concentration of less than ≤2 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-018,, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-036, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • One compound, compound LP-031, had a minimum inhibitory concentration of 1µg/ml.
  • The E. faecalis 29212 assay was carried out on the following compounds: LP-001 to LP-003, LP-006 to LP-018, LP-020 to LP-025, and LP-027 to LP-048.
  • For the E. faecalis 29212 assay, the following compounds had a minimum inhibitory concentration of less than 20 µg/ml: LP-001, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-037, LP-040, LP-041, LP-042, LP-043, LP-045, LP-046, LP-047 and LP-048.
  • For the E. faecalis 29212 assay, the following compounds had a minimum inhibitory concentration of less than 10 µg/ml: LP-003, LP-007, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-016, LP-017, LP-018, LP-022, LP-023, LP-024, LP-025, LP-027, LP-028, LP-029, LP-030, LP-032, LP-033, LP-034, LP-041, LP-042, LP-043, LP-045, LP-046, LP-047 and LP-048.
  • For the E. faecalis 29212 assay, the following compounds had a minimum inhibitory concentration of less than 5 µg/ml: LP-003, LP-009, LP-011, LP-012, LP-013, LP-014, LP-016, LP-017, LP-018, LP-022, LP-024, LP-025, LP-027, LP-029, LP-030, LP-034, LP-041, LP-042, LP-043 and LP-048.
  • One compound, compound LP-031, had a minimum inhibitory concentration of 12µg/ml.
  • The S.pneumoniae 33400 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • For the S.pneumoniae 33400 assay, the following compounds had a minimum inhibitory concentration of less than 20 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-018, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • For the S.pneumoniae 33400 assay, the following compounds had a minimum inhibitory concentration of less than 10 µg/ml: LP-002, LP-006, LP-010, LP-011, LP-012, LP-013, LP-020, LP-022, LP-023, LP-024, LP-026, LP-027, LP-031, LP-033, LP-034, LP-035, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • For the S.pneumoniae 33400 assay, the following compounds had a minimum inhibitory concentration of less than 5 µg/ml: LP-006, LP-041, LP-045 and LP-048.
  • One compound, compound LP-031, had a minimum inhibitory concentration of 8µg/ml.
  • The S.pneumoniae 49619 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • For the S.pneumoniae 49619 assay, the following compounds had a minimum inhibitory concentration of less than 20 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-038, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • For the S.pneumoniae 49619 assay, the following compounds had a minimum inhibitory concentration of less than 10 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • For the S.pneumoniae 49619 assay, the following compounds had a minimum inhibitory concentration of less than 5 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • One compound, compound LP-031, had a minimum inhibitory concentration of 1µg/ml.
  • The S.pyogenes 12344 assay was carried out on the following compounds: LP-001 to LP-003 LP-006 to LP-018 and LP-020 to LP-048.
  • For the S.pyogenes 12344 assay, the following compounds had a minimum inhibitory concentration of less than 20 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-039, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-046, LP-047 and LP-048.
  • For the S.pyogenes 12344 assay, the following compounds had a minimum inhibitory concentration of less than 10 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-008, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-017, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-032, LP-033, LP-034, LP-035, LP-036, LP-037, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • For the S.pyogenes 12344 assay, the following compounds had a minimum inhibitory concentration of less than 5 µg/ml: LP-001, LP-002, LP-003, LP-006, LP-007, LP-009, LP-010, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-020, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-033, LP-034, LP-035, LP-036, LP-037, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • One compound, compound LP-031, had a minimum inhibitory concentration of 4µg/ml.
  • The hemolysis assays were carried out on the following compounds: LP-001, LP-006 to LP-016, LP-018, LP-020 to LP-031, LP-033, LP-034, LP-036 to LP-045, LP-047 and LP-048.
  • For the % hemolysis at 100 mg/L assay with additional calcium, all of the compounds tested had a % hemolysis of less than 3 %.
  • For the % hemolysis at 100 mg/L assay with additional calcium, the following compounds had a % hemolysis of ≤1 %: LP-001, LP-006, LP-007, LP-008, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-029, LP-030, LP-031, LP-033, LP-034, LP-036, LP-037, LP-039, LP-038, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045 and LP-047.
  • One compound, compound LP-031, had a % hemolysis of 0.3%.
  • For the % hemolysis at 100 mg/L assay without additional calcium, all of the compounds tested had a % hemolysis of less than 3 %.
  • For the % hemolysis at 100 mg/L assay without additional calcium, the following compounds had a % hemolysis of ≤1 %: LP-001, LP-007, LP-009, LP-011, LP-012, LP-013, LP-014, LP-015, LP-016, LP-018, , LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-030, LP-031, LP-033, LP-034, LP-036, LP-037, LP-039, LP-038, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045 and LP-047.
  • One compound, compound LP-031, had a % hemolysis of -0.2%.
  • For the % hemolysis at 1600 mg/L assay with additional calcium, the following compounds had a % hemolysis of less than 50 %: LP-001, LP-006, LP-007, LP-008, LP-009, LP-013, LP-014, LP-015, LP-016, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-031, LP-033, LP-034, LP-036, LP-037, LP-039, LP-038, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • For the % hemolysis at 1600 mg/L assay with additional calcium, the following compounds had a % hemolysis of less than 25 %: LP-001, LP-007, LP-008, LP-013, LP-014, LP-015, LP-016, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-031, LP-033, LP-034, LP-036, LP-037, LP-039, LP-038, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • One compound, compound LP-031, had a % hemolysis of 0.8%.
  • For the % hemolysis at 1600 mg/L assay without additional calcium, all of the compounds tested had a % hemolysis of less than 50 %.
  • For the % hemolysis at 1600 mg/L assay without additional calcium, the following compounds had a % hemolysis of less than 25 %: LP-001, LP-006, LP-007, LP-008, LP-009, LP-013, LP-014, LP-015, LP-016, LP-018, LP-020, LP-021, LP-022, LP-023, LP-024, LP-025, LP-026, LP-027, LP-028, LP-029, LP-031, LP-033, LP-034, LP-036, LP-037, LP-039, LP-038, LP-040, LP-041, LP-042, LP-043, LP-044, LP-045, LP-047 and LP-048.
  • One compound, compound LP-031, had a % hemolysis of 0.6%.
  • The foregoing has described the principles, preferred embodiments, and modes of operation of the present invention. However, the invention should not be construed as limited to the particular embodiments discussed. Instead, the above-described embodiments should be regarded as illustrative rather than restrictive, and it should be appreciated that variations may be made in those embodiments by workers skilled in the art without departing from the scope of the present invention as defined in the claims.
    • REFERENCES
  • A number of patents and publications are cited above in order to more fully describe and disclose the invention and the state of the art to which the invention pertains. Full citations for these references are provided below.
  • EP0629636A
    FEMS Microbiol. Lett. 98 (1992) 5 109 to 116
    Neu H. C., Science 257, 1992, pages 1064-1073

Claims (12)

  1. A compound selected from compounds of the following formula, and pharmaceutically acceptable salts, hydrates, and solvates thereof:
    Figure imgb0214
     wherein:
    -R1 is independently -OH or -NH2
    and wherein:
    -R2 is -RB
    wherein:
    -RB is independently RB4-RB3-LB2-RB2-LB1-RB1-C(O)-
    wherein:
    -RB1- is independently -RBP- or -RBN-,
    and wherein:
    each of -RB2-, and -RB3- is independently -RBS-, -RBP-, -RBN- or -RBH-, -RBH-,
    and wherein:
    at least one of -RB2- and -RB3- is independently -RBH-
    wherein:
    each -RBP-, if present, is independently phenylene, and is optionally substituted
    and wherein:
    each -RBN-, if present, is independently naphthylene, and is optionally substituted
    and wherein:
    each -RBH- is independently aromatic or saturated or unsaturated non-aromatic C4-14heterocyclylene, and is optionally substituted
    and wherein:
    each -RBS-, if present, is independently a single bond
    and wherein:
    each of -LB1- and -LB2- is independently -LS-, -LBB- or -LBO-
    wherein:
    each -LS-, if present, is independently a single bond
    and wherein:
    each -LBB-, if present, is independently saturated aliphatic C1-4alkylene, and is optionally substituted
    and wherein:
    each -LBO-, if present, is independently saturated aliphatic C1-4alkoxylene, and is optionally substituted
    and wherein:
    -RB4 is independently -H, -RB4A, -RB4AA or -RB4O
    wherein:
    -RB4A, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-10alkyl, and is optionally substituted
    and wherein:
    -RB4AA, if present, is independently C6-10aryl-C1-6alkyl, and is optionally substituted
    and wherein:
    -RB4O, if present, is independently -RB4O1 or RB4O2
    wherein:
    -RB4O1, if present, is independently saturated or unsaturated aliphatic or alicyclic C1-10alkoxy, and is optionally substituted
    and wherein:
    -RB4O2, if present, is independently C6-10aryloxy, and is optionally substituted.
  2. A compound according to claim 1, wherein -R1 is independently -NH2.
  3. A compound according to claim 2, wherein, -RB1- is independently -RBP-, - RB2- is independently -RBH-, and -RB3- is independently -RBP-.
  4. A compound according to claim 3, wherein each -RBP- is independently
    Figure imgb0215
  5. A compound according to claim 3 or claim 4, wherein -RBH- is independently aromatic or unsaturated non-aromatic C5-6heterocyclylene containing at least one N as a ring atom, and is optionally substituted.
  6. A compound according to claim 5, wherein -RBH is independently
    Figure imgb0216
    Figure imgb0217
    Figure imgb0218
    Figure imgb0219
    Figure imgb0220
  7. A compound according to any one of claims 3 to 6, wherein each of -LB1- and -LB2- is independently -LS-.
  8. A compound according to any one of claims 3 to 7, wherein -RB4 is independently saturated or unsaturated aliphatic or alicyclic C3-8alkyl, C6aryl-C1-2alkyl, or saturated or unsaturated aliphatic C3-8alkoxy, and is optionally substituted.
  9. A compound according to any one of claims 1 to 8, wherein each of -LBB-, if present, and -LBO-, if present, is independently optionally substituted with one or more substituents, -RS1, wherein each RS1, if present, is independently selected from:
    -F, -Cl, -Br, -I, or
    -OH, -LSS1-OH,
    -ORSS1,
    -NH2; and
    -LSS1-NH2
    each of -RB4A, if present, -RB4O1 if present, -RB4O2, if present, and -RB4AA, if present, is independently optionally substituted with one or more substituents, -RS2, wherein each RS2, if present, is independently selected from:
    -RSS1,
    -F, -Cl, -Br,
    -CF3, -OCF3, -SCF3,
    -OH, -LSS1-OH -O-LSS1-OH, -NH-LSS1-OH, -NRSS1-LSS1-OH,
    -NH2, -NHRSS1, -NRSS1 2,
    -LSS1-NH2, -LSS1-NHRSS1, -LSS1-NRSS1 2; and
    =O.
    each of -RBP-, if present, and -RBN-, if present, is independently optionally substituted with one or more substituents, -RS3, wherein each RS3, if present, is independently selected from:
    -RSS1,
    -F, -Cl, -Br, -I; and
    -OH.
    and -RBH- is independently optionally substituted with one or more substituents, -RS4, wherein each RS4, if present, is independently selected from:
    -RSS1,
    -F, -Cl, -Br, -I; and
    -OH.
    wherein:
    each -RSS1, if present, is independently saturated aliphatic C1-6alkyl;
    each -LSS1-, if present, is independently -(CH2)n-, wherein n is independently 1 to 4;
    each -LJA-, if present, is independently saturated aliphatic C1-5alkylene;
    each -NRJA2RJA3, if present, is independently C4-7heterocyclyl, and is optionally substituted, for example, with one or more groups selected from -RJ44, -CF3, -F, -OH, -ORJ44, -NH2, -NHRJ44, -NRJ44 2, and =O; wherein each -RJ44 is independently saturated aliphatic C1-4alkyl;
    each -RJA1 is independently:
    - RJB1, -RJB2, -RJB3, -RJB4, -RJB5, -RJB6, -RJB7, -RJB8,
    - RJB1, -RJB2, -RJB3, -RJB4, -RJB5, -RJB6, -RJB7, -RJB8,
    - LJB-RJB4, -LJB-RJB5, -LJB-RJB6, -LJB-RJB7, or -LJB-RJB8;
    each -RJB1 is independently saturated aliphatic C1-6alkyl;
    each -RJB2 is independently aliphatic C2-6alkenyl;
    each -RJB3 is independently aliphatic C2-6alkynyl;
    each -RJB4 is independently saturated C3-6cycloalkyl;
    each -RJB5 is independently C3-6cycloalkenyl;
    each -RJB6 is independently non-aromatic C4-7heterocyclyl;
    each -RJB7 is independently C6-10carboaryl;
    each -RJB8 is independently C5-10heteroaryl;
    each -LJB- is independently saturated aliphatic C1-3alkylene;
    wherein:
    each -RJB4, -RJB5, -RJB6, -RJB7, and -RJB8 is optionally substituted, for example, with one or more substituents -RJC1 and/or one or more substituents -RJC2,
    each -RJB1, -RJB2, -RJB3, and -LJB- is optionally substituted, for example, with one or more substituents -RJC2, and
    wherein:
    each -RJC1 is independently saturated aliphatic C1-4alkyl, phenyl, or benzyl;
    each -RJC2 is independently:
    -F, -Cl, -Br, -I,
    -CF3, -OCF3,
    -OH,
    -CN,
    -NO2,
    -NH2,
    -C(=O)OH,
    -C(=O)NH2.
  10. A compound according to claim 1, wherein -R2 is independently selected from:
    Figure imgb0221
    Figure imgb0222
  11. A pharmaceutical composition comprising a compound according to any one of claims 1 to 10, and a pharmaceutically acceptable carrier, diluent, or excipient.
  12. A compound according to any one of claims 1 to 10, for use in the treatment of a bacterial infection or bacterial disease.
EP09829415.0A 2008-11-25 2009-11-24 Lipopeptide compounds and their use Not-in-force EP2350119B1 (en)

Applications Claiming Priority (3)

Application Number Priority Date Filing Date Title
US11758908P 2008-11-25 2008-11-25
GBGB0821540.2A GB0821540D0 (en) 2008-11-25 2008-11-25 Lipopeptide compounds and their use
PCT/SG2009/000444 WO2010062264A1 (en) 2008-11-25 2009-11-24 Lipopeptide compounds and their use

Publications (3)

Publication Number Publication Date
EP2350119A1 EP2350119A1 (en) 2011-08-03
EP2350119A4 EP2350119A4 (en) 2012-03-21
EP2350119B1 true EP2350119B1 (en) 2014-10-29

Family

ID=40230807

Family Applications (1)

Application Number Title Priority Date Filing Date
EP09829415.0A Not-in-force EP2350119B1 (en) 2008-11-25 2009-11-24 Lipopeptide compounds and their use

Country Status (5)

Country Link
US (1) US8921309B2 (en)
EP (1) EP2350119B1 (en)
AU (1) AU2009320432B2 (en)
GB (1) GB0821540D0 (en)
WO (1) WO2010062264A1 (en)

Families Citing this family (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
AU2010336009B2 (en) 2009-12-21 2014-04-03 Boulos & Cooper Pharmaceuticals Pty Ltd Antimicrobial compounds
KR101778617B1 (en) * 2010-11-30 2017-09-15 에스케이유화 주식회사 Method for Producing Methyl-4-hydroxyiminomethylbenzoate
CN102786488A (en) * 2012-08-06 2012-11-21 天津信汇制药股份有限公司 Preparation method of intermediate for synthesis of micafungin and derivative thereof
US11174288B2 (en) 2016-12-06 2021-11-16 Northeastern University Heparin-binding cationic peptide self-assembling peptide amphiphiles useful against drug-resistant bacteria

Family Cites Families (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
TW455591B (en) 1993-06-08 2001-09-21 Hoechst Ag Lipopeptides from actinoplanes sp. with pharmacological action, process for their production and the use thereof
DE4411025A1 (en) 1994-03-30 1995-10-05 Hoechst Ag New lipopeptide A1437 derivs. with modified acyl gp.
DE19807972A1 (en) 1998-02-25 1999-08-26 Hoechst Marion Roussel De Gmbh Lipopeptide antibiotic calcium salts, process for their preparation and use
TWI312681B (en) 2001-02-01 2009-08-01 Novel physiologically active substance
CA2471458A1 (en) 2002-01-03 2003-07-17 Biowest Therapeutics Inc. Dab9 derivatives of lipopeptide antibiotics and methods of making and using the same
EP2147925A1 (en) 2003-07-17 2010-01-27 Migenix Inc. Compositions of lipopeptide antibiotic derivatives and methods of use thereof
US7795207B2 (en) 2005-11-21 2010-09-14 Harald Labischinski Lipopeptide compositions

Also Published As

Publication number Publication date
US8921309B2 (en) 2014-12-30
WO2010062264A1 (en) 2010-06-03
GB0821540D0 (en) 2008-12-31
AU2009320432A1 (en) 2010-06-03
AU2009320432B2 (en) 2014-01-23
EP2350119A1 (en) 2011-08-03
EP2350119A4 (en) 2012-03-21
US20110224129A1 (en) 2011-09-15

Similar Documents

Publication Publication Date Title
RU2740190C2 (en) Polymyxin derivatives and use thereof in a combined therapy together with various antibiotics
US5574017A (en) Antibacterial agents
JP5524858B2 (en) Antibacterial compounds
ES2302034T3 (en) CEPHALOSPORINE-GLICOPEPTIDE ANTIBIOTICS RETICULATED.
JP2010254701A (en) Crosslinked glycopeptide-cephalosporin antibiotic
CA2791732A1 (en) Bridged lipoglycopeptides that potentiate the activity of beta-lactam antibacterials
JP2009040795A (en) Cross-linked glycopeptide-cephalosporin antibiotic
NZ544750A (en) Compositions of amphomycin or aspartocin based lipopeptide antibiotic derivatives and methods of use thereof
US20190315806A1 (en) Polymyxin derivative, preparation method and application thereof
AU2009320432B2 (en) Lipopeptide compounds and their use
JPH09500103A (en) Cyclohexapeptidyl aminoalkyl ether
CN106687140A (en) Use of cysteamine in treating infections caused by yeasts/moulds
US20180340008A1 (en) Antibiotic oligopeptide mimetics
AU2009352134B2 (en) Novel antibacterial hydroxyphenyl compound
JP7371838B2 (en) Ring-fused thiazolino 2-pyridones, methods of their preparation and their use in the treatment and/or prevention of diseases involving Gram-positive bacteria
EP4219437B1 (en) Bakuchiol derivative, pharmaceutically acceptable salt thereof, preparation method therefor and application thereof
JP4402463B2 (en) Dab9 derivatives of lipopeptide antibiotics and methods of making and using the same
RU2834861C1 (en) Peptides with antiviral activity
AU2014241481B9 (en) Hydrochloride salts of an antibiotic compound
JPH107631A (en) Bisalkanoyl esters of carnitine with antibacterial, antifungal and antiprotozoal activity
WO2025144774A1 (en) Therapeutic compounds and methods
WO2026019338A1 (en) Peptides with antiviral activity
HK40089915B (en) Bakuchiol derivative, pharmaceutically acceptable salt thereof, preparation method therefor and application thereof
HK40089915A (en) Bakuchiol derivative, pharmaceutically acceptable salt thereof, preparation method therefor and application thereof
WO2012016362A1 (en) Β-secretase inhibitors for treating alzheimer's disease and uses thereof

Legal Events

Date Code Title Description
PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

Free format text: ORIGINAL CODE: 0009012

17P Request for examination filed

Effective date: 20110523

AK Designated contracting states

Kind code of ref document: A1

Designated state(s): AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO SE SI SK SM TR

RIN1 Information on inventor provided before grant (corrected)

Inventor name: SIHOMBING, MUHAMMAD SOFIAN ASI

Inventor name: BOYCE, RUSTUM S.

Inventor name: CALANASAN, CLEOFE

Inventor name: CHERIAN, JOSEPH

DAX Request for extension of the european patent (deleted)
A4 Supplementary search report drawn up and despatched

Effective date: 20120222

RIC1 Information provided on ipc code assigned before grant

Ipc: A61K 38/12 20060101ALI20120216BHEP

Ipc: C07K 7/56 20060101AFI20120216BHEP

Ipc: A61P 31/04 20060101ALI20120216BHEP

17Q First examination report despatched

Effective date: 20130619

RAP1 Party data changed (applicant data changed or rights of an application transferred)

Owner name: UNIQUEST PTY LIMITED

GRAP Despatch of communication of intention to grant a patent

Free format text: ORIGINAL CODE: EPIDOSNIGR1

INTG Intention to grant announced

Effective date: 20140523

GRAS Grant fee paid

Free format text: ORIGINAL CODE: EPIDOSNIGR3

GRAA (expected) grant

Free format text: ORIGINAL CODE: 0009210

AK Designated contracting states

Kind code of ref document: B1

Designated state(s): AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO SE SI SK SM TR

REG Reference to a national code

Ref country code: GB

Ref legal event code: FG4D

REG Reference to a national code

Ref country code: CH

Ref legal event code: EP

REG Reference to a national code

Ref country code: AT

Ref legal event code: REF

Ref document number: 693545

Country of ref document: AT

Kind code of ref document: T

Effective date: 20141115

REG Reference to a national code

Ref country code: IE

Ref legal event code: FG4D

REG Reference to a national code

Ref country code: DE

Ref legal event code: R096

Ref document number: 602009027504

Country of ref document: DE

Effective date: 20141211

REG Reference to a national code

Ref country code: AT

Ref legal event code: MK05

Ref document number: 693545

Country of ref document: AT

Kind code of ref document: T

Effective date: 20141029

REG Reference to a national code

Ref country code: NL

Ref legal event code: VDEP

Effective date: 20141029

REG Reference to a national code

Ref country code: LT

Ref legal event code: MG4D

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: PT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20150302

Ref country code: FI

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: NO

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20150129

Ref country code: IS

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20150228

Ref country code: ES

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: NL

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: LT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: HR

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: SE

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: GR

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20150130

Ref country code: AT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: CY

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: PL

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: LV

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: BE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20141130

REG Reference to a national code

Ref country code: CH

Ref legal event code: PL

REG Reference to a national code

Ref country code: DE

Ref legal event code: R097

Ref document number: 602009027504

Country of ref document: DE

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: MC

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: CZ

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: EE

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: CH

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20141130

Ref country code: RO

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: DK

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: LI

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20141130

Ref country code: SK

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

REG Reference to a national code

Ref country code: IE

Ref legal event code: MM4A

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: IT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

PLBE No opposition filed within time limit

Free format text: ORIGINAL CODE: 0009261

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT

26N No opposition filed

Effective date: 20150730

REG Reference to a national code

Ref country code: FR

Ref legal event code: PLFP

Year of fee payment: 7

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: IE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20141124

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: SI

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: SM

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: BG

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: LU

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20141124

Ref country code: MT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: TR

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

Ref country code: HU

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT; INVALID AB INITIO

Effective date: 20091124

REG Reference to a national code

Ref country code: FR

Ref legal event code: PLFP

Year of fee payment: 8

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: FR

Payment date: 20170329

Year of fee payment: 8

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: GB

Payment date: 20170330

Year of fee payment: 8

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: DE

Payment date: 20170329

Year of fee payment: 8

REG Reference to a national code

Ref country code: DE

Ref legal event code: R119

Ref document number: 602009027504

Country of ref document: DE

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: MK

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20141029

GBPC Gb: european patent ceased through non-payment of renewal fee

Effective date: 20171124

REG Reference to a national code

Ref country code: FR

Ref legal event code: ST

Effective date: 20180731

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: FR

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20171130

Ref country code: DE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180602

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: GB

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20171124
