  • the object to which refers the invention that is protected in this Patent consists on the development of an injector for the injection of fuel in motors diesel by means of the system "common-rail" that avoids the possibility of leak of fuel because of the waste, long term, of the seat of the needle of the injector that opens up and he/she closes the step from the same one to the cylinder.
  • the system of injection of fuel to the cylinders in the motors diesel is compound, in general, for an injector for cylinder that is fed by a derivation peculiar of the general pipe of allotment, with an or two branches (well-known as ramp of injectors or "common-rail") that receives the fuel from a bomb of pistons of high pressure.
  • One of the inconveniences that present the current injectors consists on the waste, long term, of the seat of the needle of the injector that opens up and he/she closes the step from the fuel to the cylinder; this waste facilitates that the fuel can penetrate in the cylinder in moments that it doesn't correspond to inject fuel.
  • the purpose of the invention that constitutes the object of this Patent consists on the reduction of the inconveniences characteristic of the well-known system of injection of fuel in the motors diesel that have been described above, having been conceived and designed in its several aspects, with this high-priority objective.
  • the claimed injection system has a device anti-drip that makes the cut of the injection automatically if the injector doesn't pulverize, impeding this way the spill of fuel inside the cylinder.
  • Each injector is formed by the following structural elements:
  • Cylinder distributor worked by a solenoid and located in the superior part of the injector.
  • Ports of the cylinder three of entrance superiors and three of inferior exit.
  • Cane of the injector with three longitudinal channels, separated 120° that receive the fuel from the inferior ports, to each other which reaches a conventional nozzle and he/she lifts their needle to be pulverized inside the cylinder.
  • Entrance of fuel to the injector Feeding from the bomb of High Pressure, entering the fuel for the outlying channel of the cane of the injector that has three grooves, separated to 120°, of equals dimensions that the ports of entrance of the cylinder distributor, the six ports of the cylinder distributor communicated to each other being, inwardly, for the axial channel of feeding.
  • Step of the fuel to the cylinder distributor When the solenoid lifts the cylinder distributor they face in positional coincidence the grooves of the outlying channel of the cane of the injector, with the ports of entrance of the cylinder distributor, settling down the communication between this ports and the axial channel of feeding.
  • Exit of fuel of the cylinder distributor The fuel that arrives to the axial channel of feeding of the cylinder distributor, descends for him until reaching the exit ports, which face, when the solenoid lifts the cylinder distributor, in positional coincidence with grooves of equals dimensions, in a second outlying channel of the cane of the injector, collector of the fuel, which descends for three longitudinal channels that are in permanent communication with this collector, until reaching the nozzle, getting up with suppression the needle and pulverizing the fuel inside the cylinder.
  • a basic idea for the development of the invention has been the one of avoiding the waste, long term, that takes place in the seat of the needle of the injector that opens up and he/she closes the step from the fuel to the cylinder, avoiding in this way that there are escapes of fuel.
  • the mobile organs of the injectors are worked by a solenoid (1) that, in turn, he/she moves for the received impulses from the Electronic Unit of Control (UEC) (2)
  • Each injector is formed by the following structural elements:
  • Cylinder distributor (3) worked by a solenoid (1) and located in the superior part of the injector.
  • Ports (4) of the cylinder three of entrance superiors (4') and three of inferior exit (4").
  • Cane (5) of the injector with three longitudinal channels (6), separated 120° that you/they receive the fuel from the inferior ports to each other (4 "), which reaches a conventional nozzle and he/she lifts their needle to be pulverized inside the cylinder.
  • Exit of fuel of the rotor (3) The fuel that arrives to the axial channel of feeding (9) of the cylinder distributor, it descends for him until reaching the exit ports (4"), which face lifting the solenoid (1) the cylinder distributor, in positional coincidence with grooves of equals dimensions, in a second outlying channel (10) of the cane of the injector, collector of the fuel, which descends for the three longitudinal channels (6) that are in permanent communication with this collector (10), until reaching the nozzle (11), getting up with their pressure the needle (12) and pulverizing the fuel inside the cylinder.

Landscapes

  • Engineering & Computer Science (AREA)
  • Mechanical Engineering (AREA)
  • General Engineering & Computer Science (AREA)
  • Chemical & Material Sciences (AREA)
  • Combustion & Propulsion (AREA)
  • Physics & Mathematics (AREA)
  • Electromagnetism (AREA)
  • Fuel-Injection Apparatus (AREA)

Abstract

An injector for the injection of fuel in diesel motors by means of the system "common-rail" that avoids the possibility of leak of fuel because of the waste, long term, of the seat of the needle of the injector.
The rotary valve of the injector is actuated by a solenoid (1) which is controlled by an Electronic Unit of Control (UEC) (2).
The quantity of fuel that is injected, is regulated by means of the time that the ports (4',4") of the cylinder distributor (3) are open. Since to open the ports it is only necessary that they coincide, it is avoided this way the necessity of a spring that pushes a needle on a hole to close it, that which causes with the time a defect in the seat and therefore a possible leak of fuel.
Figure 00000001

Description

OBJECT
The object to which refers the invention that is protected in this Patent, consists on the development of an injector for the injection of fuel in motors diesel by means of the system "common-rail" that avoids the possibility of leak of fuel because of the waste, long term, of the seat of the needle of the injector that opens up and he/she closes the step from the same one to the cylinder.
ANTECEDENTS
The system of injection of fuel to the cylinders in the motors diesel is compound, in general, for an injector for cylinder that is fed by a derivation peculiar of the general pipe of allotment, with an or two branches (well-known as ramp of injectors or "common-rail") that receives the fuel from a bomb of pistons of high pressure.
One of the inconveniences that present the current injectors consists on the waste, long term, of the seat of the needle of the injector that opens up and he/she closes the step from the fuel to the cylinder; this waste facilitates that the fuel can penetrate in the cylinder in moments that it doesn't correspond to inject fuel.
DESCRIPTION OF THE INVENTION
The purpose of the invention that constitutes the object of this Patent, consists on the reduction of the inconveniences characteristic of the well-known system of injection of fuel in the motors diesel that have been described above, having been conceived and designed in its several aspects, with this high-priority objective.
The qualification of "electronic" that is attributed to the injection system that constitutes the object of this Patent, it obeys the existence in their structure and to the intervention in their operation, of an Electronic Unit of Control (U.E.C.) that, acting on the mobile organs of the injectors, it regulates their performance automatically in time (I begin and end of the injection) and in quantity (dosage of the fuel).
The described performance of the U.E.C. it contributes to the system two important functional advantages:
The reduction of the time of injection
The precise regulation of the consumption of fuel, to any working regime of the motor.
In turn, these advantageous characteristics contribute and they condition other equally favourable ones as:
Smaller consumption of fuel, to equality of benefits of the motor.
Bigger compression pressure and for it, adult even motor and more power.
On the other hand, the claimed injection system has a device anti-drip that makes the cut of the injection automatically if the injector doesn't pulverize, impeding this way the spill of fuel inside the cylinder.
Each injector is formed by the following structural elements:
Cylinder distributor: worked by a solenoid and located in the superior part of the injector.
Ports of the cylinder: three of entrance superiors and three of inferior exit.
Cane of the injector: with three longitudinal channels, separated 120° that receive the fuel from the inferior ports, to each other which reaches a conventional nozzle and he/she lifts their needle to be pulverized inside the cylinder.
With the claimed injection system they are carried out the following operations, described in the same sequential order with which you happens in the practice:
Entrance of fuel to the injector: Feeding from the bomb of High Pressure, entering the fuel for the outlying channel of the cane of the injector that has three grooves, separated to 120°, of equals dimensions that the ports of entrance of the cylinder distributor, the six ports of the cylinder distributor communicated to each other being, inwardly, for the axial channel of feeding.
Step of the fuel to the cylinder distributor: When the solenoid lifts the cylinder distributor they face in positional coincidence the grooves of the outlying channel of the cane of the injector, with the ports of entrance of the cylinder distributor, settling down the communication between this ports and the axial channel of feeding.
Exit of fuel of the cylinder distributor: The fuel that arrives to the axial channel of feeding of the cylinder distributor, descends for him until reaching the exit ports, which face, when the solenoid lifts the cylinder distributor, in positional coincidence with grooves of equals dimensions, in a second outlying channel of the cane of the injector, collector of the fuel, which descends for three longitudinal channels that are in permanent communication with this collector, until reaching the nozzle, getting up with suppression the needle and pulverizing the fuel inside the cylinder.
BRIEF DESCRIPTION OF THE DRAWINGS
To supplement the description of the invention and to facilitate the interpretation of the formal, structural and functional characteristics of their object, they accompany drawings in those that different aspects of a preferable realization of the "INJECTOR REGULATED ELECTRONICALLY" are represented schematically that it constitutes the object of this Patent. In this drawings:

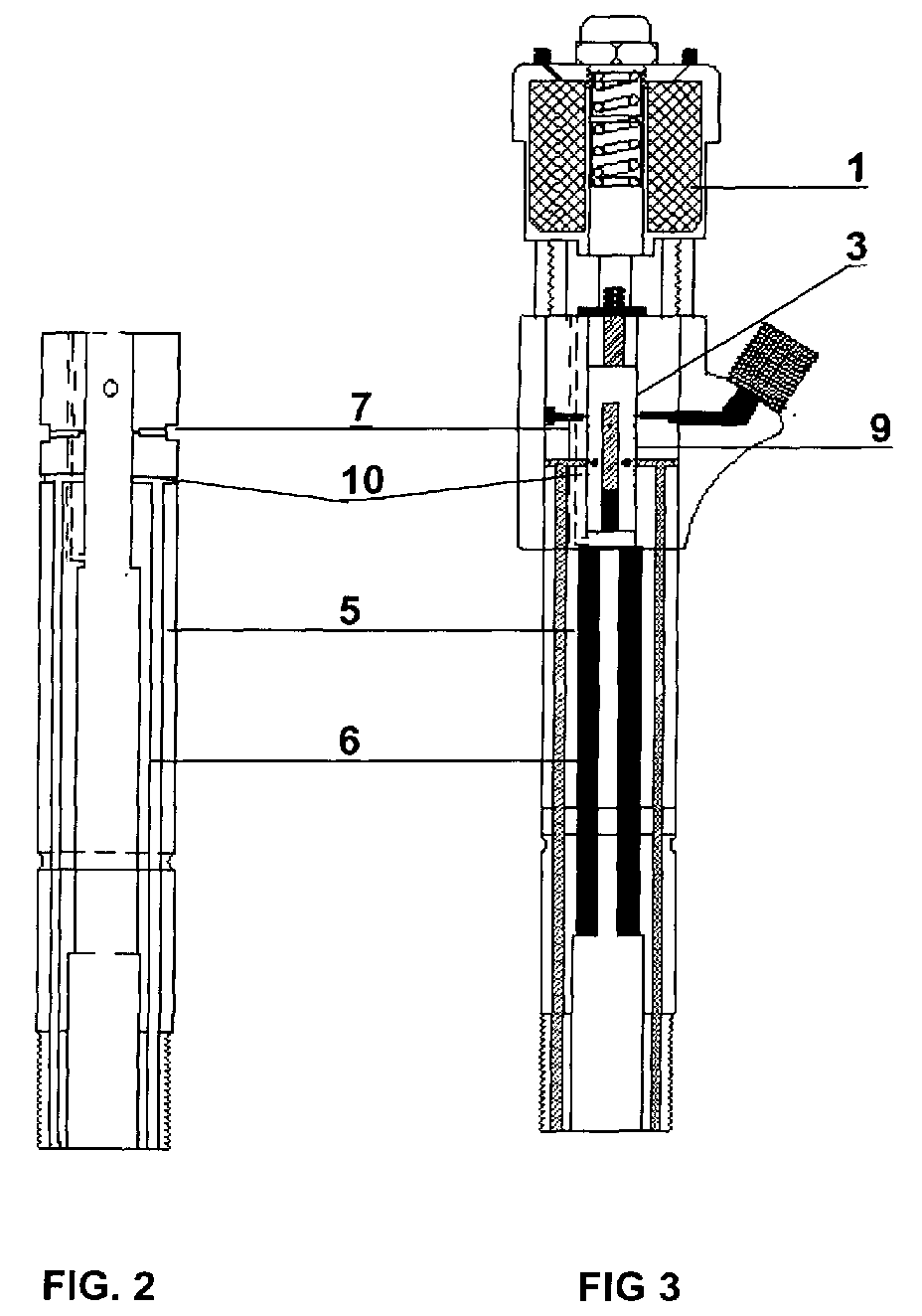

  • The Figure 1 represent in longitudinal section, the cylinder distributor with the solenoid responsible for their rising
  • The Figure 2 represent in longitudinal section, the cane of the injector.
  • The Figure 3 represent in longitudinal section an injector with all their elements, except the nozzle.
  • The Figure 4 sample in longitudinal section, the feeding head that you fits in the superior end of the cane of the injector; the Figure 5 are a view in plant superior of the same element; the Figure 6 are the same view, showing the cylinder placed distributor; and the Figure 7 are a view in traverse section of the inferior end of the cane of the injector, showing the longitudinal channels of the same one.
  • The figure 8 sample different longitudinal sections of the cylinder distributor.
  • The Figure 9 is a conventional perspective of the cylinder distributor.
  • The Figure 10 is a longitudinal section of the nozzle and a raised lateral of the needle of the same one.
  • The Figure 11 sample different perspectives where the relative position of the different elements of the injector is shown.
  • The figure 12 is a general outline that shows the relative disposition of the different components of the injection system.
    • DESCRIPTION OF A PREFERABLE REALIZATION
    To show with clarity the nature and the reach of the advantageous application of the "INJECTOR REGULATED ELECTRONICALLY" that it constitutes the object of the claimed invention, the operations that compose the procedure, attributed to each one of the constituent organs from the injector to which affect the introduced innovations are described subsequently and that for they form it part of the device for the setting in practice of this procedure, making reference to the drawings that, to represent a preferable realization of this object, with informative character, they should be considered in their wider sense and I don't eat constrainers of the application and the content of the claimed invention.
    A basic idea for the development of the invention has been the one of avoiding the waste, long term, that takes place in the seat of the needle of the injector that opens up and he/she closes the step from the fuel to the cylinder, avoiding in this way that there are escapes of fuel.
    According to the invention, the mobile organs of the injectors are worked by a solenoid (1) that, in turn, he/she moves for the received impulses from the Electronic Unit of Control (UEC) (2)
    Each injector is formed by the following structural elements:
    Cylinder distributor (3): worked by a solenoid (1) and located in the superior part of the injector.
    Ports (4) of the cylinder: three of entrance superiors (4') and three of inferior exit (4").
    Cane (5) of the injector: with three longitudinal channels (6), separated 120° that you/they receive the fuel from the inferior ports to each other (4 "), which reaches a conventional nozzle and he/she lifts their needle to be pulverized inside the cylinder.
    With the claimed injection system they are carried out the following operations, described in the same sequential order with which you happens in the practice:
  • Entrance of fuel to the injector: Feeding from the bomb of High Pressure, entering the fuel for the outlying channel (7) of the cane of the injector that has three grooves (8) separated to 120°, of equals dimensions that the entrance ports (4') of the cylinder distributor (3), the six ports of the rotor communicated to each other being, inwardly, for the axial channel of feeding (9).
  • Step of fuel to the cylinder distributor (3): When the solenoid lifts the cylinder distributor they face in positional coincidence the grooves (8) of the outlying channel of the cane of the injector, with the ports (4') of entrance of the cylinder distributor, settling down the communication between this ports and the axial channel of feeding (9).
    • Exit of fuel of the rotor (3): The fuel that arrives to the axial channel of feeding (9) of the cylinder distributor, it descends for him until reaching the exit ports (4"), which face lifting the solenoid (1) the cylinder distributor, in positional coincidence with grooves of equals dimensions, in a second outlying channel (10) of the cane of the injector, collector of the fuel, which descends for the three longitudinal channels (6) that are in permanent communication with this collector (10), until reaching the nozzle (11), getting up with their pressure the needle (12) and pulverizing the fuel inside the cylinder.

    Claims (2)

    1. a - Procedure of electronic administration of the injection for distribution, for motors diesel, and device for their setting in practice, characterized because, the mobile organs of the injectors are worked by a solenoid (1) that, in turn, he/she moves for received impulses from the Electronic Unit of Control (UEC) (2)
    2. a.- Procedure of electronic administration of the injection for distribution, for motors diesel, according to the Recovery 1a, characterized because to make the injection they are carried out the following operations, described in the same sequential order with which you happens in the practice:
      Entrance of fuel to the injector: Feeding from the bomb of High Pressure, entering the fuel for the outlying channel of the cane of the injector that has three grooves, separated to 120°, of equals dimensions that the ports of entrance of the cylinder distributor, the six ports of the cylinder distributor communicated to each other being, inwardly, for the axial channel of feeding.
      Step of the fuel to the cylinder distributor: When the solenoid lifts the cylinder distributor they face in positional coincidence the grooves of the outlying channel of the cane of the injector, with the ports of entrance of the cylinder distributor, settling down the communication between this ports and the axial channel of feeding.
      Exit of fuel of the cylinder distributor: The fuel that arrives to the axial channel of feeding of the cylinder distributor, descends for him until reaching the exit ports, which face, when the solenoid lifts the cylinder distributor, in positional coincidence with grooves of equals dimensions, in a second outlying channel of the cane of the injector, collector of the fuel, which descends for three longitudinal channels that are in permanent communication with this collector, until reaching the nozzle, getting up with suppression the needle and pulverizing the fuel inside the cylinder.
    EP05076154A 2003-08-14 2003-08-14 Injector of fuel regulated electronycally Withdrawn EP1593842A3 (en)

    Applications Claiming Priority (1)

    Application Number Priority Date Filing Date Title
    EP03380193A EP1507083A1 (en) 2003-08-14 2003-08-14 Procedure and device for the electronic management of time fuel injection, for diesel engines

    Related Parent Applications (1)

    Application Number Title Priority Date Filing Date
    EP03380193A Division EP1507083A1 (en) 2003-08-14 2003-08-14 Procedure and device for the electronic management of time fuel injection, for diesel engines

    Publications (2)

    Publication Number Publication Date
    EP1593842A2 true EP1593842A2 (en) 2005-11-09
    EP1593842A3 EP1593842A3 (en) 2005-11-16

    Family

    ID=33560907

    Family Applications (2)

    Application Number Title Priority Date Filing Date
    EP03380193A Withdrawn EP1507083A1 (en) 2003-08-14 2003-08-14 Procedure and device for the electronic management of time fuel injection, for diesel engines
    EP05076154A Withdrawn EP1593842A3 (en) 2003-08-14 2003-08-14 Injector of fuel regulated electronycally

    Family Applications Before (1)

    Application Number Title Priority Date Filing Date
    EP03380193A Withdrawn EP1507083A1 (en) 2003-08-14 2003-08-14 Procedure and device for the electronic management of time fuel injection, for diesel engines

    Country Status (1)

    Country Link
    EP (2) EP1507083A1 (en)

    Family Cites Families (3)

    * Cited by examiner, † Cited by third party
    Publication number Priority date Publication date Assignee Title
    US4339737A (en) * 1980-09-22 1982-07-13 Cummins Engine Company, Inc. Rotary electrically actuated device
    JPH10196490A (en) * 1997-01-14 1998-07-28 Zexel Corp Fuel injection nozzle
    DE19960340A1 (en) * 1999-12-15 2001-06-21 Bosch Gmbh Robert Fuel injector

    Also Published As

    Publication number Publication date
    EP1507083A1 (en) 2005-02-16
    EP1593842A3 (en) 2005-11-16

    Similar Documents

    Publication Publication Date Title
    US7059301B2 (en) End of injection rate shaping
    US7219655B2 (en) Fuel injection system including two common rails for injecting fuel at two independently controlled pressures
    US4693227A (en) Multi-fuel injection system for an internal combustion engine
    EP1537325B1 (en) Fuel injection device for an internal combustion engine
    EP1702157B1 (en) Fuel injection device for an internal combustion engine
    EP2604847A2 (en) Two-stage fuel injection valve
    DE112007001978T5 (en) Pressure increased common rail fuel injection system and method of operating an internal combustion engine using this
    DE2430733A1 (en) FUEL INJECTION PUMP
    EP0657643B1 (en) Fuel injection device for internal combustion engines
    EP1476656B1 (en) Fuel-injection device for an internal combustion engine
    US6810857B2 (en) Fuel injection system for an internal combustion engine
    DE19716221A1 (en) Fuel injection device with pre and main injection in internal combustion engines, especially for fuels that are difficult to ignite
    DE10215021A1 (en) Fuel injection device for an internal combustion engine
    EP1359306A3 (en) Fuel injection system for an internal combustion engine
    US7509942B2 (en) Fuel system
    EP1121527B1 (en) Fuel injection device
    EP1593842A2 (en) Injector of fuel regulated electronycally
    DE102005025925A1 (en) Mechanically operated electronically controlled fuel injection system
    US6637409B2 (en) Fuel injection device for internal combustion engines
    EP1530681B1 (en) Fuel injection device for an internal combustion engine
    EP1321663A2 (en) Fuel injection device for an internal combustion engine
    EP2615294A1 (en) Fuel injector
    EP1312792B1 (en) Fuel injection apparatus for an internal combustion engine
    EP1241347B1 (en) Fuel injection system for internal combustion engines
    EP1260702B1 (en) A fuel injection system for an internal combustion engine

    Legal Events

    Date Code Title Description
    PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

    Free format text: ORIGINAL CODE: 0009012

    PUAL Search report despatched

    Free format text: ORIGINAL CODE: 0009013

    AC Divisional application: reference to earlier application

    Ref document number: 1507083

    Country of ref document: EP

    Kind code of ref document: P

    AK Designated contracting states

    Kind code of ref document: A2

    Designated state(s): AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IT LI LU MC NL PT RO SE SI SK TR

    AX Request for extension of the european patent

    Extension state: AL LV MK

    AK Designated contracting states

    Kind code of ref document: A3

    Designated state(s): AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IT LI LU MC NL PT RO SE SI SK TR

    AX Request for extension of the european patent

    Extension state: AL LV MK

    AKX Designation fees paid
    REG Reference to a national code

    Ref country code: DE

    Ref legal event code: 8566

    STAA Information on the status of an ep patent application or granted ep patent

    Free format text: STATUS: THE APPLICATION IS DEEMED TO BE WITHDRAWN

    18D Application deemed to be withdrawn

    Effective date: 20060301
