Heizkörper (1), der im Einrichtungsbereich neben der Funktion als Wärmespender und dekoratives Element auch funktionale Aufgaben übernehmen kann, mit einer Vielzahl von für die vertikale Anordnung vorgesehenen rohrförmigen Heizleitungselementen (2), welche im wesentlichen parallel zueinander ständerförmig gruppiert angeordnet und an einen Zulauf und einen Rücklauf angeschlossen sind, wobei wenigstens ein die gruppierten Heizleitungselemente (2) umgebender Rahmen (3) zur Anordnung von Funktionselementen mittels wenigstens eines in die ständerförmig gruppierte Anordnung hineinragenden Träger (6) befestigt ist.

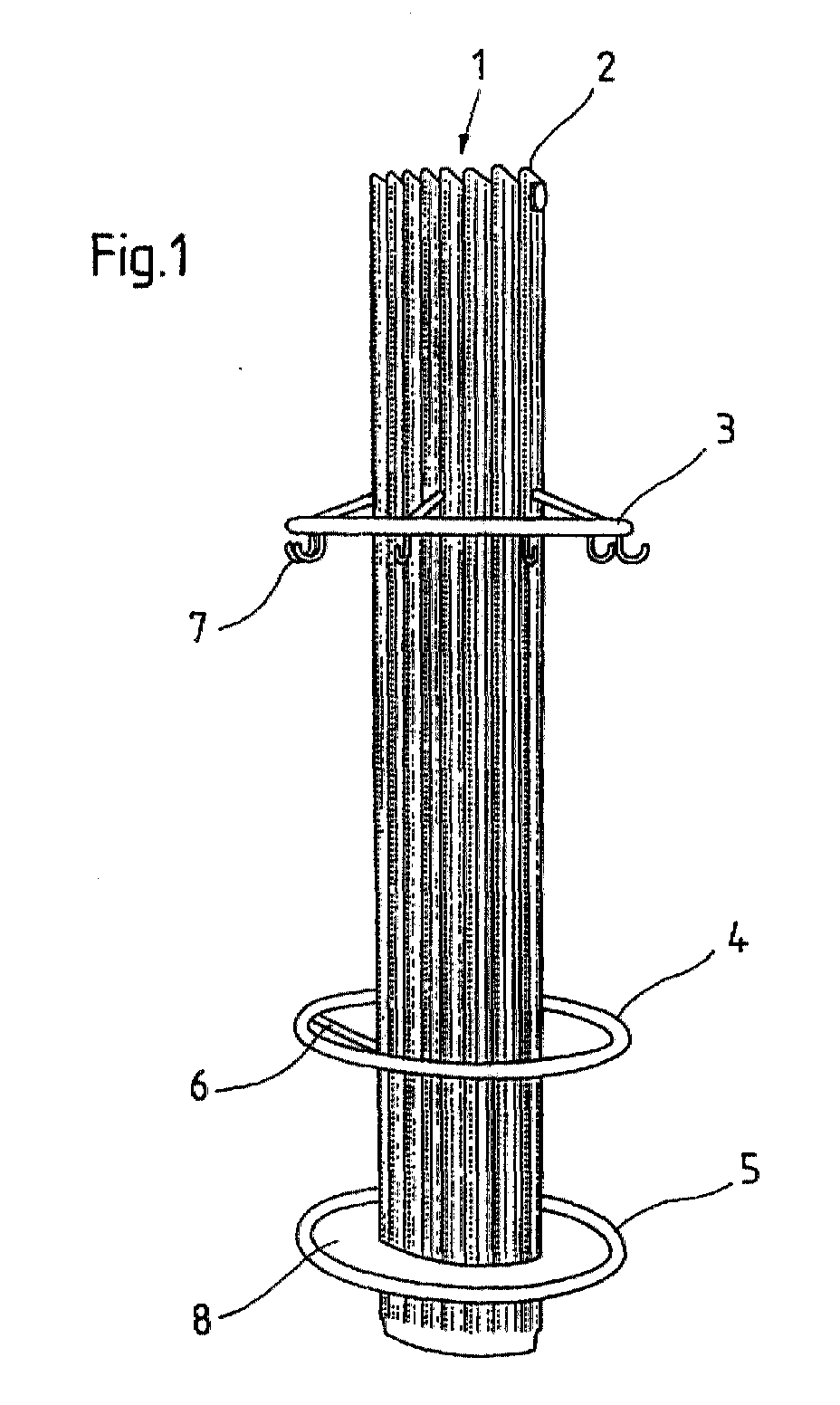

Figure 00000001
Radiator (1), which can also take on functional functions in the furnishing area in addition to the function as a heat donor and decorative element, with a large number of tubular heating line elements (2) provided for vertical arrangement, which are arranged in a stator-like arrangement and parallel to an inlet and a return line is connected, at least one frame (3) surrounding the grouped heating line elements (2) for the arrangement of functional elements being fastened by means of at least one support (6) projecting into the stator-shaped grouping.
Figure 00000001
