EP1050488A3 - Group of containers and method of connecting the containers - Google Patents

Group of containers and method of connecting the containers Download PDF

Info

Publication number
EP1050488A3
EP1050488A3 EP00105841A EP00105841A EP1050488A3 EP 1050488 A3 EP1050488 A3 EP 1050488A3 EP 00105841 A EP00105841 A EP 00105841A EP 00105841 A EP00105841 A EP 00105841A EP 1050488 A3 EP1050488 A3 EP 1050488A3
Authority
EP
European Patent Office
Prior art keywords
containers
openings
profiles
side walls
group
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP00105841A
Other languages
German (de)
French (fr)
Other versions
EP1050488A2 (en
Inventor
Horst Schimanng
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
M Schall GmbH and Co KG
Original Assignee
M Schall GmbH and Co KG
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by M Schall GmbH and Co KG filed Critical M Schall GmbH and Co KG
Publication of EP1050488A2 publication Critical patent/EP1050488A2/en
Publication of EP1050488A3 publication Critical patent/EP1050488A3/en
Withdrawn legal-status Critical Current

Links

Classifications

    • E—FIXED CONSTRUCTIONS
    • E04—BUILDING
    • E04B—GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTITIONS; ROOFS; FLOORS; CEILINGS; INSULATION OR OTHER PROTECTION OF BUILDINGS
    • E04B1/00—Constructions in general; Structures which are not restricted either to walls, e.g. partitions, or floors or ceilings or roofs
    • E04B1/348—Structures composed of units comprising at least considerable parts of two sides of a room, e.g. box-like or cell-like units closed or in skeleton form
    • E04B1/34815—Elements not integrated in a skeleton
    • E04B1/3483—Elements not integrated in a skeleton the supporting structure consisting of metal

Landscapes

  • Engineering & Computer Science (AREA)
  • Architecture (AREA)
  • Physics & Mathematics (AREA)
  • Electromagnetism (AREA)
  • Civil Engineering (AREA)
  • Structural Engineering (AREA)
  • Packages (AREA)
  • Stackable Containers (AREA)
  • Closures For Containers (AREA)

Abstract

Die Erfindung bezieht sich auf eine Containergruppe mit wenigstens zwei Containern (1,2,72,73), die mit zwei Seitenwandungen (3,30,74,75), welche Durchgangsöffnungen (4,31,76,77) aufweisen, so aneinandergesetzt sind, daß die Durchgangsöffnungen (4,31,76,77) fluchten, wobei die Durchgangsöffnungen (4,31,76,77) mit Randdichtungsprofile (10,33,80,81) aufweisenden Rahmenprofilen (9,32,78,79) eingefaßt sind und der Zwischenraum zwischen den Seitenwandungen (3,30,74,75) durch einen die Durchgangsöffnungen (4,31,76,77) umgebenden Abdichtungsring (6,71) überbrückt ist, wobei die Erfindung dadurch gekennzeichnet ist, daß der Abdichtungsring (6,71) beidseits Eingriffsprofile (23,24,98,99) aufweist, die komplementär zu den Randdichtungsprofilen (10,33,80,81) ausgebildet sind und in diese abdichtend eingreifen.

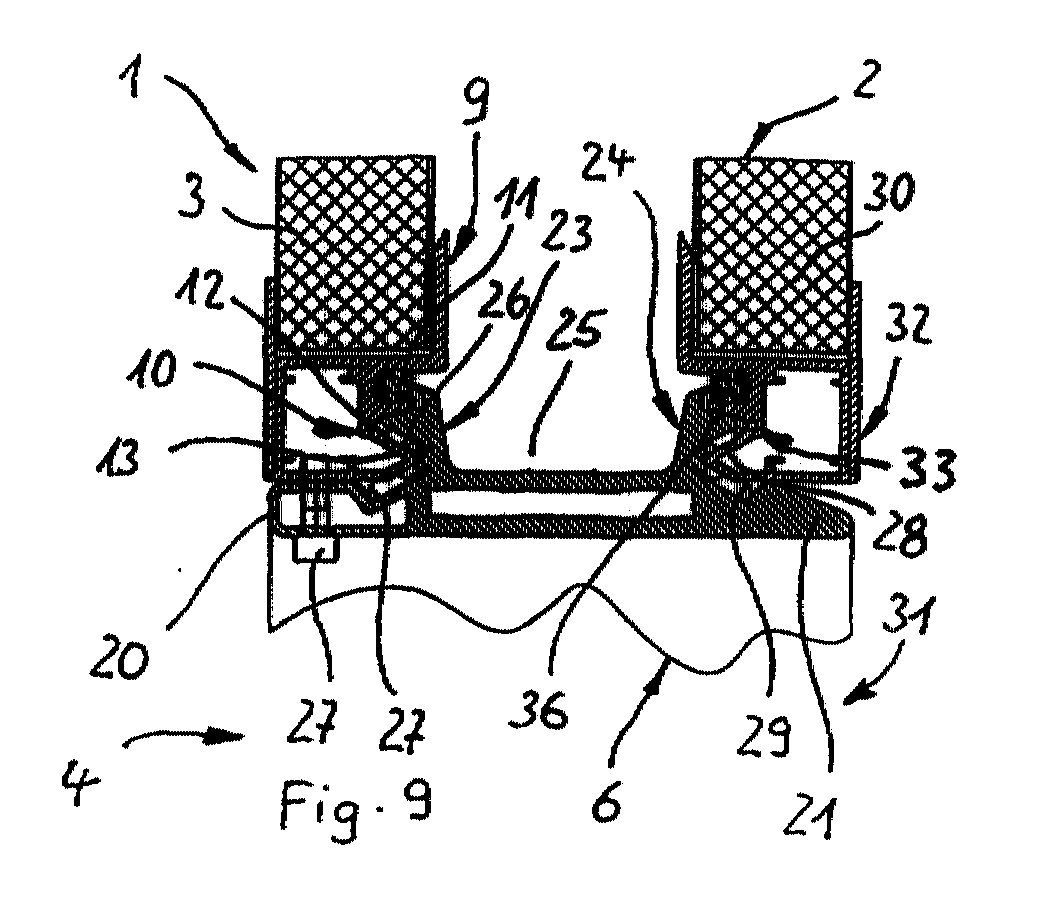

Figure 00000001
The invention relates to a container group with at least two containers (1,2,72,73), which are so placed together with two side walls (3,30,74,75) which have through openings (4,31,76,77) are that the through openings (4,31,76,77) are aligned, the through openings (4,31,76,77) having frame profiles (9,32,78,79) with edge sealing profiles (10,33,80,81) are bordered and the space between the side walls (3,30,74,75) is bridged by a sealing ring (6,71) surrounding the through openings (4,31,76,77), the invention being characterized in that the sealing ring (6,71) engaging profiles (23,24,98,99) on both sides, which are complementary to the edge sealing profiles (10,33,80,81) and engage sealingly.
Figure 00000001
EP00105841A 1999-05-05 2000-03-20 Group of containers and method of connecting the containers Withdrawn EP1050488A3 (en)
