EP0382403A2 - Expression systems for amidating enzyme - Google Patents
Expression systems for amidating enzyme Download PDFInfo
- Publication number
- EP0382403A2 EP0382403A2 EP90301034A EP90301034A EP0382403A2 EP 0382403 A2 EP0382403 A2 EP 0382403A2 EP 90301034 A EP90301034 A EP 90301034A EP 90301034 A EP90301034 A EP 90301034A EP 0382403 A2 EP0382403 A2 EP 0382403A2
- Authority
- EP
- European Patent Office
- Prior art keywords
- sequence
- host
- expression vector
- dna sequence
- amidating enzyme
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- C—CHEMISTRY; METALLURGY
- C12—BIOCHEMISTRY; BEER; SPIRITS; WINE; VINEGAR; MICROBIOLOGY; ENZYMOLOGY; MUTATION OR GENETIC ENGINEERING
- C12N—MICROORGANISMS OR ENZYMES; COMPOSITIONS THEREOF; PROPAGATING, PRESERVING, OR MAINTAINING MICROORGANISMS; MUTATION OR GENETIC ENGINEERING; CULTURE MEDIA
- C12N15/00—Mutation or genetic engineering; DNA or RNA concerning genetic engineering, vectors, e.g. plasmids, or their isolation, preparation or purification; Use of hosts therefor
- C12N15/09—Recombinant DNA-technology
- C12N15/11—DNA or RNA fragments; Modified forms thereof; Non-coding nucleic acids having a biological activity
- C12N15/52—Genes encoding for enzymes or proenzymes
-
- C—CHEMISTRY; METALLURGY
- C12—BIOCHEMISTRY; BEER; SPIRITS; WINE; VINEGAR; MICROBIOLOGY; ENZYMOLOGY; MUTATION OR GENETIC ENGINEERING
- C12N—MICROORGANISMS OR ENZYMES; COMPOSITIONS THEREOF; PROPAGATING, PRESERVING, OR MAINTAINING MICROORGANISMS; MUTATION OR GENETIC ENGINEERING; CULTURE MEDIA
- C12N9/00—Enzymes; Proenzymes; Compositions thereof; Processes for preparing, activating, inhibiting, separating or purifying enzymes
- C12N9/0004—Oxidoreductases (1.)
- C12N9/0071—Oxidoreductases (1.) acting on paired donors with incorporation of molecular oxygen (1.14)
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K14/00—Peptides having more than 20 amino acids; Gastrins; Somatostatins; Melanotropins; Derivatives thereof
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K14/00—Peptides having more than 20 amino acids; Gastrins; Somatostatins; Melanotropins; Derivatives thereof
- C07K14/435—Peptides having more than 20 amino acids; Gastrins; Somatostatins; Melanotropins; Derivatives thereof from animals; from humans
- C07K14/575—Hormones
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K16/00—Immunoglobulins [IGs], e.g. monoclonal or polyclonal antibodies
- C07K16/40—Immunoglobulins [IGs], e.g. monoclonal or polyclonal antibodies against enzymes
-
- C—CHEMISTRY; METALLURGY
- C12—BIOCHEMISTRY; BEER; SPIRITS; WINE; VINEGAR; MICROBIOLOGY; ENZYMOLOGY; MUTATION OR GENETIC ENGINEERING
- C12N—MICROORGANISMS OR ENZYMES; COMPOSITIONS THEREOF; PROPAGATING, PRESERVING, OR MAINTAINING MICROORGANISMS; MUTATION OR GENETIC ENGINEERING; CULTURE MEDIA
- C12N11/00—Carrier-bound or immobilised enzymes; Carrier-bound or immobilised microbial cells; Preparation thereof
-
- C—CHEMISTRY; METALLURGY
- C12—BIOCHEMISTRY; BEER; SPIRITS; WINE; VINEGAR; MICROBIOLOGY; ENZYMOLOGY; MUTATION OR GENETIC ENGINEERING
- C12N—MICROORGANISMS OR ENZYMES; COMPOSITIONS THEREOF; PROPAGATING, PRESERVING, OR MAINTAINING MICROORGANISMS; MUTATION OR GENETIC ENGINEERING; CULTURE MEDIA
- C12N15/00—Mutation or genetic engineering; DNA or RNA concerning genetic engineering, vectors, e.g. plasmids, or their isolation, preparation or purification; Use of hosts therefor
- C12N15/09—Recombinant DNA-technology
- C12N15/63—Introduction of foreign genetic material using vectors; Vectors; Use of hosts therefor; Regulation of expression
- C12N15/67—General methods for enhancing the expression
-
- C—CHEMISTRY; METALLURGY
- C12—BIOCHEMISTRY; BEER; SPIRITS; WINE; VINEGAR; MICROBIOLOGY; ENZYMOLOGY; MUTATION OR GENETIC ENGINEERING
- C12Y—ENZYMES
- C12Y114/00—Oxidoreductases acting on paired donors, with incorporation or reduction of molecular oxygen (1.14)
- C12Y114/17—Oxidoreductases acting on paired donors, with incorporation or reduction of molecular oxygen (1.14) with reduced ascorbate as one donor, and incorporation of one atom of oxygen (1.14.17)
- C12Y114/17003—Peptidylglycine monooxygenase (1.14.17.3)
Definitions
- This invention relates to the production of alpha-amidating enzymes through recombinant DNA techniques, and particularly to expression vectors and hosts capable of expressing alpha-amidating enzyme in high yields and at recoverable high purity.
- mammalian cells and other eukaryotes can perform certain post-translational processing procedures, while prokaryotes cannot.
- Certain prokaryotes such as E. coli , are widely employed as hosts for the production of mammalian proteins via recombinant DNA (rDNA) technology because they can be readily grown in batch fermentation procedures and because they are genetically well-characterized.
- rDNA recombinant DNA
- many mammalian proteins require some type of post-translational processing, and if these proteins are produced by genetic engineering of E. coli , for example, the post-translational processing must often be accomplished by using complex, in vitro chemical procedures which are cost-prohibitive for large-scale production applications.
- alpha-amidating enzymes The specific amidation of the carboxyl-terminal amino acid of a protein is catalyzed by alpha-amidating enzymes.
- the polypeptide sequences for many important biological proteins which require amidation for maximal efficacy may be manufactured, for example, by genetic engineering techniques.
- the important and sometimes essential carboxyl terminal amidation must often be performed in vitro . It is desirable to avoid costly and cumbersome chemical amidation techniques at this point, and is therefore desirable to utilize an amidating enzyme to perform the specific amidation.
- alpha-amidating enzyme is not easily obtained in nature.
- amidated peptides in a particular tissue is not necessarily synonymous with high levels of alpha-amidating enzyme.
- rat anterior pituitary tissue contains high alpha-amidating activity but no known substrates [Eipper et al, PNAS 80, 5144-5148 (1983)].
- Rat posterior pituitary tissue contains amidated peptides (oxytocin and vasopressin) but has very little alpha-amidating activity [Eipper et al., Endo 116, 2497-2504 (1985)]. Therefore, until individual tissues are tested for alpha-amidating activity, the presence or potential levels of the enzyme cannot be anticipated.
- amidating enzyme and “alpha-amidating enzyme” refer to any agent capable of catalyzing the conversion of a peptidyl substrate to a corresponding peptidyl amide having an amino group in place of the C-terminal amino acid of said substrate.
- a host capable of expressing a polypeptide sequence of an alpha amidating enzyme, said host comprising an expression vector which includes a transcriptional promoter followed downstream by a DNA sequence foreign to said host which encodes said amidating enzyme, said vector being capable of directing expression of polypeptides in said host.
- a host which is capable of expressing the polypeptide sequence of an alpha amidating enzyme, said host comprising an expression vector containing a transcriptional promoter followed downstream by a DNA sequence foreign to said host which is capable of hybridizing under stringent conditions with a DNA sequence of:
- a host which is capable of expressing the polypeptide sequence of an alpha amidating enzyme, said host comprising an expression vector containing a transcriptional promoter followed downstream by a DNA sequence foreign to said host which is capable of hybridizing under stringent conditions with a DNA sequence of:
- stringent conditions means 2 x SSC (0.3M sodium chloride and 0.03M sodium citrate) at 62°C.
- the present invention also provides expression vectors for directing expression of alpha-amidating enzyme in both prokaryotic and eukaryotic systems.
- an expression vector is provided which is capable of directing, in a prokaryotic host, the expression of a polypeptide sequence of an alpha amidating enzyme, said vector comprising a transcriptional promoter followed downstream by a first DNA sequence having an amidating enzyme-coding region, said first sequence being sufficiently homologous to a natural DNA sequence for expressing natural amidating enzyme to undergo hybridization with said natural sequence under stringent conditions, and said first sequence including an initiating methionine codon within about 50 nucleotides of the start of said enzyme-coding region.
- an expression vector in another embodiment of the invention, which is capable of directing the expression of a polypeptide sequence of an alpha-amidating enzyme in a eukaryotic host, said vector comprising a transcriptional promoter followed downstream by a first DNA sequence having an amidating enzyme-coding region, said first sequence being sufficiently homologous to a natural DNA sequence for expressing natural amidating enzyme to undergo hybridization with said natural sequence under stringent conditions, and said first sequence including a stop codon upstream from a sequence which would otherwise code for a membrane spanning domain.
- This first sequence should be followed by a sequence specifying the addition of poly A to the messenger RNA generated by transcription from said promoter.
- membrane spanning domain is a DNA sequence which, as determined by the test of Kyte & Doolittle, J. Mol. Biol. , Vol. 157, pp. 105-132 (1982) (the entire disclosure of which is hereby incorporated by reference), codes for an amino acid sequence of sufficient hydrophobicity, length, structural character, and the like to become fixed in the membrane. For example, this may occur as a protein is synthesized on a membrane-bound ribosome or, alternatively, the amino acid sequence coded by the membrane spanning domain may become associated with other areas of the protein of which it is a part, such that the sequence becomes inserted into the hydrophobic environment of the membrane post-translationally.
- Membrane-spanning domains are discussed in more detail in Von Heijne, Sequence Analysis in Molecular Biology: Treasure Trove or Trivial Pursuit , pp. 81-121 (Acad. Press 1987), the teachings of which are hereby incorporated by reference.
- base numbers utilized herein are the numbers specifically stated for any DNA sequence expressly set forth together with base number references.
- the bases shall be consecutively numbered with base number 1 being the first base of the first codon that is expressed by the sequence being discussed, and the amino acid numbers are consecutively numbered with the first being the amino acid expressed by bases 1-3.
- expression vectors suitable for prokaryotic systems and expression vectors suitable for eukaryotic systems are prepared.
- DNA encoding amidating enzyme useful in these vectors may be isolated as taught in EPC application No. 88307533.5 and published as Publication No. 0308067 the entire disclosure of which is incorporated herein by reference.
- Alpha-amidating enzymes have been isolated from rat medullary thyroid carcinoma tissue or conditioned media from a rat cell line, and purified to homogeneity as taught in the above-identified parent application and in grandparent application Serial Number 655,366 filed September 27, 1984, now issued as U.S. Patent 4,708,934, priority of which has been claimed and the entire disclosure of which has been incorporated herein by reference.
- Amino acid sequences have been determined for the purified alpha-amidating enzyme, and these sequences have been used to project a variety of oligonucleotide probes which have been radiolabelled and utilized for isolating cDNAs for amidating enzyme.
- the isolated cDNAs have been used to screen libraries prepared, for example, from the total RNA of rat medullary thyroid carcinoma tissues, their derived cell lines or from cell lines known to produce amidating enzyme, for example, biological deposit IVI 10028 (In Vitro International, Linthicum, Maryland) (Rat MTC tissue) or derived cell line IVI 10029.
- Total RNA was prepared and Poly-A RNA was selected with oligo DT cellulose.
- cDNAs were prepared by well known methods utilizing first reverse transcriptase and then a DNA polymerase. The cDNA was used to generate cDNA libraries in the vector ⁇ gt 11 and the recombinant DNA's were packaged in vitro to form infectious bacteriophage particles.
- Extracts for packaging are commercially available for example from Promega Biotech or Clontech Laboratories or can be prepared according to methods well-known in the art.
- the phage were screened with radiolabelled oligonucleotide probes prepared as set forth above. Screening for bacteriophage containing alpha amidating enzyme cDNA ("AE cDNA") was accomplished by plating samples of bacteriophage and lifting the phage onto nitrocellulose filter discs. Hybridization with two or more radiolabelled AE-specific oligonucleotide probes conferred specificity.
- AE cDNA alpha amidating enzyme cDNA
- Applicants have utilized cDNAs isolated in the above manner for constructing both prokaryotic and eukaryotic expression vectors and a number of hosts have been transfected with these vectors for effective expression of alpha-amidating enzyme.

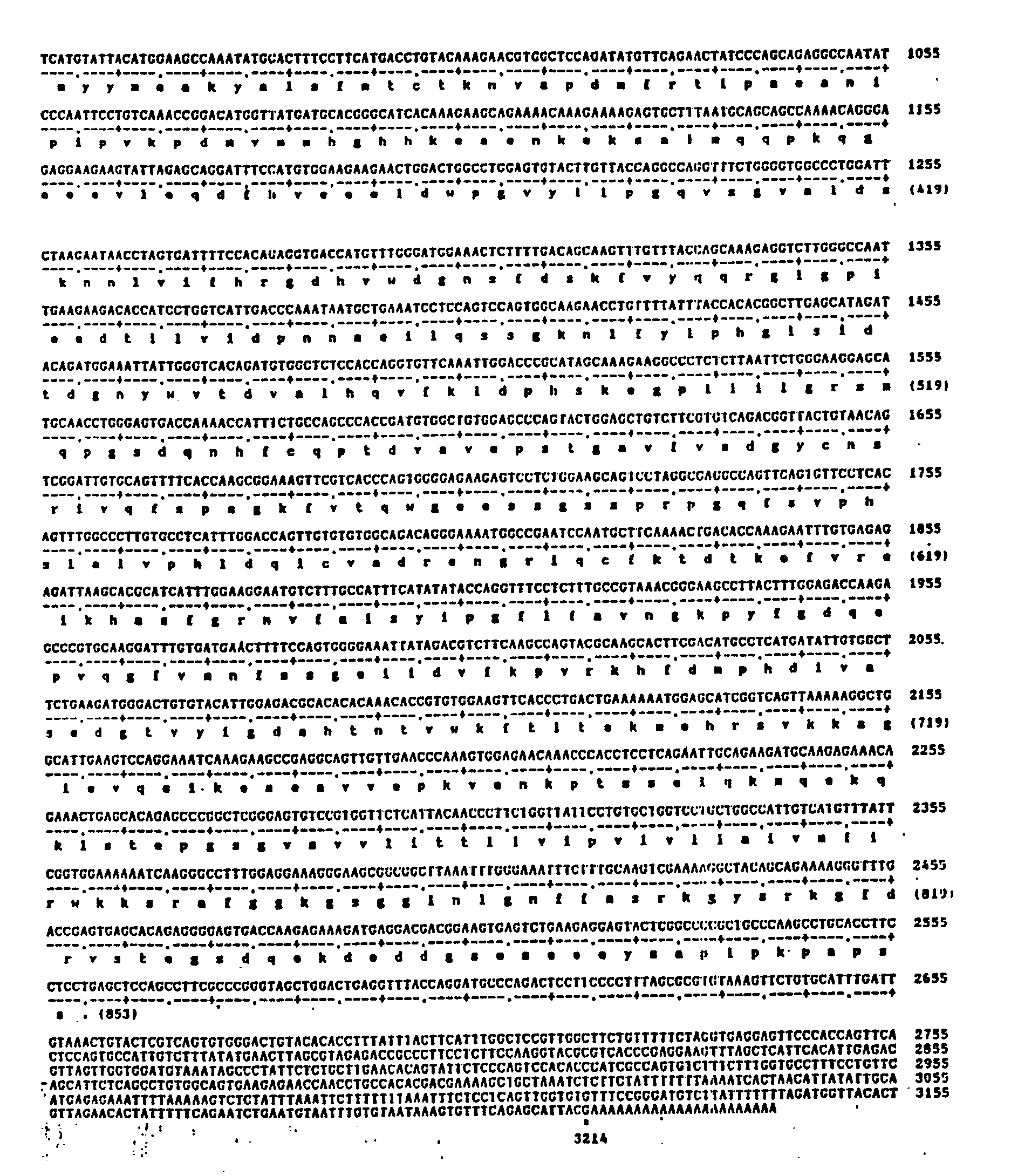

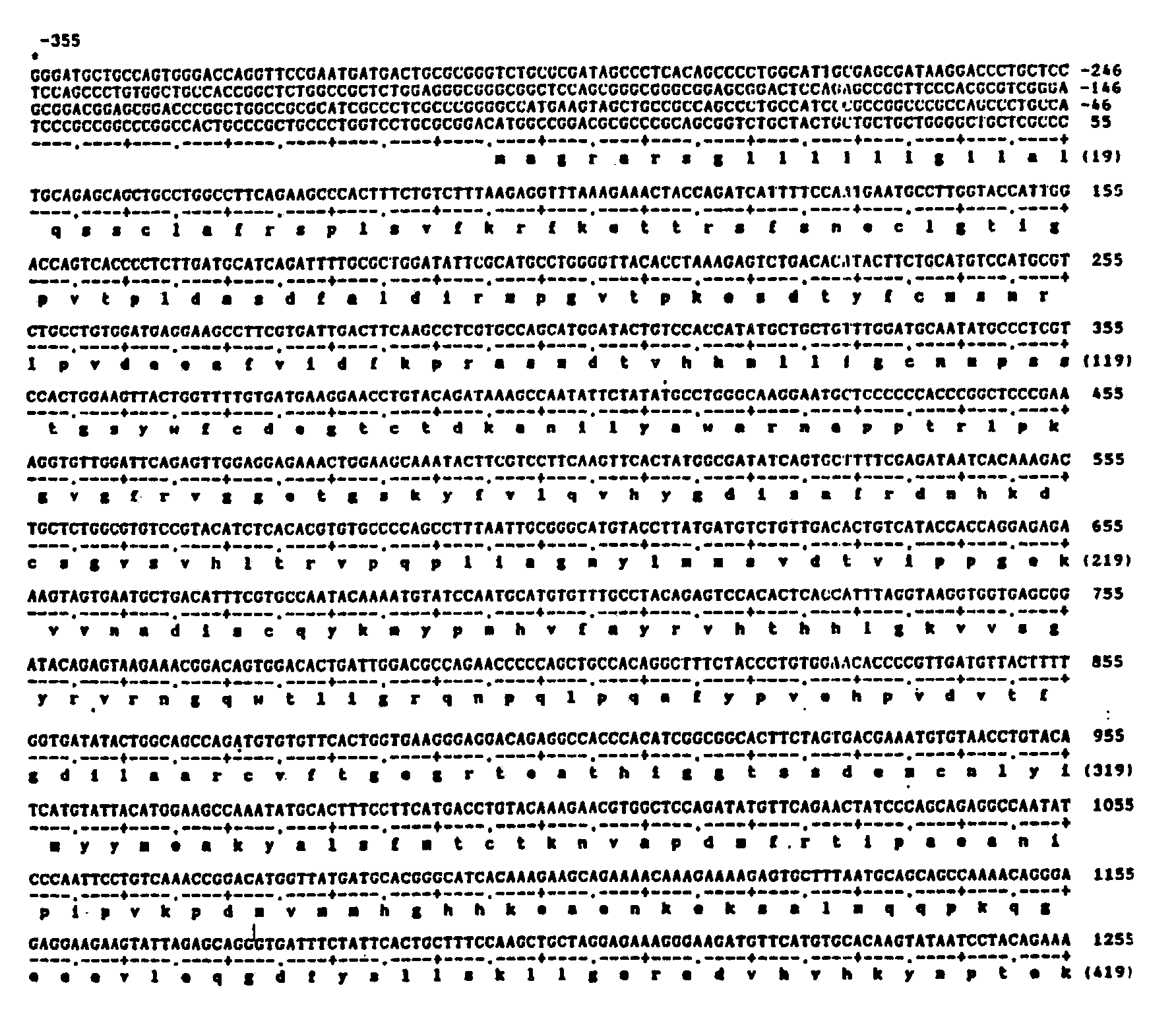

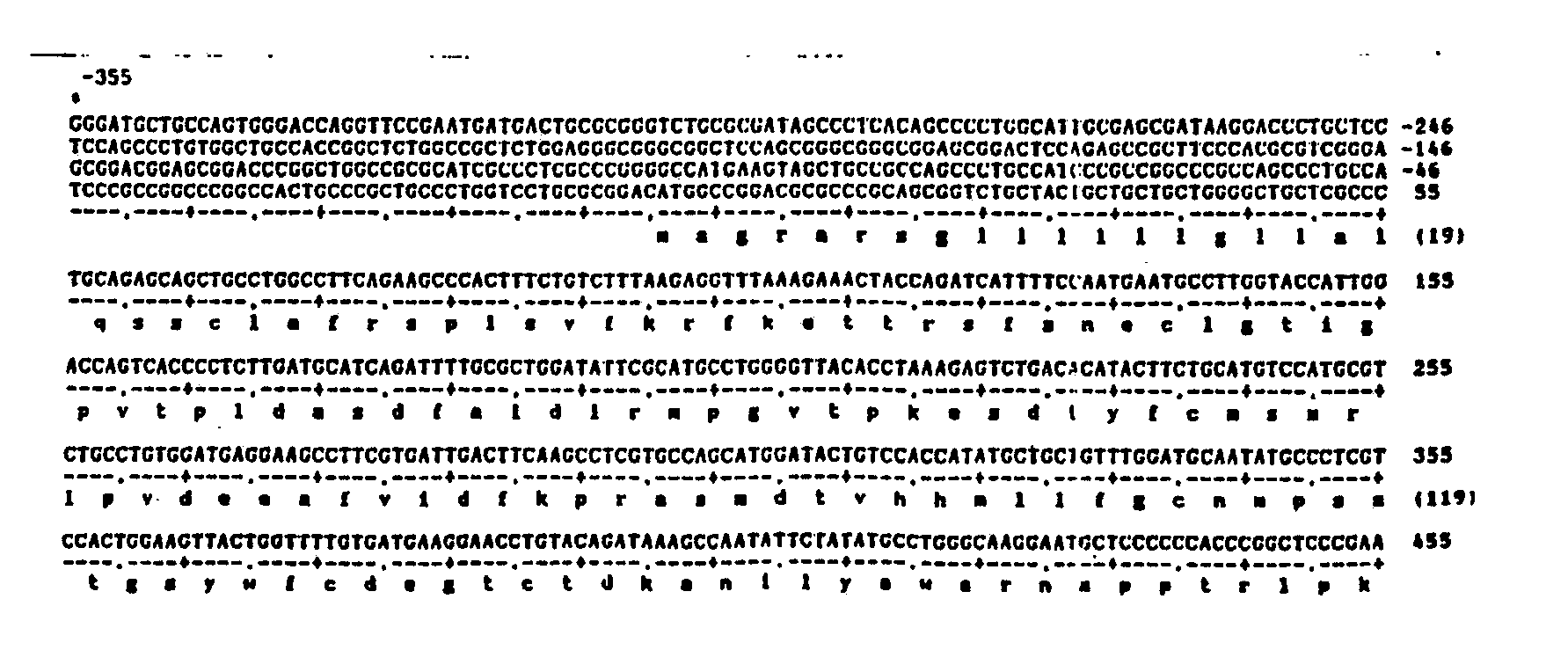

- the cDNAs of diagrams A and B above encode protein products of approximately 94 and 105 kD, respectively. Both of these proteins are larger than mature, active enzymes that have been purified from animal tissue extracts or cell line secretions. Each of these primary translation products are pre-proenzymes that contain membrane-spanning domains in the C-terminal one-third of the coding sequence. It is preferred that the stop codon be placed so that the expressed protein has a molecular weight of about 75 for when expressed by the cDNA of diagram A (i.e. the stop is placed between bases 2025 and 2275) and 87 kD when expressed by the cDNA of diagram B *i.e., the stop is placed between about bases 2340 and 2690). The weight of one mature natural amidating enzyme purified by Applicants.
- the gene sequences that encode the natural secretory signal sequence be removed, that an initiation codon be placed within about 50 nucleotides of the gene sequences encoding the start of the mature protein corresponding to alpha-amidating enzyme, and that the gene sequences encoding the membrane spanning domain in the C-terminal region not be translated.
- the initiating codon is of course in-frame with the sequence which encodes the enzyme and, in some preferred embodiments, is upstream from the region, sometimes immediately upstream.
- a valine codon which, in prokaryotic systems, codes an initiating methionine is altered by a point mutation to an equivalent non-initiating valine codon at bases 661-663 (of the cDNAs of either diagram A or B).
- a point mutation to an equivalent non-initiating valine codon at bases 661-663 (of the cDNAs of either diagram A or B).
- applicants in other preferred embodiments, delete or substantially modify any region coding for a ribosome binding site which occurs just upstream of an internal initiation site, and more preferably any ribosome binding site whenever one may occur. These modifications are made to substantially eliminate internal initiation such that the protein expressed because of internal initiation is not observed as a separate band following electrophoresis.
- type B cDNA contains sequences with the characteristics of an unprocessed intron there may be a difficulty in expressing this cDNA in some eukaryotic host cells. These cells may not efficiently produce an mRNA from the type B gene due to the presence of the paired splice donor and acceptor sites. Elimination of the acceptor site might therefore be necessary to allow for efficient expression of type B AE cDNA
- the mutation of the sequence that we have produced changes the AAA lysine codon to a TAA stop codon.
- the oligonucleotide used for the mutagenesis incorporated this change but was otherwise identical in sequence to the naturally occurring cDNA sequence for the respective enzyme (type A or type B) being mutated.
- alpha amidating enzyme protein is produced by processing of the type B protein at the internal region of the protein that is unique to the type B enzyme protein. This results in an enzyme product that is approximately 43 kD in molecular mass. Without intending to be bound by theory, it is believed that the DNA sequence upstream from the intron region is sufficient to code for a polypeptide capable of exhibiting significant alpha-amidating activity.
- polypeptides which are easy to recover and which are capable of expressing alpha-amidating activity may be encoded by cDNAs which are significantly truncated by placement of a stop codon somewhere in the intron region of type B cDNA in just before or after the corresponding location where this intron is missing from TYPE A cDNA.
- Preferred truncation results from placement of a stop codon within about 30 bases of the beginning of the of the intron region, preferably immediately downstream therefrom.
- a modified cDNA is created having a stop codon in place of the lysine codon at amino acid position 436 of the type B cDNA. This mutation was accomplished by oligonucleotide directed site specific mutagenesis of the type B AE cDNA.
- the shortening of the amidating enzyme protein by introduction of the stop codon at amino acid position 436 of the type B cDNA gives a protein that most closely approximates the one produced naturally by proteolytic cleavage of the primary translation product (or some other cleavage intermediates in the biosynthetic pathway), a further shortening of the amidating enzyme protein may also result in production of an active product in recombinant DNA host cells.
- the inserted stop codons are not intended to truncate the expressed polypeptide in the above-described manner, it is preferred that the inserted stop codon be placed within about 20 bases, and preferably immediately upstream from, DNA sequences coding for consecutive basic amino acid residues. Insertion of stop codons at these positions will likely result in expression of a polypeptide resembling certain natural amidating enzymes after they have undergone post-translational processing.
- any signal sequence coding regions are preferably eliminated and a methionine initiator codon is inserted within about 50 nucleotides of the beginning of the region which codes for amidating enzymes.
- An alternative embodiment for prokaryotic expression eliminates any coding sequences for signal sequence or proenzyme sequence and inserts an initiator methionine codon within about 50 nucleotides of the beginning of the region which codes for amidating enzyme. In many natural AE cDNAs, this corresponds to the beginning of the region which encodes ser-x-ser (X being phe or leu). See, for example, bases 124 to 132 of the sequence for type A or type B cDNA. In some embodiments secretion of alpha amidating enzyme may be desirable. In this case it is preferable to retain the signal sequence coding regions, or alternatively to replace them with heterologous sequences that can serve the same function, for example, the signal sequences of the bacterial OMP A protein.
- prokaryotic expression vectors which may desirably be modified to include DNA sequences encoding amidating enzyme in accordance with the invention include but are not limited to pKK233-, pKK322-2, pPROK-1, pkT279,280,287, pPL lambda, pYEJ001, pKC30, pPROK-C, all commercially available.
- Prokaryotic hosts which may be transfected with expression vectors in accordance with the invention include but are not limited to C600, LE392, RR1, DH1, SF8, all commerically available.
- Eukaryotic expression vectors which may desirably be modified to include DNA sequences encoding amidating enzyme in accordance with the invention include but are not limited to pMAMNeo, pdBPVMMTNeo, pRSV, peuKC1, pCH110, all commerically available. Appropriate yeast vectors may also be used.
- Preferred eurokaryotic hosts may be transfected with expression vectors in accordance with the invention include but are not limited to IVI deposit 10029, Hela, CV1, C127, CHO (Chinese Hamster Ovary) and COS.
- a cDNA fragment having the sequence set forth in diagram A, above was digested With KpnI and Hind III and the fragment of about 2.1 kb was isolated.

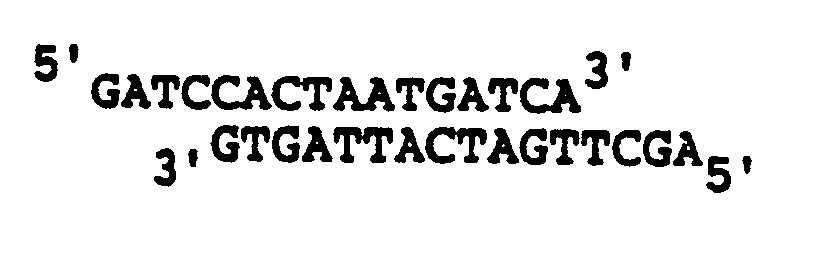

- an oligonucleotide linker with the sequence was ligated to this DNA fragment.
- the resulting fragment contained one Nco I compatible sticky-end and one Hind III sticky end.
- the E. Coli expression vector pKK233-2 was obtained commercially from Pharmacia and digested with restriction enzymes Nco I and Hind III. The large linear fragment was isolated and ligated to the linker adapted cDNA fragment.
- the ligation mixture was used to transform competent E. Coli JM105. Transformants were selected by ampicillin resistance and the clones isolated were analyzed for the recombinant plasmid by restriction enzyme and DNA sequence analysis to confirm the structure of the expression vector (hereafter "pAE12") that they contained.
- the expression vector contains the hybrid trp-lac promoter which is repressed by the lac repressor and inducible by treatment of the cells with isopropylthiogalactoside (IPTG). Upstream from the initiator methionine the vector also contains the sequences of a strong ribosome binding site.
- the recombinant cells were grown with shaking in LB-broth at 37°C to an OD600 of 0.4. IPTG was added to the culture to a final concentration of 1mM and the growth was allowed to continue at 37°C with shaking for three to five hours. Cells were collected by centrifugation of the culture and the supernatant was discarded. The cells were resuspended in buffer containing a coctail of protease inhibitors, treated with lysozyme and then sonicated to lyse the cell membranes. The lysates were centrifuged at 12,000 x g to separate the soluble and insoluble fractions of the cells.
- the alpha amidating enzyme protein was readily identified as an IPTG inducible product in the insoluble protein fraction. Since the initial expression plasmid did not contain a stop codon specified by the alpha amidating enzyme gene sequences, the inducible product formed contains sequences specified by downstream vector DNA fused to the C-terminal of the alpha amidating enzyme protein sequences. In addition, the induced insoluble protein also contained a smaller amidation enzyme specific protein that represented a product formed by internal initiation of protein synthesis at a cryptic RBS and initiation codon (amino acid position 221 of the alpha amidating enzyme sequence).
- a mutation of the lysine codon at position 716 of the type A sequence was made to generate a TAA stop codon at this position.
- the mutated cDNA was then digested with Kpn I and Eco R1 and used to replace the original Kpn I-Eco R1 fragment in the initial expression vector pAE12.
- the type B cDNA sequences were mutated at the comparable position (amino acid 821) to create a stop codon and the Kpn I-Eco R1 fragment from the mutated type B cDNA was used to replace the corresponding fragment in pAE12.
- the two expression plasmids so created pAE24 (type A) and pAE25 (Type B) were then used to transform JM105.
- the resulting strains were cultured for expression as was done previously for pAE12-containing strains.
- the PAE24 was found to produce two IPTG inducible, insoluble proteins of approximately 75 kD and 55 kD while the pAE25 was found to produce two IPTG inducible insoluble proteins of about 87 kD and 67 kD. Again, the small protein in each of these pairs represents the unwanted amino-terminally truncated product from either the type A or type B cDNA.
- GTG start codon (GTG can serve as an initiator met codon in bacteria), was converted to a GTT codon that cannot initiate protein synthesis but which still encodes the valine that is normally found at this position in alpha amidating enzyme proteins encoded by natural genes.
- the mutated region of the cDNA was substituted for the natural sequence in the expression vectors PAE24 and PAE25, two new vectors were created, pAE31 and pAE32.
- Coli JM105 with these modified expression vectors and testing protein production from the resulting recombinant strains indicated that this mutagenesis was effective in eliminating the unwanted internal initiation.
- the IPTG induced product from the host cells carrying pAE31 was found to be 75 kD while that from cells transformed with pAE 32 was found to be 87 kD.
- Plasmid DNA from recombinant pdMMTNeo ⁇ -AE A75 (clone 11) was digested with BamHI.
- the linearized vector was isolated and purified and then treated with bacterial alkaline phosphatase (B.A.P.) for 2 hours at 37°C to remove 5′ phosphates.
- B.A.P. bacterial alkaline phosphatase
- the BPV-1 genome was isolated and purified following B and BamHI digestion of the vector pdBPVMMTNeo. This BamHI fragment of BPV-1 DNA, which is approximately 8.0 kb, was then ligated to the BamHI linearized and B.A.P. treated pdMMTNeo ⁇ AE A75 vector, for 3 hours at 14°C.
- the recombinant clones were selected on 50 ug/ml Ampicillin LB agar plates.
- the recombinant plasmids were analyzed for BPV DNA and were also analyzed for type A AE cDNA. Restriction mapping revealed that clone 21 was approximately 17 kb and produced a restriction map as expected. This expression plasmid was then used for expression of ⁇ AE A75 in mouse C127 cells.
- Mouse C127 cells were transfected with 20 ug of pdBPV-MMTNeo ⁇ AE A75 by the standard CaPO4 precipitation technique. Approximately 2 weeks post transfection, transformed foci were individually picked and grown in growth media containing the antibiotic G418. When cells were grown to a sufficient capacity in Dulbecco's Modified Eagle Medium plus 10% fetal calf serum, the clones were assessed for the ability to secrete Alpha Amidating Enzyme by measuring the enzymatic activity in the conditioned cell culture media, as well as by measuring the alpha amidating enzyme immunoreactivity in the medium using standard radiolabelling and immunoprecipitation techniques.
- Clones secreting active, immunoreactive 75 kD alpha amidating enzyme were expanded to large numbers of cells (switched to cell culture medium with reduced serum and therefore reduced level of exogenous protein) and are in use to produce large quantities of active recombinant enzyme from the cell conditioned media.
Abstract
Description
- This invention relates to the production of alpha-amidating enzymes through recombinant DNA techniques, and particularly to expression vectors and hosts capable of expressing alpha-amidating enzyme in high yields and at recoverable high purity.
- The intracellular processing (cleavage and/or functional group modification) of precursor forms of native proteins following their translation from nucleic acid coding sequences has been clearly documented.
- In general, mammalian cells and other eukaryotes can perform certain post-translational processing procedures, while prokaryotes cannot. Certain prokaryotes, such as E. coli, are widely employed as hosts for the production of mammalian proteins via recombinant DNA (rDNA) technology because they can be readily grown in batch fermentation procedures and because they are genetically well-characterized. However, many mammalian proteins require some type of post-translational processing, and if these proteins are produced by genetic engineering of E. coli, for example, the post-translational processing must often be accomplished by using complex, in vitro chemical procedures which are cost-prohibitive for large-scale production applications.
- One type of processing activity involves the specific amidation of the carboxyl-terminal amino acid of a peptide or protein. Many naturally-occurring hormones and peptides contain such a modification, which is often essential if the protein is to be biologically active. An example is calcitonin, where the substitution of a non-amidated proline residue for the amidated proline of the native form results in a 3,000-fold reduction in biological activity. Other biological peptides requiring post-translational amidation for full activity include but are not limited to growth hormone releasing factor, other calcitonins, and calcitonin gene-related peptide.
- The specific amidation of the carboxyl-terminal amino acid of a protein is catalyzed by alpha-amidating enzymes. The polypeptide sequences for many important biological proteins which require amidation for maximal efficacy, may be manufactured, for example, by genetic engineering techniques. However, the important and sometimes essential carboxyl terminal amidation must often be performed in vitro. It is desirable to avoid costly and cumbersome chemical amidation techniques at this point, and is therefore desirable to utilize an amidating enzyme to perform the specific amidation. However, alpha-amidating enzyme is not easily obtained in nature.
- The presence of amidated peptides in a particular tissue is not necessarily synonymous with high levels of alpha-amidating enzyme. For example, rat anterior pituitary tissue contains high alpha-amidating activity but no known substrates [Eipper et al, PNAS 80, 5144-5148 (1983)]. Rat posterior pituitary tissue contains amidated peptides (oxytocin and vasopressin) but has very little alpha-amidating activity [Eipper et al., Endo 116, 2497-2504 (1985)]. Therefore, until individual tissues are tested for alpha-amidating activity, the presence or potential levels of the enzyme cannot be anticipated.
- An even greater impediment to the availability of amidating enzyme obtained from natural sources is the usually low level of purity. Amidating enzymes obtainable from natural sources are contaminated with proteolytic enzymes and other impurities. Effective recovery of amidated product is greatly hindered when these impurity-laced enzymes are used to amidate a substrate comprised of L-amino acids. The presence of proteases, in particular, may break down the substrate and/or the amidated product and/or the amidating enzyme itself. Most biologically important polypeptides comprise L-amino acids, and are susceptable to this proteolytic breakdown and to other amidation-hindering impediments caused by impurities in amidating enzyme preparations.
- Because nature provides few sources, low abundance and insufficient purity of alpha-amidating enzyme, there is a need for efficient methods of mass producing alpha-amidating enzyme recoverable in high yield and at high purity.
- As used herein, the terms "amidating enzyme" and "alpha-amidating enzyme" refer to any agent capable of catalyzing the conversion of a peptidyl substrate to a corresponding peptidyl amide having an amino group in place of the C-terminal amino acid of said substrate.
- It is an object of the present invention to provide alpha-amidating enzyme recoverable in high yields and at high purity.
- It is another object of the invention to provide host organisms capable of expressing alpha-amidating enzymes recoverable in high yield and at high purity.
- It is another object of the invention to provide expression vectors containing DNA sequences coding for alpha-amidating enzyme.
- It is another object of the invention to provide expression vectors capable of expressing alpha-amidating enzyme in a manner wherein expressed enzyme may be easily recovered and purified to levels effective for amidation of peptidyl substrates comprising L-amino acids, for example, substrates purified from natural sources, synthesized chemically, or produced by recombinant DNA techniques.
- It is another object of the invention to provide expression vectors especially suited for directing the expression of alpha-amidating enzymes in a eukaryotic host.
- It is another object of the invention to provide expression vectors especially suited for directing the expression of alpha-amidating enzymes in a prokaryotic host.
- It is another object of the invention to provide a means for efficient cost-effective mass production of alpha-amidating enzyme.
- These and other objects are accomplished by providing a host capable of expressing a polypeptide sequence of an alpha amidating enzyme, said host comprising an expression vector which includes a transcriptional promoter followed downstream by a DNA sequence foreign to said host which encodes said amidating enzyme, said vector being capable of directing expression of polypeptides in said host.
- In certain embodiments, a host is provided which is capable of expressing the polypeptide sequence of an alpha amidating enzyme, said host comprising an expression vector containing a transcriptional promoter followed downstream by a DNA sequence foreign to said host which is capable of hybridizing under stringent conditions with a DNA sequence of:
- In another embodiment, a host is provided which is capable of expressing the polypeptide sequence of an alpha amidating enzyme, said host comprising an expression vector containing a transcriptional promoter followed downstream by a DNA sequence foreign to said host which is capable of hybridizing under stringent conditions with a DNA sequence of:
- As used herein, the term "stringent conditions" means 2 x SSC (0.3M sodium chloride and 0.03M sodium citrate) at 62°C.
- The present invention also provides expression vectors for directing expression of alpha-amidating enzyme in both prokaryotic and eukaryotic systems. For example, an expression vector is provided which is capable of directing, in a prokaryotic host, the expression of a polypeptide sequence of an alpha amidating enzyme, said vector comprising a transcriptional promoter followed downstream by a first DNA sequence having an amidating enzyme-coding region, said first sequence being sufficiently homologous to a natural DNA sequence for expressing natural amidating enzyme to undergo hybridization with said natural sequence under stringent conditions, and said first sequence including an initiating methionine codon within about 50 nucleotides of the start of said enzyme-coding region.
- Likewise, an expression vector is provided, in another embodiment of the invention, which is capable of directing the expression of a polypeptide sequence of an alpha-amidating enzyme in a eukaryotic host, said vector comprising a transcriptional promoter followed downstream by a first DNA sequence having an amidating enzyme-coding region, said first sequence being sufficiently homologous to a natural DNA sequence for expressing natural amidating enzyme to undergo hybridization with said natural sequence under stringent conditions, and said first sequence including a stop codon upstream from a sequence which would otherwise code for a membrane spanning domain.
- This first sequence should be followed by a sequence specifying the addition of poly A to the messenger RNA generated by transcription from said promoter.
- As used herein, the term "membrane spanning domain" is a DNA sequence which, as determined by the test of Kyte & Doolittle, J. Mol. Biol., Vol. 157, pp. 105-132 (1982) (the entire disclosure of which is hereby incorporated by reference), codes for an amino acid sequence of sufficient hydrophobicity, length, structural character, and the like to become fixed in the membrane. For example, this may occur as a protein is synthesized on a membrane-bound ribosome or, alternatively, the amino acid sequence coded by the membrane spanning domain may become associated with other areas of the protein of which it is a part, such that the sequence becomes inserted into the hydrophobic environment of the membrane post-translationally. Membrane-spanning domains are discussed in more detail in Von Heijne, Sequence Analysis in Molecular Biology: Treasure Trove or Trivial Pursuit, pp. 81-121 (Acad. Press 1987), the teachings of which are hereby incorporated by reference.
- The base numbers utilized herein are the numbers specifically stated for any DNA sequence expressly set forth together with base number references. For all sequences for which base numbers are not expressly assigned herein, the bases shall be consecutively numbered with
base number 1 being the first base of the first codon that is expressed by the sequence being discussed, and the amino acid numbers are consecutively numbered with the first being the amino acid expressed by bases 1-3. -
- Figure 1 is a flow chart for construction of a mammalian expression vector for alpha-amidating enzyme.
- Figure 2 is a flow chart for construction of a prokaryotic expression vector for alpha-amidating enzyme.
- Figure 3 is Coomassie Blue-stained SDS-PAGE electrophoretogram of the insoluble protein fraction from E. Coli JM105 carrying the plasmids indicated (which have the characteristics set forth in Example 1) when cultured with (+) or without (-) IPTG added to the growth medium (C=insoluble proteins of E. coli JM105 carrying pKK233-2).
- Figure 4 is a Western Blot of the gel shown in Figure 3 wherein, following protein transfer to nitro cellulose, the filter was treated with rabbit anti AE antisera and the alkaline phosphatase-conjugated anti rabbit Ig, followed by chromogenic sibstrate for the alkaline phosphatase.
- In accordance with the invention, expression vectors suitable for prokaryotic systems and expression vectors suitable for eukaryotic systems are prepared. DNA encoding amidating enzyme useful in these vectors may be isolated as taught in EPC application No. 88307533.5 and published as Publication No. 0308067 the entire disclosure of which is incorporated herein by reference. Alpha-amidating enzymes have been isolated from rat medullary thyroid carcinoma tissue or conditioned media from a rat cell line, and purified to homogeneity as taught in the above-identified parent application and in grandparent application Serial Number 655,366 filed September 27, 1984, now issued as U.S. Patent 4,708,934, priority of which has been claimed and the entire disclosure of which has been incorporated herein by reference. Amino acid sequences have been determined for the purified alpha-amidating enzyme, and these sequences have been used to project a variety of oligonucleotide probes which have been radiolabelled and utilized for isolating cDNAs for amidating enzyme.
- The isolated cDNAs have been used to screen libraries prepared, for example, from the total RNA of rat medullary thyroid carcinoma tissues, their derived cell lines or from cell lines known to produce amidating enzyme, for example, biological deposit IVI 10028 (In Vitro International, Linthicum, Maryland) (Rat MTC tissue) or derived cell line IVI 10029. Total RNA was prepared and Poly-A RNA was selected with oligo DT cellulose. cDNAs were prepared by well known methods utilizing first reverse transcriptase and then a DNA polymerase. The cDNA was used to generate cDNA libraries in the vector ηgt 11 and the recombinant DNA's were packaged in vitro to form infectious bacteriophage particles.
- Extracts for packaging are commercially available for example from Promega Biotech or Clontech Laboratories or can be prepared according to methods well-known in the art. The phage were screened with radiolabelled oligonucleotide probes prepared as set forth above. Screening for bacteriophage containing alpha amidating enzyme cDNA ("AE cDNA") was accomplished by plating samples of bacteriophage and lifting the phage onto nitrocellulose filter discs. Hybridization with two or more radiolabelled AE-specific oligonucleotide probes conferred specificity.
- Oligonucleotide probes denoted AE4, AE5, AE8 and AE9 at pages 61-64 of EPC application No. 88307533.5 and published as Publication No. 0308067 are especially preferred when screening libraries prepared from biological deposit IVI 10029 identified above.
- Analysis of the AE cDNAs from many bacteriophage isolated by the above oligonucleotide hybridization screening procedures indicated that the cDNAs could be separated into a plurality of distinct types. The structure of one type is given below as diagram A, where the nucleotides have been numbered with
base 1 as the first base of the codon for the initiator methionine. Below the nucleotide sequence is given the single letter amino acid code for translation of the gene sequence into protein. Numbers in parentheses at the end of lines indicate amino acid numbers: -
- Applicants have utilized cDNAs isolated in the above manner for constructing both prokaryotic and eukaryotic expression vectors and a number of hosts have been transfected with these vectors for effective expression of alpha-amidating enzyme.
- In preferred embodiments of the invention, applicants have made novel modifications to the foregoing cDNAs in order to optimize not only expression, but also recovery of amidating enzyme. The nature and extent of modification may vary with the host and/or vector selected. For example, applicants insert, in preferred embodiments, a stop codon upstream from a sequence which would otherwise code for a membrane spanning domain. The presence of these membrane spanning domains may be undesirable for a recombinant DNA expression system since they may cause the expressed protein to be membrane associated and possibly inactive in the host organism or cell line. Examples of membrane spanning domains appear in the two cDNA examples set forth in diagrams A and B above (about bases 2275-2355 of the sequence shown in diagram A and about bases 2587-2667 of the sequence shown in diagram B). The cDNAs of diagrams A and B are substantially identical on the amino site of these transmembrane domains with the exception of what appears to be an intron region from base 1178 through base 1492 of the type B cDNA.
- The cDNAs of diagrams A and B above encode protein products of approximately 94 and 105 kD, respectively. Both of these proteins are larger than mature, active enzymes that have been purified from animal tissue extracts or cell line secretions. Each of these primary translation products are pre-proenzymes that contain membrane-spanning domains in the C-terminal one-third of the coding sequence. It is preferred that the stop codon be placed so that the expressed protein has a molecular weight of about 75 for when expressed by the cDNA of diagram A (i.e. the stop is placed between bases 2025 and 2275) and 87 kD when expressed by the cDNA of diagram B *i.e., the stop is placed between about bases 2340 and 2690). The weight of one mature natural amidating enzyme purified by Applicants.
- For cytoplasmic expression of the mature alpha amidating enzyme in E. Coli, for example, it is preferred that the gene sequences that encode the natural secretory signal sequence be removed, that an initiation codon be placed within about 50 nucleotides of the gene sequences encoding the start of the mature protein corresponding to alpha-amidating enzyme, and that the gene sequences encoding the membrane spanning domain in the C-terminal region not be translated. The initiating codon is of course in-frame with the sequence which encodes the enzyme and, in some preferred embodiments, is upstream from the region, sometimes immediately upstream.
- When the AE cDNA was expressed in E. Coli, it was discovered that the natural gene sequence contained a cryptic E. Coli ribosome binding site ("RBS") and initiation codon internal to the natural initiation sequences. This resulted in the production of an N-terminally truncated amidating enzyme protein. While this did not prevent the production of the desired product in E. Coli, the coexistence of the correctly initiated and internally initiated products complicates the processing and purification of the recombinant product to a useful form and is therefore undesirable. To eliminate the unexpected, undesired product, it was necessary to eliminate either the ribosome binding site, the internal initiation codon or both of these.
- For example, in certain preferred embodiments of the invention, a valine codon which, in prokaryotic systems, codes an initiating methionine, is altered by a point mutation to an equivalent non-initiating valine codon at bases 661-663 (of the cDNAs of either diagram A or B). In lieu of this point mutation or in addition thereto, applicants, in other preferred embodiments, delete or substantially modify any region coding for a ribosome binding site which occurs just upstream of an internal initiation site, and more preferably any ribosome binding site whenever one may occur. These modifications are made to substantially eliminate internal initiation such that the protein expressed because of internal initiation is not observed as a separate band following electrophoresis.
- To obtain expression of secreted, active alpha amidating enzyme protein, from a recombinant eukaryotic host cell line it was necessary to remove the gene sequences encoding the transmembrane domain found in the C-terminal region of the natural gene sequences. For the type A cDNA this has been done by truncation of the protein coding region through introduction of a stop codon at or near to where the natural amidating enzyme is post-translationally processed in some natural systems as explained in detail below. For the type B cDNA this has also been done by introducing a new stop codon in the region of the enzyme protein where the natural type B amidating enzyme is post-translationally processed (see below). This should not be taken to exclude the possiblity that in some host cell systems it may be preferable to express the entire naturally occuring gene sequences. Because the type B cDNA contains sequences with the characteristics of an unprocessed intron there may be a difficulty in expressing this cDNA in some eukaryotic host cells. These cells may not efficiently produce an mRNA from the type B gene due to the presence of the paired splice donor and acceptor sites. Elimination of the acceptor site might therefore be necessary to allow for efficient expression of type B AE cDNA
- We have discovered that the carboxyl end of the naturally occurring 75 kD alpha amidating enzyme protein occurs beyond amino acid position 709 (814 of type B). To produce the 75 kD protein (87 kD of type B) in a recombinant DNA host cell, a stop codon has been introduced into the cDNA by mutation of the codon for the lysine of amino acid position 716 (821 of type B). This modification has been made using oligonucleotide directed site specific mutagenesis. Such mutagenesis can be accomplished in a variety of ways. The methods have been reviewed extensively in the molecular biology literature. The general method that we have used was described by Taylor, J.W. et al. (1985), Nucl. Acids Res., 13: 8749-8764; Taylor, J.W. et al. (1985), Nucl. Acids Res., 13: 8764-8785; Nakamaye, K. and Eckstein, F. (1986), Nucl. Acids Res., 14: 9679-9698. The reagents needed to practice this method are available in the form of a mutagenesis kit from Amersham Corporation.
- The mutation of the sequence that we have produced changes the AAA lysine codon to a TAA stop codon. The oligonucleotide used for the mutagenesis incorporated this change but was otherwise identical in sequence to the naturally occurring cDNA sequence for the respective enzyme (type A or type B) being mutated.
- We have also discovered that a naturally occurring shortened form of the alpha amidating enzyme protein is produced by processing of the type B protein at the internal region of the protein that is unique to the type B enzyme protein. This results in an enzyme product that is approximately 43 kD in molecular mass. Without intending to be bound by theory, it is believed that the DNA sequence upstream from the intron region is sufficient to code for a polypeptide capable of exhibiting significant alpha-amidating activity. Accordingly polypeptides which are easy to recover and which are capable of expressing alpha-amidating activity may be encoded by cDNAs which are significantly truncated by placement of a stop codon somewhere in the intron region of type B cDNA in just before or after the corresponding location where this intron is missing from TYPE A cDNA. Preferred truncation results from placement of a stop codon within about 30 bases of the beginning of the of the intron region, preferably immediately downstream therefrom. To enable the production of one preferred short form of alpha amidating enzyme protein in recombinant host cells, a modified cDNA is created having a stop codon in place of the lysine codon at amino acid position 436 of the type B cDNA. This mutation was accomplished by oligonucleotide directed site specific mutagenesis of the type B AE cDNA.
- While the shortening of the amidating enzyme protein by introduction of the stop codon at amino acid position 436 of the type B cDNA gives a protein that most closely approximates the one produced naturally by proteolytic cleavage of the primary translation product (or some other cleavage intermediates in the biosynthetic pathway), a further shortening of the amidating enzyme protein may also result in production of an active product in recombinant DNA host cells. We have modified the AE cDNA in several other ways to create such shorter forms of protein. In one example, we have used oligonucleotide directed site-specific mutagenesis to convert a tyrosine codon at amino acid position 396 of the type B cDNA to a stop codon. This change will result in a protein that is approximately 39 kD when the cDNA is translated and processed. In a second case, we have utilized the naturally occuring Bam H1 enzyme recognition site of the type B cDNA to introduce a stop codon by linker mutagenesis. This method is well known in molecular biology and simply involves the cleavage of the cDNA followed by ligation to a double stranded synthetic linker fragment that is complimentary to one end of the cleaved cDNA and that introduces an in frame stop codon just beyond the cleavage site. We have used an oligonucleotide fragment with the following sequence to accomplish this modification: This linker introduces a stop codon following the histidine codon at amino acid 469. Translation and processing of the cDNA once it has been modified in this fashion results in the synthesis of a protein of approximately 46 kD.
- Preferred placement of a truncating stop codon is within about 15 bases of a DNA sequence which codes for consecutive basic residues (usually a Lys-Lys) and especially immediately upstream therefrom. Without intending to be bound by theory, it is believed that the natural polypeptide coded by the cDNAs of type B is processed, during post-translational modifications which occur during natural expression of amidating enzyme, at or near such consecutive basic residues, for example, the consecutive lysines coded within the intron region of the cDNA of diagram B. Even when the inserted stop codons are not intended to truncate the expressed polypeptide in the above-described manner, it is preferred that the inserted stop codon be placed within about 20 bases, and preferably immediately upstream from, DNA sequences coding for consecutive basic amino acid residues. Insertion of stop codons at these positions will likely result in expression of a polypeptide resembling certain natural amidating enzymes after they have undergone post-translational processing.
- For cytoplasmic expression in prokaryotic systems, any signal sequence coding regions (for example, the first bases of both the type A and type B cDNAs diagrammed previously) are preferably eliminated and a methionine initiator codon is inserted within about 50 nucleotides of the beginning of the region which codes for amidating enzymes.
- An alternative embodiment for prokaryotic expression eliminates any coding sequences for signal sequence or proenzyme sequence and inserts an initiator methionine codon within about 50 nucleotides of the beginning of the region which codes for amidating enzyme. In many natural AE cDNAs, this corresponds to the beginning of the region which encodes ser-x-ser (X being phe or leu). See, for example, bases 124 to 132 of the sequence for type A or type B cDNA. In some embodiments secretion of alpha amidating enzyme may be desirable. In this case it is preferable to retain the signal sequence coding regions, or alternatively to replace them with heterologous sequences that can serve the same function, for example, the signal sequences of the bacterial OMP A protein.
- It will be readily apparent to those skilled in the art that numerous mutations and truncations of the DNA sequences set forth herein for encoding amidating enzyme are possible within the scope of the invention and that such modified sequences would code for polypeptides capable of functioning as amidating enzymes. Accordingly, applicants' claims should be construed to include all functional equivalents of DNA sequences, expression vectors and host cells specifically set forth.
- Examples of prokaryotic expression vectors which may desirably be modified to include DNA sequences encoding amidating enzyme in accordance with the invention include but are not limited to pKK233-, pKK322-2, pPROK-1, pkT279,280,287, pPL lambda, pYEJ001, pKC30, pPROK-C, all commercially available. Prokaryotic hosts which may be transfected with expression vectors in accordance with the invention include but are not limited to C600, LE392, RR1, DH1, SF8, all commerically available.
- Eukaryotic expression vectors which may desirably be modified to include DNA sequences encoding amidating enzyme in accordance with the invention include but are not limited to pMAMNeo, pdBPVMMTNeo, pRSV, peuKC1, pCH110, all commerically available. Appropriate yeast vectors may also be used. Preferred eurokaryotic hosts may be transfected with expression vectors in accordance with the invention include but are not limited to IVI deposit 10029, Hela, CV1, C127, CHO (Chinese Hamster Ovary) and COS.
- In order to express alpha amidating enzyme in E. Coli (see the flow chart of Figure 2), a cDNA fragment having the sequence set forth in diagram A, above, was digested With KpnI and Hind III and the fragment of about 2.1 kb was isolated. To build back a amino terminus corresponding to a natural mature enzyme, an oligonucleotide linker with the sequence was ligated to this DNA fragment. The resulting fragment contained one Nco I compatible sticky-end and one Hind III sticky end. The E. Coli expression vector pKK233-2 was obtained commercially from Pharmacia and digested with restriction enzymes Nco I and Hind III. The large linear fragment was isolated and ligated to the linker adapted cDNA fragment. The ligation mixture was used to transform competent E. Coli JM105. Transformants were selected by ampicillin resistance and the clones isolated were analyzed for the recombinant plasmid by restriction enzyme and DNA sequence analysis to confirm the structure of the expression vector (hereafter "pAE12") that they contained. The expression vector contains the hybrid trp-lac promoter which is repressed by the lac repressor and inducible by treatment of the cells with isopropylthiogalactoside (IPTG). Upstream from the initiator methionine the vector also contains the sequences of a strong ribosome binding site.
- To obtain expression of the alpha amidating enzyme in the E. Coli, the recombinant cells were grown with shaking in LB-broth at 37°C to an OD₆₀₀ of 0.4. IPTG was added to the culture to a final concentration of 1mM and the growth was allowed to continue at 37°C with shaking for three to five hours. Cells were collected by centrifugation of the culture and the supernatant was discarded. The cells were resuspended in buffer containing a coctail of protease inhibitors, treated with lysozyme and then sonicated to lyse the cell membranes. The lysates were centrifuged at 12,000 x g to separate the soluble and insoluble fractions of the cells. Each fraction was analyzed by SDS-PAGE and protein staining. The alpha amidating enzyme protein was readily identified as an IPTG inducible product in the insoluble protein fraction. Since the initial expression plasmid did not contain a stop codon specified by the alpha amidating enzyme gene sequences, the inducible product formed contains sequences specified by downstream vector DNA fused to the C-terminal of the alpha amidating enzyme protein sequences. In addition, the induced insoluble protein also contained a smaller amidation enzyme specific protein that represented a product formed by internal initiation of protein synthesis at a cryptic RBS and initiation codon (amino acid position 221 of the alpha amidating enzyme sequence).
- To remove the unwanted sequences from the C-terminal portion of the expressed product, a mutation of the lysine codon at position 716 of the type A sequence was made to generate a TAA stop codon at this position. The mutated cDNA was then digested with Kpn I and Eco R1 and used to replace the original Kpn I-Eco R1 fragment in the initial expression vector pAE12. In a similar fashion, the type B cDNA sequences were mutated at the comparable position (amino acid 821) to create a stop codon and the Kpn I-Eco R1 fragment from the mutated type B cDNA was used to replace the corresponding fragment in pAE12. The two expression plasmids so created pAE24 (type A) and pAE25 (Type B) were then used to transform JM105. The resulting strains were cultured for expression as was done previously for pAE12-containing strains. The PAE24 was found to produce two IPTG inducible, insoluble proteins of approximately 75 kD and 55 kD while the pAE25 was found to produce two IPTG inducible insoluble proteins of about 87 kD and 67 kD. Again, the small protein in each of these pairs represents the unwanted amino-terminally truncated product from either the type A or type B cDNA.
- To eliminate the initiation of protein synthesis at the cryptic internal ribosome binding site and initiation codon (amino acid position 221) the GTG start codon, (GTG can serve as an initiator met codon in bacteria), was converted to a GTT codon that cannot initiate protein synthesis but which still encodes the valine that is normally found at this position in alpha amidating enzyme proteins encoded by natural genes. When the mutated region of the cDNA was substituted for the natural sequence in the expression vectors PAE24 and PAE25, two new vectors were created, pAE31 and pAE32. Transforming E. Coli JM105 with these modified expression vectors and testing protein production from the resulting recombinant strains indicated that this mutagenesis was effective in eliminating the unwanted internal initiation. The IPTG induced product from the host cells carrying pAE31 was found to be 75 kD while that from cells transformed with pAE 32 was found to be 87 kD.
- Since we have found that naturally occurring amidating enzyme from type B cDNA is post-translationally processed to give proteins of approximately 43 kD, we have prepared a series of mutations in type B AE cDNA that allows expression of proteins that terminate at or near the position where the naturally processed enzyme ends. Two of these mutations were prepared by oligonucleotide mutagenesis while a third was created by adapter-linker mutation as indicated above. When cDNAs carrying these mutations were used to replace the corresponding segments of pAE32, transformed into JM105 and analyzed for protein production in experiments similar to those described above, truncated alpha amidating enzyme proteins were detected. With a mutation at amino acid position 396 of type B cDNA changing a natural tyrosine codon to a stop codon (pAE36), a 39 kD enzyme protein was found while a linker mutagenesis that ended translation at the histidine codon of amino acid 464 resulted in a vector, pAE51, which produced a recombinant alpha amidating enzyme protein of 46 kD following transformation and induction of E. coli JM105.
- All of recombinant alpha amidating enzyme proteins produced in E. Coli described above were found to segregate with the insoluble fraction of the cell extracts. The enzymes could be rendered soluble and active by treatment with 8 M urea followed by rapid dilution in 50mM Tris-HCl pH7. When E. Coli JM105 carrying pAE12 was grown and induced with IPTG as described, the alpha amidating enzyme proteins were present at levels of at least 30 mgs per liter of bacterial culture.
- Representative samples of the induced insoluble protein produced in E. coli carrying AE expression plasmids are shown in Figures 3 and 4.
- To generate a mammalian expression vector which expresses and constitutively secretes 75 kD type A alpha amidating enzyme from mammalian cells (see the flow chart of Figure 1), the following was performed:
- 1) The intermediate expression vector pdMMTNeo (commercially available from American Type Culture Collection) (as shown) was digested with Bgl II. The linear form was isolated and purified.
- 2) The recombinant type A cDNA containing the full prepro sequence and an artificial stop codon TAA at position 2146-2148 was isolated by sequential digestion with Bgl I and Xho I. The fragment corresponding to alpha amidating enzyme was then isolated and purified.
- 3) The insert (type A alpha amidating enzyme) and vector (pdMMTNeo) were mixed and the corresponding ends were made flush using the Klenow fragment of DNA polymerase I. The 5′ protruding segments were filled in with added dNTP, and the 3′ protruding segments were digested back to produce a flush end (alternatively sequential S1 nuclease and Klenow + dNTP could be utilized for producing flush ends). The flush ended molecules were then ligated for 16 hours at 15°C.
- 4) The ligated material was then transformed into E. Coli RRI. Recombinant clones were selected in the presence of 50 ug/ml ampicillin. The orientation of the insert in the recombinant clones was verified using a battery of restriction enzymes. One clone which was referred to as pdMMTNeo α -AEA75 (clone 11) was determined to have the type A cDNA in the correct orientation with respect to the MMT promoter.
- 5) Plasmid DNA from recombinant pdMMTNeo α-AEA75(clone 11) was digested with BamHI. The linearized vector was isolated and purified and then treated with bacterial alkaline phosphatase (B.A.P.) for 2 hours at 37°C to remove 5′ phosphates. The BPV-1 genome was isolated and purified following B and BamHI digestion of the vector pdBPVMMTNeo. This BamHI fragment of BPV-1 DNA, which is approximately 8.0 kb, was then ligated to the BamHI linearized and B.A.P. treated pdMMTNeo αAEA75 vector, for 3 hours at 14°C. After the ligation mixture was transformed into E. coli RR1, the recombinant clones were selected on 50 ug/ml Ampicillin LB agar plates. The recombinant plasmids were analyzed for BPV DNA and were also analyzed for type A AE cDNA. Restriction mapping revealed that
clone 21 was approximately 17 kb and produced a restriction map as expected. This expression plasmid was then used for expression of αAEA75 in mouse C127 cells. - 6) Mouse C127 cells were transfected with 20 ug of pdBPV-MMTNeo αAEA75 by the standard CaPO₄ precipitation technique. Approximately 2 weeks post transfection, transformed foci were individually picked and grown in growth media containing the antibiotic G418. When cells were grown to a sufficient capacity in Dulbecco's Modified Eagle Medium plus 10% fetal calf serum, the clones were assessed for the ability to secrete Alpha Amidating Enzyme by measuring the enzymatic activity in the conditioned cell culture media, as well as by measuring the alpha amidating enzyme immunoreactivity in the medium using standard radiolabelling and immunoprecipitation techniques. Clones secreting active, immunoreactive 75 kD alpha amidating enzyme were expanded to large numbers of cells (switched to cell culture medium with reduced serum and therefore reduced level of exogenous protein) and are in use to produce large quantities of active recombinant enzyme from the cell conditioned media.
- The terms and descriptions used herein are embodiments set forth by way of illustration only, and are not intended as limitations on the many variations which those of skill in the art will recognize to be possible when practicing the present invention, as defined by the following claims.
Claims (22)
Applications Claiming Priority (2)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
US307366 | 1989-02-06 | ||
US07/307,366 US5789234A (en) | 1987-08-14 | 1989-02-06 | Expression systems for amidating enzyme |
Publications (3)
Publication Number | Publication Date |
---|---|
EP0382403A2 true EP0382403A2 (en) | 1990-08-16 |
EP0382403A3 EP0382403A3 (en) | 1991-04-10 |
EP0382403B1 EP0382403B1 (en) | 2004-12-01 |
Family
ID=23189439
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
EP90301034A Expired - Lifetime EP0382403B1 (en) | 1989-02-06 | 1990-02-01 | Expression systems for amidating enzyme |
Country Status (14)
Country | Link |
---|---|
US (1) | US5789234A (en) |
EP (1) | EP0382403B1 (en) |
JP (1) | JPH0771498B2 (en) |
KR (1) | KR0157983B1 (en) |
AT (1) | ATE283922T1 (en) |
CA (1) | CA2009306C (en) |
DE (1) | DE69034179T2 (en) |
DK (1) | DK0382403T3 (en) |
ES (1) | ES2235149T3 (en) |
FI (1) | FI110517B (en) |
HU (1) | HU220464B1 (en) |
LT (1) | LT4077B (en) |
NO (1) | NO900531L (en) |
RU (1) | RU2129606C1 (en) |
Cited By (24)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US5789234A (en) * | 1987-08-14 | 1998-08-04 | Unigene Laboratories, Inc. | Expression systems for amidating enzyme |
US5912014A (en) * | 1996-03-15 | 1999-06-15 | Unigene Laboratories, Inc. | Oral salmon calcitonin pharmaceutical products |
US6103495A (en) * | 1997-04-16 | 2000-08-15 | Unigene Laboratories, Inc. | Direct expression of peptides into culture media |
WO2004064758A2 (en) | 2003-01-21 | 2004-08-05 | Unigene Laboratories Inc. | Improved oral delivery of peptides |
US7445911B2 (en) | 2004-11-24 | 2008-11-04 | Unigene Laboratories Inc. | Enzymatic reactions in the presence of keto acids |
WO2010085700A2 (en) | 2009-01-22 | 2010-07-29 | Unigene Laboratories Inc. | Treatment for obesity |
WO2011067283A1 (en) * | 2009-12-01 | 2011-06-09 | Novo Nordisk A/S | Novel peptidyl alpha-hydroxyglycine alpha-amidating lyases |
WO2012174397A2 (en) | 2011-06-15 | 2012-12-20 | Unigene Laboratories, Inc. | Anti-inflammatory pharmaceutical products |
US8377863B2 (en) | 2007-05-29 | 2013-02-19 | Unigene Laboratories Inc. | Peptide pharmaceutical for oral delivery |
WO2013067357A1 (en) | 2011-11-02 | 2013-05-10 | Nu-Co Development Gmbh | Peptide analogs for treating diseases and disorders |
WO2015071229A1 (en) | 2013-11-14 | 2015-05-21 | Keybioscience Ag | Calcitonin mimetics for treating diseases and disorders |
WO2015084875A1 (en) | 2013-12-02 | 2015-06-11 | Stealth Peptides International, Inc. | Compositions and methods for treating vitiligo |
EP3095484A1 (en) | 2011-11-02 | 2016-11-23 | KeyBioscience AG | Calcitonin mimetics for treating diseases and disorders |
US9833411B2 (en) | 2015-01-12 | 2017-12-05 | Enteris Biopharma, Inc. | Solid oral dosage forms |
US9862754B2 (en) | 2011-11-02 | 2018-01-09 | Keybioscience Ag | Peptide analogs for treating diseases and disorders |
WO2018172390A1 (en) | 2017-03-21 | 2018-09-27 | Keybioscience Ag | Calcitonin mimetics for treating diseases and disorders |
WO2018211111A1 (en) | 2017-05-18 | 2018-11-22 | Keybioscience Ag | Dual amylin and calcitonin receptor agonists for treating diseases and disorders |
EP3502132A1 (en) | 2014-05-28 | 2019-06-26 | Stealth BioTherapeutics Corp | Therapeutic compositions including therapeutic small molecules and uses thereof |
EP3501532A2 (en) | 2014-05-28 | 2019-06-26 | Stealth BioTherapeutics Corp | Therapeutic compositions including frataxin, lactoferrin, and mitochondrial energy generating enzymes, and uses thereof |
US10350272B2 (en) | 2015-01-08 | 2019-07-16 | Keybioscience Ag | Calcitonin analogues for treating diseases and disorders |
WO2020039052A1 (en) | 2018-08-22 | 2020-02-27 | Key Bioscience Ag | Calcitonin mimetics for treating diseases and disorders |
WO2020039051A1 (en) | 2018-08-22 | 2020-02-27 | Key Bioscience Ag | Acylated calcitonin mimetics |
US10627392B2 (en) | 2014-06-17 | 2020-04-21 | Stealth Biotherapeutics Corp | Methods of identifying and monitoring mitochondrial dysfunction using monocyte screening |
WO2021148664A1 (en) | 2020-01-24 | 2021-07-29 | Keybioscience Ag | Oxyntomodulin mimetics |
Families Citing this family (12)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
EP1702074B1 (en) * | 2003-09-25 | 2009-11-11 | Monsanto Technology LLC | Prevention of incorporation of non-standard amino acids into protein |
US7531518B2 (en) * | 2004-05-14 | 2009-05-12 | Unigene Laboratories Inc. | Method for fostering bone formation and preservation |
US7648965B2 (en) * | 2004-05-14 | 2010-01-19 | Unigene Laboratories Inc. | Method for fostering bone formation and preservation |
US20060089723A1 (en) * | 2004-10-25 | 2006-04-27 | Murphy Kieran P | Method for bone augmentation |
DE102004058306A1 (en) * | 2004-12-01 | 2006-07-27 | Sanofi-Aventis Deutschland Gmbh | Process for the preparation of carboxy-terminally amidated peptides |
PA8660701A1 (en) | 2005-02-04 | 2006-09-22 | Pfizer Prod Inc | SMALL AGONISTS AND THEIR USES |
WO2006084111A2 (en) * | 2005-02-04 | 2006-08-10 | Glaxo Group Limited | Optimization of heterologous polypeptide expression |
US20060293667A1 (en) * | 2005-05-19 | 2006-12-28 | Agnes Vignery | Bone implant device and methods of using same |
AU2006261909B2 (en) * | 2005-06-24 | 2011-08-11 | Enteris Biopharma, Inc. | Cell lines for expressing enzyme useful in the preparation of amidated products |
TW201138808A (en) | 2010-05-03 | 2011-11-16 | Bristol Myers Squibb Co | Serum albumin binding molecules |
DK2964193T3 (en) | 2013-03-05 | 2020-03-16 | Enteris Biopharma Inc | Oral administration drugs |
WO2021026854A1 (en) * | 2019-08-15 | 2021-02-18 | 中国科学院微生物研究所 | Method for selective hydrazide modification on c terminus of enzyme-catalyzed protein |
Citations (6)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO1986002099A1 (en) * | 1984-09-27 | 1986-04-10 | Unigene Laboratories, Inc. | Alpha-amidation enzyme |
EP0249477A2 (en) * | 1986-06-12 | 1987-12-16 | Immunex Corporation | Functional recombinant analog polypeptides devoid of hydrophobic amino acids |
EP0299790A2 (en) * | 1987-07-17 | 1989-01-18 | Suntory Limited | Recombinant C-terminal alpha-amidating enzyme |
EP0308067A2 (en) * | 1987-08-14 | 1989-03-22 | Unigene Laboratories Inc. | Alpha-amidating enzyme compositions and processes for their production and use |
WO1989002460A1 (en) * | 1987-09-15 | 1989-03-23 | Genentech, Inc. | cDNA ENCODING PEPTIDYL-GLYCINE ALPHA-AMIDATING MONOOXYGENASE (PAM) |
WO1990008190A1 (en) * | 1989-01-17 | 1990-07-26 | Suntory Limited | RECOMBINANT C-TERMINAL α-AMIDATING ENZYME OF HUMAN THYROID ORIGIN |
Family Cites Families (7)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
DE134631T1 (en) * | 1983-06-15 | 1985-12-05 | Roger Kingdom Craig | PEPTIDES, PHARMACEUTICAL COMPOSITIONS, GENES, VECTORS, HOST ORGANISMS, METHODS FOR THEIR PRODUCTION AND DIAGNOSTIC REAGENTS. |
DE3327007A1 (en) * | 1983-07-27 | 1985-02-07 | Hoechst Ag, 6230 Frankfurt | PRODUCTION OF POLYPEPTIDES WITH AN ACID-CARBOXYTERMINUS |
JPS6229997A (en) * | 1985-04-08 | 1987-02-07 | Sankyo Co Ltd | Production of peptide having prolinamide at c terminal |
JPS62177184A (en) * | 1986-01-29 | 1987-08-04 | Toyota Motor Corp | Cast iron cylinder head for internal combustion engine and its production |
JPH0775541B2 (en) * | 1986-06-07 | 1995-08-16 | 壽之 松尾 | C-terminal amidating enzyme and method for producing the same |
US5789234A (en) * | 1987-08-14 | 1998-08-04 | Unigene Laboratories, Inc. | Expression systems for amidating enzyme |
JP2535398B2 (en) * | 1989-01-17 | 1996-09-18 | サントリー株式会社 | Method for producing amidated peptide |
-
1989
- 1989-02-06 US US07/307,366 patent/US5789234A/en not_active Expired - Lifetime
-
1990
- 1990-01-22 HU HU26/90A patent/HU220464B1/en not_active IP Right Cessation
- 1990-02-01 DE DE69034179T patent/DE69034179T2/en not_active Expired - Lifetime
- 1990-02-01 DK DK90301034T patent/DK0382403T3/en active
- 1990-02-01 ES ES90301034T patent/ES2235149T3/en not_active Expired - Lifetime
- 1990-02-01 EP EP90301034A patent/EP0382403B1/en not_active Expired - Lifetime
- 1990-02-01 AT AT90301034T patent/ATE283922T1/en not_active IP Right Cessation
- 1990-02-05 FI FI900554A patent/FI110517B/en active IP Right Grant
- 1990-02-05 NO NO90900531A patent/NO900531L/en unknown
- 1990-02-05 RU SU4743221A patent/RU2129606C1/en active
- 1990-02-05 CA CA002009306A patent/CA2009306C/en not_active Expired - Lifetime
- 1990-02-06 JP JP2026989A patent/JPH0771498B2/en not_active Expired - Lifetime
- 1990-02-06 KR KR1019900001434A patent/KR0157983B1/en not_active IP Right Cessation
-
1994
- 1994-01-28 LT LTIP1829A patent/LT4077B/en not_active IP Right Cessation
Patent Citations (6)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO1986002099A1 (en) * | 1984-09-27 | 1986-04-10 | Unigene Laboratories, Inc. | Alpha-amidation enzyme |
EP0249477A2 (en) * | 1986-06-12 | 1987-12-16 | Immunex Corporation | Functional recombinant analog polypeptides devoid of hydrophobic amino acids |
EP0299790A2 (en) * | 1987-07-17 | 1989-01-18 | Suntory Limited | Recombinant C-terminal alpha-amidating enzyme |
EP0308067A2 (en) * | 1987-08-14 | 1989-03-22 | Unigene Laboratories Inc. | Alpha-amidating enzyme compositions and processes for their production and use |
WO1989002460A1 (en) * | 1987-09-15 | 1989-03-23 | Genentech, Inc. | cDNA ENCODING PEPTIDYL-GLYCINE ALPHA-AMIDATING MONOOXYGENASE (PAM) |
WO1990008190A1 (en) * | 1989-01-17 | 1990-07-26 | Suntory Limited | RECOMBINANT C-TERMINAL α-AMIDATING ENZYME OF HUMAN THYROID ORIGIN |
Non-Patent Citations (4)
Title |
---|
BIOCHEMICAL AND BIOPHYSICAL RESEARCH CUMMUNICATIONS vol. 169, no. 2, 15 June 1990, pages 551-558, New York, US; J. GLAUDER et al.: "Human Peptidylglycine alpha-Amidating Monooxygenase: cDNA, cloning and Functional Expression of a truncated form in COS s" * |
MOLECULAR ENDOCRINOLOGY vol. 1, no. 1, 1987, pages 777-790, US; B.A. EIPPER et al.: "Structure of the Precursor to an Enzyme Mediating COOH-Terminal Amidation in Peptide Biosynthesis" * |
MOLECULAR ENDOCRINOLOGY vol. 4, no. 1, 1990, pages 132-139, US; S.N. PERKINS et al.: "Stable Expression of Full-Length and Truncated Bovine Peptidylgylcine alpha-Amidating Monooxygenase Complementary DNAs in Cultured Cells" * |
PROC. NATL. ACAD. SCI. USA vol. 86, no. 2, January 1989, pages 735-739, Washington D.C., US; D.A. STOFFERS et al.: "Alternative mRNA splicing generates multiple forms of peptidyl-glycine alpha-amidating monooxygenase in rat atrium" * |
Cited By (49)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US5789234A (en) * | 1987-08-14 | 1998-08-04 | Unigene Laboratories, Inc. | Expression systems for amidating enzyme |
US5912014A (en) * | 1996-03-15 | 1999-06-15 | Unigene Laboratories, Inc. | Oral salmon calcitonin pharmaceutical products |
US6086918A (en) * | 1996-03-15 | 2000-07-11 | Unigene Laboratories, Inc. | Oral peptide pharmaceutical products |
EP2088188A1 (en) | 1997-04-16 | 2009-08-12 | Unigene Laboratories, Inc. | Direct expression of peptides into culture media |
US6103495A (en) * | 1997-04-16 | 2000-08-15 | Unigene Laboratories, Inc. | Direct expression of peptides into culture media |
LT4701B (en) | 1997-04-16 | 2000-09-25 | Unigene Laboratories Inc. | Direct expression of peptides into culture media |
US6210925B1 (en) | 1997-04-16 | 2001-04-03 | Unigene Laboratories, Inc. | Direct expression of peptides into culture media |
US6627438B2 (en) | 1997-04-16 | 2003-09-30 | Unigene Laboratories Inc. | Direct expression of peptides into culture media |
US6737250B2 (en) | 1997-04-16 | 2004-05-18 | Unigene Laboratories, Inc. | Direct expression of peptides into culture media |
US7968311B2 (en) | 1997-04-16 | 2011-06-28 | Unigene Laboratories Inc. | Direct expression of peptides into culture media |
WO2004064758A2 (en) | 2003-01-21 | 2004-08-05 | Unigene Laboratories Inc. | Improved oral delivery of peptides |
US8088734B2 (en) | 2003-01-21 | 2012-01-03 | Unigene Laboratories Inc. | Oral delivery of peptides |
US8163871B2 (en) | 2004-11-24 | 2012-04-24 | Unigene Laboratories, Inc. | Enzymatic reactions in the presence of keto acids |
US7445911B2 (en) | 2004-11-24 | 2008-11-04 | Unigene Laboratories Inc. | Enzymatic reactions in the presence of keto acids |
US8513183B2 (en) | 2007-05-29 | 2013-08-20 | Enteris Biopharma, Inc. | Peptide pharmaceutical for oral delivery |
EP3009129A1 (en) | 2007-05-29 | 2016-04-20 | Enteris BioPharma, Inc. | Peptide pharmaceutical for oral delivery |
US9399017B2 (en) | 2007-05-29 | 2016-07-26 | Enteris Biopharma, Inc. | Peptide pharmaceutical for oral delivery |
US8592366B2 (en) | 2007-05-29 | 2013-11-26 | Enteris Biopharma, Inc. | Peptide pharmaceutical for oral delivery |
US8377863B2 (en) | 2007-05-29 | 2013-02-19 | Unigene Laboratories Inc. | Peptide pharmaceutical for oral delivery |
WO2010085700A2 (en) | 2009-01-22 | 2010-07-29 | Unigene Laboratories Inc. | Treatment for obesity |
US8378067B2 (en) | 2009-01-22 | 2013-02-19 | Unigene Laboratories | Treatment for obesity |
US9394342B2 (en) | 2009-01-22 | 2016-07-19 | Keybioscience Ag | Methods of treating medical conditions using peptides |
US8076291B2 (en) | 2009-01-22 | 2011-12-13 | Unigene Laboratories Inc. | Treatment for obesity |
US9096843B2 (en) | 2009-12-01 | 2015-08-04 | Novo Nordisk A/S | Peptidyl α-hydroxyglycine α-amidating lyases |
WO2011067283A1 (en) * | 2009-12-01 | 2011-06-09 | Novo Nordisk A/S | Novel peptidyl alpha-hydroxyglycine alpha-amidating lyases |
WO2012174397A2 (en) | 2011-06-15 | 2012-12-20 | Unigene Laboratories, Inc. | Anti-inflammatory pharmaceutical products |
EP3533457A1 (en) | 2011-06-15 | 2019-09-04 | ResoTher Pharma ApS | Anti-inflammatory pharmaceutical products |
US9862754B2 (en) | 2011-11-02 | 2018-01-09 | Keybioscience Ag | Peptide analogs for treating diseases and disorders |
US9006172B2 (en) | 2011-11-02 | 2015-04-14 | Keybioscience Ag | Peptide analogs for treating diseases and disorders |
WO2013067357A1 (en) | 2011-11-02 | 2013-05-10 | Nu-Co Development Gmbh | Peptide analogs for treating diseases and disorders |
EP3095484A1 (en) | 2011-11-02 | 2016-11-23 | KeyBioscience AG | Calcitonin mimetics for treating diseases and disorders |
EP3357540A1 (en) | 2011-11-02 | 2018-08-08 | KeyBioscience AG | Combination of calcitonin mimetic and insulin sensitizer |
WO2015071229A1 (en) | 2013-11-14 | 2015-05-21 | Keybioscience Ag | Calcitonin mimetics for treating diseases and disorders |
EP3321278A1 (en) | 2013-11-14 | 2018-05-16 | KeyBioscience AG | Calcitonin mimetics for treating diseases and disorders |
US10232021B2 (en) | 2013-11-14 | 2019-03-19 | Keybioscience Ag | Calcitonin mimetics for treating diseases and disorders |
EP3470422A1 (en) | 2013-11-14 | 2019-04-17 | KeyBioscience AG | Calcitonin mimetics for treating diseases and disorders |
US9943563B2 (en) | 2013-12-02 | 2018-04-17 | Stealth Biotherapeutics Corp | Compositions and methods for treating vitiligo |
WO2015084875A1 (en) | 2013-12-02 | 2015-06-11 | Stealth Peptides International, Inc. | Compositions and methods for treating vitiligo |
US10576124B2 (en) | 2014-05-28 | 2020-03-03 | Stealth Biotherapeutics Corp | Therapeutic compositions including frataxin, lactoferrin, and mitochondrial energy generating enzymes, and uses thereof |
EP3502132A1 (en) | 2014-05-28 | 2019-06-26 | Stealth BioTherapeutics Corp | Therapeutic compositions including therapeutic small molecules and uses thereof |
EP3501532A2 (en) | 2014-05-28 | 2019-06-26 | Stealth BioTherapeutics Corp | Therapeutic compositions including frataxin, lactoferrin, and mitochondrial energy generating enzymes, and uses thereof |
US10627392B2 (en) | 2014-06-17 | 2020-04-21 | Stealth Biotherapeutics Corp | Methods of identifying and monitoring mitochondrial dysfunction using monocyte screening |
US10350272B2 (en) | 2015-01-08 | 2019-07-16 | Keybioscience Ag | Calcitonin analogues for treating diseases and disorders |
US9833411B2 (en) | 2015-01-12 | 2017-12-05 | Enteris Biopharma, Inc. | Solid oral dosage forms |
WO2018172390A1 (en) | 2017-03-21 | 2018-09-27 | Keybioscience Ag | Calcitonin mimetics for treating diseases and disorders |
WO2018211111A1 (en) | 2017-05-18 | 2018-11-22 | Keybioscience Ag | Dual amylin and calcitonin receptor agonists for treating diseases and disorders |
WO2020039051A1 (en) | 2018-08-22 | 2020-02-27 | Key Bioscience Ag | Acylated calcitonin mimetics |
WO2020039052A1 (en) | 2018-08-22 | 2020-02-27 | Key Bioscience Ag | Calcitonin mimetics for treating diseases and disorders |
WO2021148664A1 (en) | 2020-01-24 | 2021-07-29 | Keybioscience Ag | Oxyntomodulin mimetics |
Also Published As
Publication number | Publication date |
---|---|
DE69034179T2 (en) | 2005-12-01 |
LT4077B (en) | 1996-12-27 |
RU2129606C1 (en) | 1999-04-27 |
KR0157983B1 (en) | 1998-11-16 |
ATE283922T1 (en) | 2004-12-15 |
ES2235149T3 (en) | 2005-07-01 |
HUT54414A (en) | 1991-02-28 |
JPH0541982A (en) | 1993-02-23 |
US5789234A (en) | 1998-08-04 |
CA2009306A1 (en) | 1990-08-06 |
HU900226D0 (en) | 1990-03-28 |
NO900531D0 (en) | 1990-02-05 |
DE69034179D1 (en) | 2005-01-05 |
LTIP1829A (en) | 1995-08-25 |
HU220464B1 (en) | 2002-02-28 |
FI900554A0 (en) | 1990-02-05 |
JPH0771498B2 (en) | 1995-08-02 |
NO900531L (en) | 1990-08-07 |
DK0382403T3 (en) | 2005-03-21 |
FI110517B (en) | 2003-02-14 |
EP0382403A3 (en) | 1991-04-10 |
CA2009306C (en) | 2002-04-09 |
KR900013078A (en) | 1990-09-03 |
EP0382403B1 (en) | 2004-12-01 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
EP0382403B1 (en) | Expression systems for amidating enzyme | |
CA1341361C (en) | Human erythropoietin gene: high level expression in stably transfected mammalian cells | |
EP0487512A1 (en) | Production of heterodimeric human fertility hormones | |
Troen et al. | Sequence and expression of the cDNA for MEP (major excreted protein), a transformation-regulated secreted cathepsin | |
WO1984004330A1 (en) | Secretion of exogenous polypeptides from yeast | |
IE53311B1 (en) | Deoxynucleotide linkers to be attached to a cloned dna coding sequence | |
CN108610398B (en) | Functional sequence and application in secretory protein expression | |
EP0578328A1 (en) | Production of heterodimeric human fertility hormones | |
EP0390252A2 (en) | Purification of recombinant human interleukin-3 | |
US5552302A (en) | Methods and compositions for production of human recombinant placental ribonuclease inhibitor | |
JPH10511845A (en) | Methods for producing extracellular proteins in bacteria | |
EP0511978B1 (en) | Method of purifying recombinant polypeptides | |
AU674741B2 (en) | Methods and DNA expression systems for over-expression of proteins in host cells | |
US6165746A (en) | Preventing endogenous aminopeptidase mediated n-terminal amino acid cleavage during expression of foreign genes in bacteria | |
CA1299119C (en) | Dna encoding a grf precursor | |
EP0199018B1 (en) | Expression in e.coli of hybrid polypeptides containing the growth hormone releasing factor sequence | |
EP0422217B1 (en) | Human recombinant placental ribonuclease inhibitor and method of production | |
EP0361956A2 (en) | Increased expression of small molecular weight recombinant proteins | |
EP0135347A1 (en) | Human renin and cDNA encoding therefor | |
JPH07163379A (en) | Method for searching dna fragment coding signal sequence pepetide and vector therefor | |
EP0188555A1 (en) | Yeast cloning vehicle | |
EP1913143A1 (en) | Improved protein expression | |
CA2022356A1 (en) | Method and materials for producing proteins | |
Norman et al. | The engineering of recombinant active human prerenin and its expression in mammalian and insect cells | |
WO1986000638A1 (en) | Yeast cloning vehicle |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
PUAI | Public reference made under article 153(3) epc to a published international application that has entered the european phase |
Free format text: ORIGINAL CODE: 0009012 |
|
AK | Designated contracting states |
Kind code of ref document: A2 Designated state(s): AT BE CH DE DK ES FR GB GR IT LI LU NL SE |
|
PUAL | Search report despatched |
Free format text: ORIGINAL CODE: 0009013 |
|
AK | Designated contracting states |
Kind code of ref document: A3 Designated state(s): AT BE CH DE DK ES FR GB GR IT LI LU NL |
|
17P | Request for examination filed |
Effective date: 19911003 |
|
17Q | First examination report despatched |
Effective date: 19930825 |
|
GRAP | Despatch of communication of intention to grant a patent |
Free format text: ORIGINAL CODE: EPIDOSNIGR1 |
|
GRAS | Grant fee paid |
Free format text: ORIGINAL CODE: EPIDOSNIGR3 |
|
GRAA | (expected) grant |
Free format text: ORIGINAL CODE: 0009210 |
|
AK | Designated contracting states |
Kind code of ref document: B1 Designated state(s): AT BE CH DE DK ES FR GB GR IT LI LU NL SE |
|
REG | Reference to a national code |
Ref country code: GB Ref legal event code: FG4D |
|
REG | Reference to a national code |
Ref country code: CH Ref legal event code: EP |
|
REF | Corresponds to: |
Ref document number: 69034179 Country of ref document: DE Date of ref document: 20050105 Kind code of ref document: P |
|
REG | Reference to a national code |
Ref country code: DK Ref legal event code: T3 |
|
REG | Reference to a national code |
Ref country code: SE Ref legal event code: TRGR |
|
REG | Reference to a national code |
Ref country code: GR Ref legal event code: EP Ref document number: 20050400687 Country of ref document: GR |
|
REG | Reference to a national code |
Ref country code: CH Ref legal event code: NV Representative=s name: DIETLIN & CIE SA |
|
REG | Reference to a national code |
Ref country code: ES Ref legal event code: FG2A Ref document number: 2235149 Country of ref document: ES Kind code of ref document: T3 |
|
PLBE | No opposition filed within time limit |
Free format text: ORIGINAL CODE: 0009261 |
|
STAA | Information on the status of an ep patent application or granted ep patent |
Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT |
|
26N | No opposition filed |
Effective date: 20050902 |
|
ET | Fr: translation filed | ||
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: LU Payment date: 20090304 Year of fee payment: 20 Ref country code: ES Payment date: 20090226 Year of fee payment: 20 Ref country code: AT Payment date: 20090121 Year of fee payment: 20 Ref country code: DK Payment date: 20090227 Year of fee payment: 20 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: NL Payment date: 20090224 Year of fee payment: 20 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: GB Payment date: 20090227 Year of fee payment: 20 Ref country code: CH Payment date: 20090225 Year of fee payment: 20 Ref country code: GR Payment date: 20090227 Year of fee payment: 20 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: DE Payment date: 20090331 Year of fee payment: 20 Ref country code: SE Payment date: 20090227 Year of fee payment: 20 Ref country code: IT Payment date: 20090225 Year of fee payment: 20 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: BE Payment date: 20090408 Year of fee payment: 20 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: FR Payment date: 20090217 Year of fee payment: 20 |
|
REG | Reference to a national code |
Ref country code: CH Ref legal event code: PL |
|
REG | Reference to a national code |
Ref country code: DK Ref legal event code: EUP |
|
REG | Reference to a national code |
Ref country code: GB Ref legal event code: PE20 Expiry date: 20100131 |
|
BE20 | Be: patent expired |
Owner name: *UNIGENE LABORATORIES INC. Effective date: 20100201 |
|
NLV7 | Nl: ceased due to reaching the maximum lifetime of a patent |
Effective date: 20100201 |
|
REG | Reference to a national code |
Ref country code: ES Ref legal event code: FD2A Effective date: 20100202 |
|
PG25 | Lapsed in a contracting state [announced via postgrant information from national office to epo] |
Ref country code: GB Free format text: LAPSE BECAUSE OF EXPIRATION OF PROTECTION Effective date: 20100131 |
|
PG25 | Lapsed in a contracting state [announced via postgrant information from national office to epo] |
Ref country code: ES Free format text: LAPSE BECAUSE OF EXPIRATION OF PROTECTION Effective date: 20100202 |
|
PG25 | Lapsed in a contracting state [announced via postgrant information from national office to epo] |
Ref country code: DE Free format text: LAPSE BECAUSE OF EXPIRATION OF PROTECTION Effective date: 20100201 |
