Abstract
本实用新型提供一种鱼缸底部污物自动清洗器，即当鱼缸底部有污物时，能在鱼缸底部用自动虹吸方法把污物吸出鱼缸外面。它包括密封贮气罐、橡皮管、空心管和毛刷，使用时只需将左手捏住橡皮管的出水口，不让出气，再用右手把这清洗器按入鱼缸，让容器内的空气受压，这时松开左手，受压的空气反弹，将水通过橡皮管排出缸外，形成了虹吸，再通过毛刷清洗鱼缸四侧及底部，达到了吸取脏水物的目的。实施本实用新型很方便、很实用、很卫生，效果很好。
The utility model provides an automatic cleaning device for dirt at the bottom of the fish tank, that is, when there is dirt at the bottom of the fish tank, the dirt can be sucked out of the fish tank by an automatic siphon method at the bottom of the fish tank. It includes a sealed air storage tank, a rubber tube, a hollow tube and a brush. When using it, you only need to pinch the water outlet of the rubber tube with your left hand to prevent the air from coming out, and then press the cleaner into the fish tank with your right hand to let the air in the container Under pressure, release the left hand at this time, the pressurized air rebounds, and the water is discharged out of the tank through the rubber tube, forming a siphon, and then the four sides and the bottom of the fish tank are cleaned by the brush, and the purpose of absorbing dirty water is achieved. It is very convenient, practical and hygienic to implement the utility model, and the effect is very good.
Description
一、技术领域1. Technical field
本实用新型涉及一种鱼缸底部污物自动清洗器，具体地说涉及一种当鱼缸底部有污物时，能在鱼缸底部用自动虹吸方法把污物吸出鱼缸外面的鱼缸底部污物自动清洗器。The utility model relates to an automatic cleaner for dirt at the bottom of the fish tank, in particular to an automatic cleaner for dirt at the bottom of the fish tank which can suck the dirt out of the fish tank by an automatic siphon method at the bottom of the fish tank when there is dirt at the bottom of the fish tank .
二、背景技术2. Background technology
目前，清洁鱼缸时人们常用缸吸的办法，但往往要先用嘴把管子中的空气吸掉，一不小心脏水就会吸进人的口中，很不卫生。At present, when cleaning fish tanks, people often use tank suction, but they often need to suck the air in the pipe with their mouths first, and the water will be sucked into people's mouths if they are not careful, which is very unhygienic.
三、发明内容3. Contents of the invention
本实用新型的目的是克服现有技术的不足之处，提供一种当鱼缸底部有污物时，能在鱼缸底部用自动虹吸方法把污物吸出鱼缸外面的鱼缸底部污物自动清洗器。The purpose of this utility model is to overcome the weak point of prior art, provide a kind of when there is dirt at the bottom of fish tank, can use the automatic siphon method at the bottom of fish tank to suck the dirt out of fish tank by automatic siphon method.
本实用新型的目的是这样实现的，一种鱼缸底部污物自动清洗器，可以达到既能吸出污水来，又不用嘴巴这一目的。使用时只需将左手捏住橡皮管的出水口，不让出气，再用右手把这清洗器按入鱼缸，让容器内的空气受压，这时松开左手，受压的空气反弹，将水通过橡皮管排出缸外，形成了虹吸，再通过毛刷清洗鱼缸四侧及底部，达到了吸取脏水物的目的。实施本实用新型时鱼缸的液面不能太低，越近缸口效果越好。使用完一次后，可以把本实用新型取出鱼缸，打开放水盖3，把密封贮气罐4内的污水全部放出，以备下一次使用。The purpose of this utility model is achieved in that a kind of automatic cleaning device for dirt at the bottom of the fish tank can achieve the purpose of not only being able to suck out the sewage, but also not using the mouth. When using, you only need to hold the water outlet of the rubber tube with your left hand to prevent the air from coming out, and then press the cleaner into the fish tank with your right hand to pressurize the air in the container. The water is discharged out of the tank through the rubber tube to form a siphon, and then the four sides and the bottom of the fish tank are cleaned through the brush to achieve the purpose of absorbing dirty water. When implementing the utility model, the liquid level of the fish tank can not be too low, and the closer the mouth of the tank, the better the effect. After using once, the utility model can be taken out of the fish tank, the drain cover 3 is opened, and the sewage in the airtight storage tank 4 is all released, in order to use next time.
四、附图说明4. Description of drawings
下面结合附图和实施例，进一步说明本实用新型鱼缸底部污物自动清洗器的结构和特点，附图中：图1是本实用新型的实施例一的结构图。Below in conjunction with accompanying drawing and embodiment, further illustrate the structure and the characteristic of the utility model fish tank bottom dirt automatic cleaning device, in the accompanying drawing: Fig. 1 is the structural diagram of embodiment one of the present utility model.
五、具体实施方式5. Specific implementation

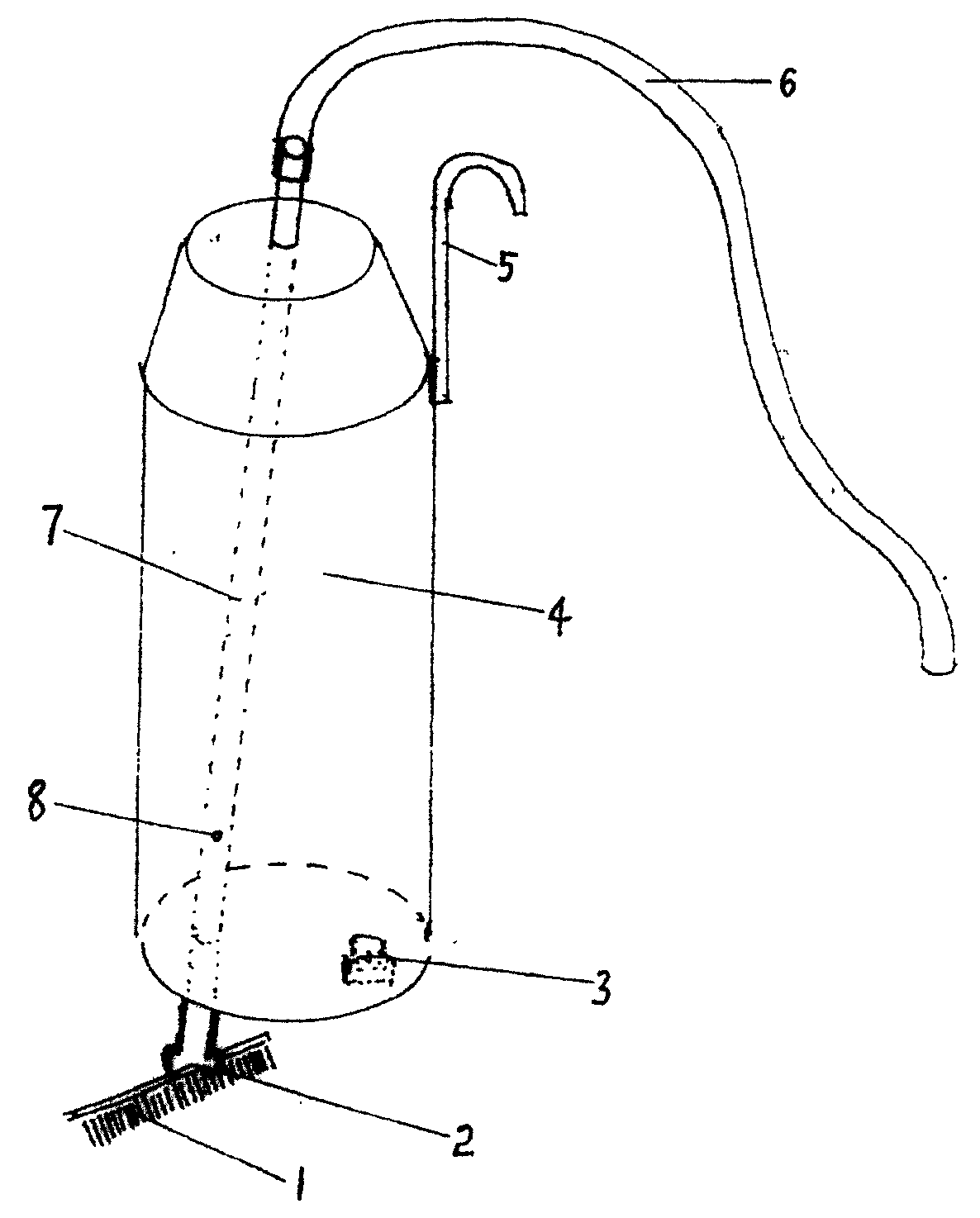

如图1所示，本实用新型包括毛刷1，空心管口2，放水盖3，密封贮气罐4，手柄挂钩5，橡皮管6，空心管7，小孔8。As shown in Figure 1, the utility model comprises hairbrush 1, hollow nozzle 2, drain cover 3, sealed air tank 4, handle hook 5, rubber tube 6, hollow pipe 7, aperture 8.
本实用新型包括密封贮气罐4，橡皮管6，毛刷1，其特征在于，在所述密封贮气罐4内竖立安装有空心管7，空心管7在密封贮气罐4的内部下方开有小孔8，空心管7的两头分别露出密封贮气罐4的上盖和下盖，空心管7露出密封贮气罐4的上盖部分连接有橡皮管6，空心管7露出密封贮气罐4的下盖部分连接有空心管口2和毛刷1。The utility model comprises a sealed air storage tank 4, a rubber tube 6, and a brush 1, and is characterized in that a hollow tube 7 is erected inside the sealed air storage tank 4, and the hollow tube 7 is below the inside of the sealed air storage tank 4. Have small hole 8, the two ends of hollow tube 7 expose the loam cake and the lower cover of airtight storage tank 4 respectively, the upper cover part of hollow tube 7 exposed airtight air storage tank 4 is connected with rubber tube 6, and hollow tube 7 exposes airtight storage tank The lower cover part of the gas tank 4 is connected with a hollow nozzle 2 and a hair brush 1 .
按照本实用新型提供的鱼缸底部污物自动清洗器，其特征在于所述密封贮气罐4的下部侧面安装有放水盖3，密封贮气罐4的上部安装有手柄挂钩5。密封贮气罐4，空心管7可以用金属材料制作。放水盖3可以是用密封材料制作。According to the automatic cleaning device for dirt at the bottom of the fish tank provided by the utility model, it is characterized in that a water discharge cover 3 is installed on the lower side of the sealed air storage tank 4 , and a handle hook 5 is installed on the top of the sealed air storage tank 4 . Sealed air storage tank 4, hollow pipe 7 can be made of metal material. Drain cover 3 can be to make with sealing material.
实施本实用新型的鱼缸底部污物自动清洗器，包括密封贮气罐4，橡皮管6，毛刷1，在所述密封贮气罐4内竖立安装有空心管7，空心管7在密封贮气罐4的内部下方开有小孔8，空心管7的两头分别露出密封贮气罐4的上盖和下盖，空心管7露出密封贮气罐4的上盖部分连接有橡皮管6，空心管7露出密封贮气罐4的下盖部分连接有空心管口2和毛刷1。Implement the automatic cleaning device for dirt at the bottom of the fish tank of the present utility model, comprising a sealed air storage tank 4, a rubber tube 6, and a hairbrush 1, and a hollow tube 7 is erected in the sealed air storage tank 4, and the hollow tube 7 is installed in the sealed storage tank 4. The inner bottom of the air tank 4 has a small hole 8, and the two ends of the hollow tube 7 respectively expose the upper cover and the lower cover of the sealed air tank 4, and the hollow tube 7 exposes the upper cover of the sealed air tank 4 and is connected with a rubber tube 6. Hollow pipe 7 exposes the lower cover part of airtight storage tank 4 and is connected with hollow nozzle 2 and hairbrush 1.
本实用新型的原理是，将左手捏住橡皮管6的出水口，不让出气，再用右手把这清洗器按入鱼缸，让密封贮气罐4内的空气受压，这时松开左手，受压的空气通过小孔8和空心管7反弹，随即带动水通过空心管口2进入空心管7，最后通过橡皮管6排出缸外，形成了虹吸，再通过毛刷清洗鱼缸四侧及底部，达到了吸取脏水物的目的。The principle of the utility model is to pinch the water outlet of the rubber tube 6 with the left hand so as not to let the air out, and then press the washer into the fish tank with the right hand to pressurize the air in the sealed air storage tank 4, and then release the left hand , the pressurized air rebounds through the small hole 8 and the hollow tube 7, and then drives the water to enter the hollow tube 7 through the hollow nozzle 2, and finally discharges out of the tank through the rubber tube 6, forming a siphon, and then cleans the four sides of the fish tank with a brush. At the bottom, the purpose of absorbing dirty water is achieved.
本实用新型设计巧妙，使用很安全，很方便、很实用。The utility model is ingenious in design, safe in use, convenient and practical.
