Abstract

The purpose of the present utility model is to provide a dish washing machine, which has a device for placing utensils or tableware, which can put the tableware into the washing container easily, space-saving and gently, the above-mentioned The object is achieved in the dishwasher according to the invention in that a separate storage device or cutlery basket is provided in the crockery basket of the dishwasher, which is at least partly integrated in a main storage plane of the crockery basket and in the The crockery basket is supported displaceably between an insertion position and a loading position. This results in the advantage that the cutlery basket can be moved independently of the crockery basket due to the movable mount. As a result, the separate storage device can be pulled forward out of the crockery basket and thus out of the rinsing container of the dishwasher without the crockery basket itself having to be moved, which makes it possible to load and remove crockery from the crockery basket Or cutlery pieces made easy.

Description

dish washing machine

technical field

The utility model relates to a tableware washing machine, which is provided with a device for placing washing articles, in particular for placing tableware pieces.

Background technique

It is known to place the rinse items in the rinse container of a dishwasher in one or more crockery baskets. These crockery baskets usually have a plastic-coated wire braid and are usually movably supported on the side wall of the rinsing container, so that when the front door of a floor-standing dishwasher (Unterbau-Geschirrspülmaschine) is opened, the crockery basket can be Pull from rinse container. For placing the cutlery pieces, a separate module in the form of a cutlery basket is usually provided in the lower crockery basket, which module can usually be removed from the crockery basket. A disadvantage of this known cutlery basket is that it is arranged in a bottom crockery basket and is therefore inconvenient and user-unfriendly for loading.

In another known device for storing crockery, a crockery drawer is provided in the upper region of the rinsing container for storing crockery besides the crockery basket, which can be inserted into the rinsing container of a dishwasher and removed from the out of which. However, such a cutlery drawer has the disadvantage that it requires a relatively large space in the rinsing container, which is lost when other rinsing items are placed; in addition, the dishwashing is improved by providing an additional cutlery drawer. machine production costs.

A separate cutlery storage device is known from document DE 199 25 312, which is placed on a crockery basket and is movably supported on a longitudinal support. The displacement movement of the cutlery storage device is limited by a stop, so that it is ensured that the drawn cutlery storage device cannot tip over. A disadvantage of this crockery storage device is that, due to the arrangement above the crockery basket, the storage space in and above the crockery storage device is limited either by the movement space of a rotating spray arm, the upper crockery basket or by the cover of the rinsing container. up. Thus according to DE 199 25 312 larger cutlery pieces cannot be placed in the cutlery storage device and even smaller cutlery pieces can only be placed in the lying position. Furthermore, by arranging the cutlery storage device above the crockery basket, the storage space in the crockery basket is restricted upwards and the handling of pieces of crockery or cutlery arranged in the crockery basket is hindered.

Utility model content

The object of the present invention is therefore to provide a dishwasher with a rinsing container, at least one crockery basket with a substantially horizontal main storage plane, and a separate storage device for storing rinsing items, in particular a A cutlery basket for storing cutlery pieces, wherein the separate storage device or cutlery basket is at least partially integrated in the main storage plane of the crockery basket and is mounted displaceably on the crockery basket between an insertion position and a loading position .

The dishwasher according to the invention has at least one crockery basket with a substantially horizontal main storage plane and a separate storage device for storing items to be rinsed, in particular a crockery basket for storing crockery pieces, wherein The separate storage device or cutlery basket described above is at least partially integrated into the main storage plane of the crockery basket and is mounted on the crockery basket so that it can move between a loading position and an insertion position. The integration of the cutlery basket into the main storage plane of the crockery basket means that at least part of the bottom of the separate storage device or the cutlery basket occupies a certain part of the main storage plane of the crockery basket, wherein the main storage plane corresponds to the crockery basket. The base or storage surface of the basket, which is bounded by the edges or side walls of the crockery basket.

With the dishwasher according to the invention, the advantage is obtained that the separate storage device or the crockery basket can be independent of the crockery basket of the dishwasher because the separate storage device or crockery basket is movably mounted on the crockery basket Therefore, the separate storage device can be withdrawn from the crockery basket without the crockery basket itself having to move. The separate storage device is thus preferably withdrawn forwards out of the crockery basket and thus out of the rinsing container of the dishwasher, which makes it possible to load and remove crockery from the separate storage device pieces or cutlery pieces made easy.

With the aid of the dishwasher according to the invention, the advantage is also obtained that, in addition to the crockery basket, no additional drawers, which are supported on the side walls of the rinsing container, are required for placing crockery pieces, and the resulting crockery drawer is not lost. comfort. According to the invention, the displaceable mounting of the crockery basket in the crockery basket makes it possible to better differentiate between standard models and special versions of dishwashers or crockery baskets both functionally and visually. Further advantages of the dishwasher according to the invention emerge from the following description of preferred embodiments.

In an advantageous embodiment of the invention, the separate storage device or crockery basket is integrated in an upper crockery basket of the dishwasher. The accessibility of the crockery or cutlery pieces placed in the separate storage device or cutlery basket is thus improved compared to an arrangement in the lower crockery basket. This makes it even more user-friendly, since the user does not have to stoop deeply when loading or removing crockery or cutlery from the cutlery basket integrated in the upper crockery basket, whereas when the cutlery basket is arranged in the lower crockery basket Sometimes the user needs to bend over deeply.

By arranging the cutlery basket in the upper crockery basket, it is not necessary to additionally place cutlery pieces in the lower crockery basket, so that the free space in the lower crockery basket can be used as desired. Furthermore, a good drying result is achieved for the dishes supported in the upper basket, since the upper area of the rinsing container is hotter than the lower area of the rinsing container during the drying process.

It is expedient if the separate storage device or the crockery basket has a height which substantially corresponds to the height of the crockery basket. The bottom of the separate storage device is here substantially at the same level as the main storage level of the crockery basket, while the upper edge of the side walls of the separate storage device is substantially at the same level as the upper edge of the side walls of the crockery basket. Constructing the separate storage device with a height substantially corresponding to the height of the crockery basket has the advantage that the entire height of the crockery basket or cutlery basket can be used for neatly arranging the cutlery pieces, so that long and Bulky pieces of utensils and cutlery.

Since the cutlery basket is integrated in the crockery basket, the crockery basket is automatically pushed out together when the crockery basket is withdrawn from the rinsing container. As mentioned above, however, the cutlery basket according to the invention can be pulled out of the crockery basket and thus out of the rinsing container of the dishwasher without the crockery basket having to be moved, since the crockery basket is movably mounted in the crockery basket. According to a further advantageous embodiment of the invention, the separate storage device or crockery basket is mounted movably on the crockery basket between the insertion position and the loading position via a rail system, preferably on rollers or sliding plates (kufen). superior. The combination of a rail system with the sliding mounting of the cutlery basket via rollers or slides makes it possible to move the cutlery basket between the insertion position and the loading position with low friction and therefore simply.

It is particularly advantageous if the separate storage device or the cutlery basket is mounted in a tilt-proof and displaceable manner on the crockery basket, preventing tipping of the cutlery basket during movement of the cutlery basket and in particular in the loading position of the cutlery basket. The individual storage devices or crockery baskets can be guided linearly by various systems, for example rail systems in the crockery baskets. For this purpose, for example, at least one guide rail is provided on the crockery basket, which has a hollow profile with an essentially U-shaped cross section, in which a slide or roller connected to the cutlery basket is movably mounted. Tilting moments that may occur during the movement or loading of the cutlery basket are thus supported in each direction by the rail system. The guide rail itself is preferably supported horizontally on the crockery basket so that the crockery basket can be moved completely out of the crockery basket and into the loading position. In this case, the displacement movement of the separate storage device or the cutlery basket is expediently limited by a stop, so that starting from the inserted position the cutlery basket is prevented from passing beyond the loading position.

In order that the separate storage device or the cutlery basket can be moved out in a user-friendly and unimpeded manner, the cutlery basket is arranged in an outer region of the crockery basket such that in the inserted position a side wall of the crockery basket is substantially parallel to the crockery basket. A side wall, preferably its end wall, is oriented. The crockery in the separate storage device or the tableware in the cutlery basket can thus be easily accessed in the dishwasher of the invention, especially if the separate storage device or the cutlery basket is arranged on a movably supported On the end wall of the crockery basket through which it can be drawn out of the rinsing container of a floor-standing dishwasher.

In a further advantageous embodiment of the invention, the separate storage device or cutlery basket is arranged in a corner region of the crockery basket, so that in the inserted position the two adjacent side walls of the cutlery basket are each substantially parallel Oriented to the end wall and one side wall of the crockery basket. By arranging the separate storage device or crockery basket in a corner area of the crockery basket, on the one hand the crockery basket can be easily handled, and on the other hand the inner area of the crockery basket can be used exclusively for storing other washing items.

Furthermore, the separate storage device or cutlery basket is arranged in an outer region of the crockery basket in such a way that at least one side wall of the crockery basket in the inserted position is at least partially a side wall, preferably at least part of an end wall, of the crockery basket . For this purpose, the cutlery basket is preferably configured and arranged on the crockery basket such that at least one side wall of the cutlery basket is aligned with a side wall of the crockery basket, in particular an end wall of the crockery basket, in the inserted position.

The separate storage device or cutlery basket can be arranged in a corner region of the crockery basket such that at least two mutually adjacent side walls of the crockery basket in the inserted position are at least part of an end wall of the crockery basket and are in each case at least a portion of one side wall. For this purpose, the cutlery basket is preferably formed and arranged on the crockery basket in such a way that at least two mutually adjacent side walls of the cutlery basket are aligned with an end wall and at least one side wall of the crockery basket in the inserted position. In this way, in addition to comfortable handling, a pleasing appearance of the crockery basket with the integrated cutlery basket can also be achieved.

A further advantage is obtained when the separate storage device or cutlery basket is detachably mounted on the crockery basket. The crockery basket can thus be withdrawn or replaced from its holding position on the crockery basket in order to easily load or unload crockery or cutlery. It is expedient if the separate storage device or the cutlery basket is equipped with a handle which preferably extends upwards beyond the height of the cutlery basket and by means of which the cutlery basket can be moved or can be pulled out of the crockery basket. Alternatively or additionally, the cutlery basket is also provided with a handle which projects at least partially horizontally beyond the side wall of the crockery basket and by means of which the cutlery basket can be pulled out of the crockery basket or the rinsing container.

According to a further advantageous embodiment of the invention, the separate storage device or cutlery basket is equipped with auxiliary means for the proper placement and support of specific crockery pieces, in particular in the cutlery basket, This facilitates the separation of the pieces of crockery or crockery and their cleaning during the rinsing process of the dishwasher. Furthermore, a clear arrangement of the cutlery at a specific position in the device is thereby achieved and contact of the cutlery is prevented, which prevents damage to the cutlery and noise generation during the rinsing process. As an alternative to the cutlery basket, a separate storage device can also be arranged on the crockery basket in the manner described above according to the invention, which is suitable for storing any other crockery.

The dishwashing machine according to the invention overcomes the disadvantages of the prior art and allows crockery and tableware to be inserted into the rinsing container in an easily accessible, space-saving and gentle manner.

Description of drawings

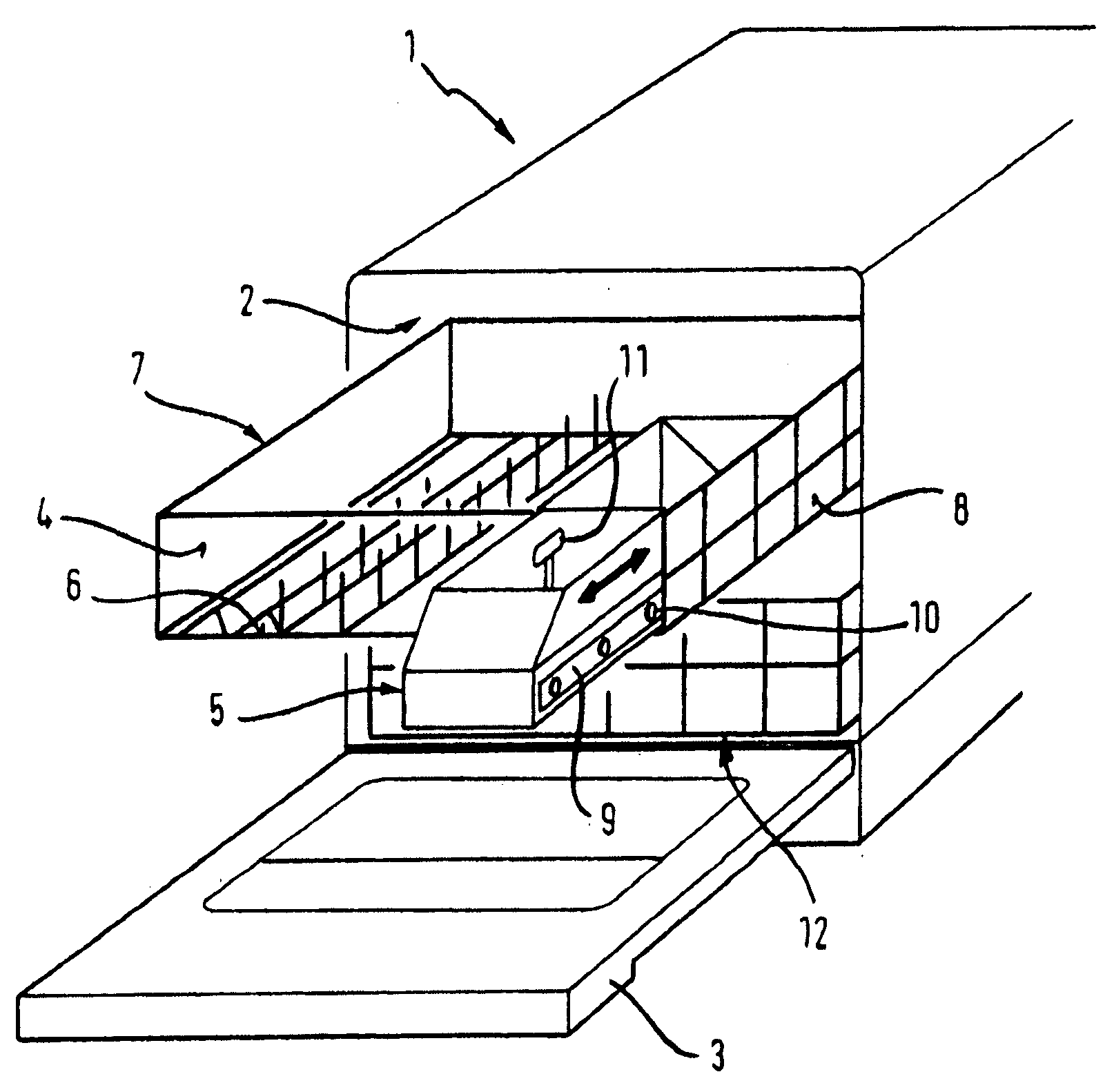

The utility model is explained in detail below with the aid of a preferred embodiment shown in the drawings. The accompanying drawing shows a perspective view of a preferred embodiment of the dishwasher of the present invention.

List of reference signs

1 Dishwashing machine

2 rinse container

3 flip door

4 end wall of utensil basket

5 individual storage units or cutlery baskets

6 main storage plane for utensil baskets

7 Upper Utensil Basket

8 side wall of utensil basket

9 Rail system for movably supporting cutlery baskets

10 Rollers for removably supporting cutlery baskets

11 handles on cutlery baskets

12 lower utensil basket

Detailed ways

A floor-standing dishwasher 1 is shown in detail in the drawing, which has a rinsing container 2 which can be closed via a swing door 3 mounted pivotably on the front side of the dishwasher 1 . An upper crockery basket 7 and a lower crockery basket 12 are arranged in the rinsing container 2, which are respectively movably supported on the side walls of the rinsing container 2 so that they can be drawn out of the rinsing container 2 for loading or Unload crockery or cutlery. In the state shown in the drawing, the tilt door 3 of the dishwasher 1 according to the invention is open and the upper crockery basket 7 is withdrawn from the rinsing container 2 , while the lower crockery basket 12 is completely inserted into the rinsing container 2 , whereby Only the front wall of the lower crockery basket 12 is visible.

The upper crockery basket 7 has a substantially horizontal main storage plane 6 , which corresponds to the base or storage surface of the crockery basket 7 , which is delimited by edges or side walls of the crockery basket 7 . The upper crockery basket 7 has a separate storage device 5 for storing rinsing items, which in the exemplary embodiment shown in the drawing is designed as a cutlery basket, in particular for storing cutlery items. The cutlery basket 5 is mounted on the crockery basket 7 displaceably between an insertion position and a loading position in the direction indicated by the double arrow. In the state shown in the drawing, the cutlery basket 5 is in the loading position, ie the cutlery basket 5 has been completely withdrawn from the crockery basket 7 and protrudes accordingly forward of the side wall 4 of the crockery basket 7 .

The cutlery basket 5 is integrated into the main storage surface 6 of the crockery basket 7 , ie the bottom surface of the cutlery basket 5 occupies part of the main storage surface 6 of the crockery basket 7 in the inserted position of the cutlery basket 5 . For this purpose, a recess is provided for the cutlery basket 5 in the main storage surface 6 of the crockery basket 7 , the size of which corresponds to the bottom surface of the cutlery basket 5 .

Since the crockery basket 5 is movably mounted on the crockery basket 7 , the crockery basket 5 can be moved in the horizontal direction independently of the crockery basket 7 of the dishwasher 1 . In this way, the crockery basket 5 can be pulled forward out of the crockery basket 7 and thus out of the rinsing container 2 of the dishwasher 1 without moving the crockery basket 7 . However, when the crockery basket 7 is drawn out, the crockery basket is still automatically withdrawn from the rinsing container 2 of the dishwasher 1 because the crockery basket 5 is integrated in the crockery basket 7 . According to the invention, the withdrawal of the crockery basket 5 from the crockery basket 7 and thus from the rinsing container 2 of the dishwasher 1 makes it possible to load the crockery basket 5 or unload crockery or cutlery from the crockery basket 5 easy.

The cutlery basket 5 has a height that substantially corresponds to the height of the crockery basket 7 . Thus the bottom of the cutlery basket 5 is substantially at the same height as the main storage plane 6 of the crockery basket 7, and the upper edges of the side walls of the cutlery basket 5 are substantially at the same height as the upper edges of the side walls 4, 8 of the crockery basket 7. height. The entire height of the crockery basket 7 or the cutlery basket 5 can thus be used for neatly arranging the cutlery pieces, so that long and bulky cutlery pieces can also be neatly placed in the cutlery basket 5 .

The cutlery basket 5 is mounted on the crockery basket 7 in a sliding and tilt-proof manner via a rail system 9 , wherein the cutlery basket 5 can be moved on rollers 10 between an insertion position and a loading position in the direction indicated by the double arrow. A guide rail 9 is therefore arranged on both sides of the cutlery basket 5 , which has a hollow profile with an essentially U-shaped cross section. The rollers 10 connected to the cutlery basket 5 are mounted kinematically in the hollow profile in such a way that any tilting moments that may occur during the movement or loading of the cutlery basket 5 are supported in every direction. In addition, the guide rail 9 itself is mounted displaceably in the horizontal direction on the crockery basket 7 in order to allow the cutlery basket 5 to be moved completely out of the crockery basket 7 into the loading position. Here, the displacement movement of the cutlery basket 5 is limited by a stop, so that starting from the inserted position the cutlery basket 5 is prevented from passing beyond the loading position.

The cutlery basket 5 is arranged in a corner region of the crockery basket 7 in such a way that the end wall and the outer side wall of the crockery basket 5 are substantially parallel to the end wall 4 and the adjacent side wall 8 of the crockery basket 7 in the inserted position respectively. Orient and align with them. Furthermore, the cutlery basket 5 is designed and arranged such that the end wall and the outer side wall of the cutlery basket 5 are respectively part of the end wall 4 and the adjacent side wall 8 of the crockery basket 7 in the inserted position. The end wall 4 of the crockery basket 7 and the side wall 8 adjacent thereto are correspondingly free in the region of the cutlery basket 5 .

The crockery basket 5 is detachably supported on the crockery basket 7 , so that the crockery basket 5 can be withdrawn from its clamping position on the crockery basket 7 in order to easily load or unload crockery or cutlery or exchange them. For this purpose, the cutlery basket 5 is equipped with a handle 11 which extends upwards beyond the height of the cutlery basket 5 and through which the cutlery basket 5 is moved or can be pulled out of the crockery basket 7 . As mentioned above, the separate storage device does not necessarily have to be formed as a cutlery basket 5, but can be a storage device that is arranged on the utensil basket 7 according to the method of the present utility model and is suitable for storing any other utensils. .

Claims (13)

1. Dishwashing machine with a rinsing container (2), at least one crockery basket (7) with a horizontal main storage surface (6) and a separate storage unit or a crockery basket (5) for storing Rinsing goods or cutlery pieces, characterized in that the separate storage device or cutlery basket (5) is at least partly integrated in the main storage plane (6) of the crockery basket (7) and in an insertion position and a loading position It is movably supported on the utensil basket (7). 2. Dishwasher according to claim 1, characterized in that the separate storage device or crockery basket (5) has a height corresponding to the height of the crockery basket (7). 3. The dishwasher according to claim 1 or 2, characterized in that the separate storage device is mounted on the crockery basket (7) in a tilt-proof and displaceable manner between the insertion position and the loading position, so that The cutlery basket ( 5 ) prevents the cutlery basket ( 5 ) from tipping over during movement and in the loading position. 4. Dishwashing machine according to claim 1, characterized in that the separate storage device or crockery basket (5) is in the insertion position via a rail system (9), preferably on rollers (10) or slides It is movably supported on the utensil basket (7) between the loading position. 5. The dishwasher according to claim 1, characterized in that the separate storage device or the cutlery basket (5) is delimited by a stop which prevents the cutlery basket (5) from exceeding the loading position. 6. Dishwasher according to claim 1, characterized in that the separate storage device or crockery basket (5) is arranged in an outer region of the crockery basket (7) such that in the inserted position the crockery basket (5 ) is oriented substantially parallel to a side wall (4, 8), preferably an end wall (4) of the crockery basket (7). 7. Dishwasher according to claim 1, characterized in that the separate storage device or crockery basket (5) is arranged in a corner region of the crockery basket (7), so that in the inserted position the crockery The two adjacent side walls of the basket (5) are each aligned substantially parallel to the end wall (4) and a side wall (8) of the crockery basket (7). 8. The dishwasher according to claim 1, characterized in that the separate storage device or crockery basket (5) is arranged in an outer area of the crockery basket (7), such that the crockery basket (5) The at least one side wall is at least partially a side wall (4, 8), preferably at least a part of the end wall (4), of the crockery basket (7) in the inserted position. 9. The dishwasher according to claim 1, characterized in that the separate storage device or crockery basket (5) can be arranged in a corner region of the crockery basket (7), so that the crockery basket (5) The two mutually adjacent side walls of the crockery basket (7) in the inserted position are respectively at least part of the end wall (4) and at least part of a side wall of the crockery basket (7). 10. The dishwasher according to claim 1, characterized in that the separate storage device or crockery basket (5) is integrated into an upper crockery basket (7) of the dishwasher (1). 11. Dishwasher according to claim 1, characterized in that the separate storage device or crockery basket (5) is detachably mounted on the crockery basket (7). 12. Dishwasher according to claim 1, characterized in that the separate storage device or cutlery basket (5) has a handle (11), which preferably extends upwards beyond the height of the cutlery basket (5), and The cutlery basket (5) is moved through it or can be pulled out of the crockery basket (7). 13. Dishwashing machine according to claim 1, characterized in that the separate storage device is equipped with aids for a suitable arrangement and support of the crockery or cutlery in the crockery basket (5).
