Abstract
The utility model pertains to cleaning device and provides a work piece cleaning basket of glass molds, which comprises an external frame and a glass mold fixing piece. The external frame is fixedly connected by fixed connection of an external frame plate through the fixing piece. The glass mold fixing piece consists of an upper separation strip, a dual-sided separation strip and a lower separation strip arranged between the external frame plates. The upper separation strip and the dual-sided separation strip are parallel arranged. The lower separation strip is positioned below the upper separation strip and the dual-sided separation strip, and is arranged in the same direction of the upper separation strip and the dual-sided separation strip. A separation opening is arranged in one side of the upper separation strip and lower separation strip and the separation opening is arranged at the both sides of the dual-sided separation strip. The separation opening positioned on the upper separation strip is left and right corresponding to the separation opening of the dual-sided separation strip. The separation opening of the lower separation strip is up and down corresponding to the separation opening positioned in the upper separation opening and dual-sided separation strip. The glass mold can be well fixed in the three separation openings of left and right and up and down mutual corresponding and is without the fixing of the spring, which improves the cleaning effect of the glass mold, and the releasing and taken out of the glass mold is also very convenient.
Description
Technical field
The utility model belongs to a kind of cleaning device, a kind of specifically glass mold cleaning workpiece basket.
Background technology
In the production procedure of eyeglass, eyeglass is further to process on the basis of glass mold.After glass mold processes, need clean it, thereby reach the purpose of removing dirt on it.Existing glass mold cleaning workpiece basket is by corrosion resistant plate housing, structural strengthening round steel, glass mold fixture, and the glass mold fixture is assembled by spring fixing feet and STAINLESS STEEL NUTS by last divider, following divider.When glass mold is put into this glass mold cleaning workpiece basket, need fix it with spring, glass mold can be pressed into divider very closely by the spring fixing feet, down between the divider.Therefore, this glass mold cleaning workpiece basket has three bigger shortcomings.The first, when cleaning, firmly compressed by the spring fixing feet because of glass mold, the dirt at the glass mold place of compressing is difficult to be cleaned out, makes residual soil on the glass mold, thereby causes the rate that manufactures a finished product of eyeglass low; The second, because the repulsion of the acting force of the spring of spring fixing feet is difficult when glass mold is put into or taken out, reduced operating efficiency to a certain extent; The 3rd, owing to used spring, make glass mold cleaning workpiece basket structure comparatively complicated, difficulty is higher during manufacturing, and manufacturing cost is very high, and fault rate is very high, and maintenance cost is also very high.No matter this shows, be to consider from the rate of manufacturing a finished product of eyeglass, still considers that from the manufacturing cost of glass mold cleaning workpiece basket existing glass mold cleaning workpiece basket all haves much room for improvement.
Summary of the invention
The purpose of this utility model is exactly the shortcoming that exists at existing glass mold cleaning workpiece basket, proposes a kind ofly to put into and take out easy, can improve the glass mold cleaning workpiece basket of cleaning performance.
The purpose of this utility model can be achieved through the following technical solutions:
A kind of glass mold cleaning workpiece basket, comprise housing, the glass mold fixture, housing is connected and fixed by being connected and fixed part by exterior deckle board, the glass mold fixture is by the last divider that is located between the exterior deckle board, two-sided divider, following divider constitutes, last divider, two-sided divider be arranged in parallel, following divider is positioned at divider, two-sided divider below, with last divider, two-sided divider is provided with in the same way, last divider, one side of following divider is provided with separates mouth, the both sides of two-sided divider are provided with separates mouth, corresponding about the separation mouth of the separation mouth on the last divider and two-sided divider one side, separation mouth on the following divider and last divider, separation mouth on the two-sided divider is corresponding up and down.
The purpose of this utility model can also further realize by following technical measures:
Aforesaid glass mold cleaning workpiece basket, wherein said separation mouth is separated mouth for being inverted trapezoidal shape, and an one side is the obtuse angle with angle that the bottom surface becomes.
Aforesaid glass mold cleaning workpiece basket, the right flank of wherein said separation mouth is 112 degree-152 degree with angle that the bottom surface becomes, the left surface of separating mouth is 60 degree-120 degree with angle that the bottom surface becomes.
Aforesaid glass mold cleaning workpiece basket, the right flank of wherein said separation mouth is 132 degree with angle that the bottom surface becomes, the left surface of separating mouth is 90 degree with angle that the bottom surface becomes.
Aforesaid glass mold cleaning workpiece basket, wherein said divider down is positioned at the center line below of divider and two-sided divider formed plane.
Aforesaid glass mold cleaning workpiece basket, wherein said exterior deckle board is provided with perforate, and perforate is between last divider and two-sided divider, above the following divider.
Advantage of the present utility model is: separate mouth owing to all be provided with on last divider, following divider and the two-sided divider, separating mouth is that an inversion is trapezoidal, the one side is the obtuse angle with angle that the bottom surface becomes, about each piece glass mold can well be fixed on, up and down mutually corresponding three separate mouthful in, need not use spring to fix, make that the cleaning performance of glass mold is improved greatly, emitting and taking out of glass mold is also more convenient flexible.Structure of the present utility model is also fairly simple, and manufacturing cost is lower, and fault rate is low, and maintenance and use cost are all lower.
Description of drawings

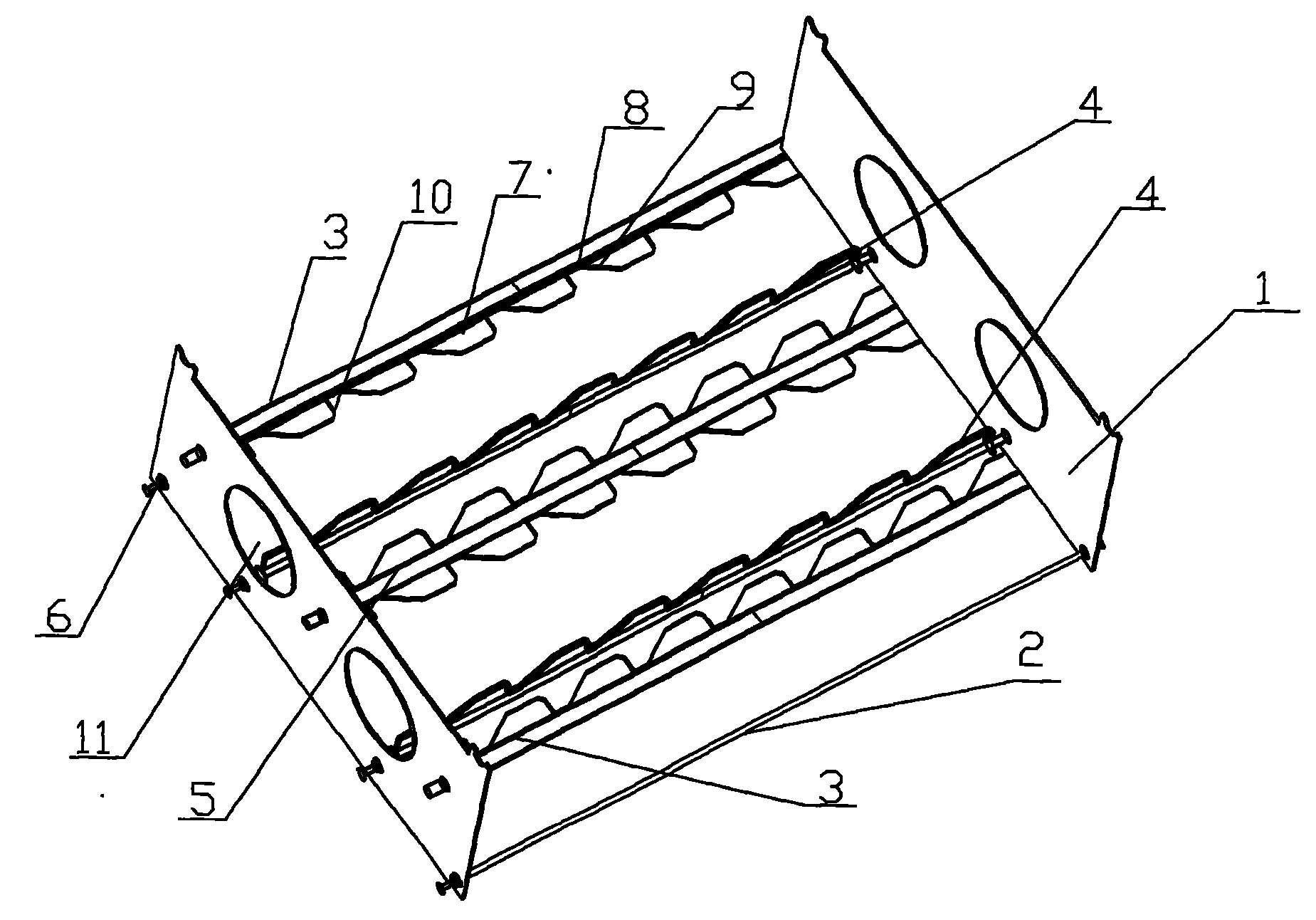

Figure 1 shows that the structural representation of an embodiment of the utility model;
Among the figure: divider, 4 times dividers, 5 two-sided dividers, 6 nuts, 7 are separated mouth, 8 and are separated mouthful bottom surfaces, 9 separation mouthful right flanks, 10 separation mouthful left surfaces, 11 perforates on 1 exterior deckle board, the 2 structural strengthening round steel, 3.
The specific embodiment
Embodiment one
A kind of glass mold cleaning workpiece basket, its structure comprise housing, glass mold fixture as shown in Figure 1, and housing is connected and fixed by structural strengthening round steel 2 by two exterior deckle boards 1 and forms, and be fixing by nut 6 between structural strengthening round steel 2 and the exterior deckle board 1.The glass mold fixture is made of the last divider 3, two-sided divider 5, the following divider 4 that are located between two exterior deckle boards 1, and is fixing by nut 6 between last divider 3, two-sided divider 5, following divider 4 and the exterior deckle board 1.Two-sided divider 5 is located in the middle of the housing, and two-sided divider 5 both sides parallel equidistant respectively are provided with one and go up divider 3, is respectively equipped with a following divider 4 below the center line of two rectangle planes of divider 3 compositions at two-sided divider 5 on two.The both sides of two-sided divider 5 all are provided with separates mouth 7, separates the both sides that mouth 7 is arranged in two-sided divider 5 in the same way.One side of last divider is provided with separates mouthfuls 7, and the separation mouth 7 on it is all identical with separation mouth 7 shape sizes on the two-sided divider 5, and arrangement mode is also identical, and about correspondence.Following divider 4 also is to have only a side to be provided with to separate mouthfuls 7, and the separation mouth 7 on the following divider 4 is all identical with separation mouth 7 shape sizes on last divider 3, the two-sided divider 5, and arrangement mode is also identical, and correspondence up and down.Last divider 3, two-sided divider 5, the separation mouth 7 on the divider 4 separates mouthfuls 7 for being inverted trapezoidal shape down, and separating mouthful right flank 9 is 132 degree with separating a mouthful angle that bottom surface 8 becomes, separates mouthful left surface 10 and a separation mouth angle that bottom surface 8 becomes and is 90 and spend.Glass mold by last divider 3, two-sided divider 5, down on the divider 4 about, up and down corresponding three separate mouthfuls 7 fixing, the lower end is held by the separation mouth on the following divider 4, two ends, the left and right sides are blocked by the separation mouth on last divider 3, the two-sided divider 5 about 7, guaranteed the fixation degree of glass mold, can in cleaning process, not drop.The side that the surface of glass die cleaning is had relatively high expectations is positioned at separates a mouthful right flank 9, and separating mouthful right flank 9 is 132 degree with separating a mouthful angle that bottom surface 8 becomes, and can guarantee its cleaning performance.The surface of glass die cleaning requires low one side to be positioned at every mouth left surface 10, and separating mouthful left surface 10 is 90 degree with separating a mouthful angle that bottom surface 8 becomes, and can guarantee that then glass mold is better fixing.On exterior deckle board 1, be provided with perforate 11, perforate 11 between last divider 3 and two-sided divider 5, the top of following divider 4, in cleaning process perforate 11 have be beneficial to water about flow, strengthen cleaning to glass mold.
The utility model also has other embodiment, and the technical scheme that equal replacement of all employings or equivalent transformation form all drops within the protection domain of the present utility model.
Claims (7)
1. glass mold cleaning workpiece basket, comprise housing, the glass mold fixture, housing is connected and fixed by being connected and fixed part by exterior deckle board, it is characterized in that: described glass mold fixture is by the last divider that is located between the exterior deckle board, two-sided divider, following divider constitutes, last divider, two-sided divider be arranged in parallel, following divider is positioned at divider, two-sided divider below, with last divider, two-sided divider is provided with in the same way, the described divider of going up, one side of following divider is provided with separates mouth, the both sides of described two-sided divider are provided with separates mouth, corresponding about the separation mouth of the separation mouth on the last divider and two-sided divider one side, separation mouth on the following divider and last divider, separation mouth on the two-sided divider is corresponding up and down.
2. glass mold cleaning workpiece basket as claimed in claim 1 is characterized in that: described separation mouth is separated mouth for being inverted trapezoidal shape, and an one side is the obtuse angle with angle that the bottom surface becomes.
3. glass mold cleaning workpiece basket as claimed in claim 1 or 2 is characterized in that: the described right flank of separating mouthful is 112 degree-152 degree with angle that the bottom surface becomes, and the described left surface of separating mouthful and angle that the bottom surface becomes are 60 to spend-120 and spend.
4. glass mold cleaning workpiece basket as claimed in claim 3 is characterized in that: the described right flank of separating mouth is 132 degree with angle that the bottom surface becomes, and the described left surface of separating mouth is 90 degree with angle that the bottom surface becomes.
5. glass mold cleaning workpiece basket as claimed in claim 1 is characterized in that: described divider down is positioned at the center line below of divider and two-sided divider formed plane.
6. glass mold cleaning workpiece basket as claimed in claim 1, it is characterized in that: described exterior deckle board is provided with perforate, and described perforate is between last divider and two-sided divider, above the following divider.
7. glass mold cleaning workpiece basket as claimed in claim 1, it is characterized in that: described two-sided divider is located in the middle of the housing, two-sided divider both sides parallel equidistant respectively are provided with a upward divider, be respectively equipped with a following divider below the center line of two rectangle planes that divider is formed on two-sided divider and two, corresponding about the separation mouth on the separation mouth of described two-sided divider both sides and the last divider, the separation mouth of following divider and last divider, separation mouth on the two-sided divider is corresponding up and down, described separation mouth is separated mouth for being inverted trapezoidal shape, its right flank is 132 degree with angle that the bottom surface becomes, and its left surface is 90 degree with angle that the bottom surface becomes.
